小槽宽蒸发式供油/稳焰一体化火焰稳定器结构参数对贫油点熄火性能的影响研究

苗建磊; 胡斌; 石强; 曾文; 裴吉; 赵庆军

doi:10.13224/j.cnki.jasp.20230788

小槽宽蒸发式供油/稳焰一体化火焰稳定器结构参数对贫油点熄火性能的影响研究

doi: 10.13224/j.cnki.jasp.20230788

苗建磊^{1, 2,},
胡斌^{2, 3, 4},
石强^{2, 3},
曾文⁵,
裴吉¹,
赵庆军^{2, 3, 4, 6,*, ,}

1.
江苏大学流体机械工程技术研究中心，江苏镇江 212013
2.
中国科学院工程热物理研究所，北京 100190
3.
中国科学院工程热物理研究所轻型涡轮动力全国重点实验室，北京 100190
4.
中国科学院大学航空宇航学院，北京 100049
5.
沈阳航空航天大学航空发动机学院，沈阳 110136
6.
中国科学院工程热物理研究所分布式冷热电联供系统北京市重点实验室，北京 100190

详细信息

作者简介:
苗建磊（1997-），男，硕士，主要从事航空发动机燃烧学研究

通讯作者:
赵庆军（1977-），男，研究员、博士生导师，博士，主要从事叶轮机械气动热力学研究。 E-mail：zhaogingjun@iet.cn

中图分类号: V231.1
计量
- 文章访问数: 722
- HTML浏览量: 525
- PDF量: 35
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-14
- 网络出版日期: 2025-11-26

Research on the influences of structural parameters of small slot wide evaporative fuel supply/flame stabilization integrated flameholder on lean ignition and lean blowout performance

MIAO Jianlei^{1, 2
,},
HU Bin^{2, 3, 4},
SHI Qiang^{2, 3},
ZENG Wen⁵,
PEI Ji¹,
ZHAO Qingjun^{2, 3, 4, 6,*
, ,}

1.
Research Center of Fluid Machinery Engineering and Technology，Jiangsu University，Zhenjiang Jiangsu 212013，China
2.
Institute of Engineering Thermophysics，Chinese Academy of Sciences，Beijing 100190，China
3.
National Key Laboratory of Science and Technology on Advanced Light-duty Gas-turbine，Institute of Engineering Thermophysics，Chinese Academy of Sciences，Beijing 100190，China
4.
School of Aeronautics and Astronautics，University of Chinese Academy of Sciences，Beijing 100049，China
5.
School of Aero-engine，Shenyang Aerospace University，Shenyang 110136，China
6.
Beijing Key Laboratory of Distributed Combined Cooling Heating and Power System，Institute of Engineering Thermophysics，Chinese Academy of Sciences，Beijing 100190，China

摘要

摘要:
小槽宽蒸发式供油/稳焰一体化火焰稳定器具有火焰稳定性好、总压恢复系数高的技术优势，在未来宽域吸气式发动机加力燃烧室具有良好的应用前景，为了探究结构参数对小槽宽蒸发式供油/稳焰一体化火焰稳定器贫油点熄火特性的影响，在气流速度为40～115 m/s和气流温度为573 K条件下，在二元试验段内对不同槽宽和开孔率的小槽宽蒸发式供油/稳焰一体化火焰稳定器开展贫油点熄火试验及冷态流场数值模拟研究，研究结果表明：①开孔率增大，局部回流区涡数目增加，同时燃油气动雾化和蒸发增强，燃烧室点熄火油气比降低；②大开孔率火焰稳定器的贫油点熄火油气比随来流速度增加呈现先减小后增加趋势，小开孔率火焰稳定器的贫油点熄火油气比随来流速度增加持续减小；③槽宽增加，局部回流区涡系尺寸增大，同时燃油气动雾化和蒸发增强，燃烧室点熄火油气比降低。
- 槽宽 /
- 开孔率 /
- 油气比 /
- 局部回流区 /
- 雾化
Abstract:
With the advantages of good flame stability and high total pressure recovery coefficient, the small slot wide evaporative fuel supply/flame stabilization integrated flameholder has a good application prospect in the afterburner of wide-range aspirated engine in the future. To investigate the influences of structural parameters on the performances of the flameholder lean ignition and lean blowout, the lean ignition and lean blowout test and cold state numerical simulation of the flameholder with different slot width and hole ratio were carried out in rectangular test section under the condition of air velocity of 40—115 m/s and air temperature of 573 K. The results showed that: (1) with the increase of the hole ratio, the number of vortices in the local recirculation increased, the fuel atomization and evaporation were enhanced, and the ignition and lean blowout fuel/air ratio of the combustion chamber decreased; (2) with the increase of incoming flow speed, the ignition and lean blowout fuel/air ratio of large hole ratio flameholder decreased first and then increased, and the ignition and lean blowout fuel/air ratio of small hole ratio flameholder decreased continuously; (3) with the increase of slot width, the size of vortex system in the local recirculation zone increased, the fuel atomization and evaporation were enhanced, and the ignition and lean blowout fuel/air ratio of the combustion chamber decreased.
- slot width /
- hole ratios /
- fuel/air ratio /
- local recirculation zone /
- atomization

HTML

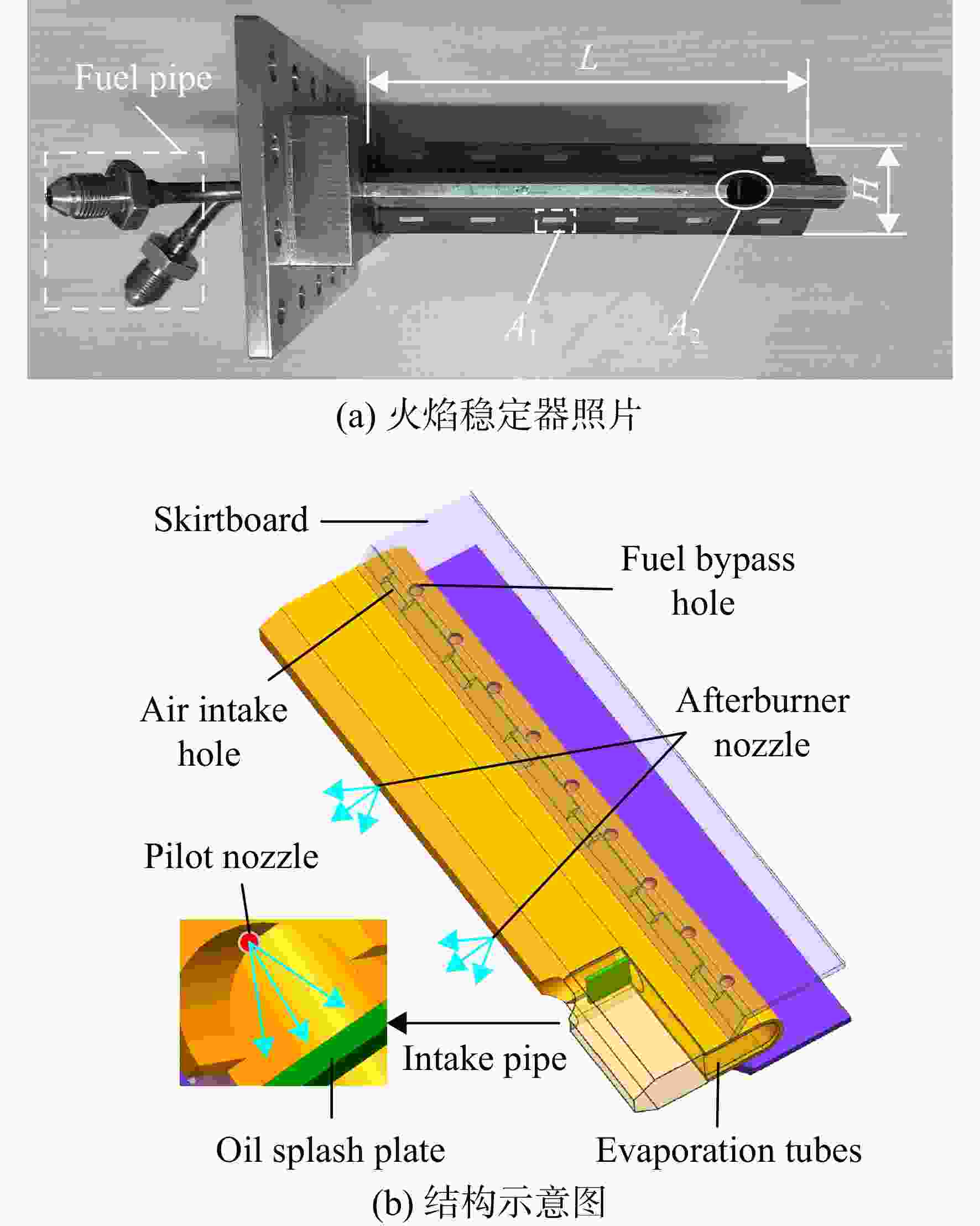

图 1 小槽宽蒸发式供油/稳焰一体化火焰稳定器

Figure 1. Small slot wide evaporative fuel supply/flame stabilization integrated flameholder

下载: 全尺寸图片幻灯片

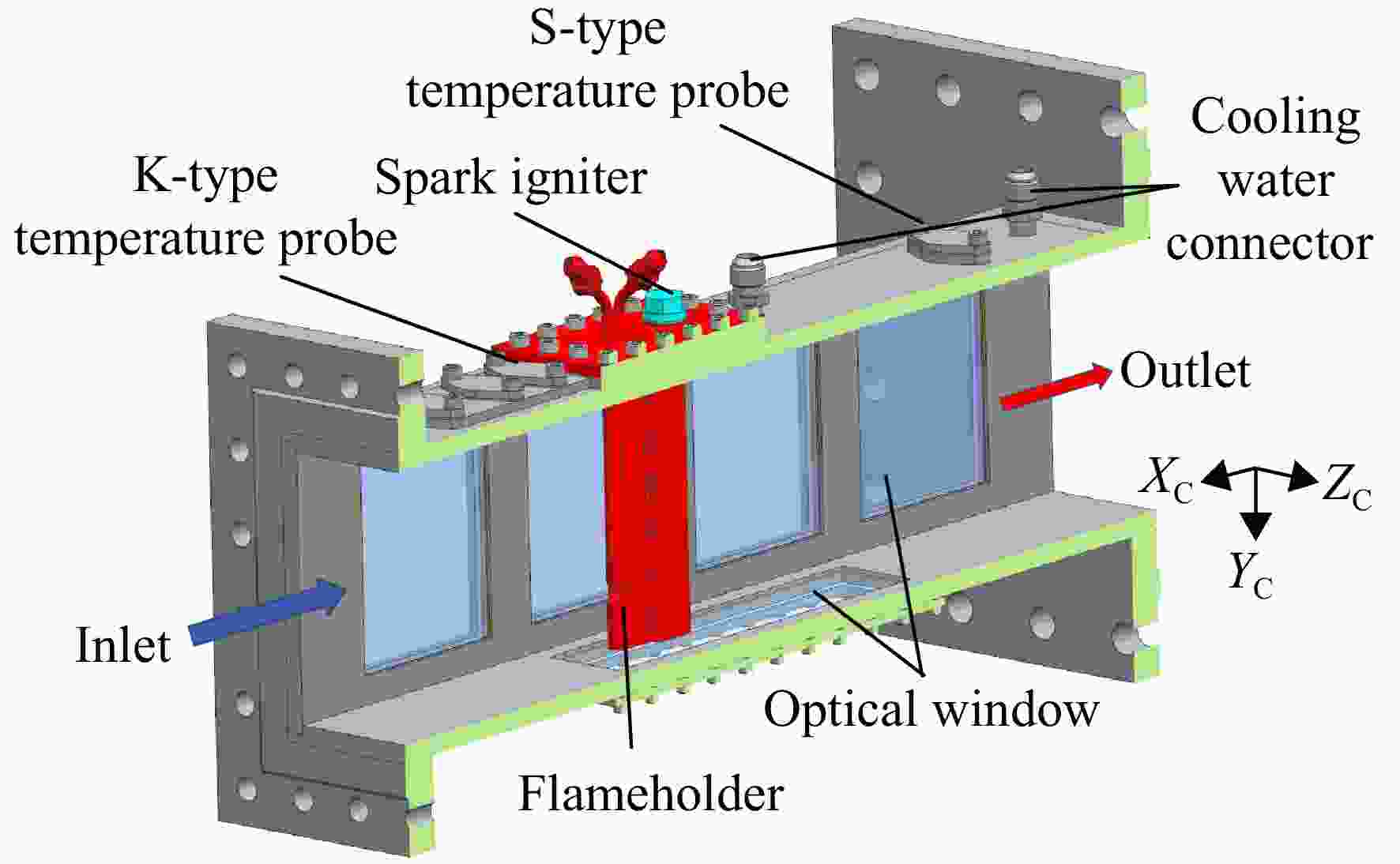

图 2 试验段模型

Figure 2. Model diagram of the test section

下载: 全尺寸图片幻灯片

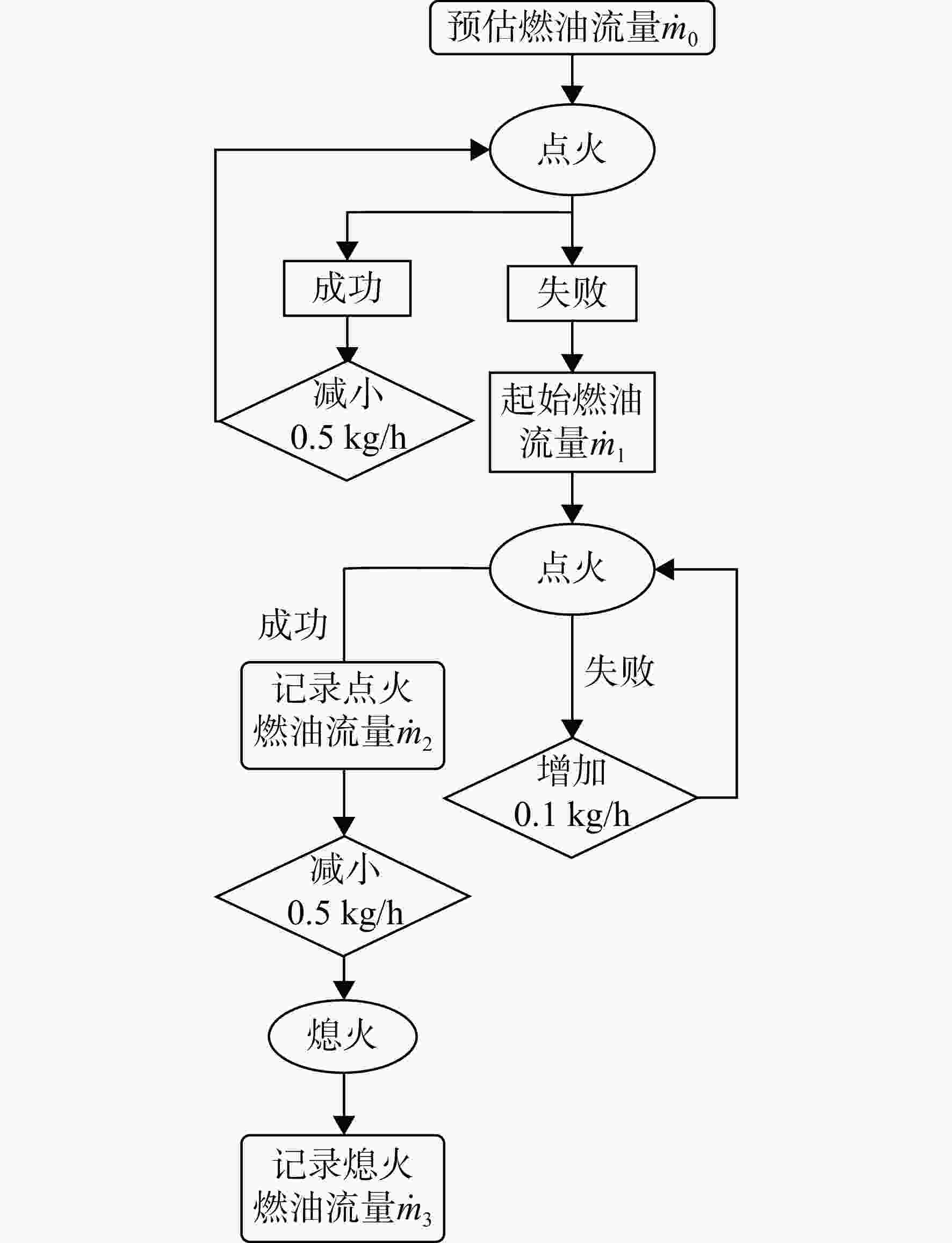

图 3 试验方法流程图

Figure 3. Test method flow chart

下载: 全尺寸图片幻灯片

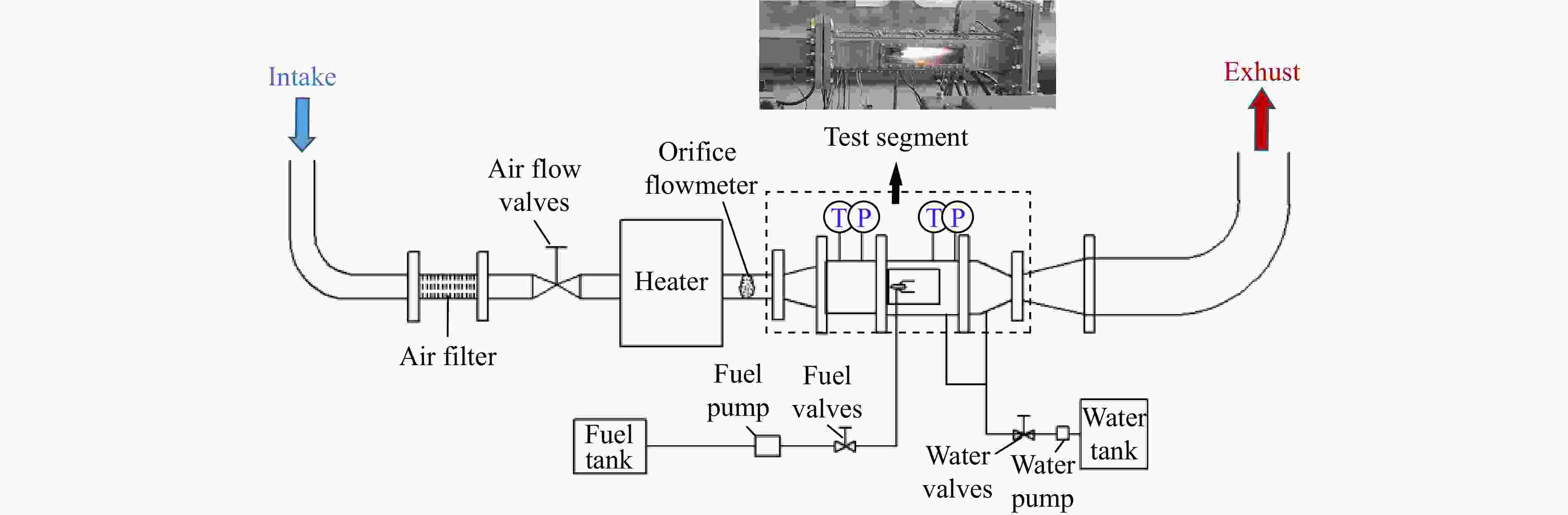

图 4 试验系统原理图

Figure 4. Schematic diagram of test system

下载: 全尺寸图片幻灯片

图 5 物理模型和计算域（单位：mm）

Figure 5. Schematic view of physical model and computational domain （unit：mm）

下载: 全尺寸图片幻灯片

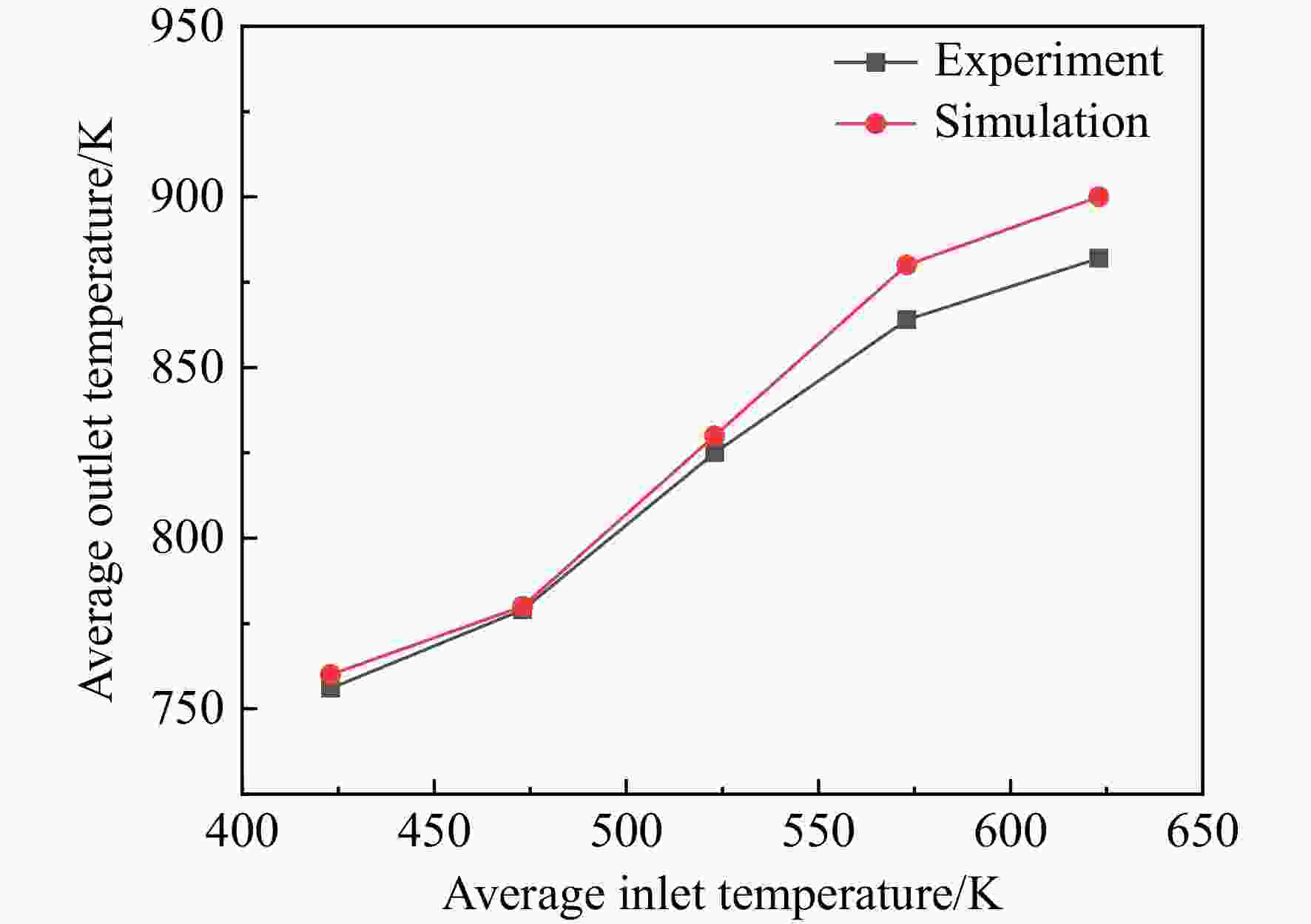

图 6 不同来流温度下试验和数值计算的燃烧室出口温度对比

Figure 6. Comparison of numerical simulation and test outlet temperature at different inlet temperature

下载: 全尺寸图片幻灯片

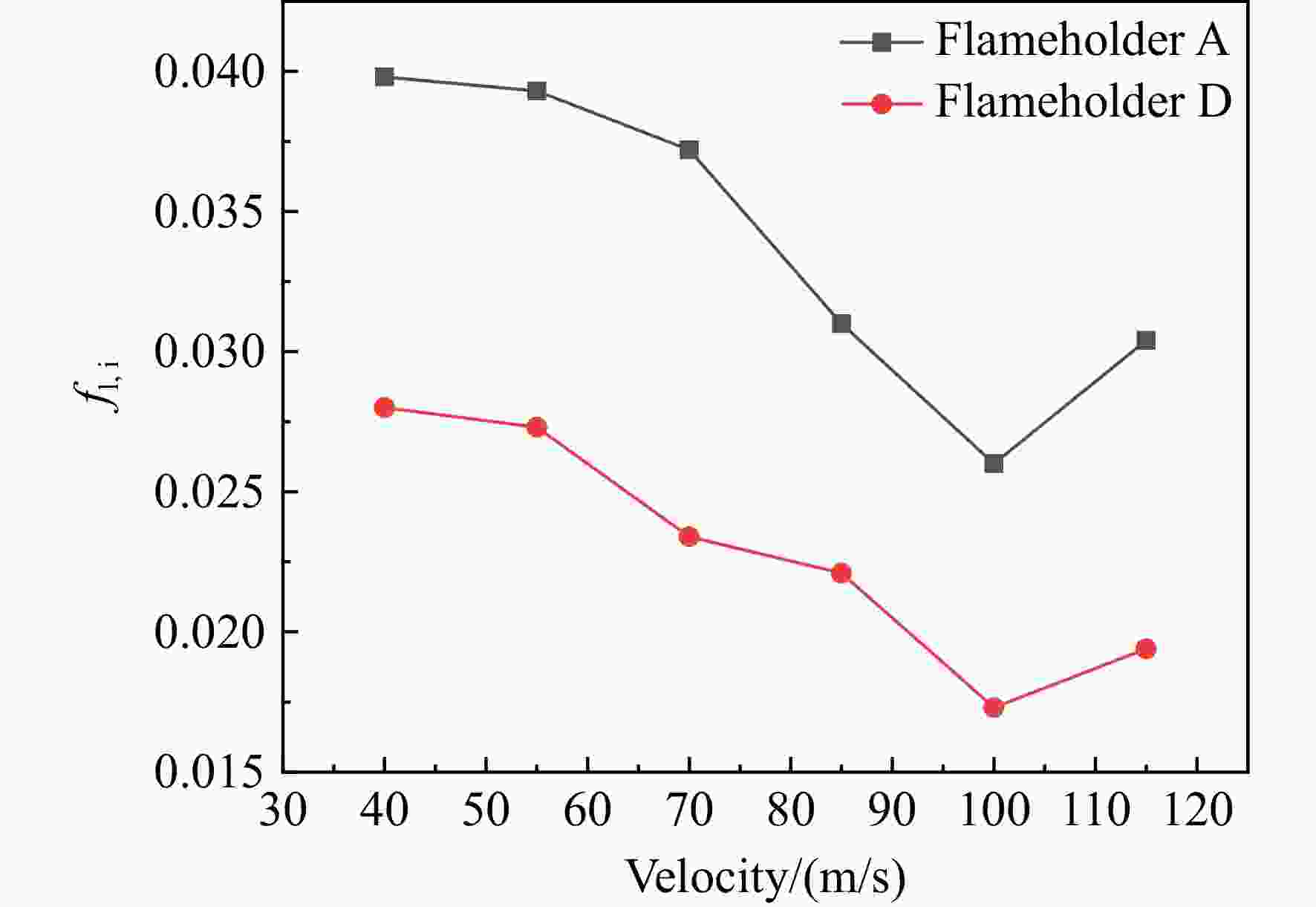

图 7 来流条件为573 K和101325 Pa条件下，来流速度和槽宽对点火油气比的影响

Figure 7. Influence of velocities and flame-holder widths on ignition fuel/air ratios under incoming condition of 573 K and 101325 Pa

下载: 全尺寸图片幻灯片

图 8 来流条件为573 K和101325 Pa条件下，来流速度和开孔率对点火油气比的影响

Figure 8. Influence of velocities and flame-holder hole ratios on ignition fuel/air ratios under incoming condition of 573 K and 101325 Pa

下载: 全尺寸图片幻灯片

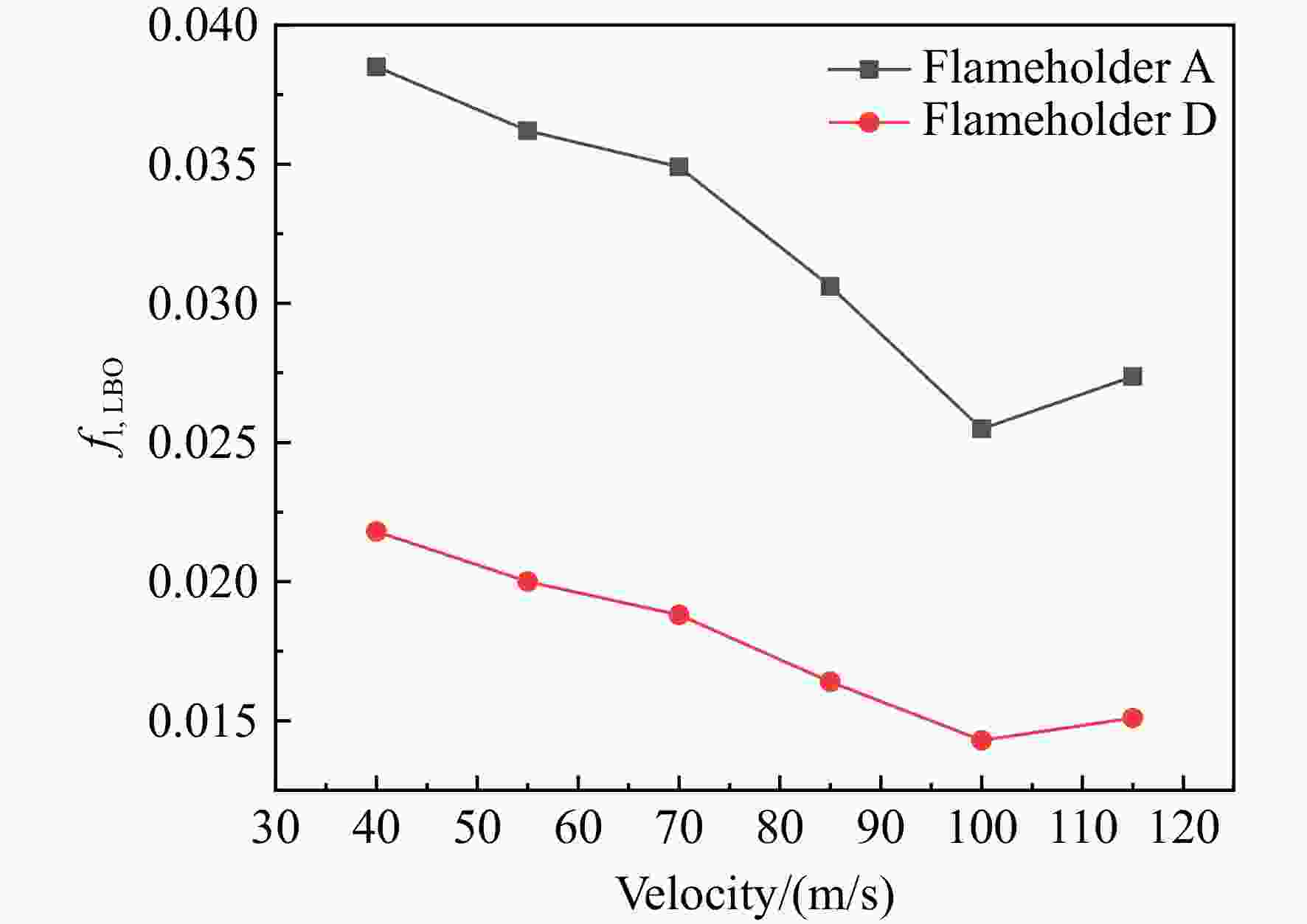

图 9 来流条件为573 K和101325 Pa条件下，来流速度和槽宽对熄火油气比的影响

Figure 9. Influence of velocities and flame-holder widths on LBO fuel/air ratios under incoming condition of 573 K and 101325 Pa

下载: 全尺寸图片幻灯片

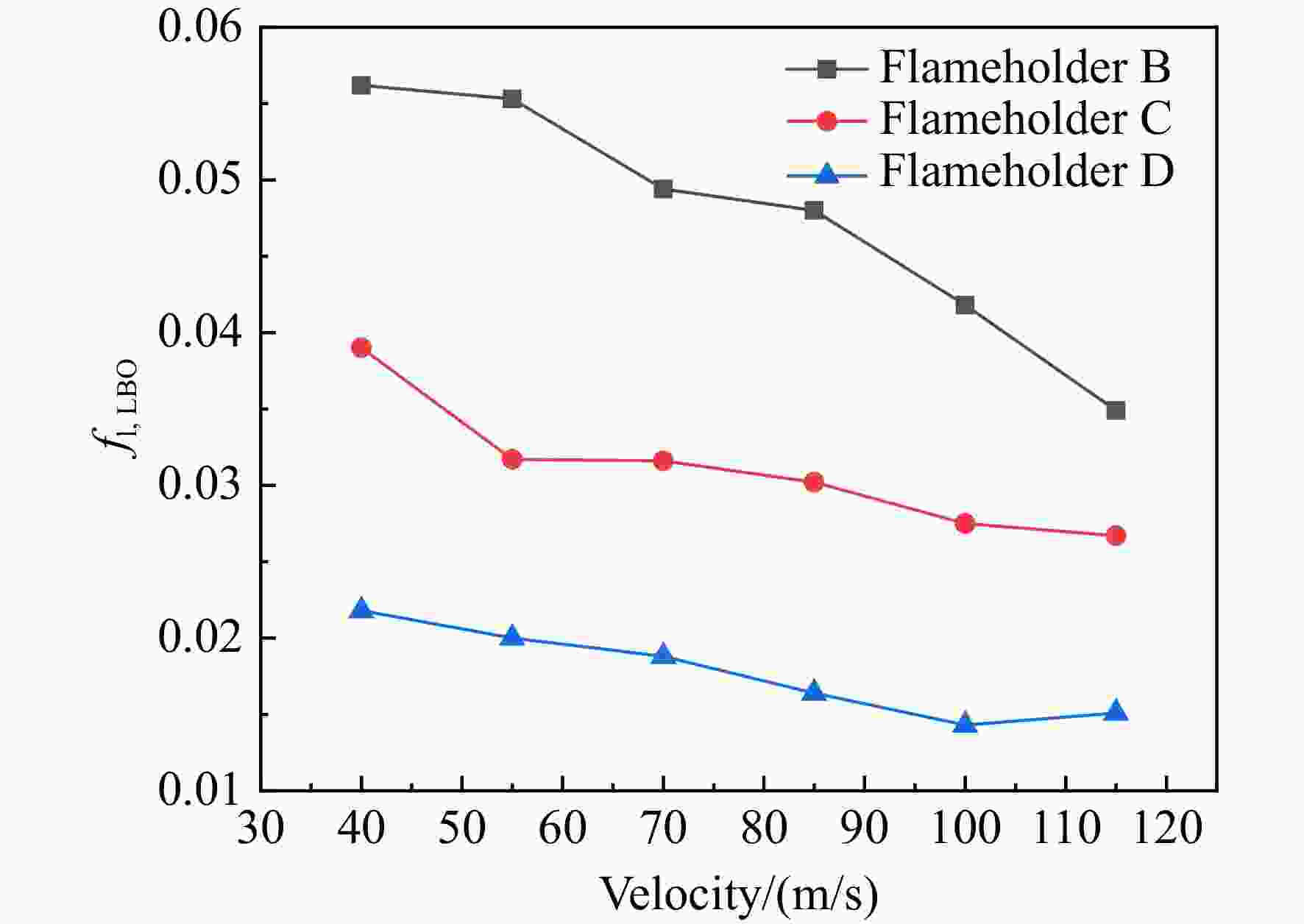

图 10 来流条件为573 K和101325 Pa条件下，来流速度和开孔率对熄火油气比的影响

Figure 10. Influence of velocities and flame-holder hole ratios on LBO fuel/air ratios under incoming condition of 573 K and 101325 Pa

下载: 全尺寸图片幻灯片

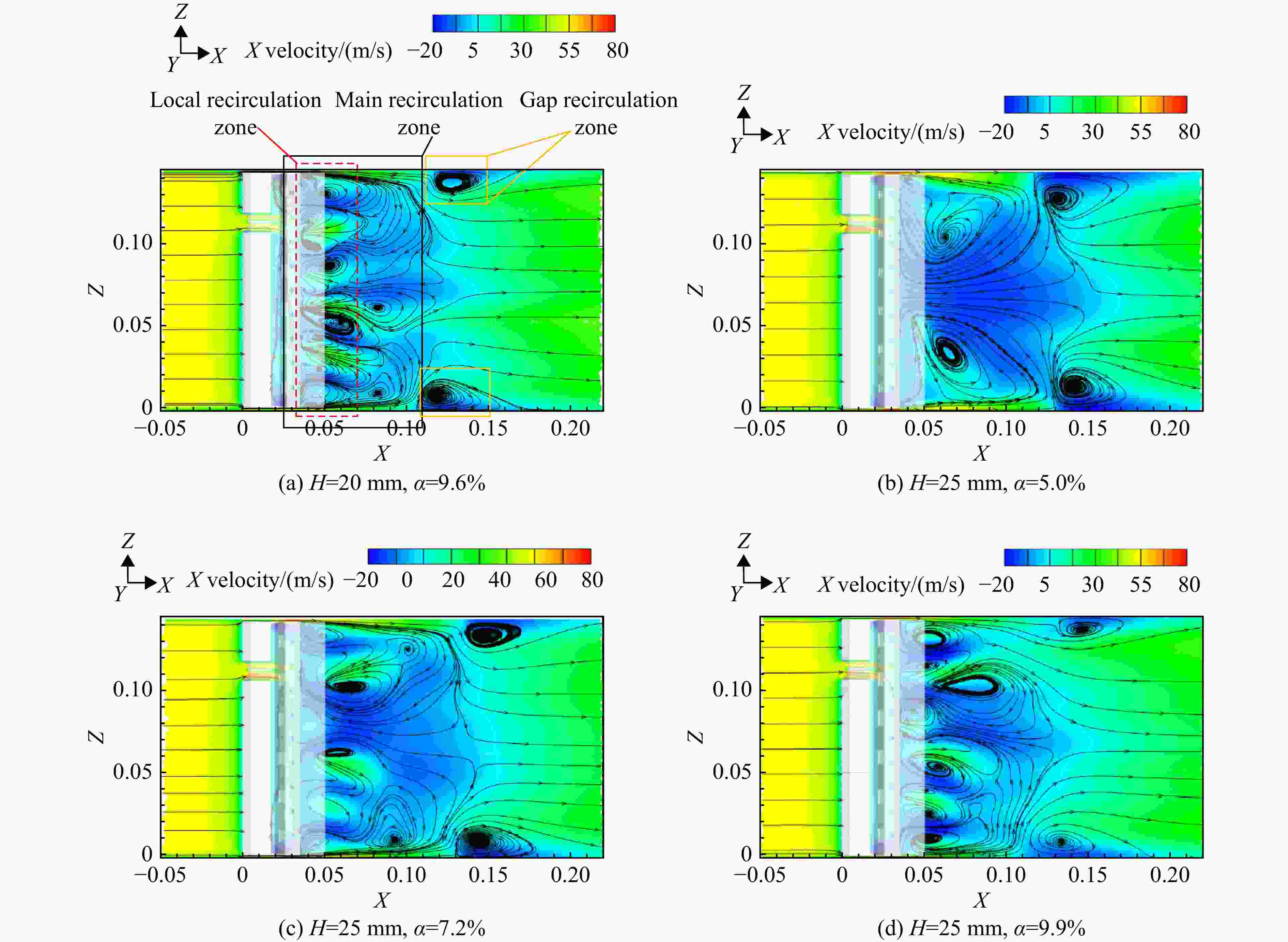

图 11 不同结构的火焰稳定器在Y=0平面内的流线分布

Figure 11. Streamline distribution of flame stabilizers with different structures in the Y=0 plane

下载: 全尺寸图片幻灯片

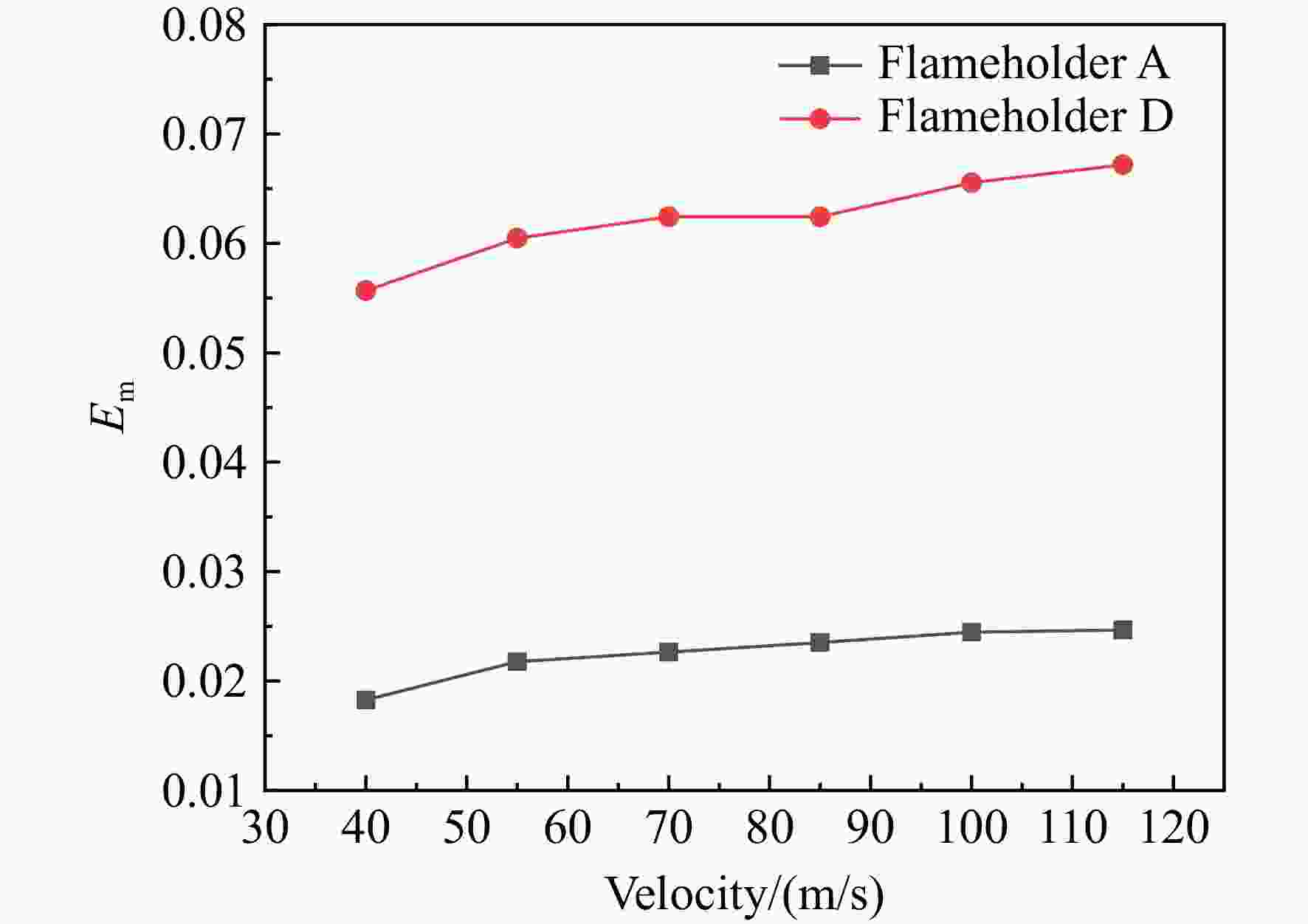

图 12 不同槽宽稳定器的动量交换率与来流速度的关系

Figure 12. Relationship between momentum exchange rate and velocity of different slot width flameholder

下载: 全尺寸图片幻灯片

图 13 不同开孔率稳定器的动量交换率与来流速度的关系

Figure 13. Relationship between momentum exchange rate and velocity of different hole ratios flameholder

下载: 全尺寸图片幻灯片

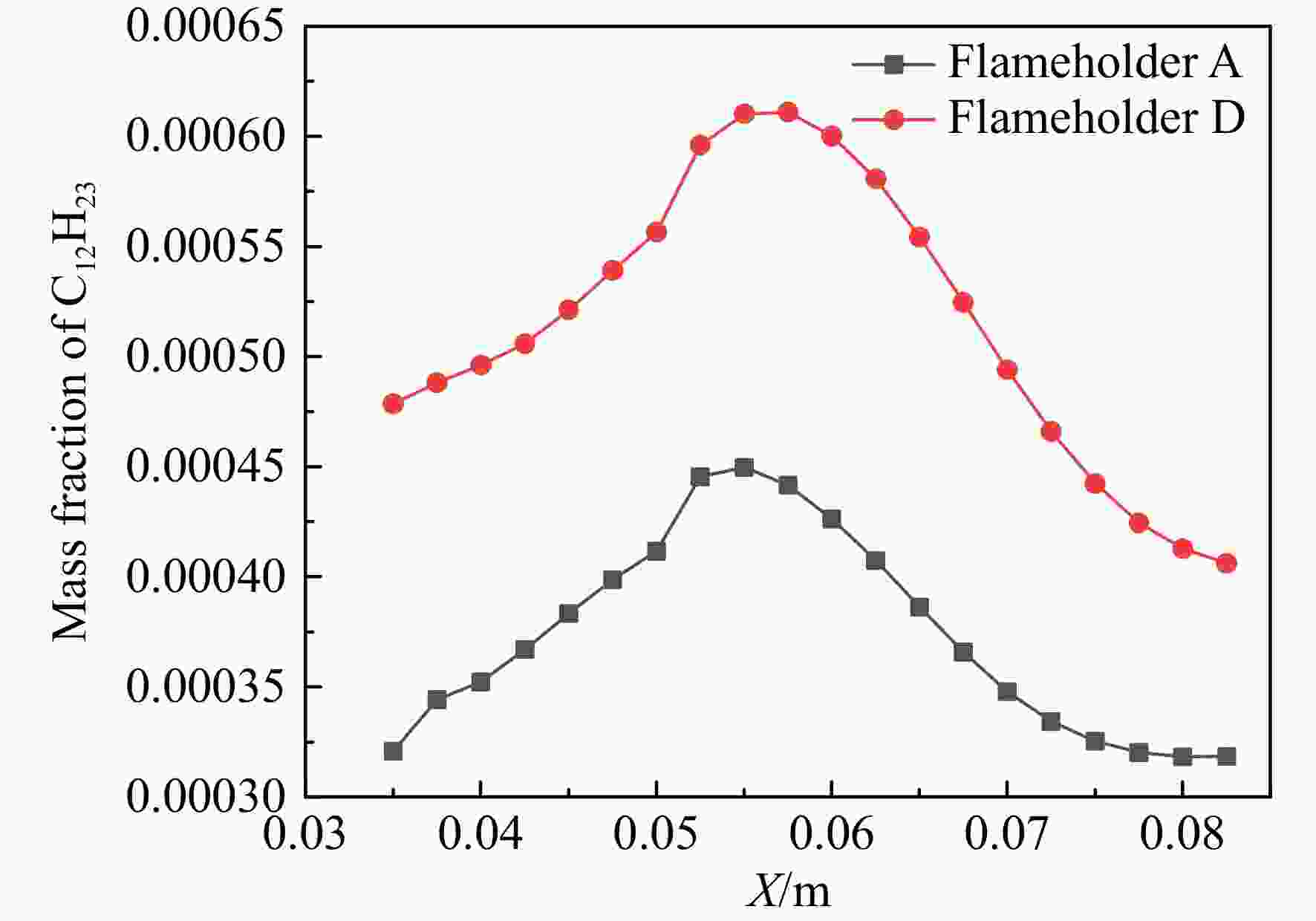

图 14 不同槽宽稳定器局部回流区的气态燃油分布

Figure 14. Local recirculation zone gas fuel distribution of different slot width flameholder

下载: 全尺寸图片幻灯片

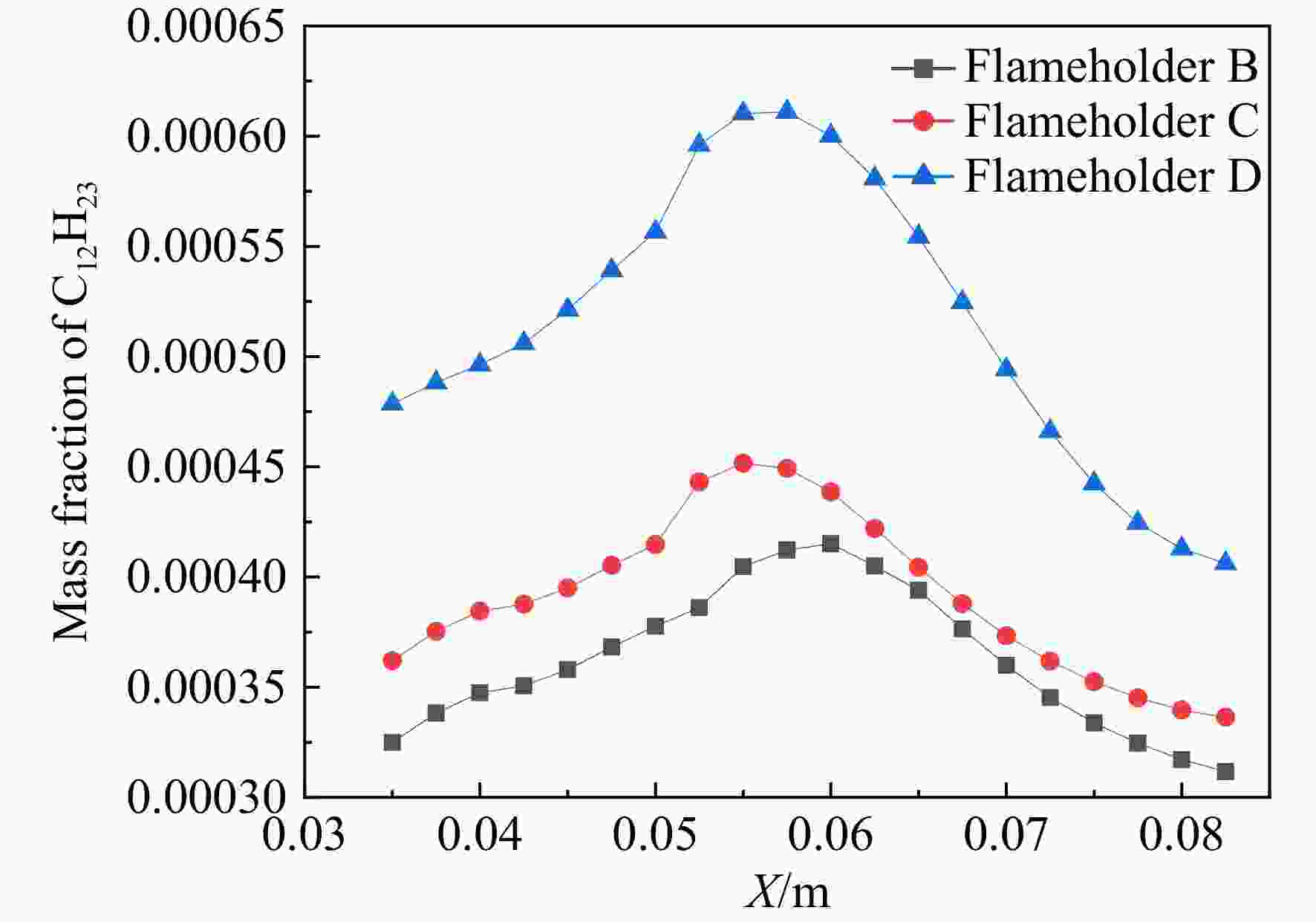

图 15 不同开孔率稳定器局部回流区的气态燃油分布

Figure 15. Local recirculation zone gas fuel distribution of different hole ratios flameholder

下载: 全尺寸图片幻灯片

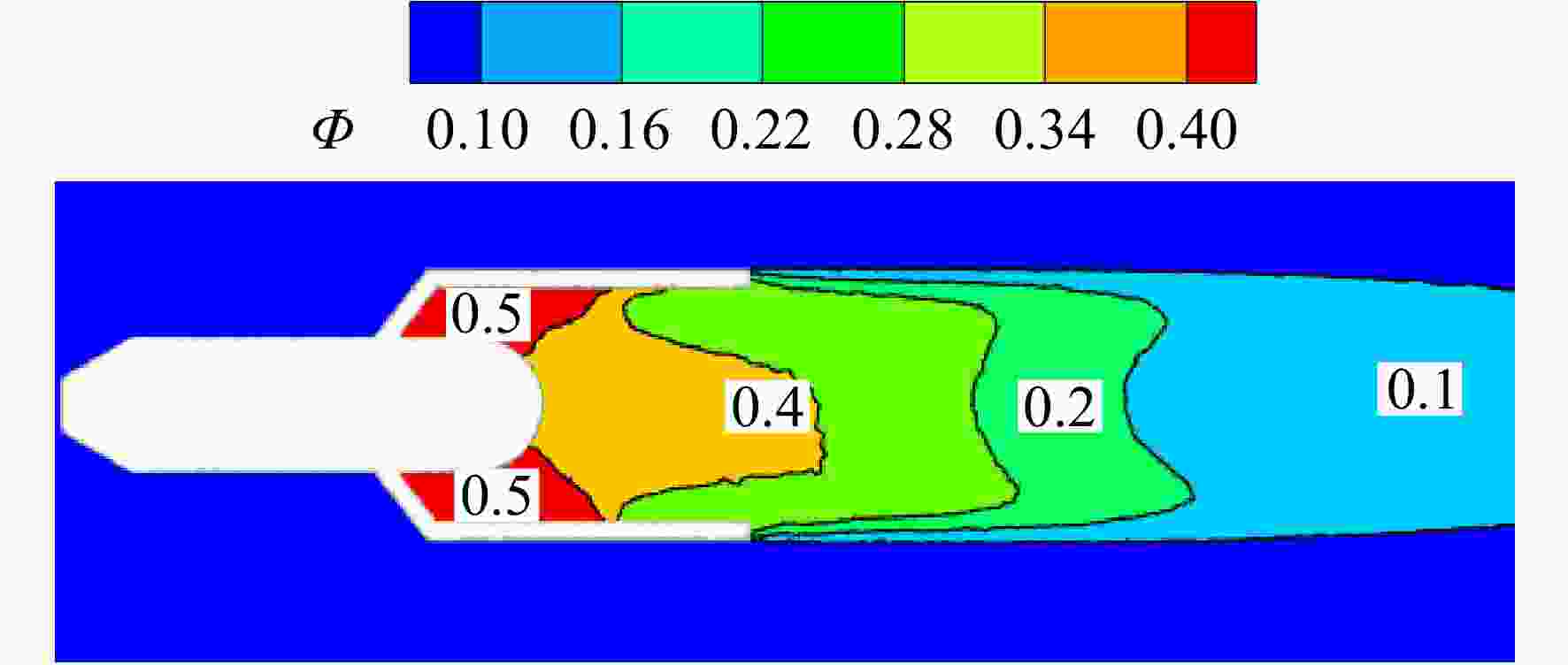

图 16 稳定器A点火极限工况下在Z=0的截面的当量比分布

Figure 16. Equivalent ratio distribution of flameholder A in the Z=0 plane in the ignition limit condition

下载: 全尺寸图片幻灯片

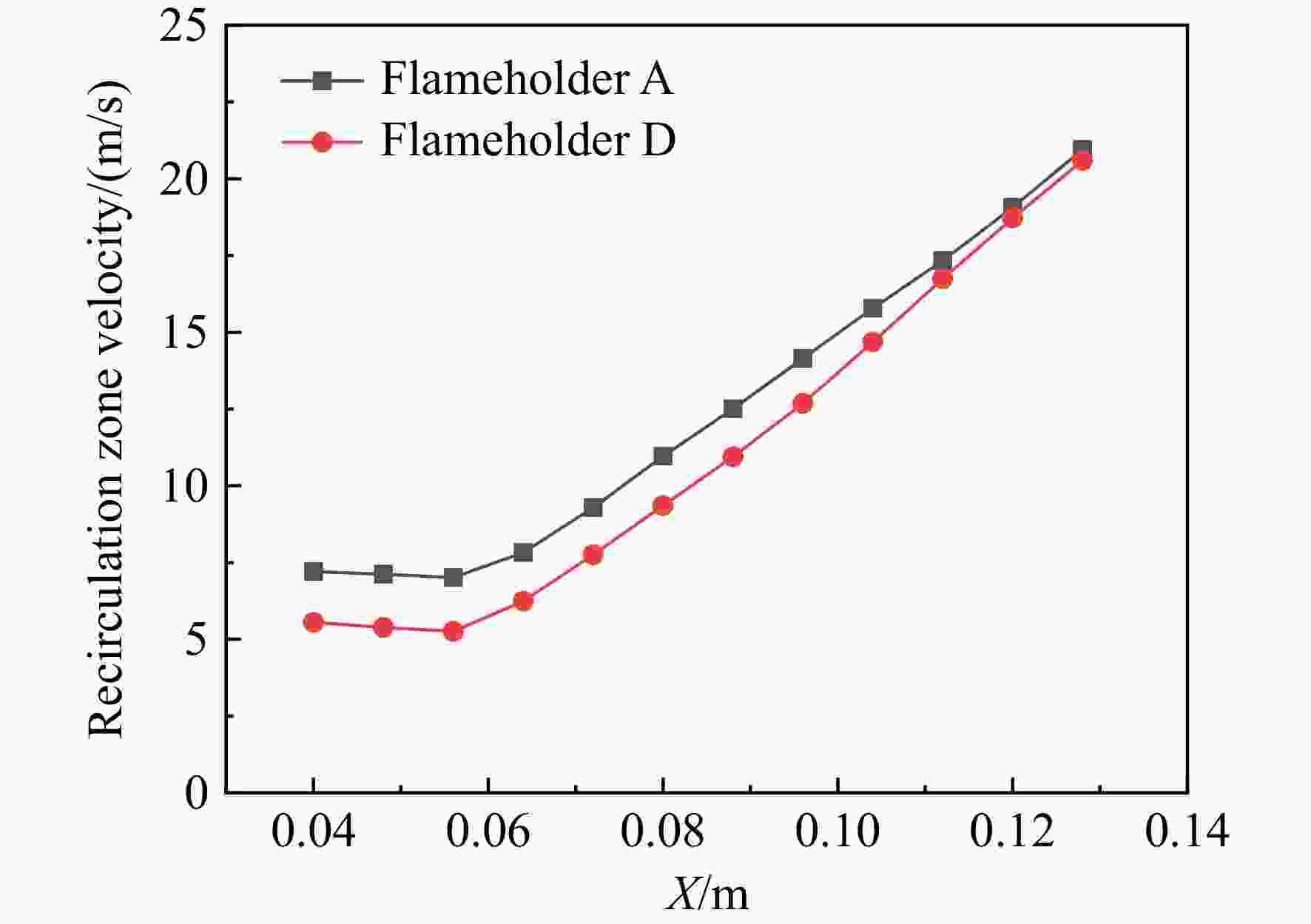

图 17 不同槽宽稳定器局部回流区沿流动方向的速度分布

Figure 17. Velocity distribution of the local recirculation zone of the different slot width flameholder along the flow direction

下载: 全尺寸图片幻灯片

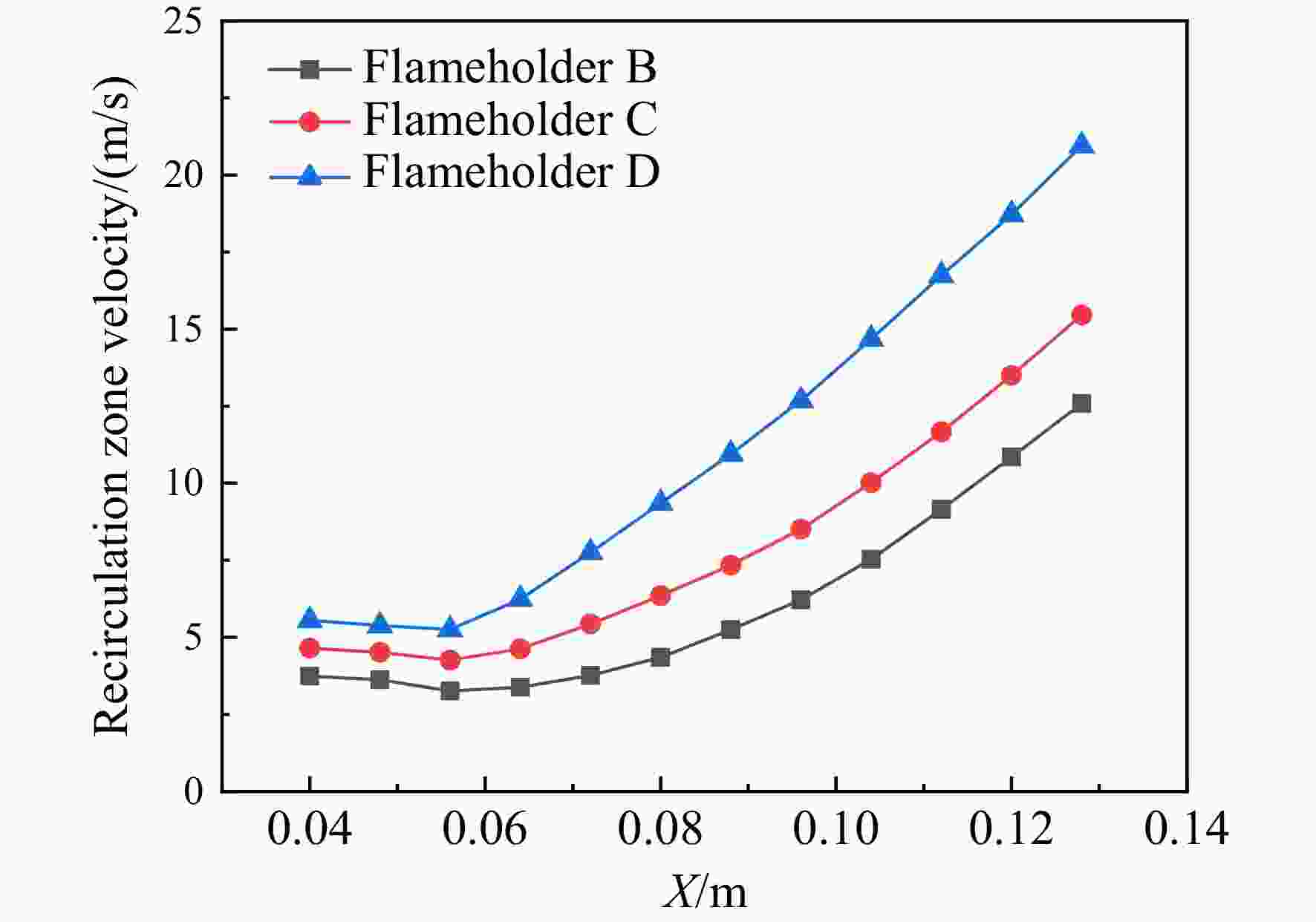

图 18 不同开孔率稳定器局部回流区沿流动方向的速度分布

Figure 18. Velocity distribution of the local recirculation zone of the different hole ratios stabilizer along the flow direction

下载: 全尺寸图片幻灯片

表 1 结构参数表

Table 1. Structure parameter table

编号	槽宽 H/mm	开孔率 α/%	长度 L/mm
A	20	9.6	142
B	25	5.0	142
C	25	7.2	142
D	25	9.9	142

下载: 导出CSV

表 2 试验工况参数

Table 2. Test condition parameters

试验工况编号	火焰稳定器编号	来流温度 T/K	来流速度 v/（m/s）
1	A/B/C/D	573	40
2	A/B/C/D	573	55
3	A/B/C/D	573	70
4	A/B/C/D	573	85
5	A/B/C/D	573	100
6	A/B/C/D	573	115

下载: 导出CSV

表 3 网格无关性验证

Table 3. Grid independence test and verify

网格数目/10⁴	局部进气量$ {\dot m}_{\mathrm{l}}/ $（g/s）
166	9.431
201	9.467
247	9.523
310	9.532
400	9.536

下载: 导出CSV
