紧凑型换热器传热特性的高效预测方法

李娜; 严旭; 陈胥衡; 周鑫; 苏纬仪; 段振宇

doi:10.13224/j.cnki.jasp.20230811

紧凑型换热器传热特性的高效预测方法

doi: 10.13224/j.cnki.jasp.20230811

1.
南京工业大学能源科学与工程学院，南京 211800
2.
南京航空航天大学能源与动力学院，南京 210016

基金项目: 先进航空动力创新工作站项目（HKCX2020-02-021）

详细信息

作者简介:
李娜（1980-），女，副教授，博士，主要从事传热传质方向的研究工作。E-mail：linanjut@njtech.edu.cn

中图分类号: V211.3
计量
- 文章访问数: 513
- HTML浏览量: 373
- PDF量: 79
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-22
- 网络出版日期: 2024-08-29

Efficient prediction of heat transfer characteristics of compact heat exchangers

1.
School of Energy Science and Engineering，Nanjing Tech University，Nanjing 211800，China
2.
College of Energy and Power Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China

摘要

摘要:
围绕紧凑型换热器内流动换热特性及高效计算方法进行研究，建立了基于多孔介质理论的紧凑型换热器温度分布快速计算方法。应用该方法，分别对参考ATREX发动机叉排管束预冷器构型和SABRE发动机渐开线螺旋排列管束预冷器构型的换热模型进行性能分析，建立了相应的传热性能快速计算的方法和流程，结果表明：预测结果与FLUENT 3D管束模型仿真结果一致，但耗时不足CFD仿真的1%，体现了快速算法在计算成本和速度方面的优势。
- 紧凑型换热器 /
- 多孔介质理论 /
- 对流传热 /
- 计算流体动力学 /
- 快速算法
Abstract:
The research focused on the flow heat transfer characteristics and efficient calculation methods in compact heat exchangers. To achieve the research objectives, a fast calculation method for the temperature distribution of a compact heat exchanger based on the porous media theory was established. The heat transfer models of the staggered tube bundle of the pre-cooler configuration for the reference ATREX engine and the involute spiral tube bundle pre-cooler configuration for the SABRE engine were analyzed for performance, respectively. The corresponding methodology and procedure for rapid calculation of heat transfer performance were established. The results showed that the prediction results were consistent with the FLUENT 3D tube bundle model simulation results but the time consumed was less than 1% of CFD simulation. The advantages of the fast prediction method in terms of calculation cost and speed were demonstrated.
- compact heat exchanger /
- porous media theory /
- convective heat transfer /
- computational fluid dynamics /
- fast prediction method

HTML

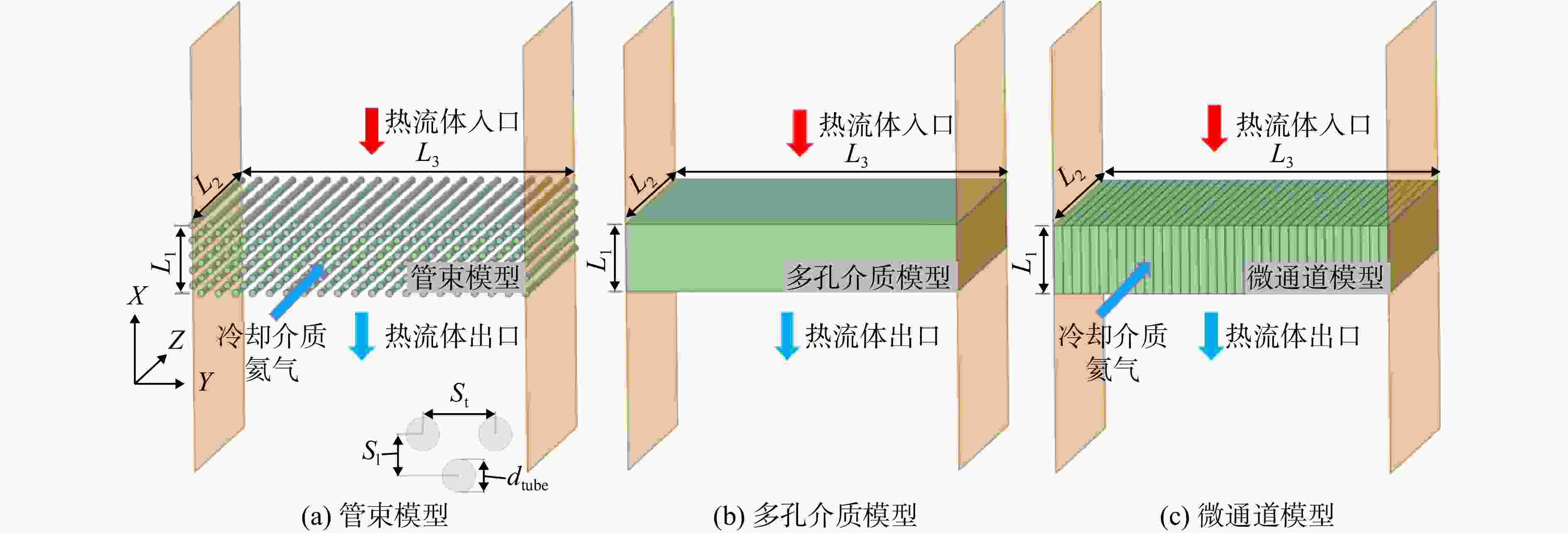

图 1 换热单元几何模型示意图

Figure 1. Schematic diagram of the heat exchange unit geometric model

下载: 全尺寸图片幻灯片

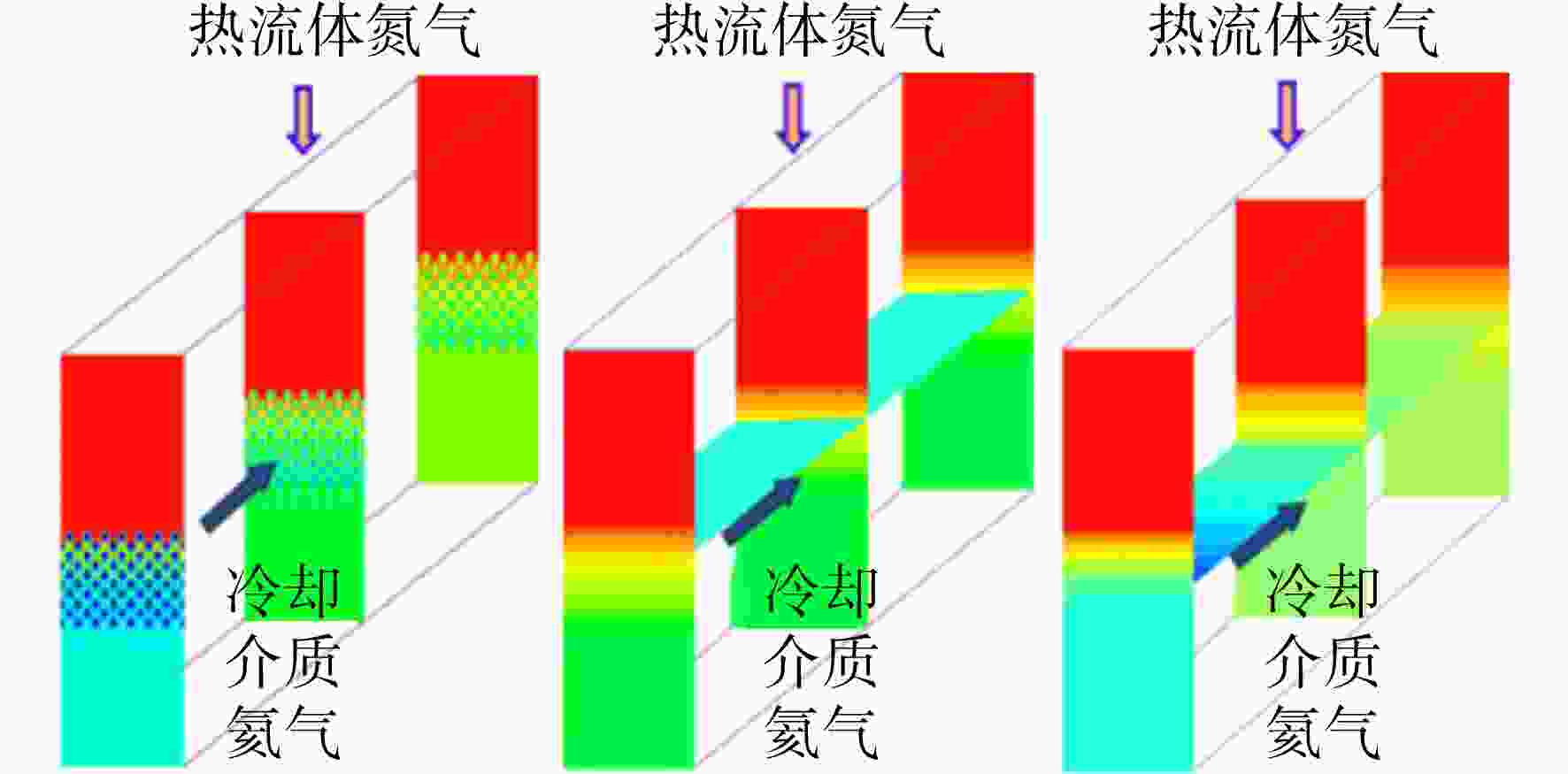

图 2 管束模型、多孔介质模型与微通道模型的计算结果对比

Figure 2. Comparison of the calculation results of the tube bundle model, the porous media model and the micro-channel model

下载: 全尺寸图片幻灯片

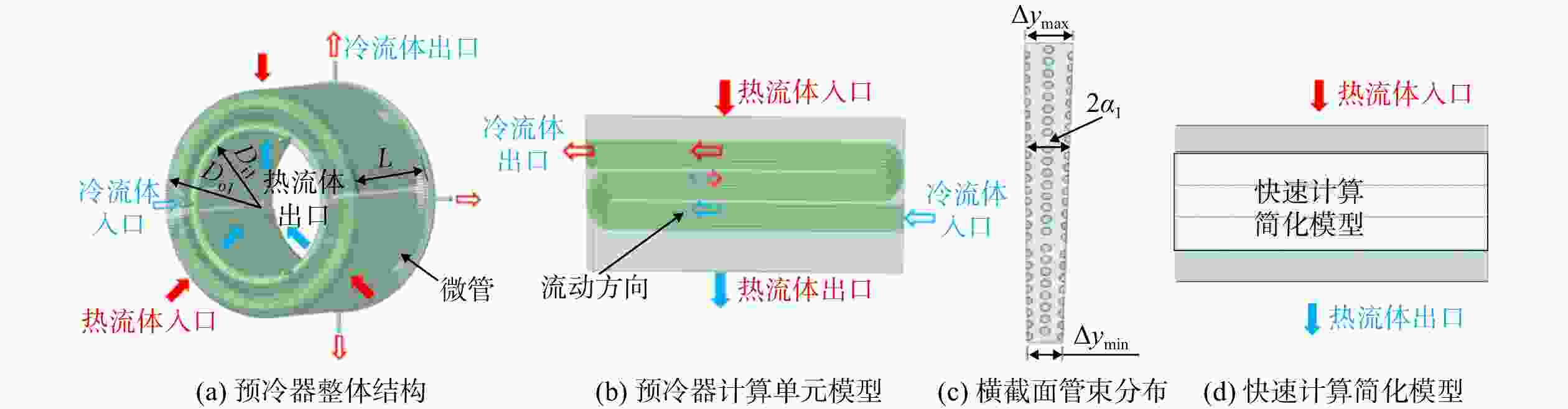

图 3 叉排管束型预冷器模型

Figure 3. Model of the staggered tube bundle of the pre-cooler

下载: 全尺寸图片幻灯片

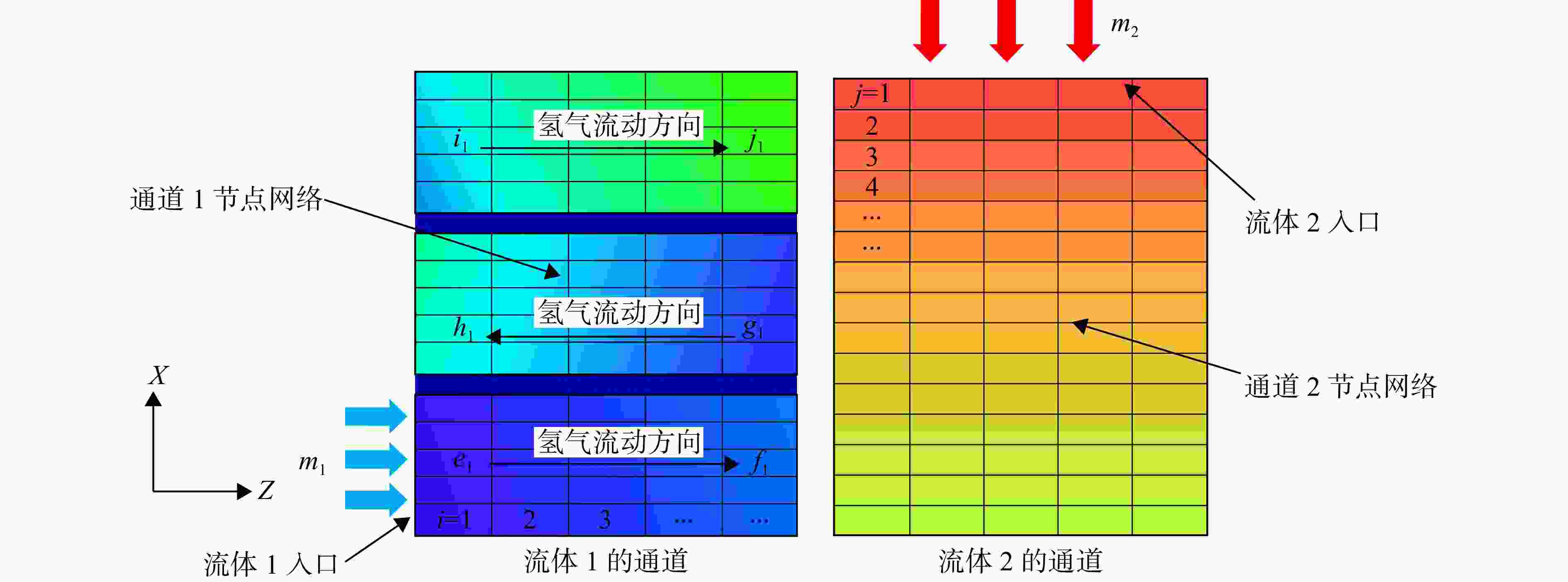

图 4 两种换热流体通道的节点网格

Figure 4. Nodal grids of two heat exchange fluid channels

下载: 全尺寸图片幻灯片

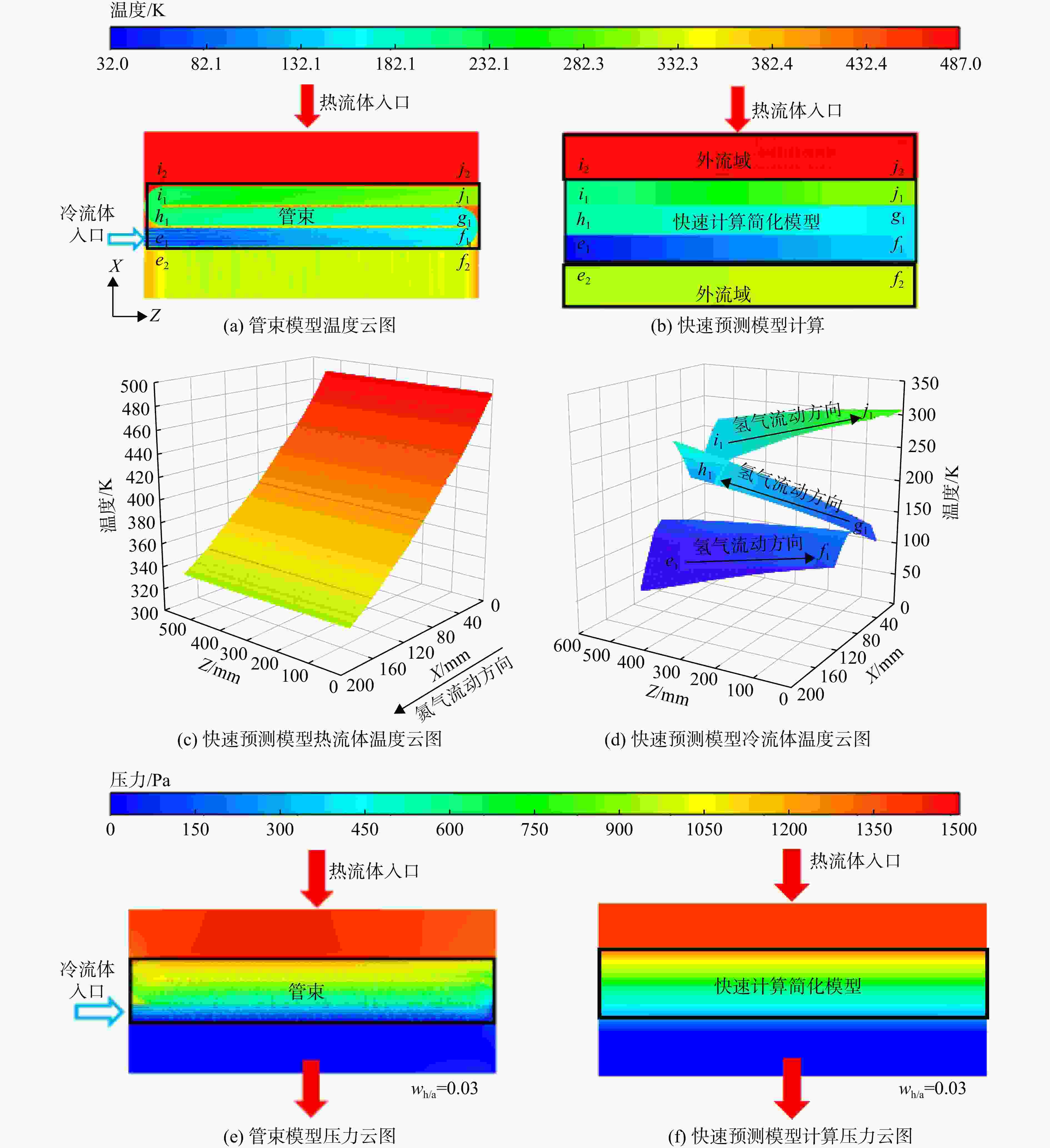

图 5 快速预测模型计算与管束模型三维建模仿真结果对比

Figure 5. Comparison of fast prediction model calculations and 3D modelling simulation results of the tube bundle model

下载: 全尺寸图片幻灯片

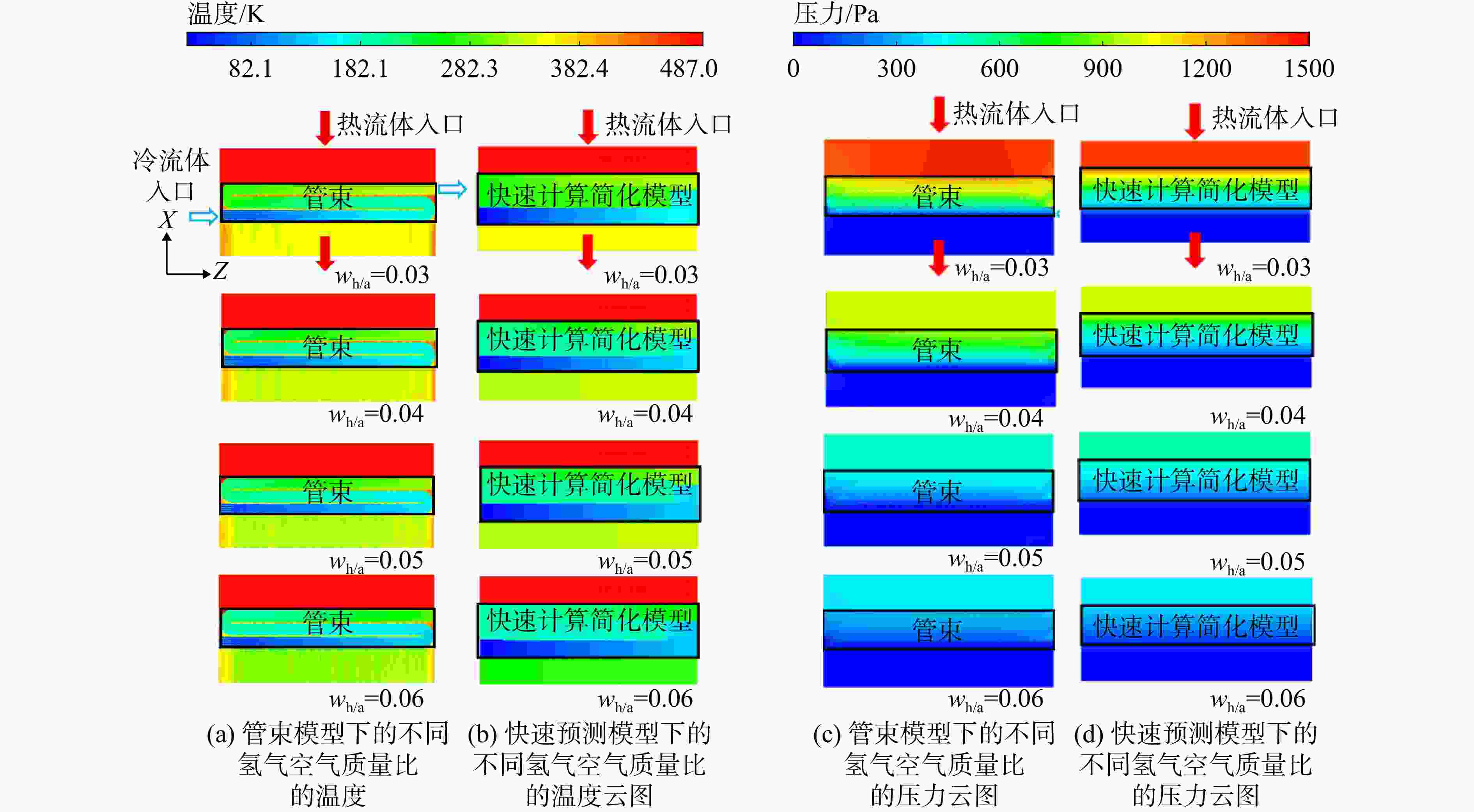

图 6 不同氢气空气质量比下的温度和压力云图对比

Figure 6. Comparison of temperature and pressure contours with different hydrogen air quality ratios

下载: 全尺寸图片幻灯片

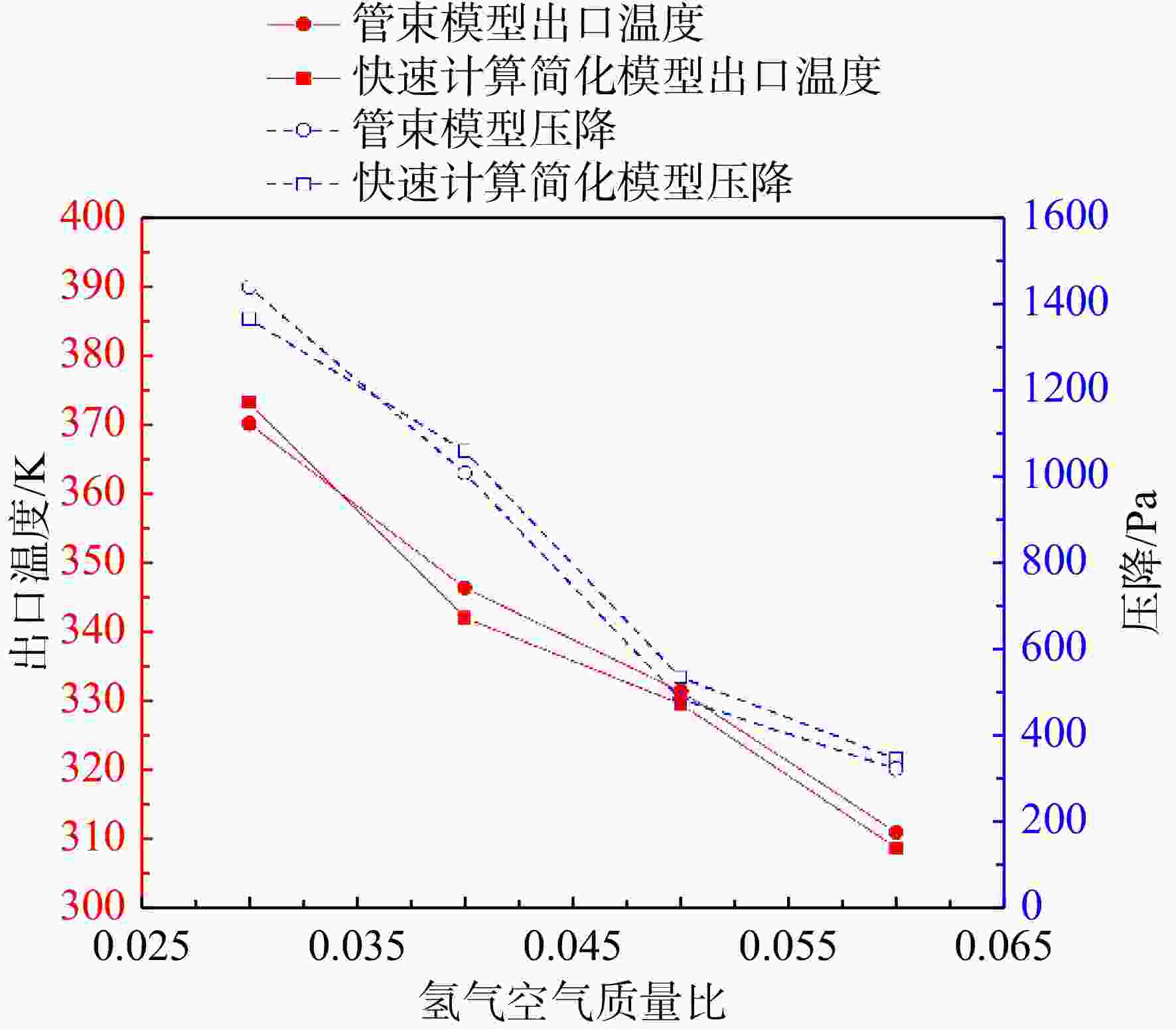

图 7 不同氢气空气质量比下的出口温度和压降对比图

Figure 7. Comparison of outlet temperatures and pressure drops with different hydrogen air quality ratios

下载: 全尺寸图片幻灯片

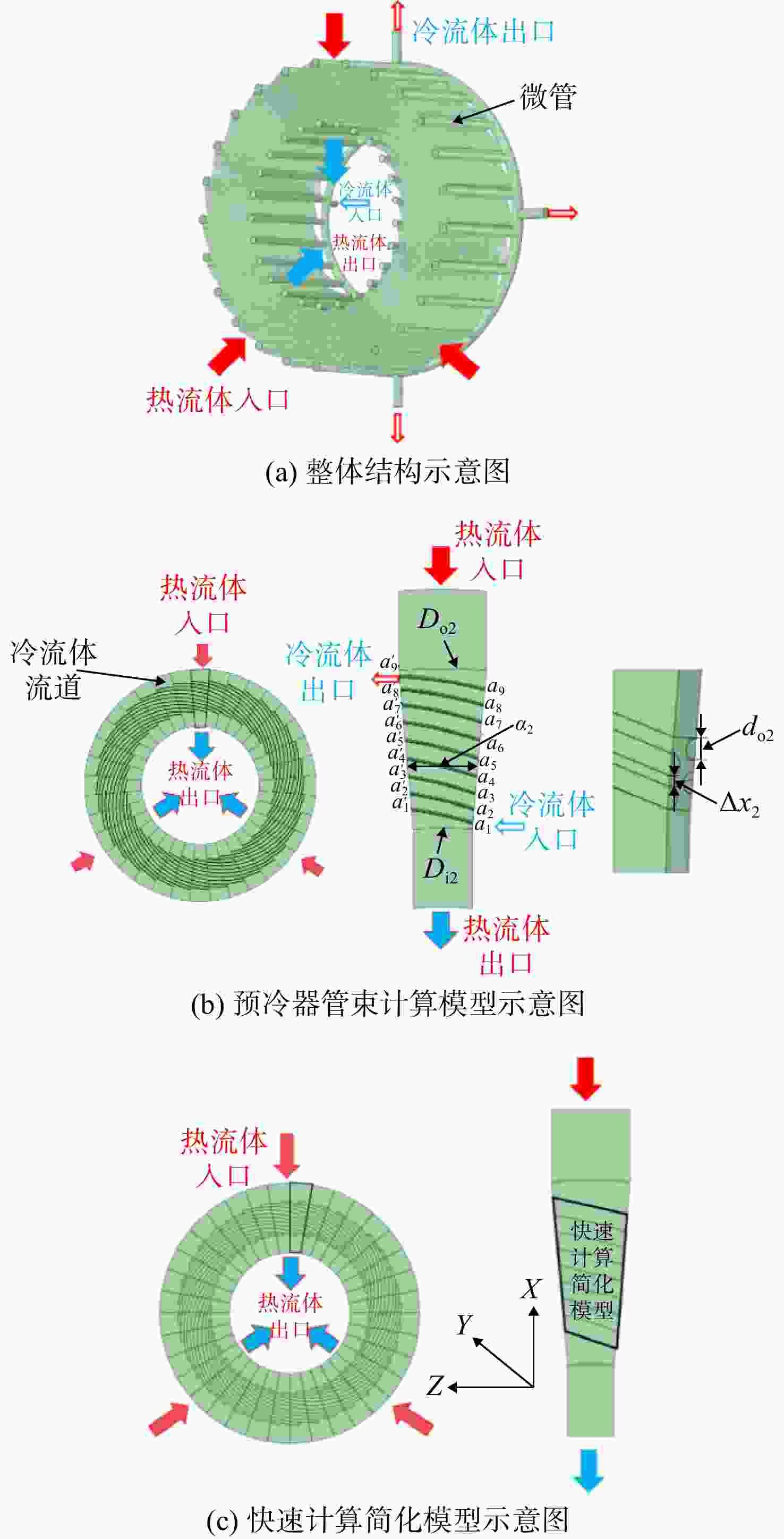

图 8 渐开线螺旋排列管束预冷器

Figure 8. Model of the involute spiral tube bundle pre-cooler

下载: 全尺寸图片幻灯片

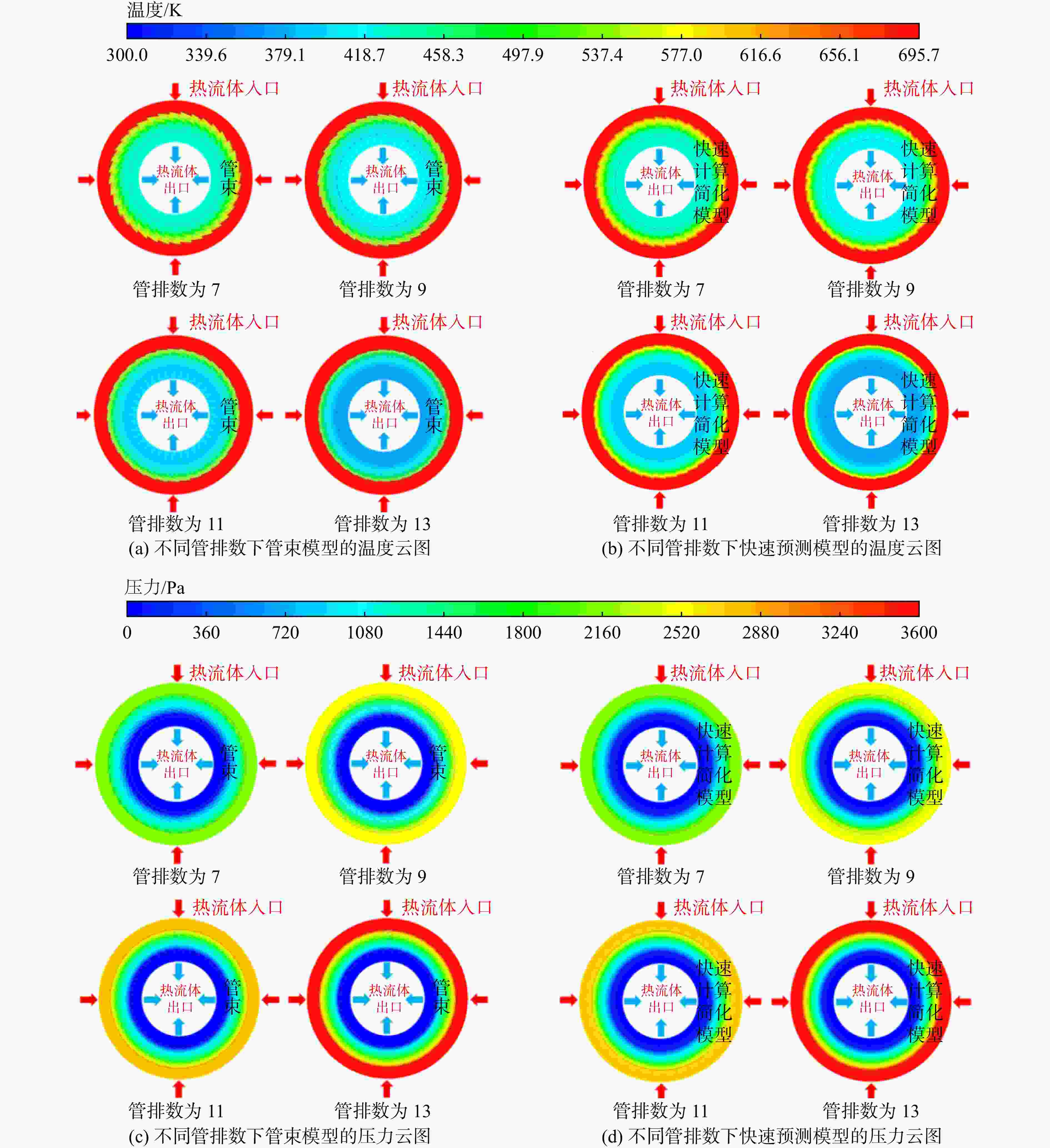

图 9 不同管排数下的温度和压力云图对比

Figure 9. Comparison of temperature and pressure contours with different number of tube rows

下载: 全尺寸图片幻灯片

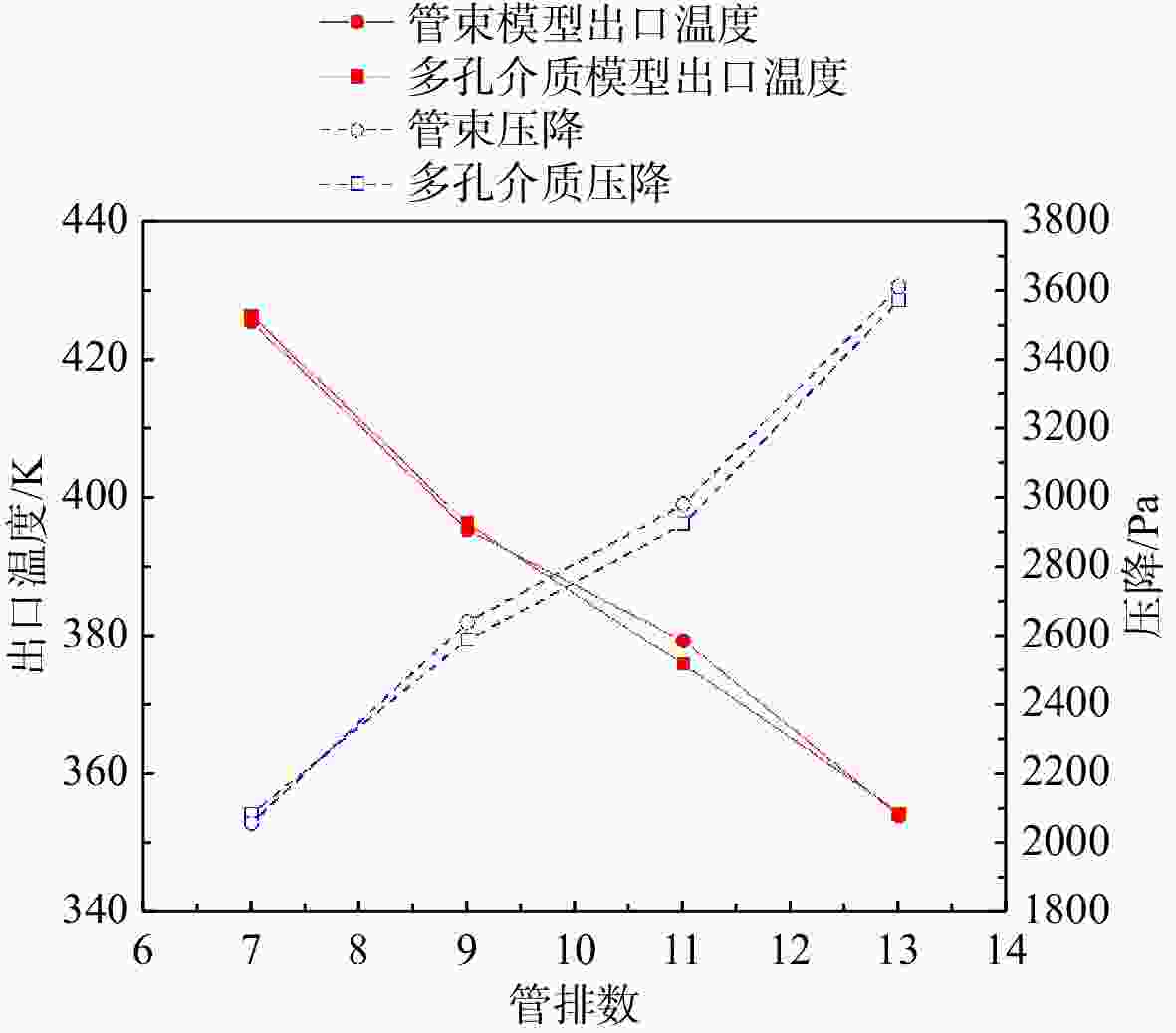

图 10 不同管排数下热流体的出口温度和压降对比图

Figure 10. Comparison of outlet temperatures and pressure drops with different number of pipe rows

下载: 全尺寸图片幻灯片

表 1 仿真结果与试验结果的对比

Table 1. Comparison of simulation results and experiment results

参数	快速预测结果	数值仿真结果		试验结果^[27]
参数	快速预测结果	管束模型	多孔介质模型	试验结果^[27]
出口温度$ {T}_{{\mathrm{n,out}}} $/K	478.9	481.5	484.3	474.0
压降$ {\Delta p}_{{\mathrm{n,out}}} $/Pa	1377	1346	1268	1345
出口速度$ {U}_{{\mathrm{n,out}}} $/（m/s）	9.5	9.9	10.1

下载: 导出CSV
