Numerical simulation of heat soak phenomenon of a civil high-bypass-ratio turbofan engine after shutdown
-
摘要:
针对航空发动机停机后气流流动与零件传热的耦合问题，提出了基于CFX的流动与传热异步长加速算法的耦合仿真策略，并研究了某型大涵道比航空发动机停机后的热沉浸现象。分析了零件在自然冷却条件下20 h的瞬态温度变化特性，仿真结果表明加速算法对于大模型流热耦合仿真具有良好的加速计算效果；机匣等位置在停机后周向温度不均匀性呈现先扩大后缓慢减小变化趋势；转盘盘底、支点轴承等难以散热的位置由热沉浸产生的温升明显；冷吹及盘车措施对于缓解周向不均匀性、降低热沉浸尖峰温度有一定效果。
Abstract:The coupling simulation method of flow and transient heat transfer with asynchronous steps was studied. CFX was used to simulate the flow and temperature distribution during 20 h after engine shut-down by using a civil high-bypass-ratio turbofan engine model. Result showed asynchronous steps ac-celeration method provided great accuracy and simulation cost. After shutdown, the circumferential temperature difference increased first under the influence of natural convection, and then decreased gradually. The temperature rise of positions like rotor disc bottom and bearing was significant because of heat soak back. To a certain extent, blowing cold air and barring gear was efficient in reducing non-uniformity of circumferential temperature and peak temperature in shut-down process.
-
Key words:
- heat soak /
- whole engine /
- flow and heat transfer /
- peak temperature /
- non-uniformity of temperature
-

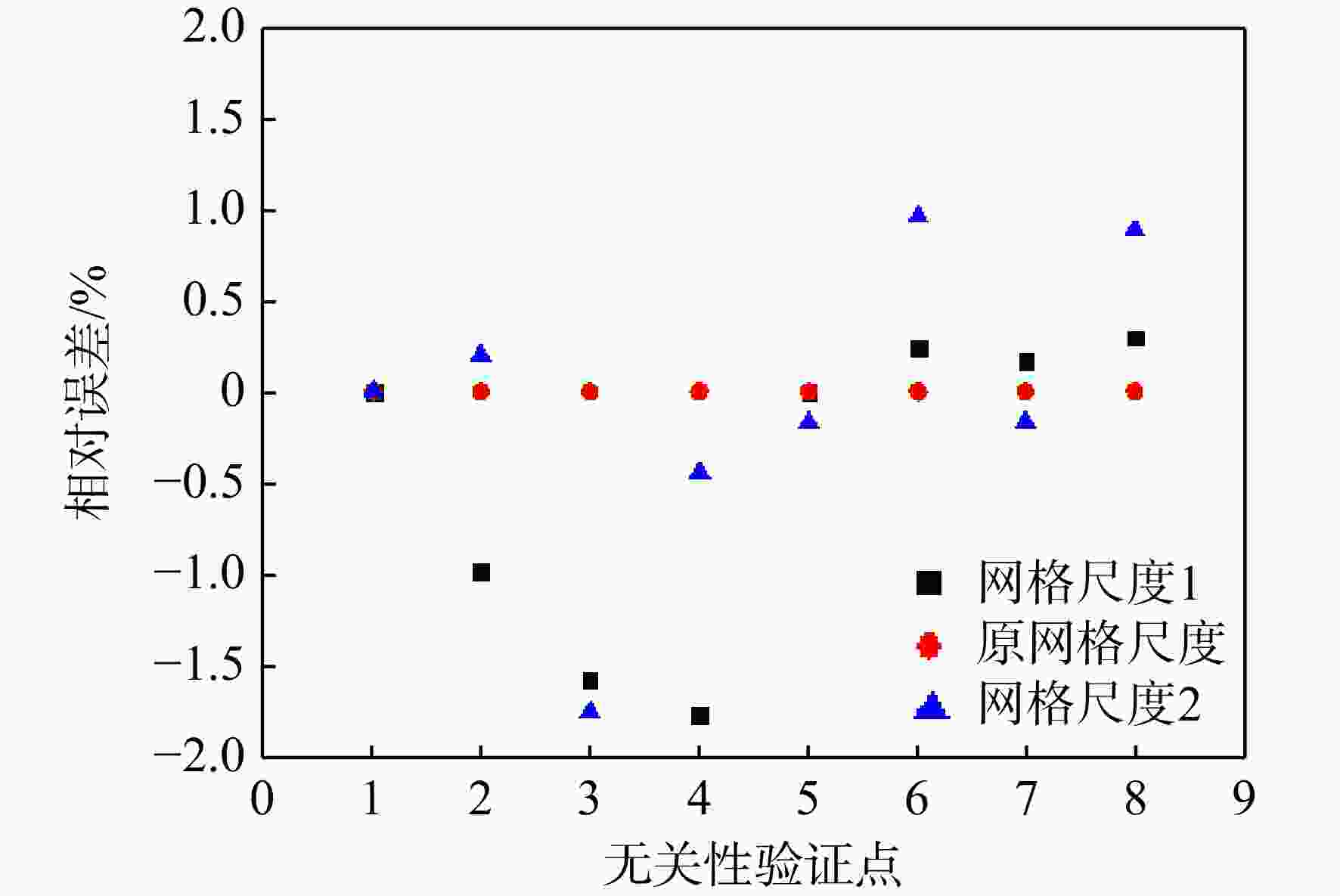

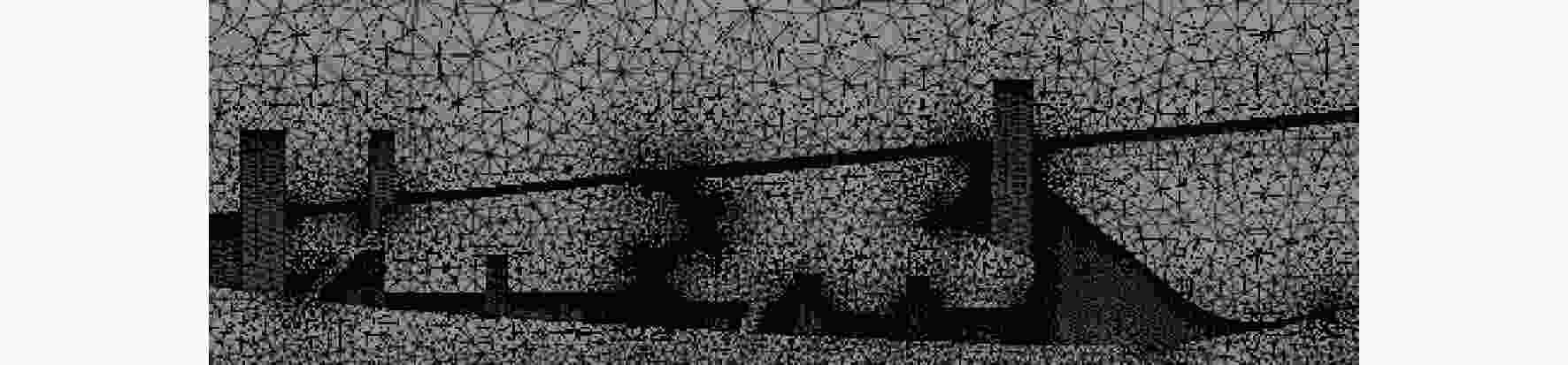

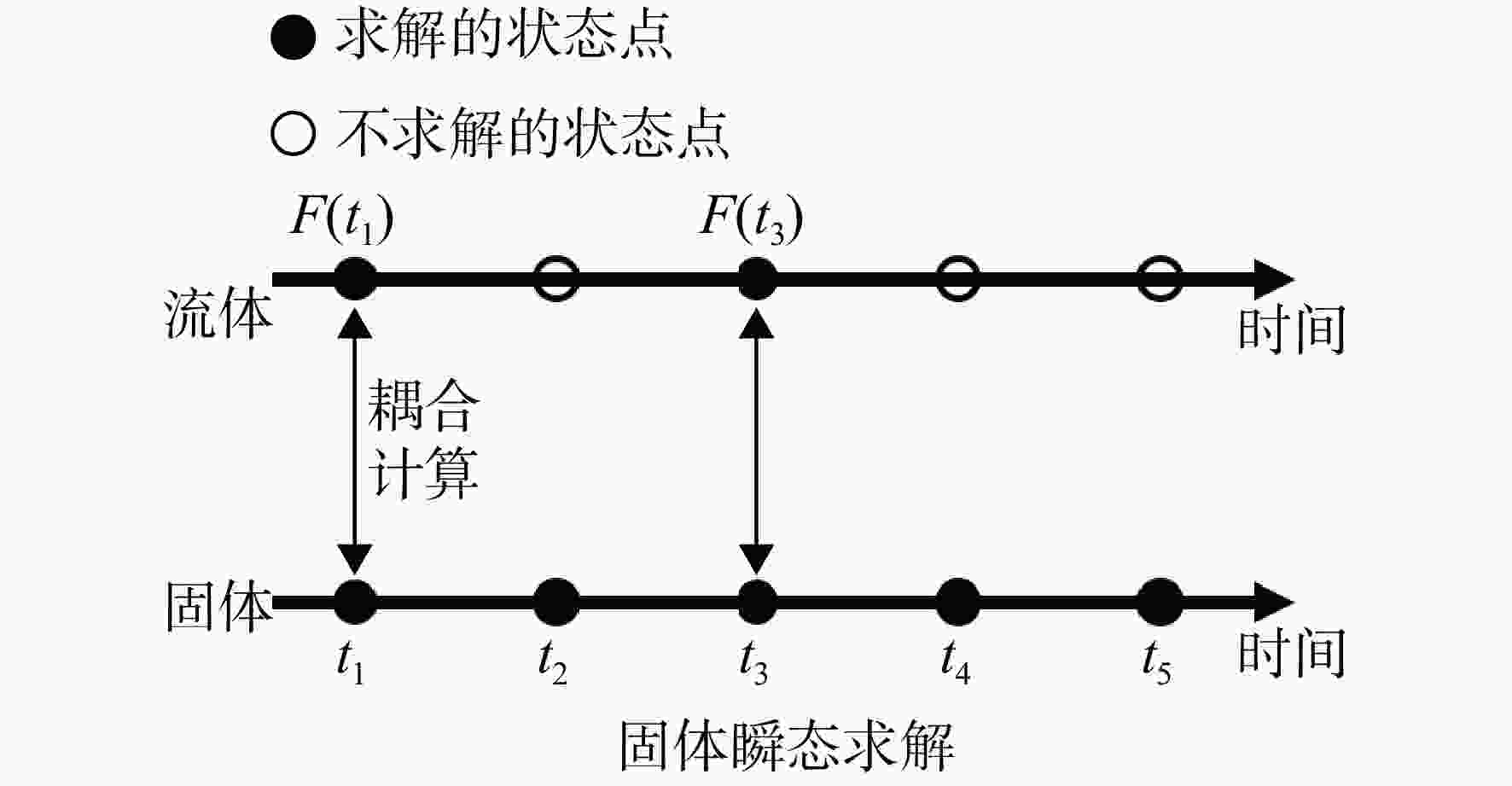

图 4 瞬态加速算法原理示意图
Figure 4. Schematic diagram of principle of transient acceleration algorithm

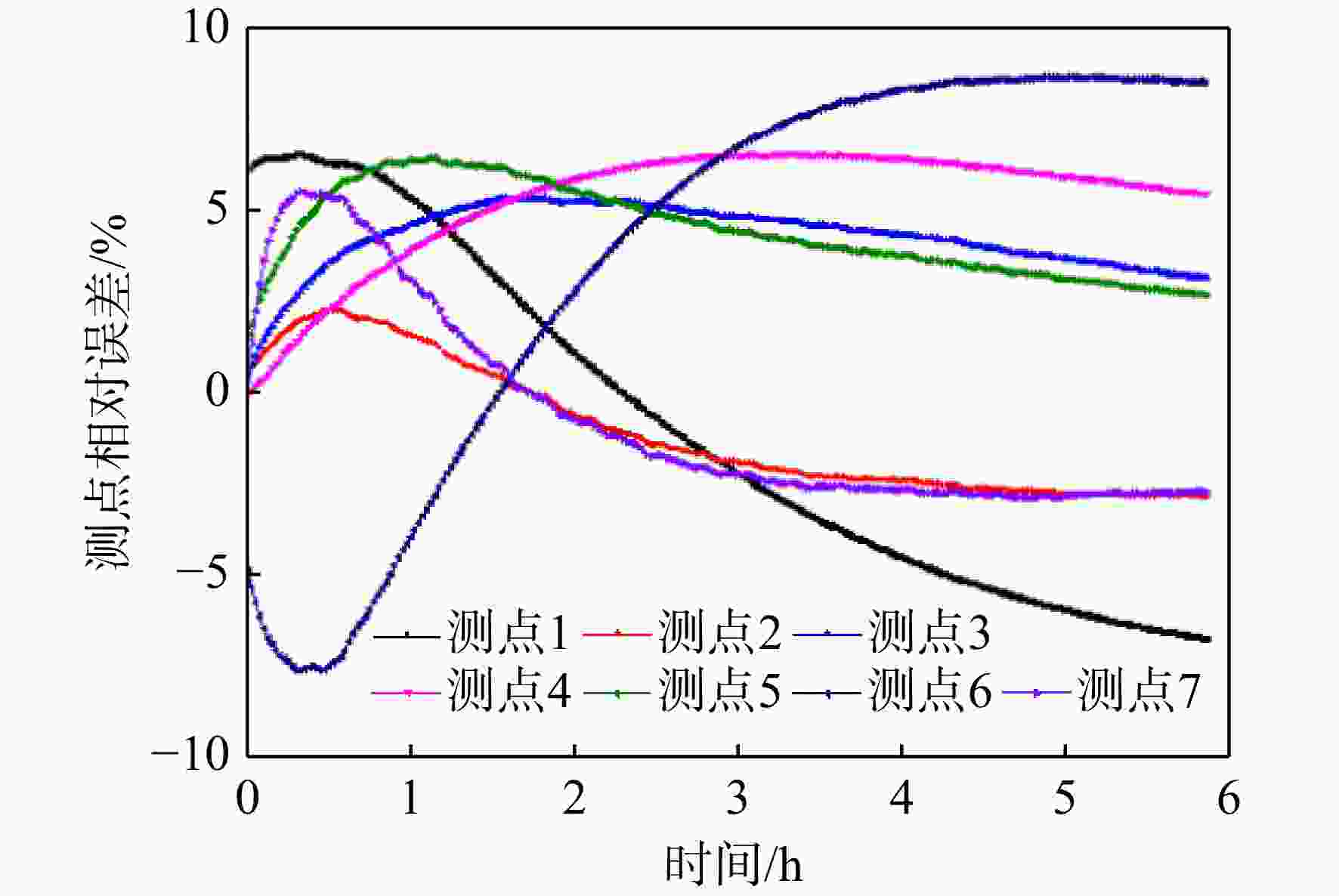

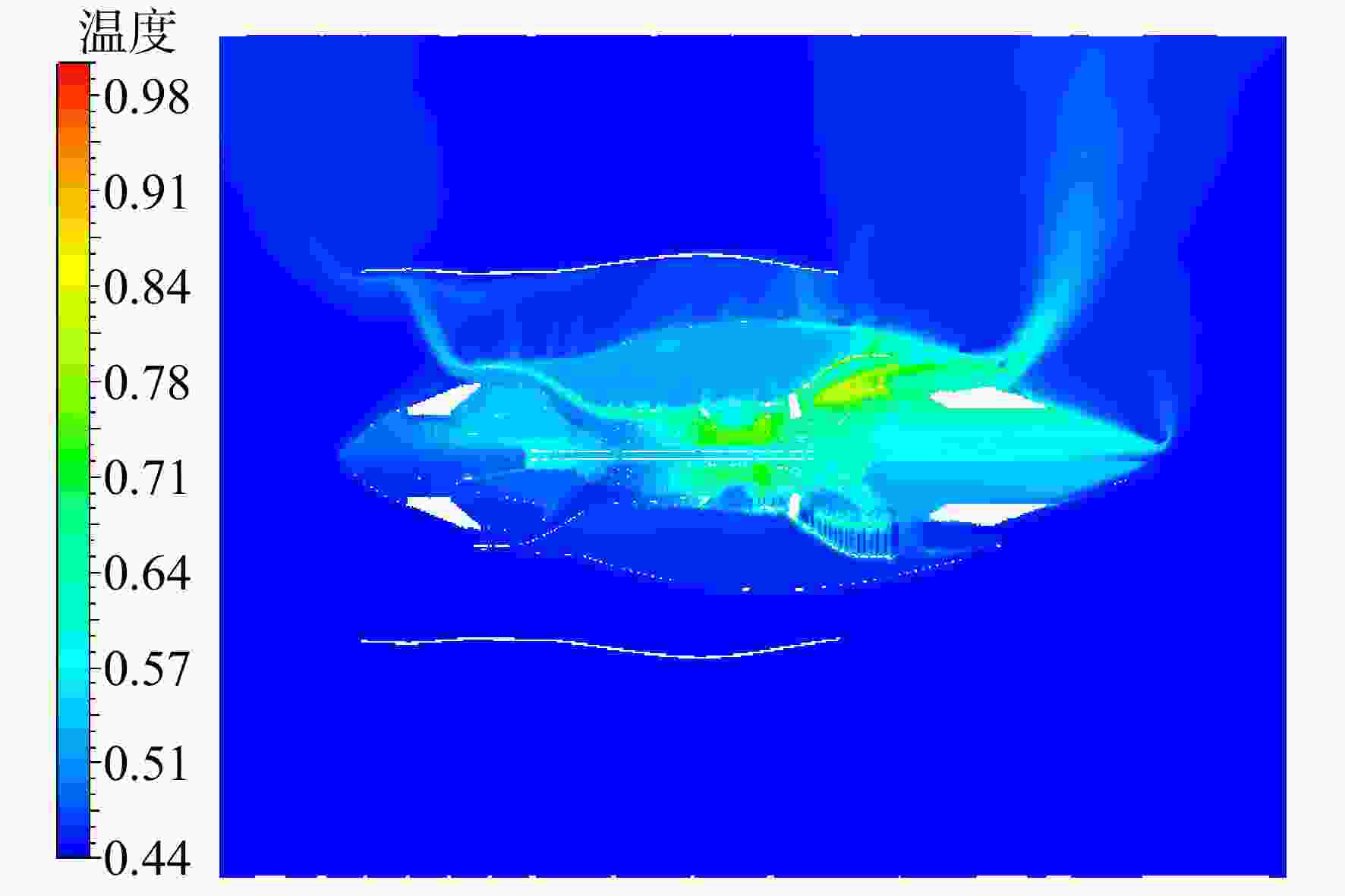

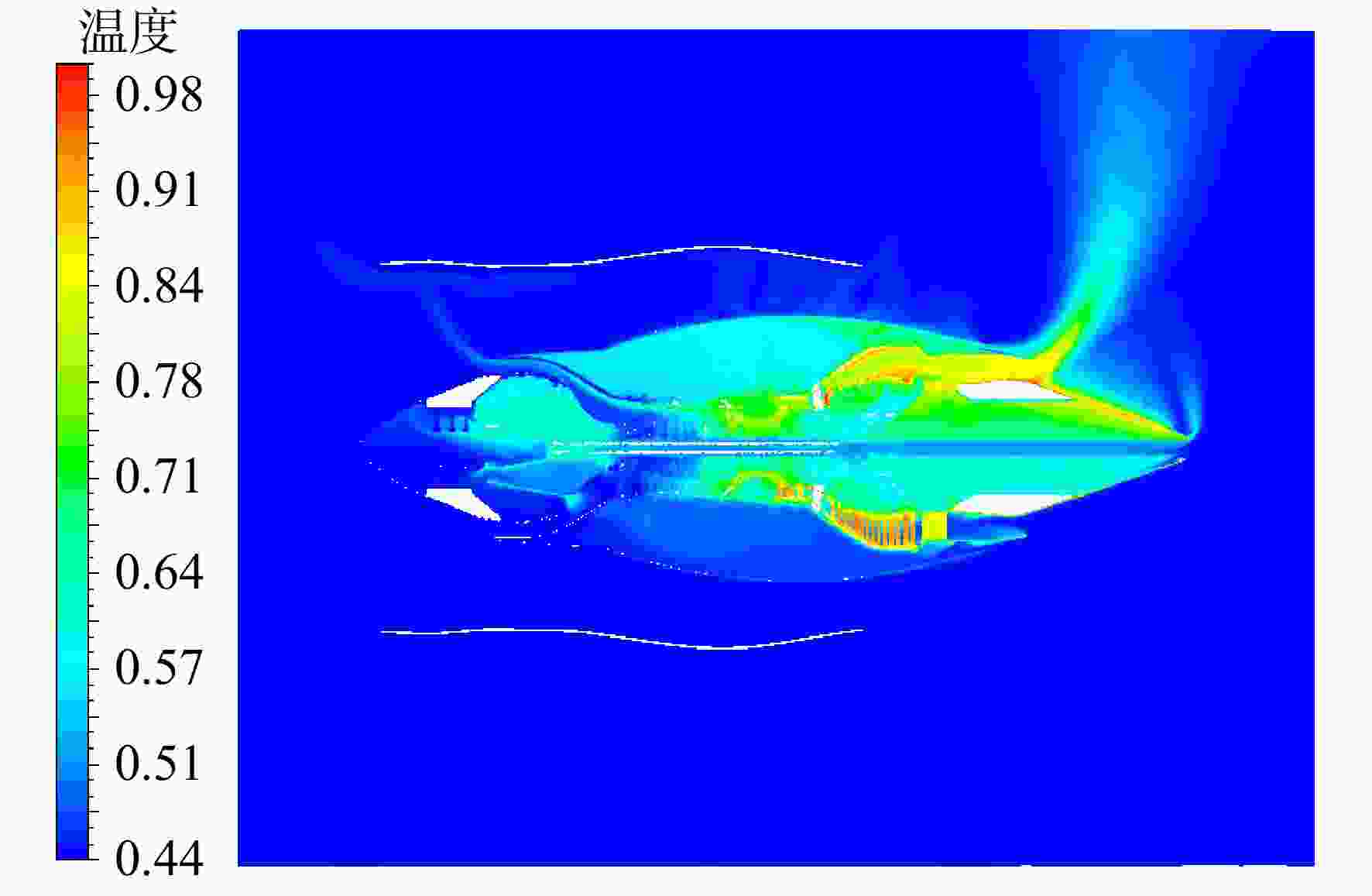

图 7 停机2.6 h无量纲温度场
Figure 7. Dimensionless temperature distribution at 2.6 h after shut-down

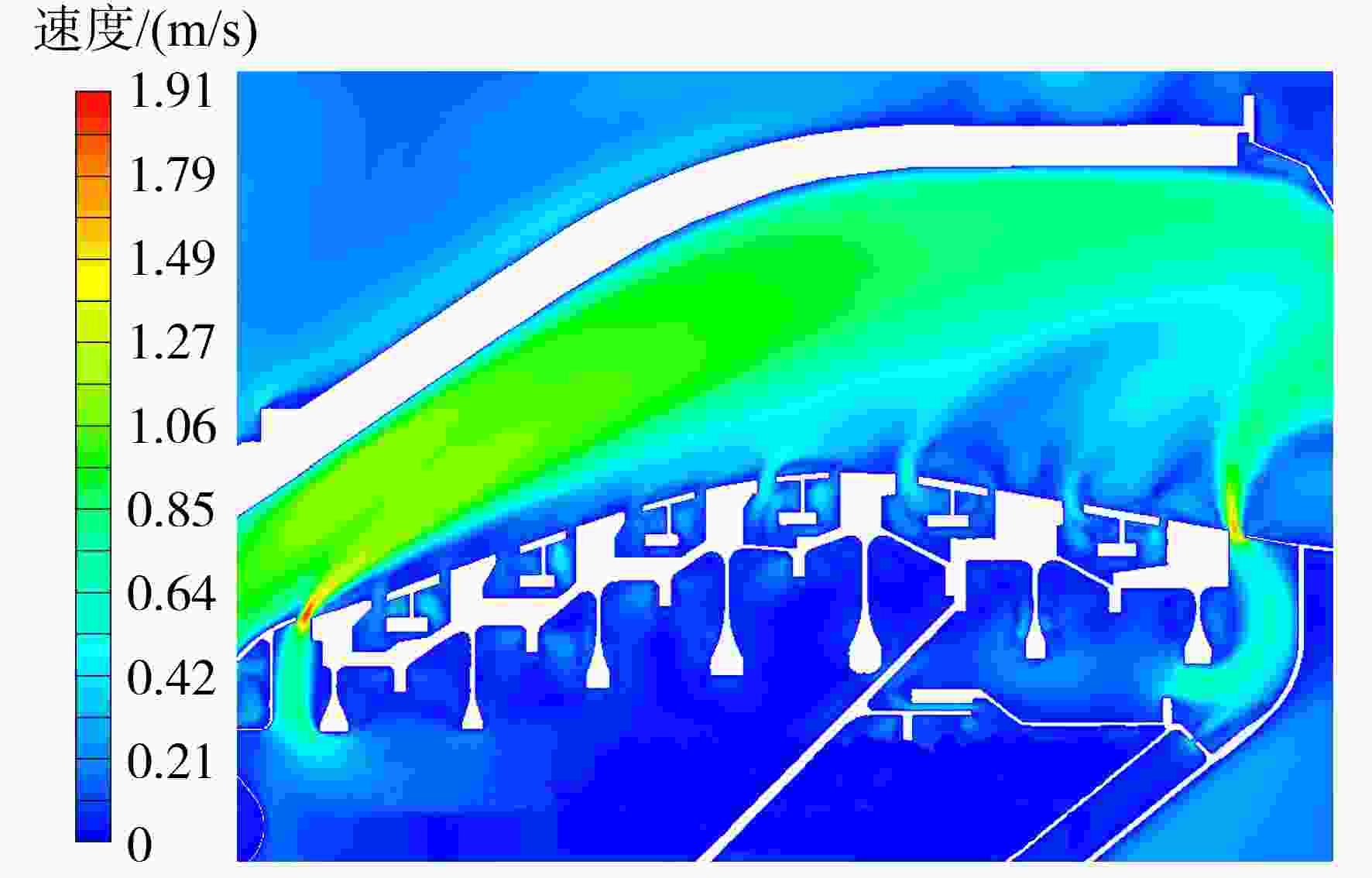

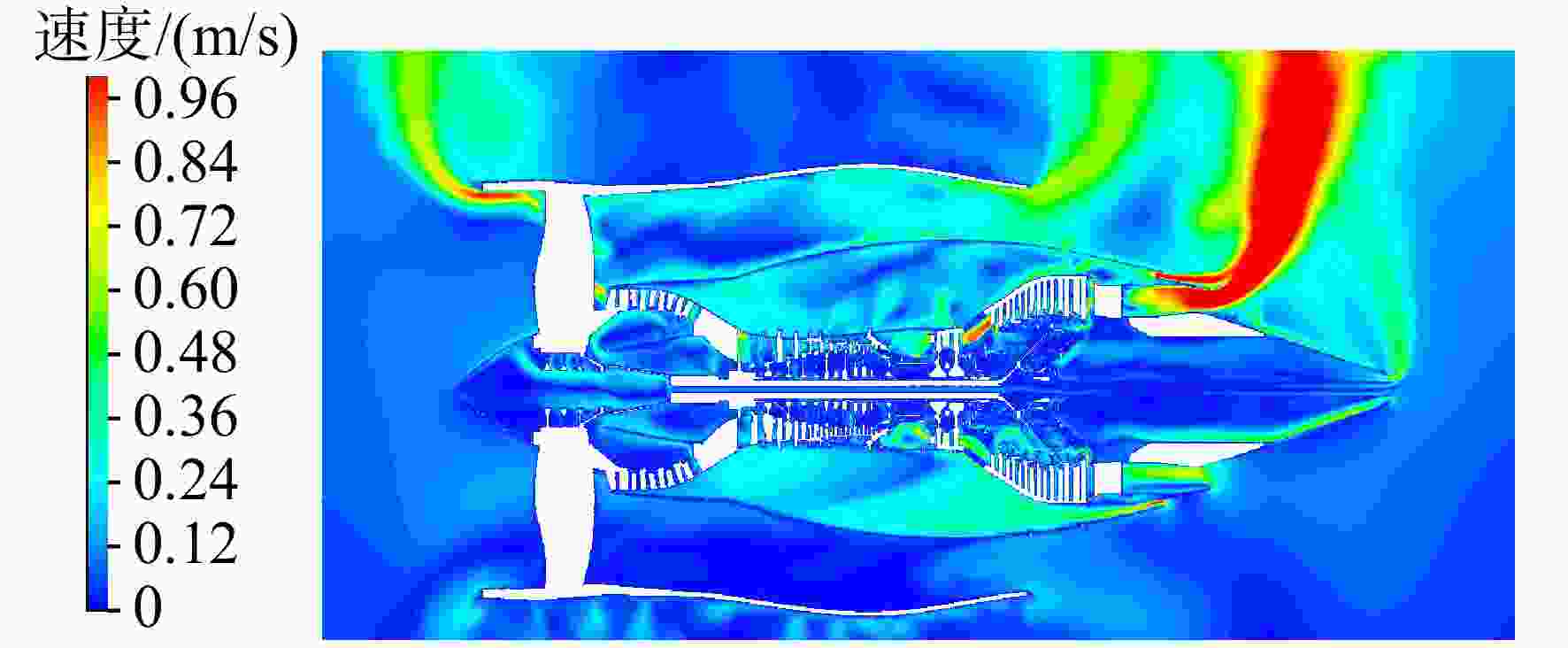

图 8 停机2.6 h局部速度场
Figure 8. Topo-location velocity distribution at 2.6 h after shut-down

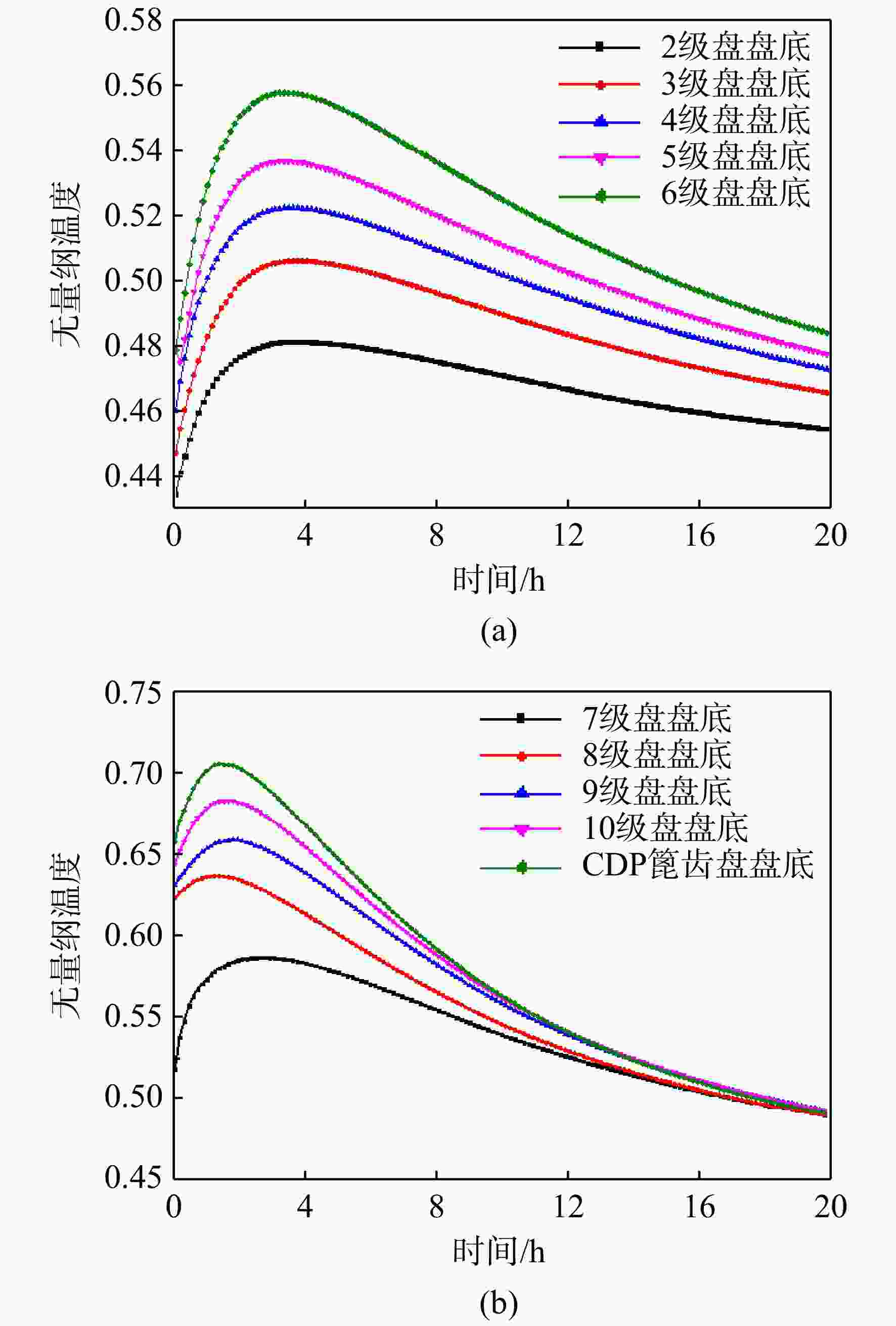

图 10 压气机盘底热沉浸温升
Figure 10. Temperature rise of compressor disc bottom due to heat soak

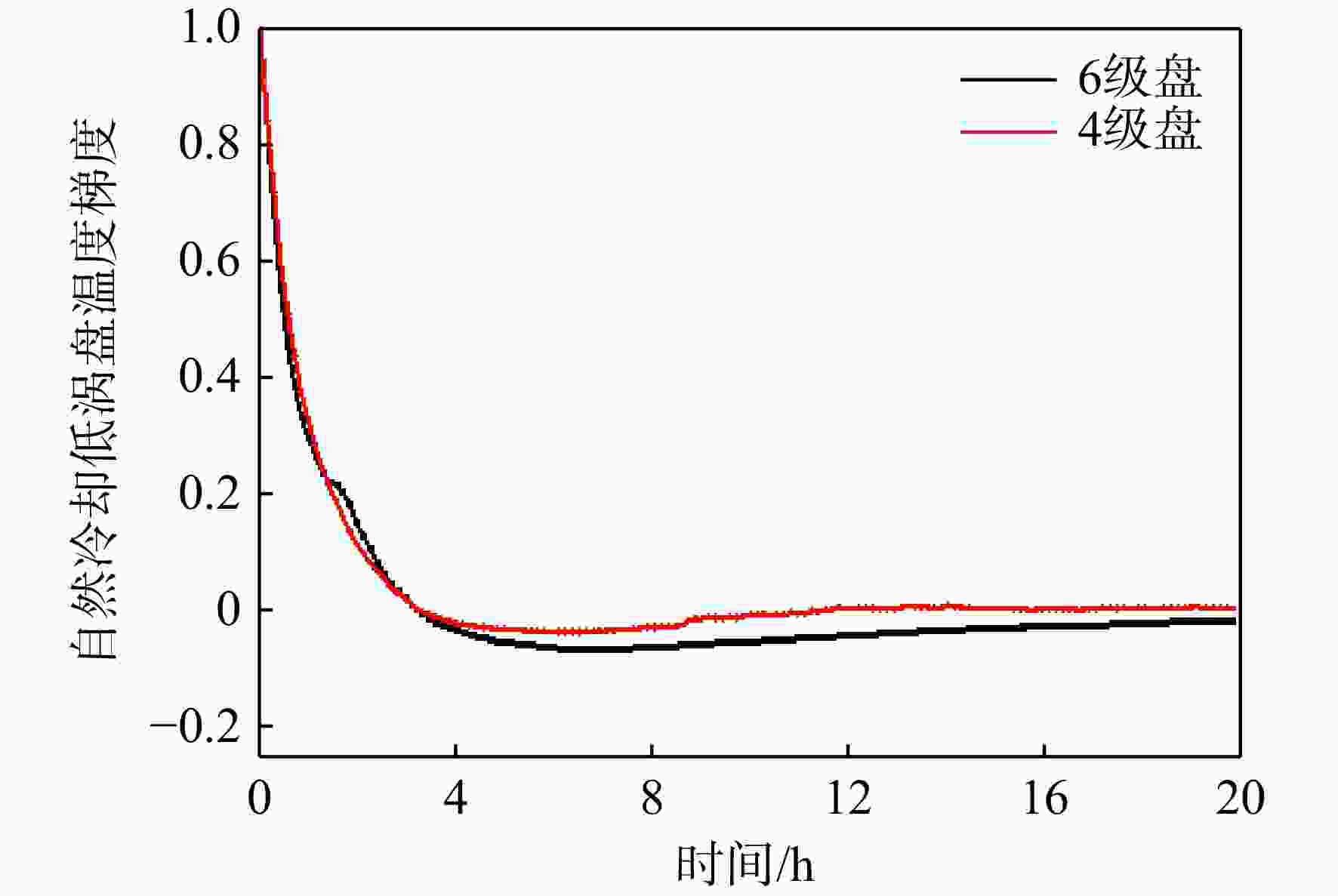

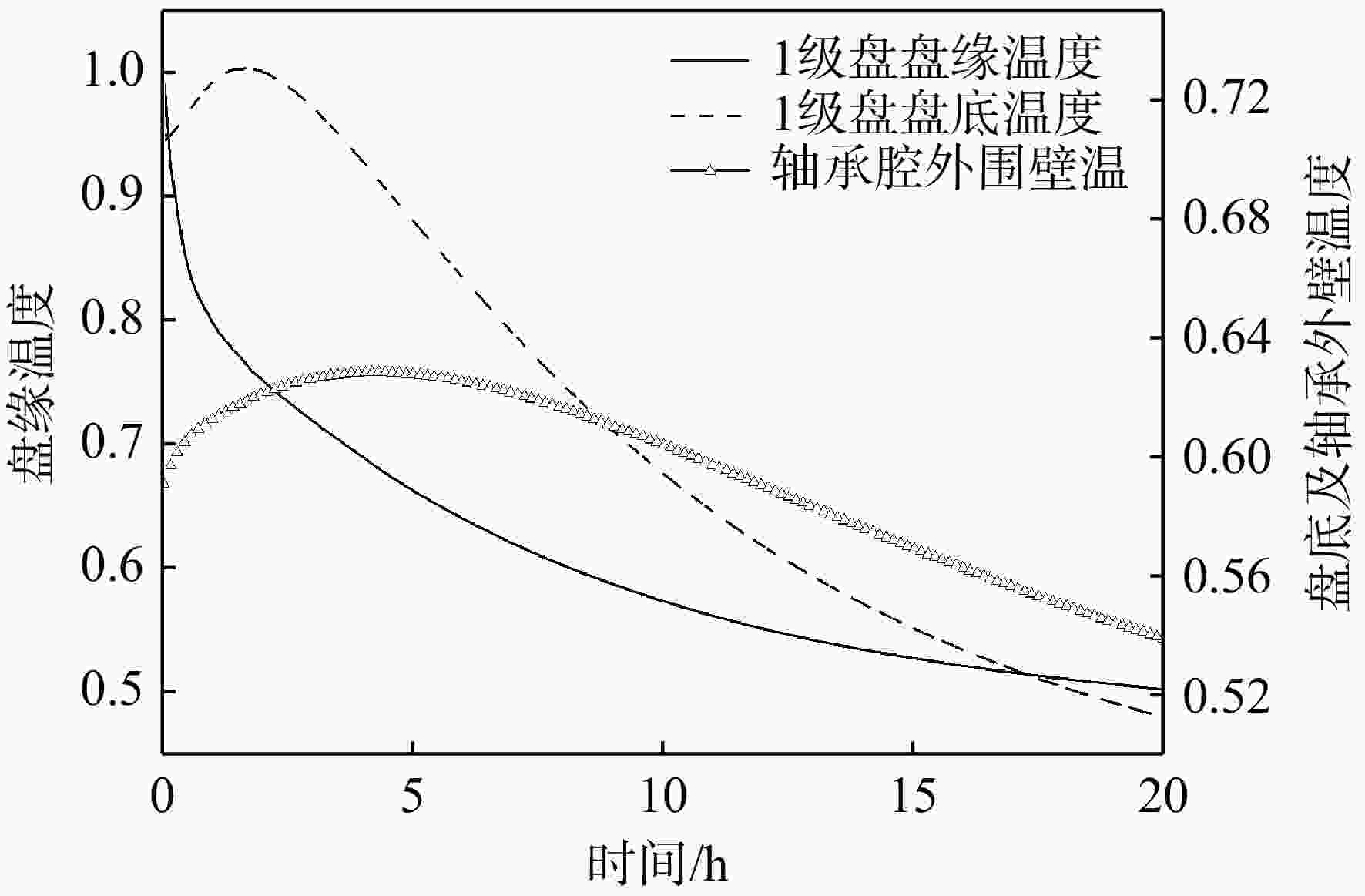

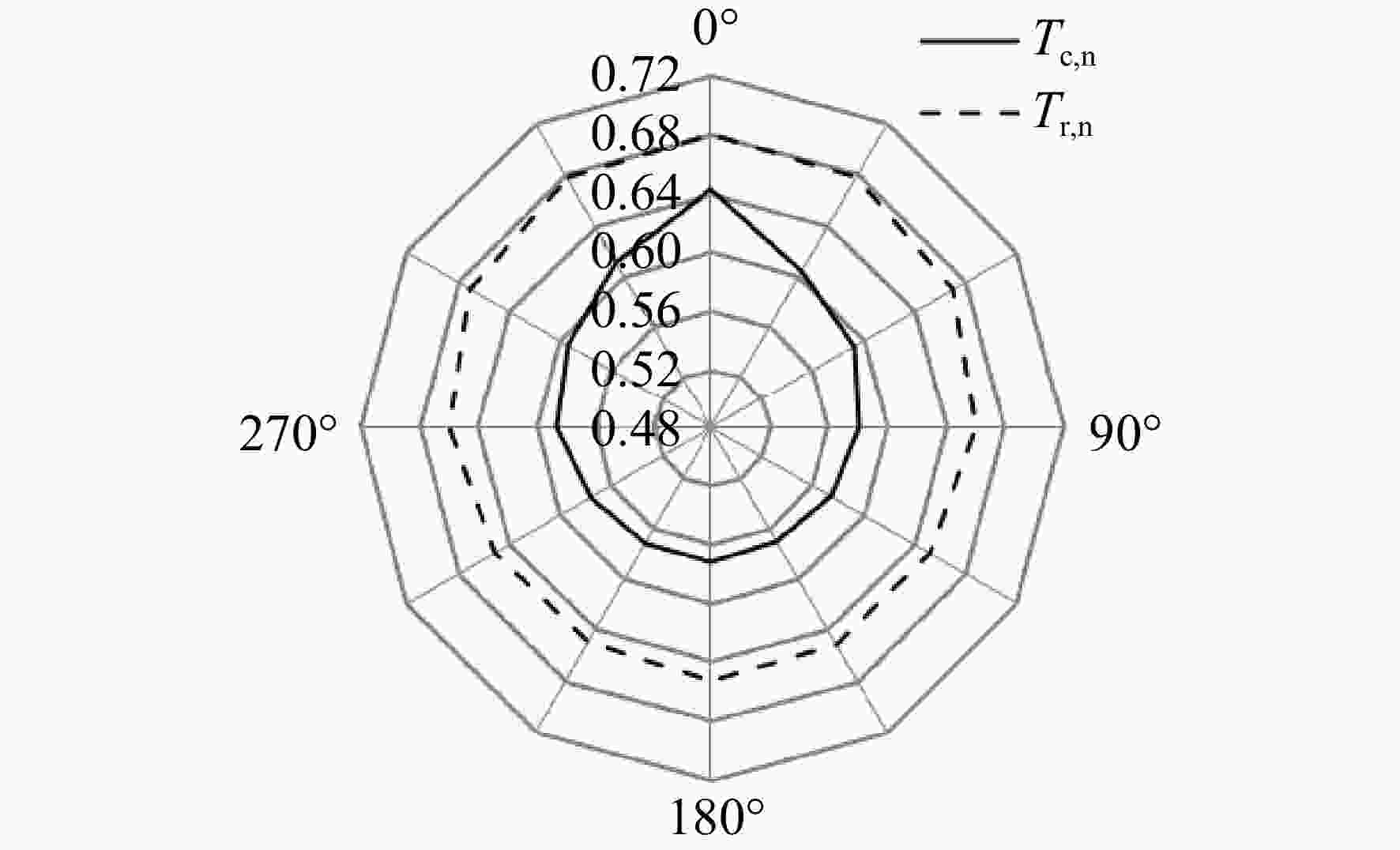

图 13 压气机机匣及7级转子无量纲温度周向分布
Figure 13. Dimensionless circumferential temperature distribution of compressor case and 7-stage rotor

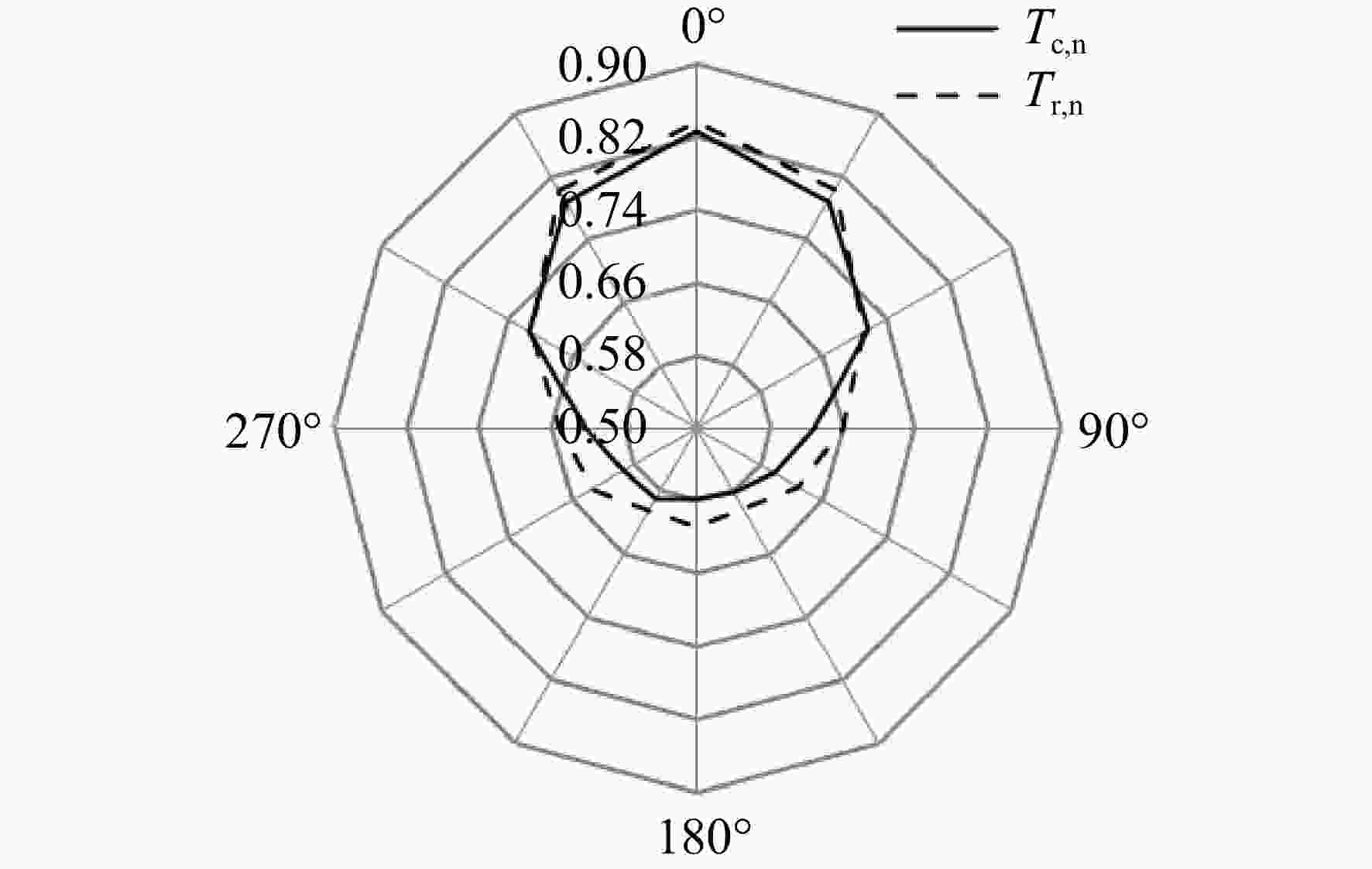

图 14 低压涡轮机匣及7级转子无量纲温度周向分布
Figure 14. Dimensionless circumferential temperature distribution of low pressure turbine case and 7-stage rotor

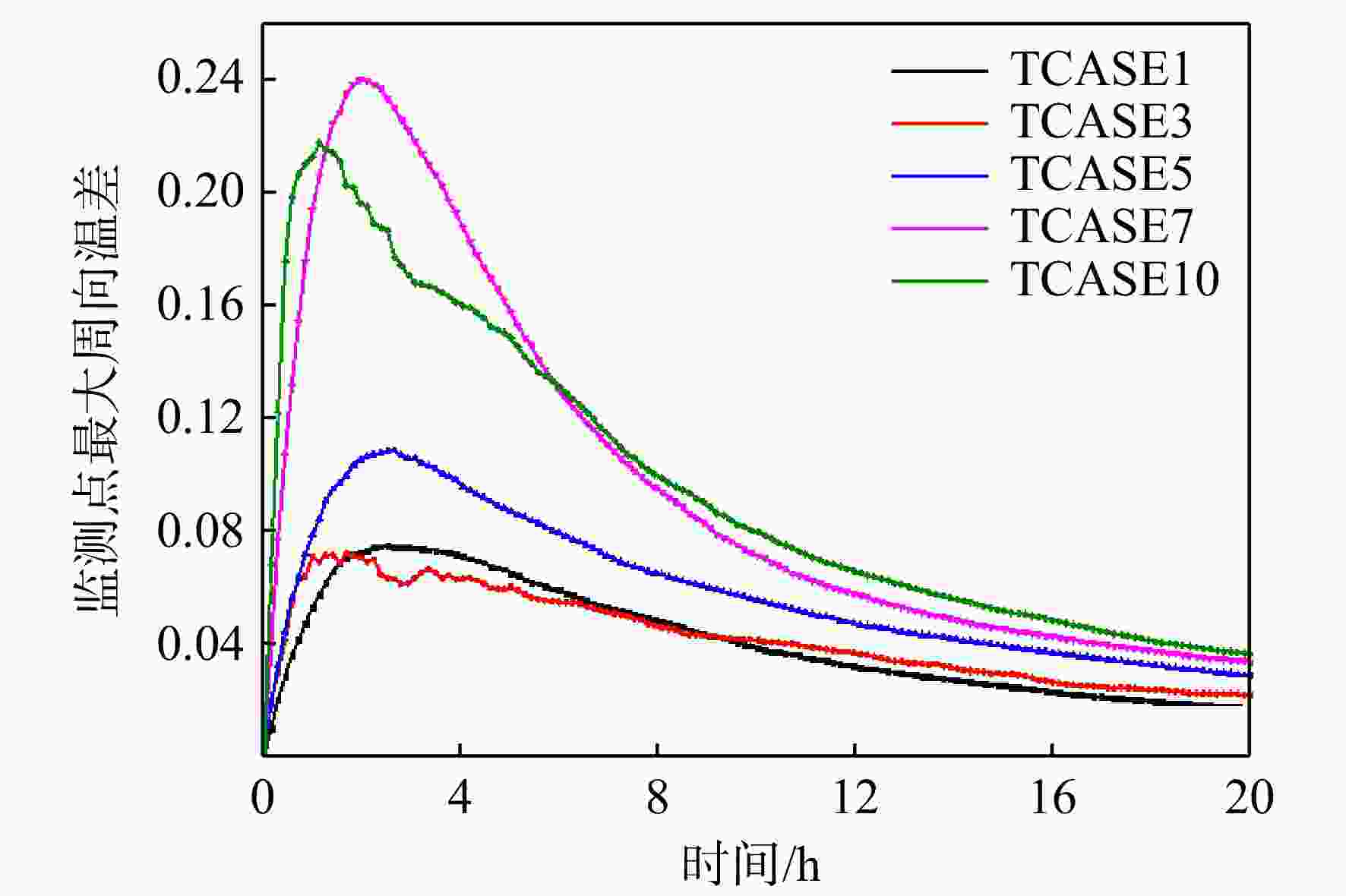

图 15 机匣监测点最大周向温差
Figure 15. Maximum circumferential temperature difference at case monitor points

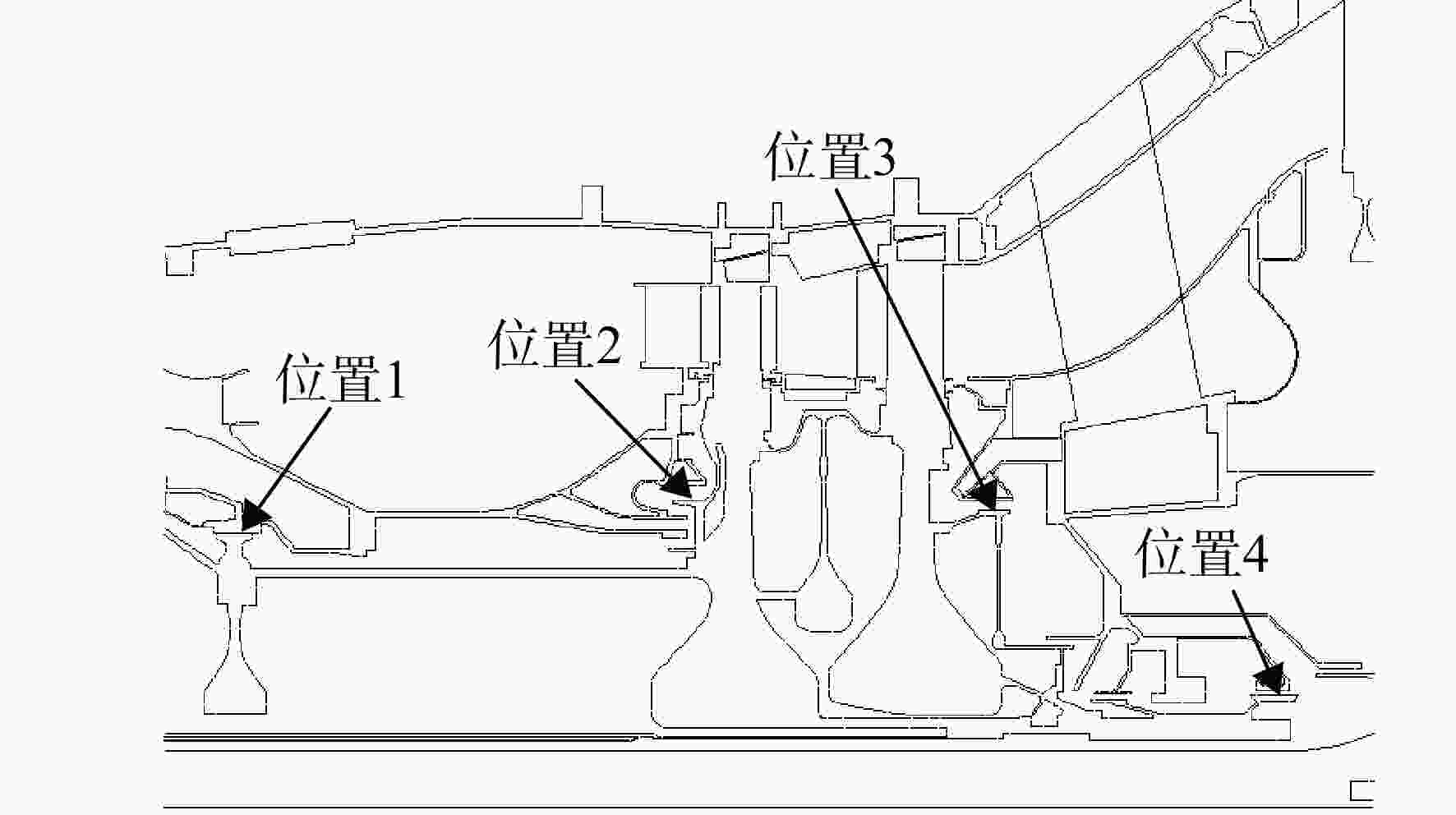

图 16 热响应不协调位置示意图
Figure 16. Schematic diagram of risky uneven thermal response locations

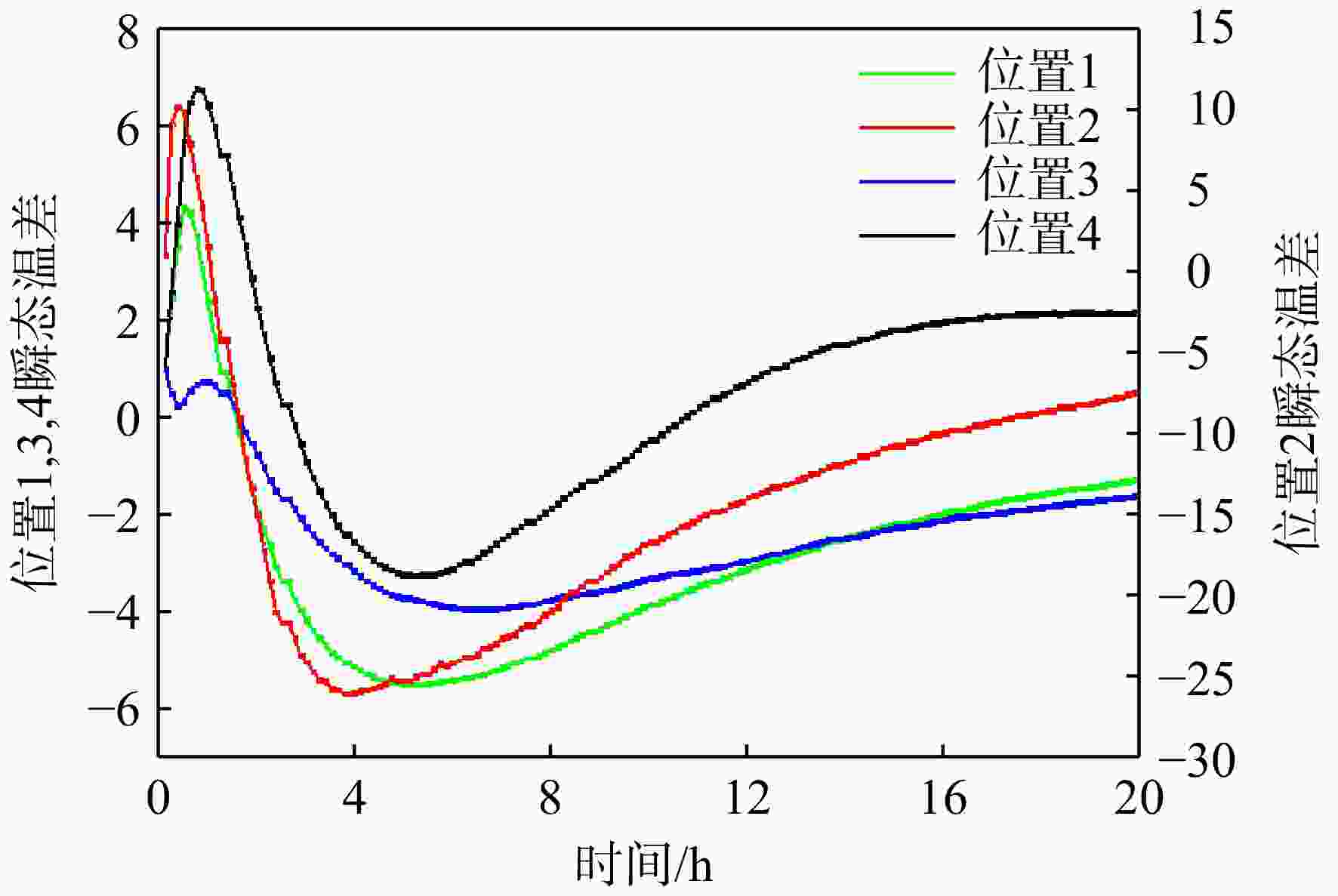

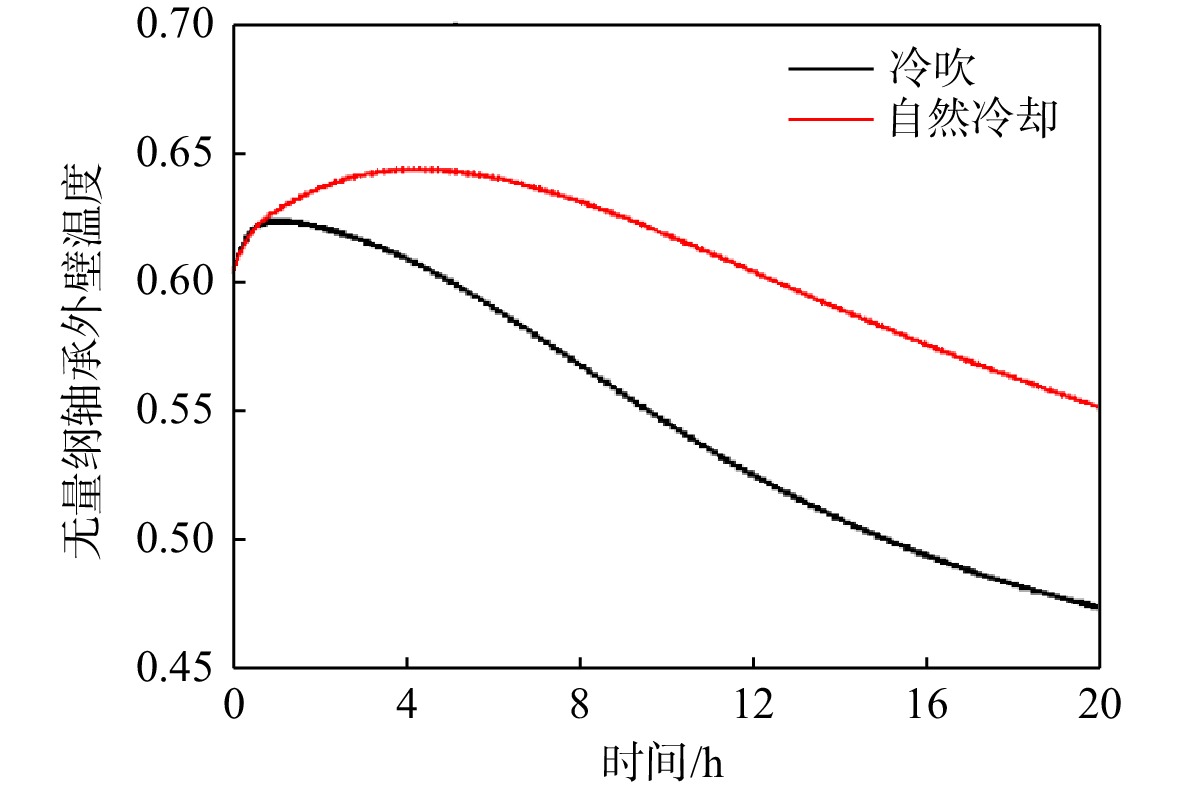

图 18 冷吹与自然冷却措施下的轴承外壁温度
Figure 18. Dimensionless temperature of bearing outer surface under cold blowing and natural cooling

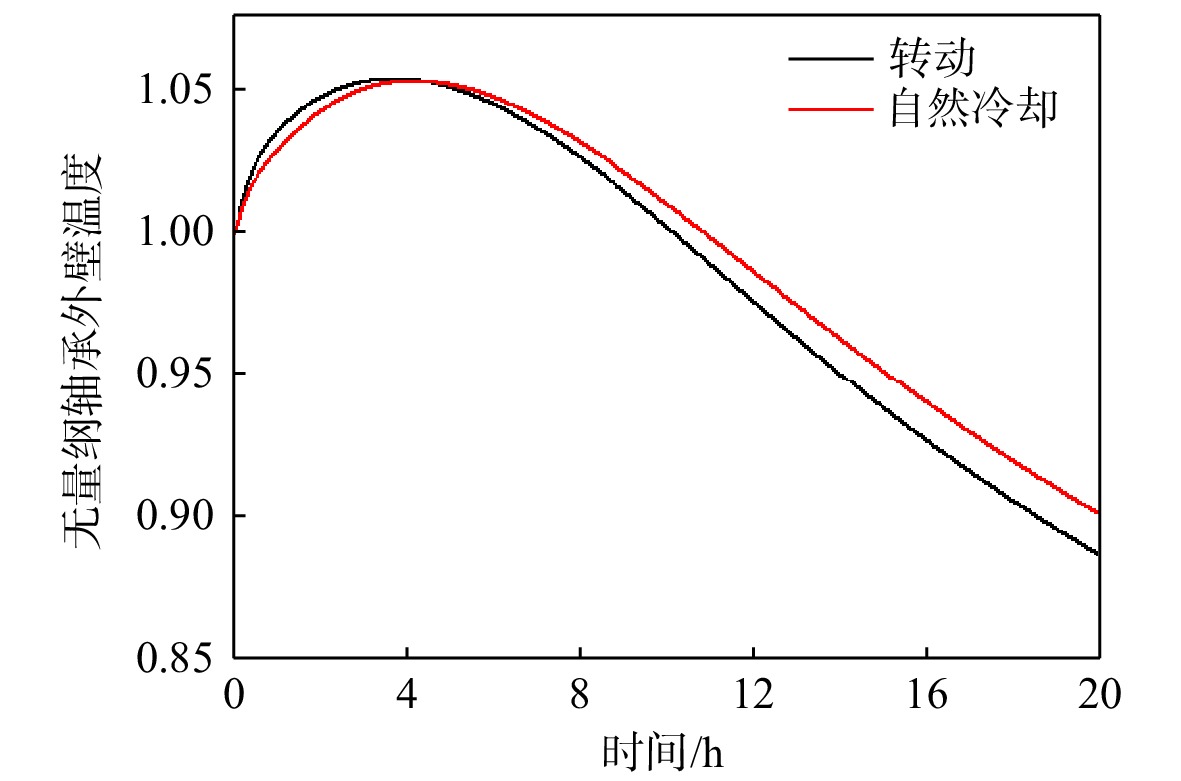

图 19 转动与自然冷却措施下的轴承外壁温度
Figure 19. Dimensionless temperature of bearing outer surface under barring gear and natural cooling
表 1 停机各级盘热沉浸温升相对值
Table 1. Relative temperature rise of each disc bottom after shut-down
位置 ΔTp/% 位置 ΔTp/% 2级盘盘底 10.8 7级盘盘底 13.2 3级盘盘底 13.3 8级盘盘底 2.2 4级盘盘底 13.5 9级盘盘底 4.4 5级盘盘底 12.1 10级盘盘底 6.1 6级盘盘底 16.5 CDP盘盘底 7.3
下载: 导出CSV
表 2 停车后机匣周向瞬态温差最大值
Table 2. Maximum circumferential temperature difference of case since shut-down
位置 瞬态最大温差/% TCASE1 7.50 TCASE3 7.20 TCASE5 10.8 TCASE7 24.0 TCASE10 21.7
下载: 导出CSV
表 3 冷吹条件下机匣周向温差不均匀性改善情况
Table 3. Improvement of unevenness of case circumferential temperature difference under cold air blowing
位置 ΔT/% 位置 ΔT/% T1 31 T6 19 T2 5 T7 42 T3 25 T8 40 T4 15 T9 23 T5 49 T10 26
下载: 导出CSV
表 4 冷吹措施下热沉浸尖峰温度改善情况
Table 4. Improvement of peak temperature due to heat soak under cold air blowing
位置 尖峰温度降低/% 位置 尖峰温度降低/% 2级盘 28 7级盘 80 3级盘 50 8级盘 300 4级盘 68 9级盘 147 5级盘 71 10级盘 96 6级盘 65 CDP盘 47
下载: 导出CSV
表 5 盘车措施下转子周向不均匀性改善情况
Table 5. Improvement of the unevenness of rotor circumferential temperature under barring gear
位置 ΔT/% TR1 −45 TR2 −41 TR3 −14 TR4 23 TR5 29 TR6 14
下载: 导出CSV
-
