Dynamic characteristics analysis and experimental research of cascade thrust reverser
-
摘要:

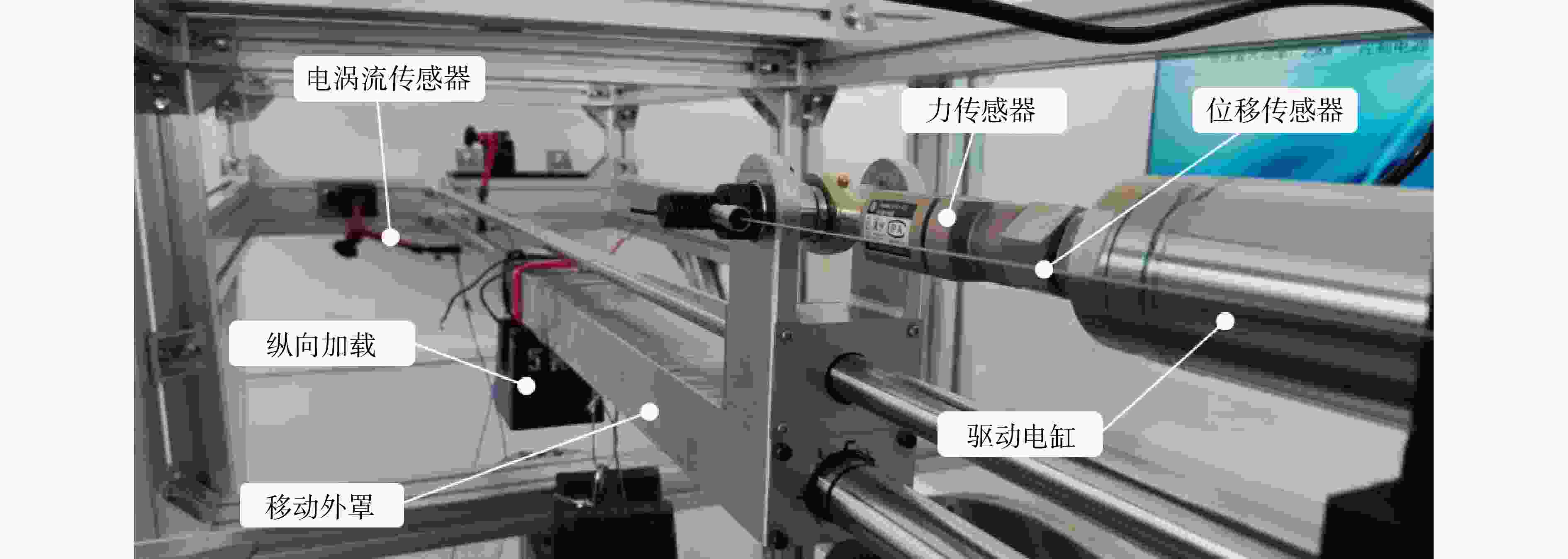

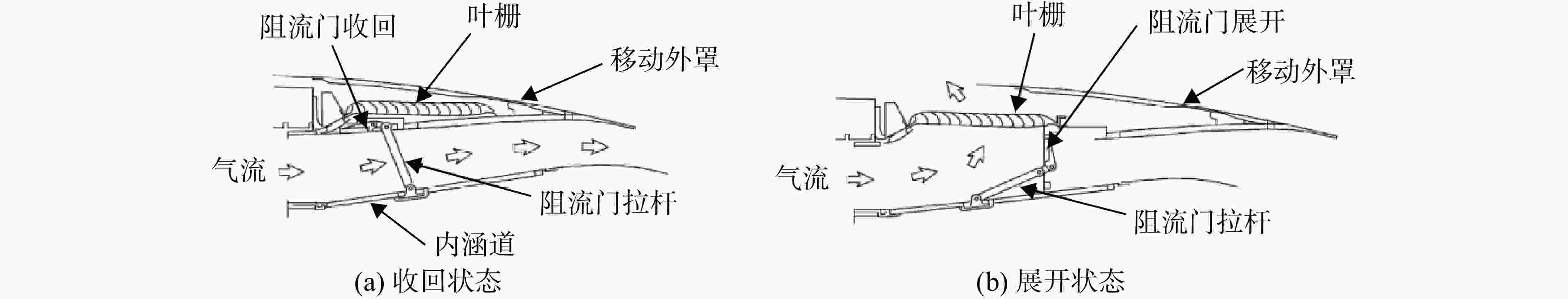

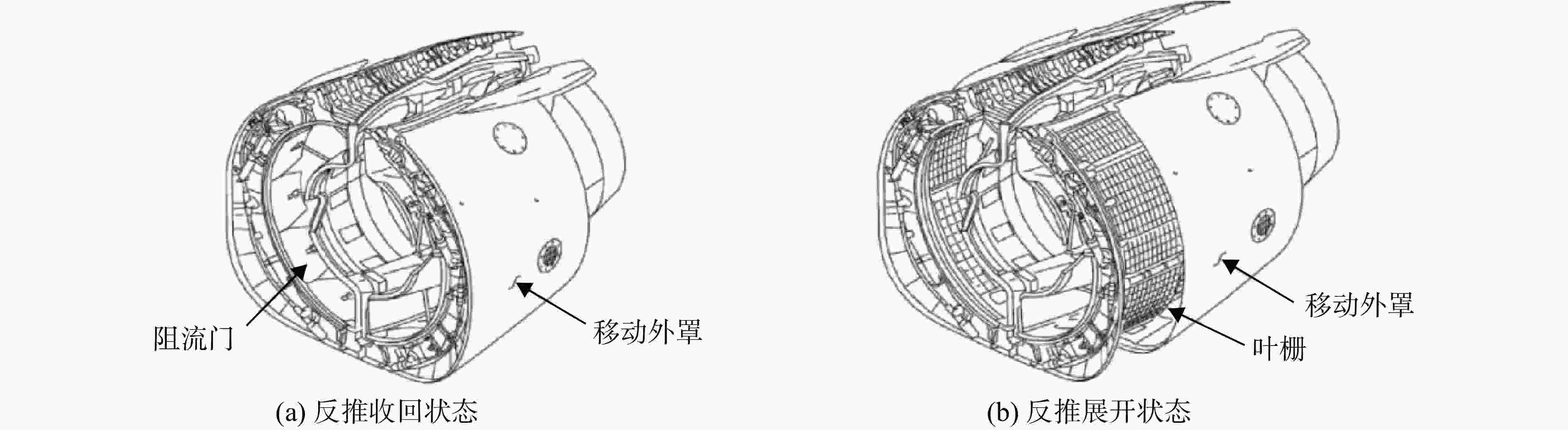

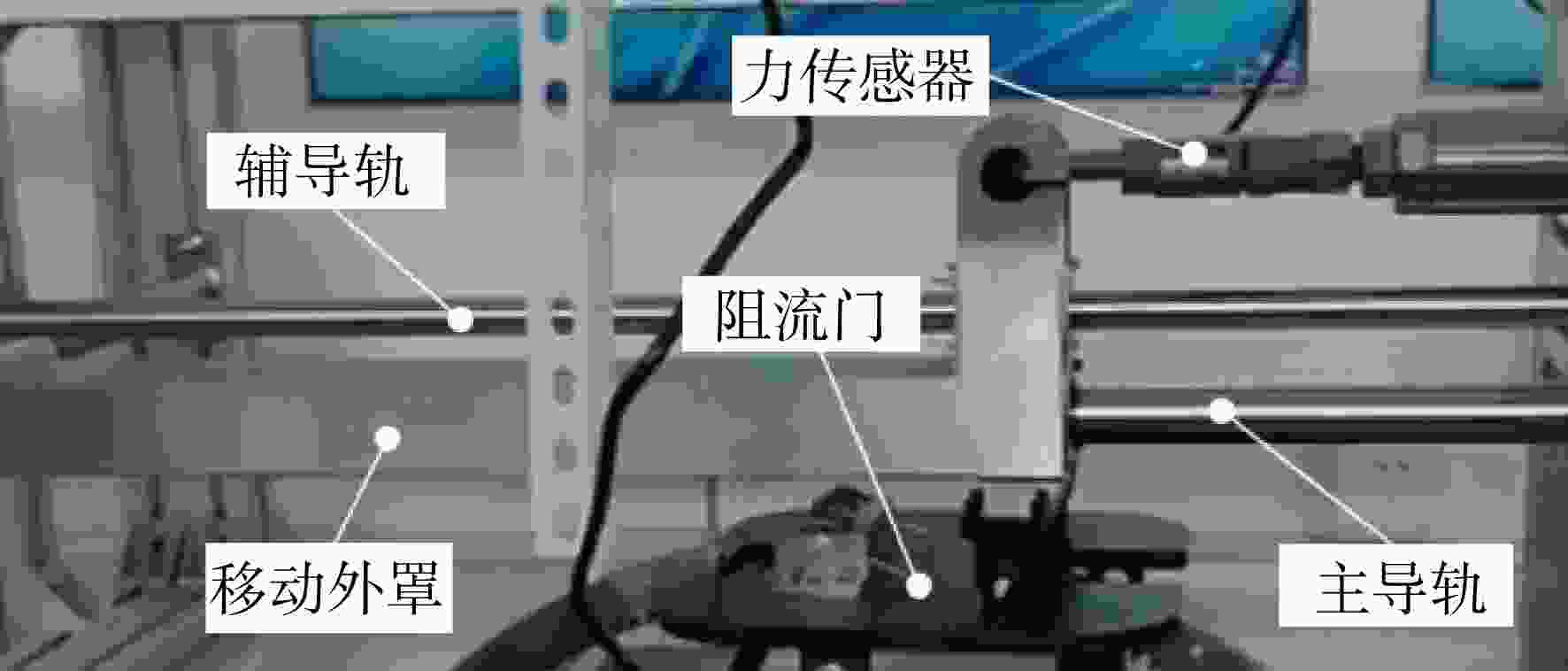

基于反推装置工作原理，提取单链路运动机构，保留关键运动副接触状态及关键部件尺寸，设计研制反推装置模拟试验台，通过开展不同载荷工况下原理级试验项目，得到机构阻滞力及导轨刚度变化规律，同时建立含间隙碰撞的刚柔耦合反推装置非线性动力学仿真模型，完成试验仿真对比验证。结果表明：纵向加载相比于横向加载工况下，机构最大阻滞力同比增大19%，当横向载荷低于150 N时，阻滞力峰值近似线性增加，增长率约为22%；机构导轨在纵向加载下整体变形比较稳定，横向载荷影响下变化更加敏感，但随着载荷的增大，导轨的振动现象受到抑制；试验数据与仿真结果基本一致，验证了试验的合理性和模型的正确性。

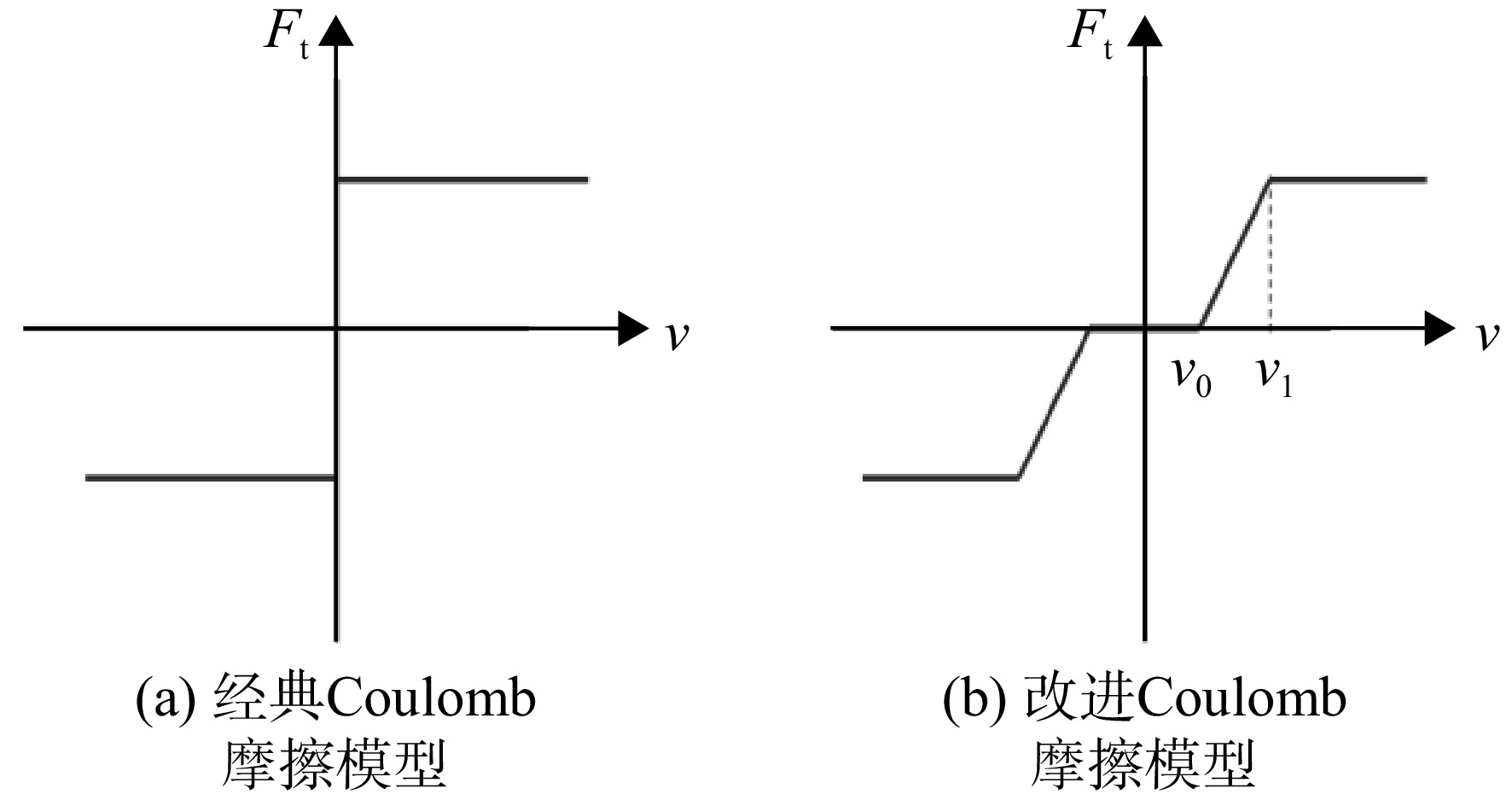

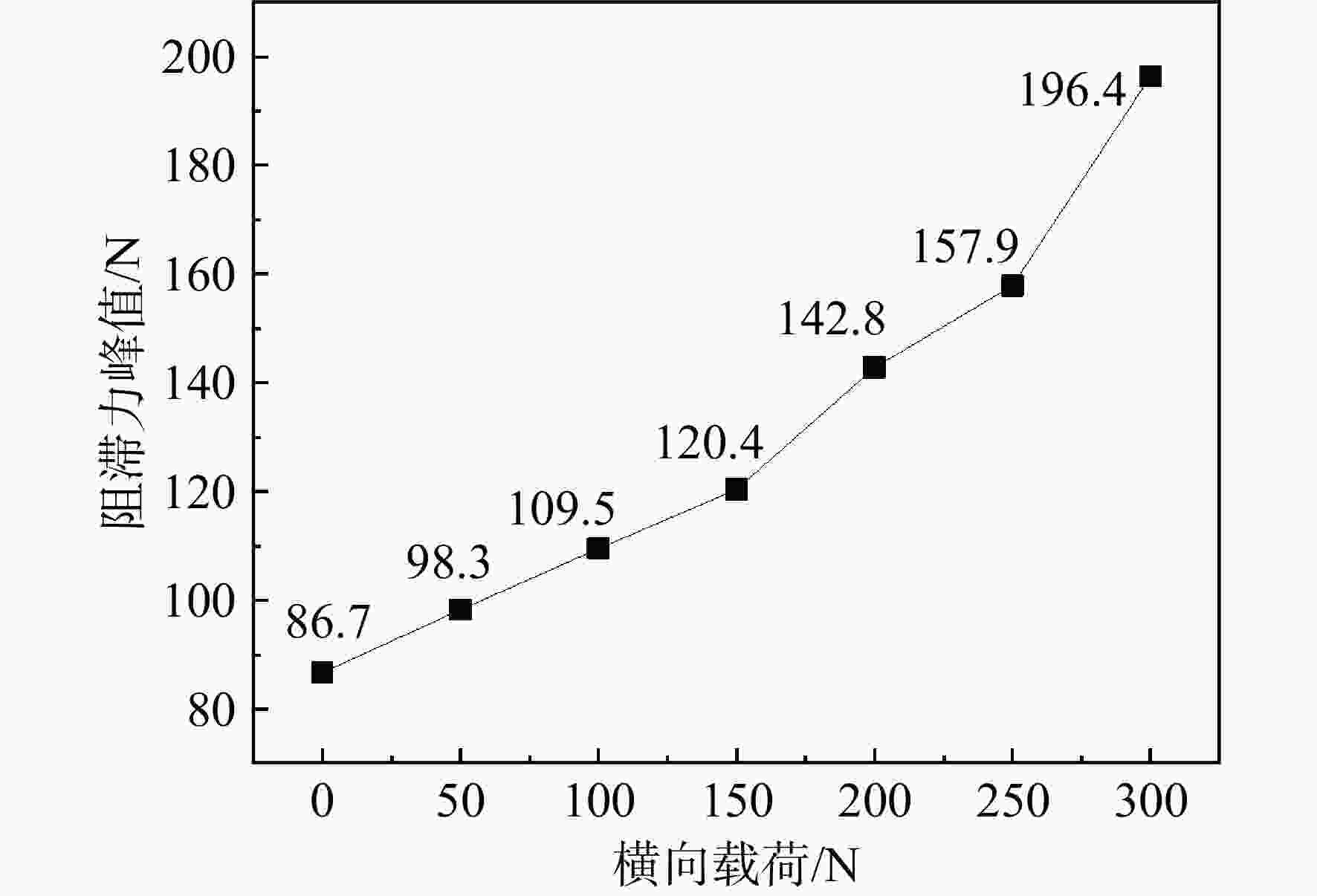

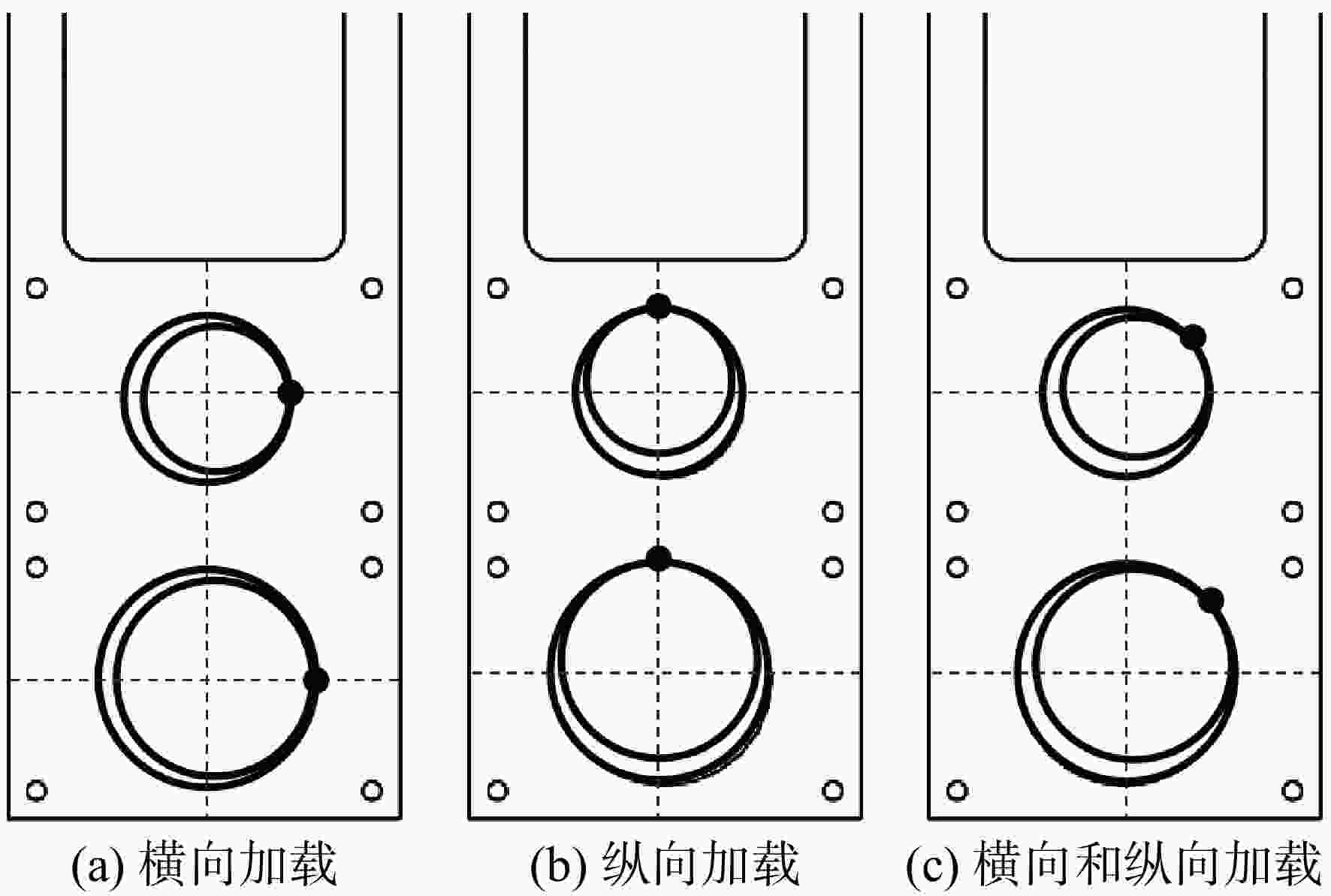

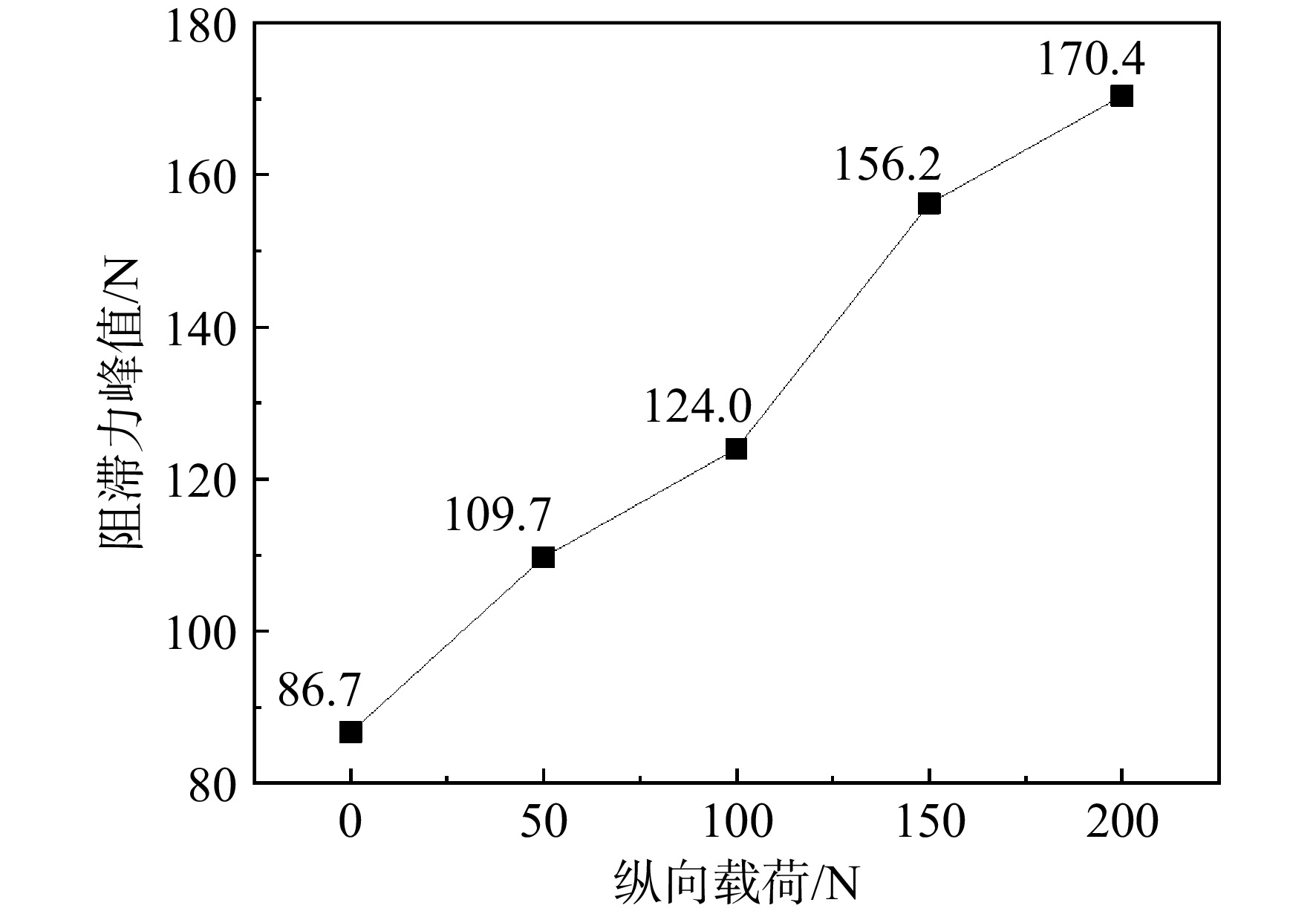

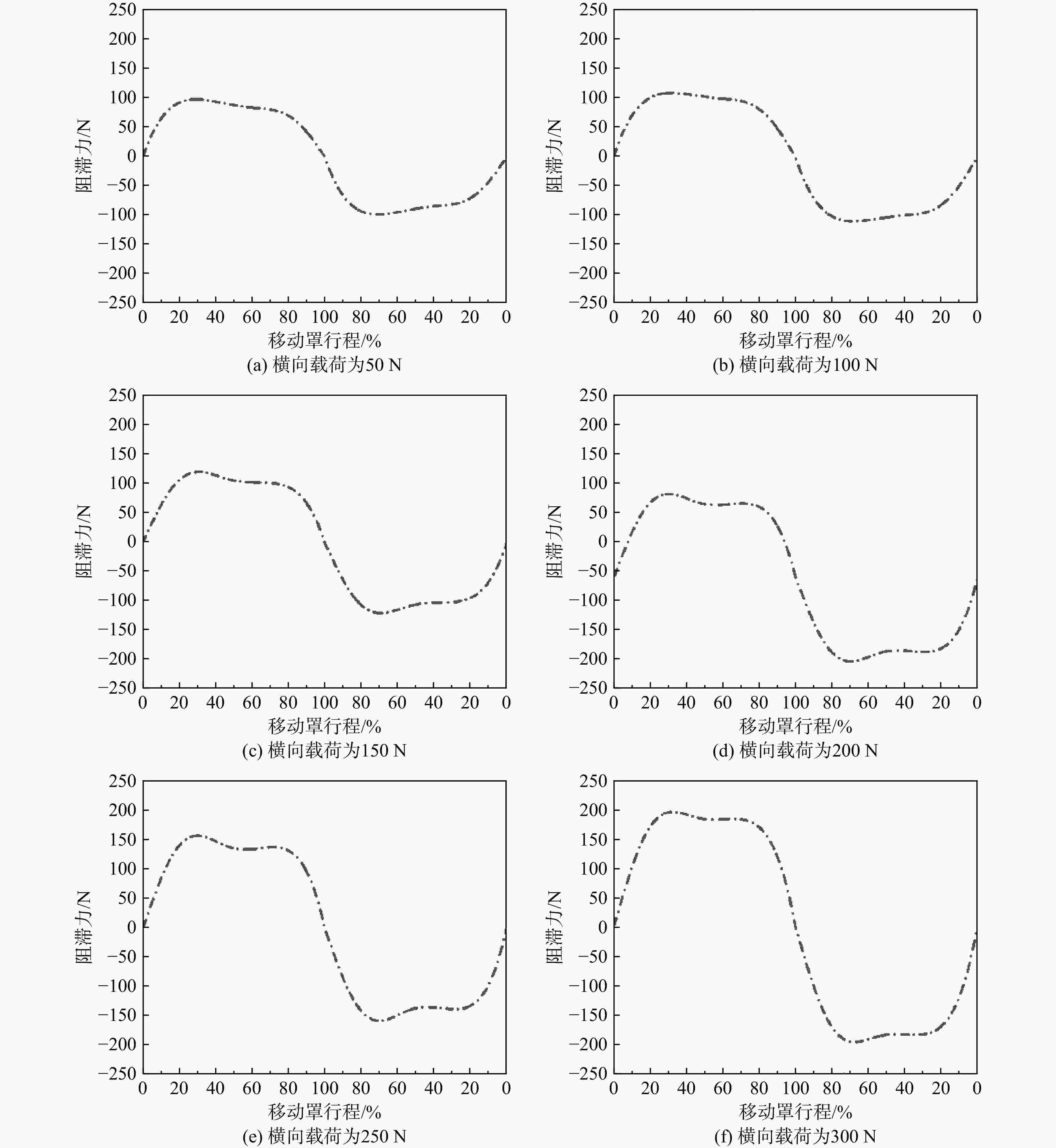

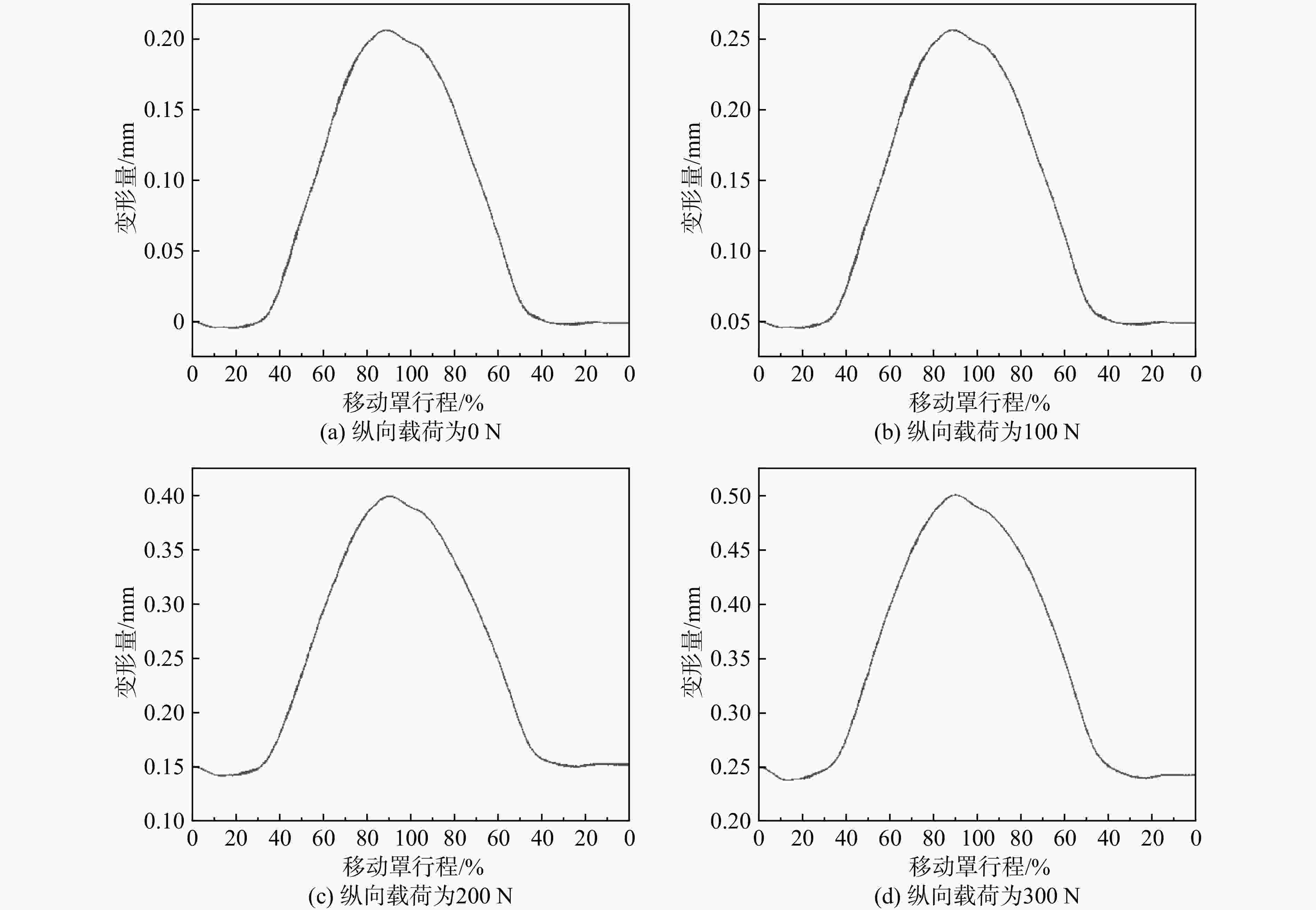

Abstract:A study was conducted to investigate the dynamic characteristics of key components of a cascade thrust reverser mechanism under multiple operating conditions. Based on the working principle of the thrust reverser device, a single-linkage motion mechanism was extracted while retaining the critical contact states of the motion pairs and the dimensions of key components. A simulated test bench for the thrust reverser mechanism was designed and developed. By conducting principle-level experimental tests under different load conditions, the variation patterns of the mechanism’s block force and guide rail stiffness were obtained. Meanwhile, the nonlinear dynamic simulation model for the rigid-flexible coupled thrust reverser mechanism with clearance collisions was established. Simultaneously, comparison and verification between experimental tests and simulations were completed. The results indicated that, compared with the lateral loading condition, the maximum block force of the mechanism increased by 19% under longitudinal loading. When the lateral load was below 150 N, the peak block force showed an approximately linear increase, with a growth rate of approximately 22%. Under longitudinal loading, the overall deformation of the mechanism’s guide rail was relatively stable, while under lateral loading, the deformation was more sensitive to changes. However, as the load increased, the vibration of the guide rail was inhibited. The experimental data were in good agreement with the simulation results, confirming the validity of the experiments and the accuracy of the model.
-

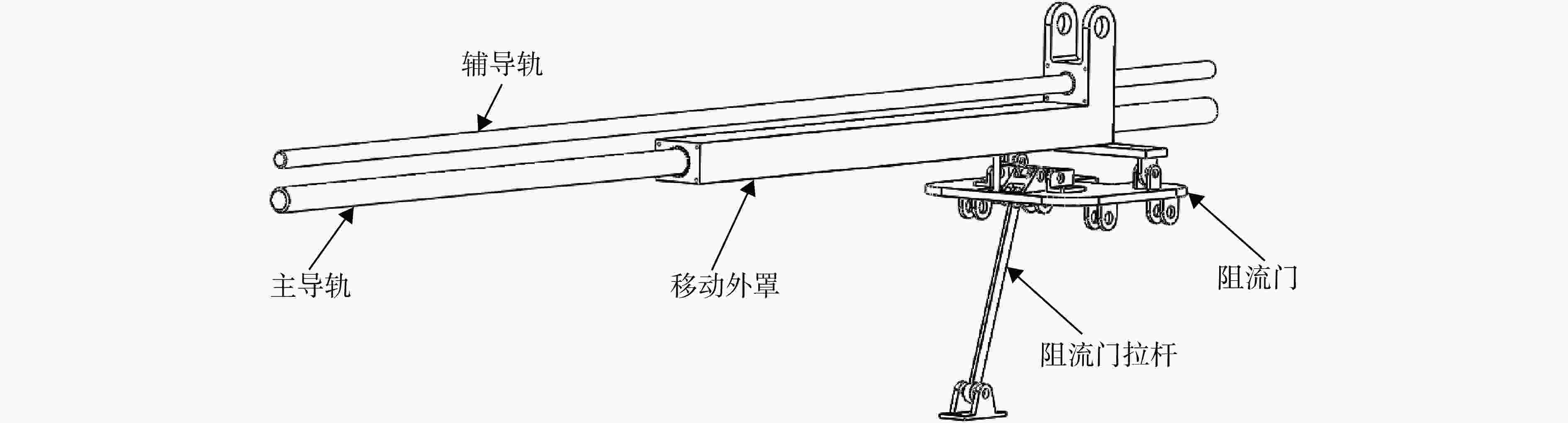

图 2 单链路反推装置运动示意图
Figure 2. Schematic diagram of single link thrust reverser mechanism movement

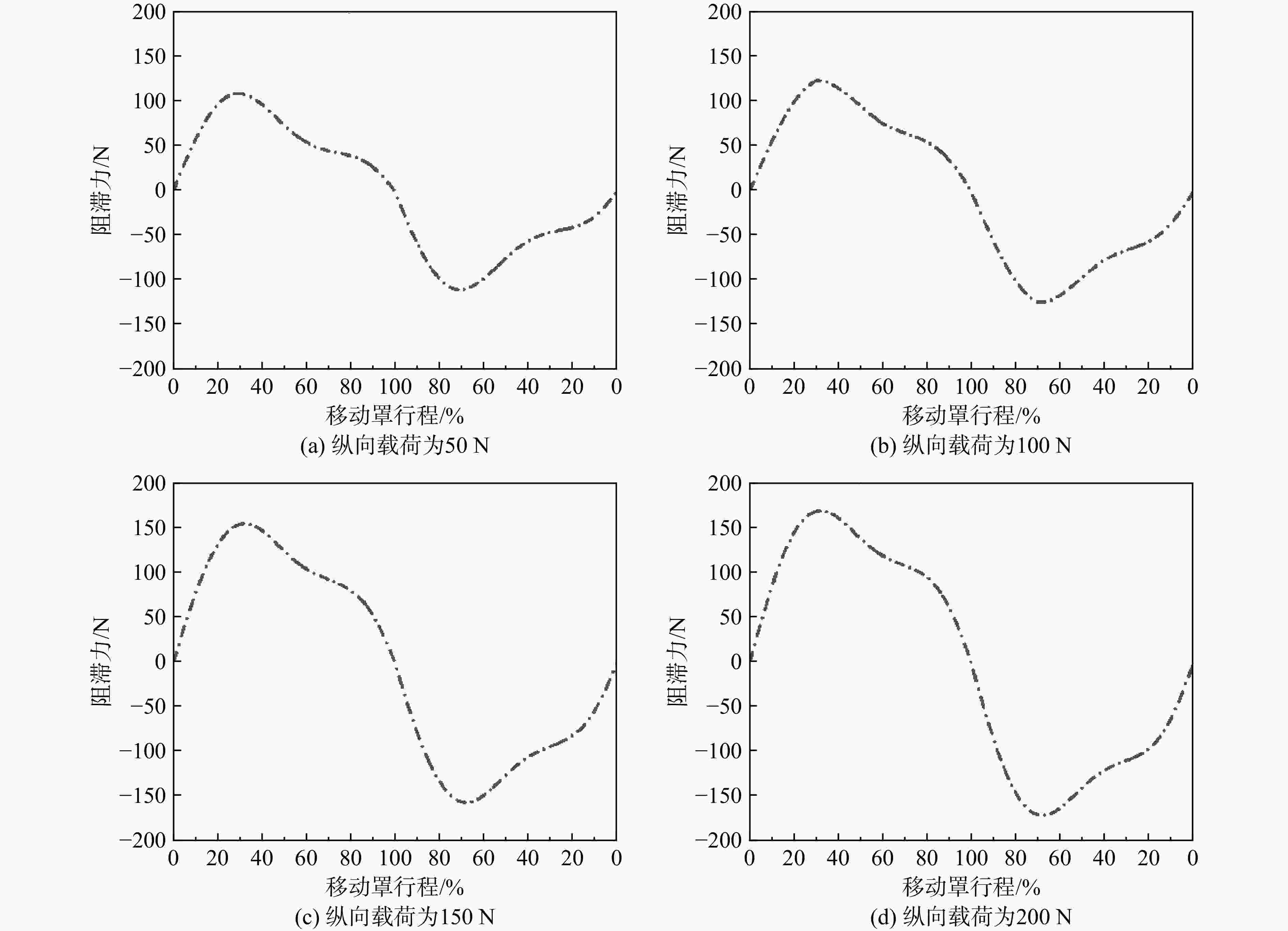

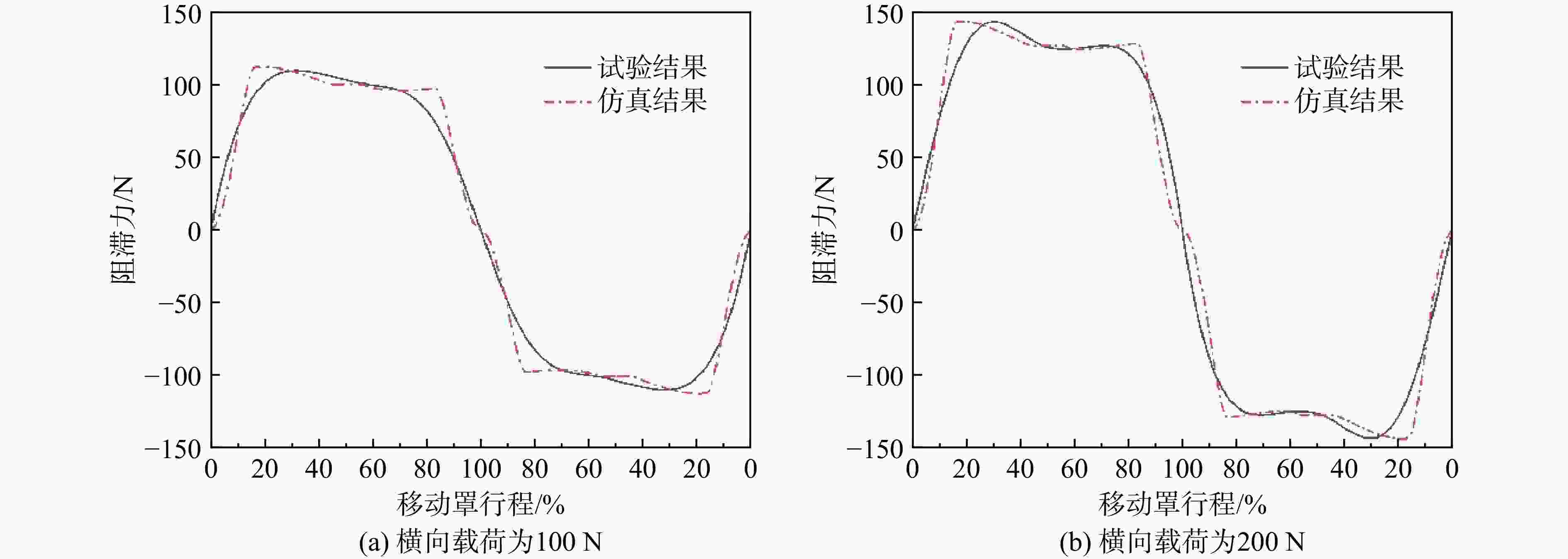

图 22 阻滞力试验与仿真结果对比
Figure 22. Comparison of experimental and simulation results of blocking force

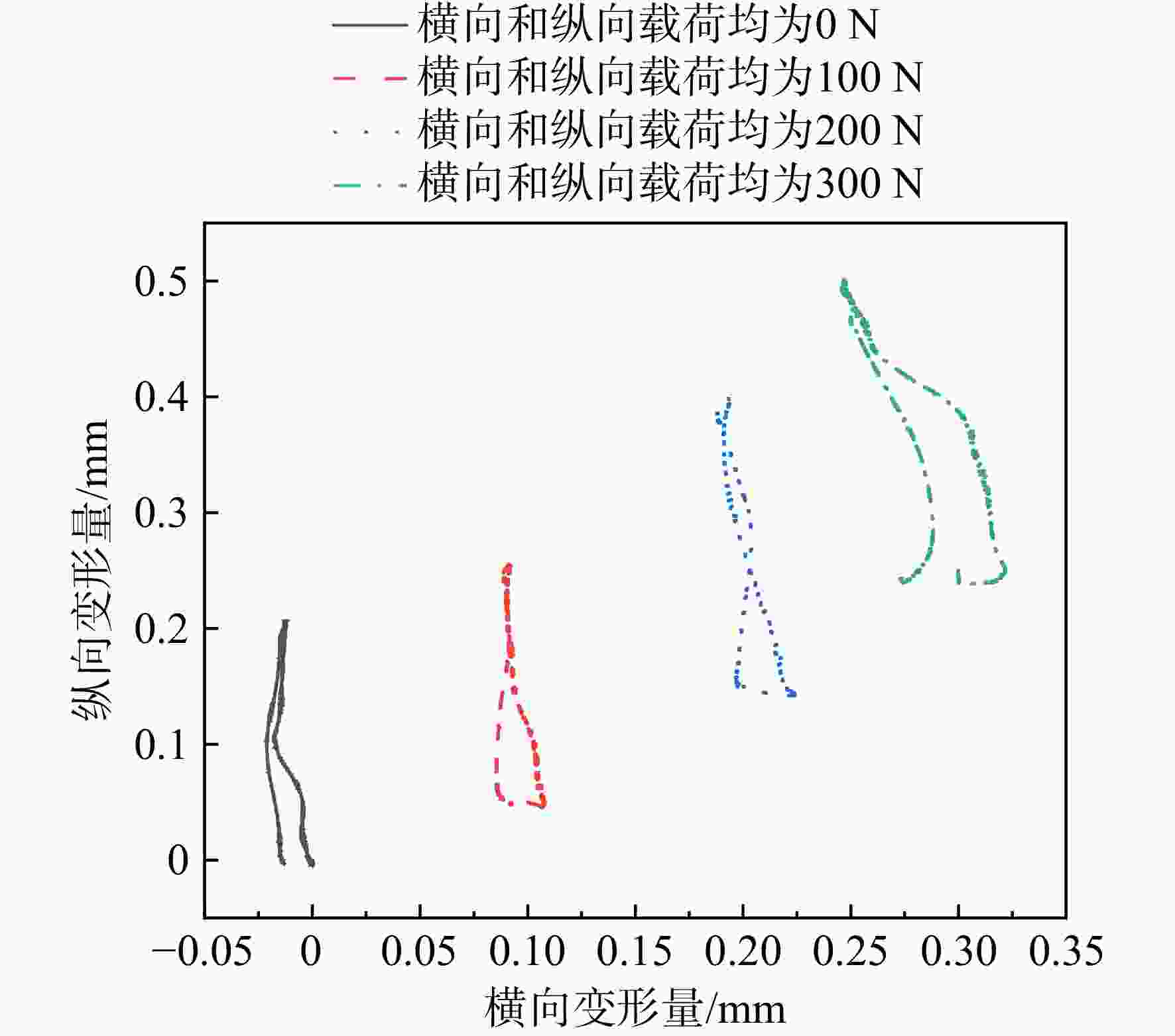

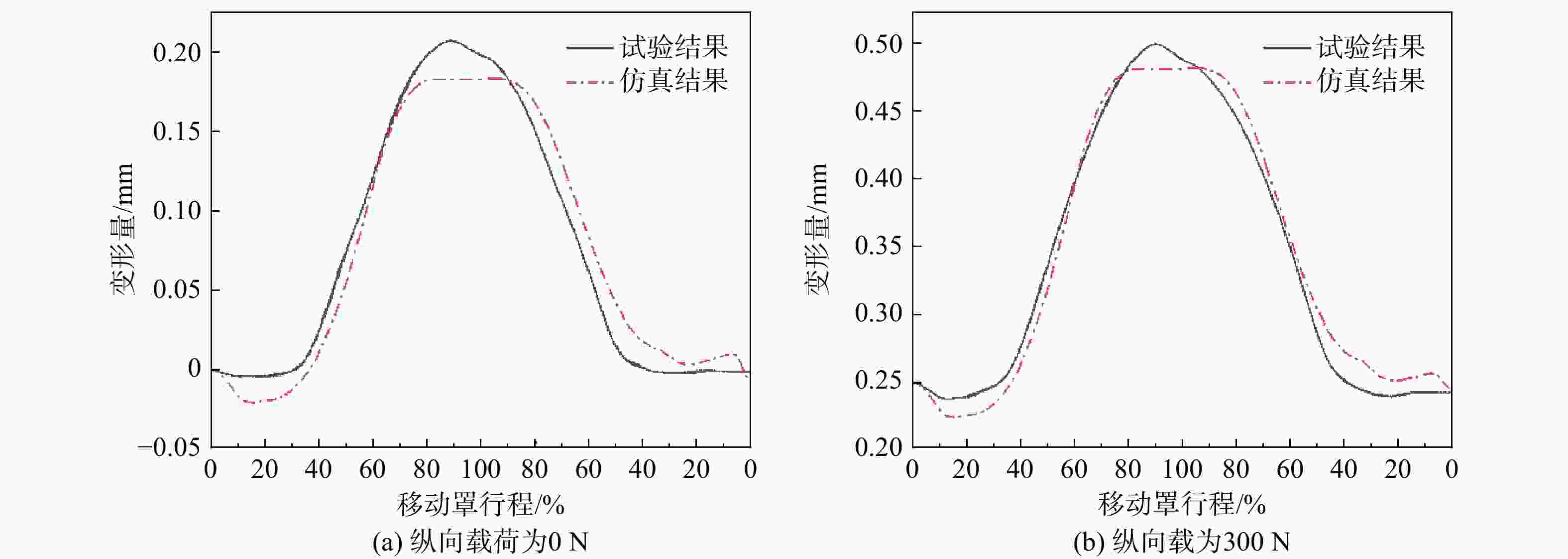

图 23 导轨纵向变形试验与仿真结果对比
Figure 23. Comparison of experimental and simulation results of vertical deformation of guide rail

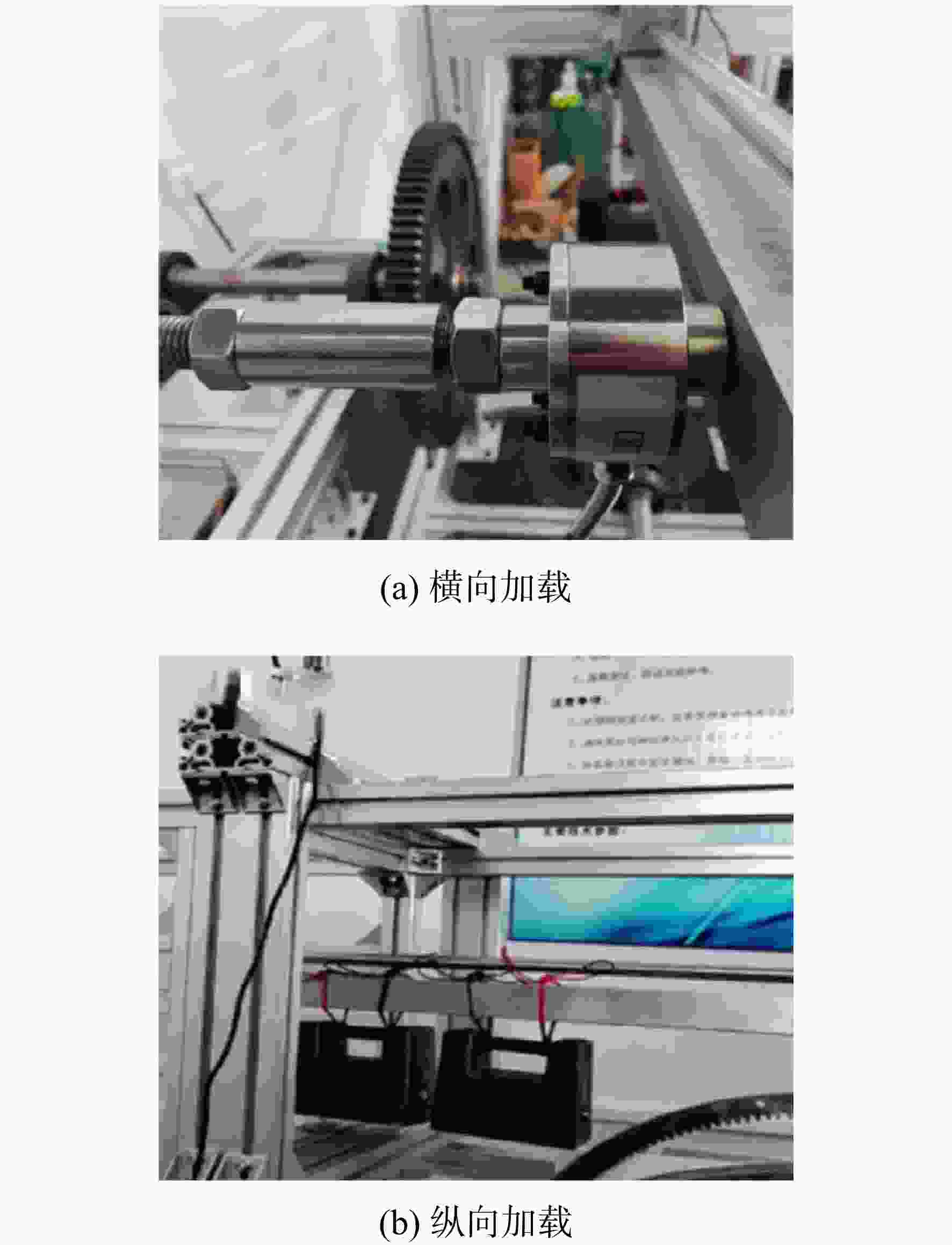

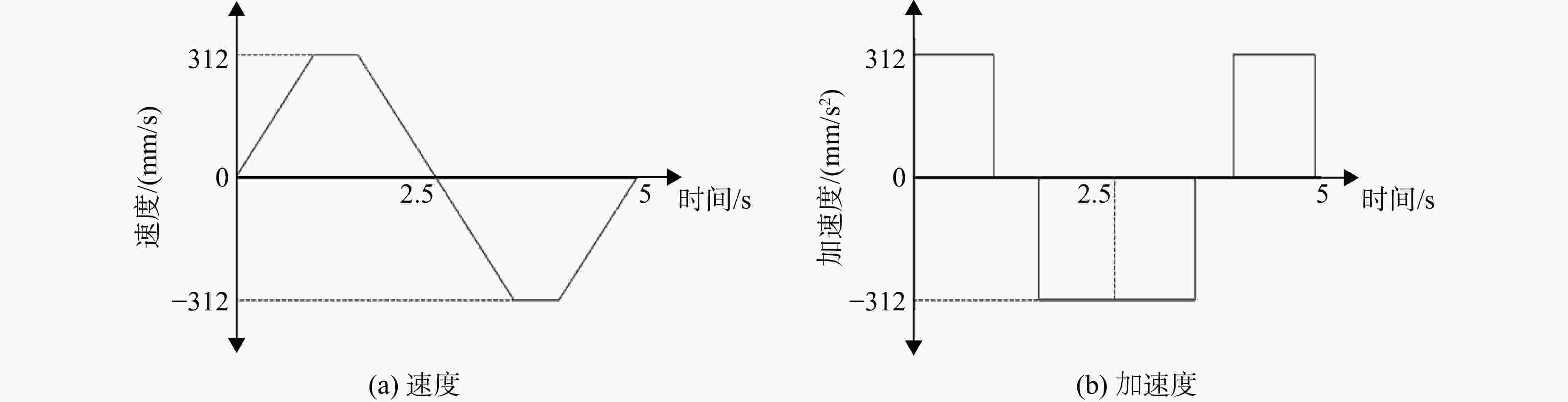

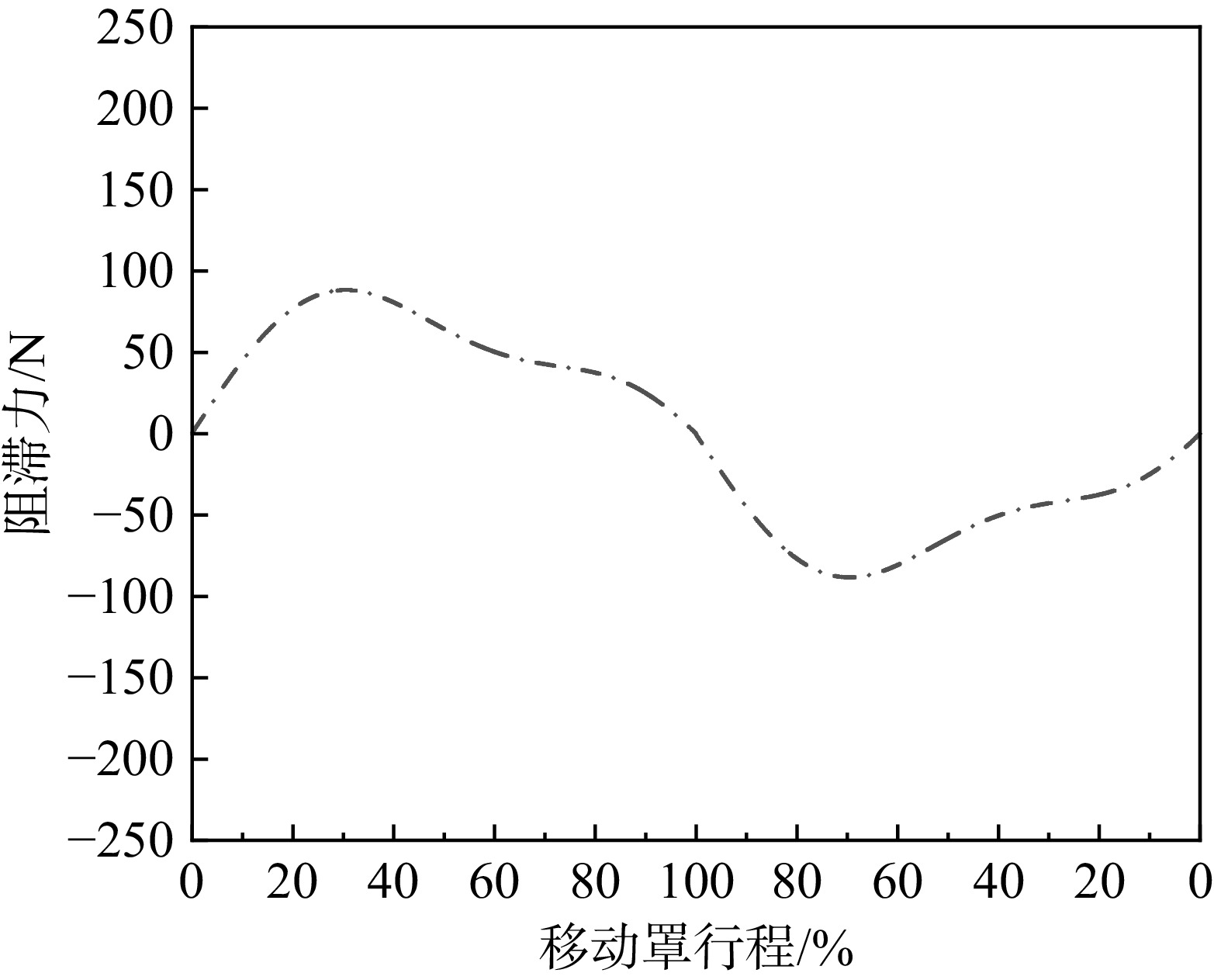

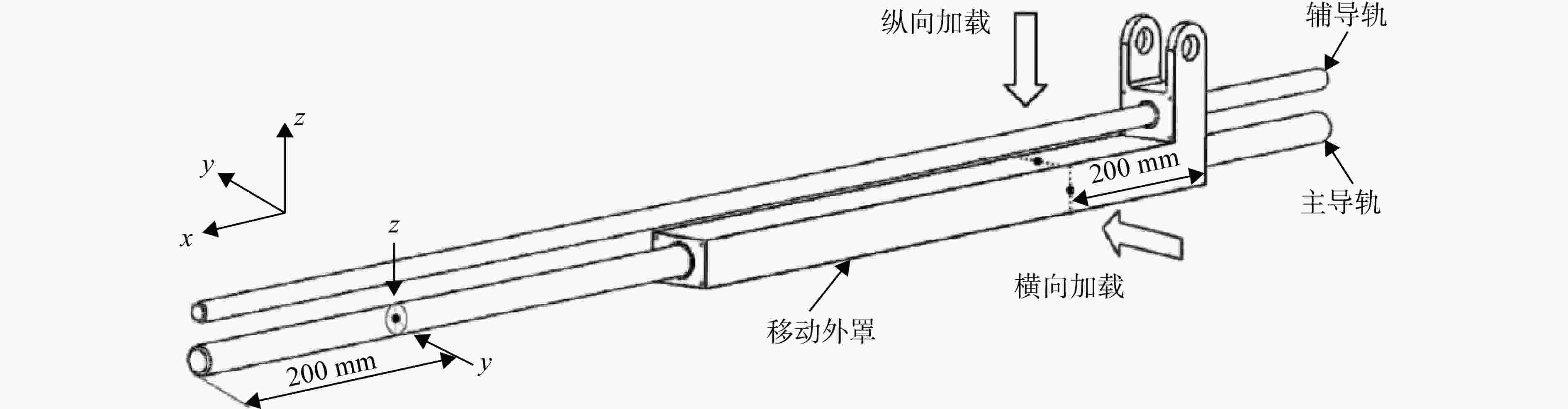

表 1 原理级试验加载方案
Table 1. Principle level test loading programme
试验项目 试验温度/℃ 横向载荷/N 纵向载荷/N 驱动速度/（mm/s） 运动周期/s 测试次数 阻滞力试验 25 50，100，150，200，250，300 50，100，150，200 312 5 3 导轨刚度试验 25 0 0 312 5 3 100 100 200 200 300 300
下载: 导出CSV
-
[1] 刘大响. 航空发动机设计手册: 第7册 进排气装置[M]. 北京: 航空工业出版社, 2000. [2] 靳宝林, 邢伟红, 刘殿春. 飞机/发动机推进系统反推力装置[J]. 航空发动机, 2004, 30(4): 48-52, 58. JIN Baolin, XING Weihong, LIU Dianchun. Reverse thrust device of aircraft/engine propulsion system[J]. Aeroengine, 2004, 30(4): 48-52, 58. (in ChineseJIN Baolin, XING Weihong, LIU Dianchun. Reverse thrust device of aircraft/engine propulsion system[J]. Aeroengine, 2004, 30(4): 48-52, 58. (in Chinese) [3] 邵万仁, 叶留增, 沈锡钢, 等. 反推力装置关键技术及技术途径初步探讨[C]//大型飞机关键技术高层论坛暨中国航空学会2007年学术年会论文集. 北京: 中国航空学会, 2007: 1041-1047. [4] 饶祺, 盛鸣剑, 韩涛锋, 等. 发动机反推力装置研究[J]. 科技广场, 2014(2): 91-94. RAO Qi, SHENG Mingjian, HAN Taofeng, et al. Research on engine thrust reverser[J]. Science Mosaic, 2014(2): 91-94. (in ChineseRAO Qi, SHENG Mingjian, HAN Taofeng, et al. Research on engine thrust reverser[J]. Science Mosaic, 2014(2): 91-94. (in Chinese) [5] 何宝明, 罗彬. 叶栅式反推力装置平面作动机构运动规律研究[J]. 机电信息, 2020(14): 14-15. HE Baoming, LUO Bin. Study on motion law of planar actuator of cascade reverse thrust device[J]. Mechanical and Electrical Information, 2020(14): 14-15. (in ChineseHE Baoming, LUO Bin. Study on motion law of planar actuator of cascade reverse thrust device[J]. Mechanical and Electrical Information, 2020(14): 14-15. (in Chinese) [6] 陈著, 单勇, 沈锡钢, 等. 叶栅式反推力装置开启过程的三维非稳态数值模拟与分析[J]. 航空动力学报, 2017, 32(9): 2132-2138. CHEN Zhu, SHAN Yong, SHEN Xigang, et al. Three-dimensional unsteady numerical simulation and analysis of deployment for cascade thrust reverser[J]. Journal of Aerospace Power, 2017, 32(9): 2132-2138. (in ChineseCHEN Zhu, SHAN Yong, SHEN Xigang, et al. Three-dimensional unsteady numerical simulation and analysis of deployment for cascade thrust reverser[J]. Journal of Aerospace Power, 2017, 32(9): 2132-2138. (in Chinese) [7] 陈俊, 雷晗, 单勇. 叶栅式反推力装置推力性能研究[J]. 航空计算技术, 2019, 49(2): 34-36, 42. CHEN Jun, LEI Han, SHAN Yong. Study on reverse thrust performance in cascade thrust reverser[J]. Aeronautical Computing Technique, 2019, 49(2): 34-36, 42. (in ChineseCHEN Jun, LEI Han, SHAN Yong. Study on reverse thrust performance in cascade thrust reverser[J]. Aeronautical Computing Technique, 2019, 49(2): 34-36, 42. (in Chinese) [8] 谢业平, 王强, 邵万仁, 等. 叶栅式反推力装置阻流门运动规律对气动性能的影响[J]. 航空动力学报, 2010, 25(6): 1297-1302. XIE Yeping, WANG Qiang, SHAO Wanren, et al. Effect of kinetic mechanism of blocker doors on aerodynamic performance for a cascade thrust reverser[J]. Journal of Aerospace Power, 2010, 25(6): 1297-1302. (in ChineseXIE Yeping, WANG Qiang, SHAO Wanren, et al. Effect of kinetic mechanism of blocker doors on aerodynamic performance for a cascade thrust reverser[J]. Journal of Aerospace Power, 2010, 25(6): 1297-1302. (in Chinese) [9] 王志强, 沈锡钢, 胡骏. 反推状态下大涵道比涡扇发动机气动稳定性预测与评估[J]. 航空学报, 2017, 38(2): 120202. WANG Zhiqiang, SHEN Xigang, HU Jun. Prediction and evaluation of aerodynamic stability of high bypass ratio turbofan engine deployed with thrust reverser[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(2): 120202. (in ChineseWANG Zhiqiang, SHEN Xigang, HU Jun. Prediction and evaluation of aerodynamic stability of high bypass ratio turbofan engine deployed with thrust reverser[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(2): 120202. (in Chinese) [10] BUTTERFIELD J, YAO H, PRICE M, et al. Enhancement of thrust reverser cascade performance using aerodynamic and structural integration[J]. The Aeronautical Journal, 2004, 108(1090): 621-628. doi: 10.1017/S0001924000000452 [11] 王鹏. 民用客机反推装置气动优化设计研究[D]. 上海: 上海交通大学, 2019. WANG Peng. Aerodynamic optimization design of the thrust reverser system of the civil aircraft[D]. Shanghai: Shanghai Jiao Tong University, 2019. (in ChineseWANG Peng. Aerodynamic optimization design of the thrust reverser system of the civil aircraft[D]. Shanghai: Shanghai Jiao Tong University, 2019. (in Chinese) [12] VARSEGOV V L, SHABALIN A S. Selection of an optimal turbulence model for numerical flow simulation in a cascade type turbofan engine thrust reverser[J]. Russian Aeronautics, 2015, 58(4): 484-487. doi: 10.3103/S1068799815040212 [13] 陈永琴, 汪天兴, 苏三买, 等. 反推力装置液压作动系统AMESim建模与仿真[J]. 航空动力学报, 2017, 32(11): 2791-2799. CHEN Yongqin, WANG Tianxing, SU Sanmai, et al. Modeling and simulation of thrust reverser hydraulic actuation system based on AMESim[J]. Journal of Aerospace Power, 2017, 32(11): 2791-2799. (in ChineseCHEN Yongqin, WANG Tianxing, SU Sanmai, et al. Modeling and simulation of thrust reverser hydraulic actuation system based on AMESim[J]. Journal of Aerospace Power, 2017, 32(11): 2791-2799. (in Chinese) [14] 隋杰飞, 朱岩. 液压作动反推力装置安全性设计与研究[J]. 液压与气动, 2016, 40(1): 104-107. SUI Jiefei, ZHU Yan. The safety design and research of hydraulic action thrust reverser[J]. Chinese Hydraulics & Pneumatics, 2016, 40(1): 104-107. (in ChineseSUI Jiefei, ZHU Yan. The safety design and research of hydraulic action thrust reverser[J]. Chinese Hydraulics & Pneumatics, 2016, 40(1): 104-107. (in Chinese) [15] 汪天兴. 飞机反推力装置及其作动系统建模与仿真研究[D]. 西安: 西安电子科技大学, 2017. WANG Tianxing. Modeling and simulation of aircraft thrust reverser and actuation[D]. Xi’an: Xidian University, 2017. (in ChineseWANG Tianxing. Modeling and simulation of aircraft thrust reverser and actuation[D]. Xi’an: Xidian University, 2017. (in Chinese) [16] 何杰. 飞机反推力装置动力学分析及结构优化[D]. 西安: 西安电子科技大学, 2020. HE Jie. Dynamic analysis and structure optimum of aircraft thrust reverser[D]. Xi’an: Xidian University, 2020. (in ChineseHE Jie. Dynamic analysis and structure optimum of aircraft thrust reverser[D]. Xi’an: Xidian University, 2020. (in Chinese) [17] 高吴浩, 陈永琴, 苏三买, 等. 反推力装置结构优化设计[J]. 航空动力学报, 2022, 37(8): 1724-1731. GAO Wuhao, CHEN Yongqin, SU Sanmai, et al. Structural optimization design of thrust reverser[J]. Journal of Aerospace Power, 2022, 37(8): 1724-1731. (in ChineseGAO Wuhao, CHEN Yongqin, SU Sanmai, et al. Structural optimization design of thrust reverser[J]. Journal of Aerospace Power, 2022, 37(8): 1724-1731. (in Chinese) [18] ZHAO Jingchao, WANG Xiaoyu, MENG Chao, et al. Dynamic modeling and analysis of thrust reverser mechanism considering clearance joints and flexible component[J]. Aerospace, 2022, 9(10): 611. doi: 10.3390/aerospace9100611 [19] 陈永琴, 何杰, 苏三买. 反推力装置运动学与动力学仿真[J]. 航空动力学报, 2019, 34(11): 2316-2323. CHEN Yongqin, HE Jie, SU Sanmai. Kinematics and dynamics simulation of thrust reverser[J]. Journal of Aerospace Power, 2019, 34(11): 2316-2323. (in ChineseCHEN Yongqin, HE Jie, SU Sanmai. Kinematics and dynamics simulation of thrust reverser[J]. Journal of Aerospace Power, 2019, 34(11): 2316-2323. (in Chinese) [20] 张少军, 王汉平, 何江军, 等. 叶栅式反推装置的受载与传力[J]. 四川兵工学报, 2015, 36(3): 56-59. ZHANG Shaojun, WANG Hanping, HE Jiangjun, et al. Load and force transmission of cascade thrust reverser[J]. Journal of Sichuan Ordnance, 2015, 36(3): 56-59. (in ChineseZHANG Shaojun, WANG Hanping, HE Jiangjun, et al. Load and force transmission of cascade thrust reverser[J]. Journal of Sichuan Ordnance, 2015, 36(3): 56-59. (in Chinese) [21] 是贤珠. 某型飞机反推力装置加载试验[J]. 民用飞机设计与研究, 2012(1): 61-65. SHI Xianzhu. The loading test of the reserves thrust system[J]. Civil Aircarft Design & Research, 2012(1): 61-65. (in ChineseSHI Xianzhu. The loading test of the reserves thrust system[J]. Civil Aircarft Design & Research, 2012(1): 61-65. (in Chinese) [22] 张艳慧, 秦浩, 王代军. 发动机反推力系统安全性设计[J]. 航空动力学报, 2015, 30(7): 1784-1792. ZHANG Yanhui, QIN Hao, WANG Daijun. Engine reverser thrust system safety design[J]. Journal of Aerospace Power, 2015, 30(7): 1784-1792. (in ChineseZHANG Yanhui, QIN Hao, WANG Daijun. Engine reverser thrust system safety design[J]. Journal of Aerospace Power, 2015, 30(7): 1784-1792. (in Chinese) [23] LIU Chao, DENG Junxiang, SU Sanmai. Design of loading system for thrust reverser ground simulation test[J]. IOP Conference Series: Earth and Environmental Science, 2018, 170(4): 042093. [24] LANKARANI H M, NIKRAVESH P E. A contact force model with hysteresis damping for impact analysis of multibody systems[J]. Journal of Mechanical Design, 1990, 112(3): 369-376. doi: 10.1115/1.2912617 [25] HERTZ H. Über die Berührung fester elastischer Körper[J]. Journal für die Reine und Angewandte Mathematik, 1881, 92: 156-171. [26] HUNT K H, CROSSLEY F R E. Coefficient of restitution interpreted as damping in vibroimpact[J]. Journal of Applied Mechanics, 1975, 42: 440-445. doi: 10.1115/1.3423596 [27] DEN HARTOG J P. Forced vibrations with combined coulomb and viscous friction[J]. Journal of Fluids Engineering, 1931, 53(2): 107-115. [28] AMBRÓSIO J A C. Impact of rigid and flexible multibody systems: deformation description and contact models[M]//Virtual nonlinear multibody systems. Dordrecht, Netherlands: Springer, 2003: 57-81. [29] FLORES P, KOSHY C S, LANKARANI H M, et al. Numerical and experimental investigation on multibody systems with revolute clearance joints[J]. Nonlinear Dynamics, 2011, 65(4): 383-398. doi: 10.1007/s11071-010-9899-8 [30] ERKAYA S. Experimental investigation of flexible connection and clearance joint effects on the vibration responses of mechanisms[J]. Mechanism and Machine Theory, 2018, 121: 515-529. doi: 10.1016/j.mechmachtheory.2017.11.014 [31] FLORES P, LANKARANI H M. Dynamic response of multibody systems with multiple clearance joints[J]. Journal of Computational and Nonlinear Dynamics, 2012, 7(3): 031003, 1-13. [32] SHABANA A A. Computer implementation of the absolute nodal coordinate formulation for flexible multibody dynamics[J]. Nonlinear Dynamics, 1998, 16(3): 293-306. doi: 10.1023/A:1008072517368 -
