Fault diagnosis of aeroengine bearings using multi-source fusion STFT-IncepNext method

WAN Anping^1
,,
ZHANG Hua^{1, 2},
ZHANG Jin^{3,*
, ,},
JIANG Junjie¹,
WANG Jinglin⁴,
SHAN Tianmin⁴

1.
Department of Mechanical Engineering，Hangzhou City University，Hangzhou 310015，China
2.
School of Mechanical Engineering，Zhejiang University of Technology，Hangzhou 310023，China
3.
School of Mechanical Engineering，Zhejiang University，Hangzhou 310027，China
4.
Aviation Key Laboratory of Science and Technology on Fault Diagnosis and Health Management，Shanghai Aeronautical Measurement and Control Technology Research Institute，Aviation Industry Corporation of China，Limited，Shanghai 201601，China

摘要

摘要:
针对单传感器信息难以满足复杂工况下航空发动机轴承故障状态的稳定监测问题，提出一种STFT-IncepNext的航空发动机轴承故障诊断模型。首先，将同一时间窗口内的异位传感器数据进行拼接，以补充轴承在不同空间下的振动信息。其次，为了捕捉振动信号中故障成分的瞬时变化，利用短时傅里叶变换（short-time Fourier transform, STFT）将多传感器振动信号转换为时频图。最后，通过轻量化的IncepNext网络来提取时频图中蕴含的故障信息全局特征，由分类器给出识别的故障类别。实验结果表明：所提方法能够有效地增强信号的故障特征，提高轴承在不同状态下振动特征的辨识度。在特定的实验条件下，该方法实现了航空发动机轴承振动故障诊断准确率达100%，相较于STFT-EdgeNeXt、STFT-ResNeXt、STFT-ShuffleNet、STFT-ResNet18均取得了更好的性能，为航空发动机轴承故障诊断提供一种可行方法。
- 故障诊断 /
- 多传感器信息融合 /
- 短时傅里叶变换 /
- 滚动轴承 /
- 视频特征
Abstract:
To address the challenge of reliably monitoring aviation engine bearing faults under complex operating conditions with limited information from a single sensor, the STFT-IncepNext model was proposed for bearing fault diagnosis. Initially, sensor data from different positions within the same time window were concatenated to enrich the vibration information of bearings across various spatial dimensions. Subsequently, to capture the transient changes of fault components in the vibration signal, the short-time Fourier transform (STFT) was applied to convert multi-sensor vibration signals into time-frequency representations. Finally, a lightweight IncepNext network extracted global features of fault information embedded in the time-frequency representations, and a Softmax classifier identified the fault category. Experimental results demonstrated that the proposed approach effectively enhanced signal fault characteristics, and improved the discriminability of vibration features under various bearing states. Under specific experimental conditions, the method achieved an accuracy rate of 100% for diagnosing vibration faults in aeroengine bearings. Compared with STFT-EdgeNeXt, STFT-ResNeXt, STFT-ShuffleNet, and STFT-ResNet18, the method exhibited superior performance, providing a feasible approach for diagnosing faults in aeroengine bearings.
- fault diagnosis /
- multi-sensor information fusion /
- short-time Fourier transform /
- rolling bearings /
- time-frequency features

HTML

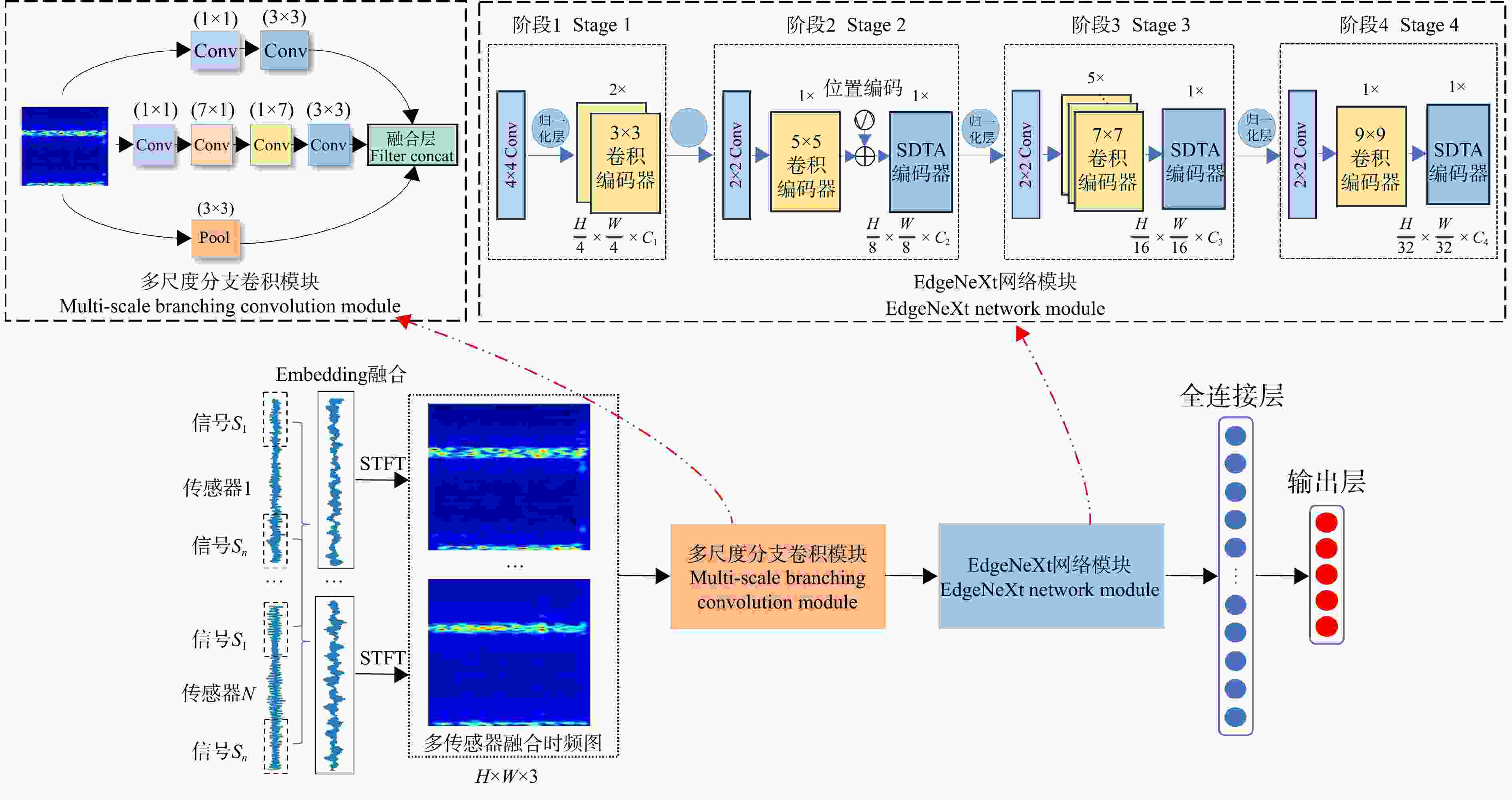

图 1 STFT-IncepNext网络模型

Figure 1. Network model of STFT-IncepNext

下载: 全尺寸图片幻灯片

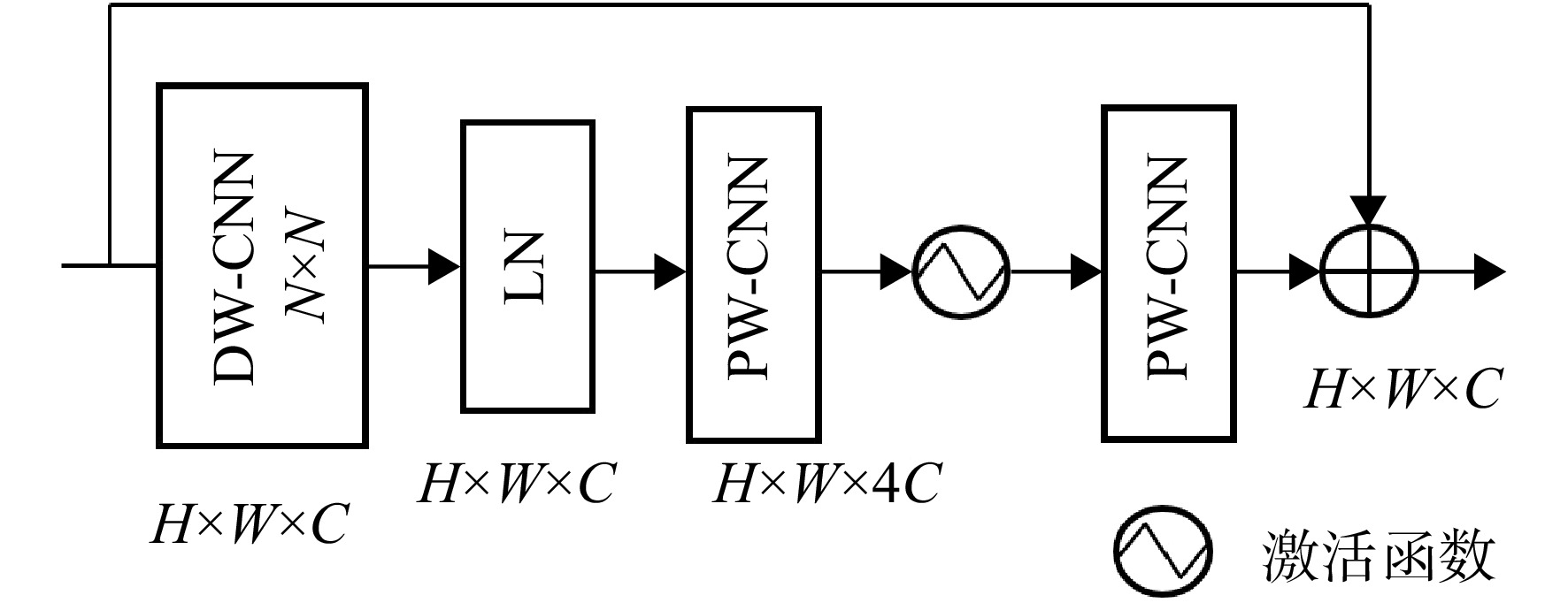

图 2 卷积编码器模块

Figure 2. Convolution encoder model

下载: 全尺寸图片幻灯片

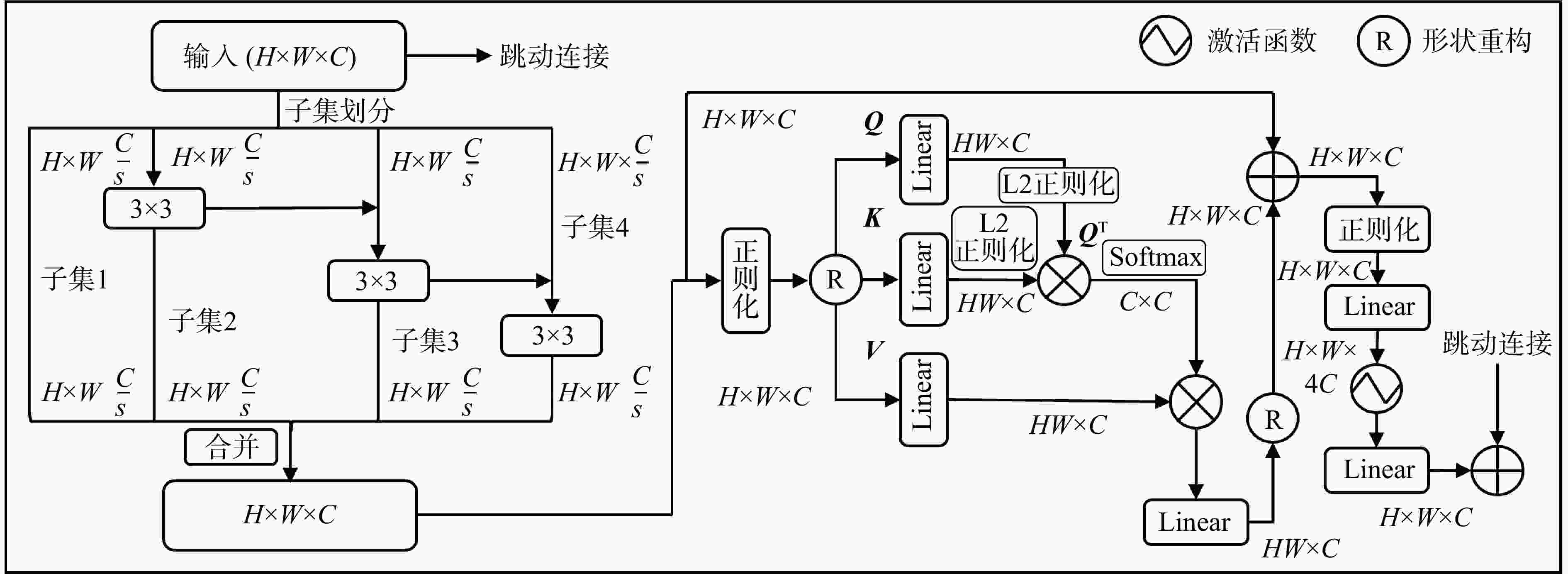

图 3 SDTA编码器模块

Figure 3. SDTA encoder module

下载: 全尺寸图片幻灯片

图 4 多尺度分支卷积模块

Figure 4. Multi-scale branching convolution module

下载: 全尺寸图片幻灯片

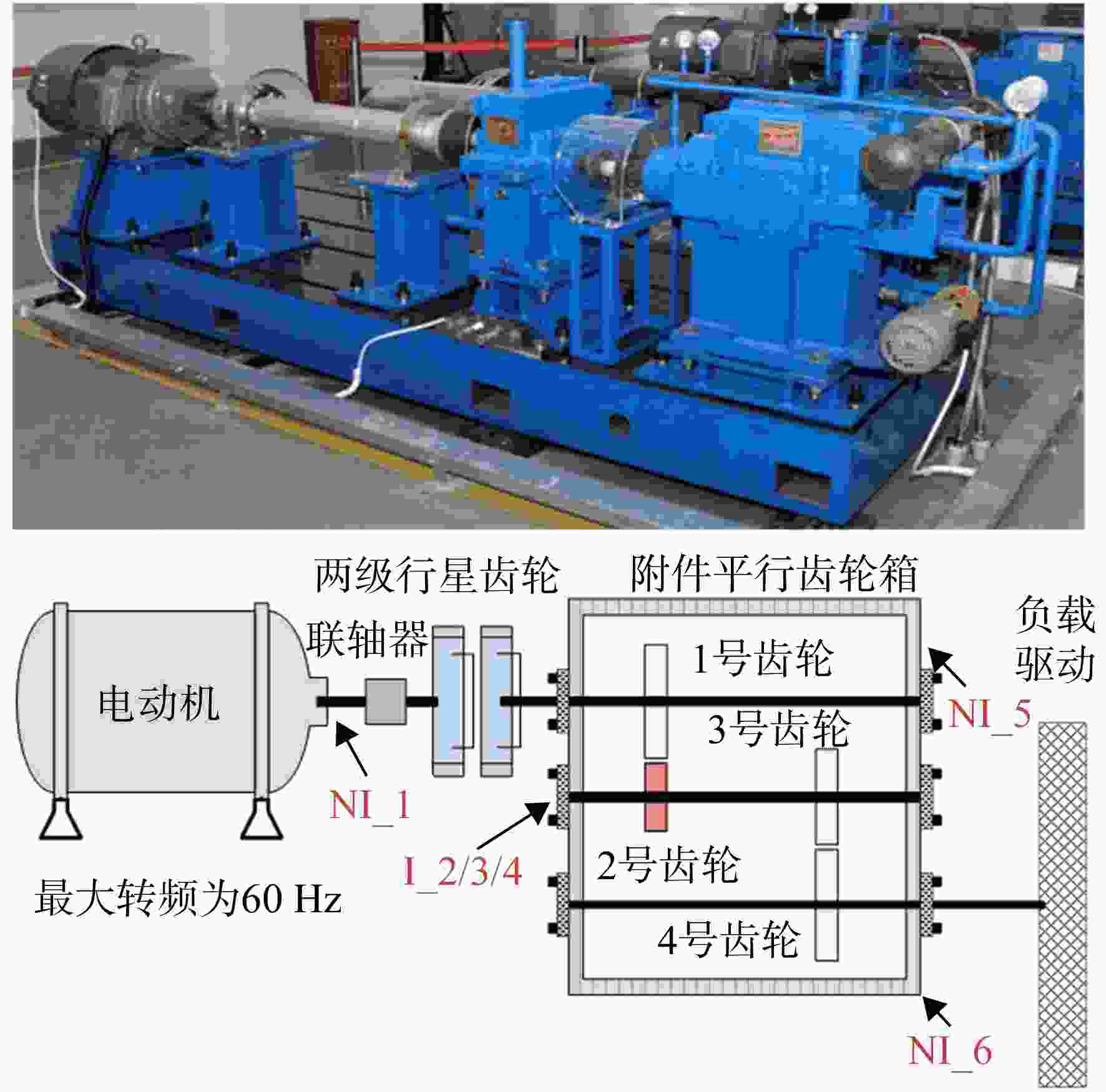

图 5 直升机行星传动仿真实验平台

Figure 5. Helicopter planetary gearboxes transmission platform

下载: 全尺寸图片幻灯片

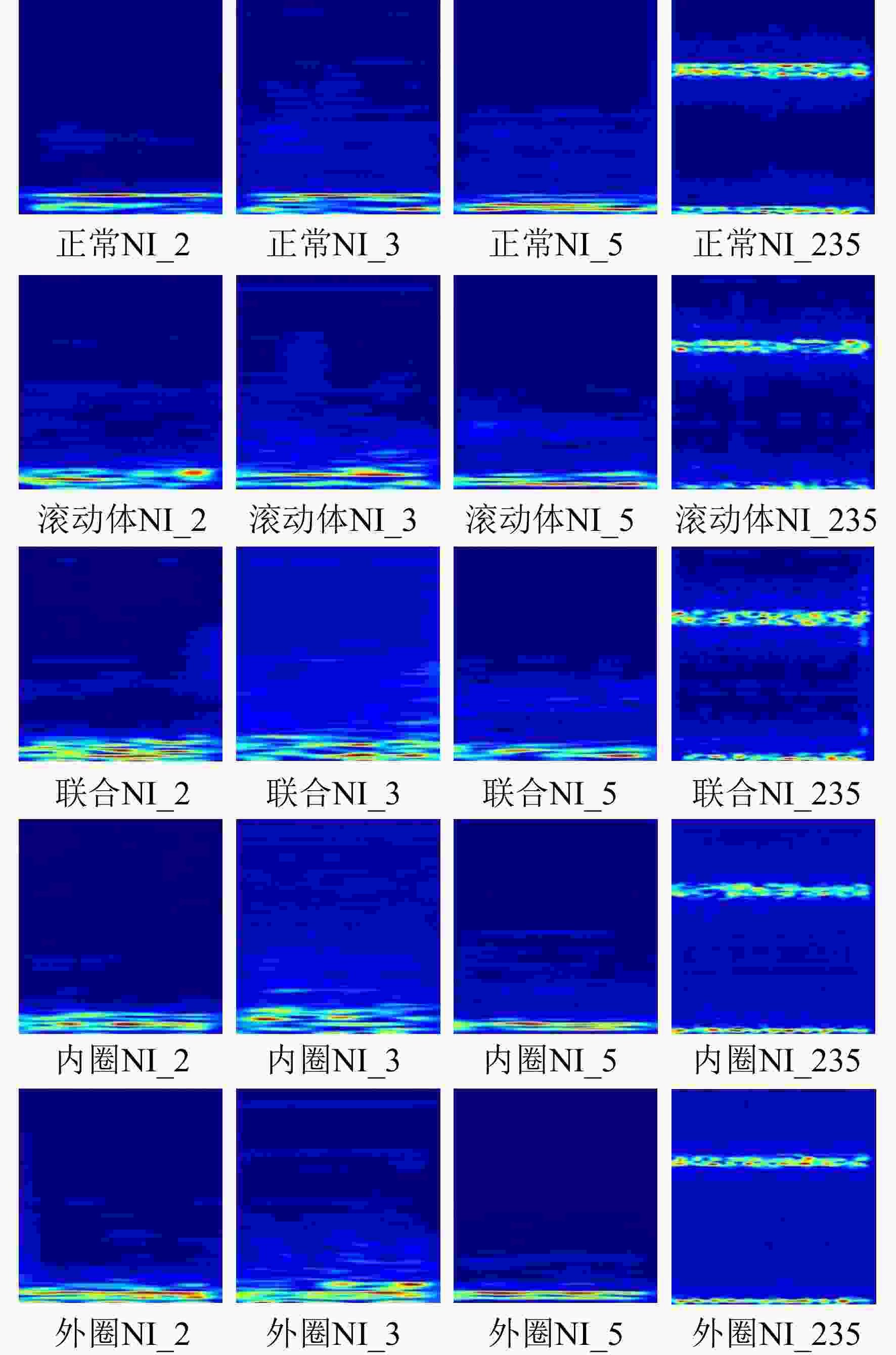

图 6 不同故障类型时频图

Figure 6. Time frequency diagram of different fault types

下载: 全尺寸图片幻灯片

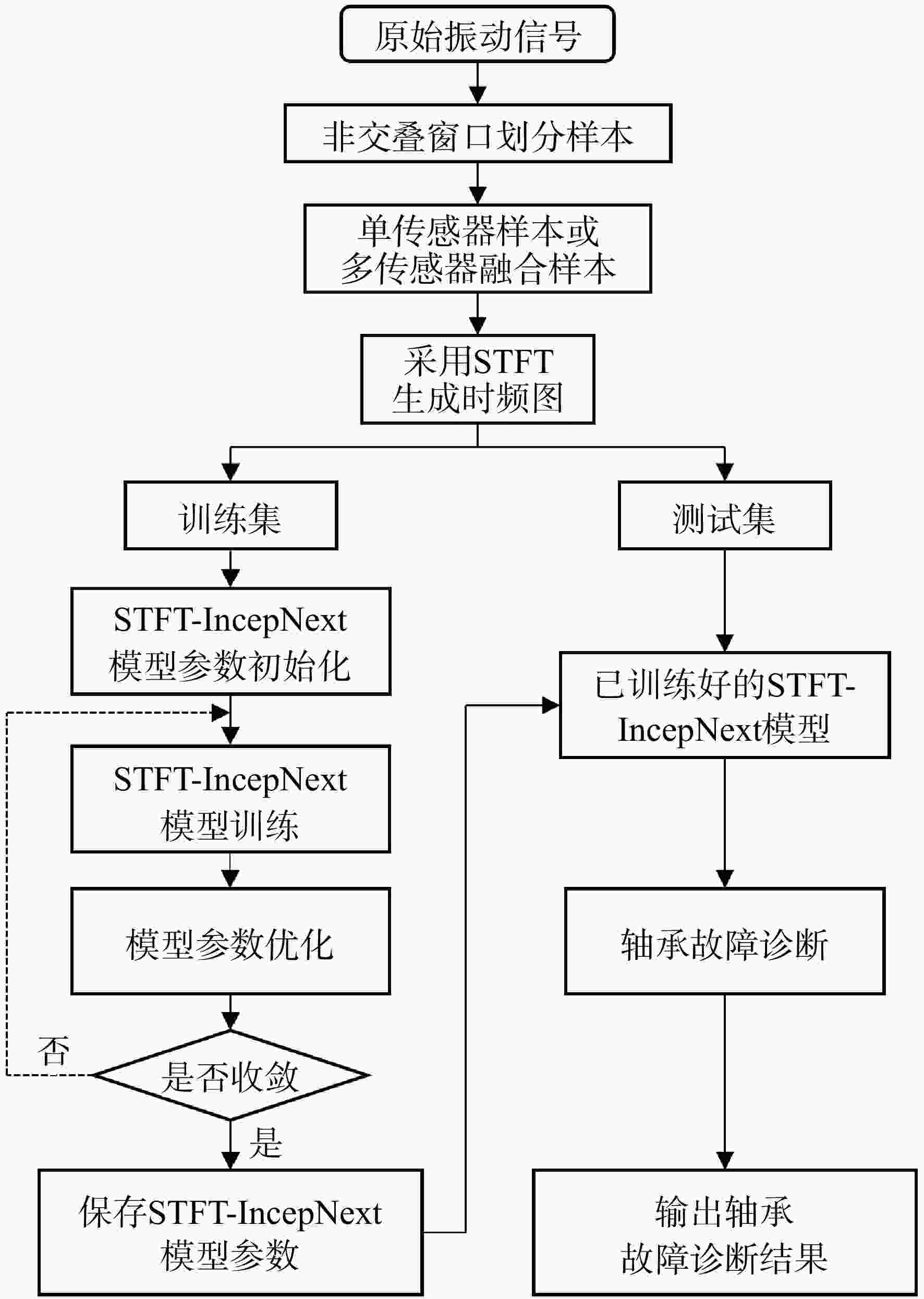

图 7 STFT-IncepNext模型训练流程

Figure 7. STFT-IncepNext model training process

下载: 全尺寸图片幻灯片

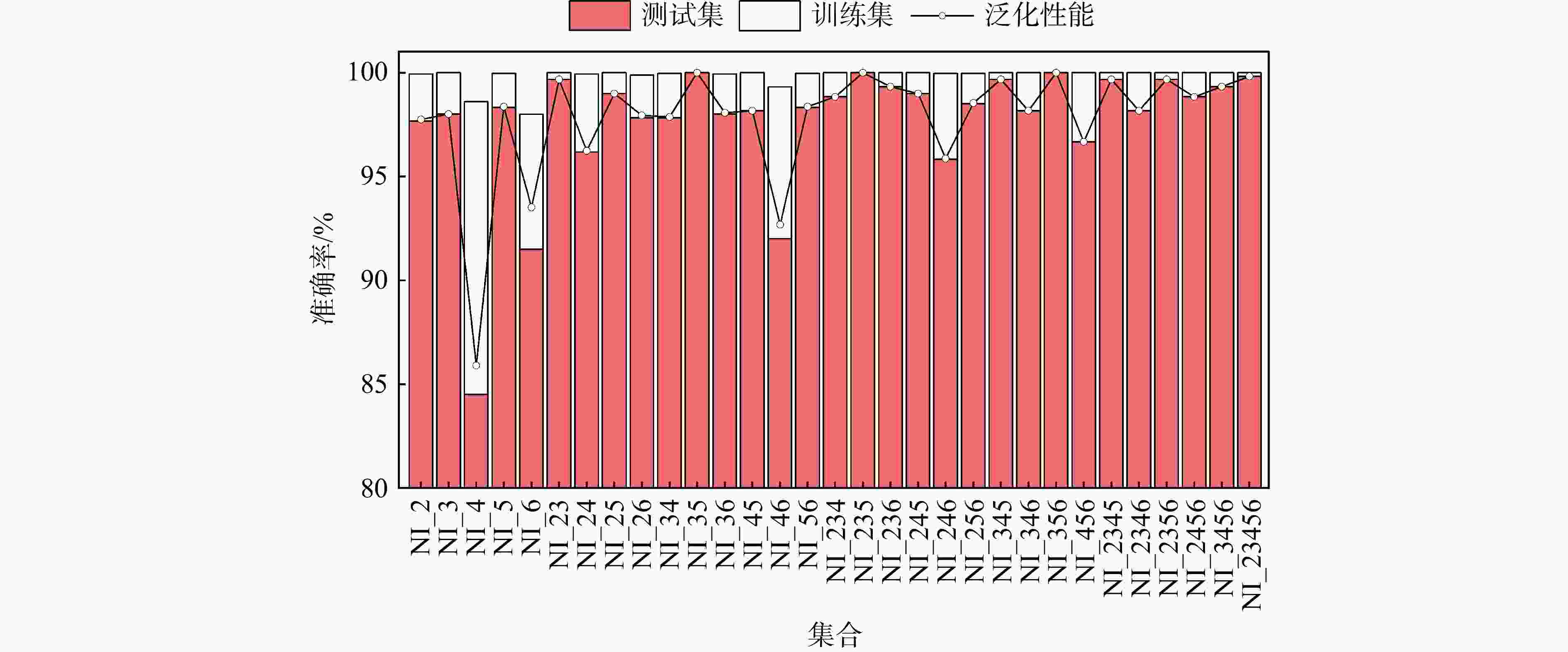

图 8 不同传感器集合对模型准确率的影响

Figure 8. Influence of different sensor sets on model accuracy

下载: 全尺寸图片幻灯片

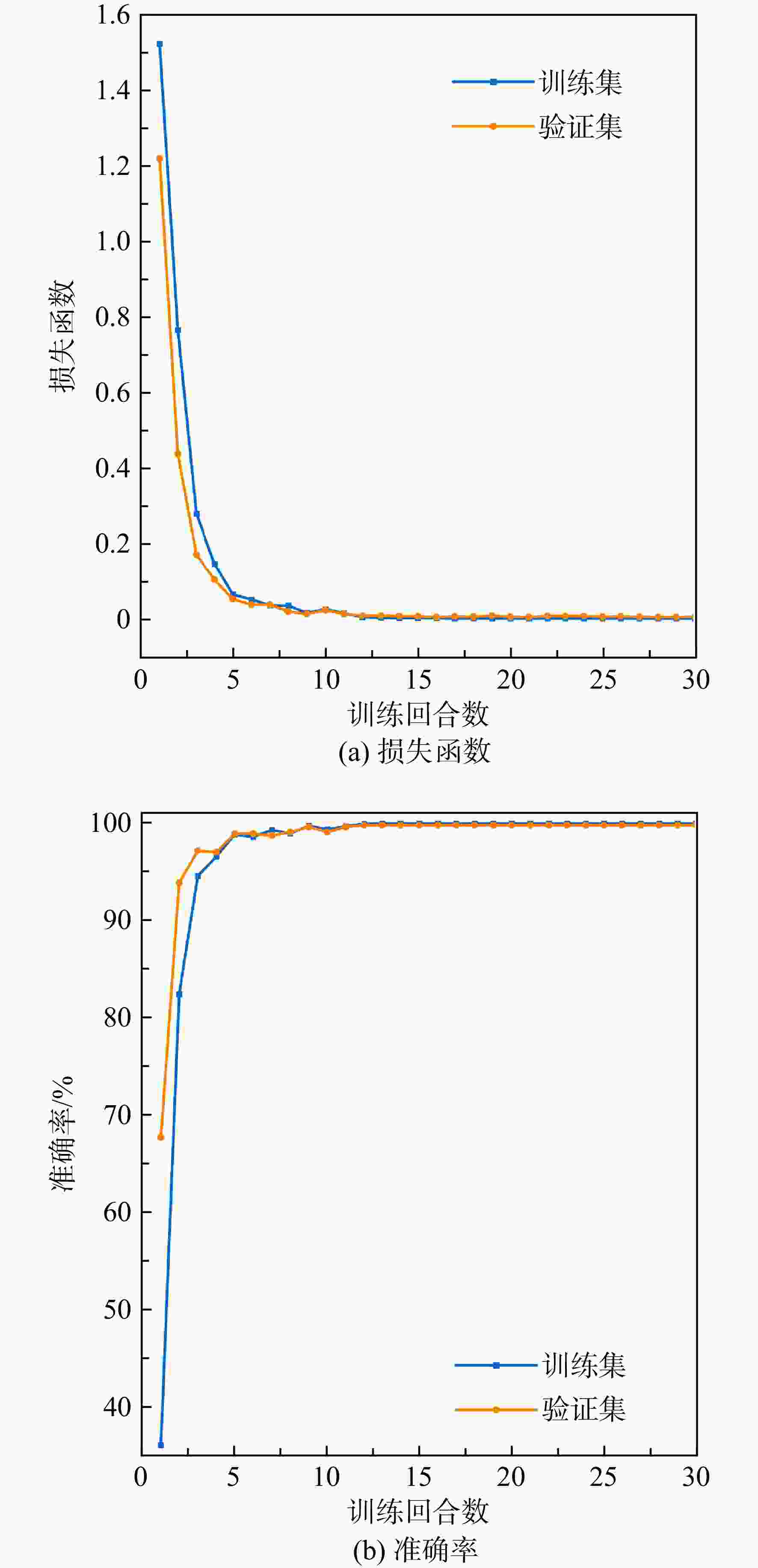

图 9 训练过程中损失函数和准确率

Figure 9. Loss function and accuracy during training process

下载: 全尺寸图片幻灯片

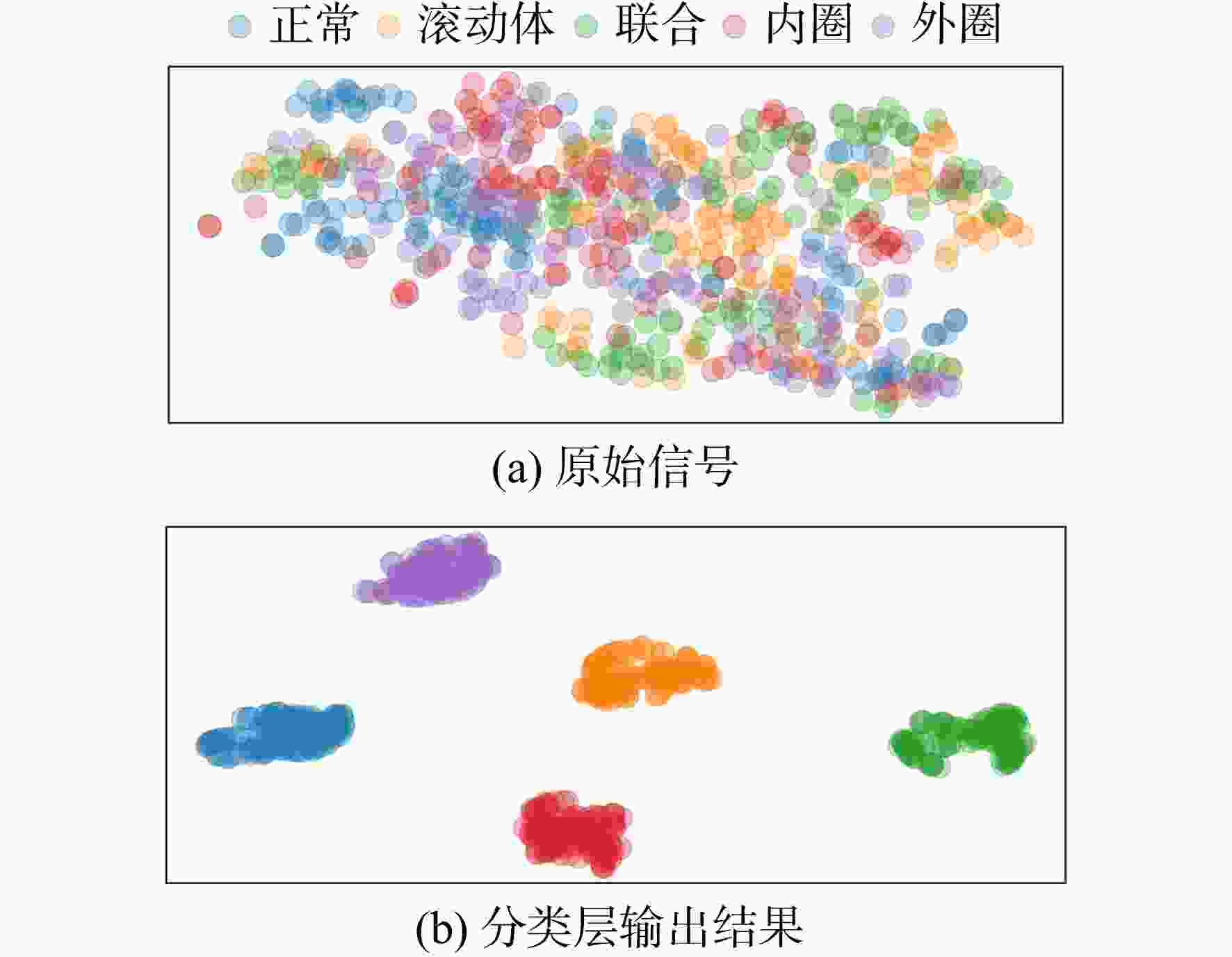

图 10 原始数据与分类层的特征可视化结果

Figure 10. Results of feature visualization of raw data and classification layer

下载: 全尺寸图片幻灯片

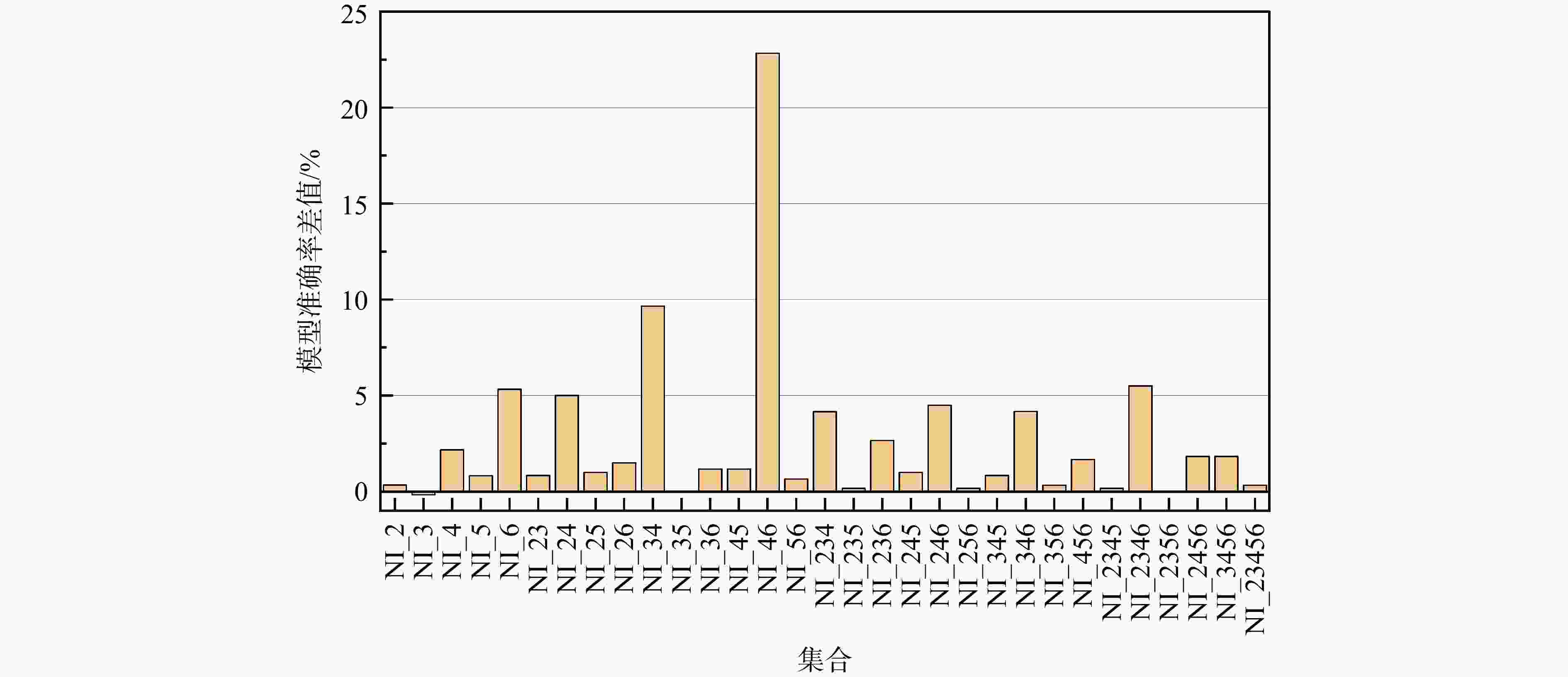

图 11 模型准确率差值

Figure 11. Model accuracy difference

下载: 全尺寸图片幻灯片

表 1 传感器布置点位

Table 1. Sensor placement points

传感器类型	采集仪对应位置	安装位置
转速	NI_1	驱动电动机输出轴
加速度1	NI_2（轴向）	平行齿轮箱中间轴轴承端盖
加速度2	NI_3（水平径向）
加速度3	NI_4（垂直径向）
加速度4	NI_5	平行齿轮箱右侧箱体（靠上轴承）
加速度5	NI_6	承重台面（靠平行齿轮箱）

下载: 导出CSV

表 2 不同工况下的样本配置

Table 2. Sample configuration under different operating conditions

工况编号	转频/Hz	负载/（N·m）	故障模式	样本量	样本点数
1	34	22	5	200000	1000
2	34	44	5	200000	1000
3	57	22	5	200000	1000
4	57	44	5	200000	1000

下载: 导出CSV

表 3 直升机传动系统实验台数据集

Table 3. Helicopter transmission system test bench dataset

标签	故障类型	工况模式	样本量
0	正常	4	800
1	滚动体	4	800
2	联合	4	800
3	内圈	4	800
4	外圈	4	800

下载: 导出CSV

表 4 不同诊断方法的准确率对比

Table 4. Comparison of accuracy between different diagnostic methods

图像生成方法	模型方法	单传感器准确率/%	多传感器准确率/%	模型参数数量/10⁶
连续小波变换	CWT-IncepNext	79.83	87.50	1.46
	CWT-EdgeNeXt	73.44	84.55	1.16
	CWT-ResNet18	61.29	78.65	1.18
	CWT-ShuffleNet	70.63	73.96	1.26
	CWT-ResNeXt	70.49	86.11	22.99
格拉姆角场	GAF-IncepNext	73.26	82.99	1.46
	GAF-EdgeNeXt	54.86	67.36	1.16
	GAF-ResNet18	63.37	78.99	1.18
	GAF-ShuffleNet	56.08	72.74	1.26
	GAF-ResNeXt	66.84	79.34	22.99
短时傅里叶变换	STFT-IncepNext	98.33	100	1.46
	STFT-EdgeNeXt	98.17	99.83	1.16
	STFT-ResNet18	98.00	99.67	1.18
	STFT-ShuffleNet	78.83	91.33	1.26
	STFT-ResNeXt	97.50	99.83	22.99

下载: 导出CSV
