Fracture analysis of turbine rotor blades in an aircraft engine

1.
State-owned Changhong Machinery Factory，Guilin Guangxi 541002，China
2.
Instiute for Aero Engine，Tsinghua University，Beijing 100084，China
3.
Guangxi Hawk Power Technology Company Limited，Guilin Guangxi 541002，China

摘要

摘要:
针对某型航空发动机在试验过程中出现涡轮转子叶片断裂故障的情况，通过外观检查、荧光检测、能谱分析、强度分析、叶片振动分析等手段对故障涡轮转子进行了研究。研究发现：排除外物损伤、材质缺陷、铸造工艺缺陷等因素，经叶片断口检查确认了叶片断裂故障模式为疲劳失效；通过仿真分析手段，最终锁定了叶片疲劳失效的原因为离心载荷、热载荷作用所产生的静应力与经过燃烧室蒸发管的高频气流激励引起的振动应力共同叠加所致。提出减少燃烧室蒸发管数目，加厚涡轮转子叶片尾缘厚度的方案，降低了气流激励频率，使得全转速范围内叶片固有频率与激励频率无交点，避免了涡轮转子叶片因共振而导致疲劳故障。
- 涡轮转子叶片 /
- 断裂分析 /
- 仿真分析 /
- 气流激励 /
- 疲劳失效
Abstract:
In response to the occurrence of turbine rotor blade fracture failures during the testing process of an aeroengine, research on the failed turbine rotor was conducted through visual inspection, fluorescence detection, energy spectrum analysis, strength analysis, and blade vibration analysis. It was found that after eliminating factors such as foreign object damage, material defects, and casting process defects, the fracture failure mode of the blade was confirmed as fatigue failure through blade fracture inspection. Through simulation analysis, it was ultimately determined that the cause of blade fatigue failure was the combined effects of static stress generated by centrifugal load and thermal load, and vibration stress caused by high-frequency airflow excitation through the combustion chamber evaporation tube. A scheme was proposed to reduce the number of combustion chamber evaporation tubes and thicken the trailing edge of the turbine rotor blades, reducing the flow excitation frequency so that there was no intersection between the natural frequency of the blades and the excitation frequency within the full speed range, thus avoiding fatigue failure of the turbine rotor blades due to resonance.
- turbine rotor blade /
- fracture analysis /
- simulation analysis /
- airflow excitation /
- fatigue failure

HTML

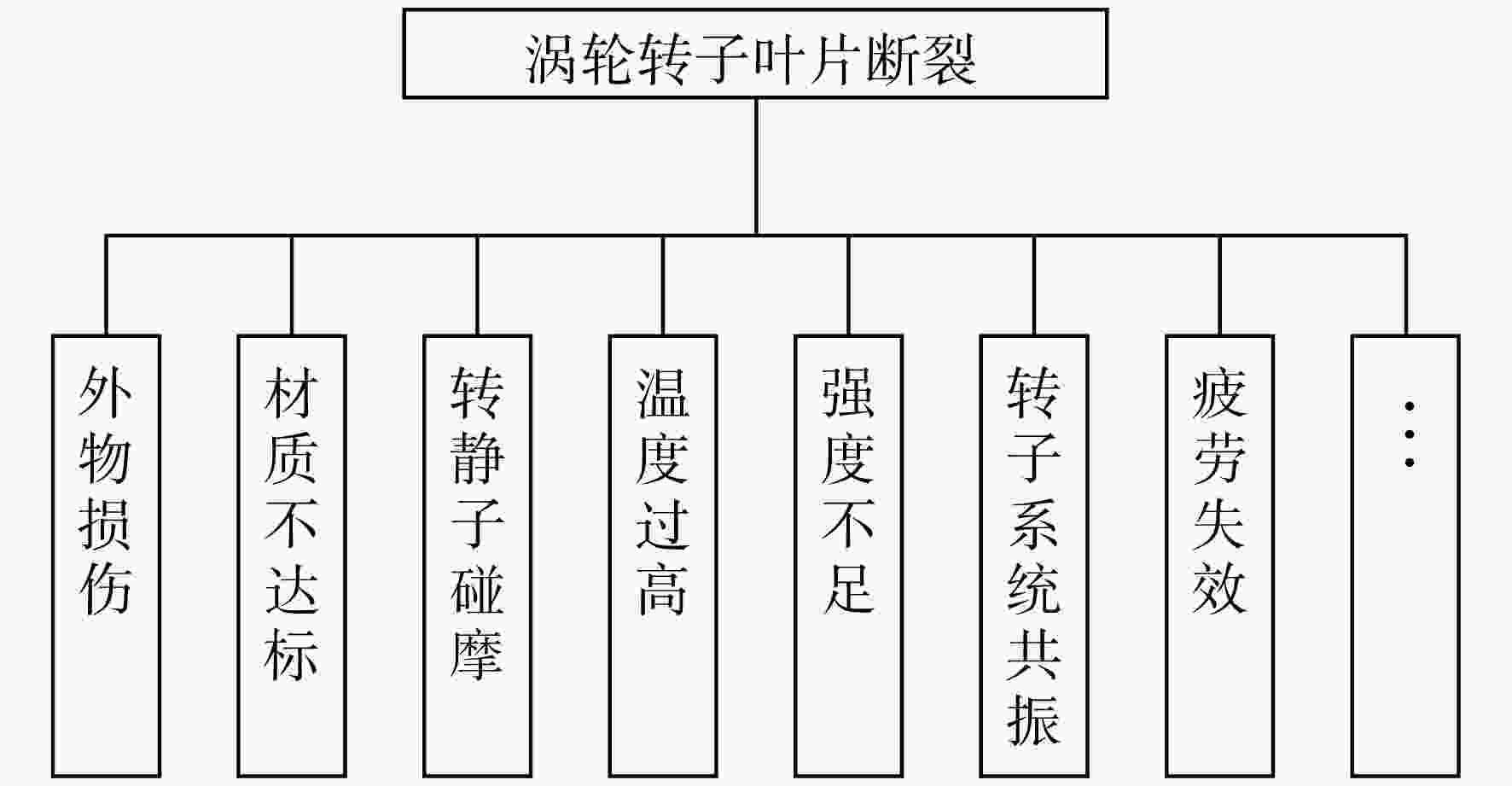

图 1 涡轮转子叶片故障模式

Figure 1. Turbine rotor blade failure mode

下载: 全尺寸图片幻灯片

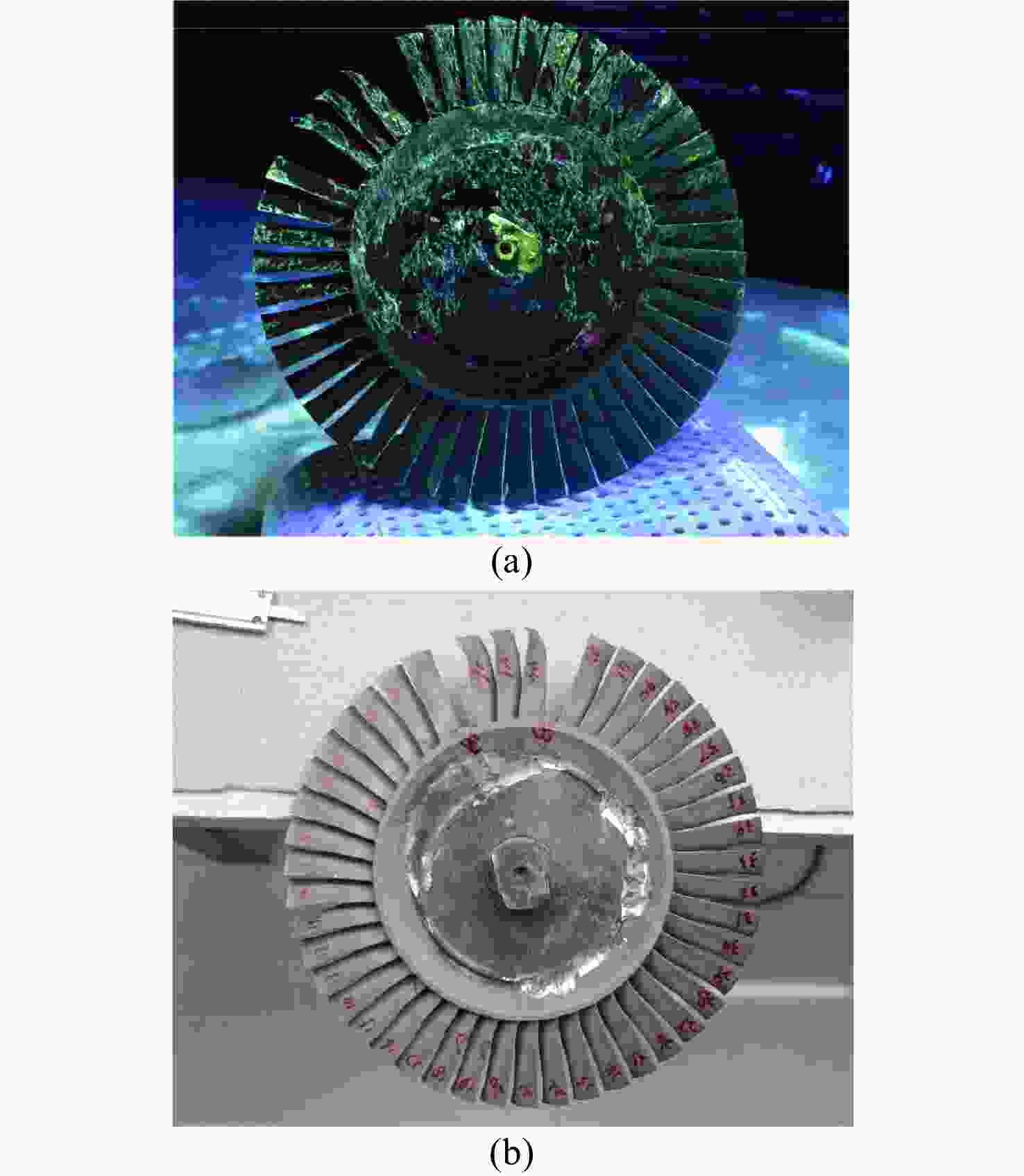

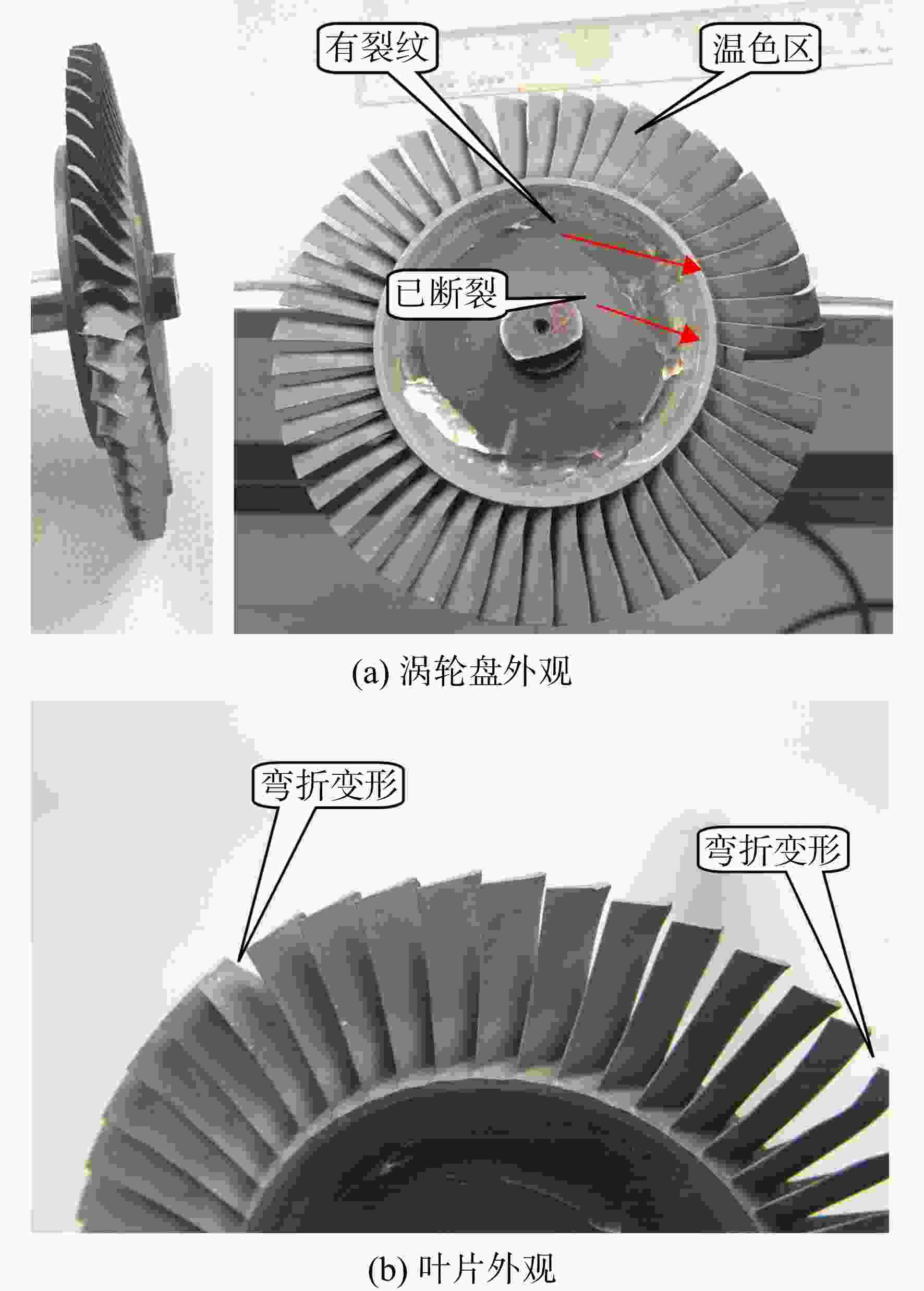

图 2 涡轮转子故障情况

Figure 2. Fault situation of turbine rotor

下载: 全尺寸图片幻灯片

图 3 涡轮盘荧光检查

Figure 3. Fluoroscopy of turbine disk

下载: 全尺寸图片幻灯片

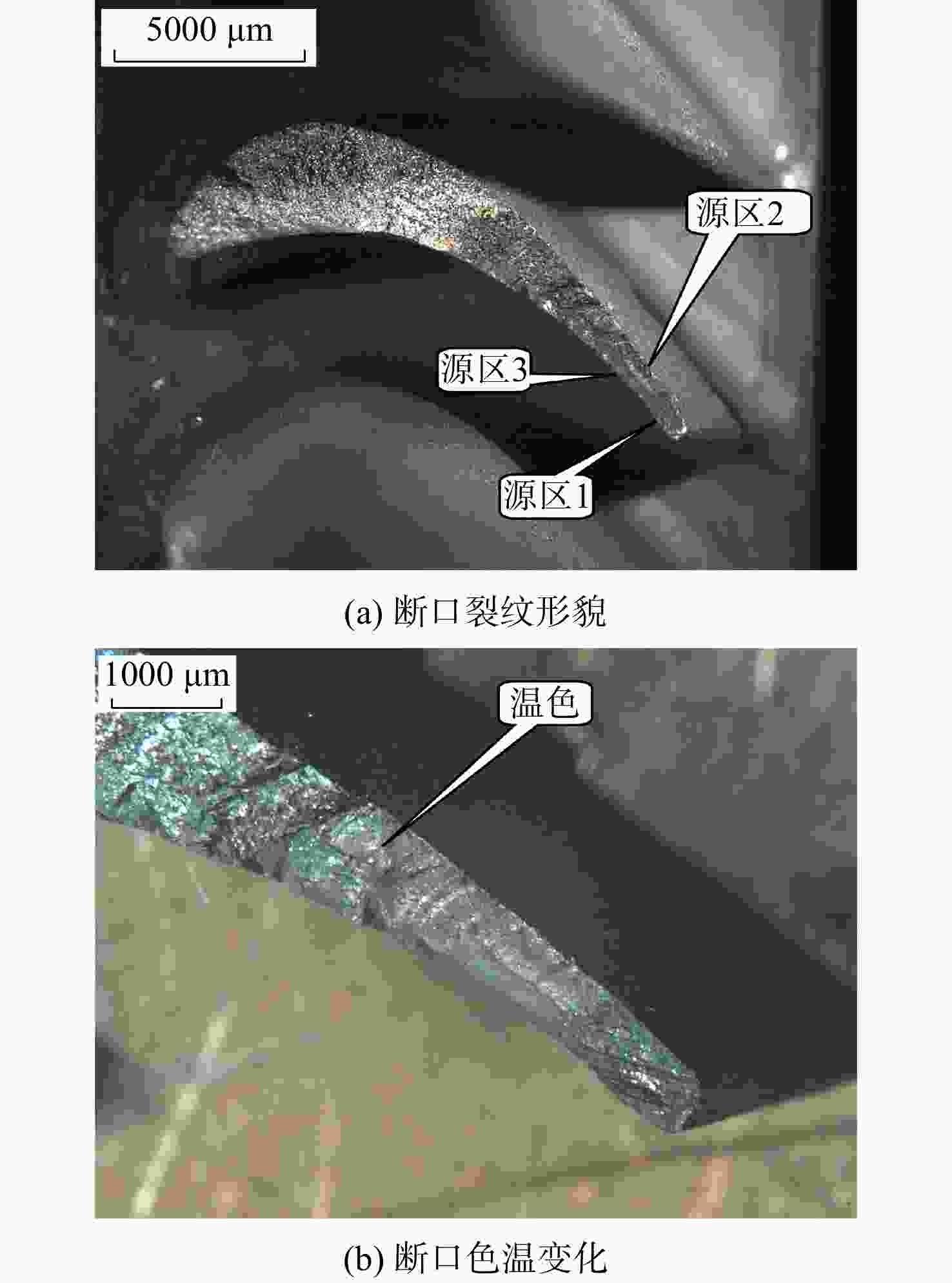

图 4 断裂叶片体视镜检查断口形貌

Figure 4. Visual inspection of fracture surface morphology of fractured blades using a stereo microscope

下载: 全尺寸图片幻灯片

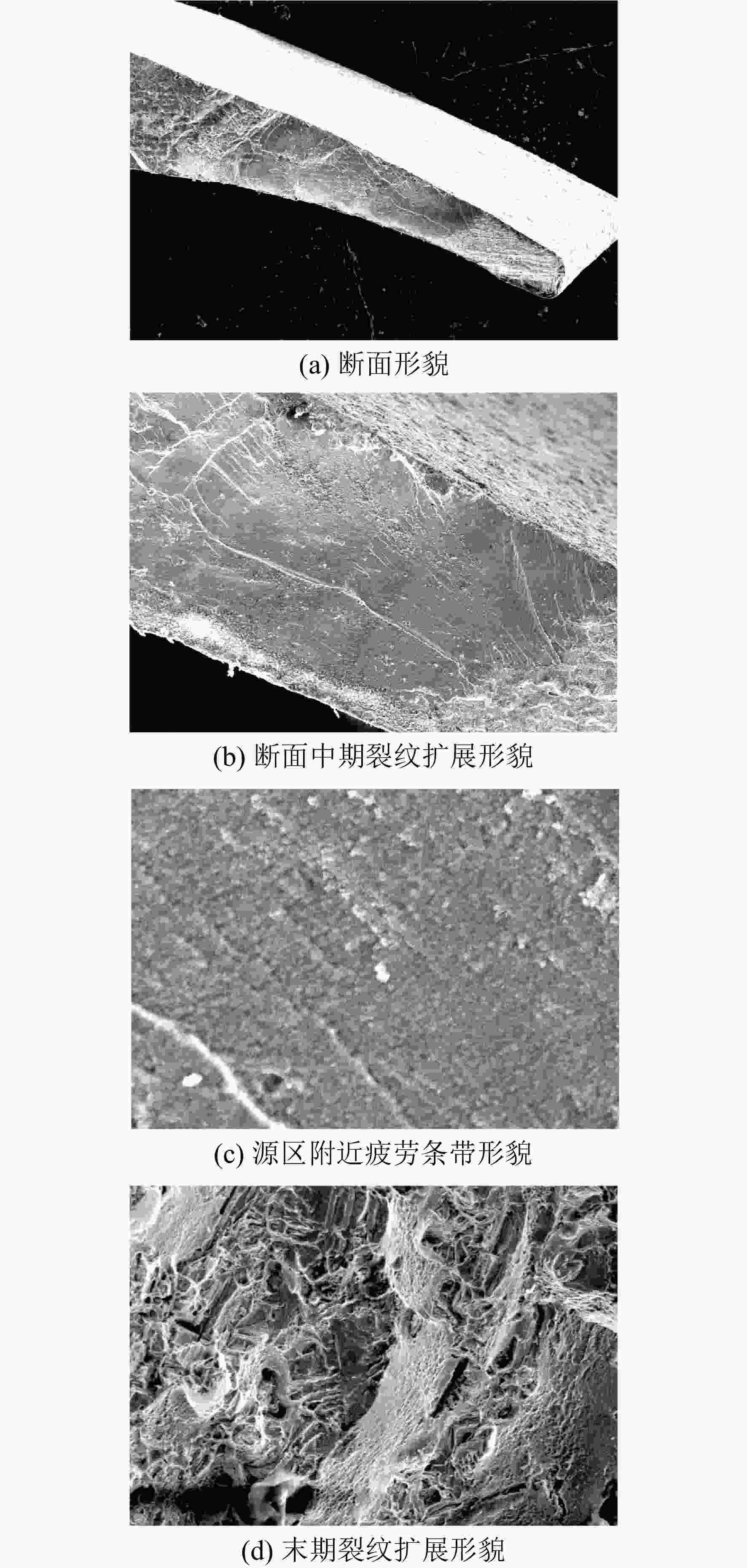

图 5 扫描电镜检查结果

Figure 5. Scanning electron microscopy examination results

下载: 全尺寸图片幻灯片

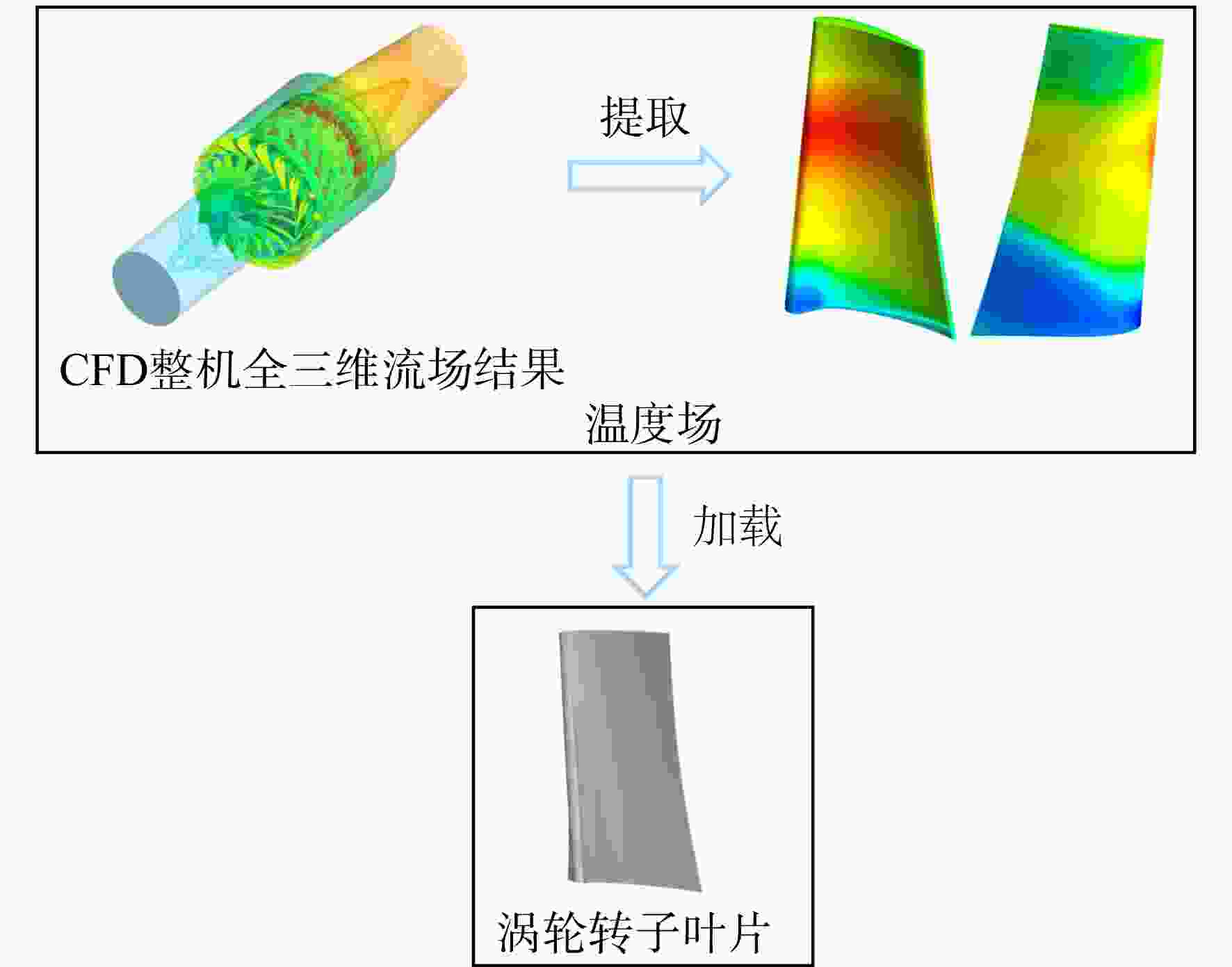

图 6 温度场加载

Figure 6. Temperature field loading

下载: 全尺寸图片幻灯片

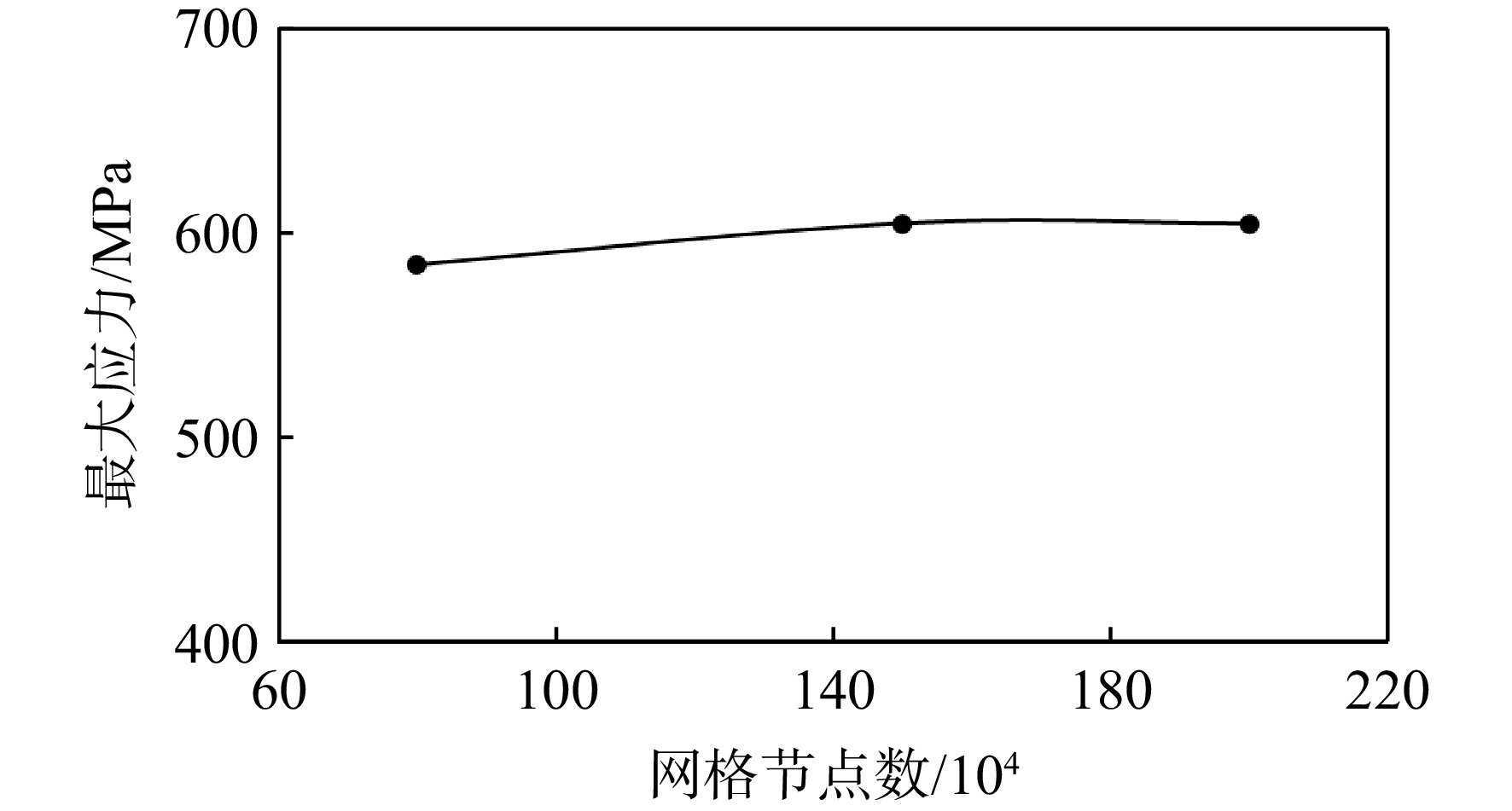

图 7 网格无关性验证

Figure 7. Grid independence verification

下载: 全尺寸图片幻灯片

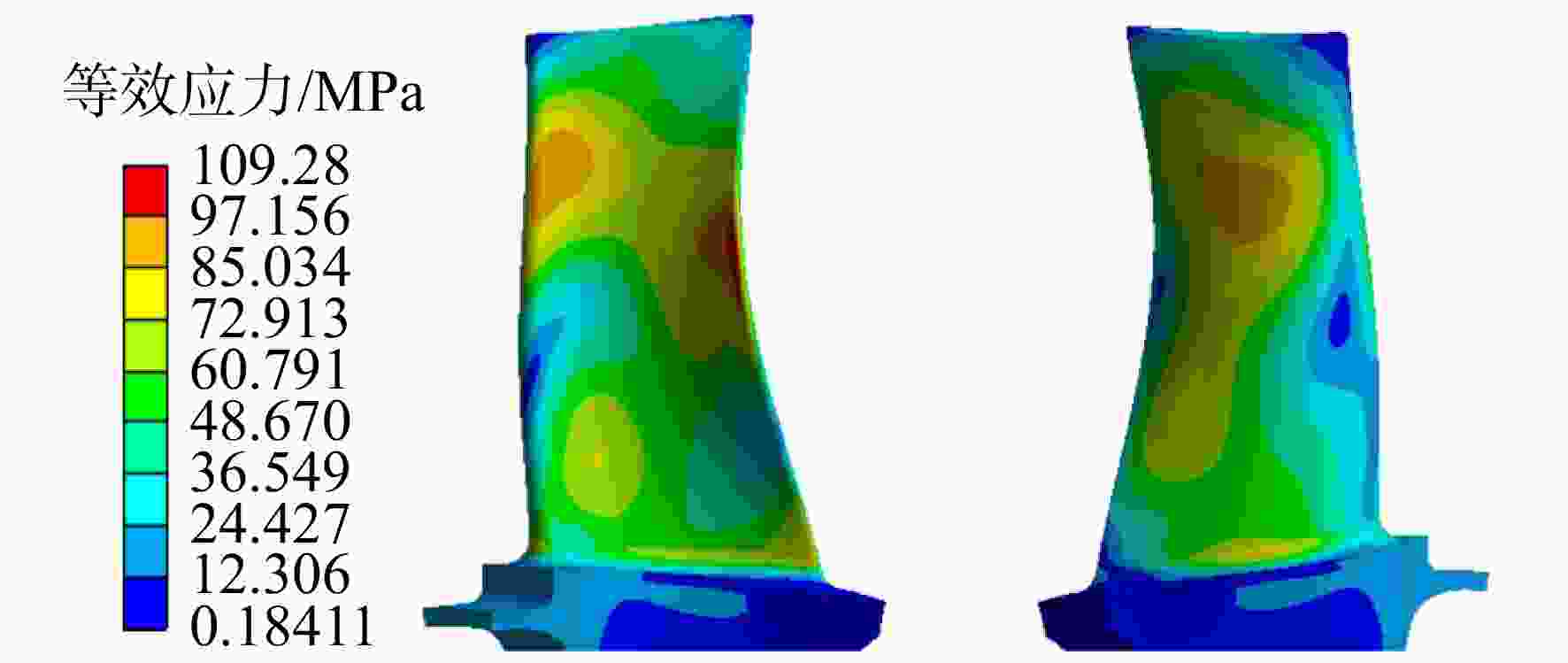

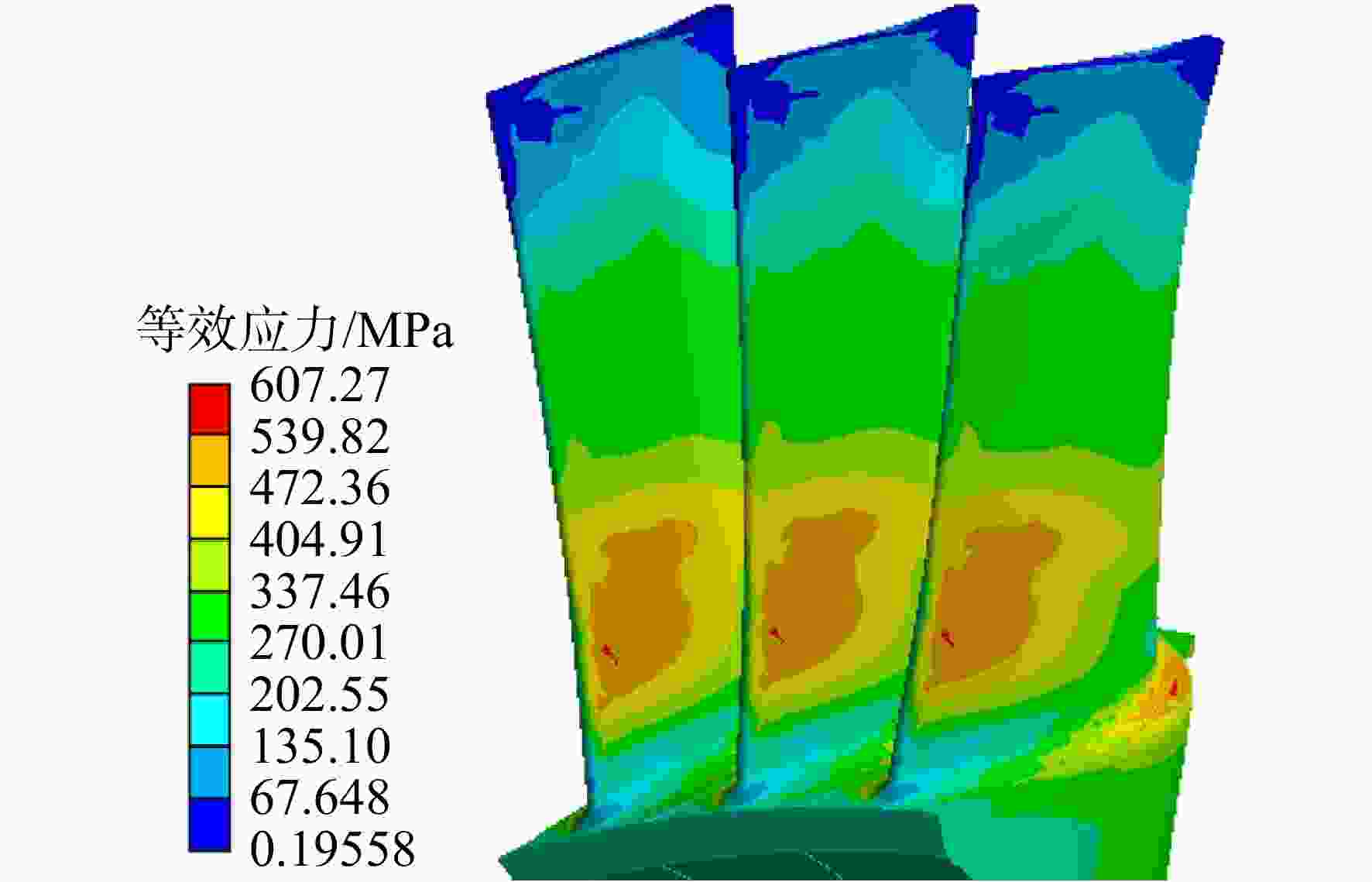

图 8 涡轮叶片应力分布

Figure 8. Stress distribution of turbine blades

下载: 全尺寸图片幻灯片

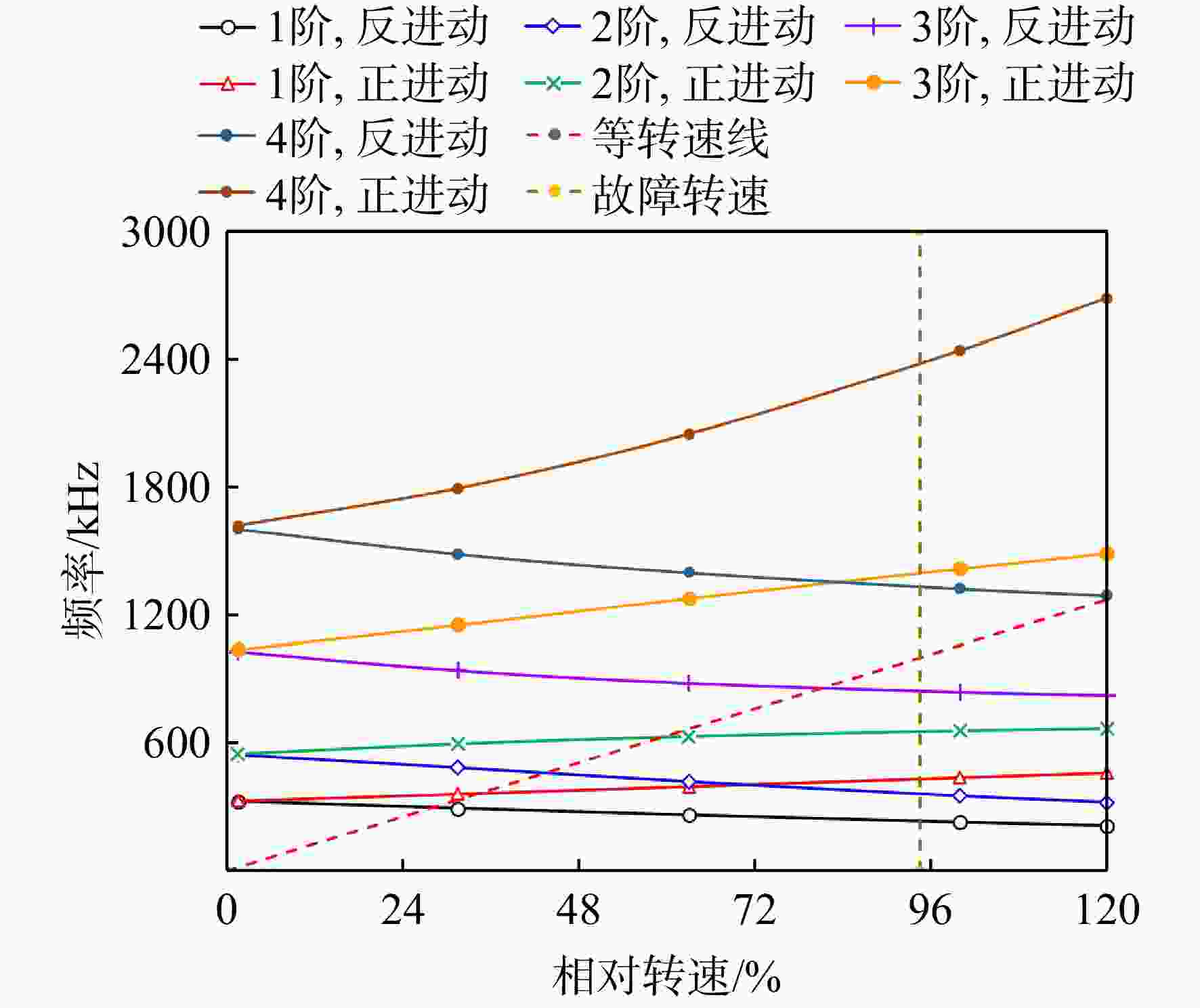

图 9 转子系统的坎贝尔图

Figure 9. Campbell diagram of rotor system

下载: 全尺寸图片幻灯片

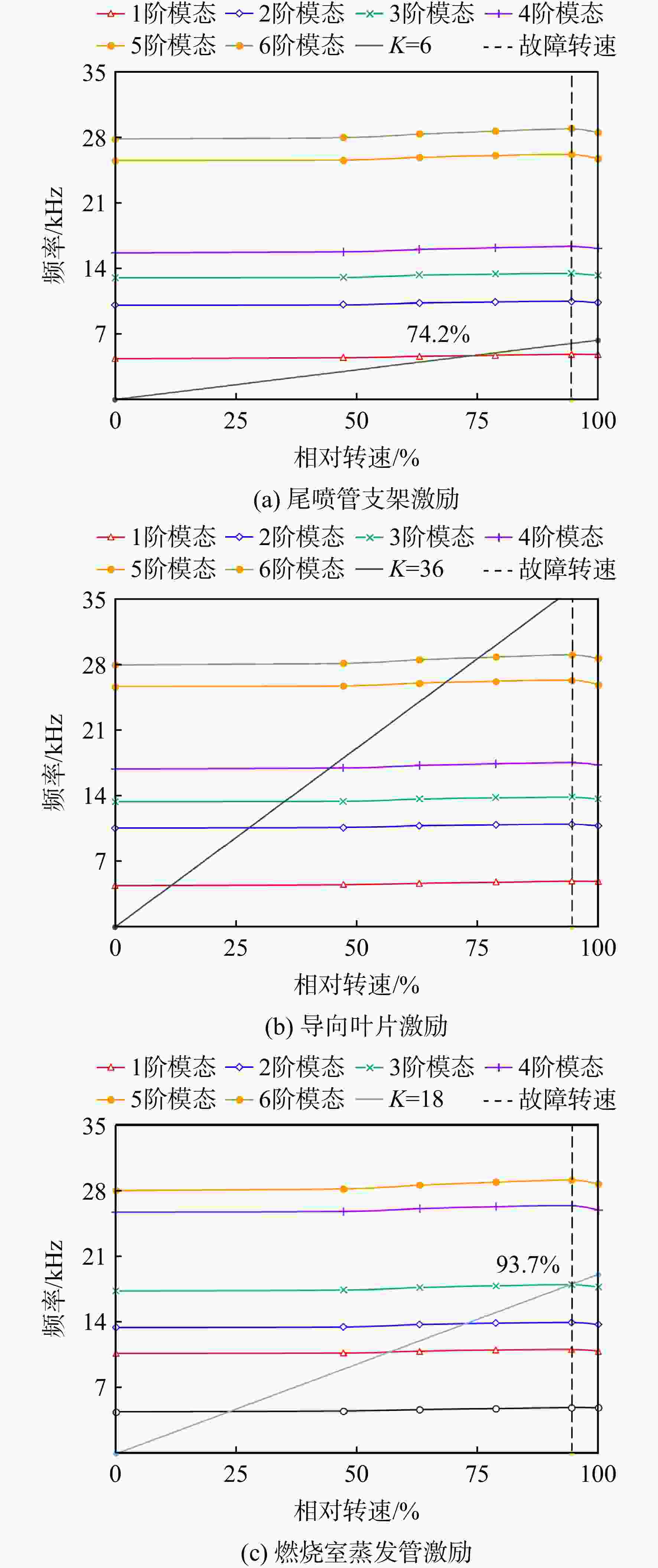

图 10 不同激励对应的坎贝尔图

Figure 10. Campbell diagram corresponding to different excitations

下载: 全尺寸图片幻灯片

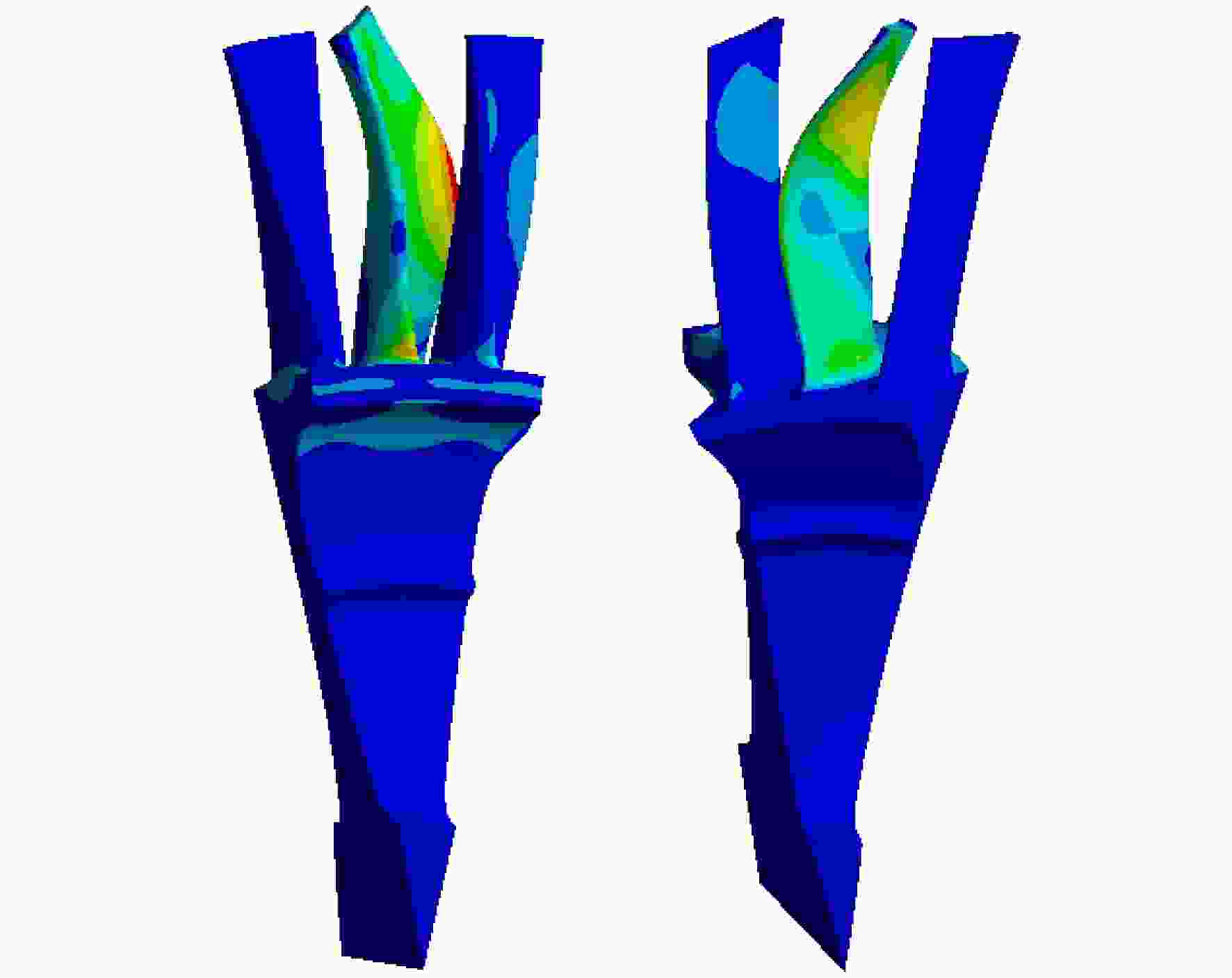

图 11 第4阶模态的振动应力

Figure 11. Vibration stress of the fourth mode

下载: 全尺寸图片幻灯片

图 12 气流激励作用下叶片不同角度的应力分布

Figure 12. Stress distribution of blade at different angles under airflow excitation

下载: 全尺寸图片幻灯片

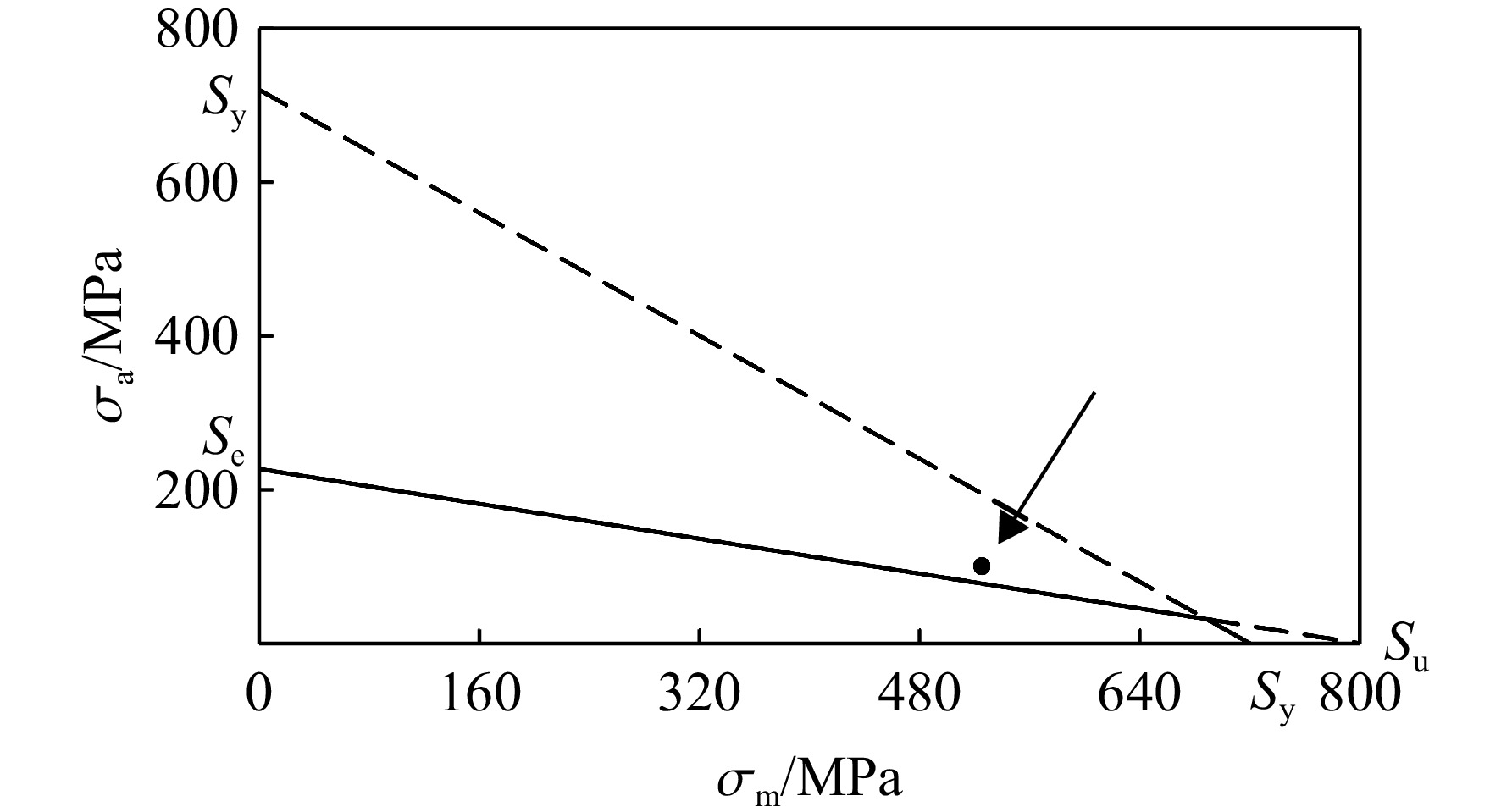

图 13 叶片Goodman图

Figure 13. Goodman diagram of blades

下载: 全尺寸图片幻灯片

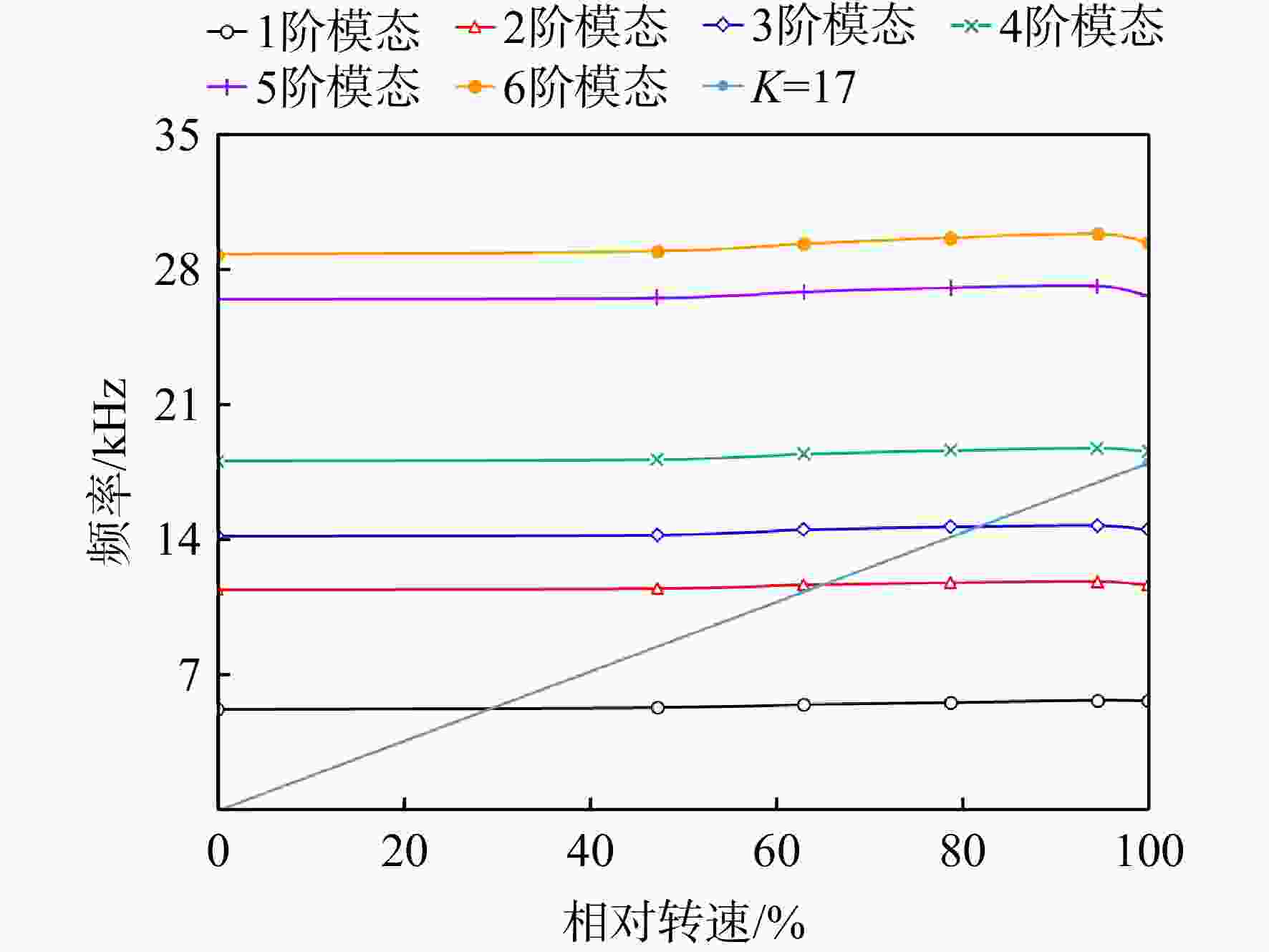

图 14 优化设计后的坎贝尔图

Figure 14. Campbell diagram after optimized design

下载: 全尺寸图片幻灯片

表 1 能谱测试结果

Table 1. Energy spectrum test results %

元素	基体	K418
Al	7.21	5.50～6.40
Ti	0.95	0.50～1.00
Cr	13.12	11.50～13.50
Ni	69.71	余
Mo	4.60	3.40～3.80
Nb	2.41	1.80～2.50
Mn	1.21	<0.50

下载: 导出CSV

表 2 涡轮转子叶片的几何参数

Table 2. Geometric parameters of turbine rotor blades mm

参数	转子叶片
叶高	27.70
平均轴向弦长	12.60
前缘半径	0.80
尾缘半径	0.30

下载: 导出CSV

表 3 涡轮材料参数

Table 3. Material parameters of the turbine

温度/ ℃	热导率/ （W/（m·℃））	线膨胀系数/ （10⁻⁶/℃）	弹性模量 E/GPa	泊松比 μ
100	10.15	12.60	205	0.25
200	11.72	12.70	200	0.25
300	12.98	12.90	195	0.25
400	14.65	13.40	190	0.25
500	16.33	13.70	184	0.25
600	18.42	14.20	179	0.25
700	20.52	14.70	171	0.25
800	22.61	15.50	165	0.26
900	24.28	15.50	156	0.26

下载: 导出CSV

表 4 弯曲模态对应的临界转速

Table 4. Critical speed corresponding to the bending %

模态	相对临界转速
1阶，反进动	28.15
1阶，正进动	34.63
2阶，反进动	43.60
2阶，正进动	59.44

下载: 导出CSV

表 5 激励源和数量

Table 5. Excitation sources and quantity

激励源	数目
蒸发管	18
导向器叶片	36
尾喷管支架	6

下载: 导出CSV
