Study on the influences of the labyrinth seal structure on the compressor cascade performance
-
摘要:
为探究篦齿封严对压气机叶栅性能影响，本文以高负荷压气机平面叶栅为研究对象，设计了5种不同篦齿封严结构，通过数值模拟方法探究5种篦齿封严结构对压气机叶栅性能和流场结构的影响规律。研究结果表明：随着篦齿容腔诱发的泄漏量逐渐增加，叶栅总压损失逐渐增加，叶片载荷能力逐渐减弱。不同篦齿封严结构通过减小间隙泄漏流量，改善叶栅通道内气流的流动状态，进而提高叶片载荷能力，降低通道内的流动损失。5种篦齿方案中，直齿加方块结构对叶栅流场结构和气动性能的改善效果最为显著，其通过阻断齿顶射流，增大齿顶流动阻力，降低篦齿泄漏流量，削弱篦齿泄漏流对吸力面角区分离流动的影响，能够使角区低能流体团缩小32.1%，抑制集中脱落涡影响范围，进而使总压损失降低20%。
Abstract:In order to study the influences of labyrinth seal on compressor cascade performance, the high-load compressor linear cascade was taken as the research object, five different labyrinth seal structures were designed, and the influences of five kinds of labyrinth seal structures on the cascade performance and flow field structure were studied by numerical simulation. The results showed that the total pressure loss of the cascade gradually increased and the blade load capacity gradually decreased as the leakage induced by the labyrinth cavity increased. Various labyrinth seal structures improved the flow condition in the cascade by reducing the clearance leakage flow, thereby improving the blade load capacity and reducing the flow loss. Among the five schemes, the straight tooth with square structure had the most significant improvement effect on the flow field structure and aerodynamic performance of the cascade. By blocking the tip jet, it increased the tip flow resistance, reduced the leakage flow of the labyrinth, and weakened the influence of the leakage flow of the labyrinth on the corner separation flow of the suction surface. It can reduce the volume of low-energy fluid in the corner by 32.1%, inhibit the influence range of the concentrated shedding vortex, and then reduce the total pressure loss by 20%.
-
Key words:
- labyrinth seal /
- compressor cascade /
- corner separation /
- aerodynamic performance /
- flow field structure
-
图 6 不同方案的总压损失系数和泄漏量
Figure 6. Total pressure loss coefficient and leakage of different schemes
图 7 各方案叶表静压系数曲线
Figure 7. Static pressure coefficient curves of each scheme on the blade surface

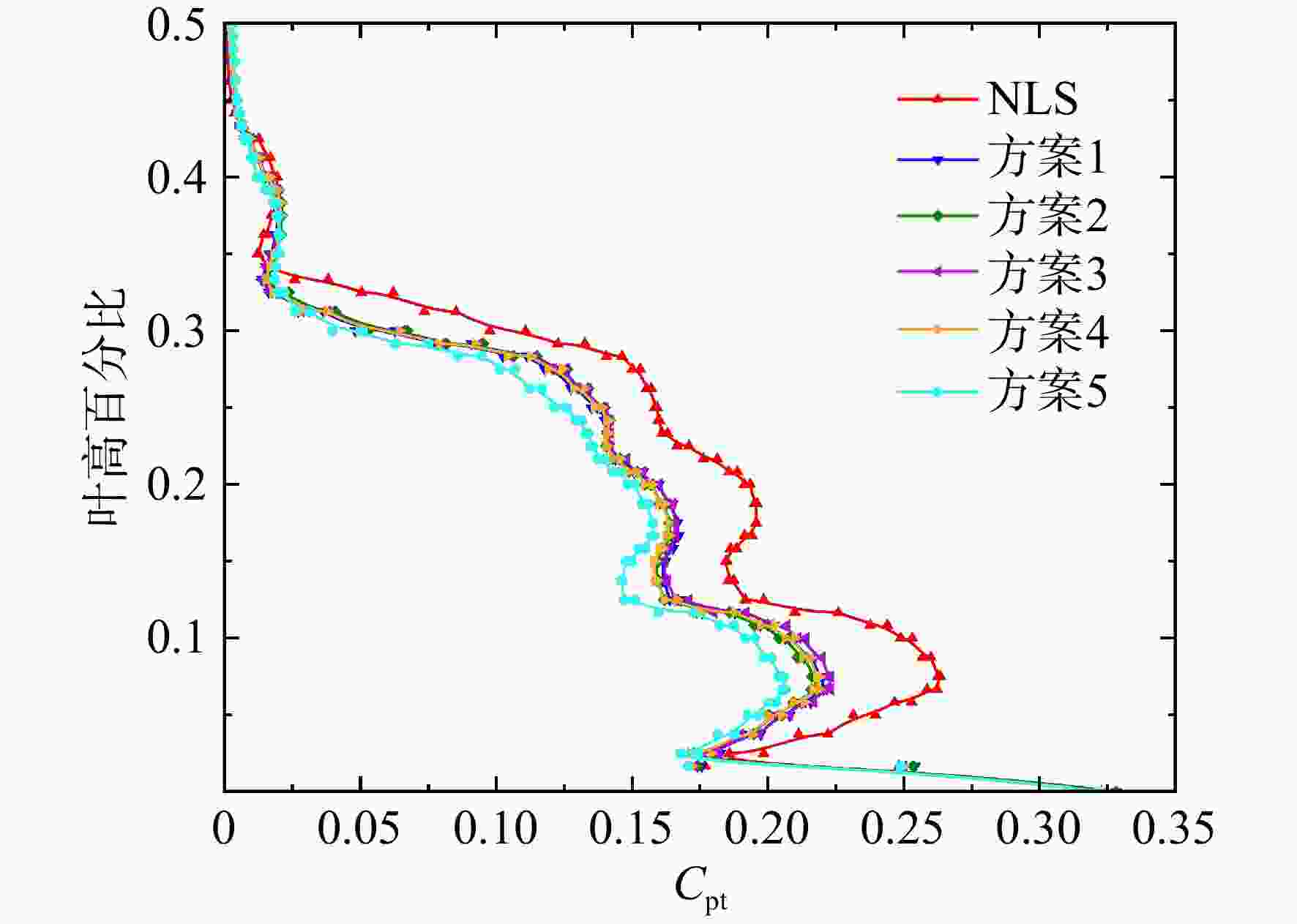

图 8 不同方案出口总压损失系数沿叶高分布曲线
Figure 8. Distribution of the total pressure loss coefficient at the outlet along the blade height for different schemes

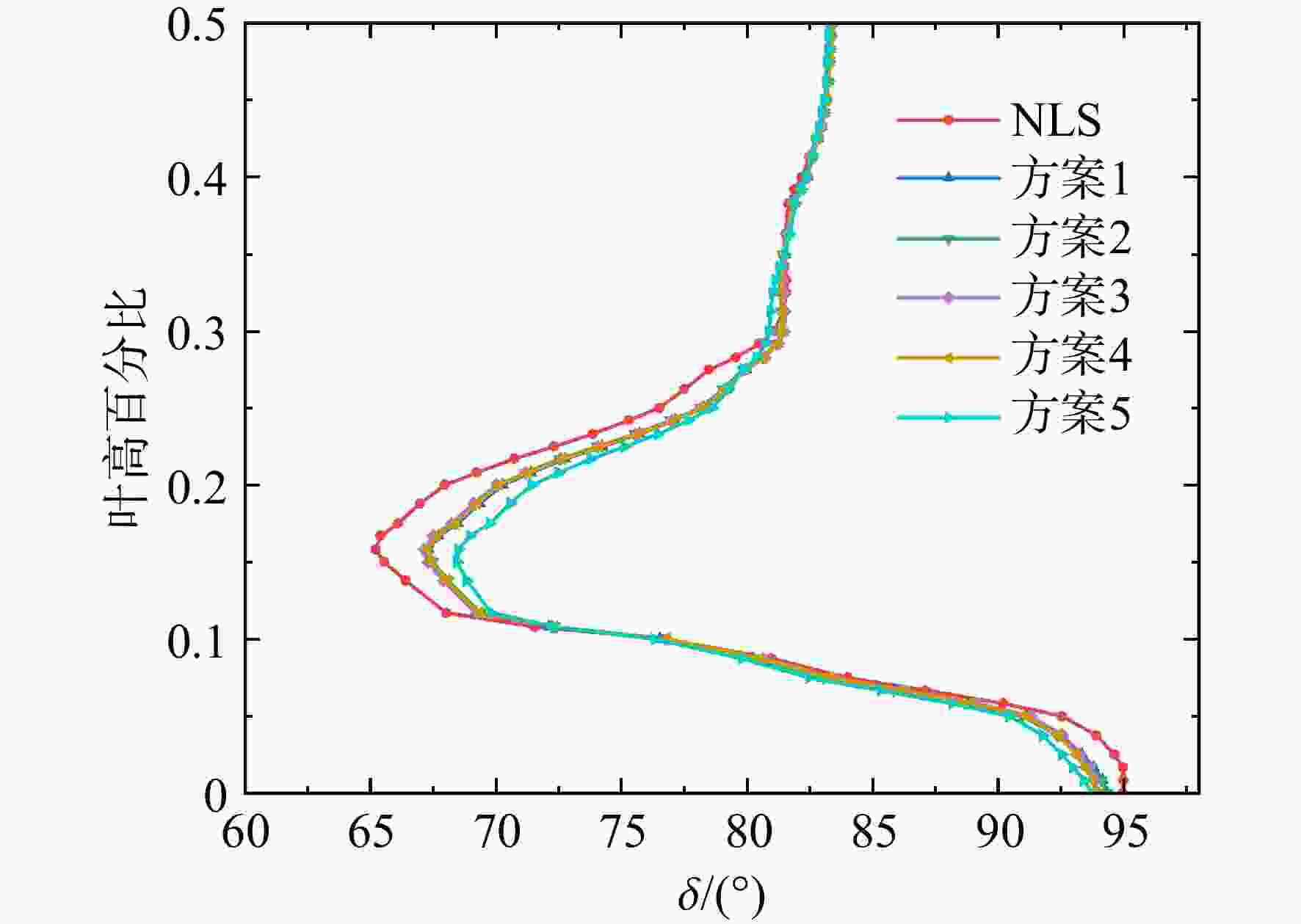

图 9 不同方案出口气流角沿叶高分布
Figure 9. Distribution of outlet airflow angle along the blade height for different schemes

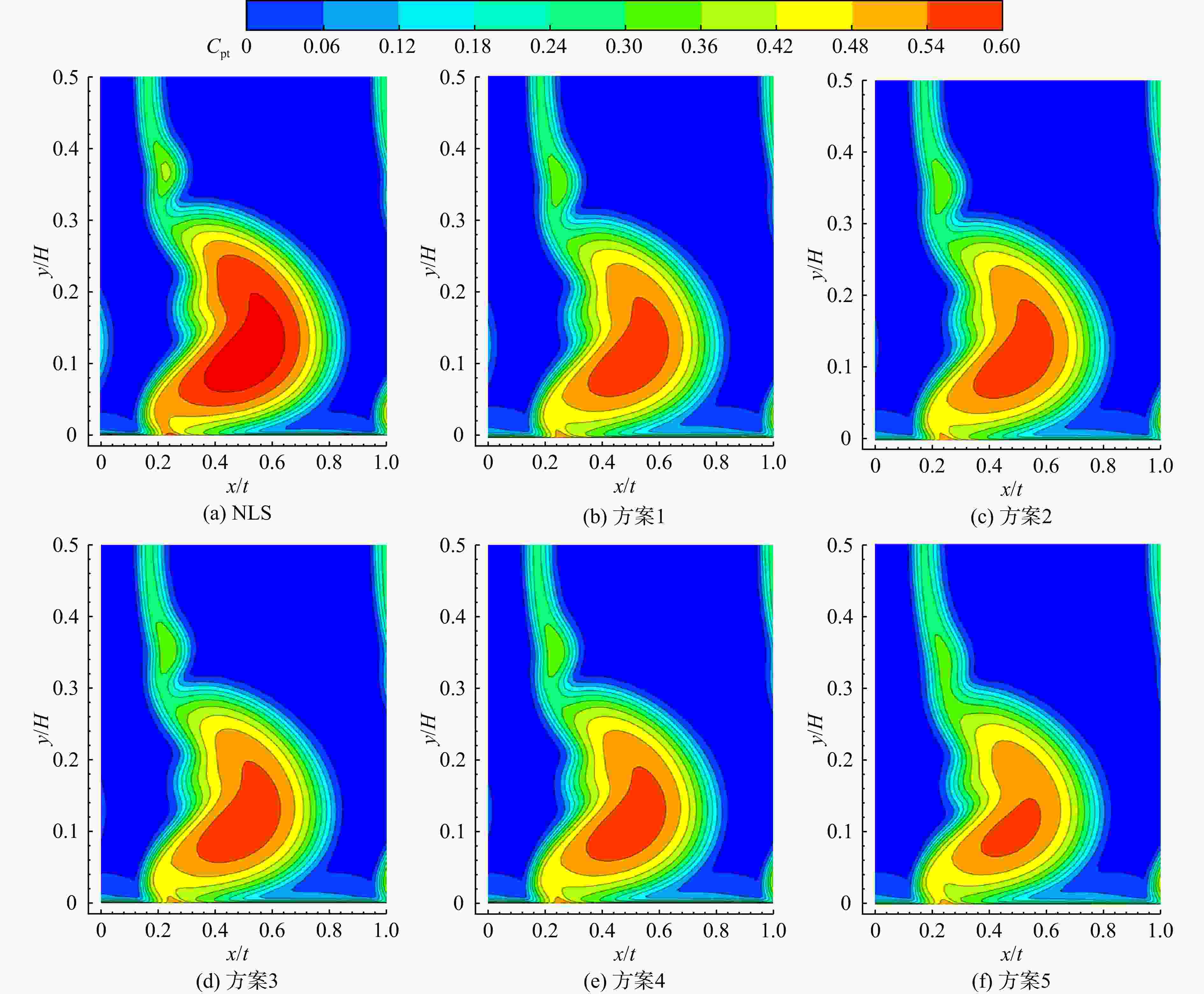

图 10 不同方案总压损失系数云图
Figure 10. Contour of total pressure loss coefficient of different schemes

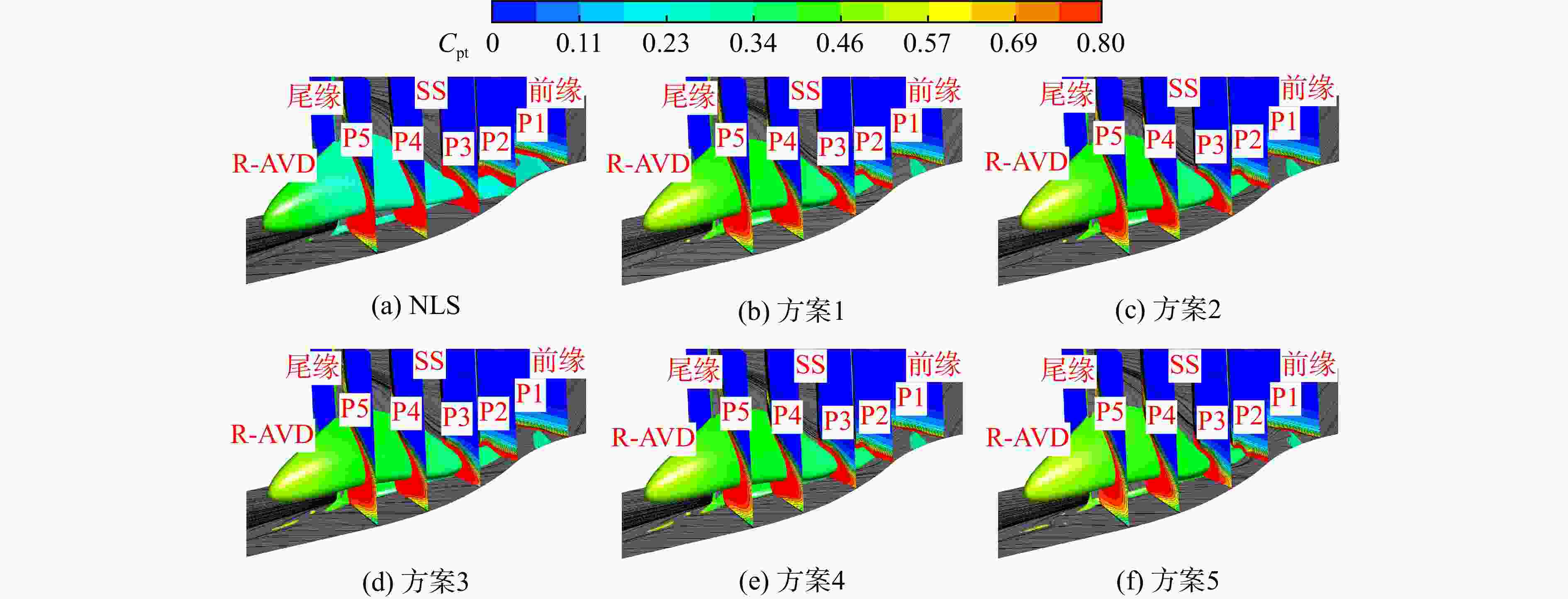

图 11 吸力面角区低能流体团及总压损失系数分布
Figure 11. Distribution of low-energy fluid clusters and total pressure loss coefficients in the corner region

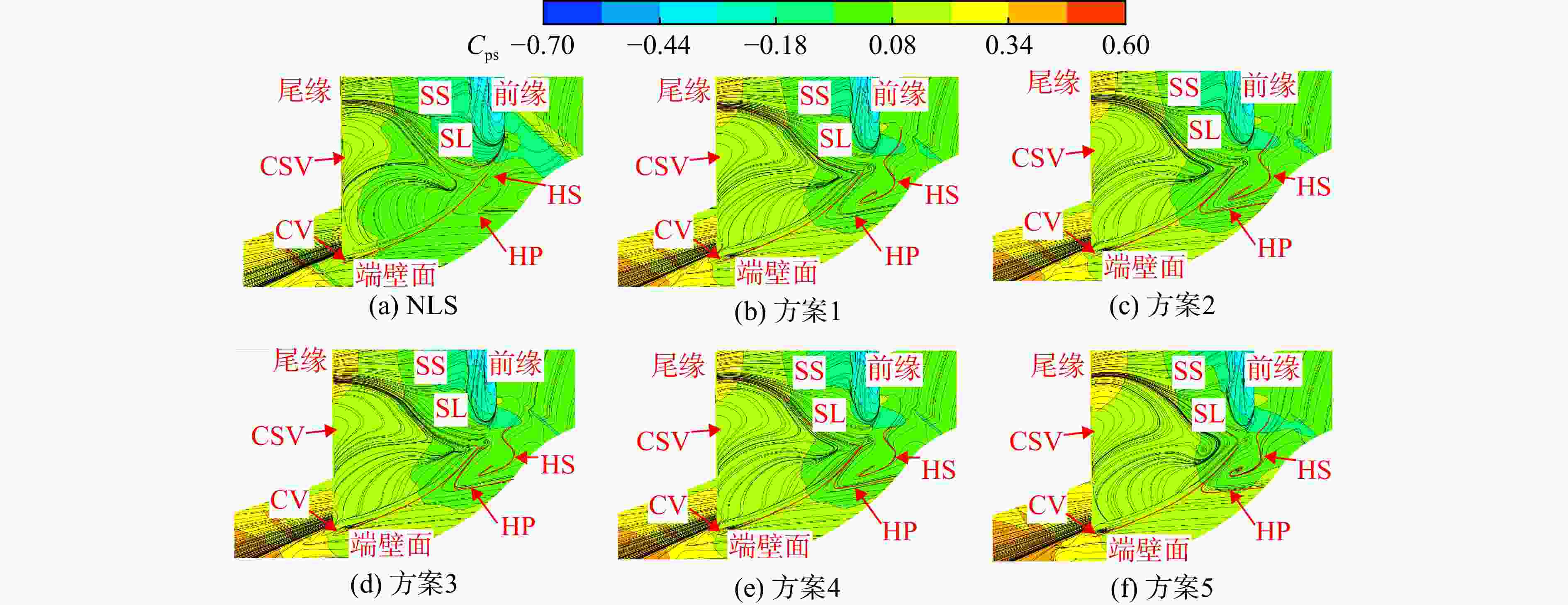

图 12 端壁及叶表静压系数云图和极限流线
Figure 12. Static pressure coefficient contours and limiting streamlines on the end wall and blade surfaces

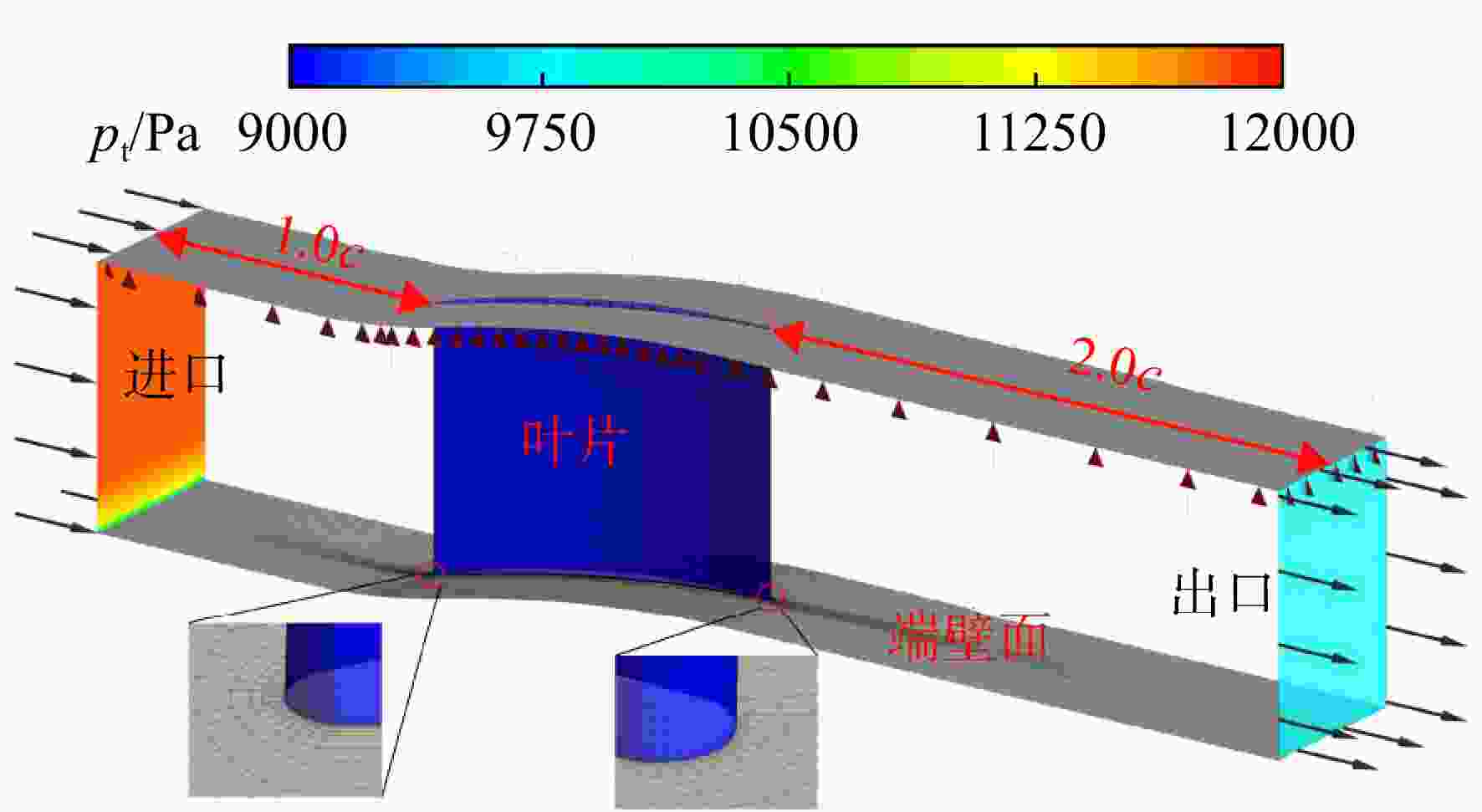

表 1 叶栅几何参数
Table 1. Cascade geometry parameters
参数 数值 弦长 c/mm 60 叶高 H/mm 100 节距 t/mm 33 安装角 γ/（°） 22.15 几何进口角 α/（°） 42 几何出口角 β/（°） 90 进口马赫数 Ma 0.7
下载: 导出CSV
-
[1] 钟兢军, 李晓东, 高宇. 跨声速级不同转速下静叶的损失特性[J]. 航空动力学报, 2017, 32(9): 2243-2252. ZHONG Jingjun, LI Xiaodong, GAO Yu. Loss characteristic of stator under different rotational speeds in transonic stage environment[J]. Journal of Aerospace Power, 2017, 32(9): 2243-2252. (in ChineseZHONG Jingjun, LI Xiaodong, GAO Yu. Loss characteristic of stator under different rotational speeds in transonic stage environment[J]. Journal of Aerospace Power, 2017, 32(9): 2243-2252. (in Chinese) [2] CORRAL R, GRECO M, VEGA A. Tip-shroud labyrinth seal effect on the flutter stability of turbine rotor blades[J]. ASME Turbomach, 2019, 141(10): 101006. doi: 10.1115/1.4043962 [3] 吴森林, 赵正, 王文琪, 等. 封严腔泄漏流对压气机性能影响的试验研究[J]. 航空动力学报, 2025, 40(6): 20230036. WU Senlin, ZHAO Zheng, WANG Wenqi, et al. Experimental study on the influence of seal chamber leakage flow on compressor performance[J]. Journal of Aerospace Power, 2025, 40(6): 20230036. (in ChineseWU Senlin, ZHAO Zheng, WANG Wenqi, et al. Experimental study on the influence of seal chamber leakage flow on compressor performance[J]. Journal of Aerospace Power, 2025, 40(6): 20230036. (in Chinese) [4] 刘高文, 陈凯, 刚铁, 等. 压比和雷诺数对压气机级间篦齿封严流动特性的影响[J]. 航空动力学报, 2015, 30(7): 1554-1560. LIU Gaowen, CHEN Kai, GANG Tie, et al. Influences of pressure ratio and Reynolds number on flow characteristics of labyrinth seal in compressor stator well[J]. Journal of Aerospace Power, 2015, 30(7): 1554-1560. (in ChineseLIU Gaowen, CHEN Kai, GANG Tie, et al. Influences of pressure ratio and Reynolds number on flow characteristics of labyrinth seal in compressor stator well[J]. Journal of Aerospace Power, 2015, 30(7): 1554-1560. (in Chinese) [5] JEFFERSON J L, TURNER R C. Some shrouding and tip clearance effects in axial flow compressors1[J]. International Shipbuilding Progress, 1958, 5(42): 78-101. [6] TAYLOR D, LONGLEY J. Effects of stator platform geometry features on blade row performance[J]. Journal of the Global Power and Propulsion Society, 2019, 3: 609-629. doi: 10.33737/jgpps/111508 [7] LIANG Dong, GUI Xingmin, JIN Donghai. Influence of seal cavity leakage flow on compressor performance investigated with a circumferentially averaged method[J]. Applied Sciences, 2021, 11(2): 780. doi: 10.3390/app11020780 [8] WELLBORN S R. Effects of shrouded stator cavity flows on multistage axial compressor aerodynamic performance[D]. Ames, Iowa: Iowa State University, 1996. [9] WELLBORN S R, OKIISHI T H. The influence of shrouded stator cavity flows on multistage compressor performance[C]// Proceedings of the International Gas Turbine and Aeroengine Congress and Exhibition. Stockholm, Sweden: ASME, 1998: 1-15. [10] DEMARGNE A A J, LONGLEY J P. The aerodynamic interaction of stator shroud leakage and mainstream flows in compressors[C]// Proceedings of the ASME Turbo Expo 2000: Power for Land, Sea, and Air. Volume 1: Aircraft Engine; Marine; Turbomachinery; Microturbines and Small Turbomachinery. Munich, Germany: ASME, 2000: 1-12. [11] LEJAMBRE C R, ZACHARIAS R M, BIEDERMAN B P, et al. Development and application of a multistage navier-stokes flow solver: Part Ⅱ application to a high pressure compressor design[C]//Proceedings of the ASME 1995 International Gas Turbine and Aeroengine Congress and Exposition. Volume 1: Turbomachinery. Houston, Texas, US: ASME, 1998: 215-223. [12] HEIDEGGER N J, HALL E J, DELANEY R A. Parameterized study of high-speed compressor seal cavity flow[C]//32nd Joint Propulsion Conference and Exhibit.Lake Buena Vista, US: American Institute of Aeronautics and Astronautics, 1996: 2807. [13] WELLBORN S R, OKIISHI T H. The influence of shrouded stator cavity flows on multistage compressor performance[J]. Journal of Turbomachinery, 1999, 121(3): 486-497. doi: 10.1115/1.2841341 [14] WELLBORN S R, TOLCHINSKY I, OKIISHI T H. Modeling shrouded stator cavity flows in axial-flow compressors[J]. Journal of Turbomachinery, 2000, 122(1): 55-61. doi: 10.1115/1.555427 [15] ZHANG Wanfu, YANG Jiangang, LI Chun, et al. Comparison of leakage performance and fluid-induced force of turbine tip labyrinth seal and a new kind of radial annular seal[J]. Computers & Fluids, 2014, 105: 125-137. [16] KATO D, YAMAGAMI M, TSUCHIYA N, et al. The influence of shrouded stator cavity flows on the aerodynamic performance of a high-speed multistage axial-flow compressor[C]// Proceedings of the ASME 2011 Turbo Expo: Turbine Technical Conference and Exposition. Volume 7: Turbomachinery, Parts A, B, and C. Vancouver, British Columbia, Canada: ASME, 2011: 297-307. [17] 曹传军, 敖天翔, 庄皓琬, 等. 封严篦齿对轴流压气机涡系结构与流动损失的影响[J]. 热能动力工程, 2023, 38(6): 20-30. CAO Chuanjun, AO Tianxiang, ZHUANG Haowan, et al. Effect of labyrinth seal on vortex structure and flow loss of axial compressor[J]. Journal of Engineering for Thermal Energy and Power, 2023, 38(6): 20-30. (in ChineseCAO Chuanjun, AO Tianxiang, ZHUANG Haowan, et al. Effect of labyrinth seal on vortex structure and flow loss of axial compressor[J]. Journal of Engineering for Thermal Energy and Power, 2023, 38(6): 20-30. (in Chinese) [18] 孟德君, 邢雷, 李坚. 篦齿封严流动及其对压气机静子性能的影响[J]. 航空发动机, 2013, 39(6): 31-35, 42. MENG Dejun, XING Lei, LI Jian. Influence of shrouded stator cavity flow on compressor stator performance[J]. Aeroengine, 2013, 39(6): 31-35, 42. (in ChineseMENG Dejun, XING Lei, LI Jian. Influence of shrouded stator cavity flow on compressor stator performance[J]. Aeroengine, 2013, 39(6): 31-35, 42. (in Chinese) [19] 傅鑫, 王婉月, 张衍, 等. 轴流压气机主流在封严篦齿上游容腔内流动结构的数值研究[J]. 兵工自动化, 2018, 37(7): 83-88. FU Xin, WANG Wanyue, ZHANG Yan, et al. Numerical simulation research of flow structure of axial compressor mainstream in upstream cavity[J]. Ordnance Industry Automation, 2018, 37(7): 83-88. (in ChineseFU Xin, WANG Wanyue, ZHANG Yan, et al. Numerical simulation research of flow structure of axial compressor mainstream in upstream cavity[J]. Ordnance Industry Automation, 2018, 37(7): 83-88. (in Chinese) [20] 王广, 楚武利. 级间进出口几何角度对压气机气动性能和封严效果的影响[J]. 推进技术, 2020, 41(5): 1063-1071. WANG Guang, CHU Wuli. Influence of geometric angle of inter-stage inlet and outlet on aerodynamic performance and sealing of compressor[J]. Journal of Propulsion Technology, 2020, 41(5): 1063-1071. (in ChineseWANG Guang, CHU Wuli. Influence of geometric angle of inter-stage inlet and outlet on aerodynamic performance and sealing of compressor[J]. Journal of Propulsion Technology, 2020, 41(5): 1063-1071. (in Chinese) [21] 陈美宁, 谢伟亮, 王红涛. 静子容腔泄漏对某压气机性能影响的数值研究[J]. 航空动力学报, 2014, 29(11): 2543-2549. CHEN Meining, XIE Weiliang, WANG Hongtao. Numerical investigation of stator cavity leakage influence to a compressor performance[J]. Journal of Aerospace Power, 2014, 29(11): 2543-2549. (in ChineseCHEN Meining, XIE Weiliang, WANG Hongtao. Numerical investigation of stator cavity leakage influence to a compressor performance[J]. Journal of Aerospace Power, 2014, 29(11): 2543-2549. (in Chinese) [22] 陈雷. 压气机静子叶根间隙泄漏特性研究[D]. 南京: 南京航空航天大学, 2010. CHEN Lei. Study on leakage characteristics of compressor stator blade root clearance[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010. (in ChineseCHEN Lei. Study on leakage characteristics of compressor stator blade root clearance[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010. (in Chinese) [23] 孔晓治, 黄天硕, 刘育心, 等. 不同来流附面层厚度下容腔泄漏流对围带式静叶性能影响[J]. 航空动力学报, 2023, 38(1): 20220445. KONG Xiaozhi, HUANG Tianshuo, LIU Yuxin, et al. Influences of the cavity leakage flow on shrouded stator performance at different inlet boundary layer thicknesses[J]. Journal of Aerospace Power, 2023, 38(1): 20220445. (in ChineseKONG Xiaozhi, HUANG Tianshuo, LIU Yuxin, et al. Influences of the cavity leakage flow on shrouded stator performance at different inlet boundary layer thicknesses[J]. Journal of Aerospace Power, 2023, 38(1): 20220445. (in Chinese) [24] XU Wenfeng, SUN Peng, YANG Guogang. Effect of the bionic chamber position on the aerodynamic performance in a transonic compressor cascade[J]. Aerospace Science and Technology, 2021, 119: 107106. doi: 10.1016/j.ast.2021.107106 [25] 杨益. 叶表凹坑影响高负荷扩压叶栅气动性能研究[D]. 大连: 大连海事大学, 2018. YANG Yi. Study on the influence of blade surface pits on aerodynamic performance of high load compressor cascade[D]. Dalian: Dalian Maritime University, 2018. (in ChineseYANG Yi. Study on the influence of blade surface pits on aerodynamic performance of high load compressor cascade[D]. Dalian: Dalian Maritime University, 2018. (in Chinese) -
