滑滚比对油膜界面滑移及弹流润滑特性的影响

赵二辉; 郭闯; 汪成文; 邵波; 乔妙杰; 权龙

doi:10.13224/j.cnki.jasp.20240114

滑滚比对油膜界面滑移及弹流润滑特性的影响

doi: 10.13224/j.cnki.jasp.20240114

赵二辉^{1, 2,},
郭闯¹,
汪成文¹,
邵波^2,*, ,,
乔妙杰²,
权龙¹

1.
太原理工大学机械与运载工程学院，太原 030024
2.
山西中电科技特种装备有限公司，太原 030032

基金项目: 国家自然科学基金（52005359）

详细信息

作者简介:
赵二辉（1985-），男，讲师，博士，主要从事机械传动与摩擦学等方面的研究。E-mail：zhaoerhui@tyut.edu.cn

通讯作者:
邵波（1988-），男，工程师，硕士，主要研究方向为机械与车辆动力学。E-mail：shawboo@163.com

中图分类号: V233.4
计量
- 文章访问数: 946
- HTML浏览量: 334
- PDF量: 45
- 被引次数: 0
出版历程
- 收稿日期: 2024-02-29
- 网络出版日期: 2024-09-29

Effect of slip-roll ratio on oil film interface slip and elastohydrodynamic lubrication characteristics

ZHAO Erhui^{1, 2
,},
GUO Chuang¹,
WANG Chengwen¹,
SHAO Bo^{2,*
, ,},
QIAO Miaojie²,
QUAN Long¹

1.
College of Mechanical and Vehicle Engineering，Taiyuan University of Technology，Taiyuan 030024，China
2.
Shanxi Special Equipment Company Limited of CETC，Taiyuan 030032，China

摘要

摘要:
为了探究严苛工况下机械传动系统中摩擦副润滑失效的形成和演变机理，建立考虑油膜界面滑移的点接触弹流润滑模型进行数值仿真计算，并与双色光干涉弹流润滑试验相对照。研究滑滚比对弹流润滑中油膜界面滑移的影响，进而研究界面滑移状态下卷吸速度、流体动压、油膜厚度、滑移参数等随滑滚比的变化特性。结果表明：随着滑滚比的增加，界面滑移幅度和滑移范围显著增加。滑滚比为5的高滑滚比工况下，最大滑移长度达1.06 μm，滑移范围占比达21.56%；滑移区域的卷吸速度明显下降；整个接触区域内的动压分布趋向均匀；入口凹陷深度逐渐增大，同时出口区膜厚下降的幅度也逐渐增大；滑移范围内的平均滑移长度与滑滚比近似呈线性关系，滑滚比为5时滑移范围内的平均滑移长度达0.250 μm；滑移部位的承载力逐渐减小，滑滚比为5时下降幅度达6.4%。
- 界面滑移 /
- 点接触 /
- 弹流润滑 /
- 滑移长度 /
- 滑滚比
Abstract:
In order to explore the formation and evolution mechanism of lubrication failure of friction pair in mechanical transmission system under severe working conditions, a point contact elastohydrodynamic lubrication model considering oil film interface slip was established for numerical simulation calculation, and also compared with the two-color light interference elastohydrodynamic lubrication experiment. The influence of slip-roll ratio on oil film interface slip in elastohydrodynamic lubrication was studied, and then the variation characteristics of entrainment velocity, hydrodynamic pressure, oil film thickness and slip parameters with slip-roll ratio under interface slip state were studied. The results showed that with the increase of slip-roll ratio, the slip amplitude and slip range of the interface increased significantly. Under the condition of high slip-roll ratio with slip-roll ratio being 5, the maximum slip length reached 1.06 μm, and the slip range accounted for 21.56%. The entrainment velocity in the slip region decreased obviously. The dynamic pressure distribution in the whole contact area tended to be uniform. The depth of the inlet depression increased gradually, and the decrease of the film thickness in the outlet area was also augmented gradually. The average slip length in the slip range was approximately linear with the slip-roll ratio. When slip-roll ratio was 5, the average slip length in the slip range was 0.250 μm. The bearing capacity of the slip part decreased gradually, and the decrease was 6.4% when slip-roll ratio was 5.
- interface slip /
- point contact /
- elastohydrodynamic lubrication /
- slip length /
- slide-roll ratio

HTML

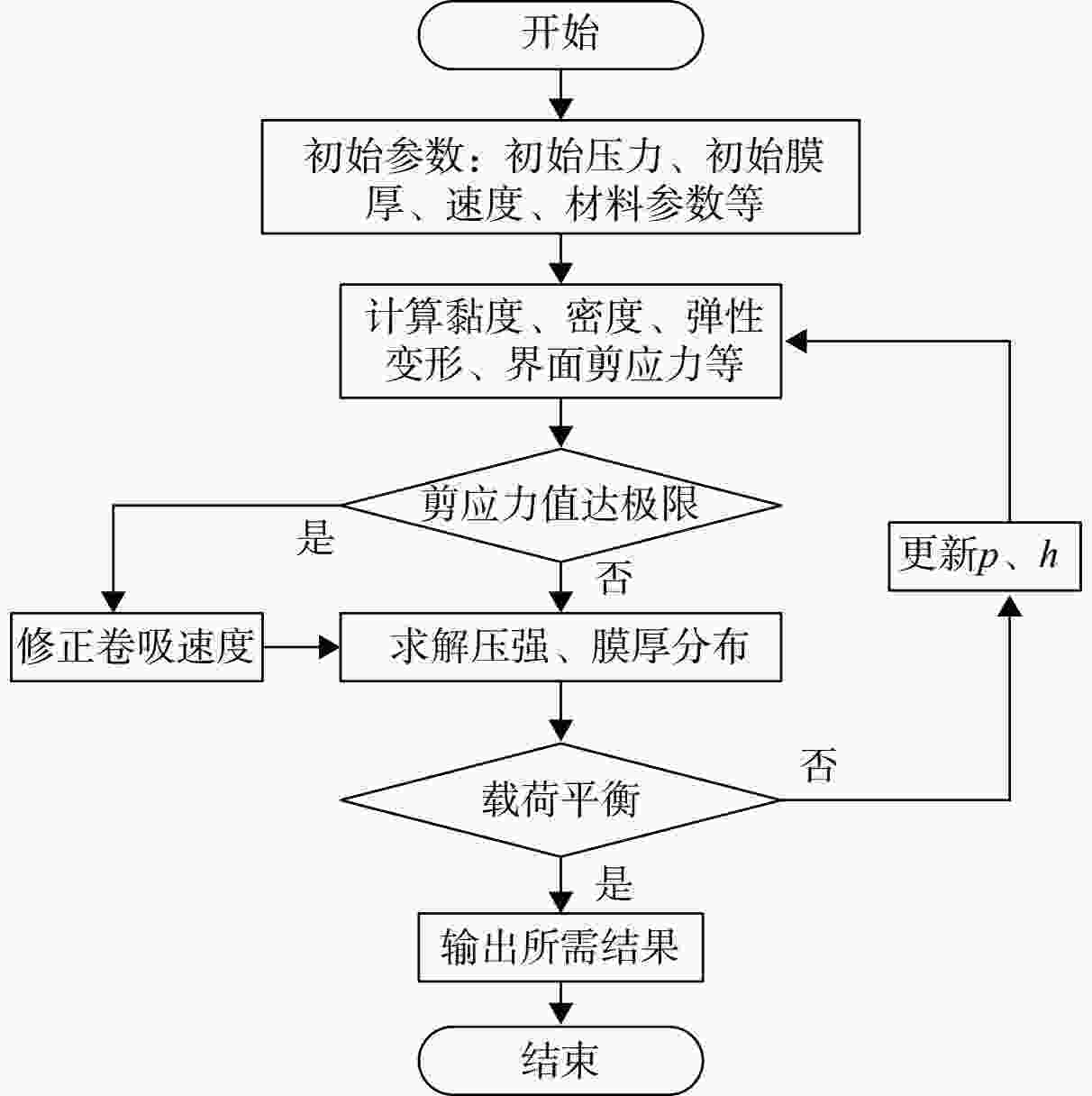

图 1 模型计算流程图

Figure 1. Model calculation flow chart

下载: 全尺寸图片幻灯片

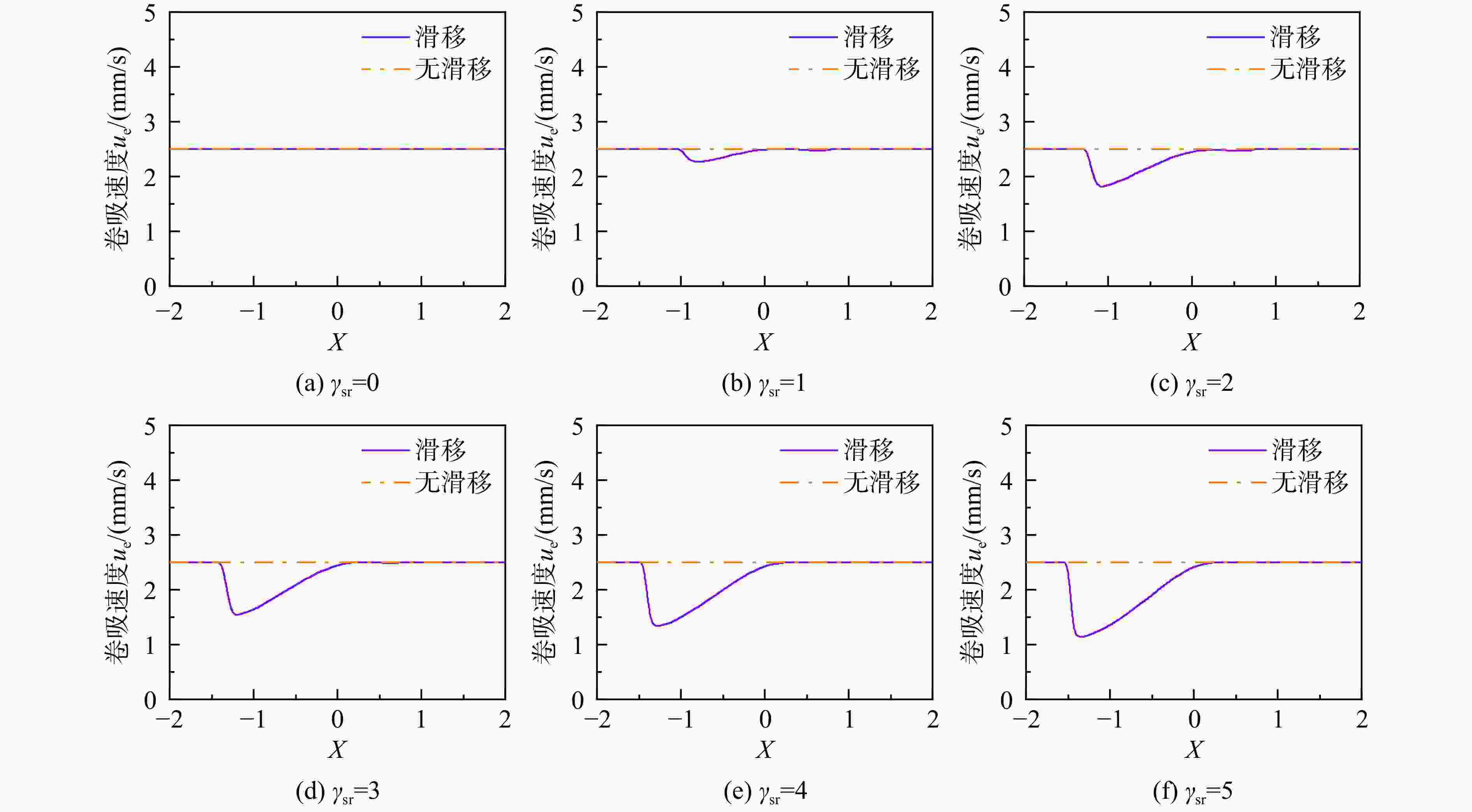

图 2 中心线上卷吸速度分布

Figure 2. Entrainment velocity distribution on the center line

下载: 全尺寸图片幻灯片

图 3 中心线上动压分布

Figure 3. Dynamic pressure distribution on the center line

下载: 全尺寸图片幻灯片

图 4 中心线上油膜厚度分布

Figure 4. Oil film thickness distribution on the center line

下载: 全尺寸图片幻灯片

图 5 滑移长度分布

Figure 5. Slip length distribution diagram

下载: 全尺寸图片幻灯片

图 6 滑移参数受滑滚比影响分析

Figure 6. Analysis of slip parameters affected by slip-roll ratio

下载: 全尺寸图片幻灯片

图 7 双色光干涉点接触弹流润滑试验原理图

Figure 7. Principle diagram of two-color light interference point contact elastohydrodynamic lubrication experiment

下载: 全尺寸图片幻灯片

图 8 试验与仿真膜厚干涉对照图

Figure 8. Comparison diagram of experimental and simulated film thickness interference

下载: 全尺寸图片幻灯片

图 9 试验与仿真中心线膜厚分布

Figure 9. Experimental and simulation centerline film thickness distribution

下载: 全尺寸图片幻灯片

表 1 材料参数

Table 1. Material parameters

参数	数值
球半径R/mm	12.7
球弹性模量E₁/10¹¹ Pa	2.02
盘弹性模量 E₂/10¹¹ Pa	0.764
球泊松比	0.3
盘泊松比	0.2
润滑油初始黏度η₀/（Pa∙s）	117
润滑油初始密度ρ₀/（kg/m³）	875

下载: 导出CSV

表 2 工况条件

Table 2. Work condition

参数	数值
载荷 w/N	30
卷吸速度u_e/（mm/s）	2.5
滑滚比γ_sr	0，1，2，3，4，5
球表面速度 u_h/（mm/s）	2.5，3.75，5，6.25，7.5，8.75
盘表面速度 u₀/（mm/s）	2.5，1.25，0，−1.25， −2.5，−3.75

下载: 导出CSV
