Performance prediction of compressor blade profile based on deep neural network

DU Zhou^{1, 2
,},
XU Quanyong^{2,*
, ,},
MA Yulin¹,
JIANG Yaodong^{1, 2}

1.
School of Mechanics and Engineering，Liaoning Technical University，Fuxin Liaoning 123032，China
2.
Institute of Aircraft Engine，Tsinghua University，Beijing 100084，China

摘要

摘要:
基于深度学习的方法建立了一种压气机叶型在非设计工况下的总压损失系数和落后角预测流程。以NACA65系列叶型为例，通过拉丁超立方采样建立一种综合考虑叶型设计变量和来流工况的定制叶型生成方法，共计15500组工况，将对应来流工况下的叶栅算例进行了二维仿真计算，将计算得到的总压损失系数和落后角数据进行数据分析和数据处理后，将处理过的数据与相对应的设计变量映射提供给神经网络进行训练，得到叶栅的总压损失系数和落后角模型，总压损失系数和落后角平均绝对误差分别为0.00129和0.18673°，并与传统的非设计损失和落后角经验模型进行了对比验证。结果显示：基于深度学习的可以准确预测在非设计工况下的损失与落后角，对比经验模型预测结果具有更高的准确度，该代理模型可用于压气机气动设计。
- 轴流压气机 /
- 叶型性能 /
- 总压损失系数 /
- 落后角 /
- 深度学习
Abstract:
A process for predicting the total pressure loss coefficient and deviation angle of axial compressor blades under off-design conditions was established using deep learning methods. Taking the NACA65 series blades as an example, a customized blade generation method considering blade design variables and incoming flow conditions was developed using Latin hypercube sampling, under a total of 15500 operating conditions. Two-dimensional simulation calculations were performed for the corresponding blade cases under these flow conditions. The calculated total pressure loss coefficient and deviation angle data were analyzed and processed, and the processed data, along with the corresponding design variables, were provided to a neural network for training. The final model for blade total pressure loss coefficient and deviation angle was obtained, with a total pressure loss coefficient and deviation angle mean absolute error of 0.00129 and 0.18673°, respectively. A comparison with traditional empirical models for off-design total pressure loss coefficient and deviation angle was conducted for validation. The results showed that the deep learning-based approach can accurately predict loss and deviation angle under off-design conditions with higher accuracy compared with empirical models. This surrogate model can be applied to aerodynamic design of axial compressors.
- axial compressor /
- blade profile performance /
- total pressure loss coefficient /
- deviation angle /
- deep learning

HTML

图 1 NACA65系列叶型中线分布和厚度分布

Figure 1. Camber and thickness distribution of NACA65-series blades

下载: 全尺寸图片幻灯片

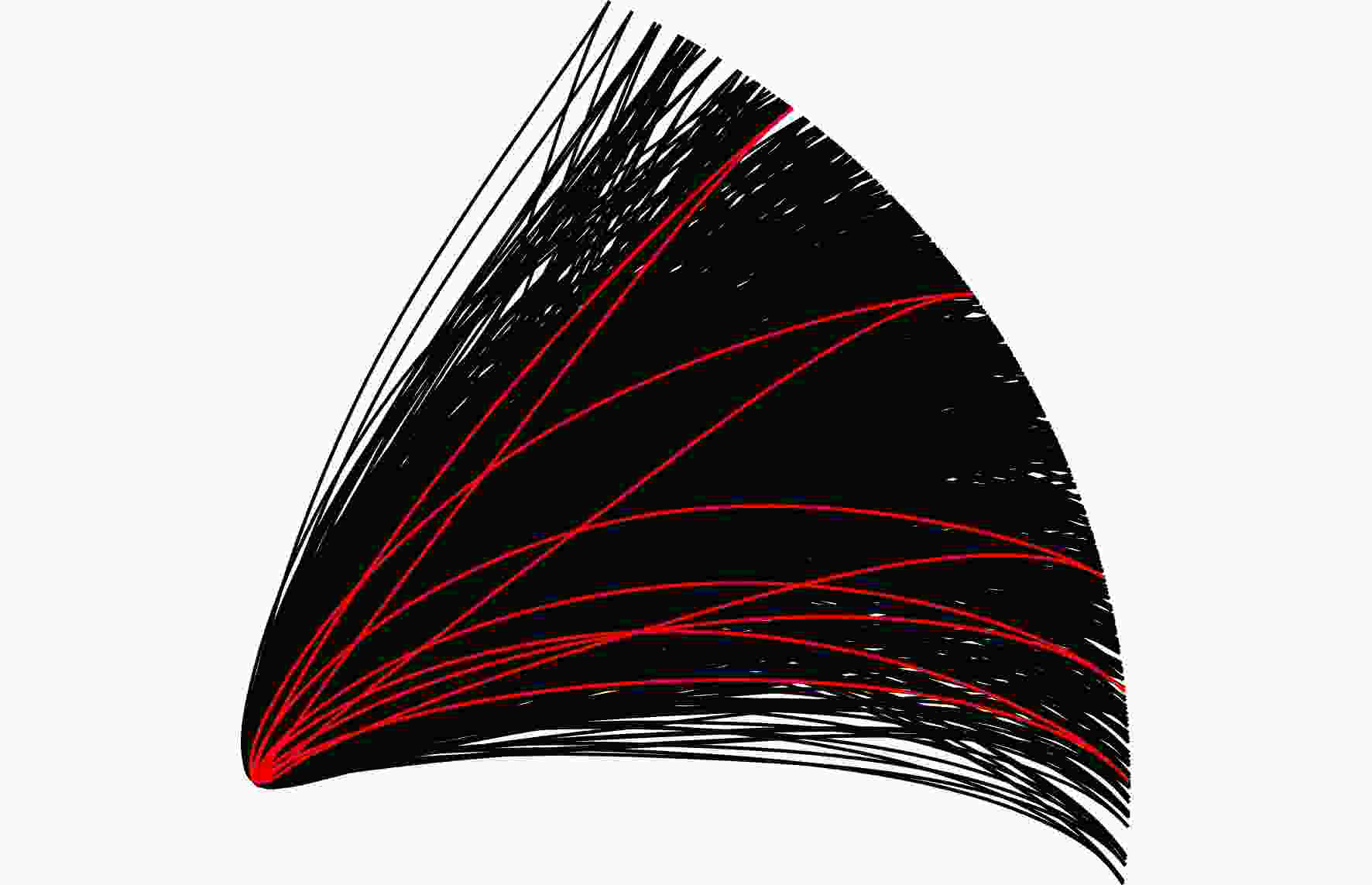

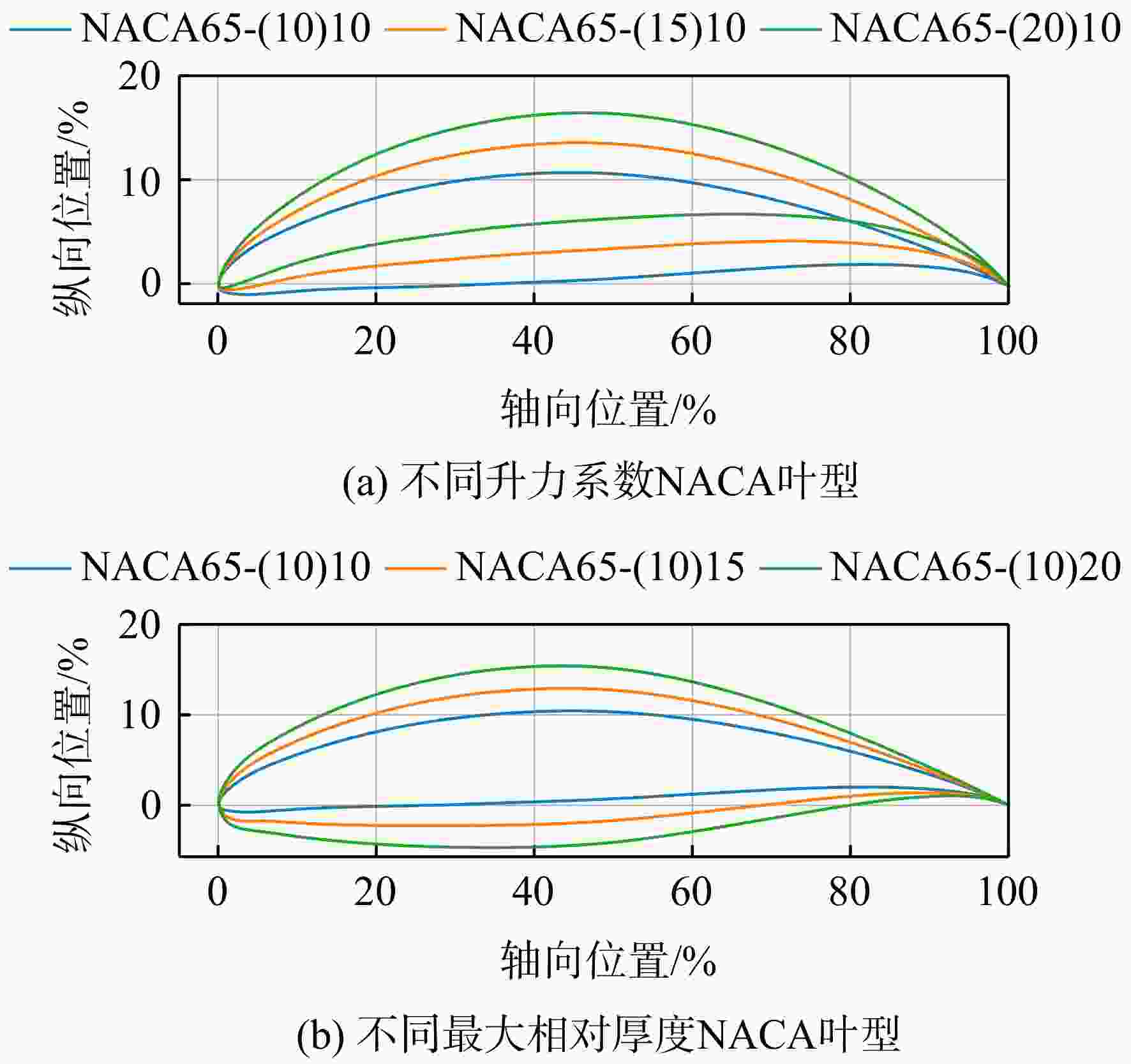

图 2 不同升力系数和最大相对厚度的叶型几何

Figure 2. Blade geometry with different lift coefficients and maximum relative thickness

下载: 全尺寸图片幻灯片

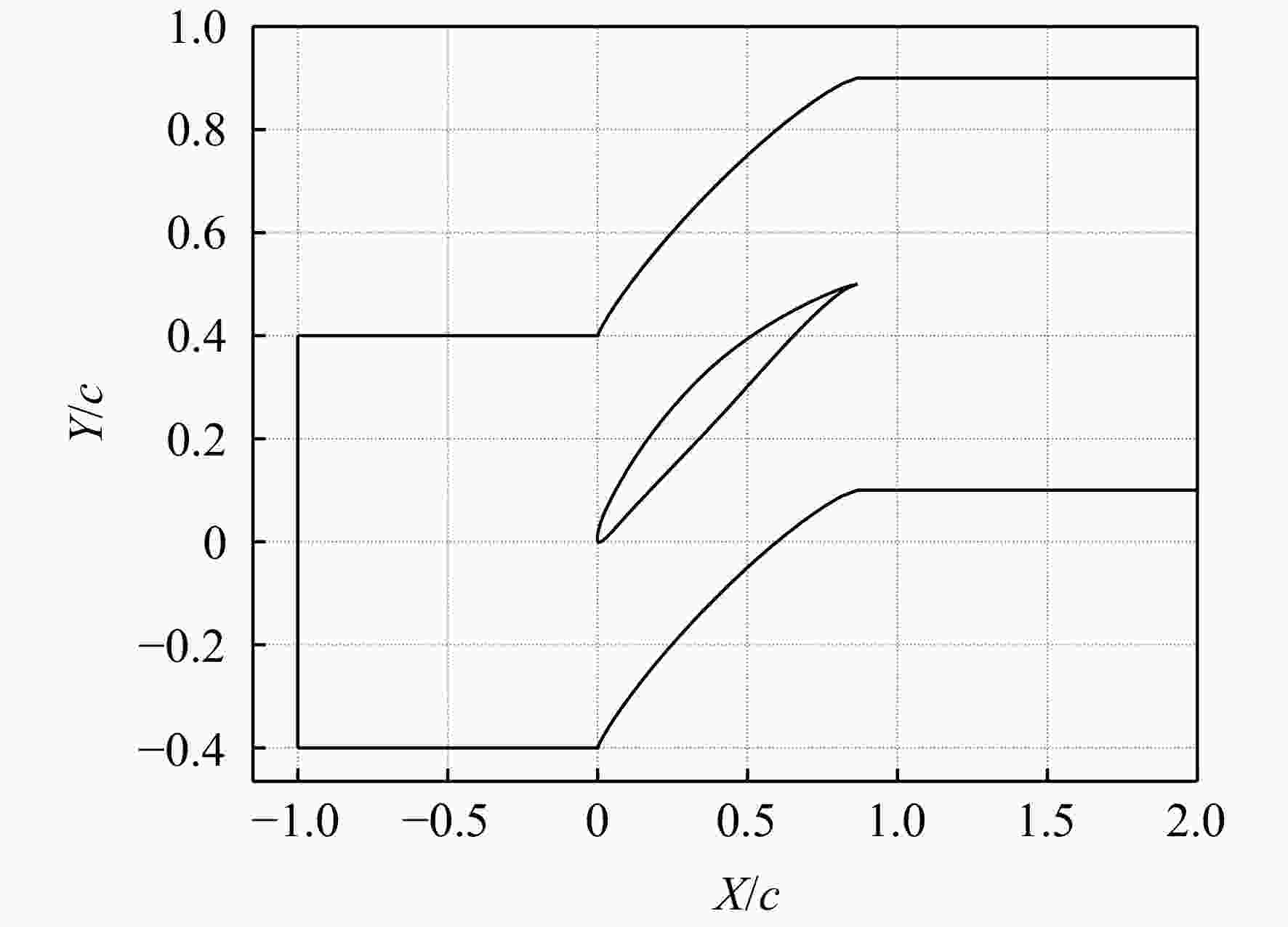

图 3 典型的NACA65叶栅几何

Figure 3. Distribution of centerline and thickness of NACA65 series leaf profiles

下载: 全尺寸图片幻灯片

图 4 叶型设计空间

Figure 4. Blade design space

下载: 全尺寸图片幻灯片

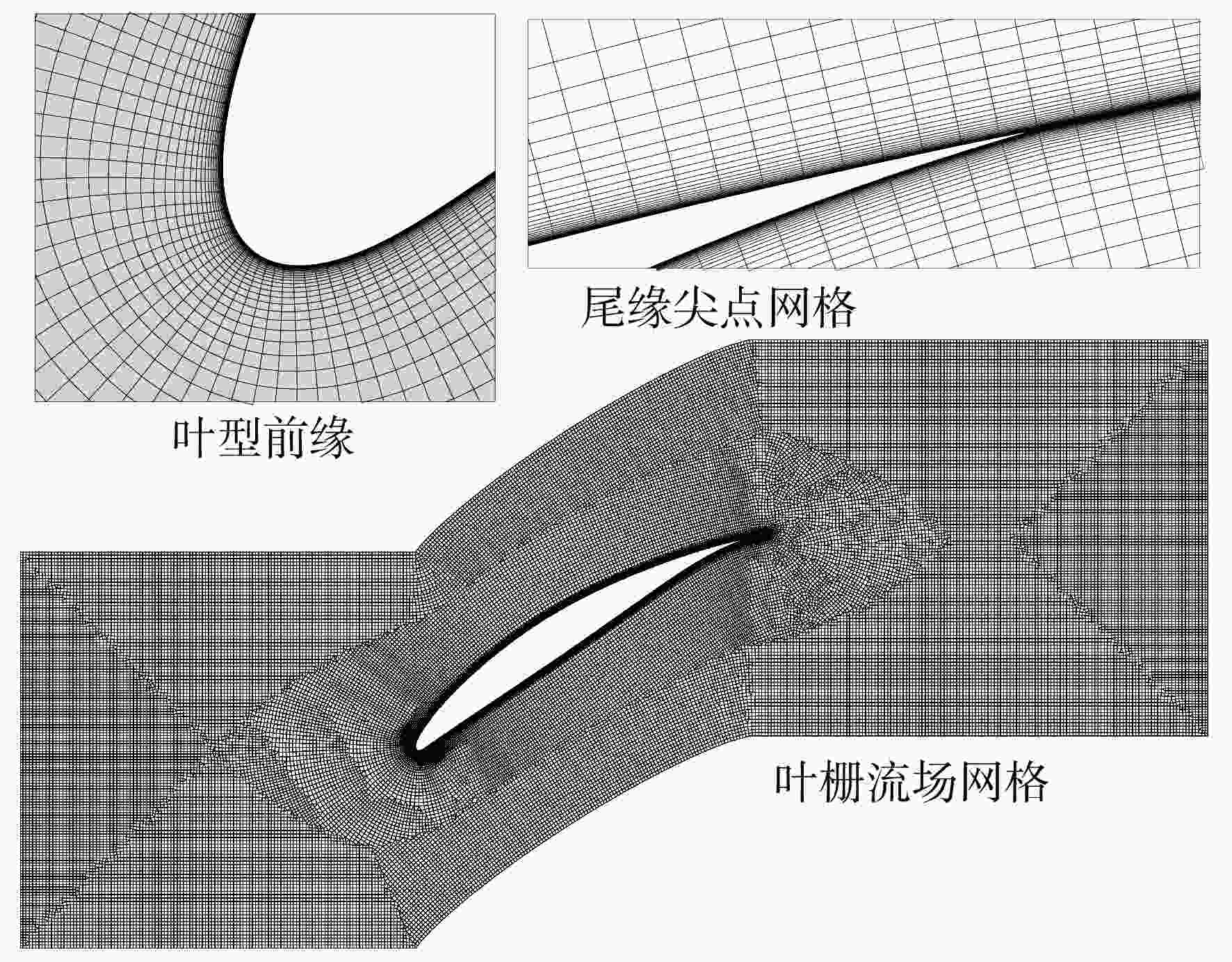

图 5 叶栅典型算例网格

Figure 5. Typical grid for a cascade example

下载: 全尺寸图片幻灯片

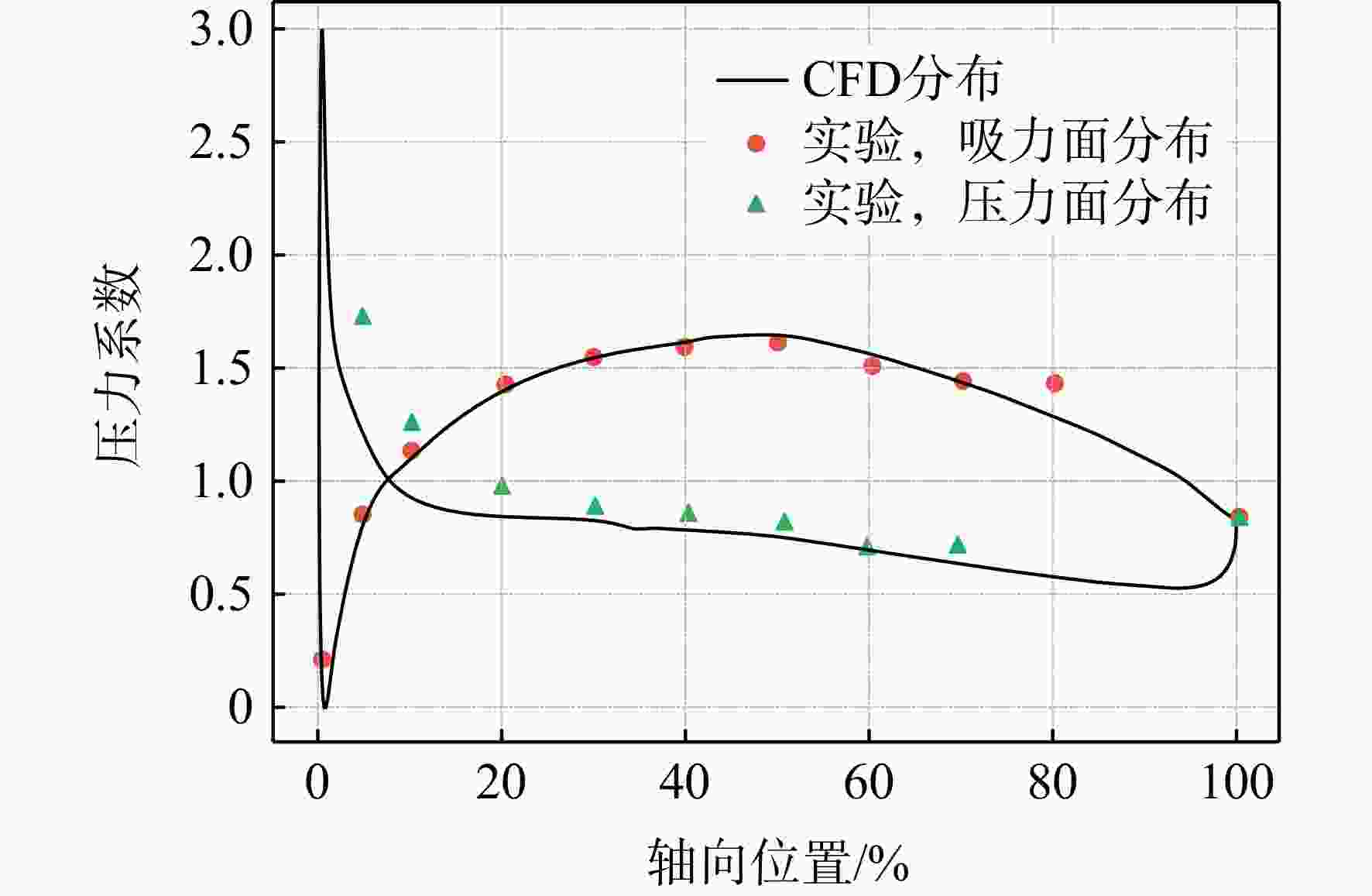

图 6 NACA65-（12）10叶型压力系数分布结果对比

Figure 6. Comparison of pressure coefficient distribution results for NACA65-（12）10 blade

下载: 全尺寸图片幻灯片

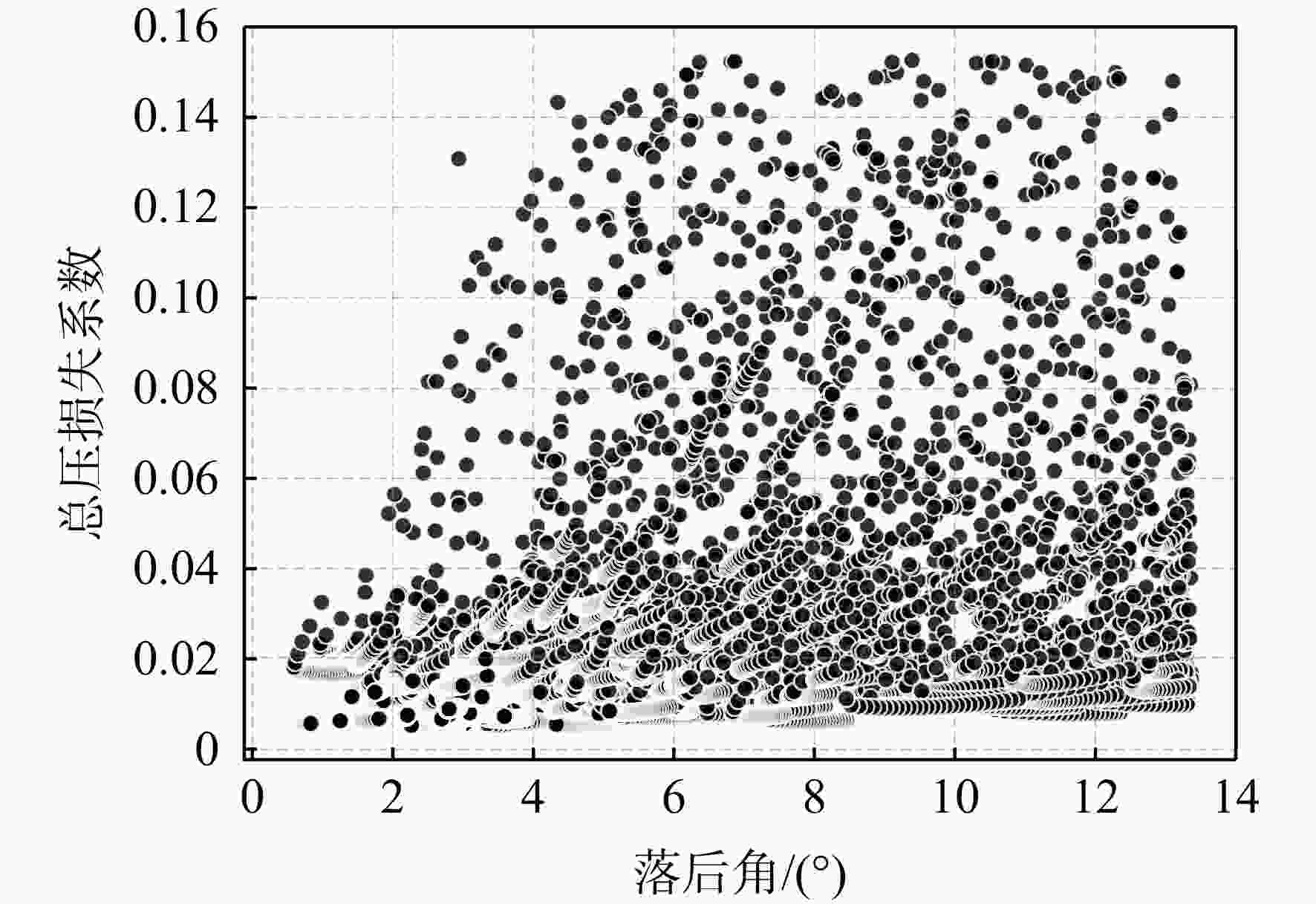

图 7 落后角和总压损失系数分布

Figure 7. Distribution of deviation angle and total pressure loss coefficient

下载: 全尺寸图片幻灯片

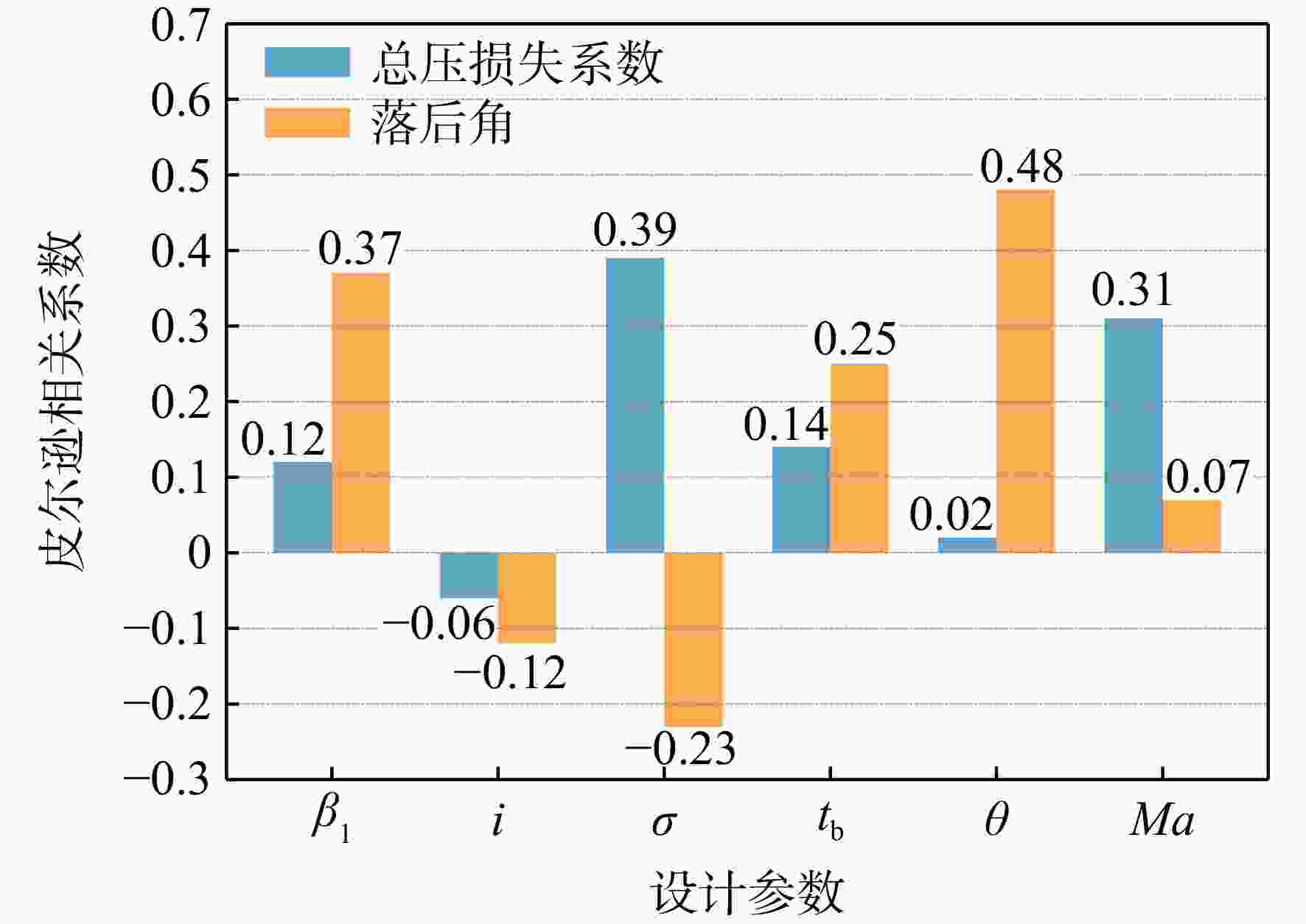

图 8 数据相关性分析

Figure 8. Data dependence analysis

下载: 全尺寸图片幻灯片

图 9 神经网络结构模型

Figure 9. Neural network architecture model

下载: 全尺寸图片幻灯片

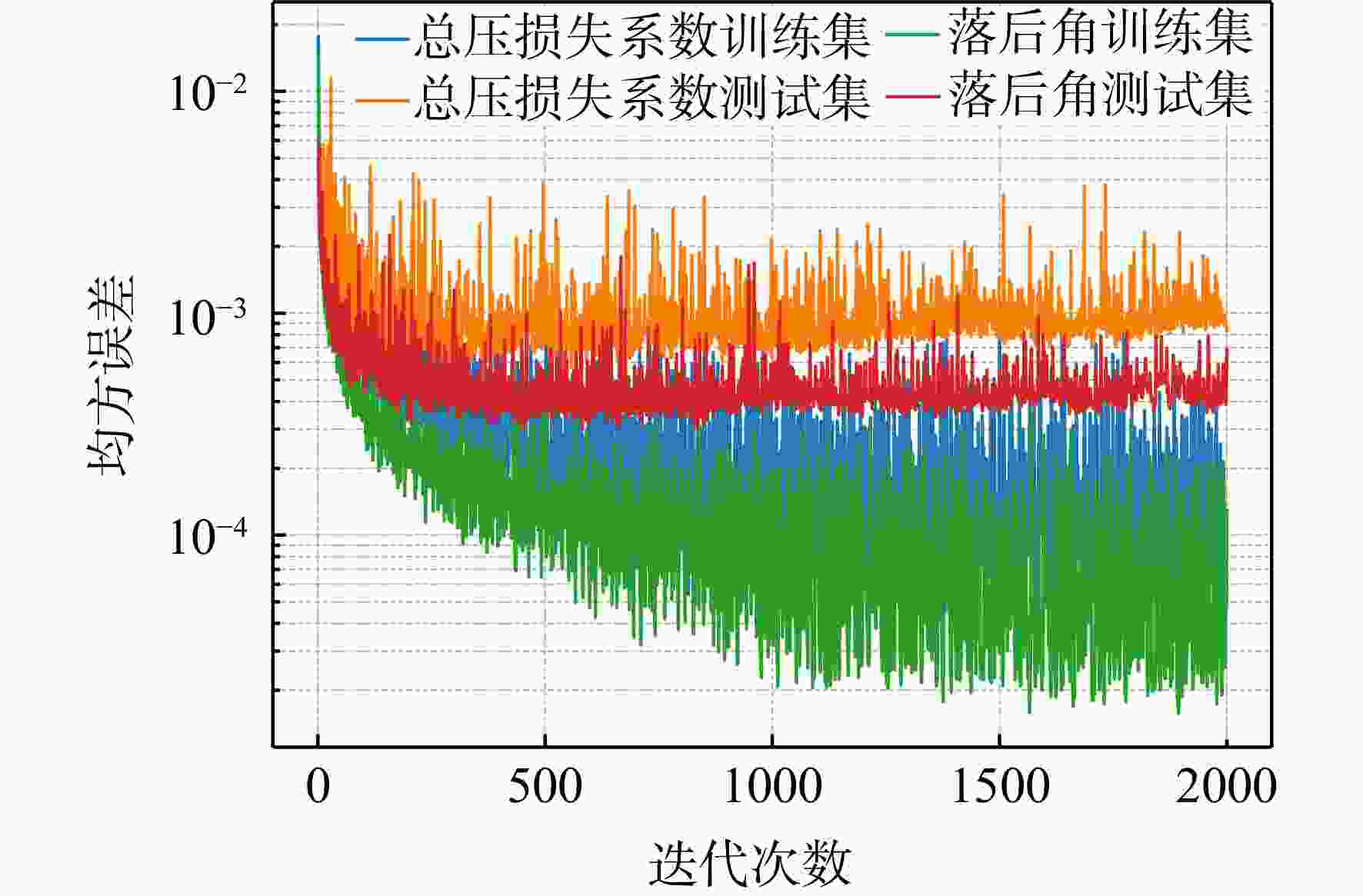

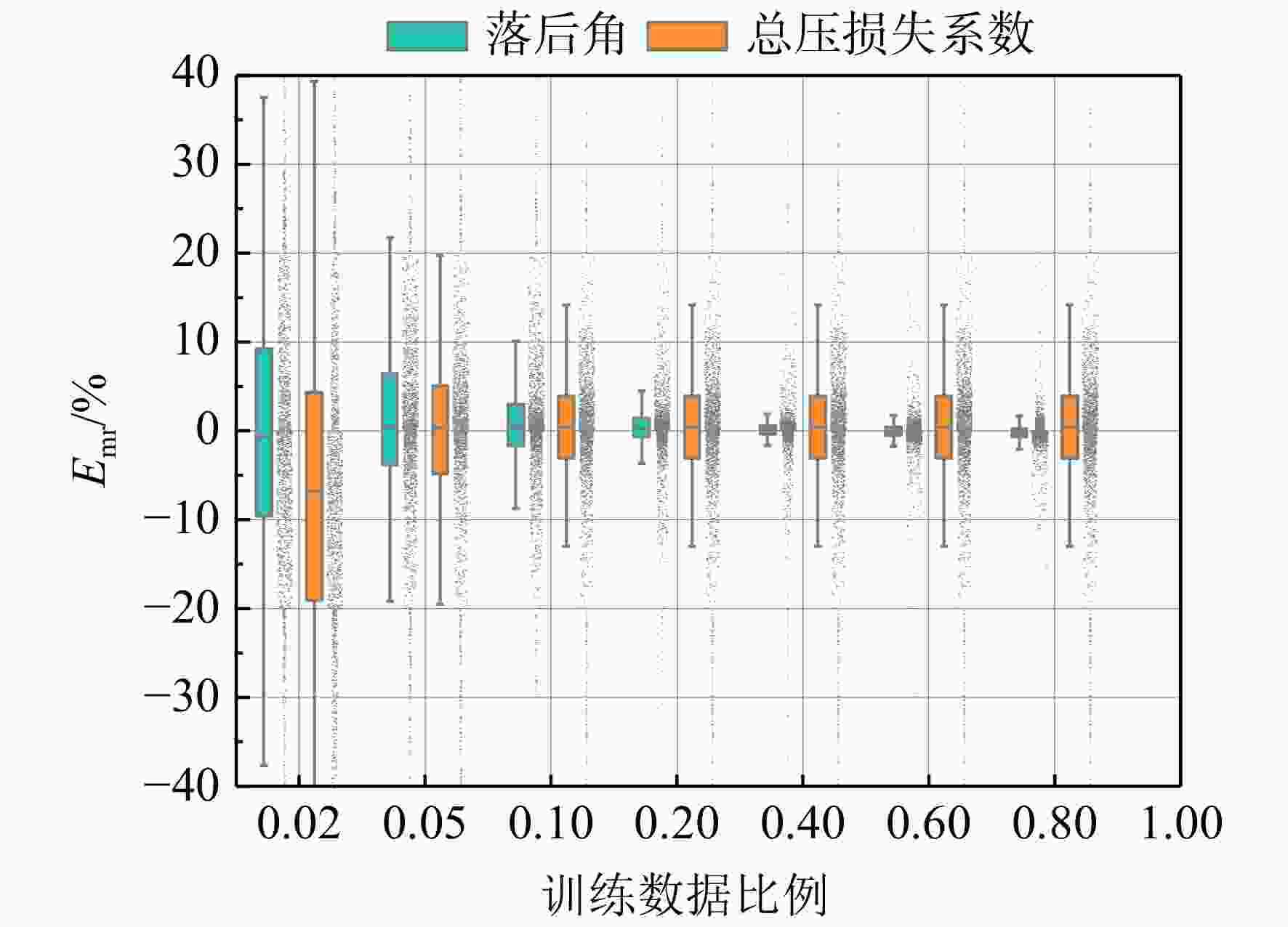

图 10 损失函数收敛曲线图

Figure 10. Loss function convergence curve

下载: 全尺寸图片幻灯片

图 11 损失函数收敛曲线图

Figure 11. Loss function convergence curve

下载: 全尺寸图片幻灯片

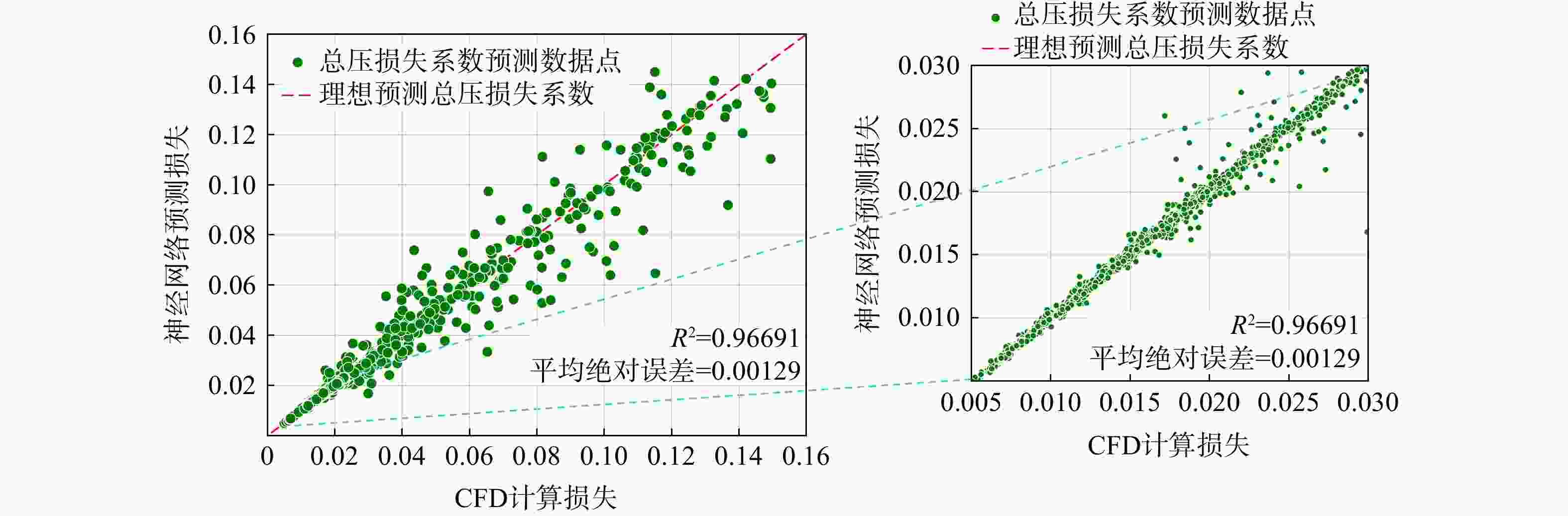

图 12 总压损失函数预测结果

Figure 12. Predicted results of total pressure loss function

下载: 全尺寸图片幻灯片

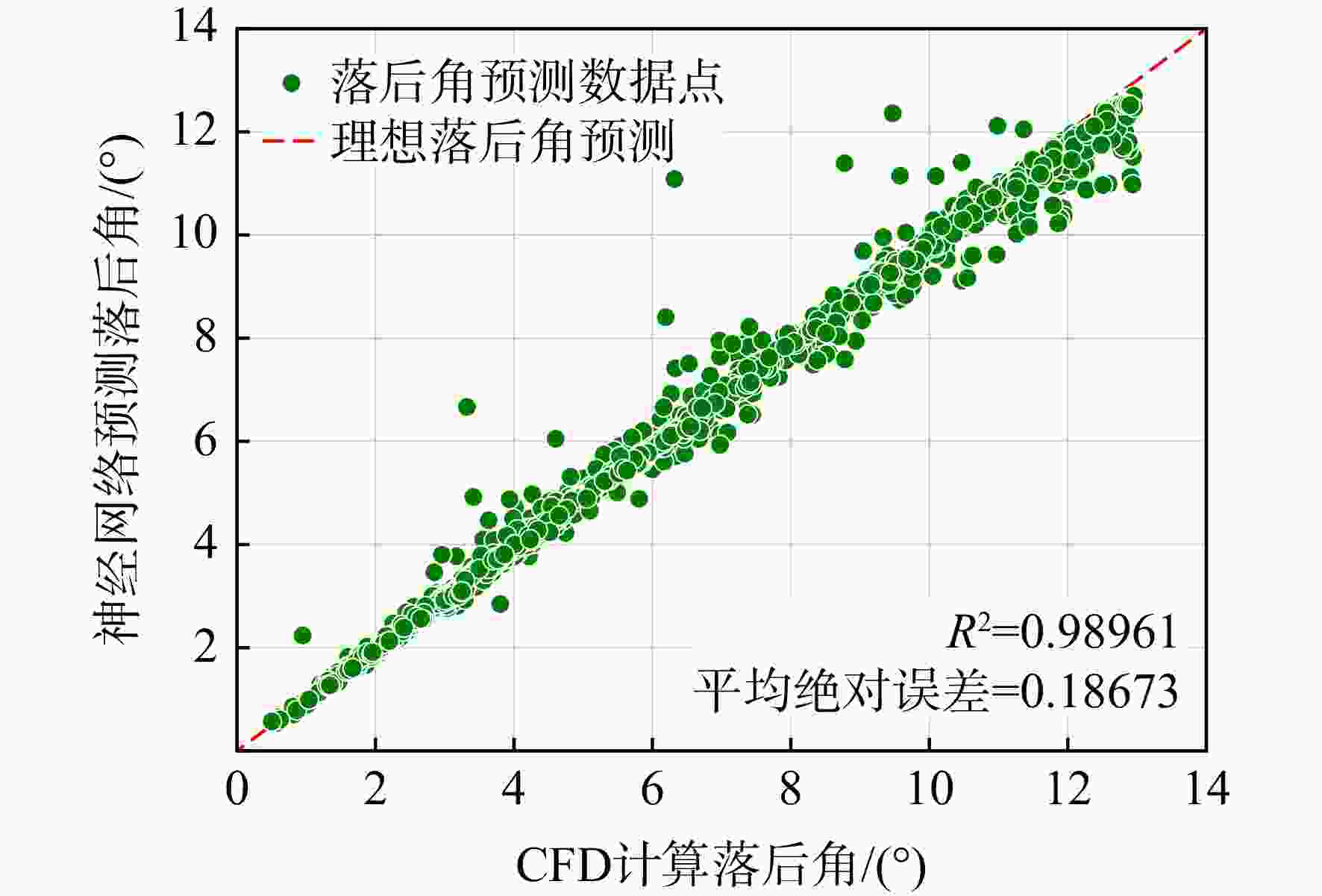

图 13 落后角预测结果

Figure 13. Predicted results of deviation angle

下载: 全尺寸图片幻灯片

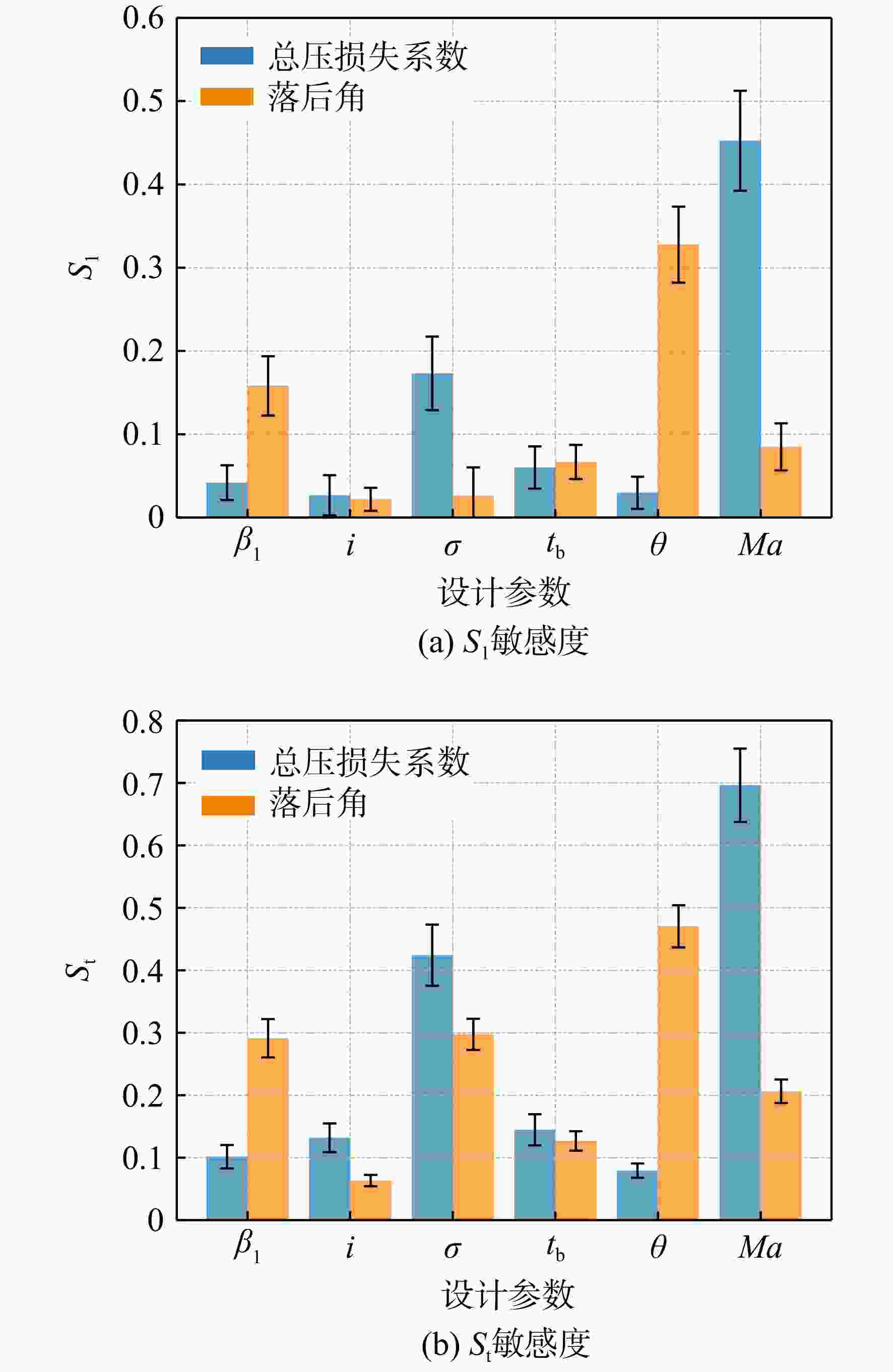

图 14 S₁和S_t敏感度

Figure 14. Sensitivity of S₁ and S_t

下载: 全尺寸图片幻灯片

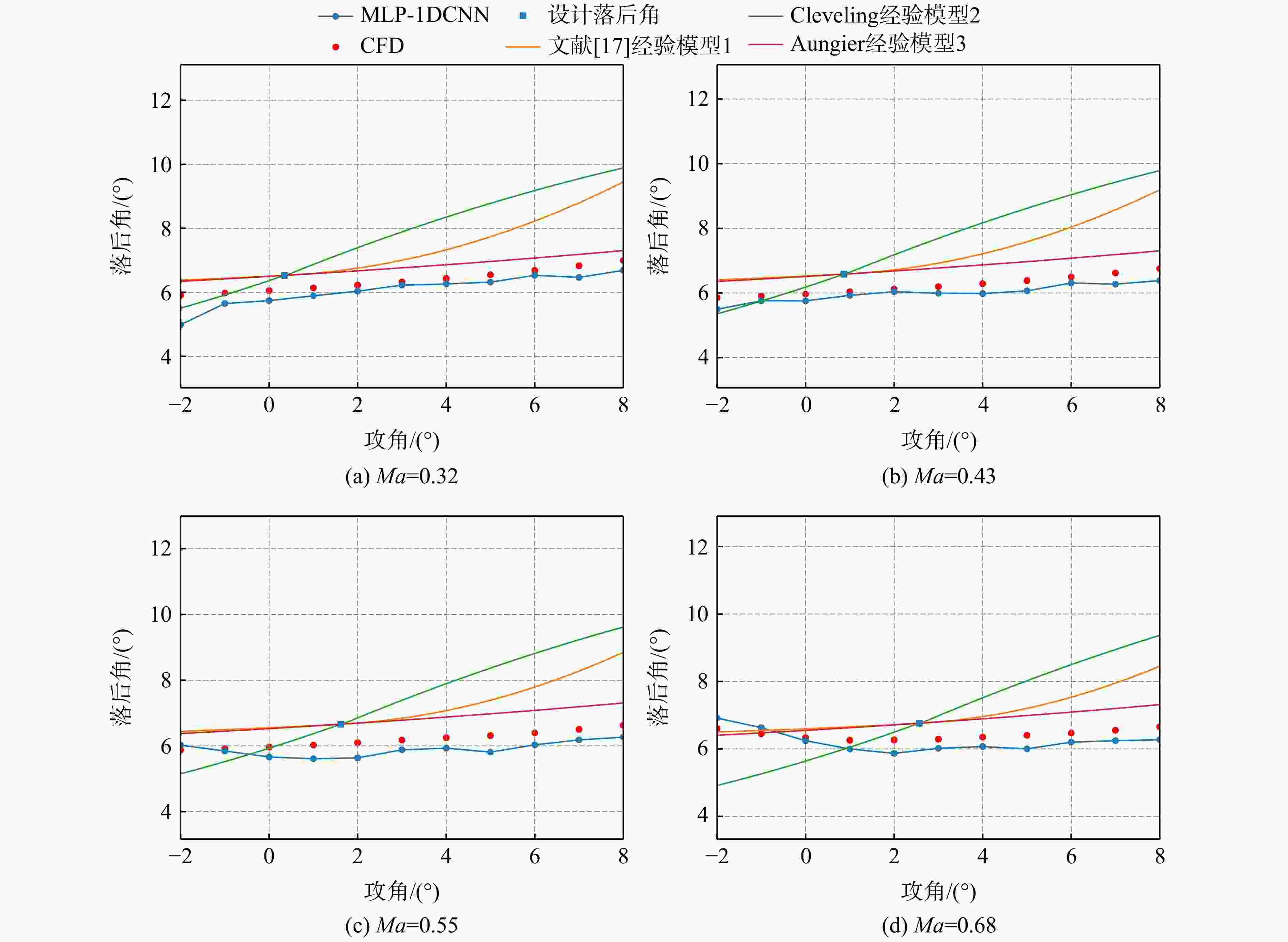

图 15 不同马赫数下非设计落后角

Figure 15. Non-design deviation angle at different Mach numbers

下载: 全尺寸图片幻灯片

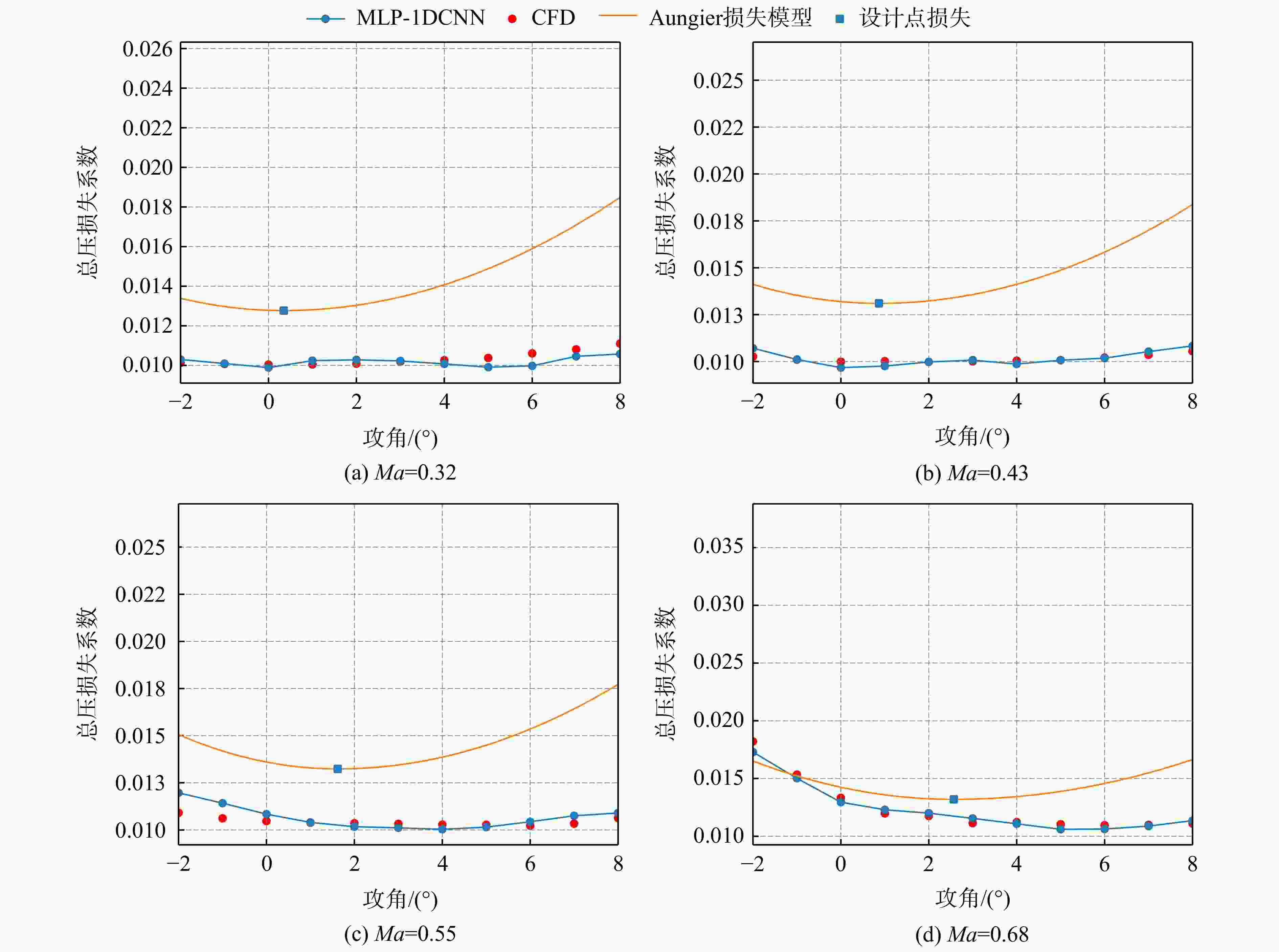

图 16 总压损失系数预测结果

Figure 16. Predicted results of total pressure loss function

下载: 全尺寸图片幻灯片

表 1 NACA65系列叶型设计空间

Table 1. NACA65 series blade design space

设计变量	变量下界	变量上界
来流马赫数Ma	0.3	0.7
气流入口角$ {\beta _1} $/（°）	30	70
攻角$ i $/（°）	−2	8
最大相对厚度$ {t_{\text{b}}} $/%	4	14
升力系数$ {C_{{\text{lo}}}} $	0	30
稠度$\sigma $	0.5	2

下载: 导出CSV

表 2 性能预测网络参数设计

Table 2. Performance prediction network parameter design

层类型	输入形状	输出形状	参数数量
全连接层	（32, 6）	（32, 32）	（6×32）+32=224
全连接层	（32, 32）	（32, 64）	（32×64）+64=2112
全连接层	（32, 64）	（32, 128）	（64×128）+128=8320
全连接层	（32, 128）	（32, 256）	（128×256）+256=33024
全连接层	（32, 256）	（32, 512）	（256×512）+512=131584
一维卷积层	（32, 4, 128）	（32, 8, 64）	（4×8×3）+8=104
一维卷积层	（32, 8, 64）	（32, 16, 32）	（8×16×3）+16=400
一维卷积层	（32, 16, 32）	（32, 32, 16）	（16×32×3）+32=1552
一维卷积层	（32, 32, 16）	（32, 64, 8）	（32×64×3）+64=6208
一维卷积层	（32, 64, 8）	（32, 128, 4）	（64×128×3）+128=24704
平均一维池化	（32, 128, 4）	（32, 128, 1）	0
展平		（32, 128）	0
全连接层	（32, 128）	（32, 1）	（128×1）+1=129

下载: 导出CSV
