Configuration design of aero-engine gear transmission based on graph theory and NSGA Ⅲ-TOPSIS algorithm
-
摘要:
提出了基于图论与快速非支配排序遗传算法-组合赋权逼近理想解算法（NSGA Ⅲ-TOPSIS）的航空发动机齿轮传动构型设计方法，以某六附件的航空发动机机匣齿轮传动系统为例，生成32种附件布局、63种传动链布置下，满足动力传递及模型干涉约束条件的1 832种设计构型。进而基于NSGA Ⅲ优化求解齿轮传动结构参数，以质量、迎风面积及承载性能为设计指标，采用主客观组合赋权TOPSIS评价确定了传动系统的最优构型。对比初始构型，优化的传动链方案减少质量20%、迎风面积降低16%、分流轴齿轮负载下降18%，为新一代航空发动机齿轮传动的高功率密度设计提供构型方法支撑。
Abstract:An aero-engine gear transmission configuration design method based on graph theory and non-dominated sorting genetic algorithm Ⅲ- technique for order preference by similarity to ideal solution (NSGA Ⅲ-TOPSIS) was proposed. Using a six-accessory aero-engine gearbox as an example, 1 832 configurations were generated under 32 accessory layouts and 63 transmission chain arrangements, meeting the power transfer and model interference constraints. Subsequently, NSGA Ⅲ was used to obtain the gear transmission structural parameters, with design criteria including weight, frontal area, and load capacity. The best configuration was selected using the TOPSIS combined subjective and objective weights. Compared with the initial configuration, a 20% reduction in weight, a 16% decrease in frontal area, and an 18% reduction in the load on the split-power gear were achieved from the optimized configuration. This methodology can support the configuration design of the next generation’s high-power density aero-engine gear transmission.
-

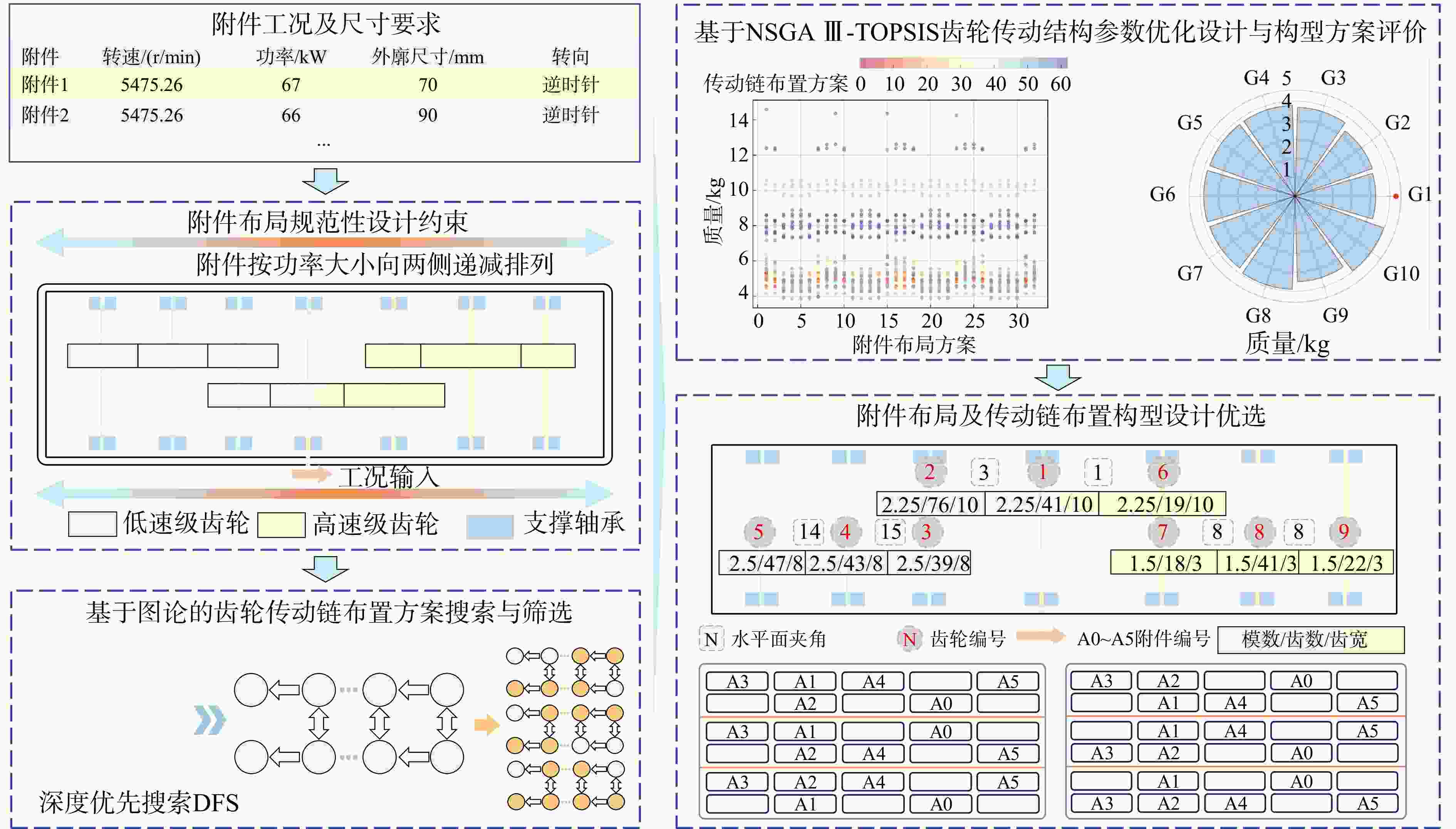

图 1 航空发动机齿轮传动构型设计方法研究技术路线
Figure 1. Technical route for configuration design of aero-engine gear transmission

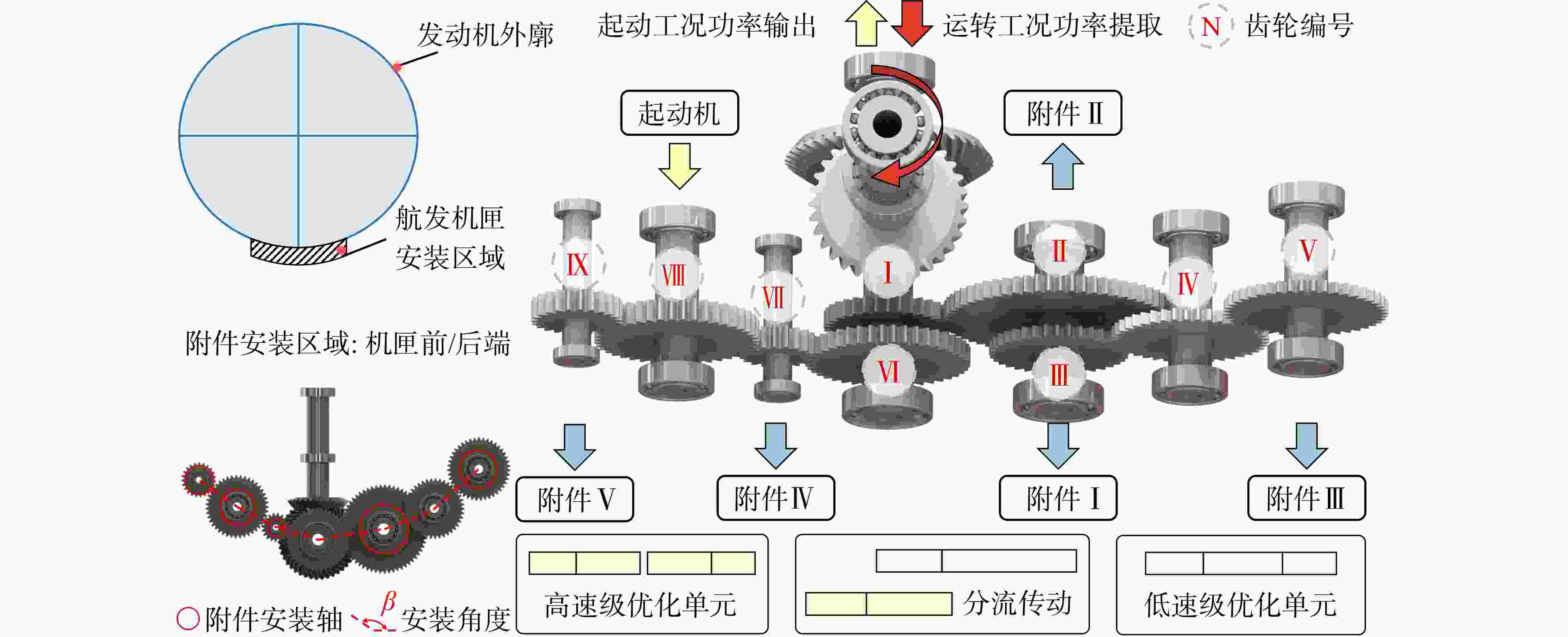

图 2 某航空发动机齿轮传动系统初始构型方案结构示意图
Figure 2. Original configuration structural scheme of an aero-engine gear transmission

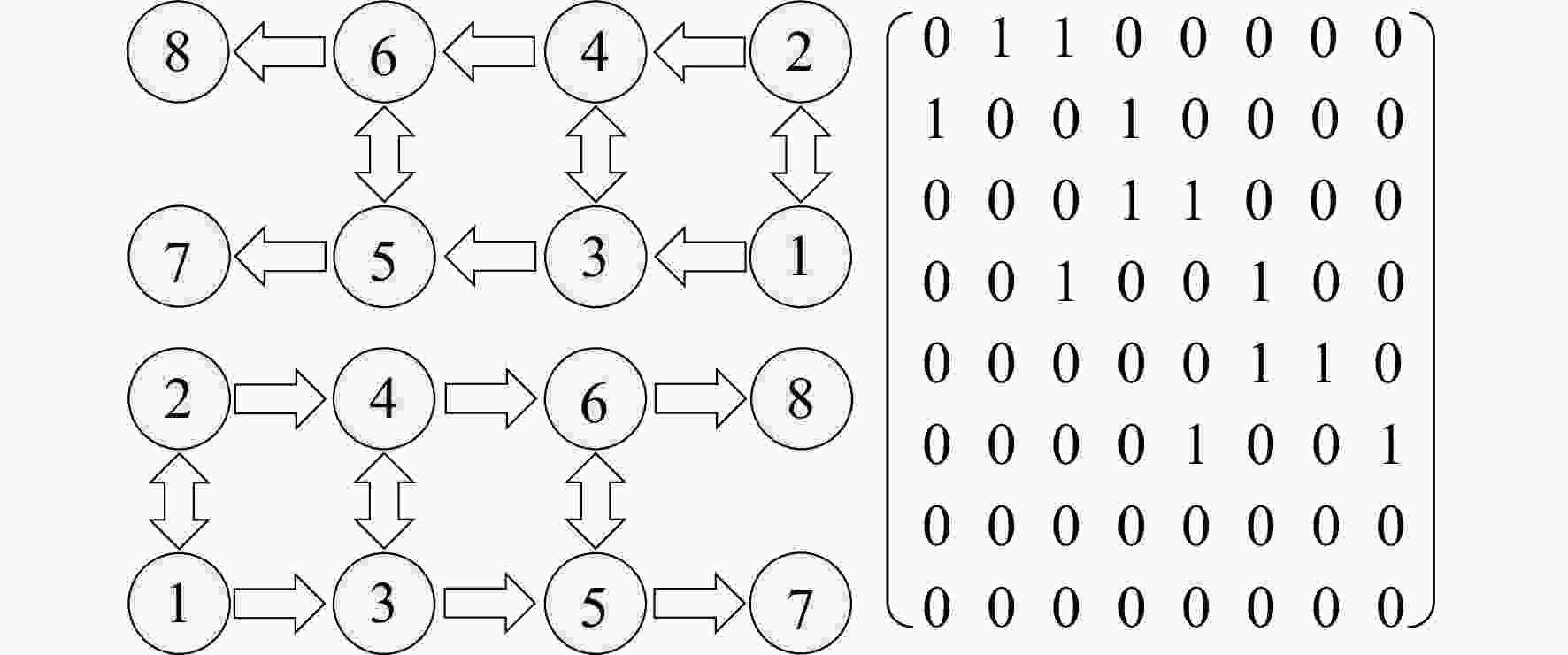

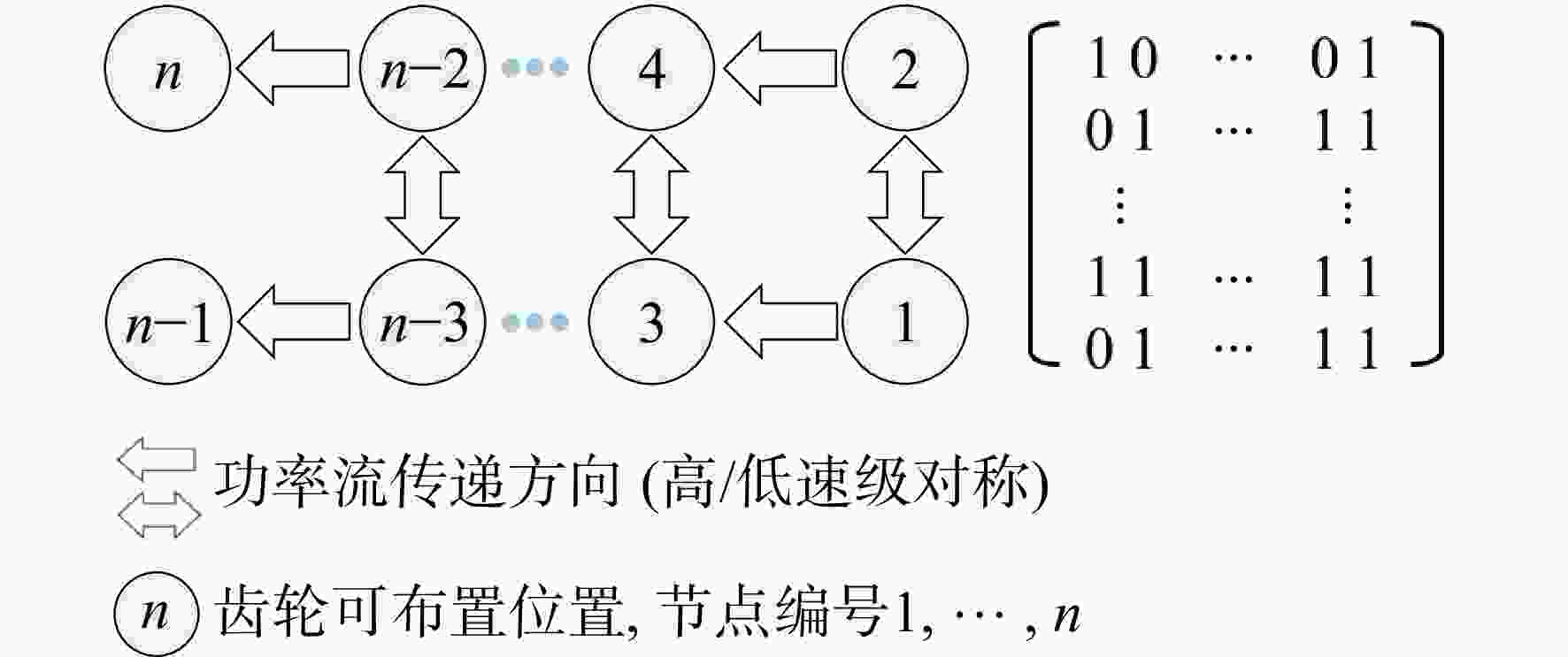

图 3 齿轮传动链拓扑图及其邻接矩阵
Figure 3. Topology graph and adjacency matrix of gear transmission chain

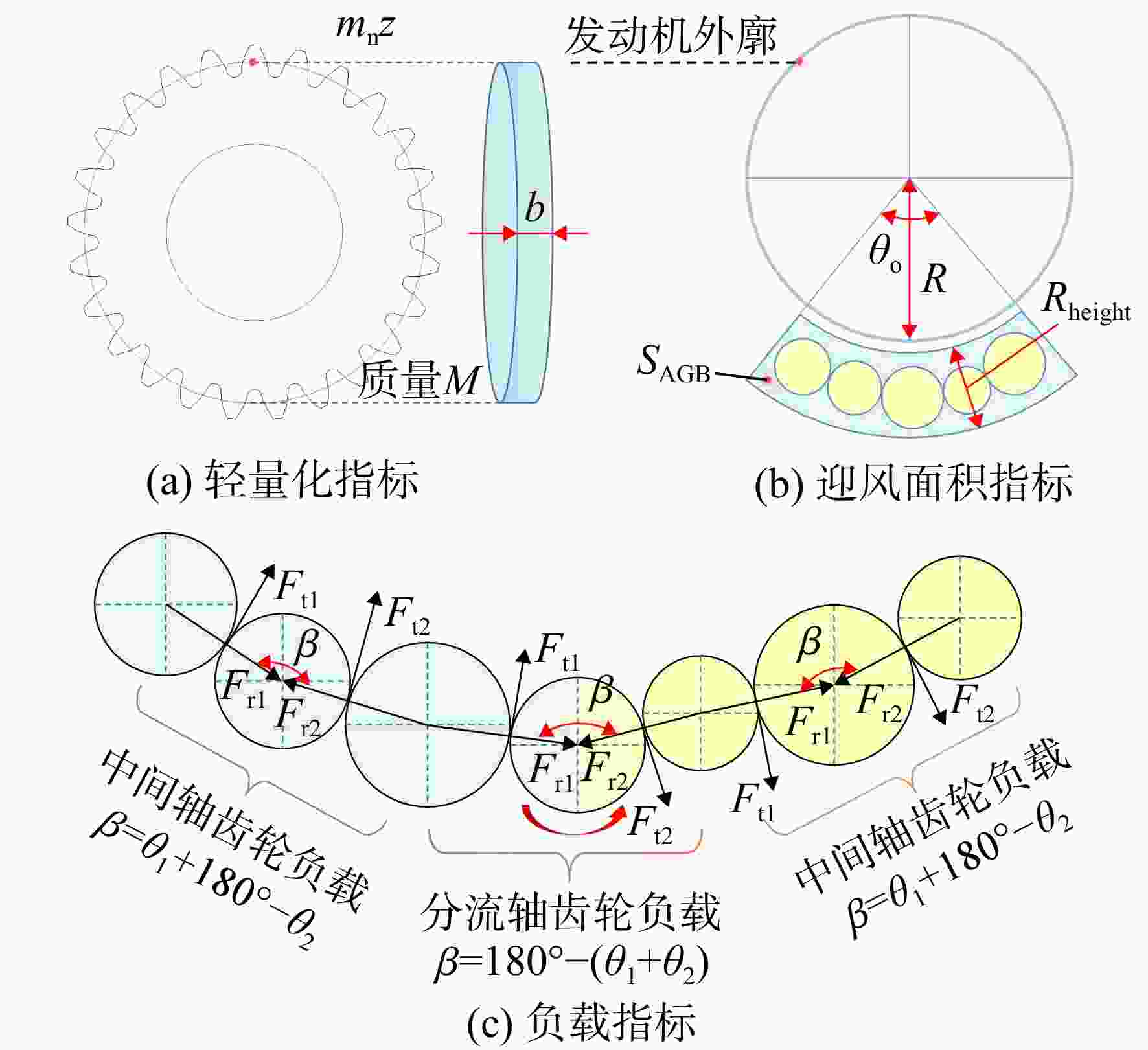

图 4 航空发动机齿轮传动构型设计性能指标
Figure 4. Configuration design performance indexes of aero-engine gear transmission

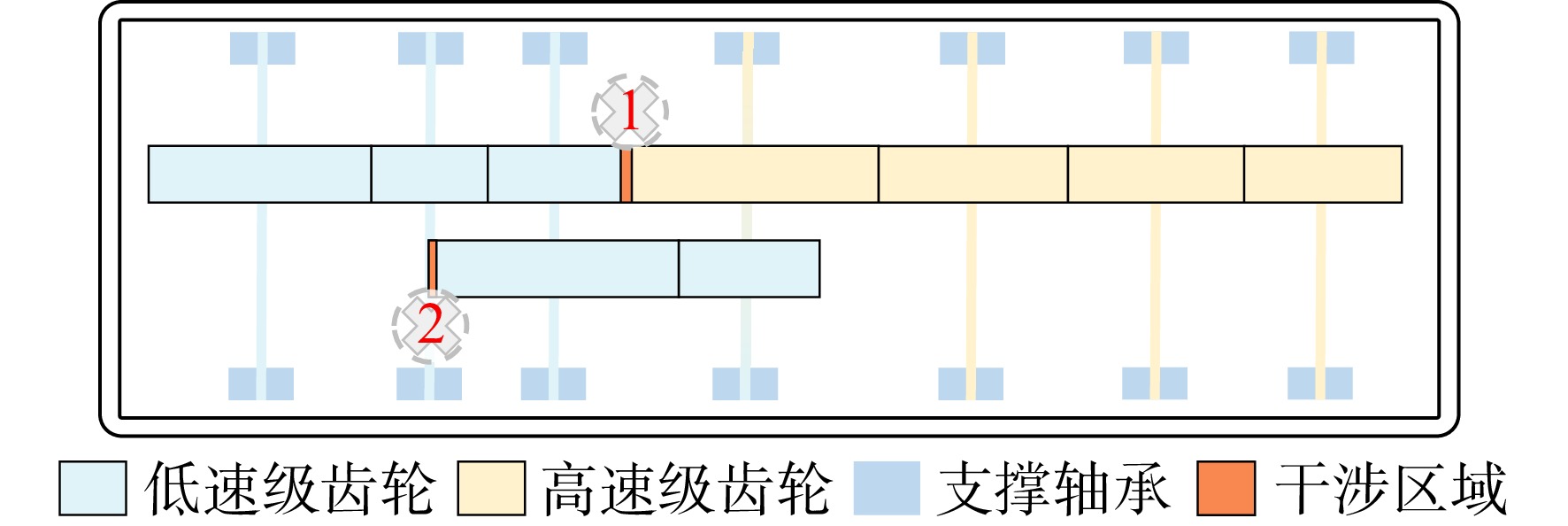

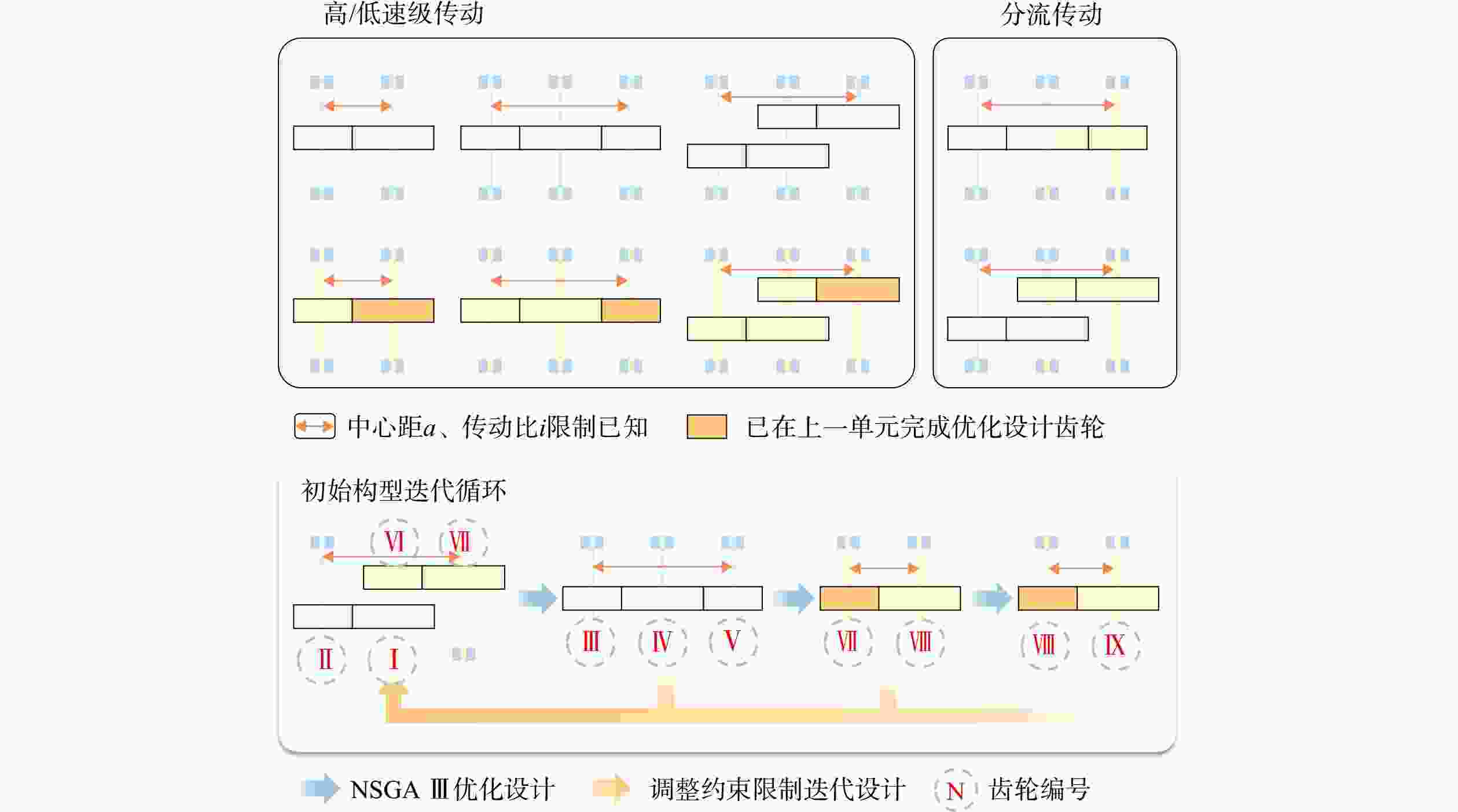

图 6 齿轮传动结构单元分类及初始构型迭代优化
Figure 6. Classification of gear transmission structure unit and initial configuration iterative optimization
图 7 高/低速级齿轮传动链拓扑图及其邻接矩阵
Figure 7. Topology graph and adjacency matrix of high-speed and low-speed gear transmission chain

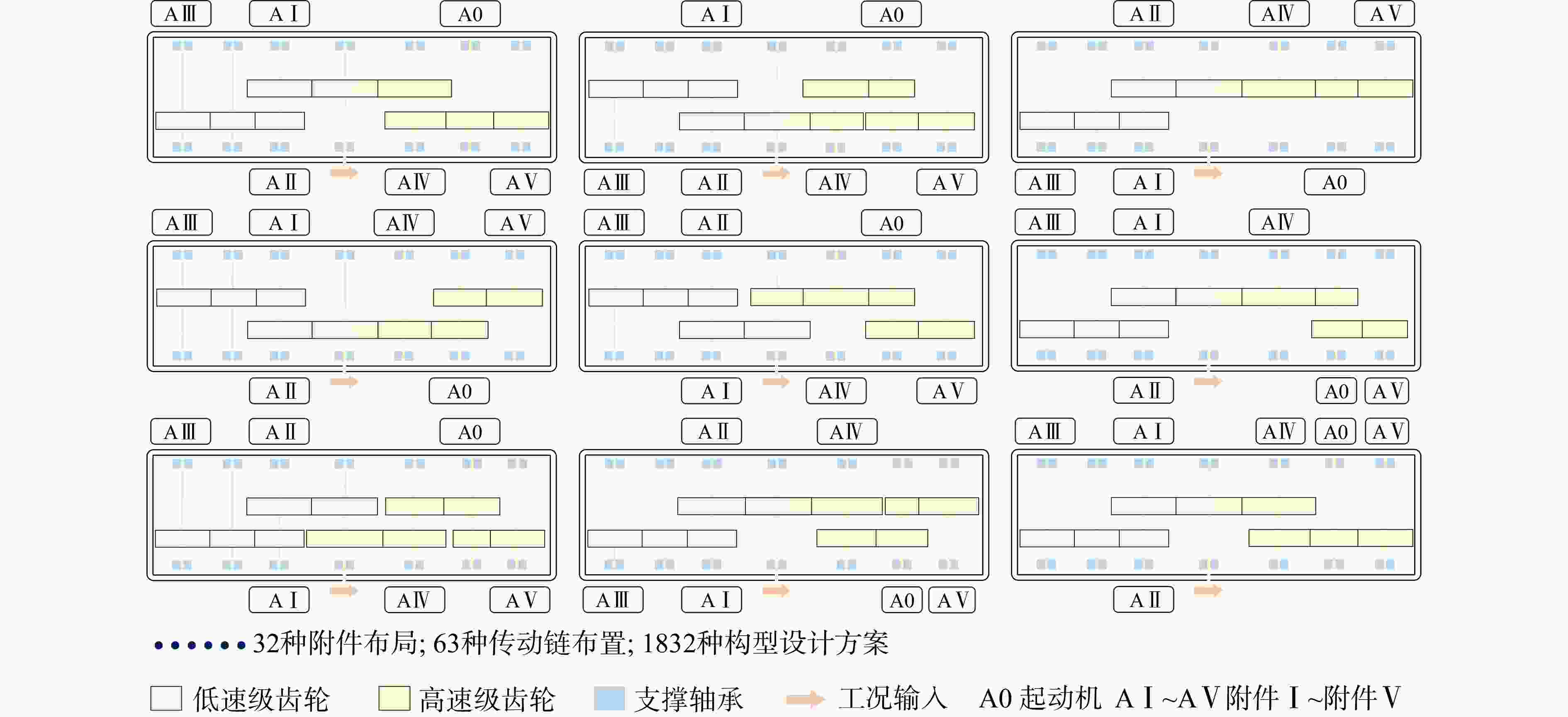

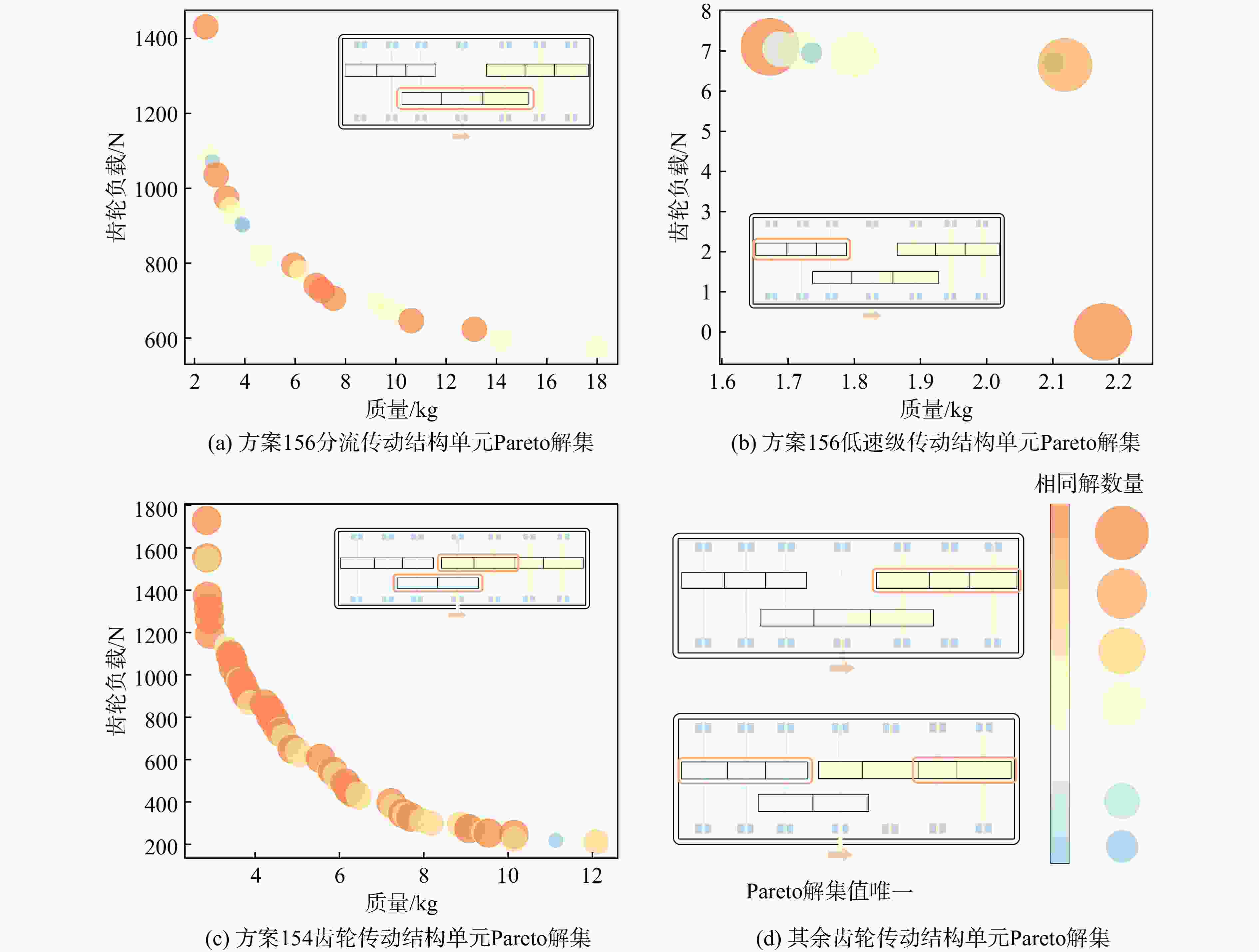

图 9 方案154与方案156的齿轮传动结构单元Pareto解集
Figure 9. Pareto solution set of gear transmission structure unit of scheme 154 and scheme 156

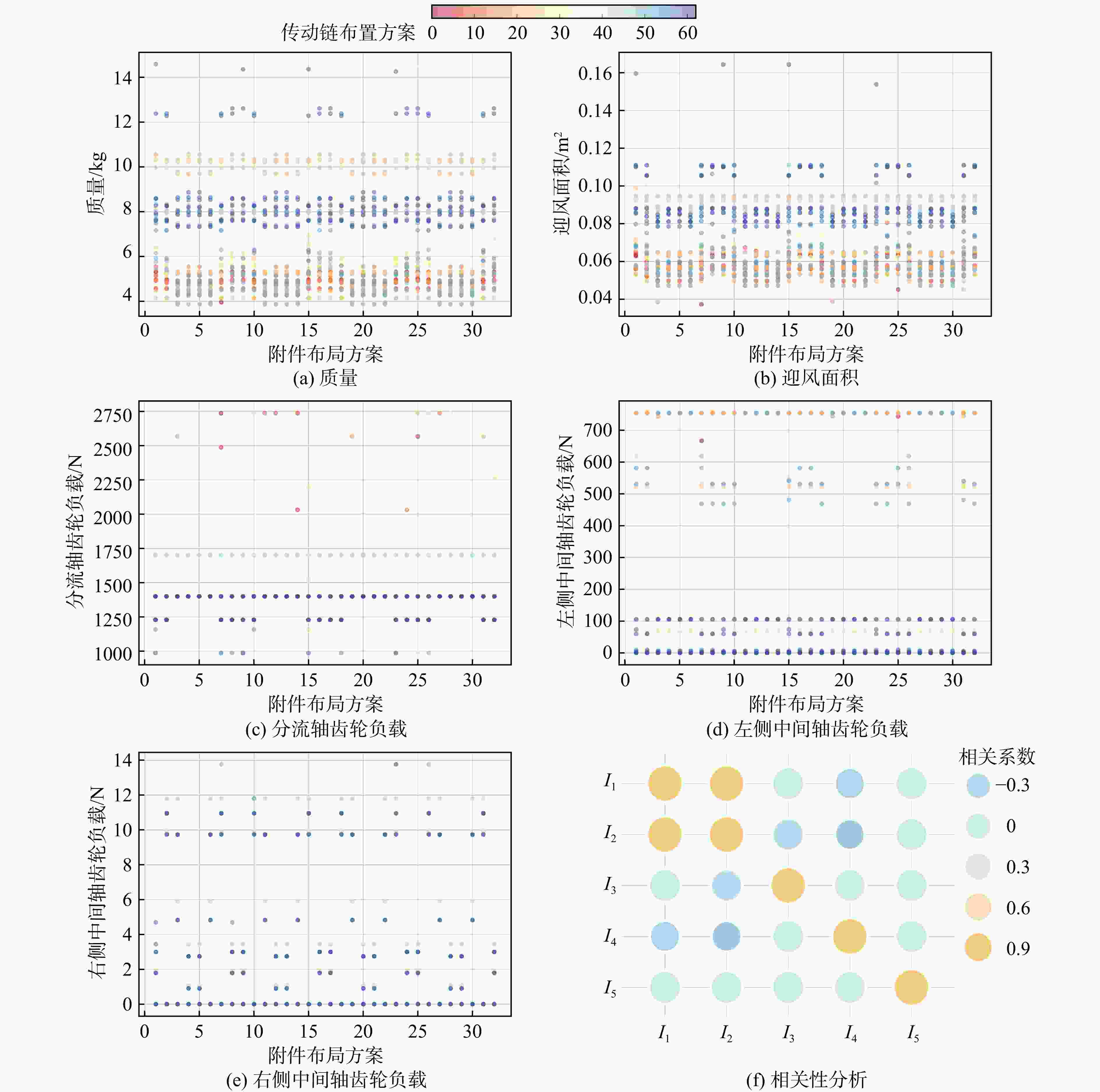

图 10 1 832种构型方案的评价结果及相关性分析
Figure 10. Evaluation results and correlation analysis of 1 832 configuration schemes

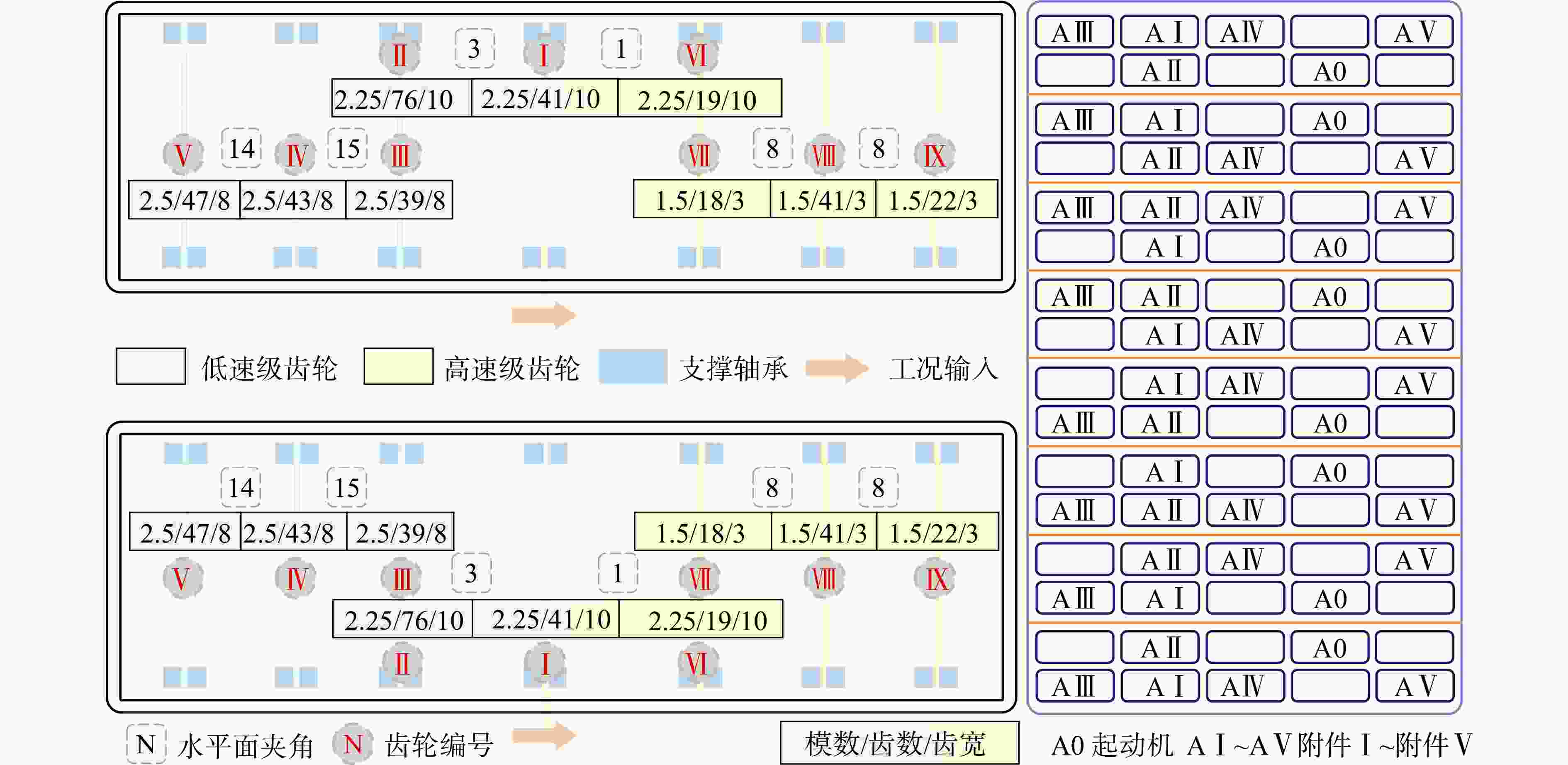

图 11 TOPSIS评价分析最优构型方案
Figure 11. The best configuration scheme of TOPSIS evaluation and analysis

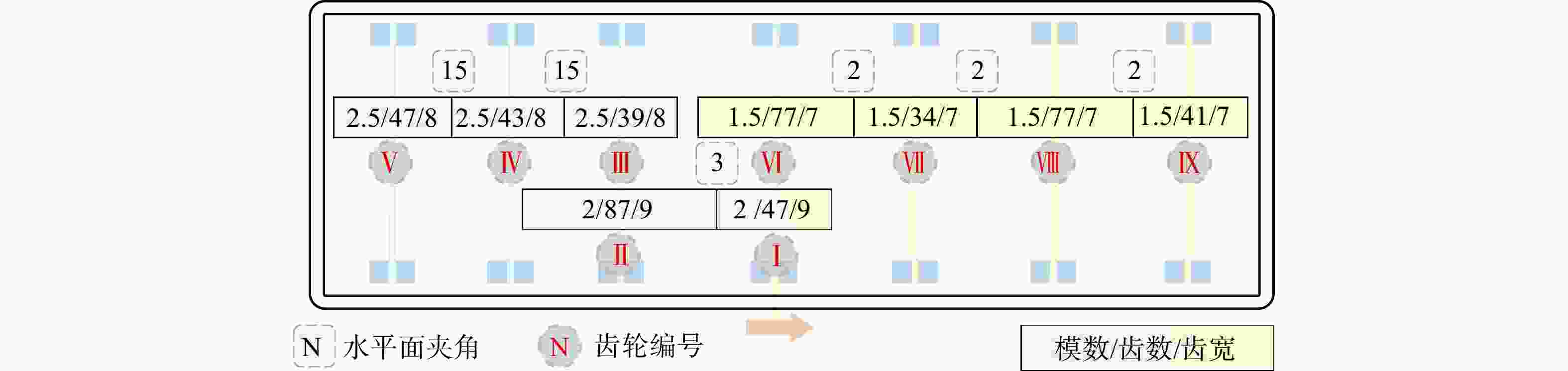

图 12 初始构型方案齿轮传动链设计结果
Figure 12. Design result of gear transmission of original configuration scheme

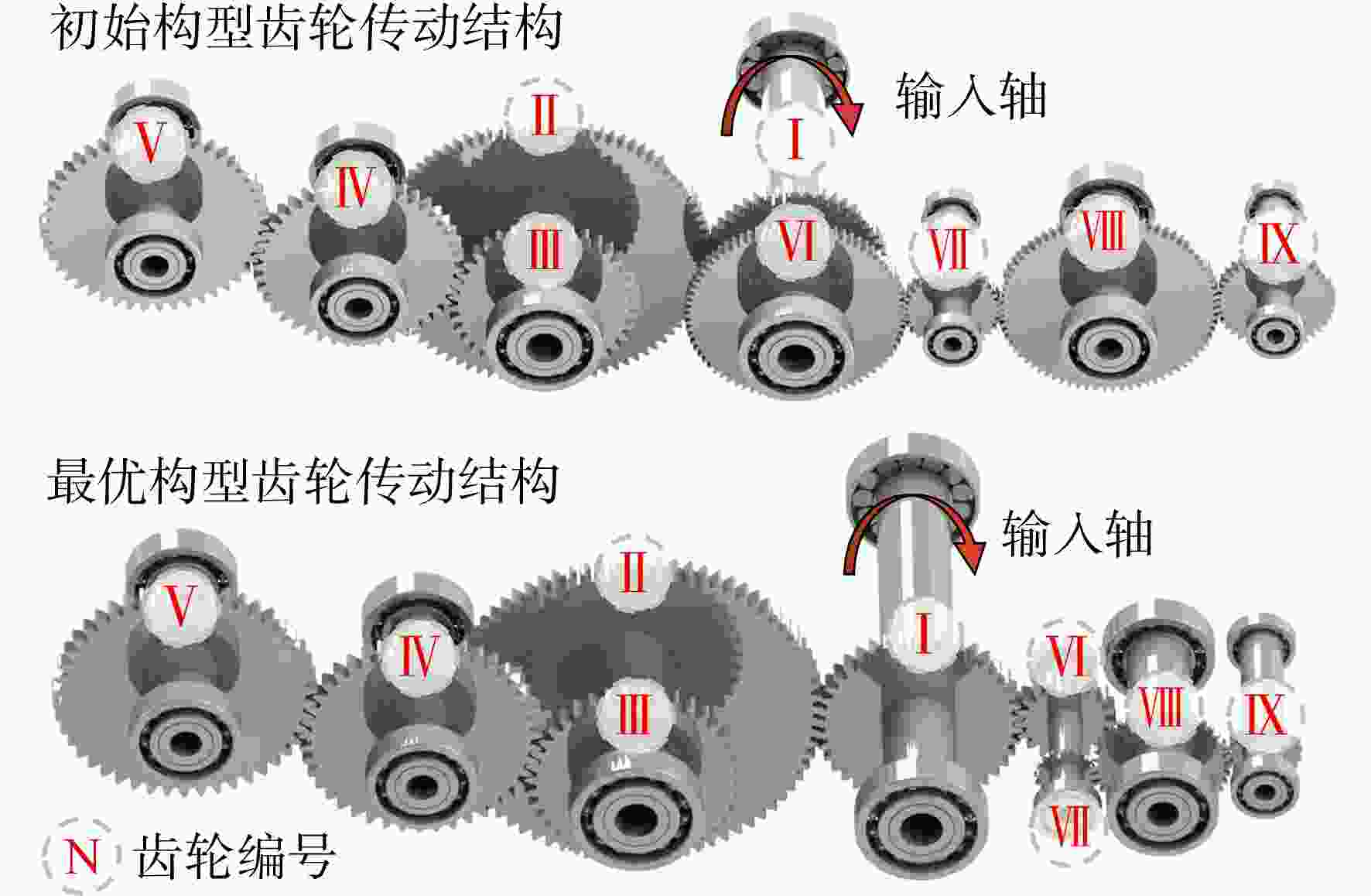

图 13 初始构型与最优构型齿轮传动三维结构对比
Figure 13. Three-dimensional structural comparison of original configuration and the best configuration gear transmission

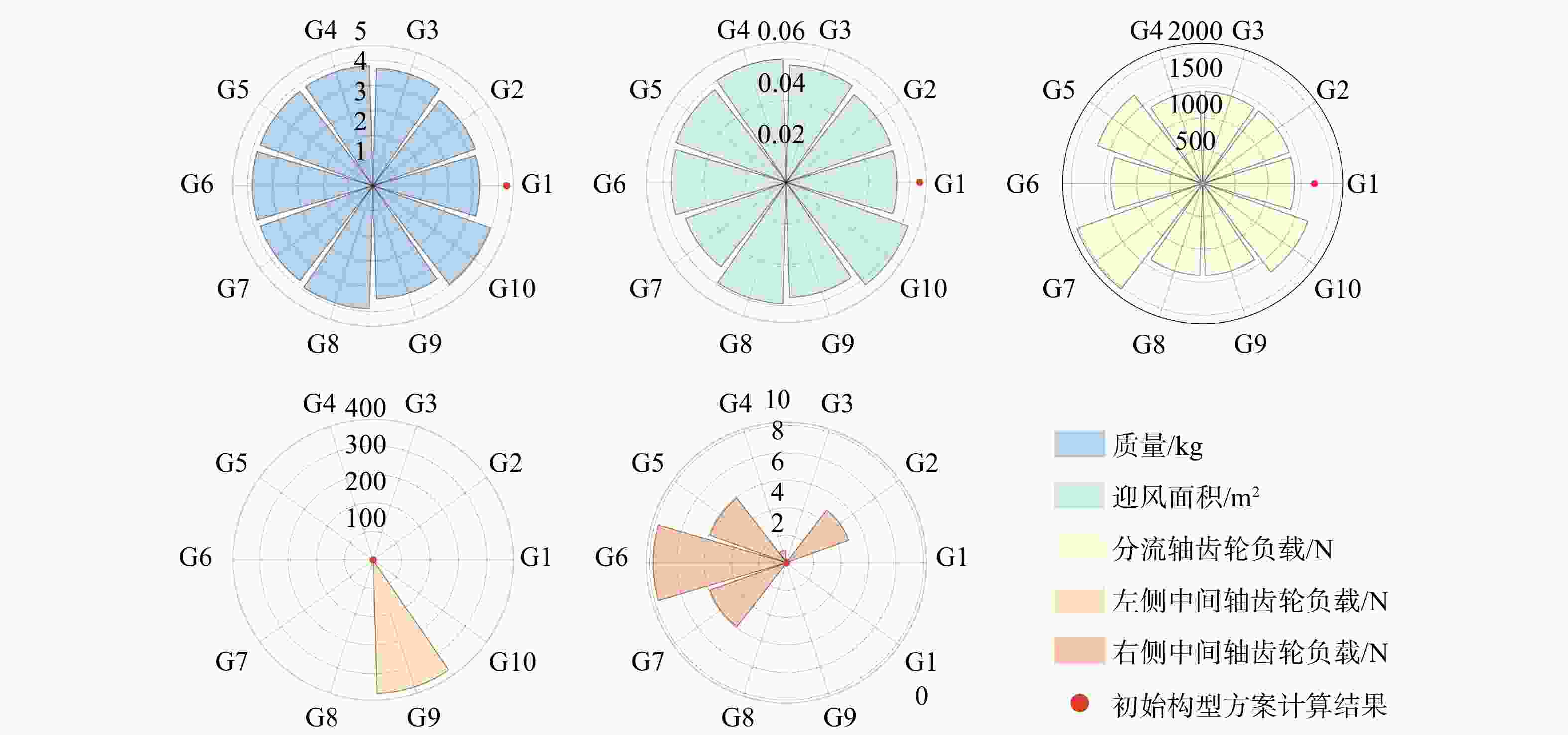

图 14 评分排序1～10组构型方案评价指标对比
Figure 14. Comparison of evaluation indexes of 1—10 groups of configuration schemes ranked by score
表 1 某航空发动机机匣附件工况要求
Table 1. Conditions of an aero-engine gearbox
附件 转速/（r/min） 功率/kW 外廓尺寸/mm 转向 附件Ⅰ 5475.26 67.0 70.0 逆时针 附件Ⅱ 5475.26 66.0 90.0 逆时针 附件Ⅲ 4583.94 8.5 102.5 逆时针 附件Ⅳ 22905.26 78.0 47.5 逆时针 附件Ⅴ 18921.74 0.5 52.5 逆时针 起动机 10120.93 0.0 80.0 顺时针
下载: 导出CSV
表 2 各项指标重要性等级及其赋值
Table 2. Importance and value of each index
重要性等级 aij赋值 判断矩阵 同样重要 1 $ {\boldsymbol{A}} = \left[ {\begin{array}{*{20}{c}} 1&3&8&9&9 \\ {1/3}&1&8&9&9 \\ {1/8}&{1/8}&1&5&5 \\ {1/9}&{1/9}&{1/5}&1&2 \\ {1/9}&{1/9}&{1/5}&{1/2}&1 \end{array}} \right]{\text{ }} $ 稍微重要 3 明显重要 5 强烈重要 7 极端重要 9
下载: 导出CSV
表 3 主客观权重及其组合赋权结果
Table 3. Subjective and objective weights and their combination weighting results
主观权重 客观权重 组合权重 0.5097 0.1111 0.0856 0.3304 0.0534 0.0267 0.0944 0.0464 0.0066 0.0369 0.5603 0.0313 0.0285 0.2288 0.0099
下载: 导出CSV
-
[1] LU Zehua, LIU Chang, LIAO Changjun, et al. Conceptual design and optimization of polymer gear system for low-thrust turbofan aeroengine accessory transmission[J]. Journal of Computational Design and Engineering, 2023, 11(1): 212-229. doi: 10.1093/jcde/qwae008 [2] 吴吉展, 魏沛堂, 刘怀举, 等. 航空齿轮钢表面完整性与滚动接触疲劳性能关联规律研究[J]. 机械工程学报, 2024, 60(4): 284-295. WU Jizhan, WEI Peitang, LIU Huaiju, et al. Study on the correlation between surface integrity and rolling contact fatigue performance of aviation gear steel[J]. Journal of Mechanical Engineering, 2024, 60(4): 284-295. (in ChineseWU Jizhan, WEI Peitang, LIU Huaiju, et al. Study on the correlation between surface integrity and rolling contact fatigue performance of aviation gear steel[J]. Journal of Mechanical Engineering, 2024, 60(4): 284-295. (in Chinese) [3] 吴吉展, 魏沛堂, 吴少杰, 等. 航空齿轮钢滚动接触疲劳性能预测与表面完整性优化[J]. 机械工程学报, 2024, 60(8): 81-93. WU Jizhan, WEI Peitang, WU Shaojie, et al. Rolling contact fatigue performance prediction and surface integrity optimization of aviation gear steel[J]. Journal of Mechanical Engineering, 2024, 60(8): 81-93. (in ChineseWU Jizhan, WEI Peitang, WU Shaojie, et al. Rolling contact fatigue performance prediction and surface integrity optimization of aviation gear steel[J]. Journal of Mechanical Engineering, 2024, 60(8): 81-93. (in Chinese) [4] CROSSLEY F. The permutations of kinematic chains of eight member or less from the graph-theoretic viewpoint[J]. Developments in Theoretical and Applied Mechanisms, 1965, 2: 467-486. [5] FREUDENSTEIN F, DOBRJANSKYJ L. On a theory for the type synthesis of mechanisms[M]//Applied Mechanics. Berlin, Germany: Springer Berlin Heidelberg, 1966: 420-428. [6] DOBRJANSKYJ L, FREUDENSTEIN F. Some applications of graph theory to the structural analysis of mechanisms[J]. Journal of Engineering for Industry, 1967, 89(1): 153-158. doi: 10.1115/1.3609988 [7] BUCHSBAUM F, FREUDENSTEIN F. Synthesis of kinematic structure of geared kinematic chains and other mechanisms[J]. Journal of Mechanisms, 1970, 5(3): 357-392. doi: 10.1016/0022-2569(70)90068-6 [8] FREUDENSTEIN F. An application of Boolean algebra to the motion of epicyclic drives[J]. Journal of Engineering for Industry, 1971, 93(1): 176-182. doi: 10.1115/1.3427871 [9] RAVISANKAR R, MRUTHYUNJAYA T S. Computerized synthesis of the structure of geared kinematic chains[J]. Mechanism and Machine Theory, 1985, 20(5): 367-387. doi: 10.1016/0094-114X(85)90042-4 [10] KE Tao, DING Huafeng, GONG Chen, et al. Configuration synthesis of nine-speed automatic transmissions based on structural decomposition[J]. Mechanism and Machine Theory, 2021, 164: 104421. doi: 10.1016/j.mechmachtheory.2021.104421 [11] YANG Yalian, LI Pengshuai, PEI Huanxin, et al. Design of all-wheel-drive power-split hybrid configuration schemes based on hierarchical topology graph theory[J]. Energy, 2022, 242: 122944. doi: 10.1016/j.energy.2021.122944 [12] GONG Chen, DING Huafeng, KE Tao, et al. A fast detection method to solve mechanical interference problem in automatic transmission[J]. Mechanism and Machine Theory, 2023, 189: 105444. doi: 10.1016/j.mechmachtheory.2023.105444 [13] EMMERICH M T M, DEUTZ A H. A tutorial on multiobjective optimization: fundamentals and evolutionary methods[J]. Natural Computing, 2018, 17(3): 585-609. doi: 10.1007/s11047-018-9685-y [14] ZHANG Pei, LI Yan, TANG Yougang, et al. Multi-objective optimization and dynamic response predictions of an articulated offshore wind turbine[J]. Ocean Engineering, 2023, 273: 114017. doi: 10.1016/j.oceaneng.2023.114017 [15] CAI Yu, RAJARAM D, MAVRIS D N. Simultaneous aircraft sizing and multi-objective optimization considering off-design mission performance during early design[J]. Aerospace Science and Technology, 2022, 126: 107662. doi: 10.1016/j.ast.2022.107662 [16] XU Zhe, NING Xin, YU Zongling, et al. Design optimization of a shell-and-tube heat exchanger with disc-and-doughnut baffles for aero-engine using one hybrid method of NSGA Ⅱ and MOPSO[J]. Case Studies in Thermal Engineering, 2023, 41: 102644. doi: 10.1016/j.csite.2022.102644 [17] SRINIVAS N, DEB K. Muiltiobjective optimization using nondominated sorting in genetic algorithms[J]. Evolutionary Computation, 1994, 2(3): 221-248. doi: 10.1162/evco.1994.2.3.221 [18] DEB K, PRATAP A, AGARWAL S, et al. A fast and elitist multiobjective genetic algorithm: NSGA-Ⅱ[J]. IEEE Transactions on Evolutionary Computation, 2002, 6(2): 182-197. doi: 10.1109/4235.996017 [19] DEB K, JAIN H. An evolutionary many-objective optimization algorithm using reference-point-based nondominated sorting approach: Part Ⅰ solving problems with box constraints[J]. IEEE Transactions on Evolutionary Computation, 2014, 18(4): 577-601. doi: 10.1109/TEVC.2013.2281535 [20] HU Mingzhu, WANG Haixia, WEI Peitang, et al. Multi-objective optimization of a co-rotating twin-screw gear transmission system based on heuristic search[J]. Journal of Mechanical Science and Technology, 2023, 37(11): 5831-5841. doi: 10.1007/s12206-023-1022-4 [21] KIM B S, CHUNG W J, KIM S, et al. Optimum design of planetary gear set using multi-objective optimization considering mass, power loss and transmission error[J]. Mechanics Based Design of Structures and Machines, 2024, 52(10): 7325-7348. doi: 10.1080/15397734.2023.2297259 [22] XIN Wen, ZHANG Yanyan, FU Yang, et al. A multi-objective optimization design approach of large mining planetary gear reducer[J]. Scientific Reports, 2023, 13: 18640. doi: 10.1038/s41598-023-45745-5 -
