Rolling bearing fault time-varying instantaneous characteristics extraction based on Bi-CEEMDAN-CCJC and ELMSSCT
-
摘要:

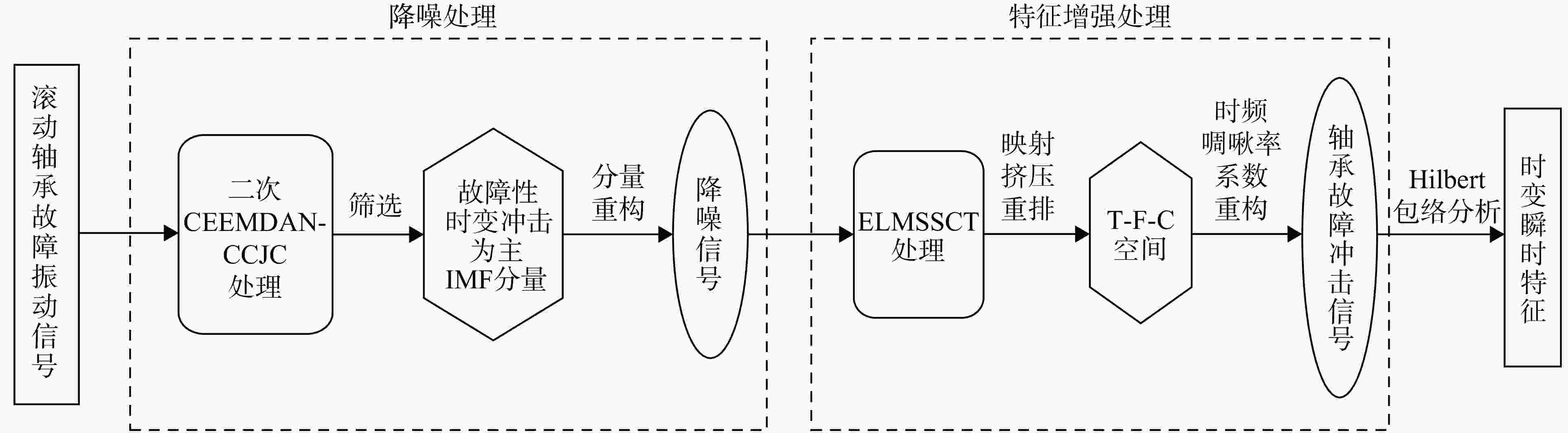

针对滚动轴承早期故障时的故障性时变瞬时特征微弱且受噪声干扰不易识别的问题，将降噪和特征增强结合考虑。首先根据自适应噪声完全集合经验模态分解（CEEMDAN）的分解规律和分量相关系数特征，构建相关系数跳变准则（CCJC），通过二次CEEMDAN-CCJC方式对原始滚动轴承振动信号进行降噪；然后采用增强局部最大频率啁啾率同步压缩啁啾变换（ELMSSCT）将降噪后的信号表征至时频啁啾率（T-F-C）空间，以此将信号能量聚集于滚动轴承固有频率区域，从而增强固有频率附近的故障性时变瞬时特征，同时去除边频与残余噪声干扰；最后从滚动轴承时域重构信号的Hilbert包络谱辨识故障特征频率。通过对滚动轴承故障仿真信号和实验信号的分析，结果表明所提方法可以清晰准确地提取滚动轴承的故障性时变瞬时特征，且故障特征谱线的频率值与理论值误差不超过1.2%。
Abstract:To address the problem that the fault time-varying instantaneous characteristics of rolling bearing in early fault stage are weak and difficult to identify due to noise interference, the noise reduction and characteristic enhancement were considered together. Firstly, based on the decomposition law of complete ensemble empirical mode decomposition with adaptive noise (CEEMDAN) and component correlation coefficient characteristic, a correlation coefficient jump criterion (CCJC) was constructed, and the original rolling bearing vibration signal was denoised by the Bi-CEEMDAN-CCJC operation. Then, the denoised signal was characterized into the time-frequency-chirp-rate (T-F-C) space using enhanced local maximum frequency-chirp-rate synchrosqueezed chirp transform (ELMSSCT), so as to concentrate the signal energy in the rolling bearing natural frequency regions. Thus, the fault time-varying instantaneous characteristics near the natural frequency can be enhanced, and the side frequency and residual noise interference can be removed. Finally, the fault characteristic frequency was identified from Hilbert envelope spectrum of the rolling bearing time domain reconstruction signal. The rolling bearing simulation and experimental signals analysis results showed that the proposed method can extract the rolling bearing fault time-varying instantaneous characteristics clearly and accurately, and the error between the frequency value of the fault characteristic spectral line and the theoretical value did not exceed 1.2%.
-

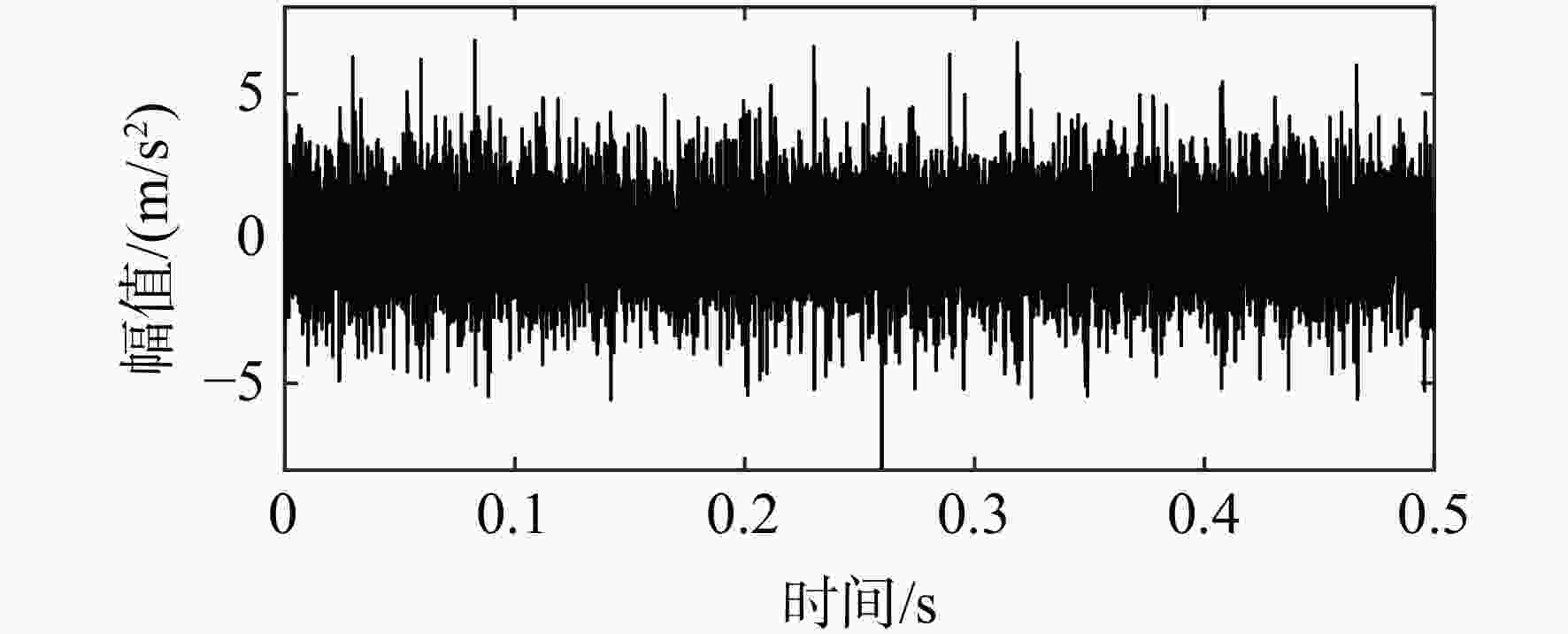

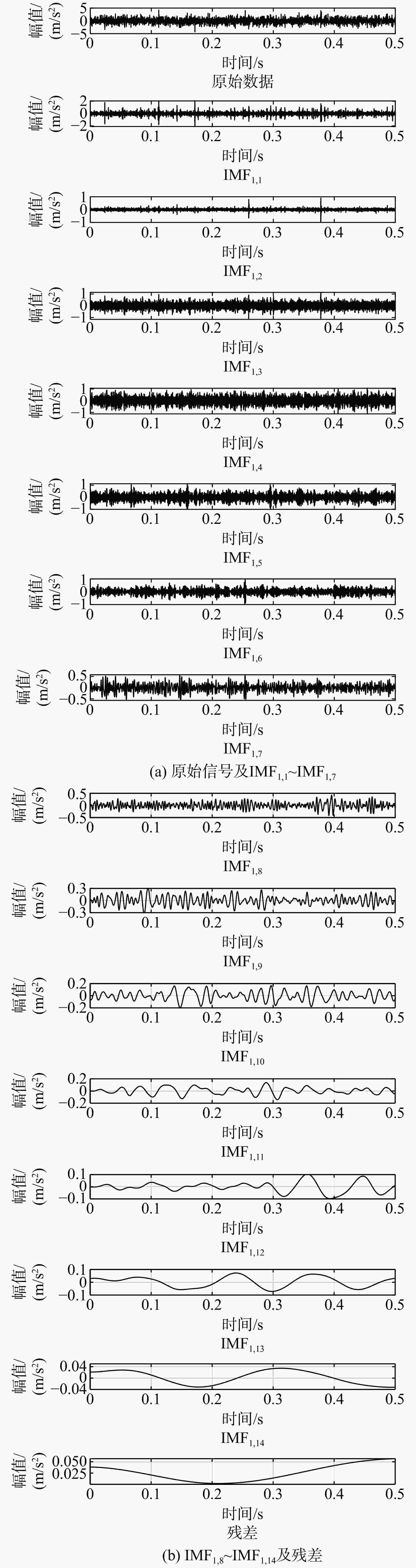

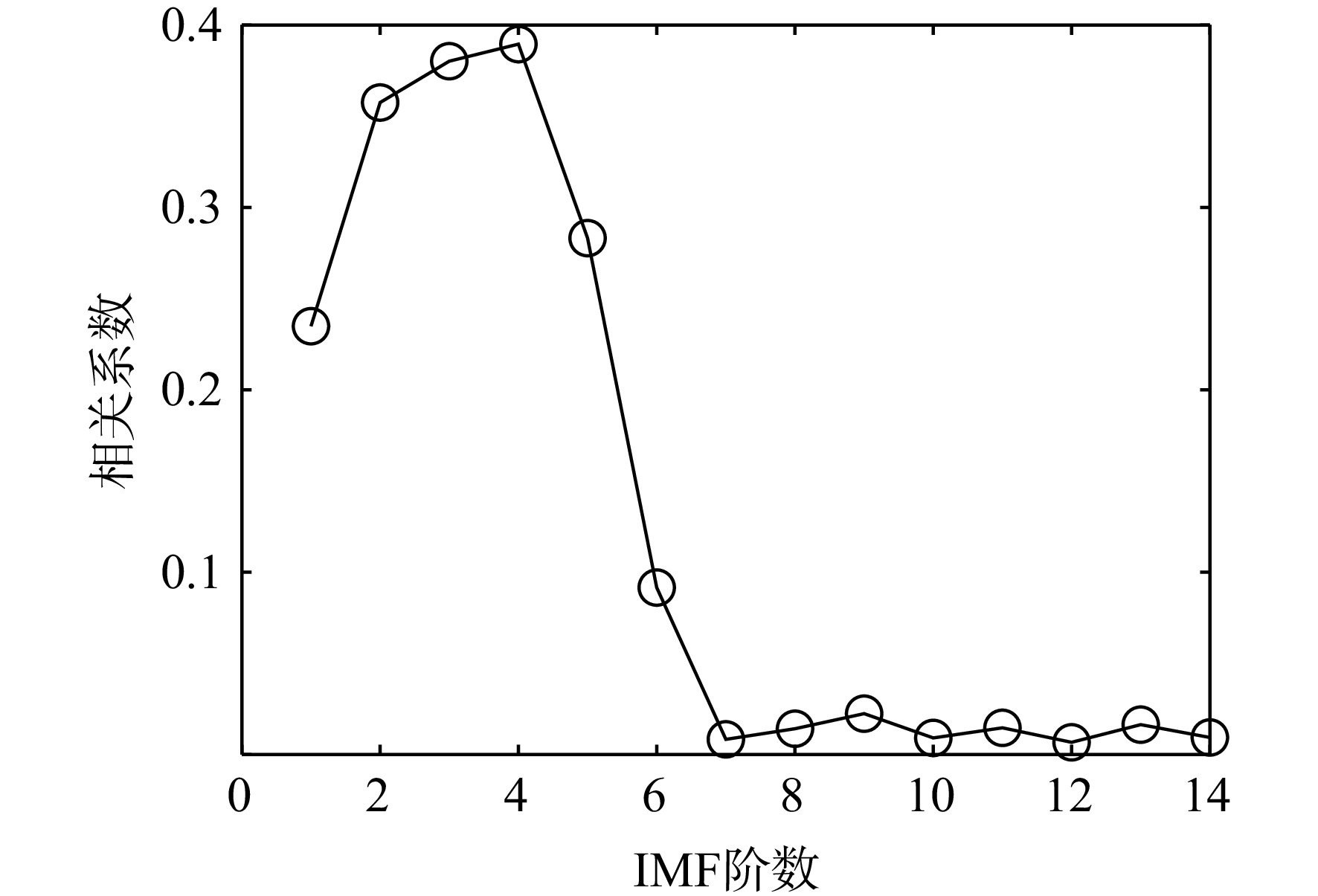

图 4 一次CEEMDAN分解结果相关系数曲线
Figure 4. Correlation coefficient curve of the first CEEMDAN decomposition results

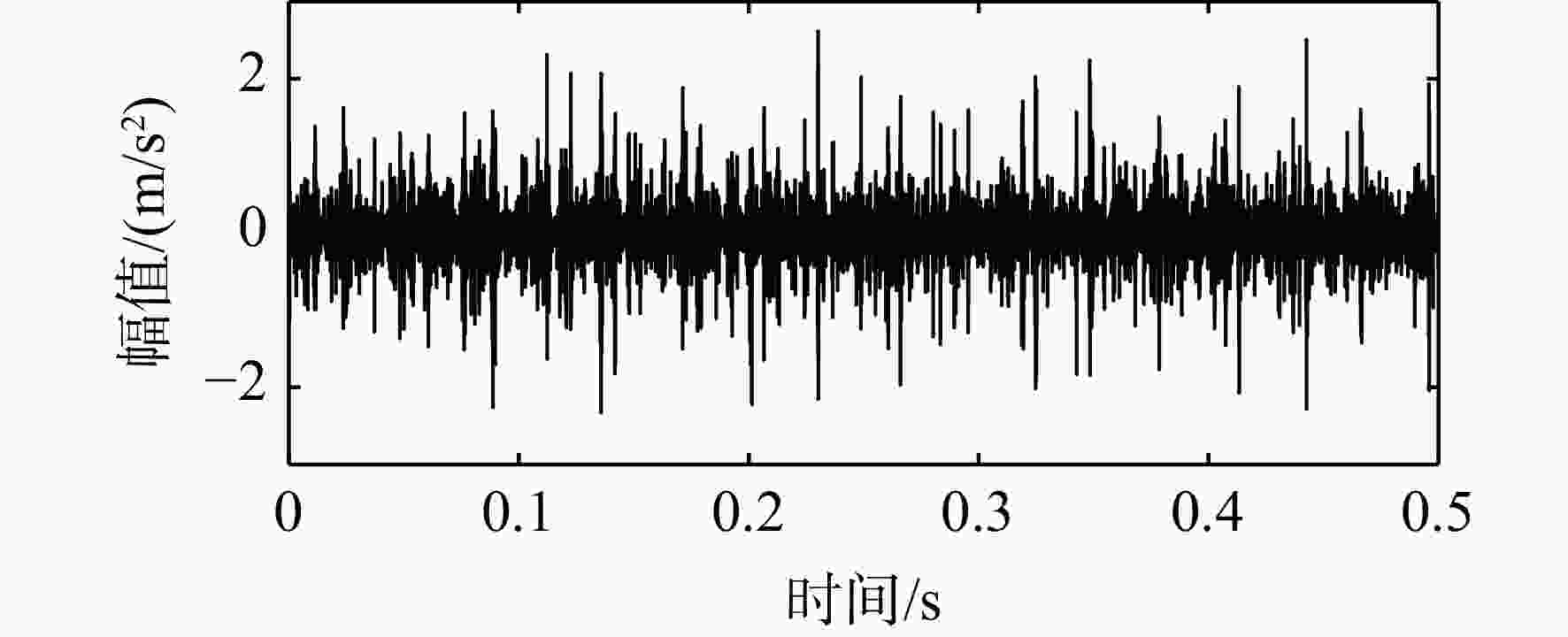

图 5 仿真信号一次重构信号时域波形
Figure 5. The first reconstruction signal time-domain waveform of simulation signal
图 6 二次CEEMDAN分解结果相关系数曲线
Figure 6. Correlation coefficient curve of the second CEEMDAN decomposition results
图 7 二次重构信号及其Hilbert包络谱
Figure 7. The second reconstruction signal and its Hilbert envelope spectrum
图 8 二次重构信号的STFT时频图
Figure 8. STFT time-frequency spectrum of the second reconstruction signal

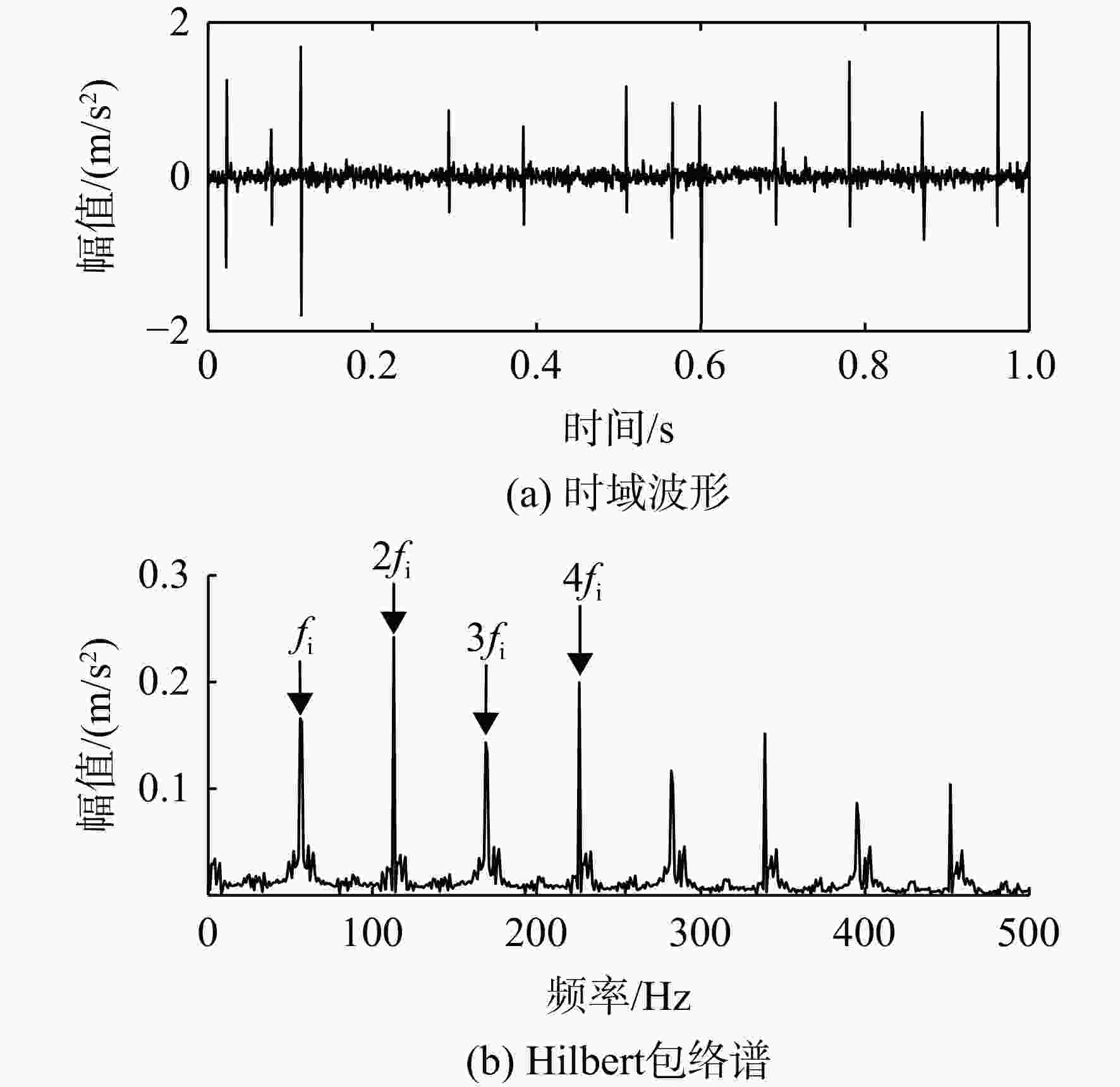

图 10 重构轴承故障信号及其Hilbert包络谱
Figure 10. Bearing fault reconstruction signal and its Hilbert envelope spectrum

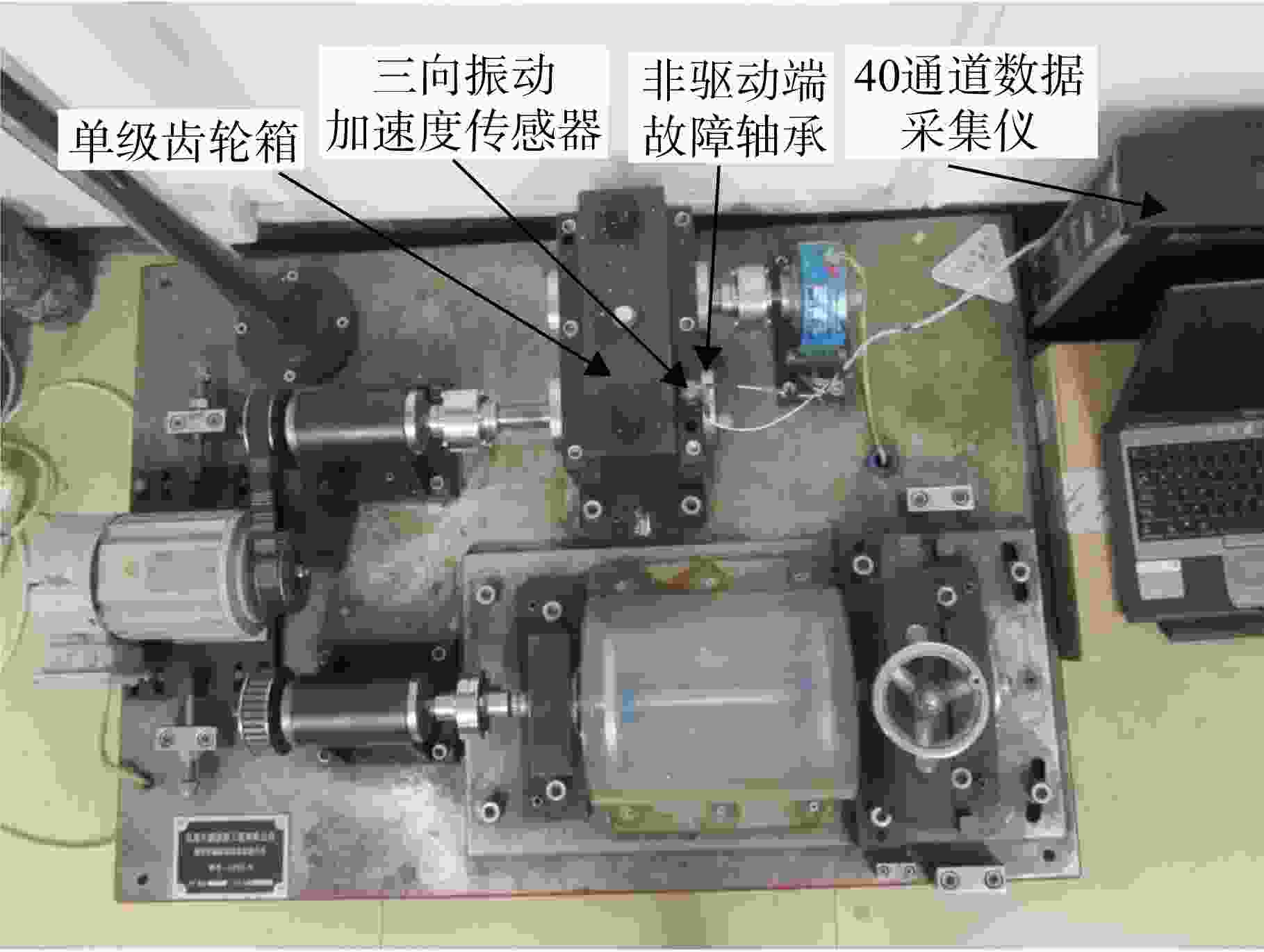

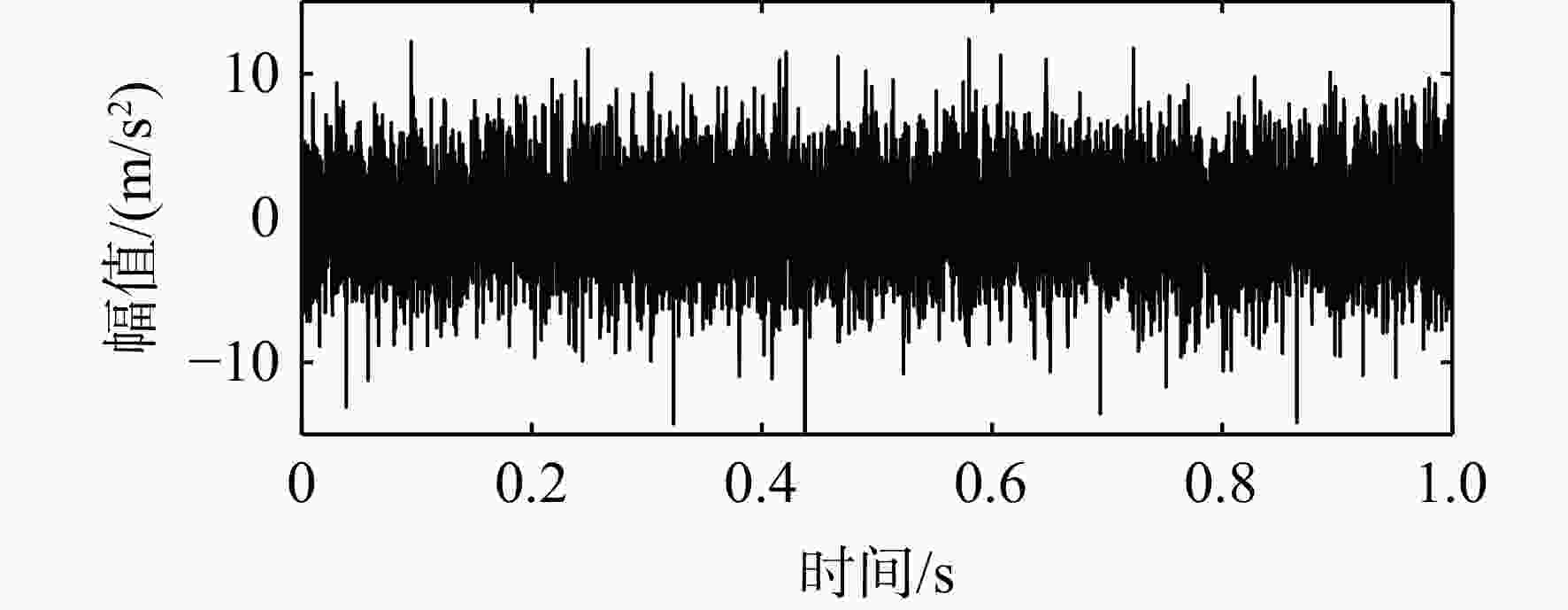

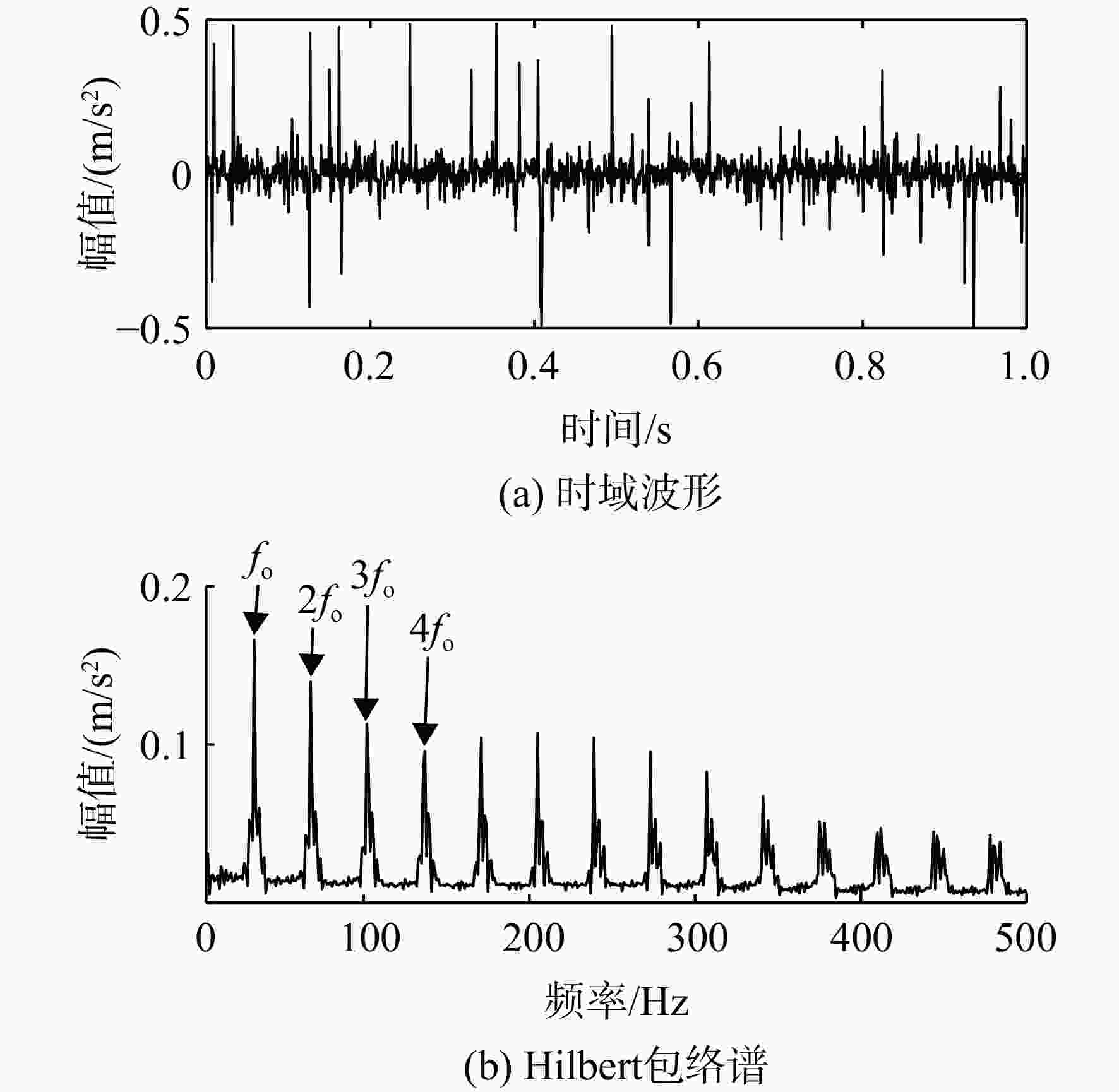

图 13 降噪后信号及其Hilbert包络谱（外圈故障）
Figure 13. Denoised signal and its Hilbert envelope spectrum （outer ring fault）

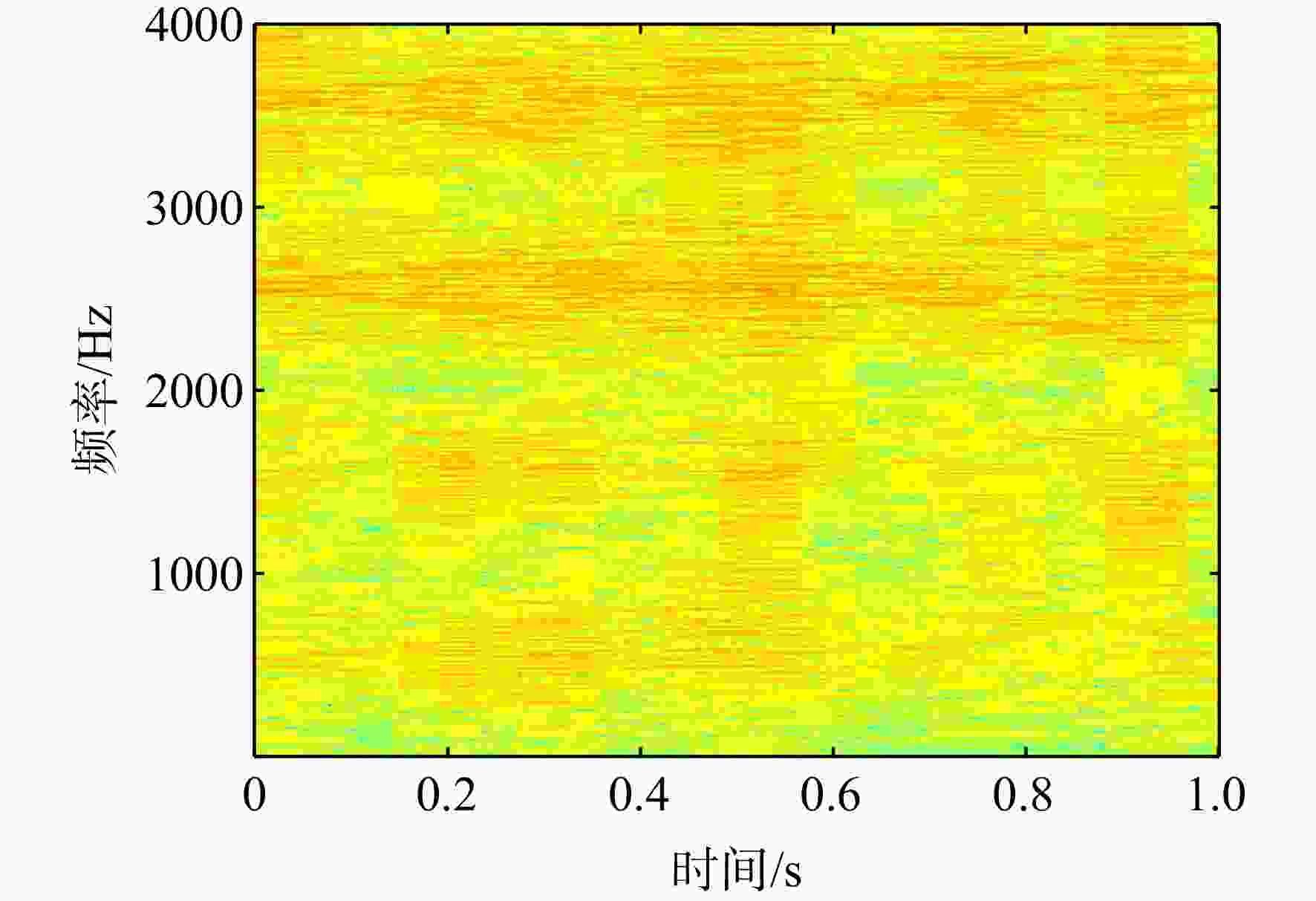

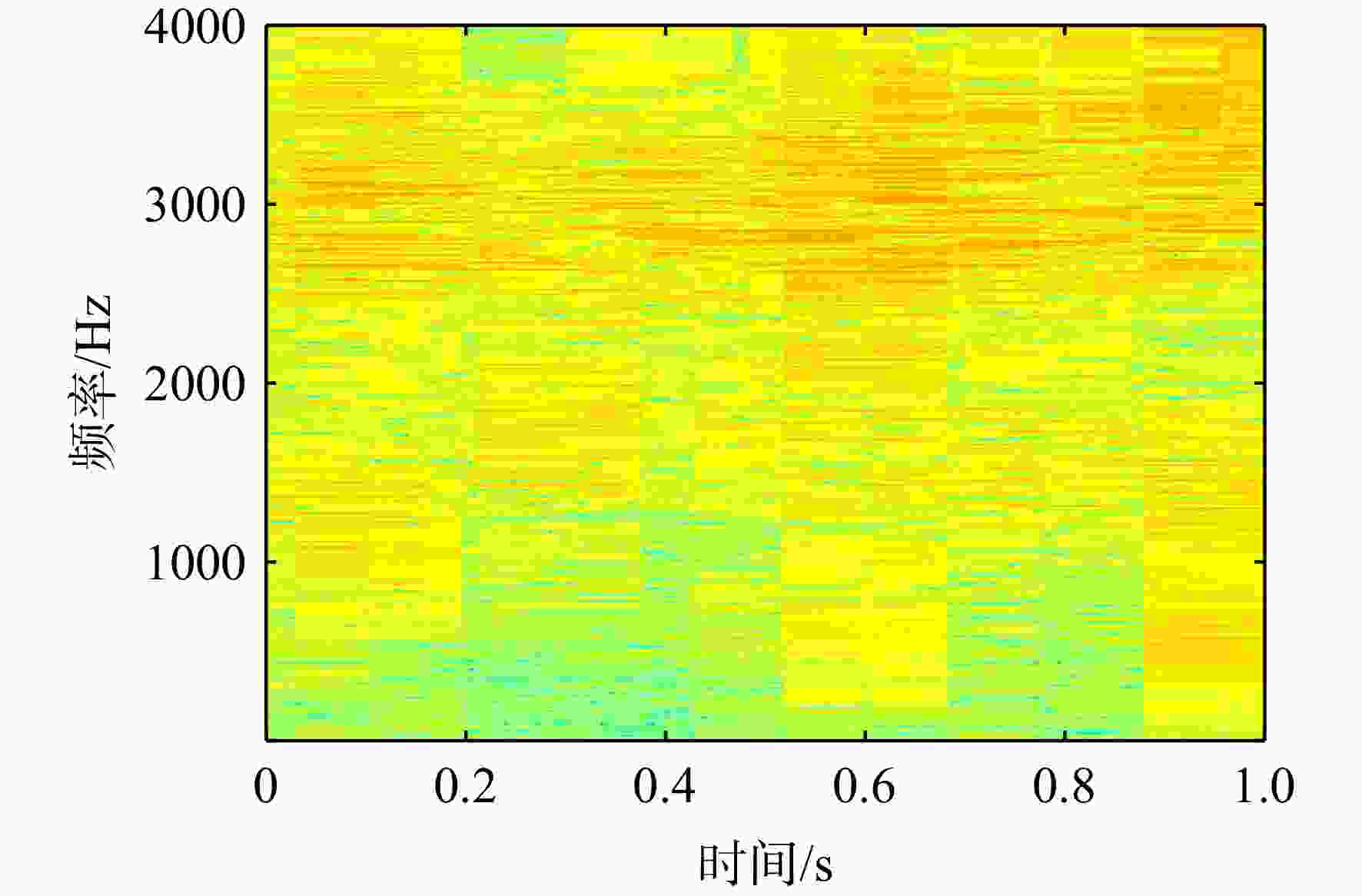

图 14 降噪后信号的STFT时频图（外圈故障）
Figure 14. STFT time-frequency spectrum of the denoised signal （outer ring fault）

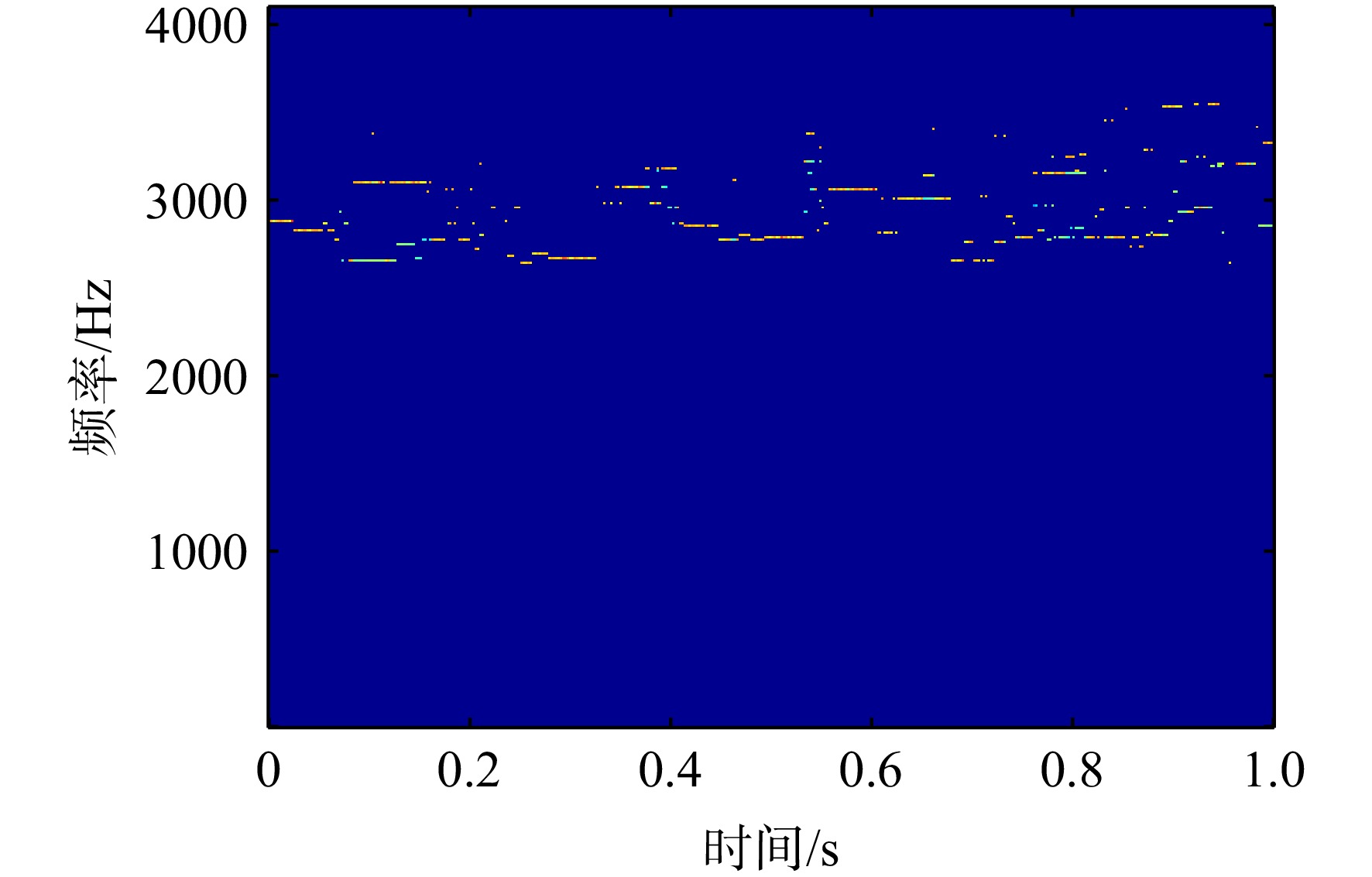

图 15 经ELMSSCT处理后的时频图（外圈故障）
Figure 15. Time-frequency diagram after ELMSSCT processing （outer ring fault）

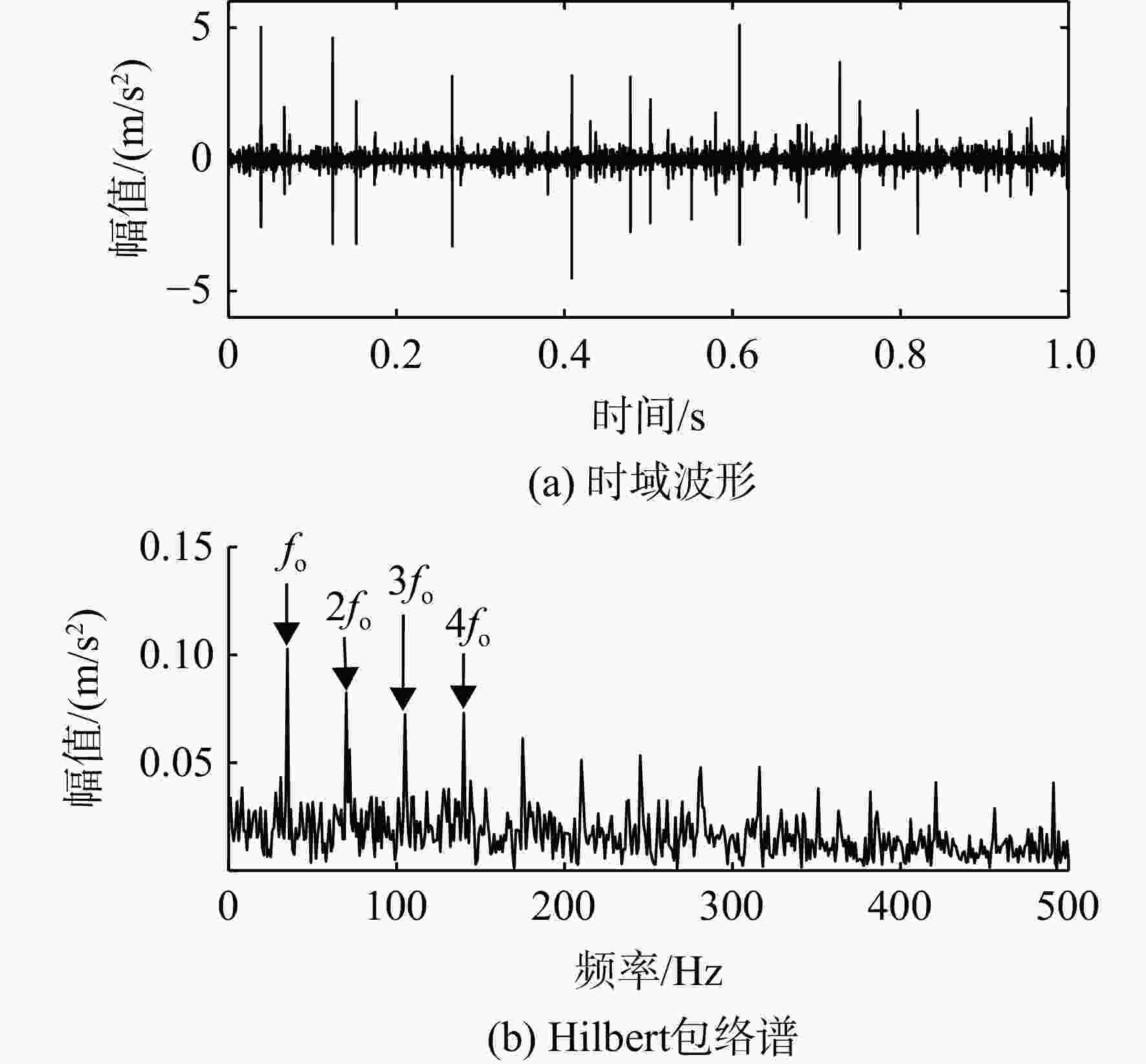

图 16 重构轴承故障信号及其Hilbert包络谱（外圈故障）
Figure 16. Bearing fault reconstruction signal and its Hilbert envelope spectrum （outer ring fault）

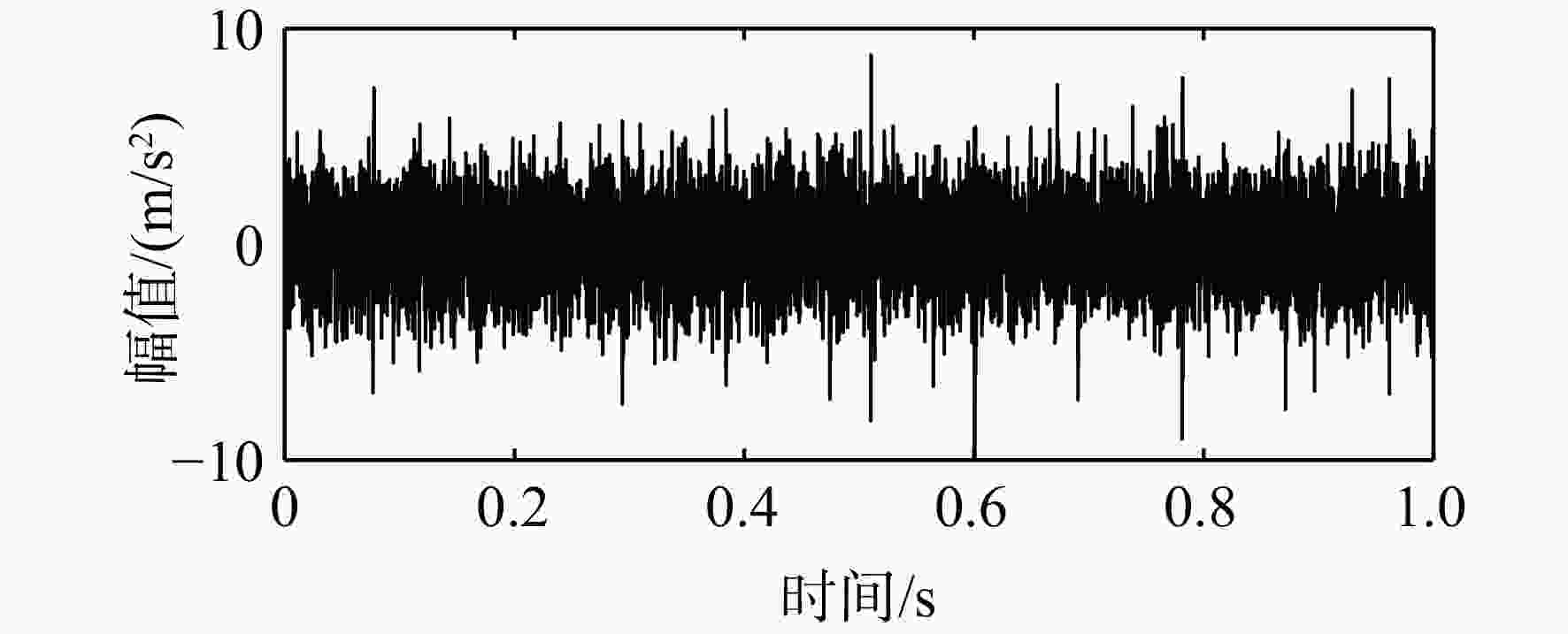

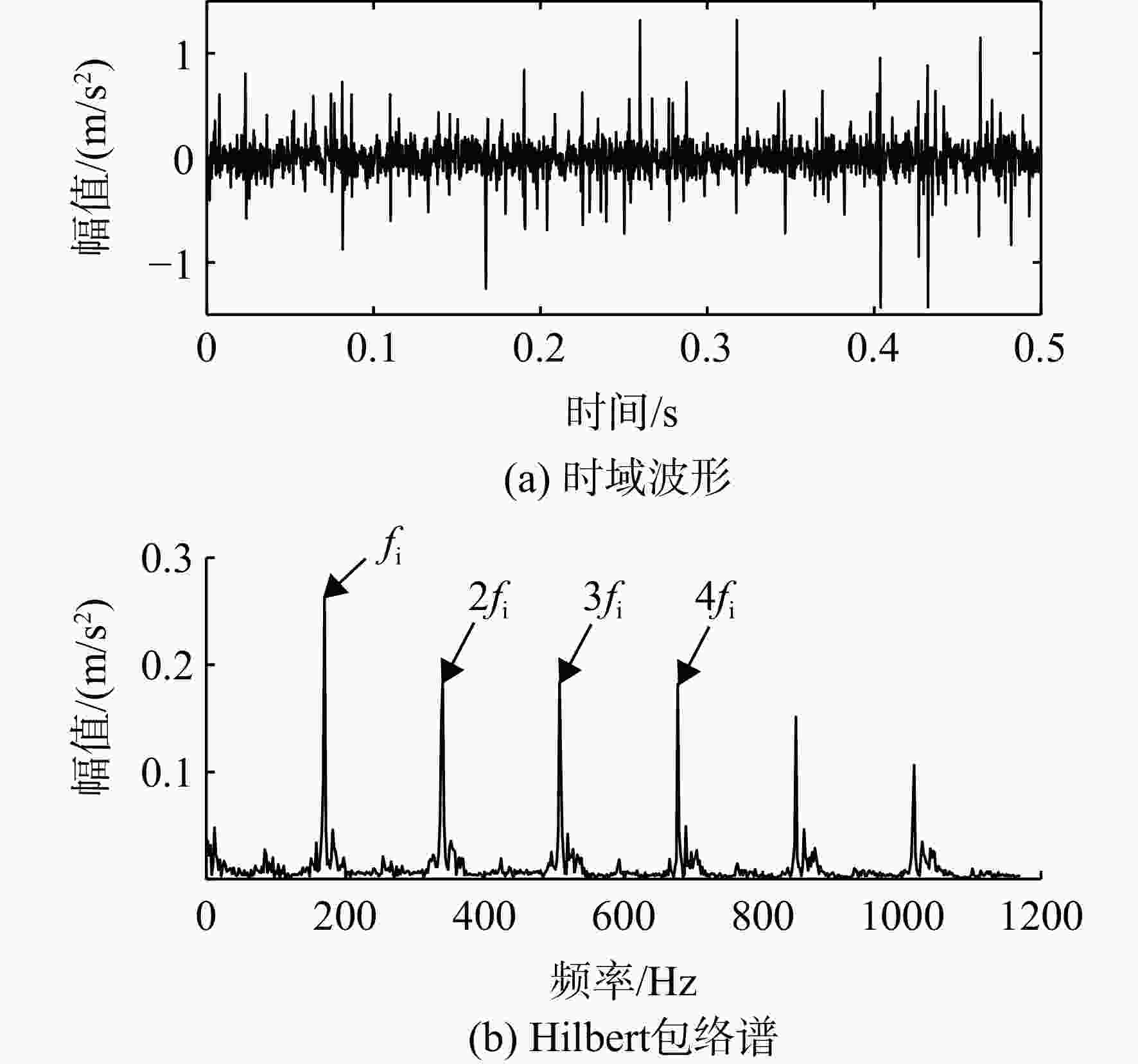

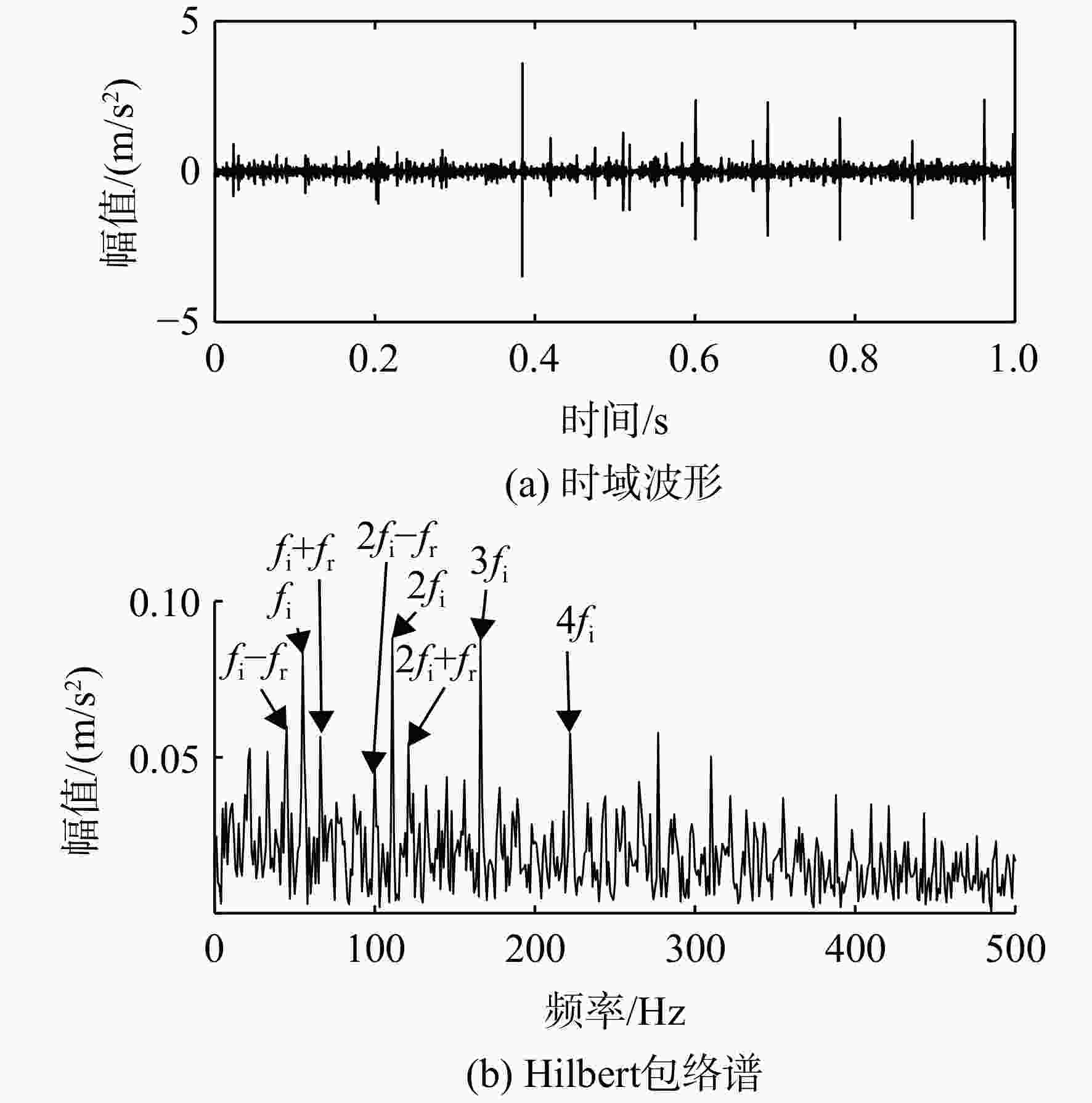

图 18 降噪后信号及其Hilbert包络谱（内圈故障）
Figure 18. Denoised signal and its Hilbert envelope spectrum （inner ring fault）
图 19 降噪后信号的STFT时频图（内圈故障）
Figure 19. STFT time-frequency spectrum of the denoised signal （inner ring fault）
图 20 经ELMSSCT处理后的时频图（内圈故障）
Figure 20. Time-frequency diagram after ELMSSCT processing （inner ring fault）
-
