Numerical investigation on cooling and mechanical performance of double wall structure
-
摘要:
针对涡轮叶片高效冷却和长寿命高可靠的性能需求，基于流热固耦合的数值计算方法，对典型双层壁冷却结构的气膜孔倾斜角和气膜平板厚度对冷却结构综合冷却效率、最大热应力和最大热机械应力特性的影响机制进行了分析。研究结果表明：气膜平板内壁面产生了较大的热应力，特别是在气膜孔前缘，扰流柱上缘等区域，热应力尤为突出。气膜孔倾斜角从90°减小至30°，综合冷却效率显著增大，但离心作用下的热机械应力也急剧增大。气膜平板厚度较小时，综合冷却效率受内部冲击冷却影响较大而分布不均匀；随着气膜平板厚度增大，离心作用下气膜孔及扰流柱的热机械应力水平均显著降低。
Abstract:In response to the performance requirements of high-efficiency cooling, high-reliability and long-life of turbine blades, the influences of the film hole inclination angle and the film plate thickness of a typical double-wall structure on the overall cooling efficiency, the maximum thermal stress and the maximum thermo-mechanical stress of the structure were analyzed based on the numerical method of fluid-thermal-solid coupling. The inner surface of the film plate generated large thermal stresses, especially at the edge of the film holes and pin-fins. As the film hole inclination angle decreased from 90° to 30°, the overall cooling efficiency increased significantly, but the thermo-mechanical stress under centrifugal force also increased sharply. When the film plate thickness was small, the overall cooling efficiency was affected by the impingement cooling and unevenly distributed. With the increase of the film plate thickness, the thermo-mechanical stress of the film holes and pin-fins under centrifugal force was significantly reduced.
-

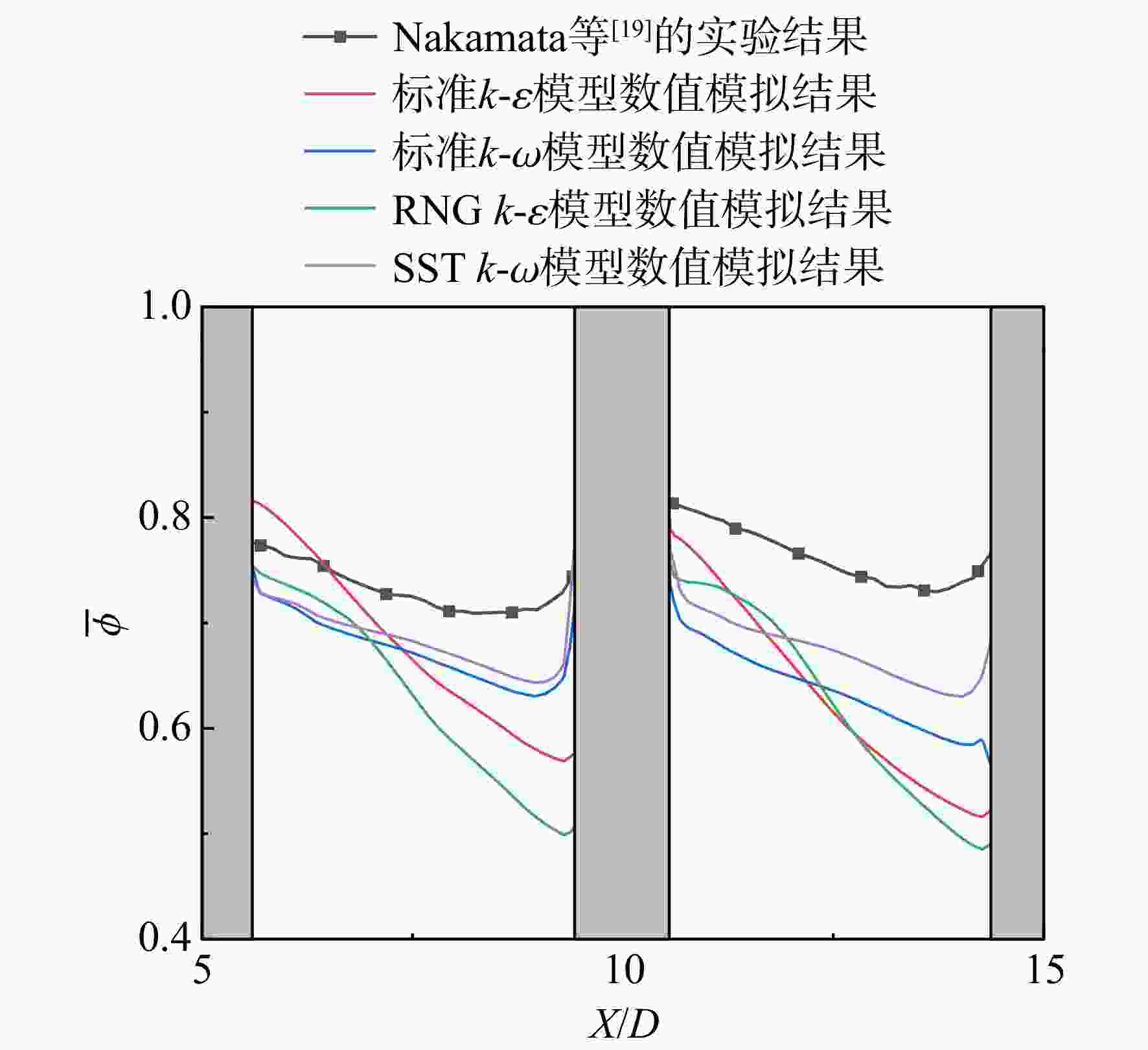

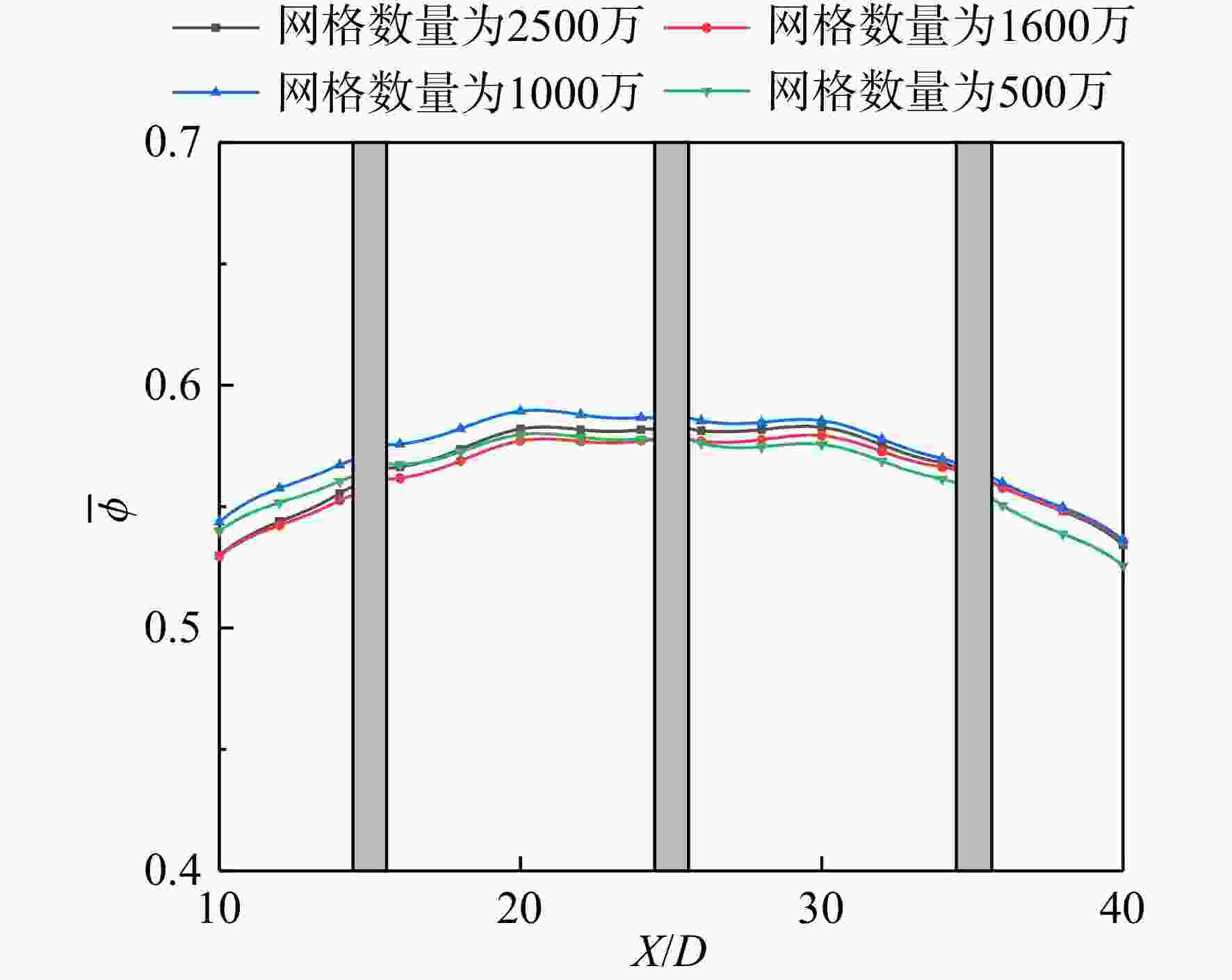

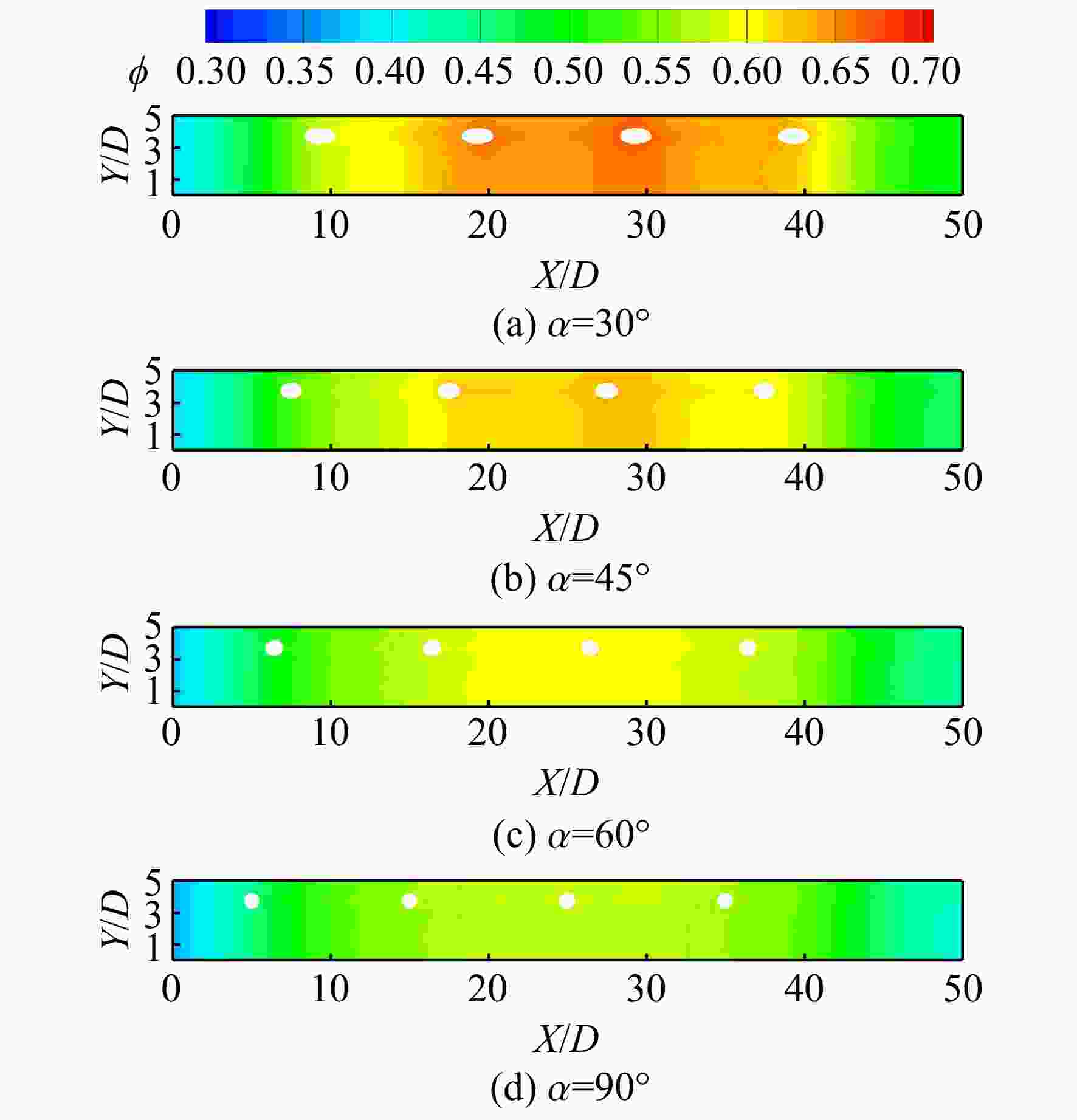

图 6 不同气膜孔倾斜角下综合冷却效率分布云图
Figure 6. Contours of overall cooling efficiency under different film hole inclination angles

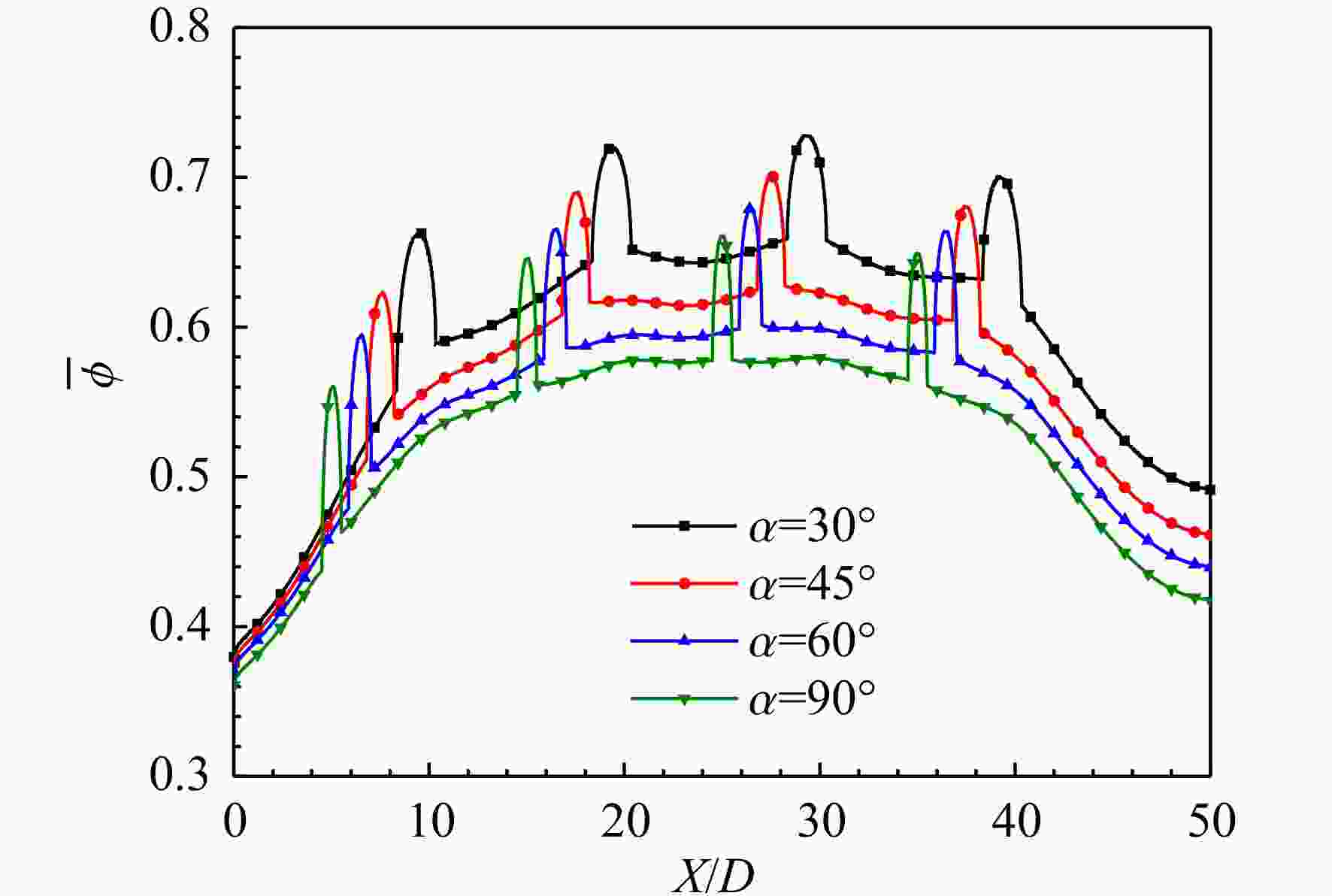

图 7 不同气膜孔倾斜角下展向平均综合冷却效率图（M=1.0）
Figure 7. Spanwise average overall cooling efficiency under different film hole inclination angles （M=1.0）

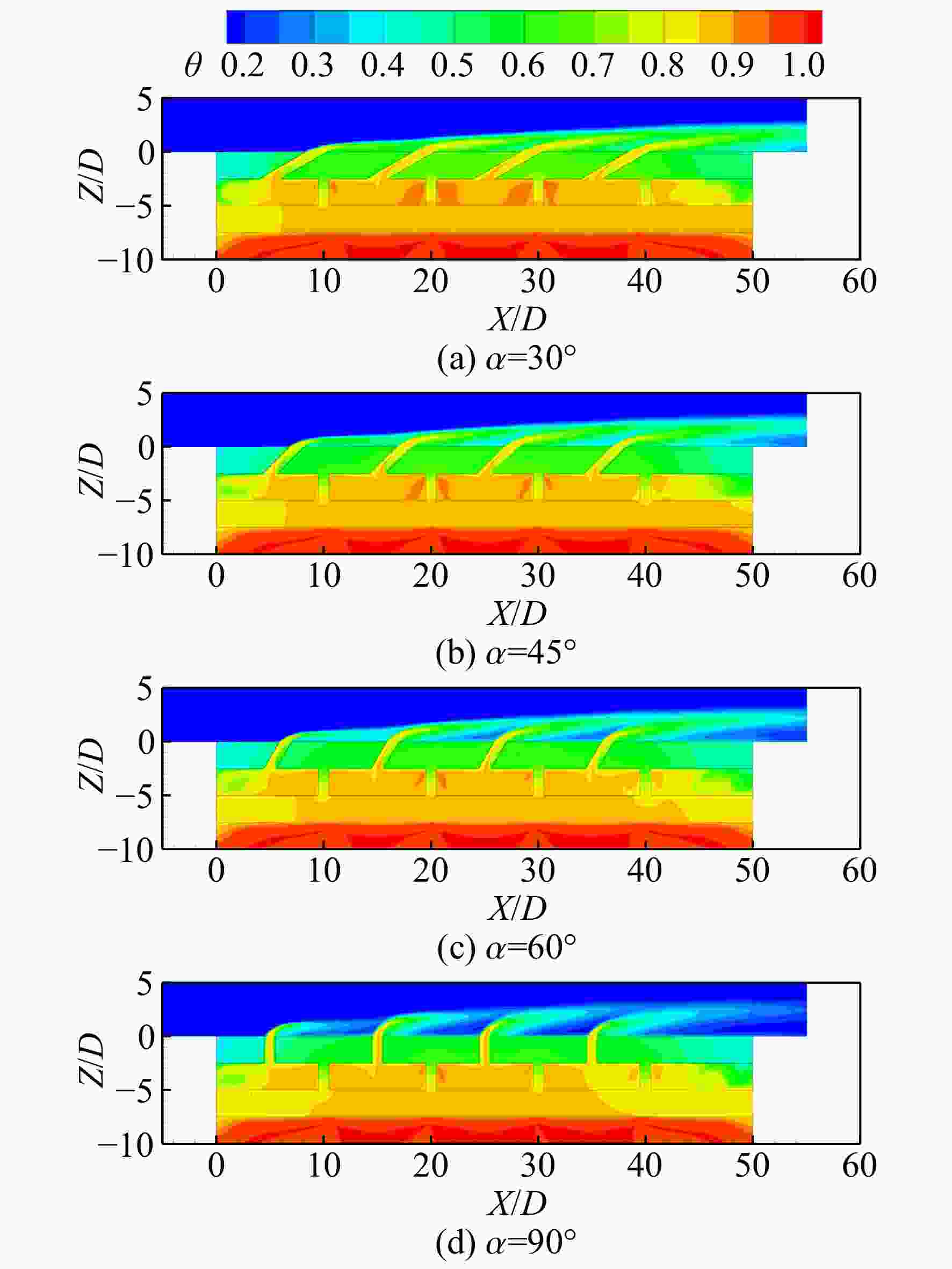

图 8 不同气膜孔倾斜角下气膜孔截面处流体及固体无量纲温度分布云图
Figure 8. Contours of dimensionless temperature of fluid and solid at the cross-section of the film hole under different film hole inclination angles

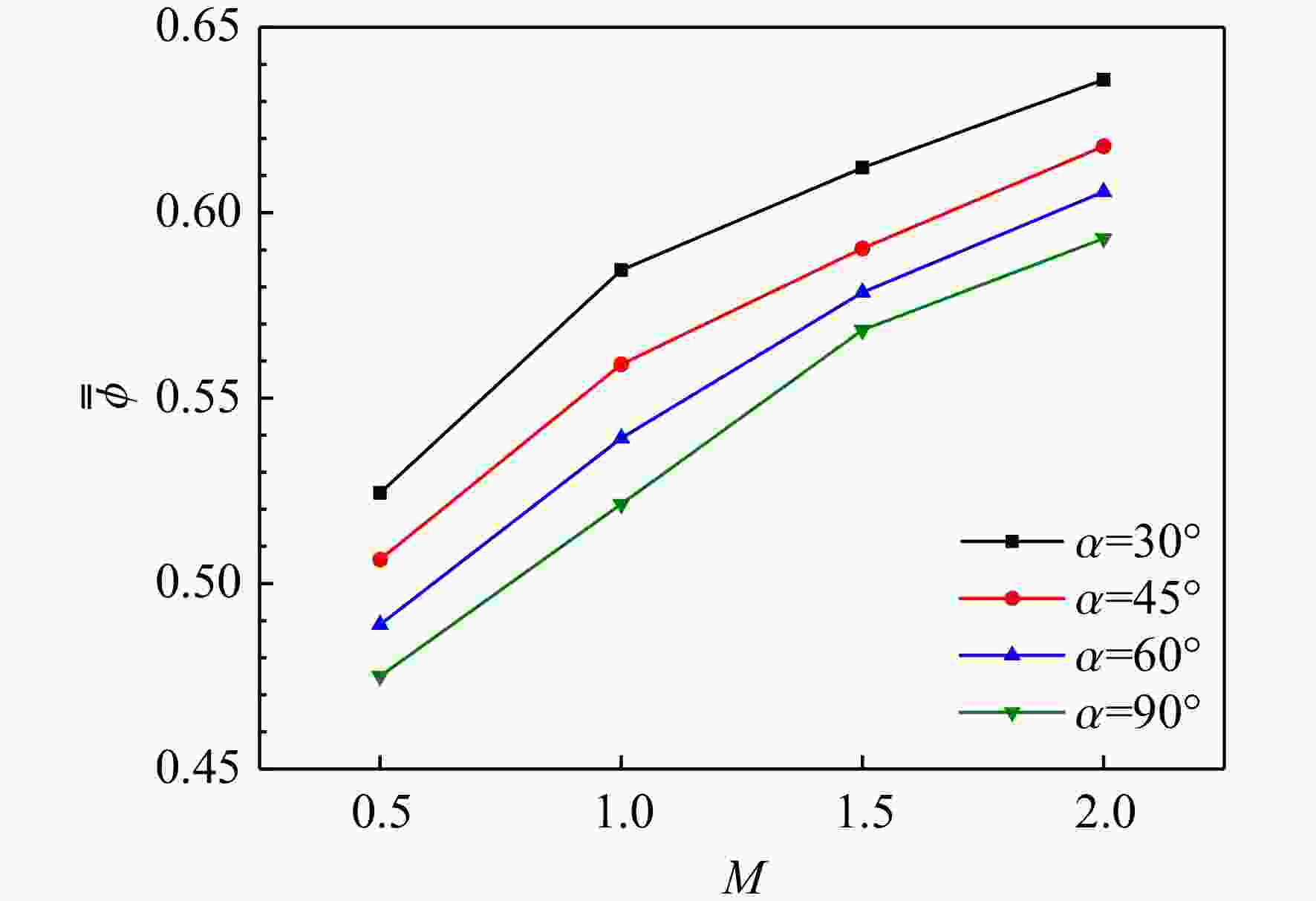

图 9 不同气膜孔倾斜角下面平均综合冷却效率图
Figure 9. Surface average overall cooling efficiency under different film hole inclination angles

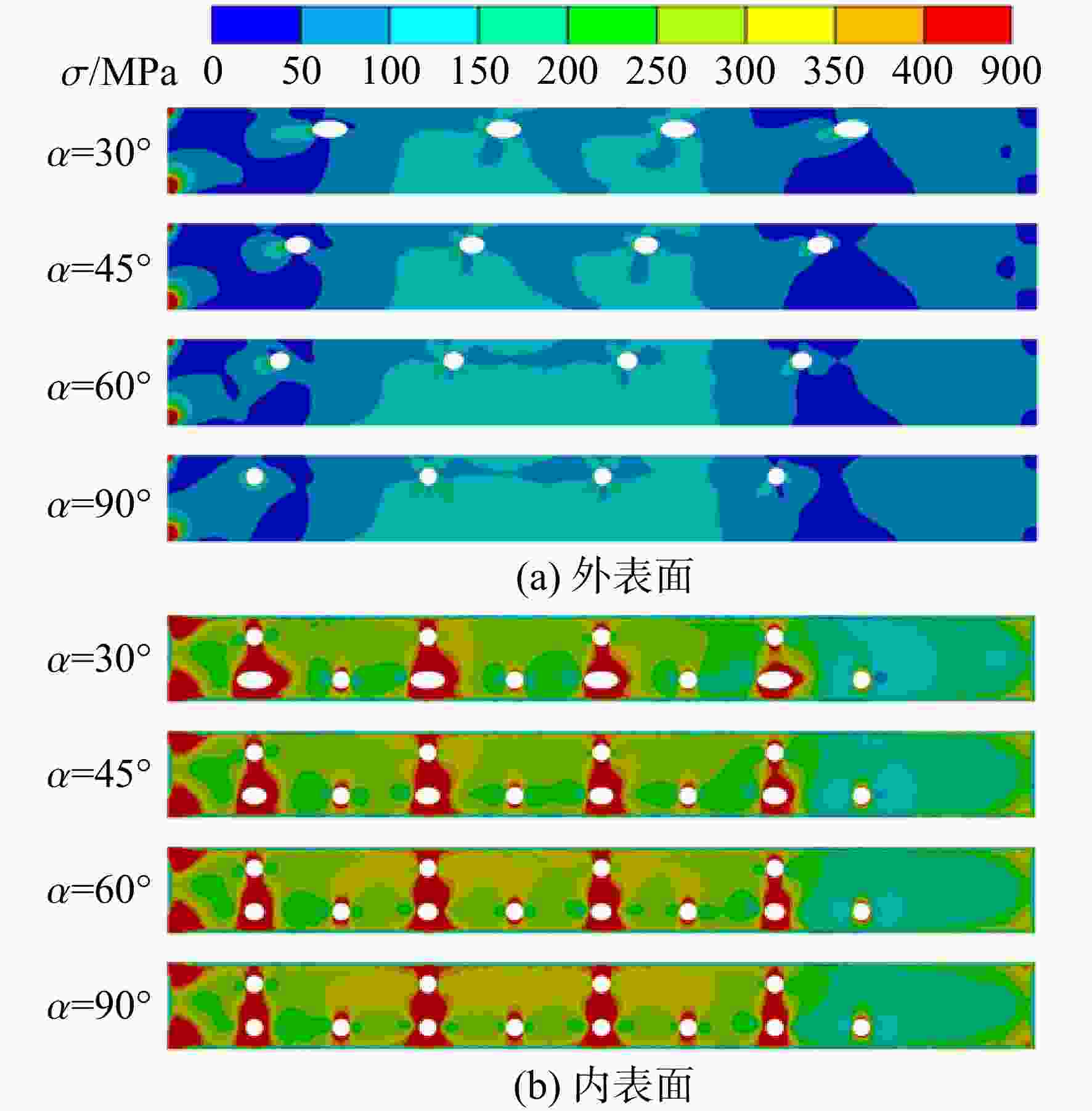

图 10 不同气膜孔倾斜角下气膜平板外表面和内表面热应力分布云图
Figure 10. Contours of thermal stress on the external and internal surfaces of the film plate under different film hole inclination angles

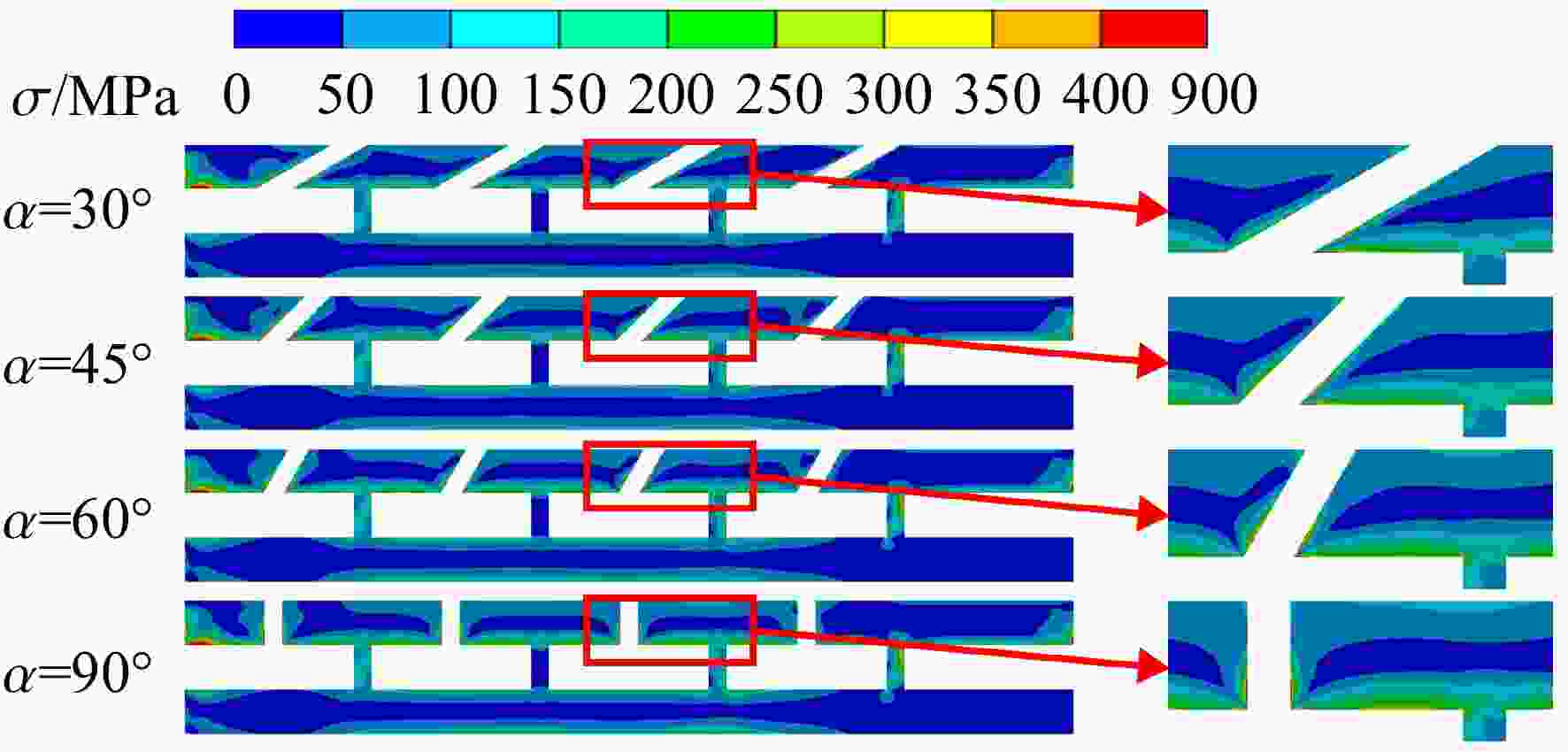

图 11 不同气膜孔倾斜角下气膜孔截面处热应力分布云图
Figure 11. Contours of thermal stress at the cross-section of the film hole under different film hole inclination angles

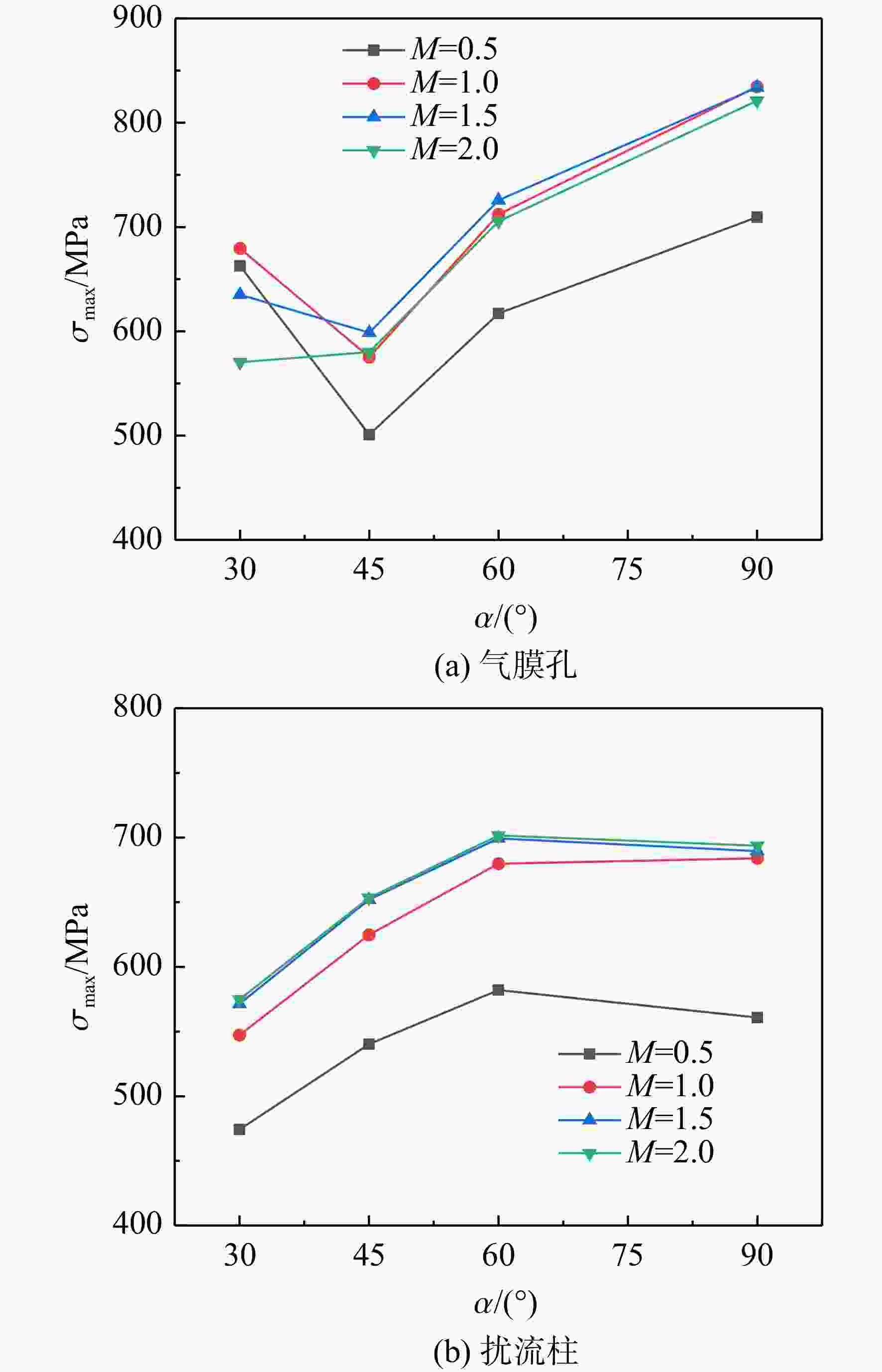

图 12 不同气膜孔倾斜角下气膜孔和扰流柱最大热应力曲线
Figure 12. Maximum thermal stress curves of film holes and pin-fins under different film hole inclination angles

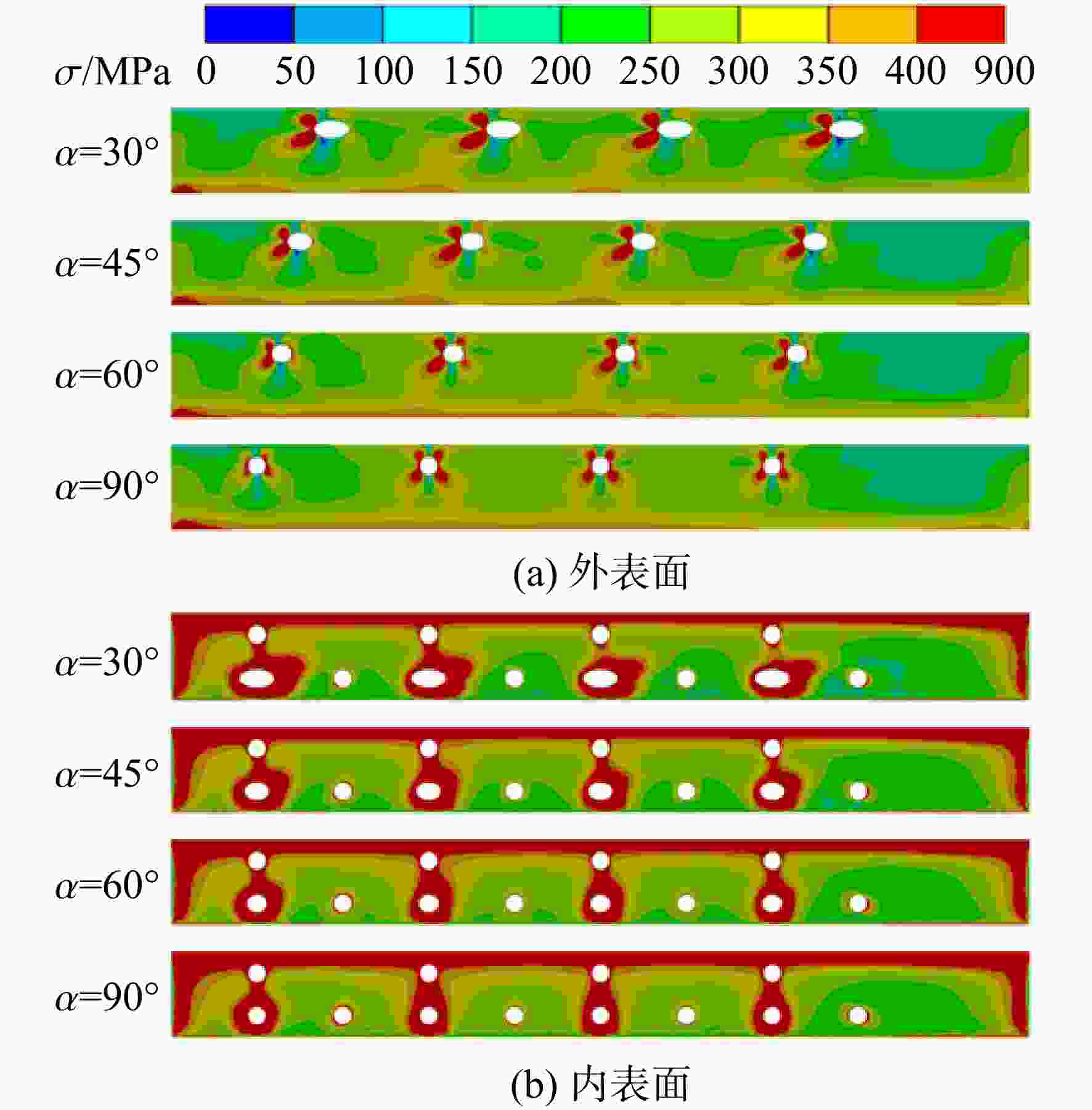

图 13 不同气膜孔倾斜角下气膜平板外表面和内表面热机械应力分布云图
Figure 13. Contours of thermo-mechanical stress on the external and internal surfaces of the film plate under different film hole inclination angles

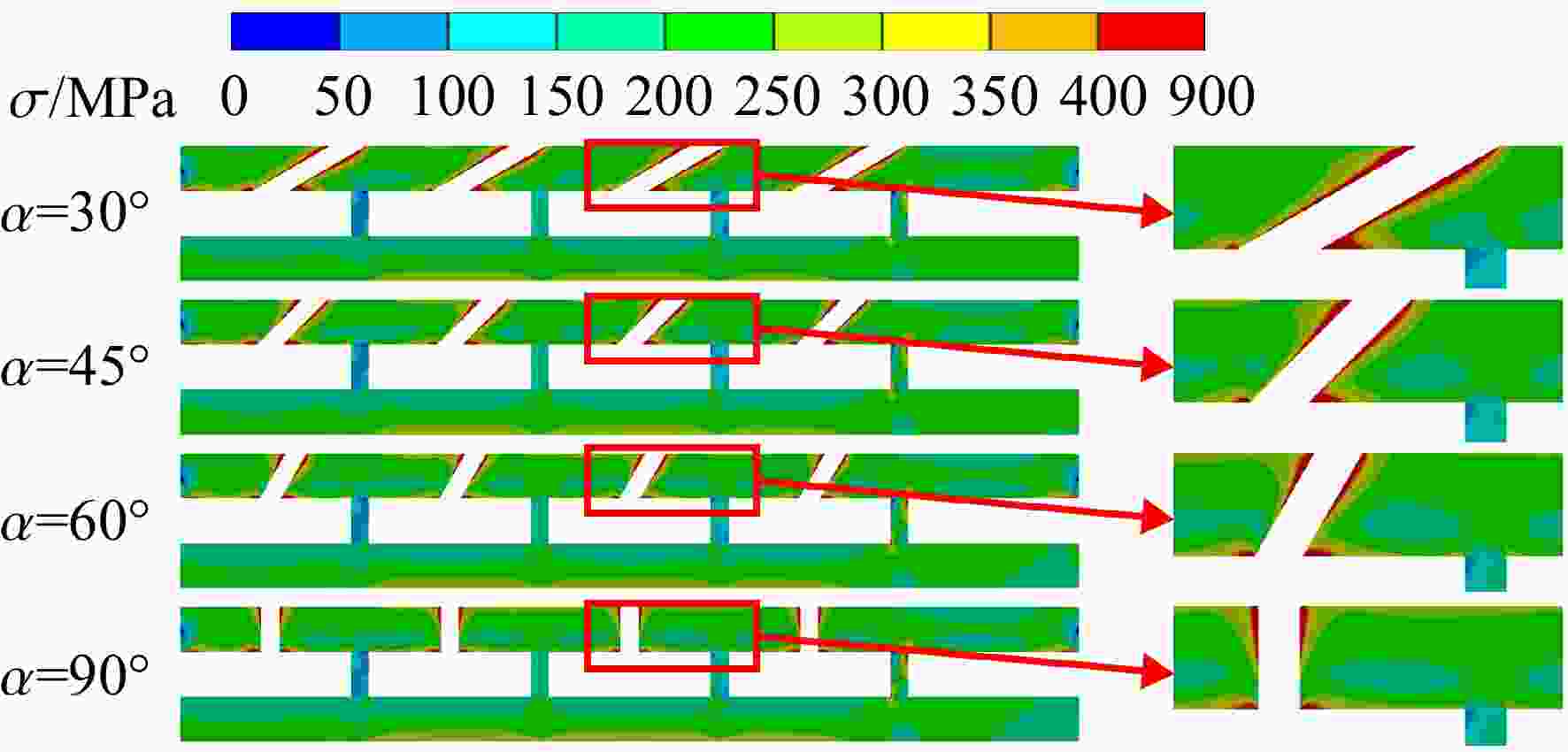

图 14 不同气膜孔倾斜角下气膜孔截面处热机械应力分布云图
Figure 14. Contours of thermo-mechanical stress at the cross-section of the film hole under different film hole inclination angles

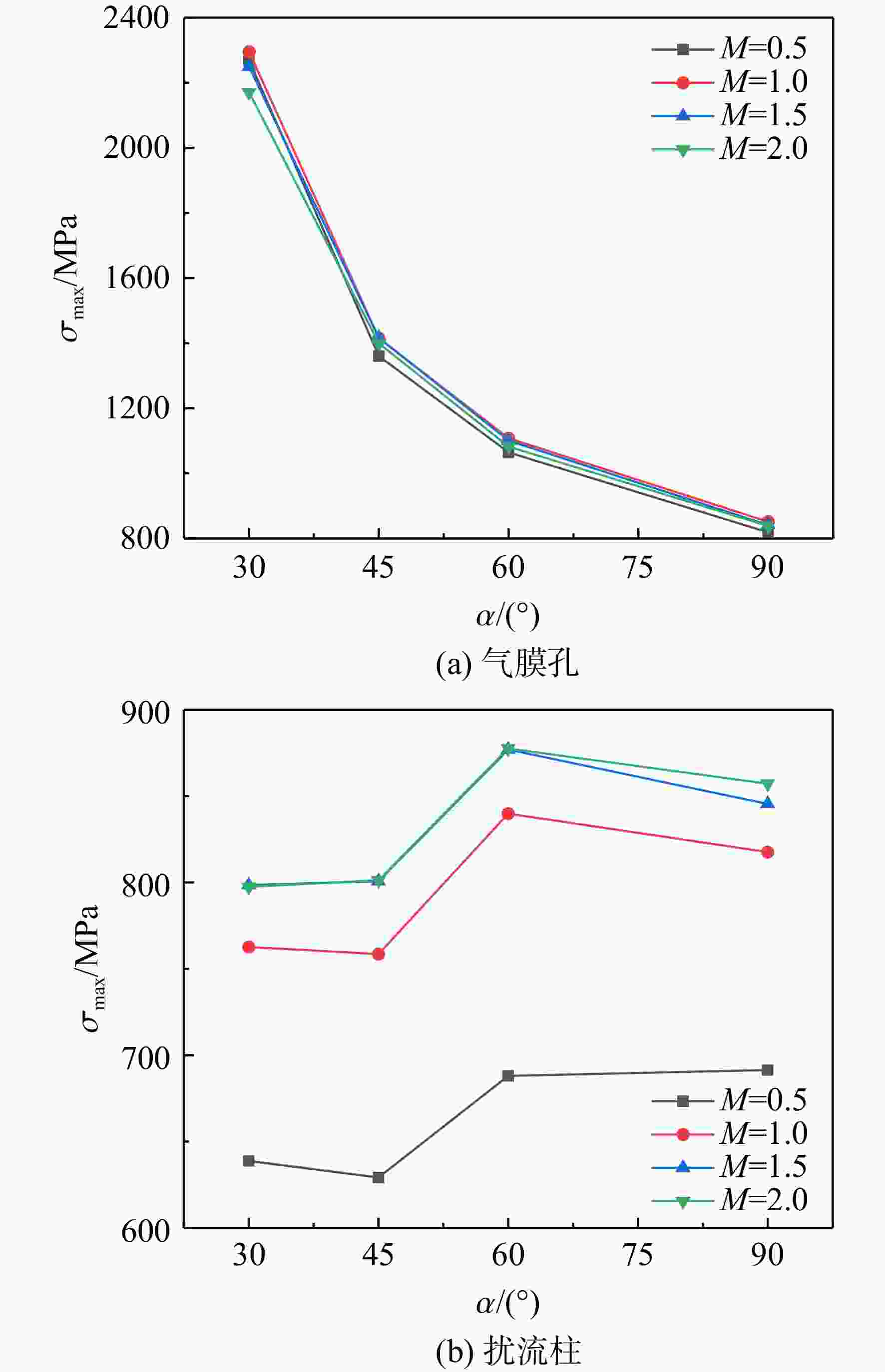

图 15 不同气膜孔倾斜角下气膜孔和扰流柱最大热机械应力曲线
Figure 15. Maximum thermo-mechanical stress curves of film holes and pin-fins under different film hole inclination angles

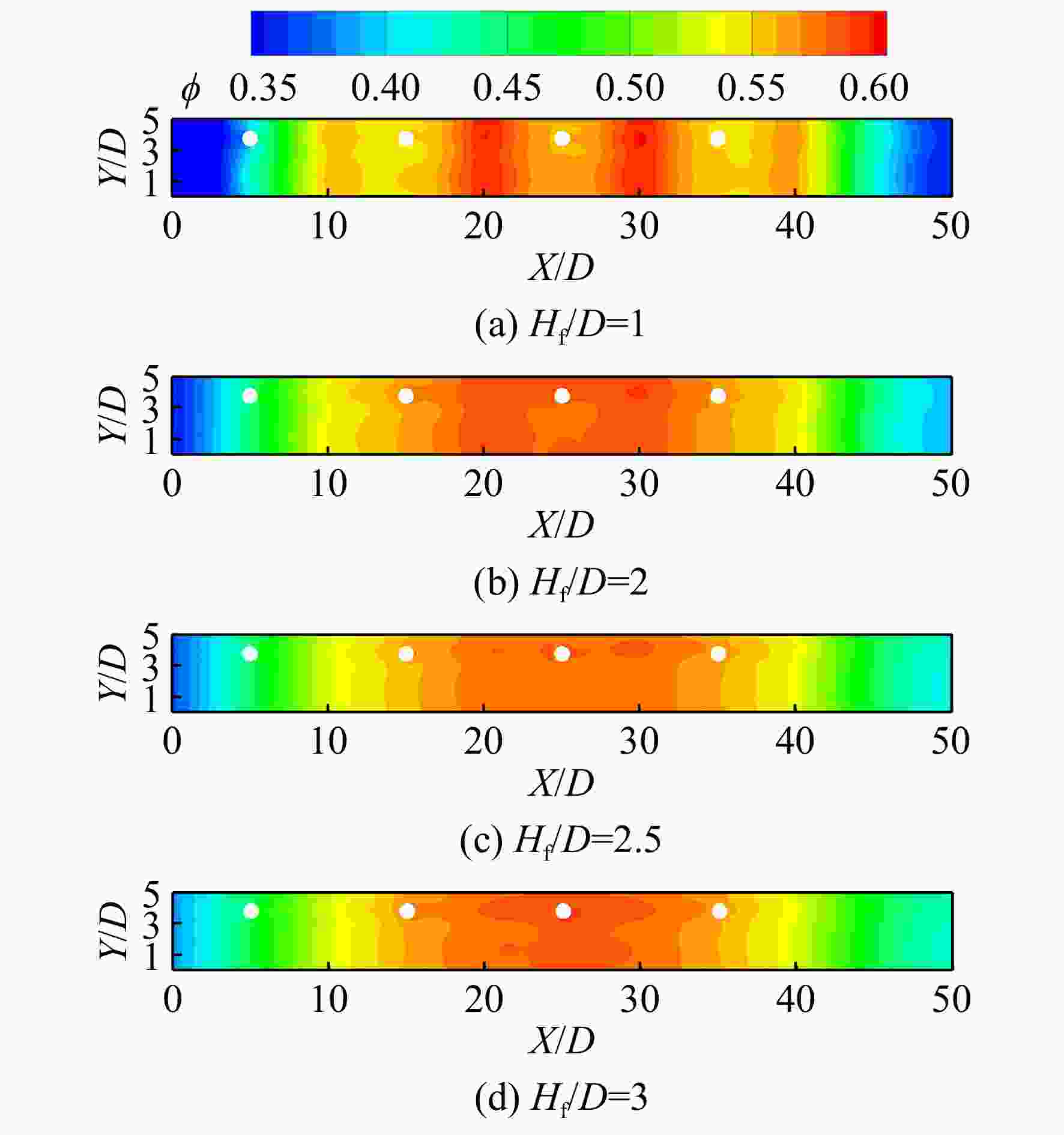

图 16 不同气膜平板厚度下综合冷却效率分布云图
Figure 16. Contours of overall cooling efficiency under different film plate thicknesses

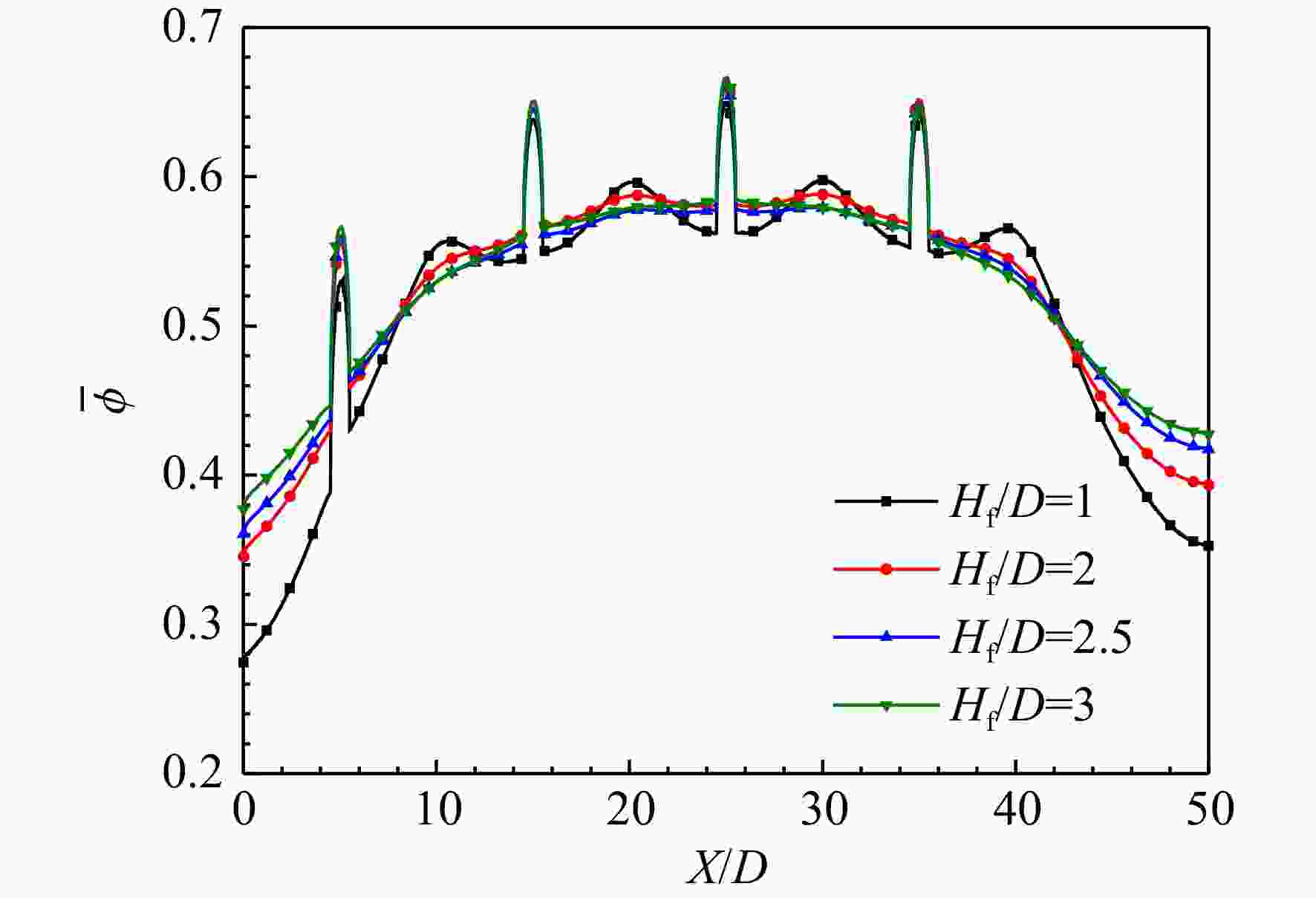

图 17 不同气膜平板厚度下展向平均综合冷却效率图（M=1.0）
Figure 17. Spanwise average overall cooling efficiency under different film plate thicknesses （M=1.0）

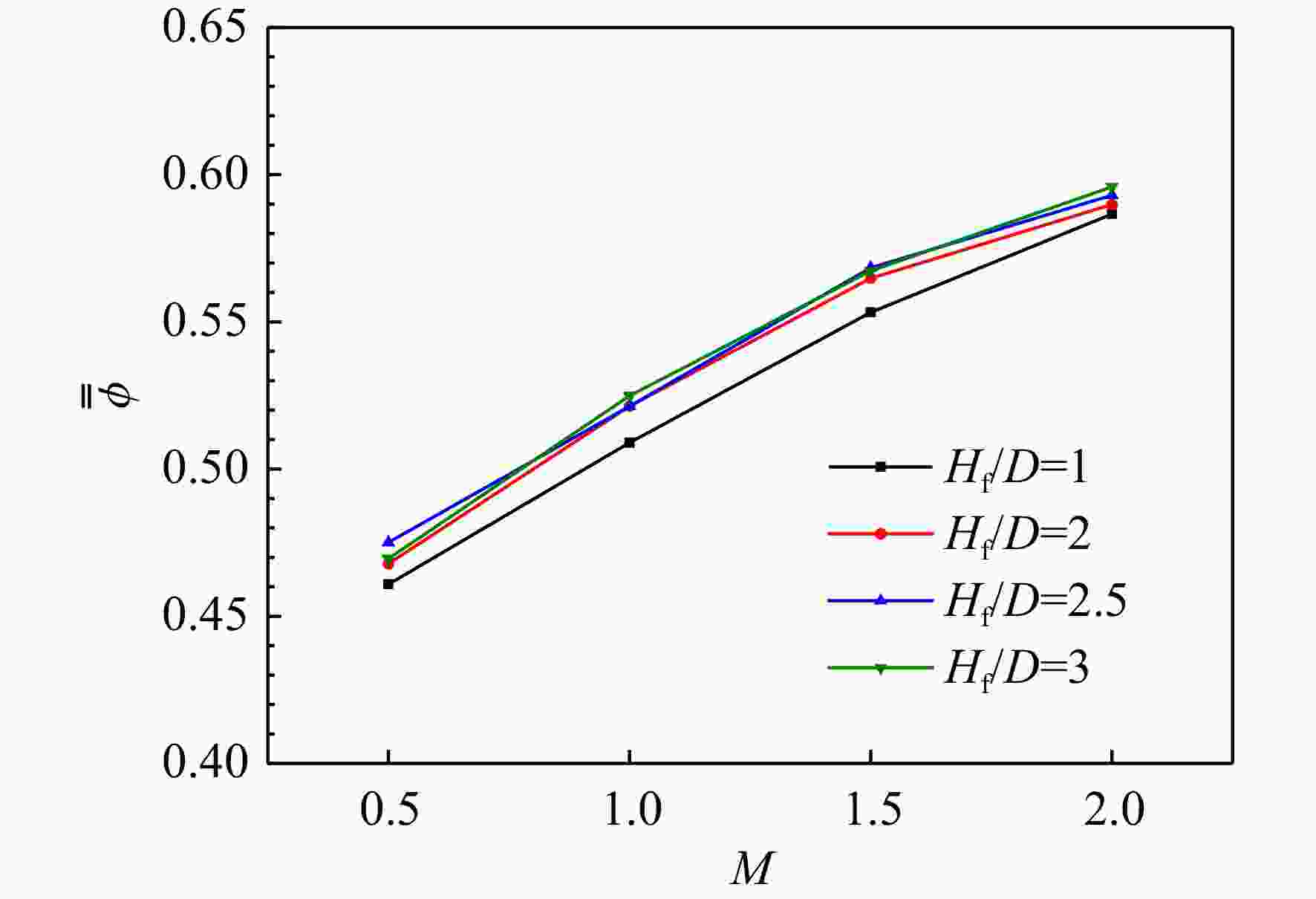

图 18 不同气膜平板厚度下面平均综合冷却效率图
Figure 18. Surface average overall cooling efficiency under different film plate thicknesses

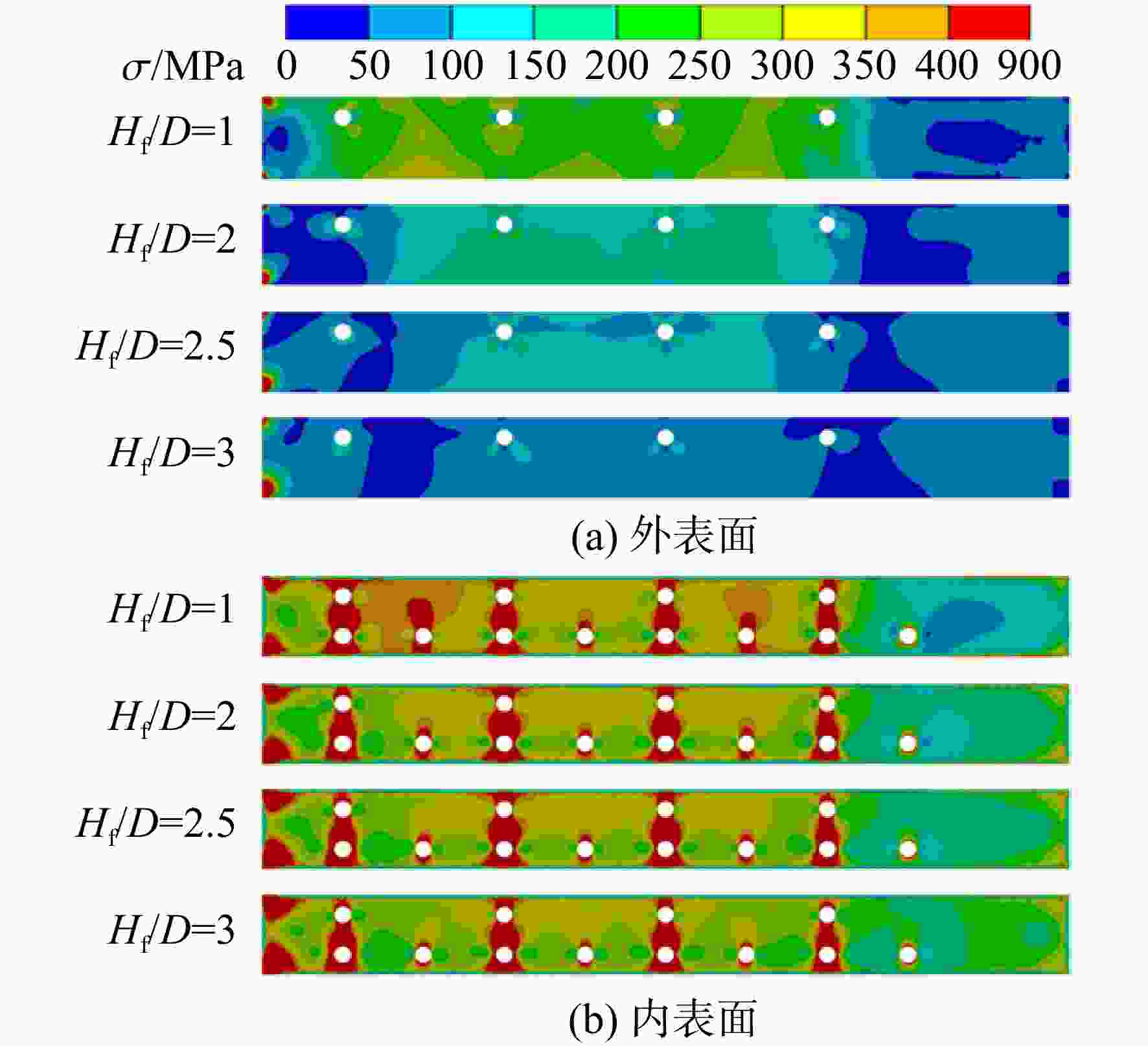

图 19 不同气膜平板厚度下气膜平板外表面和内表面热应力分布云图
Figure 19. Contours of thermal stress on the external and internal surfaces of the film plate under different film plate thicknesses

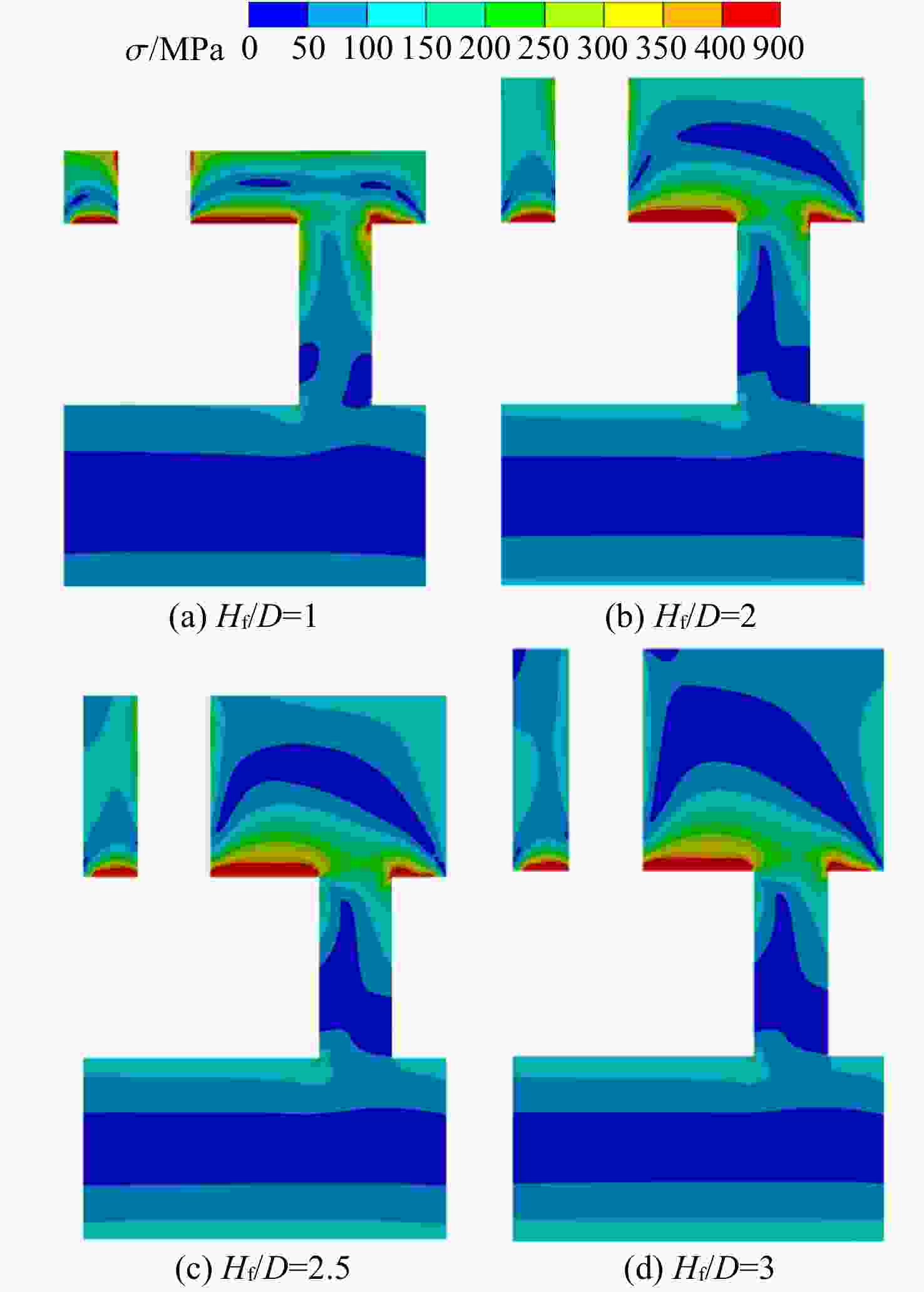

图 20 不同气膜平板厚度下气膜孔截面处热应力分布云图
Figure 20. Contours of thermal stress at the cross-section of the film hole under different film plate thicknesses

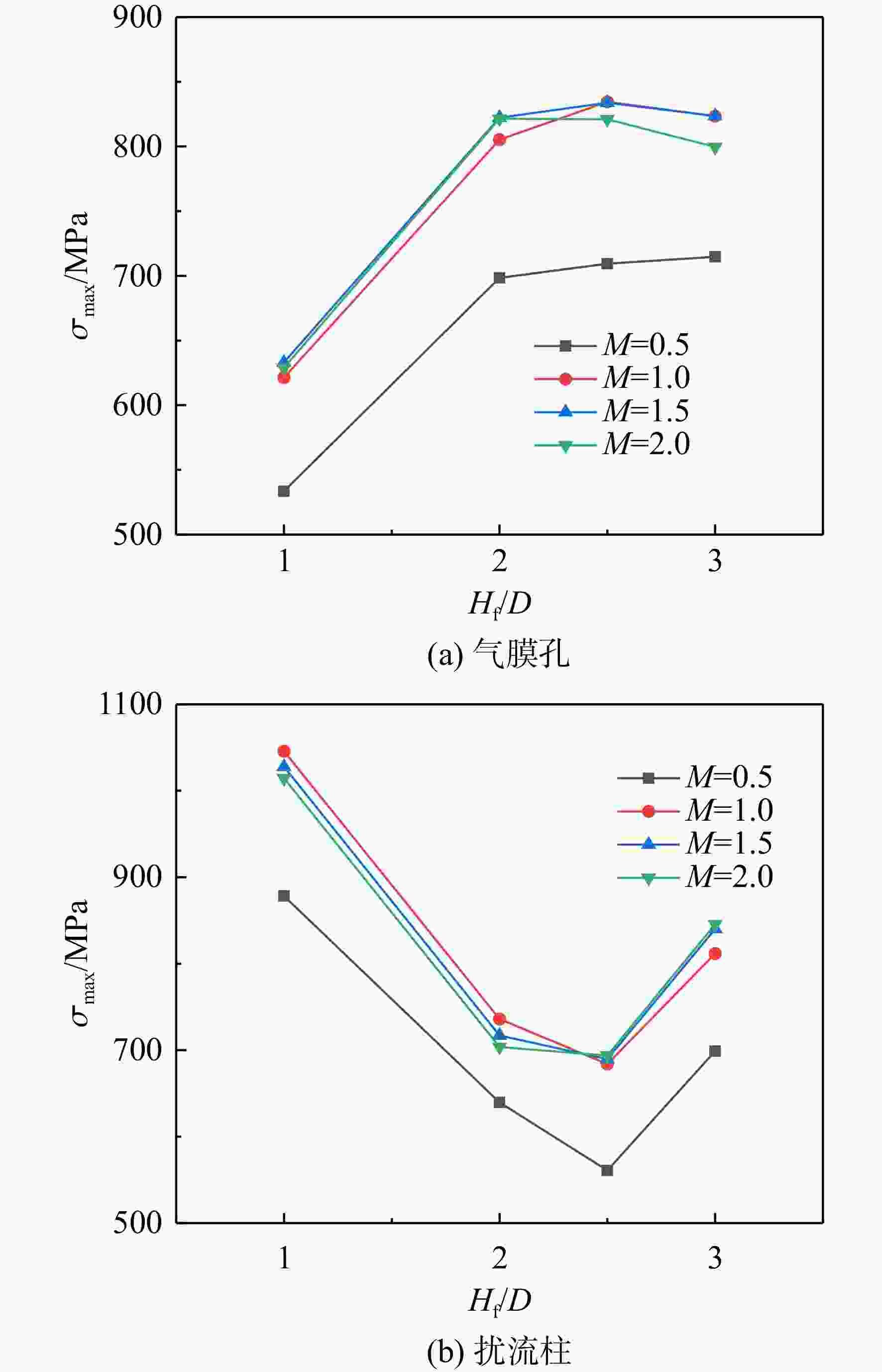

图 21 不同气膜平板厚度下气膜孔和扰流柱最大热应力曲线
Figure 21. Maximum thermal stress curves of film holes and pin-fins under different film plate thicknesses

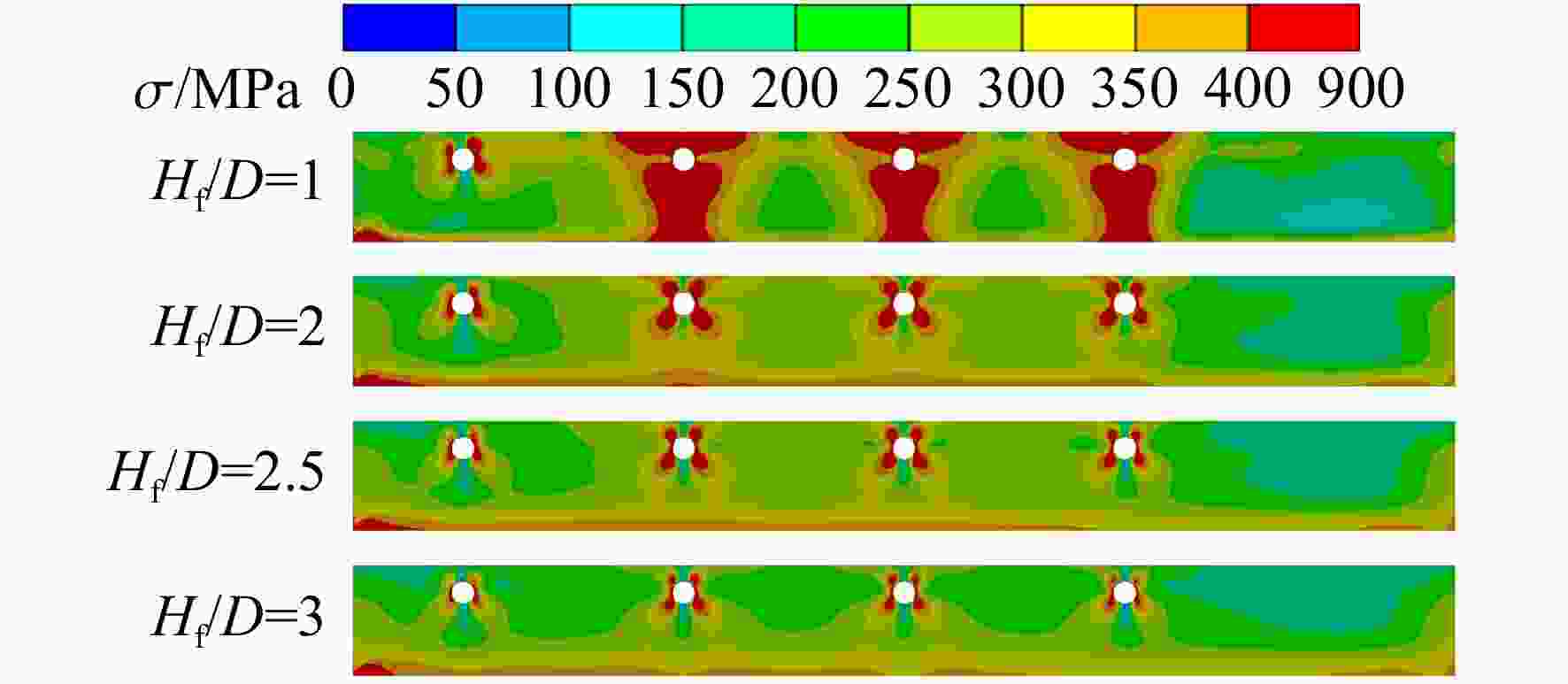

图 22 不同气膜平板厚度下气膜平板外表面热机械应力分布云图
Figure 22. Contours of thermo-mechanical stress on the external surfaces of the film plate under different film plate thicknesses

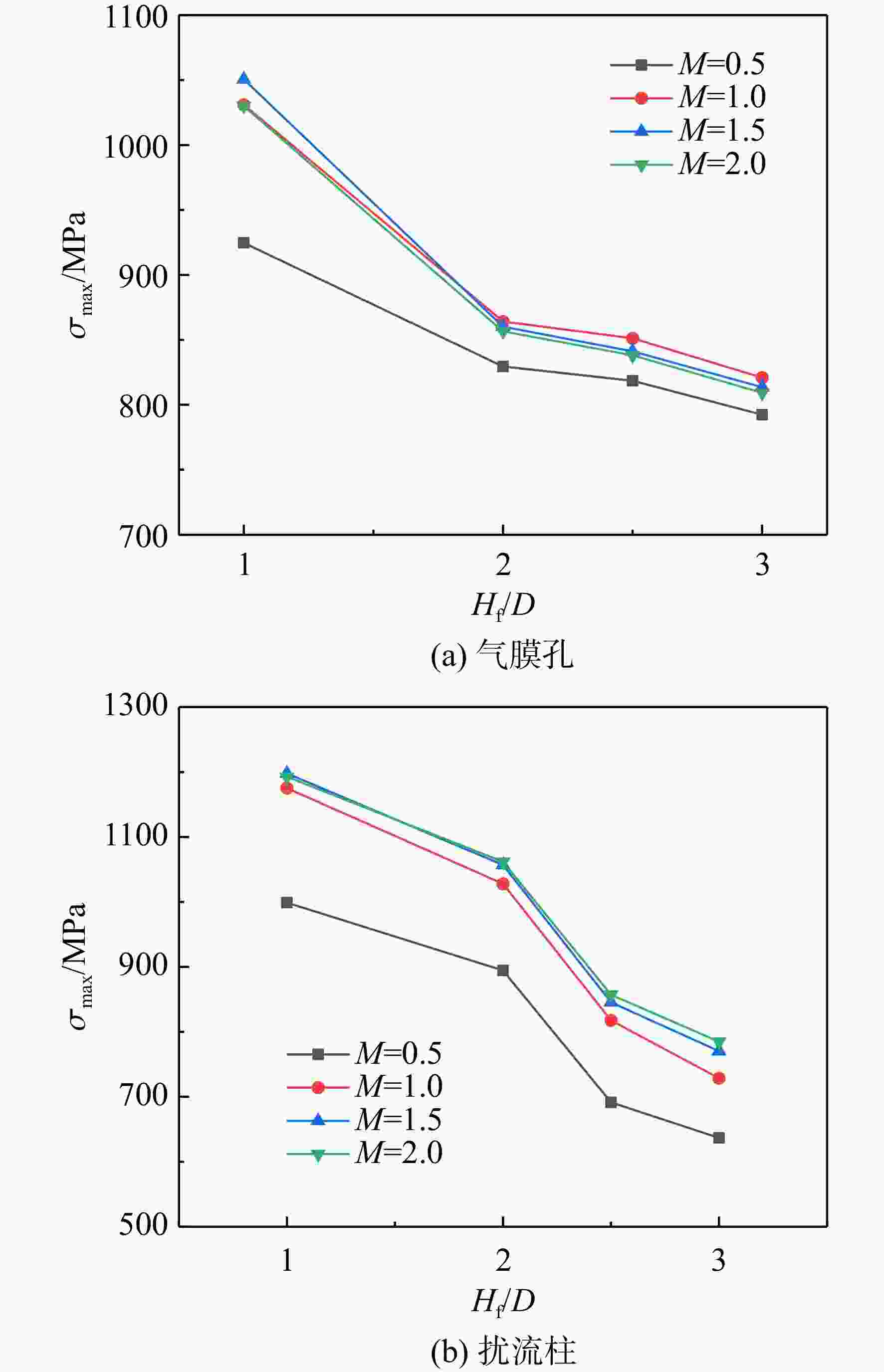

图 23 不同气膜平板厚度下气膜孔和扰流柱最大热机械应力曲线
Figure 23. Maximum thermo-mechanical stress curves of film holes and pin-fins under different film plate thicknesses

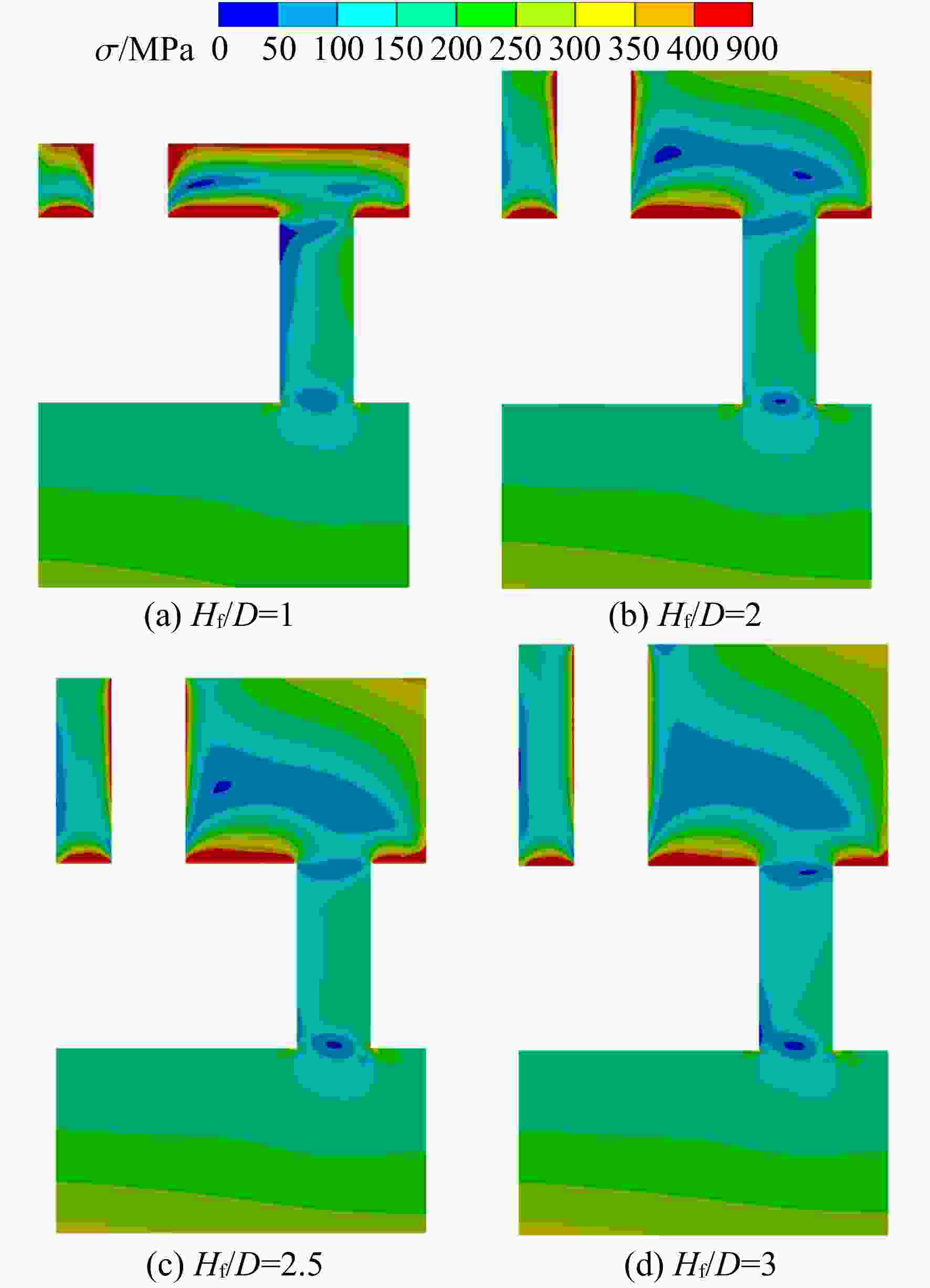

图 24 不同气膜平板厚度下气膜孔截面处热机械应力分布云图
Figure 24. Contours of thermo-mechanical stress at the cross-section of the film hole under different film plate thicknesses

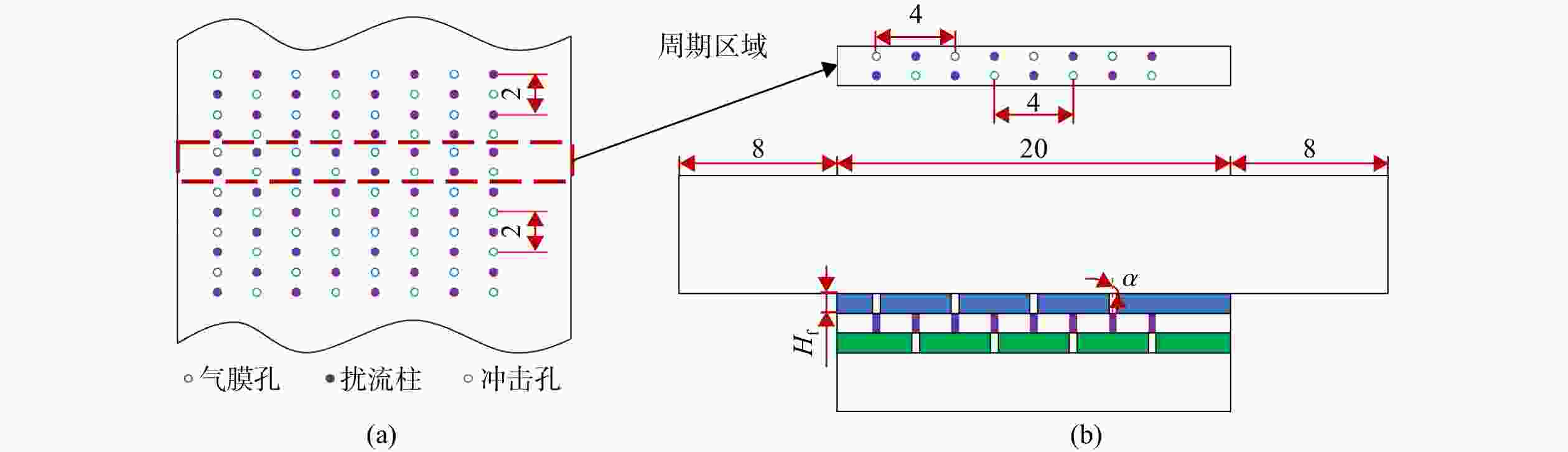

表 1 冷却结构计算参数
Table 1. Calculation parameters of cooling structure
工况编号 M α/（°） Hf/D 1～4 0.5, 1.0, 1.5, 2.0 90 2.5 5～8 0.5, 1.0, 1.5, 2.0 30 2.5 9～12 0.5, 1.0, 1.5, 2.0 45 2.5 13～16 0.5, 1.0, 1.5, 2.0 60 2.5 17～20 0.5, 1.0, 1.5, 2.0 90 1 21～24 0.5, 1.0, 1.5, 2.0 90 2 25～28 0.5, 1.0, 1.5, 2.0 90 3
下载: 导出CSV

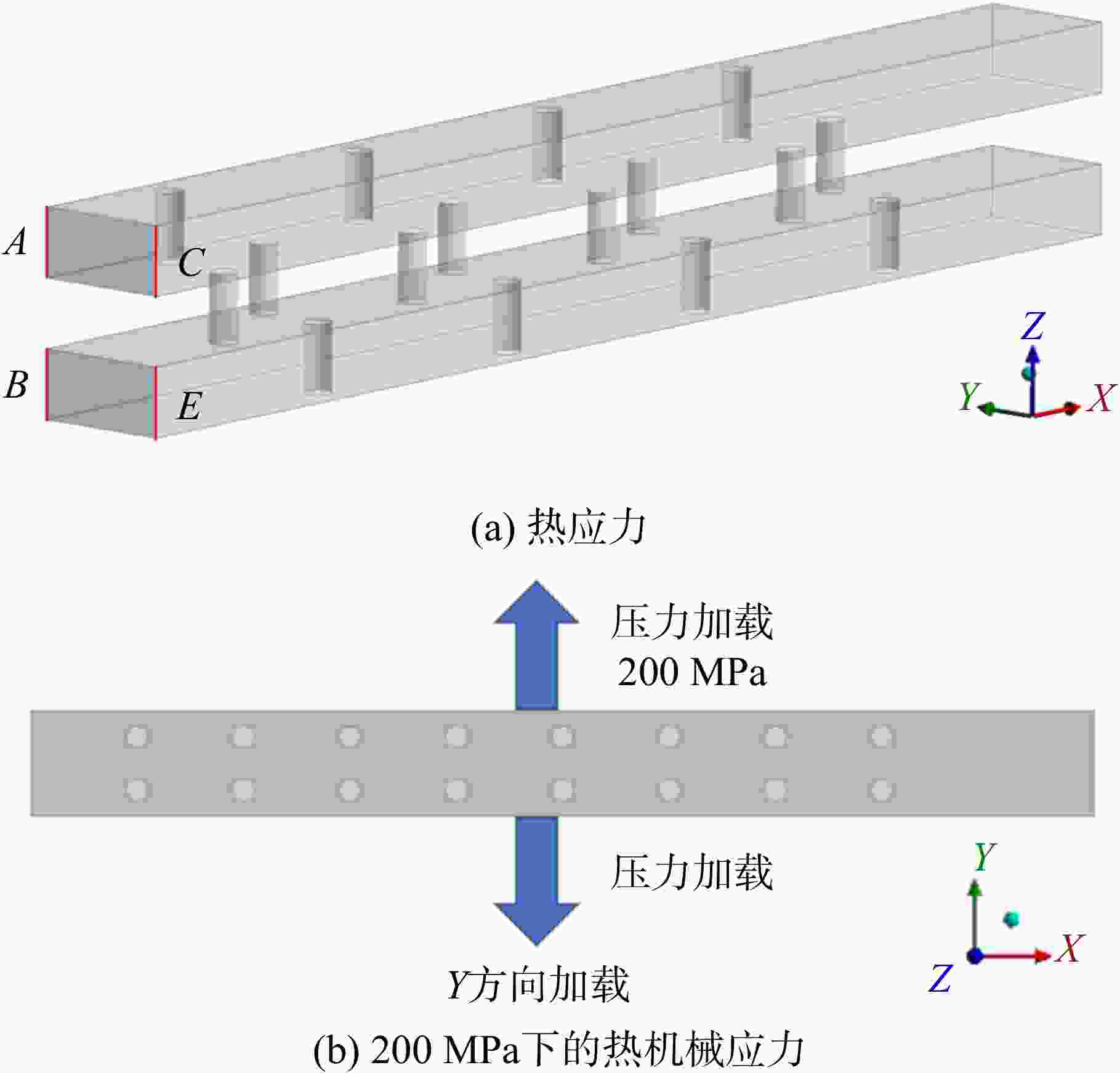

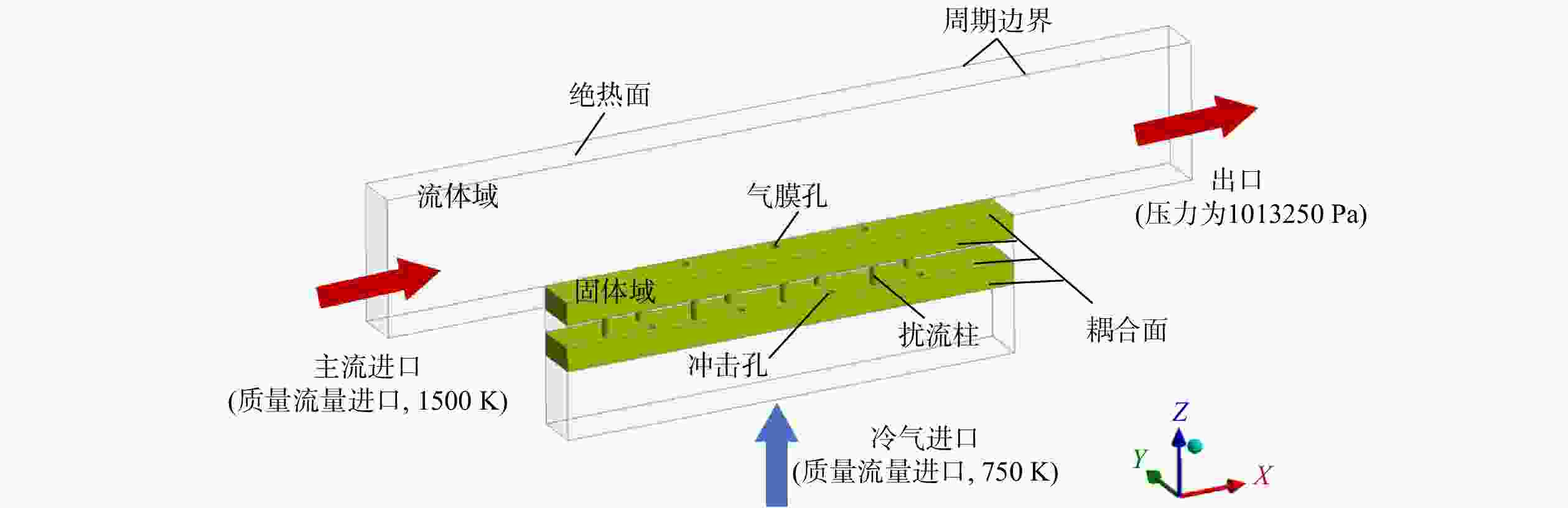

表 2 位移边界条件
Table 2. Displacement boundary condition
位置 位移边界条件 X方向 Y方向 Z方向 线A 0 0 自由端 线B 0 0 自由端 线C 0 0 0 线E 0 0 0
下载: 导出CSV
-
[1] SWEENEY P C, RHODES J F. An infrared technique for evaluating turbine airfoil cooling designs[J]. Journal of Turbomachinery, 2000, 122(1): 170-177. doi: 10.1115/1.555438 [2] UNNIKRISHNAN U, YANG V. A review of cooling technologies for high temperature rotating components in gas turbine[J]. Propulsion and Power Research, 2022, 11(3): 293-310. doi: 10.1016/j.jppr.2022.07.001 [3] MENSCH A, THOLE K A. Overall effectiveness of a blade endwall with jet impingement and film cooling[J]. Journal of Engineering for Gas Turbines and Power, 2014, 136(3): 031901. doi: 10.1115/1.4025835 [4] LIU Xuebin, ZHANG Chao, SONG Liming, et al. Influence of Biot number and geometric parameters on the overall cooling effectiveness of double wall structure with pins[J]. Applied Thermal Engineering, 2021, 198: 117439. doi: 10.1016/j.applthermaleng.2021.117439 [5] 陈冠江. 燃气轮机高温部件冲击-气膜复合冷却研究: 内部流动和传热特性[D]. 上海: 上海交通大学, 2019. CHEN Guanjiang. Study on impingement-film composite cooling of high temperature components of gas turbine-internal flow and heat transfer characteristics[D]. Shanghai: Shanghai Jiao Tong University, 2019. (in ChineseCHEN Guanjiang. Study on impingement-film composite cooling of high temperature components of gas turbine-internal flow and heat transfer characteristics[D]. Shanghai: Shanghai Jiao Tong University, 2019. (in Chinese) [6] WANG Kai, LI Haiwang, ZHU Jianqin. Experimental study of heat transfer characteristic on jet impingement cooling with film extraction flow[J]. Applied Thermal Engineering, 2014, 70(1): 620-629. doi: 10.1016/j.applthermaleng.2014.05.077 [7] WANG Kai, XU Guoqiang, TAO Zhi, et al. Local heat transfer of jet impingement cooling with film extraction flow in a rotating cavity[J]. Journal of Enhanced Heat Transfer, 2011, 18(5): 389-401. doi: 10.1615/JEnhHeatTransf.2011003265 [8] KIM S H, AHN K H, PARK J S, et al. Local heat and mass transfer characteristics for multi-layered impingement/effusion cooling[R]. Montreal, Canada: ASME Turbo Expo 2015: Turbine Technical Conference and Exposition, 2015. [9] KIM K M, MOON H, PARK J S, et al. Optimal design of impinging jets in an impingement/effusion cooling system[J]. Energy, 2014, 66: 839-848. doi: 10.1016/j.energy.2013.12.024 [10] CARTER T J. Common failures in gas turbine blades[J]. Engineering Failure Analysis, 2005, 12(2): 237-247. doi: 10.1016/j.engfailanal.2004.07.004 [11] NGETICH G C, MURRAY A V, IRELAND P T, et al. A three-dimensional conjugate approach for analyzing a double-walled effusion-cooled turbine blade[J]. Journal of Turbomachinery, 2019, 141: 011002. doi: 10.1115/1.4041379 [12] 王湛, 张超, 刘建军. 平板圆孔气膜冷却的热弹耦合分析[J]. 航空动力学报, 2015, 30(6): 1298-1306. WANG Zhan, ZHANG Chao, LIU Jianjun. Thermo-elastic coupling analysis of round-hole flat-plate film-cooling[J]. Journal of Aerospace Power, 2015, 30(6): 1298-1306. (in ChineseWANG Zhan, ZHANG Chao, LIU Jianjun. Thermo-elastic coupling analysis of round-hole flat-plate film-cooling[J]. Journal of Aerospace Power, 2015, 30(6): 1298-1306. (in Chinese) [13] WANG Chen, ZHANG Jingzhou, WANG Chunhua, et al. Geometric-parameter influences on and orthogonal evaluation of thermomechanical performances of a laminated cooling structure[J]. Heat Transfer Research, 2020, 51(1): 57-82. doi: 10.1615/HeatTransRes.2019030676 [14] MURRAY A V, IRELAND P T, RAWLINSON A J. An integrated conjugate computational approach for evaluating the aerothermal and thermomechanical performance of double-wall effusion cooled systems[R]. Charlotte, US: ASME Turbo Expo 2017: Turbomachinery Technical Conference and Exposition, 2017. [15] SKAMNIOTIS C, COCKS A C F. Minimising stresses in double wall transpiration cooled components for high temperature applications[J]. International Journal of Mechanical Sciences, 2021, 189: 105983. doi: 10.1016/j.ijmecsci.2020.105983 [16] SKAMNIOTIS C, COCKS A C F. 2D and 3D thermoelastic phenomena in double wall transpiration cooling systems for gas turbine blades and hypersonic flight[J]. Aerospace Science and Technology, 2021, 113: 106610. doi: 10.1016/j.ast.2021.106610 [17] 《航空发动机设计用材料数据手册》编委会. 航空发动机设计用材料数据手册: 第四册[M]. 北京: 航空工业出版社, 2010. [18] ZHANG Chao, WANG Wenzhuang, WANG Zhan, et al. Conjugate heat transfer simulation of overall cooling performance for cratered film cooling holes[J]. Machines, 2022, 10(5): 395. doi: 10.3390/machines10050395 [19] NAKAMATA C, MIMURA F, MATSUSHITA M, et al. Local cooling effectiveness distribution of an integrated impingement and pin fin cooling configuration[R]. Montreal, Canada: ASME Turbo Expo 2007: Power for Land, Sea, and Air, 2007. [20] LIU Yuyang, RAO Yu, YANG Li. Numerical simulations of a double-wall cooling with internal jet impingement and external hexagonal arrangement of film cooling holes[J]. International Journal of Thermal Sciences, 2020, 153: 106337. doi: 10.1016/j.ijthermalsci.2020.106337 [21] LI Haiwang, ZHANG Dawei, YOU Ruquan, et al. Numerical investigation of the effects of the hole inclination angle and blowing ratio on the characteristics of cooling and stress in an impingement/effusion cooling system[J]. Energies, 2023, 16(2): 937. doi: 10.3390/en16020937 [22] PANDA R K, PRASAD B V S S S. Conjugate heat transfer from a flat plate with combined impingement and film cooling[R]. Copenhagen, Denmark: ASME Turbo Expo 2012: Turbine Technical Conference and Exposition, 2012. -
