基于RBF神经网络的旋翼桨叶气动外形优化

王清; 陆波; 王亮权

doi:10.13224/j.cnki.jasp.20240182

基于RBF神经网络的旋翼桨叶气动外形优化

doi: 10.13224/j.cnki.jasp.20240182

1.
兰州理工大学能源与动力工程学院，兰州 730050
2.
中国空气动力研究与发展中心旋翼空气动力学重点实验室，四川绵阳 621000

基金项目: 中国空气动力研究与发展中心旋翼空气动力学重点实验室研究开放课题（RAL202201）；兰州理工大学红柳优秀青年人才支持计划（2022）

详细信息

作者简介:
王清（1986-），男，副教授，博士，研究方向为旋翼空气动力学。E-mail：wangqing_lut@foxmail.com

中图分类号: V211.3
计量
- 文章访问数: 416
- HTML浏览量: 340
- PDF量: 30
- 被引次数: 0
出版历程
- 收稿日期: 2024-03-27
- 网络出版日期: 2025-10-13

Rotor blade aerodynamic shape optimization based on RBF neural network

1.
College of Energy and Power Engineering，Lanzhou University of Technology，Lanzhou 730050，China
2.
Key Laboratory of Rotor Aerodynamics，China Aerodynamics Research and Development Center，Mianyang Sichuan 621000，China

摘要

摘要:
良好的直升机旋翼桨叶气动外形能有效提高旋翼的气动性能，但复杂桨叶外形具有多自由度、高度非线性的特点，传统的梯度优化算法容易陷入局部最优陷阱。针对这类问题，结合RBF神经网络方法、遗传算法和CFD方法，建立了适用于直升机悬停状态下的旋翼桨叶气动外形优化设计方法，可在较小计算量的同时获得全局优化结果。在此基础上，针对Helishape 7A旋翼桨叶外形开展了气动外形优化设计研究。优化桨叶具有前-后掠组合的形式，数值计算结果表明在相同的拉力系数下转矩系数减小了3.81%，因此优化旋翼的悬停效率得到了有效地提升，最大悬停效率提高了3.99%，表明采用优化桨叶的旋翼具有更好的悬停性能，能够有效提升直升机的起飞载重。
- 神经网络 /
- 直升机 /
- 旋翼 /
- 气动外形优化 /
- 计算流体力学
Abstract:
A good aerodynamic profile of a helicopter rotor blade can effectively improve its aerodynamic performance, but complex blade profiles are characterized by many degrees of freedom and high nonlinearity, so the traditional gradient optimization algorithm is vunerable to fall into the local optimal trap. To solve these problems, an optimal design method of rotor blade aerodynamic profile was established by combining RBF neural network method, genetic algorithm and computation fluid dynamics (CFD) method, which can obtain global optimization results in a small amount of computation. On this basis, the aerodynamic shape optimization design of Helishape 7A rotor blade was studied. The optimized blade had the form of front-sweep combination. The numerical calculation results showed that the torque coefficient was reduced by 3.81% under the same tension coefficient, so the hover efficiency of the optimized rotor was effectively improved, and the maximum hover efficiency was increased by 3.99%, indicating that the rotor with optimized blade had better hover performance and can effectively improve the takeoff load of the helicopter.
- neural network /
- helicopter /
- rotor /
- aerodynamic shape optimization /
- computation fluid dynamics

HTML

图 1 RBF神经网络拓扑结构

Figure 1. Topology of RBF neural network

下载: 全尺寸图片幻灯片

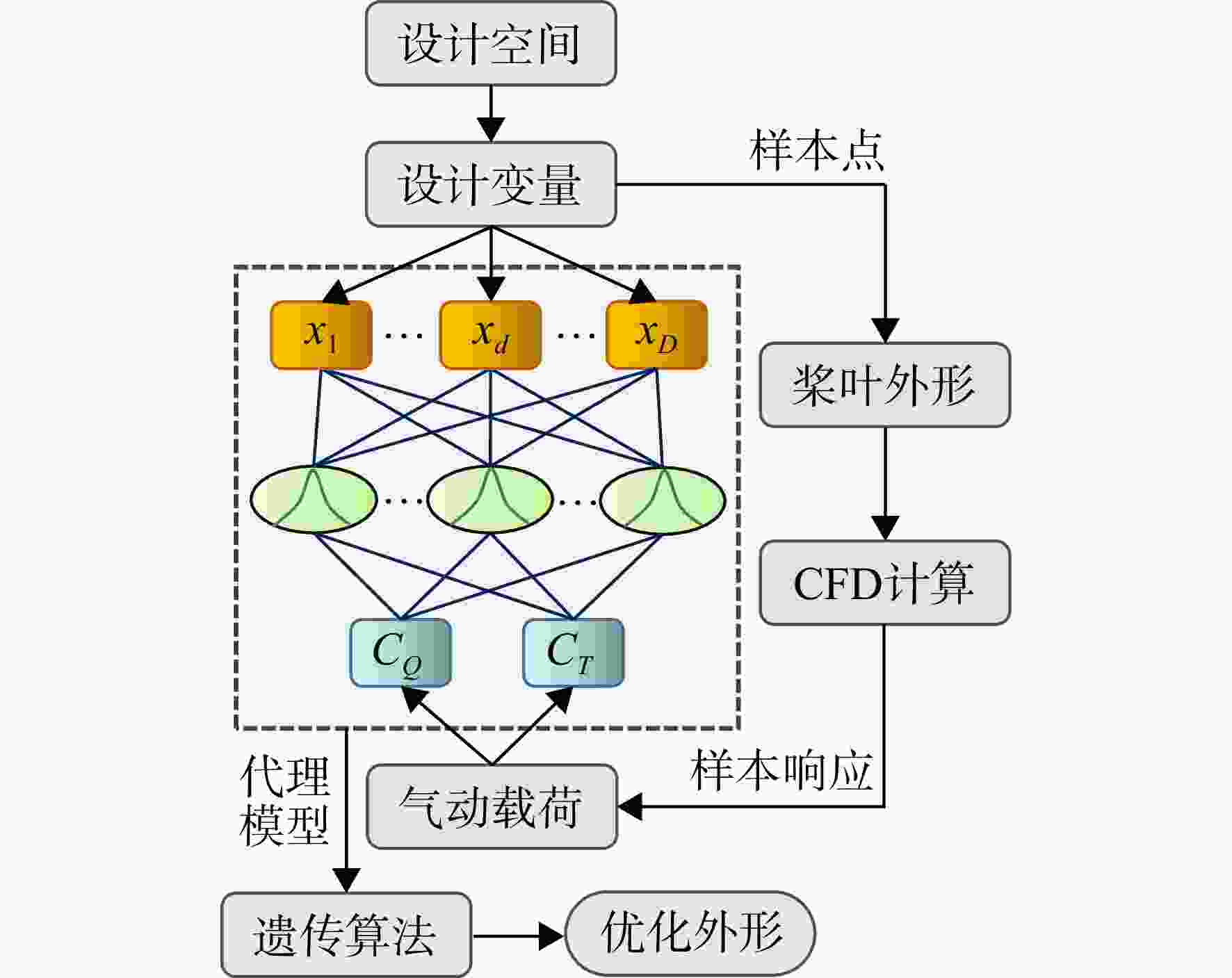

图 2 基于RBF神经网络的优化设计框架

Figure 2. Optimization design framework based on RBF neural network

下载: 全尺寸图片幻灯片

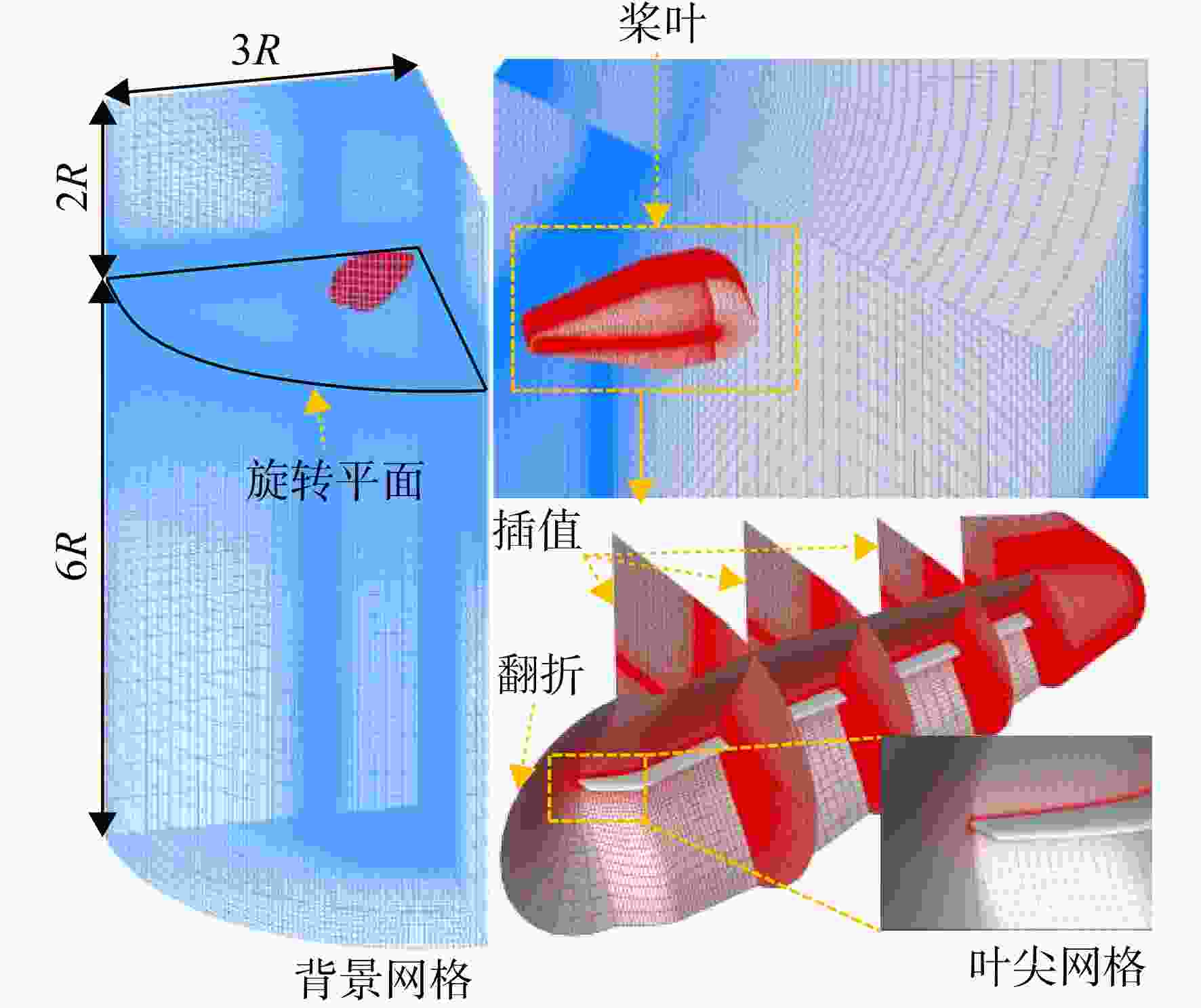

图 3 运动嵌套网格系统

Figure 3. Moving embedded mesh system

下载: 全尺寸图片幻灯片

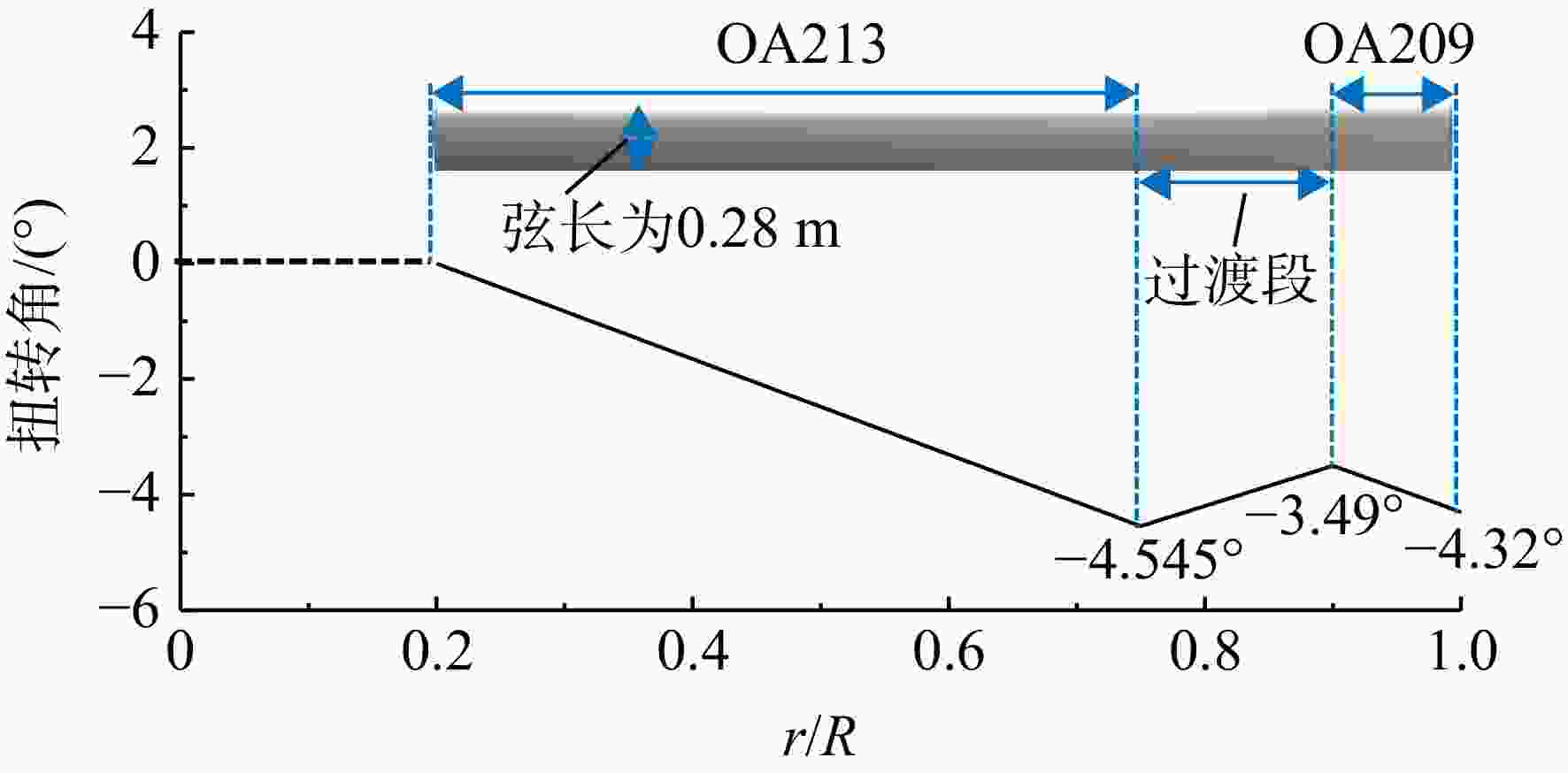

图 4 Helishape 7A旋翼桨叶外形

Figure 4. Rotor blade profile of Helishape 7A

下载: 全尺寸图片幻灯片

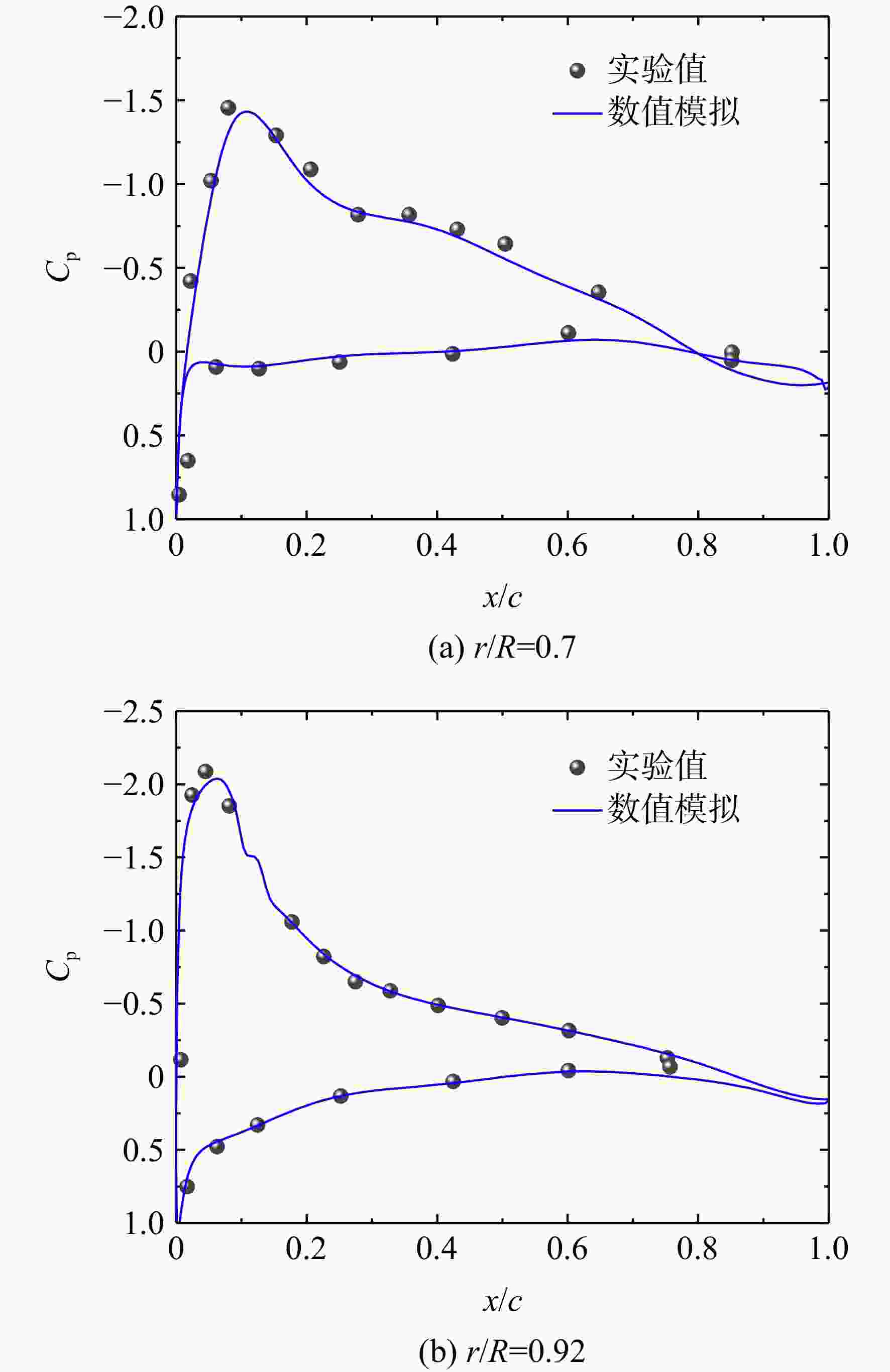

图 5 Helishape 7A桨叶不同剖面位置处的压强系数对比

Figure 5. Comparison of C_p at different profile positions of Helishape 7A blades

下载: 全尺寸图片幻灯片

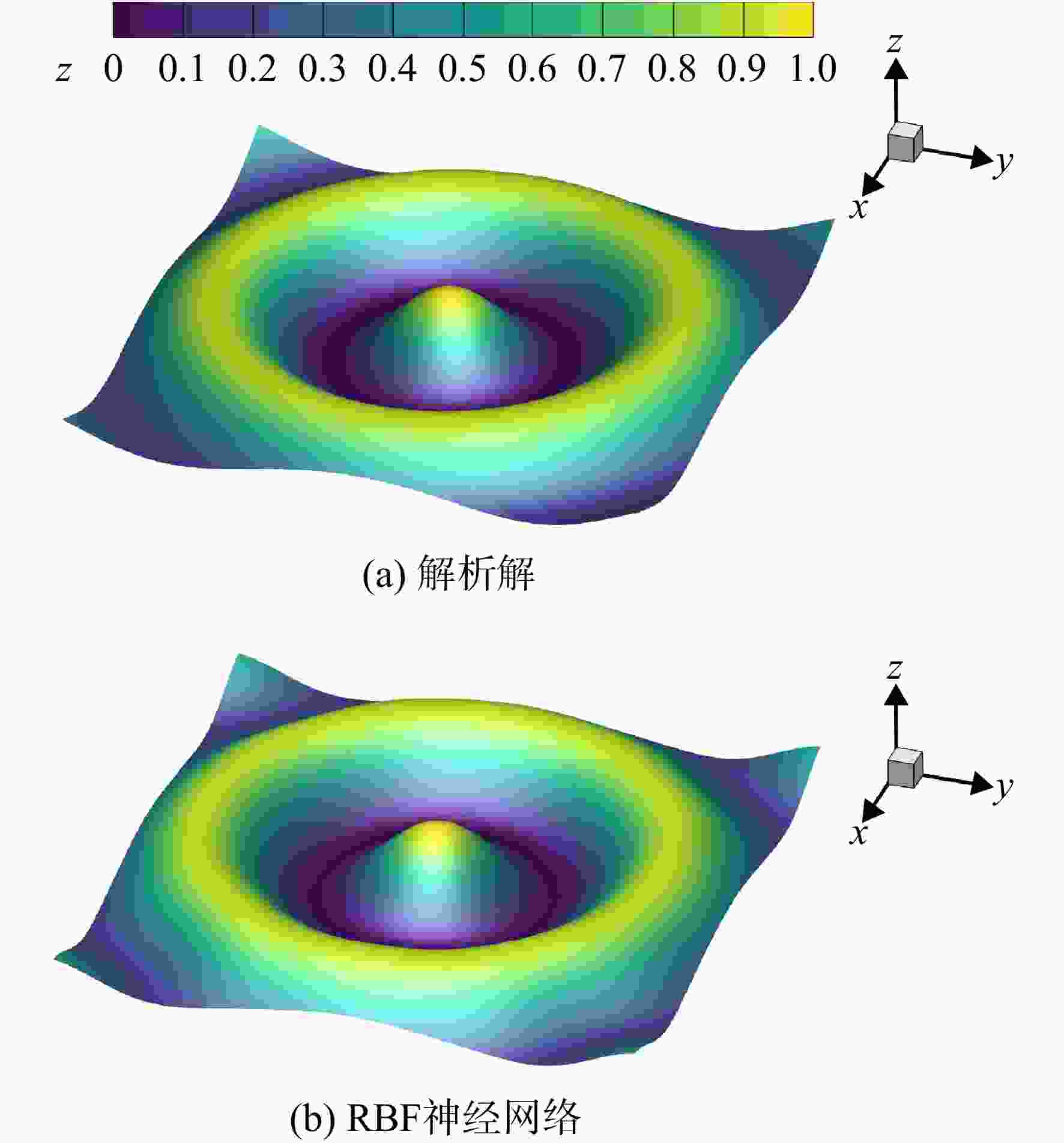

图 6 RBF神经网络函数拟合

Figure 6. Function fitting of RBF neural network

下载: 全尺寸图片幻灯片

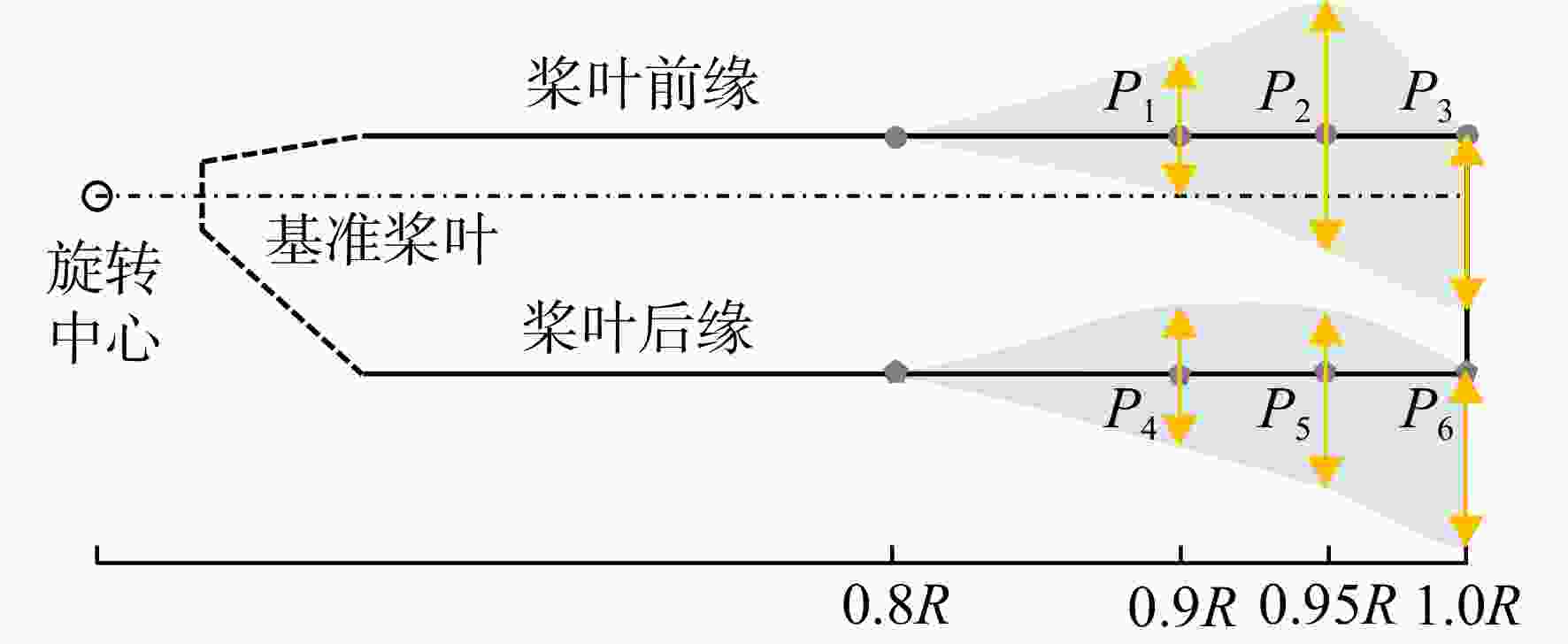

图 7 桨叶前、后缘设计空间

Figure 7. Design space in leading and trailing edge

下载: 全尺寸图片幻灯片

图 8 RBF神经网络回归分析

Figure 8. Regression analysis of RBF neural network

下载: 全尺寸图片幻灯片

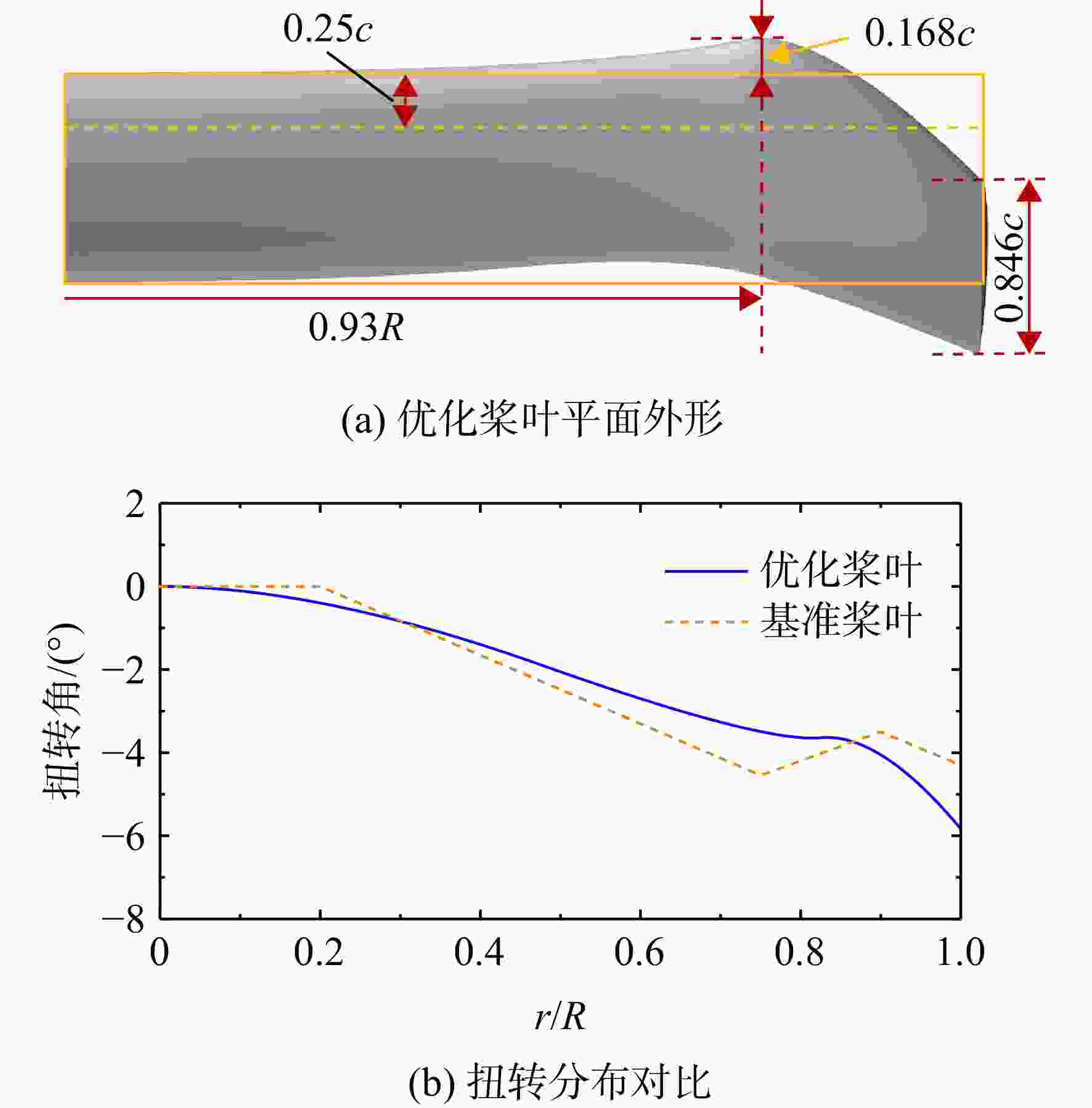

图 9 旋翼桨叶优化结果

Figure 9. Rotor blade optimization results

下载: 全尺寸图片幻灯片

图 10 优化旋翼及基准旋翼气动特性对比

Figure 10. Comparison of aerodynamic characteristics between the optimized and baseline rotor

下载: 全尺寸图片幻灯片

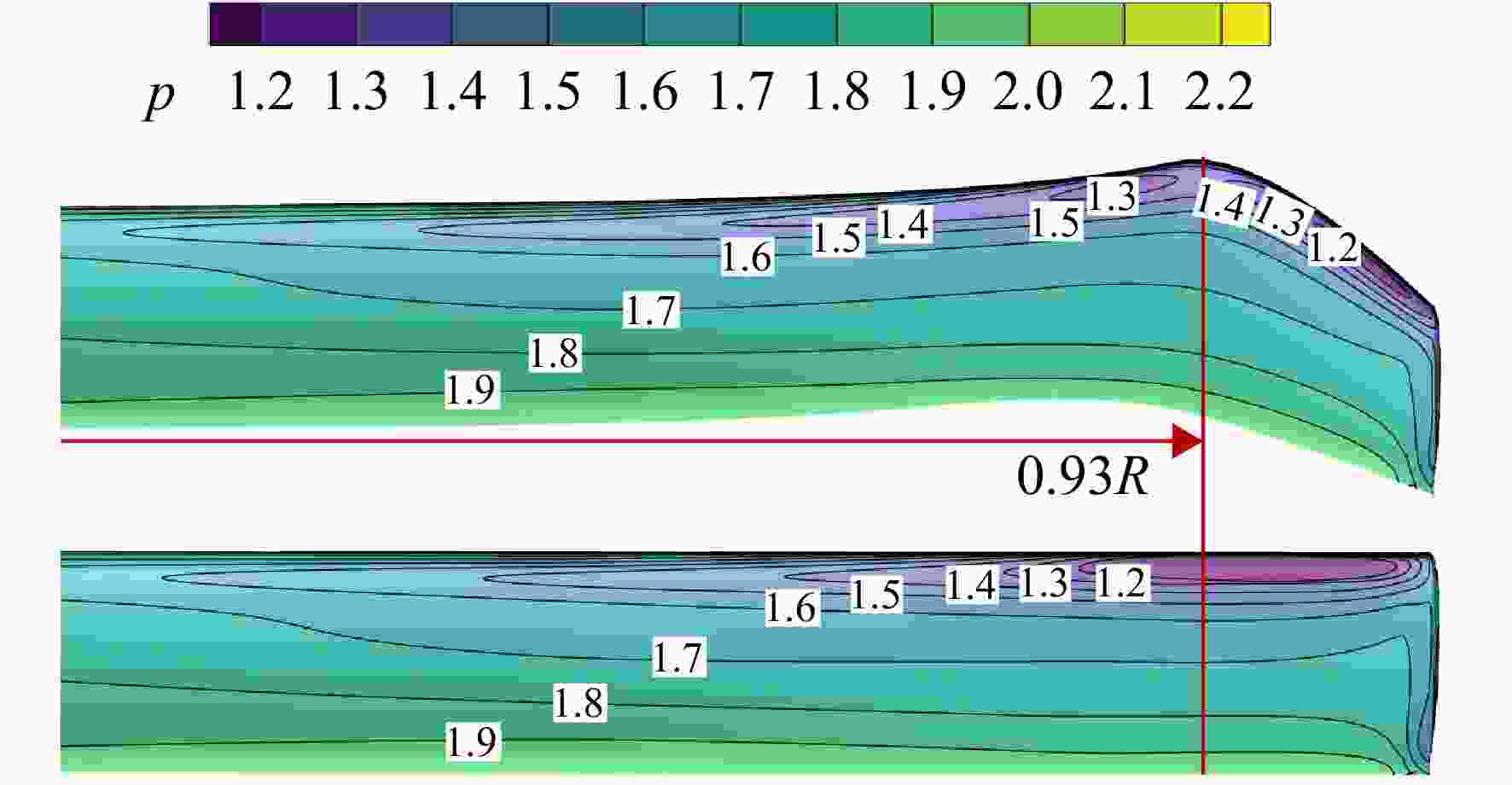

图 11 不同桨叶压强分布对比（C_T=0.00789）

Figure 11. Comparison of pressure distribution of different blades （C_T=0.00789）

下载: 全尺寸图片幻灯片

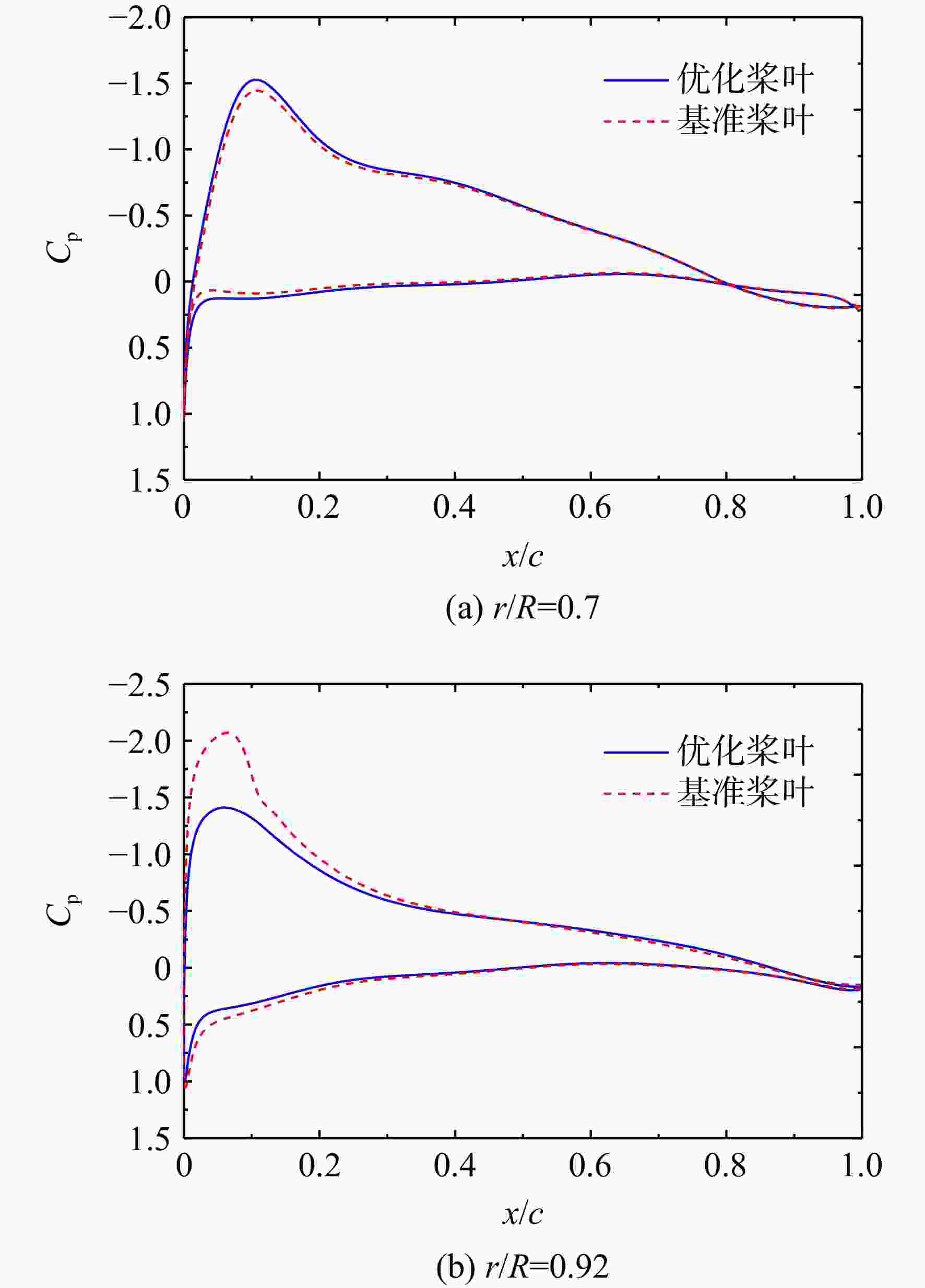

图 12 优化桨叶及基准桨叶压强系数对比（C_T=0.00789）

Figure 12. Comparison of C_p between the optimized and baseline blade （C_T=0.00789）

下载: 全尺寸图片幻灯片

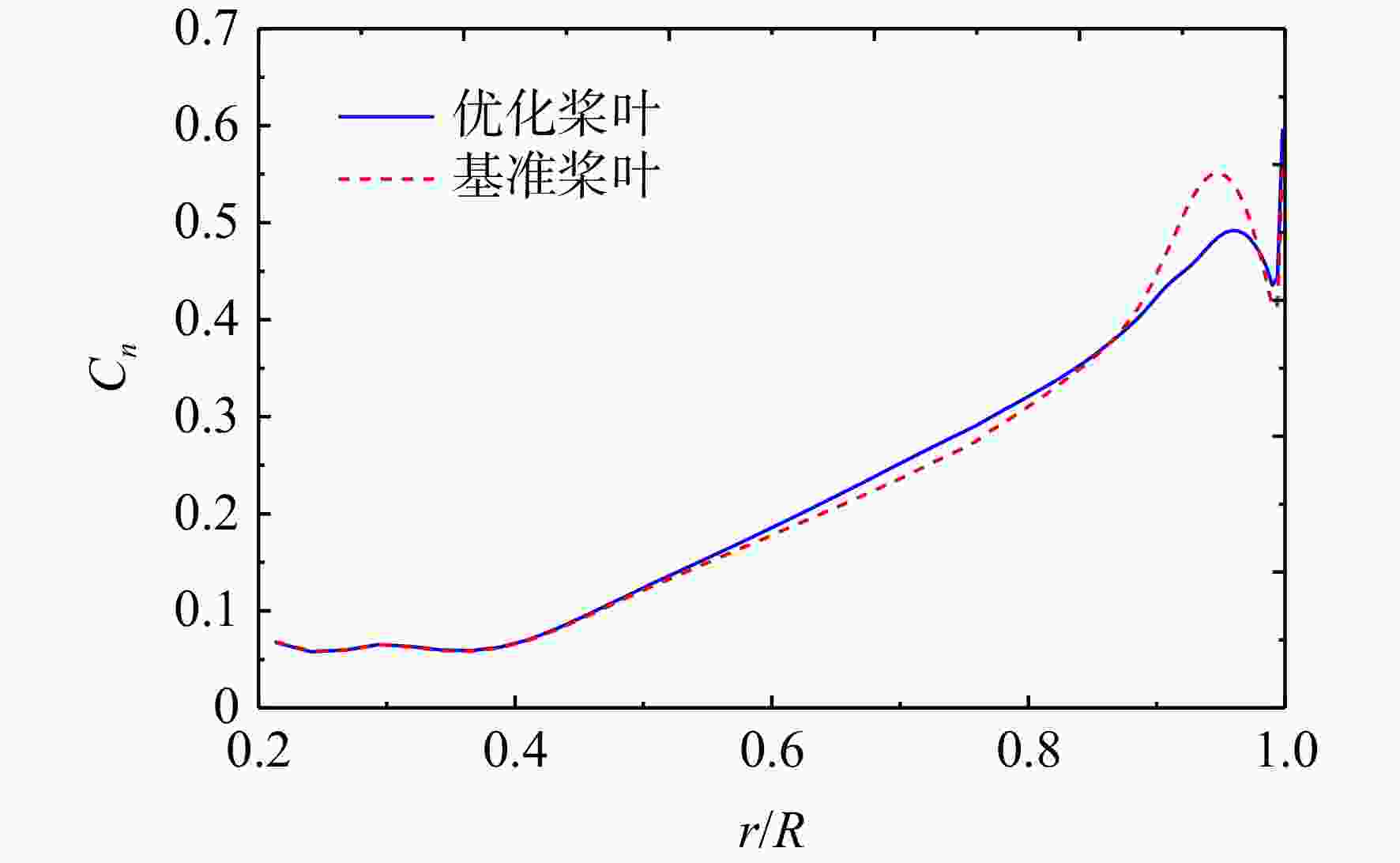

图 13 不同旋翼桨叶的法向力系数分布对比（C_T=0.00789）

Figure 13. Comparison of C_n distribution of different rotor blades （C_T=0.00789）

下载: 全尺寸图片幻灯片

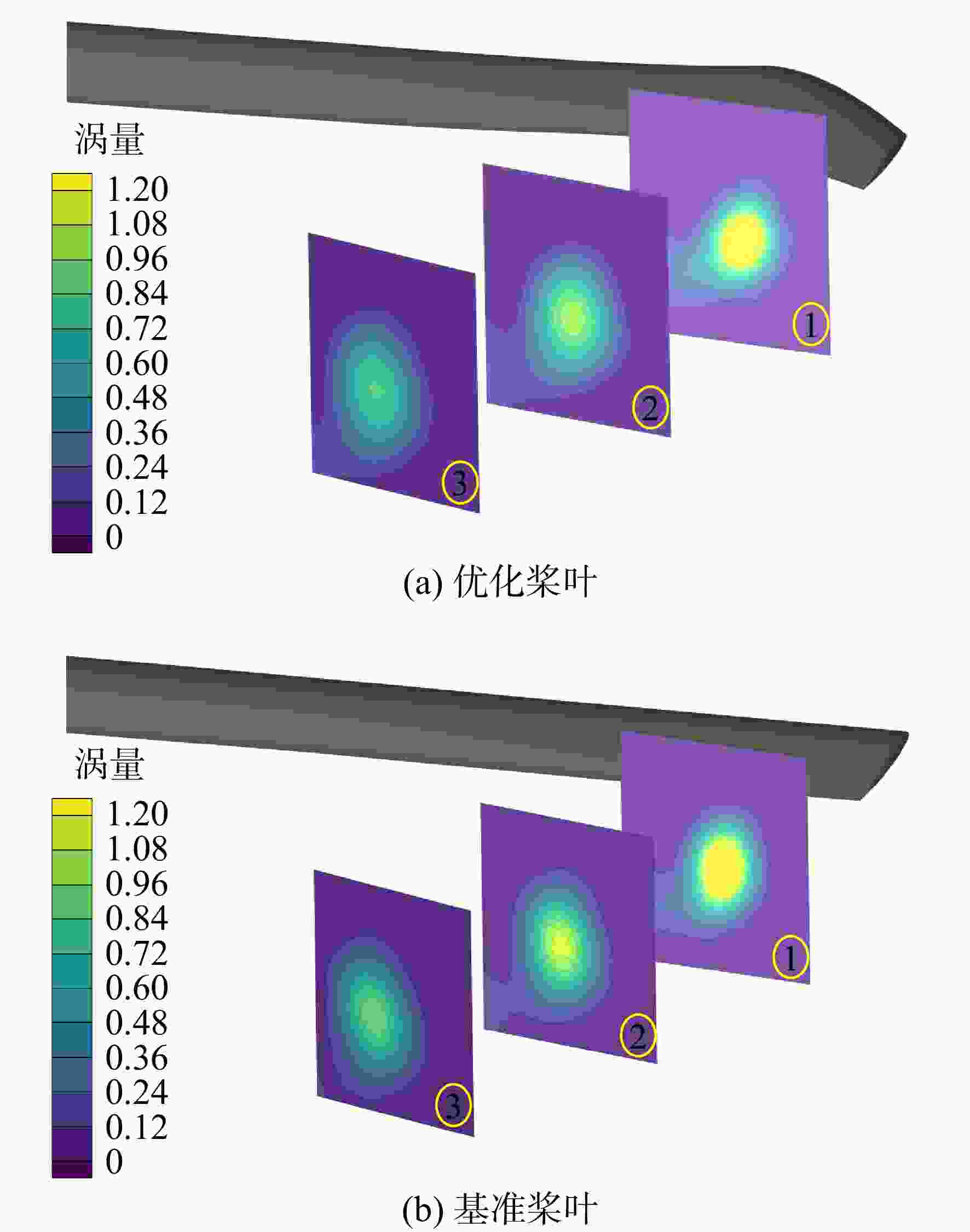

图 14 不同旋翼桨尖涡的对比

Figure 14. Comparison of blade tip vortex between different rotors

下载: 全尺寸图片幻灯片

表 1 遗传算法参数设置

Table 1. Parameter setting of GA

参数	数值
交叉概率	0.9
变异概率	0.05
种群规模	100000
进化代数	100

下载: 导出CSV

表 2 设计变量取值范围

Table 2. Range of design variable

设计变量	展向位置	上边界	下边界
P₁	0.9R	0.25c	−0.25c
P₂	0.95R	0.5c	−0.5c
P₃	1.0R	0	−0.75c
P₄	0.9R	0.25c	−0.25c
P₅	0.95R	0.25c	−0.5c
P₆	1.0R	0	−0.75c
n₁	0.75R	2.0°	−4.0°
n₂	0.9R	2.0°	−5.0°
n₃	1.0R	3.0°	−6.0°

下载: 导出CSV

表 3 优化桨叶与基准桨叶气动载荷特性对比

Table 3. Comparison of aerodynamic load characteristics between optimized blade and baseline blade

桨叶类型	F_m	C_T/10⁻³	C_Q/10⁻⁴
优化桨叶	0.751	7.87	6.57
基准桨叶	0.726	7.89	6.83

下载: 导出CSV
