Study on heat transfer of jets from twin nozzles impinging on high-speed rotating disk
-
摘要:
为了分析射流温度、圆盘转速、射流流量和盘面温度对旋转圆盘传热的影响规律，采用数值模拟方法研究了双喷口滑油射流冲击高速旋转圆盘的两相流动及传热特性。结果表明：射流温度从323 K升高到423 K，使得面平均努塞尔数增大了28.54%；当盘面转速由
4000 r/min提高到10000 r/min时，面平均努塞尔数随着转速的提升减小了10.61%，但转速对有效传热面积的影响是有限的，故在12000 r/min的工况下面平均努塞尔数回升；射流流量的增大有效提高了圆盘上油膜的流速，随着射流流量由0.5 L/min增大到2.5 L/min，面平均努塞尔数增大152.06%；随着盘面温度由423 K升高到723 K，使得圆盘表面同一位置的传热效果明显增强，面平均努塞尔数增大117.34%。最后，基于射流雷诺数、旋转雷诺数和普朗特数，建立了面平均努塞尔数的无量纲关联式。Abstract:To analyze the influences of jet temperature, disk rotating speed, jet flow and disk temperature on the heat transfer of rotating disk, the two-phase flow and heat transfer characteristics of the lubricating oil jets from the twin nozzles impinging on a high-speed rotating disk were studied by numerical simulation. The results showed that the jet temperature increased from 323 K to 423 K, which increased the average Nusselt number by 28.54%. When the rotational speed of the disk surface increased from 4 000 r/min to 10 000 r/min, the average Nusselt number of the surface decreased by 10.61% with the increase of the rotational speed, but the influence of the rotational speed on the effective heat transfer area was limited. Therefore, the average Nusselt number rose again under the condition of 12 000 r/min. The increase of the jet flow rate effectively increased the flow rate of the oil film on the disc. As the jet flow rate increased from 0.5 L/min to 2.5 L/min, the average Nusselt number increased by 152.06%. As the temperature of the disk surface increased from 423 K to 723 K, the heat transfer effect at the same position on the disk surface was significantly enhanced, and the average Nusselt number on the surface increased by 117.34%. Finally, based on the jet Reynolds number, rotational Reynolds number and Prandtl number, the dimensionless correlation of the surface average Nusselt number was established.
-
Key words:
- impinging jet /
- convective heat transfer /
- two-phase flow /
- rotating disk /
- oil film
-

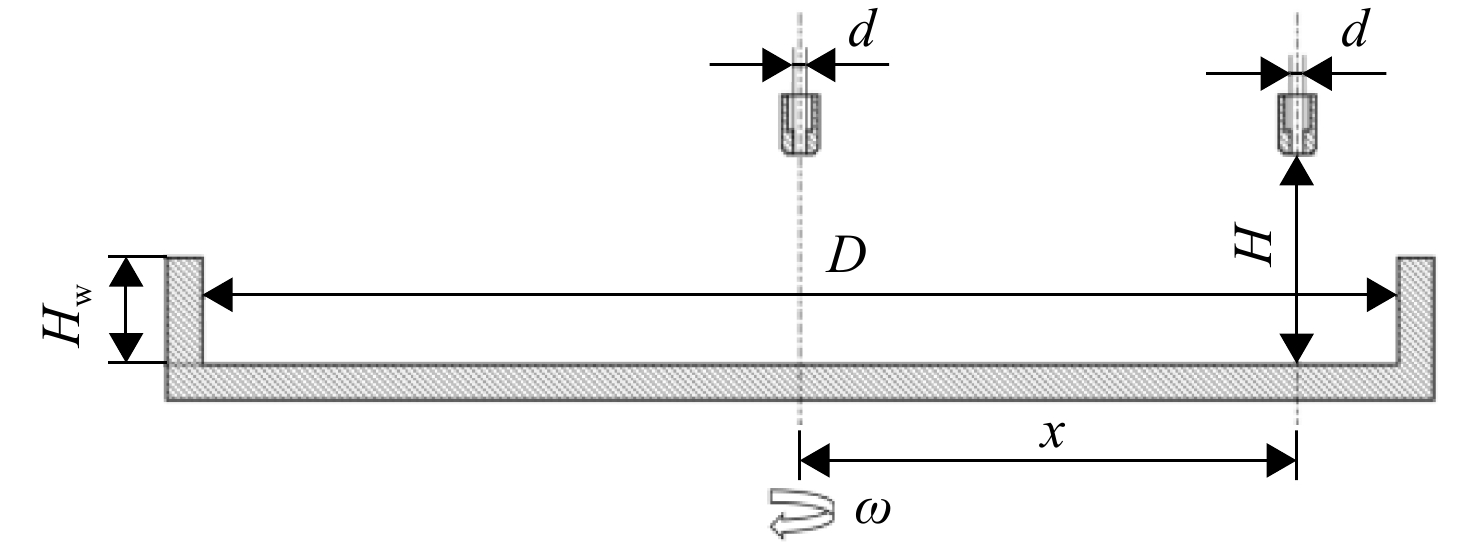

图 1 双喷口射流冲击高速旋转圆盘示意图
Figure 1. Schematic diagram of the jets from the twin nozzles impinging on a high-speed rotating disk

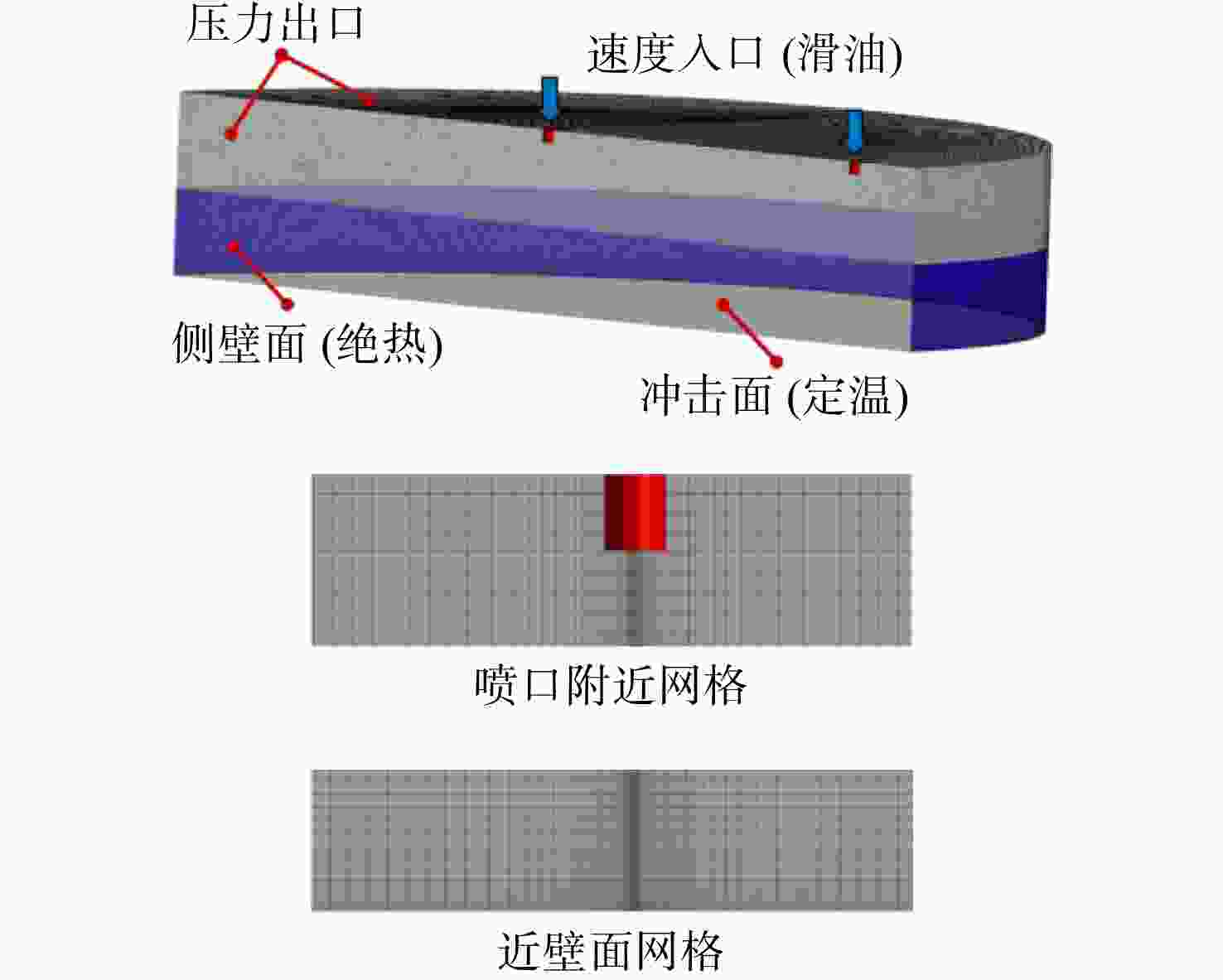

图 2 三维计算域及网格细节
Figure 2. Three-dimensional numerical calculation domain and detail of the grids

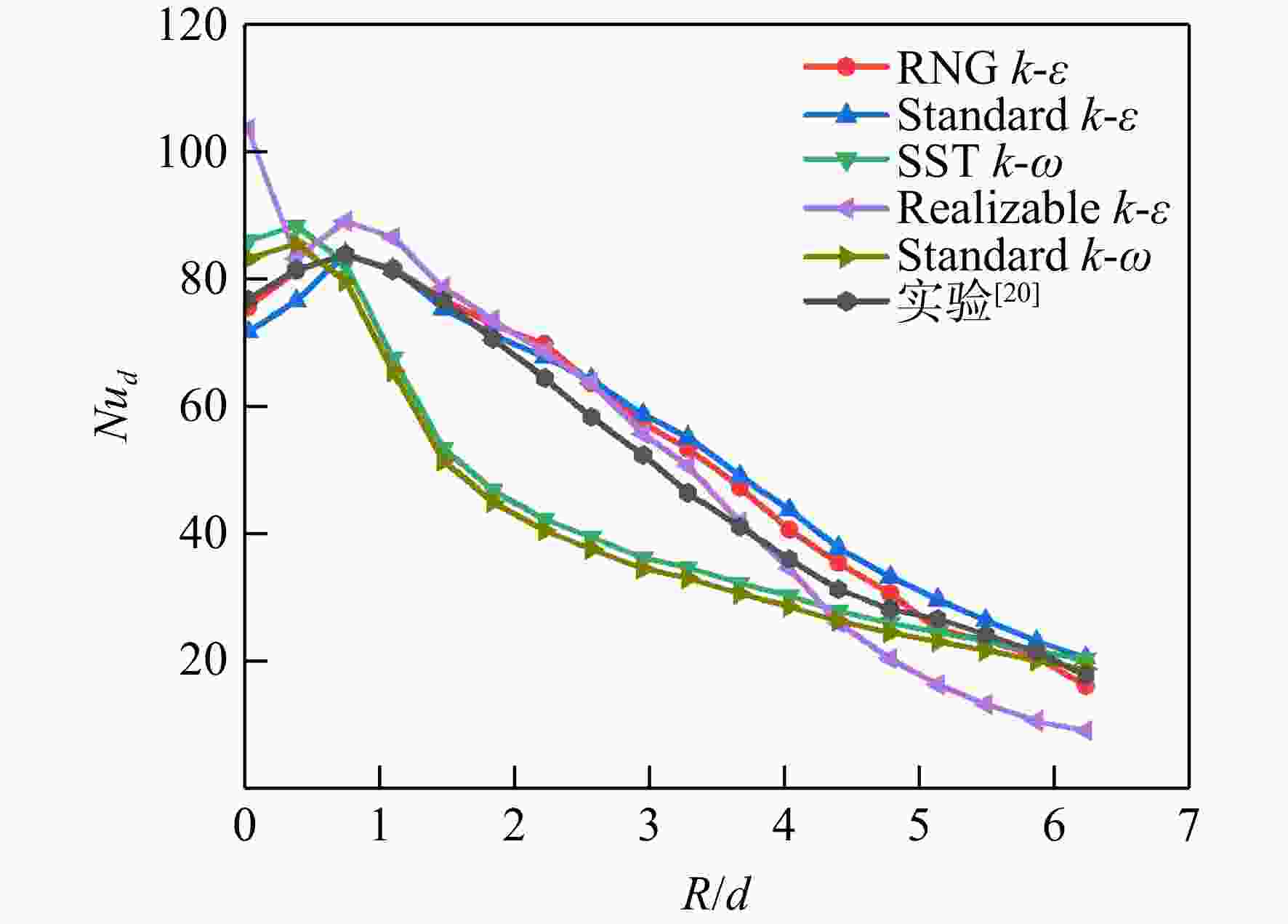

图 3 周向平均努塞尔数的实验与数值计算结果
Figure 3. Experimental and numerical results of circumferential average Nusselt numbers

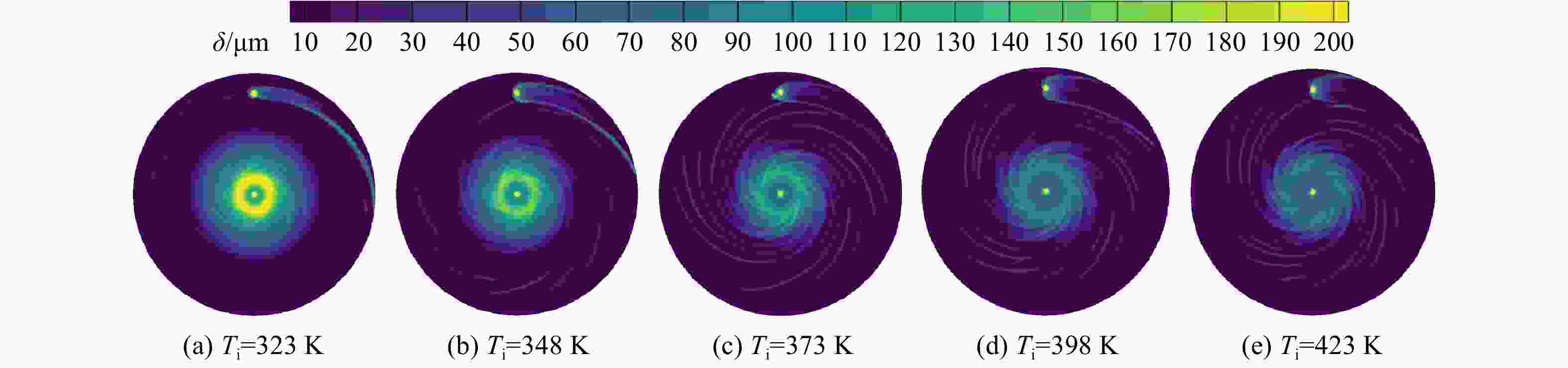

图 4 不同射流温度下盘面油膜厚度分布
Figure 4. Oil film thickness distribution on the disk surface at different jet temperatures

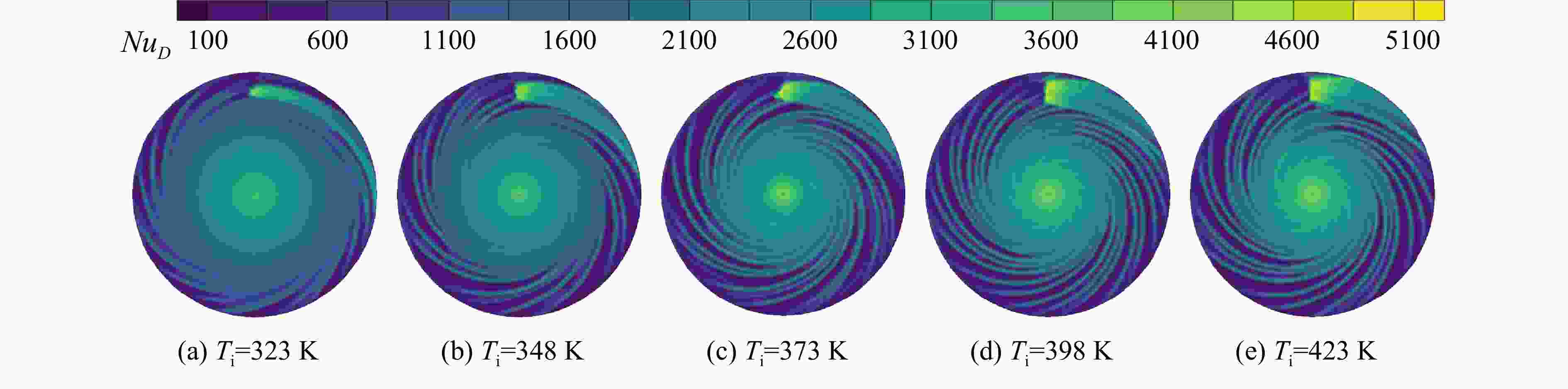

图 5 不同射流温度下盘面努塞尔数分布
Figure 5. Nusselt number distribution on the disk surface at different jet temperatures

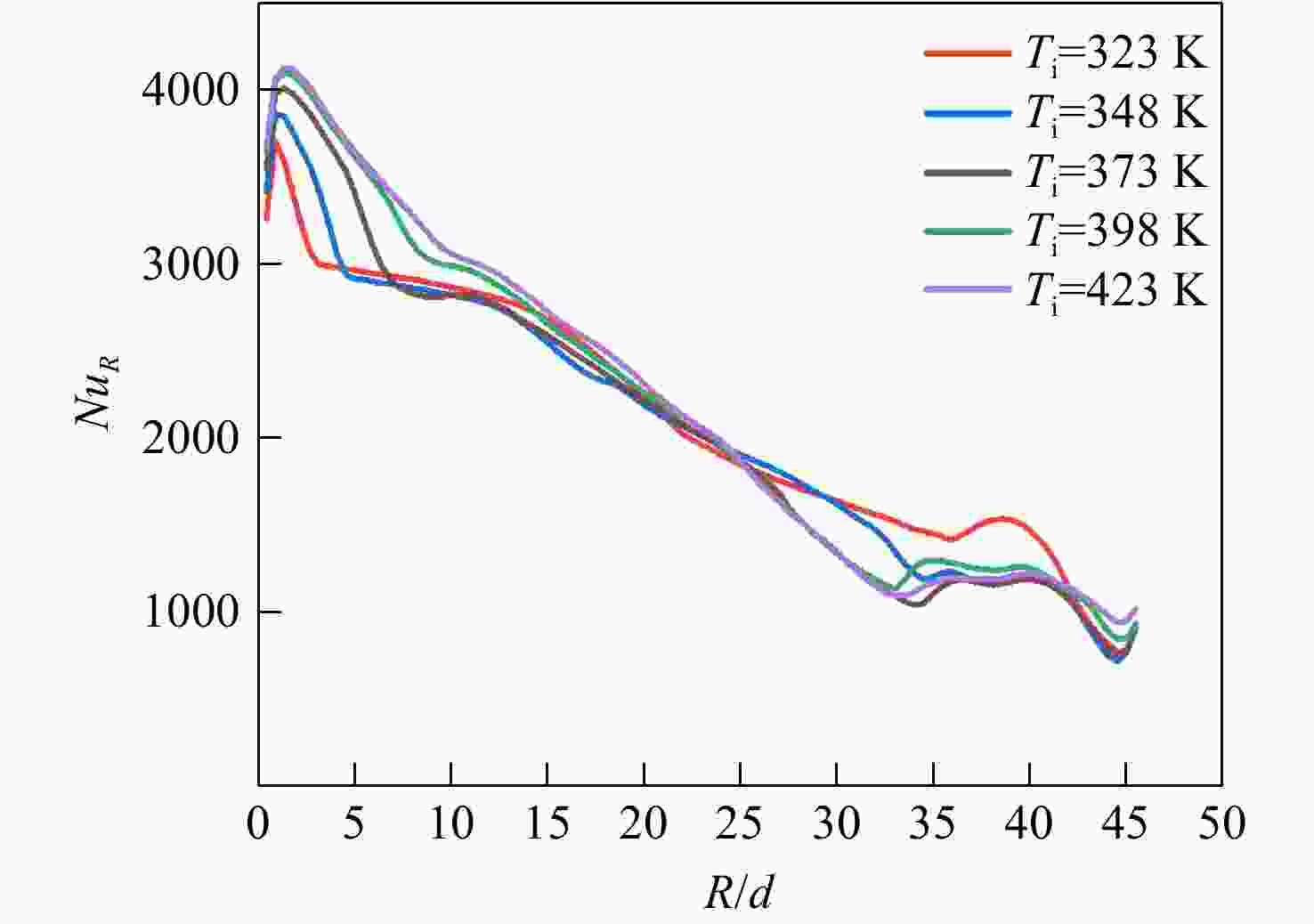

图 6 不同射流温度下周向平均努塞尔数径向分布
Figure 6. Radial distribution of the circumferential average Nusselt number at different jet temperatures

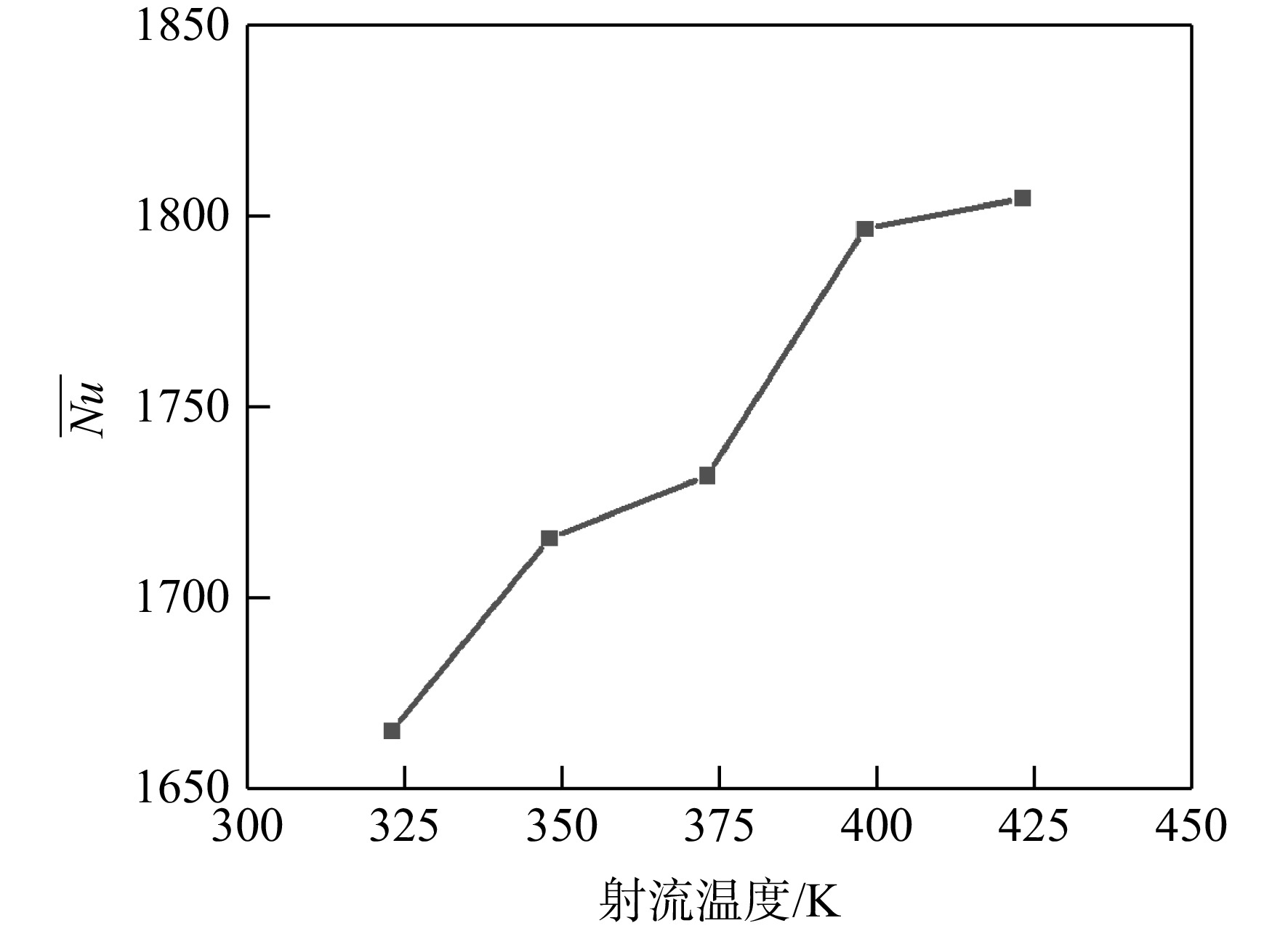

图 7 面平均努塞尔数随射流温度变化
Figure 7. Average Nusselt number of the surface with jet temperatures

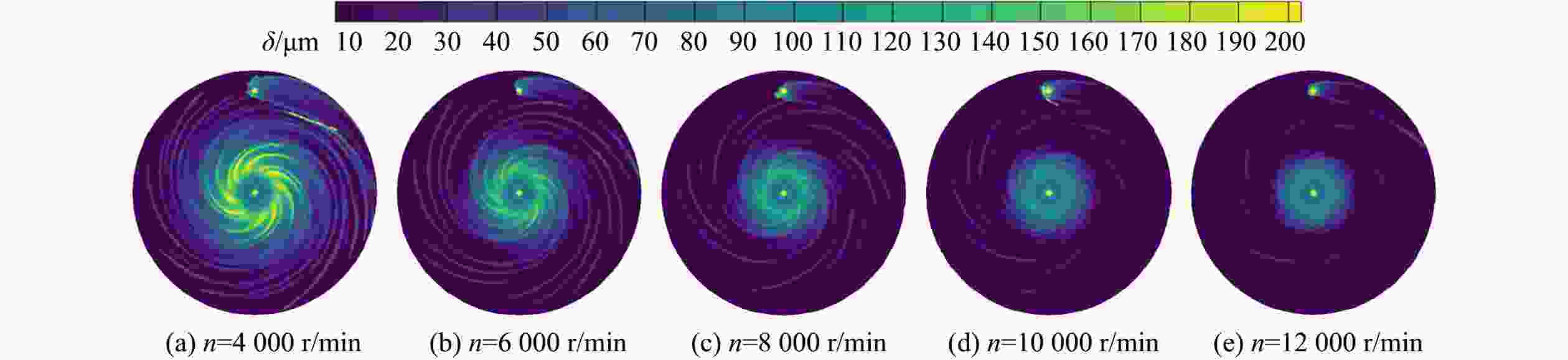

图 8 不同转速下盘面油膜厚度分布
Figure 8. Oil film thickness distribution on the disk surface at different rotating speeds

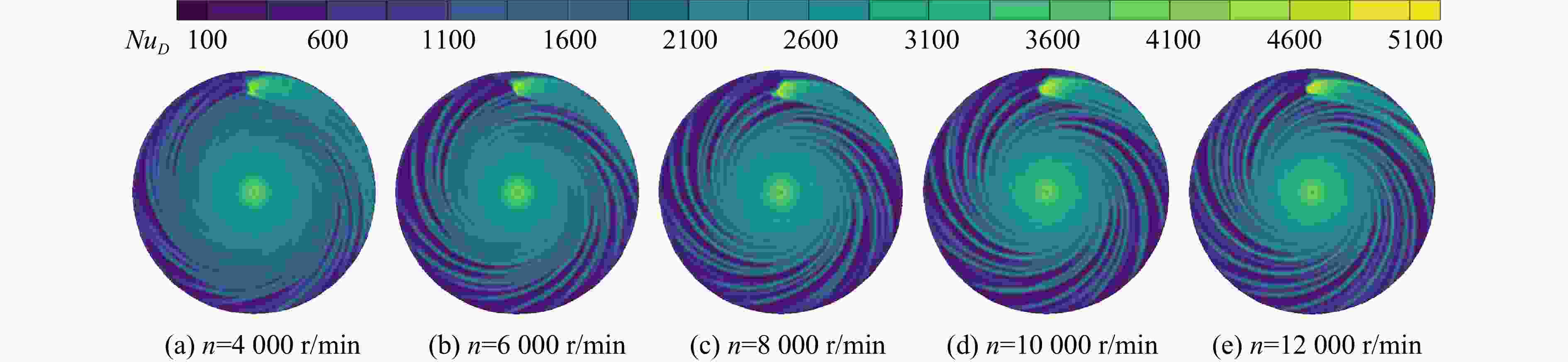

图 9 不同转速下盘面努塞尔数分布
Figure 9. Nusselt number distribution on the disk surface at different rotating speeds

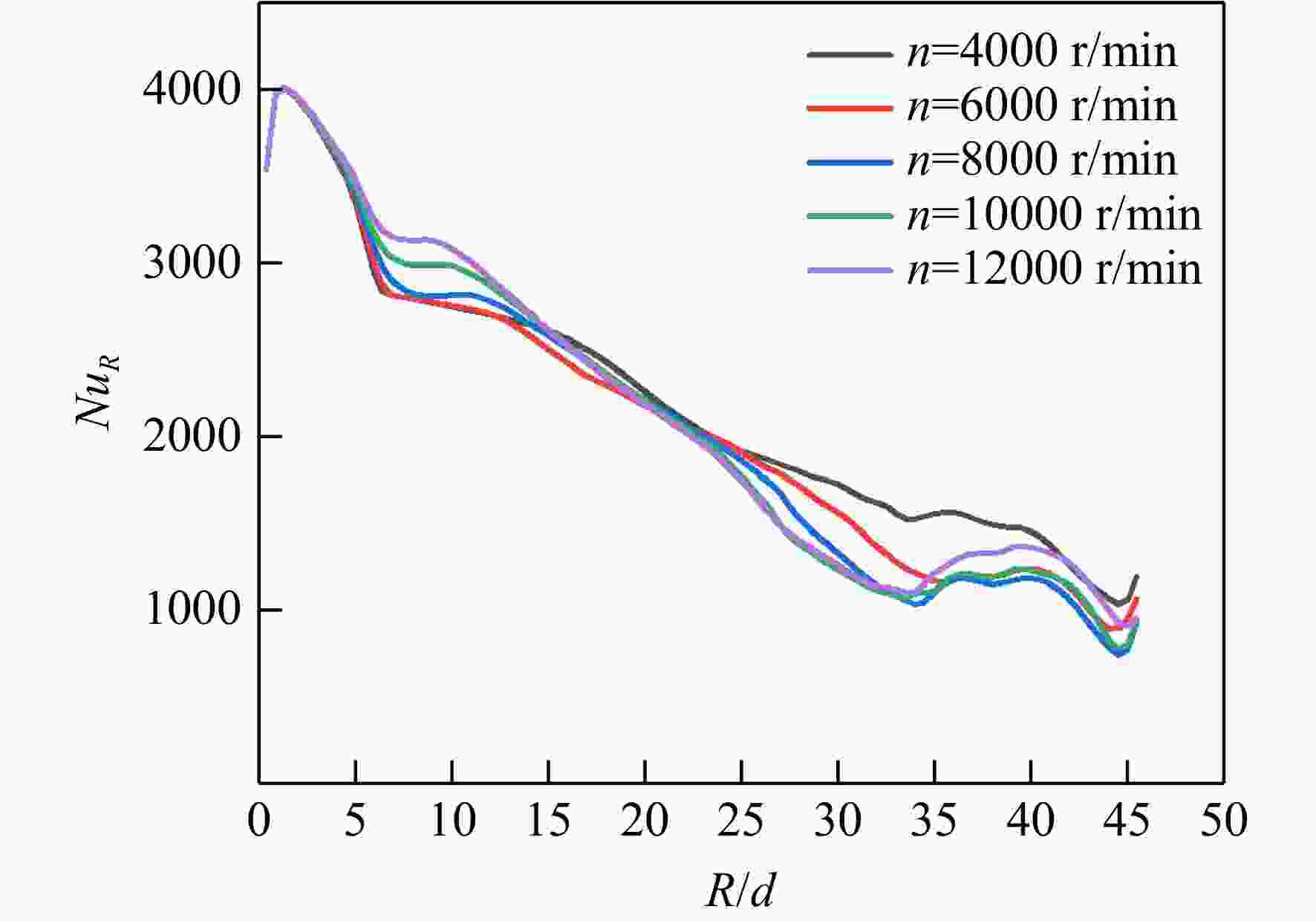

图 10 不同转速下周向平均努塞尔数径向变化
Figure 10. Radial distribution of the circumferential average Nusselt number at different rotating speeds

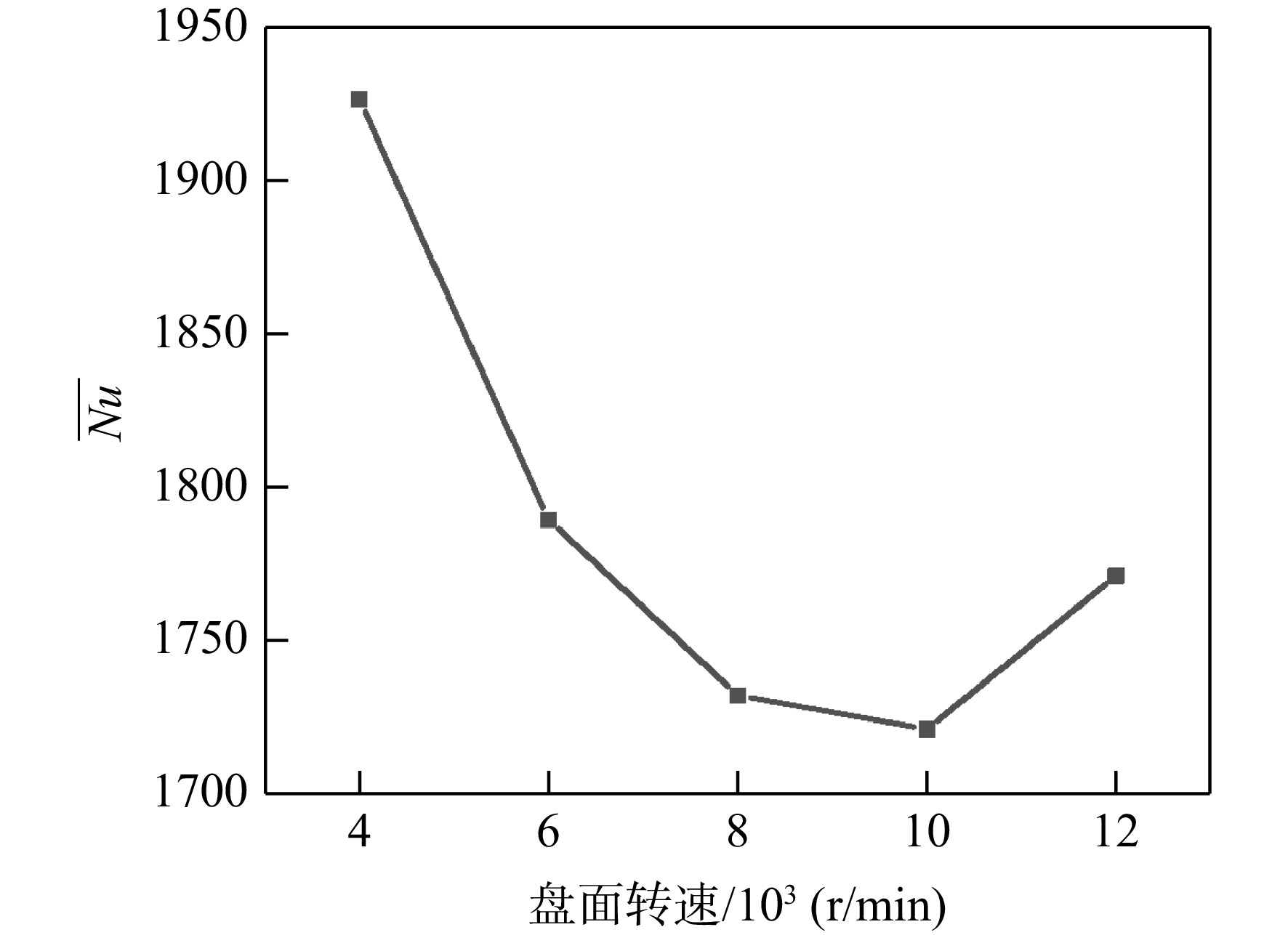

图 11 面平均努塞尔数随转速变化
Figure 11. Average Nusselt number of the surface with rotating speeds

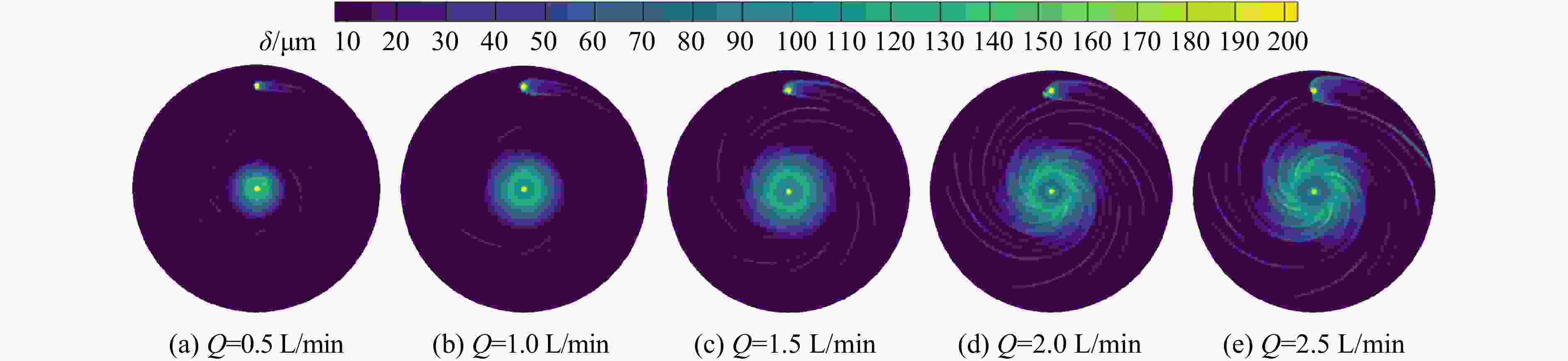

图 12 不同流量下盘面油膜厚度
Figure 12. Oil film thickness distribution on the disk surface at different jet flows

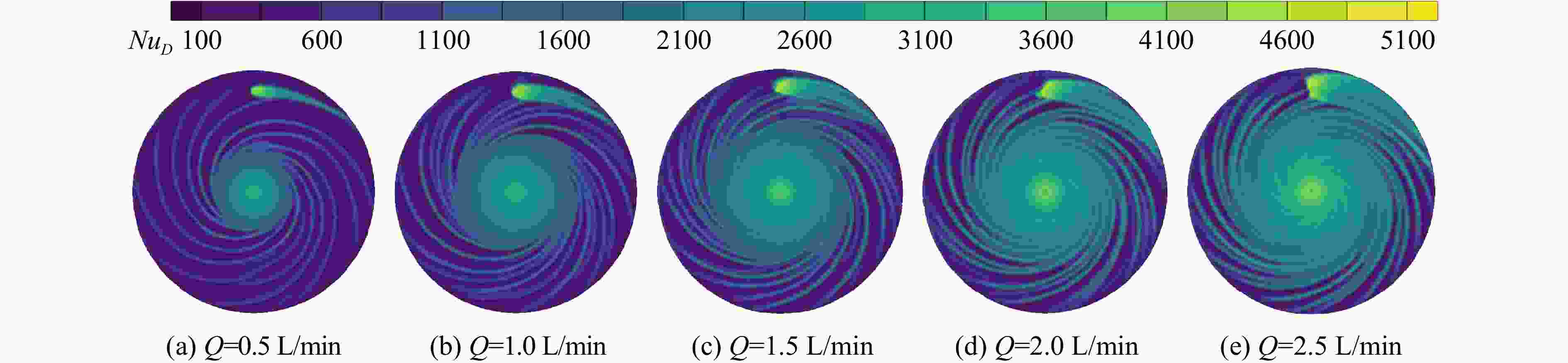

图 13 不同流量下盘面努塞尔数分布
Figure 13. Nusselt number distribution on the disk surface at different jet flows
图 14 不同流量下周向平均努塞尔数径向变化
Figure 14. Radial distribution of the circumferential average Nusselt number at different jet flows

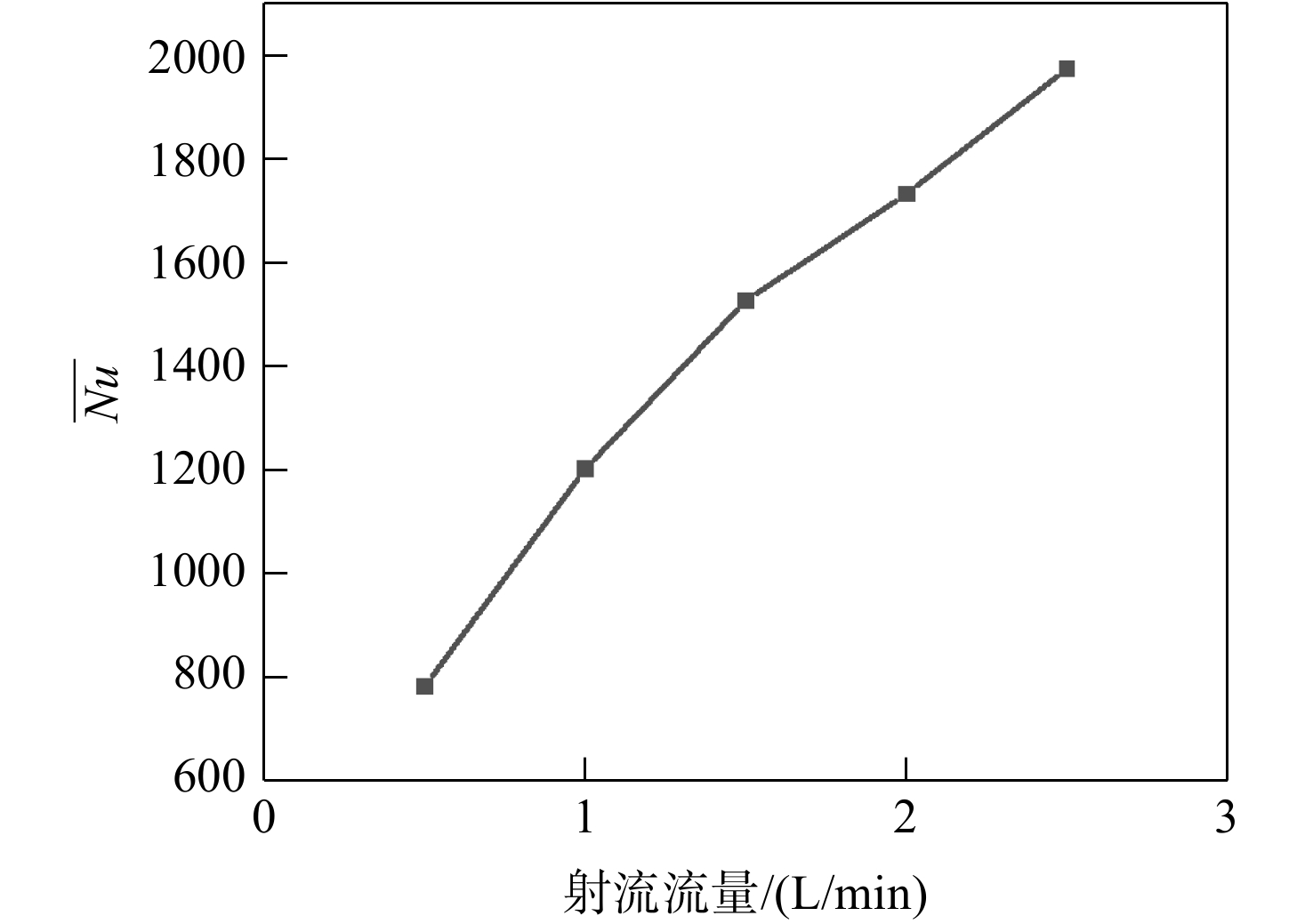

图 16 不同盘面温度下盘面油膜厚度分布
Figure 16. Oil film thickness distribution on the disk surface at different disk temperatures
图 17 不同盘面温度下盘面努塞尔数分布
Figure 17. Nusselt number distribution on the disk surface at different disk temperatures
图 18 不同盘面温度下周向平均努塞尔数径向变化
Figure 18. Radial distribution of the circumferential average Nusselt number at different disk temperatures
图 19 面平均努塞尔数随盘面温度变化
Figure 19. Average Nusselt number of the surface with disk temperatures
图 20 拟合关联式与数值计算结果对比
Figure 20. Comparison of the fitted correlation formula and the numerical calculation results
表 1 射流流量、圆盘转速、射流温度和盘面温度的范围
Table 1. Range of jet flow, rotating speed, jet temperature and disk temperature
参数 数值范围 射流流量/（L/min） 0.5～2 转速/（r/min） 4000 ～12000 射流温度/K 373～423 盘面温度/K 423～723
下载: 导出CSV
表 2 网格无关性验证
Table 2. Grid-independent validation
序号 网格数/104 盘面热流密度/（W/m2） 1 332 84538.5 2 401 84008.5 3 484 85472.0 4 550 83410.9
下载: 导出CSV
表 3 工况数据
Table 3. Working conditions
工况 射流
温度/K转速/
（r/min）射流流量/
（L/min）盘面
温度/KRej Reω Pr $ \overline {Nu} $ 1 323 8000 2 573 882.740 4128965.330 69.309 1665.230 2 348 8000 2 573 1765.480 4128965.330 69.309 1715.613 3 398 8000 2 573 2648.221 4128965.330 69.309 1796.705 4 423 8000 2 573 3530.961 4128965.330 69.309 1804.672 5 373 8000 2 573 4413.701 4128965.330 69.309 1732.046 6 373 4000 2 573 3530.961 2064482.665 69.309 1926.301 7 373 6000 2 573 3530.961 3096723.997 69.309 1789.186 8 373 10000 2 573 3530.961 5161206.662 69.309 1720.988 9 373 12000 2 573 3530.961 6193447.995 69.309 1771.053 10 373 8000 0.5 573 1070.829 3393300.709 202.617 783.087 11 373 8000 1 573 1981.678 3701087.079 116.335 1202.264 12 373 8000 1.5 573 5362.286 4672852.525 48.414 1526.698 13 373 8000 2.5 573 6661.443 5182803.737 41.323 1973.855 14 373 8000 2 423 3530.961 2375445.767 69.309 1268.454 15 373 8000 2 498 3530.961 3162353.298 69.309 1453.254 16 373 8000 2 648 3530.961 5246779.009 69.309 2168.015 17 373 8000 2 723 3530.961 9367587.055 69.309 2756.184
下载: 导出CSV
-
