Study on the sealing performance of flexible graphite braided packing based on three-dimensional braiding model
-
摘要:

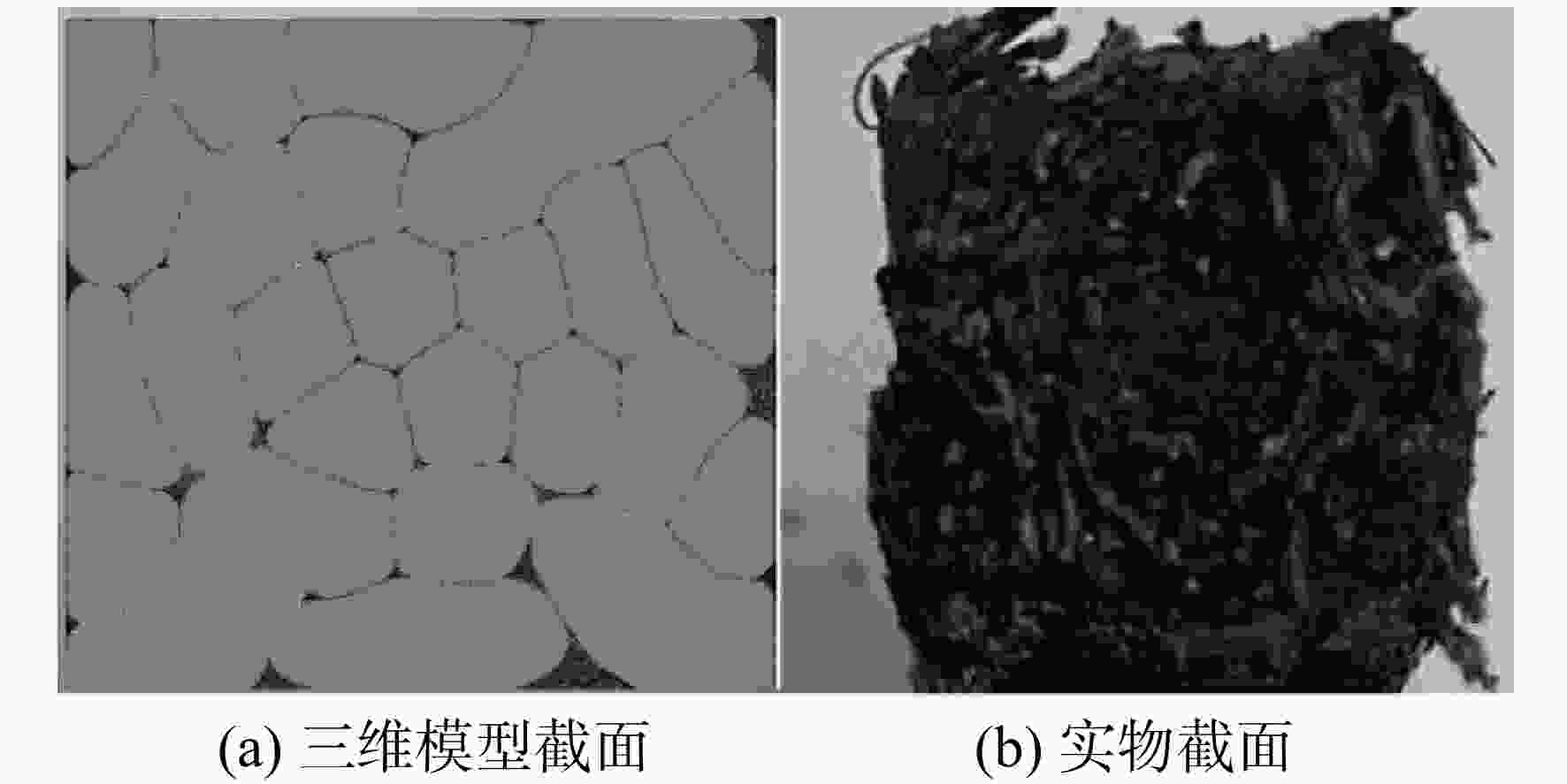

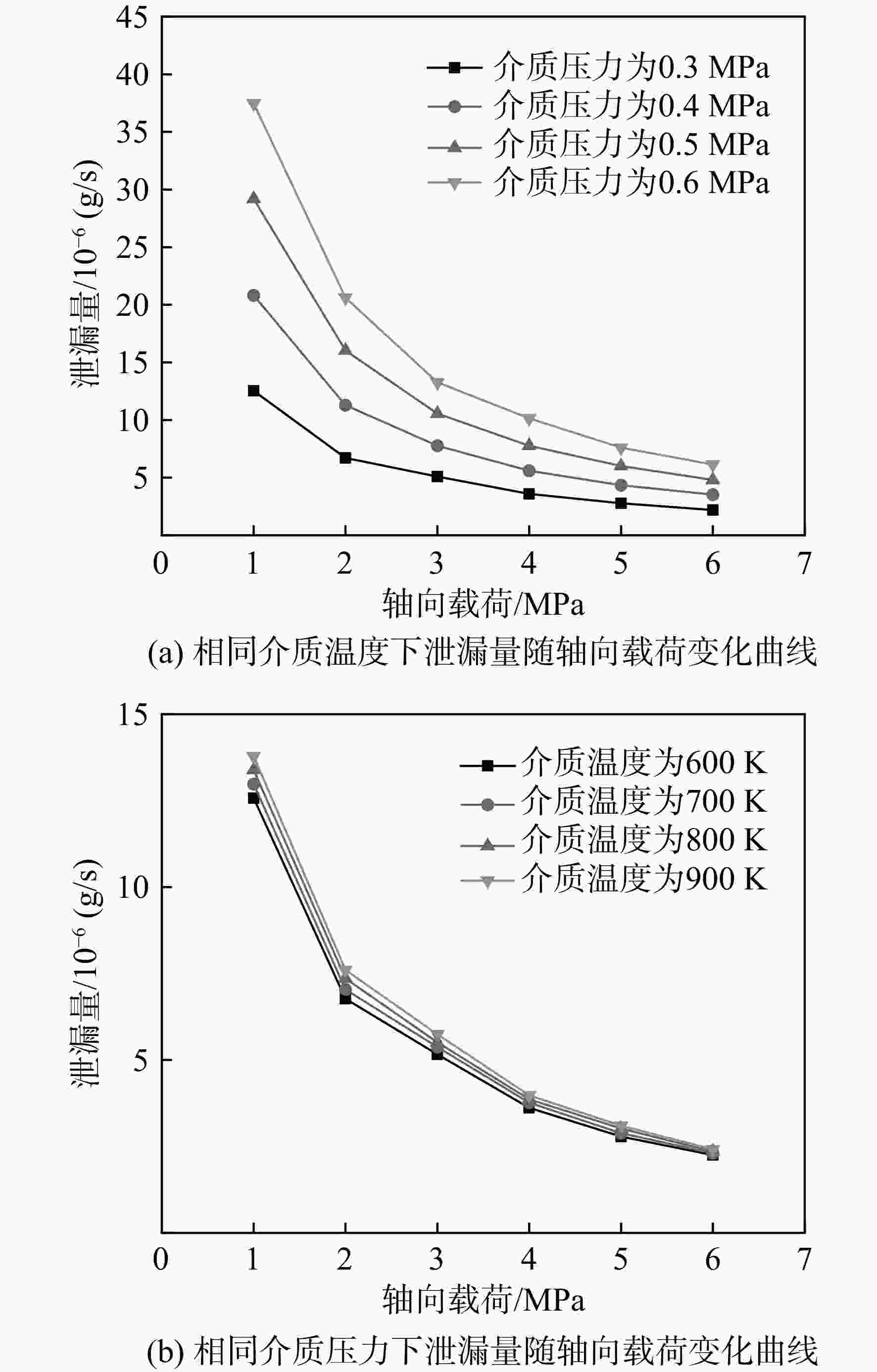

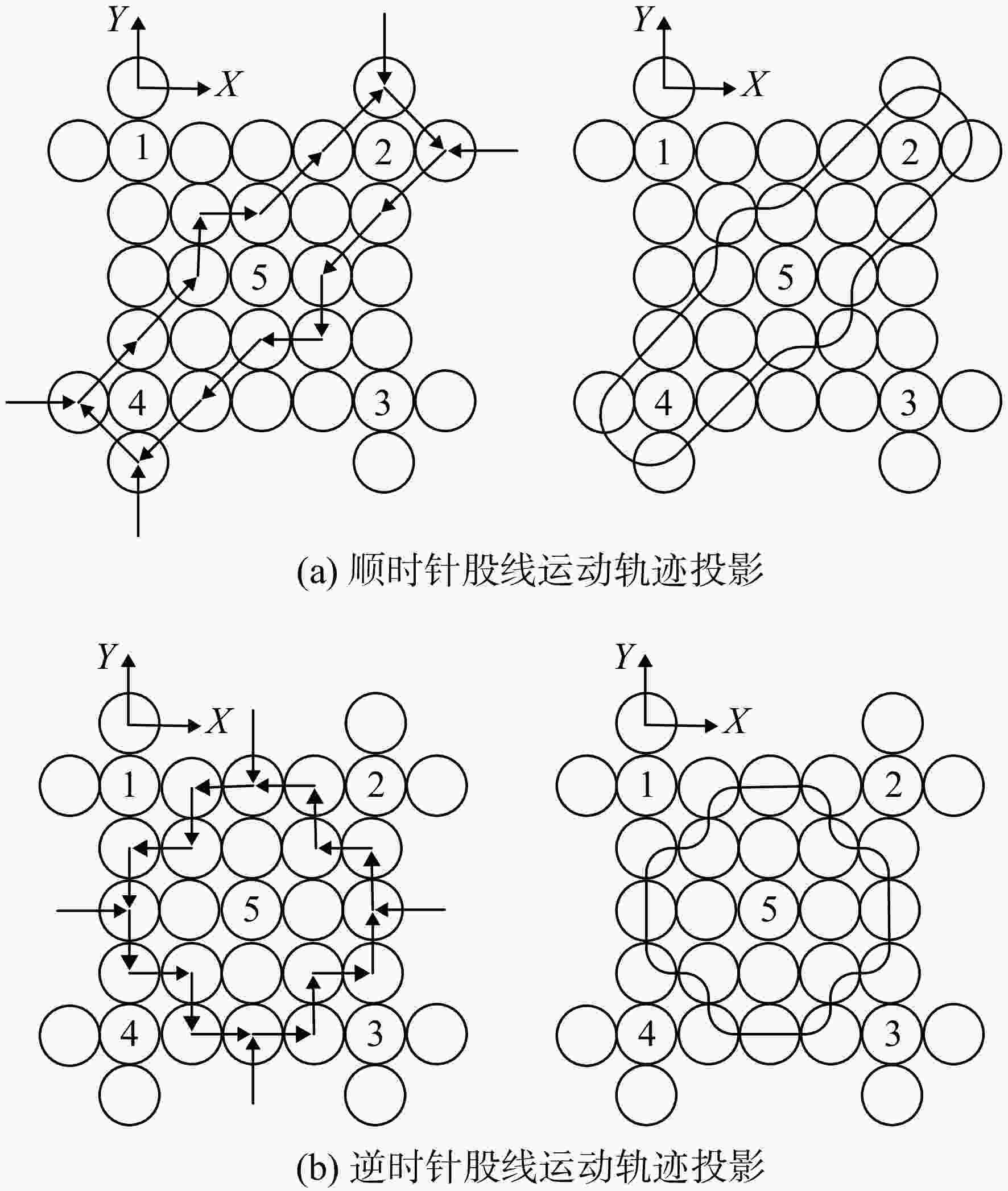

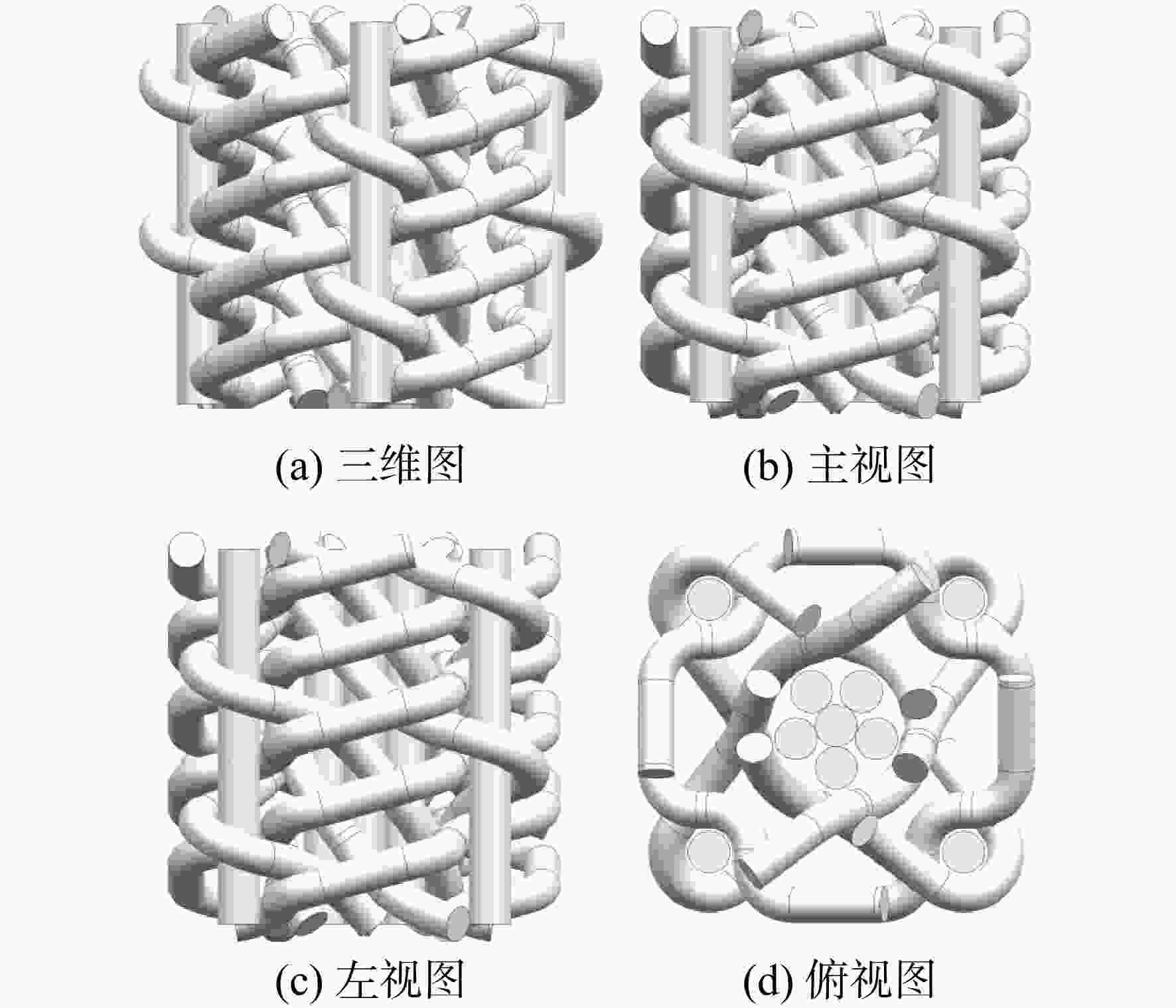

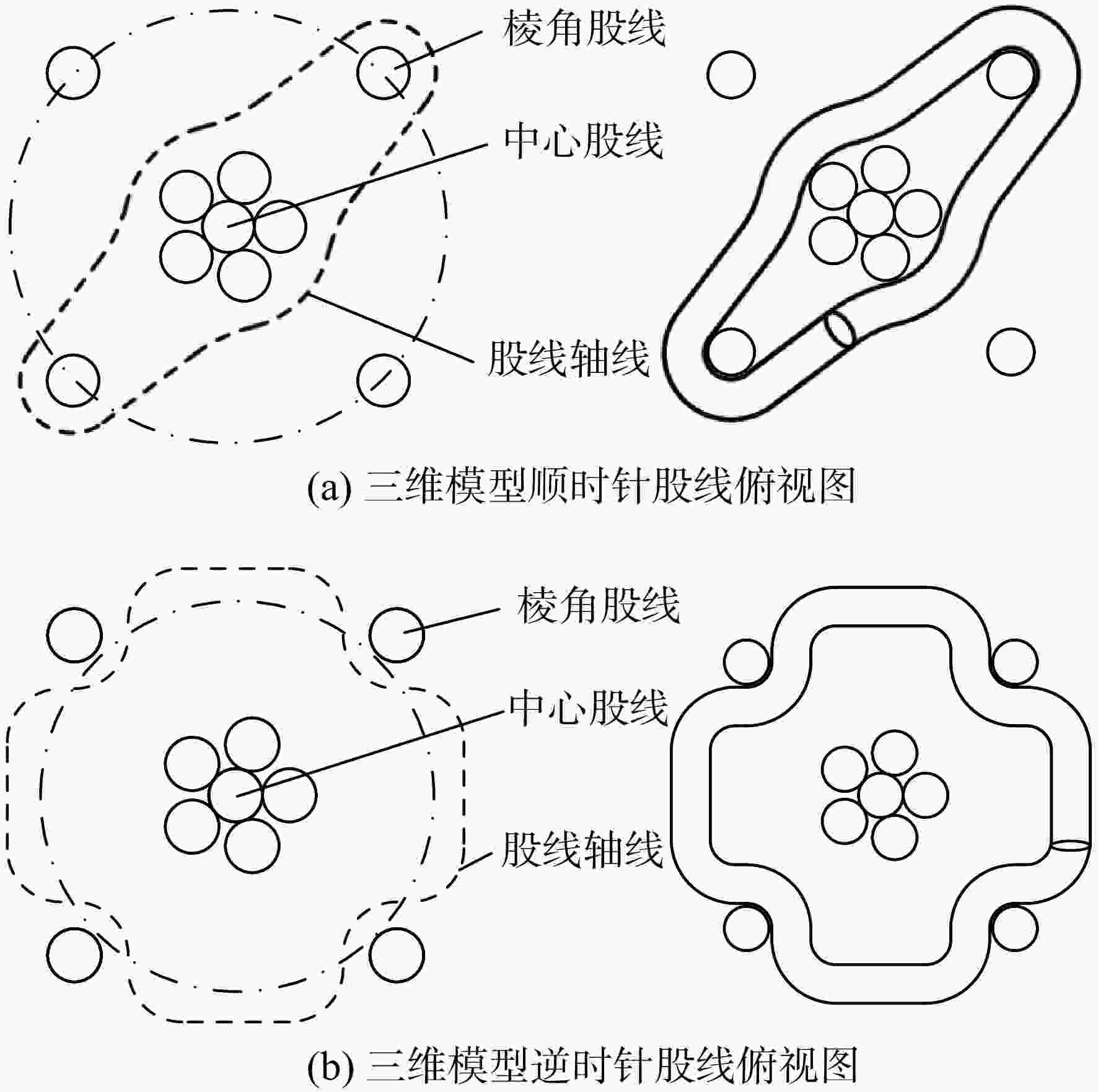

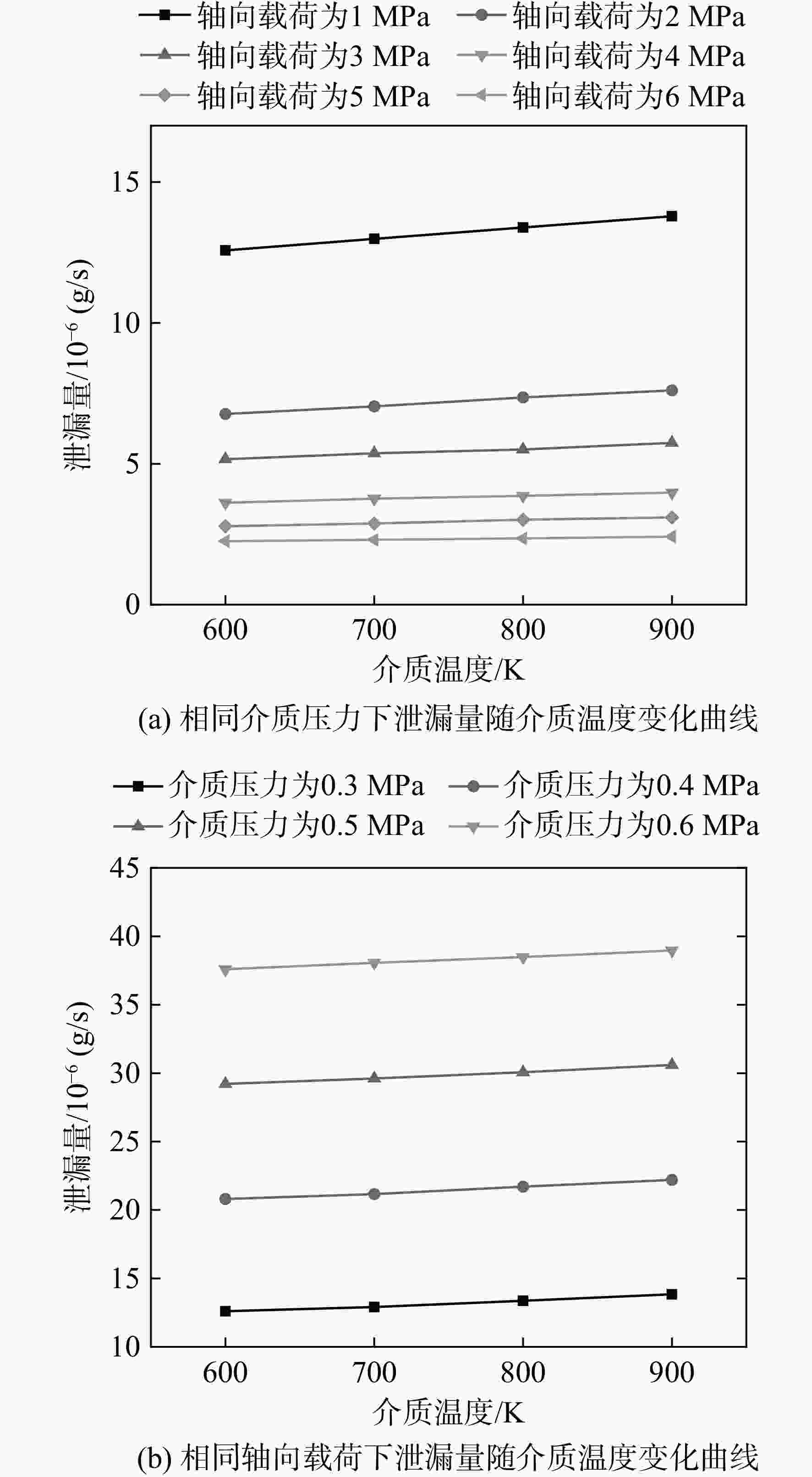

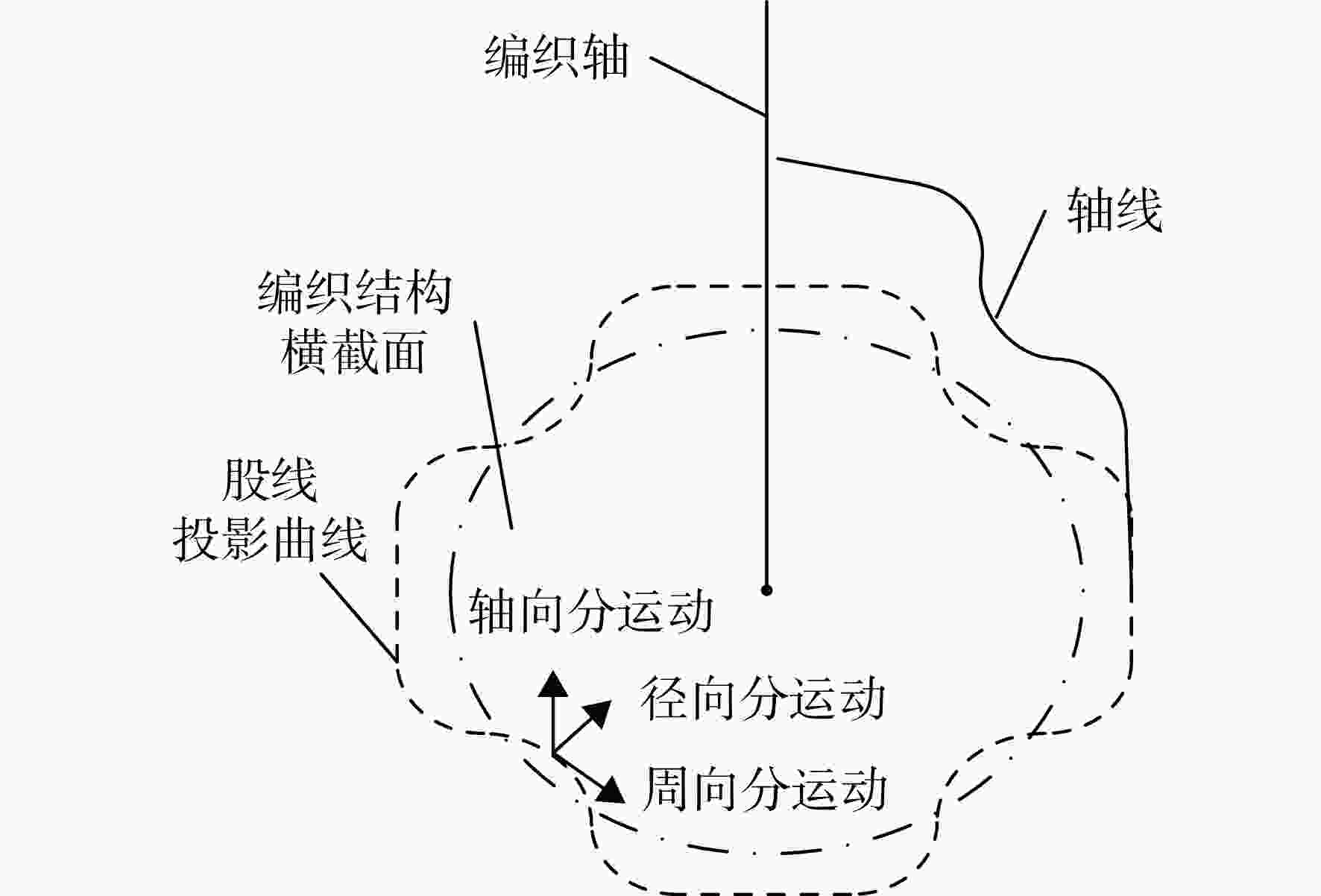

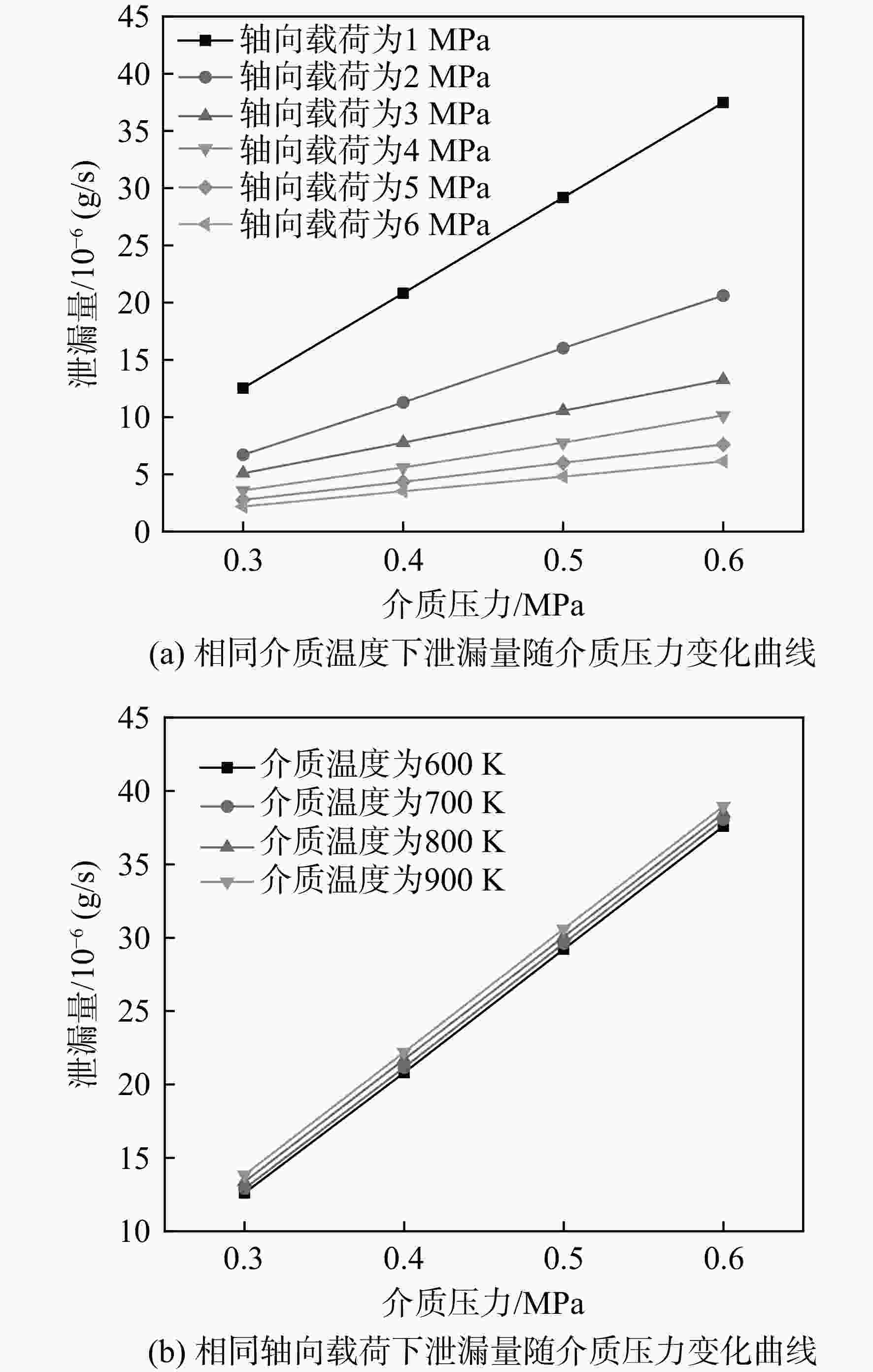

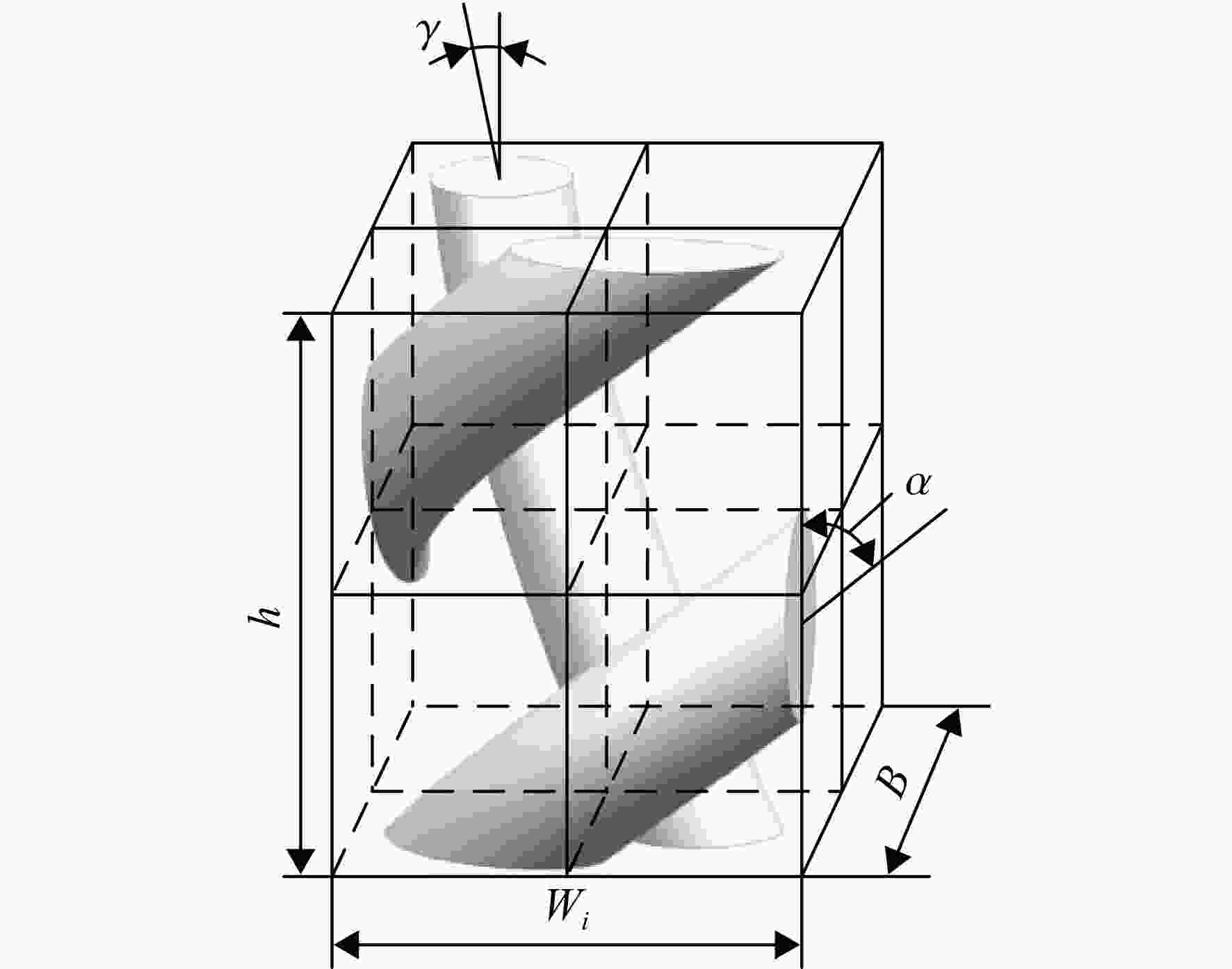

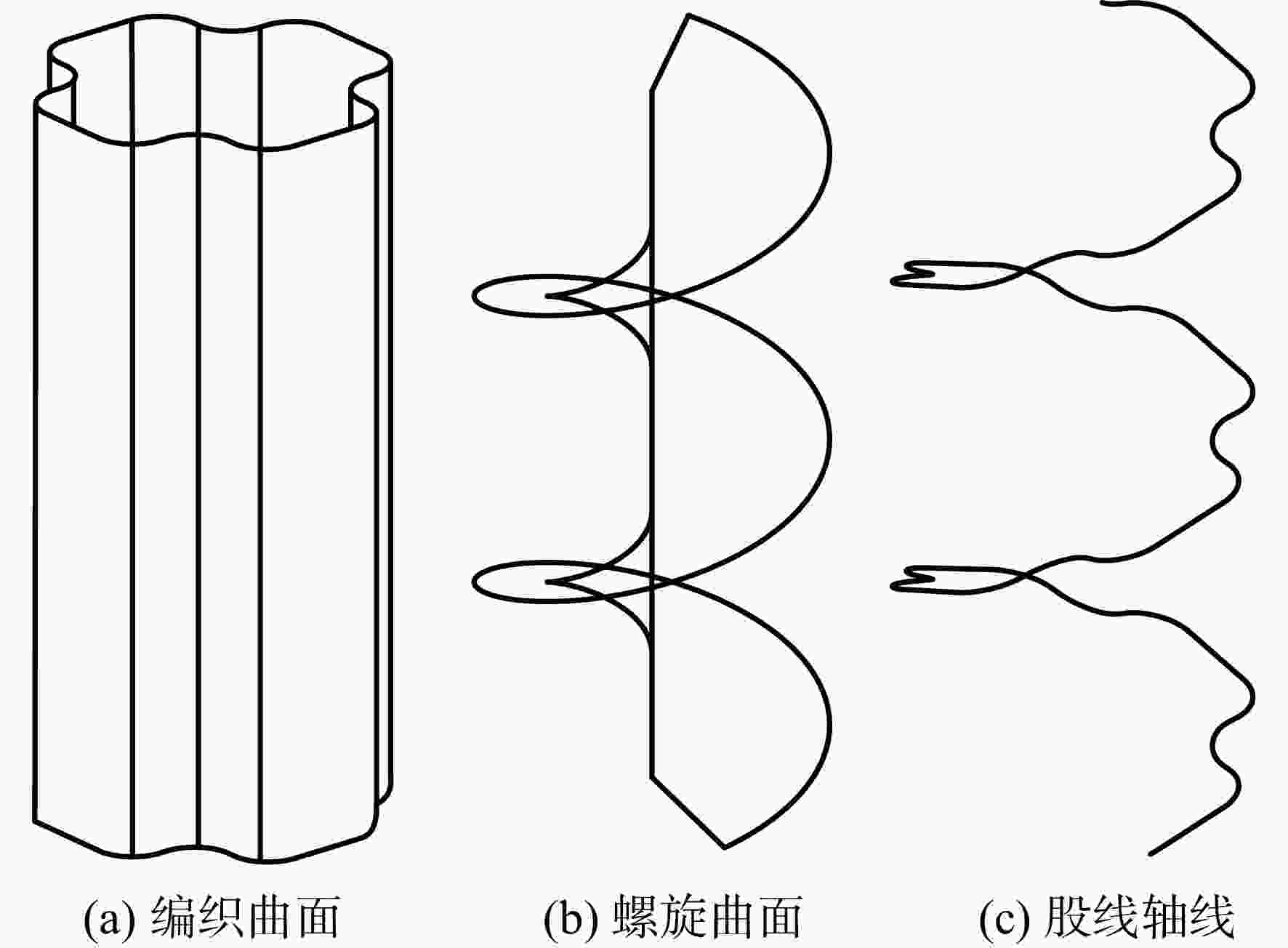

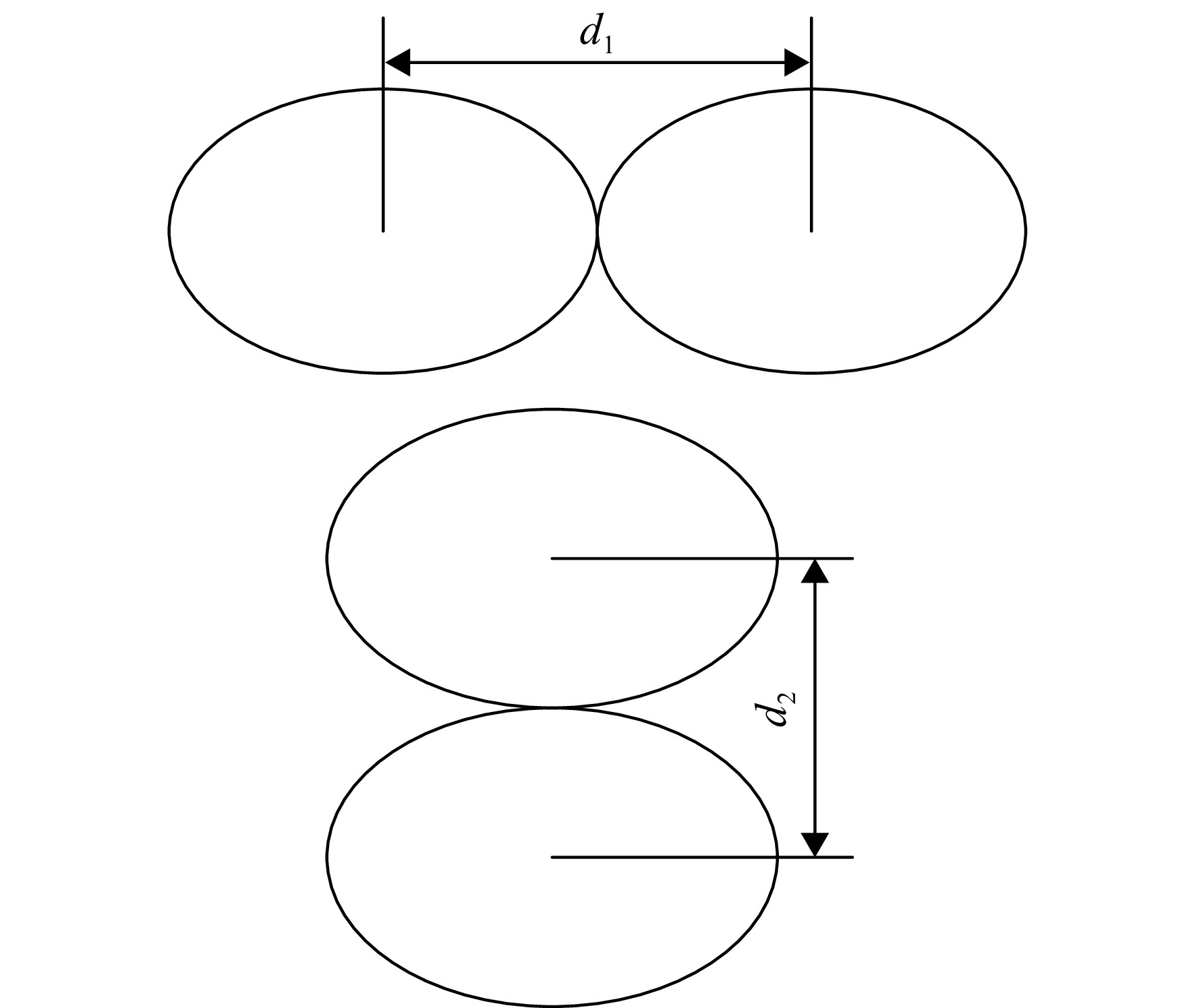

为研究柔性石墨编织盘根的密封性能，分析了柔性石墨编织盘根股线的空间构型和运动轨迹，建立了柔性石墨编织盘根的三维编织模型，该模型相比于多孔介质模型等传统的非金属垫片模型，不仅可以考虑到股线之间的相互作用，并且具有良好的压缩回弹性能，能更好地模拟其真实工作状态，再通过数值仿真方法得到不同轴向载荷、介质压力和介质温度下的泄漏量。结果表明：数值仿真结果与试验结果有较好一致性。泄漏量与轴向载荷呈反比，随着轴向载荷的增加，泄漏通道减少，泄漏量逐渐减小，最后趋于平稳状态，密封性能提高。泄漏量与介质压力呈正比，当介质压力较大时，可以适当增大轴向载荷来提高密封性能。泄漏量与介质温度呈正比，当介质温度增大时，泄漏量小幅度增大，总体对泄漏量的影响较小。

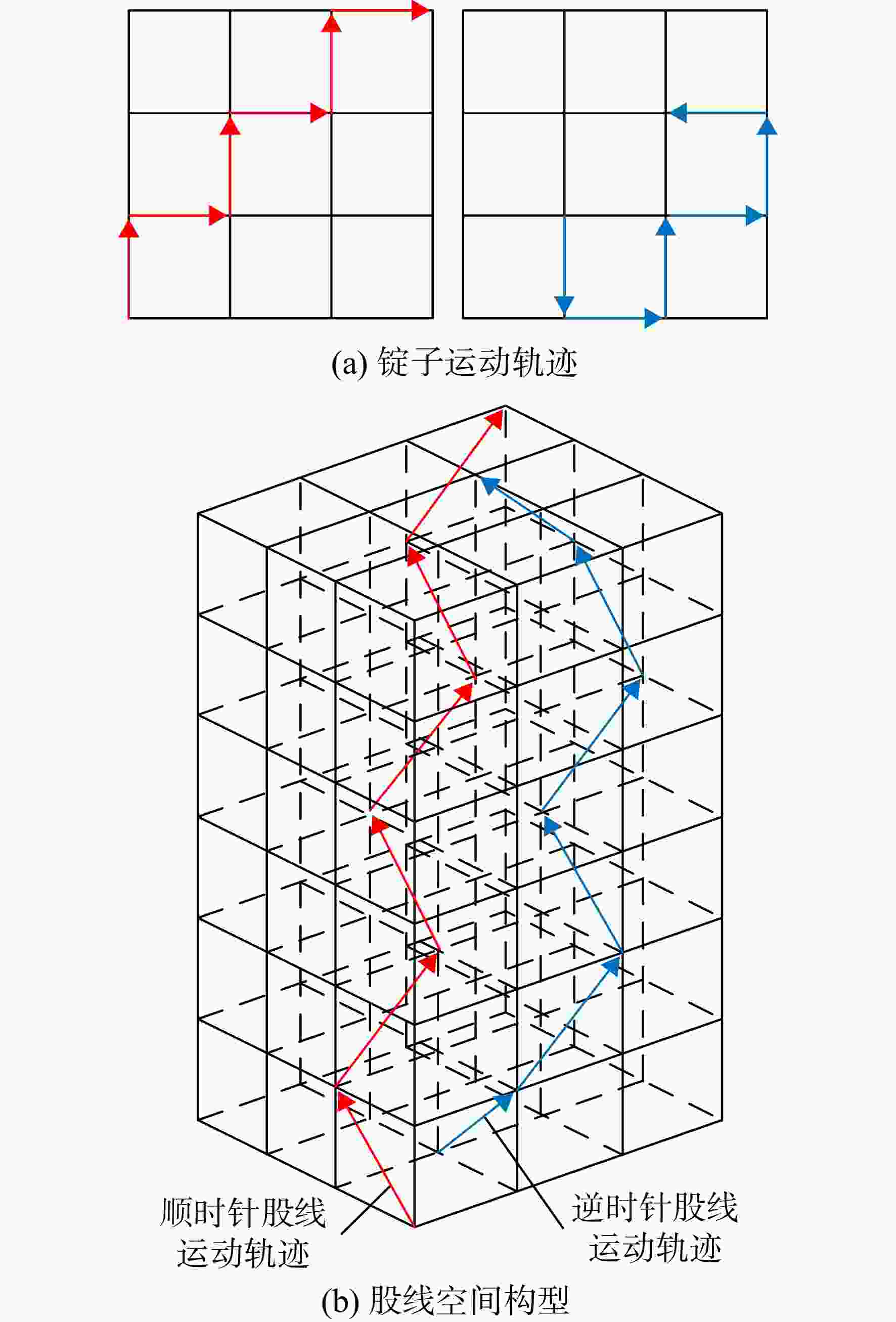

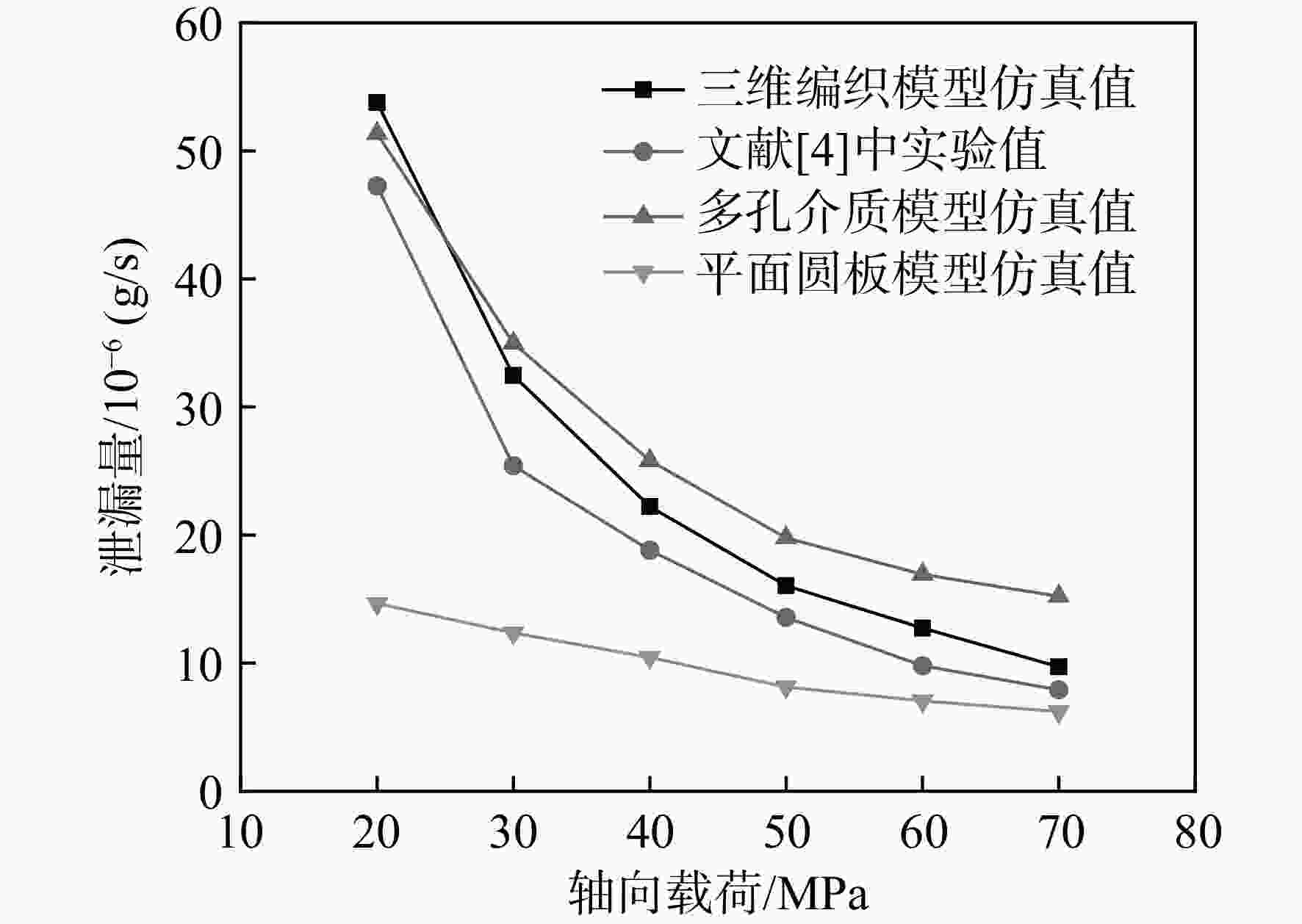

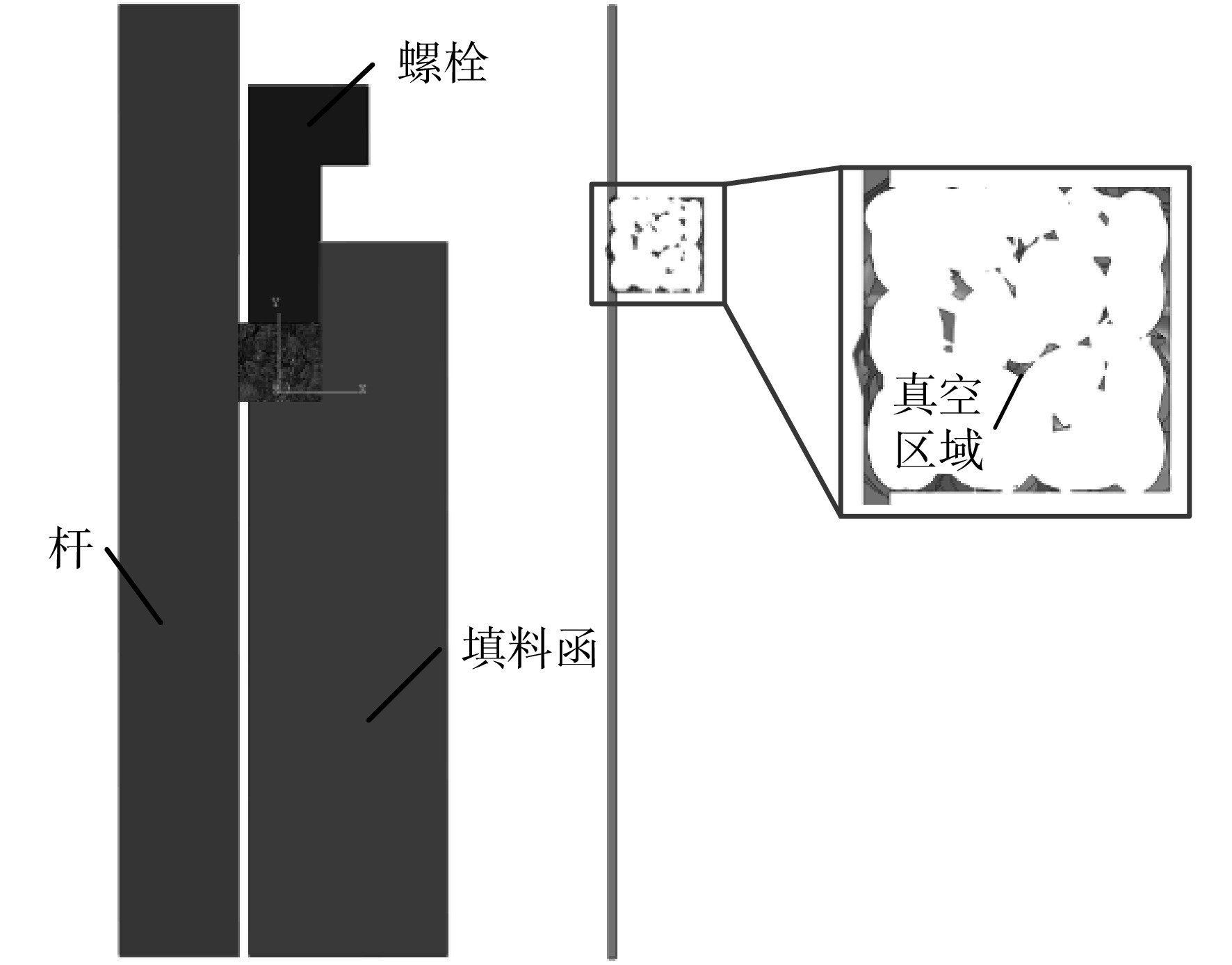

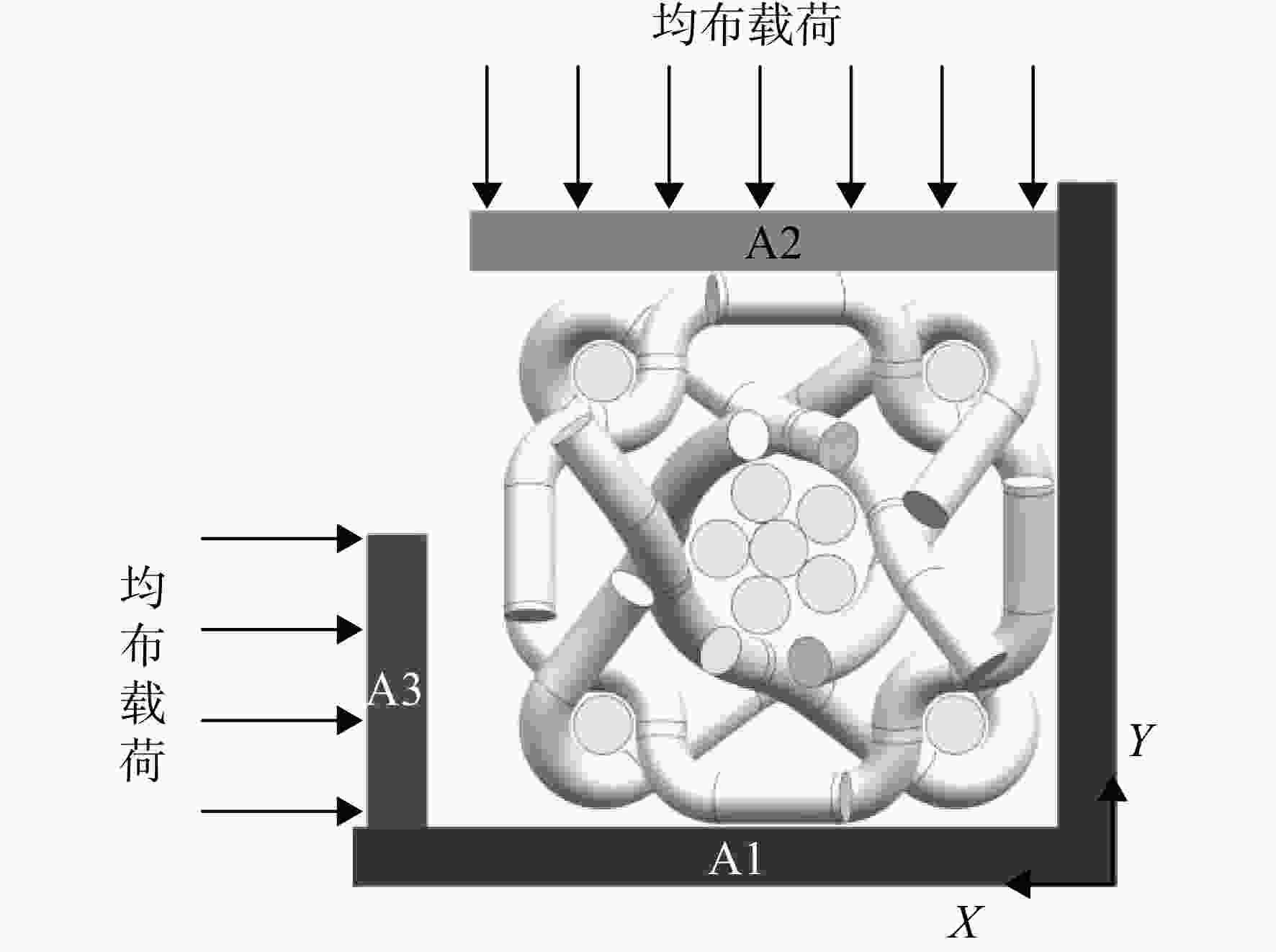

Abstract:To study the sealing performance of flexible graphite braided packing, the spatial configuration and motion trajectory of its yarns were analyzed, and a three-dimensional braiding model was established. Compared with traditional non-metal gasket models such as the porous media model, this model not only considered the interaction between yarns but also demonstrated good compressive resilience, helping to better simulate its real working condition. The leakage under different axial loads, medium pressures, and medium temperatures was obtained through numerical simulation. The results indicated that: numerical simulation results were consistent with the experimental results. The leakage was inversely proportional to the axial load. The increase in axial load reduced the leakage channels, leading to a gradual decrease and eventual stabilization of the leakage rate, thereby improving the sealing performance. The leakage was directly proportional to the medium pressure. When the medium pressure was high, the axial load can be appropriately increased to improve the sealing performance. The leakage was directly proportional to the medium temperature. When the medium temperature increased, the leakage increased slightly, and overall, the impact on the leakage was relatively small.
-

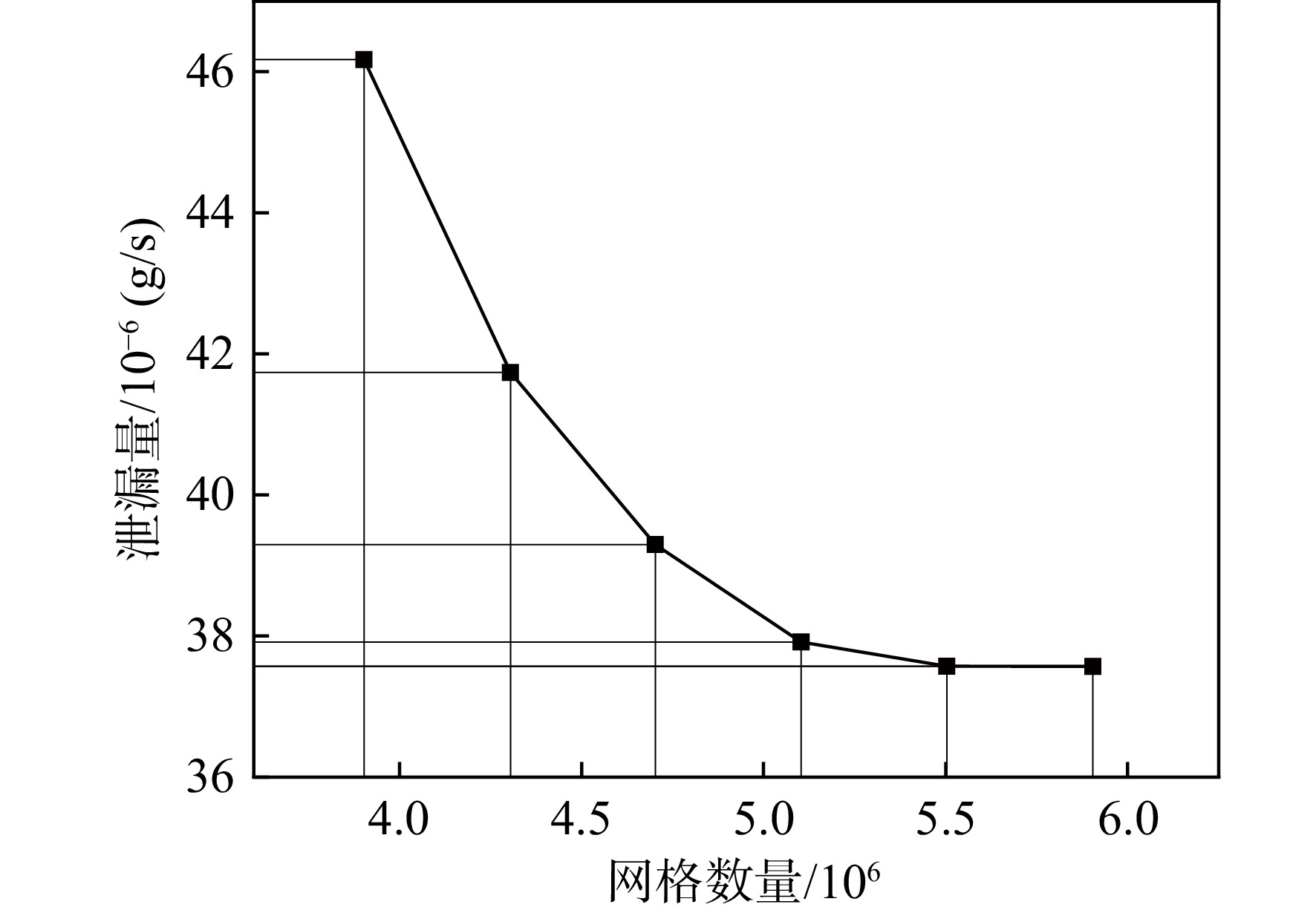

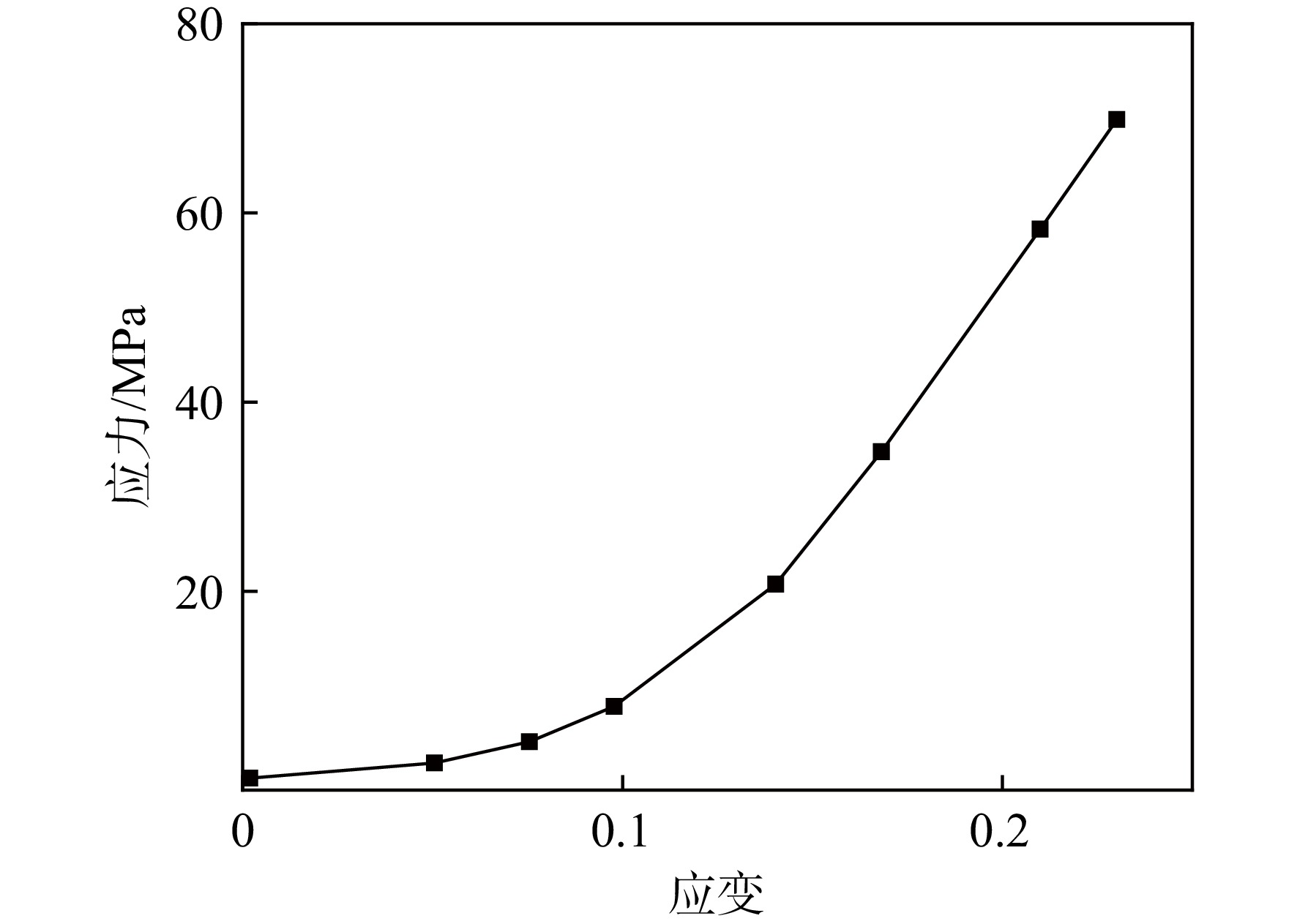

表 1 材料属性定义
Table 1. Material property definition
应变 应力/MPa 弹性模量/MPa 0 0 0 0.050 1.867 37.340 0.075 4.105 89.520 0.098 7.851 162.870 0.140 20.758 307.310 0.168 34.760 500.071 0.210 58.288 560.190 0.230 70.000 585.600
下载: 导出CSV
-
[1] 张江锋. 柔性石墨复合密封材料制品的物理性能和机械性能研究[J]. 造纸装备及材料, 2020, 49(3): 60. Zhang Jiangfeng. Study on physical and mechanical properties of flexible graphite composite sealing material products[J]. Papermaking Equipment & Materials, 2020, 49(3): 60. (in Chinese doi: 10.3969/j.issn.1672-3066.2020.03.047Zhang Jiangfeng. Study on physical and mechanical properties of flexible graphite composite sealing material products[J]. Papermaking Equipment & Materials, 2020, 49(3): 60. (in Chinese) doi: 10.3969/j.issn.1672-3066.2020.03.047 [2] 杨书益. 柔性石墨编织填料行业标准修订内容的探讨[J]. 液压气动与密封, 2014, 34(10): 12-15. Yang Shuyi. Study on revised contents of flexible braided graphite packing industrial standard[J]. Hydraulics Pneumatics & Seals, 2014, 34(10): 12-15. (in Chinese doi: 10.3969/j.issn.1008-0813.2014.10.003Yang Shuyi. Study on revised contents of flexible braided graphite packing industrial standard[J]. Hydraulics Pneumatics & Seals, 2014, 34(10): 12-15. (in Chinese) doi: 10.3969/j.issn.1008-0813.2014.10.003 [3] 励行根, 王成林, 沈明学, 等. 柔性石墨/编织盘根组合填料密封性能试验研究[J]. 润滑与密封, 2014, 39(12): 119-124. Li Xinggen, Wang Chenglin, Shen Mingxue, et al. Study on sealing performance of combined packing of flexible graphite ring and braided packing ring[J]. Lubrication Engineering, 2014, 39(12): 119-124. (in ChineseLi Xinggen, Wang Chenglin, Shen Mingxue, et al. Study on sealing performance of combined packing of flexible graphite ring and braided packing ring[J]. Lubrication Engineering, 2014, 39(12): 119-124. (in Chinese) [4] 吴延泽. 石墨环轴向密封性能研究[D]. 山东东营: 中国石油大学(华东), 2019. Wu Yanze. Study on axial sealing performance of graphite ring[D]. Dongying Shandong: China University of Petroleum (Huadong), 2019. (in ChineseWu Yanze. Study on axial sealing performance of graphite ring[D]. Dongying Shandong: China University of Petroleum (Huadong), 2019. (in Chinese) [5] 肖光凯, 章兰珠, 王夫清, 等. 石墨填料环力学和密封性能试验研究[J]. 润滑与密封, 2016, 41(11): 10-14, 64. Xiao Guangkai, Zhang Lanzhu, Wang Fuqing, et al. Study on mechanical and sealing performance of flexible graphite packing rings[J]. Lubrication Engineering, 2016, 41(11): 10-14, 64. (in Chinese doi: 10.3969/j.issn.0254-0150.2016.11.003Xiao Guangkai, Zhang Lanzhu, Wang Fuqing, et al. Study on mechanical and sealing performance of flexible graphite packing rings[J]. Lubrication Engineering, 2016, 41(11): 10-14, 64. (in Chinese) doi: 10.3969/j.issn.0254-0150.2016.11.003 [6] 范淑玲, 章兰珠, 林剑红, 等. 金属与金属接触型石墨密封垫片高温力学性能的试验研究[J]. 压力容器, 2013, 30(4): 1-7. Fan Shuling, Zhang Lanzhu, Lin Jianhong, et al. Experimental study on mechanical properties of graphite sealing gasket with metal to metal contact type at high temperatures[J]. Pressure Vessel Technology, 2013, 30(4): 1-7. (in Chinese doi: 10.3969/j.issn.1001-4837.2013.04.001Fan Shuling, Zhang Lanzhu, Lin Jianhong, et al. Experimental study on mechanical properties of graphite sealing gasket with metal to metal contact type at high temperatures[J]. Pressure Vessel Technology, 2013, 30(4): 1-7. (in Chinese) doi: 10.3969/j.issn.1001-4837.2013.04.001 [7] Zhang L Z, Wang F Q, Gong B Y, et al. Research on compression performance of flexible graphite packing rings with different density[C]//Abstract Book of 14th International Conference on Pressure Vessel Technology. Shanghai: Chinese Pressure Vessel Institution, Asian-Oceanic Regional Committee of International Council on Pressure Vessel Technology(ICPVT-14), 2015: 89. [8] Suresha B, Siddaramaiah, Kishore, et al. Investigations on the influence of graphite filler on dry sliding wear and abrasive wear behaviour of carbon fabric reinforced epoxy composites[J]. Wear, 2009, 267(9/10): 1405-1414. doi: 10.1016/j.wear.2009.01.026 [9] Vishnyakov L R, Chizhan’kov E Y, Moroz V P, et al. Tribological properties of thermally expanded graphite reinforced with knitted metal nets[J]. Powder Metallurgy and Metal Ceramics, 1997, 36(7): 381-384. doi: 10.1007/bf02675997 [10] Rai A, Rai P, Kumar V, et al. Development and characterization of Zn(98−x). Mg2. (SiC)x composites synthesized in graphite packed non-oxidizing media[J]. Journal of Materials Engineering and Performance, 2021, 30(6): 4291-4299. doi: 10.1007/s11665-021-05726-z [11] 顾伯勤. 多孔介质气体流动模型在垫片密封中的应用[J]. 南京化工大学学报(自然科学版), 1999, 21(1): 19-23. Gu Boqin. Application of model of gases flowing through porous media to gasket sealing[J]. Journal of Nanjing University of Chemical Technology, 1999, 21(1): 19-23. (in ChineseGu Boqin. Application of model of gases flowing through porous media to gasket sealing[J]. Journal of Nanjing University of Chemical Technology, 1999, 21(1): 19-23. (in Chinese) [12] Masi V, Bouzid A H, Derenne M. Correlation between gases and mass leak rate of gasketing materials[C]//Proceedings of the 1998 ASME /JSME PVP Conference. San Diego: Analysis of Bolted Joints, 1998: 17-24. [13] Grine L, Bouzid A H. Liquid leak predictions in micro- and nanoporous gaskets[J]. Journal of Pressure Vessel Technology, 2011, 133(5): 051402. doi: 10.1115/1.4003467 [14] 冯伟, 王延荣, 魏大盛. 三维四向编织复合材料细观建模[J]. 航空动力学报, 2013, 28(6): 1243-1249. Feng Wei, Wang Yanrong, Wei Dasheng. Meso-scale modeling of 3-D four-directional braided composites[J]. Journal of Aerospace Power, 2013, 28(6): 1243-1249. (in Chinese doi: 10.13224/j.cnki.jasp.2015.01.015Feng Wei, Wang Yanrong, Wei Dasheng. Meso-scale modeling of 3-D four-directional braided composites[J]. Journal of Aerospace Power, 2013, 28(6): 1243-1249. (in Chinese) doi: 10.13224/j.cnki.jasp.2015.01.015 [15] 景媛媛. 三维编织密封件气密性能研究与建模[D]. 天津: 天津工业大学, 2017. Jing Yuanyuan. Research and modeling of airtightness of 3D braided seals[D]. Tianjin: Tianjin Polytechnic University, 2017. (in ChineseJing Yuanyuan. Research and modeling of airtightness of 3D braided seals[D]. Tianjin: Tianjin Polytechnic University, 2017. (in Chinese) [16] 吴帆, 李勇, 陈晓川, 等. 基于三维编织模型的棉纤维集合体压缩过程有限元建模与仿真[J]. 纺织学报, 2022, 43(9): 89-94. Wu Fan, Li Yong, Chen Xiaochuan, et al. Finite element modeling and simulation of cotton fiber assembly compression based on three-dimensional braided model[J]. Journal of Textile Research, 2022, 43(9): 89-94. (in Chinese doi: 10.13475/j.fzxb.20210302706Wu Fan, Li Yong, Chen Xiaochuan, et al. Finite element modeling and simulation of cotton fiber assembly compression based on three-dimensional braided model[J]. Journal of Textile Research, 2022, 43(9): 89-94. (in Chinese) doi: 10.13475/j.fzxb.20210302706 [17] 赵子豪, 刘璐璐, 徐凯龙, 等. 基于面胞-内胞建模的三维编织复合材料冰球撞击分析方法及验证[J]. 航空材料学报, 2023, 43(5): 106-114. Zhao Zihao, Liu Lulu, Xu Kailong, et al. Ice-ball impact analysis method and verification of three-dimensional braided composites based on surface unit-cell and interior unit-cell modeling[J]. Journal of Aeronautical Materials, 2023, 43(5): 106-114. (in Chinese doi: 10.11868/j.issn.1005-5053.2022.000173Zhao Zihao, Liu Lulu, Xu Kailong, et al. Ice-ball impact analysis method and verification of three-dimensional braided composites based on surface unit-cell and interior unit-cell modeling[J]. Journal of Aeronautical Materials, 2023, 43(5): 106-114. (in Chinese) doi: 10.11868/j.issn.1005-5053.2022.000173 [18] 江昊, 钱坤, 朱亚楠, 等. 三维纺织复合材料加工连接与力学性能研究进展[J]. 复合材料学报, 2023, 40(6): 3197-3217. Jiang Hao, Qian Kun, Zhu Yanan, et al. Research progress on processing connection and mechanical properties of three-dimensional textile composites[J]. Acta Materiae Compositae Sinica, 2023, 40(6): 3197-3217. (in Chinese doi: 10.13801/j.cnki.fhclxb.20221104.002Jiang Hao, Qian Kun, Zhu Yanan, et al. Research progress on processing connection and mechanical properties of three-dimensional textile composites[J]. Acta Materiae Compositae Sinica, 2023, 40(6): 3197-3217. (in Chinese) doi: 10.13801/j.cnki.fhclxb.20221104.002 [19] 孙梦尧, 张典堂, 钱坤. 三维五向编织复合材料低速冲击损伤区域的量化表征[J]. 复合材料学报, 2023, 40(9): 5411-5422. Sun Mengyao, Zhang Diantang, Qian Kun. Quantitative characterization of low-velocity impact damage in three dimensional five-directional braided composites[J]. Acta Materiae Compositae Sinica, 2023, 40(9): 5411-5422. (in Chinese doi: 10.13801/j.cnki.fhclxb.20221223.002Sun Mengyao, Zhang Diantang, Qian Kun. Quantitative characterization of low-velocity impact damage in three dimensional five-directional braided composites[J]. Acta Materiae Compositae Sinica, 2023, 40(9): 5411-5422. (in Chinese) doi: 10.13801/j.cnki.fhclxb.20221223.002 [20] 丁丹烨. 三维编织复合材料编织几何和力学性能的细观分析[D]. 南京: 南京航空航天大学, 2008. Ding Danye. Meso architecture and mechanical models of three-dimensional braided composites[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2008. (in ChineseDing Danye. Meso architecture and mechanical models of three-dimensional braided composites[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2008. (in Chinese) [21] 陈利, 李嘉禄, 李学明. 三维编织中纱线的运动规律分析[J]. 复合材料学报, 2002, 19(2): 71-74. Chen Li, Li Jialu, Li Xueming. Analysis of the yarn movement in 3D braids[J]. Acta Materiae Compositae Sinica, 2002, 19(2): 71-74. (in Chinese doi: 10.3321/j.issn:1000-3851.2002.02.014Chen Li, Li Jialu, Li Xueming. Analysis of the yarn movement in 3D braids[J]. Acta Materiae Compositae Sinica, 2002, 19(2): 71-74. (in Chinese) doi: 10.3321/j.issn:1000-3851.2002.02.014 [22] 李嘉禄, 刘谦. 三维编织复合材料中纤维束横截面形状的研究[J]. 复合材料学报, 2001, 18(2): 9-13. Li Jialu, Liu Qian. Study on fiber tows' cross-section in 3-d braided composites[J]. Acta Materiae Compositae Sinica, 2001, 18(2): 9-13. (in Chinese doi: 10.3321/j.issn:1000-3851.2001.02.003Li Jialu, Liu Qian. Study on fiber tows' cross-section in 3-d braided composites[J]. Acta Materiae Compositae Sinica, 2001, 18(2): 9-13. (in Chinese) doi: 10.3321/j.issn:1000-3851.2001.02.003 [23] 宁方刚, 徐晓霞, 于伟东. 基于曲面相交法的多边形柱体编织结构建模[J]. 玻璃钢/复合材料, 2016(6): 54-57, 20. Ning Fanggang, Xu Xiaoxia, Yu Weidong. Geometrical modeling of braided structures with polygon prism[J]. Fiber Reinforced Plastics/Composites, 2016(6): 54-57, 20. (in Chinese doi: 10.3969/j.issn.1003-0999.2016.06.010Ning Fanggang, Xu Xiaoxia, Yu Weidong. Geometrical modeling of braided structures with polygon prism[J]. Fiber Reinforced Plastics/Composites, 2016(6): 54-57, 20. (in Chinese) doi: 10.3969/j.issn.1003-0999.2016.06.010 -
