Atomization characteristics of centrifugal nozzles in high-altitude cyclonic air field
-
摘要:
采用数值模拟的方法对通过离心喷嘴的燃油在高空低温低压旋流空气流场中的雾化过程开展了研究，分析了高空极端工作环境下燃烧室内的流场、燃油雾化特性及其影响因素，研究了不同燃油温度对高空环境下雾化特性的影响。结果表明：高空低温低压条件下，燃烧室旋流器出口流速及湍动能强度降低。在相同压力损失下，随着海拔高度的增加，索太尔平均直径（SMD）增大，液滴喷射距离增加，20 μm以下液滴占比从35.15%降低到14.57%，并且相比于低温条件，低压条件对雾化特性的影响更强。在高空低温低压环境下，可以通过提高供油温度来提高雾化特性，当供油温度达到373.15 K还会发生闪急沸腾喷雾现象，索太尔平均直径显著降低，20 μm以下液滴占比从14.57%提高到57.41%。
-
关键词:
- 离心喷嘴 /
- 低温低压 /
- 闪急沸腾 /
- 索太尔平均直径（SMD） /
- 喷射距离
Abstract:Numerical simulation was employed to investigate the atomization process of fuel passing through the centrifugal nozzle in the low-temperature and low-pressure cyclonic air flow field at high altitude. The flow field in the combustion chamber under the extreme operating environment at high altitude was analyzed, the characteristics of the combustion chamber and fuel atomization were examined, and the influencing factors were investigated. Additionally, the influence of different fuel temperatures on the atomization characteristics under the high-altitude environment was studied. The results showed that the combustion chamber cyclone outlet flow rate and turbulent kinetic energy intensity decreased under low temperature and low pressure conditions at high altitude. At the same pressure drop, the Sauter mean diameter (SMD) increased with the increasing altitude and droplet injection distance. Additionally, the percentage of droplets smaller than 20 μm decreased from 35.15% to 14.57%. The influence of low-pressure conditions on atomization characteristics was found to be stronger than that of low-temperature conditions. In high-altitude, low-temperature, and low-pressure environments, atomization characteristics can be improved by increasing the oil supply temperature. Flash boiling spray phenomenon occurred when the oil supply temperature reached 373.15 K. This significantly reduced the SMD and increased the percentage of droplets below 20 μm from 14.57% to 57.41%.
-

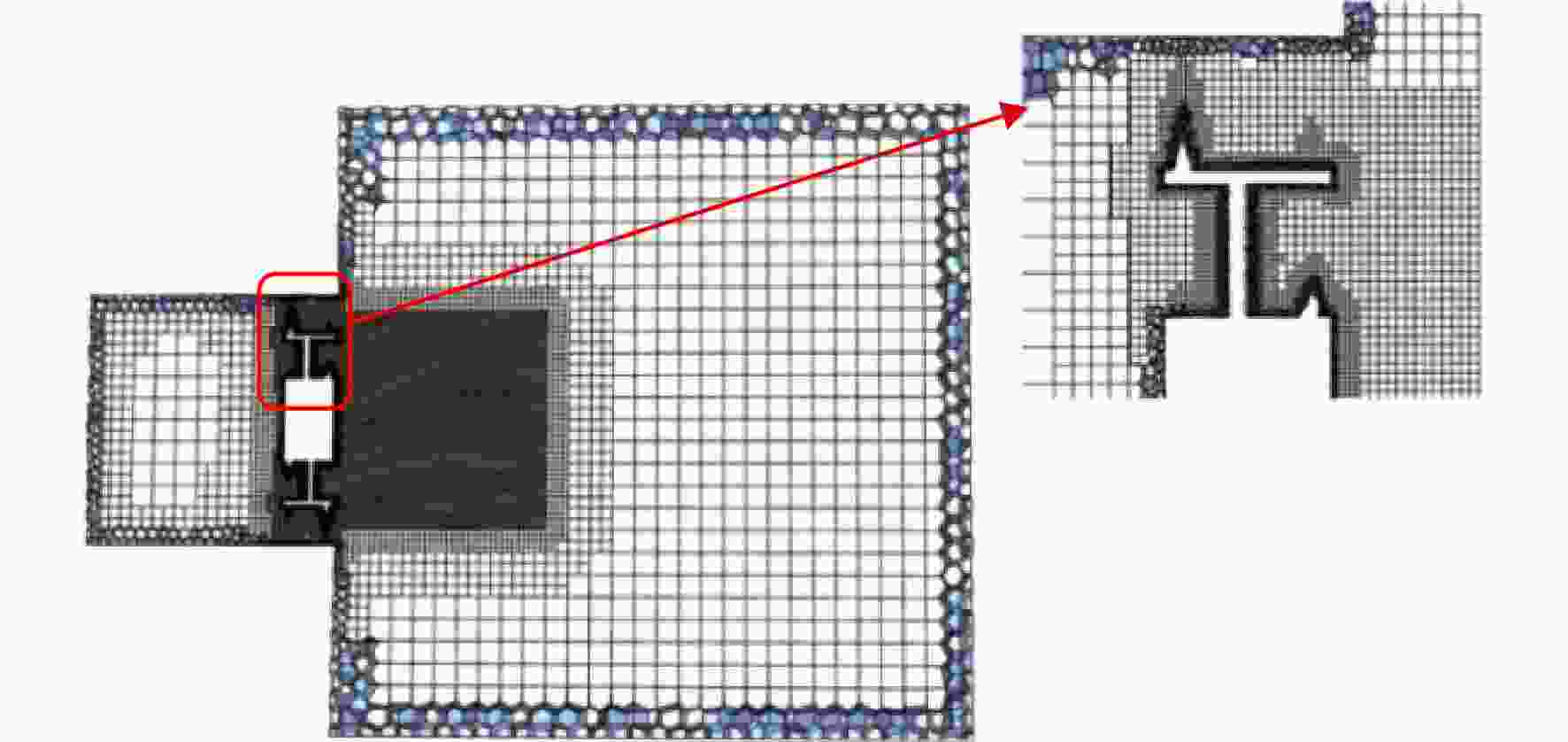

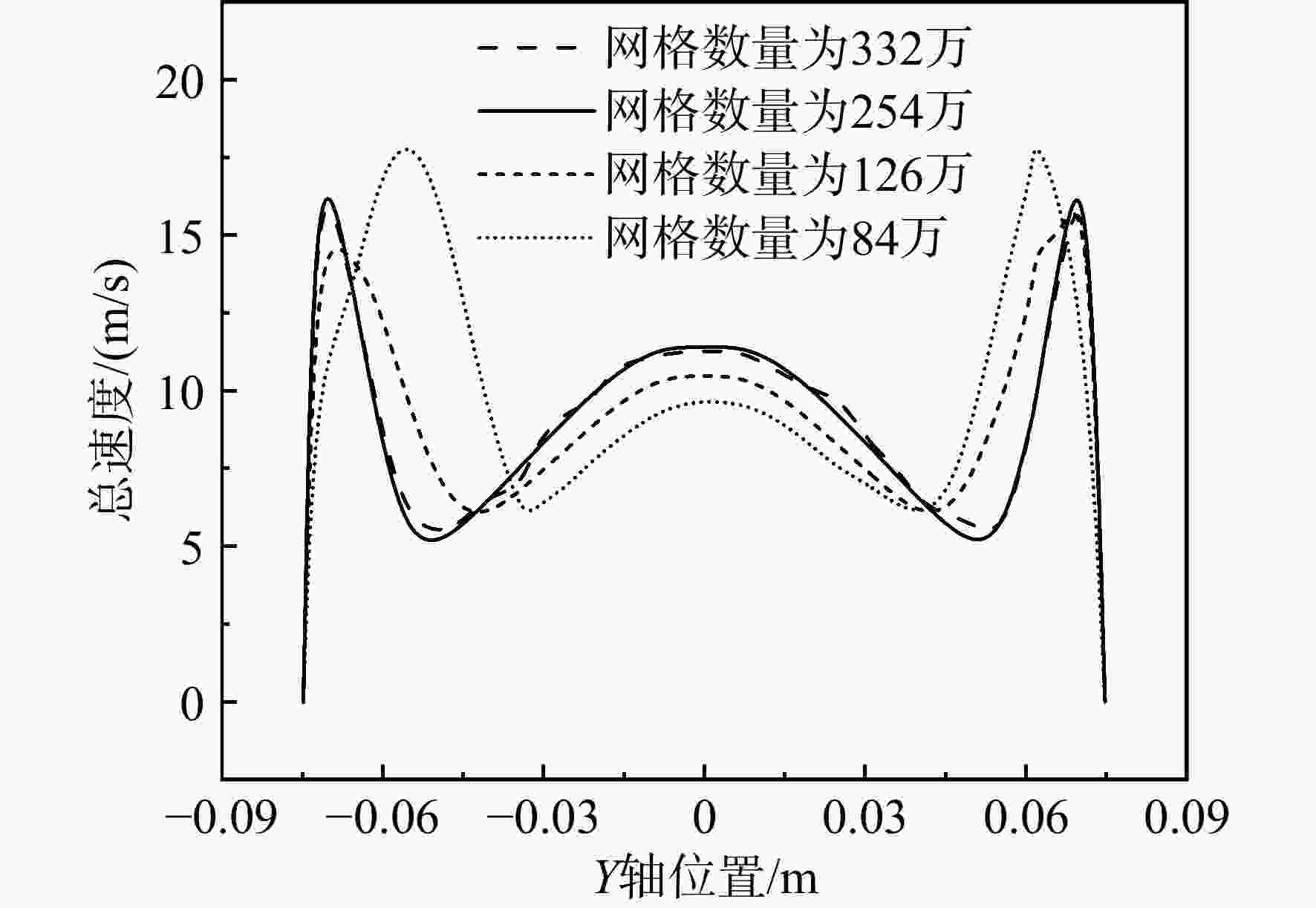

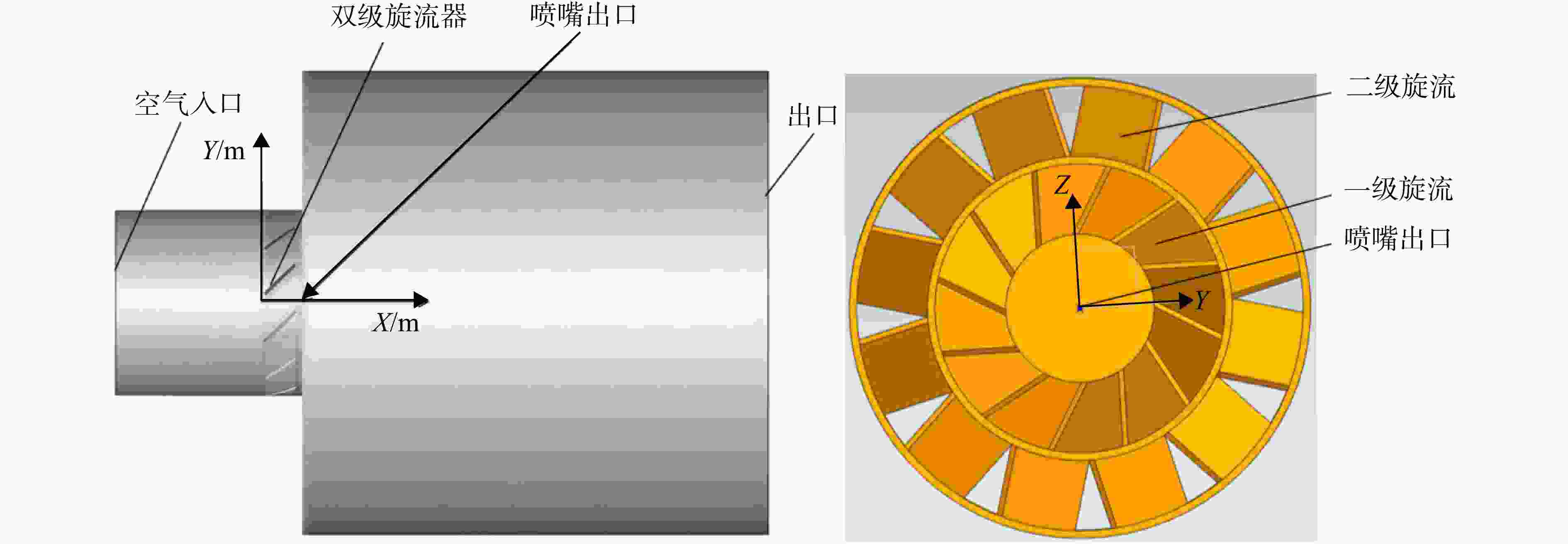

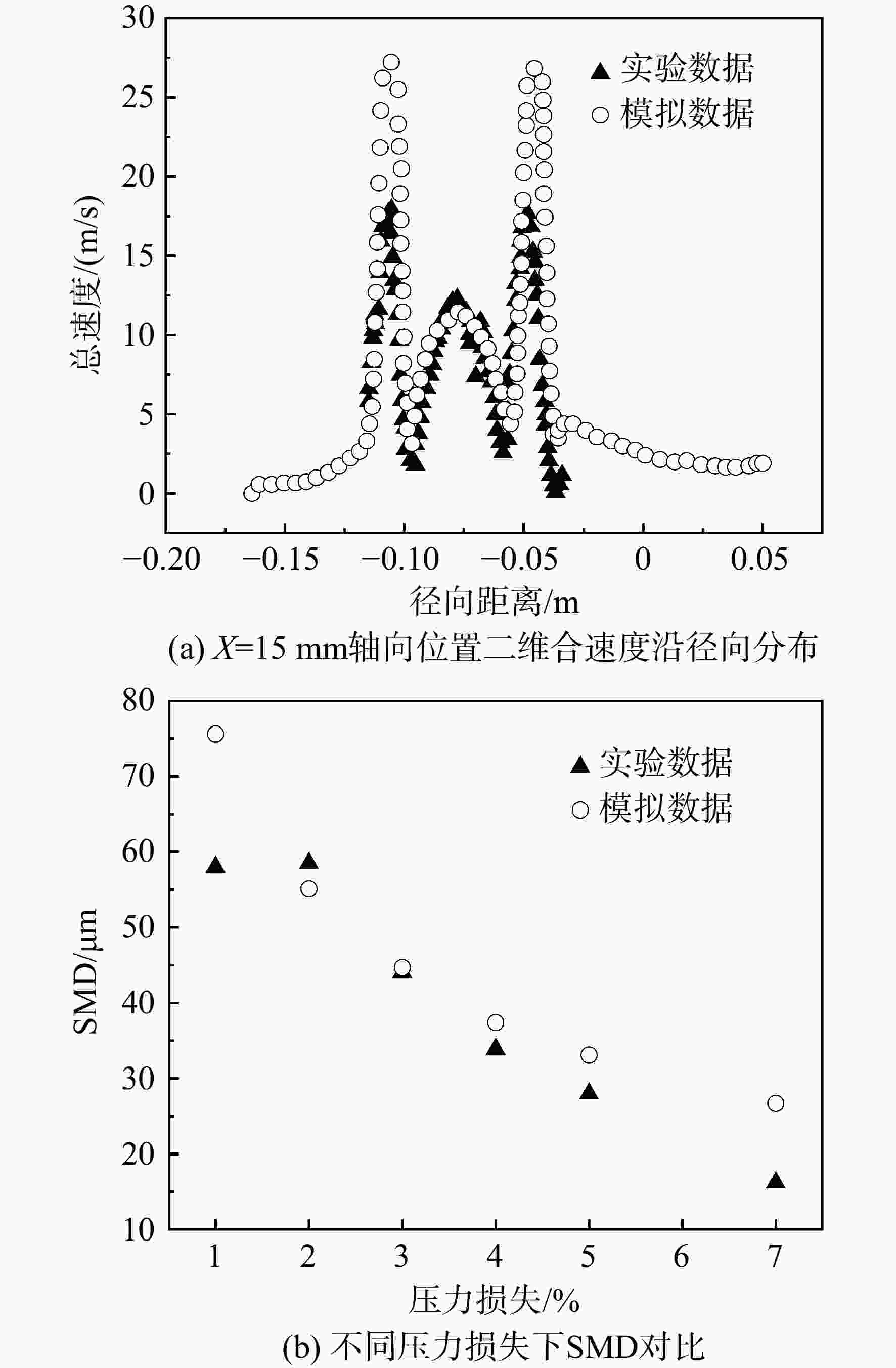

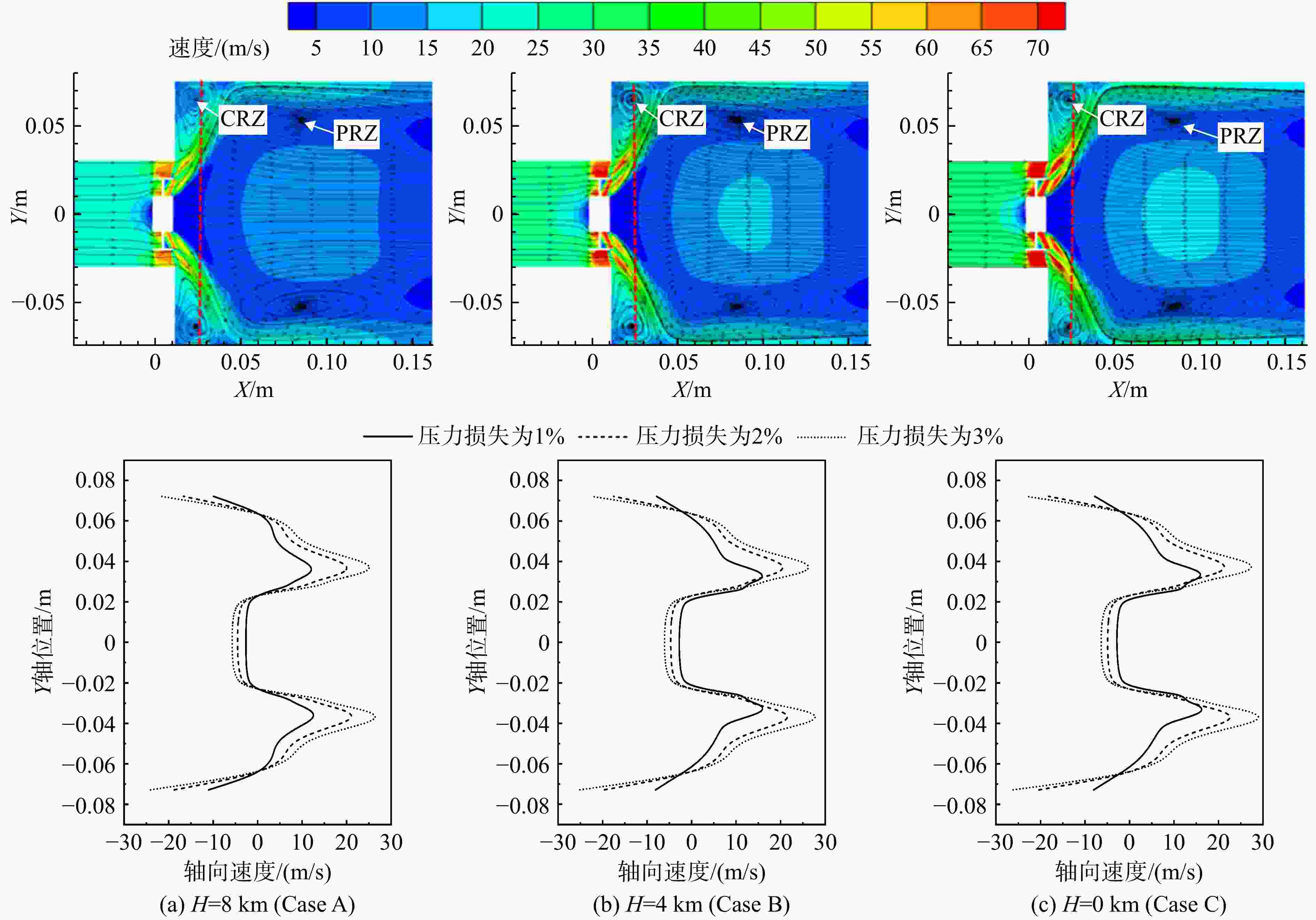

图 5 距地面不同高度流场及轴向速度
Figure 5. Flow fields and axial velocities at various heights above ground level

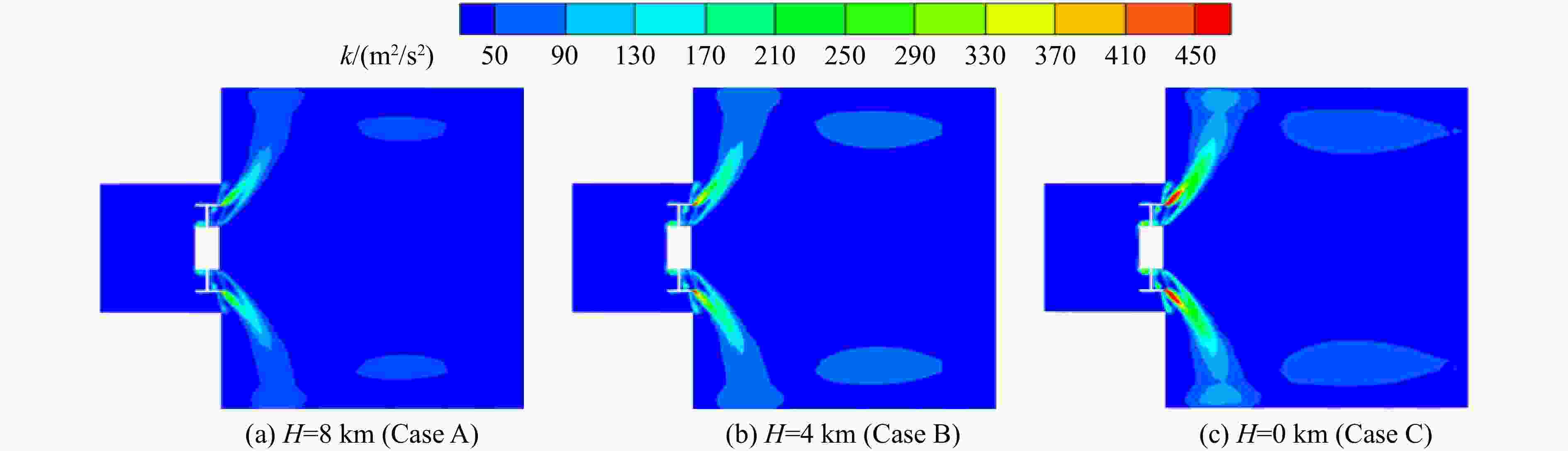

图 6 距地面不同高度湍动能分布
Figure 6. Distribution of turbulent kinetic energy at various heights above the ground

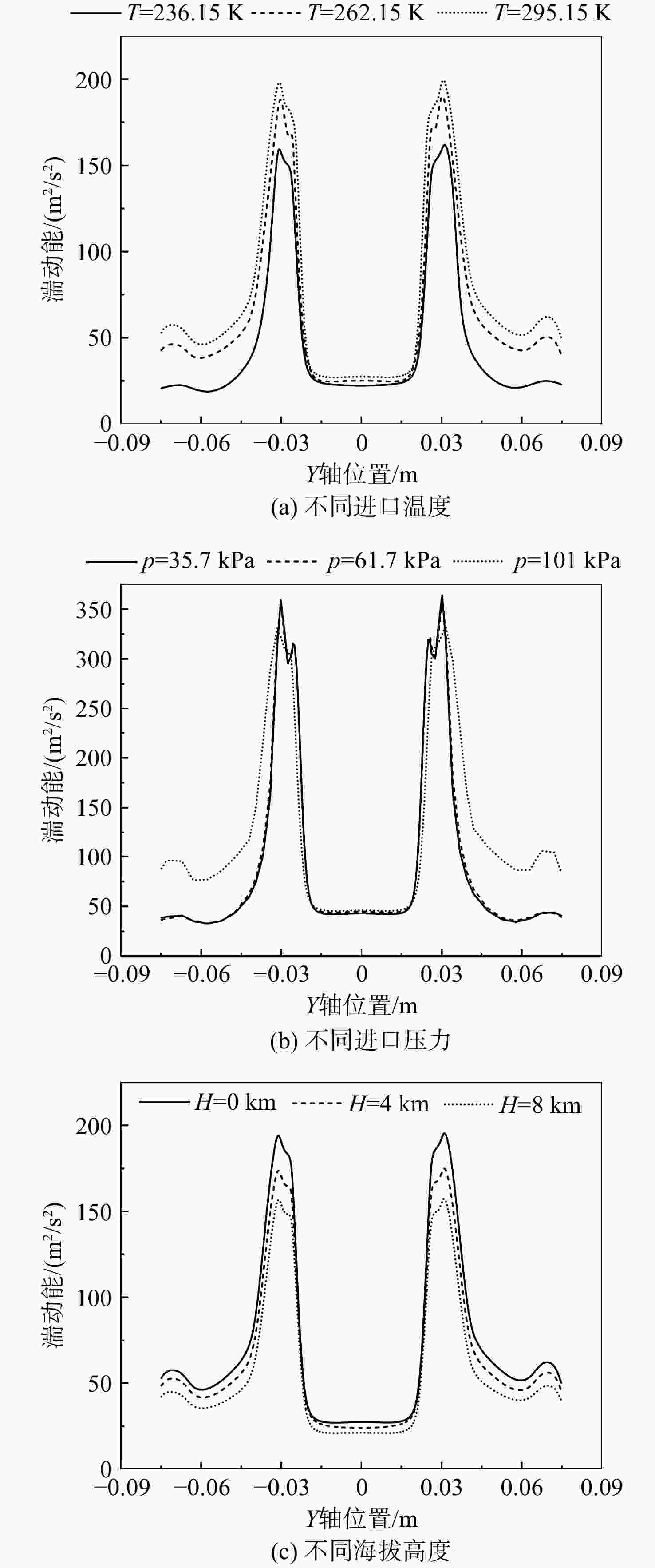

图 7 不同进口温度、进口压力和海拔高度下湍动能分布
Figure 7. Distribution of turbulent kinetic energy at various inlet temperatures, pressures, and altitudes

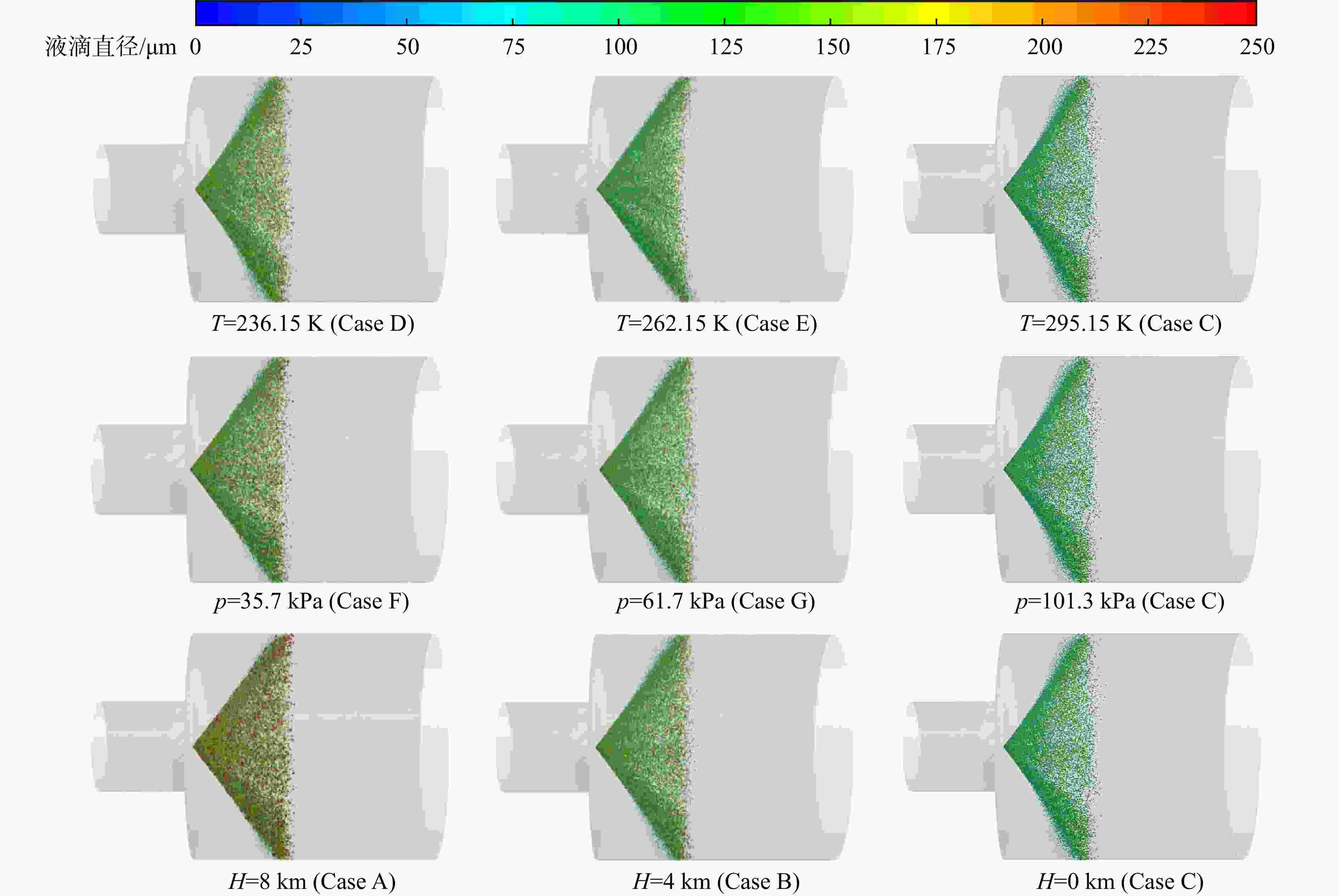

图 8 不同进口温度、进口压力和海拔高度下的燃油液滴空间分布
Figure 8. Spatial distribution of fuel droplets was analyzed at various inlet temperatures, pressures, and altitudes

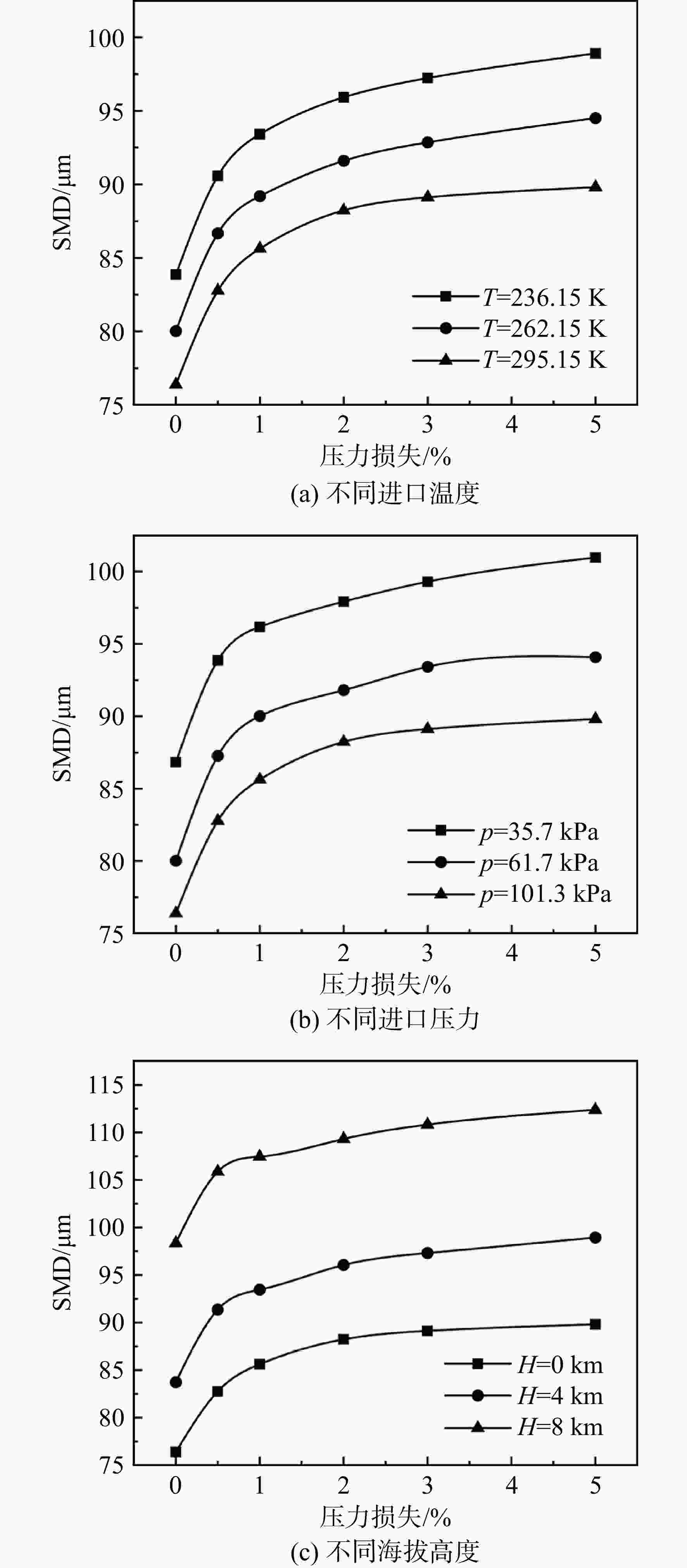

图 9 不同进口温度、进口压力和海拔高度下液滴SMD
Figure 9. Droplet SMD at different inlet temperatures, inlet pressures and altitudes

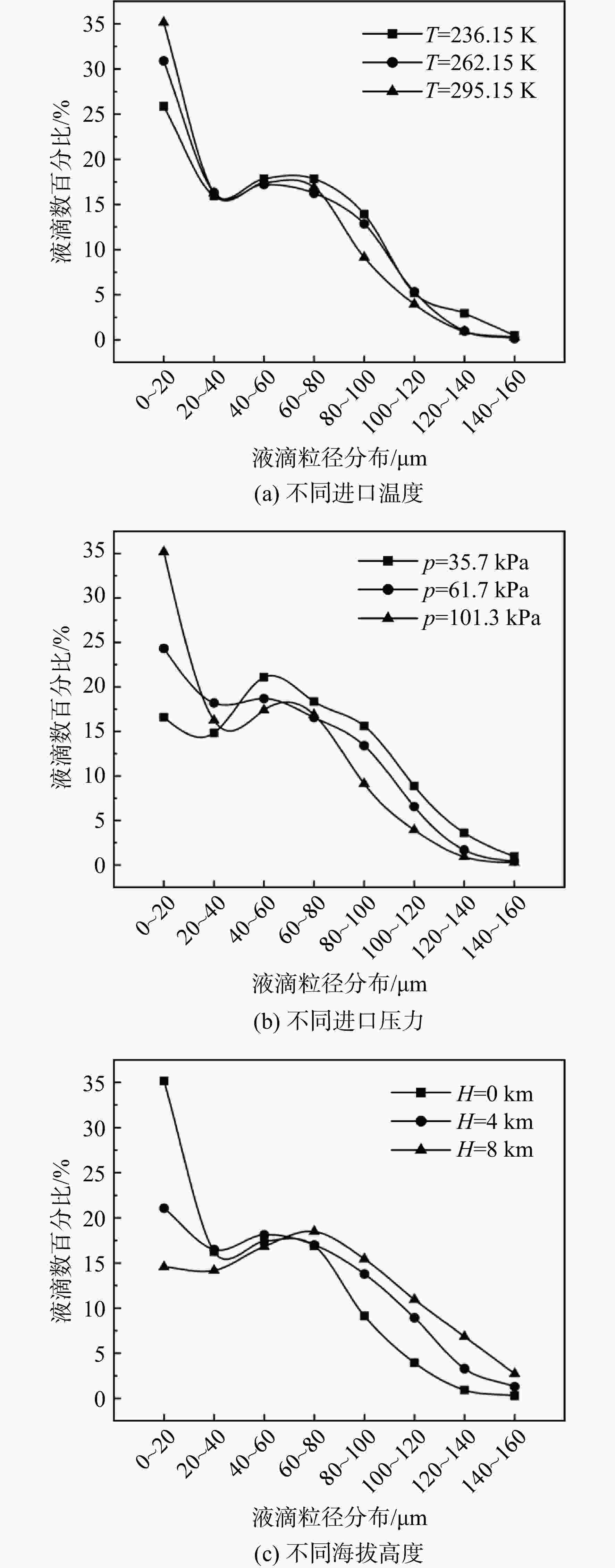

图 10 不同进口温度、进口压力和海拔高度下液滴粒径分布
Figure 10. Droplet diameter distribution at various inlet temperatures, pressures, and altitudes

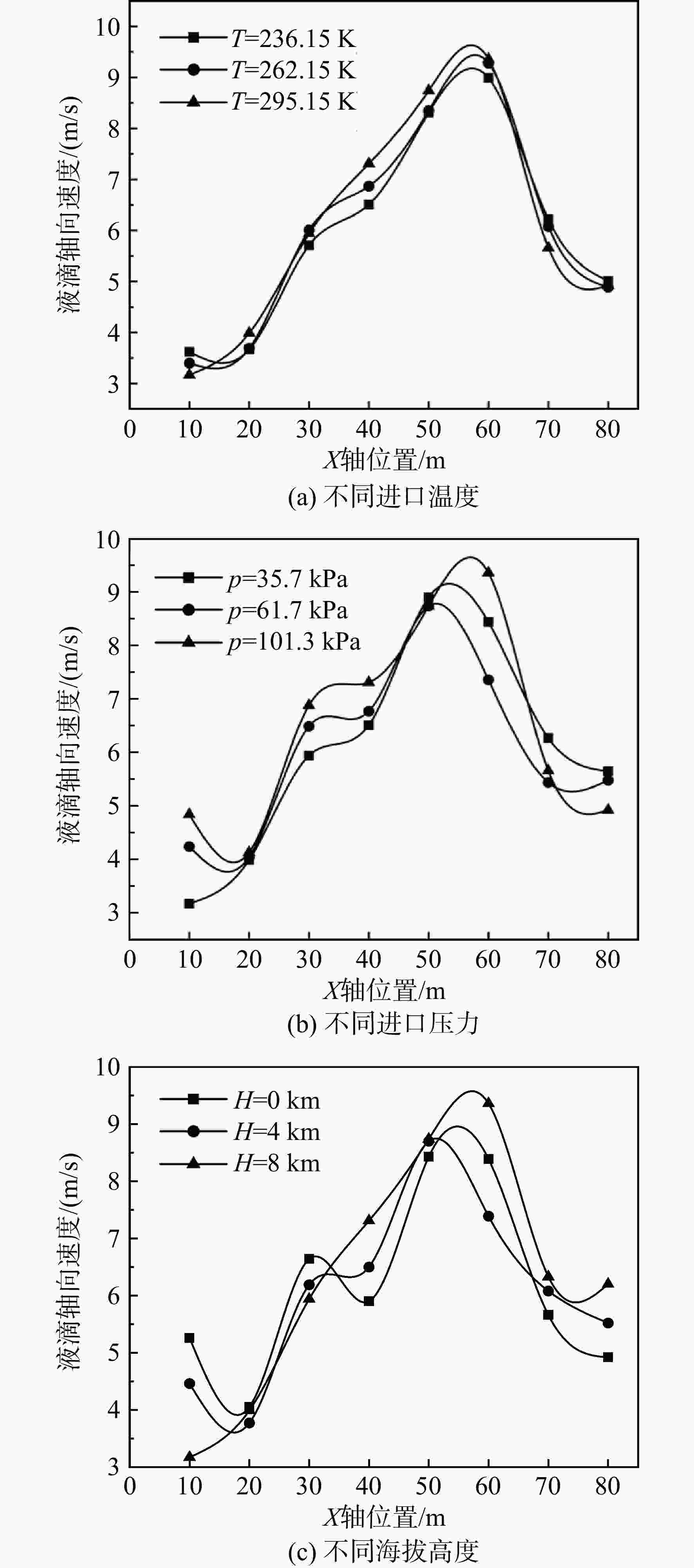

图 11 不同进口温度、进口压力和海拔高度下液滴平均轴向速度
Figure 11. Average axial velocity of droplets at different inlet temperatures, inlet pressures and altitudes

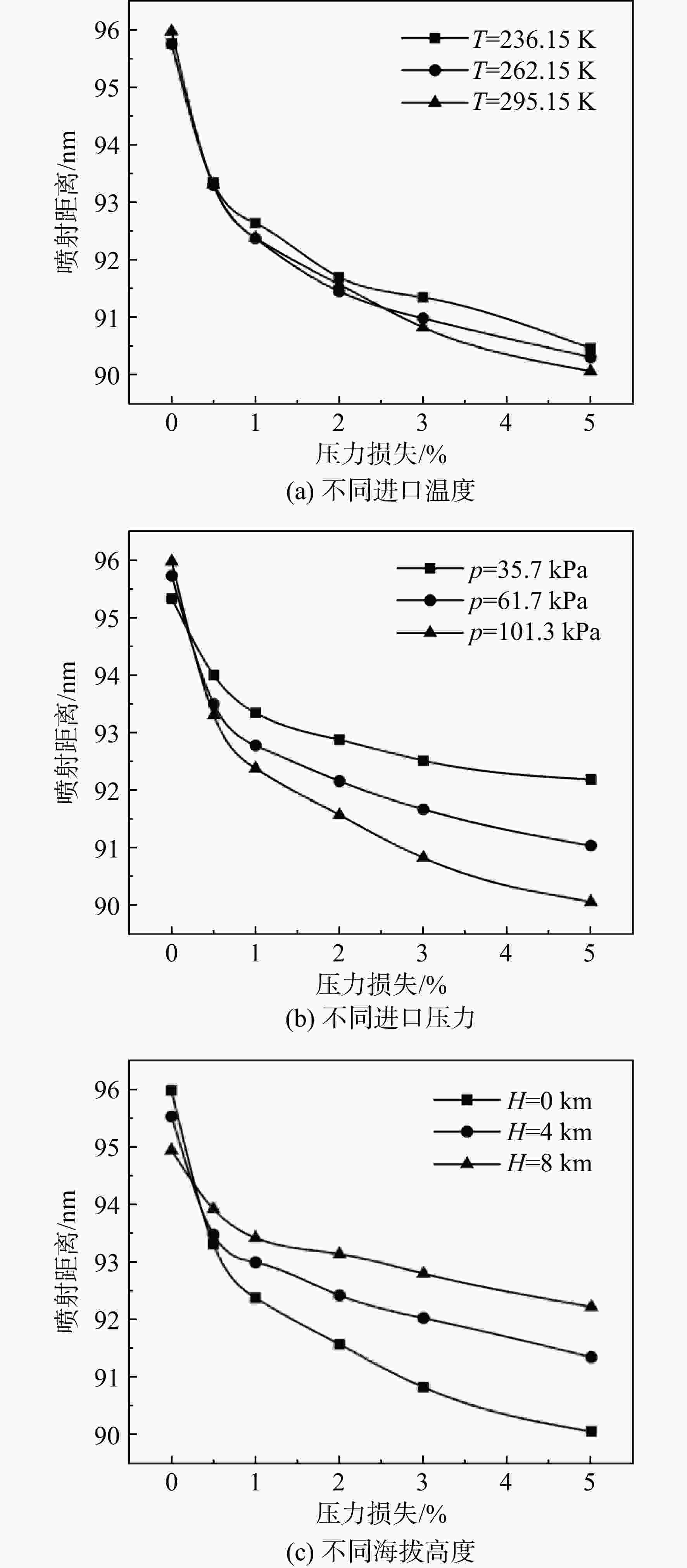

图 12 不同进口温度、进口压力和海拔高度下液滴喷射距离
Figure 12. Droplet injection distance was measured at various inlet temperatures, pressures, and altitudes

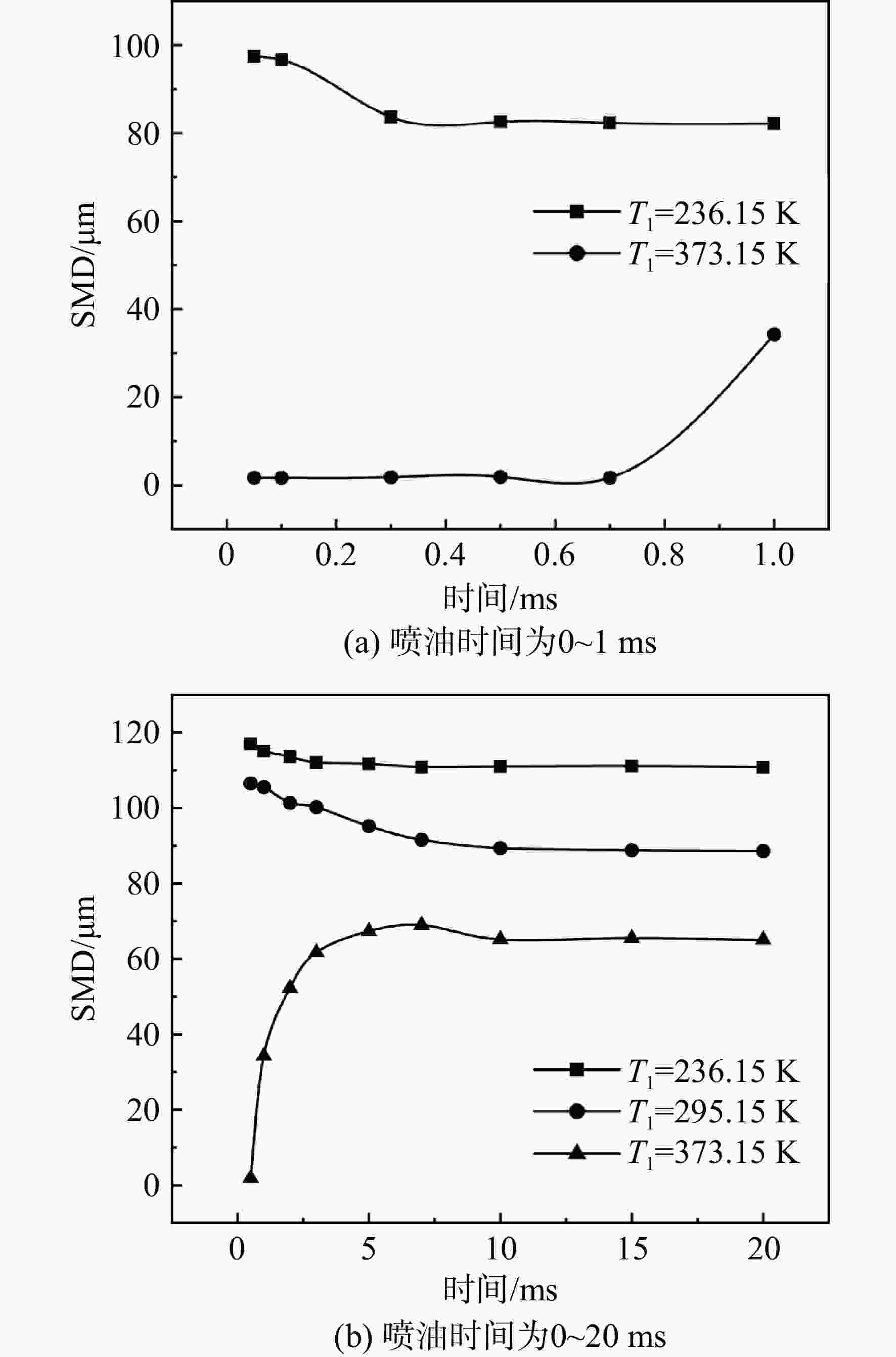

图 13 不同供油温度下液滴SMD随时间变化（方案A）
Figure 13. Droplet SMD as a function of time at varying oil supply temperatures （Case A）

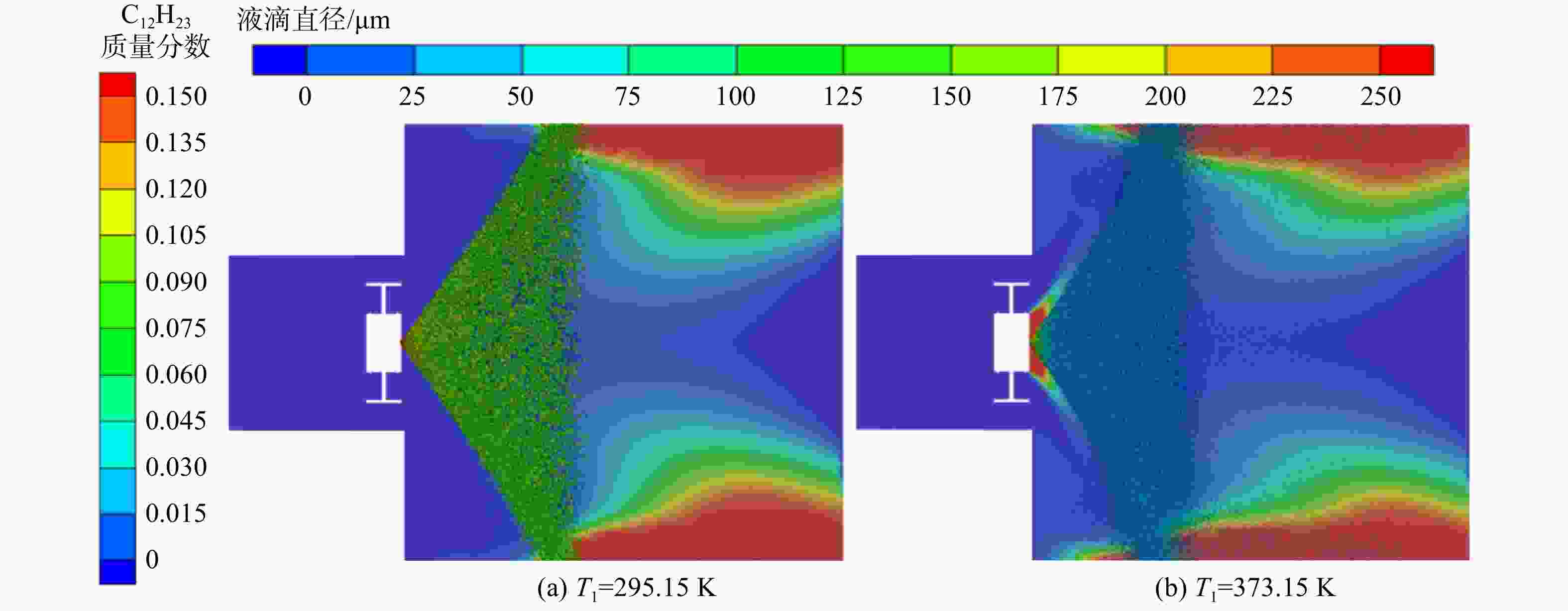

图 14 不同供油温度下燃油液滴粒径和组分分布图（方案A）
Figure 14. Fuel droplet diameter and component distribution at various fuel feed temperatures （Case A）

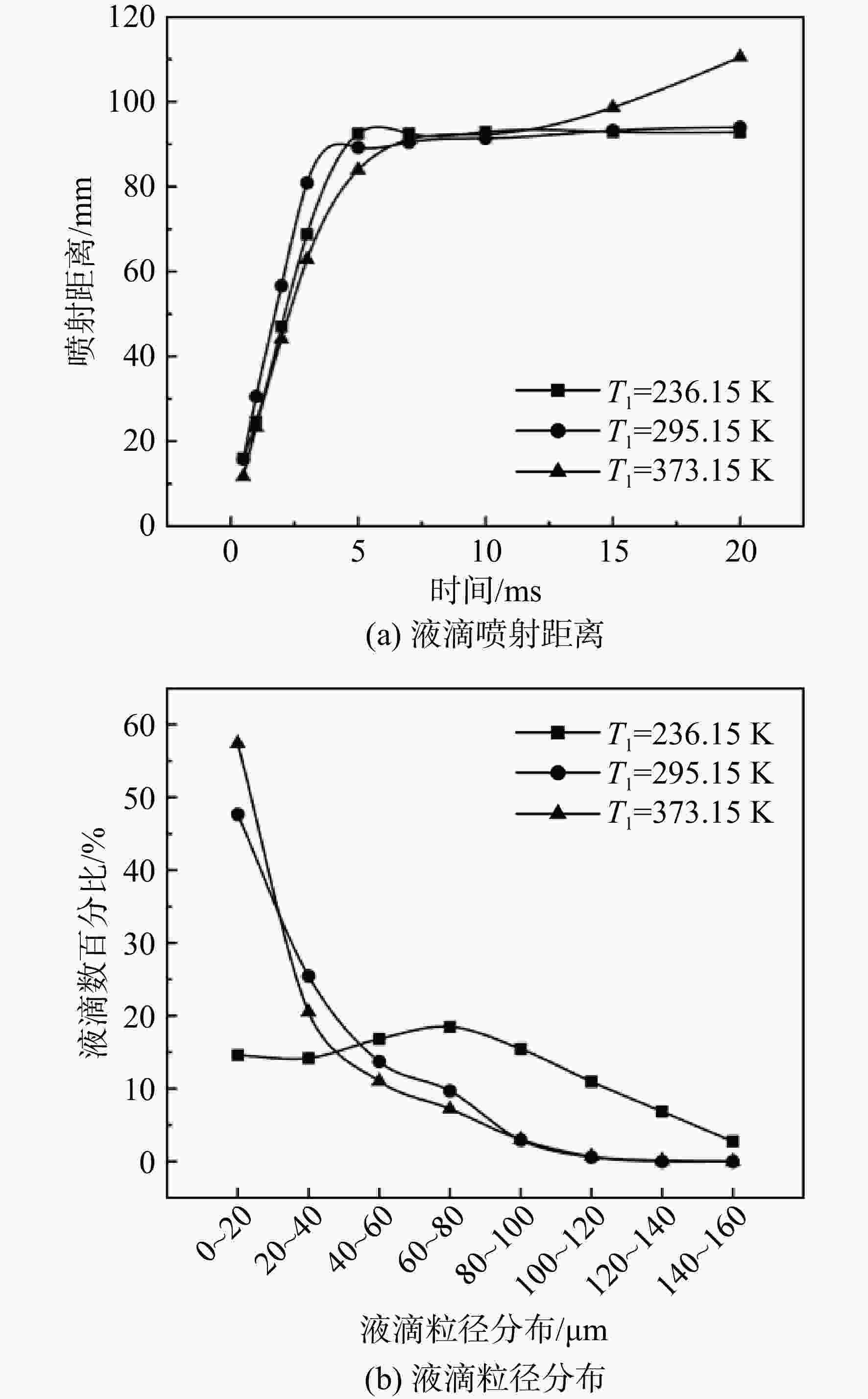

图 15 不同供油温度下液滴雾化特性（方案A）
Figure 15. Droplet atomization characteristics at different oil supply temperatures （Case A）
表 1 边界条件设置方案
Table 1. Boundary condition setting program
方案 进口温度/K 进口压力/kPa 工况 A 236.15 35.7 高空，H=8 km B 262.15 61.7 高原，H=4 km C 295.15 101.0 地面，H=0 km D 262.15 101.0 低温1 E 236.15 101.0 低温2 F 295.15 61.7 低压1 G 295.15 35.7 低压2
下载: 导出CSV
表 2 不同方案下的韦伯数、奥内佐格数和气液动量比
Table 2. We, Oh, and γ were calculated for various schemes
方案 We Oh γ A 0.4286 0.1153 0.0421 B 0.7007 0.0578 0.0704 C 1.2129 0.0317 0.1123 D 1.1060 0.0592 0.1206 E 1.0714 0.1230 0.1262 F 0.7748 0.0319 0.0681 G 0.4753 0.0315 0.0385
下载: 导出CSV
-
