基于粒子群算法的热流辨识方法研究

朱新新; 王辉; 杨庆涛; 杨凯

doi:10.13224/j.cnki.jasp.20240195

基于粒子群算法的热流辨识方法研究

doi: 10.13224/j.cnki.jasp.20240195

朱新新^{1, 2,},
王辉^{1, 2,*, ,},
杨庆涛^{1, 2},
杨凯^{1, 2}

1.
中国空气动力研究与发展中心超高速空气动力研究所，四川绵阳 621000
2.
中国空气动力研究与发展中心飞行器流体物理全国重点实验室，四川绵阳 621000

详细信息

作者简介:
朱新新（1988-），男，助理研究员，硕士，主要从事气动热与热防护试验测试技术研究。E-mail：xinxincomplex@126.com

通讯作者:
王辉（1972-），男，研究员，博士，主要从事气动热与热防护试验测试技术、智能控制与系统辨识相关研究工作。E-mail：wanghui@cardc.cn

中图分类号: V211.7
计量
- 文章访问数: 539
- HTML浏览量: 244
- PDF量: 27
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-01
- 网络出版日期: 2025-10-31

Research on heat flux estimation method based on particle swarm optimization

ZHU Xinxin^{1, 2
,},
WANG Hui^{1, 2,*
, ,},
YANG Qingtao^{1, 2},
YANG Kai^{1, 2}

1.
Hypervelocity Aerodynamics Institute，China Aerodynamics Research and Development Center，Mianyang Sichuan 621000，China
2.
National Key Laboratory of Aerospace Physics in Fluids，China Aerodynamics Research and Development Center，Mianyang Sichuan 621000，China

摘要

摘要:
针对不同材料模型表面热流辨识问题，通过引入热物性特征系数，基于能量守恒原理和傅里叶传热定律推导了双点测温热阻式热流传感器辨识热流的通解，提出了一种采用粒子群算法优化求解双点测温热阻式热流传感器通解的方法。为了说明该方法的有效性，建立双点测温热阻式热流传感器仿真传热模型，分别对铜、高温合金、碳化锆3种材料制作的传感器的热物性特征系数进行优化求解，得到了3种材料传感器热流辨识的具体求解方法。然后结合3种热流测试应用场景需求，得到不同测试场景下3种材料传感器的辨识热流与加载热流误差均小于1%，表明提出的基于粒子群算法的热流辨识方法有较好的辨识精度。
- 气动热 /
- 热流辨识 /
- 热阻式热流传感器 /
- 粒子群算法 /
- 热物性特征系数
Abstract:
With respect to the problem of heat flux estimation of different material model surfaces, by introducing the thermophysical characteristic coefficients, the general solution of heat flux estimation for the thermo-resistance heat flux sensor with two temperature points was derived based on the principle of energy conservation and Fourier heat transfer law. And a particle swarm method of optimizing the general solution of the thermo-resistance heat flux sensor with two temperature points was proposed. In order to illustrate the effectiveness of this method, a heat transfer simulation model of the thermo-resistance heat flux sensor with two temperature points was established. The thermophysical characteristic coefficients of sensors made of copper, superalloy and zirconium carbide were optimized respectively, and the specific heat flux estimation methods of sensors made of three materials were obtained. Then according to three application requirements of heat flux test, the heat flux error of each sensor between estimated and loaded heat fluxes in different test scenarios was less than 1%. The results showed that the proposed heat flux estimation method based on particle swarm optimization had better estimation accuracy.
- aerodynamic heat /
- heat flux estimation /
- thermo-resistance heat flux sensor /
- particle swarm optimization algorithm /
- thermophysical characteristic coefficients

HTML

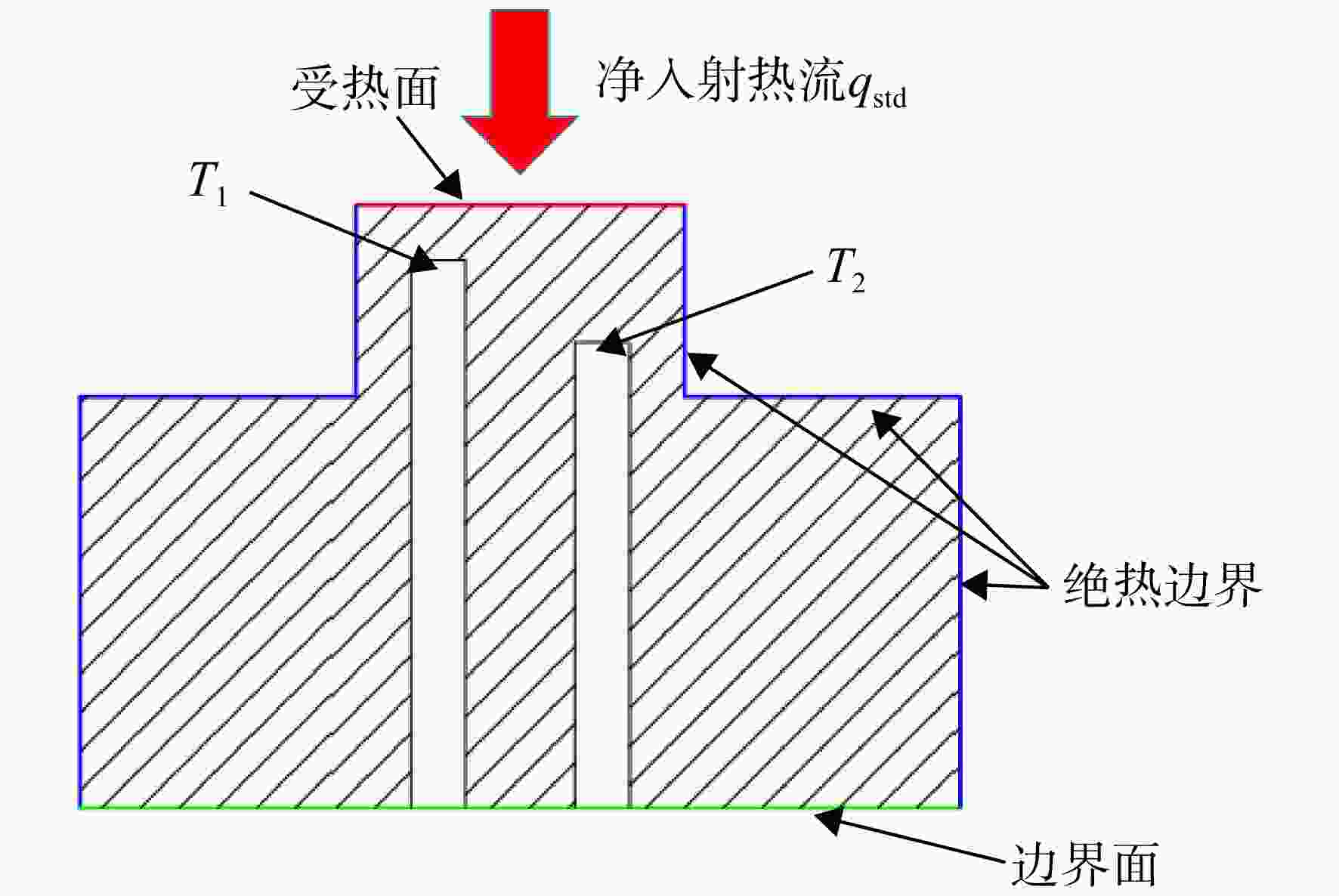

图 1 传感器测热原理

Figure 1. Heat transfer measurement principle of the sensor

下载: 全尺寸图片幻灯片

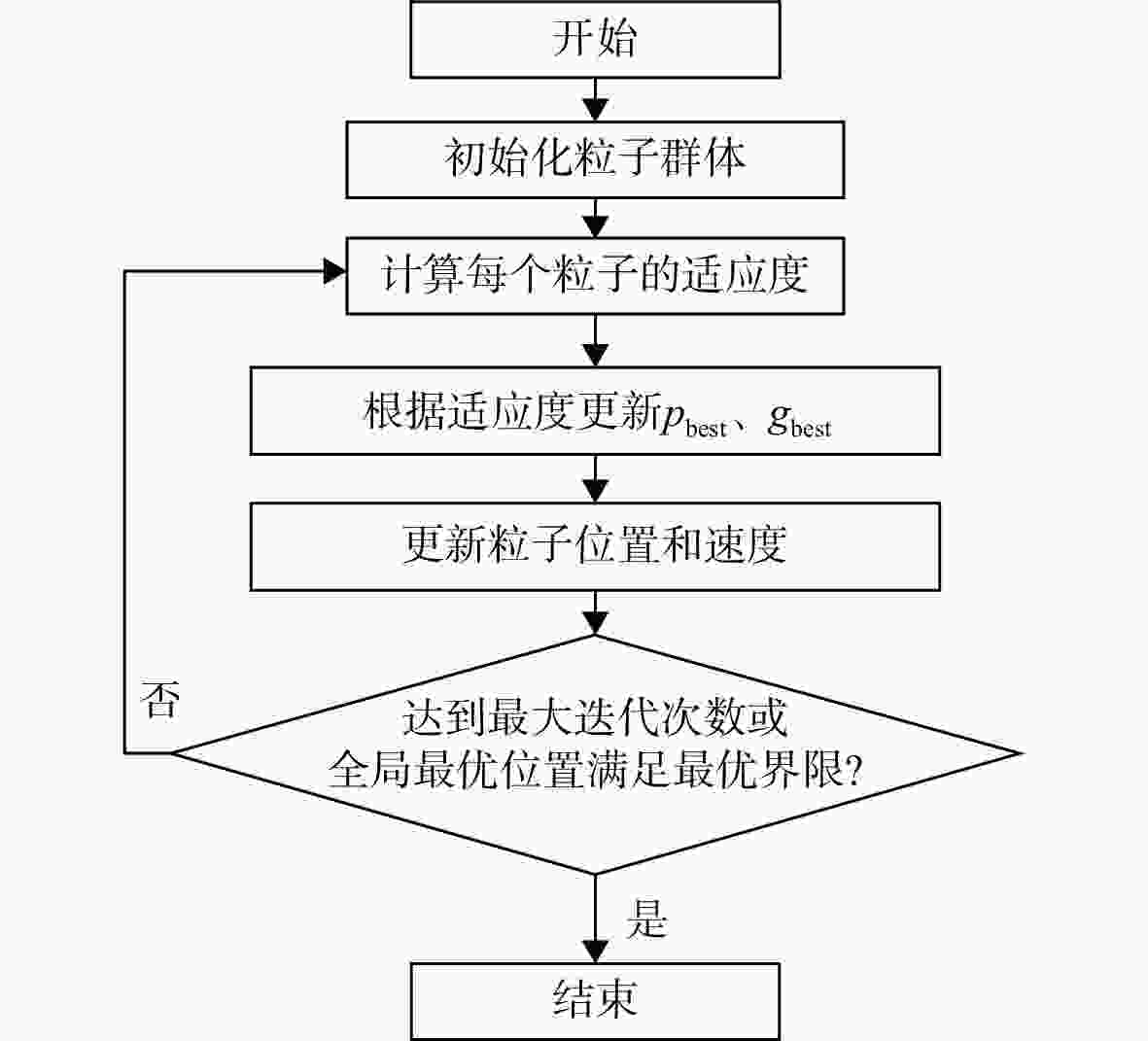

图 2 粒子群算法流程

Figure 2. Flowchart of PSO

下载: 全尺寸图片幻灯片

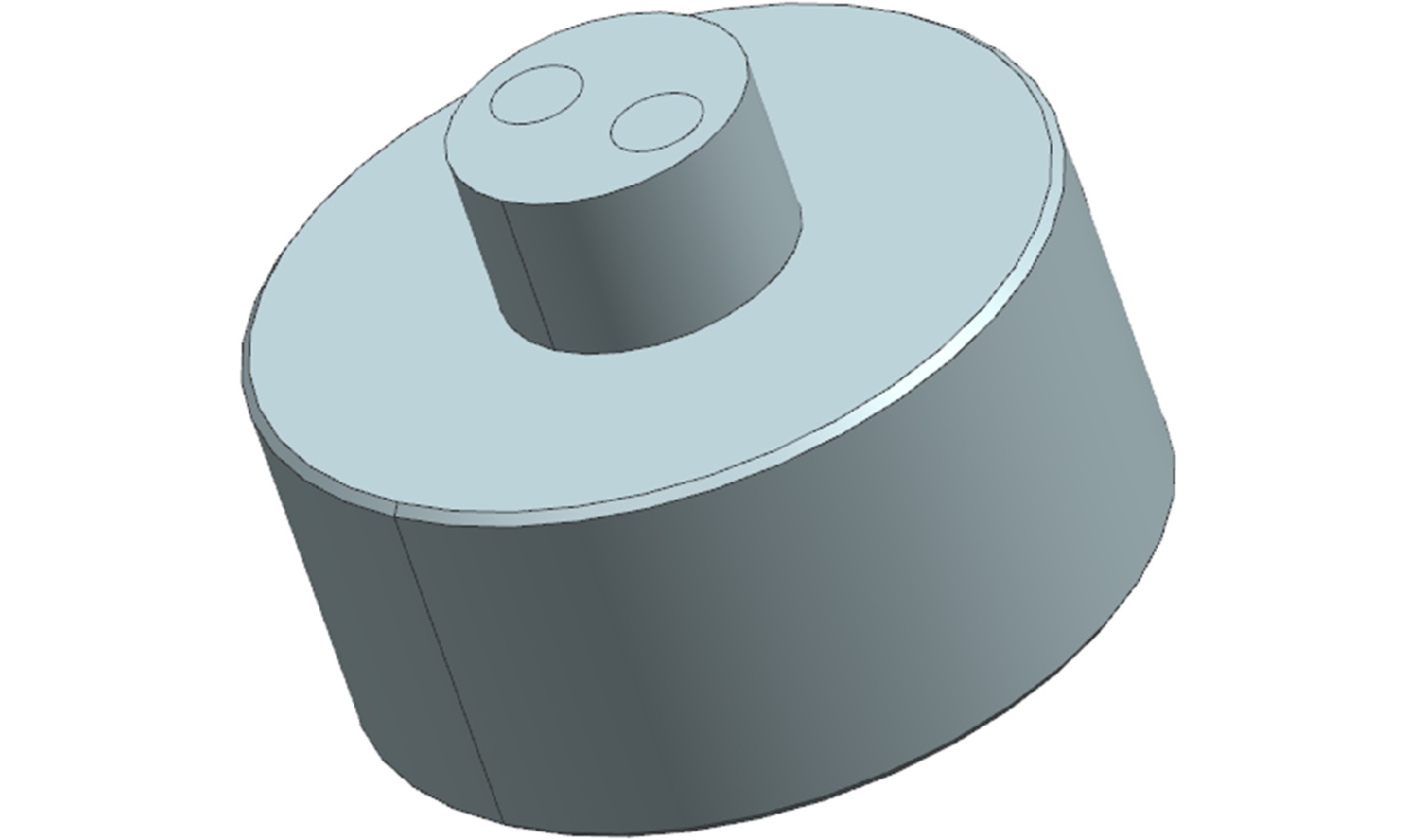

图 3 传感器外形示意图

Figure 3. Schematic diagram of sensor profile

下载: 全尺寸图片幻灯片

图 4 传热仿真模型

Figure 4. Heat transfer simulation model

下载: 全尺寸图片幻灯片

图 5 传感器尺寸（单位：mm）

Figure 5. Size of sensor （unit：mm）

下载: 全尺寸图片幻灯片

图 6 传感器温度云图

Figure 6. Temperature nephogram of sensor

下载: 全尺寸图片幻灯片

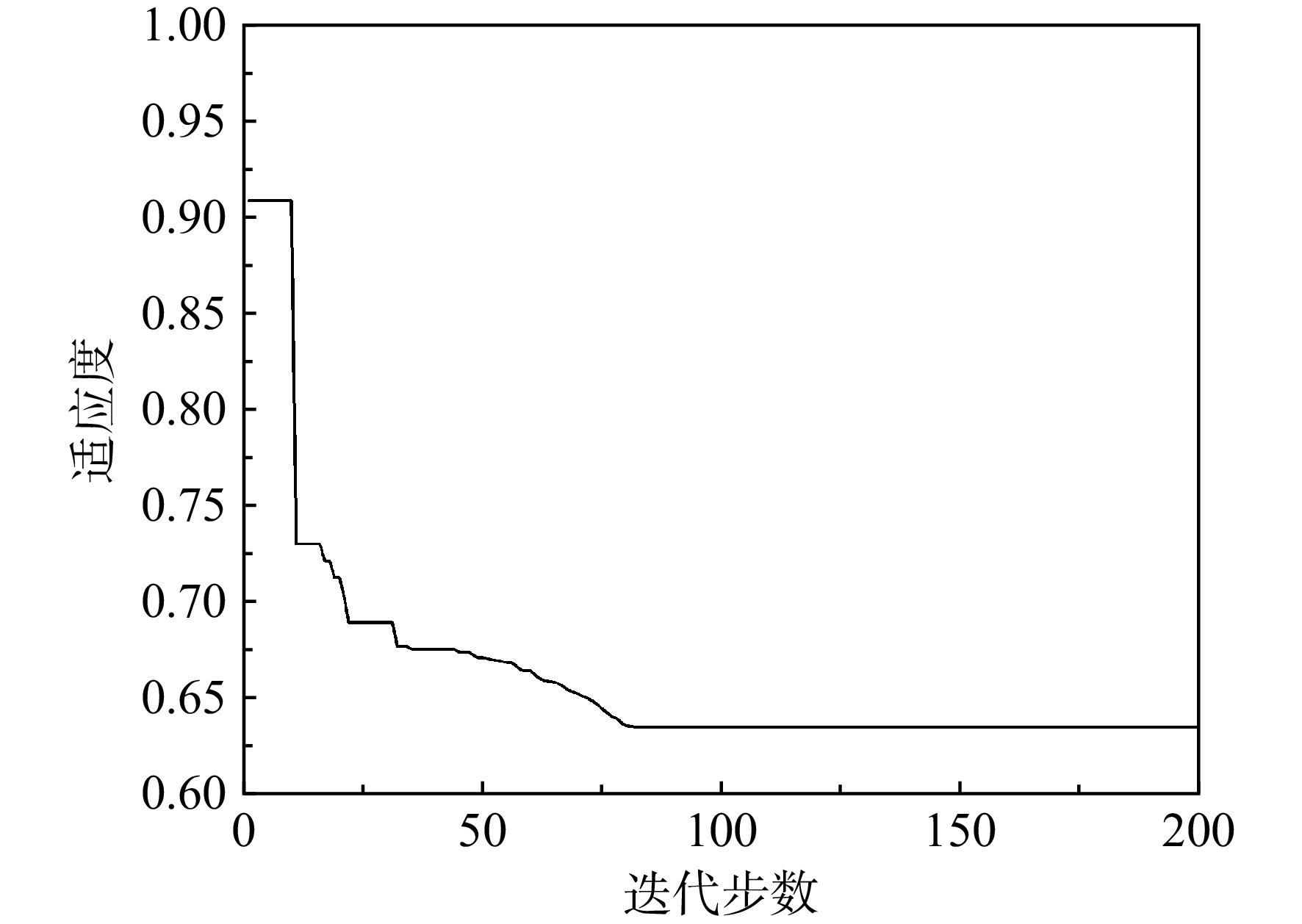

图 7 迭代过程

Figure 7. Iterative process

下载: 全尺寸图片幻灯片

图 8 传感器温度和热流曲线

Figure 8. Sensor temperature and heat flux curves

下载: 全尺寸图片幻灯片

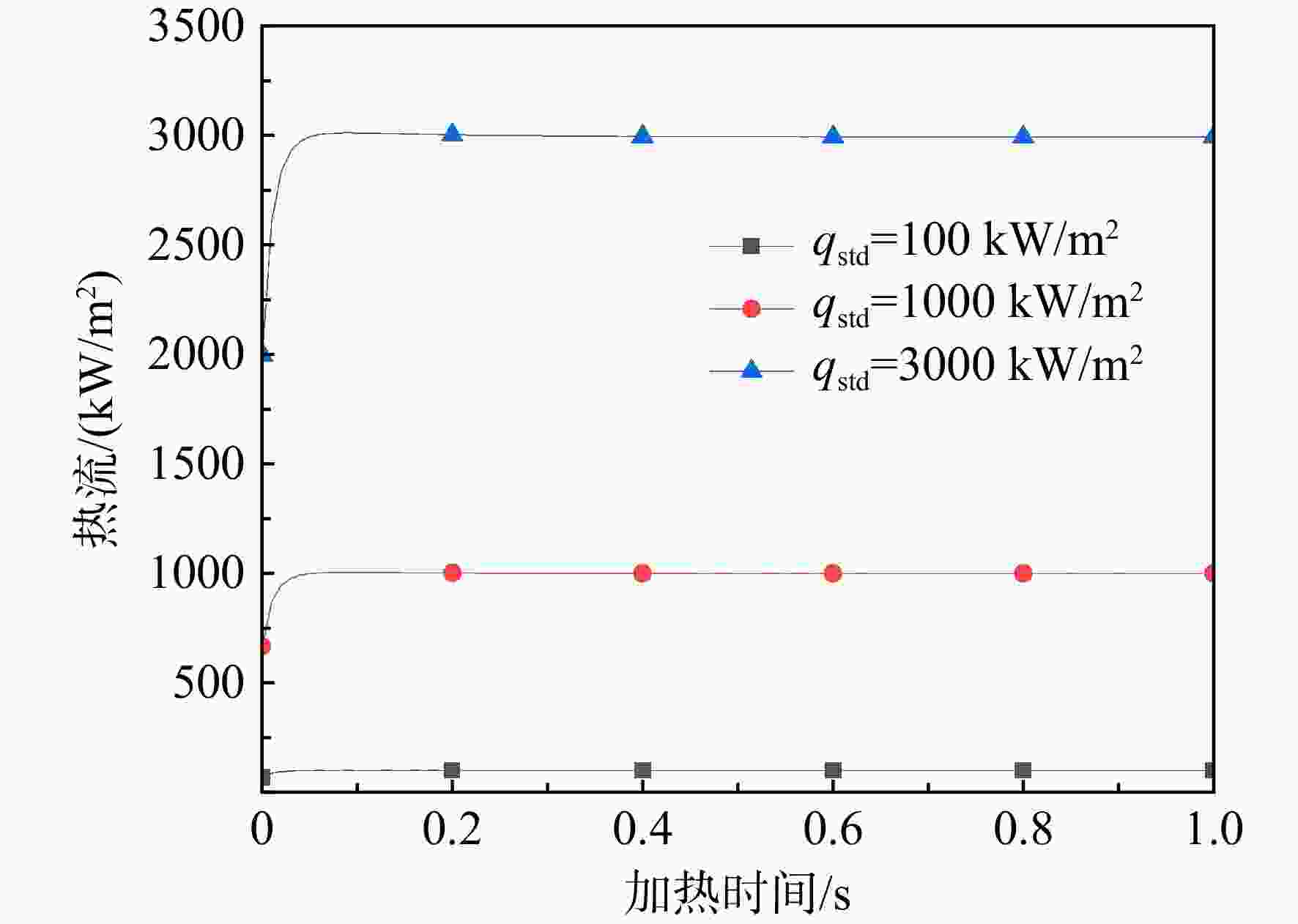

图 9 单状态热流辨识结果（q_best）

Figure 9. Single-state heat flux estimation results （q_best）

下载: 全尺寸图片幻灯片

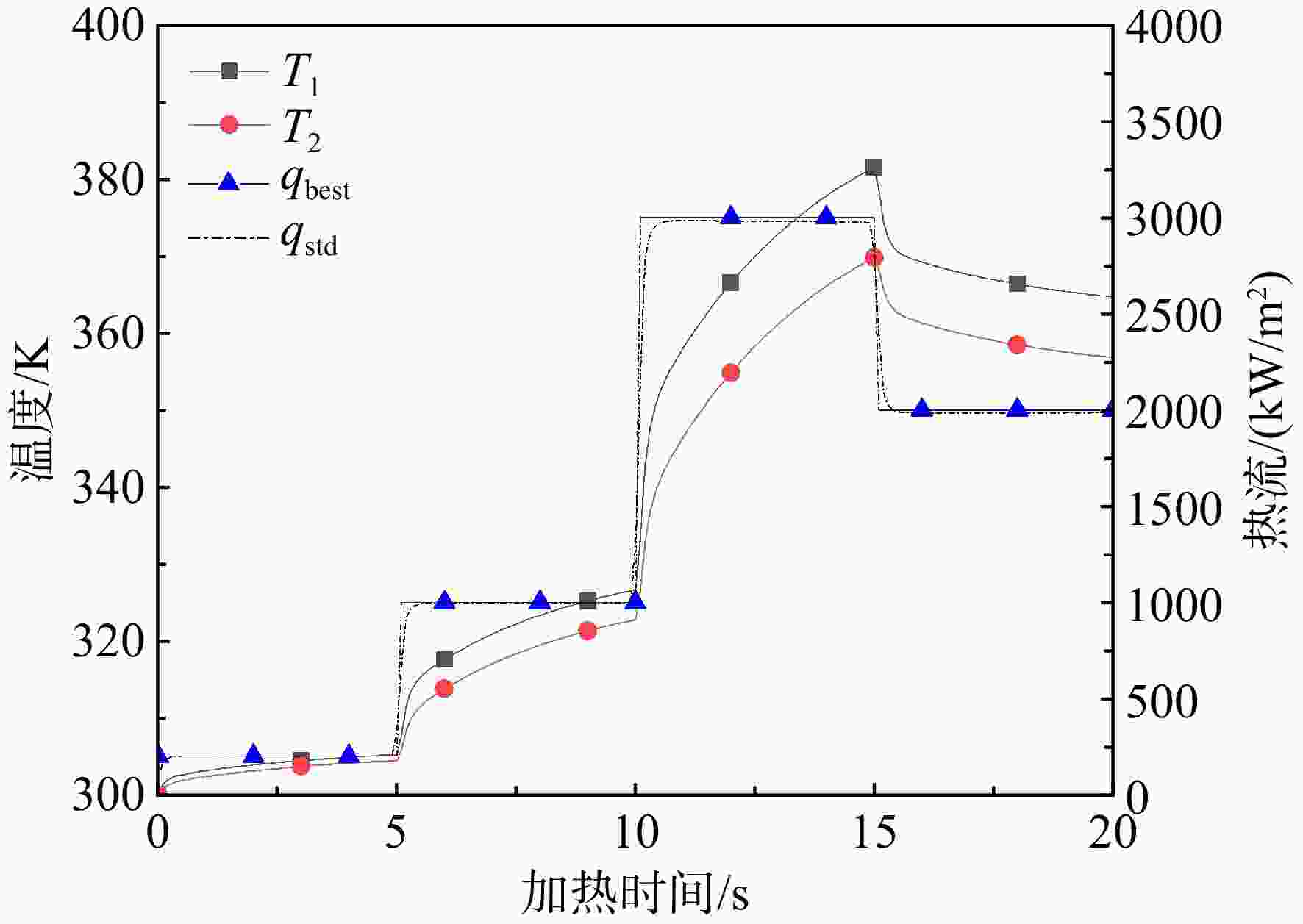

图 10 多状态热流辨识结果

Figure 10. Multi-state heat flux estimation results

下载: 全尺寸图片幻灯片

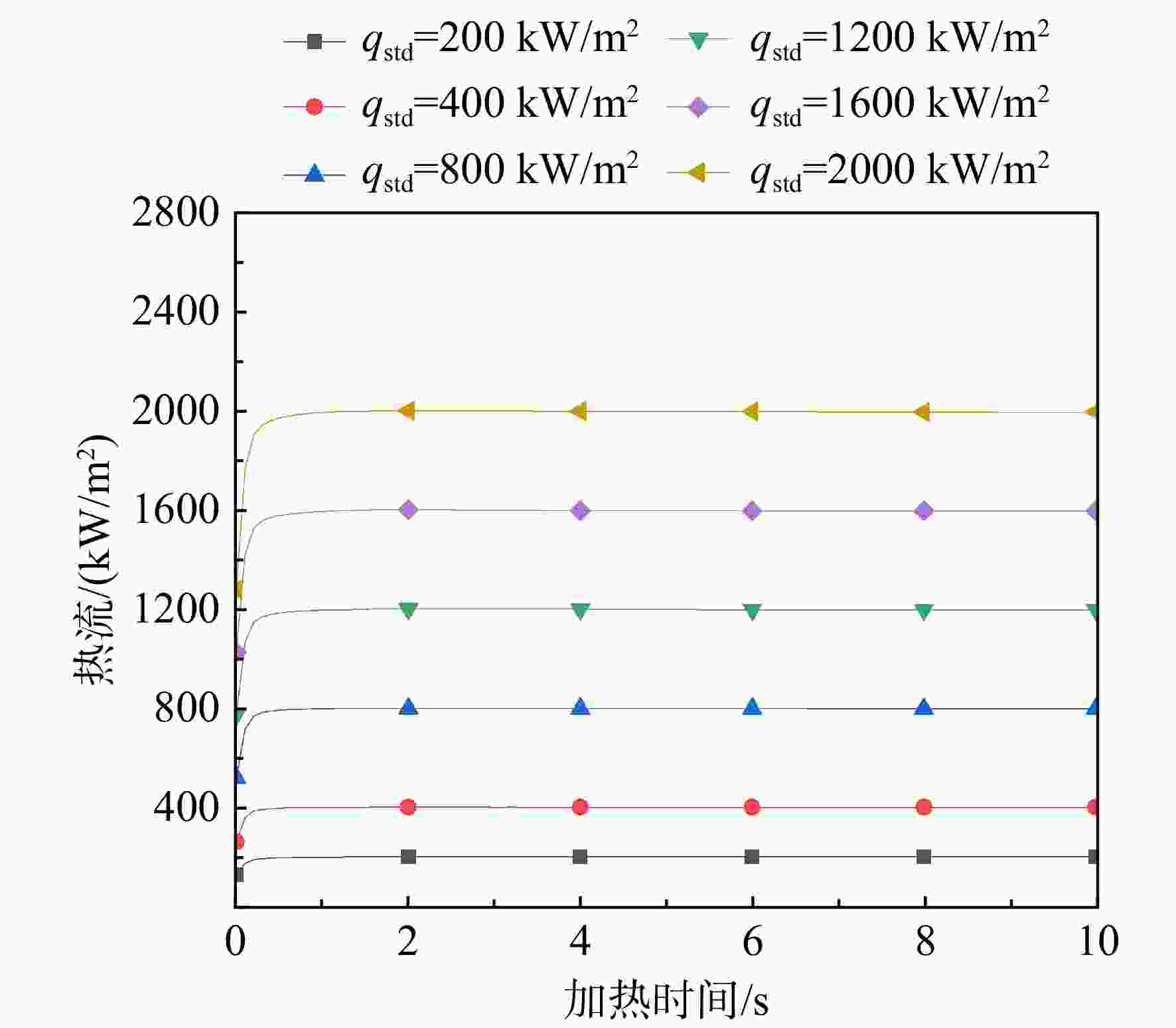

图 11 辨识热流曲线（q_best）

Figure 11. Estimation heat flux curves （q_best）

下载: 全尺寸图片幻灯片

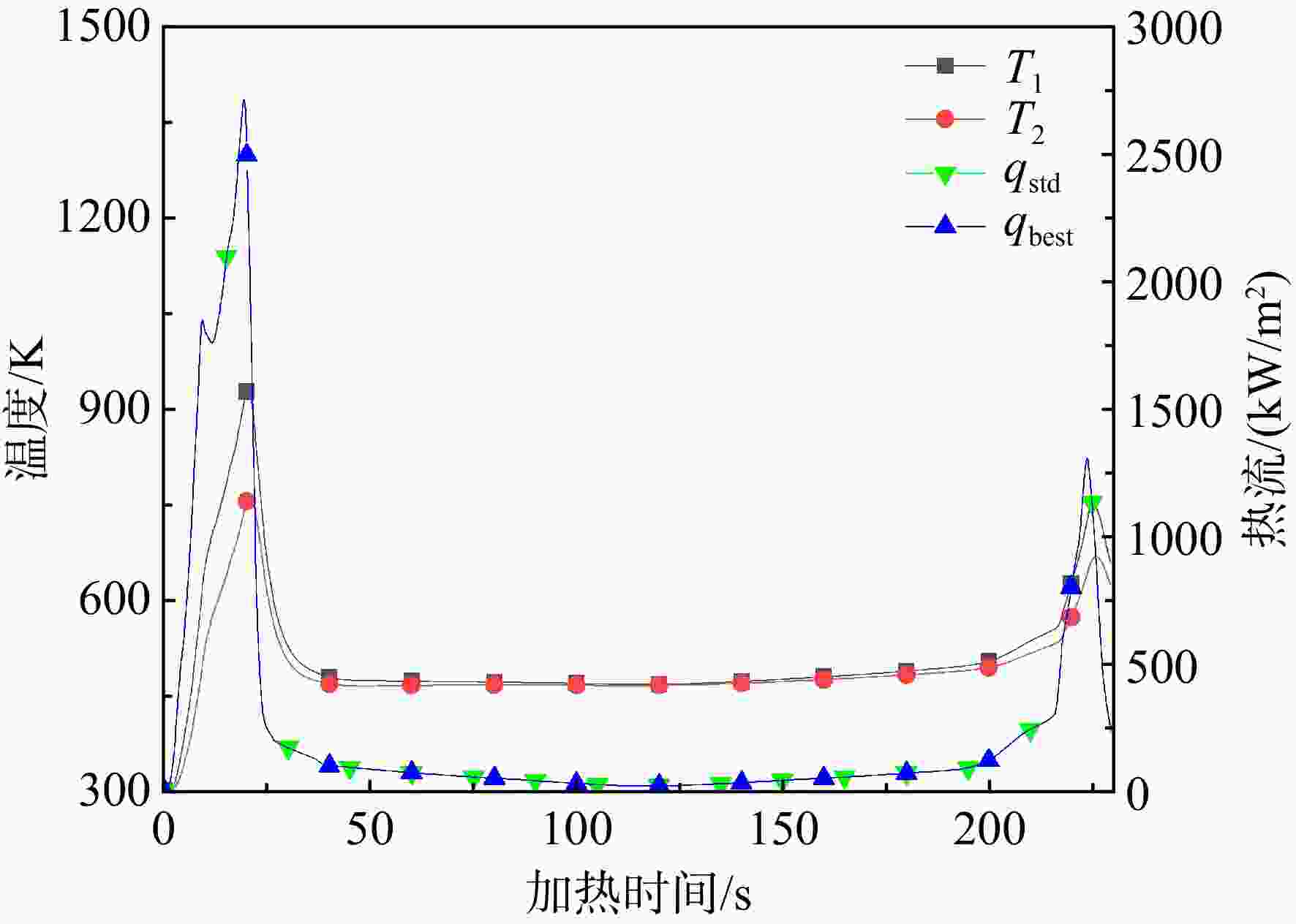

图 12 MF-1热流辨识结果

Figure 12. MF-1 heat flux estimation results

下载: 全尺寸图片幻灯片

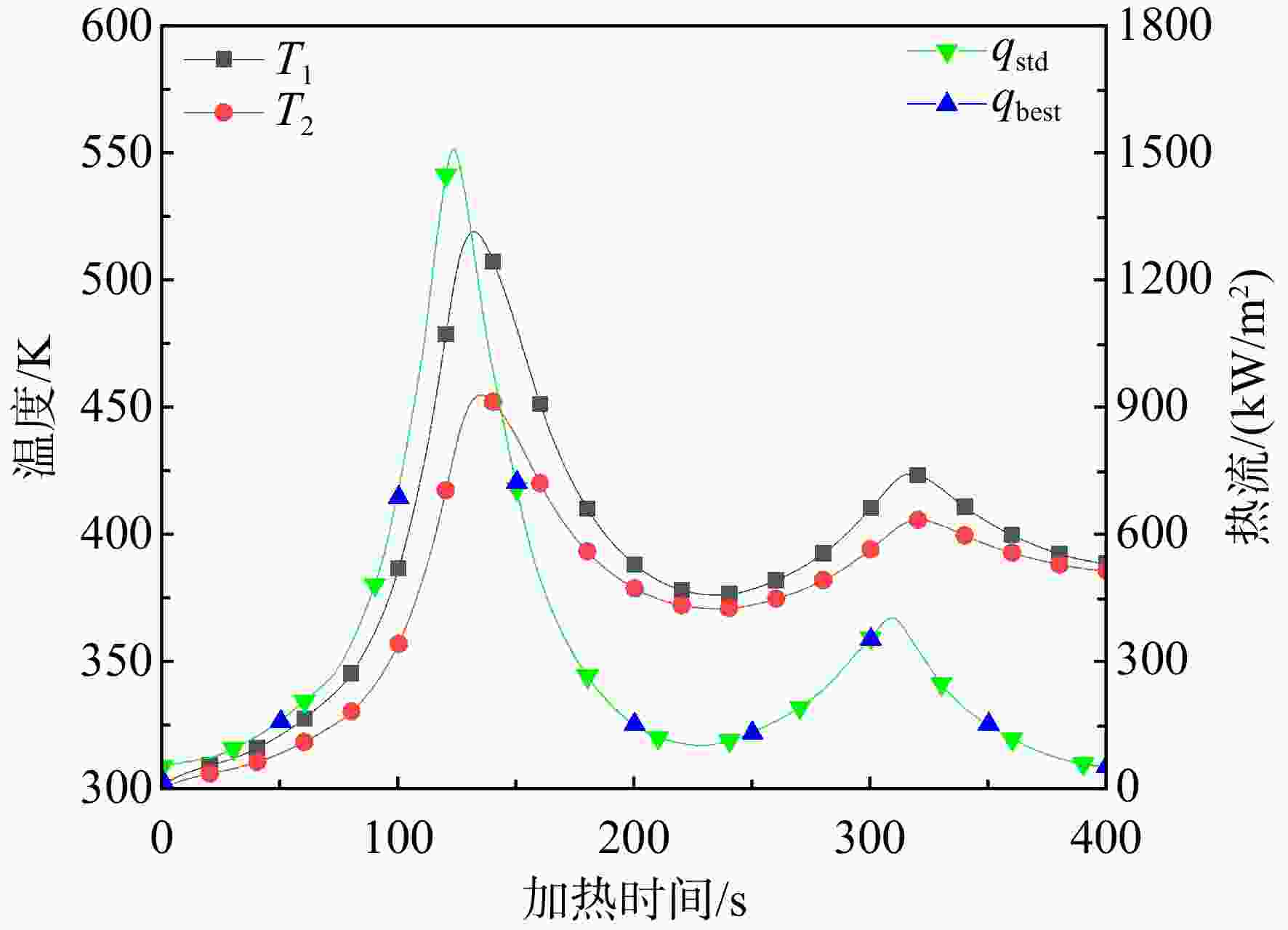

图 13 驻点热流辨识结果

Figure 13. Stagnation heat flux estimation results

下载: 全尺寸图片幻灯片

表 1 不同热流下的适应度

Table 1. Fitness under different heat flux values

热流/ （kW/m²）	最优适应度	热物性特征系数
200	0.634	（1.097，0.536，0.310，0.998）
400	0.633	（1.097，0.549，0.300，0.999）
800	0.632	（1.081，0.567，0.300，0.999）
1200	0.632	（1.085，0.556，0.307，0.999）
1600	0.633	（1.090，0.542，0.300，1.000）
2 000	0.635	（1.083，0.564，0.300，1.000）

下载: 导出CSV
