Study on the transition mode attitude control and optimal tilt angle curve of quad-tiltrotor
-
摘要:
结合滑模理论与干扰观测器设计了倾转四旋翼机倾转过渡走廊动态飞行完整控制律，使用遗传算法对倾转四旋翼机过渡飞行状态的倾转角曲线进行优化，在时域仿真环境中以倾转角作为旋翼控制器和固定翼控制器的权重因子进行操纵分配，对控制系统进行时域响应分析，将倾转角曲线优化前后的姿态角响应进行对比。仿真实验结果表明所设计的控制器动态性能良好（响应速度快）、鲁棒性强，利用遗传算法对倾转四旋翼机倾转角曲线优化，能进一步降低过渡飞行过程中横向及侧向发生的操纵耦合影响，提高了过渡模式的转换效率，降低了倾转四旋翼机的姿态波动。其中，倾转状态达到滚转角和俯仰角极值状态的时间明显缩短，滚转角处于极值附近时间明显缩短，倾转全过程偏航角的变化幅值降低25%、飞行高度的变化幅值仅为0.75 m。
Abstract:The complete control law of quad-tiltrotor dynamic flight in the tilting transition corridor was designed by combining the sliding mode theory and interference observer. The tilt angle curve of quad-tiltrotor in the transition flight state was optimized by using genetic algorithm. In the time domain simulation environment, the tilt angle was used as the weight factor of the rotor controller and the fixed wing controller for control assignment. The time-domain response of the control system was analyzed, and the attitude responses before and after the tilt angle curve optimization were compared. The simulation results showed that the designed controller had good dynamic performance (fast response speed) and strong robustness. The effects of horizontal and lateral maneuvering coupling during transition flight were further reduced; the conversion efficiency of transition mode was improved and the attitude fluctuation of quad-tiltrotor was reduced. Thus, the time to reach the extreme values of roll and pitch angles during tilting state significantly decreased, the change amplitude of yaw angle throughout the tilt process was reduced by 25%, and the amplitude of flight altitude change was only 0.75 m.
-

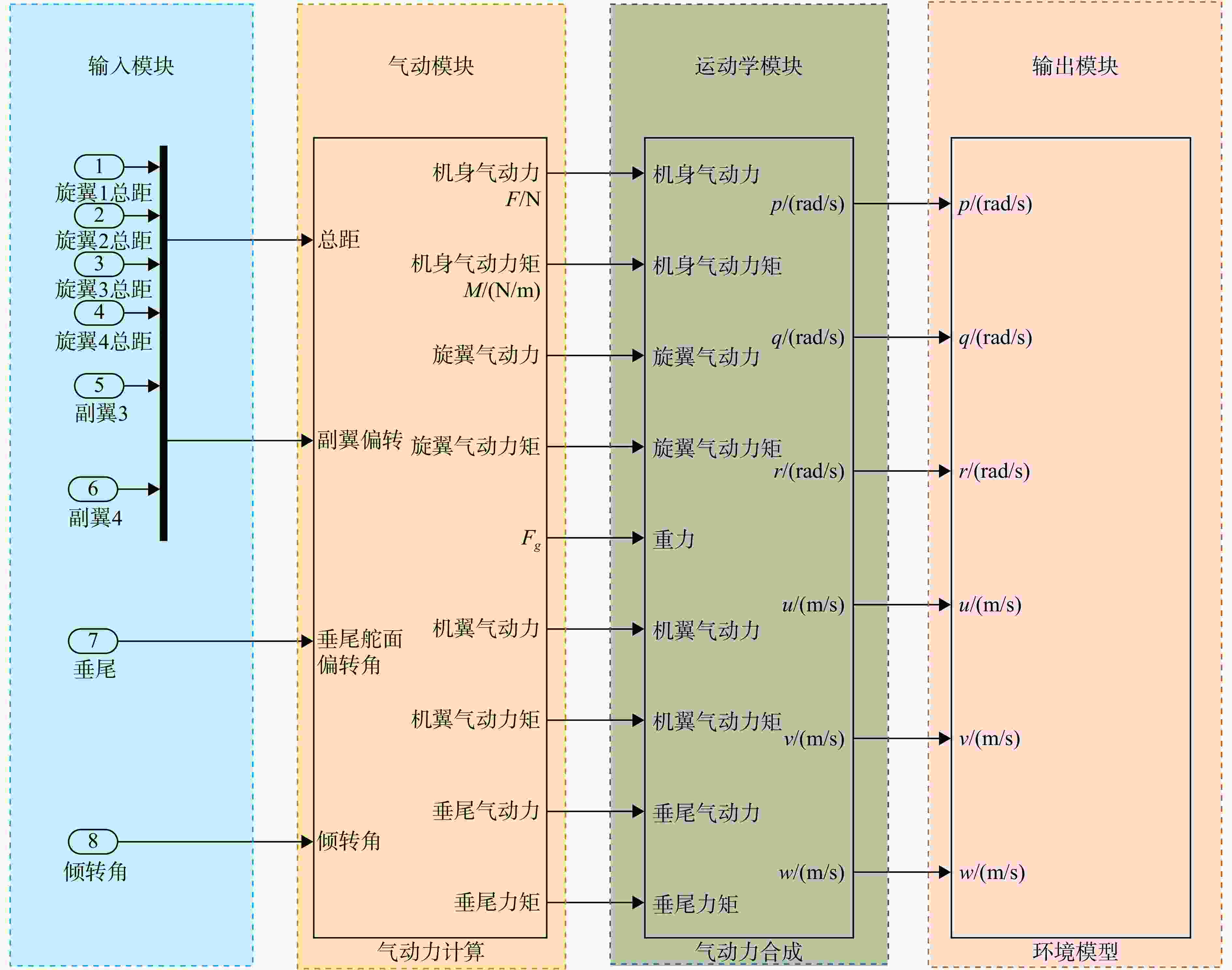

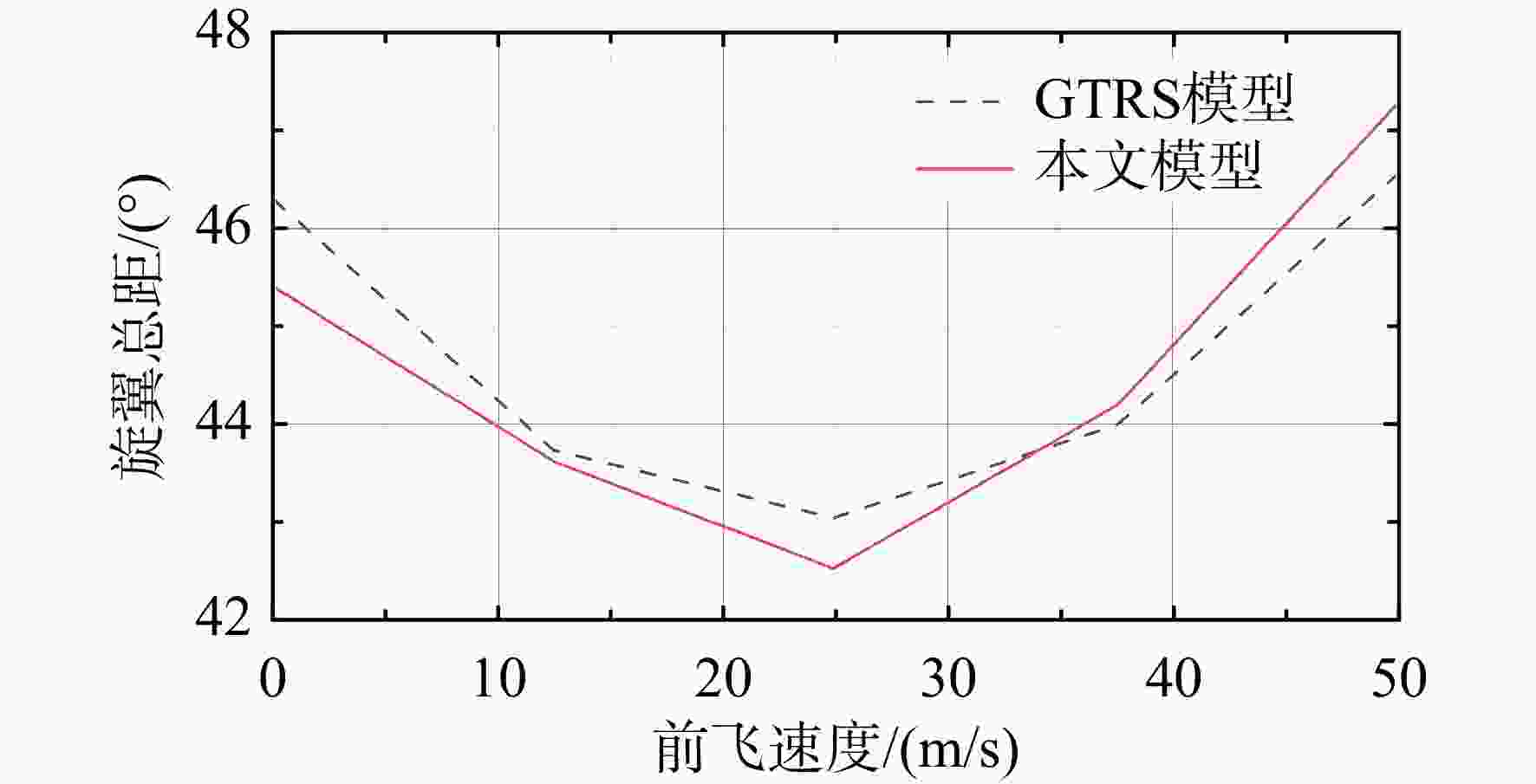

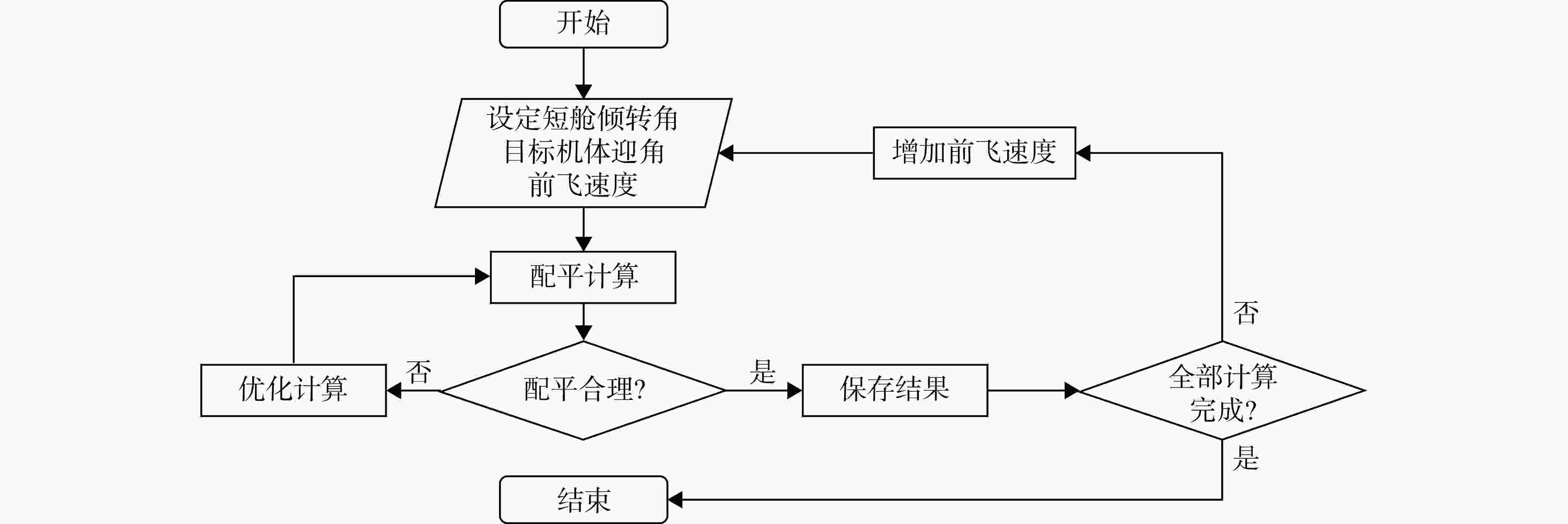

图 6 低速段倾转角-速度包线计算流程图
Figure 6. Calculation flowchart for tilt angle-velocity envelope in the low-speed regime

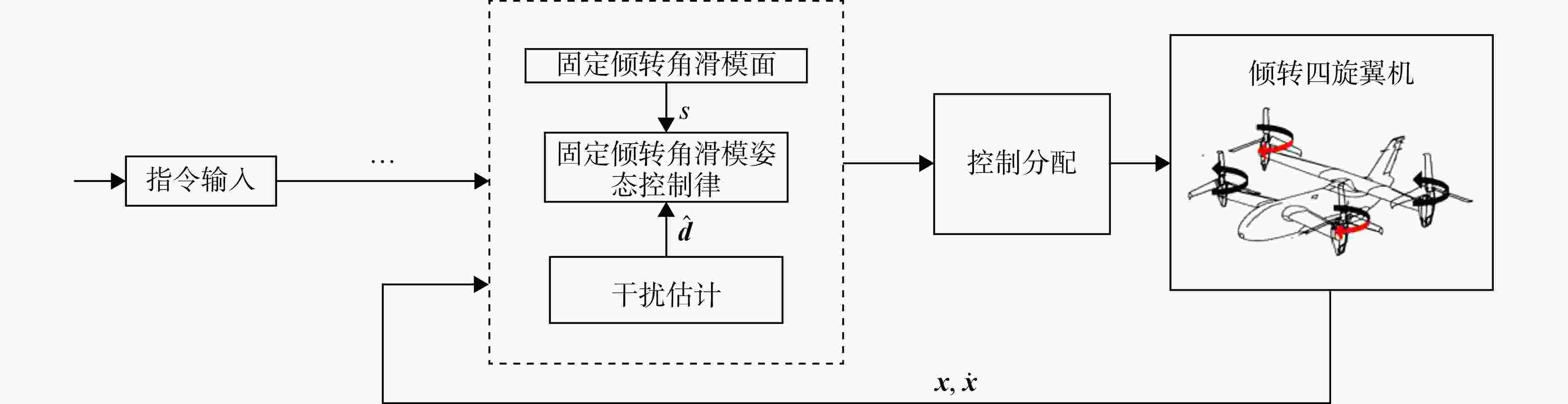

图 8 倾转四旋翼机过渡模式控制系统框图
Figure 8. Control system block diagram of quad-tiltrotor in transition mode

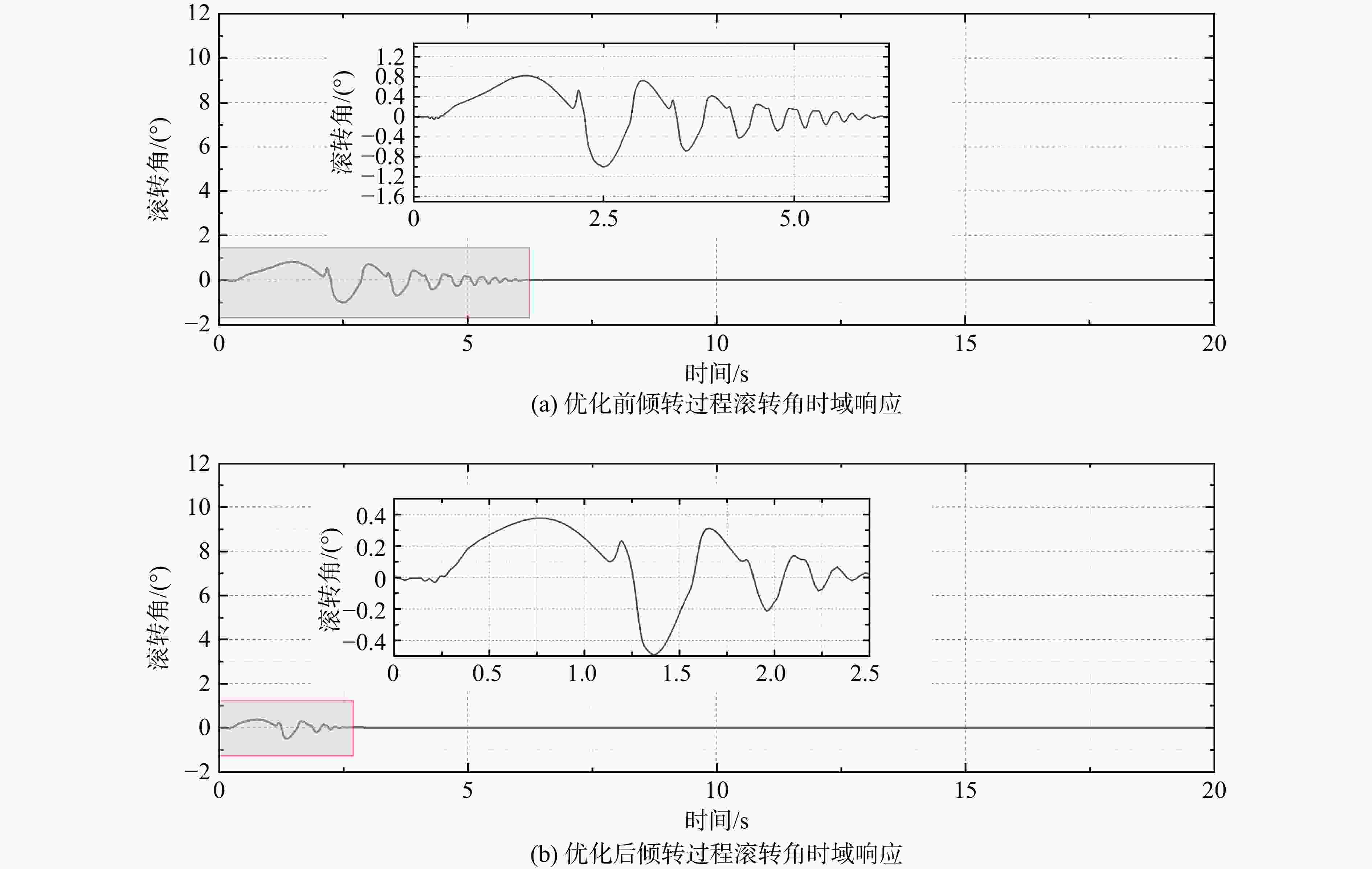

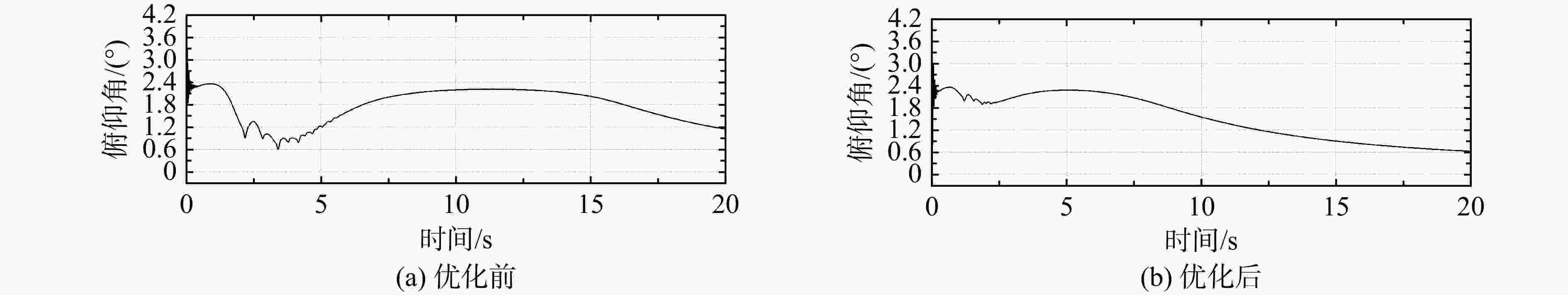

图 12 倾转过程俯仰角时域响应
Figure 12. Time-domain response of pitch angle during the tilting process

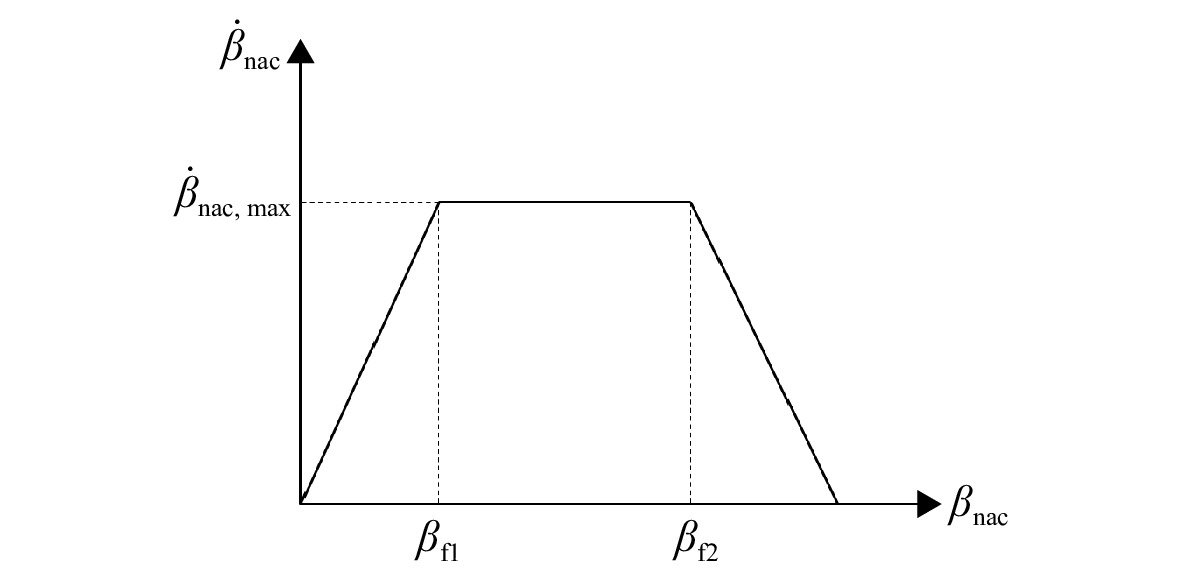

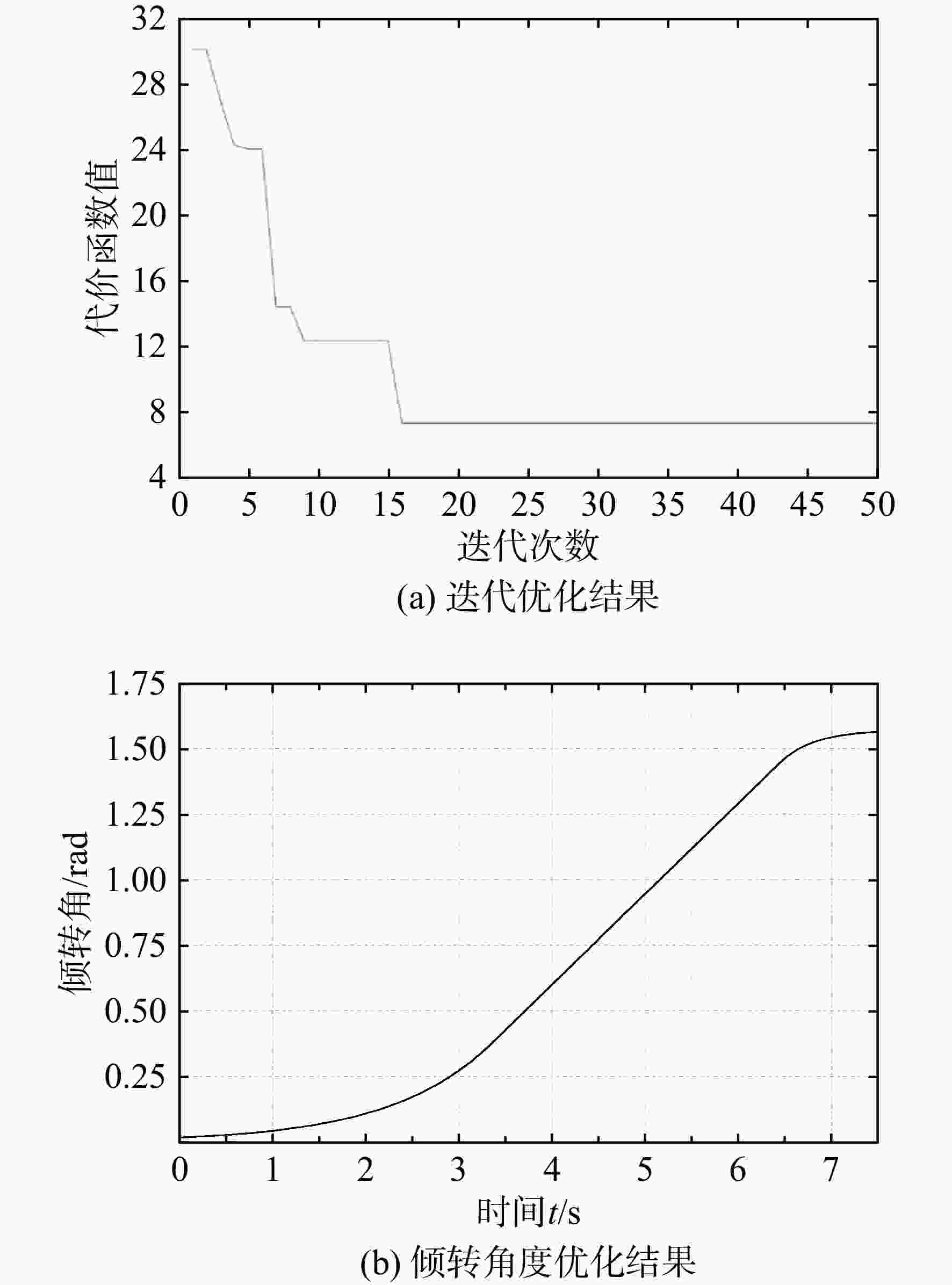

表 1 倾转角曲线参数优化结果
Table 1. Optimization results of tilt angle curve parameters
${\beta _{{\text{nac,max}}}}$ $ \beta_{\mathrm{f}1} $ $ \beta_{\mathrm{f}2_{ }} $ $\dfrac{{\text{π}} }{9}$ $\dfrac{{24{\text{π}} }}{{50}}$ $\dfrac{{\text{π}} }{{10}}$
下载: 导出CSV
-
[1] YUAN Ye, THOMSON D, ANDERSON D. Application of automatic differentiation for tilt-rotor aircraft flight dynamics analysis[J]. Journal of Aircraft, 2020, 57(5): 985-990. doi: 10.2514/1.C035811 [2] GUPTA V, BAEDER J. Investigation of quad tiltrotor aerodynamics in forward flight using CFD[C]//20th AIAA Applied Aerodynamics Conference. St. Louis, US: AIAA, 2002: 2002-2812. [3] SHENG Chunhua, NARRAMORE J C. Computational simulation and analysis of bell boeing quad tiltrotor aero interaction[J]. Journal of the American Helicopter Society, 2009, 54(4): 042002. doi: 10.4050/JAHS.54.042002 [4] 陈恒, 左晓阳, 张玉琢. 倾转旋翼飞机技术发展研究[J]. 飞行力学, 2007, 25(1): 5-8. CHEN Heng, ZUO Xiaoyang, ZHANG Yuzhuo. Tiltrotor aircraft key technology developing research[J]. Flight Dynamics, 2007, 25(1): 5-8. (in ChineseCHEN Heng, ZUO Xiaoyang, ZHANG Yuzhuo. Tiltrotor aircraft key technology developing research[J]. Flight Dynamics, 2007, 25(1): 5-8. (in Chinese) [5] 张飞, 路平, 江涛, 等. 基于模糊控制的倾转三旋翼无人机过渡模式操纵策略研究[J]. 电光与控制, 2018, 25(4): 32-36. ZHANG Fei, LU Ping, JIANG Tao, et al. Transitional mode manipulation strategy of tilt tri-rotor UAVs based on fuzzy control[J]. Electronics Optics & Control, 2018, 25(4): 32-36. (in ChineseZHANG Fei, LU Ping, JIANG Tao, et al. Transitional mode manipulation strategy of tilt tri-rotor UAVs based on fuzzy control[J]. Electronics Optics & Control, 2018, 25(4): 32-36. (in Chinese) [6] 周玙, 刘莉. 倾转旋翼无人机最优过渡倾转角曲线[J]. 北京航空航天大学学报, 2019, 45(11): 2277-2283. ZHOU Yu, LIU Li. Optimal transition tilt angle curve of tiltrotor UAV[J]. Journal of Beijing University of Aeronautics and Astronautics, 2019, 45(11): 2277-2283. (in ChineseZHOU Yu, LIU Li. Optimal transition tilt angle curve of tiltrotor UAV[J]. Journal of Beijing University of Aeronautics and Astronautics, 2019, 45(11): 2277-2283. (in Chinese) [7] LIU Haibo, WANG Heping, SUN Junlei. Attitude control for tilt rotorcraft based on sliding mode containing disturbance observer[C]//2017 4th International Conference on Systems and Informatics. Hangzhou, China: IEEE, 2017: 84-88. [8] 曹芸芸, 陈仁良. 倾转旋翼飞行器的操纵策略和配平方法[J]. 南京航空航天大学学报, 2009, 41(1): 6-10. CAO Yunyun, CHEN Renliang. Control strategy for tilt-rotor aircraft trimming in steady level flight[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2009, 41(1): 6-10. (in ChineseCAO Yunyun, CHEN Renliang. Control strategy for tilt-rotor aircraft trimming in steady level flight[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2009, 41(1): 6-10. (in Chinese) [9] 方昕卓异, 林沐阳, 张夏阳, 等. 倾转四旋翼飞行器操纵策略及配平特性分析[J]. 飞行力学, 2023, 41(3): 20-26. FANG Xinzhuoyi, LIN Muyang, ZHANG Xiayang, et al. Analysis on the control strategy and trim characteristics of quad tilt-rotor aircraft[J]. Flight Dynamics, 2023, 41(3): 20-26. (in ChineseFANG Xinzhuoyi, LIN Muyang, ZHANG Xiayang, et al. Analysis on the control strategy and trim characteristics of quad tilt-rotor aircraft[J]. Flight Dynamics, 2023, 41(3): 20-26. (in Chinese) [10] FERGUSON S W. A mathematical model for real time flight simulation of a generic tilt-rotor aircraft[R]. NASA CR-166536, 1988. [11] 俞志明, 陈仁良, 孔卫红. 倾转四旋翼飞行器倾转过渡走廊分析方法[J]. 北京航空航天大学学报, 2020, 46(11): 2106-2113. YU Zhiming, CHEN Renliang, KONG Weihong. Analysis method for conversion corridor of quad tilt rotor aircraft[J]. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(11): 2106-2113. (in ChineseYU Zhiming, CHEN Renliang, KONG Weihong. Analysis method for conversion corridor of quad tilt rotor aircraft[J]. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(11): 2106-2113. (in Chinese) [12] 余新, 陈仁良. 倾转旋翼机短舱倾转策略对驾驶员操纵负荷的影响[J]. 航空动力学报, 2023, 38(8): 1889-1900. YU Xin, CHEN Renliang. Effect of tiltrotor nacelle tilting strategy on the pilot workload[J]. Journal of Aerospace Power, 2023, 38(8): 1889-1900. (in ChineseYU Xin, CHEN Renliang. Effect of tiltrotor nacelle tilting strategy on the pilot workload[J]. Journal of Aerospace Power, 2023, 38(8): 1889-1900. (in Chinese) [13] 刘金琨, 孙富春. 滑模变结构控制理论及其算法研究与进展[J]. 控制理论与应用, 2007, 24(3): 407-418. LIU Jinkun, SUN Fuchun. Research and development on theory and algorithms of sliding mode control[J]. Control Theory & Applications, 2007, 24(3): 407-418. (in ChineseLIU Jinkun, SUN Fuchun. Research and development on theory and algorithms of sliding mode control[J]. Control Theory & Applications, 2007, 24(3): 407-418. (in Chinese) [14] CHEN Chao, ZHANG Jiyang, ZHANG Daibing, et al. Control and flight test of a tilt-rotor unmanned aerial vehicle[J]. International Journal of Advanced Robotic Systems, 2017, 14(1): 38-54. [15] HUANG Huaping, HE Guang, YU Li, et al. Numerical analysis on aerodynamic interference of a novel tilt-rotor UAV in transition mode[C]//2020 39th Chinese Control Conference. Shenyang, China: IEEE, 2020: 6043-6048. [16] ZHU Bing, ZHENG Zewei, XIA Xiaohua. Constrained adaptive model-predictive control for a class of discrete-time linear systems with parametric uncertainties[J]. IEEE Transactions on Automatic Control, 2020, 65(5): 2223-2229. doi: 10.1109/TAC.2019.2939659 [17] LIANG Tingting, WANG Weihong, WU Sentang, et al. Nonlinear attitude control of tiltrotor aircraft based on dynamic surface adaptive backstepping[C]//2017 29th Chinese Control and Decision Conference, Chongqing, China: IEEE, 2017: 603-608. [18] 余新, 陈仁良. 基于非线性模型预测控制的倾转旋翼机过渡控制[J]. 航空动力学报, 2023, 38(6): 1391-1402. YU Xin, CHEN Renliang. Tilt rotor aircraft conversion control based on nonlinear model predictive control[J]. Journal of Aerospace Power, 2023, 38(6): 1391-1402. (in ChineseYU Xin, CHEN Renliang. Tilt rotor aircraft conversion control based on nonlinear model predictive control[J]. Journal of Aerospace Power, 2023, 38(6): 1391-1402. (in Chinese) [19] 肖斯奇, 余帆, 施啸宇. 倾转旋翼无人机过渡段纵向控制策略设计研究[J]. 导航定位与授时, 2021, 8(6): 88-95. XIAO Siqi, YU Fan, SHI Xiaoyu. Research on longitudinal control strategy design in transition section of tilt-rotor UAV[J]. Navigation Positioning and Timing, 2021, 8(6): 88-95. (in ChineseXIAO Siqi, YU Fan, SHI Xiaoyu. Research on longitudinal control strategy design in transition section of tilt-rotor UAV[J]. Navigation Positioning and Timing, 2021, 8(6): 88-95. (in Chinese) [20] TA D A, FANTONI I, LOZANO R. Modeling and control of a tilt tri-rotor airplane[C]//2012 American Control Conference. Piscataway, US: IEEE, 2012: 131-136. [21] FELKER F F, LIGHT J S. Aerodynamic interactions between a rotor and wing in hover[J]. Journal of the American Helicopter Society, 1988, 33(2): 53-61. doi: 10.4050/JAHS.33.53 -
