Flow self-modeling characteristics in multi-inlet rotor-stator cavity
-
摘要:
受限于实验条件与成本，航空发动机实际运行工况与常规元件级实验的工况间常存在差异，从而使得元件级实验所得到的数据的推广应用存在局限性。为解决上述问题，本文针对多入口转静系盘腔流动特征参数的自模化特性开展了系统性研究工作。结果表明：在主流特征湍流参数为0.015～0.035，射流特征湍流参数在0.003～0.009且旋转雷诺数在2.06×106～1.03×107的工况范围内，且不考虑气流压缩性的影响时可通过特定方法明确用于表征腔内通流与旋转效应相对强弱关系的模化特征湍流参数，该参数是使得转静系盘腔流动特征呈现自模化特征的核心参数。当该参数相同时，即使对于具有复杂且非周向均匀进气条件下的多入口进气转静腔而言，腔内流动结构处于高度相似状态，多项流动特征参数在无量纲准则参数发生显著改变时仍保持一致。基于上述流动自模化状态，可初步构建起用于将低旋转雷诺数下的多项流动特征参数的实验结果外延应用至高旋转雷诺数下的推广方法，为后续相关实验的开展和实验结果的应用提供支持。
Abstract:Due to limitations in experimental conditions and cost considerations, significant discrepancies often exist amongst the non-dimensional criteria parameters associated with the actual operating conditions of aviation engines. To address the limitations in the application of experimental data resulting from the difficulties associated with the application of similar principles arising from the aforementioned discrepancies, the self-modeling characteristics of flow characteristic parameters in a multi-inlet rotor-stator cavity were systematically investigated. The research findings indicated that, within mainstream characteristic turbulence parameters ranges from 0.015 to 0.035, jet characteristic turbulence parameters ranges from 0.003 to 0.009 and the rotational Reynolds ranges from 2.06×106 to 1.03×107, it is possible to establish a modulated turbulent parameter using specific methods. This parameter emerged as the key factor enabling the manifestation of self-modeling characteristics in the flow characteristic of the rotor-stator cavity. Even in the case of a multi-inlet cavity with complex and non-axially uniform inlet conditions, when the modulated characteristic turbulent parameter was consistent, the flow structure remained in a highly similar state. Despite of significant changes in non-dimensional criteria parameters, the flow characteristic parameters remained consistent. Based on the self-modeling state of the flow described above, a preliminary framework can be established for extrapolating experimental results of multiple flow characteristic parameters obtained at low rotational Reynolds numbers to high rotational Reynolds numbers. This approach could provide a support for the extension of experimental results and their application in subsequent related experiments conducted under high rotational Reynolds numbers.
-

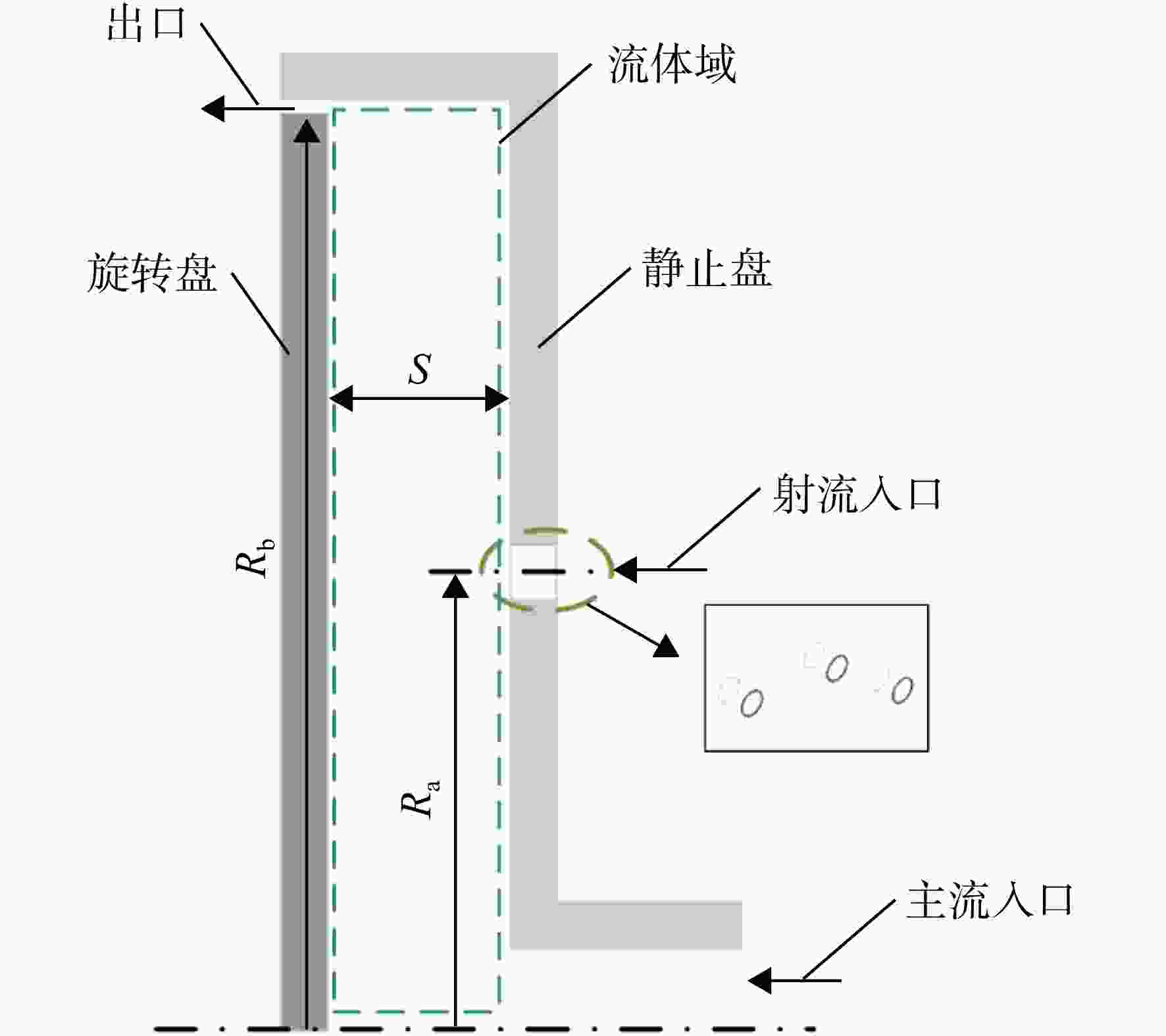

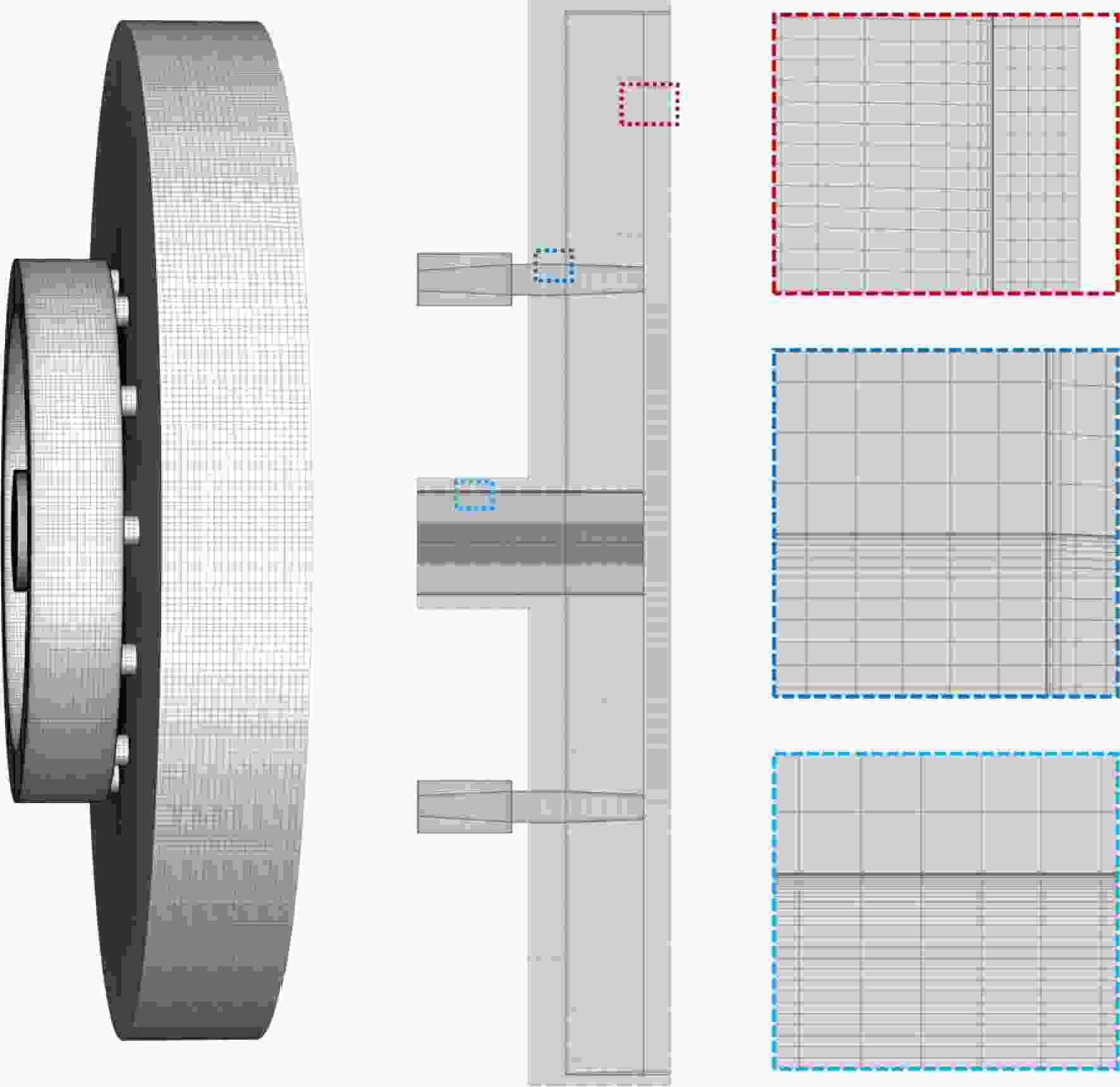

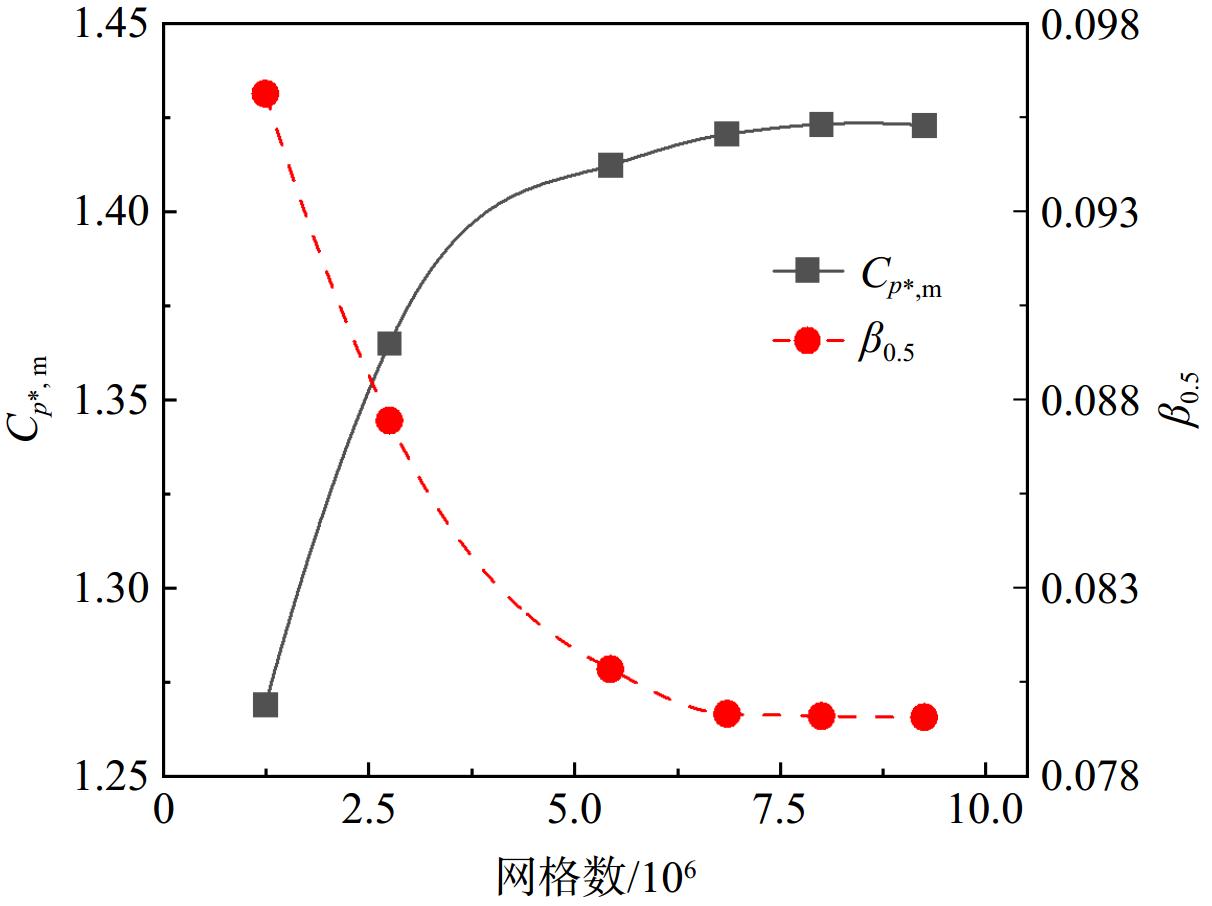

图 3 网格数量对$ {C}_{{p}^{*},\mathrm{m}} $和$ {\beta }_{0.5} $的影响
Figure 3. Influence of the number of meshes on $ {C}_{{p}^{*},\mathrm{m}} $ and $ {\beta }_{0.5} $

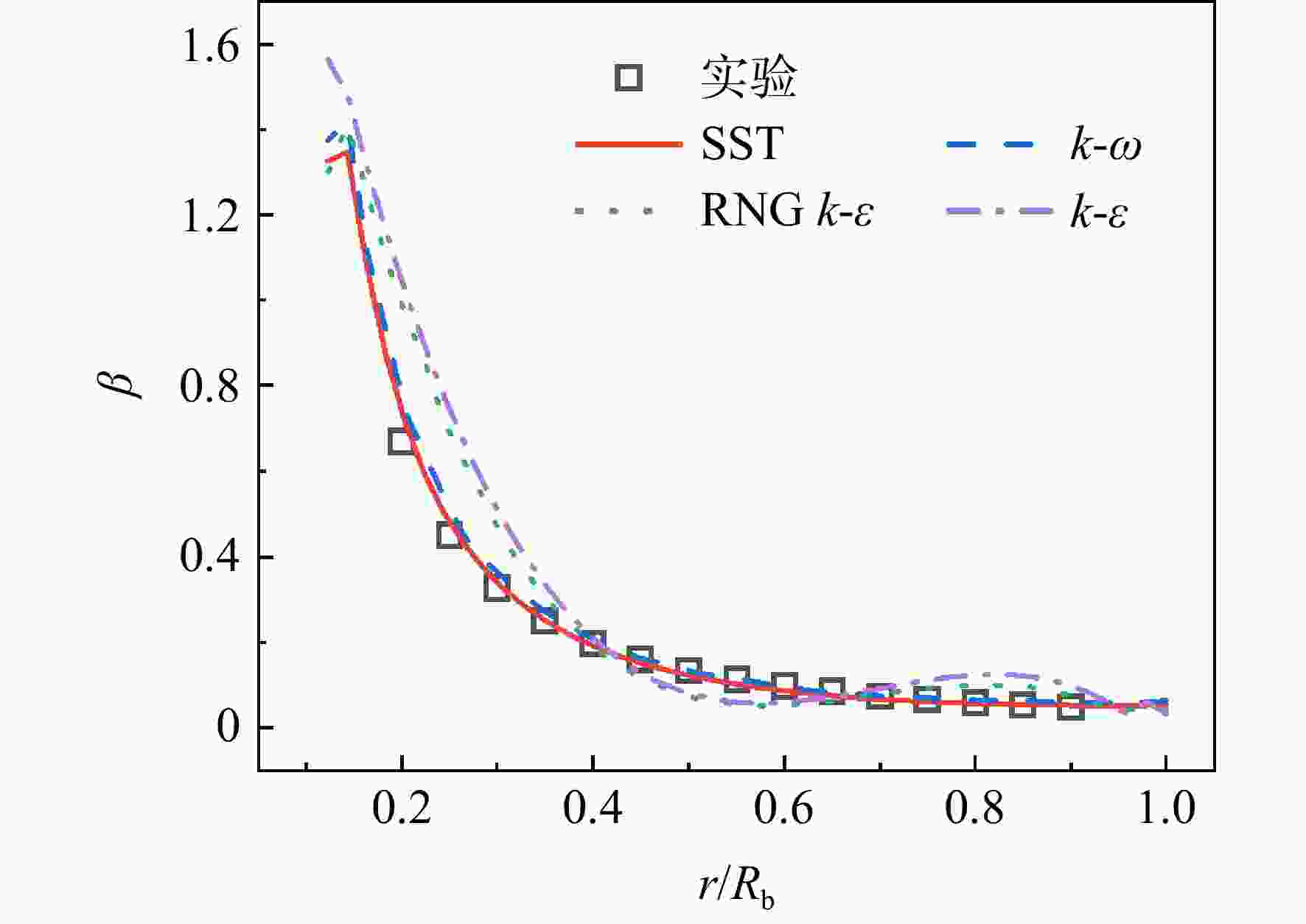

图 4 各湍流模型下$ \beta $数值计算和实验结果的对比
Figure 4. Comparisons between numerical results under various turbulence models and experimental results of $ \beta $

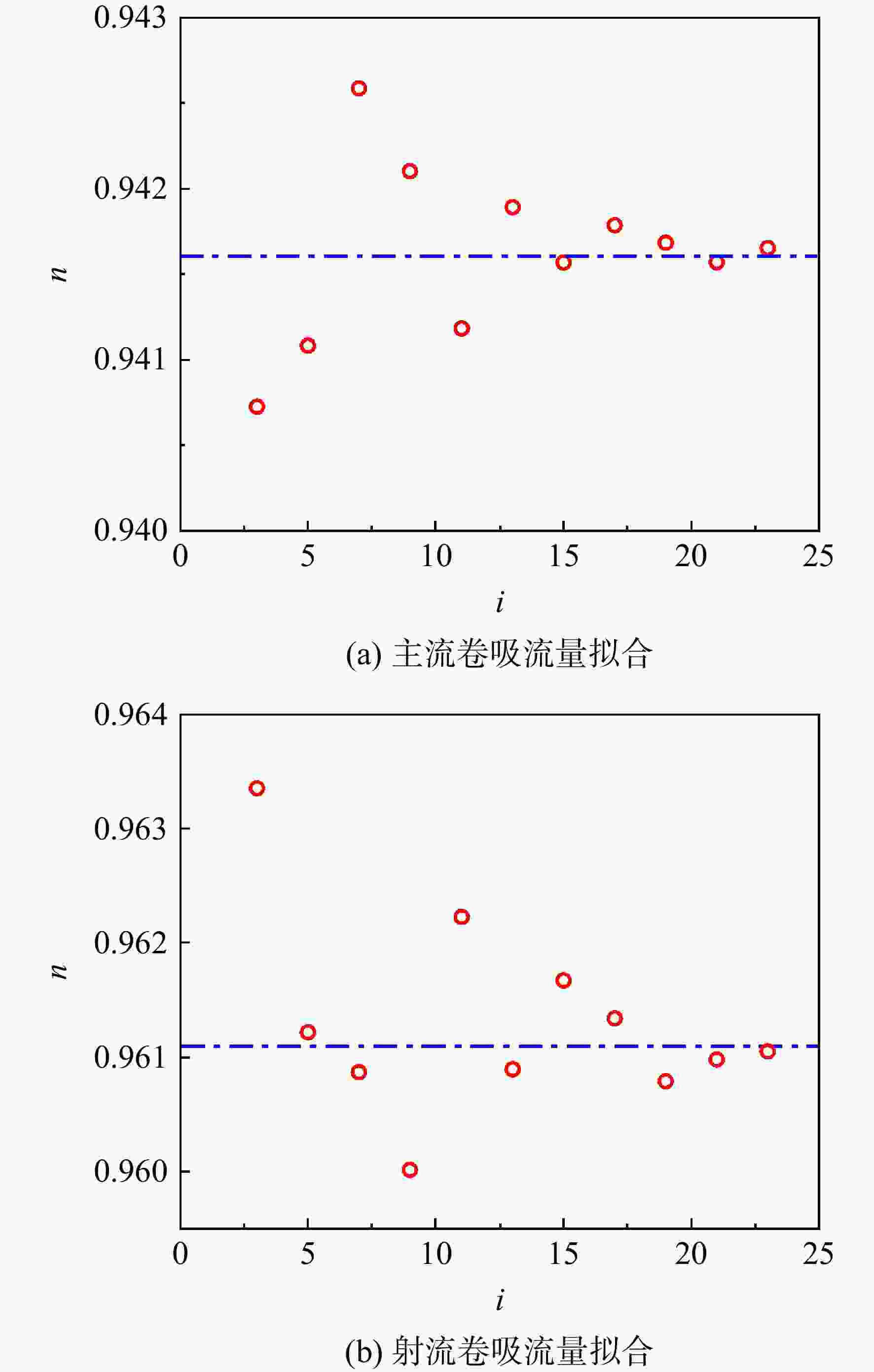

图 5 拟合结果随工况数量变化情况
Figure 5. Fitting results vary with the number of working conditions

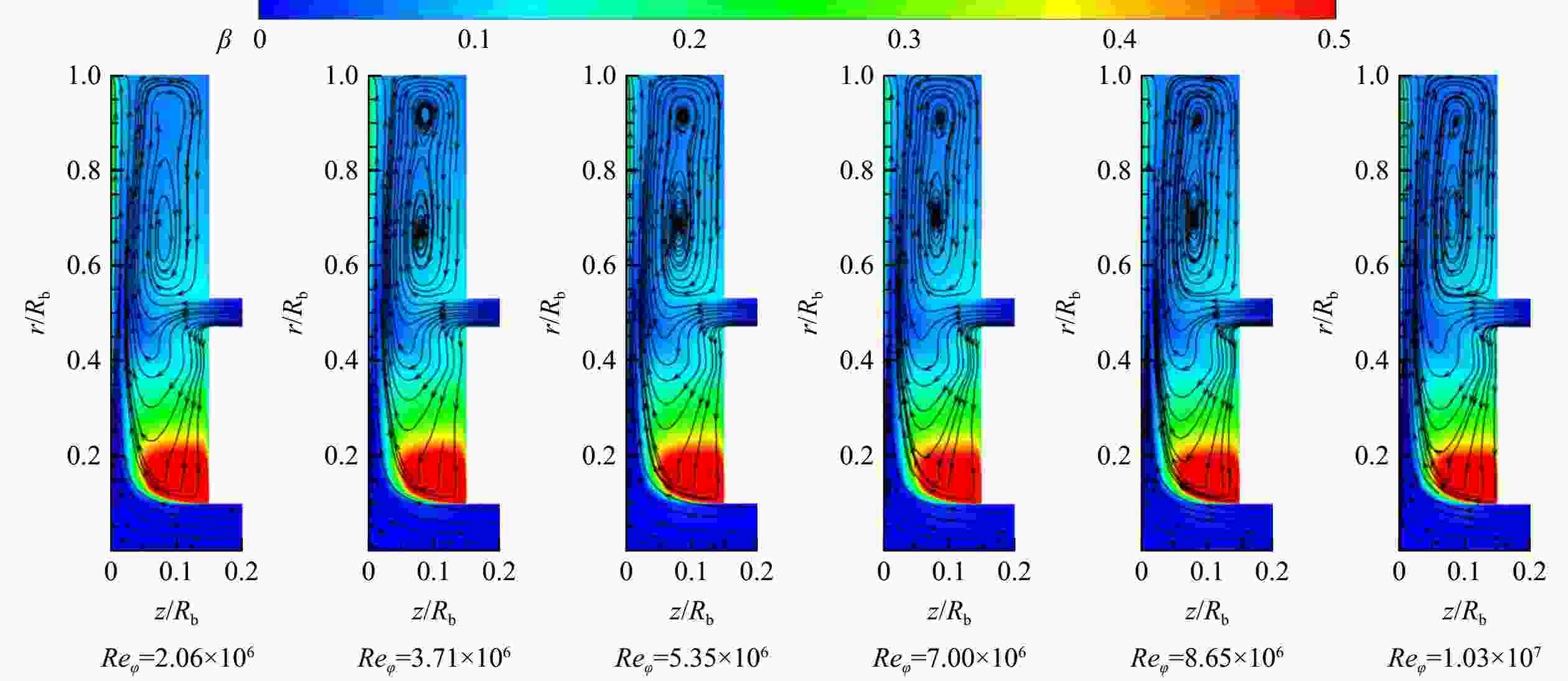

图 7 r-z截面流动结构（$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015 $, $ {\lambda }_{{\mathrm{t,j}}}^{*}=0.006 $）
Figure 7. r-z cross section flow structure （$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015 $, $ {\lambda }_{\mathrm{t},\mathrm{j}}^{*}=0.006 $）

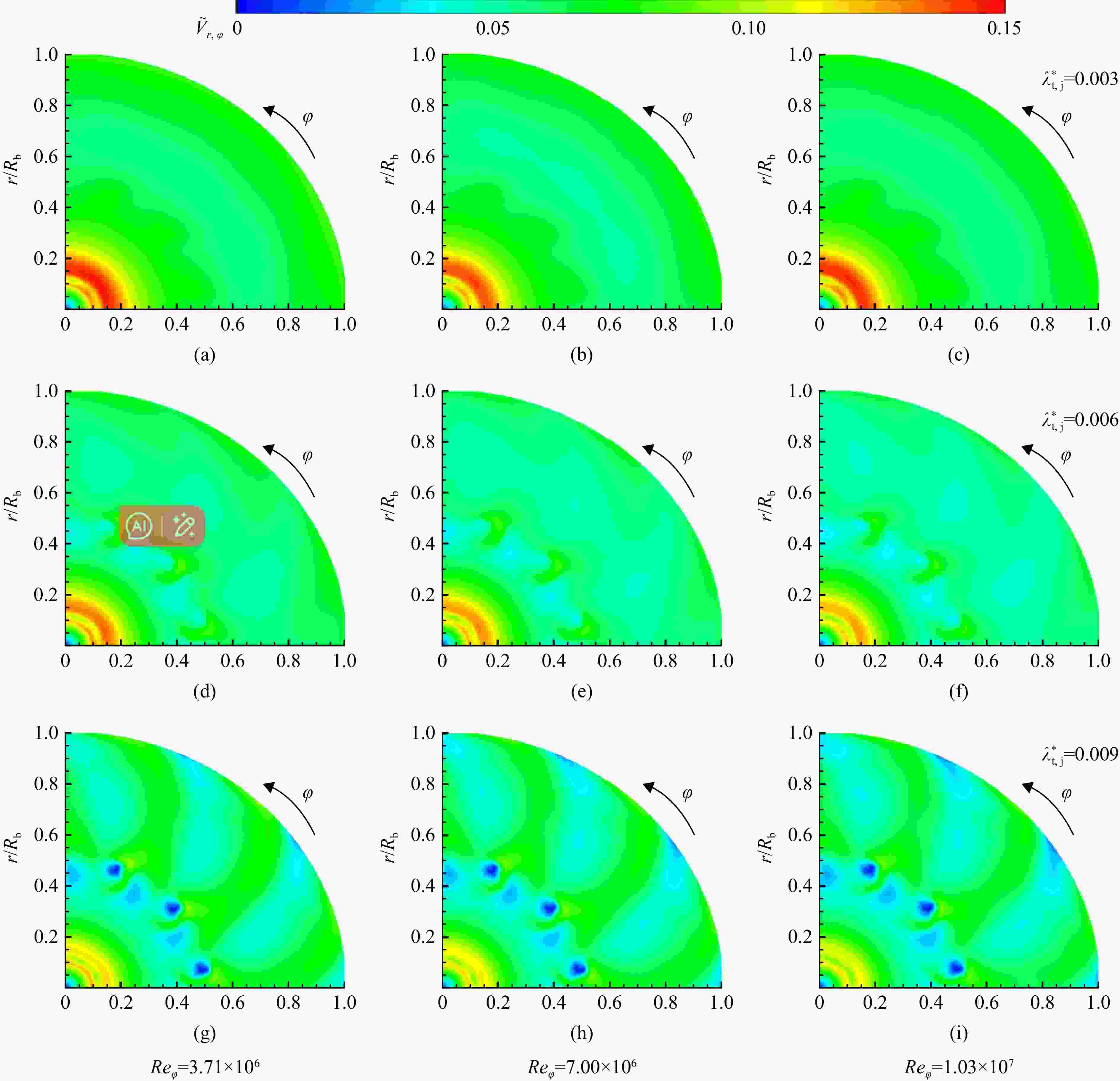

图 8 r-φ截面速度分布情况（$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015 $）
Figure 8. Velocity distribution of r-φ cross section （$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015 $）

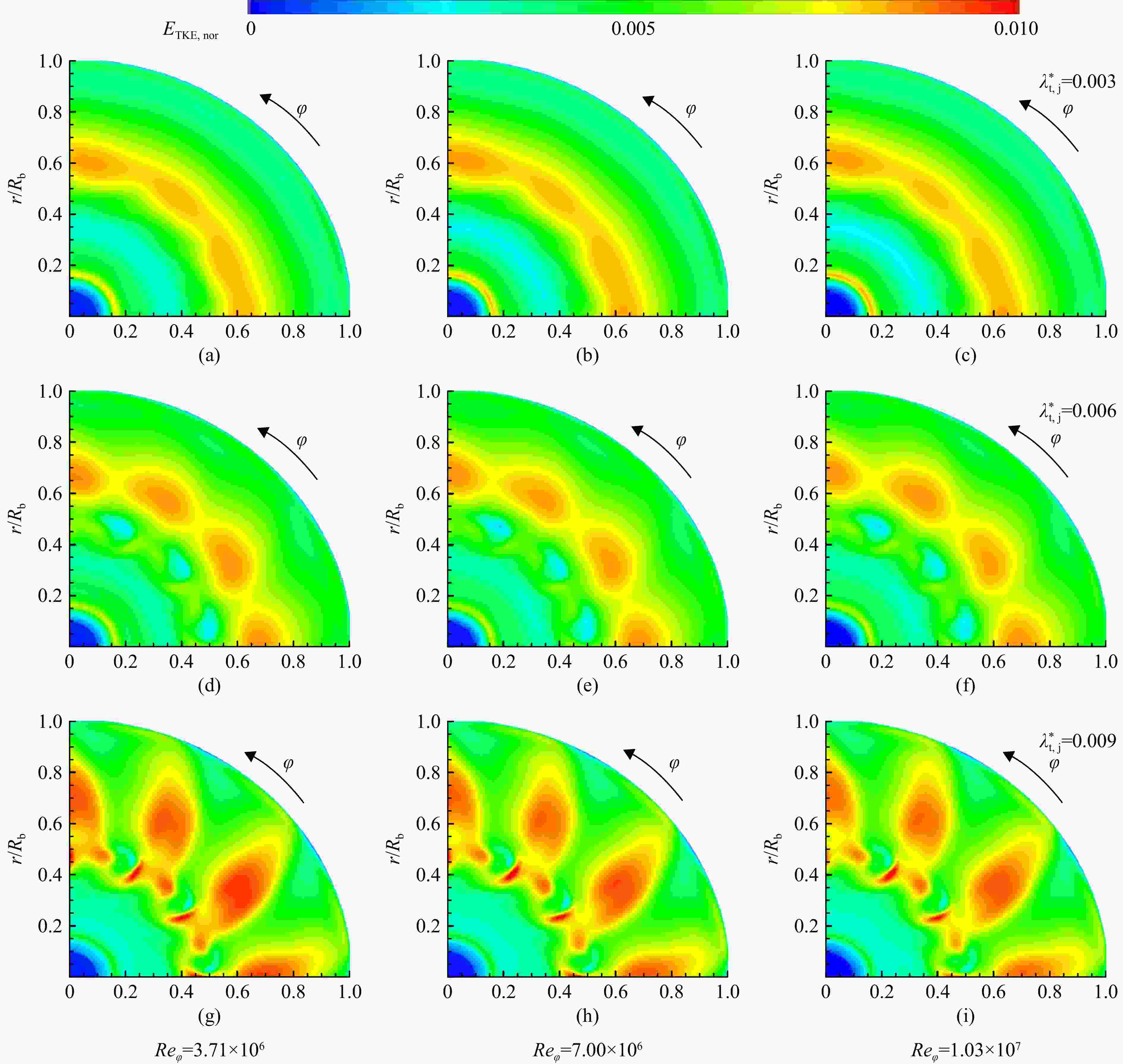

图 9 r-φ截面无量纲湍动能分布情况（$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.025 $）
Figure 9. Distribution of non-dimensional turbulent kinetic energy in r-φ cross-section （$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.025 $）

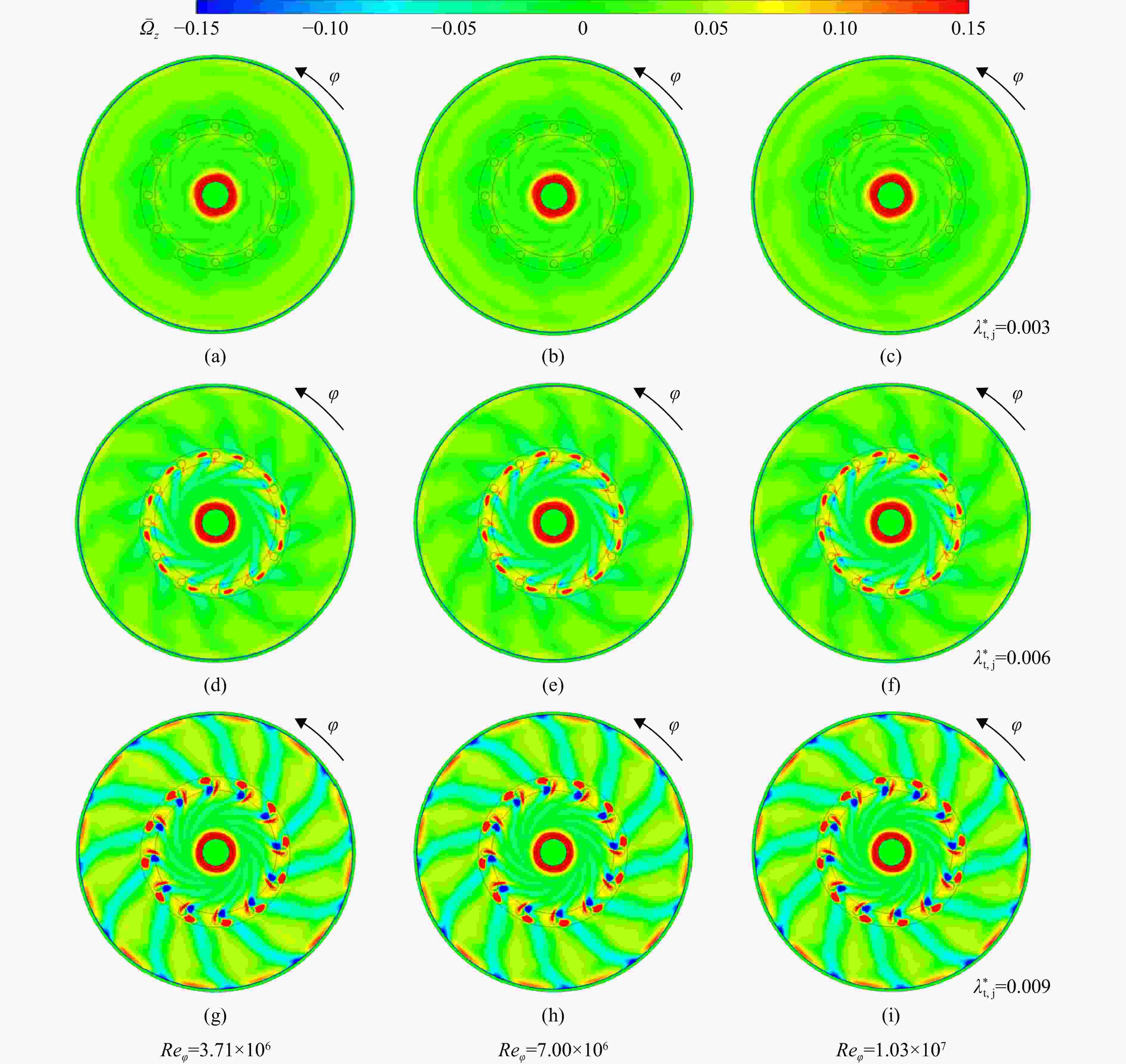

图 10 r-φ截面无量纲涡量分布特性（$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015） $
Figure 10. Dimensionless vorticity distribution in r-φ cross-section （$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=0.015） $
图 11 $ {\lambda }_{\mathrm{t},\mathrm{m}}^{*} $及$ {\lambda }_{{\mathrm{t}},{\mathrm{j}}}^{*} $变化对$ {C}_{{p}^{*},\mathrm{m}} $及$ {C}_{{p}^{*},\mathrm{j}} $的影响
Figure 11. Influence of $ {\lambda }_{\mathrm{t},\mathrm{m}}^{*} $ and $ {\lambda }_{\mathrm{t},\mathrm{j}}^{*} $ variation on $ {C}_{{p}^{*},\mathrm{m}} $ and $ {C}_{{p}^{*},\mathrm{j}} $

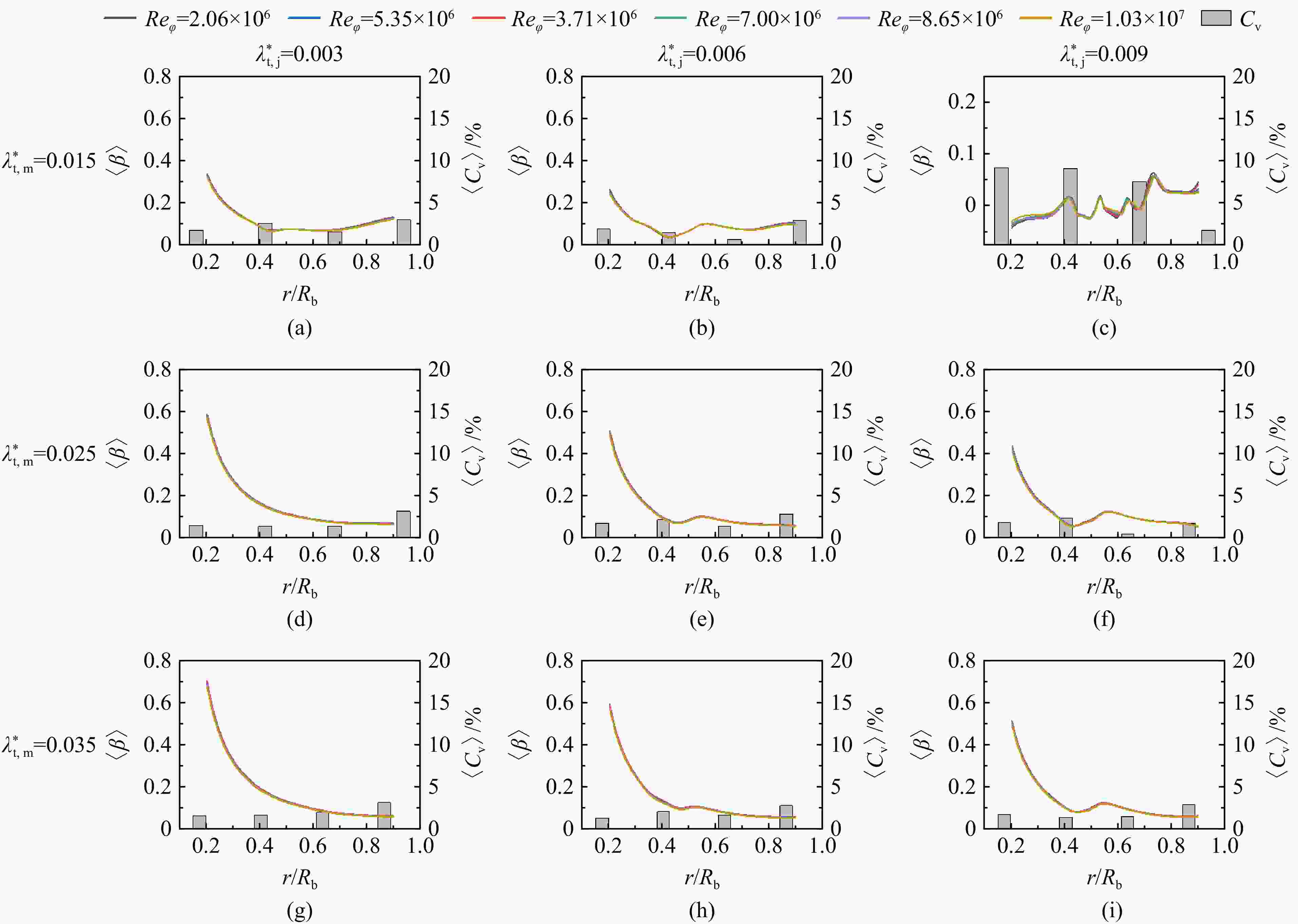

图 12 $ {\lambda }_{\mathrm{t},\mathrm{m}}^{*} $及$ {\lambda }_{\rm{t,j}}^{*} $变化对$ {C}_{\mathrm{m}} $的影响
Figure 12. Influence of $ {\lambda }_{\mathrm{t},\mathrm{m}}^{*} $ and $ {\mathrm{\lambda }}_{\mathrm{t},\mathrm{j}}^{\mathrm{*}} $ variation on $ {C}_{\mathrm{m}} $
表 1 工况范围
Table 1. Operating range
工况 主流入口边界 射流入口边界 出口边界 卷吸 p*=1.01×105 Pa p*=1.01×105 Pa p*=1.01×105 Pa 正向 $ \dot{{m}} $=0.033～0.348 kg/s $ \dot{{m}} $=0.009～0.120 kg/s
下载: 导出CSV
表 2 多入口进气转静系特征湍流参数定义
Table 2. Characteristic turbulent parameter definition of multi-inlet rotor-stator cavity
入口位置 特征湍流参数定义 主流 $ {\lambda }_{\mathrm{t},\mathrm{m}}^{*}=\dfrac{{C}_{\mathrm{w}}}{{Re}_{\varphi }^{0.941\;6}} $ （7） 射流 $ {\lambda }_{\mathrm{t},\mathrm{j}}^{*}=\dfrac{{C}_{\mathrm{w}}}{{Re}_{\varphi }^{0.961\;1}} $ （8）
下载: 导出CSV
表 3 研究工况
Table 3. Research condition
入口位置 特征湍流参数 流量范围/（kg/s） 主流$ {\lambda }_{\mathrm{t},\mathrm{m}}^{*} $ 0.015, 0.025, 0.035 0.032～0.348 射流$ {\lambda }_{\mathrm{t},\mathrm{j}}^{*} $ 0.003, 0.006, 0.009 0.008～0.120
下载: 导出CSV
-
[1] 单晓明,高倩,魏秀利. 航空发动机试验与测试技术发展分析[J]. 航空动力,2022(3): 67-70. SHAN Xiaoming,GAO Qian,WEI Xiuli. Test and Measurement Technology for Aero Engines[J]. Aerospace Power,2022(3): 67-70. (in ChineseSHAN Xiaoming, GAO Qian, WEI Xiuli. Test and Measurement Technology for Aero Engines[J]. Aerospace Power, 2022(3): 67-70. (in Chinese) [2] FARTHING P R,LONG C A,OWEN J M,et al. Rotating cavity with axial throughflow of cooling air: flow structure[J]. Journal of Turbomachinery,1992,114(1): 237-246. doi: 10.1115/1.2927991 [3] GÜNTHER A,UFFRECHT W,ODENBACH S. Local measurements of disc heat transfer in heated rotating cavities for several flow regimes: ASME Paper GT2010-22544[R]. Glasgow,UK: ASME,2010. [4] ATKINS N R,KANJIRAKKAD V. Flow in a rotating cavity with axial throughflow at engine representative conditions ASME Paper GT2014-27174 [R]. Düsseldorf,Germany: ASME,2014. [5] LUO X,ZHAO X,WANG L,et al. Flow structure and heat transfer characteristics in rotor–stator cavity with inlet at low radius[J]. Applied Thermal Engineering,2014,70(1): 291-306. [6] KUNTZE A,ODENBACH S,UFFRECHT W. Experimental results of local shear stresses and friction torque in an open rotor-stator disc system: ASME Paper GT2020-15498 [R]. Virtual,Online: ASME,2020. [7] PARK J,PARK S,BAEK J. Design of an air-starter turbine and starting performance prediction through the numerical analysis: ASME Paper GT2015-43062 [R]. Montreal,Canada: ASME,2015. [8] SCHRÖDER T R,SCHUSTER S,BRILLERT D. Prediction in rotor-stator cavities at high Reynolds numbers up to Re ≈ 2×108 towards a new parametric model: ASME Paper GT2020-14010 [R]. Virtual,Online: ASME,2020. [9] POPOV G,ZUBANOV V,BATURIN O,et al. Optimization of an air turbo starter considering its joint work with an auxiliary power unit: ASME Paper GT2020-16034 [R]. Virtual,Online: ASME,2020. [10] 邹正平. 航空燃气轮机涡轮气体动力学: 流动机理及气动设计[M]. 上海: 上海交通大学出版社,2014. ZOU Zhengping. Turbine aerodynamics for aero-engine[M]. Shanghai: Shanghai Jiao Tong University Press,2014. (in ChineseZOU Zhengping. Turbine aerodynamics for aero-engine[M]. Shanghai: Shanghai Jiao Tong University Press, 2014. (in Chinese) [11] HOLDEMAN J D,SMITH T D,CLISSET J R,et al. A spreadsheet for the mixing of a row of jets with a confined crossflow: NASA-TM-2005-213137[R]. Houston,US: NASA,2005. [12] 邸亚超,胡应交,张星,等. 涡轮试验准则数对流场相似性的影响[J]. 航空动力学报,2018,33(1): 193-200. DI Yachao,HU Yingjiao,ZHANG Xing,et al. Influence of turbine test criterion parameters on flow similarity[J]. Journal of Aerospace Power,2018,33(1): 193-200. (in ChineseDI Yachao, HU Yingjiao, ZHANG Xing, et al. Influence of turbine test criterion parameters on flow similarity[J]. Journal of Aerospace Power, 2018, 33(1): 193-200. (in Chinese) [13] 陈强,郝晟淳,丁健,等. 气冷高压涡轮模拟试验研究[J]. 航空发动机,2019,45(6): 75-80. CHEN Qiang,HAO Shengchun,DING Jian,et al. Simulation test study of air-cooled high-pressure turbine[J]. Aeroengine,2019,45(6): 75-80. (in ChineseCHEN Qiang, HAO Shengchun, DING Jian, et al. Simulation test study of air-cooled high-pressure turbine[J]. Aeroengine, 2019, 45(6): 75-80. (in Chinese) [14] 马广健,韦文涛,陈云,等. 双级高压涡轮气动性能试验状态模化方法[J]. 航空发动机,2023,49(4): 104-114. MA Guangjian,WEI Wentao,CHEN Yun,et al. Model testing state determination for a two-stage high pressure turbine aerodynamic performance test[J]. Aeroengine,2023,49(4): 104-114. (in ChineseMA Guangjian, WEI Wentao, CHEN Yun, et al. Model testing state determination for a two-stage high pressure turbine aerodynamic performance test[J]. Aeroengine, 2023, 49(4): 104-114. (in Chinese) [15] 张泽,周楷淼,付豹,等. 氦透平膨胀机相似模化方法分析与实验验证[J]. 真空与低温,2023,29(5): 498-503. ZHANG Ze,ZHOU Kaimiao,FU Bao,et al. Analysis and experimental verification of similitude modeling method for helium turbo-expander[J]. Vacuum and Cryogenics,2023,29(5): 498-503. (in Chinese doi: 10.3969/j.issn.1006-7086.2023.05.009ZHANG Ze, ZHOU Kaimiao, FU Bao, et al. Analysis and experimental verification of similitude modeling method for helium turbo-expander[J]. Vacuum and Cryogenics, 2023, 29(5): 498-503. (in Chinese) doi: 10.3969/j.issn.1006-7086.2023.05.009 [16] OWEN J M. An approximate solution for the flow between a rotating and a stationary disk[J]. Journal of Turbomachinery,1989,111(3): 323-332. doi: 10.1115/1.3262275 [17] OWEN J M,ROGERS R H. Flow and heat transfer in rotating-disc systems: Volume 1 rotor-stator systems[M]. New York: Research Studies Press,1995. [18] FIROUZIAN M,OWEN J M,PINCOMBE J R,et al. Flow and heat transfer in a rotating cavity with a radial inflow of fluid Part 1: the flow structure[J]. International Journal of Heat and Fluid Flow,1985,6(4): 228-234. doi: 10.1016/0142-727X(85)90054-2 [19] MIRZAEE I,GAN X,WILSON M,et al. Heat transfer in a rotating cavity with a peripheral inflow and outflow of cooling air[J]. Journal of Turbomachinery,1998,120(4): 818-823. doi: 10.1115/1.2841794 [20] LOCK G D,WILSON M,OWEN J M. Influence of fluid-dynamics on heat transfer in a pre-swirl rotating-disc system: ASME Paper [R]. Vienna,Austria: ASME,2004. [21] KARABAY H,WILSON M,OWEN J M. Approximate solutions for flow and heat transfer in pre-swirl rotating-disc systems: TS-064 [R]. Bath,UK: University of Bath,2003. [22] 赵熙. 复杂涡轮盘腔内流动与换热研究[D]. 北京: 北京航空航天大学,2012. ZHAO Xi. Study on fluid flow and heat transfer in rotor-stator turbine disc cavities with complex boundary conditions [D]. Beijing: Beihang University,2012. (in ChineseZHAO Xi. Study on fluid flow and heat transfer in rotor-stator turbine disc cavities with complex boundary conditions [D]. Beijing: Beihang University, 2012. (in Chinese) [23] 白阳,罗翔,何建. 湍流参数对含管式减涡器盘腔流动特性影响[J]. 航空动力学报,2022,37(6): 1295-1305. BAI Yang,LUO Xiang,HE Jian. Influence of turbulence parameters on flow characteristics of cavity with tubed vortex reducer[J]. Journal of Aerospace Power,2022,37(6): 1295-1305. (in ChineseBAI Yang, LUO Xiang, HE Jian. Influence of turbulence parameters on flow characteristics of cavity with tubed vortex reducer[J]. Journal of Aerospace Power, 2022, 37(6): 1295-1305. (in Chinese) [24] 刘厚林,刘明明,白羽,等. 基于GCI的离心泵网格的收敛性[J]. 江苏大学学报(自然科学版),2014,35(3): 279-283. LIU Houlin,LIU Mingming,BAI Yu,et al. Grid convergence based on GCI for centrifugal pump[J]. Journal of Jiangsu University (Natural Science Edition),2014,35(3): 279-283. (in ChineseLIU Houlin, LIU Mingming, BAI Yu, et al. Grid convergence based on GCI for centrifugal pump[J]. Journal of Jiangsu University (Natural Science Edition), 2014, 35(3): 279-283. (in Chinese) [25] VINOD KUMAR B G,CHEW J W,HILLS N J. Rotating flow and heat transfer in cylindrical cavities with radial inflow[J]. Journal of Engineering for Gas Turbines and Power,2013,135(3): 032502. -
