考虑热腐蚀的高温合金蠕变-疲劳损伤演化与寿命预测

徐梦悦; 赵高乐; 李少林; 齐红宇; 杨晓光; 石多奇

doi:10.13224/j.cnki.jasp.20240260

考虑热腐蚀的高温合金蠕变-疲劳损伤演化与寿命预测

doi: 10.13224/j.cnki.jasp.20240260

徐梦悦^{1, 2,},
赵高乐^{1, 2},
李少林^{1, 2,*, ,},
齐红宇^{1, 2},
杨晓光^{1, 2},
石多奇^{1, 2}

1.
北京航空航天大学能源与动力工程学院，北京 102206
2.
北京航空航天大学航空发动机结构强度北京市重点实验室，北京 102206

详细信息

作者简介:
徐梦悦（2000-），女，硕士生，主要从事航空发动机结构强度与寿命研究。E-mail：1140920448@qq.com

通讯作者:
李少林（1983-），男，副教授，博士，主要从事航空发动机结构强度与寿命研究。E-mail：lishaolin@buaa.edu.cn

中图分类号: V231
计量
- 文章访问数: 820
- HTML浏览量: 509
- PDF量: 102
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-26
- 网络出版日期: 2024-11-15

Creep-fatigue damage evolution and life prediction of high-temperature alloys considering thermal corrosion

XU Mengyue^{1, 2
,},
ZHAO Gaole^{1, 2},
LI Shaolin^{1, 2,*
, ,},
QI Hongyu^{1, 2},
YANG Xiaoguang^{1, 2},
SHI Duoqi^{1, 2}

1.
School of Energy and Power Engineering，Beihang University，Beijing 102206，China
2.
Beijing Key Laboratory of Aero-Engine Structure and Strength，Beihang University，Beijing 102206，China

摘要

摘要:
针对镍基高温合金在热腐蚀环境下由蠕变-疲劳引起的失效问题，开展了一种基于连续损伤理论的腐蚀-蠕变-疲劳寿命预测方法。建立了DZ125镍基高温合金在腐蚀-蠕变-疲劳的复杂受力状态下的本构方程和损伤演化方程，开发用于计算的用户子程序。对不同温度下的DZ125合金的腐蚀-蠕变-疲劳寿命进行预测。通过模拟材料的全寿命损伤演化过程，以研究材料在不同温度及保载时间下的损伤机制。结果表明：寿命预测均在3倍分散系数范围内。损伤演化曲线显示，在850 ℃下，DZ125合金主要以腐蚀损伤为主，而在980 ℃下，蠕变损伤则主导了损伤演化过程。研究成果对于航空发动机热端部件的强度设计与寿命评估具有重要的意义。
- 热腐蚀 /
- 蠕变-疲劳 /
- 镍基高温合金 /
- 寿命预测 /
- 损伤本构
Abstract:
Considering the failure of nickel-based superalloys due to creep-fatigue in hot corrosive environments, a corrosion-creep-fatigue life prediction method based on the continuous damage eigenstructure was proposed. The ontological equation and damage evolution equation of DZ125 nickel-based superalloy under the complex stress state of corrosion-creep-fatigue were established, and the user subroutine for the calculation was developed. The corrosion-creep-fatigue life of DZ125 alloy at different temperatures was predicted. The full-life damage evolution of the material was simulated to study the damage mechanism of the material at different temperatures and holding times. The results indicated that the life predictions fell within three times the dispersion factor. The damage evolution curves showed that at 850 ℃, corrosion damage dominated the damage evolution process in DZ125 alloy, while creep damage dominated the damage evolution process at 980 ℃. The research results are of great significance for the strength design and life assessment of aero-engine hot end components.
- thermal corrosion /
- creep-fatigue /
- nickel-based superalloys /
- life prediction /
- damage constitutive

HTML

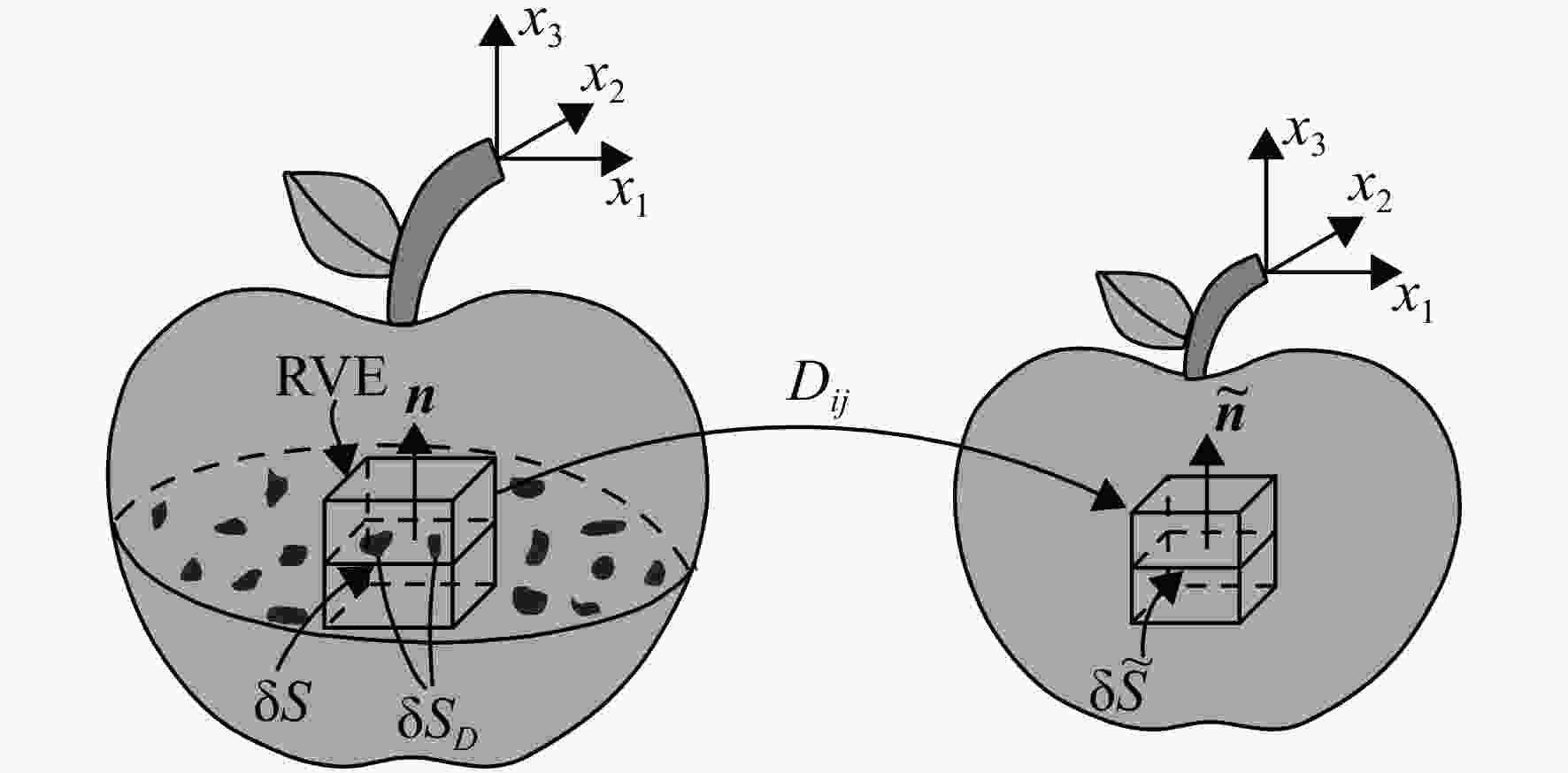

图 1 RVE示意图

Figure 1. Schematic diagram of RVE

下载: 全尺寸图片幻灯片

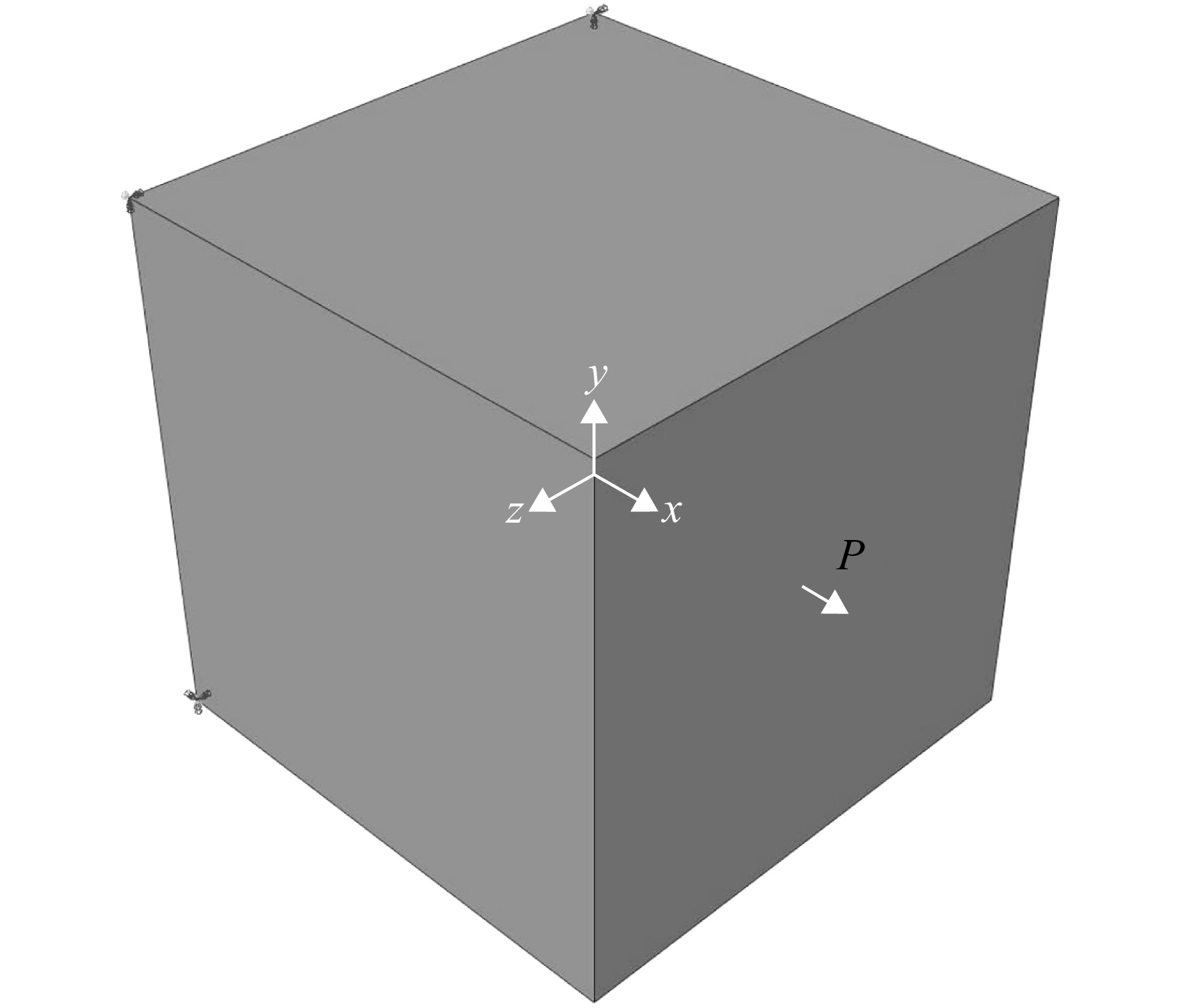

图 2 有限元模型

Figure 2. Finite element model

下载: 全尺寸图片幻灯片

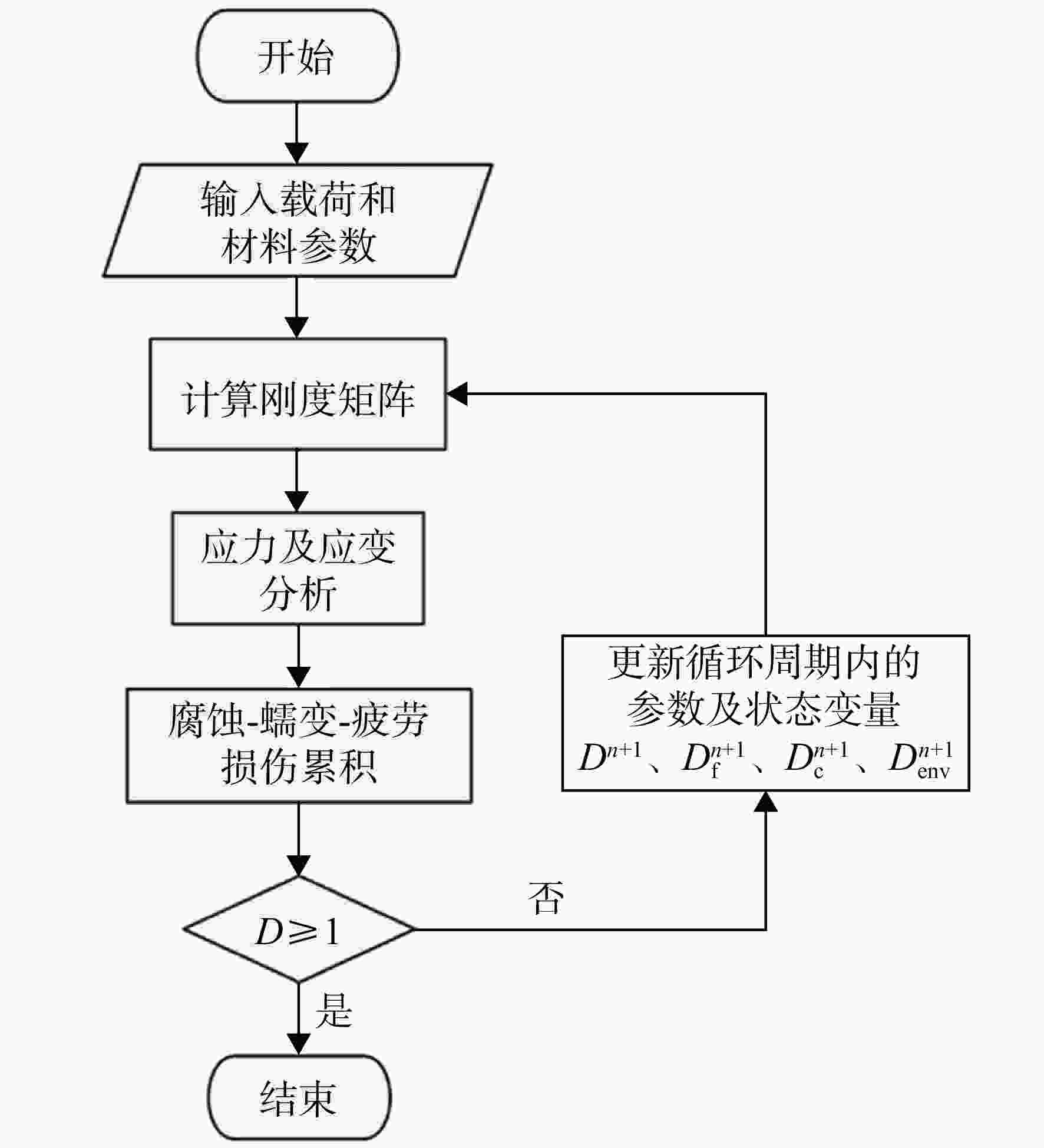

图 3 有限元分析流程图

Figure 3. Finite element analysis flow chart

下载: 全尺寸图片幻灯片

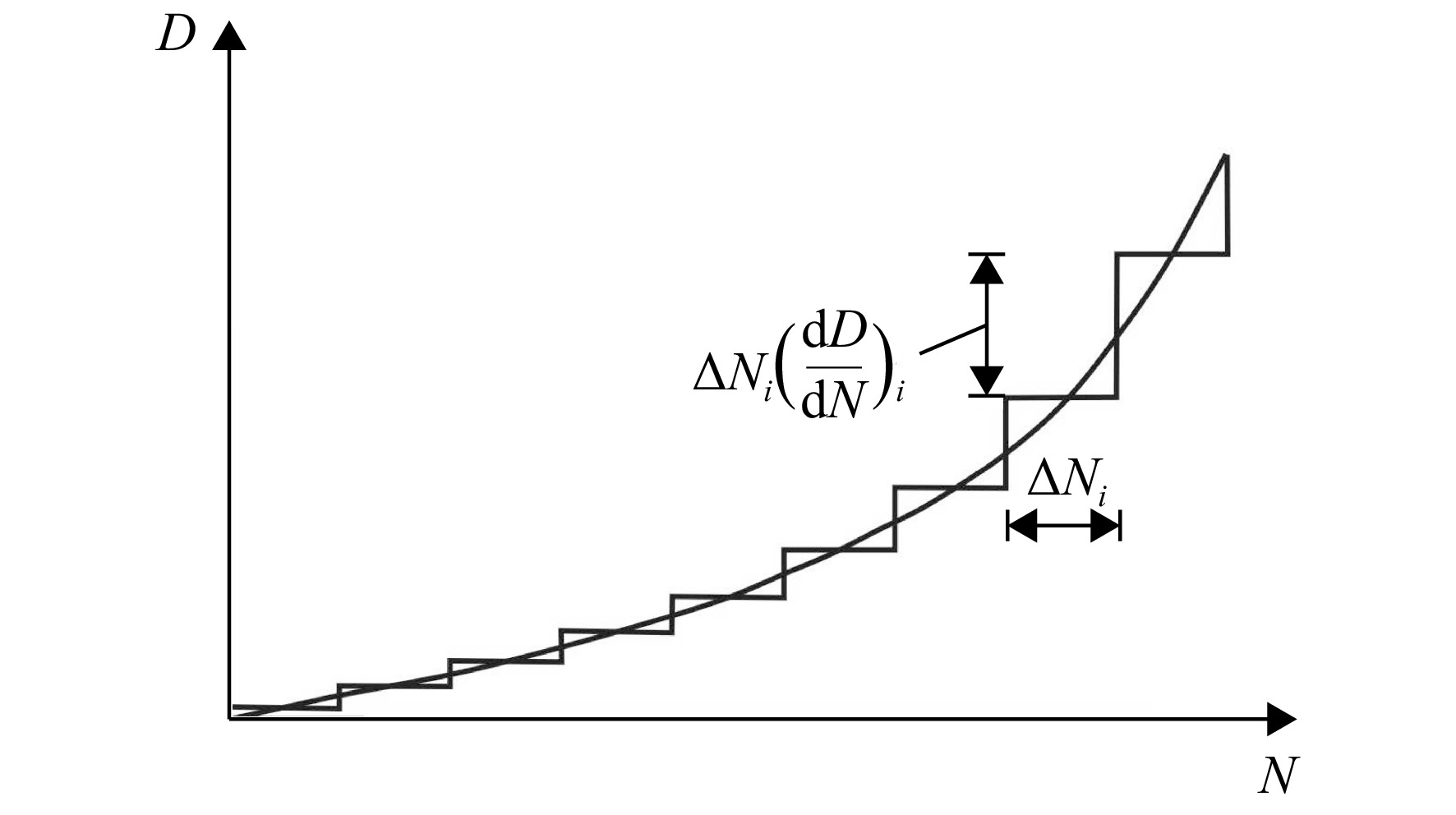

图 4 循环跳跃算法

Figure 4. Cycle jump algorithm

下载: 全尺寸图片幻灯片

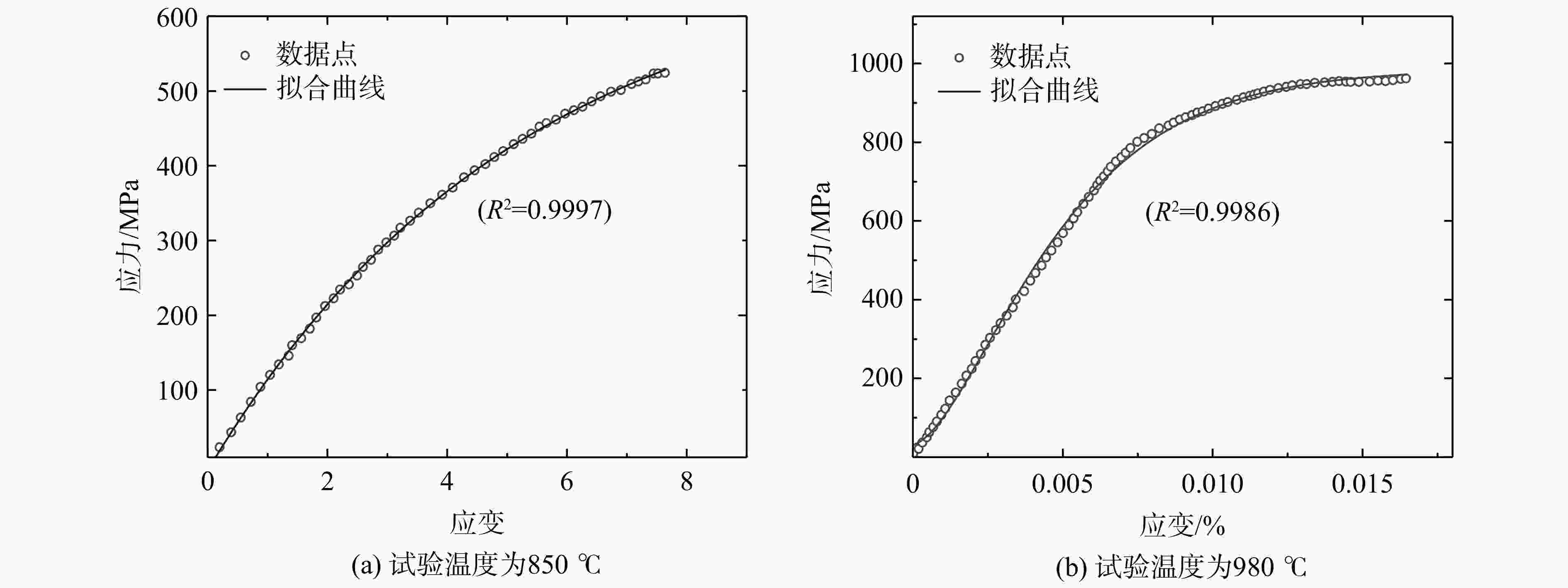

图 5 不同温度下DZ125合金的单轴拉伸曲线及拟合结果

Figure 5. Uniaxial tensile curves and fitting results of DZ125 alloy at different temperatures

下载: 全尺寸图片幻灯片

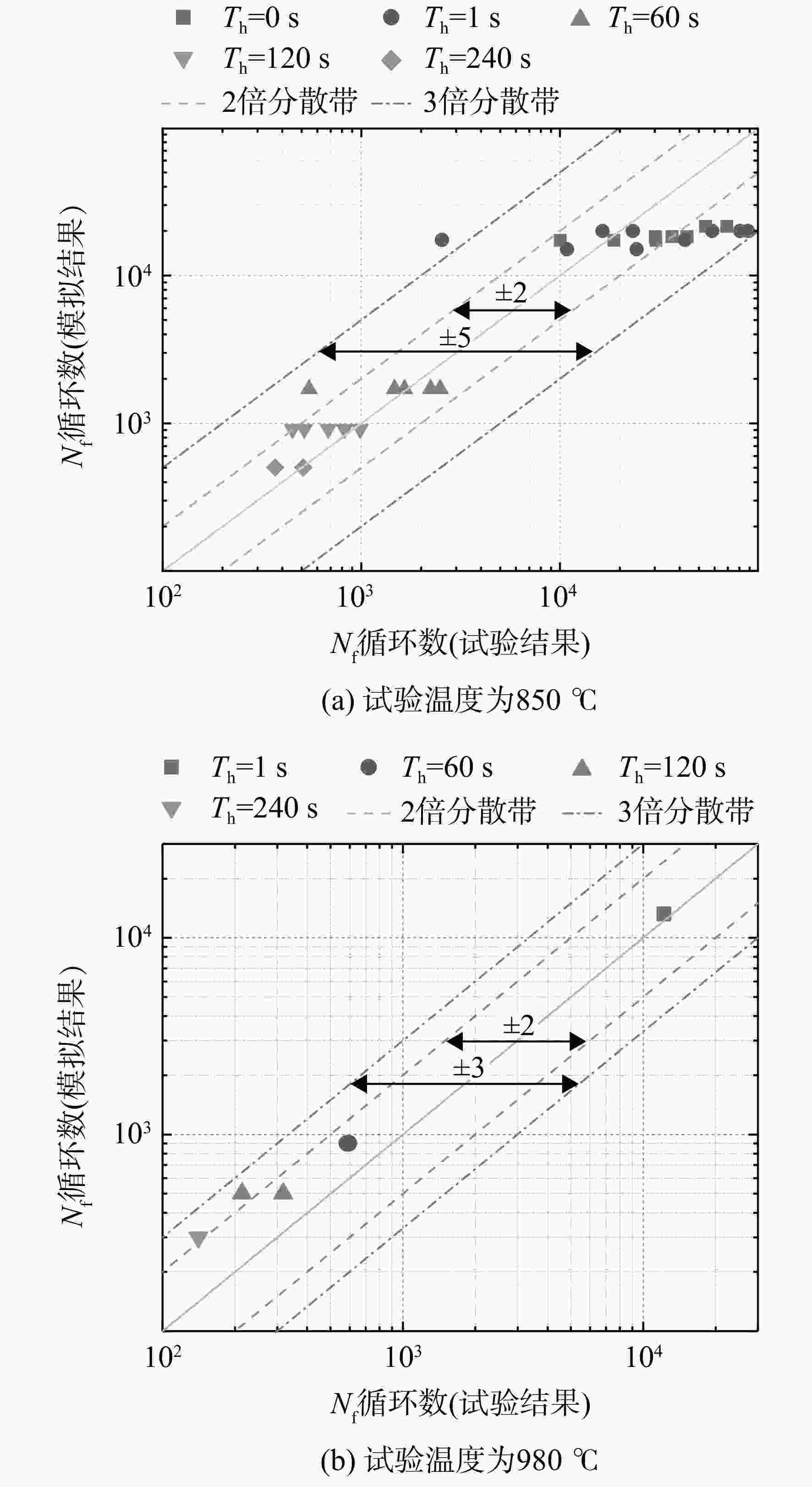

图 6 不同温度下DZ125合金的氧化-蠕变-疲劳寿命预测结果

Figure 6. Predicted oxidation-creep-fatigue life of DZ125 alloy at different temperatures

下载: 全尺寸图片幻灯片

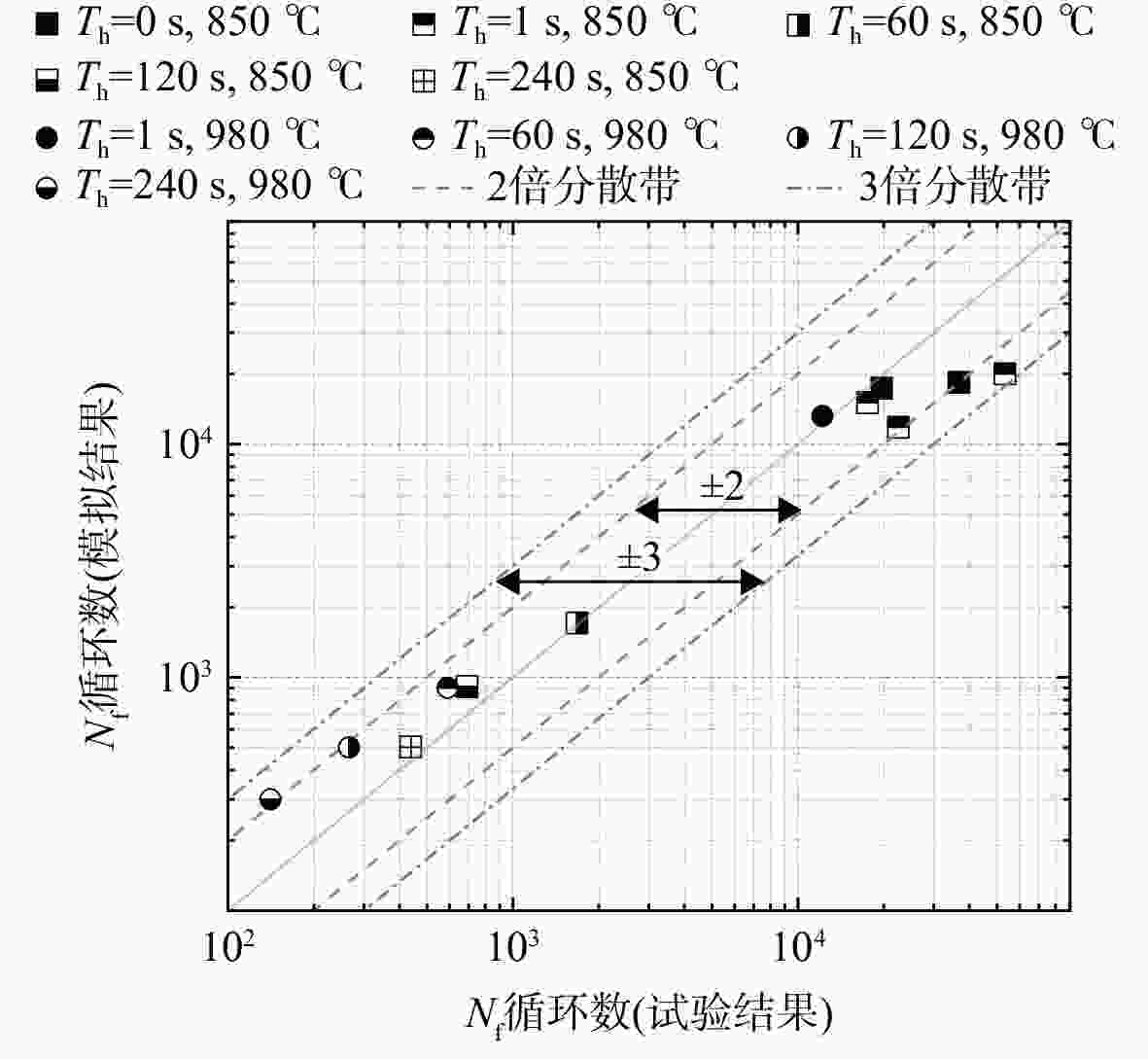

图 7 DZ125合金氧化-蠕变-疲劳寿命预测值与试验平均值对比结果

Figure 7. Comparison of the predicted oxidation-creep-fatigue life of DZ125 alloy with the average value of tests

下载: 全尺寸图片幻灯片

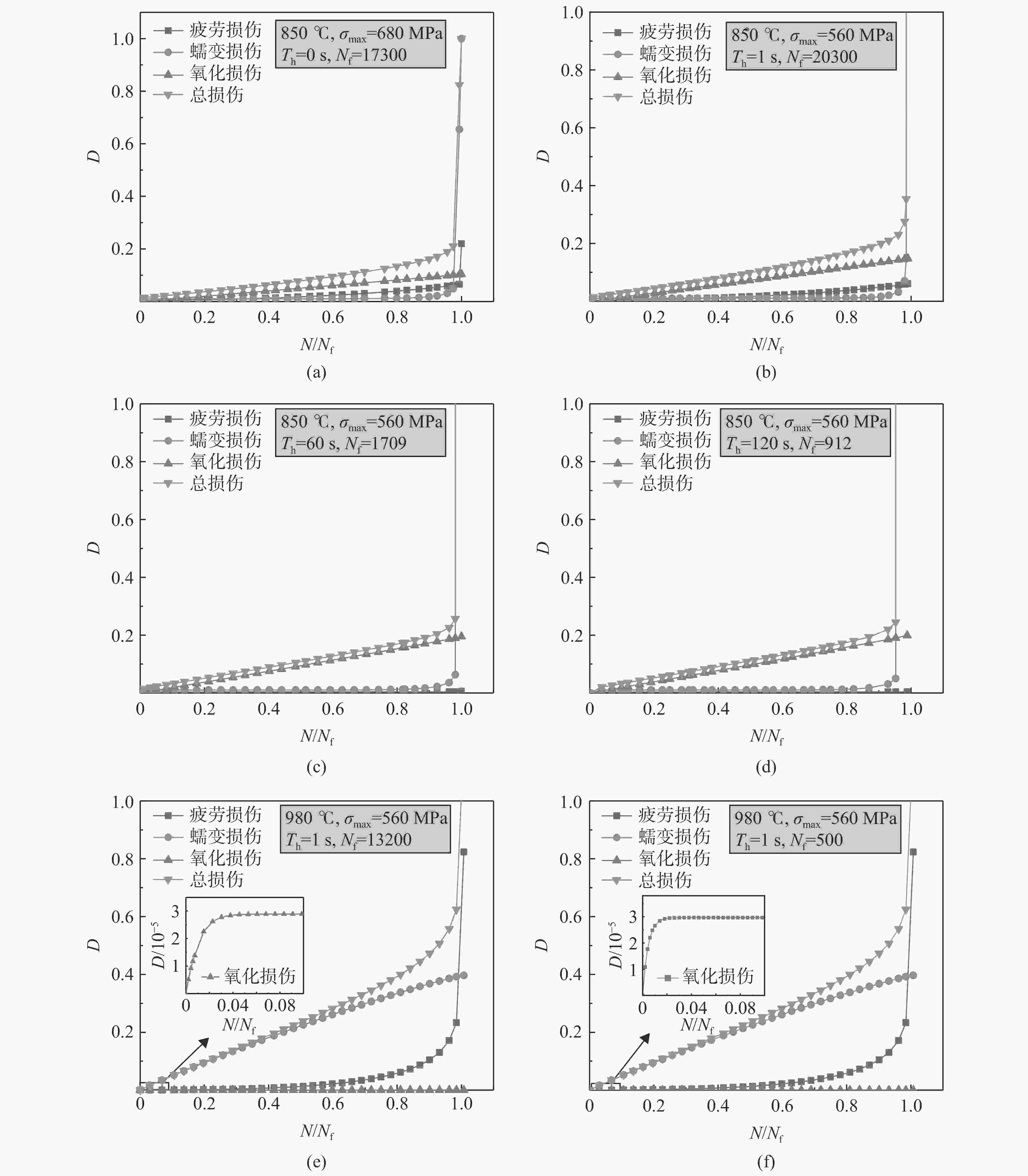

图 8 不同温度下DZ125合金的损伤演化过程

Figure 8. Damage evolution of DZ125 alloy at different temperatures

下载: 全尺寸图片幻灯片

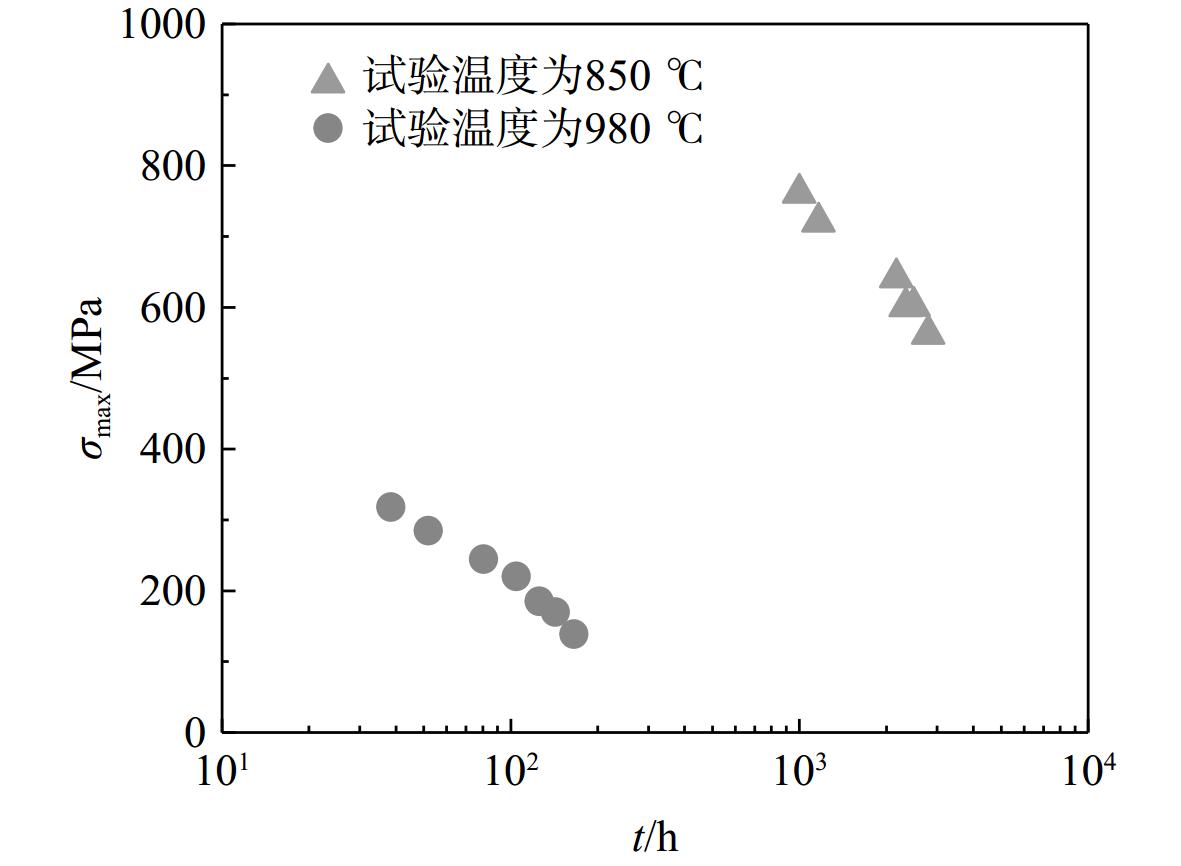

图 9 DZ125 合金在试验温度为850 ℃和980 ℃时应力与蠕变寿命的关系图

Figure 9. Relationship between stress and creep life at 850 ℃ and 980 ℃ for DZ125 superalloy

下载: 全尺寸图片幻灯片

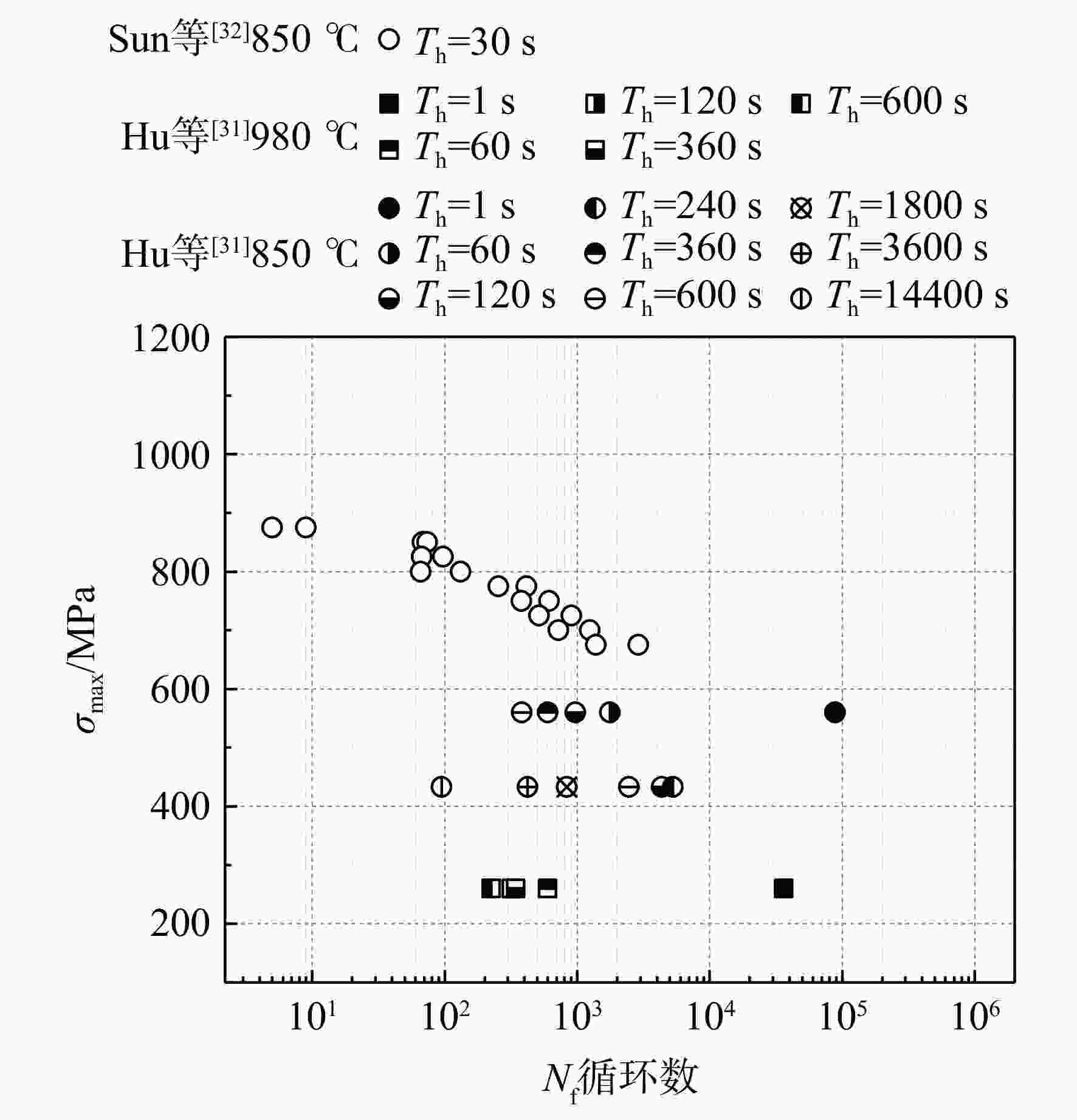

图 10 不同载荷、温度和保载时间条件下的DZ125合金的蠕变-疲劳寿命数据

Figure 10. Creep-fatigue life data of DZ125 alloy under different load, temperature and holding time conditions

下载: 全尺寸图片幻灯片

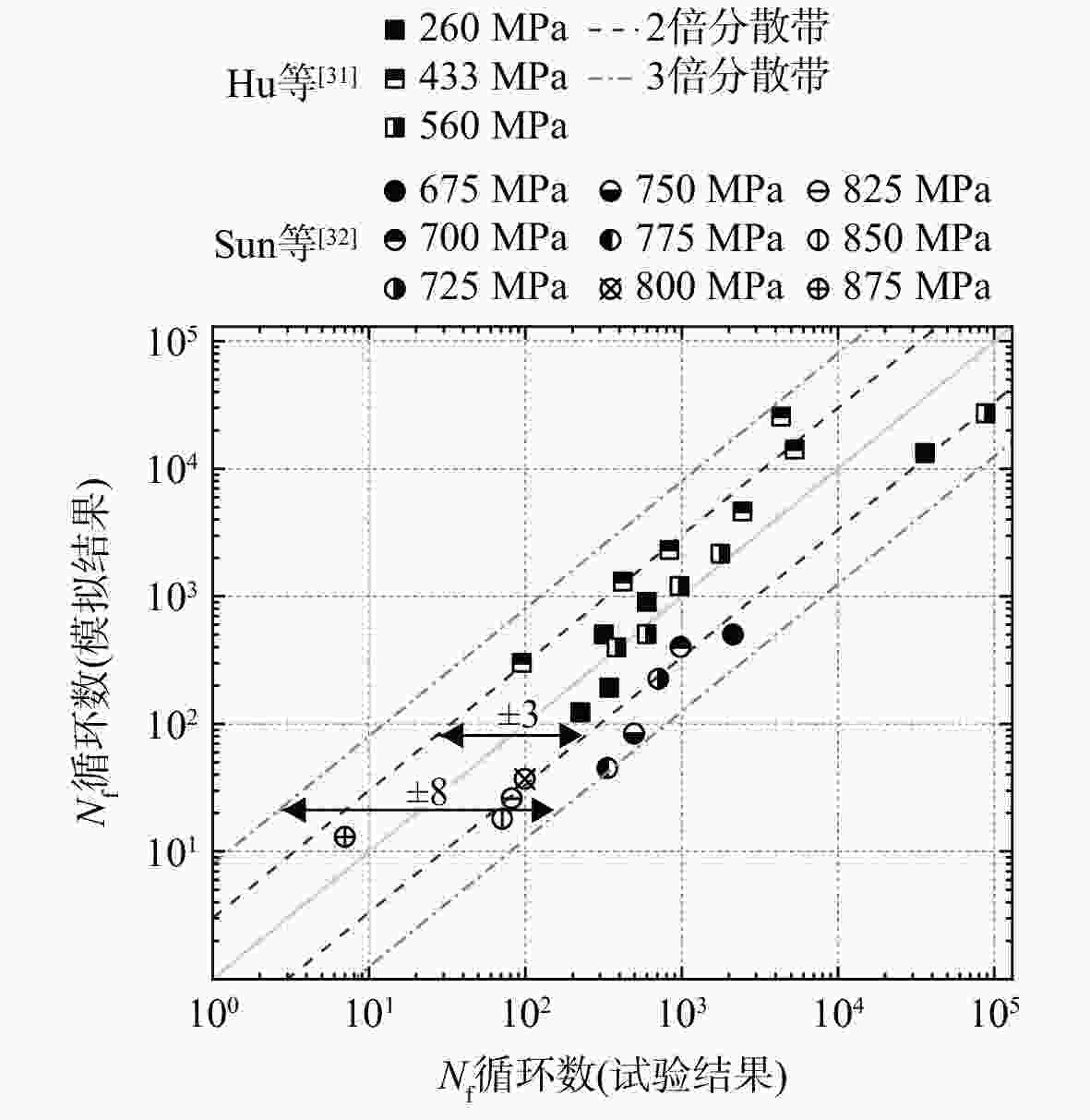

图 11 DZ125合金蠕变-疲劳寿命预测值与文献中试验平均值的对比结果

Figure 11. Comparison of predicted creep-fatigue life of DZ125 alloy with results from experimental averages in the literature

下载: 全尺寸图片幻灯片

表 1 模型的氧化-蠕变-疲劳损伤演化参数^[28]

Table 1. Oxidation-creep-fatigue damage evolution parameters of model^[28]

试验温度/℃	疲劳演化模型				蠕变演化模型				氧化演化模型
试验温度/℃	D_0，f	a	M₀/MPa	β	A/MPa	r	k	D_0，c	λ	ζ/s⁻¹
850	3.65×10⁻³	0.69	17454.22	2.94	1856.95	13.27	48.42	0.01	0.47	3.3×10⁻³
980	1.11×10⁻⁴	0.40	1315.59	5.85	488	4.55	−0.68	1.84×10⁻³	233.90	5.06×10⁻⁶

下载: 导出CSV

表 2 模型的随动硬化参数

Table 2. Kinematic hardening parameters of the model

试验温度/℃	C^（1）/MPa	C^（2）/MPa	C^（3）/MPa	γ^（1）	γ^（2）	γ^（3）
850	−6.62×10⁵	−9.20×10⁴	133.67	1.34×10⁴	184.64	0.19
980	−4.81×10⁸	9.22×10⁶	9.25×10⁶	9.45×10⁵	384.40	371.652

下载: 导出CSV

表 3 DZ125合金的化学成分

Table 3. Chemical composition of DZ125 superalloy

元素	质量分数	元素	质量分数
C	0.1	Ti	0.9
Cr	8.9	Ta	3.8
Co	10	Hf	1.5
W	7	B	0.015
Mo	2	Ni	其余
Al	5.2

下载: 导出CSV

表 4 DZ125的机械性能^[29]

Table 4. Mechanical properties of DZ125^[29]

试验温度/℃	弹性模量/MPa	泊松比	σ_b/MPa	σ_0.2/MPa
850	95	0.43	990	900
980	84	0.45	740	530

下载: 导出CSV
