基于残差注意力TCN与vision transformer的齿轮剩余寿命预测

胡爱军; 李晨阳; 邢磊; 周卓浩; 向玲

doi:10.13224/j.cnki.jasp.20240284

基于残差注意力TCN与vision transformer的齿轮剩余寿命预测

doi: 10.13224/j.cnki.jasp.20240284

华北电力大学能源动力与机械工程学院机械工程系河北省电力机械装备健康维护与失效预防实验室，河北保定 071003

基金项目: 国家自然科学基金（52175092）

详细信息

作者简介:
胡爱军（1971-），男，教授、博士生导师，博士，主要从事机械设备状态监测与故障诊断研究

中图分类号: V240.2；TH132；TH133.33
计量
- 文章访问数: 535
- HTML浏览量: 421
- PDF量: 47
- 被引次数: 0
出版历程
- 收稿日期: 2024-05-07
- 网络出版日期: 2025-09-24

Gear remaining life prediction based on residual attention TCN and vision transformer

Hebei Key Laboratory of Electric Machinery Health Maintenance and Failure Prevention，Department of Mechanical Engineering，School of Energy Power and Mechanical Engineering，North China Electric Power University，Baoding Hebei 071003，China

摘要

摘要:
齿轮系统的运行状况受到多个因素的影响，这些因素在时间上存在长期依赖关系，并在局部和全局特征之间存在差异。为了有效地捕捉数据中的时间依赖性并自适应调整对特征的关注度，提出具有残差卷积块注意力机制的时间卷积网络（RCMTCN）。通过在卷积块注意力机制中引入残差连接，模型能够同时关注原始输入和注意力加权的信息，提高了模型对局部信息的感知能力。在此基础上，将vision transformer（ViT）模型与RCMTCN相结合对齿轮的剩余使用寿命（RUL）预测，ViT模型能有效地捕获数据中的全局信息。两者融合后能充分展现在处理时间序列数据局部特征提取能力和全局信息关注方面的优势，提高对多维度特征的感知能力。最后，通过在两种工况齿轮性能退化数据集上对模型进行验证，选用点蚀故障数据进行训练，分别对点蚀和断齿故障进行测试。实验结果表明：与其他方法相比，所提出的方法能更充分地提取关键特征信息，在点蚀故障上评分函数得分为0.8898，且在断齿故障上得分为0.8587，表现出良好的工况、故障适应能力。
- 齿轮 /
- 剩余使用寿命 /
- 时序网络 /
- 注意力机制 /
- vision transformer模型
Abstract:
The operating condition of a gear system is influenced by multiple factors exhibiting long-term dependencies over time and differences between local and global features. In order to effectively capture the temporal dependence in data and adaptively adjust the attention to features, a temporal convolutional network (RCMTCN) with residual convolutional block attention mechanism was proposed. By introducing residual connections into the convolutional block attention mechanism, the model can jointly emphasize the original input and attention-weighted information, and improve the model’s ability to perceive local information. On this basis, the vision transformer (ViT) model was combined with RCMTCN to predict the remaining service life (RUL) of gears. The ViT model can effectively obtain the global information in the data. The fusion of these two can fully demonstrate its advantages in local feature extraction capabilities and global information attention in processing time series data, and improve the perception of features of various scales. Finally, the model was verified on two working conditions gear performance degradation datasets, pitting corrosion fault data were selected for training, and pitting corrosion and tooth broken faults were tested respectively. Experimental results showed that compared with other methods, the proposed method can more fully extract key feature information. The scoring function achieved 0.8898 for pitting failure and 0.8587 for broken tooth failure, indicating excellent operational conditions and fault adaptability.
- gear /
- remaining useful life /
- temporal network /
- attention mechanism /
- vision transformer model

HTML

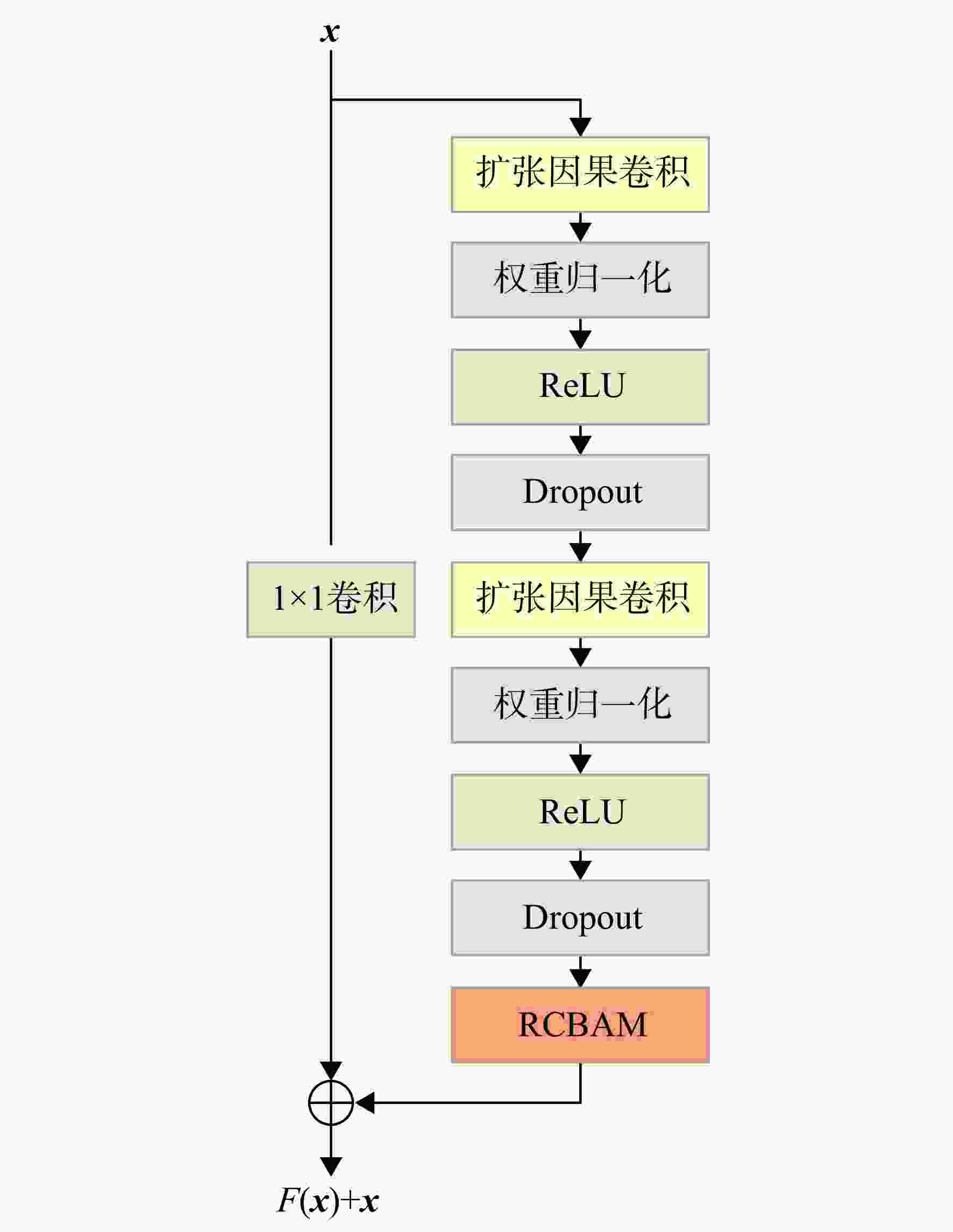

图 1 RCMTCN模型框架

Figure 1. RCMTCN model framework

下载: 全尺寸图片幻灯片

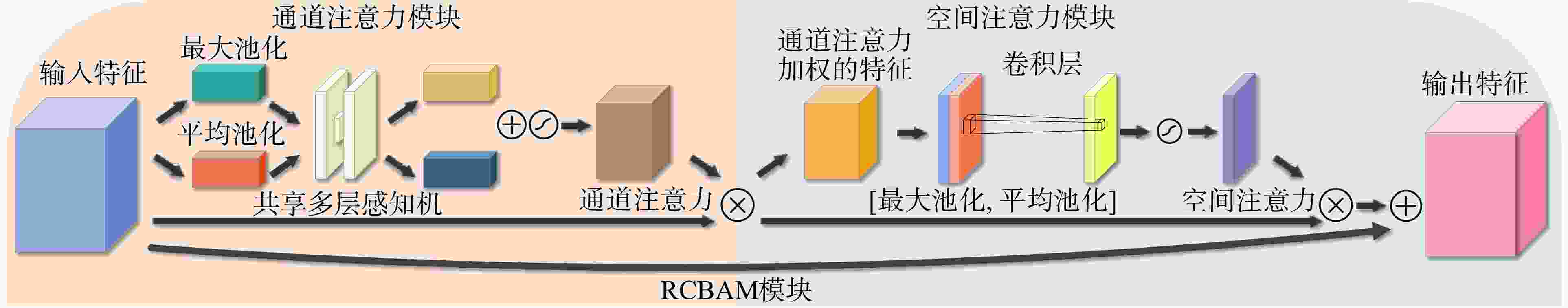

图 2 残差卷积块注意力机制模块

Figure 2. Residual convolutional block attention module

下载: 全尺寸图片幻灯片

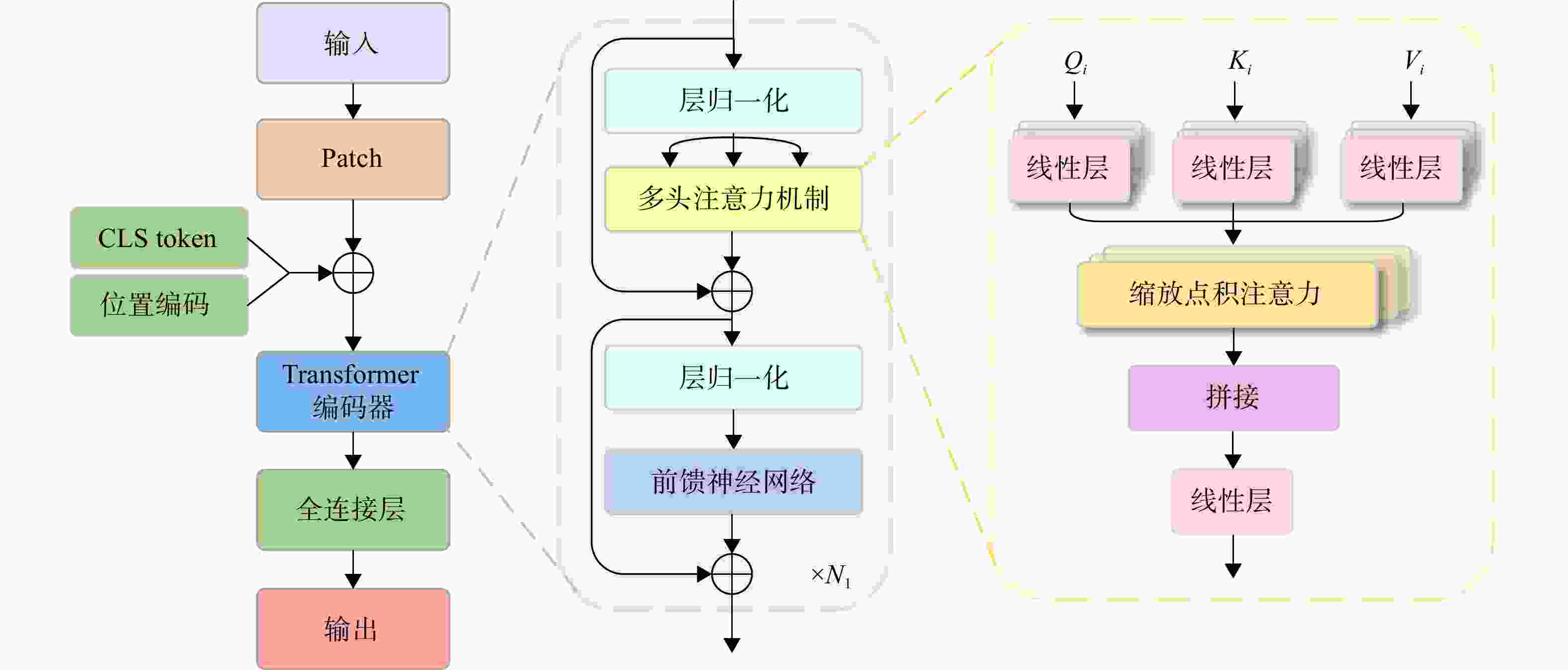

图 3 ViT模型框架

Figure 3. ViT model framework

下载: 全尺寸图片幻灯片

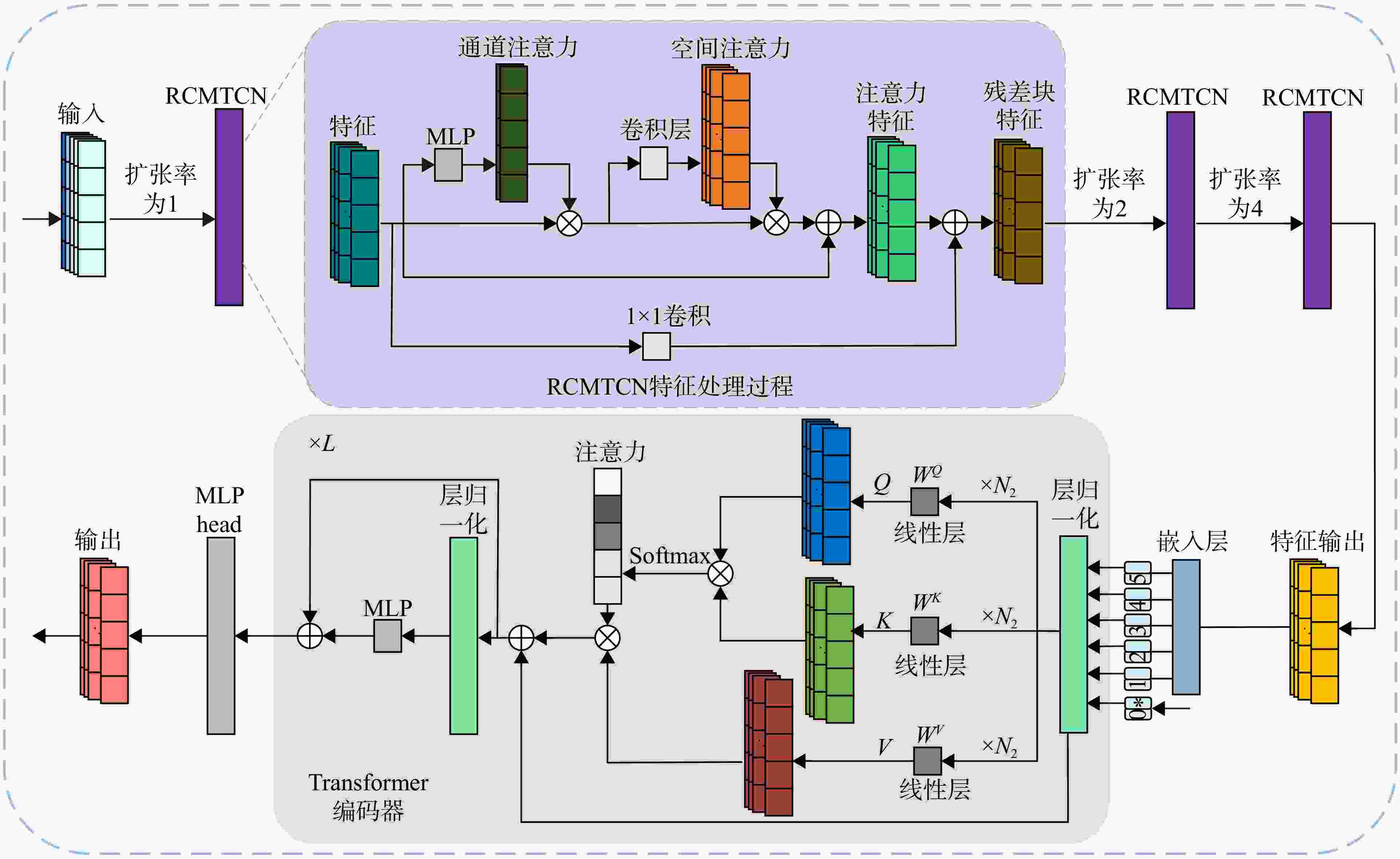

图 4 RCMTCN-ViT整体网络结构图

Figure 4. RCMTCN-ViT overall network structure diagram

下载: 全尺寸图片幻灯片

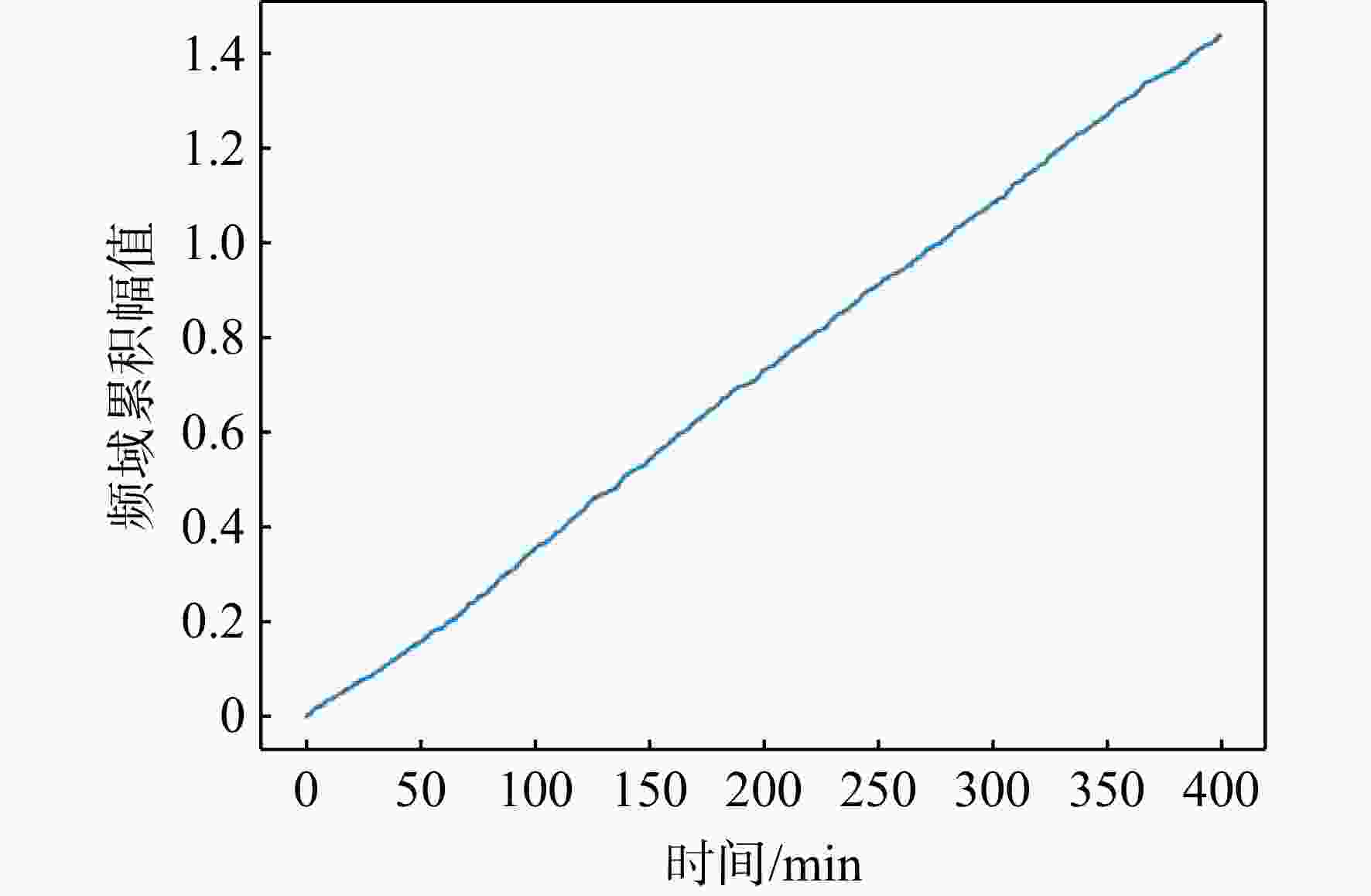

图 5 频域累积幅值特征

Figure 5. Cumulative amplitude characteristics in frequency domain

下载: 全尺寸图片幻灯片

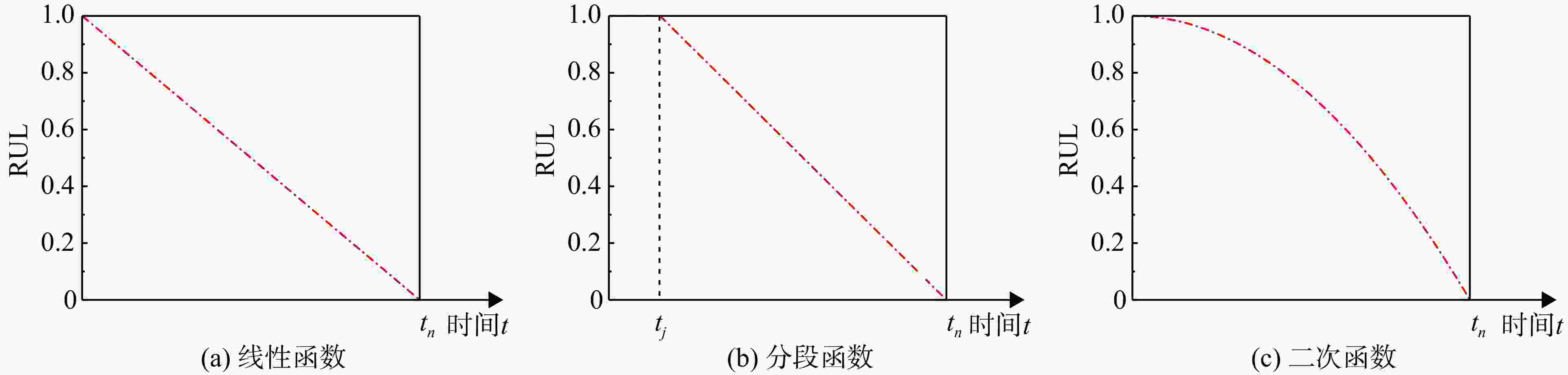

图 6 描述齿轮退化趋势的3种标签

Figure 6. Three labels describing gear degradation trends

下载: 全尺寸图片幻灯片

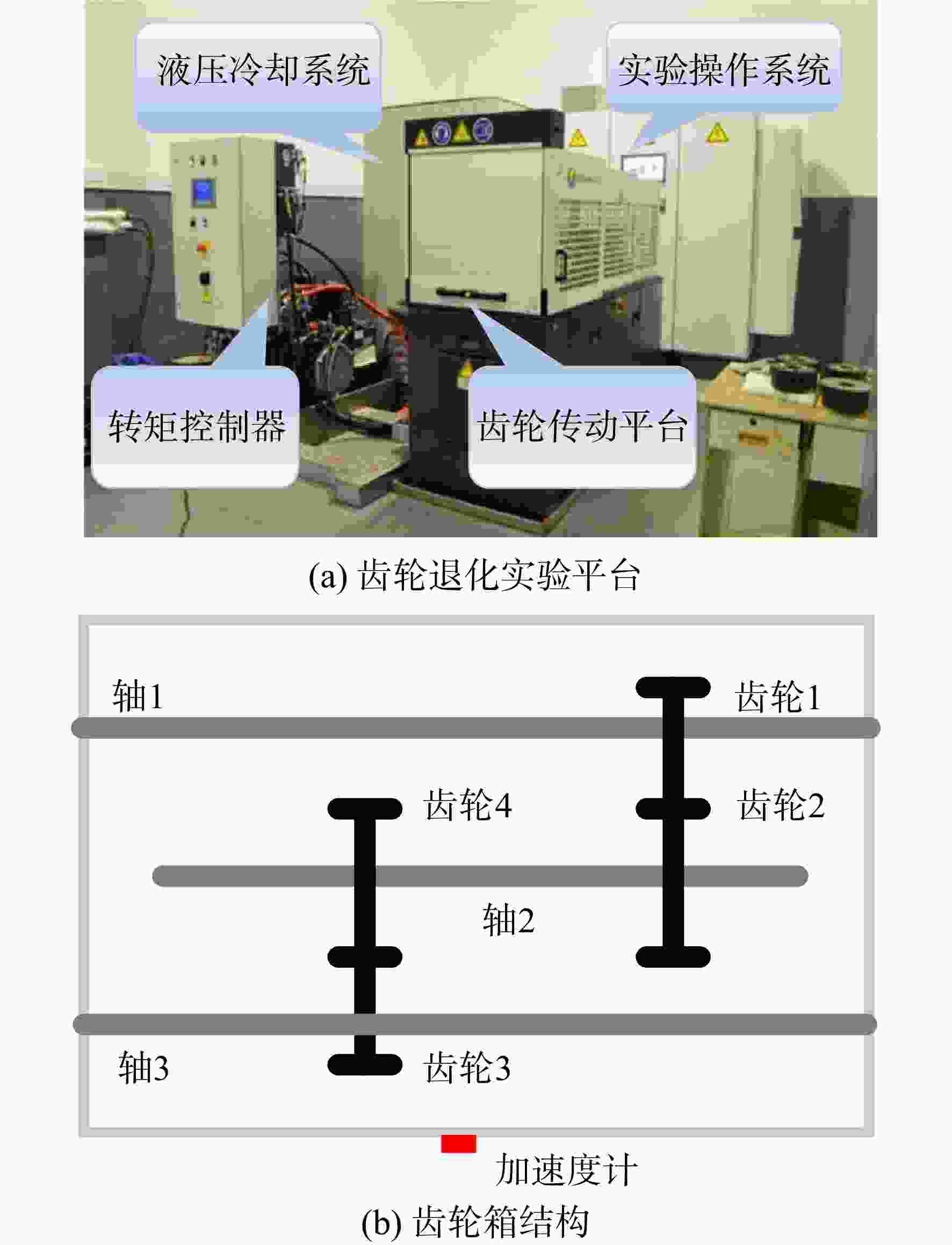

图 7 重庆大学齿轮性能退化数据集

Figure 7. Gear performance degradation dataset from Chongqing University

下载: 全尺寸图片幻灯片

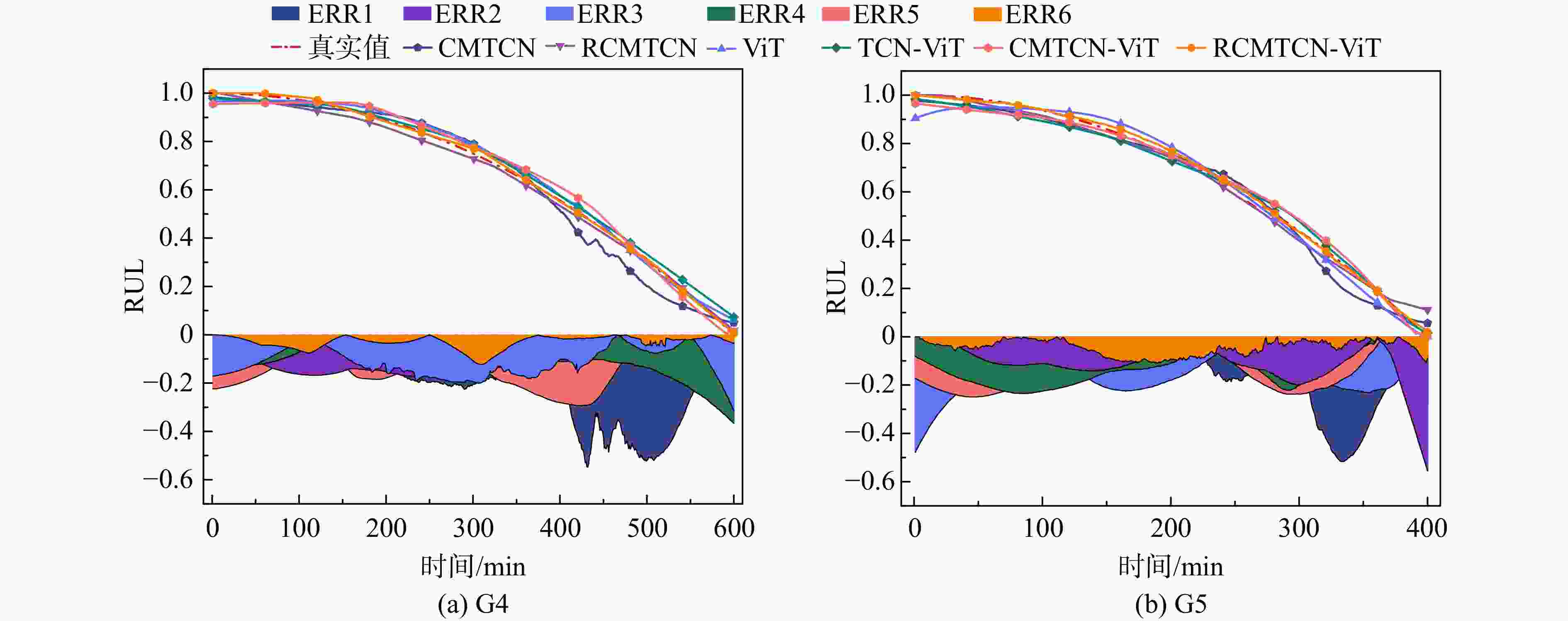

图 8 不同工况齿轮预测结果

Figure 8. Gear prediction results under different working conditions

下载: 全尺寸图片幻灯片

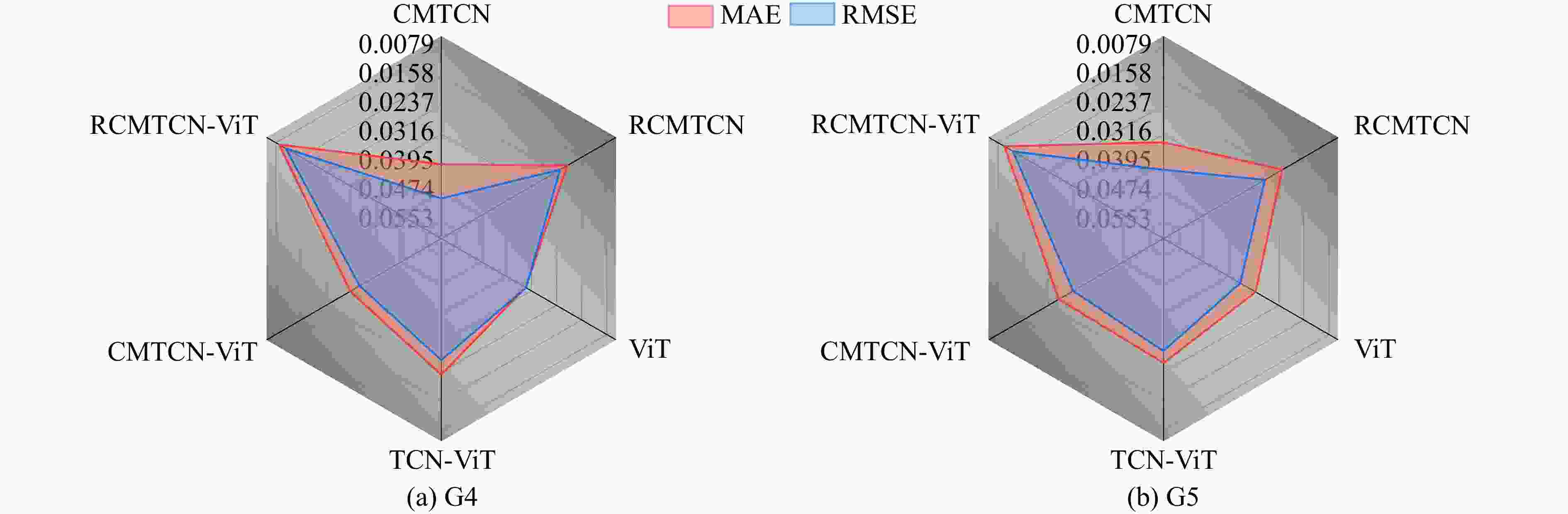

图 9 不同工况的MAE与RMSE雷达图

Figure 9. MAE and RMSE radar charts under different working conditions

下载: 全尺寸图片幻灯片

图 10 隐藏层的特征可视化

Figure 10. Feature visualization of hidden layers

下载: 全尺寸图片幻灯片

图 11 不同方法的RMSE、MAE和Score结果图

Figure 11. RMSE, MAE and Score result graphs of different methods

下载: 全尺寸图片幻灯片

表 1 数据集的详细信息

Table 1. Dataset details

项目	数值或说明
数据集名称	G1	G2	G3	G4	G5
故障类型	点蚀				断齿
转矩/（N·m）	1300	1300	1300	1300	1400
转速/（r/min）	1000	1000	1000	1000	500
样本数	600	600	600	600	400
数据集标识	训练集			测试集

下载: 导出CSV

表 2 超参数设置

Table 2. Hyperparameter settings

超参数	数值或说明
批次大小	128
迭代次数	200
学习率	0.0001
优化器	Adam
损失函数	MSE
卷积核大小	3×3
编码器层数	8
多头注意力头数	8
随机失活率	0.1
隐藏层神经元数	256

下载: 导出CSV

表 3 所提方法与其他5种模型的评价指标结果

Table 3. Evaluation index results of the proposed method and other five solutions

预测模型	G4			G5
预测模型	RMSE	MAE	Score	RMSE	MAE	Score
CMTCN	0.0491	0.0398	0.5677	0.0413	0.0338	0.5717
RCMTCN	0.0226	0.0203	0.6715	0.0281	0.0226	0.6353
ViT	0.0333	0.0334	0.6853	0.0358	0.0310	0.5995
TCN-ViT	0.0270	0.0230	0.7447	0.0295	0.0262	0.6626
CMTCN-ViT	0.0343	0.0313	0.6919	0.0316	0.0270	0.6920
RCMTCN-ViT	0.0110	0.0089	0.8898	0.0126	0.0099	0.8587

下载: 导出CSV

表 4 所提方法与其他方法的评价指标结果

Table 4. Evaluation index results of the proposed method and other methods

方法	G4			G5
方法	RMSE	MAE	Score	RMSE	MAE	Score
WDCNN	0.0815	0.0652	0.3756	0.079	0.0591	0.4474
LSTM	0.0403	0.0328	0.5817	0.0491	0.0398	0.5677
GRU	0.0427	0.0379	0.5591	0.0576	0.0443	0.4698
TCN	0.0565	0.0468	0.4699	0.0327	0.0373	0.5463
RCMTCN-ViT	0.0110	0.0089	0.8898	0.0126	0.0099	0.8587

下载: 导出CSV
