A stall warning method based on fuzzy approximate entropy for a contra-rotating compressor with variable speed ratio
-
摘要:
以一台低速大尺寸轴流对转压气机为对象，利用布置在前/后转子叶顶的高频动态压力传感器阵列捕捉其在不同工况下的叶顶流动特征。通过利用模糊近似熵算法对低通滤波后的压力时间子序列分析，结果显示：随着质量流量系数减小，模糊近似熵值逐渐增大，表明转子叶顶流场逐渐复杂；当失速发生时，模糊近似熵值急剧下降。通过分析失速前/后压力时间序列频谱，发现失速扰动沿周向的传播使得动态压力信号的确定性成分大幅增加，因此失速发生时的模糊近似熵值更小。针对失速发生时熵值急剧下降的现象设置失速阈值，在转速比为0.857、1.0和1.125时分别取得了15转、14转及26转的失速预警时间。最后分析了模糊近似熵算法中关键参数的选取对结果的影响，发现参数值大小会改变信号重构向量之间相似度评估标准，但对失速发生时熵值急剧下降的现象并无影响。
Abstract:Taking a low-speed and large-scale axial contra-rotating compressor as a research object, a high frequency dynamic pressure sensor array arranged at the tip of the front and rear rotors was employed to capture the flow features at different working conditions. The low-pass filtered pressure time subsequences were analyzed using the fuzzy approximate entropy algorithm. The results showed that the fuzzy approximate entropy value gradually increased as the flow coefficient decreased, indicating that the flow field at the tip of the rotor became progressively more complex. When stall occurred, there was a sharp decrease in the fuzzy approximate entropy value. It was found that the existence of the stall propagation frequency increased the deterministic component of the signal by comparing the spectrum of the dynamic pressure time series before and after the stall, which resulted in a smaller entropy value when stall occurred. By setting a stall threshold in response to the sharp decrease in entropy when stall occurred, stall warning time of 15, 14 and 26 revolutions were obtained at speed ratio equal to 0.857, 1.0 and 1.125, respectively. Finally, the effects of key parameters on the fuzzy approximate entropy results were analyzed. It was found that the parameters changed the criteria for assessing the similarity between the reconstruction vectors. However, a sharp decrease in entropy was observed in all cases when stall occurred.
-

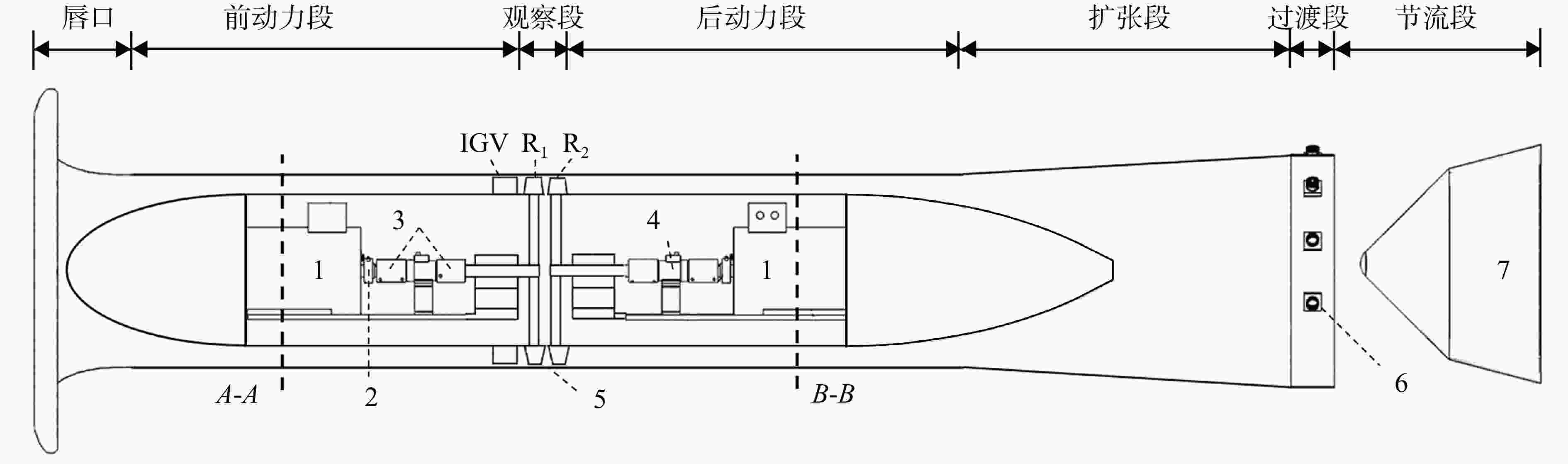

图 1 对转压气机试验台的总体布局
1 电动机；2 编码器；3 联轴器；4 测扭仪；5 动态压カ传感器；6 电磁阀；7 节流锥。
Figure 1. Overall layout of the contra-rotating compressor test bench

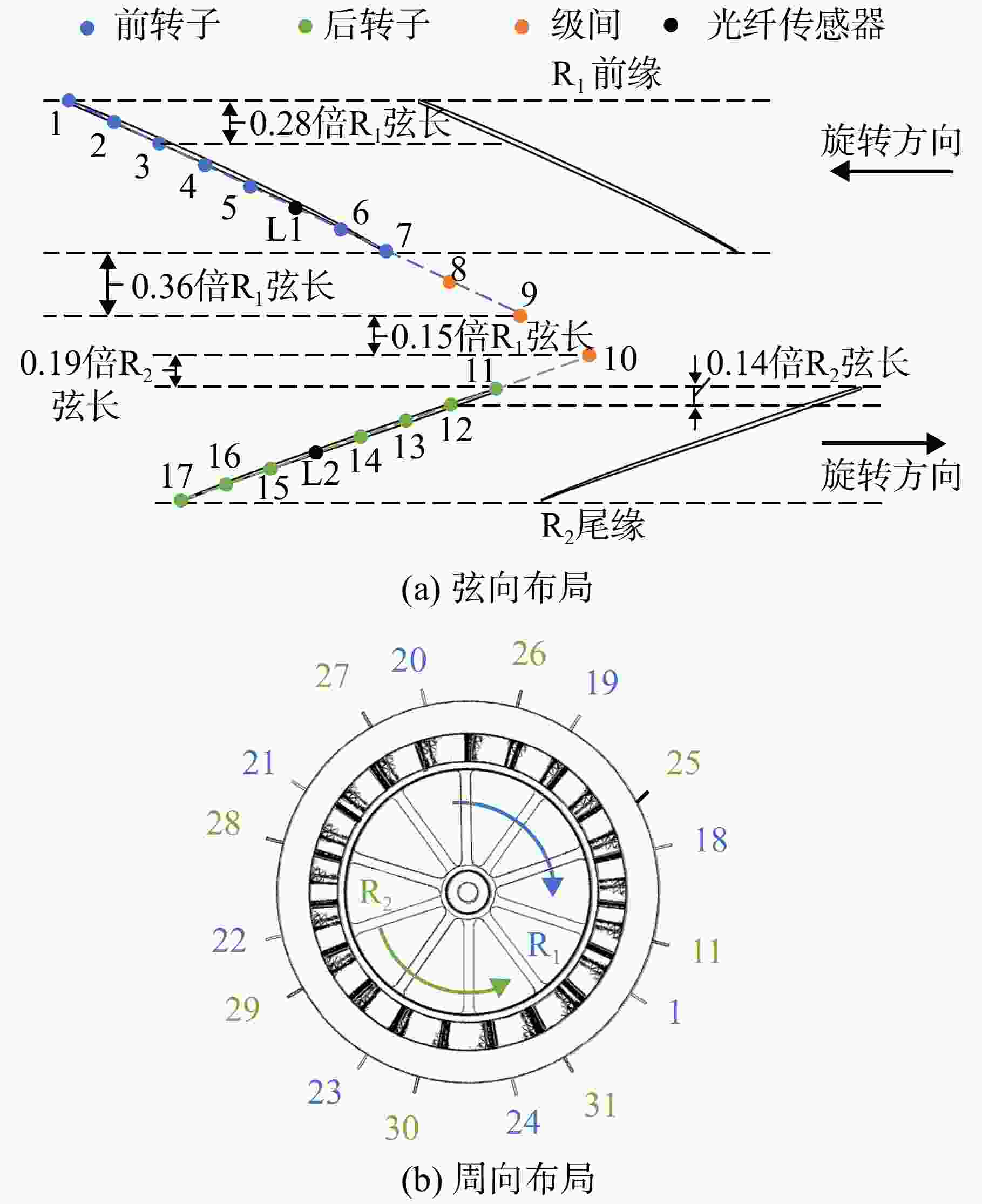

图 3 压气机出口面积堵塞比随节流锥轴向位置变化曲线
Figure 3. Curve of compressor discharge throttle ratio to the axial position of the throttle cone
图 4 不同转速比下对转压气机特性曲线
Figure 4. Characteristic curves of contra-rotating compressor with different speed ratios

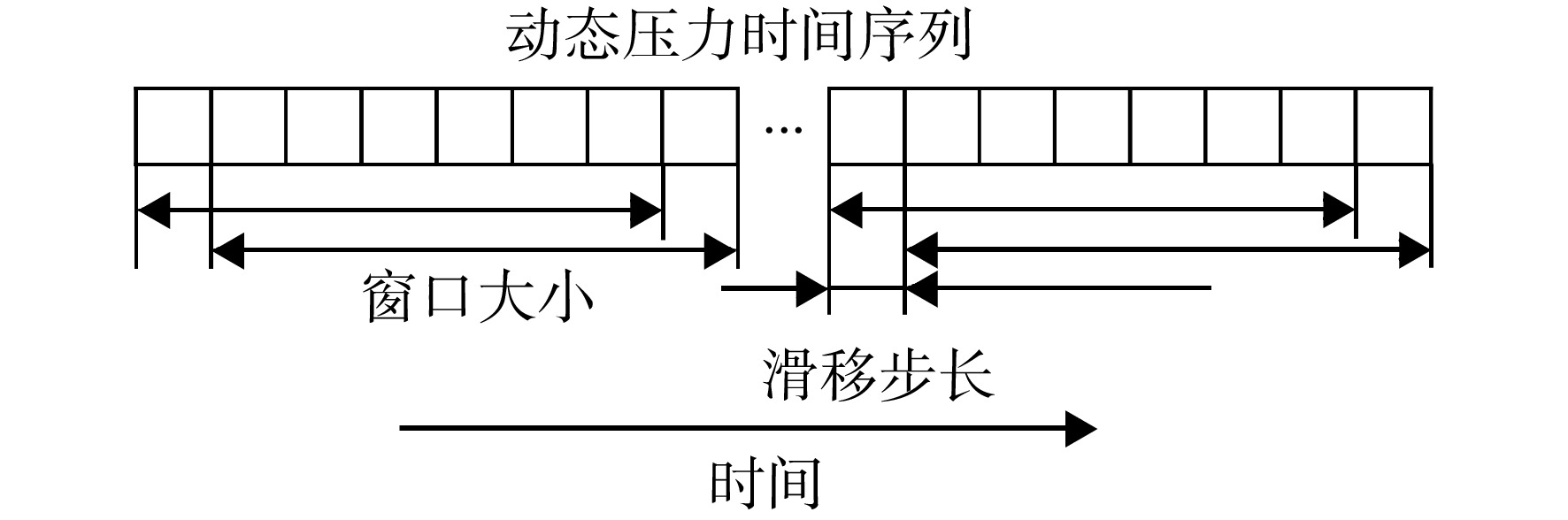

图 6 失速工况转子叶顶压力波 （Rr= 0.857）
Figure 6. Pressure wave of rotor tip at stall condition （Rr=0.857）
图 7 不同节流锥轴向位置对应模糊近似熵值
Figure 7. Fuzzy approximate entropy of different throttle cone axial position

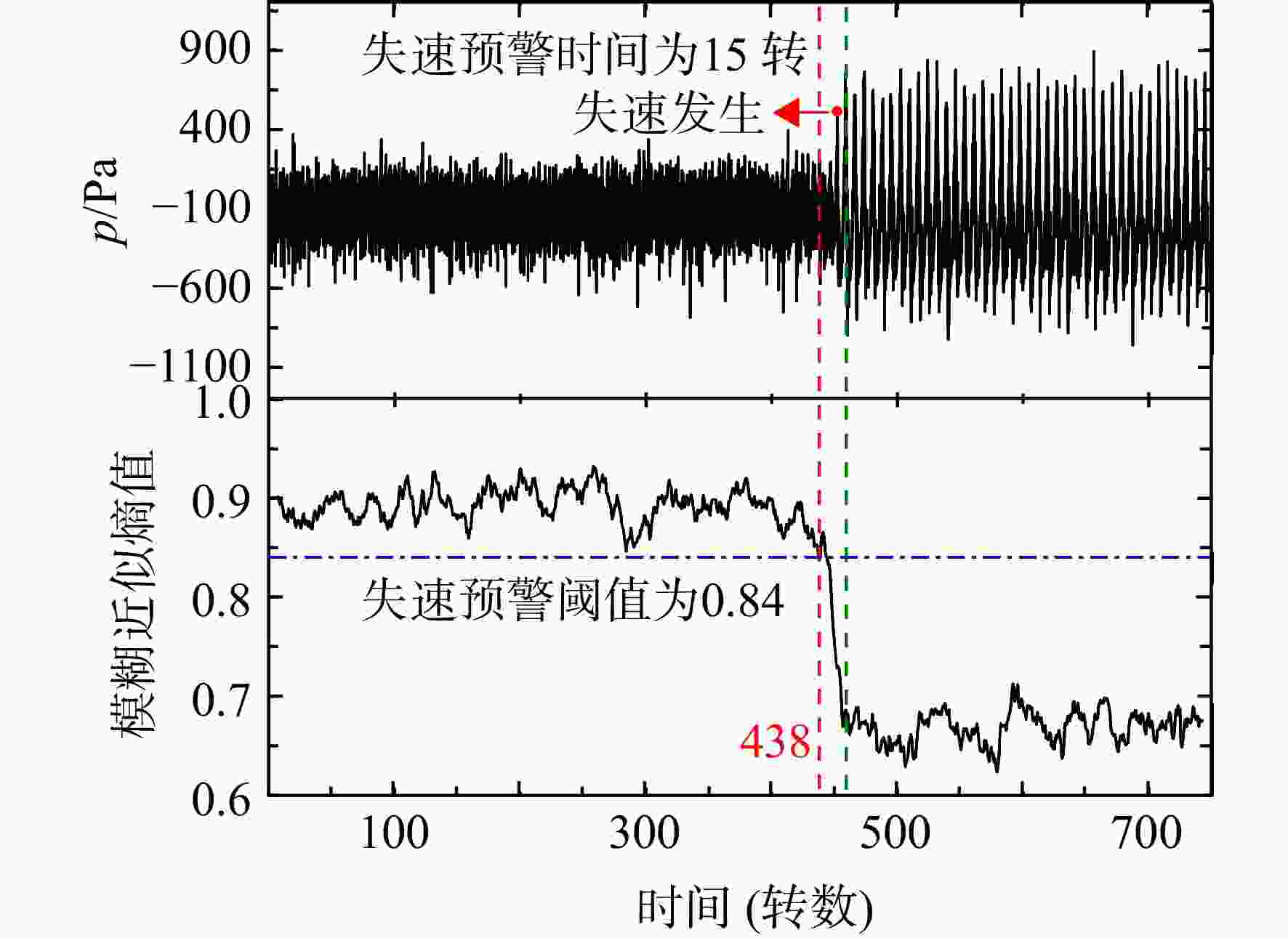

图 8 Rr=0.857时失速工况动态压力波及模糊近似熵值
Figure 8. Dynamic pressure wave and fuzzy approximate entropy under stall condition at Rr=0.857

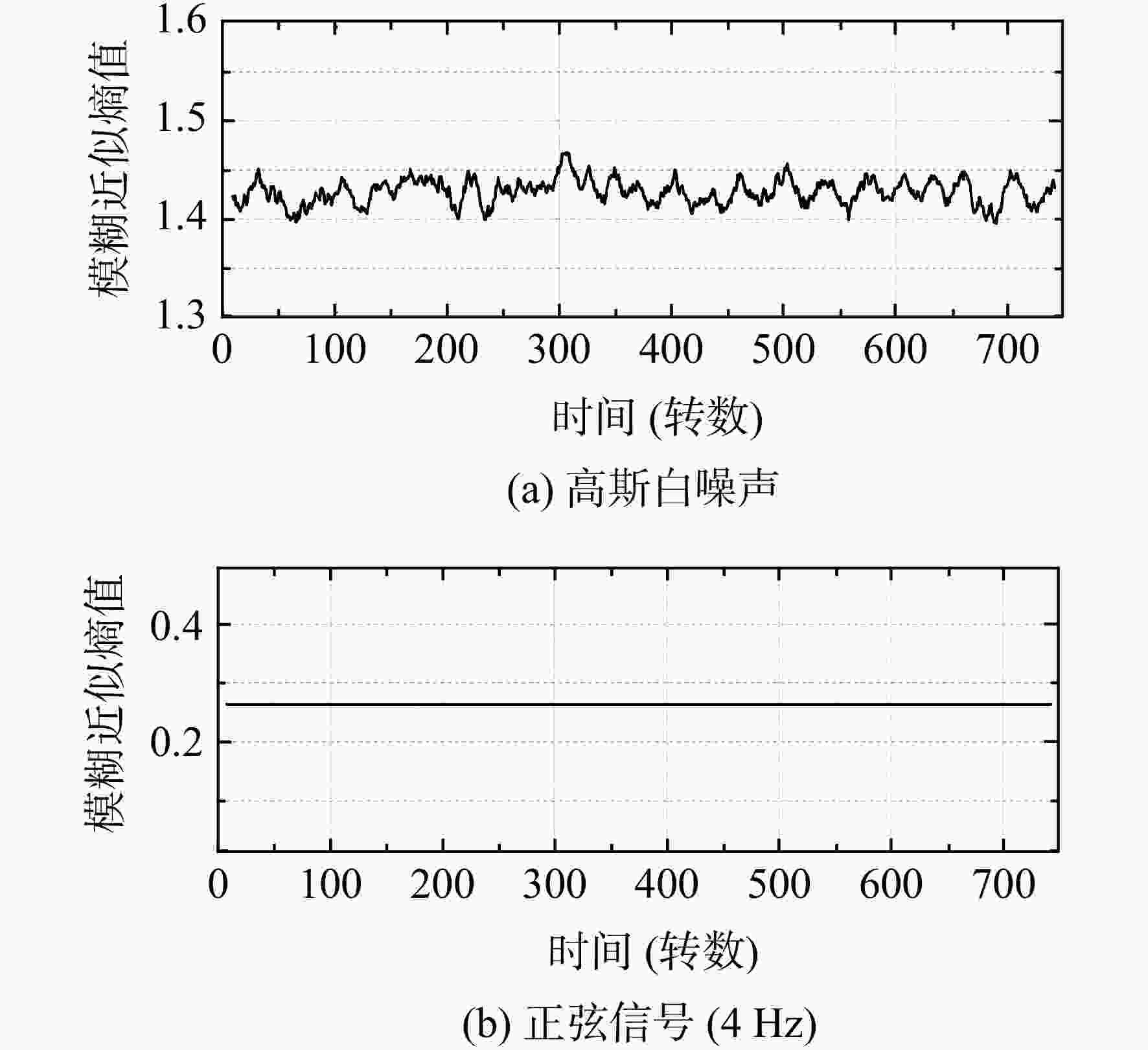

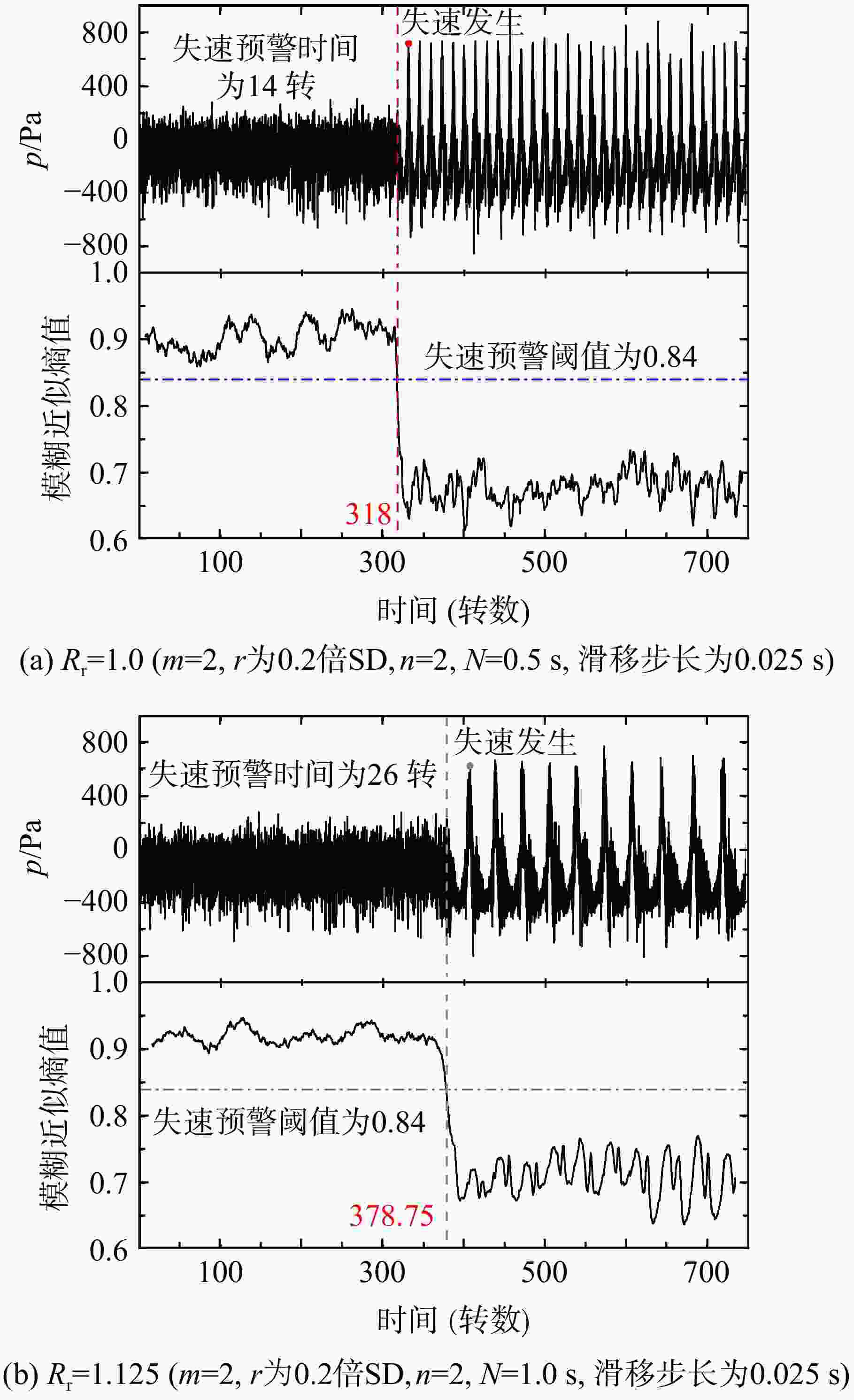

图 11 不同转速比下基于模糊近似熵值的失速预警结果
Figure 11. Fuzzy approximate entropy-based stall warning results for different speed ratios

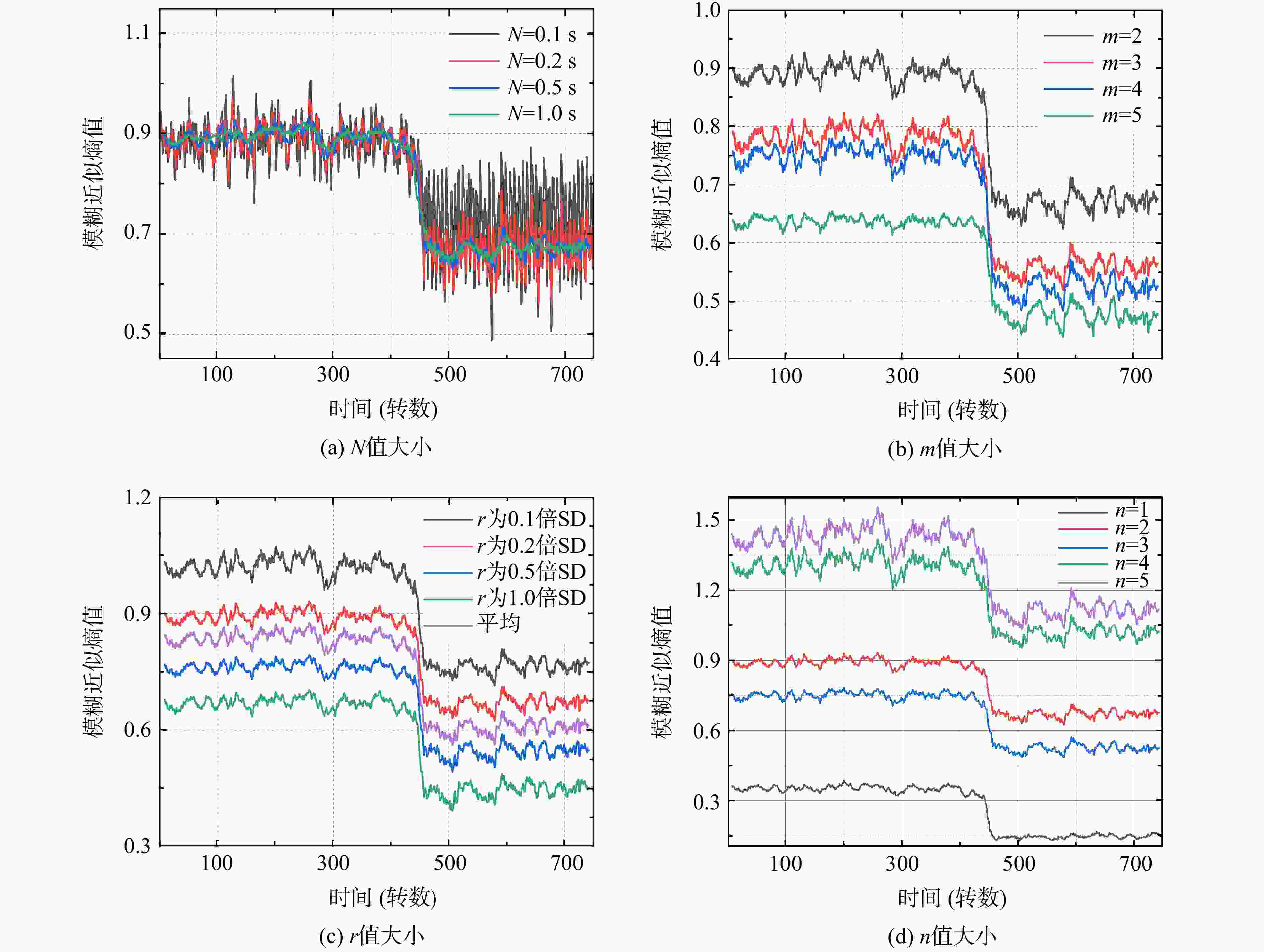

图 12 关键参数对模糊近似熵值结果的影响
Figure 12. Effect of key parameters on fuzzy approximate entropy results
表 1 低速轴流对转压气机主要几何结构参数
Table 1. Geometrical parameters of the low speed axial contra-rotating compressor
参数 数值 IGV数量 19 R1叶片数 21 R2叶片数 21 R1设计转速/（r/min） − 2400 R2设计转速/（r/min） 2400 轮毂比 0.82 机匣直径/mm 780 叶顶间隙/mm 0.5 设计点质量流量/（kg/s） 6.4 设计点静压升/kPa 7.0
下载: 导出CSV
-
[1] EPSTEIN A H, FFOWCS WILLIAMS J E, GREITZER E M. Active suppression of aerodynamic instabilities in turbomachines[J]. Journal of Propulsion and Power, 1989, 5(2): 204-211. doi: 10.2514/3.23137 [2] LI Jichao, DU Juan, GENG Shaojuan, et al. Tip air injection to extend stall margin of multi-stage axial flow compressor with inlet radial distortion[J]. Aerospace Science and Technology, 2020, 96: 105554. doi: 10.1016/j.ast.2019.105554 [3] DU Juan, LIU Yang, LI Jichao, et al. Adaptive feedback control of stability in an axial compressor with circumferential inlet distortion[J]. Chinese Journal of Aeronautics, 2023, 36(5): 187-201. doi: 10.1016/j.cja.2023.02.005 [4] MCDOUGALL N M, CUMPSTY N A, HYNES T P. Stall inception in axial compressors[J]. Journal of Turbomachinery, 1990, 112(1): 116-123. doi: 10.1115/1.2927406 [5] DAY I J. Stall inception in axial flow compressors[J]. Journal of Turbomachinery, 1993, 115(1): 1-9. doi: 10.1115/1.2929209 [6] INOUE M, KUROUMARU M, IWAMOTO T, et al. Detection of a rotating stall precursor in isolated axial flow compressor rotors[J]. Journal of Turbomachinery, 1991, 113(2): 281-287. doi: 10.1115/1.2929102 [7] DHINGRA M, NEUMEIER Y, PRASAD J V R, et al. Stall and surge precursors in axial compressors[R]. AIAA-2003-4425, 2003. [8] TAHARA N, KUROSAKI M, OHTA Y, et al. Early stall warning technique for axial-flow compressors[J]. Journal of Turbomachinery, 2007, 129(3): 448-456. doi: 10.1115/1.2447948 [9] DHINGRA M, NEUMEIER Y, PRASAD J V R, et al. A stochastic model for a compressor stability measure[J]. Journal of Engineering for Gas Turbines and Power, 2007, 129(3): 730-737. doi: 10.1115/1.2718231 [10] 李继超, 童志庭, 聂超群, 等. 基于互相关分析的前失速先兆检测分析[J]. 航空学报, 2013, 34(1): 28-36. LI Jichao, TONG Zhiting, NIE Chaoqun, et al. Detection and analysis of early stall warning based on cross-correlation[J]. Acta Aeronautica et Astronautica Sinica, 2013, 34(1): 28-36. (in ChineseLI Jichao, TONG Zhiting, NIE Chaoqun, et al. Detection and analysis of early stall warning based on cross-correlation[J]. Acta Aeronautica et Astronautica Sinica, 2013, 34(1): 28-36. (in Chinese) [11] LI Jichao, LIU Yang, DU Juan, et al. Automatic stability control using tip air injection in a multi-stage axial flow compressor[J]. Aerospace Science and Technology, 2020, 98: 105707. doi: 10.1016/j.ast.2020.105707 [12] XU Ruize, SUN Dakun, DONG Xu, et al. Application of stall warning approach with stall precursor-suppressed casing treatment on a two-stage compressor[J]. Journal of Thermal Science, 2019, 28(5): 862-874. doi: 10.1007/s11630-019-1186-5 [13] DONG Xu, LI Fanyu, XU Ruize, et al. Further investigation on acoustic stall-warning approach in compressors[J]. Journal of Turbomachinery, 2019, 141(6): 061001. doi: 10.1115/1.4041900 [14] YOUNG A, DAY I, PULLAN G. Stall warning by blade pressure signature analysis[J]. Journal of Turbomachinery, 2013, 135: 011033. doi: 10.1115/1.4006426 [15] 刘洋, 李继超, 杜娟, 等. 周向畸变下轴流压气机的失速预警方法研究及应用[J]. 推进技术, 2020, 41(9): 1967-1974. LIU Yang, LI Jichao, DU Juan, et al. Stall warning method investigation and application in an axial-flow compressor with circumferential distortion[J]. Journal of Propulsion Technology, 2020, 41(9): 1967-1974. (in Chinese doi: 10.13675/j.cnki.tjjs.200344LIU Yang, LI Jichao, DU Juan, et al. Stall warning method investigation and application in an axial-flow compressor with circumferential distortion[J]. Journal of Propulsion Technology, 2020, 41(9): 1967-1974. (in Chinese) doi: 10.13675/j.cnki.tjjs.200344 [16] LIU Yang, LI Jichao, DU Juan, et al. Reliability analysis for stall warning methods in an axial flow compressor[J]. Aerospace Science and Technology, 2021, 115: 106816. doi: 10.1016/j.ast.2021.106816 [17] PINCUS S M. Approximate entropy as a measure of system complexity[J]. PNAS, 1991, 88(6): 2297-2301. doi: 10.1073/pnas.88.6.2297 [18] LOU Fangyuan, KEY N L. Compressor stall warning using nonlinear feature extraction algorithms[J]. Journal of Engineering for Gas Turbines and Power, 2020, 142(12): 121005. doi: 10.1115/1.4048990 [19] MLKVIK M, OLŠIAK R, KNÍŽAT B. A method of stall recognition using nonlinear feature extraction from the compressor outlet pressure[J]. Heliyon, 2023, 9(10): e20909. doi: 10.1016/j.heliyon.2023.e20909 [20] CHEN Weiting, WANG Zhizhong, XIE Hongbo, et al. Characterization of surface EMG signal based on fuzzy entropy[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2007, 15(2): 266-272. doi: 10.1109/TNSRE.2007.897025 [21] LIU Yang, DU Juan, LI Jichao, et al. A stall diagnosis method based on entropy feature identification in axial compressors[J]. International Journal of Mechanical System Dynamics, 2023, 3(1): 73-84. doi: 10.1002/msd2.12064 [22] YUE Shaoyuan, WANG Yan’gang, WEI Liguo, et al. Experimental investigation on the development process of large-scale low-speed stall disturbance in contra-rotating compressor[J]. Journal of Thermal Science, 2020, 29(5): 1282-1291. doi: 10.1007/s11630-020-1341-z [23] 王昊, 薛飞, 岳少原, 等. 对转压气机变转速比失速类型试验[J]. 航空学报, 2022, 43(7): 125596. WANG Hao, XUE Fei, YUE Shaoyuan, et al. Test on stall types of contra-rotating compressor with variable speed ratios[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(7): 125596. (in ChineseWANG Hao, XUE Fei, YUE Shaoyuan, et al. Test on stall types of contra-rotating compressor with variable speed ratios[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(7): 125596. (in Chinese) [24] 王昊, 薛飞, 岳少原, 等. 对转压气机变转速比失速特性试验研究[J]. 西北工业大学学报, 2021, 39(6): 1340-1348. WANG Hao, XUE Fei, YUE Shaoyuan, et al. Experimental investigation on stall characteristics of contra-rotating compressor with variable speed ratios[J]. Journal of Northwestern Polytechnical University, 2021, 39(6): 1340-1348. (in Chinese doi: 10.3969/j.issn.1000-2758.2021.06.021WANG Hao, XUE Fei, YUE Shaoyuan, et al. Experimental investigation on stall characteristics of contra-rotating compressor with variable speed ratios[J]. Journal of Northwestern Polytechnical University, 2021, 39(6): 1340-1348. (in Chinese) doi: 10.3969/j.issn.1000-2758.2021.06.021 [25] PAYYAPPALLI M M, PRADEEP A M. Pre-stall waves: precursors to stall inception in a contra-rotating axial fan[R]. ASME GT2020-14371, 2020. [26] HIPPLE S M, BONILLA-ALVARADO H, PEZZINI P, et al. Using machine learning tools to predict compressor stall[J]. Journal of Energy Resources Technology, 2020, 142(7): 070915. doi: 10.1115/1.4046458 -
