Study on cooling characteristics of tail nozzle air film under influence of thermal radiation
-
摘要:
随着燃气温度提高、燃气中辐射参与介质增多，热辐射已成为尾喷管设计中较为突出的因素。为了探究热辐射以及结构参数对尾喷管气膜冷却特性的影响规律，建立了一种轴对称尾喷管简化模型，通过数值模拟方法探究辐射对尾喷管冷却影响规律。研究发现：热辐射作用会导致壁面冷却效果降低，且热辐射效果与冷却结构有关；辐射热流量受气膜孔径、主流组分影响较大，受气膜孔倾角影响较小，当气膜孔径由2 mm分别增加至3、4 mm时，辐射热流量分别提高13%、6%，当气膜孔倾角由15°分别增加至30°、45°时，辐射热流量基本不变；当主流组分由纯空气分别变为含体积分数为10%、20%二氧化碳时，辐射热流量分别提高17%、21%，在实际应用中应尽量降低主流组分中二氧化碳等辐射气体的含量。
Abstract:With the increase of gas temperature and radiation participation medium in gas, thermal radiation has become a prominent factor in the design of tail nozzle. In order to explore the influence of thermal radiation and structural parameters on the cooling characteristics of the tail nozzle air film, an axisymmetric tail nozzle simplification model was established, and the influence of radiation on the cooling of the tail nozzle was explored by numerical simulation. It was found that the cooling effect of the wall was reduced by thermal radiation, and the thermal radiation effect was related to the cooling structure. When the aperture of the air film increased from 2 mm to 3 mm and 4 mm, the radiant heat flux increased by 13% and 6%, respectively, and when the inclination angle of the air film aperture increased from 15° to 30° and 45°, respectively, the radiant heat flux was basically unchanged. When the main components changed from pure air to 10% carbon dioxide and 20% carbon dioxide, the radiant heat flux increased by 17% and 21%, respectively. In practical applications, the content of carbon dioxide and other radiant gasses in the mainstream components should be reduced as much as possible.
-
Key words:
- high-temperature gas /
- tail nozzle /
- thermal radiation /
- air film cooling /
- cooling efficiency
-

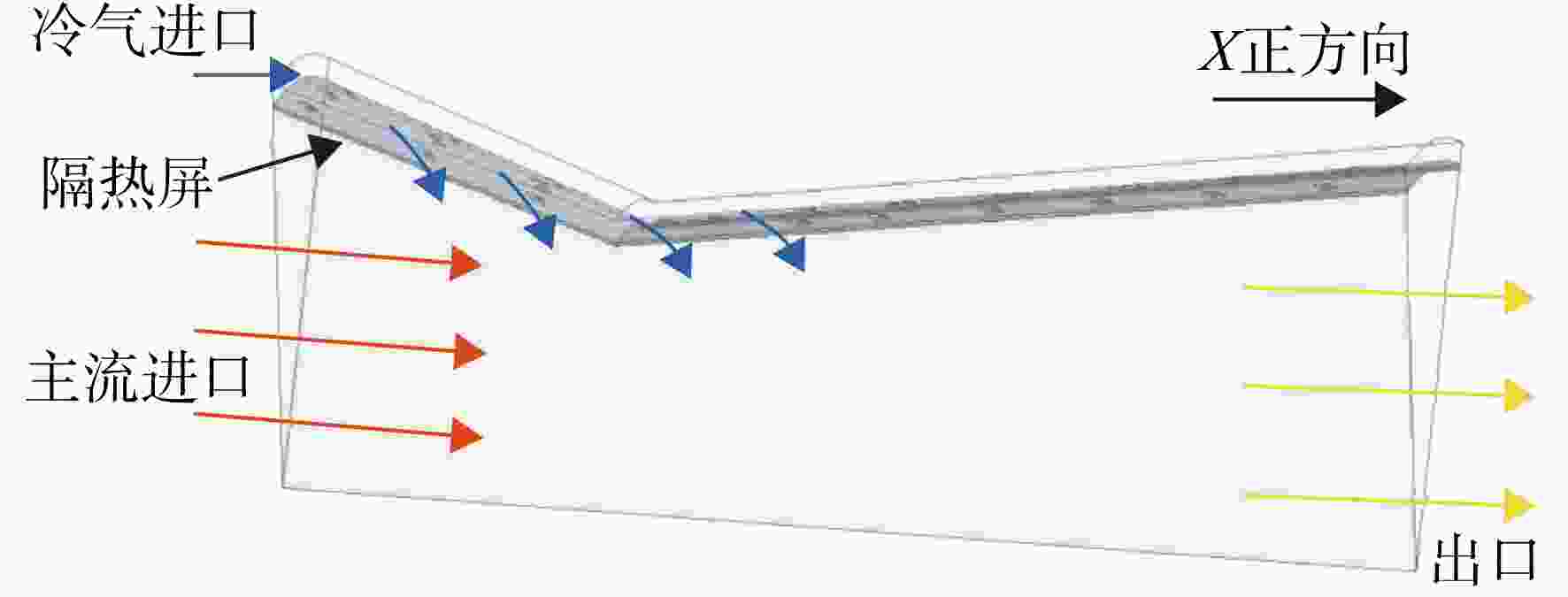

图 1 仿真模型与总体气流流动示意图
Figure 1. Simulation model and schematic diagram of overall airflow flow

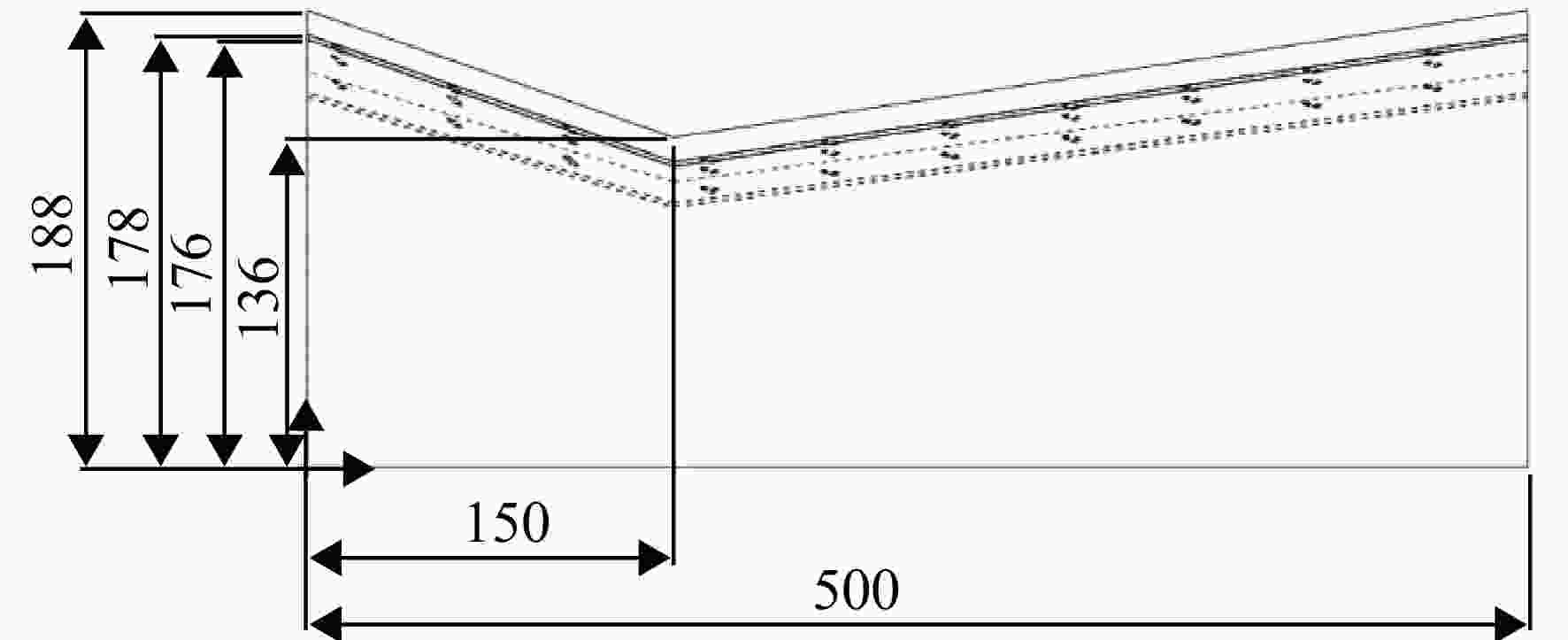

图 2 仿真模型总体尺寸示意图（单位：mm）
Figure 2. Schematic diagram of the overall dimensions of the simulation model （unit：mm）

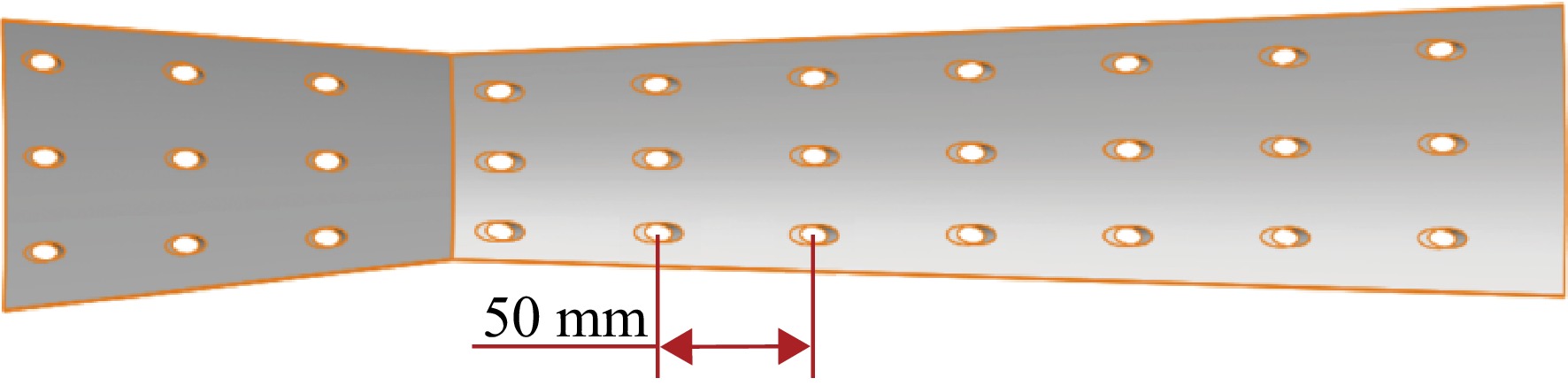

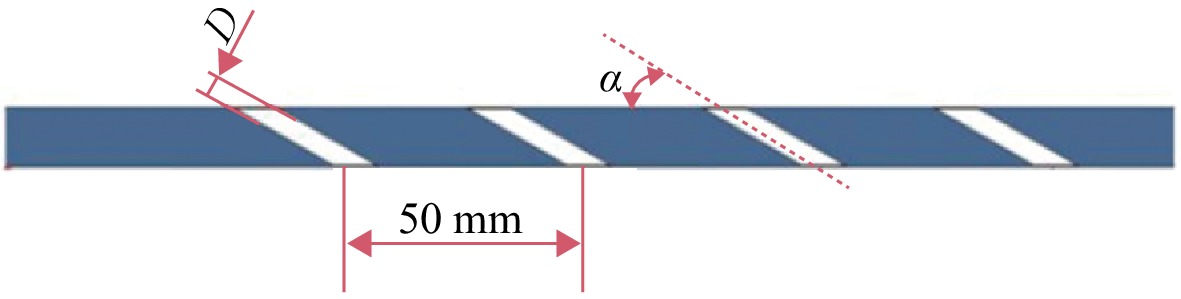

图 4 冷却单元结构参数示意图
Figure 4. Schematic diagram of the structural parameters of the cooling unit

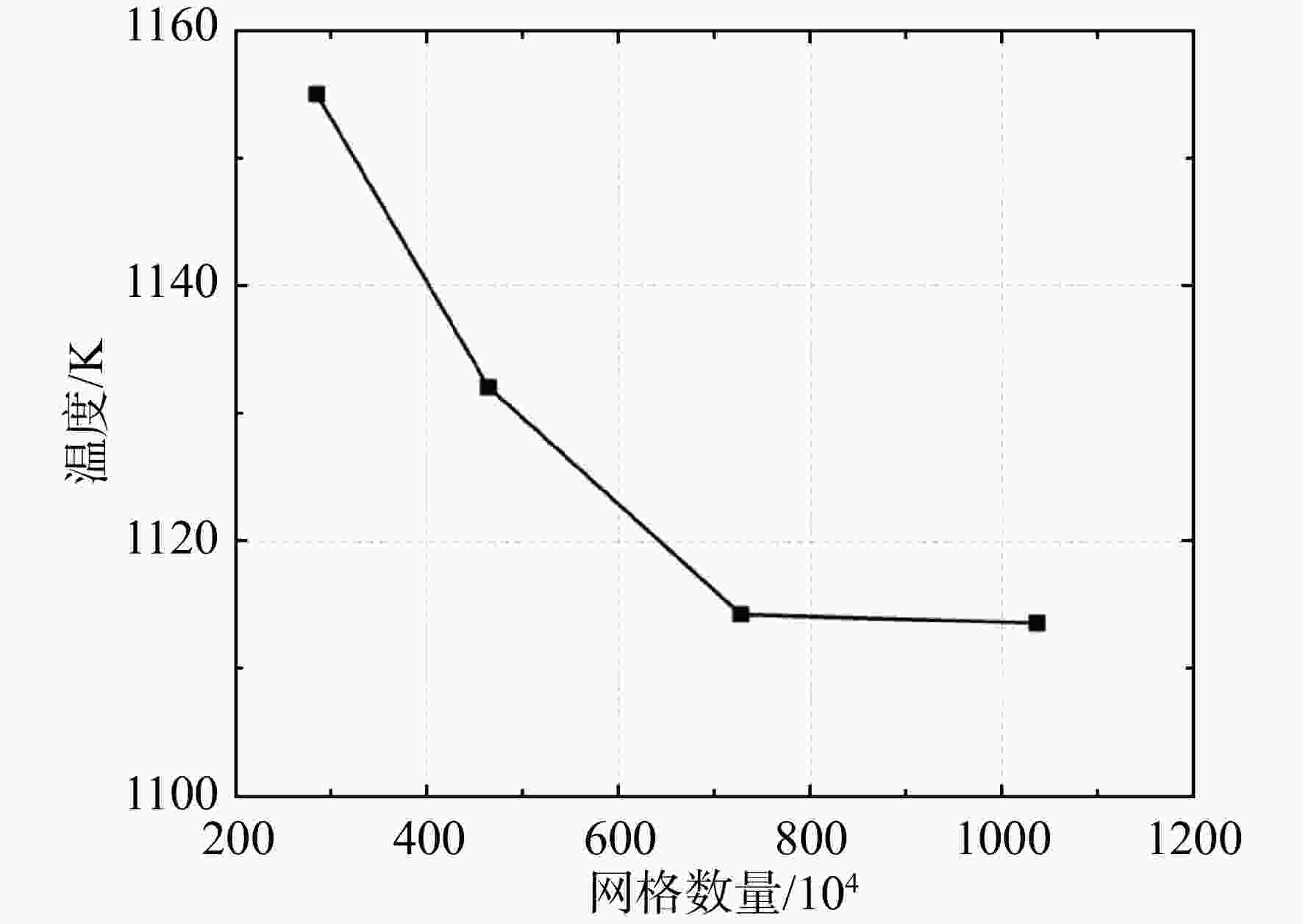

图 5 网格数与温度变化关系
Figure 5. Relationship between the number of grids and the change in temperature

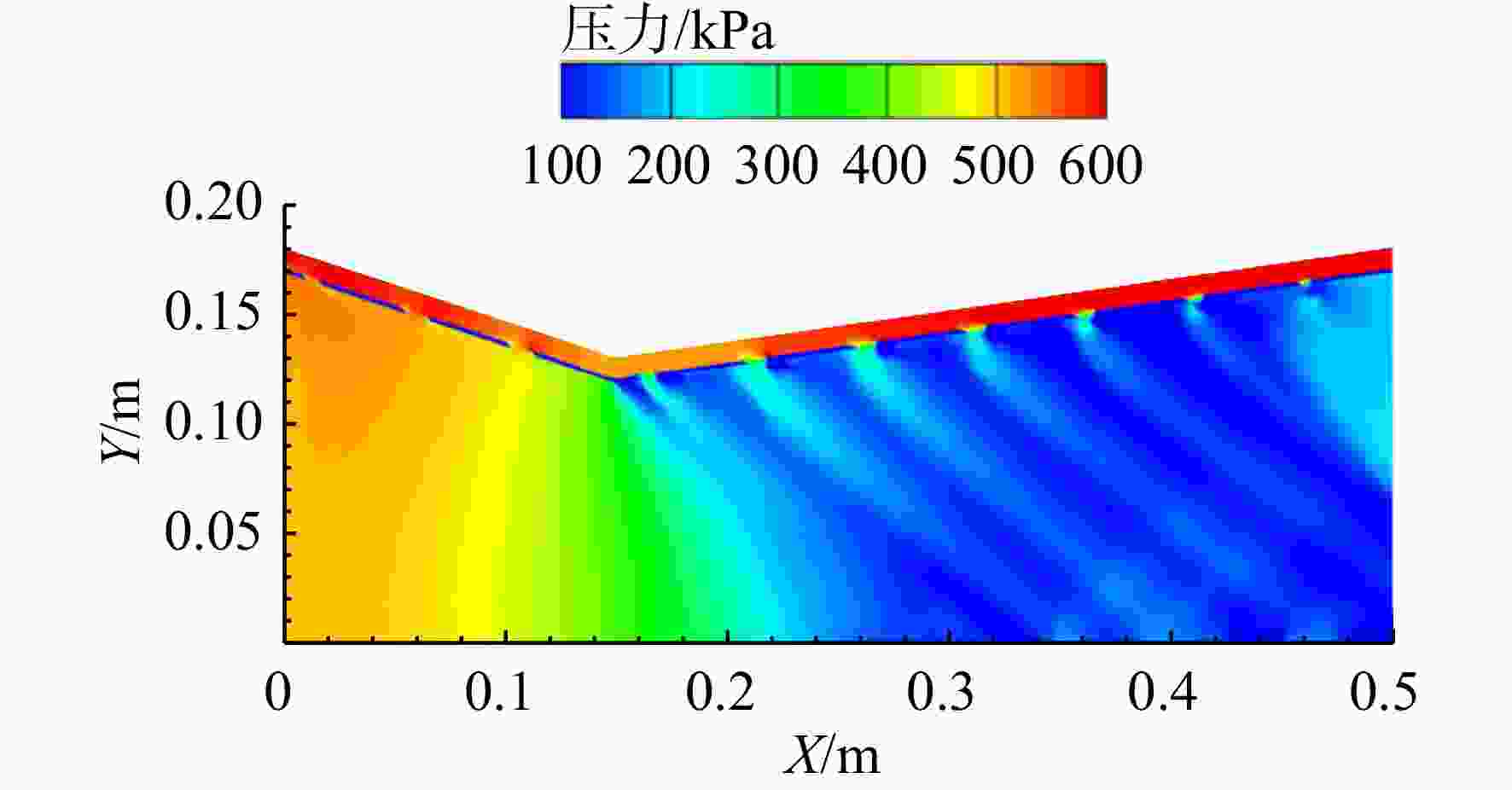

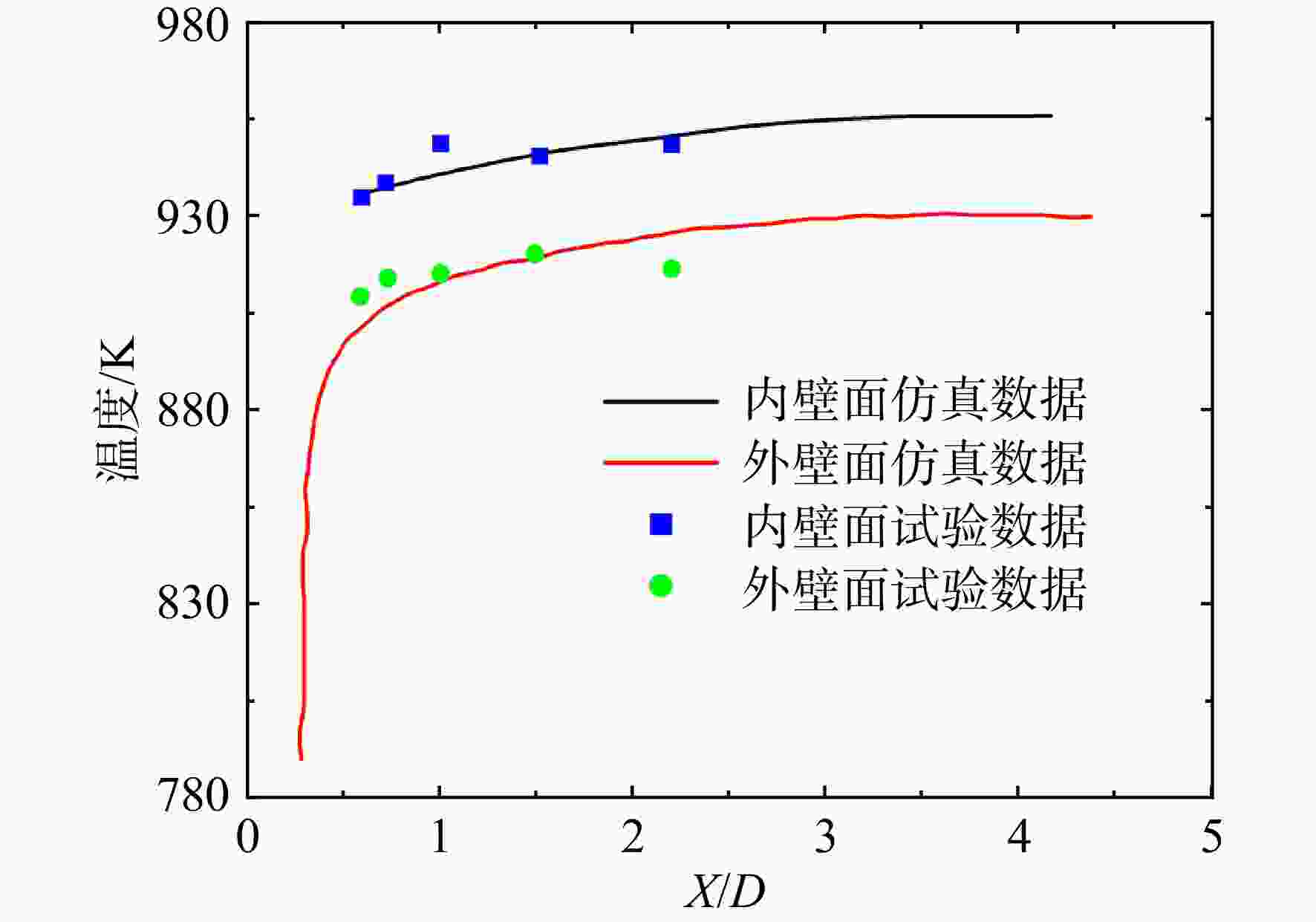

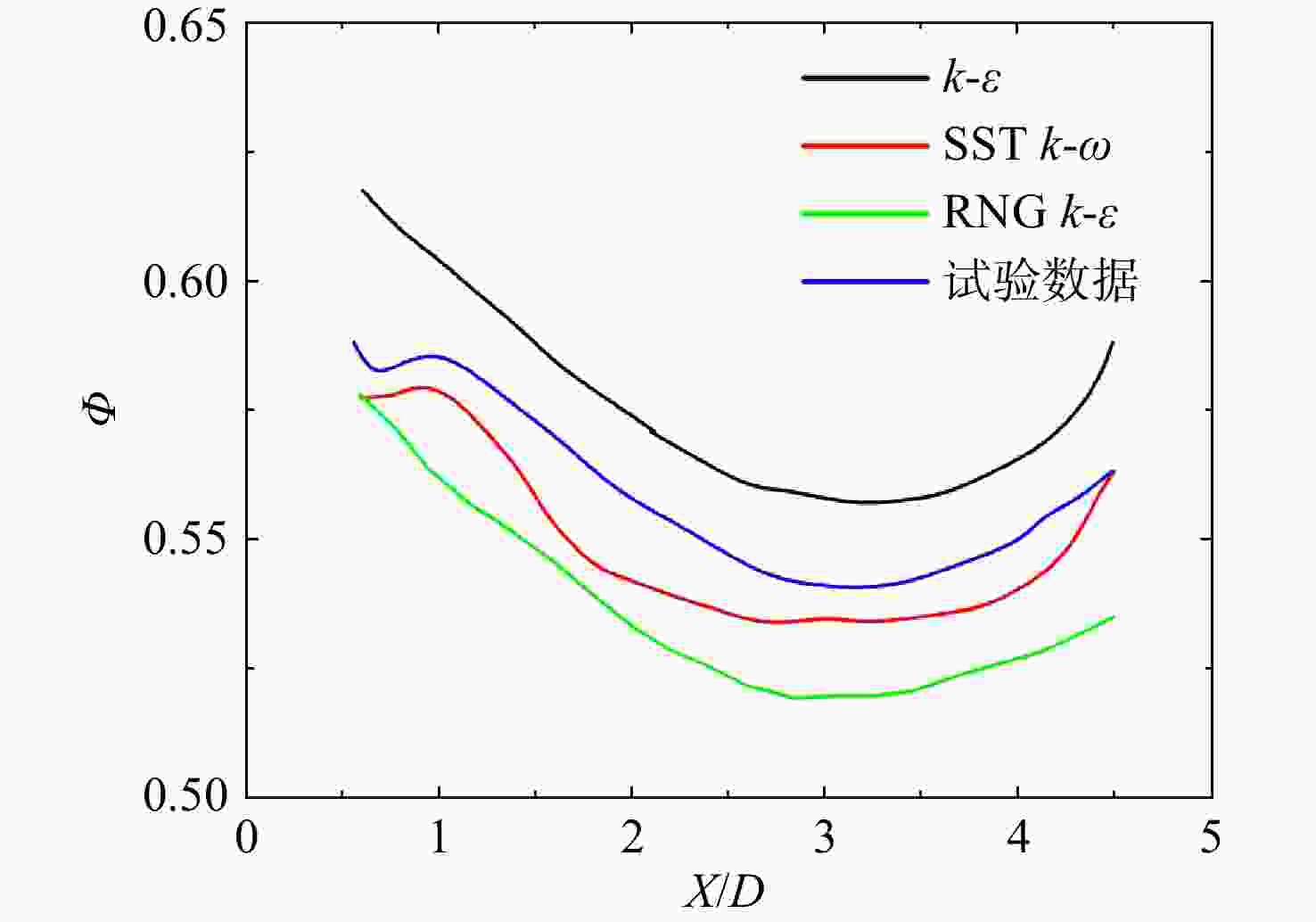

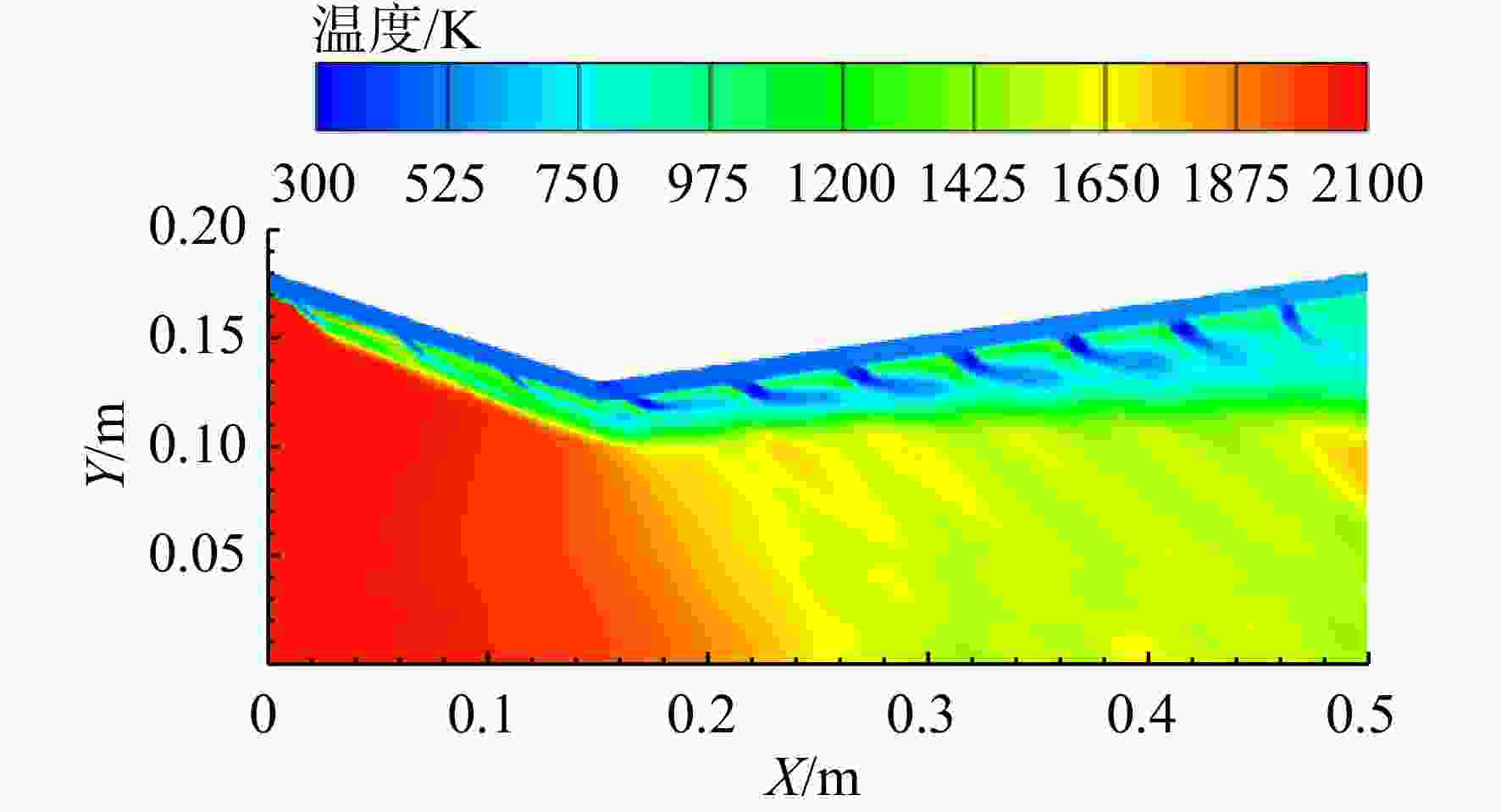

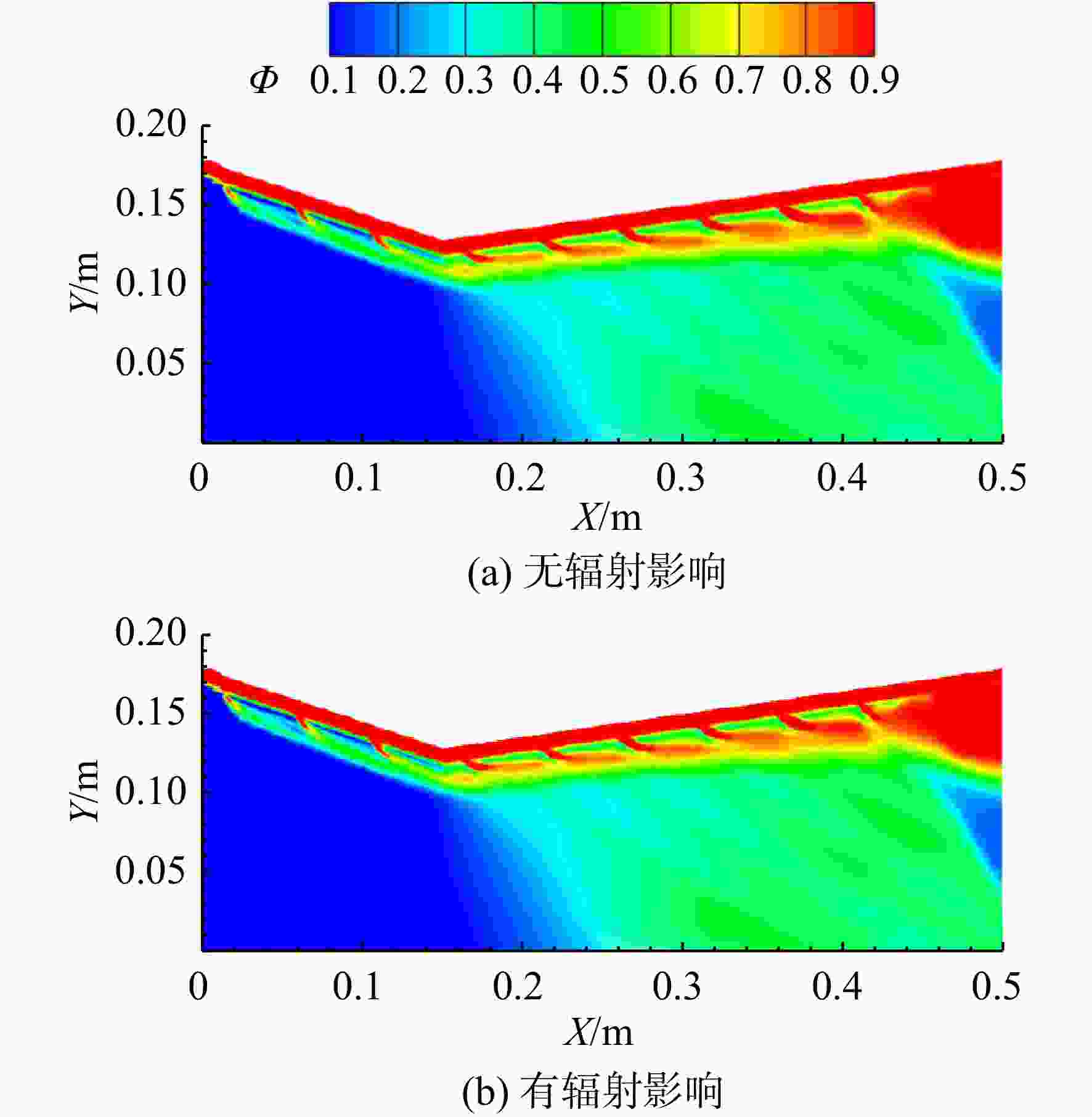

图 10 过孔截面冷却效率云图（D=2 mm，α=30°）
Figure 10. Contour of the cooling efficiency of the via section （D=2 mm，α=30°）

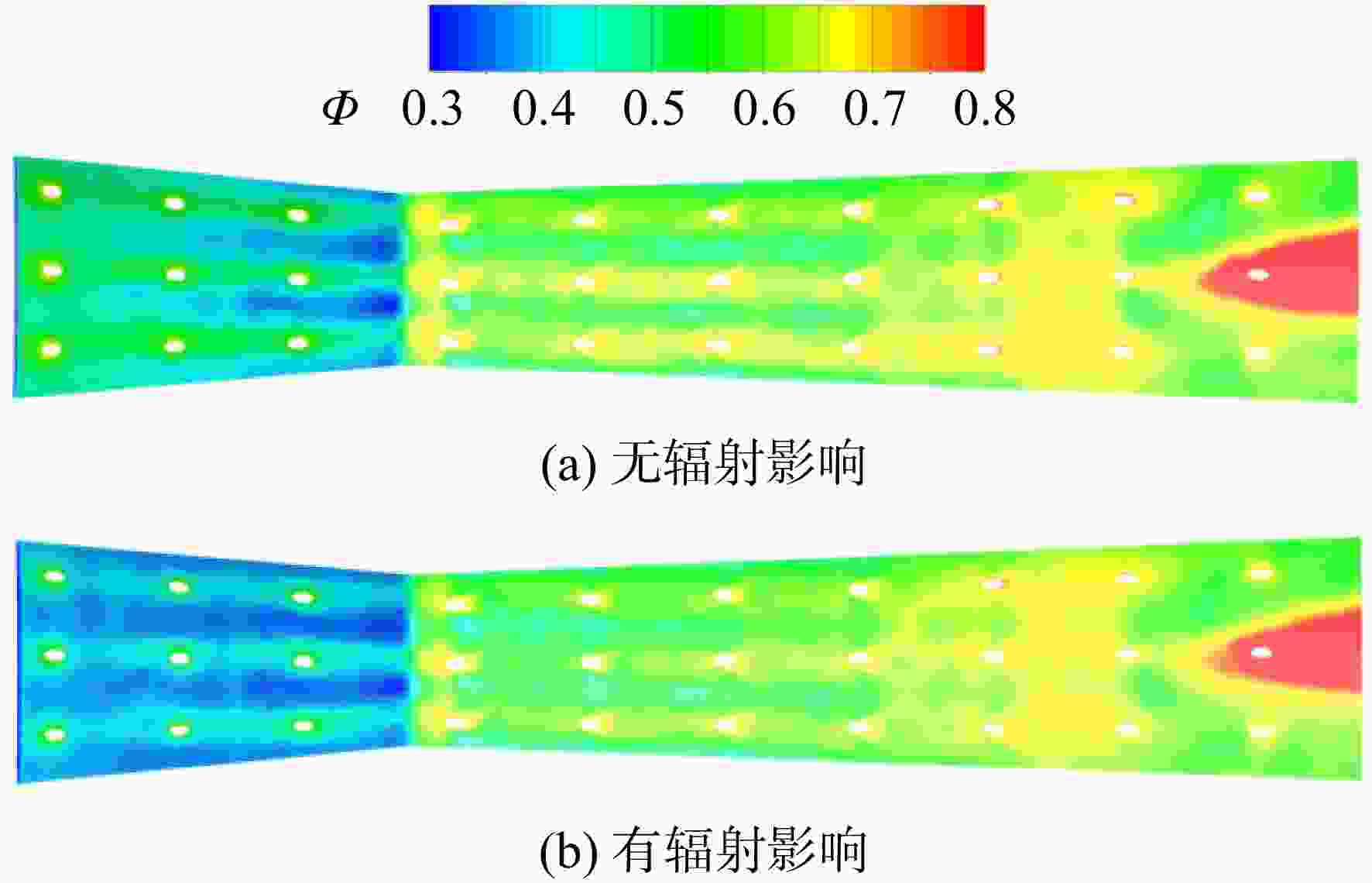

图 11 壁面冷却效率云图（D=2 mm，α=30°）
Figure 11. Contour of wall cooling efficiency （D=2 mm，α=30°）

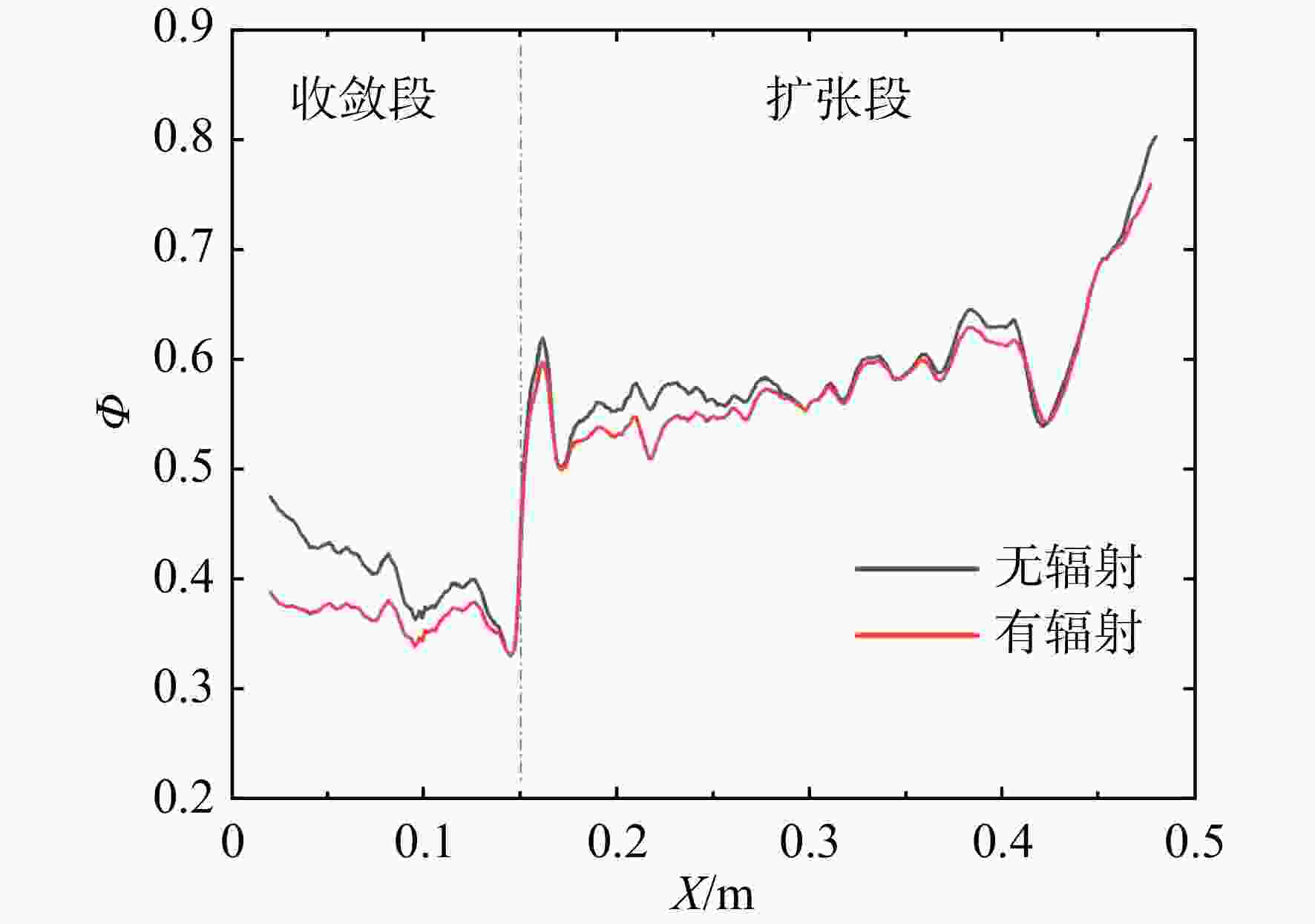

图 12 壁面冷却效率曲线图（D=2 mm，α=30°）
Figure 12. Diagram of wall cooling efficiency （D=2 mm，α=30°）

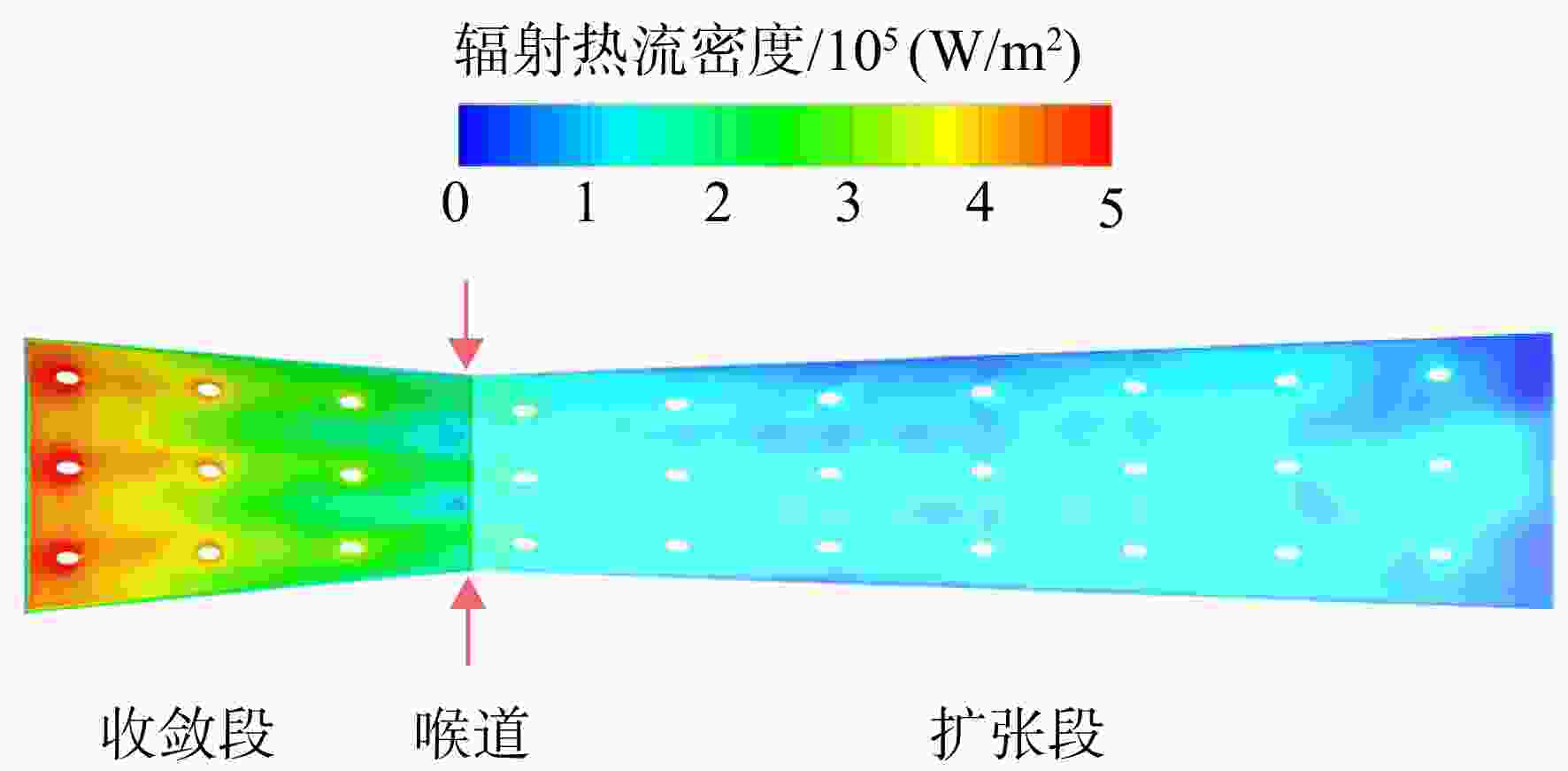

图 13 壁面辐射热流云图（D=2 mm，α=30°）
Figure 13. Contour of radiant heat flux on the wall（D=2 mm，α=30°）

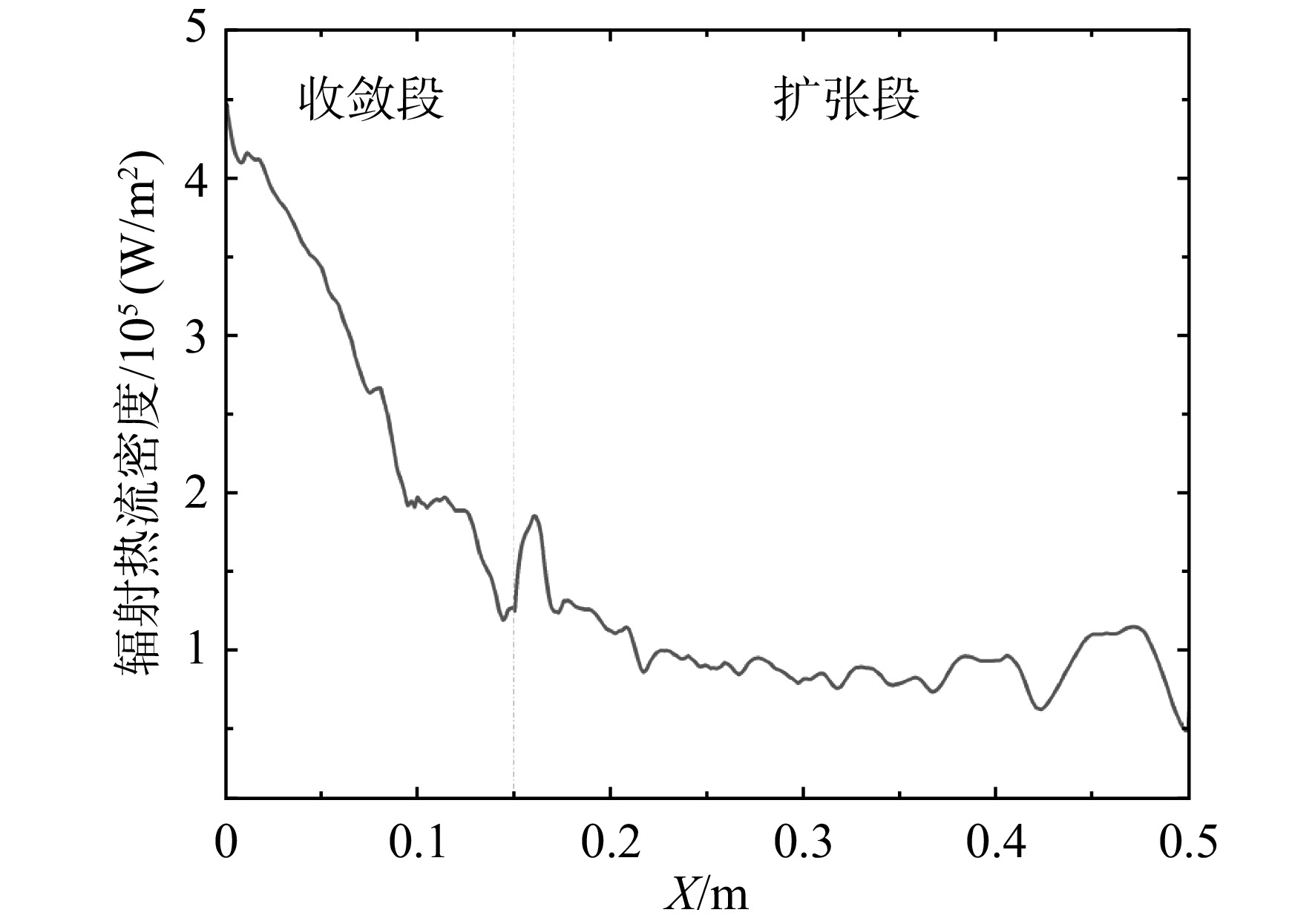

图 14 壁面辐射热流曲线图（D=2 mm，α=30°）
Figure 14. Diagram of radiant heat flux on the wall （D=2 mm，α=30°）

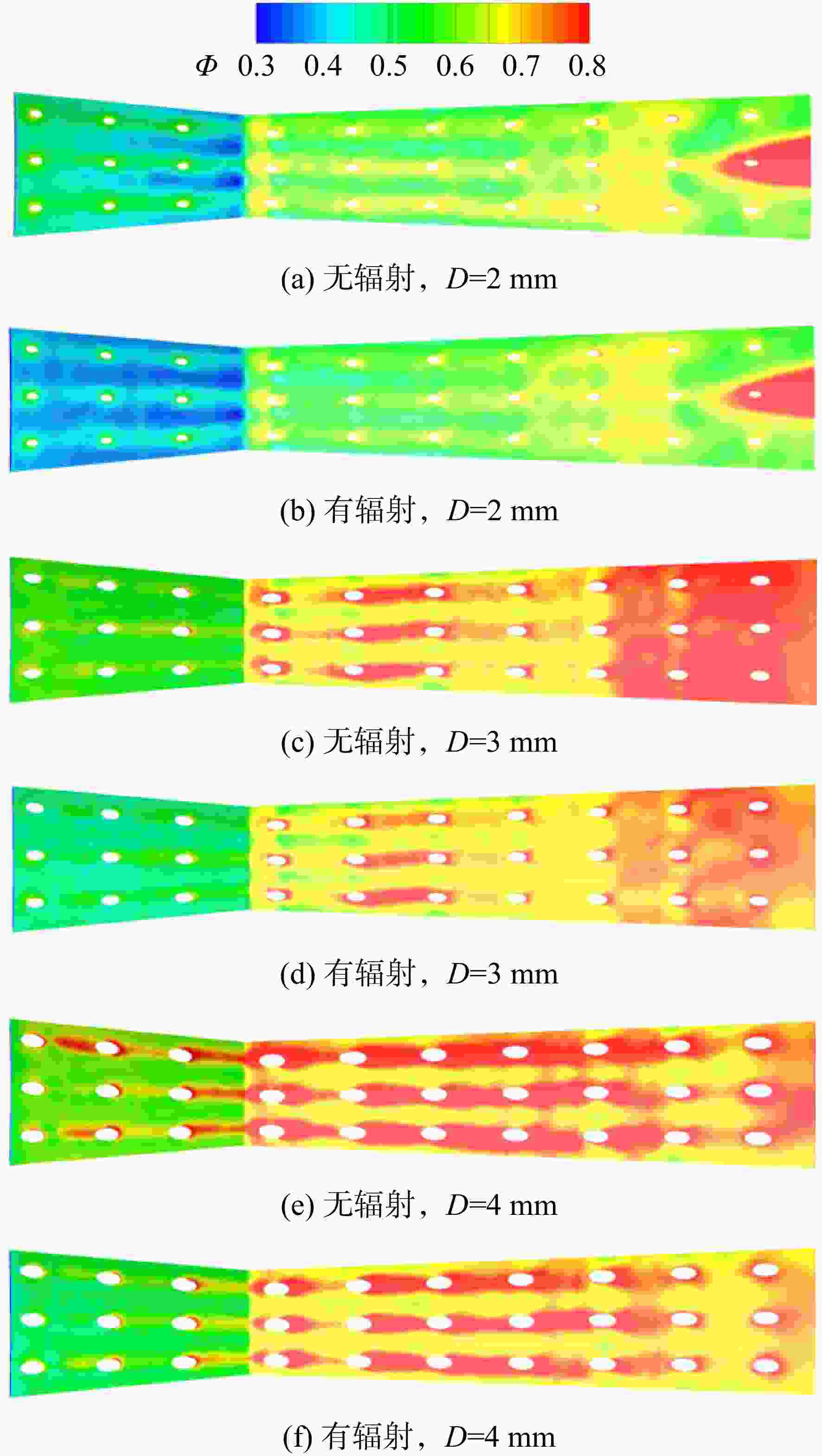

图 15 不同气膜孔径壁面冷却效率云图
Figure 15. Contour of wall cooling efficiency with different air film pore sizes

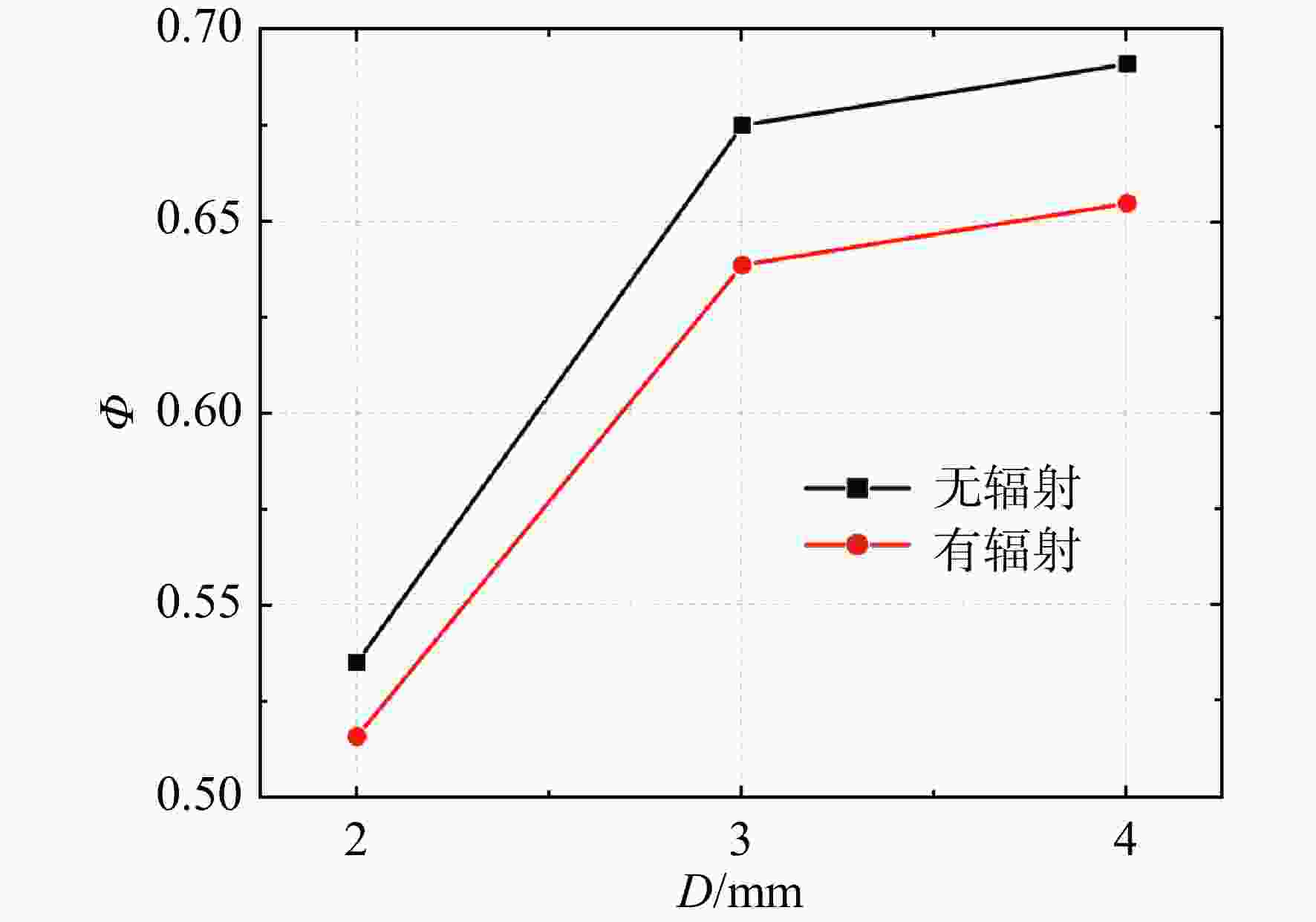

图 16 不同气膜孔径壁面冷却效率曲线图
Figure 16. Diagram of wall cooling efficiency with different air film pore sizes

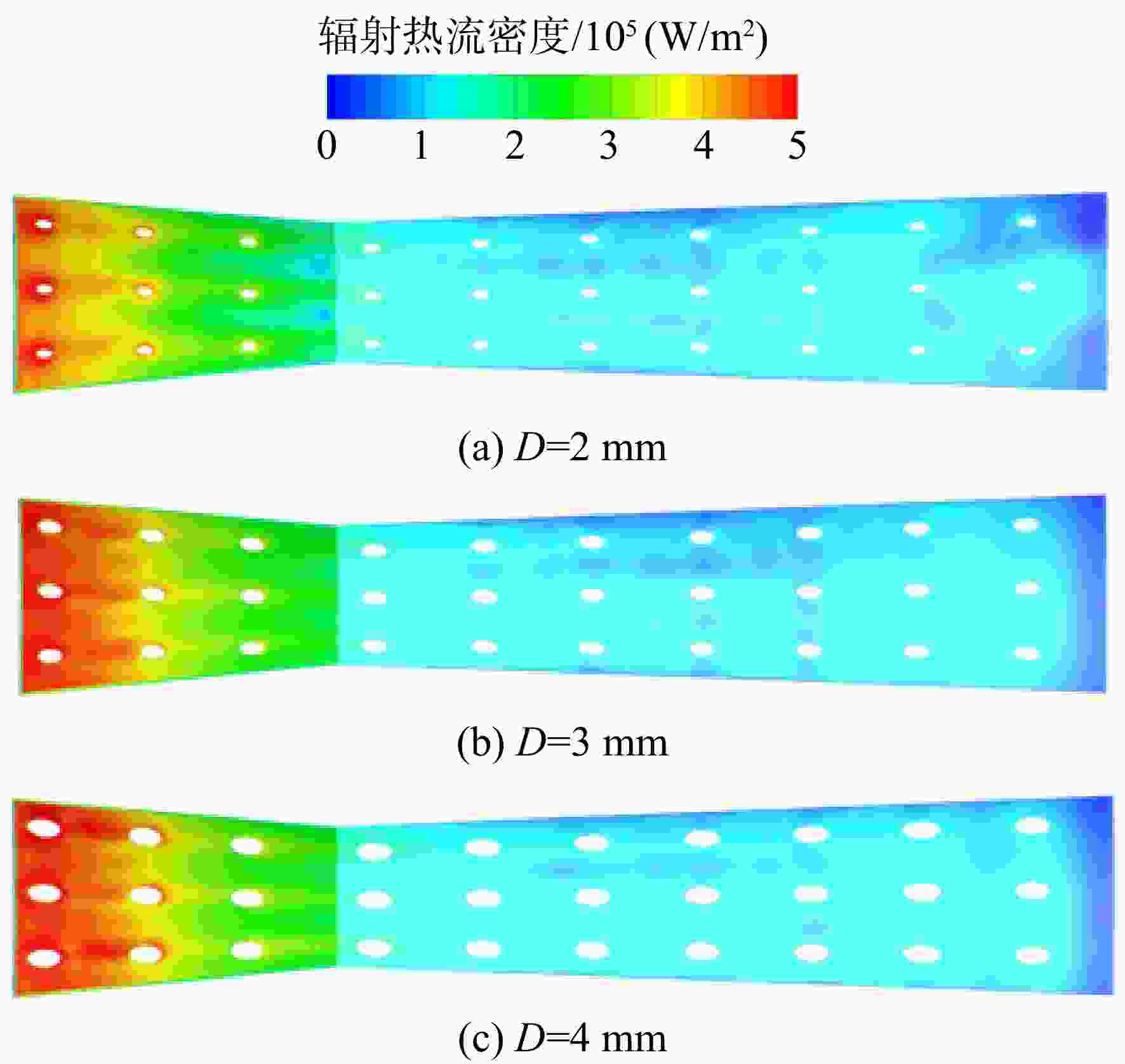

图 17 不同气膜孔径壁面辐射热流云图
Figure 17. Contour of radiant heat flux on the wall with different air film pore sizes

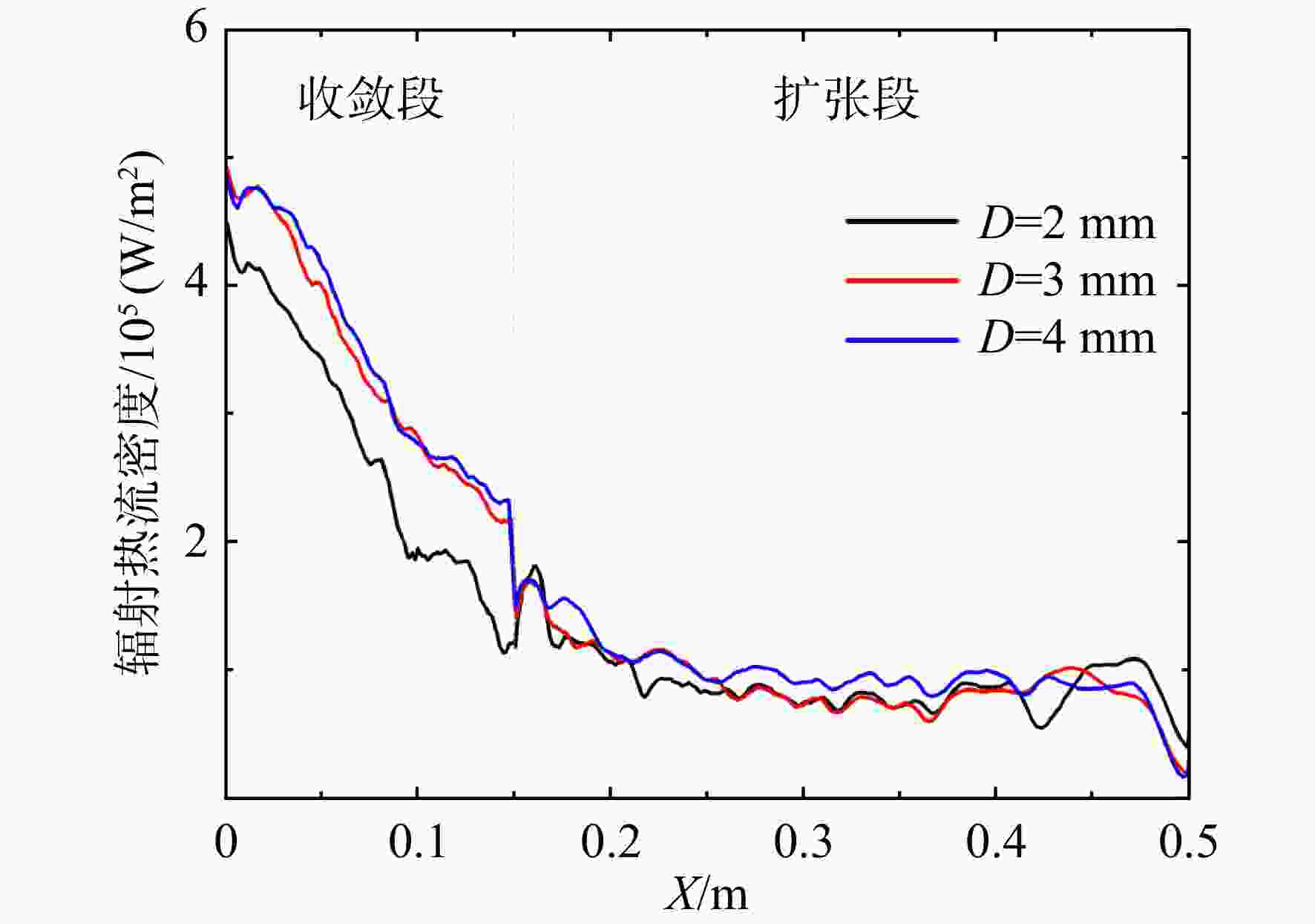

图 18 不同气膜孔径壁面辐射热流曲线图
Figure 18. Diagram of radiant heat flux on the wall with different air film pore sizes

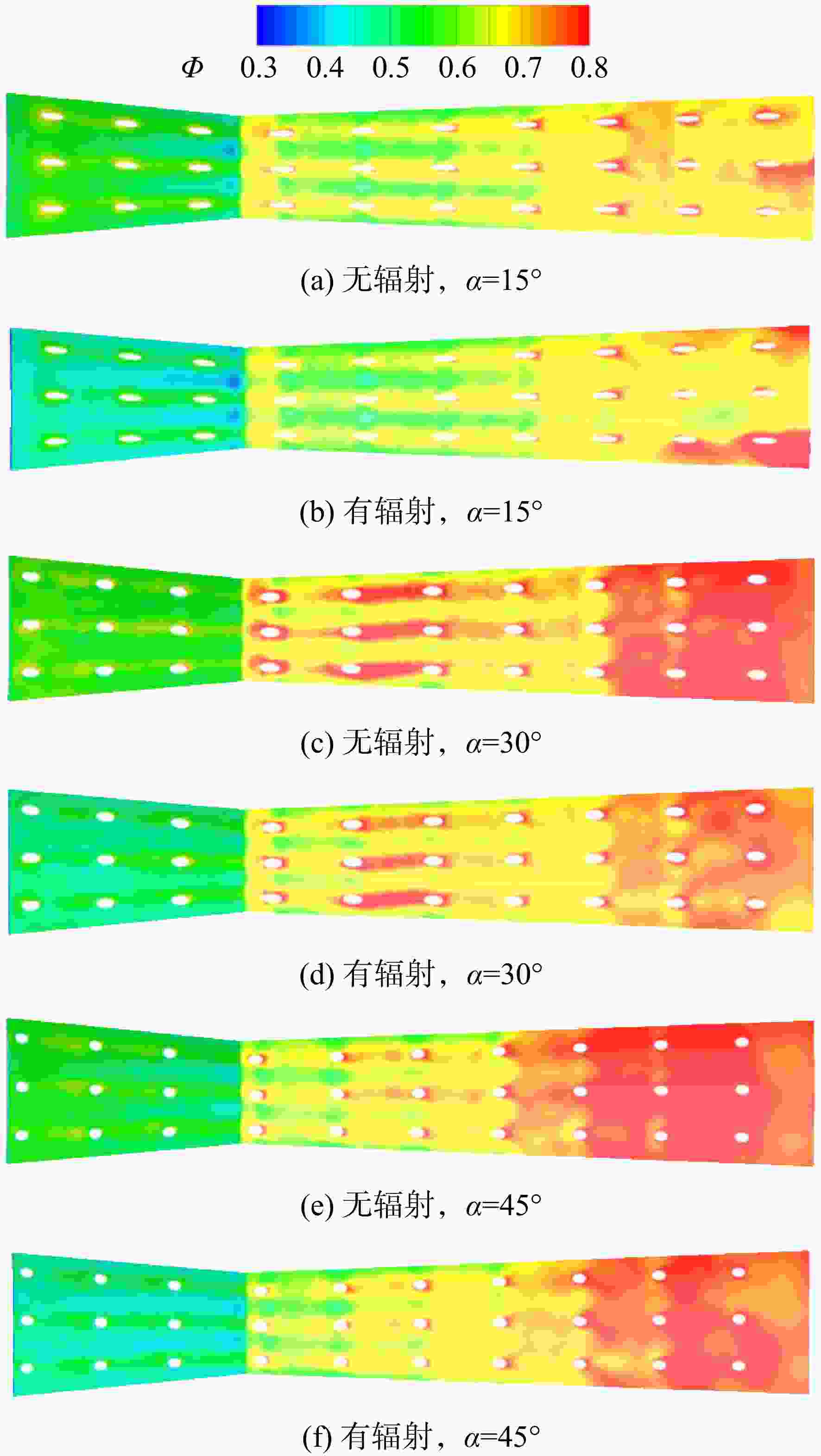

图 19 不同气膜孔倾角壁面冷却效率云图
Figure 19. Contour of wall cooling efficiency with different air film pore inclination angles

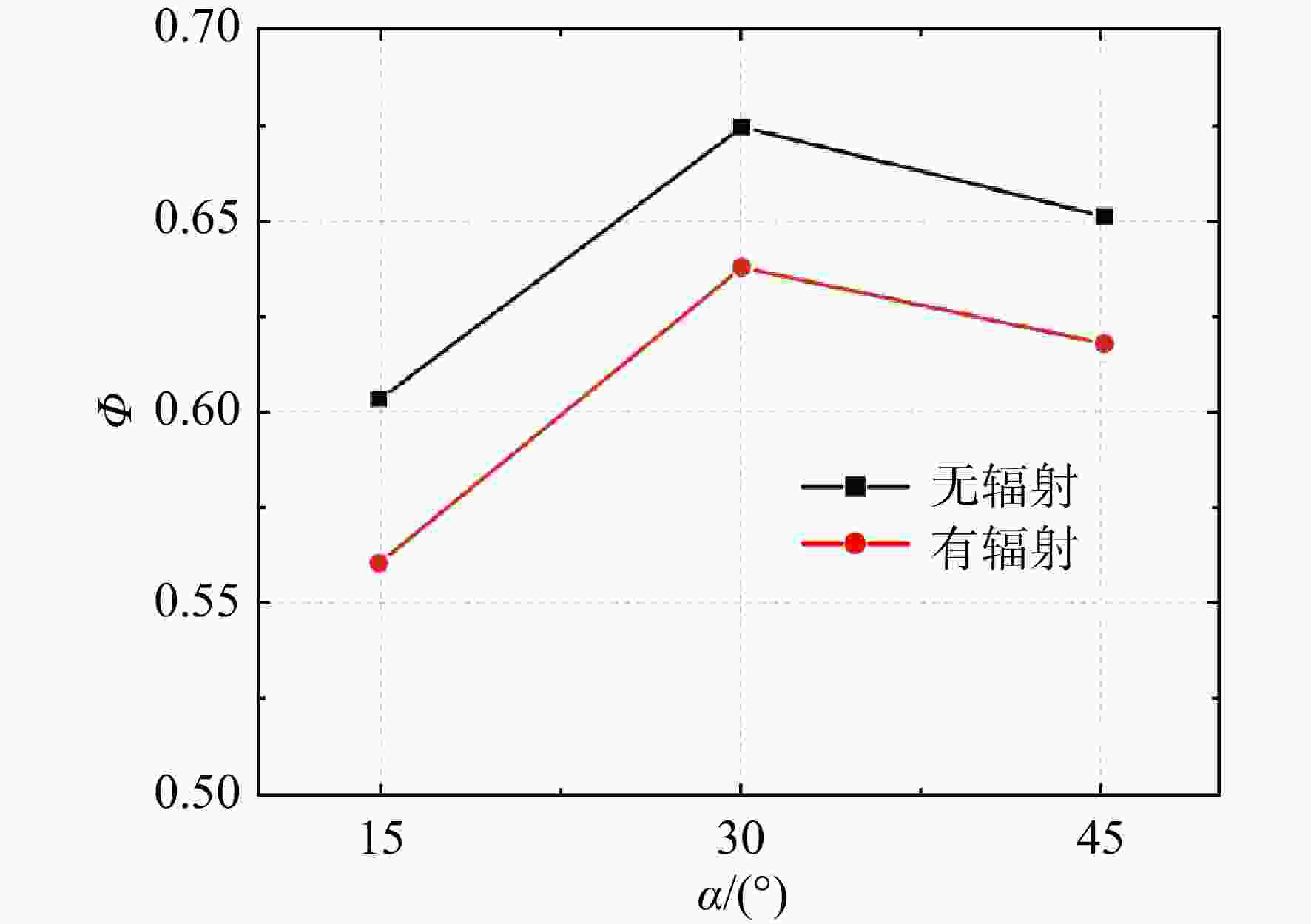

图 20 不同气膜孔倾角壁面冷却效率曲线图
Figure 20. Diagram of wall cooling efficiency with different air film pore inclination angles

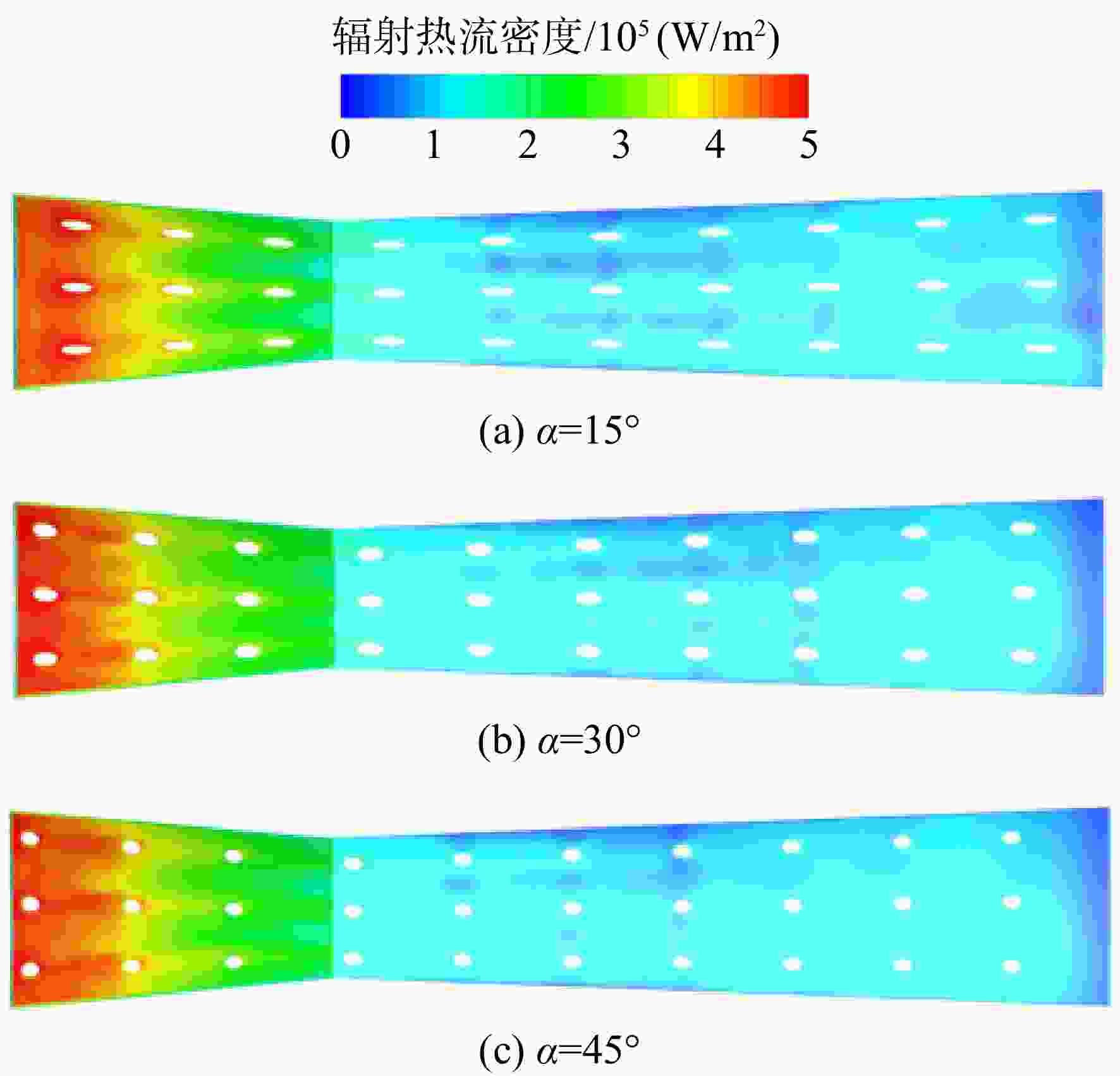

图 21 不同气膜孔倾角壁面辐射热流云图
Figure 21. Contour of radiant heat flux on the wall with different air film pore inclination angles

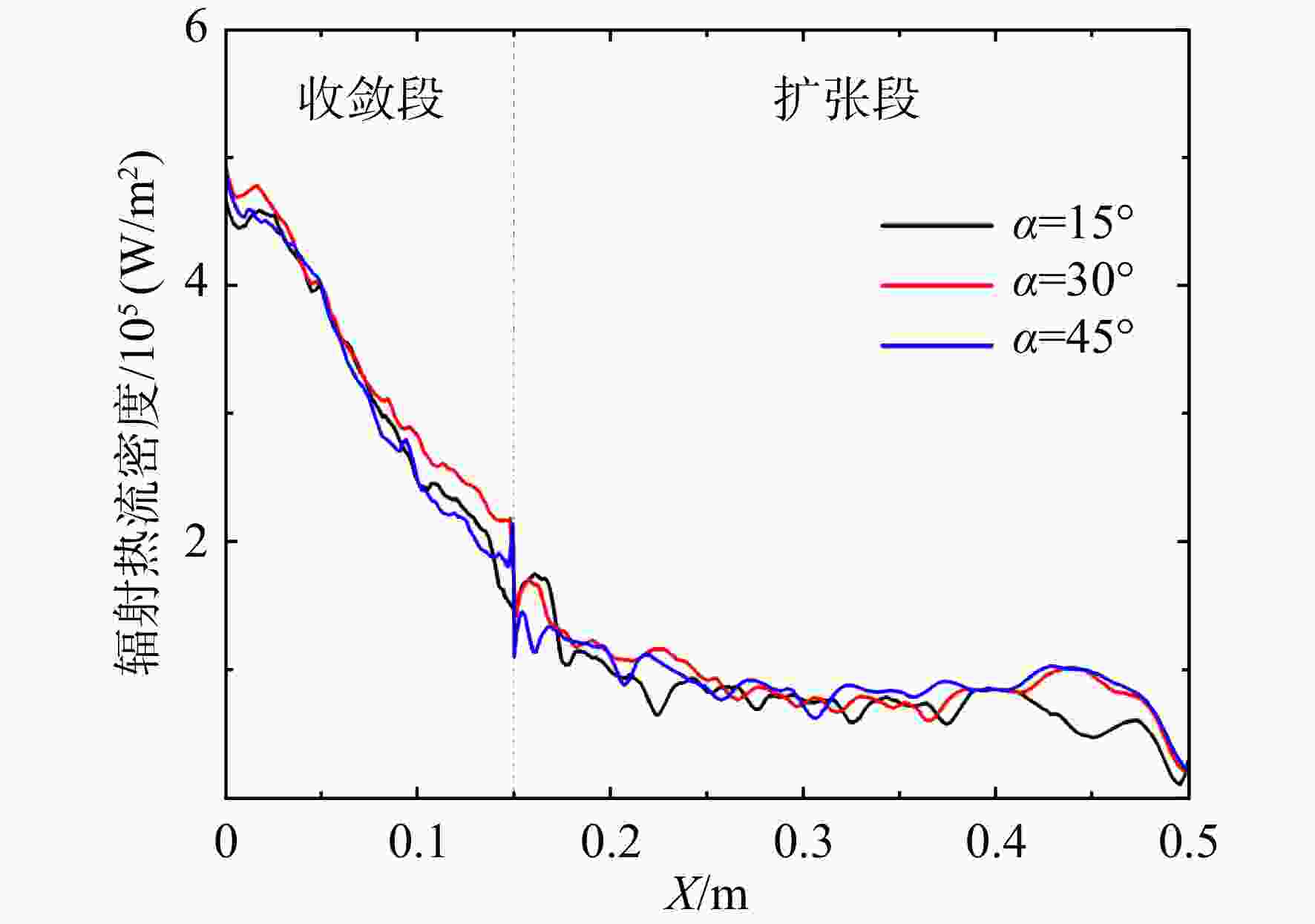

图 22 不同气膜孔倾角壁面辐射热流曲线图
Figure 22. Diagram of radiant heat flux on the wall with different air film pore inclination angles

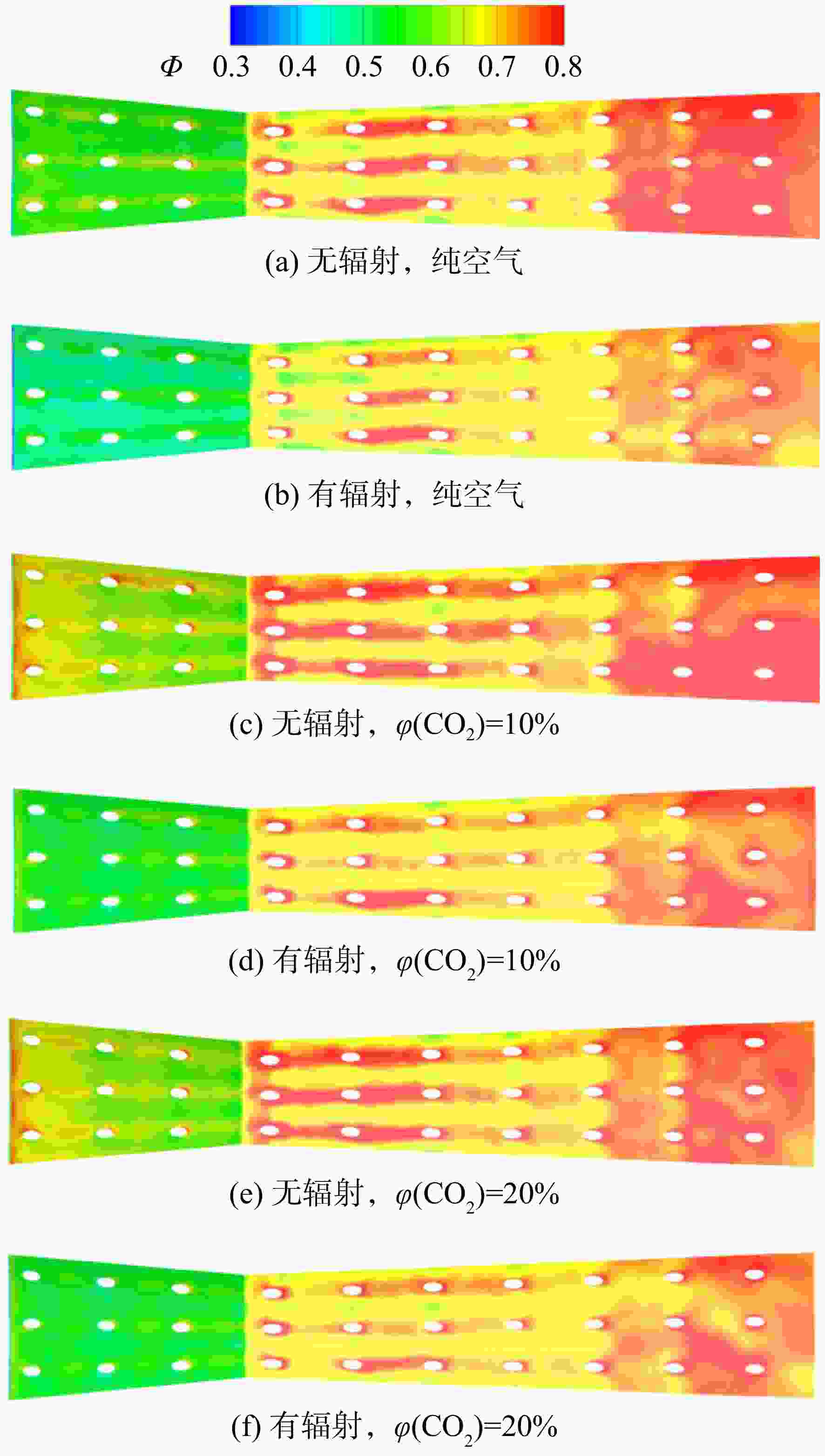

图 23 不同主流组分壁面冷却效率云图
Figure 23. Contour of wall cooling efficiency with different mainstream components

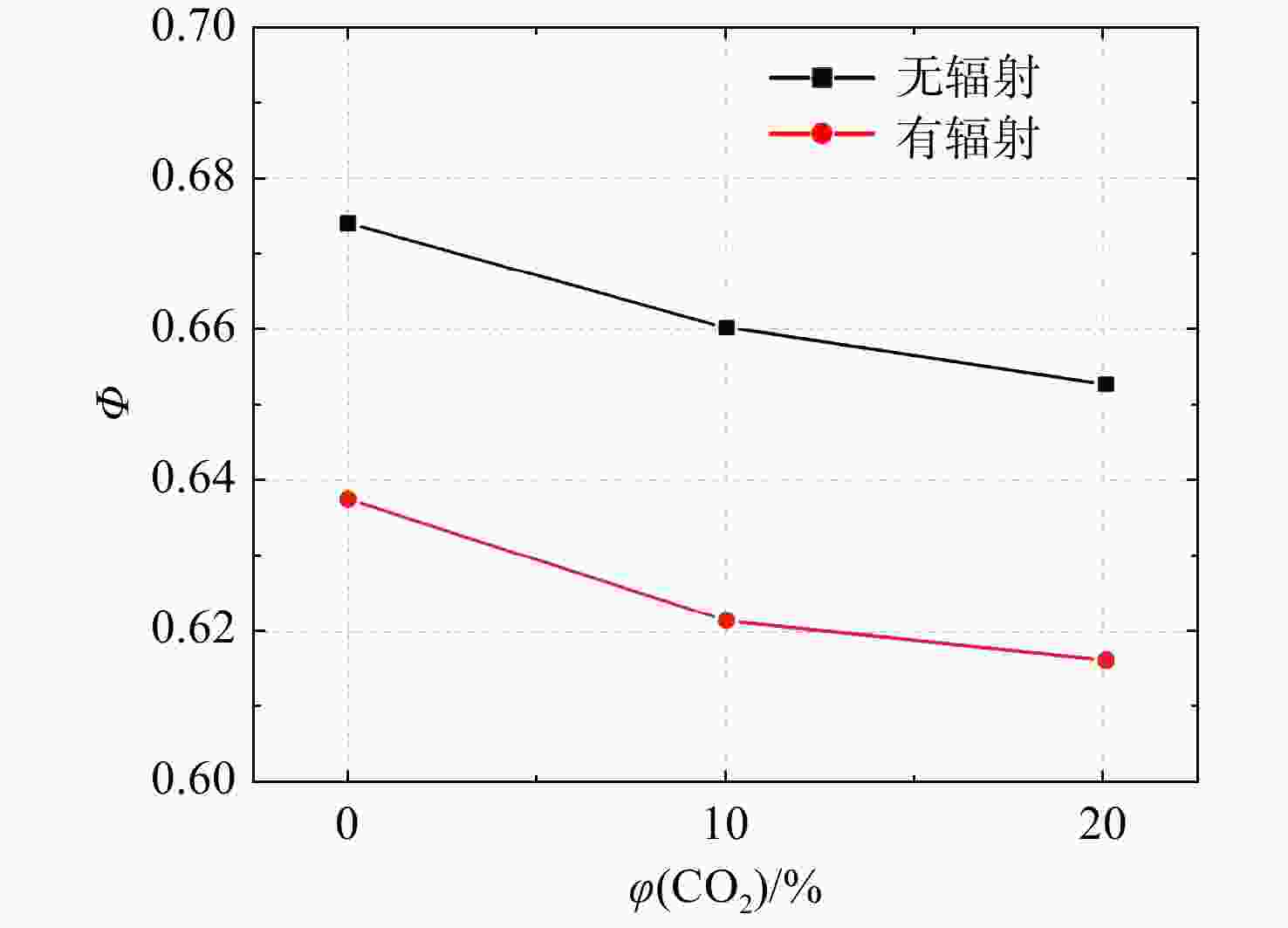

图 24 不同主流组分壁面冷却效率云图
Figure 24. Diagram of wall cooling efficiency with different mainstream components

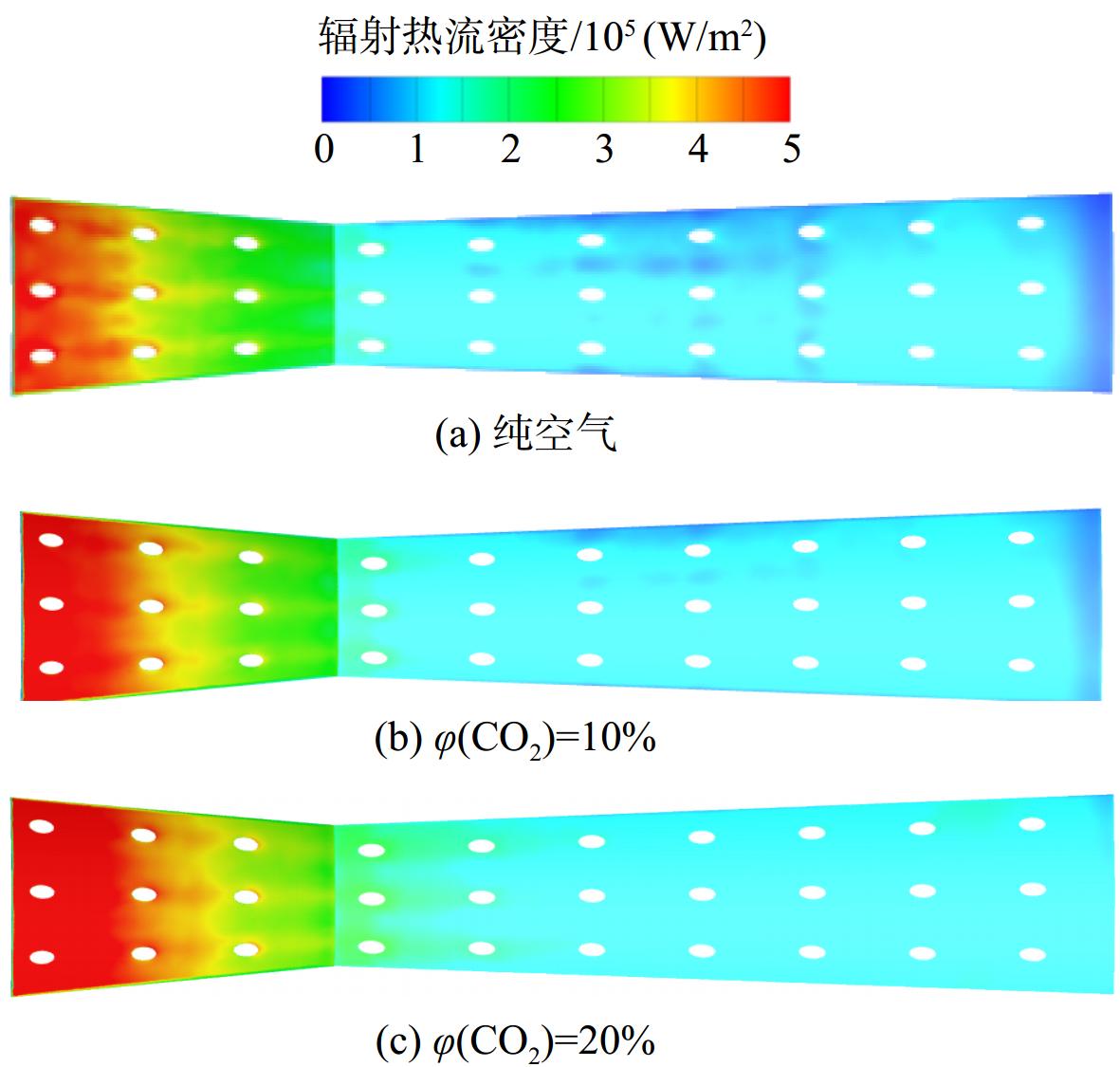

图 25 不同主流组分壁面辐射热流云图
Figure 25. Contour of radiant heat flux on the wall with different mainstream components
图 26 不同主流组分壁面辐射热流曲线图
Figure 26. Diagram of radiant heat flux on the wall with different mainstream components
表 1 进出口边界条件
Table 1. Import and export boundary conditions
边界 压力/Pa 温度/K 主流进口（压力进口） 427000 2100 主流出口（压力出口） 101325 293 冷气进口（压力进口） 607950 520
下载: 导出CSV
表 2 结构参数表
Table 2. Structural parameter table
D/mm α/（°） 主流气体组分 体积分数/% 2 15 纯空气 3 30 二氧化碳 10 水蒸气 5 氧气 17 氮气 68 4 45 二氧化碳 20 水蒸气 10 氧气 14 氮气 56
下载: 导出CSV
-
[1] 崔响,徐志晖. 航空发动机尾喷管及其发展趋势[J]. 山东工业技术,2018(3): 234. CUI Xiang,XU Zhihui. Aeroengine exhaust nozzle and its development trend[J]. Journal of Shandong Industrial Technology,2018(3): 234. (in ChineseCUI Xiang, XU Zhihui. Aeroengine exhaust nozzle and its development trend[J]. Journal of Shandong Industrial Technology, 2018(3): 234. (in Chinese) [2] TANI K,KANDA T,KUDOU Kenji. Aerodynamic performance of scramjet inlet models with a single strut[J]. Journal of Propulsion and Power,2006,22(4): 905-912. doi: 10.2514/1.17774 [3] 陈四杰. 收扩喷管扩张段气膜冷却特性研究[D]. 南京: 南京航空航天大学,2014. CHEN Sijie. Study on film cooling characteristics of divergent section of convergent-divergent nozzle[D]. Nanjing: Nanjing University of Aeronautics and Astronautics,2014. (in ChineseCHEN Sijie. Study on film cooling characteristics of divergent section of convergent-divergent nozzle[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2014. (in Chinese) [4] LE BROCQ P V,LAUNDER B E,PRIDDIN C H. Discrete hole injection as a means of transpiration cooling-an experimental study[J]. Proceedings of the Institution of Mechanical Engineers,1973,187(17): 149-157. [5] CHOE H,KAYS W M,MOFFAT R J. Turbulent boundary layer on a full-coverage film-cooled surface: an experimental heat transfer study with normal injection: CR-2464[R]. Washington,US: National Aeronautics and Space Administration,1976. [6] AFEJUKU W O,HAY N,LAMPARD D. The film cooling effectiveness of double rows of holes[J]. Journal of Engineering for Power,1980,102(3): 601-606. doi: 10.1115/1.3230309 [7] ANDREWS G E,BAZDIDI-TEHRANI F. Small diameter film cooling hole heat transfer: the influence of the number of holes: ASME Paper 89-GT-7[R]. Ontario,Canada: ASME,1989. [8] ANDREWS G E,ASERE A A,GUPTA M L,et al. Full coverage discrete hole film cooling: the influence of the number of holes and pressure loss: ASME Paper 90-GT-61[R]. Brussels,Belgium: ASME,1990. [9] 黄河,王宏光,韩铁鹰. 平板振动对气膜冷却及流场特性影响的数值研究[J]. 能源工程,2020(3): 58-62. HUANG He,WANG Hongguang,HAN Tieying. Numerical study on the effect of plate vibration on film cooling and flow field[J]. Energy Engineering,2020(3): 58-62. (in ChineseHUANG He, WANG Hongguang, HAN Tieying. Numerical study on the effect of plate vibration on film cooling and flow field[J]. Energy Engineering, 2020(3): 58-62. (in Chinese) [10] 操郢,付经伦,张超,等. 冷却结构参数对气膜/冲击复合结构冷却性能的影响研究[J]. 工程热物理学报,2020,41(6): 1332-1340. CAO Ying,FU Jinglun,ZHANG Chao,et al. Study on the influence of cooling structure parameters on the cooling performance of air film/impact composite structure[J]. Journal of Engineering Thermal Physics,2020,41(6): 1332-1340. (in ChineseCAO Ying, FU Jinglun, ZHANG Chao, et al. Study on the influence of cooling structure parameters on the cooling performance of air film/impact composite structure[J]. Journal of Engineering Thermal Physics, 2020, 41(6): 1332-1340. (in Chinese) [11] ASOK KUMAR N,KALE S R. Numerical simulation of steady state heat transfer in a ceramic-coated gas turbine blade[J]. International Journal of Heat and Mass Transfer,2002,45(24): 4831-4845. doi: 10.1016/S0017-9310(02)00190-4 [12] 王平阳,谈和平,刘林华,等. 涡轮发动机高温隔热涂层内的传热研究[J]. 航空动力学报,2000,15(3): 268-273. WANG Pingyang,TAN Heping,LIU Linhua,et al. Heat transfer in translucent thermal barrier coatings of turbine engine[J]. Journal of Aerospace Power,2000,15(3): 268-273. (in Chinese doi: 10.3969/j.issn.1000-8055.2000.03.011WANG Pingyang, TAN Heping, LIU Linhua, et al. Heat transfer in translucent thermal barrier coatings of turbine engine[J]. Journal of Aerospace Power, 2000, 15(3): 268-273. (in Chinese) doi: 10.3969/j.issn.1000-8055.2000.03.011 [13] SPUCKLER C M. Effect of an opaque reflecting layer on the thermal behavior of a thermal barrier coating[M]// SCHULZ U. Advanced ceramic coatings and interfaces: Ⅱ. Hoboken,US: John Wiley & Sons,Incorporation,2009: 85-98. [14] HUANG Xiao,WANG Dongmei,PATNAIK P,et al. Design and computational analysis of highly reflective multiple layered thermal barrier coating structure[J]. Materials Science and Engineering: A,2007,460/461: 101-110. doi: 10.1016/j.msea.2007.01.067 [15] 陈敏,唐海龙. 航空燃气涡轮发动机工作原理及性能,上海交通大学出版社[M]. 2018. CHEN Min,TANG Hailong. The working principle and performance of aviation gas turbine engines[M]. Shanghai Jiao Tong University Press,2018. (in ChineseCHEN Min, TANG Hailong. The working principle and performance of aviation gas turbine engines[M]. Shanghai Jiao Tong University Press, 2018. (in Chinese) [16] 陈梦朝. 高温合金红外光谱发射率特性研究[D]. 成都: 电子科技大学,2022. CHEN Mengchao. Research on infrared spectral emissivity characteristics of superalloys[D]. Chengdu: University of Electronic Science and Technology of China,2022. (in ChineseCHEN Mengchao. Research on infrared spectral emissivity characteristics of superalloys[D]. Chengdu: University of Electronic Science and Technology of China, 2022. (in Chinese) [17] 罗侠,聂宇宏,张卫军. 非灰气体离散坐标法模型的比较[J]. 材料与冶金学报,2003,2(2): 145-148. LUO Xia,NIE Yuhong,ZHANG Weijun. Comparison of various quadrature sets for discrete coordinates method used in model of nongray gaseous radiation[J]. Journal of Materials and Metallurgy,2003,2(2): 145-148. (in Chinese doi: 10.3969/j.issn.1671-6620.2003.02.015LUO Xia, NIE Yuhong, ZHANG Weijun. Comparison of various quadrature sets for discrete coordinates method used in model of nongray gaseous radiation[J]. Journal of Materials and Metallurgy, 2003, 2(2): 145-148. (in Chinese) doi: 10.3969/j.issn.1671-6620.2003.02.015 [18] 孙召政. 不同湍流模型在跨声速压气机数值模拟中的应用研究[D]. 北京: 北方工业大学,2024. SUN Zhaozheng. Application of different turbulence models in numerical simulation of transonic compressor[D]. Beijing: North China University of Technology,2024. (in ChineseSUN Zhaozheng. Application of different turbulence models in numerical simulation of transonic compressor[D]. Beijing: North China University of Technology, 2024. (in Chinese) [19] DENG Q H,ZHOU W L,FENG Z P. Conjugate heat transfer analysis for laminated cooling effectiveness: Part B effects of film hole incline angle: ASME Paper GT2016-57256[R]. Seoul,South Korea: ASME,2016. [20] 饶乐威,王天壹,连文磊. 热辐射对气膜冷却叶片表面热负荷的影响[J]. 航空发动机,2023,49(4): 38-47. RAO Lewei,WANG Tianyi,LIAN Wenlei. Effect of thermal radiation on the thermal load of a film-cooled vane[J]. Aeroengine,2023,49(4): 38-47. (in ChineseRAO Lewei, WANG Tianyi, LIAN Wenlei. Effect of thermal radiation on the thermal load of a film-cooled vane[J]. Aeroengine, 2023, 49(4): 38-47. (in Chinese) [21] 王书贤,魏凯,张立波. 弹用固冲发动机可调喷管气膜冷却数值研究[J]. 导弹与航天运载技术,2020(2): 44-48,57. WANG Shuxian,WEI Kai,ZHANG Libo. Numerical study on film cooling of solid ramjet variable nozzle for missile[J]. Missiles and Space Vehicles,2020(2): 44-48,57. (in ChineseWANG Shuxian, WEI Kai, ZHANG Libo. Numerical study on film cooling of solid ramjet variable nozzle for missile[J]. Missiles and Space Vehicles, 2020(2): 44-48, 57. (in Chinese) -
