机动飞行状态下转子-弹性阻尼支承系统试验研究

陈曦; 张博; 范翔南; 任光明; 甘晓华

doi:10.13224/j.cnki.jasp.20240516

机动飞行状态下转子-弹性阻尼支承系统试验研究

doi: 10.13224/j.cnki.jasp.20240516

陈曦^1,,
张博¹,
范翔南¹,
任光明^{1, 2},
甘晓华³

1.
南方科技大学力学与航空航天工程系，广东深圳 518055
2.
南方科技大学深圳市宽速域变密度连续式风洞重点实验室，广东深圳 518055
3.
空军研究院，北京 100085

基金项目: 国家自然科学基金（12302066）；国家科技重大专项（J2022-Ⅳ-0004-0021）；广东省基础与应用基础研究基金（2022A1515110077）；深圳市高等院校稳定支持计划（20220815113550002）；深圳市科技计划（ZDSYS20220527171405012）；广东省珠江人才计划（2019CX01Z084）

详细信息

作者简介:
陈曦（1991-），女，副研究员，博士，主要从事航发结构动力学及减振技术研究。E-mail：chenx33@sustech.edu.cn

中图分类号: V231.96
计量
- 文章访问数: 376
- HTML浏览量: 313
- PDF量: 48
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-29
- 网络出版日期: 2024-12-04

Experimental study on rotor-elastic damping support system in maneuvering flight states

1.
Department of Mechanics and Aerospace Engineering，Southern University of Science and Technology，Shenzhen Guangdong 518055，China
2.
Shenzhen Key Laboratory of Wide-Speed-Range and Variable-Density Continuous Wind Tunnel，Southern University of Science and Technology，Shenzhen Guangdong 518055，China
3.
Air Force Academy，Beijing 100085，China

摘要

摘要:
针对飞行状态下发动机转子振动超限问题，开展机动飞行状态下发动机转子-弹性阻尼支承系统的试验研究。模拟滚转、俯仰及偏航运动，角速度最高可达3.5 rad/s，研究由鼠笼弹支式挤压油膜阻尼器支承的多盘转子系统的动力学响应，测得轮盘位移、鼠笼应变、支座速度、油膜动压随不同机动动作及角速度的变化规律。结果表明：水平和垂直方向刚度异性，前两阶临界转速均有两个共振峰值；滚转或俯仰时，即使转子静止，鼠笼弹支也会在重力作用下发生周期性形变；位移、应变、速度、压力等信号都叠加了一个低频成分。俯仰、偏航引起的附加惯性力使轴系位移和应变分别沿着水平、垂直方向发生偏移，且随着角速度的增大，对应测点的偏移量越大。
- 转子-弹性阻尼支承系统 /
- 机动飞行 /
- 基础运动激励 /
- 动力学试验 /
- 附加惯性力
Abstract:
To deal with the issue of engine rotor vibration exceeding the limits during flights, experimental research on the rotor-elastic damping support system during maneuvering flight was conducted. The rolling, pitching, and yawing motions were simulated, finding that the maximum angular velocities can reach 3.5 rad/s. The dynamic responses of a multi-disk rotor system supported by squirrel-cage squeeze film dampers were studied, indicating that the changes in disk displacement, squirrel-cage strain, support velocity, and oil-film dynamic pressure were measured with different maneuvering motions and angular velocities. The results indicated that due to the anisotropy of stiffness in both horizontal and vertical directions, there existed two resonance peaks in the first two critical speeds. In case of rolling or pitching, even if the rotor was at idle state, the squirrel-cage support could undergo periodic deformation owing to the gravity; and the signals of displacement, strain, velocity, dynamic pressure, etc, were all superimposed with a low-frequency component. The additional inertial forces caused by pitching or yawing motions caused the displacement and strain of the rotor system to shift along the horizontal or vertical directions, respectively; and as the angular velocity increased, the offsets of corresponding measurement points became greater.
- rotor-elastic damping support system /
- maneuvering flight /
- base motion excitation /
- dynamic testing /
- additional inertial forces

HTML

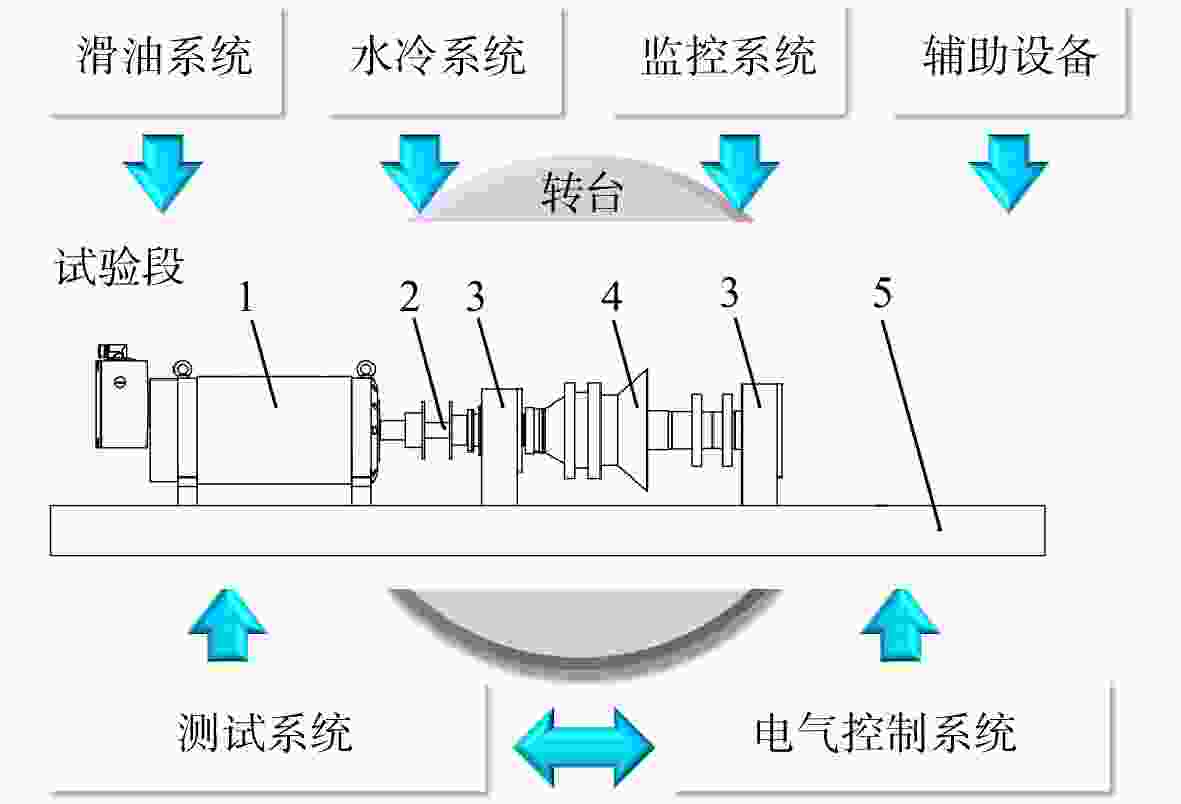

图 1 试验台系统组成

1 驱动电动机；2 联轴器；3 支承座；4 转子试验件；5 试验平台。

Figure 1. Systematic composition of test bench

下载: 全尺寸图片幻灯片

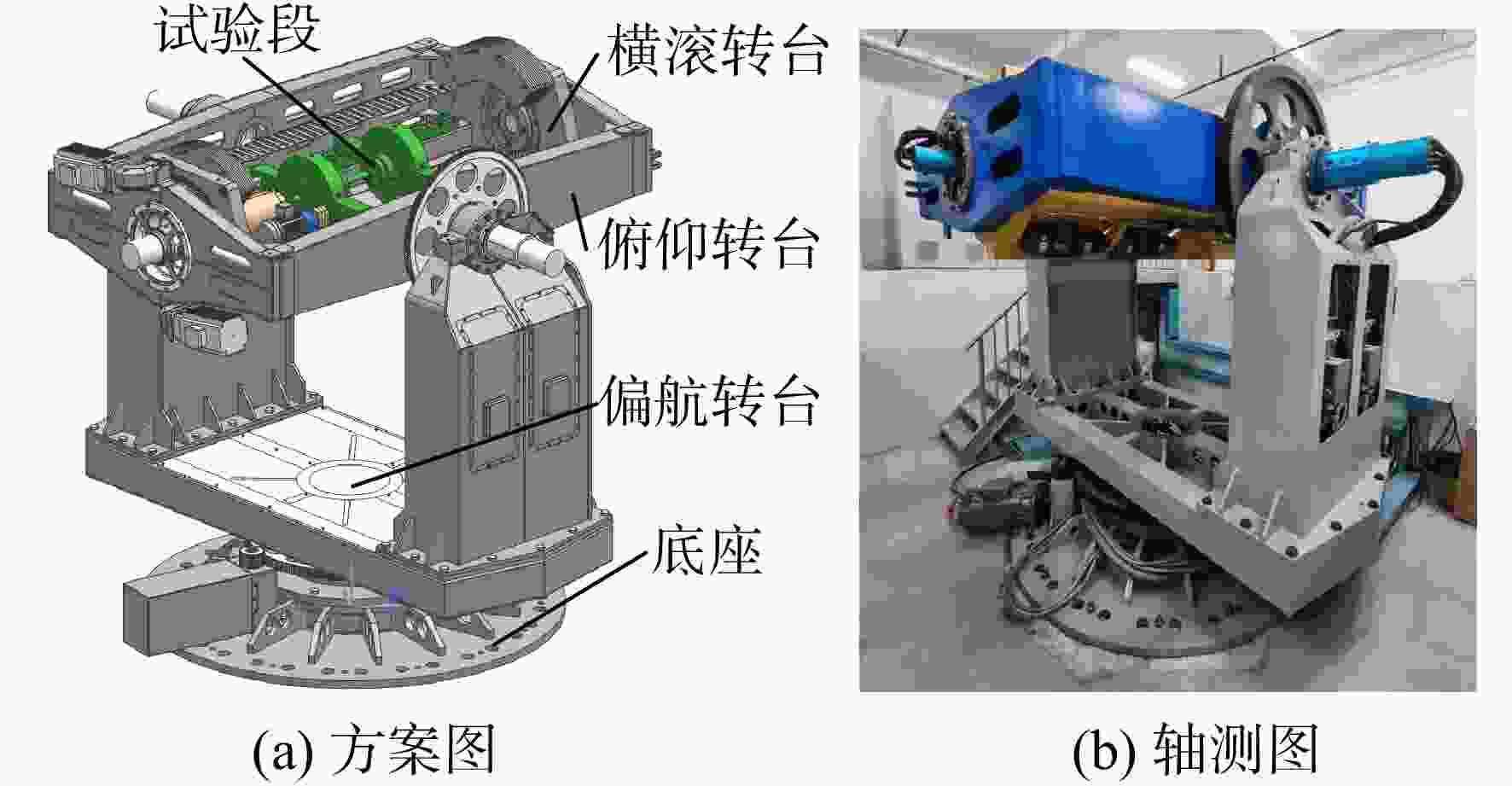

图 2 试验台主体

Figure 2. Main part of test bench

下载: 全尺寸图片幻灯片

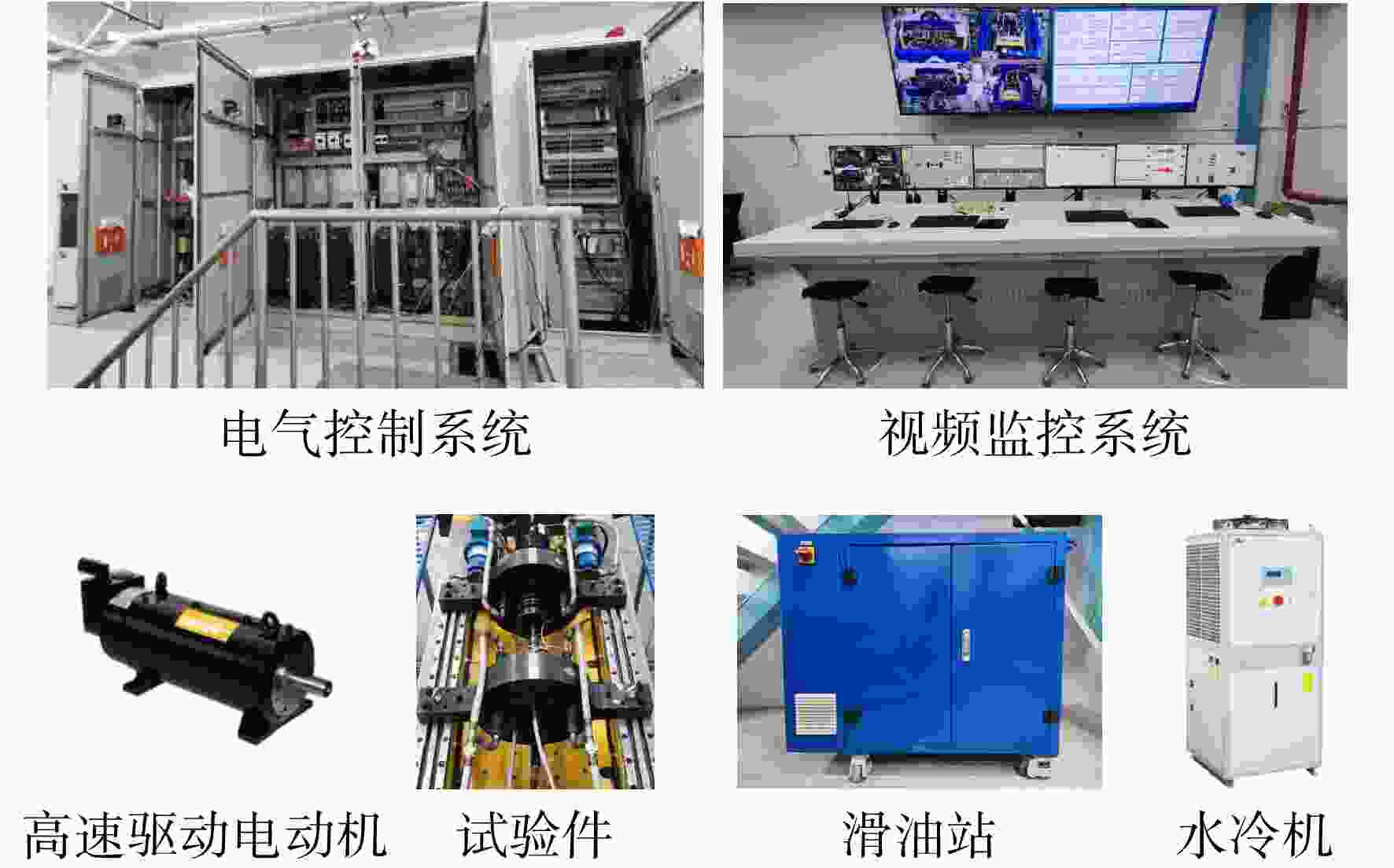

图 3 试验台配套子系统

Figure 3. Supporting subsystems of test bench

下载: 全尺寸图片幻灯片

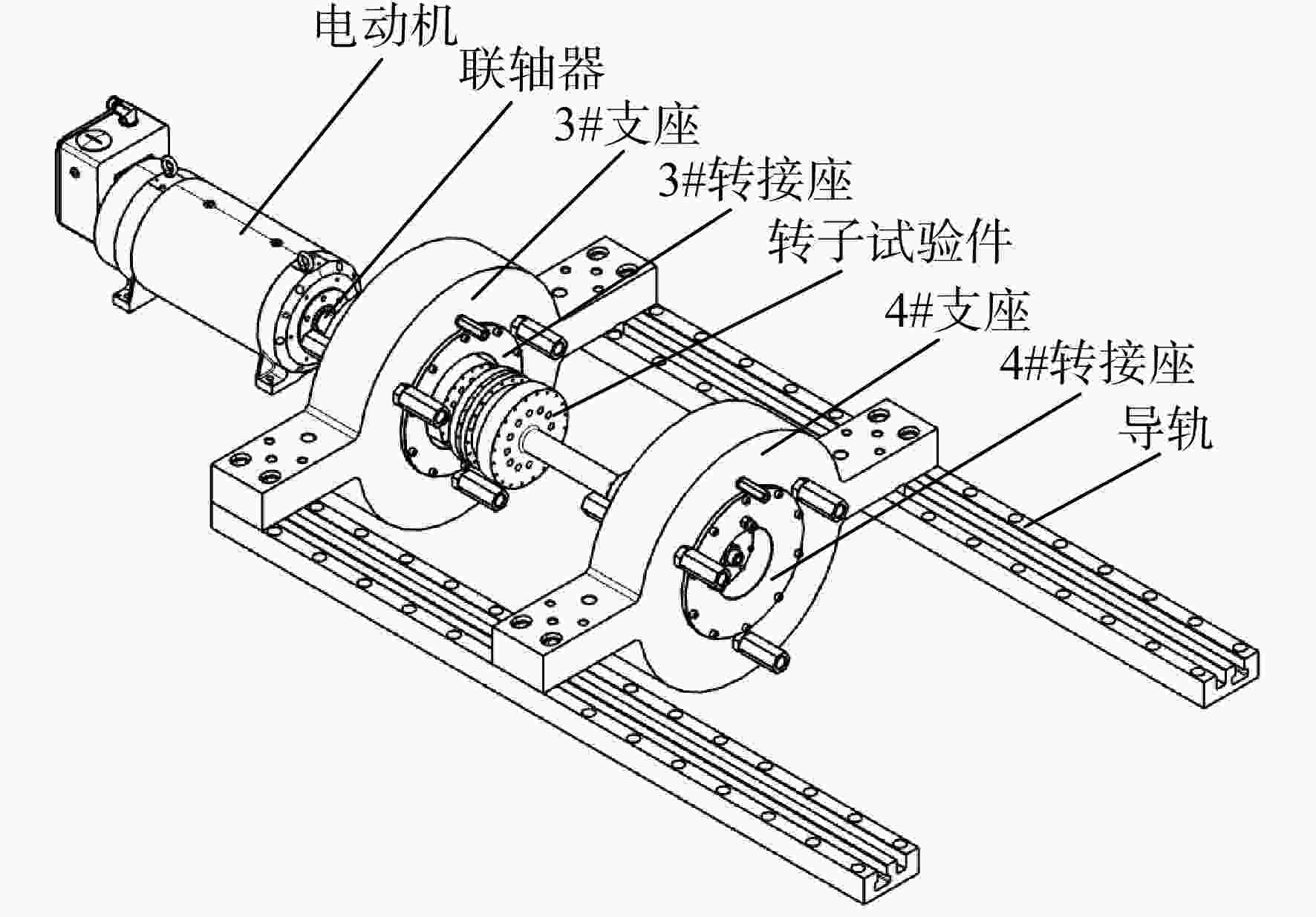

图 4 试验段结构图

Figure 4. Structural diagram of test segment

下载: 全尺寸图片幻灯片

图 5 试验件二维剖视图

Figure 5. 2D sectional view of test segment

下载: 全尺寸图片幻灯片

图 6 动力学试验测点布置

Figure 6. Layout of measuring points for dynamic testing

下载: 全尺寸图片幻灯片

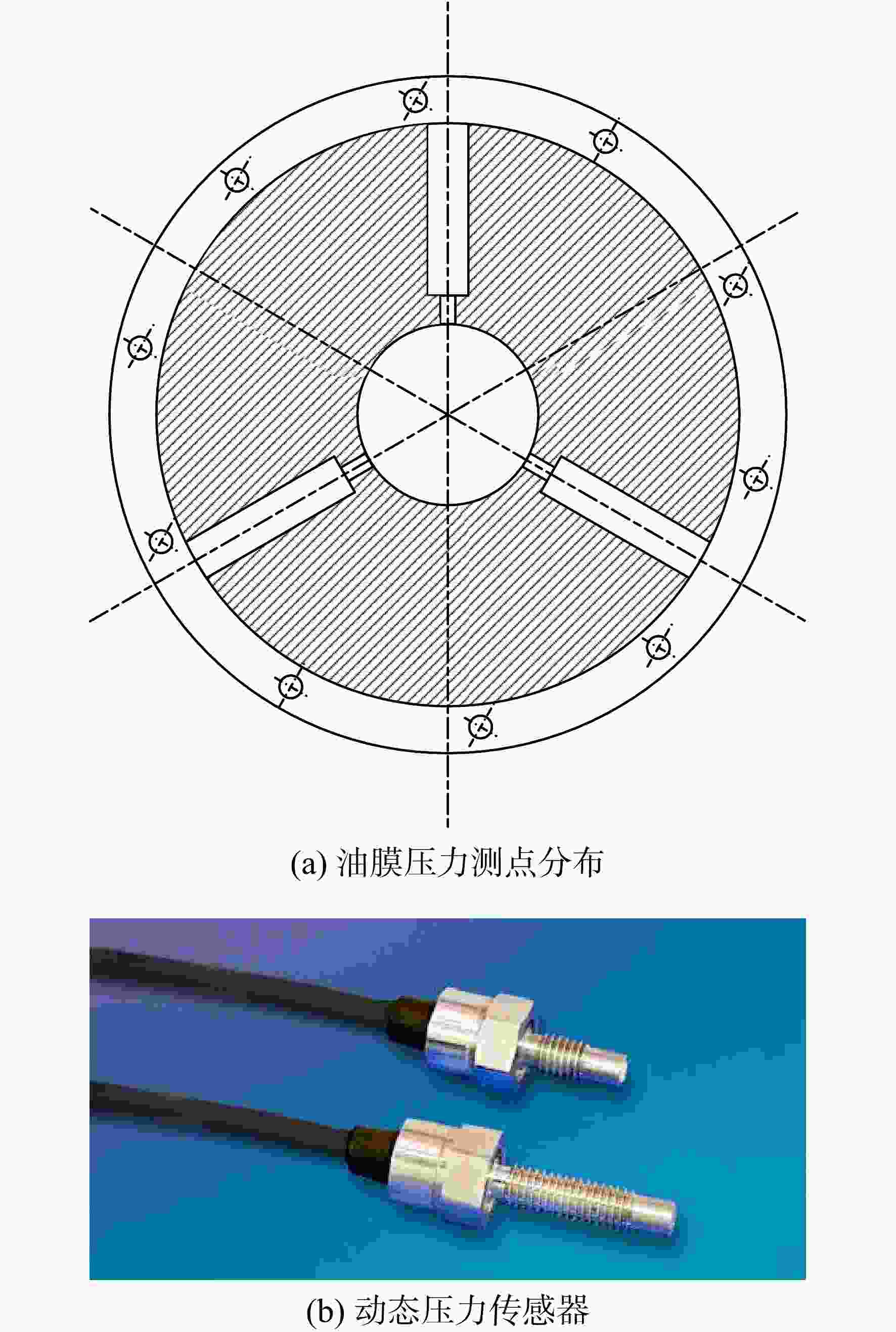

图 7 油膜压力测点分布及动态压力传感器

Figure 7. Distribution of oil-film pressure measuring points and dynamic pressure sensors

下载: 全尺寸图片幻灯片

图 8 试验流程

Figure 8. Testing process

下载: 全尺寸图片幻灯片

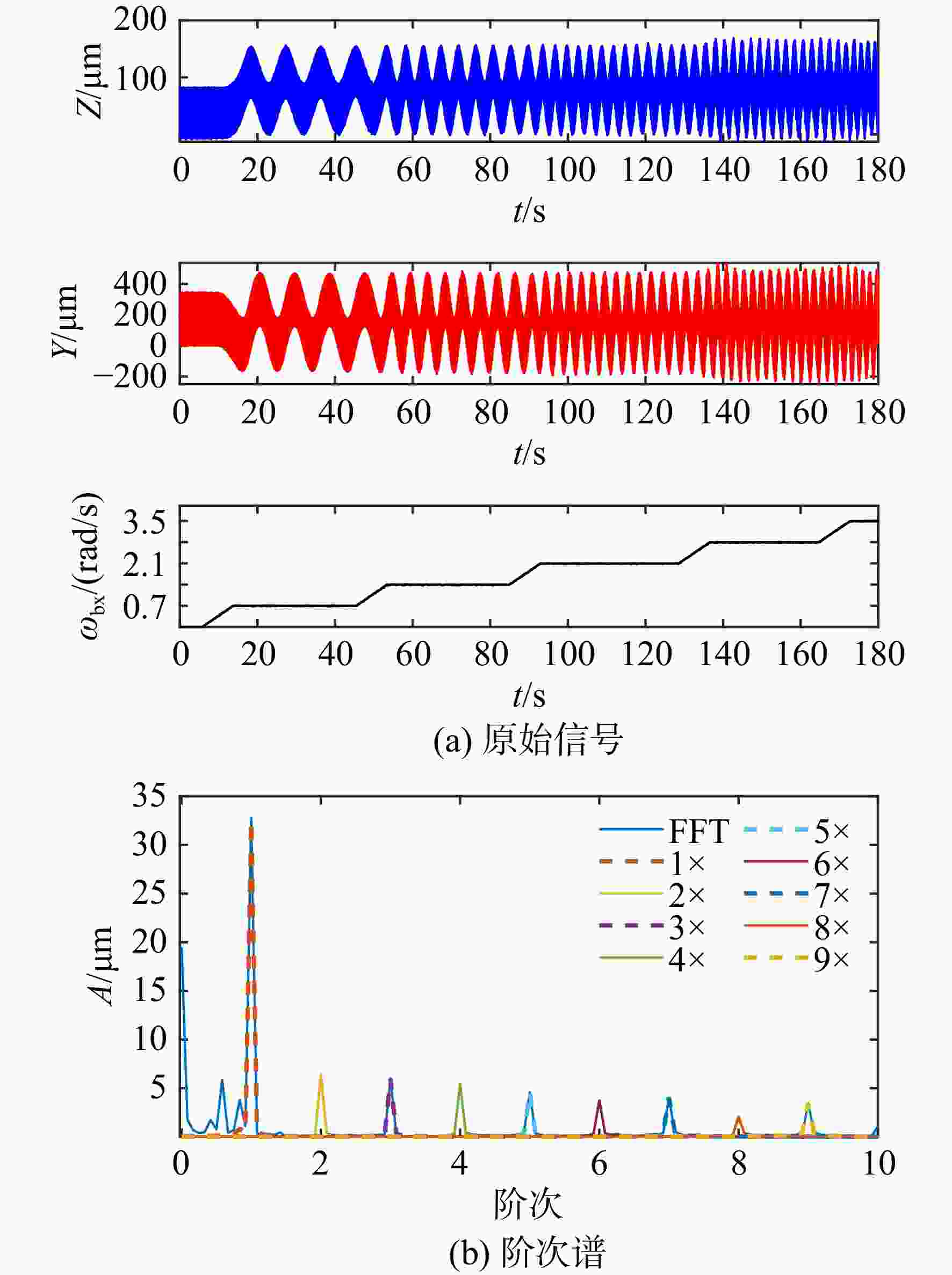

图 9 试验数据处理

Figure 9. Test data processing

下载: 全尺寸图片幻灯片

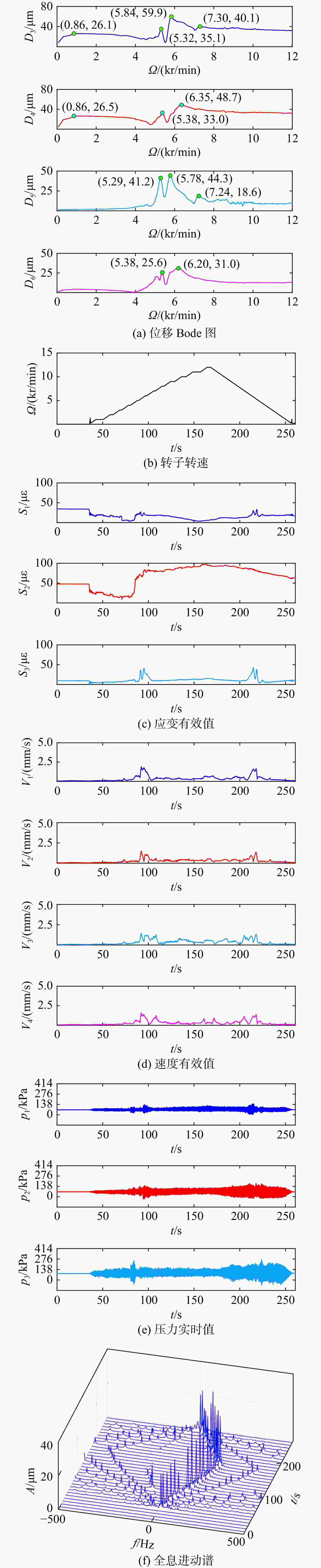

图 10 平衡状态转子系统振动响应

Figure 10. Dynamic responses of rotor system in balanced state

下载: 全尺寸图片幻灯片

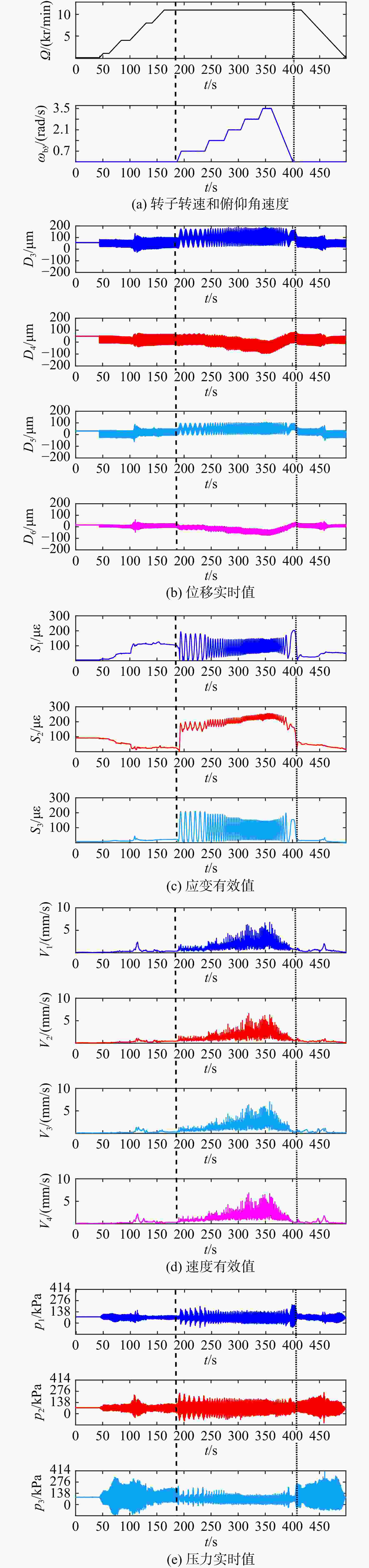

图 11 变滚转角速度下转子系统动力响应

Figure 11. Dynamic responses of rotor system varying with rolling angular velocities

下载: 全尺寸图片幻灯片

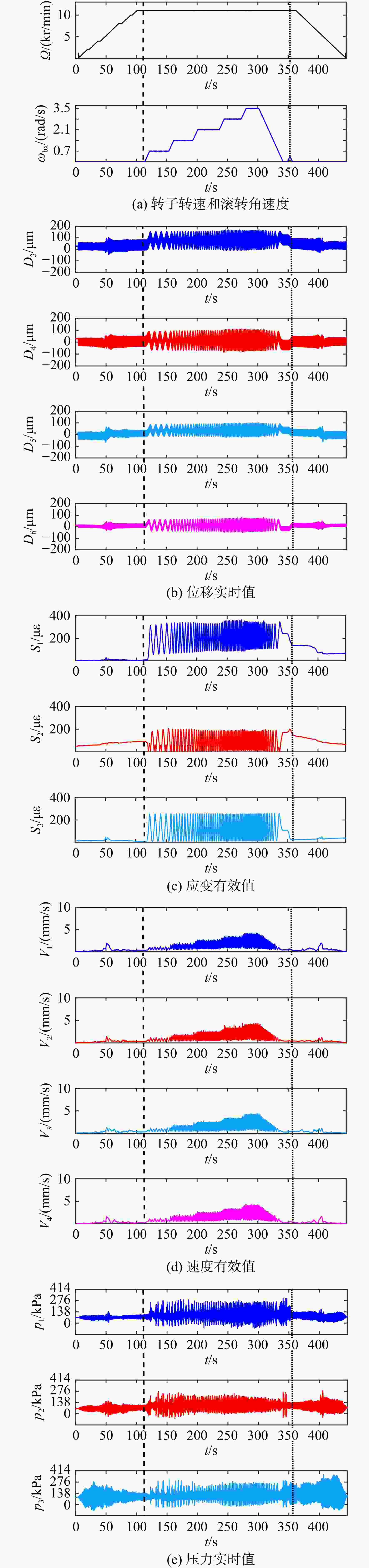

图 12 变俯仰角速度下转子系统动力响应

Figure 12. Dynamic responses of rotor system varying with pitching angular velocities

下载: 全尺寸图片幻灯片

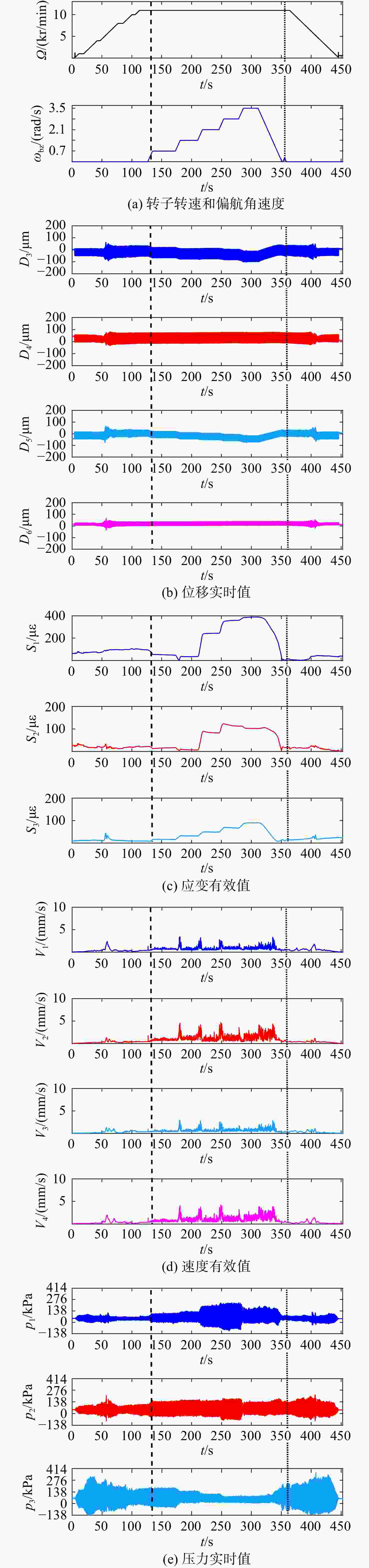

图 13 变偏航角速度下转子系统动力响应

Figure 13. Dynamic responses of rotor system varying with yawing angular velocities

下载: 全尺寸图片幻灯片

表 1 测点信息

Table 1. Measurement points information

物理量	符号	位置	量程
转速	N	联轴器	25000 r/min
位移	D₁, D₂	压气机2级盘	1.5 mm
	D₃, D₄	离心叶轮
	D₅, D₆	涡轮1级盘
速度	V₁, V₂	3#支座	0～100 mm/s
速度	V₃, V₄	4#支座	0～100 mm/s
油膜压力	p₁, p₂, p₃	3#支座	0～17×10⁵ Pa
油膜压力	p₄, p₅, p₆	4#支座	0～17×10⁵ Pa
应变	S₁, S₂	3#鼠笼	带温度补偿
应变	S₃, S₄	4#鼠笼	带温度补偿

下载: 导出CSV
