Effect of positional uncertainty on performance of auxiliary positioning film cooling hole
-
摘要:

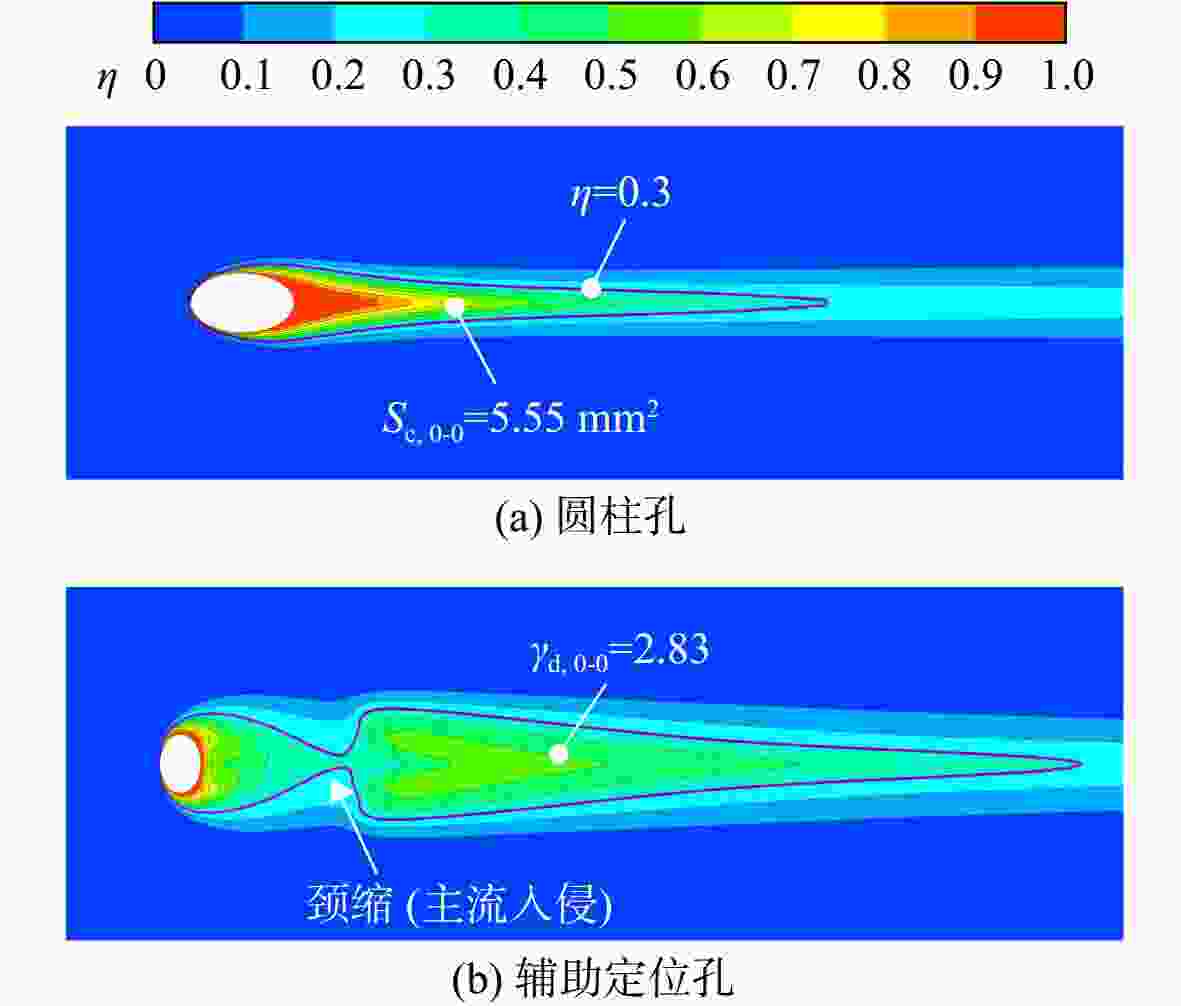

提出了一种在涡轮叶片毛坯上预置凸肋和凹坑结构作为打孔定位基准的气膜孔方案。这些结构不仅可以提高气膜冷却性能，而且能够增强抵抗打孔位置偏差诱发冷却性能下降的能力。以圆柱孔作为对比基准，在典型位置度公差约束下，设计了两种孔型的理论正确和特征偏差位置上的几何模型，构成了研究样本空间，并通过数值仿真方法对比分析了各结构的气膜掺混流动和冷却性能。在理论正确位置上，辅助定位孔出口处的凹坑可诱导主流入侵并增强二次流的贴壁性，使气膜覆盖面积增大到了圆柱孔的2.83倍以上。当打孔产生位置偏差时，辅助定位孔的冷却性能与主流入侵深度正相关，并且展向倾斜偏差反而会引起性能增强。在全部样本空间内，辅助定位孔的冷却性能全面优于圆柱孔，在相同偏差位置上气膜覆盖面积系数增加了0.37～5.77。

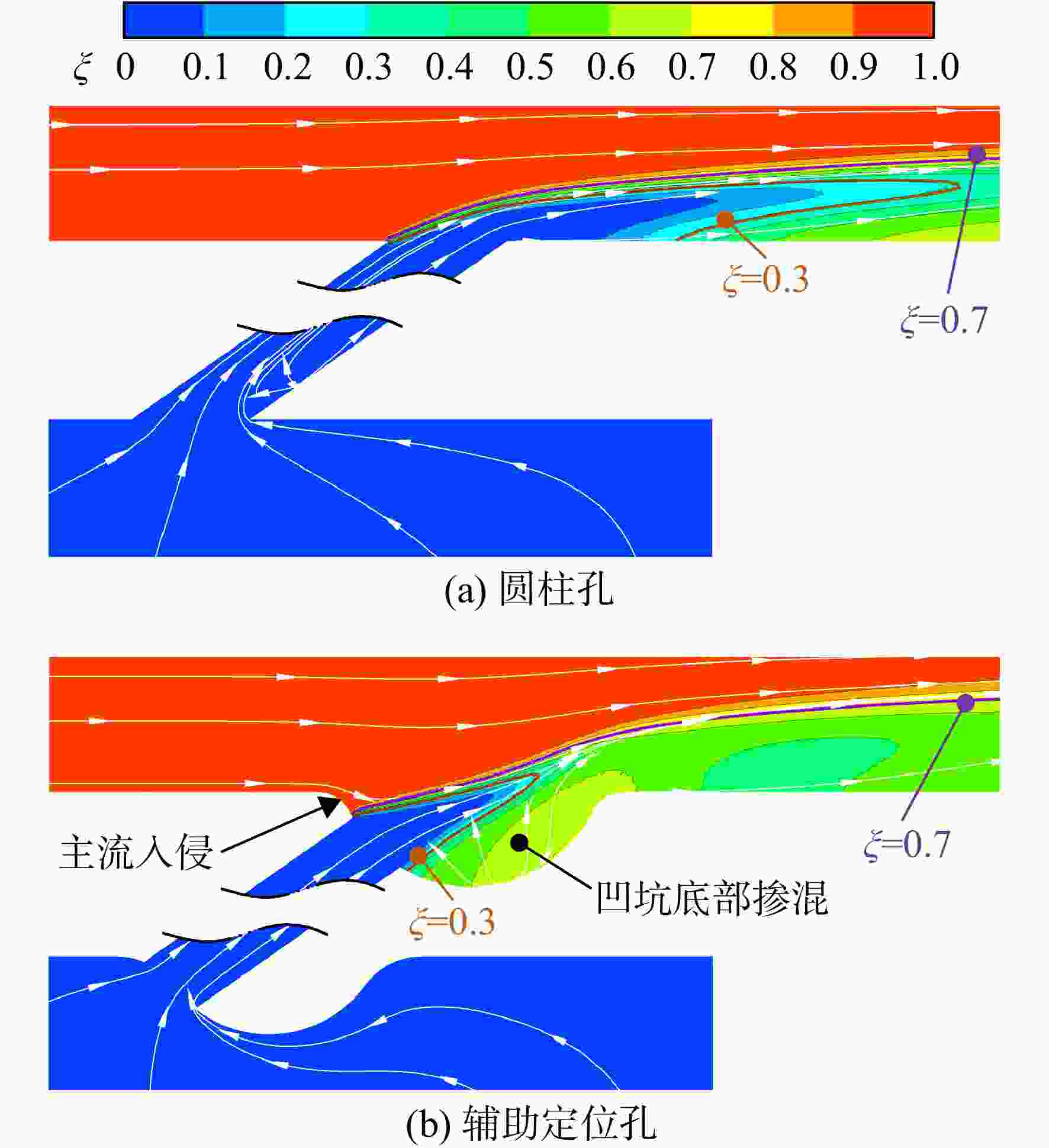

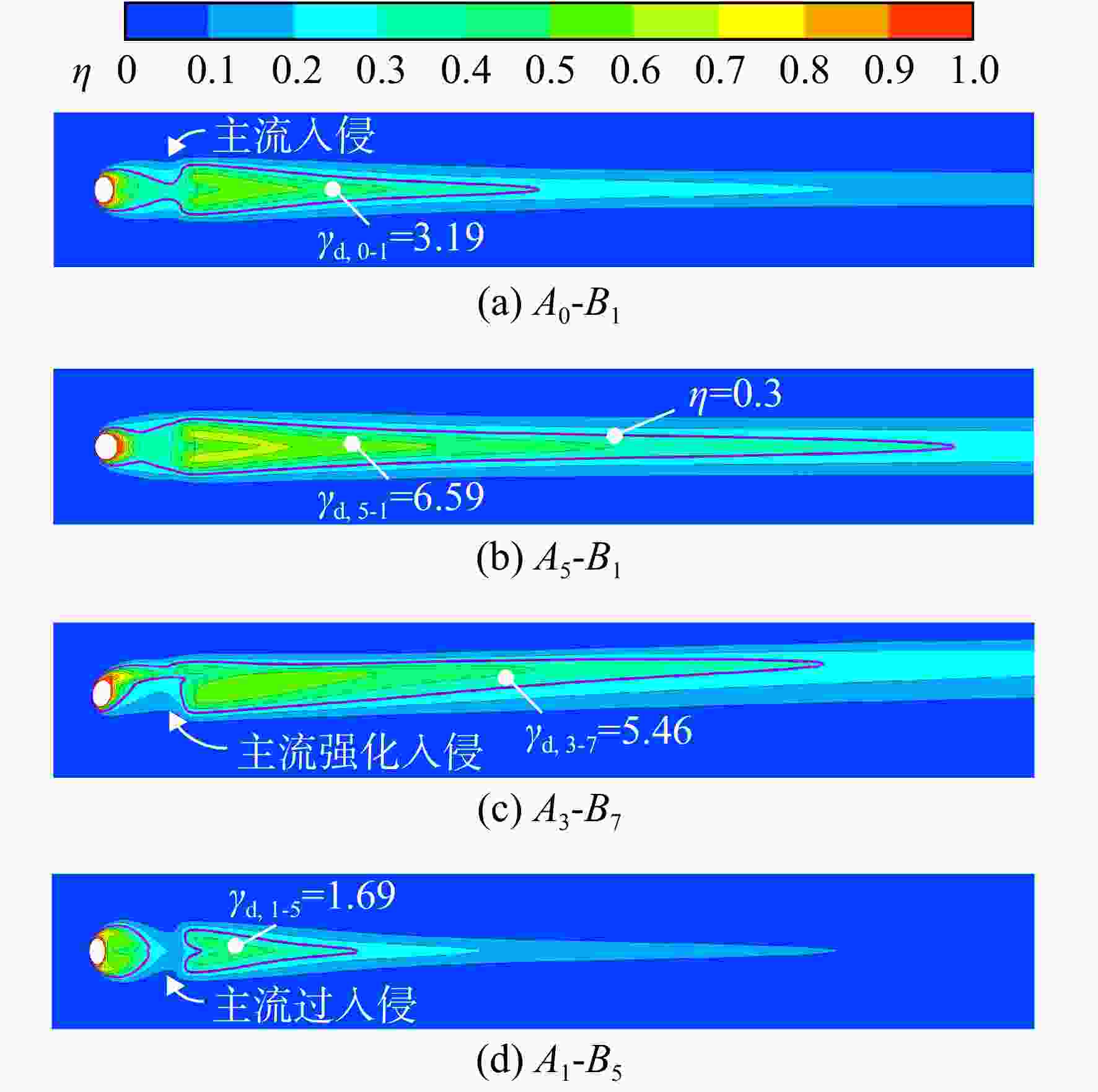

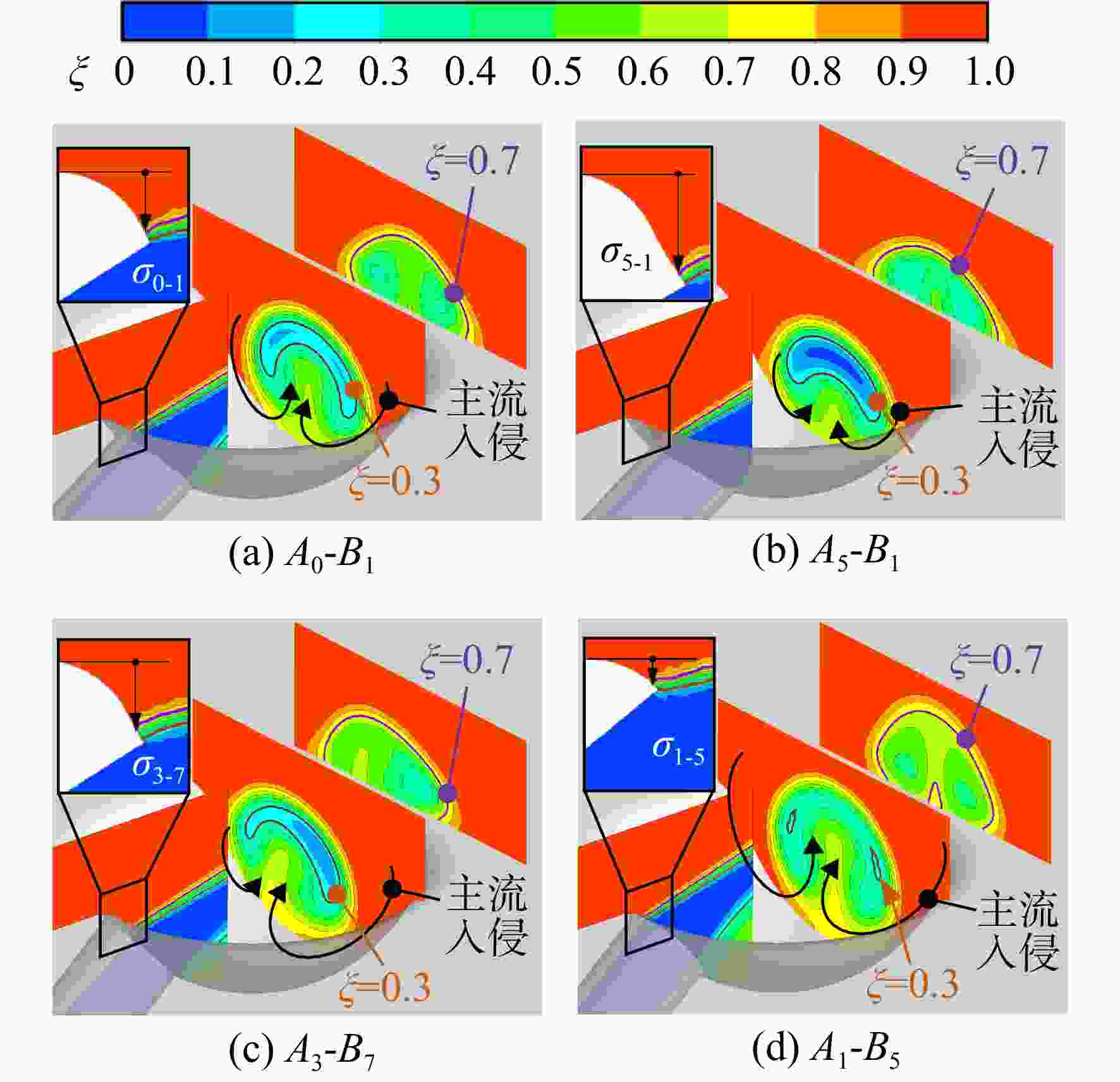

Abstract:An auxiliary positioning film hole scheme utilizing pre-cast ribs and dimples in turbine blade workblank was proposed. These structures not only improved the film cooling performance, but also enhanced the resistance to the performance degradation by the positional deviations in drilling. The cylindrical hole was chosen as a benchmark. And within the limit of a typical position tolerance, the sample space was established including the theoretically exact and characteristic positional deviation models of both schemes. Comparative analysis of film mixing flow and cooling performance was carried out by employing numerical simulations. For the theoretically exact model of the auxiliary positioning hole, the dimple at the outlet inhaled the main inflow, thus the surface-attachment of the secondary flow was enhanced. As a result, the novel scheme reached up to 2.83 times the size of the film coverage area of the cylindrical hole. In terms of the positional deviation, the cooling performance of the novel scheme exhibited a positive correlation with the main flow intrusion depth, and even benefited from the spanwise tilted deviation. In the entire sample space, the auxiliary positioning holes achieved totally better performance than the cylindrical ones. At the same deviation position, the amplitude of the film coverage area coefficient increased from 0.37 to 5.77.
-

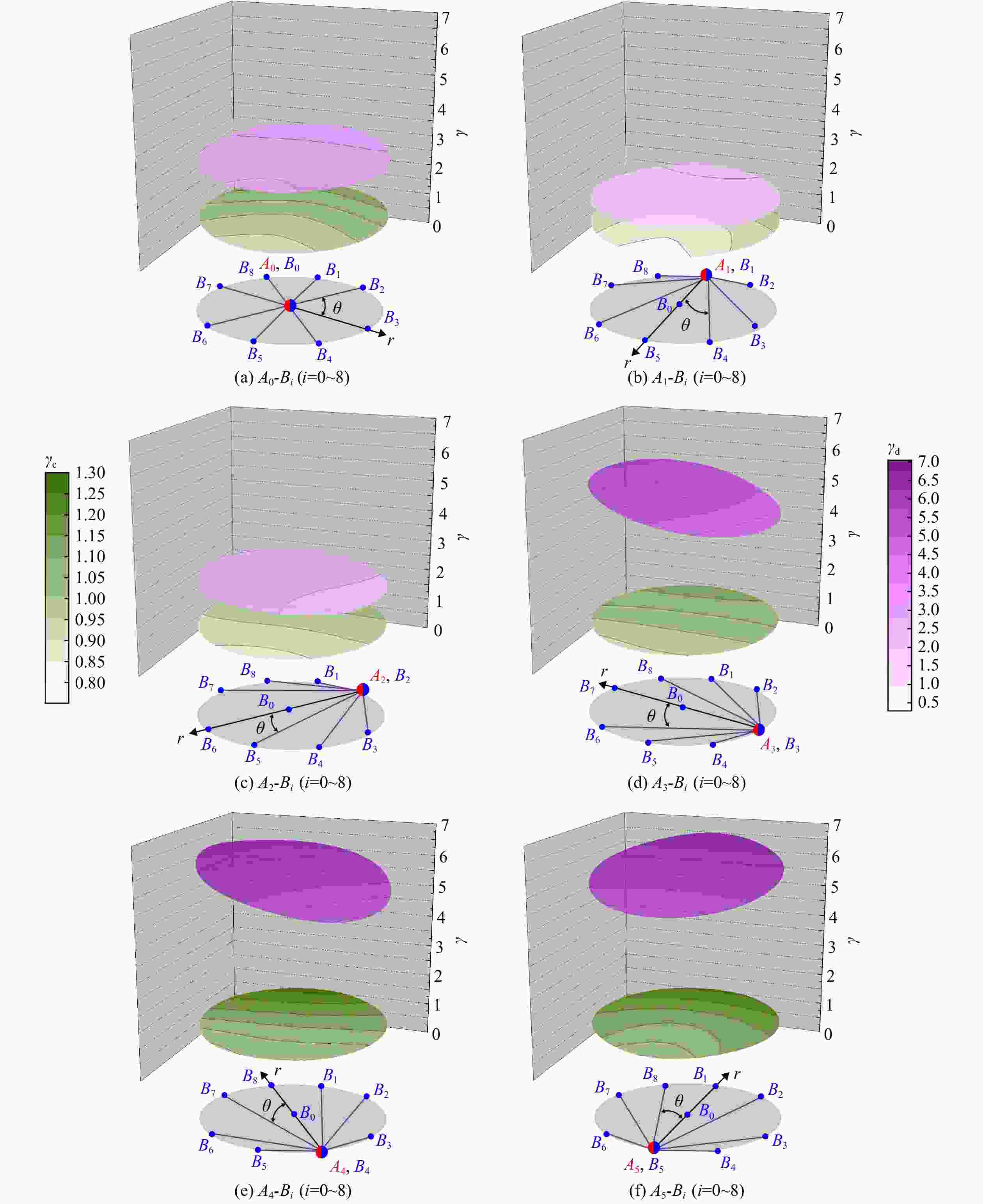

图 9 两种气膜孔结构γ随位置偏差变化
Figure 9. Variation of γ with positional deviation of both film hole schemes

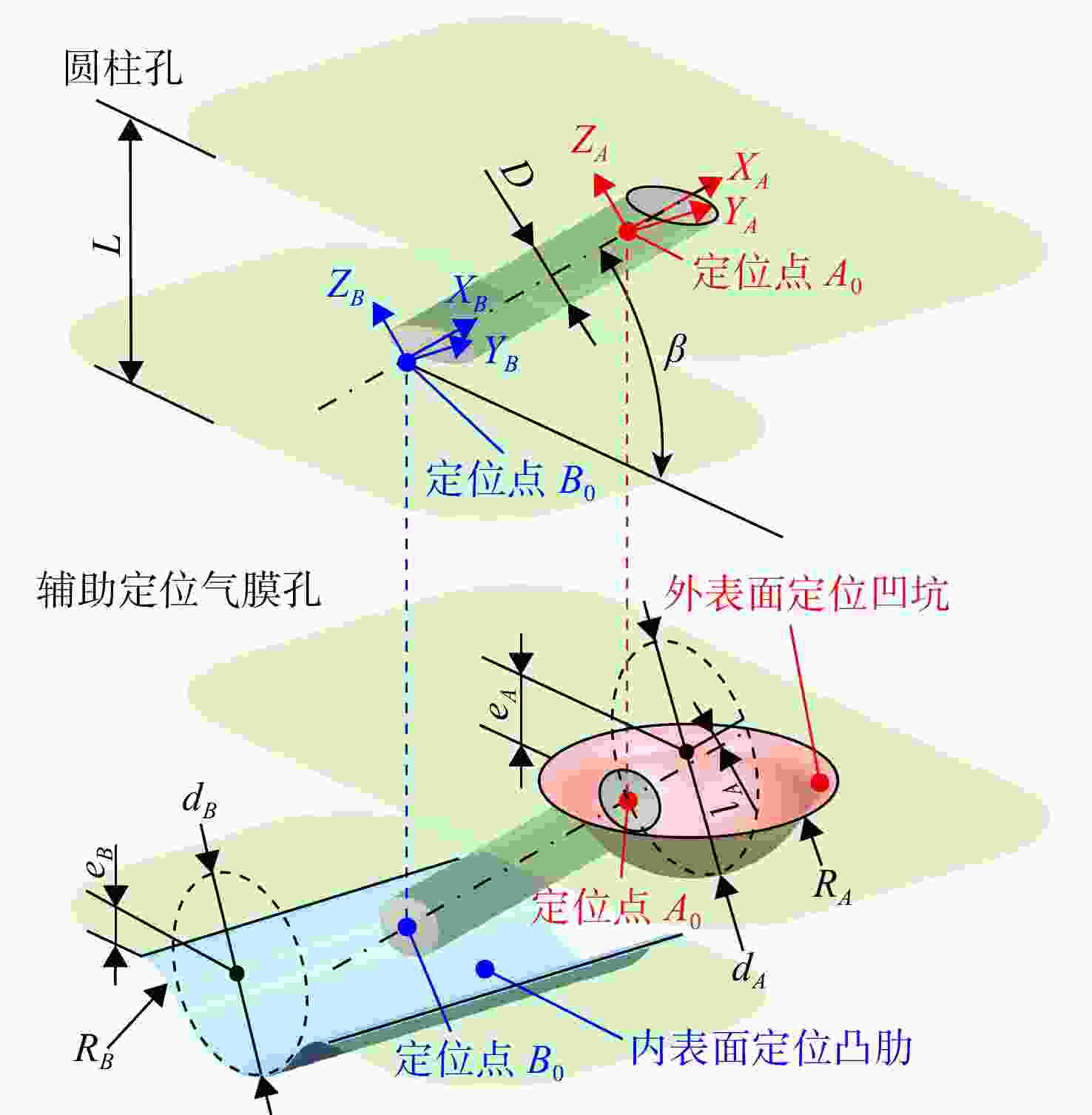

表 1 结构参数
Table 1. Structural parameters
参数 数值 特征尺度：气膜孔孔径D/mm 1 壁厚L/mm 4.0D 孔轴线与壁面夹角β/（°） 35.0 定位凹坑 球直径dA/mm 4.0D 球心与外壁面间距离eA/mm 0.575D 球心与气膜孔轴线间距离lA/mm 0.3D 边缘圆角半径RA/mm 0.5D 定位凸肋 截面圆直径dB/mm 3.5D 截面圆圆心与内壁面间距离eB/mm 0.625D 边缘圆角半径RB/mm 1.0D
下载: 导出CSV

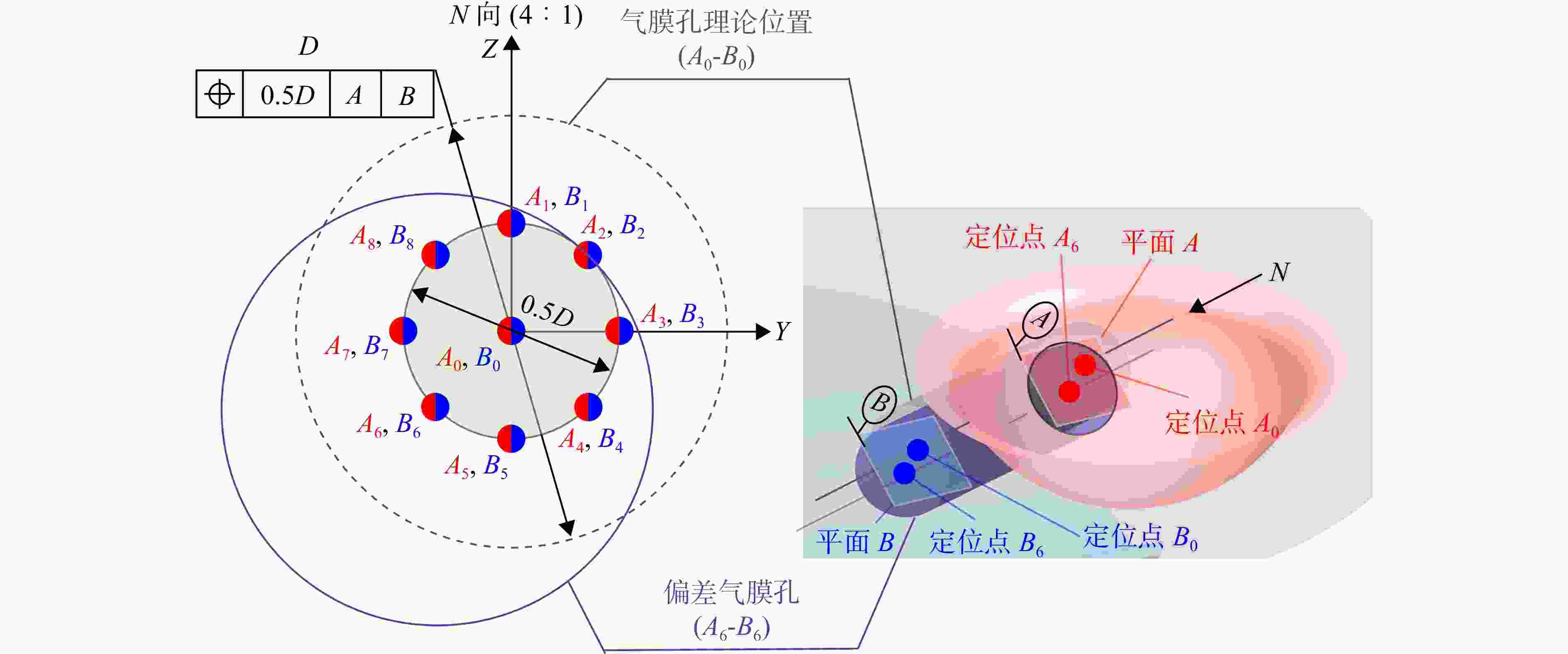

表 2 定位点组合
Table 2. Anchor points combinations
定位点 A0 A1 A2 A3 A4 A5 B0 ◙● ◙● ◙● ◙● ◙● ◙● B1 ◙● ◙ ◙● ◙● ◙● ◙● B2 ◙● ◙● ◙ ◙● ◙● ◙● B3 ◙● ◙● ◙● ◙ ◙● ◙● B4 ◙● ◙● ◙● ◙● ◙ ◙● B5 ◙● ◙● ◙● ◙● ◙● ◙ B6 ◙● ◙ ◙ B7 ◙● ◙● ◙ B8 ◙● ◙● ◙●
下载: 导出CSV

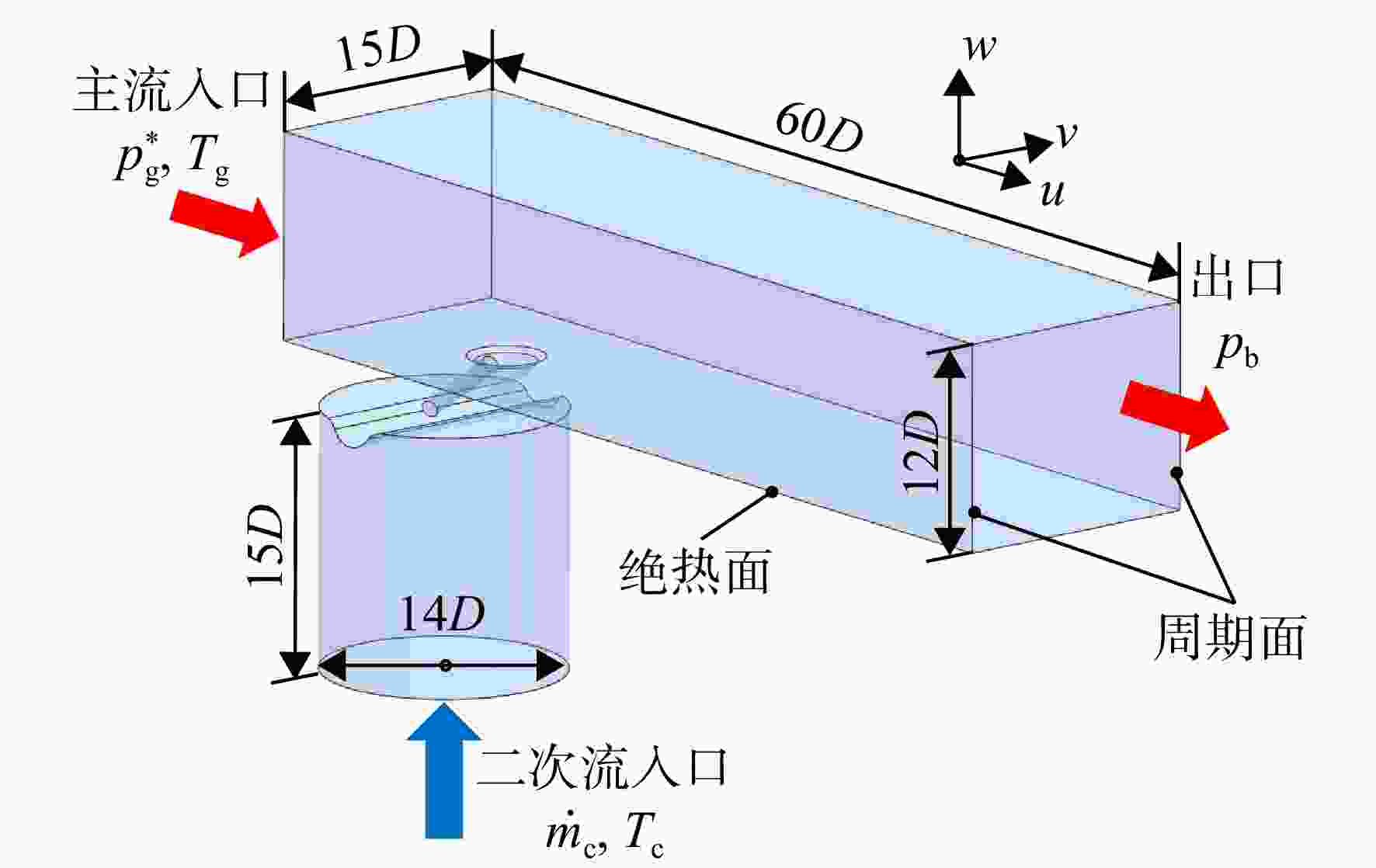

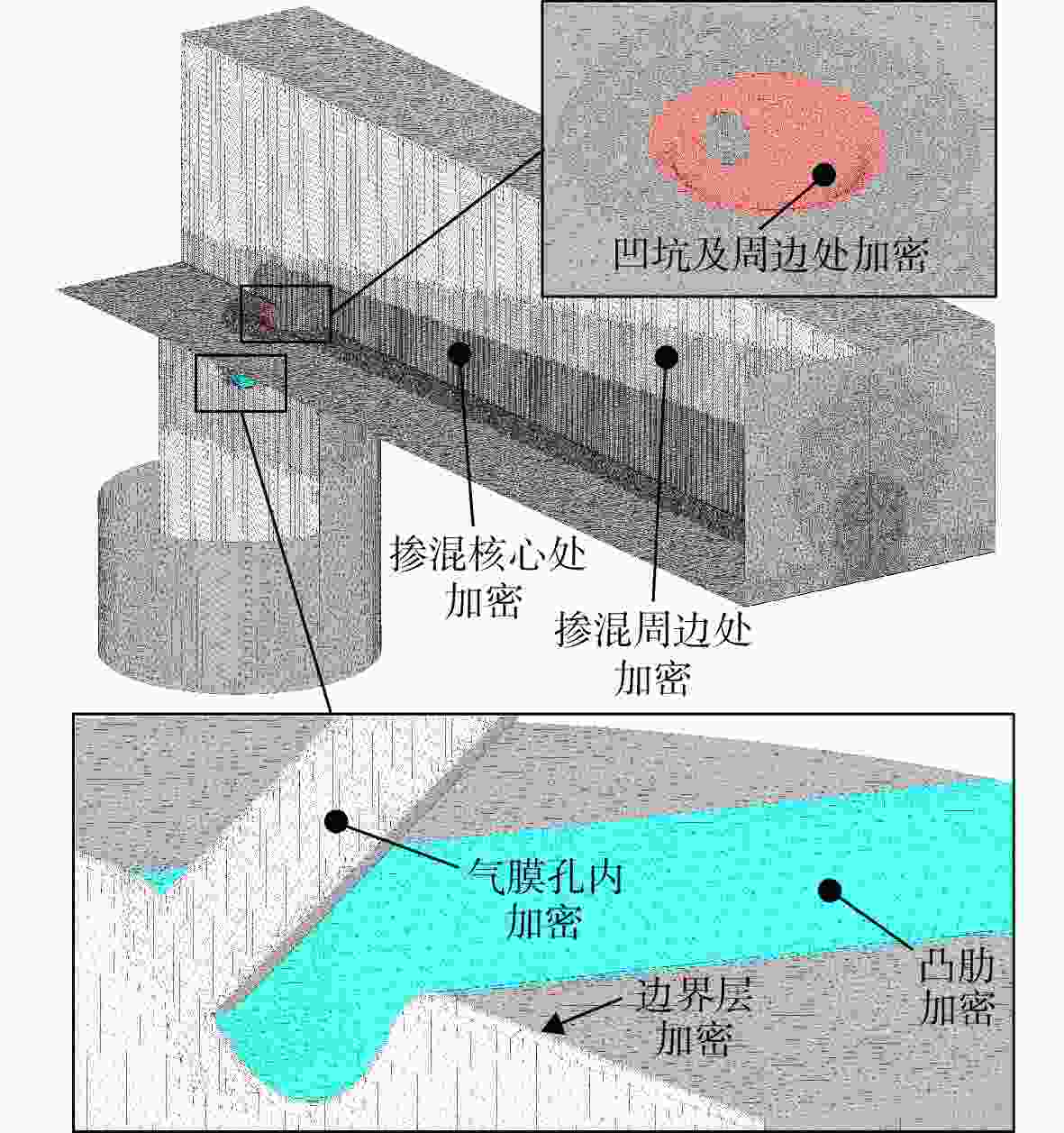

表 3 计算参数
Table 3. Computational parameters
位置 参数 数值 主流入口 总压$ p_{\text{g}}^* $/105 Pa 1.018 温度Tg/K 400 湍流度Ig/% 5.0 二次流入口 质量流量$ {\dot m_{\text{c}}} $/（g/s） 0.022 温度Tc/K 300 湍流度Ic/% 1.0 出口 静压pb/105 Pa 1.013 吹风比M 1.0
下载: 导出CSV
-
[1] BUNKER R S. Gas turbine heat transfer: ten remaining hot gas path challenges[J]. Journal of Turbomachinery,2007,129(2): 193-201. doi: 10.1115/1.2464142 [2] 孔祥灿,张子卿,朱俊强,等. 航空发动机气冷涡轮叶片冷却结构研究进展[J]. 推进技术,2022,43(5): 200632. KONG Xiangcan,ZHANG Ziqing,ZHU Junqiang,et al. Research progress on cooling structure of aeroengine air-cooled turbine blade[J]. Journal of Propulsion Technology,2022,43(5): 200632. (in ChineseKONG Xiangcan, ZHANG Ziqing, ZHU Junqiang, et al. Research progress on cooling structure of aeroengine air-cooled turbine blade[J]. Journal of Propulsion Technology, 2022, 43(5): 200632. (in Chinese) [3] 曹玉璋,陶智,徐国强,等. 航空发动机传热学[M]. 北京: 北京航空航天大学出版社,2005: 17-31. [4] UNNIKRISHNAN U,YANG V. A review of cooling technologies for high temperature rotating components in gas turbine[J]. Propulsion and Power Research,2022,11(3): 293-310. [5] 王林,潘旭,杨锟. 考虑高压涡轮性能非确定的航空发动机鲁棒设计[J]. 航空动力学报,2024,39(4): 20230368. WANG Lin,PAN Xu,YANG Kun. Robust optimization in aero-engine design considering uncertainty of high-pressure turbine performance[J]. Journal of Aerospace Power,2024,39(4): 20230368. (in ChineseWANG Lin, PAN Xu, YANG Kun. Robust optimization in aero-engine design considering uncertainty of high-pressure turbine performance[J]. Journal of Aerospace Power, 2024, 39(4): 20230368. (in Chinese) [6] 罗佳奇,陈泽帅,邹正平,等. 低压涡轮铸造叶片几何不确定性统计[J]. 航空学报,2023,44(6): 427203. LUO Jiaqi,CHEN Zeshuai,ZOU Zhengping,et al. Statistics on geometric uncertainties of casting blades in low-pressure turbines[J]. Acta Aeronautica et Astronautica Sinica,2023,44(6): 427203. (in ChineseLUO Jiaqi, CHEN Zeshuai, ZOU Zhengping, et al. Statistics on geometric uncertainties of casting blades in low-pressure turbines[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(6): 427203. (in Chinese) [7] 杨泽南,许骏杰,赵婉蓉,等. 基于锥束CT的飞秒激光加工气膜孔几何特征测量及表征[J]. 航空动力学报,2023,38(5): 1198-1209. YANG Zenan,XU Junjie,ZHAO Wanrong,et al. Measurement and characterization of geometric features of femtosecond laser of film hole based on cone beam CT[J]. Journal of Aerospace Power,2023,38(5): 1198-1209. (in ChineseYANG Zenan, XU Junjie, ZHAO Wanrong, et al. Measurement and characterization of geometric features of femtosecond laser of film hole based on cone beam CT[J]. Journal of Aerospace Power, 2023, 38(5): 1198-1209. (in Chinese) [8] GAMANNOSSI A,AMERINI A,MAZZEI L,et al. Uncertainty quantification of film cooling performance of an industrial gas turbine vane[J]. Entropy,2019,22(1): 16. doi: 10.3390/e22010016 [9] 张现东,卜昆,董一巍,等. 基于迭代算法的复杂曲面零件三坐标测量快速精确定位方法[J]. 航空动力学报,2018,33(10): 2525-2532. ZHANG Xiandong,BU Kun,DONG Yiwei,et al. Fast and accurate locating method for sculptured surfaces measured with coordinate measuring machines based on iterative algorithm[J]. Journal of Aerospace Power,2018,33(10): 2525-2532. (in ChineseZHANG Xiandong, BU Kun, DONG Yiwei, et al. Fast and accurate locating method for sculptured surfaces measured with coordinate measuring machines based on iterative algorithm[J]. Journal of Aerospace Power, 2018, 33(10): 2525-2532. (in Chinese) [10] 王晶,侯尧华,赵卫,等. 叶片气膜孔加工自适应定位方法、系统、设备及存储介质: ZL202210344527.0[P]. 2023-05-02. [11] KLIUEV M,BOCCADORO M,PEREZ R,et al. EDM drilling and shaping of cooling holes in inconel 718 turbine blades[J]. Procedia CIRP,2016,42: 322-327. doi: 10.1016/j.procir.2016.02.293 [12] BUNKER R S. The effects of manufacturing tolerances on gas turbine cooling[J]. Journal of Turbomachinery,2009,131(4): 041018. doi: 10.1115/1.3072494 [13] 史伟. 燃机透平气膜孔加工精度对气膜冷却流动传热特性影响[D]. 北京: 清华大学,2019: 57-89. SHI Wei. Effect of machining accuracy of gas turbine gas film holes on heat transfer characteristics of gas film cooling flow[D]. Beijing: Tsinghua University,2019: 57-89. (in ChineseSHI Wei. Effect of machining accuracy of gas turbine gas film holes on heat transfer characteristics of gas film cooling flow[D]. Beijing: Tsinghua University, 2019: 57-89. (in Chinese) [14] JOVANOVIC M B,DE LANGE H C,VAN STEENHOVEN A A. Influence of hole imperfection on jet cross flow interaction[J]. International Journal of Heat and Fluid Flow,2006,27(1): 42-53. doi: 10.1016/j.ijheatfluidflow.2005.06.003 [15] BUNKER R S. A review of shaped hole turbine film-cooling technology[J]. Journal of Heat Transfer,2005,127(4): 441-453. doi: 10.1115/1.1860562 [16] HAYDT S,LYNCH S,LEWIS S. The effect of a meter-diffuser offset on shaped film cooling hole adiabatic effectiveness[J]. Journal of Turbomachinery,2017,139(9): 091012. doi: 10.1115/1.4036199 [17] 贺业光,张明,张德恒,等. U形凹坑孔气膜冷却特性实验研究[J]. 航空动力学报,2025,40(3): 20230266. HE Yeguang,ZHANG Ming, ZHANG Deheng,et al. Experimental study on film cooling characteristics of U-crater holes[J]. Journal of Aerospace Power,2025,40(3): 20230266. (in ChineseHE Yeguang, ZHANG Ming, ZHANG Deheng, et al. Experimental study on film cooling characteristics of U-crater holes[J]. Journal of Aerospace Power, 2025, 40(3): 20230266. (in Chinese) [18] 吕东,刘英实,韦文涛,等. 在气膜孔边采用半球形凹坑和圆滑凸肋结构的涡轮叶片: CN117823233A[P]. 2024-04-05. [19] WANG Jin,TIAN Ke,LUO Jing,et al. Effect of hole configurations on film cooling performance[J]. Numerical Heat Transfer,Part A: Applications,2019,75(11): 725-738. doi: 10.1080/10407782.2019.1608762 [20] LIU Yingshi,LV Dong,KONG Xingao,et al. Numerical study on the 3D inclination angle of film cooling under non-adiabatic conditions[M]//Lecture Notes in Electrical Engineering. Singapore: Springer Nature Singapore,2024: 253-262. -
