Effects of film hole diameter variations on overall cooling performance of a rotating turbine blade
-
摘要:

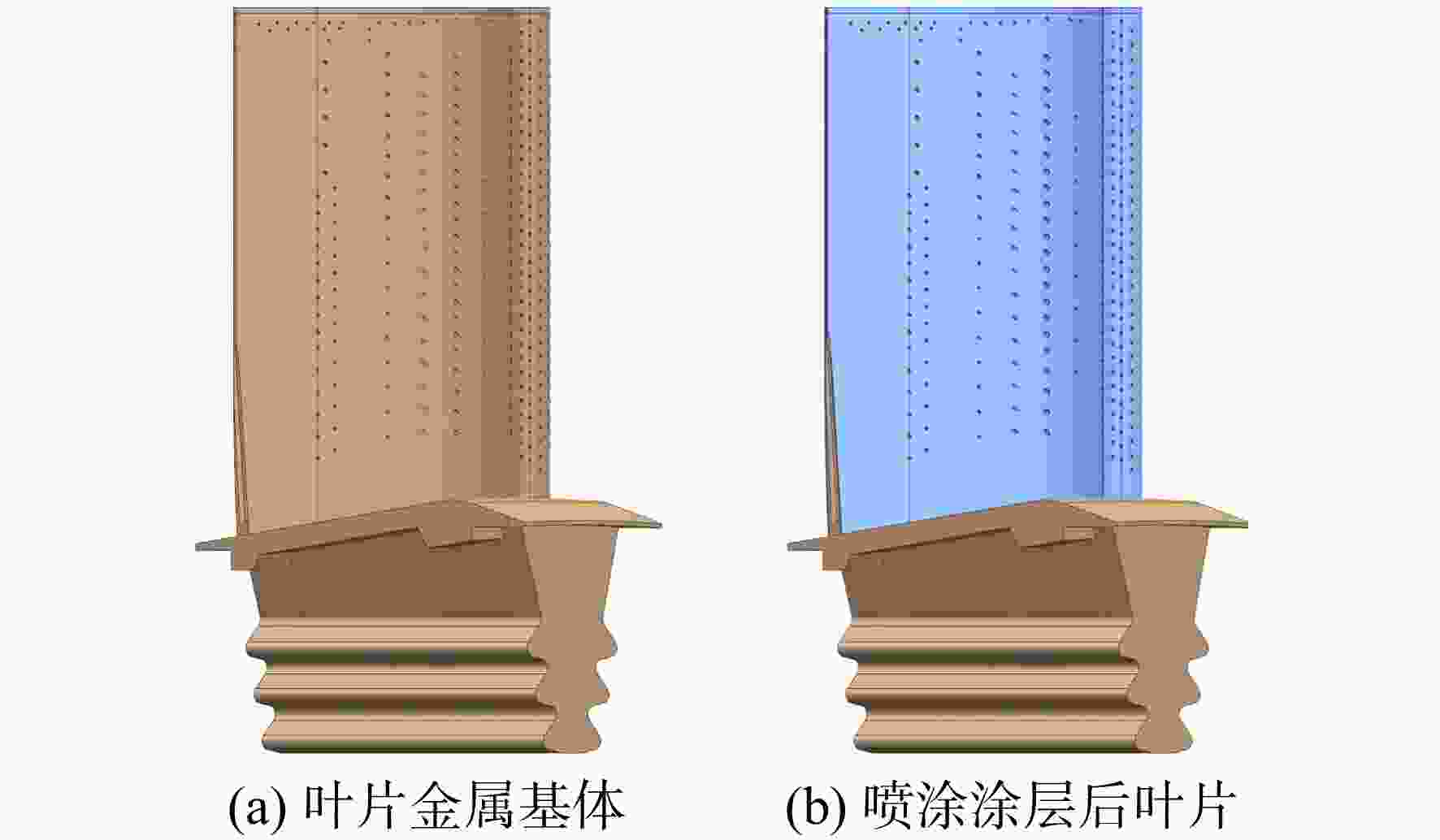

选取涡轮旋转叶片为研究对象，针对加工制造过程中激光打孔以及涂层喷涂导致的气膜孔孔径与设计值不同的问题，对比分析了气膜孔孔径变化对叶片不同区域冷却效率的影响。根据对某型发动机相关数据的统计分析，激光加工后气膜孔孔径大于设计值，而在喷涂涂层后，孔径减小至设计值以下。据此，本文建立不同工况并进行耦合换热计算，结果表明：气膜孔孔径变化对外换热较强区域冷却效率的影响更为显著；近尾缘区域处综合冷却效率在气膜孔孔径达到设计值时最佳，其余位置上综合冷却效率与气膜孔孔径呈正相关，气膜孔径增加显著提升综合冷却效率，影响程度达164.13%/mm，远超孔径减小时的78.72%/mm；气膜孔孔径变化对前缘区域冷却效率影响程度较大，平均影响程度最高可达254.62%/mm，在设计时需要重点关注。
Abstract:In view of the problem that the film hole diameters are different from their design values caused by laser drilling and coating spraying during the manufacturing, the effects of film hole diameter change on the cooling effectiveness in different regions of the blade were analyzed for a rotating turbine blade. According to the statistics from a real engine, the diameter of the film hole was larger after laser processing but smaller after coating spraying relative to the design value. Based on this, different models were established and conjugate heat transfer simulations were carried out. The results showed that the change of film hole diameter had a more significant effect on the cooling effectiveness in the region with strong external heat transfer boundaries. The comprehensive cooling efficiency near the trailing edge region was the best when the film hole diameter reached the design value, and the efficiency was positively correlated with the film hole diameter in the other positions. The increase of the film hole diameter significantly improved the comprehensive cooling efficiency by 164.13%/mm, which was far more than 78.72%/mm when the film hole diameter decreased. The change of film hole diameter had a great influence on the cooling efficiency of the leading edge, and the average influence degree can be up to 254.62%/mm, which need to be paid more attention in the design.
-

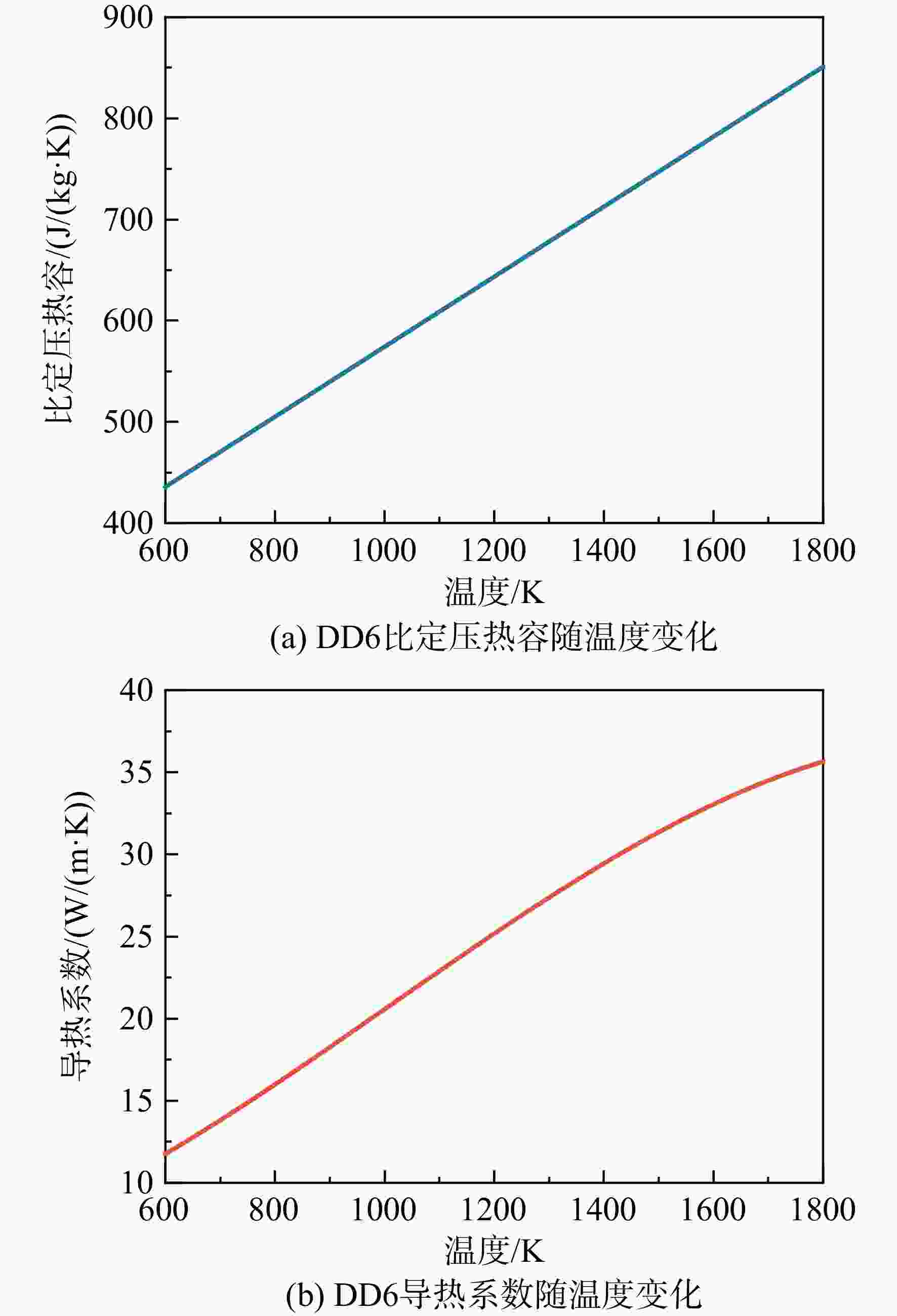

图 7 不同温度下DD6物性参数分布
Figure 7. Distribution of physical parameters of DD6 at different temperatures

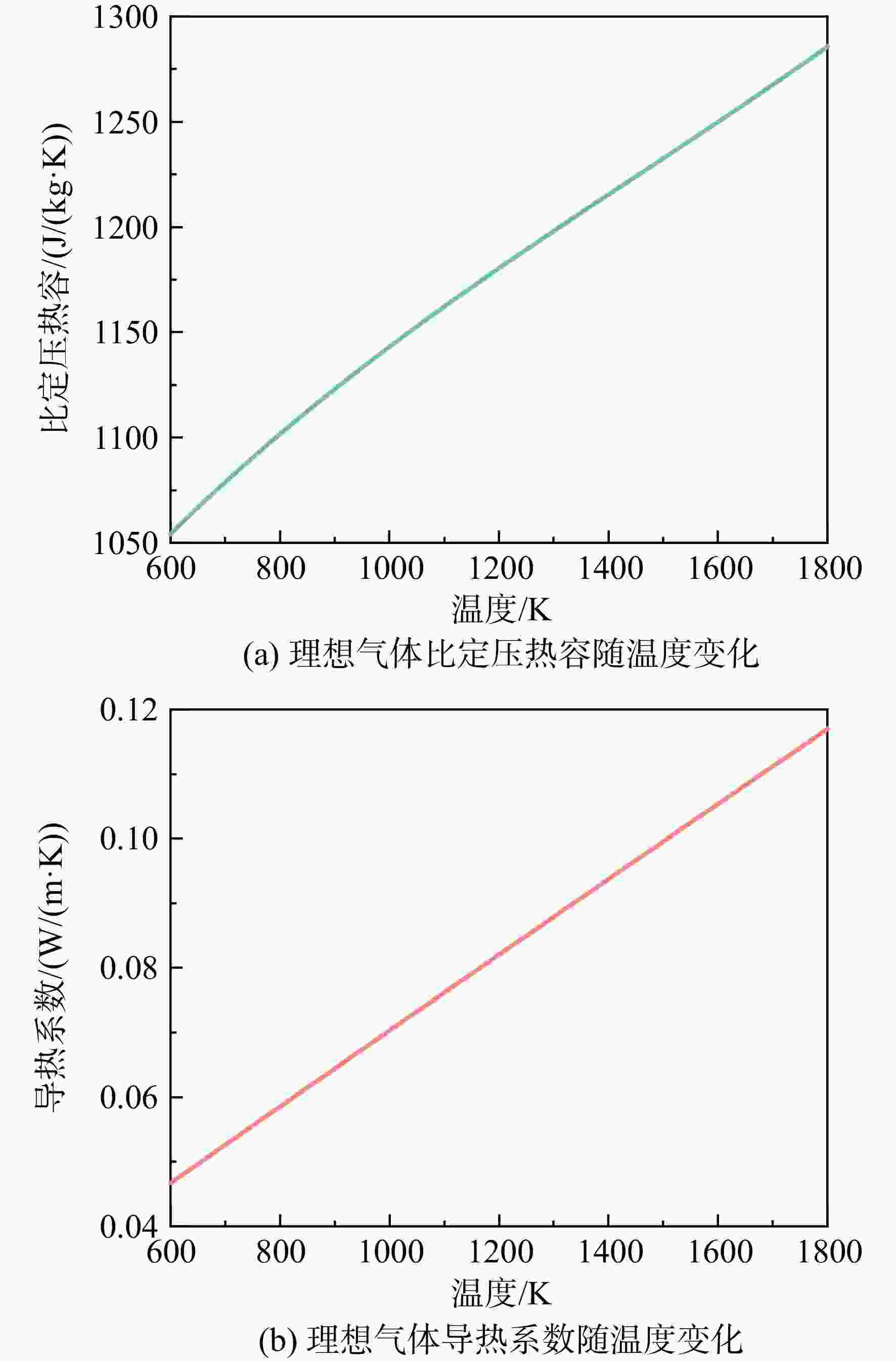

图 8 不同温度下理想气体物性参数分布
Figure 8. Distribution of physical parameters of ideal gas at different temperatures

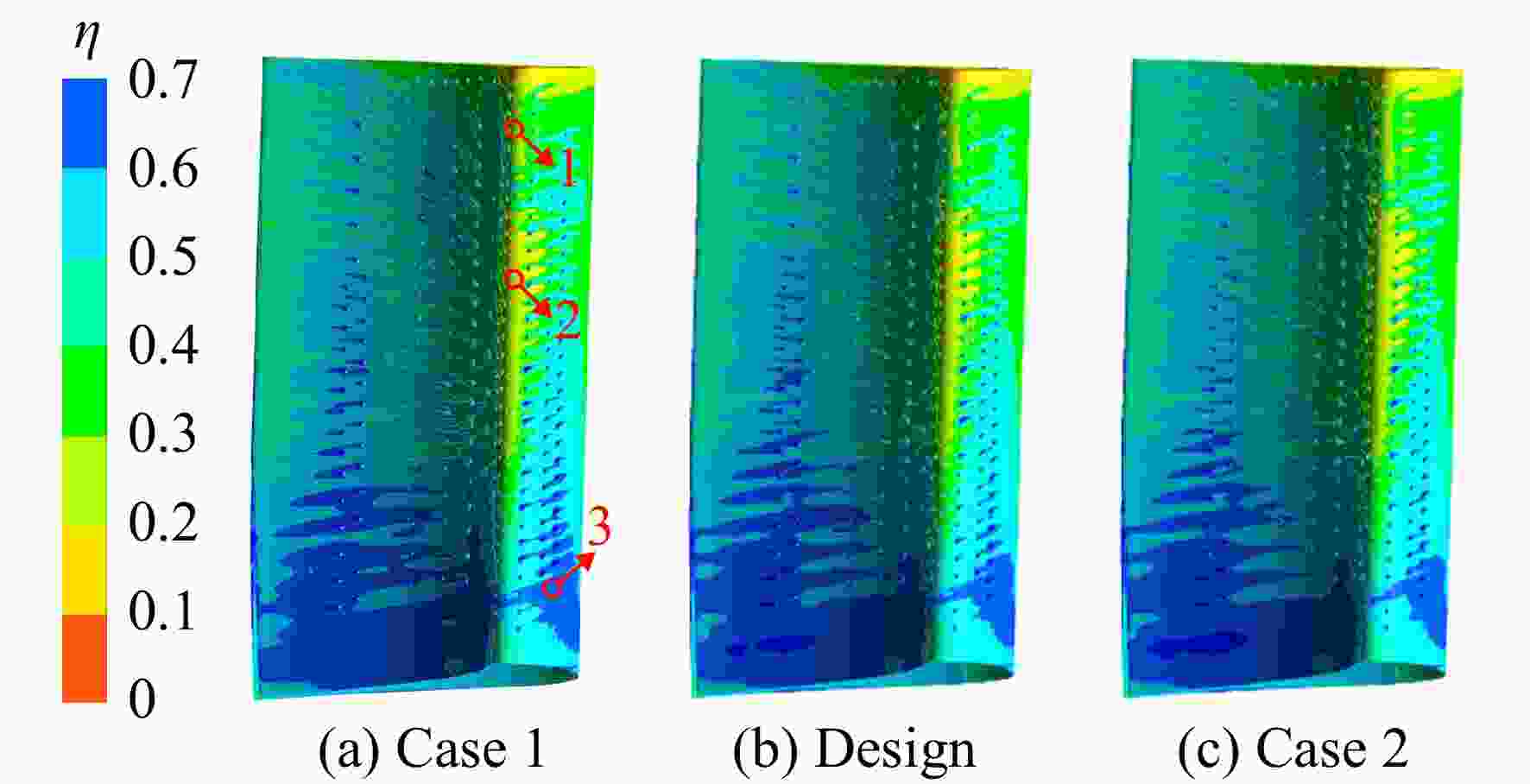

图 9 叶片前缘综合冷效分布
Figure 9. Overall cooling effectiveness distribution of blade leading edge

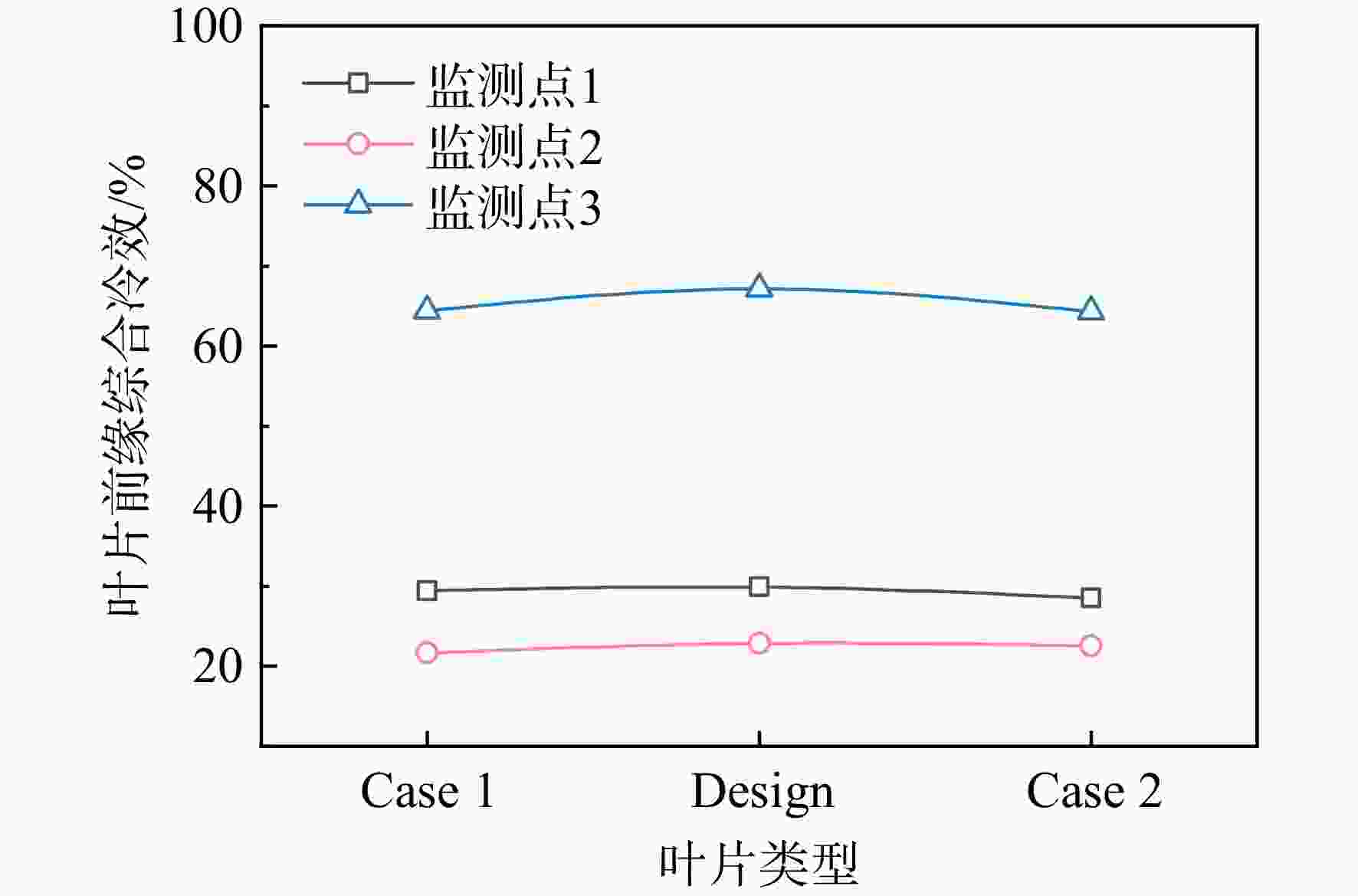

图 10 不同工况下监测点处综合冷效（叶片前缘）
Figure 10. Overall cooling effectiveness at monitoring points in different working conditions （blade leading edge）

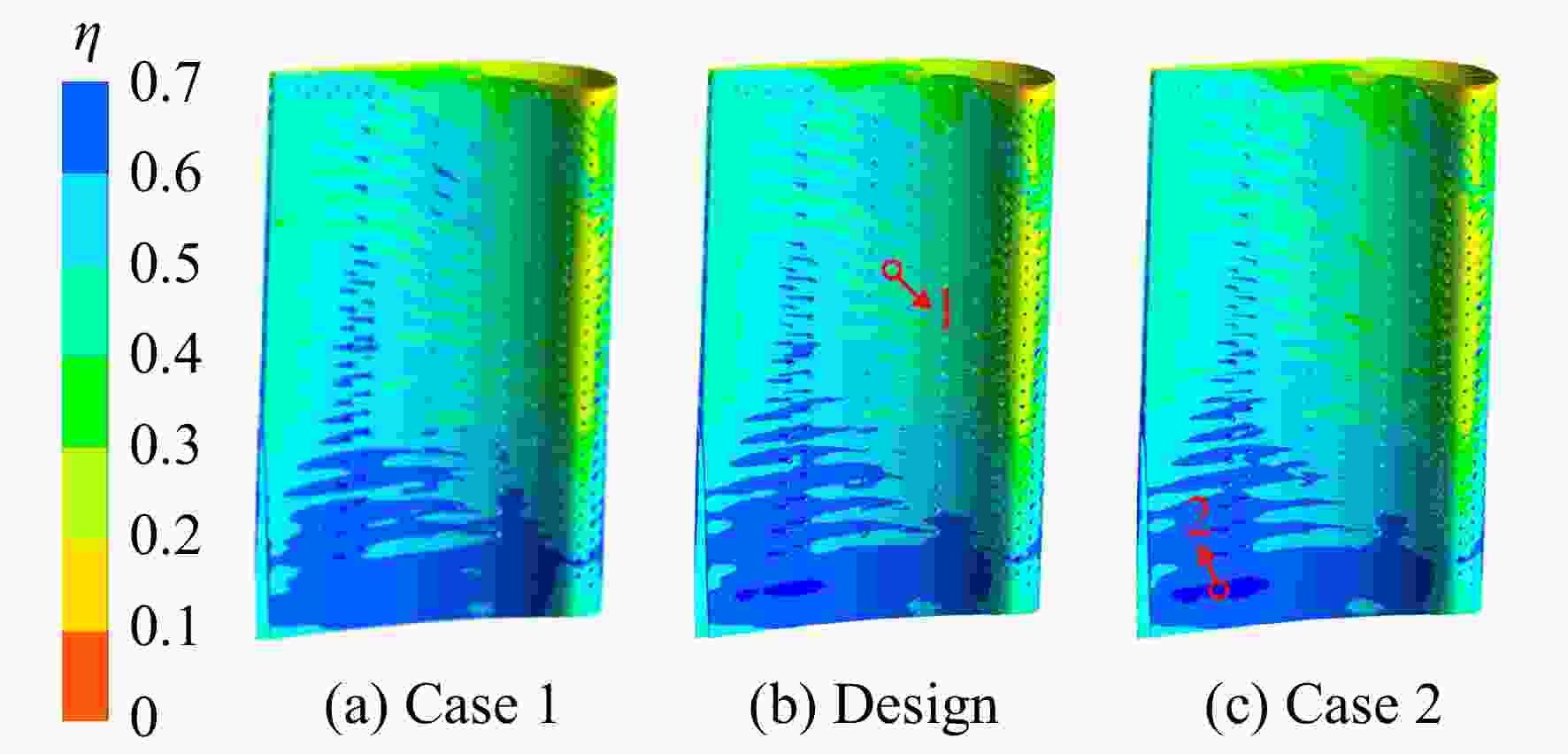

图 11 叶片压力面综合冷效分布
Figure 11. Overall cooling effectiveness distribution of blade pressure side

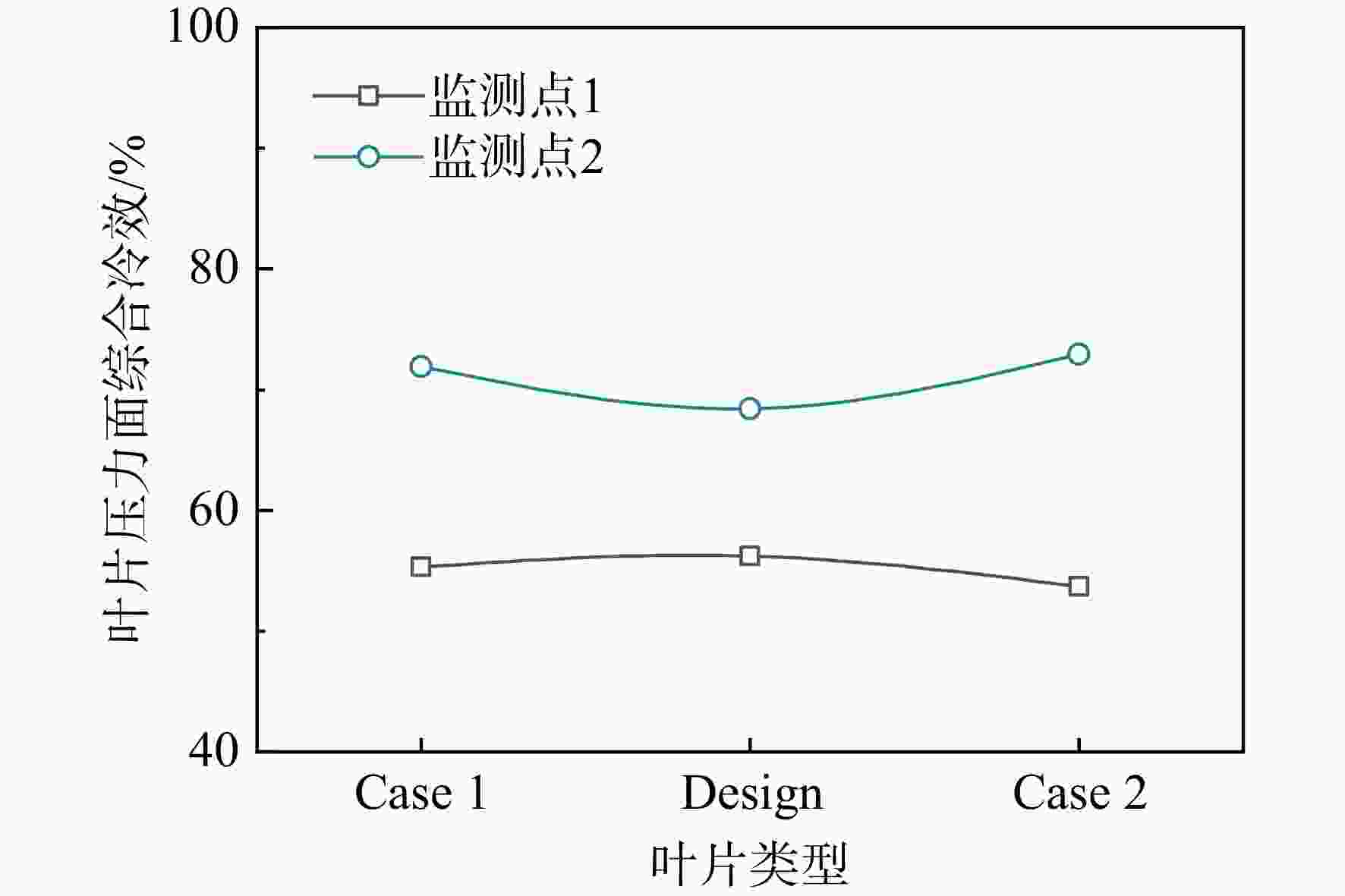

图 12 不同工况下监测点处综合冷效（叶片压力面）
Figure 12. Overall cooling effectiveness at monitoring points in different working conditions （blade pressure side）

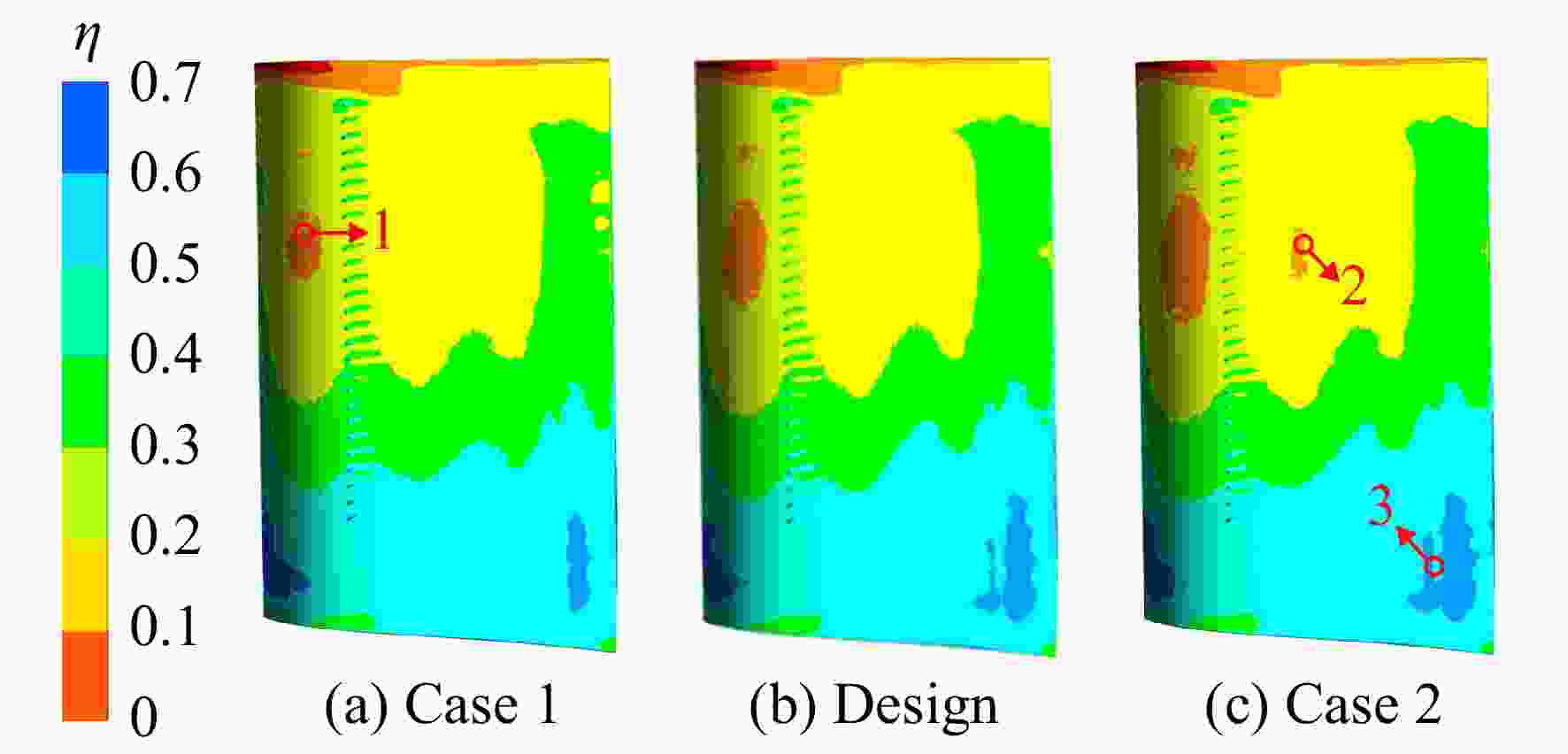

图 13 叶片吸力面综合冷效分布
Figure 13. Overall cooling effectiveness distribution of blade suction side

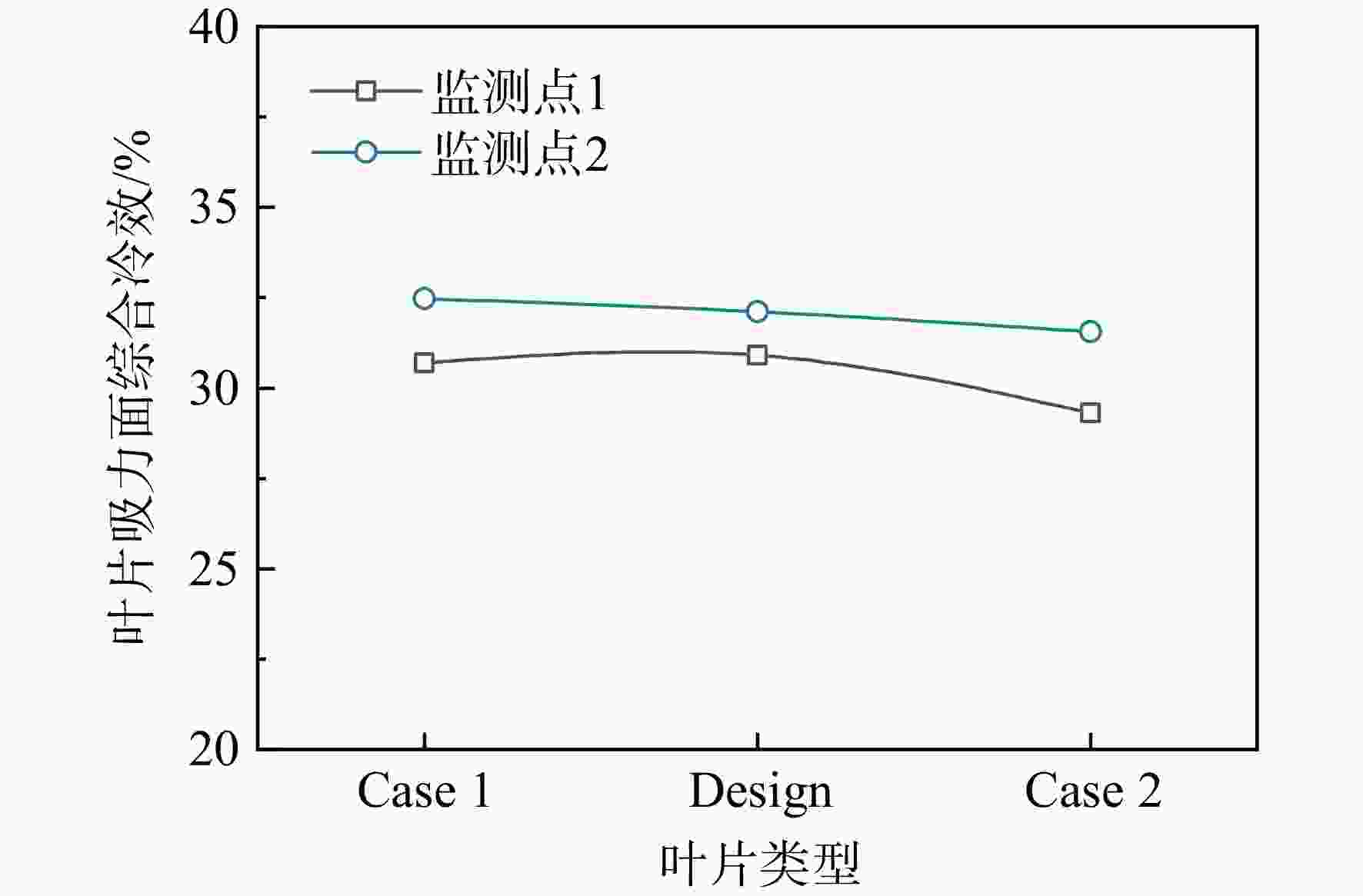

图 14 不同工况下监测点处综合冷效（叶片吸力面）
Figure 14. Overall cooling effectiveness at monitoring points in different working conditions （blade suction side）

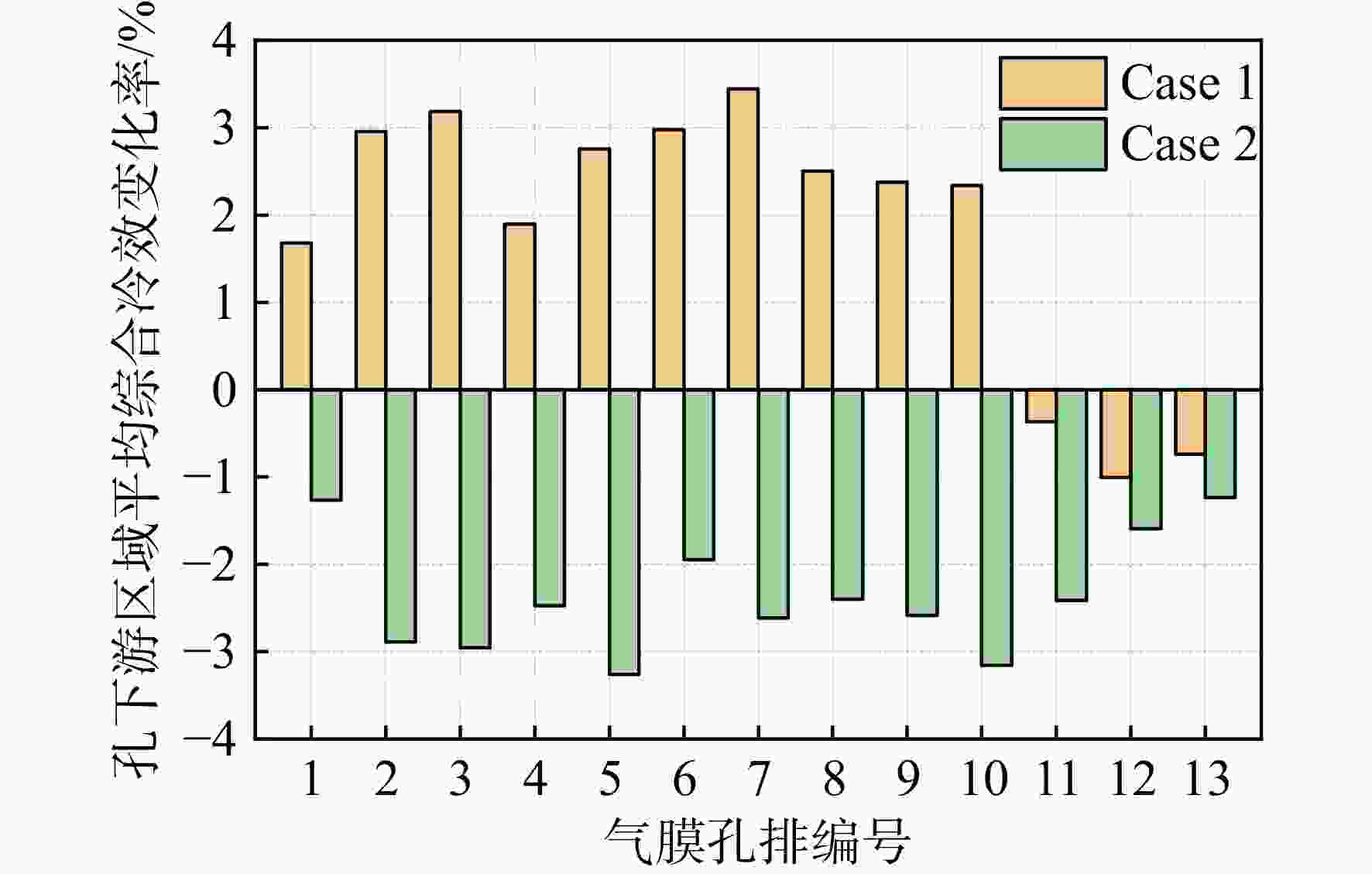

图 15 气膜孔孔径变化对叶片综合冷效的影响
Figure 15. Effect of film hole diameter change on overall cooling effectiveness of blade
表 1 工况编号对应关系
Table 1. Corresponding relationship of working condition number
工况名称 工况编号 激光打孔加工叶片 Case 1 设计叶片 Design 喷涂涂层后的涂层堵孔叶片 Case 2
下载: 导出CSV
表 2 气膜孔孔径对应关系
Table 2. Corresponding relationship of film hole diameter
mm 工况 气膜孔孔径 Design 0.3 0.32 0.33 0.38 0.4 0.46 0.48 0.58 Case 1 0.32 0.35 0.35 0.4 0.41 0.49 0.5 0.6 Case 2 0.28 0.29 0.31 0.36 0.39 0.43 0.46 0.56
下载: 导出CSV

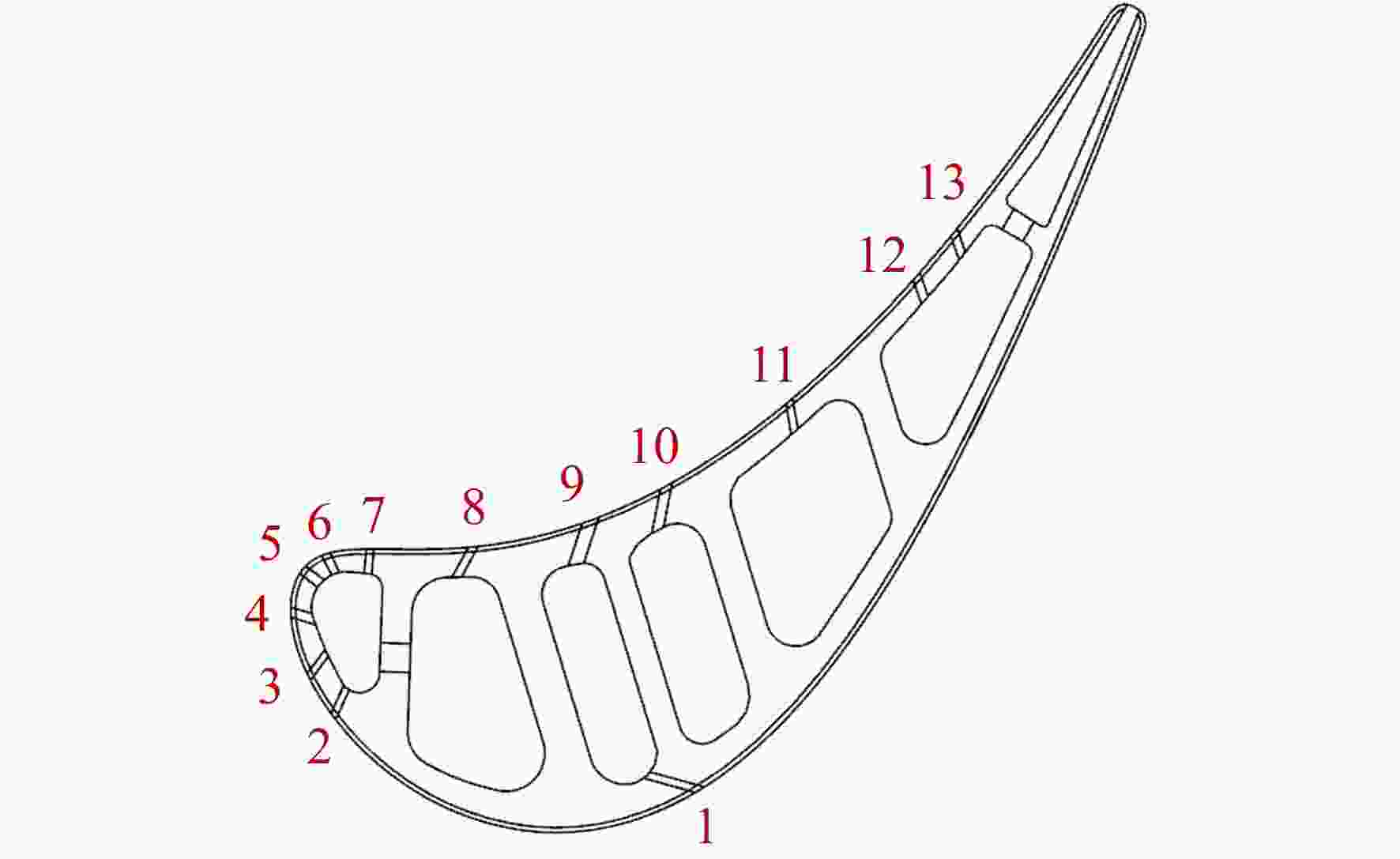

表 4 不同工况下孔下游区域平均综合冷效
Table 4. Average overall cooling effectiveness of downstream area of hole in different working conditions
% 孔排
编号孔下游区域平均综合冷效η Case 1 Design Case 2 1 41.12 40.44 39.93 2 48.83 47.43 46.06 3 43.7 42.35 41.1 4 31.71 31.12 30.35 5 32.8 31.92 30.88 6 39.12 37.99 37.25 7 44.72 43.23 42.1 8 50.36 49.13 47.95 9 49.98 48.82 47.56 10 52.92 51.71 50.08 11 54.47 54.67 53.35 12 57.97 58.56 57.63 13 57.98 58.41 57.69
下载: 导出CSV
-
[1] 张凯荣, 徐毅, 刘梅军, 等. 热障涂层服役温度测试与隔热机理[J]. 材料保护, 2024, 57(3): 38-49. ZHANG Kairong, XU Yi, LIU Meijun, et al. Service temperature measurement and thermal insulation mechanism of thermal barrier coatings[J]. Materials Protection, 2024, 57(3): 38-49. (in ChineseZHANG Kairong, XU Yi, LIU Meijun, et al. Service temperature measurement and thermal insulation mechanism of thermal barrier coatings[J]. Materials Protection, 2024, 57(3): 38-49. (in Chinese) [2] 朱之丽, 陈敏, 唐海龙, 等. 航空燃气涡轮发动机工作原理及性能[M]. 上海: 上海交通大学出版社, 2014. [3] 林宏镇, 汪火光, 蒋章焰. 高性能航空发动机传热技术[M]. 北京: 国防工业出版社, 2005. [4] 朱海南, 齐歆霞. 涡轮叶片气膜孔加工技术及其发展[J]. 航空制造技术, 2011, 54(13): 71-74. ZHU Hainan, QI Xinxia. Development of machining technology gas holes on turbine blades[J]. Aeronautical Manufacturing Technology, 2011, 54(13): 71-74. (in Chinese doi: 10.3969/j.issn.1671-833X.2011.13.013ZHU Hainan, QI Xinxia. Development of machining technology gas holes on turbine blades[J]. Aeronautical Manufacturing Technology, 2011, 54(13): 71-74. (in Chinese) doi: 10.3969/j.issn.1671-833X.2011.13.013 [5] 王海, 范芳苏, 浦健, 等. 带凹坑圆孔气膜冷却流动传热特性[J]. 航空动力学报, 2022, 37(3): 492-501. WANG Hai, FAN Fangsu, PU Jian, et al. Flow and heat transfer characteristics of round-hole film cooling with crater[J]. Journal of Aerospace Power, 2022, 37(3): 492-501. (in ChineseWANG Hai, FAN Fangsu, PU Jian, et al. Flow and heat transfer characteristics of round-hole film cooling with crater[J]. Journal of Aerospace Power, 2022, 37(3): 492-501. (in Chinese) [6] 李广超, 刘野, 郭云修, 等. 气膜孔堵塞对叶片吸力面换热性能影响[J]. 热能动力工程, 2021, 36(11): 41-46, 56. LI Guangchao, LIU Ye, GUO Yunxiu, et al. Influence of blockage inside film cooling hole on heat transfer performance of vane suction surface[J]. Journal of Engineering for Thermal Energy and Power, 2021, 36(11): 41-46, 56. (in ChineseLI Guangchao, LIU Ye, GUO Yunxiu, et al. Influence of blockage inside film cooling hole on heat transfer performance of vane suction surface[J]. Journal of Engineering for Thermal Energy and Power, 2021, 36(11): 41-46, 56. (in Chinese) [7] 杨晓军, 许诺然, 刘智刚. 污染物沉积和热障涂层脱落对气膜冷却效率影响的数值研究[J]. 推进技术, 2013, 34(10): 1362-1368. YANG Xiaojun, XU Nuoran, LIU Zhigang. Effects of deposition and thermal barrier coating spallation on film cooling effectiveness: a numerical study[J]. Journal of Propulsion Technology, 2013, 34(10): 1362-1368. (in ChineseYANG Xiaojun, XU Nuoran, LIU Zhigang. Effects of deposition and thermal barrier coating spallation on film cooling effectiveness: a numerical study[J]. Journal of Propulsion Technology, 2013, 34(10): 1362-1368. (in Chinese) [8] BUNKER R S. Effect of partial coating blockage on film cooling effectiveness[R]. Virtual: ASME Turbo Expo 2000: Power for Land, Sea, and Air, 2000. [9] WHITFIELD C A, SCHROEDER R P, THOLE K A, et al. Blockage effects from simulated thermal barrier coatings for cylindrical and shaped cooling holes[R]. Dusseldorf, Germany: ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, 2014. [10] OGIRIKI E A, LI Y G, NIKOLAIDIS T, et al. Effect of fouling, thermal barrier coating degradation and film cooling holes blockage on gas turbine engine creep life[J]. Procedia CIRP, 2015, 38: 228-233. doi: 10.1016/j.procir.2015.07.017 [11] LEE Sanga, HWANG W, YEE K. Robust design optimization of a turbine blade film cooling hole affected by roughness and blockage[J]. International Journal of Thermal Sciences, 2018, 133: 216-229. doi: 10.1016/j.ijthermalsci.2018.07.012 [12] 康军卫, 程玉贤. 航空发动机涡轮叶片缩孔问题及控制研究[J]. 沈阳航空航天大学学报, 2018, 35(4): 60-66. KANG Junwei, CHENG Yuxian. Diameter shrinkage of aero-engine gas turbine blades and its control[J]. Journal of Shenyang Aerospace University, 2018, 35(4): 60-66. (in Chinese doi: 10.3969/j.issn.2095-1248.2018.04.006KANG Junwei, CHENG Yuxian. Diameter shrinkage of aero-engine gas turbine blades and its control[J]. Journal of Shenyang Aerospace University, 2018, 35(4): 60-66. (in Chinese) doi: 10.3969/j.issn.2095-1248.2018.04.006 [13] BOGARD D G, SCHMIDT D L, TABBITA M. Characterization and laboratory simulation of turbine airfoil surface roughness and associated heat transfer[J]. Journal of Turbomachinery, 1998, 120(2): 337-342. doi: 10.1115/1.2841411 [14] SUNDARAM N, THOLE K A. Effects of surface deposition, hole blockage, and thermal barrier coating spallation on vane endwall film cooling[J]. Journal of Turbomachinery, 2007, 129(3): 599-607. doi: 10.1115/1.2720485 [15] WALSH W S, THOLE K A, JOE C. Effects of sand ingestion on the blockage of film-cooling holes[R]. Barcelona, Spain: ASME Turbo Expo 2006: Power for Land, Sea, and Air, 2006. [16] HUANG Ke’nan, ZHANG Jingzhou, TAN Xiaoming, et al. Experimental study on film cooling performance of imperfect holes[J]. Chinese Journal of Aeronautics, 2018, 31(6): 1215-1221. doi: 10.1016/j.cja.2018.04.001 [17] TIAN Ke, WANG Jin, LIU Chao, et al. Effect of blockage configuration on film cooling with and without mist injection[J]. Energy, 2018, 153: 661-670. doi: 10.1016/j.energy.2018.04.050 [18] JOVANOVIĆ M B, DE LANGE H C, VAN STEENHOVEN A A. Influence of hole imperfection on jet cross flow interaction[J]. International Journal of Heat and Fluid Flow, 2006, 27(1): 42-53. doi: 10.1016/j.ijheatfluidflow.2005.06.003 [19] JOVANOVIĆ M B, DE LANGE H C, VAN STEENHOVEN A A. Effect of hole imperfection on adiabatic film cooling effectiveness[J]. International Journal of Heat and Fluid Flow, 2008, 29(2): 377-386. doi: 10.1016/j.ijheatfluidflow.2007.11.008 [20] MENTER F. Zonal two equation k-ω turbulence models for aerodynamic flows[R]. AIAA1993-2906, 1993. [21] MENTER F, SCHUTZE J, KURBATSKII K, et al. Scale-resolving simulation techniques in industrial CFD[R]. AIAA2011-3474, 2011. [22] DU Zequn, LI Haiwang, YOU Ruquan, et al. Effects of thermal barrier coating thickness and surface roughness on cooling performance sensitivity of a turbine blade[J]. Case Studies in Thermal Engineering, 2023, 52: 103727. doi: 10.1016/j.csite.2023.103727 -
