基于LSTM的航空发动机涡轮盘局部服役温度-应力快速预测方法

程穆威; 杨晓光; 范永升; 姜仁杰; 石多奇

doi:10.13224/j.cnki.jasp.20240547

基于LSTM的航空发动机涡轮盘局部服役温度-应力快速预测方法

doi: 10.13224/j.cnki.jasp.20240547

北京航空航天大学能源与动力工程学院，北京 100191

基金项目: 国家科技重大专项（J2019-Ⅳ-0017-0085）；国家自然科学基金（52205139，12172021）

详细信息

作者简介:
程穆威（1997-），男，博士生，主要从事航空发动机高温结构强度与寿命预测的研究。E-mail：muwei_cheng@buaa.edu.cn

通讯作者:
范永升（1991-），男，副教授，博士，主要从事航空发动机结构完整性的研究。E-mail：fanys@buaa.edu.cn

中图分类号: V232.3
计量
- 文章访问数: 662
- HTML浏览量: 298
- PDF量: 73
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-05
- 网络出版日期: 2025-07-31

Rapid prediction method for local service temperature and stress on aeroengine turbine disks based on LSTM network

School of Energy and Power Engineering，Beihang University，Beijing 100191，China

摘要

摘要:
建立基于发动机服役历程数据的涡轮盘关键位置温度-应力预测模型，旨在为热端部件的服役损伤评估和寿命分析提供温度和应力历程输入。通过发动机热力循环过程推算涡轮盘载荷相关的气路参数，基于数值模拟结果，构建并训练了基于长短期记忆（LSTM）神经网络的涡轮盘温度和应力预测模型。通过交叉验证和噪声植入，评估了模型的泛化能力。结果表明：所建立的模型在测试集上达到了5.4×10⁻⁴的归一化均方误差。利用所建立的方法分析了典型飞行动作下的关键位置温度、应力演化历程，为发动机的任务设计和涡轮盘服役损伤评估提供了重要输入。
- 涡轮盘 /
- LSTM网络 /
- 服役历程 /
- 载荷谱 /
- 数据驱动
Abstract:
A predictive model for temperature and stress at critical locations of turbine disks was developed using engine service data, with its aim to provide essential inputs for service damage assessment and life analysis of hot-section components. The research derived gas path parameters related to turbine disk loading through engine thermodynamic cycle analysis. Based on numerical simulation results, a Long Short-Term Memory (LSTM) neural network model was constructed and trained to predict turbine disk temperature and stress. The generalization of proposed model capability was evaluated through cross-validation and noise injection. Result demonstrated that the established model achieved a normalized mean square error of 5.4×10⁻⁴ on the test set. The developed methodology allowed to analyze temperature and stress evolution patterns during typical flight maneuvers, providing crucial inputs for engine mission design and turbine disk service damage assessment.
- turbine disk /
- LSTM network /
- operating history /
- load spectrum /
- data-driven

HTML

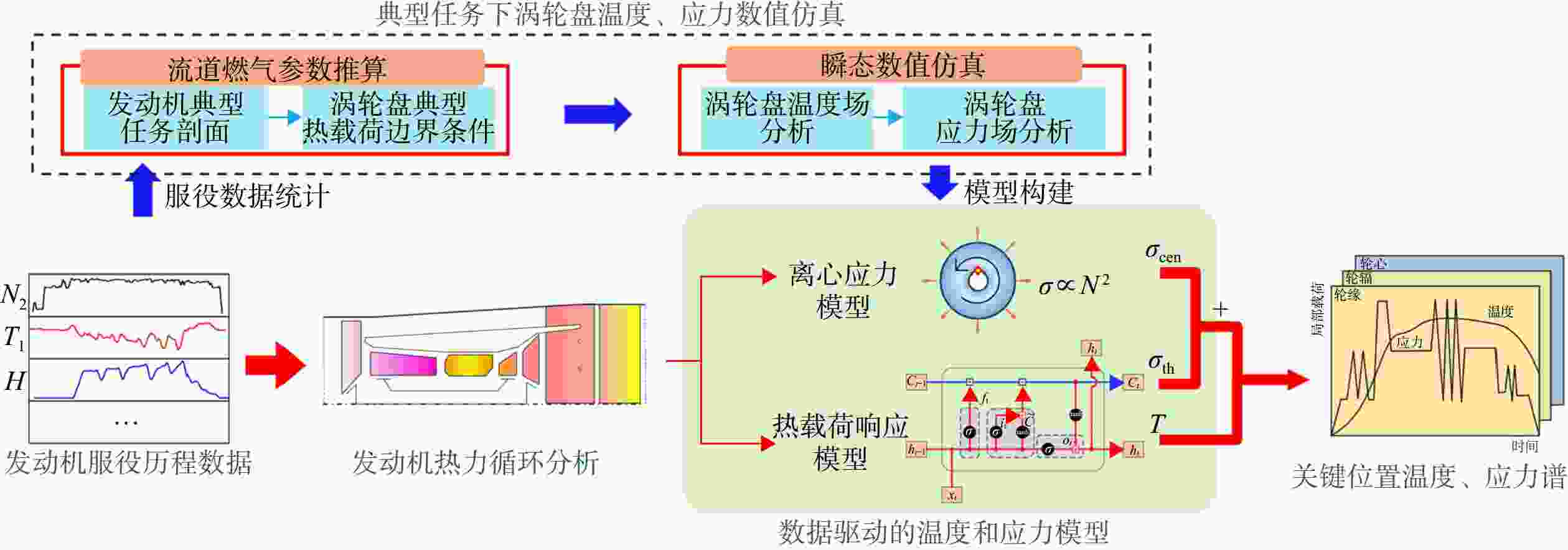

图 1 涡轮盘服役应力和温度预测方法流程图

Figure 1. Method flowchart for predicting turbine disc service stress and temperature

下载: 全尺寸图片幻灯片

图 2 双转子涡扇发动机结构示意图

Figure 2. Structural diagram of the two-spool turbofan engine

下载: 全尺寸图片幻灯片

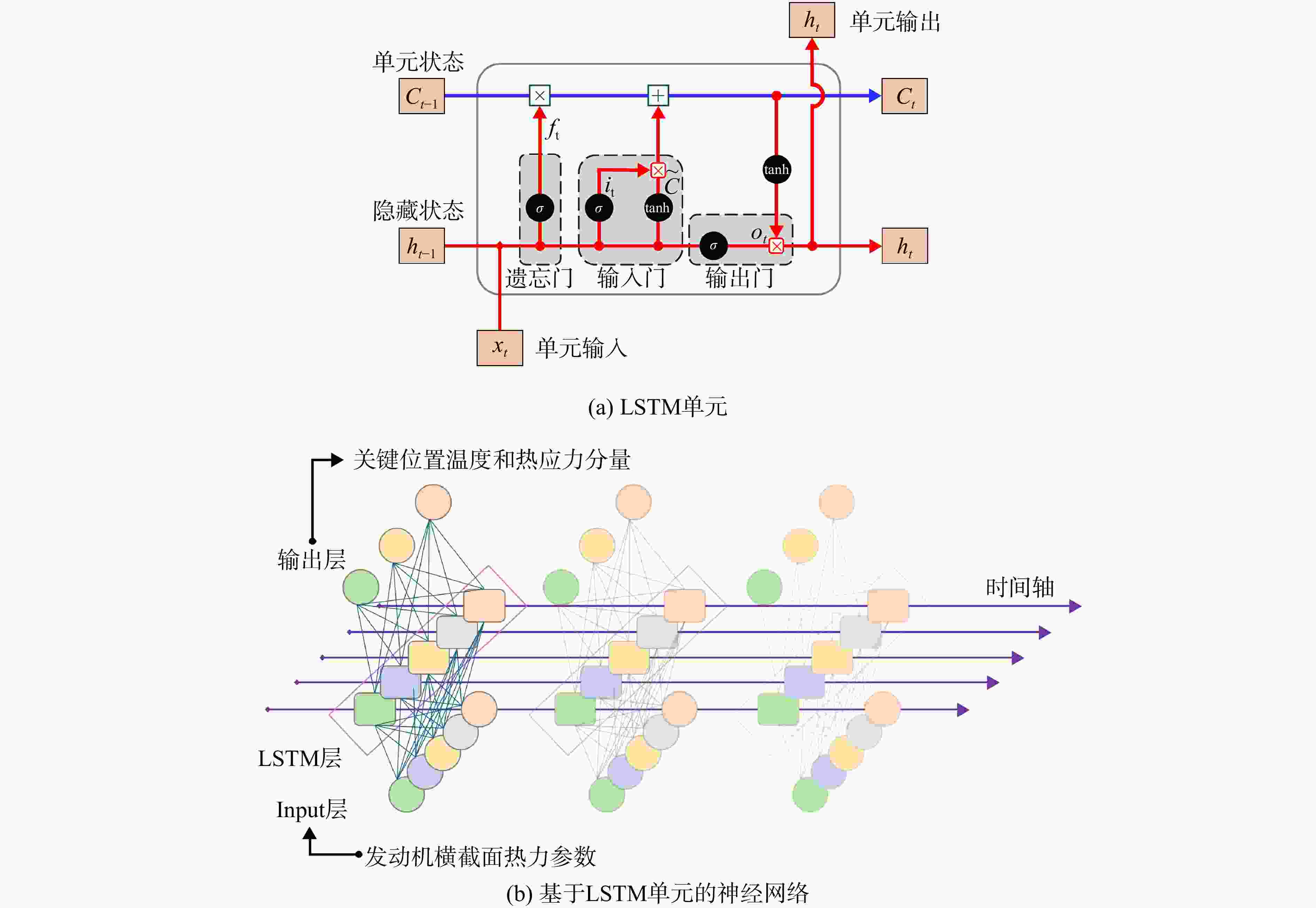

图 3 LSTM单元和网络结构

Figure 3. Structure of LSTM cell and network

下载: 全尺寸图片幻灯片

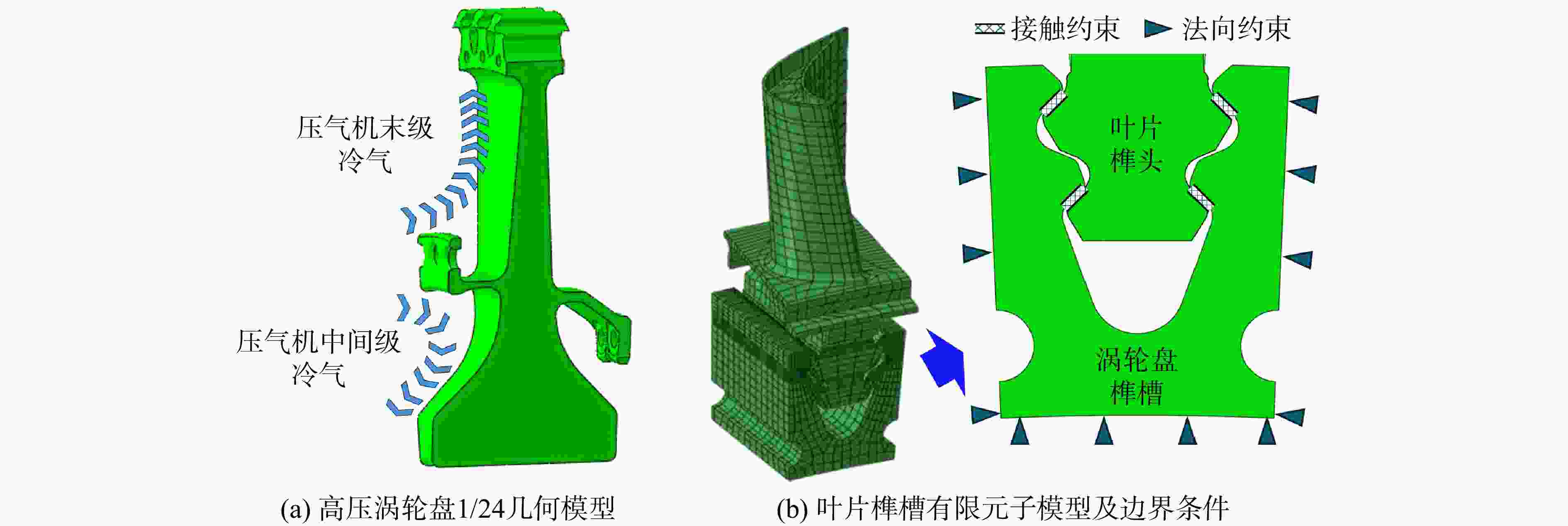

图 4 涡轮盘几何模型和边界条件

Figure 4. Geometry model and boundary conditions of turbine disk

下载: 全尺寸图片幻灯片

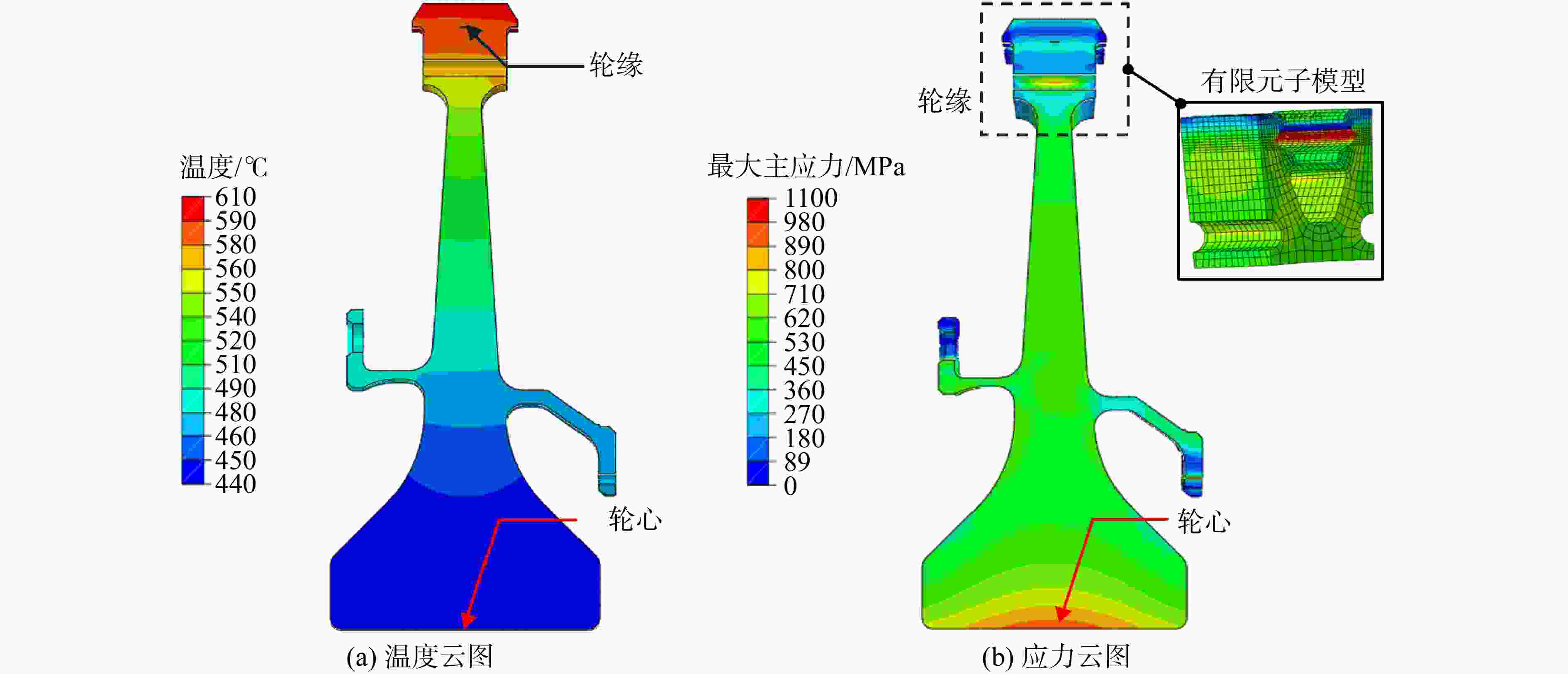

图 5 起飞状态下的涡轮盘云图

Figure 5. Contour of turbine disk under take-off state

下载: 全尺寸图片幻灯片

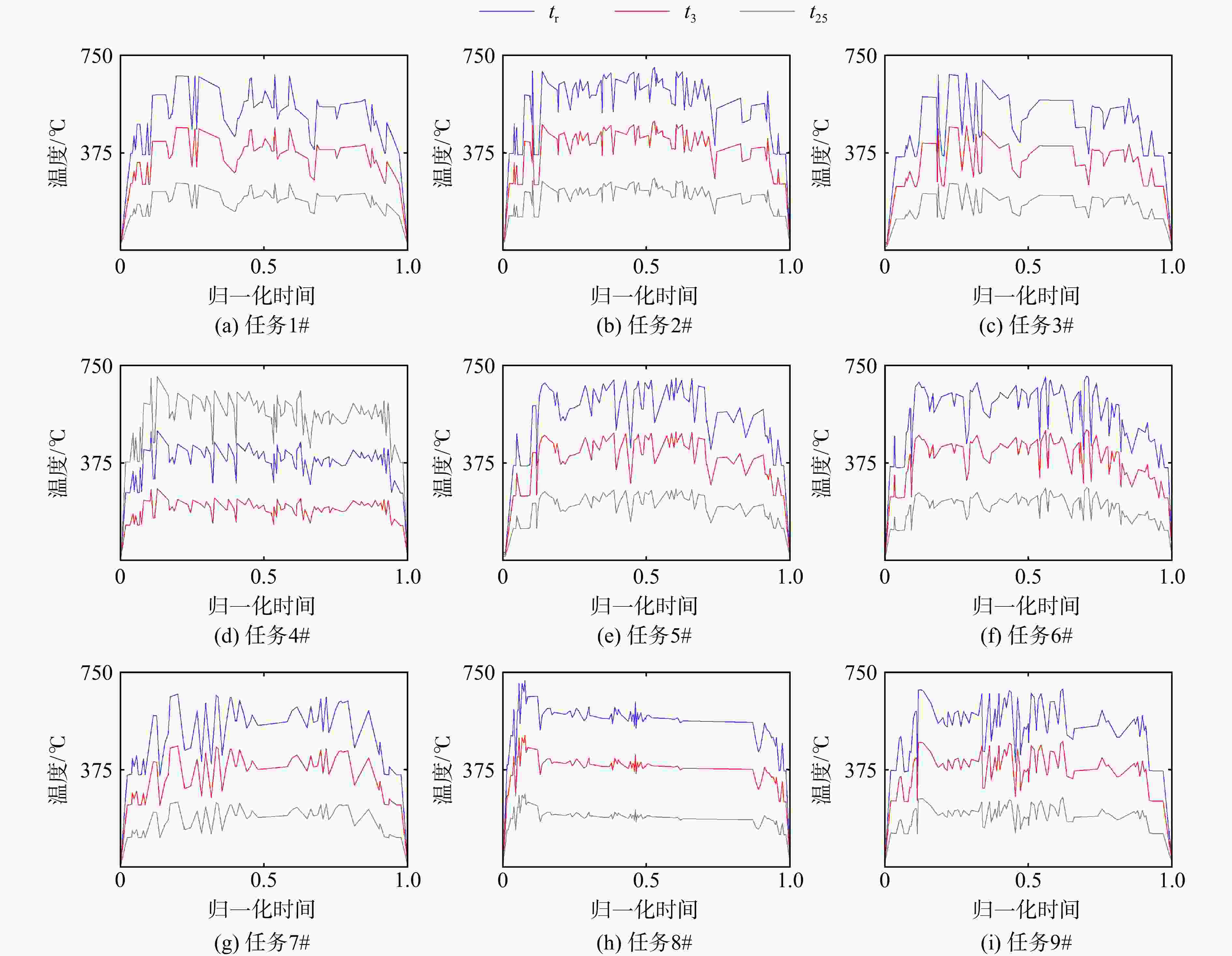

图 6 发动机典型飞行任务下涡轮盘热边界条件剖面

Figure 6. Spectra of disk thermal boundary conditions under typical engine flight mission

下载: 全尺寸图片幻灯片

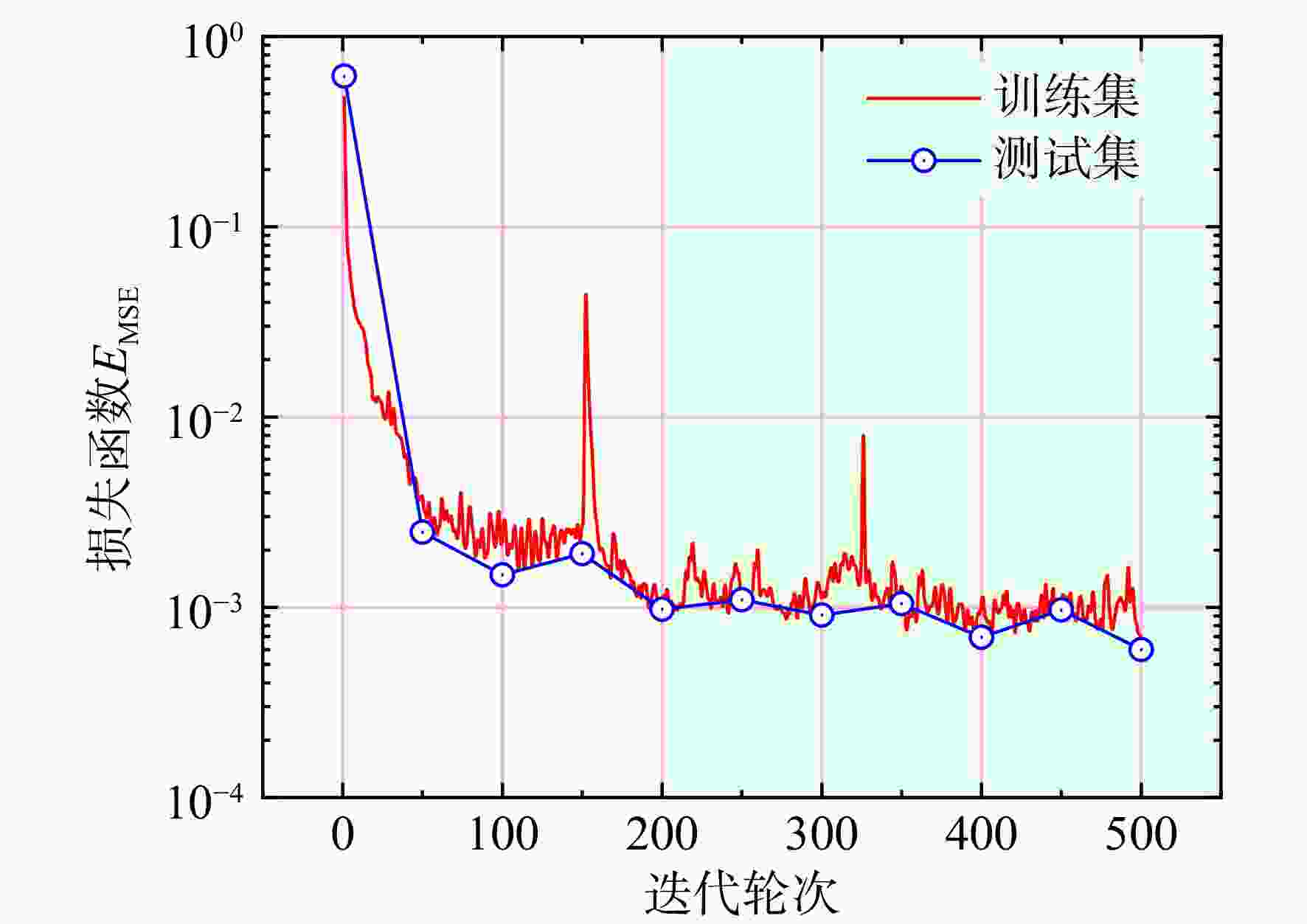

图 7 网络训练过程中损失函数

Figure 7. Loss function during network training

下载: 全尺寸图片幻灯片

图 8 模型预测误差带图

Figure 8. Model prediction error bands graph

下载: 全尺寸图片幻灯片

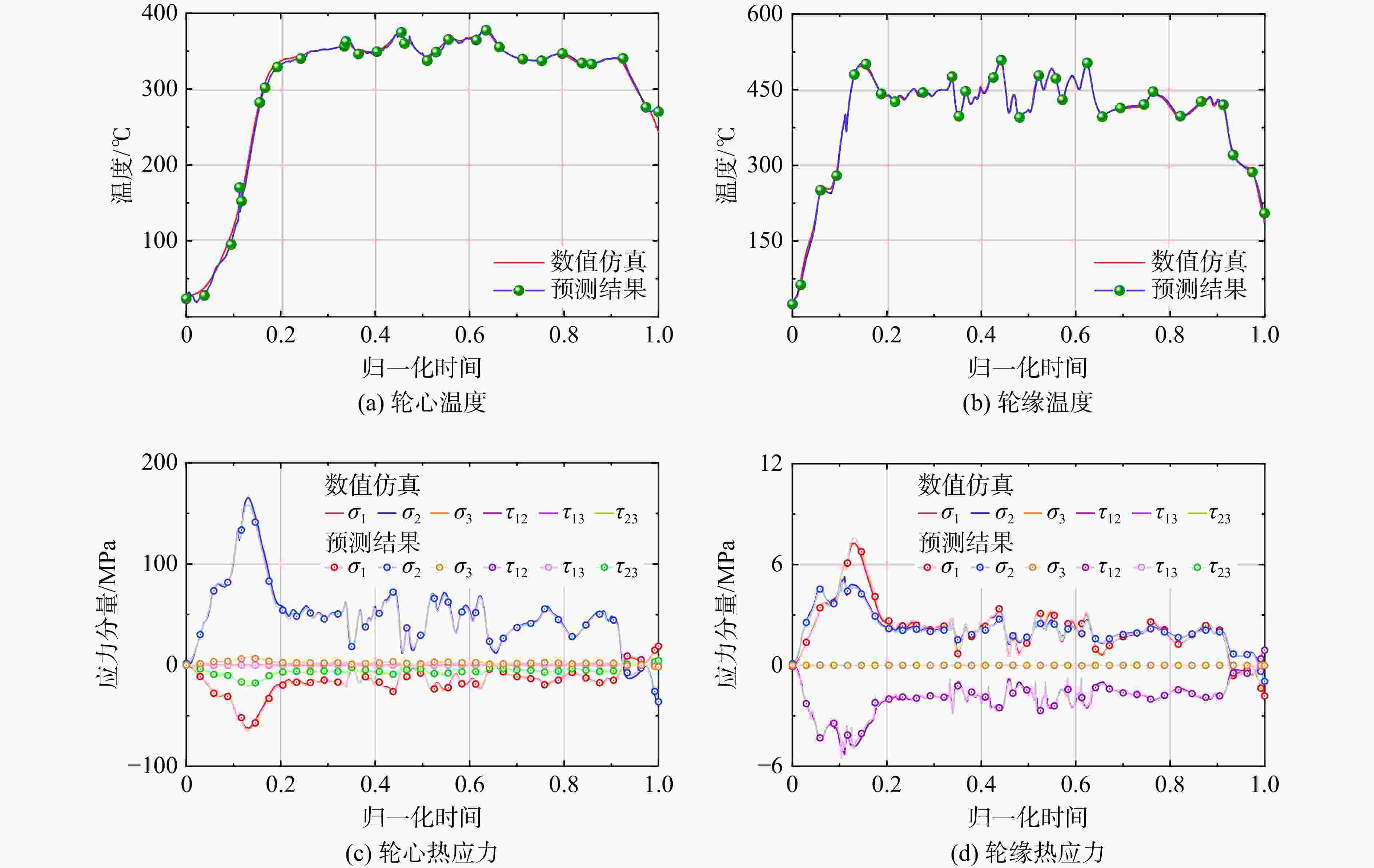

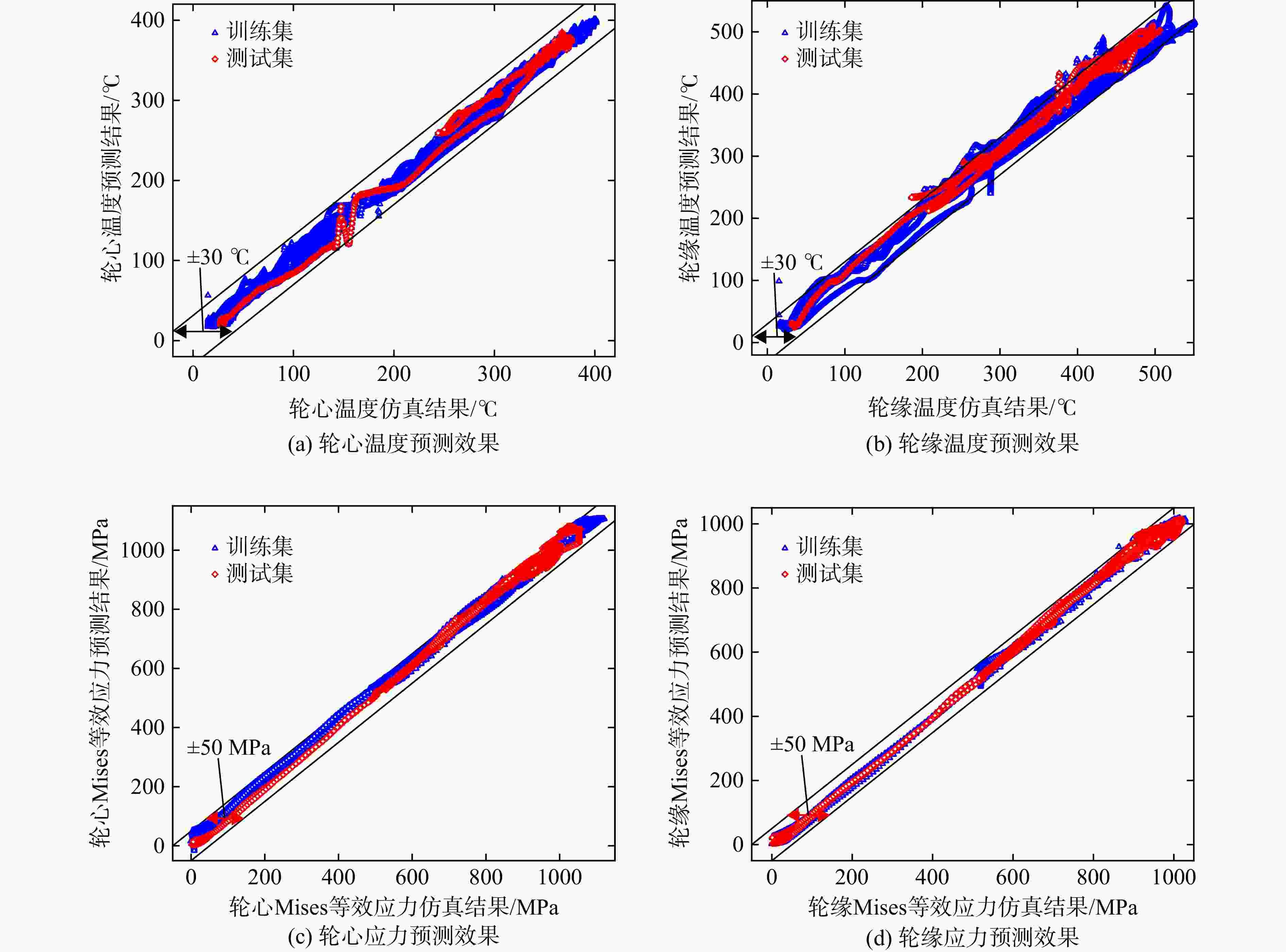

图 9 模型预测结果与测试集数值模拟结果对比

Figure 9. Comparison of model predictions with numerical simulation results from the test set

下载: 全尺寸图片幻灯片

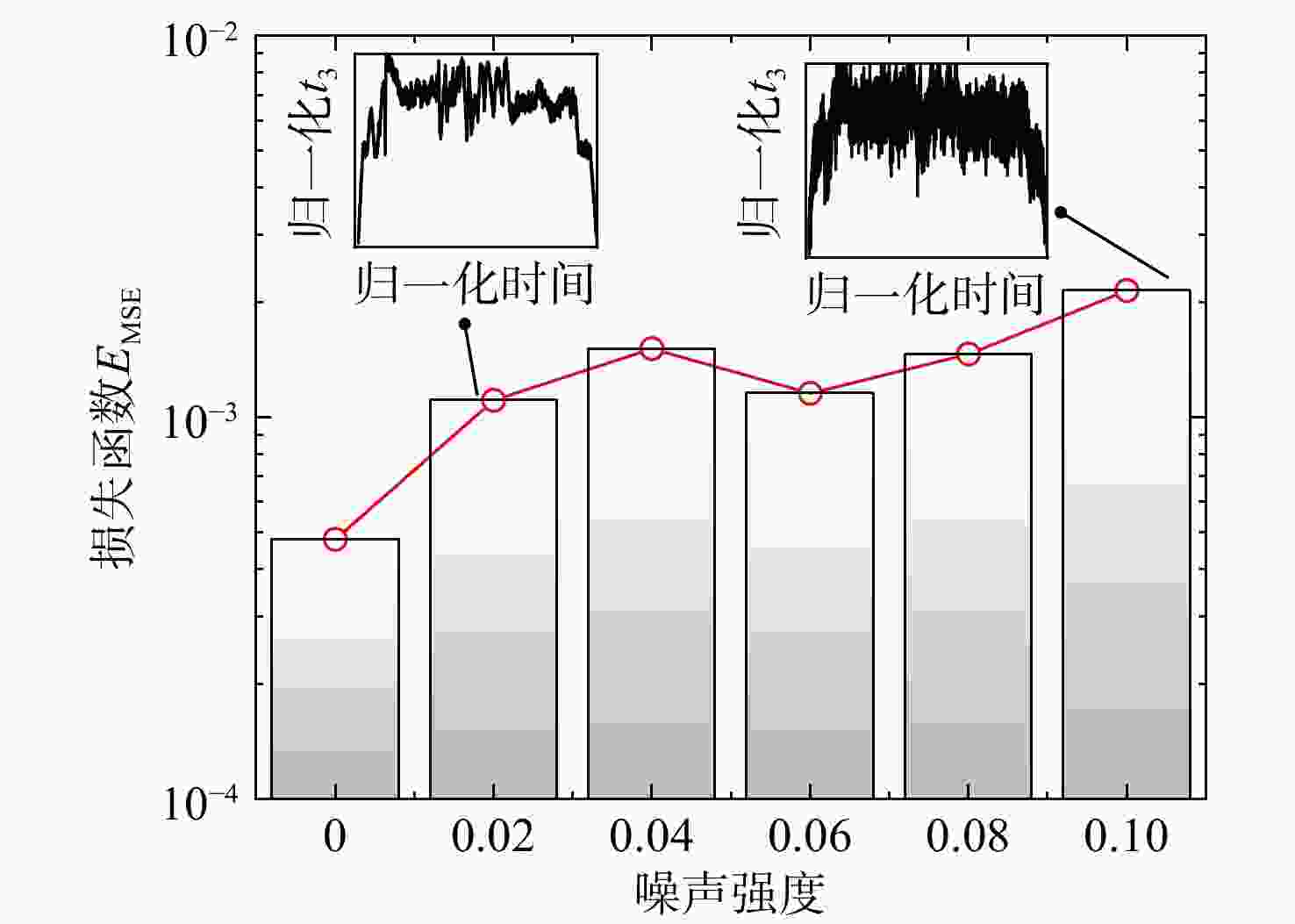

图 10 叠加噪声对模型预测效果的影响

Figure 10. Impact of noise on the model prediction accuracy

下载: 全尺寸图片幻灯片

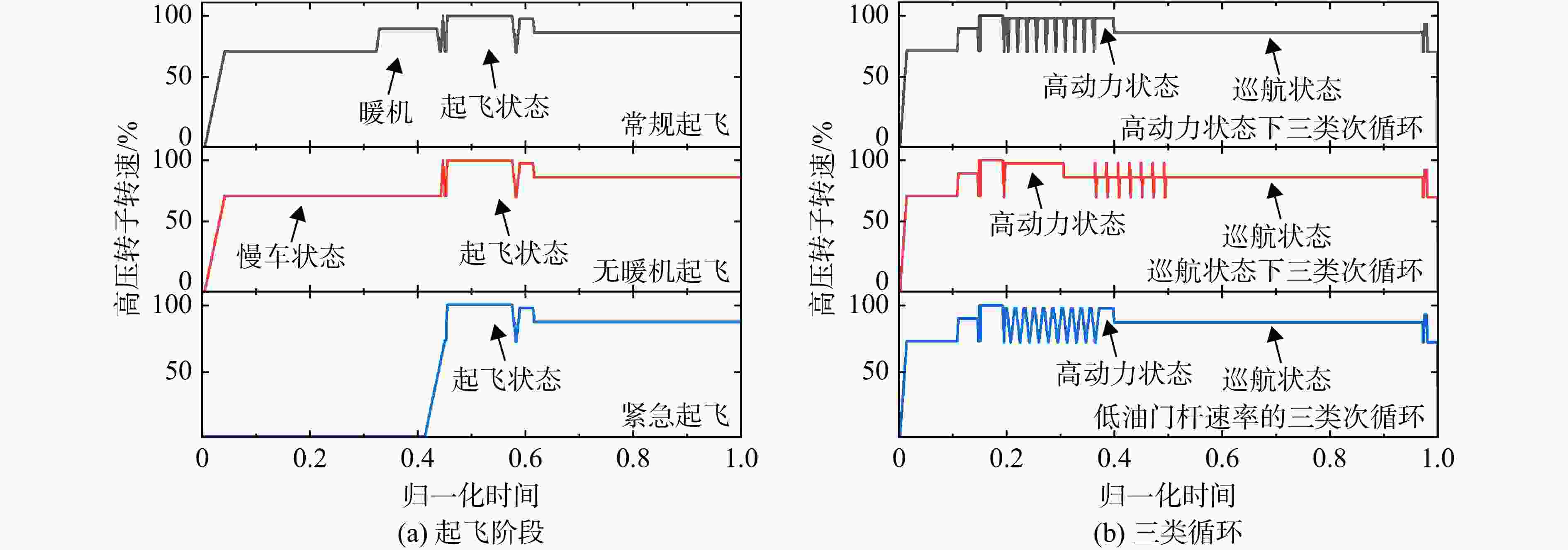

图 11 典型机动动作下的高压转速谱

Figure 11. Rotational speed spectra of high-pressure spool during typical maneuver

下载: 全尺寸图片幻灯片

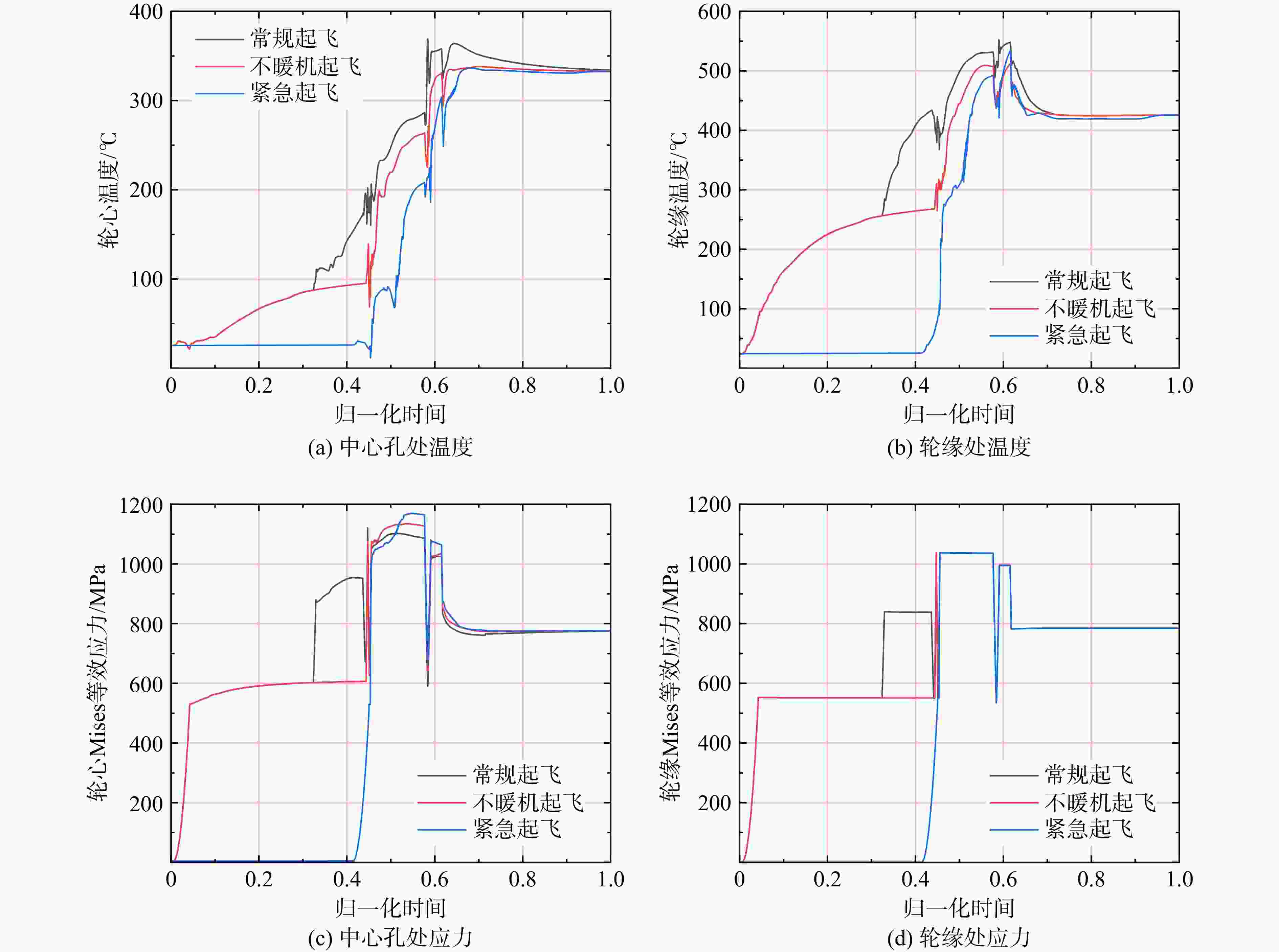

图 12 起飞阶段关键位置的温度和Mises应力谱

Figure 12. Temperature and Mises stress spectra at critical location during takeoff stage

下载: 全尺寸图片幻灯片

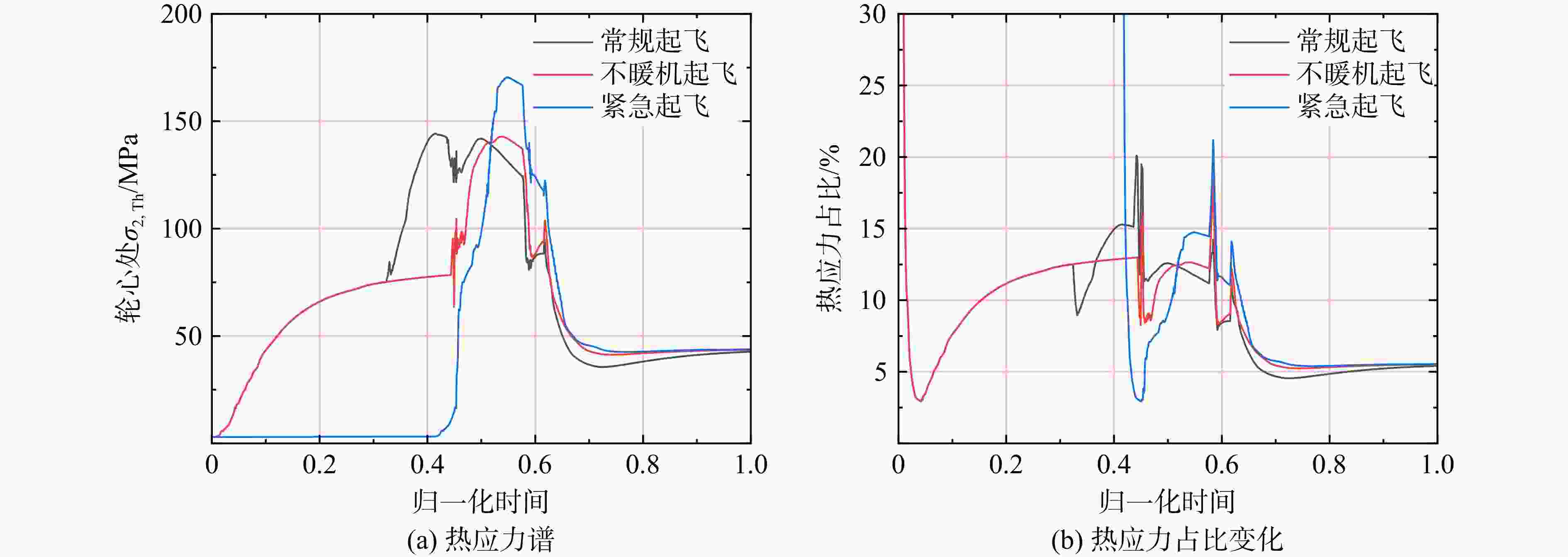

图 13 起飞阶段轮心处2方向的热应力分析

Figure 13. Thermal stress analysis in direction 2 at critical location during takeoff

下载: 全尺寸图片幻灯片

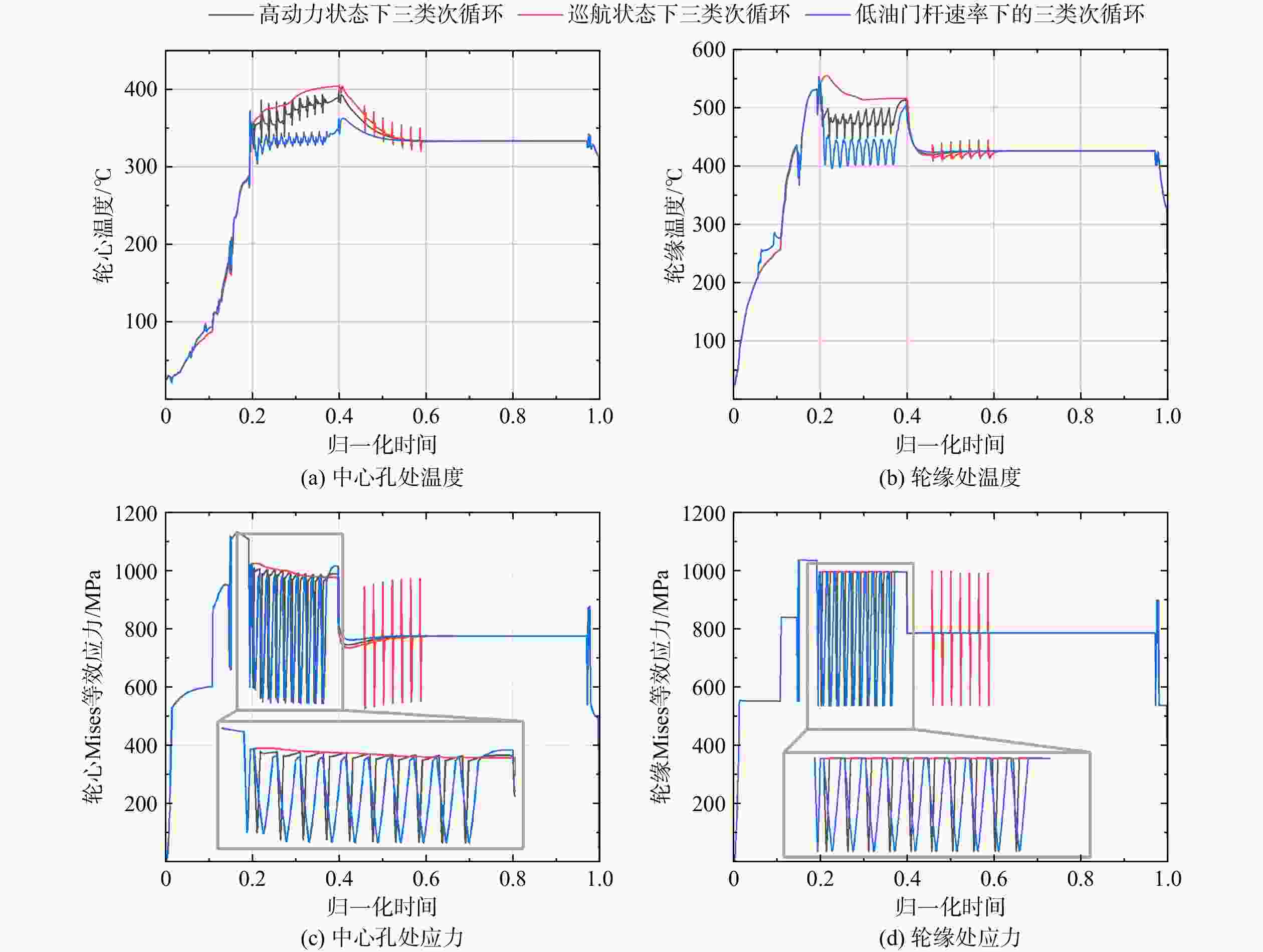

图 14 不同三类次循环下关键位置的温度和应力谱

Figure 14. Temperature and stress spectra at critical location under different type Ⅲ sub-cycle

下载: 全尺寸图片幻灯片

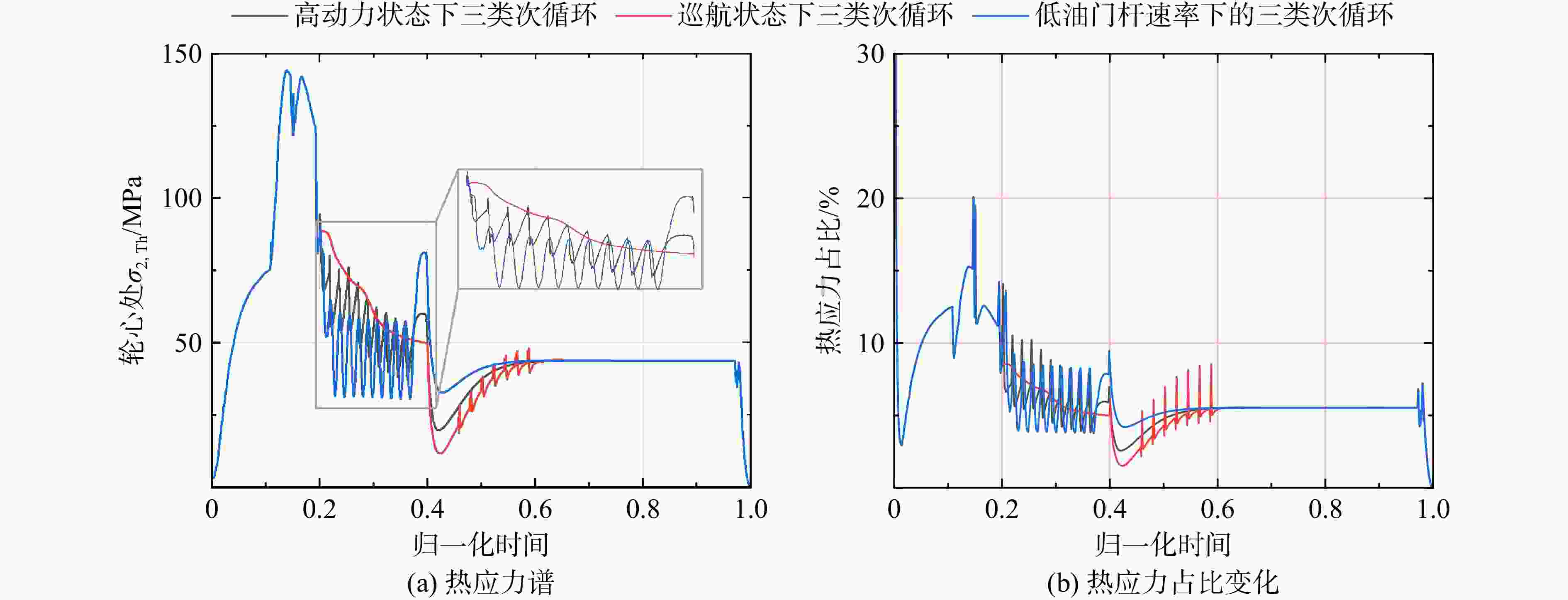

图 15 不同三类次循环轮心处2方向的热应力分析

Figure 15. Thermal stress spectra in direction 2 at the disk hole under different type Ⅲ sub-cycle

下载: 全尺寸图片幻灯片

表 1 交叉验证时的模型误差（E_MSE）

Table 1. Model error （E_MSE） in cross-validation

任务误差（E_MSE）/10⁻⁴

1 5.2
2 8.5
3 6
4 2.8
5 6
6 8.3
7 6.2
8 4.9
9 5.4
平均 8.7

下载: 导出CSV
