基于流-固热耦合的受热航空发动机管路安全性分析

苏杨; 杨岳朋; 王方; 金捷; 文放

doi:10.13224/j.cnki.jasp.20240552

基于流-固热耦合的受热航空发动机管路安全性分析

doi: 10.13224/j.cnki.jasp.20240552

苏杨^1,,
杨岳朋¹,
王方^{1, 2, 3},
金捷^{1, 2, 3,*, ,},
文放^{1, 4}

1.
北京航空航天大学能源与动力工程学院，北京 100191
2.
北京航空航天大学江西研究院，南昌 330096
3.
北京航空航天大学成都航空动力创新研究院，成都 611930
4.
中国航空工业集团有限公司中国航空综合技术研究所，北京 100028

基金项目: 国家自然科学基金（20232ACB204026，12172345，92041001）

详细信息

作者简介:
苏杨（2001-），男，硕士生，主要研究方向为航空发动机通油管路流热耦合

通讯作者:
金捷（1968-），男，研究员、硕士生导师，博士，研究方向为两相湍流燃烧理论及其应用。E-mail：jinjie@buaa.edu.cn

中图分类号: V232
计量
- 文章访问数: 468
- HTML浏览量: 179
- PDF量: 56
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-07
- 网络出版日期: 2026-07-29

Research on safety of aero-engine oil tube under heating condition based on fluid-solid-thermal coupling

Su Yang^1
,,
Yang Yuepeng¹,
Wang Fang^{1, 2, 3},
Jin Jie^{1, 2, 3,*
, ,},
Wen Fang^{1, 4}

1.
School of Energy and Power Enginering，Beihang University，Beijing 100191，China
2.
Jiangxi Research Institute，Beihang University，Nanchang 330096，China
3.
Chengdu Innovation Research Institute on Aircraft Power，Beihang University，Chengdu 611930，China
4.
China Aero-Polytechnology Establishment，Aviation Industry Corporation of China，Limited，Beijing 100028，China

摘要

摘要:
基于标准文件和流-固热耦合方法，对航空发动机通油管路处于防火试验标准规定的加热条件下的安全性进行了分析。通油管采用28 MPa挤压式无扩口组合导管，管内工质为RP-3航空煤油，选择高温标准烟气模拟加热导管的燃气。为模拟管路在不同操作条件或油泵故障的情况，设置了不同煤油进口流量进行计算。结果表明：在承受标准加热条件时，管壁温度分布不均，而随着煤油流量的降低，管壁的温度上升，出现传热恶化现象。温度升高会降低材料的强度，而温度不均匀分布则会产生热应力，增加导管工作的安全隐患。当煤油流量减小到一定大小时，管壁的等效应力将超过材料的屈服强度，管路存在较高的破裂的风险。
- 航空发动机通油管路 /
- 标准文件 /
- 航空煤油 /
- 流-固热耦合 /
- 管路安全性
Abstract:
The safety of the aviation engine oil tube under the heating conditions specified in fire test standards was analyzed based on standard documents and fluid-solid-thermal coupling method. Tube assembles for flareless connection, swaged type, 28 MPa, were used, the working fluid in the pipe was RP-3 aviation kerosene, and the high temperature standard flue gas was selected to simulate the gas for heating the tube. In order to simulate the situation of tube under different working conditions or pump failure, different kerosene inlet flow rates were set up for calculation. The results showed that the temperature distribution of the tube wall was uneven under standard heating conditions. With the decrease of kerosene flow rate, the temperature of the tube wall increased and the heat transfer deterioration occurred. The increase of tube wall temperature could reduce the strength of the material, and the uneven distribution of tube wall temperature could produce thermal stress, which may increase the safety hazard of the tube. When the kerosene flow rate was reduced to a certain amount, the equivalent stress of the tube wall could exceed the yield strength of the material, and the tube was prone to fracture.
- aero-engine oil tube /
- standard document /
- aviation kerosene /
- fluid-solid-thermal coupling /
- tube safety

HTML

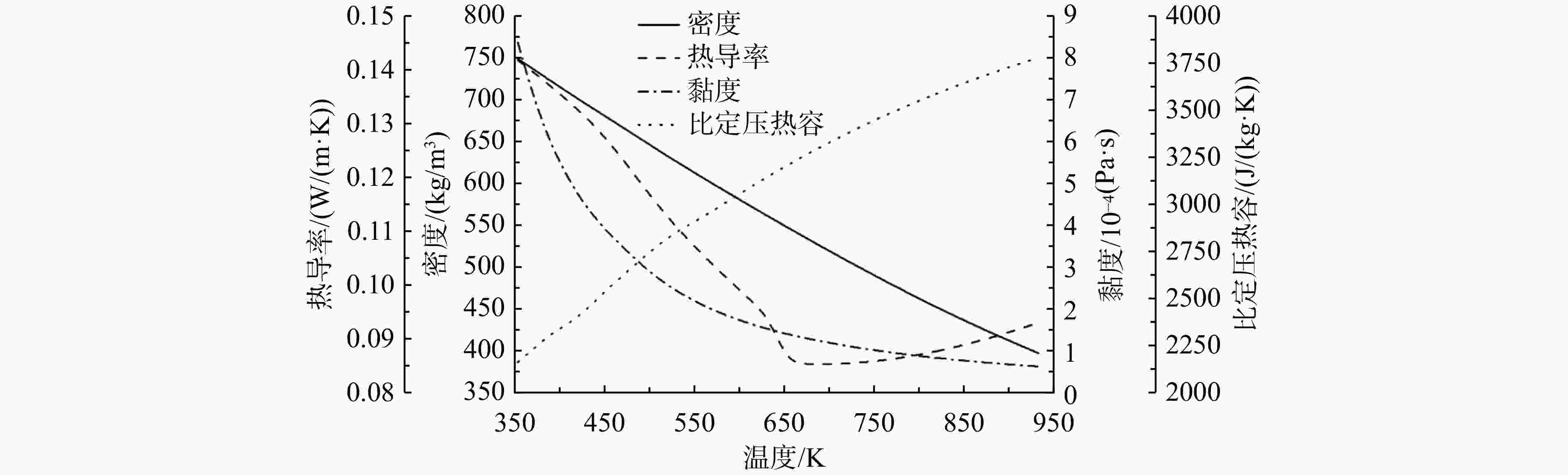

图 1 28 MPa下RP-3航空煤油热物性参数

Figure 1. Thermophysical properties of RP-3 kerosene at 28 MPa

下载: 全尺寸图片幻灯片

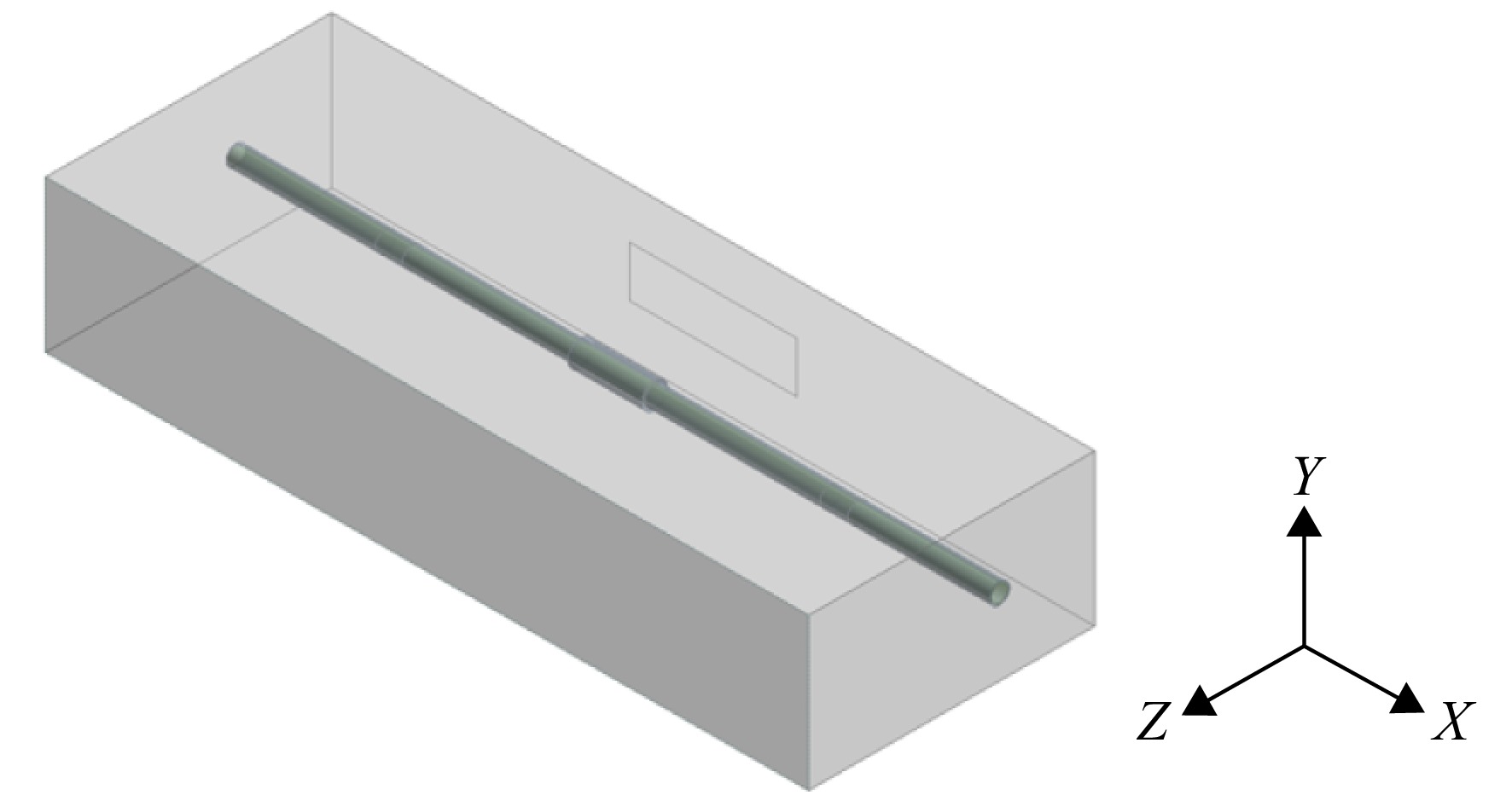

图 2 计算域几何模型

Figure 2. Geometric model of computational domain

下载: 全尺寸图片幻灯片

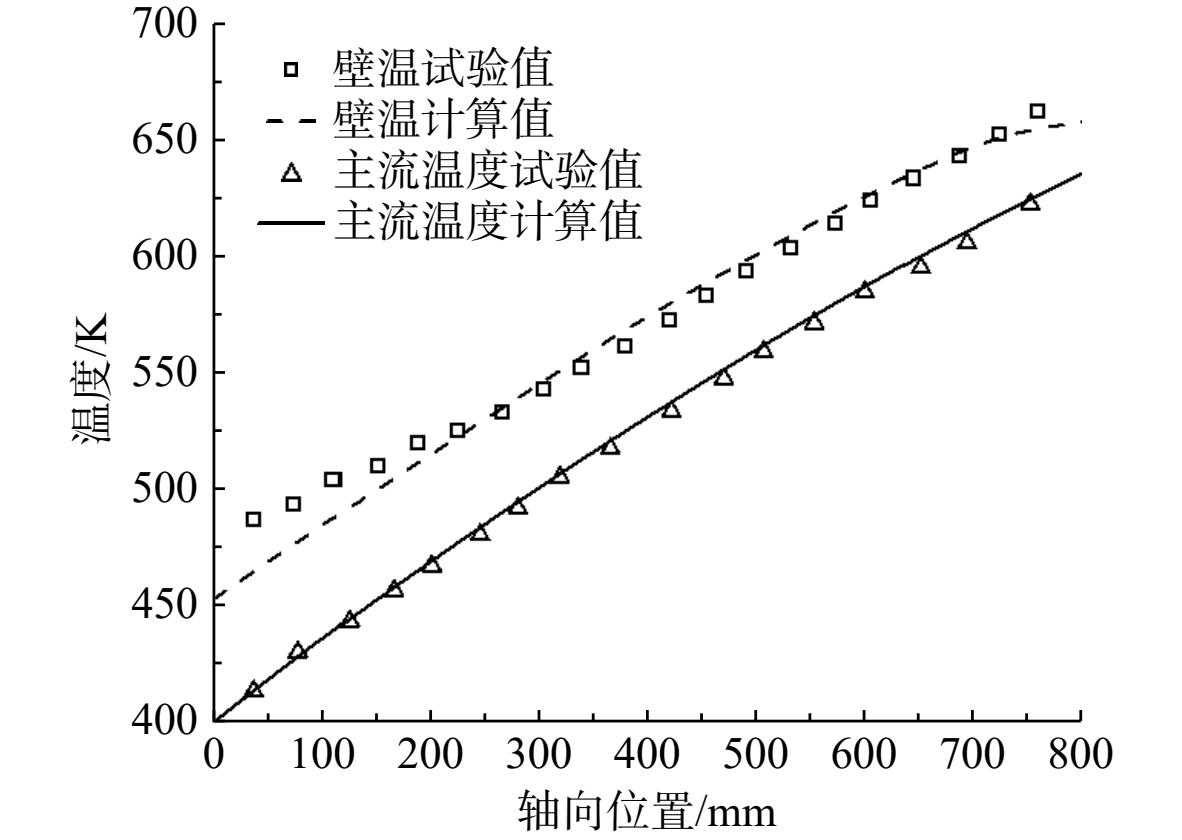

图 3 数值方法检验

Figure 3. Validation of the computational method

下载: 全尺寸图片幻灯片

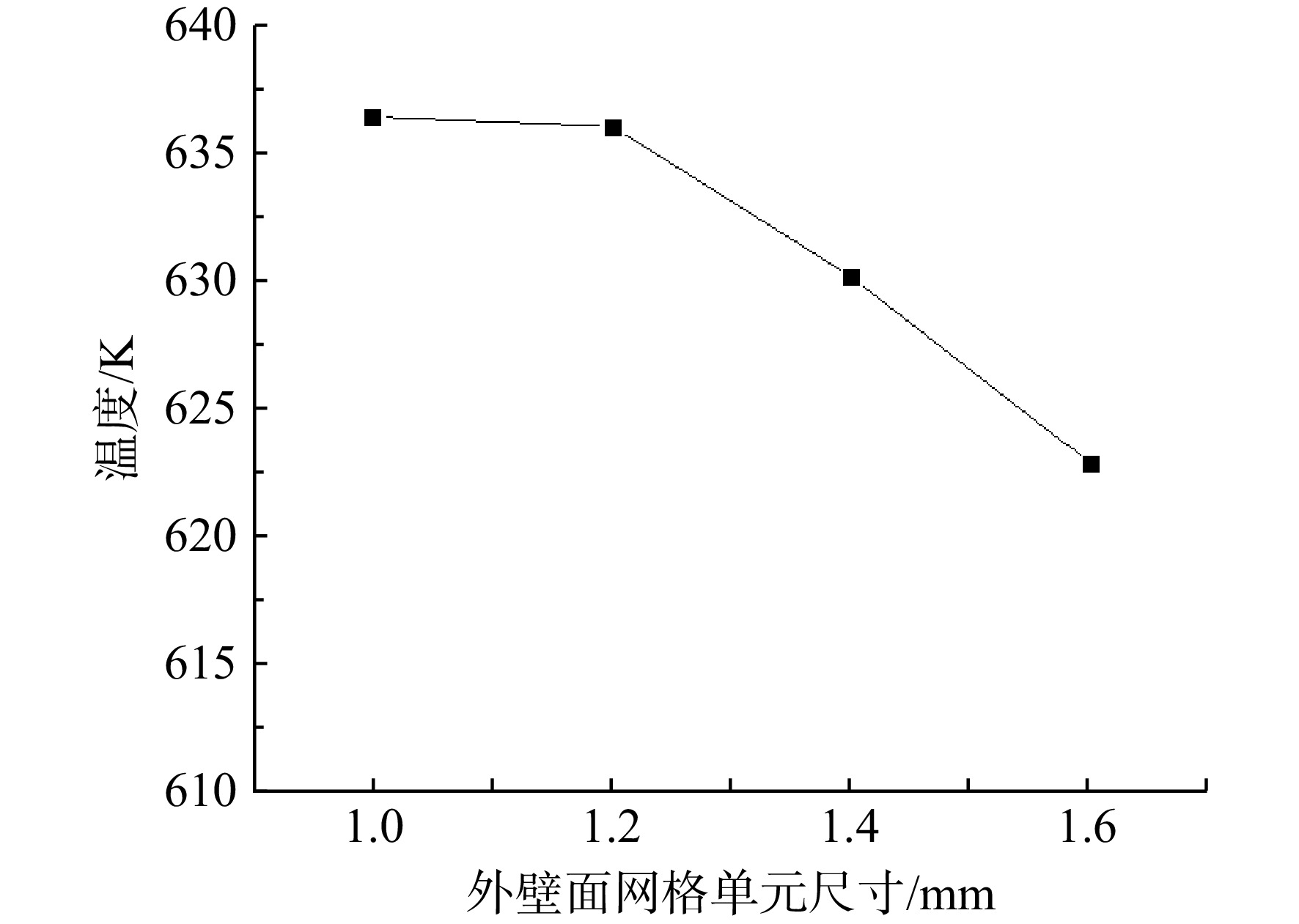

图 4 4种网格方案下外壁面最高壁温

Figure 4. Maximum wall temperature of the outer wall under four grids

下载: 全尺寸图片幻灯片

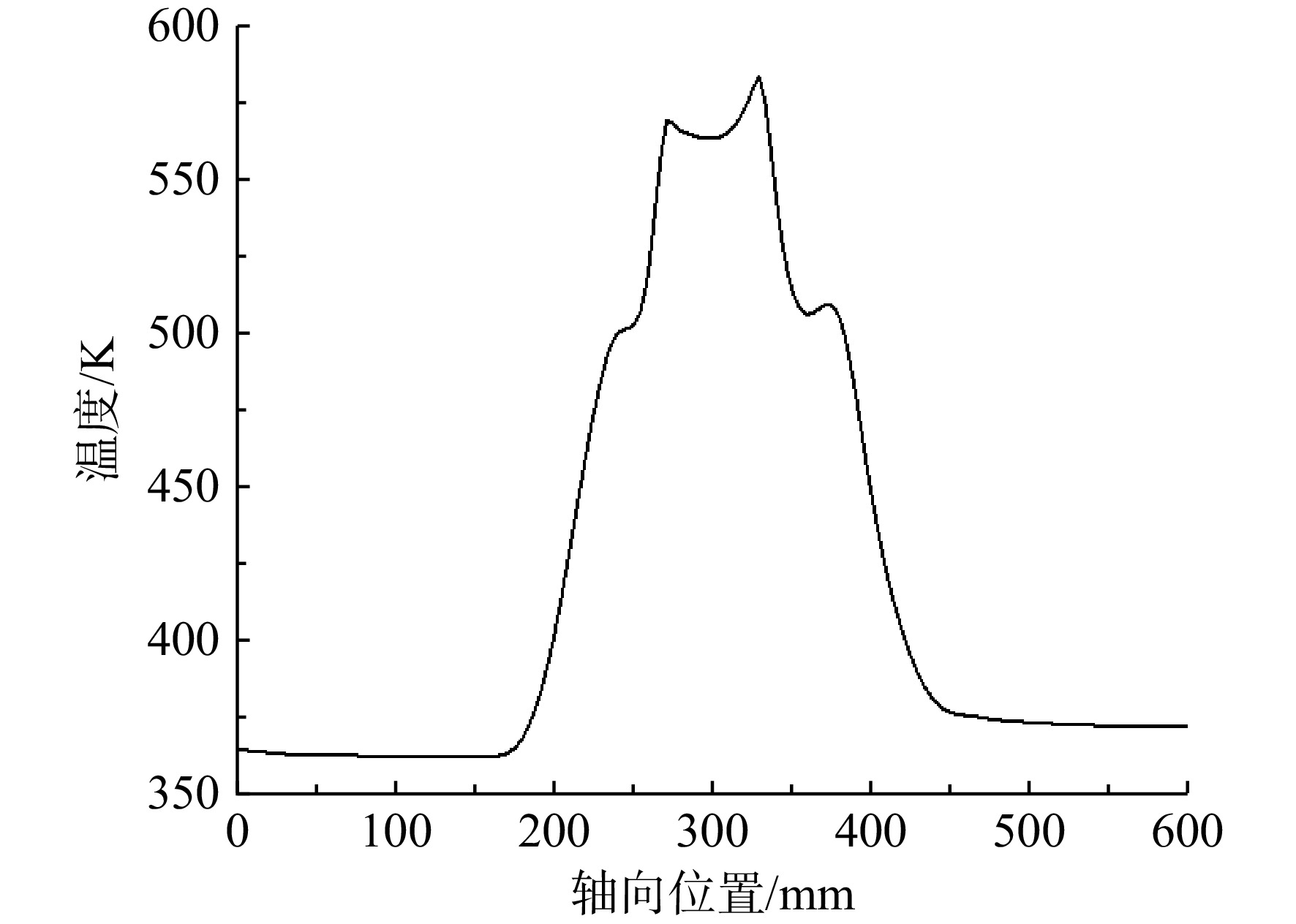

图 5 5.07 L/min流量下导管周向平均外壁温轴向分布

Figure 5. Axial distribution of circumferentially averaged outer wall temperature of the tube at a flow rate of 5.07 L/min

下载: 全尺寸图片幻灯片

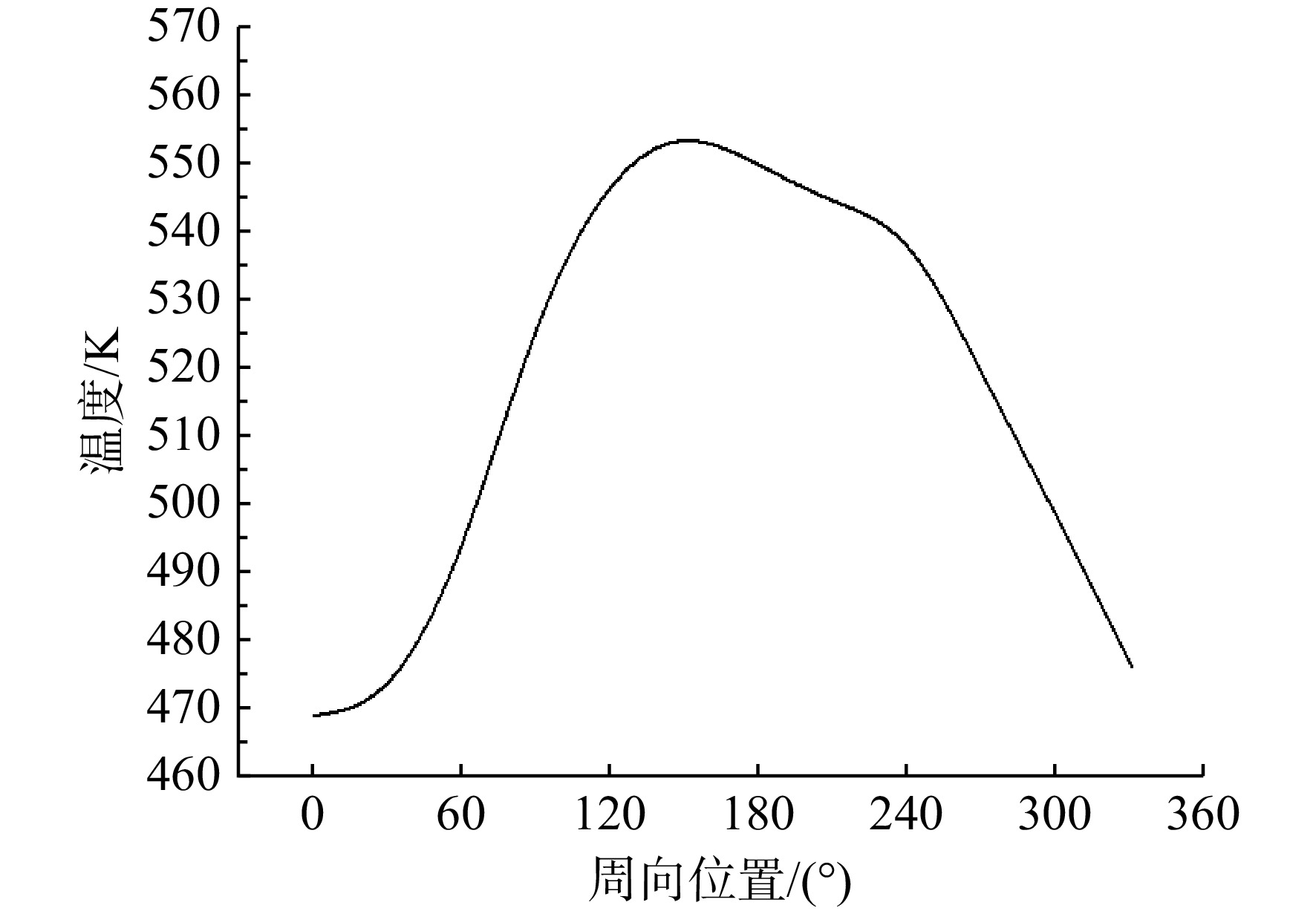

图 6 5.07 L/min流量下导管轴向平均外壁温周向分布（X=330～400 mm）

Figure 6. Circumferential distribution of axially averaged outer wall temperature of the tube at a flow rate of 5.07 L/min （X=330—400 mm）

下载: 全尺寸图片幻灯片

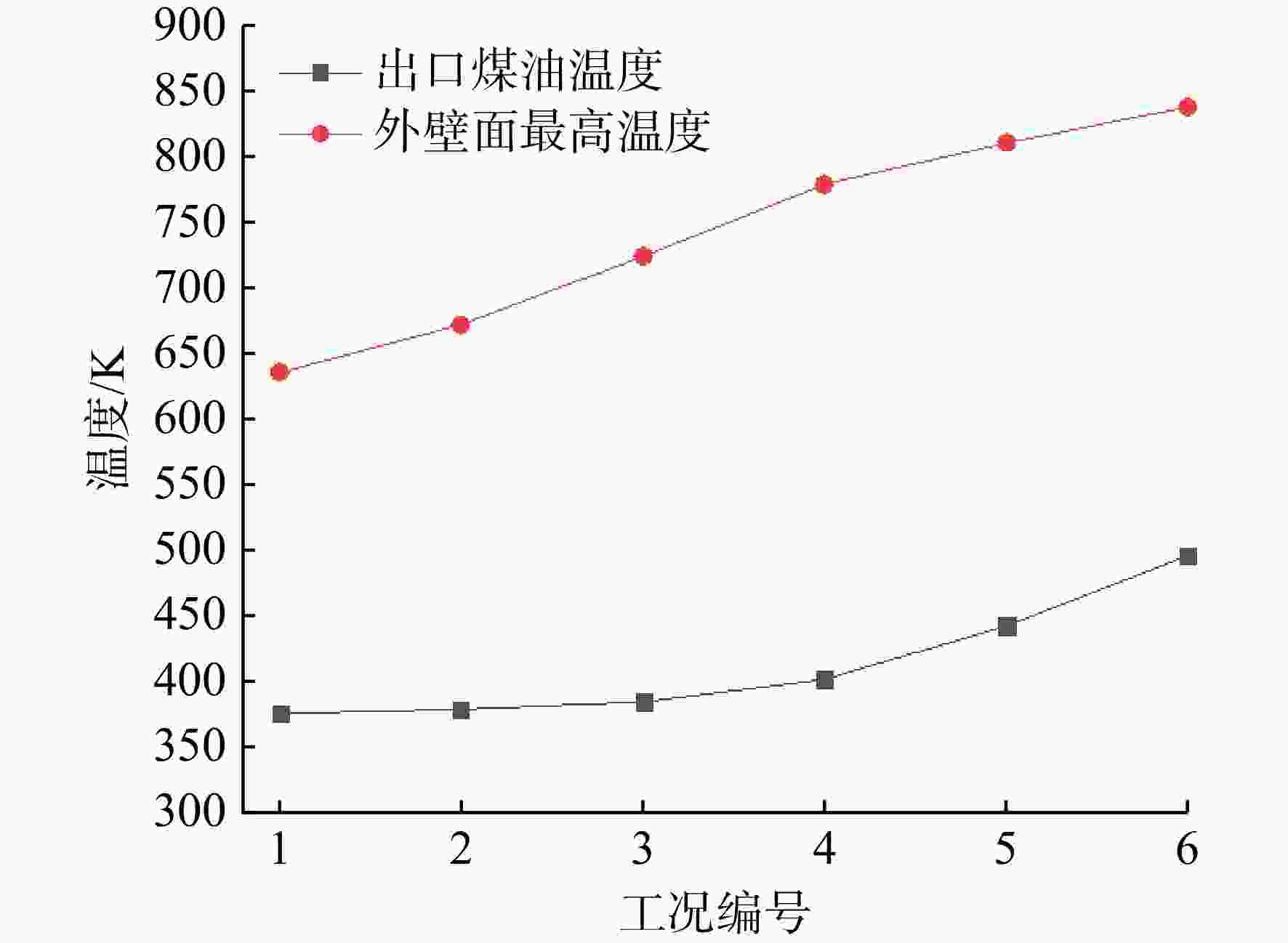

图 7 不同煤油流量下导管外壁最高温度与煤油出口温度

Figure 7. Maximum temperature of the outer wall of the tube and the outlet temperature of kerosene under different kerosene flow rates

下载: 全尺寸图片幻灯片

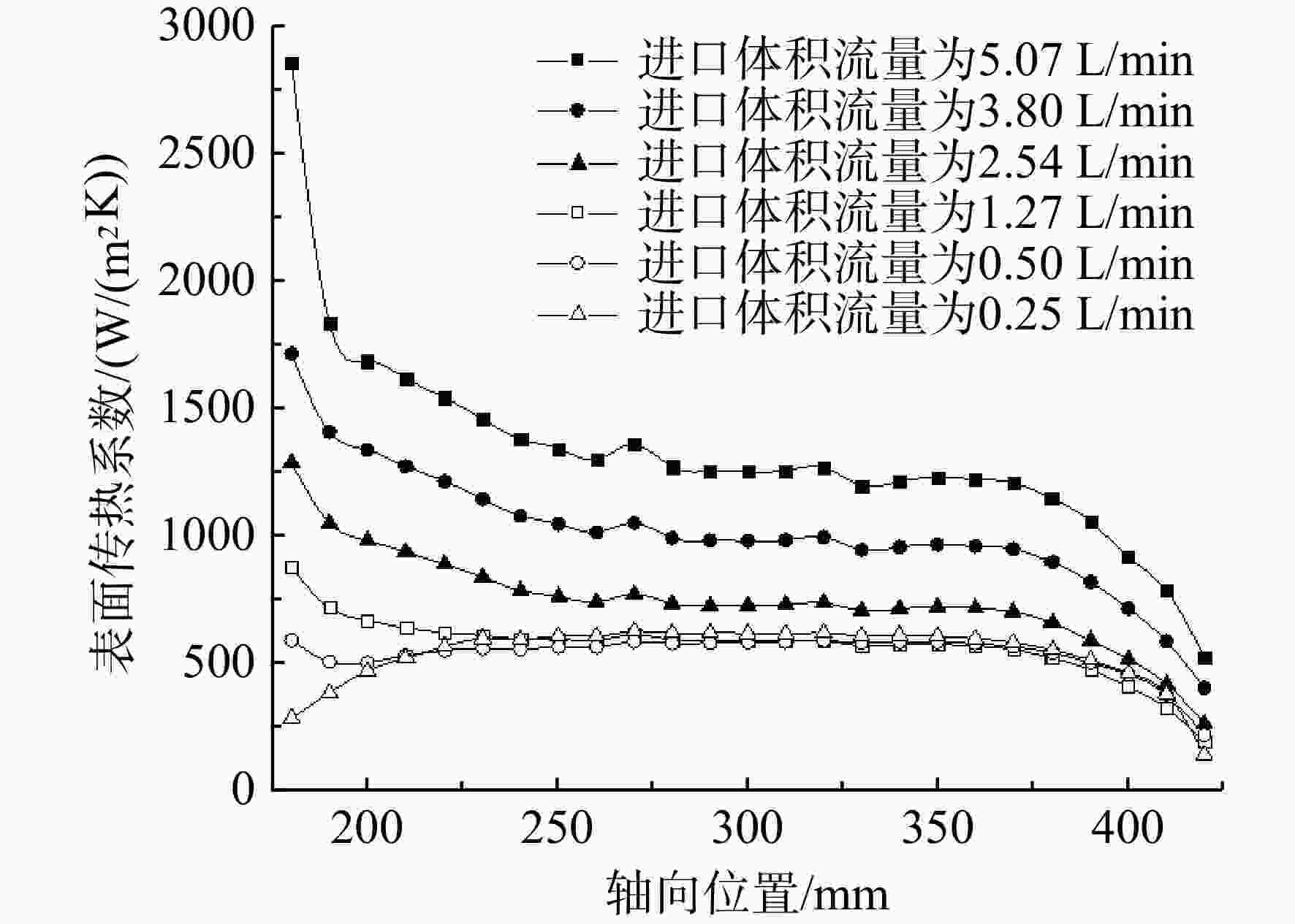

图 8 不同煤油进口体积流量下管内沿程表面传热系数

Figure 8. Convective heat transfer coefficient along the pipe under different kerosene inlet volume flow

下载: 全尺寸图片幻灯片

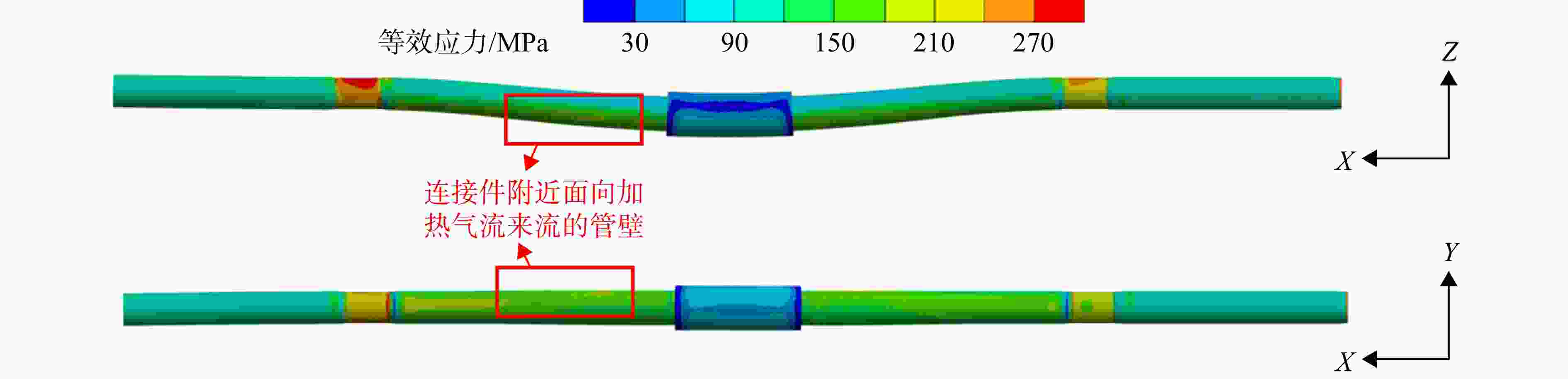

图 9 5.07 L/min工况下管壁等效应力分布

Figure 9. Equivalent stress distribution of the tube wall under the working condition of 5.07 L/min

下载: 全尺寸图片幻灯片

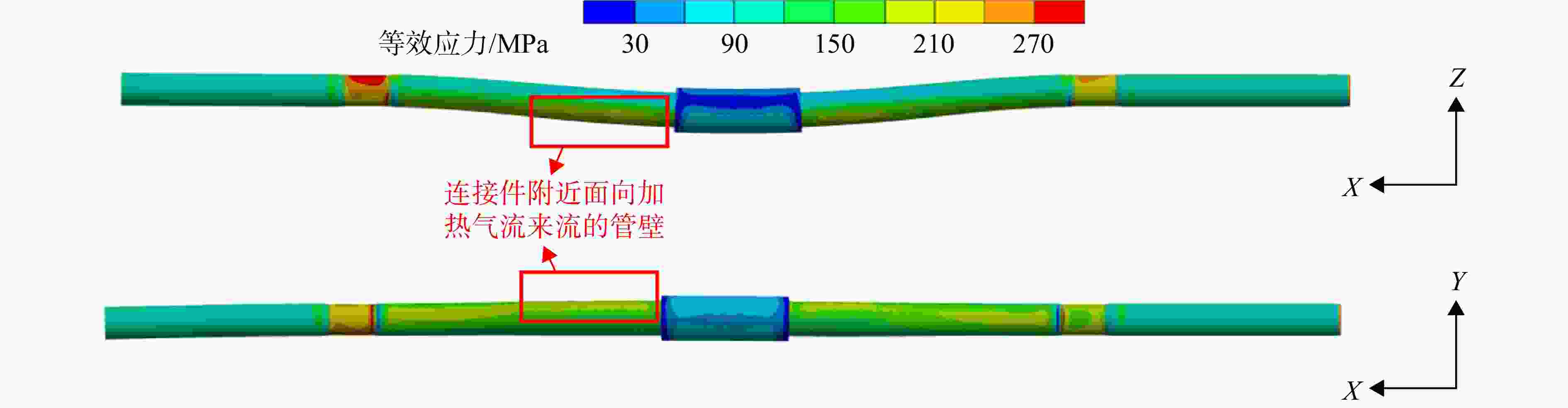

图 10 3.80 L/min工况下管壁等效应力分布

Figure 10. Equivalent stress distribution of the tube wall under the working condition of 3.80 L/min

下载: 全尺寸图片幻灯片

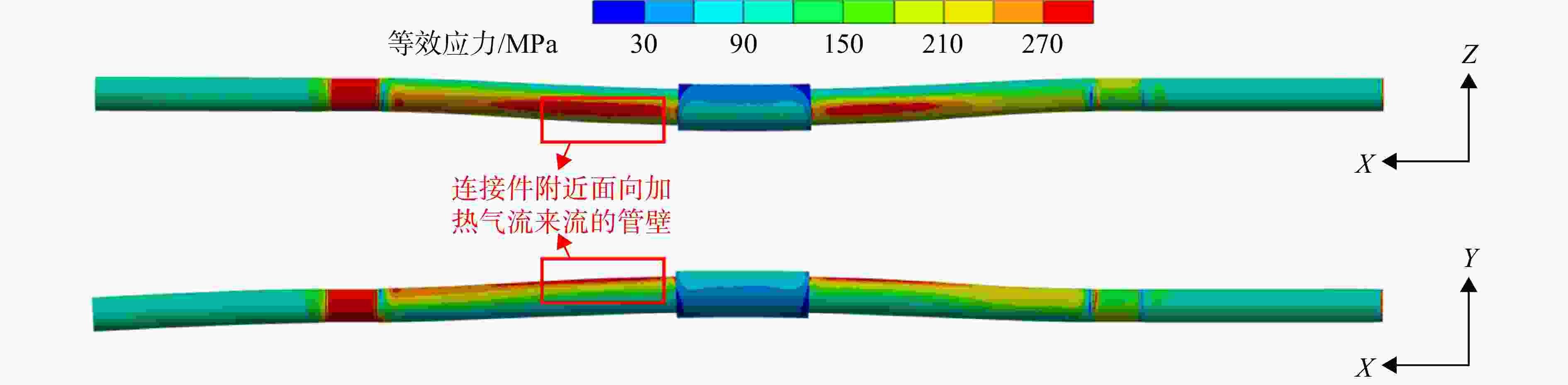

图 11 0.5 L/min工况下管壁等效应力分布

Figure 11. Equivalent stress distribution of the tube wall under the working condition of 0.5 L/min

下载: 全尺寸图片幻灯片

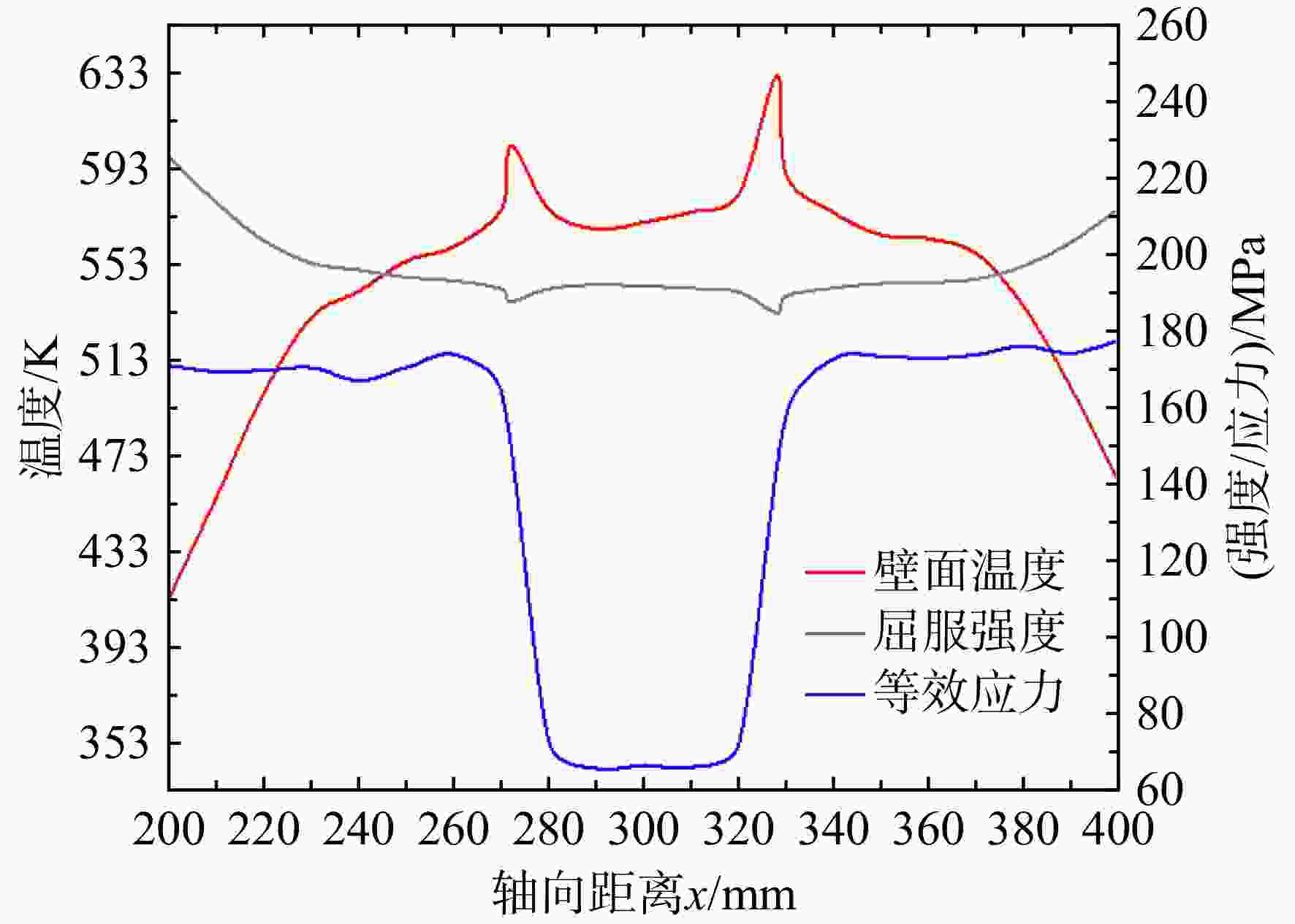

图 12 5.07 L/min工况下管壁等效应力、温度及对应温度下屈服强度分布

Figure 12. Equivalent stress, temperature and yield strength distribution of the pipe wall at the corresponding temperature under the condition of 5.07 L/min

下载: 全尺寸图片幻灯片

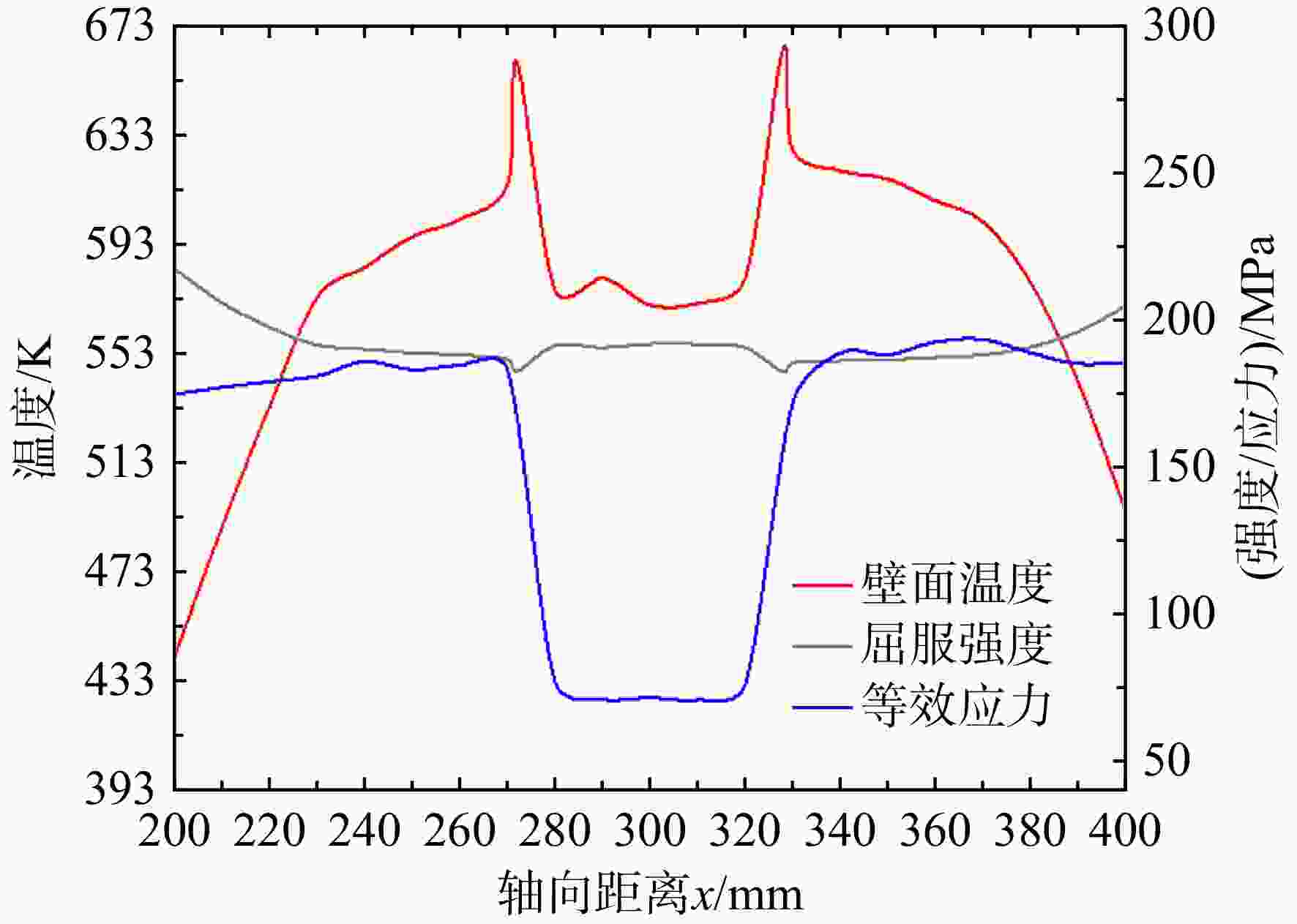

图 13 3.80 L/min工况下管壁等效应力、温度及对应温度下屈服强度分布

Figure 13. Equivalent stress, temperature and yield strength distribution of the pipe wall at the corresponding temperature under the condition of 3.80 L/min

下载: 全尺寸图片幻灯片

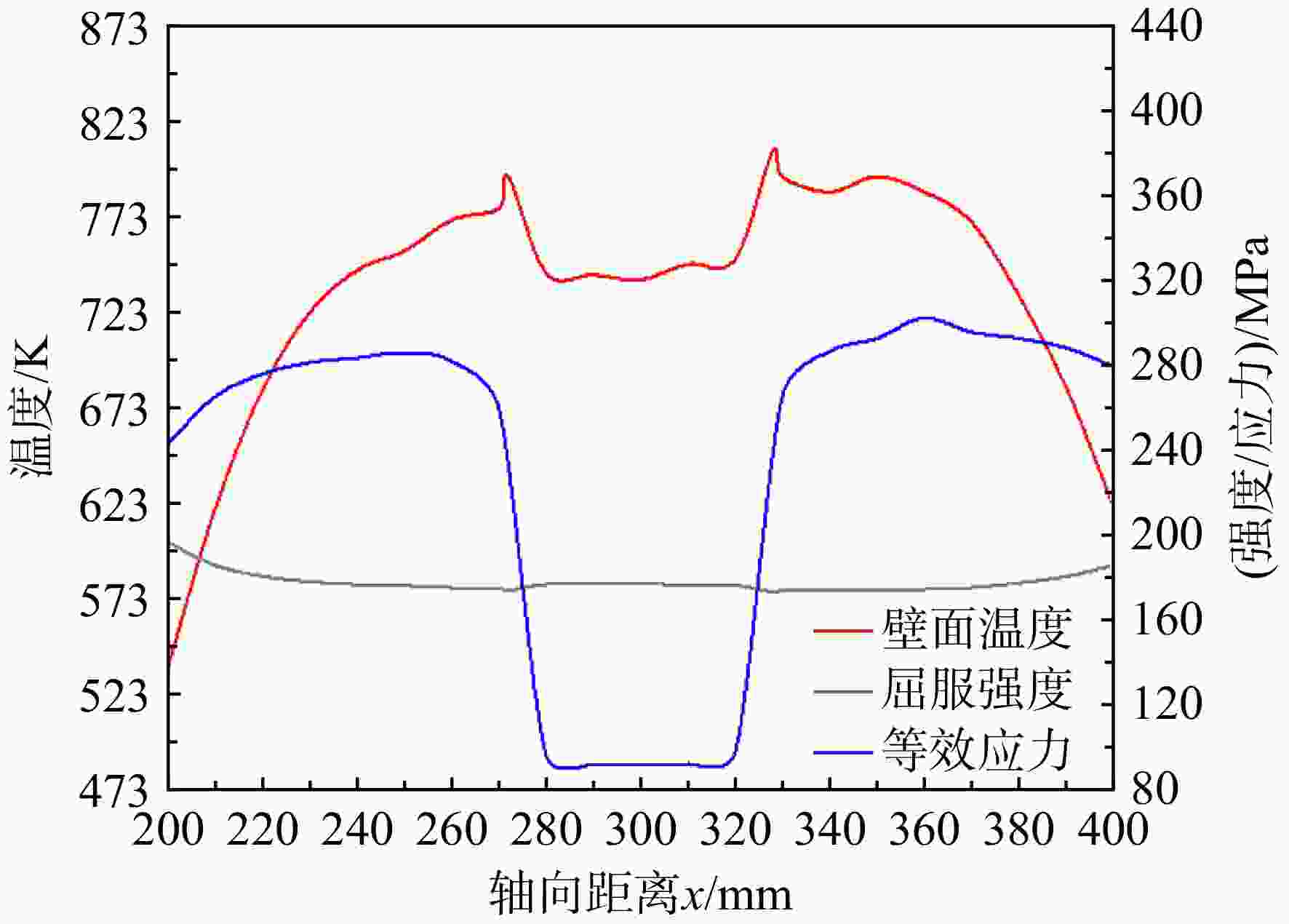

图 14 0.5 L/min工况下管壁等效应力、温度及对应温度下屈服强度分布

Figure 14. Equivalent stress, temperature and yield strength distribution of the pipe wall at the corresponding temperature under the condition of 0.5 L/min

下载: 全尺寸图片幻灯片

表 1 煤油进口工况

Table 1. Kerosene inlet conditions

工况编号	进口煤油压力/MPa	进口煤油温度/K	进口煤油体积流量/（L/min）
1	28	366.15	5.07
2	28	366.15	3.80
3	28	366.15	2.54
4	28	366.15	1.27
5	28	366.15	0.50
6	28	366.15	0.25

下载: 导出CSV
