增材制造及固溶时效处理Inconel 718疲劳性能与寿命预测

孙传文; 孙锐; 李伟

doi:10.13224/j.cnki.jasp.20240570

增材制造及固溶时效处理Inconel 718疲劳性能与寿命预测

doi: 10.13224/j.cnki.jasp.20240570

孙传文^1,,
孙锐²,
李伟^1,*, ,

1.
北京理工大学机械与车辆学院，北京 100083
2.
西北有色金属研究院难熔金属材料研究所，西安 710016

基金项目: 国家自然科学基金（52175128）；西安交通大学金属材料强度国家重点实验室（20232501）

详细信息

作者简介:
孙传文（1997-），男，博士生，主要研究方向为增材制造航空航天材料超高周疲劳。E-mail：3220225082@bit.edu.cn

通讯作者:
李伟（1979-），男，副教授、博士生导师，博士，主要研究方向为增材制造航空航天结构疲劳、损伤及断裂。E-mail：lliw@bit.edu.cn

中图分类号: V252.2
计量
- 文章访问数: 906
- HTML浏览量: 487
- PDF量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-16
- 网络出版日期: 2025-05-15

Fatigue properties and life prediction of additive manufacturing and solution aging Inconel 718

SUN Chuanwen^1
,,
SUN Rui²,
LI Wei^{1,*
, ,}

1.
School of Mechanical Engineering，Beijing Institute of Technology，Beijing 100083，China
2.
Refractory Materials Research Central，Northwest Institute for Non-Ferrous Metal Research，Xi’an 710016，China

摘要

摘要:
为了研究增材制造和经过航空领域标准热处理的镍基合金的疲劳性能，对沉积态和固溶时效试样开展了微观结构测试、拉伸试验和应力比R=−1和0.1的高周和超高周疲劳试验。试验结果表明：增材制造镍基合金经过固溶时效处理后，其拉伸和疲劳性能得以显著提升。表面失效是增材制造镍基合金在常温下的主要疲劳失效模式，但在R=0.1的长寿命状态下，裂纹萌生位置将会由材料表面向内部转移。拉伸和疲劳性能的提升主要归因于γ′、γ″和δ相的析出。在强化相的协同作用下，基体强度显著增加，位错移动受到抑制，裂纹扩展也被阻碍。缺陷和晶粒局部取向不相容都会导致内部裂纹的萌生。内部失效裂纹萌生区的微裂纹在剪切力作用下在以穿晶的形式扩展，晶粒断裂形成小平面。根据自应变能理论，建立了一种疲劳寿命预测方法，预测结果与试验结果具有较好的一致性。
- 增材制造 /
- 激光粉末床熔融 /
- 镍基合金 /
- 热处理 /
- 微观结构 /
- 超高周疲劳 /
- 疲劳失效机制 /
- 寿命预测
Abstract:
To investigate the fatigue properties of nickel-based alloy fabricated by additive manufacturing and heat treatment as standard in the aerospace field, the microstructural tests, tensile tests, and high-cycle and very high-cycle fatigue tests at stress ratios R=−1 and 0.1 were carried out on as-built and solution aging specimens. The test results showed that the tensile and fatigue properties of the additive manufactured nickel-based alloy were significantly improved after solution aging treatment. Surface failure was the main fatigue failure mode of additive manufactured nickel-based alloy at room temperature. The location of crack nucleation could be shifted from the surface of the material to the interior at the long-life regime of R=0.1. The improvement of tensile and fatigue properties was mainly attributed to the precipitation of γ′, γ″ and δ phases. Under the synergistic effects of these strengthening phases, the matrix was significantly strengthened, dislocation movement was inhibited and crack growth was hindered. Defects and incompatible local grain orientation can lead to internal crack nucleation. Microcracks in the internal crack nucleation area propagated under shear force in a grain transgranular manner, and the grains fracked to form facets. Based on the self-strain energy theory, a life prediction method was proposed, and the prediction results were in good agreement with the test results.
- additive manufacturing /
- laser powder bed fusion /
- nickel-based alloy /
- heat treatment /
- microstructure /
- very high cycle fatigue /
- fatigue failure mechanism /
- life prediction

HTML

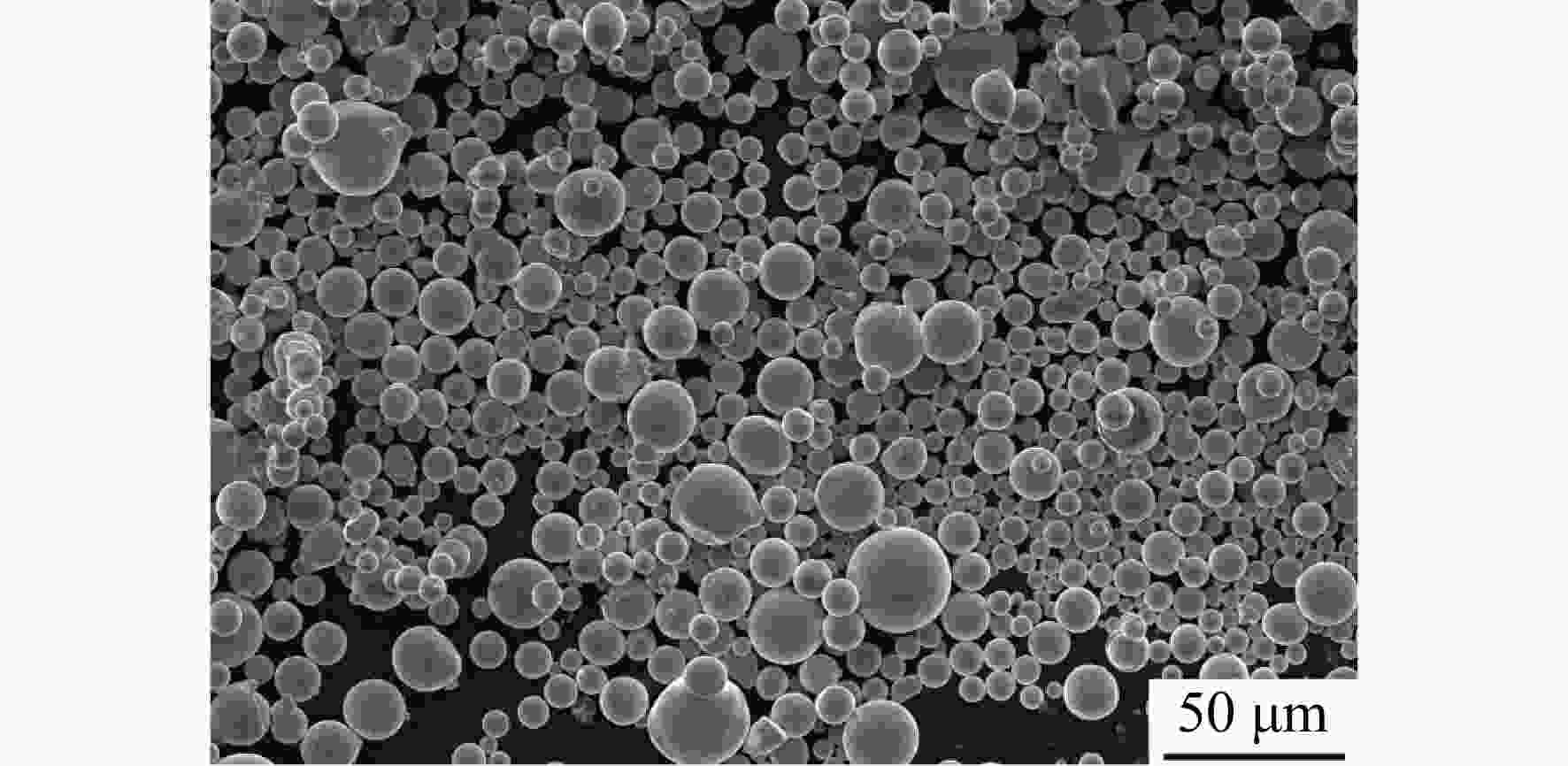

图 1 LPBF镍基合金粉末

Figure 1. LPBF nickel-based alloy powder

下载: 全尺寸图片幻灯片

图 2 粉末尺寸分布

Figure 2. Size distribution of powder

下载: 全尺寸图片幻灯片

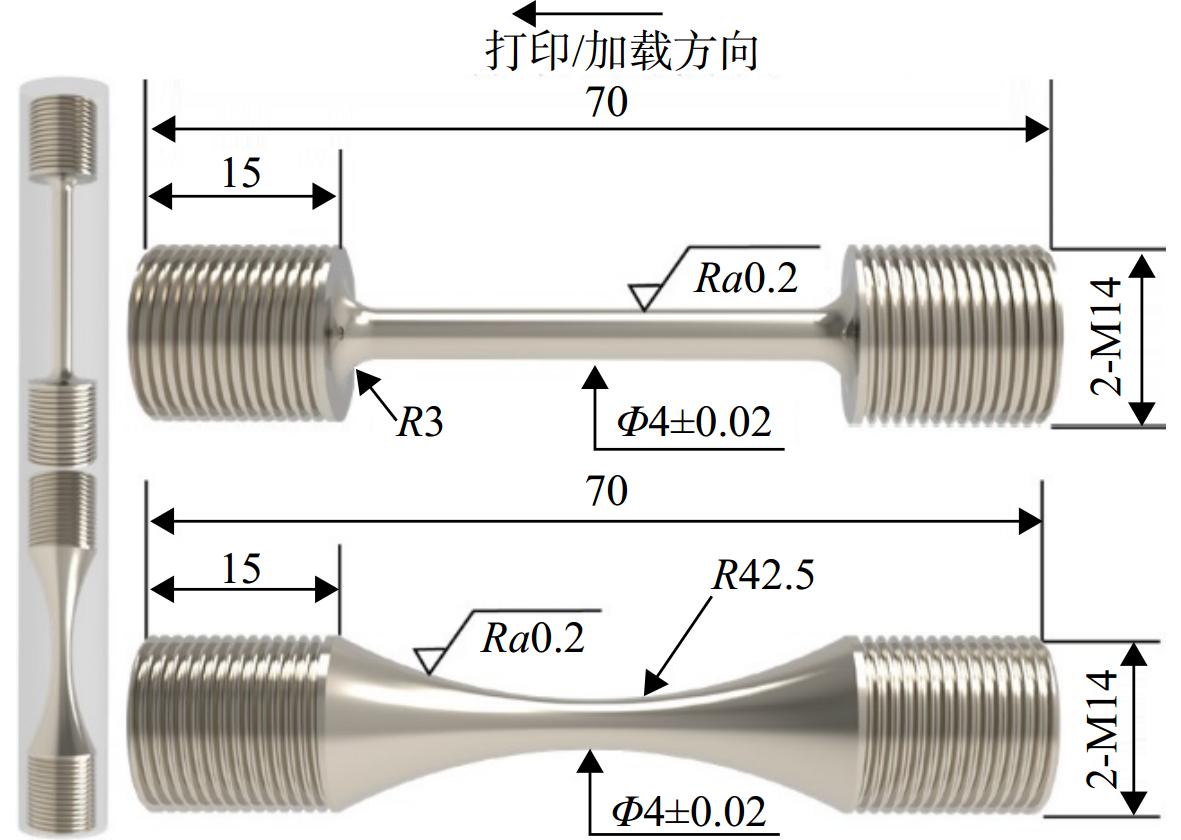

图 3 拉伸和疲劳试样的形状和尺寸（单位：mm）

Figure 3. Shape and size of tensile and fatigue specimens （unit：mm）

下载: 全尺寸图片幻灯片

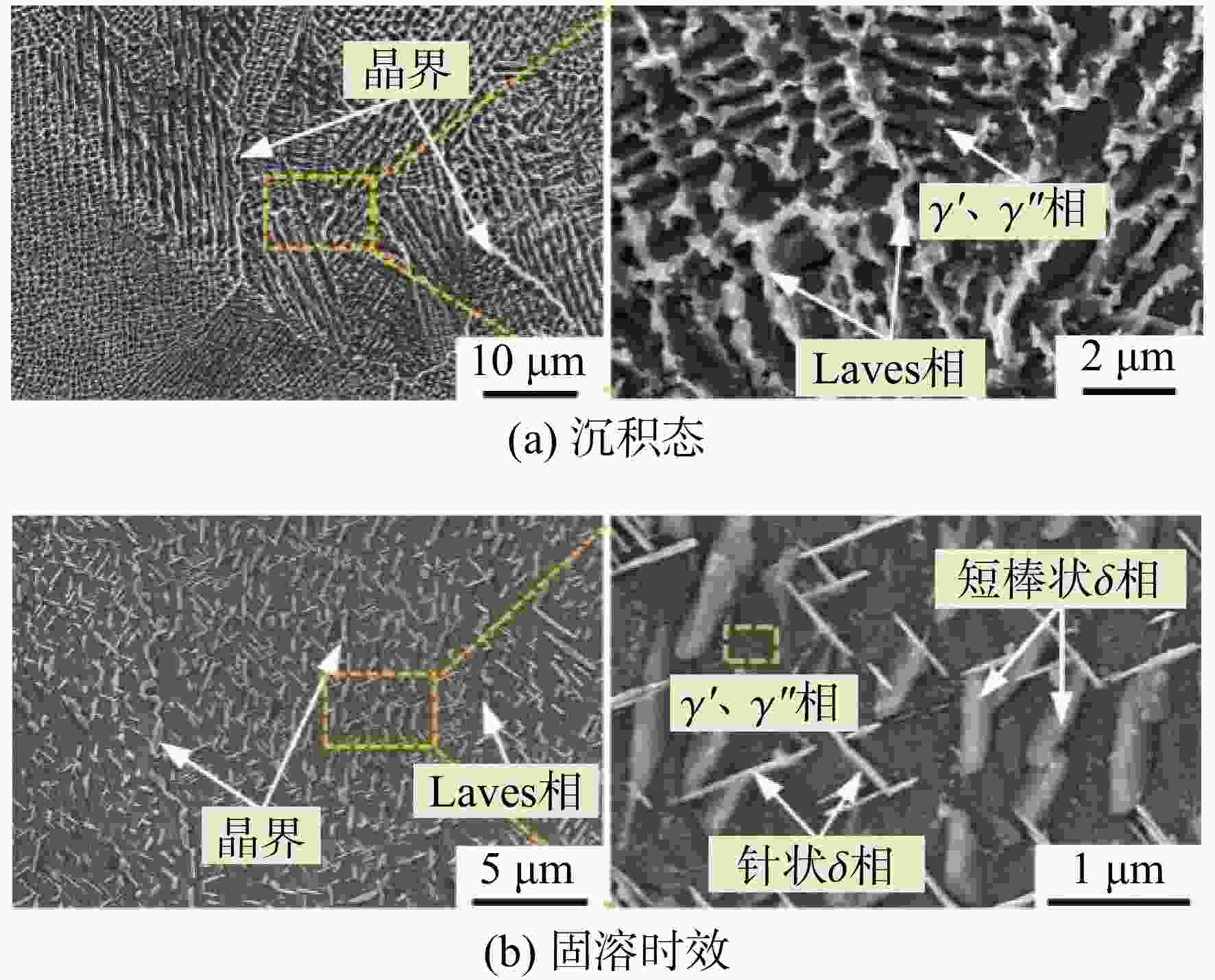

图 4 SEM下的微观结构特征

Figure 4. Microstructure characteristics under SEM

下载: 全尺寸图片幻灯片

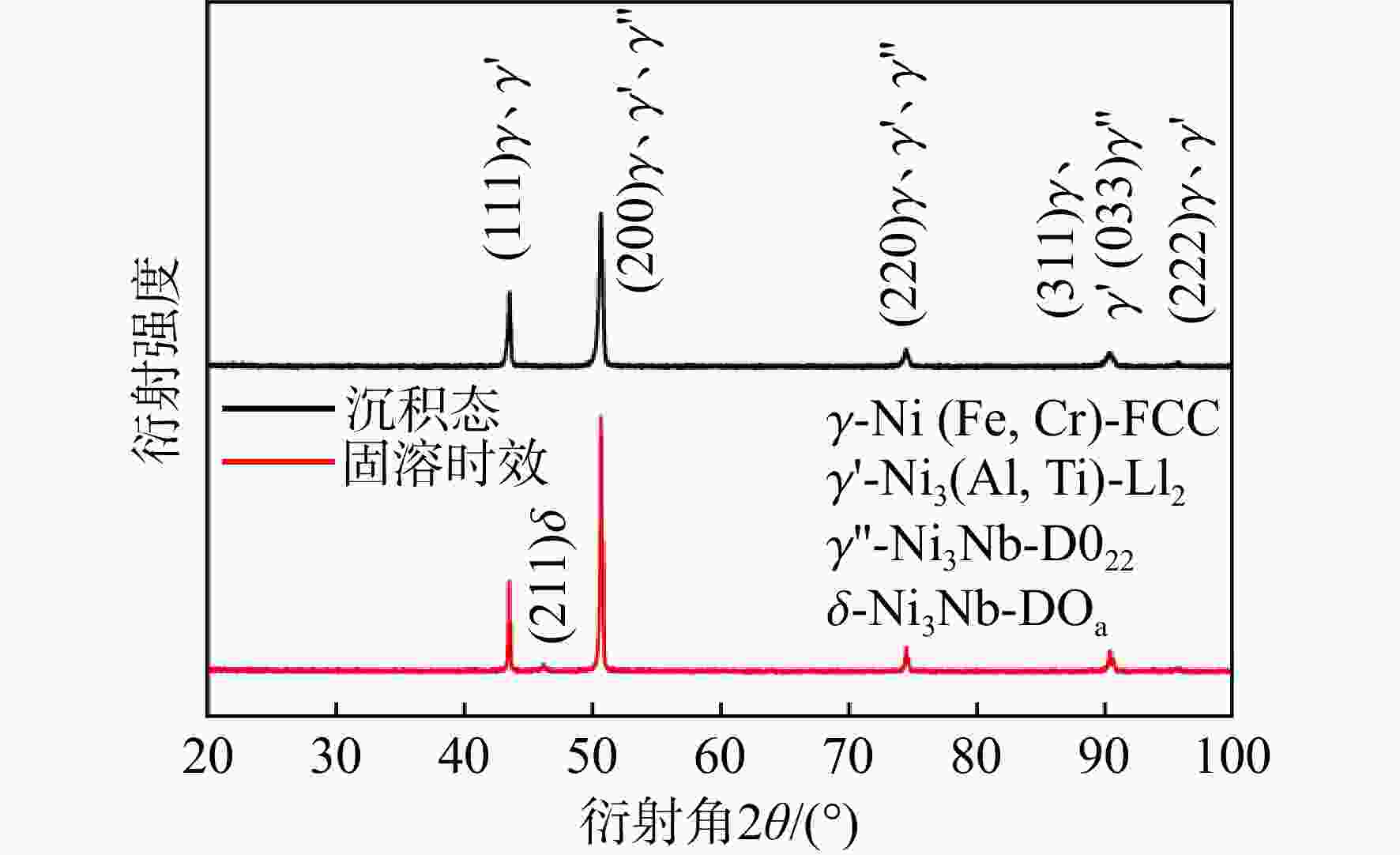

图 5 XRD图谱

Figure 5. XRD patterns

下载: 全尺寸图片幻灯片

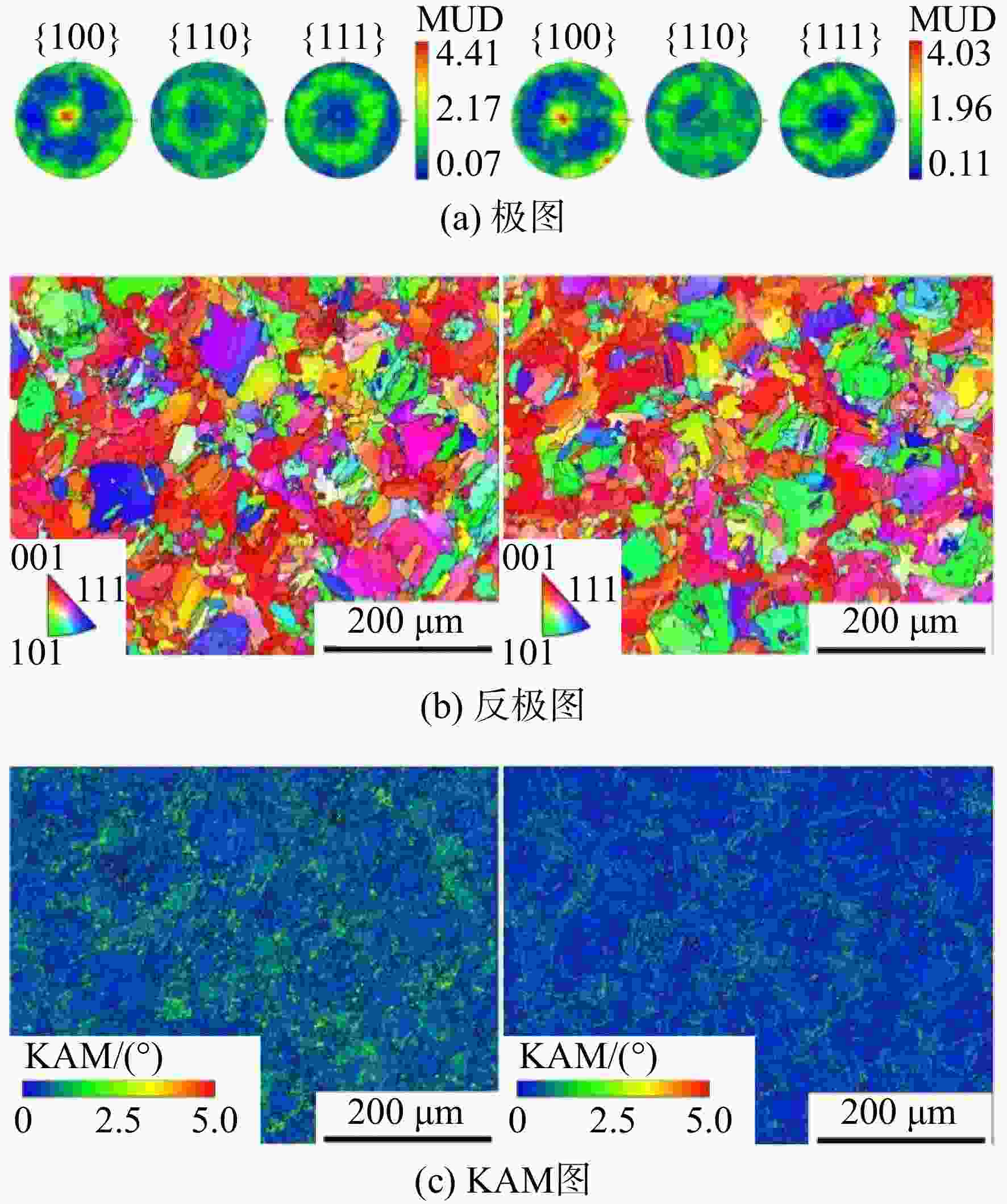

图 6 EBSD下的晶粒形貌与显微织构

Figure 6. Grain morphology and microtexture under EBSD

下载: 全尺寸图片幻灯片

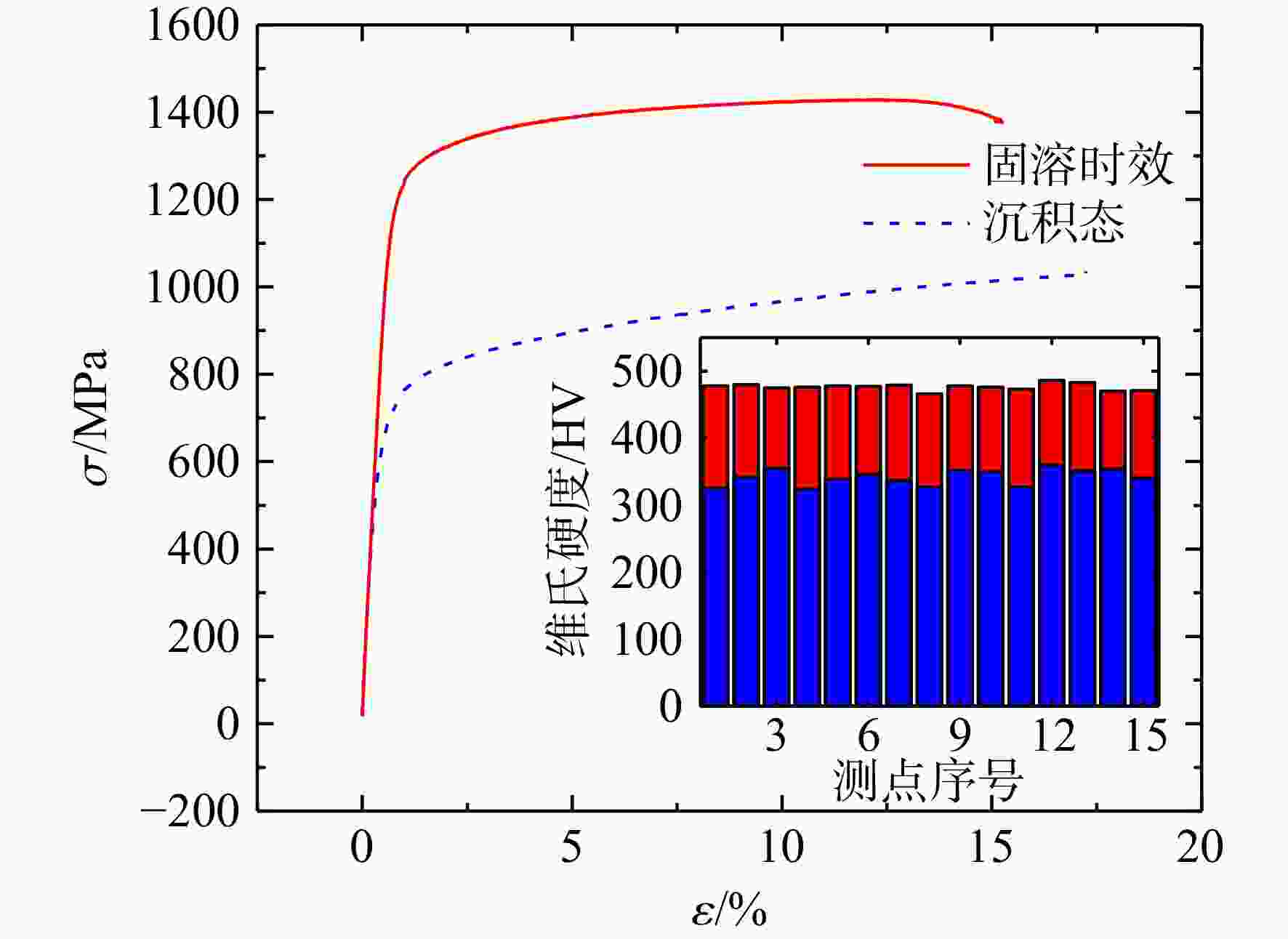

图 7 应力-应变曲线与硬度测试

Figure 7. Stress-strain curves and hardness tests

下载: 全尺寸图片幻灯片

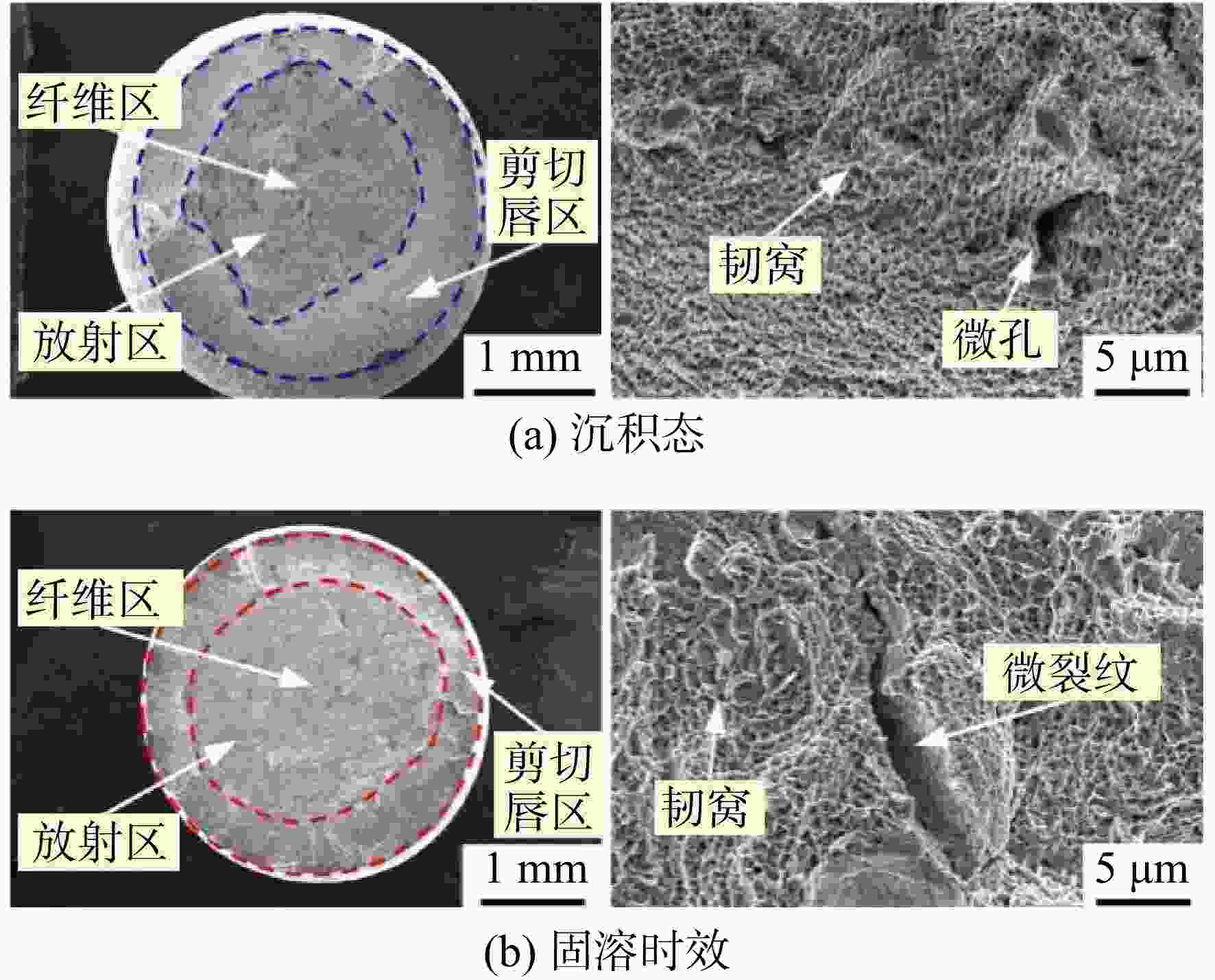

图 8 SEM下的拉伸断口形貌

Figure 8. Tensile fractures under SEM

下载: 全尺寸图片幻灯片

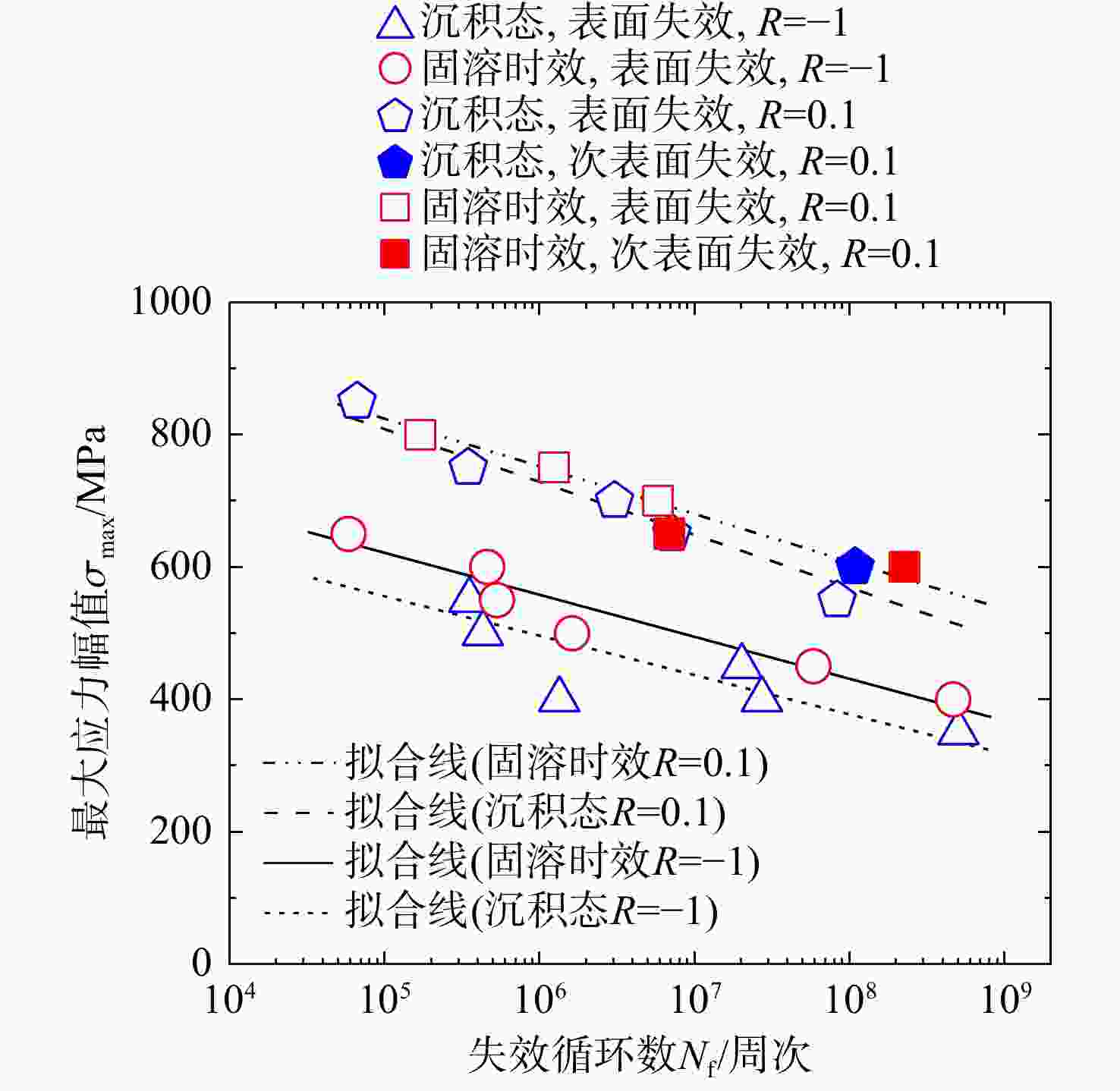

图 9 S-N曲线

Figure 9. S-N curves

下载: 全尺寸图片幻灯片

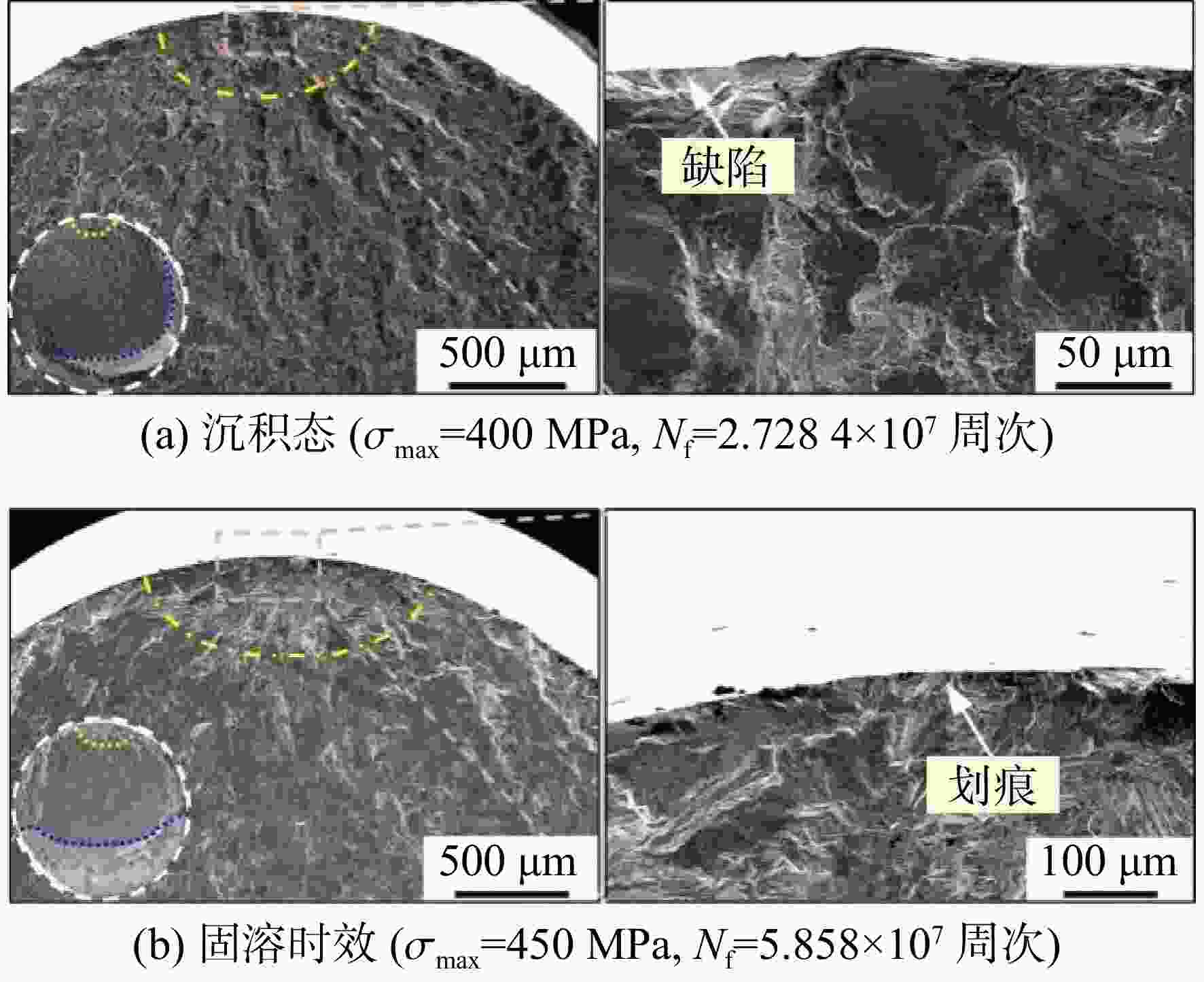

图 10 沉积态和固溶时效试样在R=−1下的表面失效断口

Figure 10. Surface failure fractures of as-bulit and solution aging specimens at R=−1

下载: 全尺寸图片幻灯片

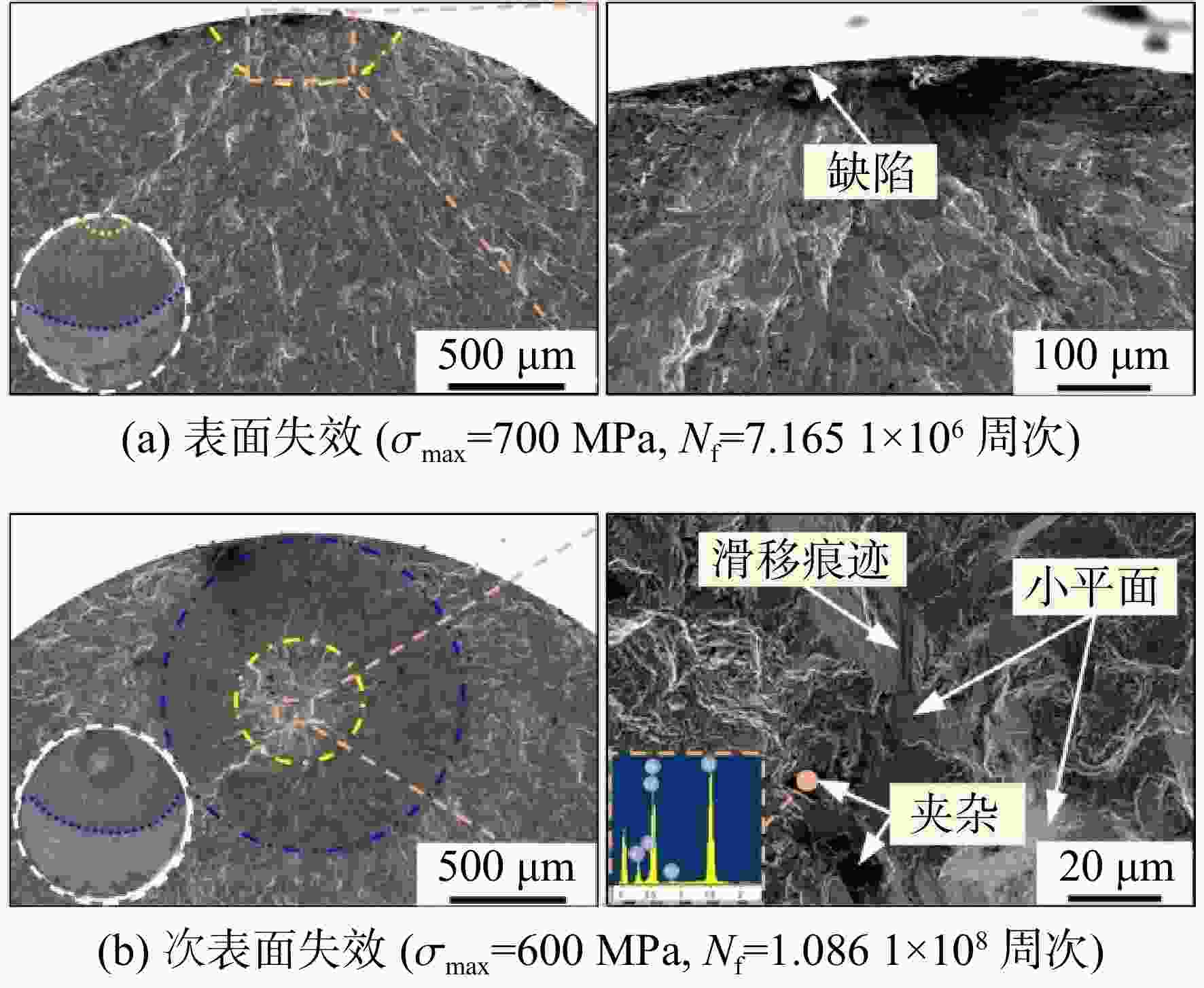

图 11 沉积态试样在R=0.1下的表面和次表面失效断口

Figure 11. Surface and subsurface failure fractures of as-bulit specimens at R=0.1

下载: 全尺寸图片幻灯片

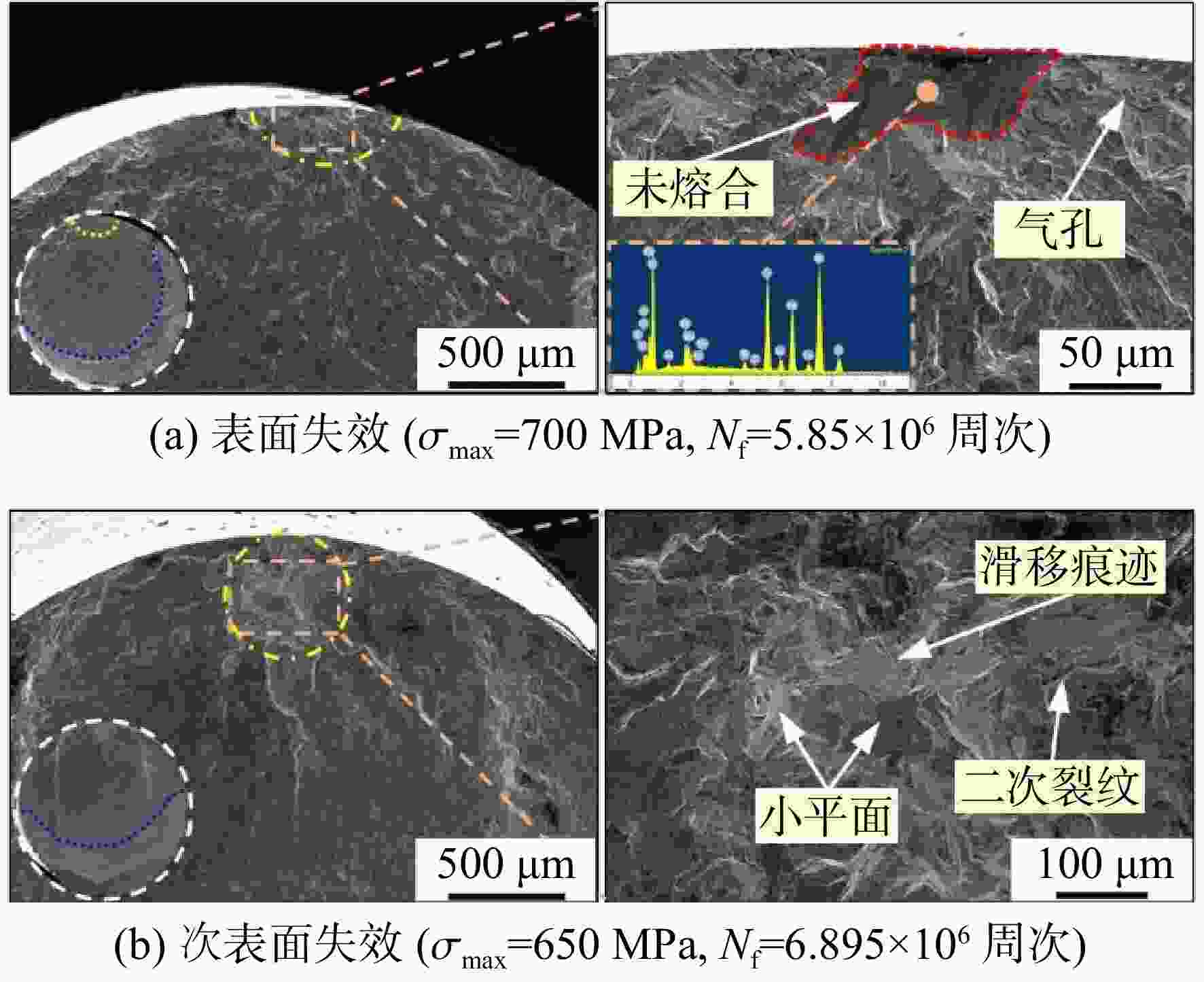

图 12 固溶失效试样在R=0.1下表面和次表面失效断口

Figure 12. Surface and subsurface failure fractures of solution aging specimens at R=0.1

下载: 全尺寸图片幻灯片

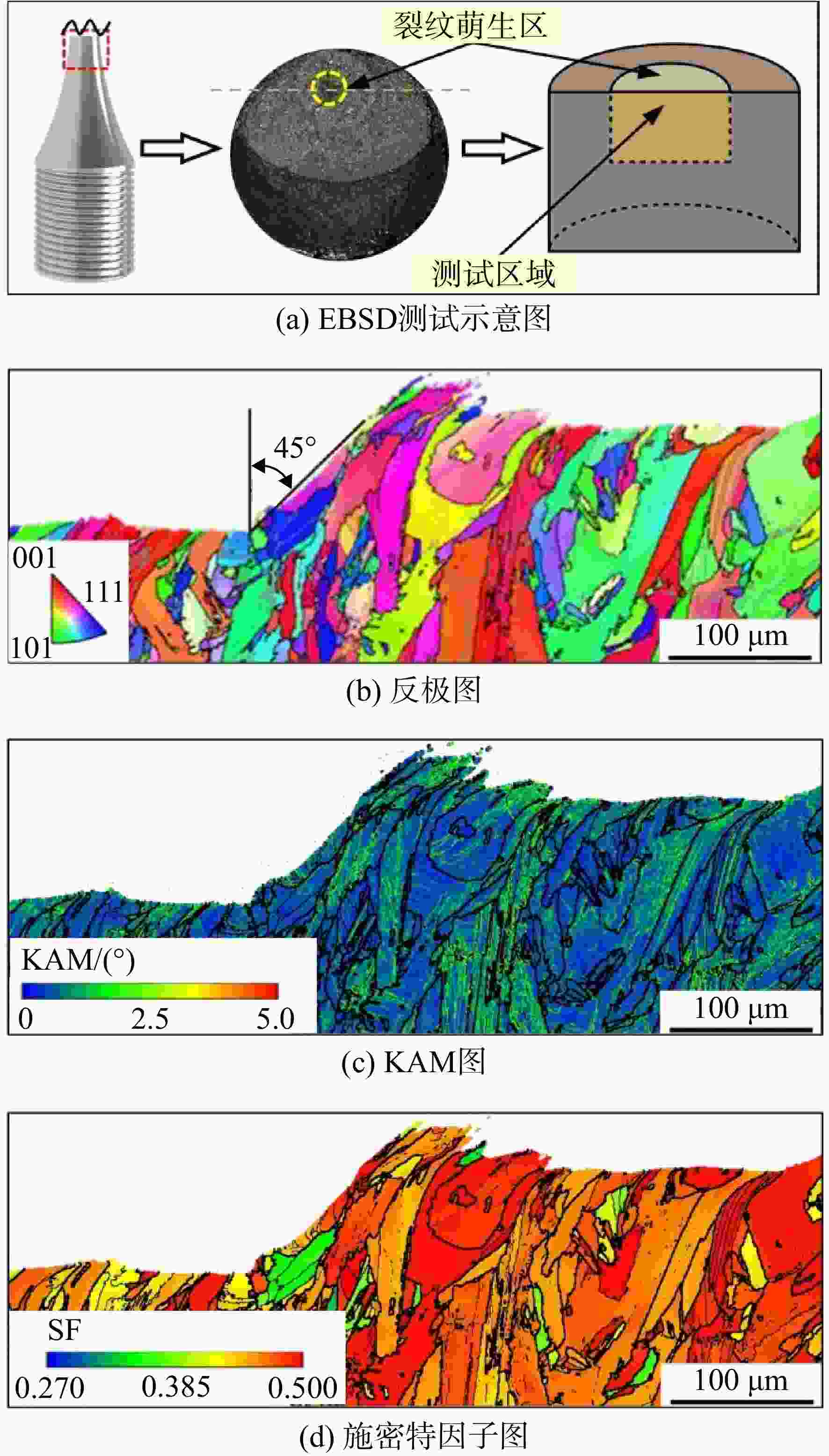

图 13 次表面失效断口EBSD分析

Figure 13. EBSD analysis of subsurface failure fracture

下载: 全尺寸图片幻灯片

图 14 LPBF镍基合金裂纹萌生寿命预测结果

Figure 14. LPBF nickel-based alloy crack nucleation life prediction results

下载: 全尺寸图片幻灯片

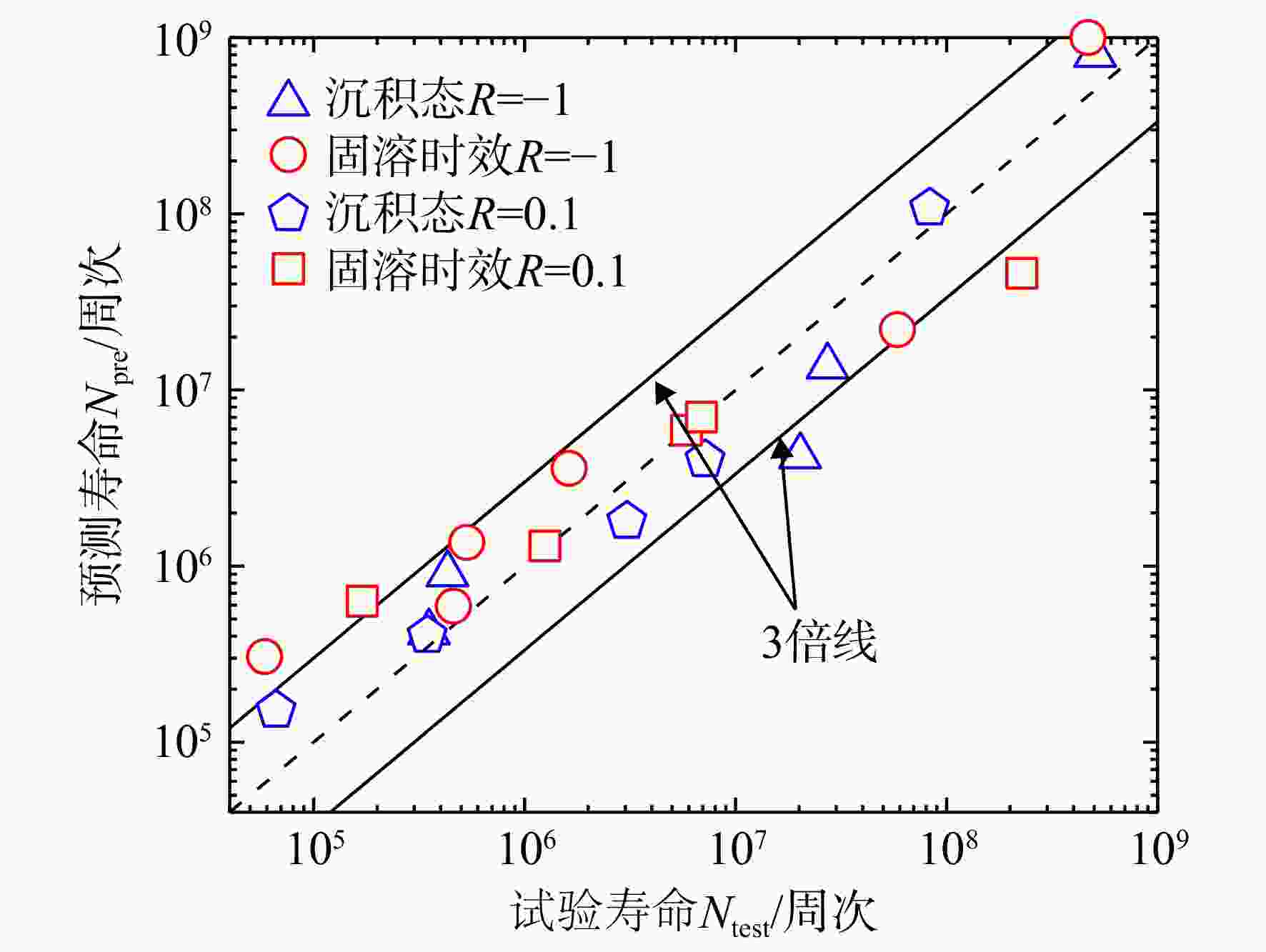

图 15 预测结果与试验结果的对比

Figure 15. Comparison of the predicted and test results

下载: 全尺寸图片幻灯片

表 1 LPBF主要加工参数

Table 1. Main parameters of LPBF process

激光功率/W	扫描速度/（mm/s）	扫描间距/μm	层厚/μm
280	960	110	40

下载: 导出CSV

表 2 沉积态和固溶时效试样拉伸性能

Table 2. Tensile properties as-built and solution aging specimens

试样状态	屈服强度/MPa	抗拉强度/MPa	断后延伸率/%	弹性模量/GPa
沉积态	809	1035	34.5	165.35
固溶时效	1345	1430	16.0	179.92

下载: 导出CSV

表 3 沉积态试样在R=−1和0.1下的疲劳寿命

Table 3. Fatigue life of as-built specimens at R=−1 and 0.1

应力比	编号	最大应力幅值/MPa	疲劳寿命/ 10⁵周次	失效模式
−1	1	550	3.522	表面失效
	2	500	4.318	表面失效
	3	450	202.4	表面失效
	4	400	13.44	表面失效
	5	400	272.8	表面失效
	6	350	5065	表面失效
0.1	1	850	0.6650	表面失效
	2	750	3.463	表面失效
	3	700	30.54	表面失效
	4	650	71.65	表面失效
	5	600	1086	次表面失效
	6	550	831.9	表面失效

下载: 导出CSV

表 4 固溶时效试样在R=−1和0.1下的疲劳寿命

Table 4. Fatigue life of solution aging specimens at R=−1 and 0.1

应力比	编号	最大应力幅值/MPa	疲劳寿命/ 10⁵周次	失效模式
−1	1	650	0.5860	表面失效
	2	600	4.600	表面失效
	3	550	5.324	表面失效
	4	500	16.25	表面失效
	5	450	585.7	表面失效
	6	400	4680	表面失效
0.1	1	800	1.704	表面失效
	2	750	12.46	表面失效
	3	700	58.50	表面失效
	4	650	68.95	次表面失效
	5	600	2275	次表面失效

下载: 导出CSV
