Rotational fretting wear characteristic of ball bearings and rotor assemblies based on wear particles analysis
-
摘要:

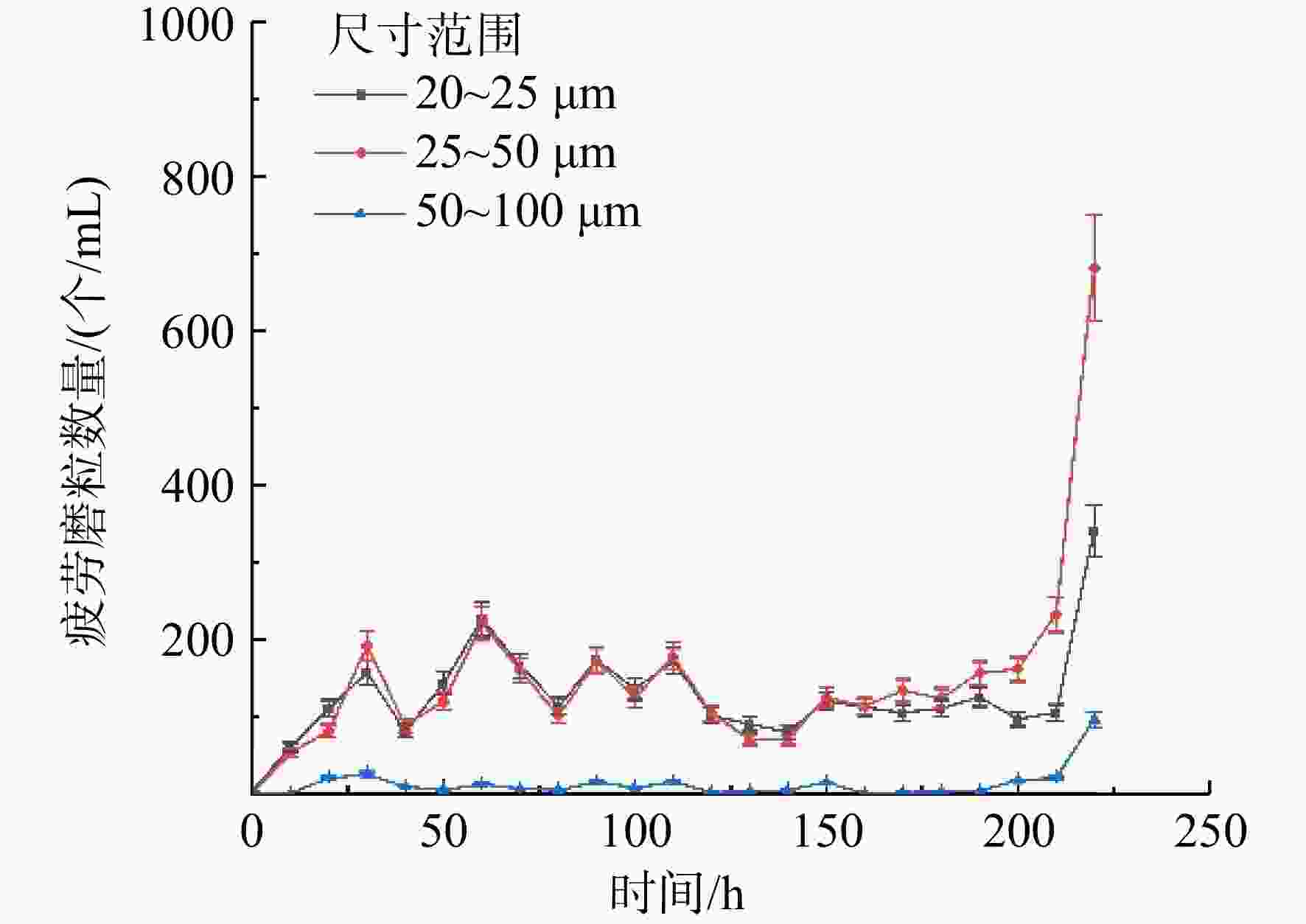

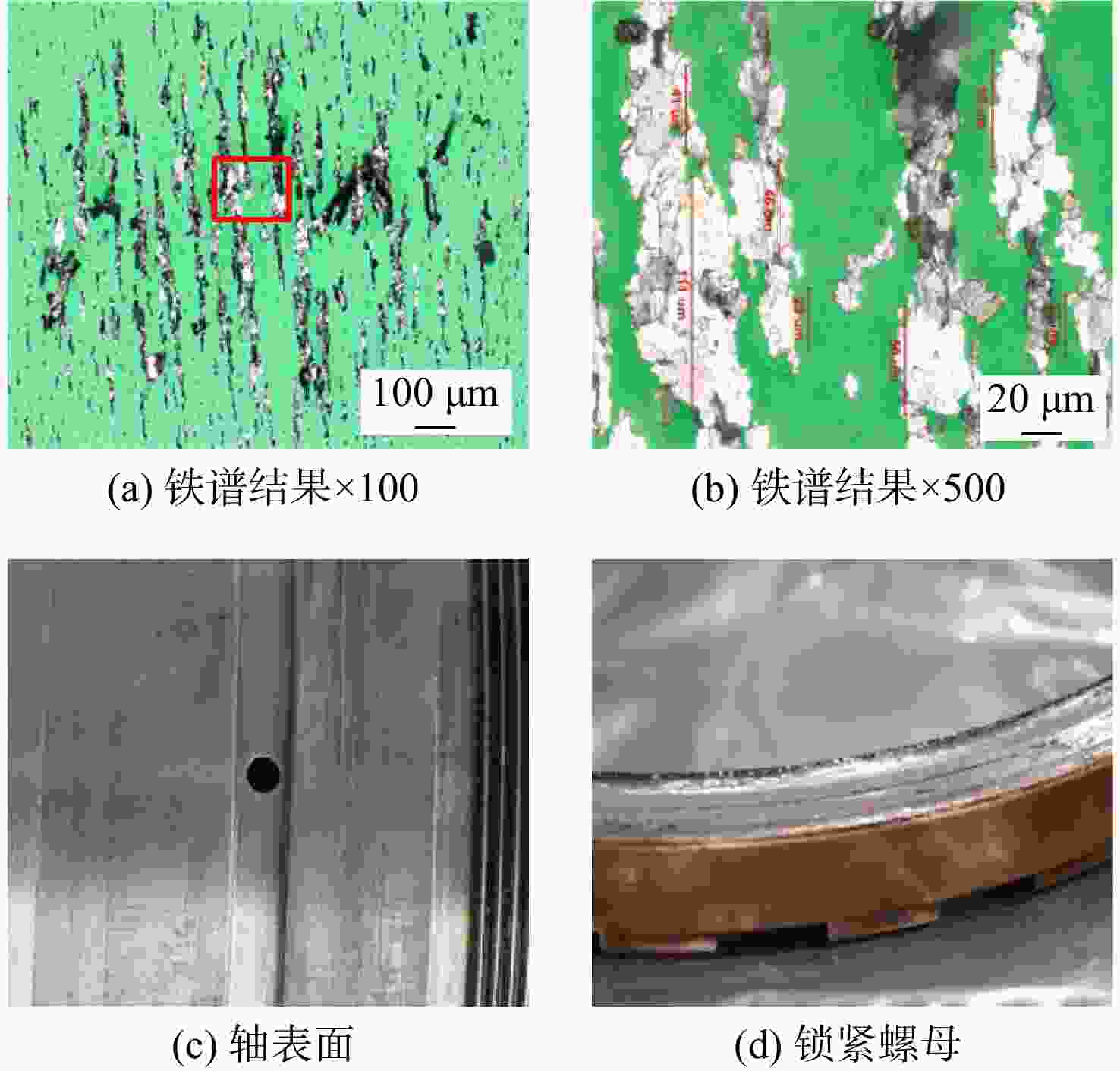

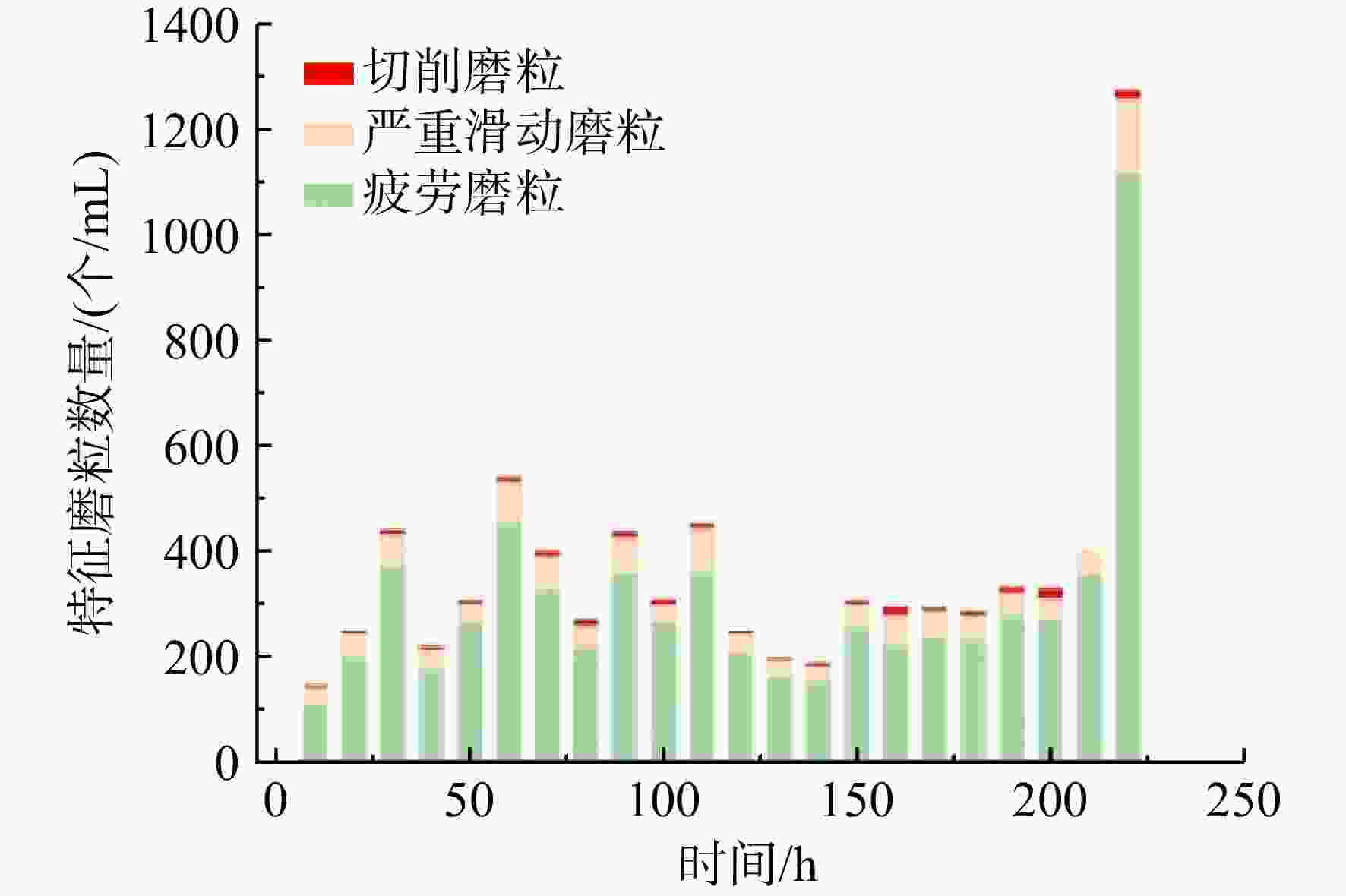

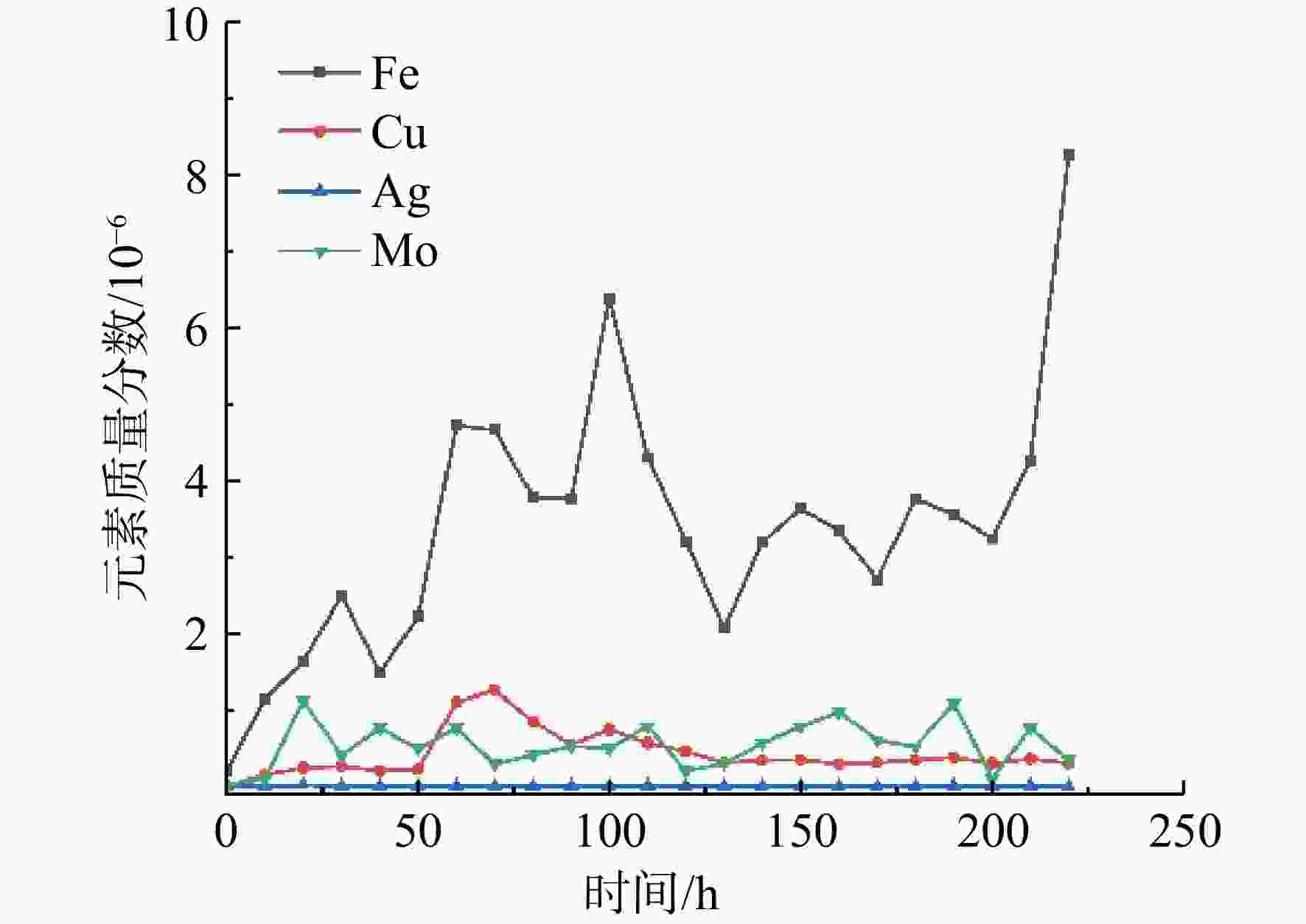

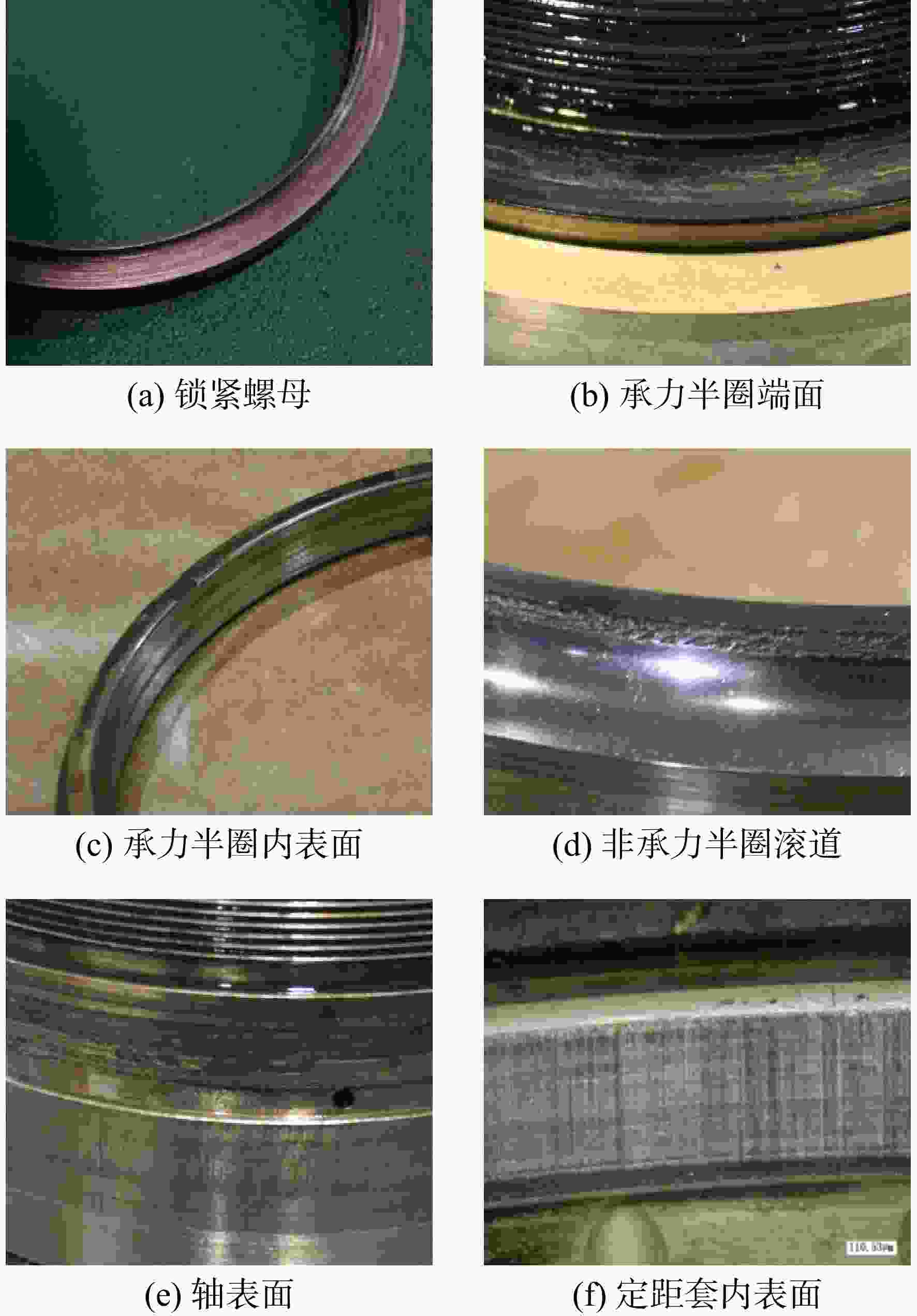

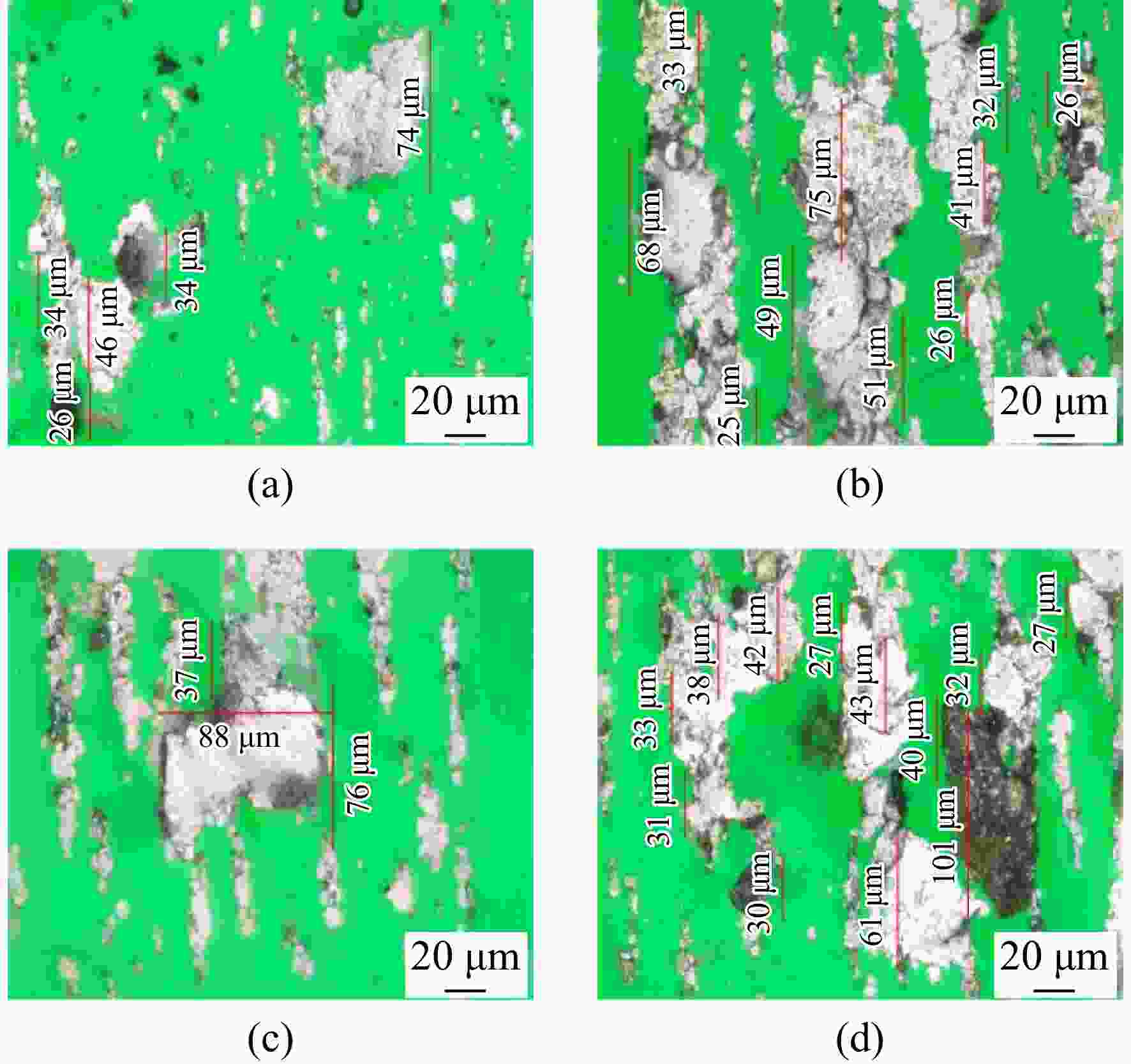

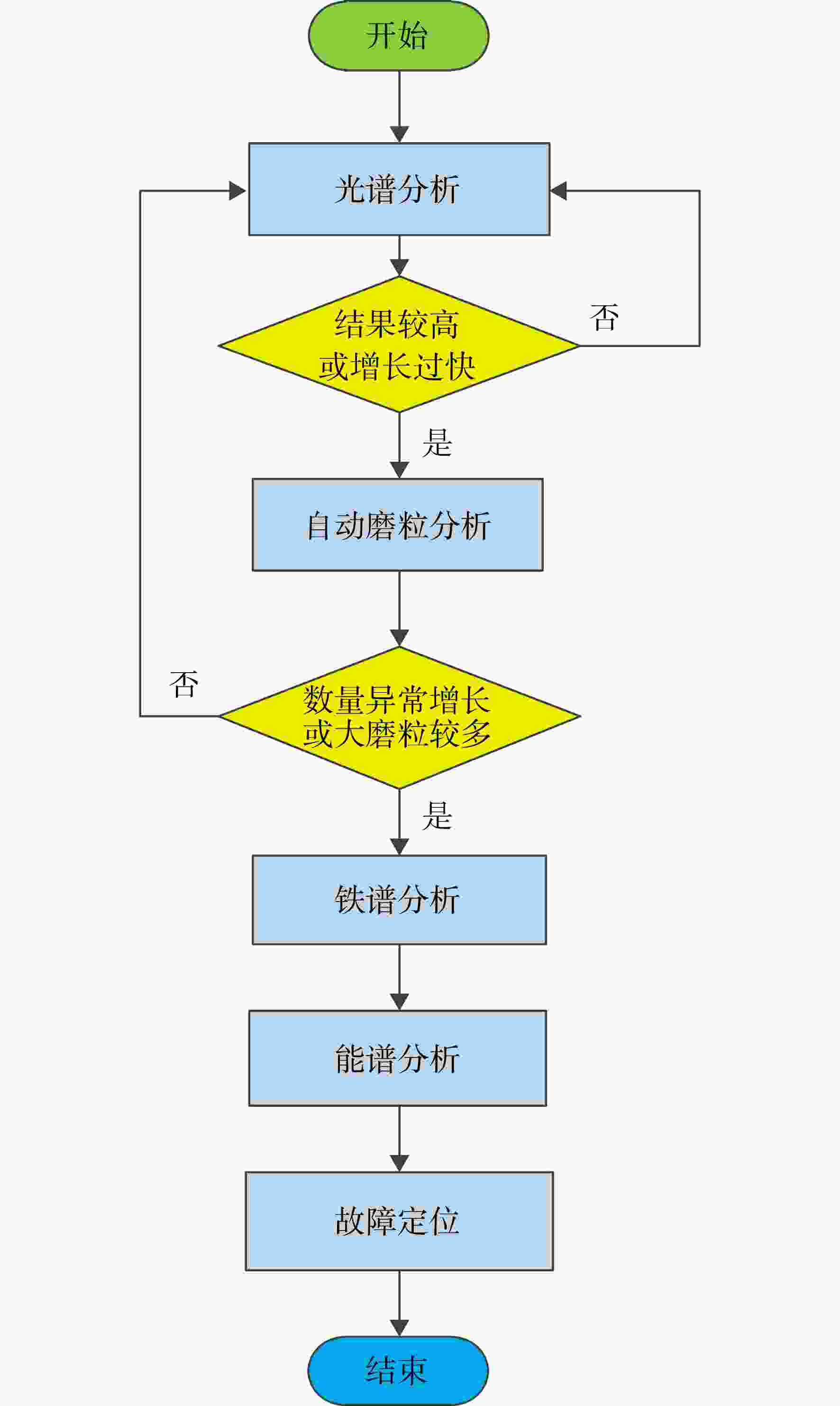

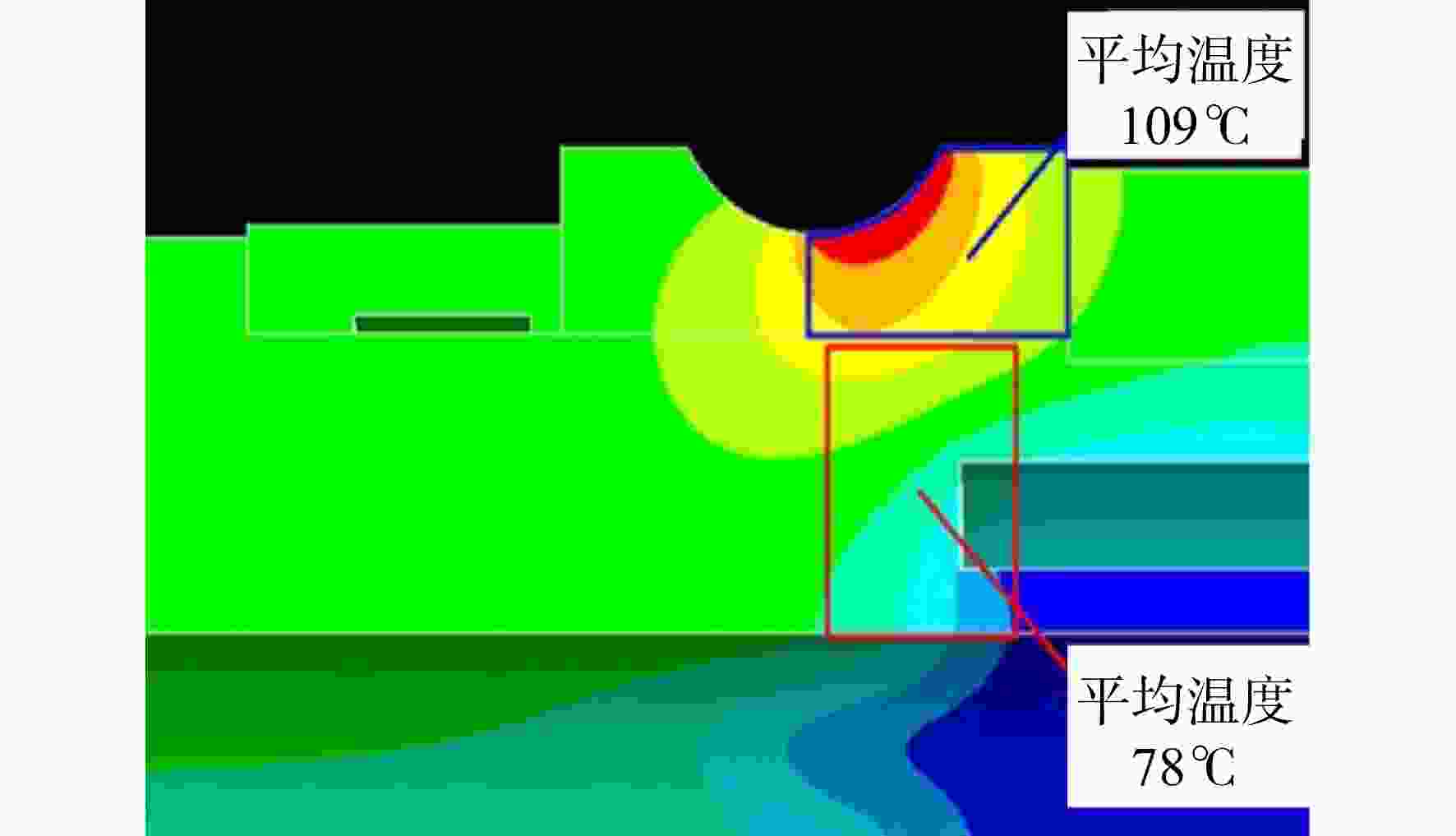

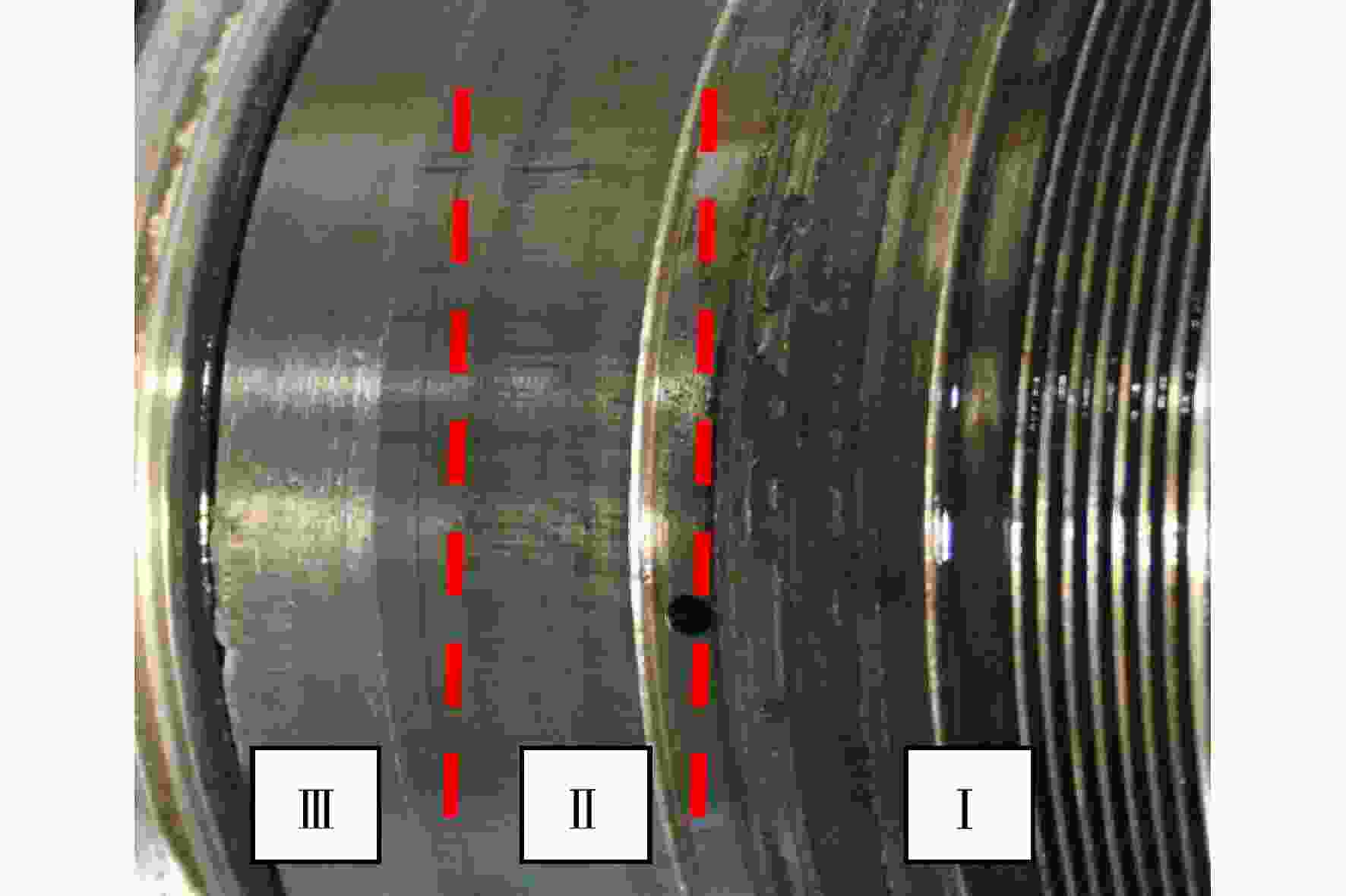

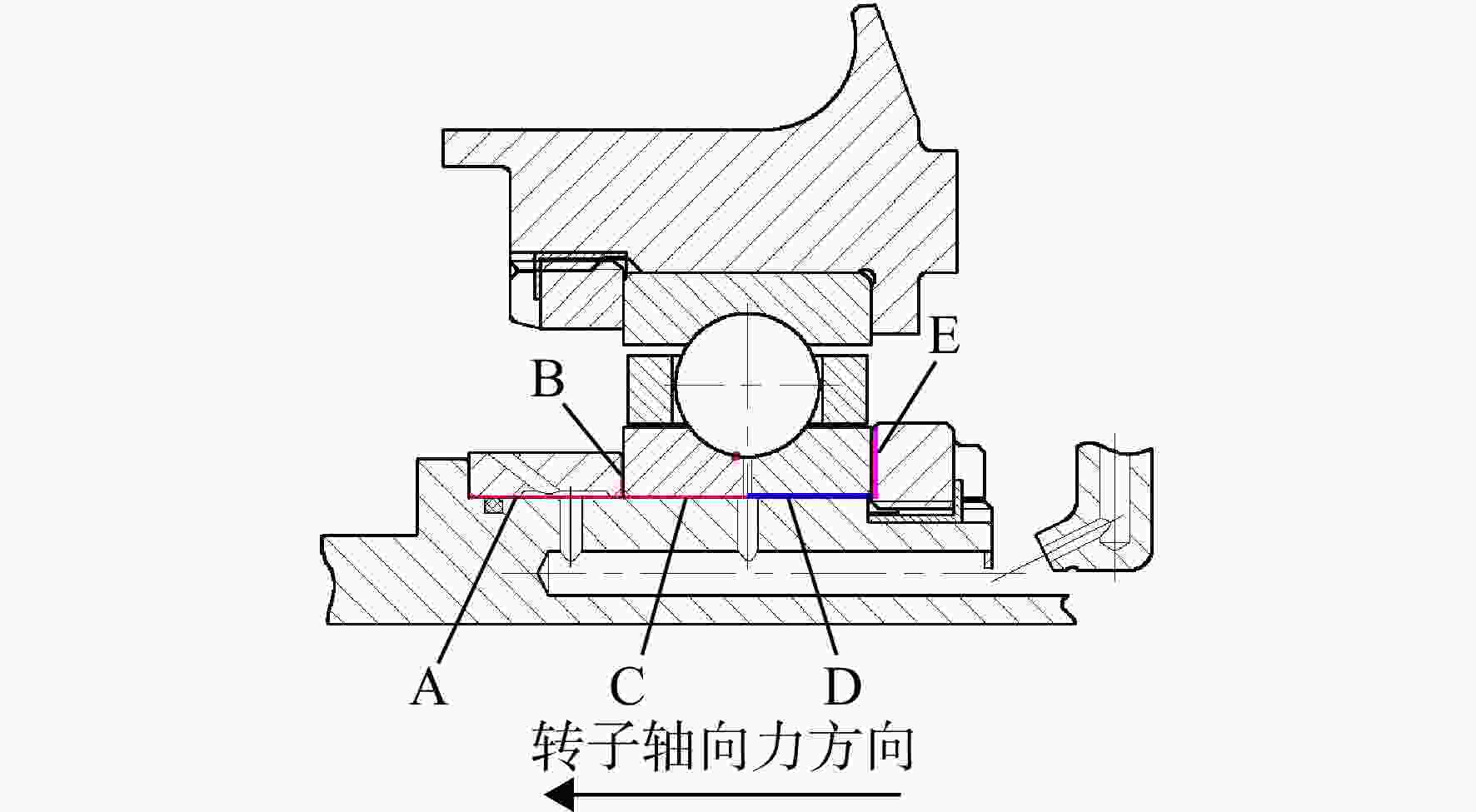

为研究燃气涡轮发动机球轴承及转子组件的转动微动磨损特性，综合利用光谱、自动磨粒、铁谱及能谱分析方法对燃气涡轮发动机滑油磨粒进行分析。结果表明：磨粒总量及尺寸与球轴承及转子组件的磨损进程存在对应关系，即磨粒随磨损量和磨损形式的变化而改变，并在磨损后期急剧增长；内圈相对轴的转动是导致轴承及转子组件转动微动磨损的主要原因，其特征磨粒为平片状疲劳磨粒，且球轴承及转子组件的磨损具有系统依赖性。结论：在摩擦力及内圈高温度梯度等作用下，内圈相对轴发生转动，使定距套、轴表面、锁紧螺母端面先后出现转动微动磨损，并在非承力半圈滚道底部形成碾压痕迹。所提出的磨粒分析流程也可为其他燃气涡轮发动机的球轴承及转子组件转动微动磨损特性研究提供参考。

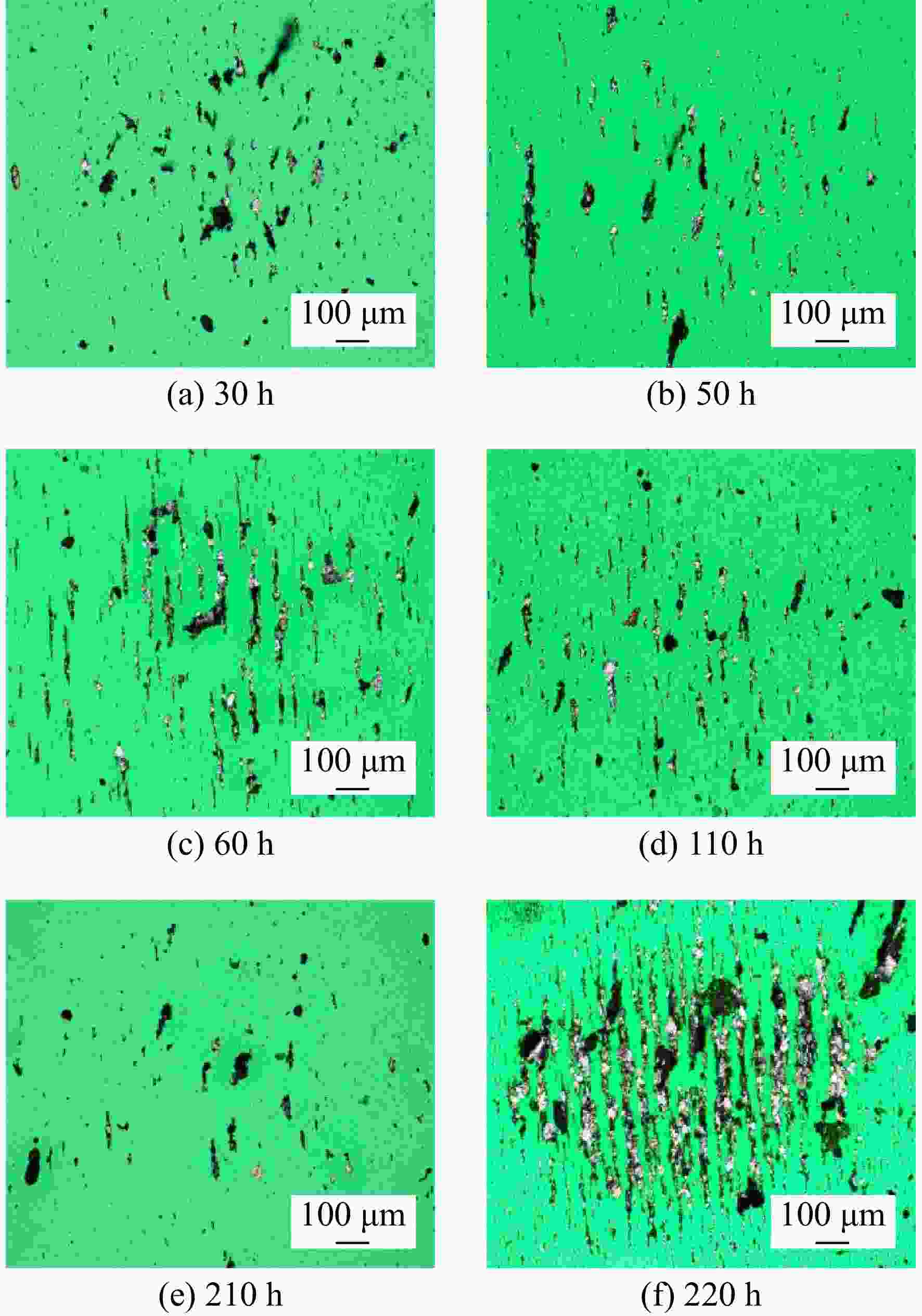

Abstract:To study the rotational fretting wear characteristic of ball bearing and rotor assemblies for gas turbine, spectroscopy, laser net fines analysis, ferrography and energy-dispersive X-ray spectroscopy analysis were employed to analyze the wear particles in lubricant. The results showed that the total amount and size of wear particles matched well with the wear process, which varied according to wear amount and patterns and increased sharply at the final period of wear. The rotational fretting wear of ball bearings and rotor assemblies were mainly caused by the rotation of inner ring relative to the shaft, and the flat platelets were the characteristic wear particles for rotational fretting wear. The wear process was not isolated. In short, with the rotation of inner ring relative to shaft caused by friction and high temperature gradient, the wears were founded on spacer sleeve, shaft, and locknut face sequentially, and crushing marks were formed at the bottom of non-load bearing half-ring raceway. To be notice, the analysis process can also provide a reference to the wear mechanism of ball bearings and rotor assemblies of other gas turbines.
-
Key words:
- gas turbine /
- ball bearings /
- wear particles /
- rotational fretting wear /
- locknut
-
表 1 轴承及转子组件材料
Table 1. Bearings and rotor assemblies material
零件名称 材料 内、外圈、滚珠 Cr4Mo4V 保持架 40CrNiMoA 定距套 40CrNiMoA 锁紧螺母 40CrNiMoA 轴 0Cr17Ni4Cu4Nb
下载: 导出CSV
表 2 30 h能谱分析结果
Table 2. Energy spectrum analysis results at 30 h
磨粒 质量分数/% Fe Cr Ni Mo Mn Cu 1 余 0.7 1.7 0.3 0.6 2 余 0.9 1.8 0.1 0.8 3 余 0.6 1.6 0.3 0.8 4 余 15.4 4.0 0.4 0.3 3.4
下载: 导出CSV
表 3 50 h能谱分析结果
Table 3. Energy spectrum analysis results at 50 h
磨粒 质量分数/% Fe Cr Ni Mo Mn V 1 余 0.9 1.2 0.1 0.5 2 余 0.9 1.3 0.2 0.4 3 余 4.4 4.1 0.1 1.1
下载: 导出CSV
表 4 60 h能谱分析结果
Table 4. Energy spectrum analysis results at 60 h
磨粒 质量分数/% Fe Cr Ni Mo Mn Cu Nb 1 余 0.7 1.7 0.2 0.4 2 余 0.9 1.8 0.3 0.4 3 余 0.8 1.8 0.2 0.3 1.2 4 19.5 19.3 52.1 2.8 4.8 5 18.7 18.5 52.8 3.3 5.7 6 1.5 1.0 1.4 余 7 余 15.4 4.7 0.7 5.1 0.6
下载: 导出CSV
表 5 110 h能谱分析结果
Table 5. Energy spectrum analysis results at 110 h
磨粒 质量分数/% Fe Cr Ni Mo Mn Cu Nb 1 余 0.8 1.9 0.2 0.7 2 余 0.9 1.7 0.1 0.6 3 余 15.6 4.7 4.1 0.8
下载: 导出CSV
表 6 220 h能谱分析结果
Table 6. Energy spectrum analysis results at 220 h
磨粒 质量分数/% Fe Cr Ni Mo Mn 1 余 0.9 1.5 0.1 0.8 2 余 0.9 1.3 0.3 0.8 3 余 1.0 1.3 0.2 0.8
下载: 导出CSV
-
