Multidisciplinary collaborative mode for overall-component design of next-generation aero-engines based on MBSE
-
摘要:
为解决设计中的协同困难和多学科仿真集成问题，采用基于模型的系统工程（MBSE）方法，构建了需求-功能-逻辑-物理（RFLP）系统工程框架，并发展了针对总体-部件的高效分解综合模型，以实现流程化建模和管理。通过开发需求条目管理、系统建模语言（SysML）可视化建模工具，以及集成性能求解器支持的部件嵌入仿真方案，建立了一个多学科协同设计平台，实现了基于MBSE的航空发动机完整正向设计流程，构建了支持多厂所、多学科和多团队协同工作的 browser/server（B/S）架构环境，为航空发动机设计提供了高效可靠的解决方案。平台支持三维结构模型的轻量化、可视化及其管理与追溯，并通过部门权限管理和审批工作流打通了正向设计全流程。以高通流双变循环发动机为例进行验证，平台提高了设计的准确性，减少了重复劳动；SysML可视化建模为后续仿真提供了坚实基础；多学科仿真集成和多方案比选加快了设计迭代速度；三维结构管理模块提高了模型评审与优化效率。
-
关键词:
- 基于模型的系统工程（MBSE） /
- 正向设计 /
- 需求-功能-逻辑-物理（RFLP） /
- 系统建模语言（SysML） /
- 多学科仿真

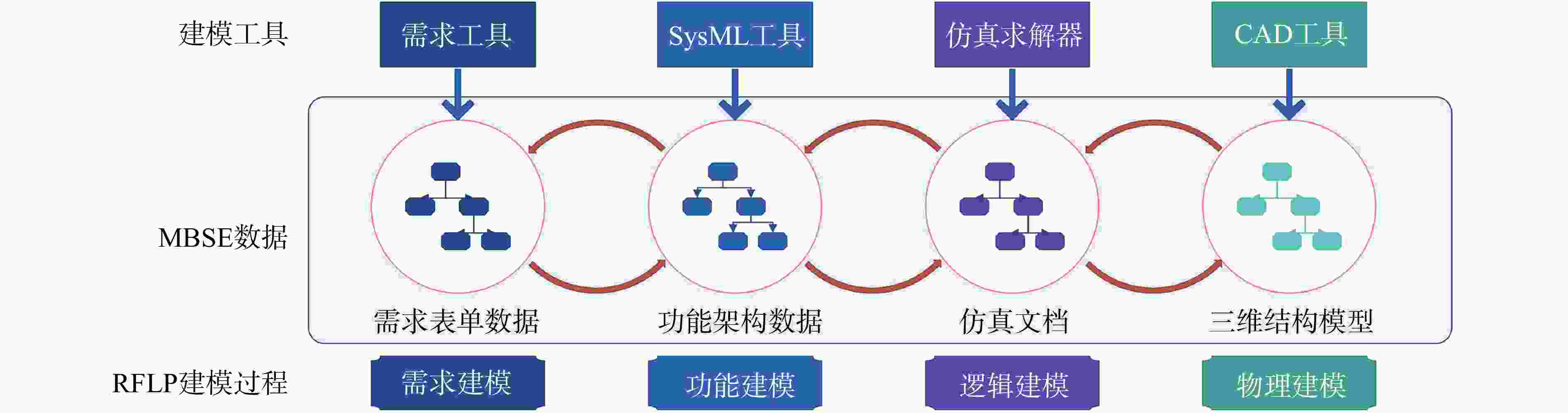

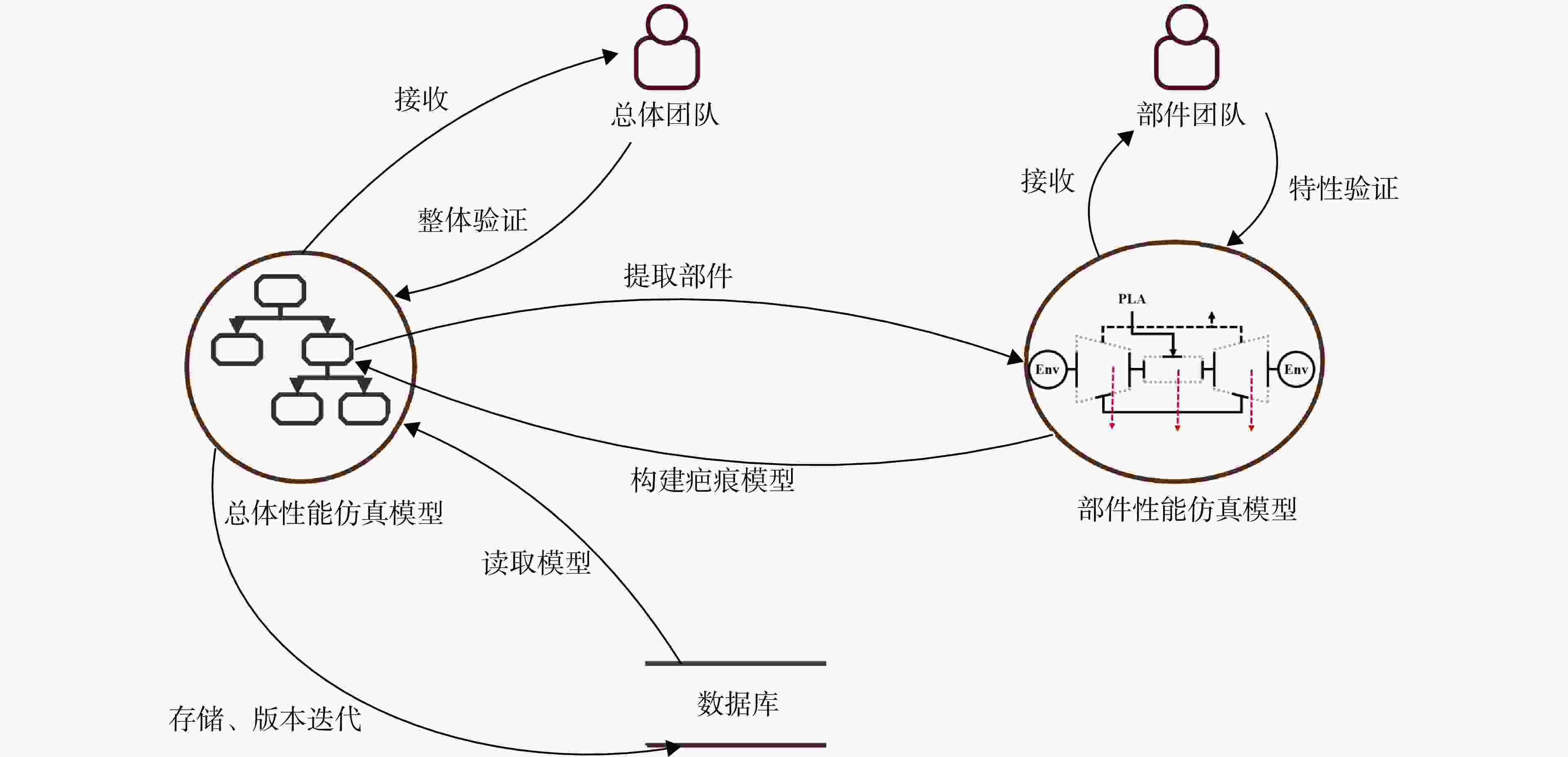

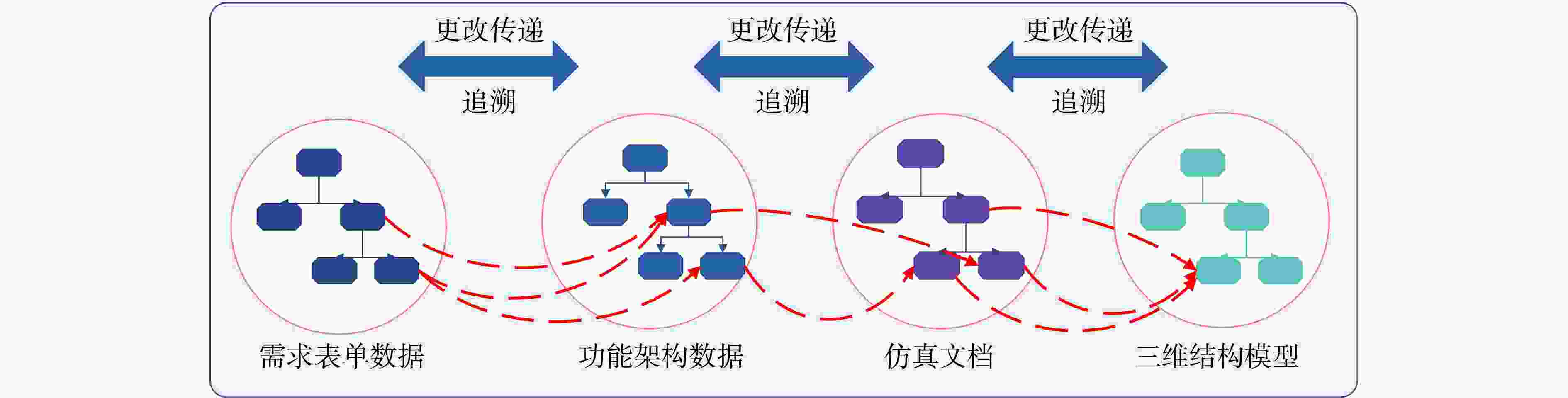

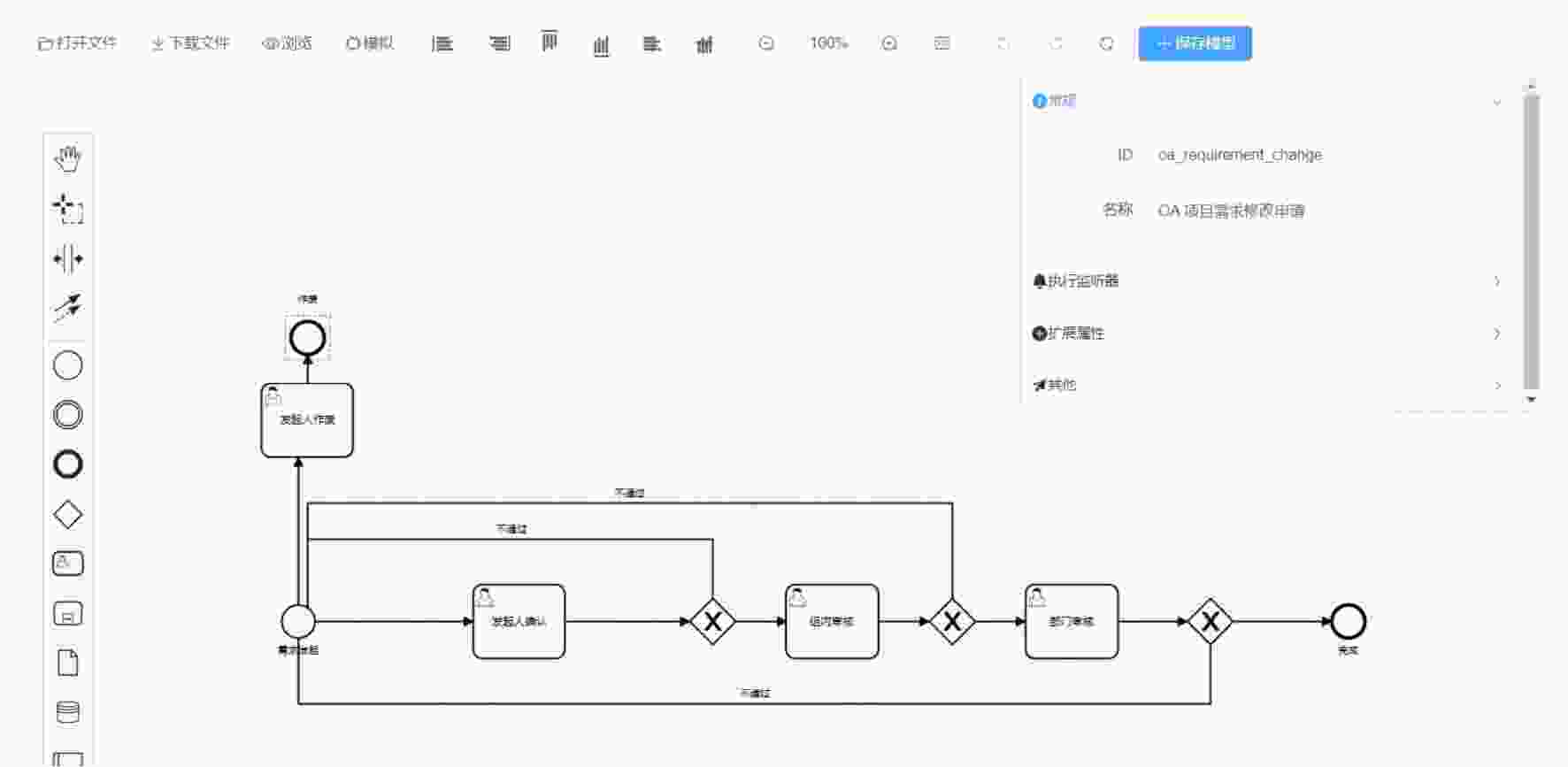

Abstract:To address the challenges of collaborative difficulties and multi-disciplinary simulation integration in design, a model-based systems engineering (MBSE) methodology was adopted to construct a requirements-function-logic-physical (RFLP) system engineering framework and develop an efficient decomposition-synthesis model for system-component relationships, enabling streamlined modeling and management. Through the development of requirement item management, systems modeling language (SysML) visualization modeling tools and component-embedded simulation solutions supported by integrated performance solvers, a multi-disciplinary collaborative design platform was established, so that a complete forward design process for aero-engines based on MBSE was achieved, and a browser/server (B/S) architecture environment supporting multi-institute, multi-disciplinary and multi-team collaboration was built, providing an efficient and reliable solution for aero-engine design. The platform supported lightweight visualization, management, and traceability of three-dimensional structural models, and implemented a forward design workflow through departmental permission management and approval processes. Using a high-bypass dual-variable cycle engine as a validation example, the platform improved the design accuracy and reduced redundant work; SysML visual modeling provided a solid foundation for subsequent simulations; multi-disciplinary simulation integration and multi-scheme comparison accelerated design iteration speed; and the three-dimensional structure management module enhanced model review and optimization efficiency.
-

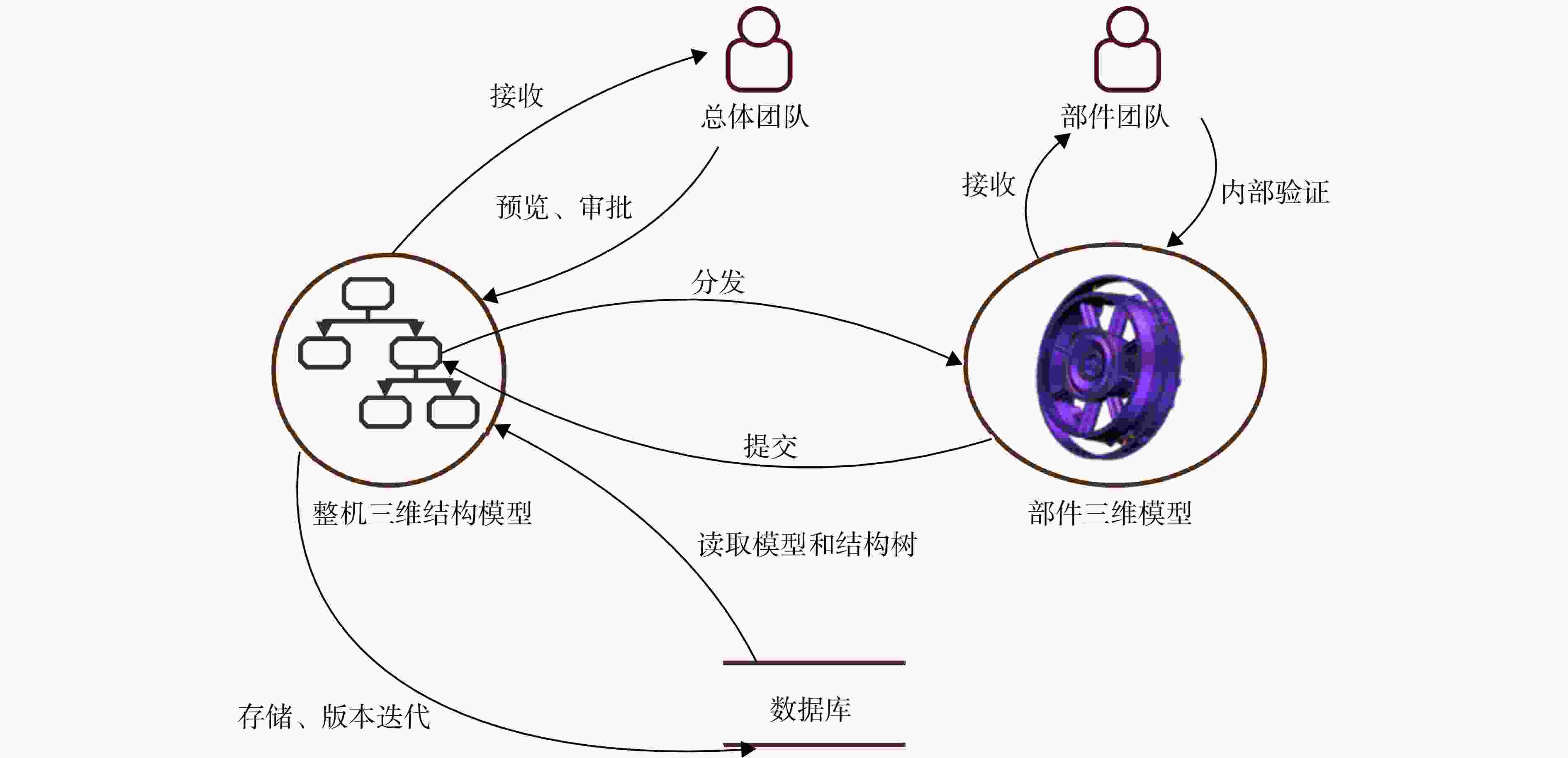

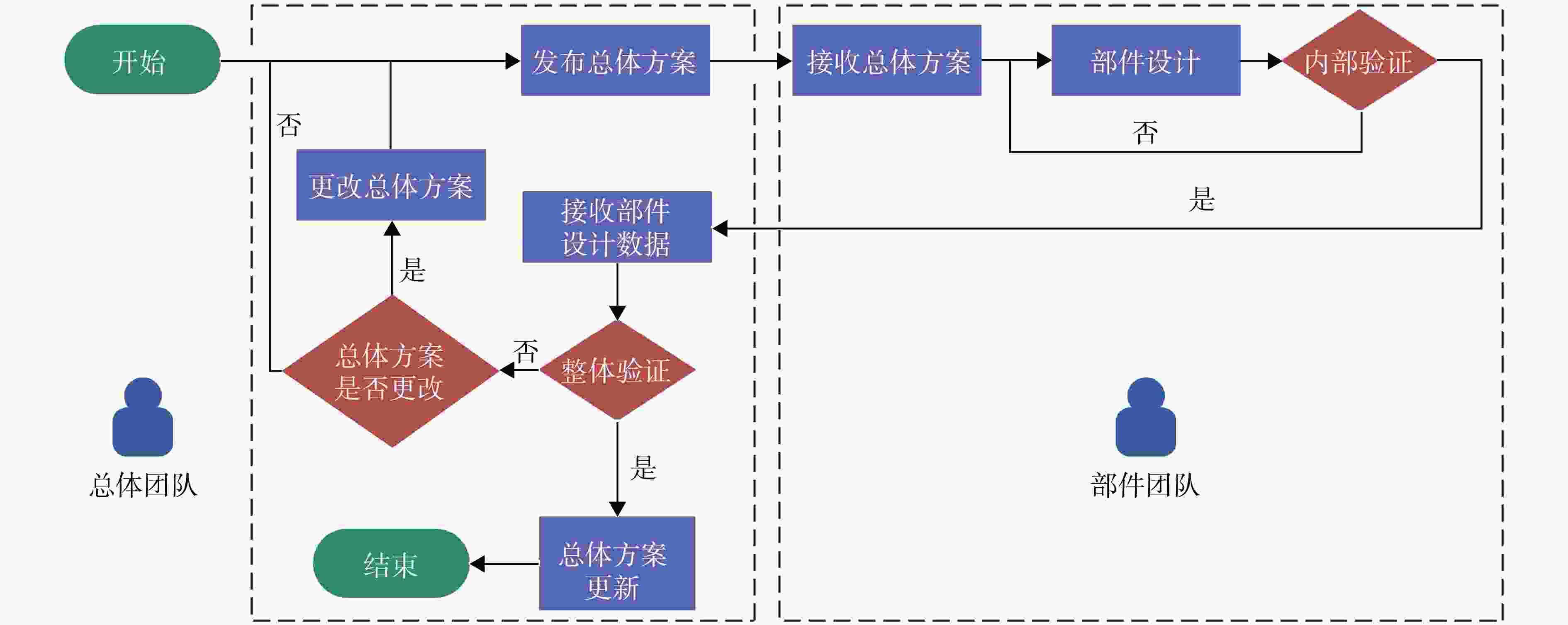

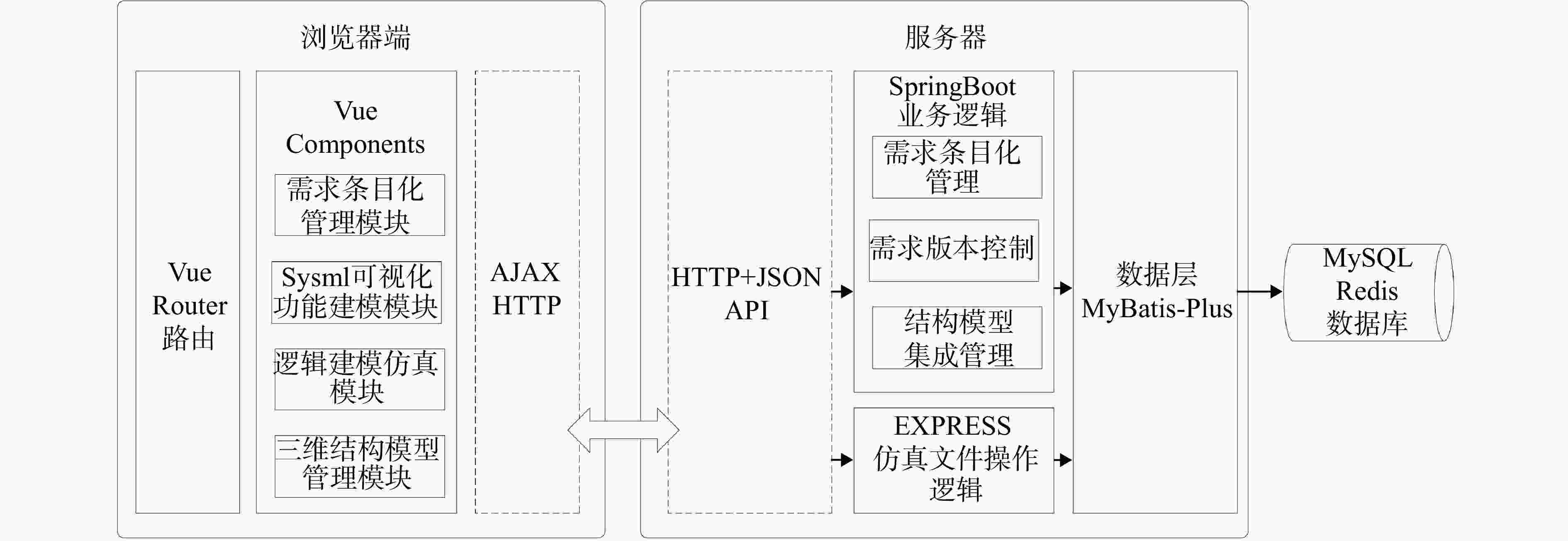

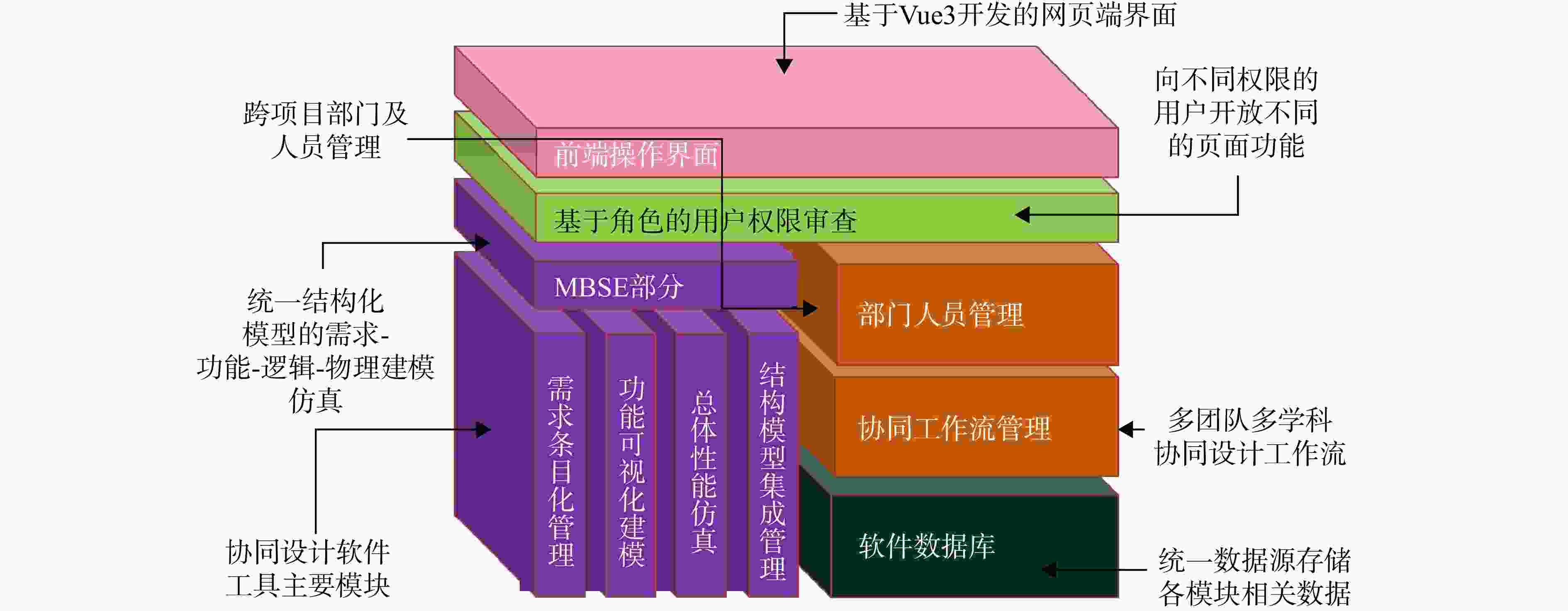

图 6 基于MBSE的航空发动机多学科协同设计平台系统架构
Figure 6. System architecture of the multidisciplinary collaborative design platform for aero-engines based on MBSE

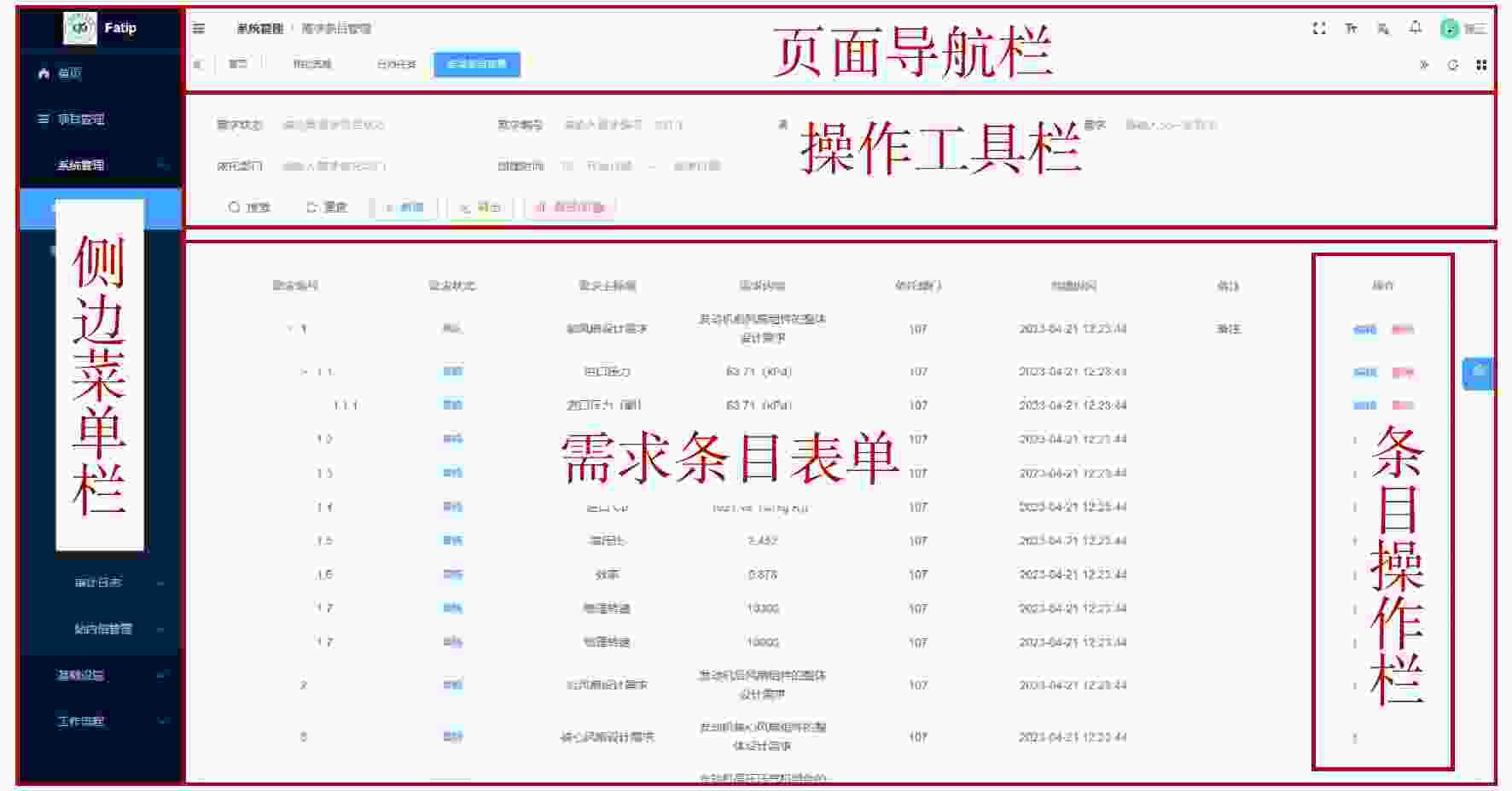

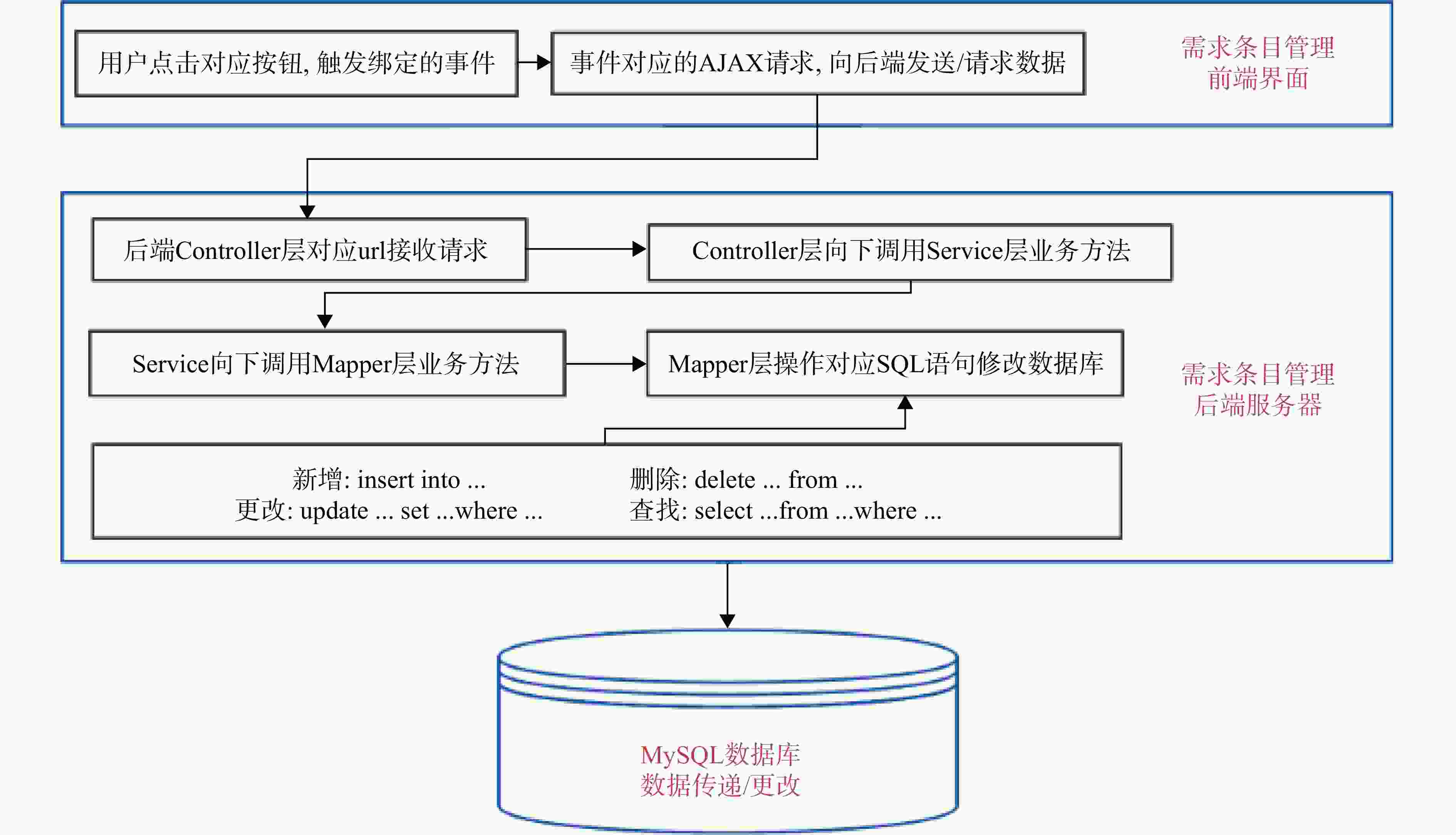

图 8 需求条目增删改查总体逻辑
Figure 8. Overall logic of adding, deleting, modifying, and querying requirement items

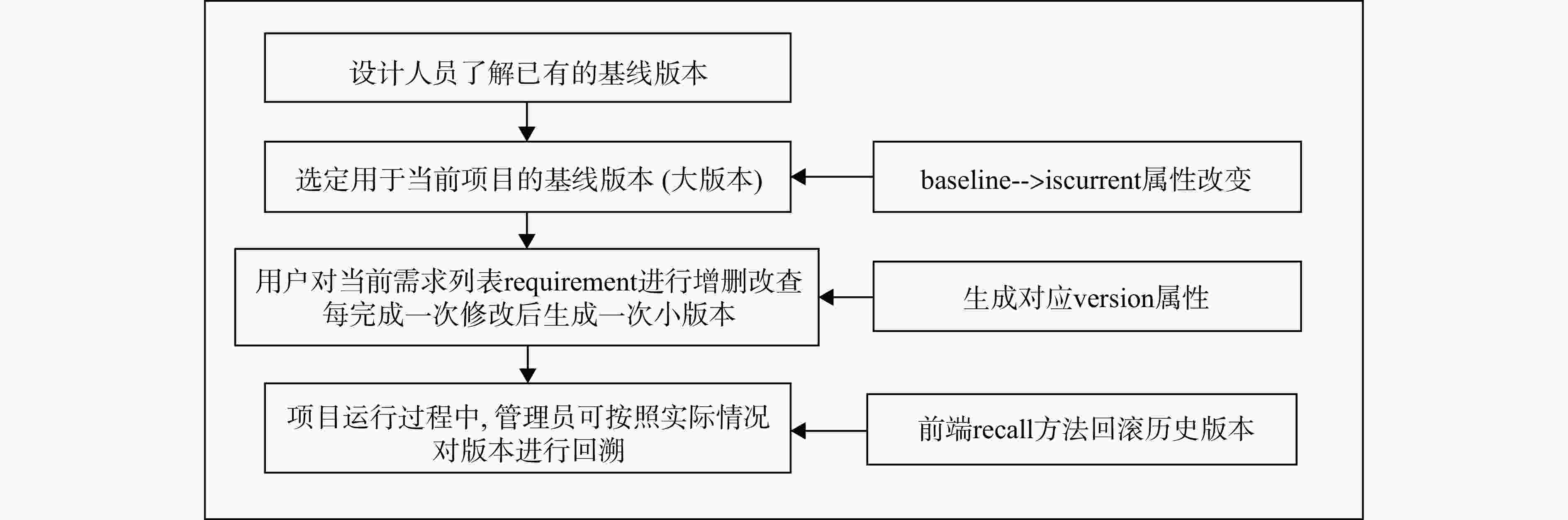

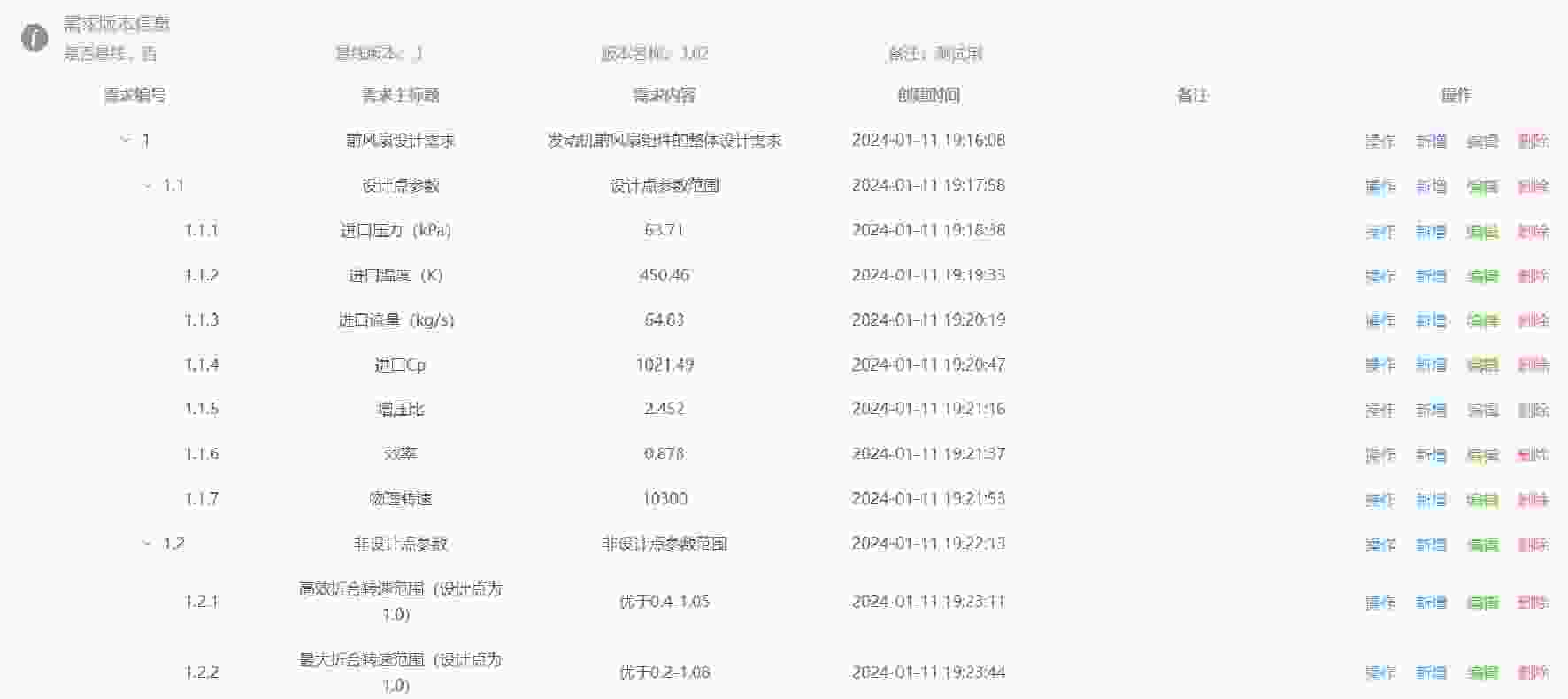

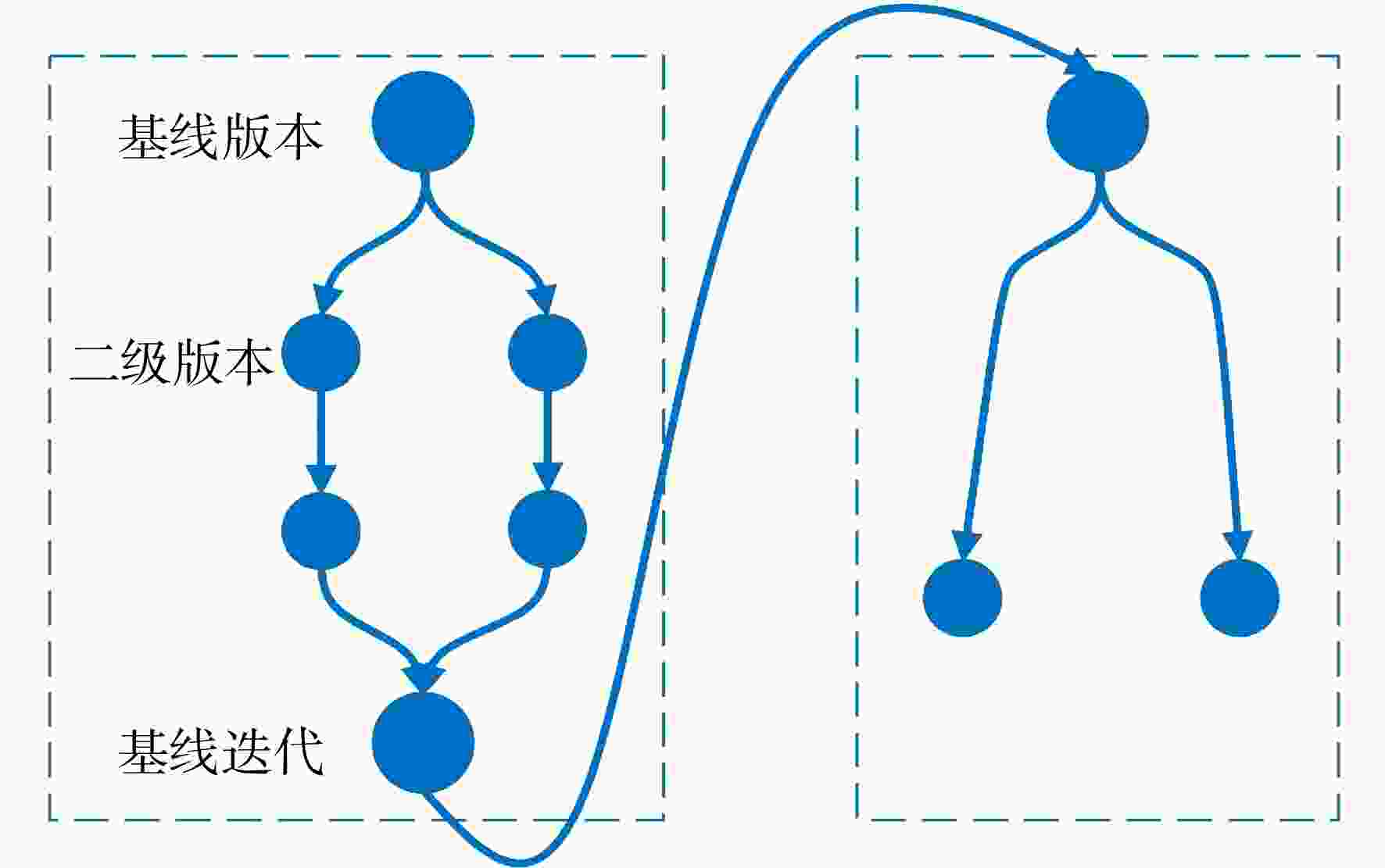

图 10 需求基线与版本控制的功能与实现
Figure 10. Function and implementation of requirements baseline and version control

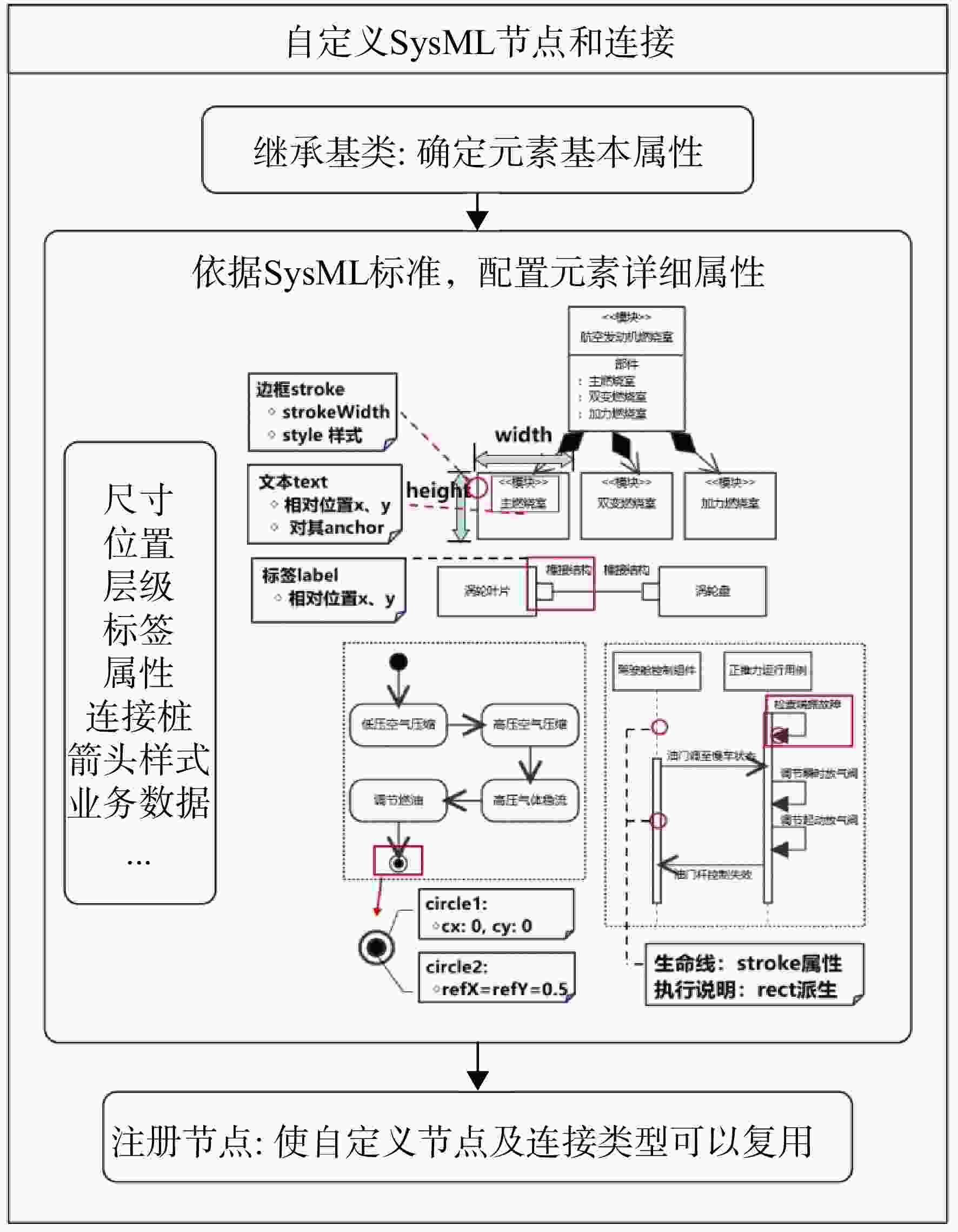

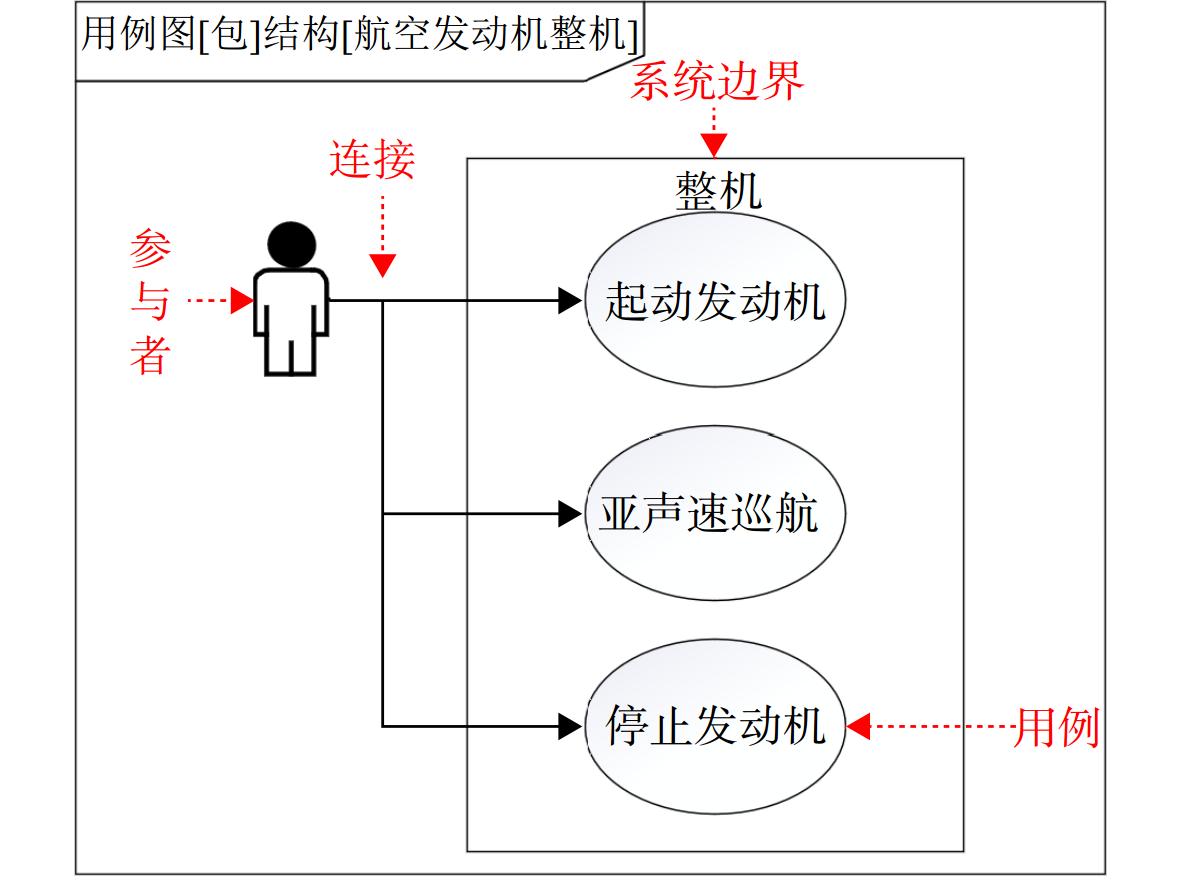

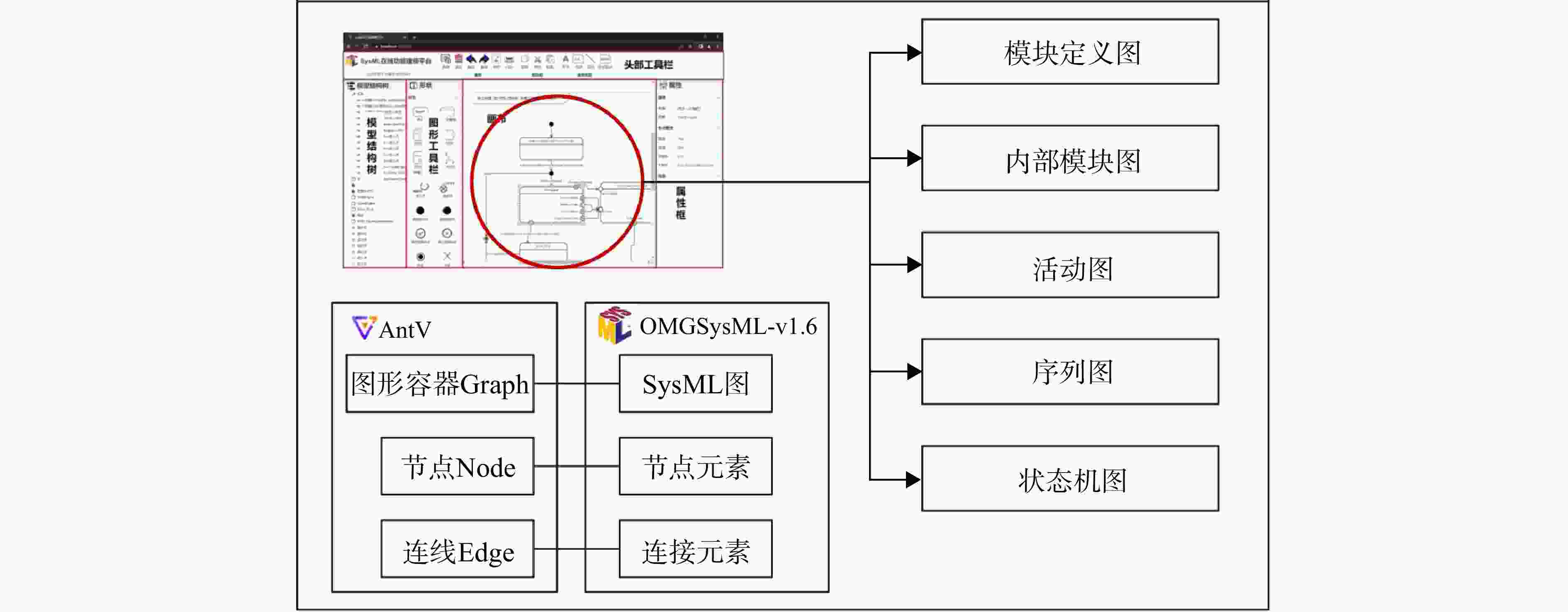

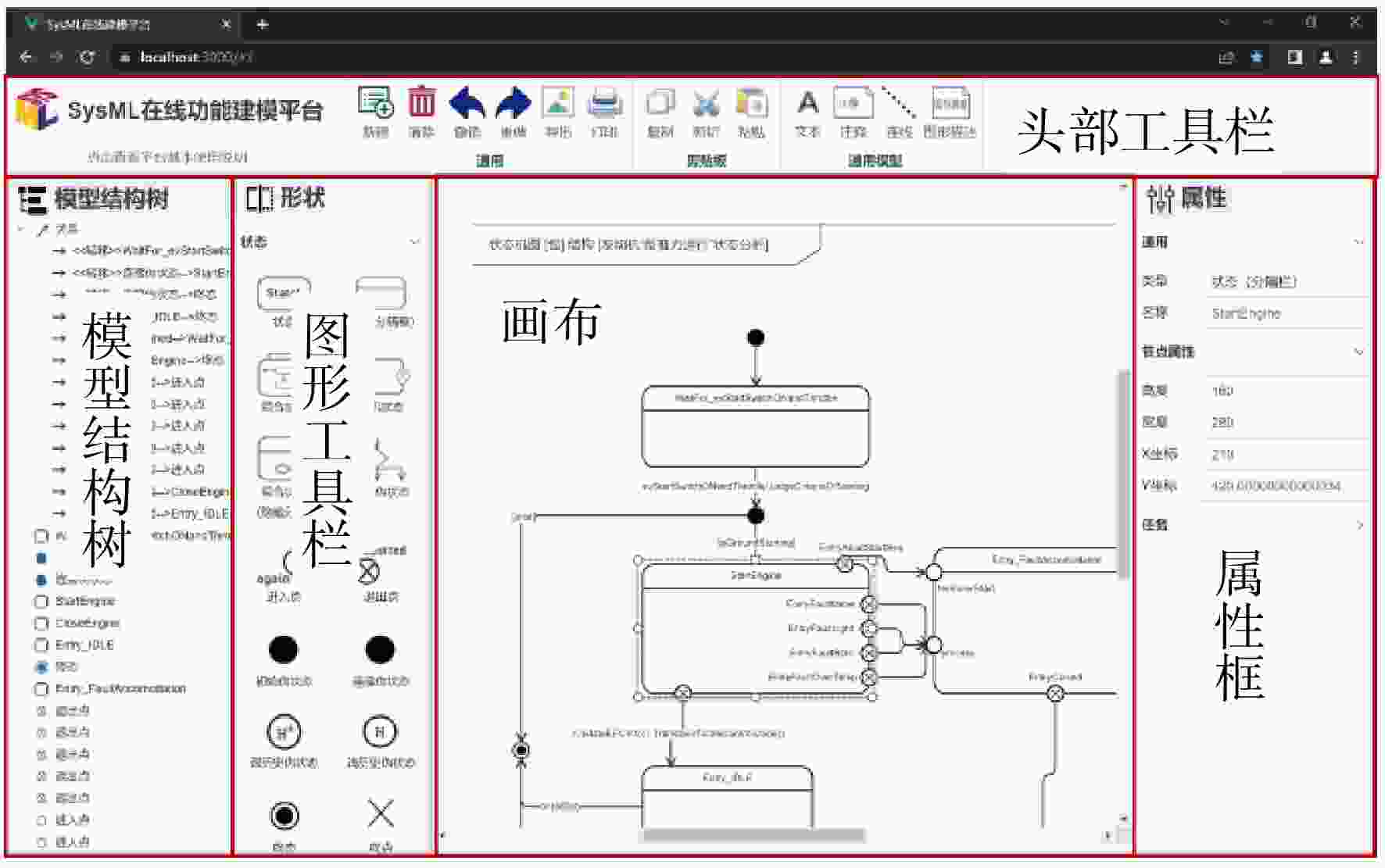

图 12 SysML在线功能建模模块图类型说明
Figure 12. Diagram type description of SysML online functional modeling module

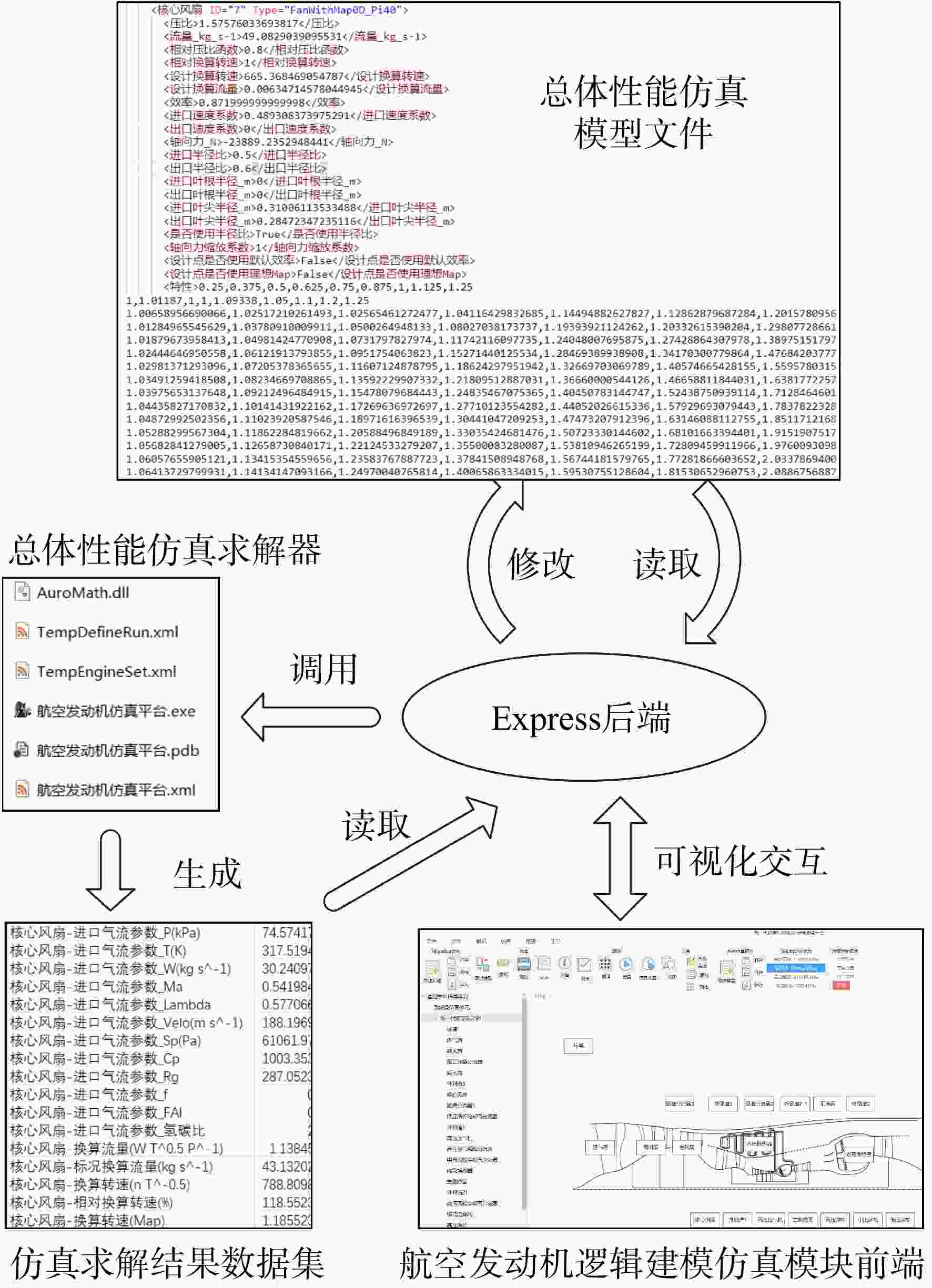

图 14 航空发动机逻辑建模仿真模块框架
Figure 14. Framework of aero-engine logical modeling and simulation module

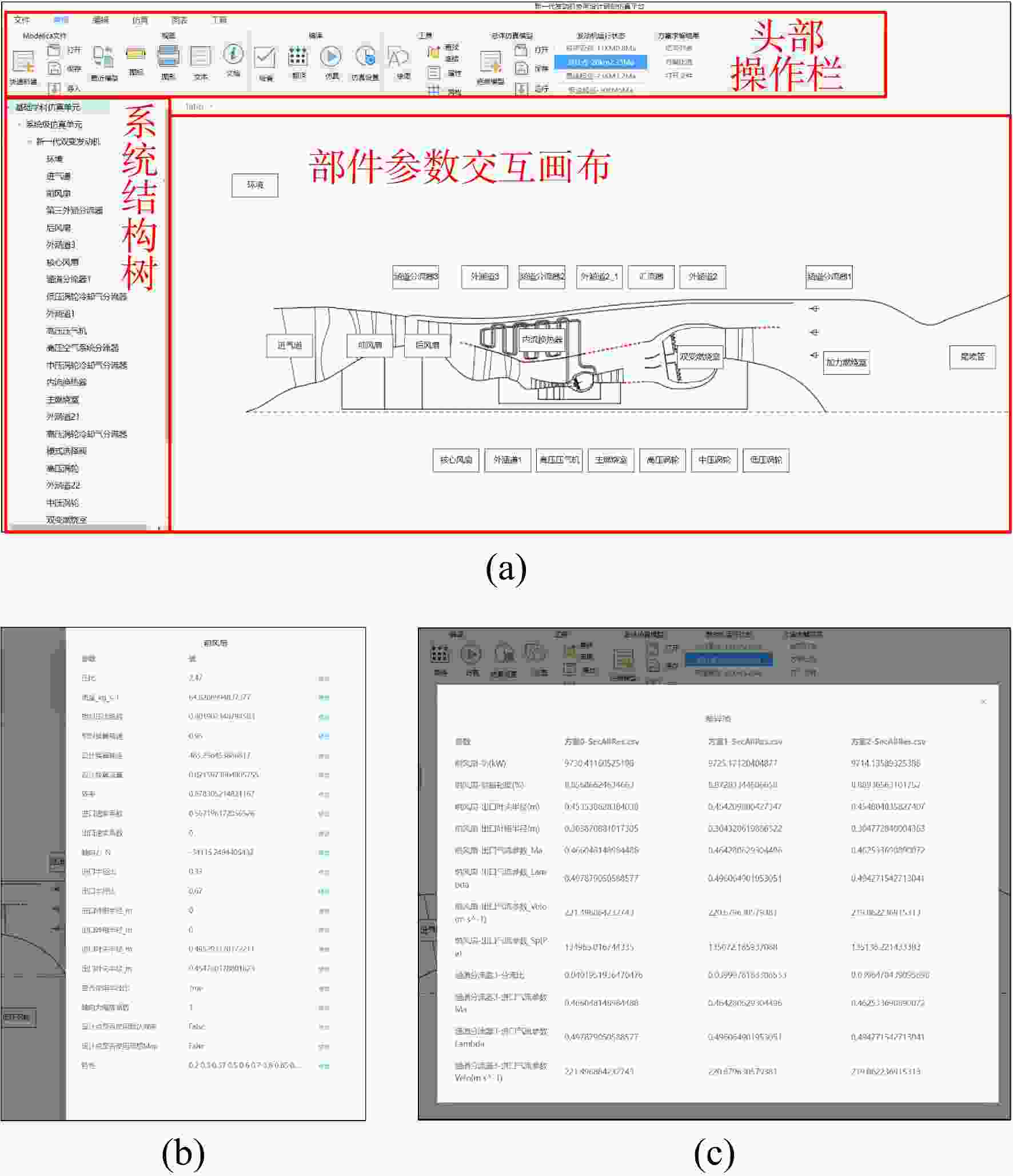

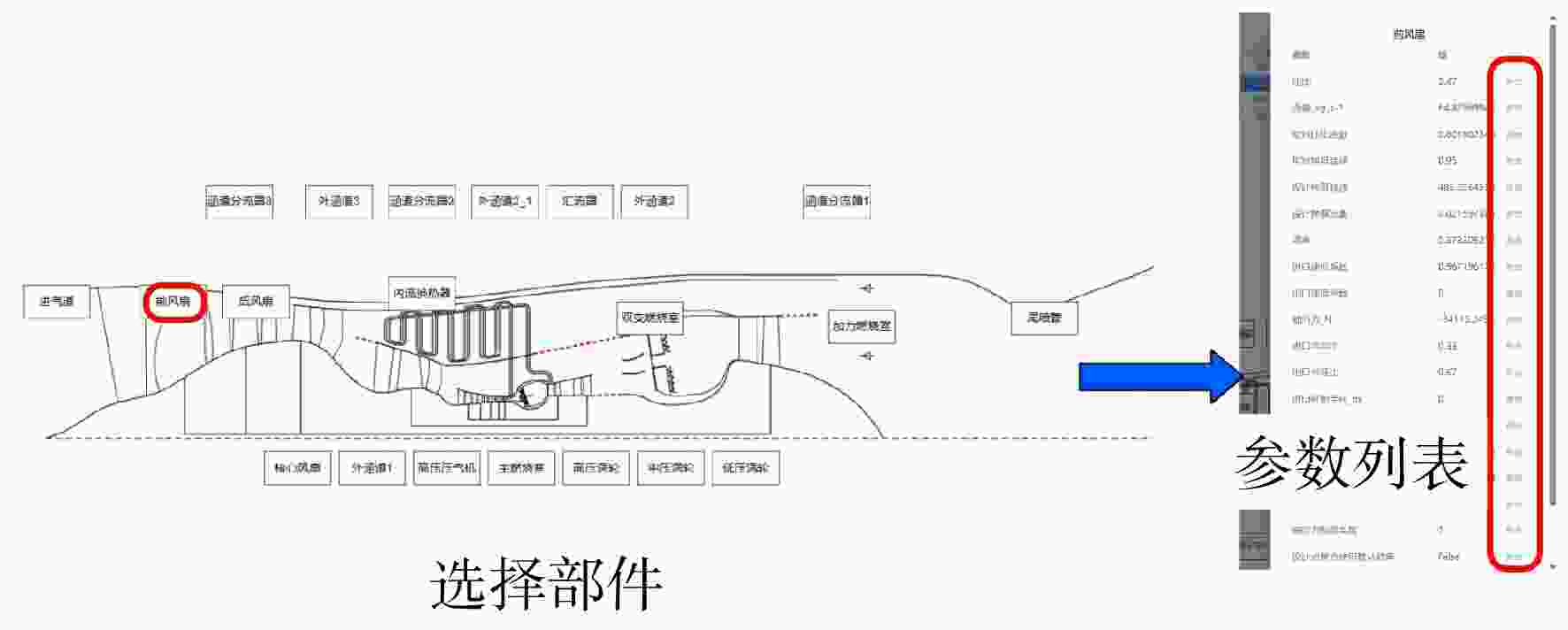

图 15 航空发动机逻辑建模仿真图形化交互界面
Figure 15. Graphical interactive interface of aero-engine logical modeling and simulation

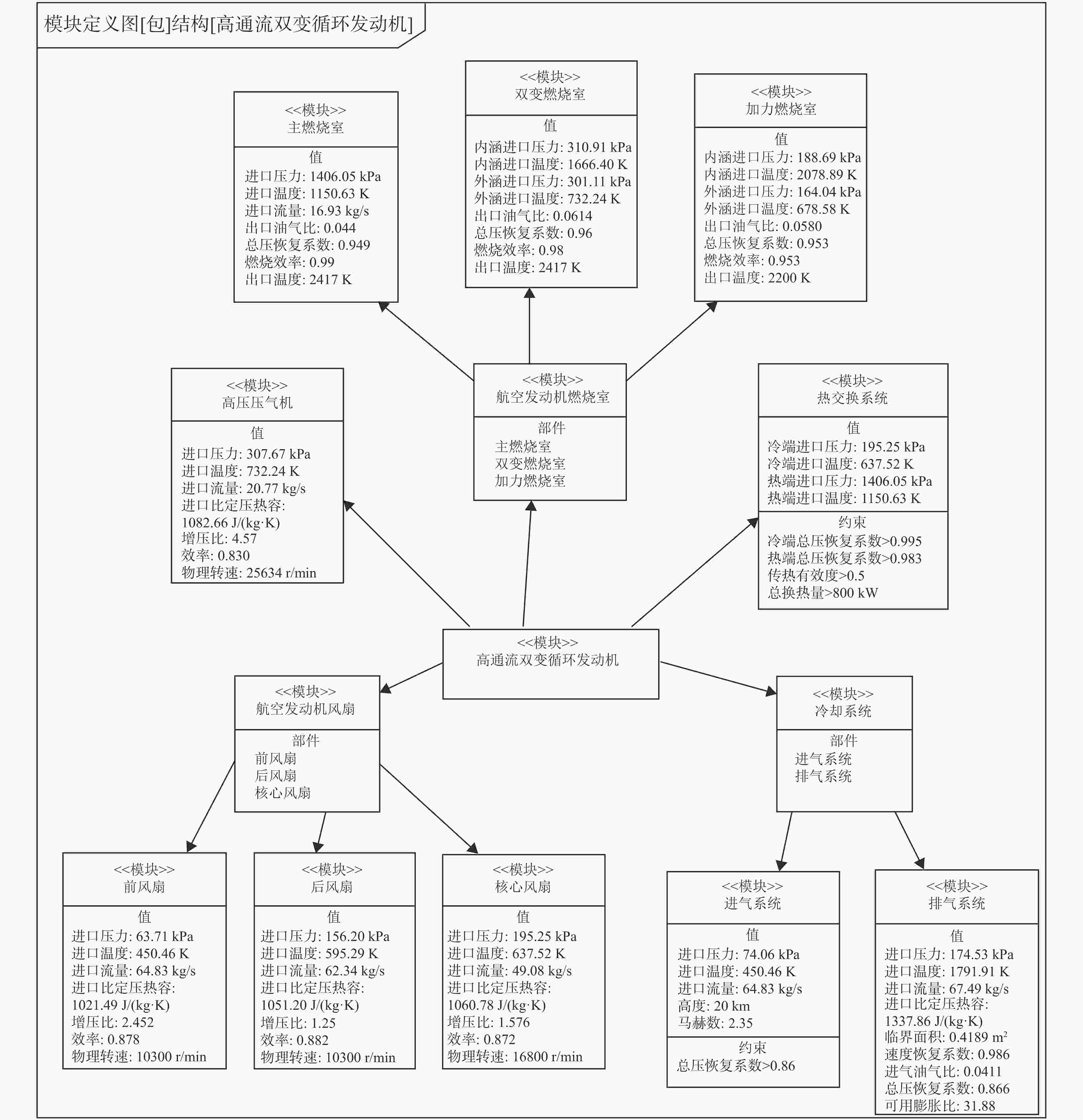

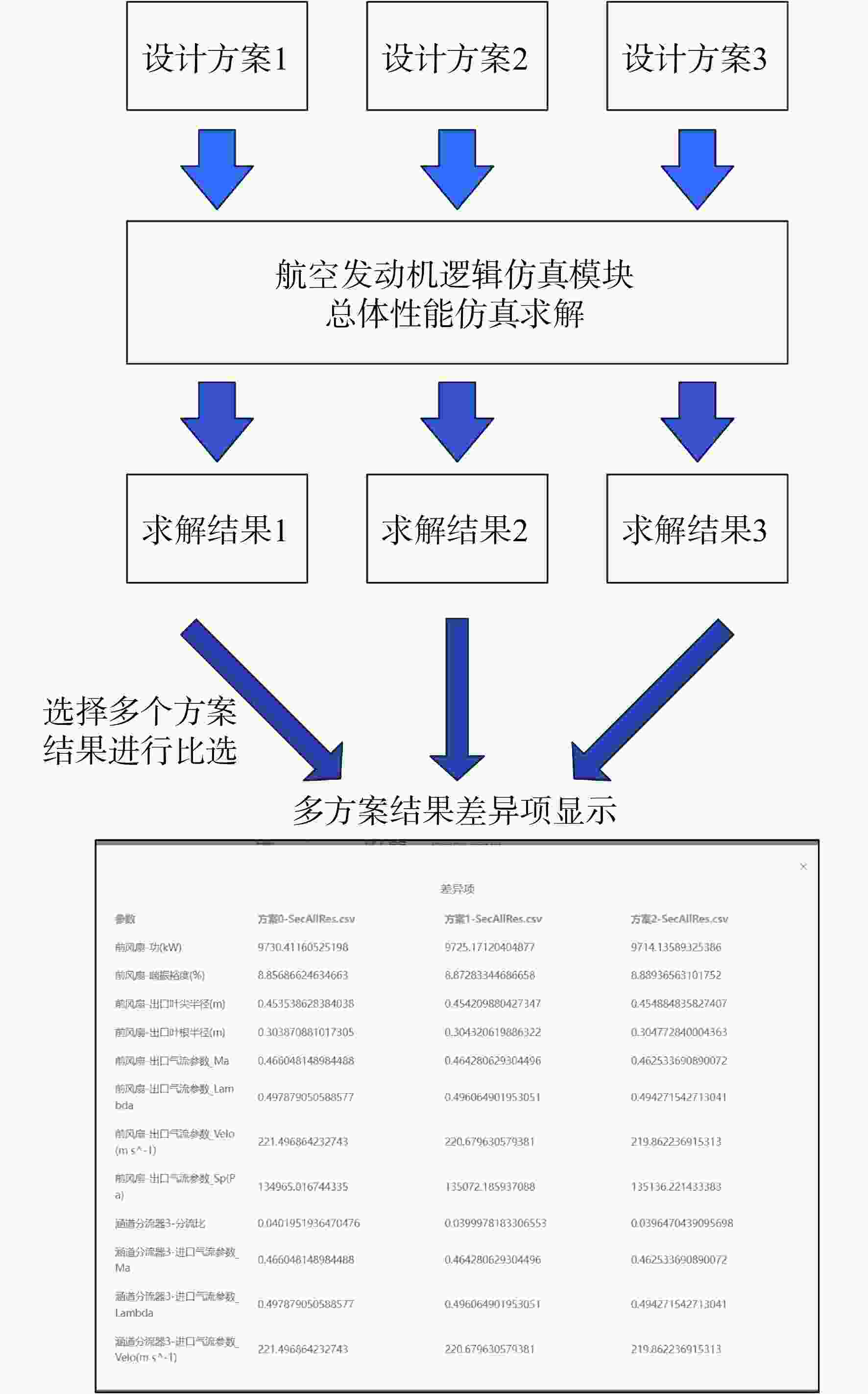

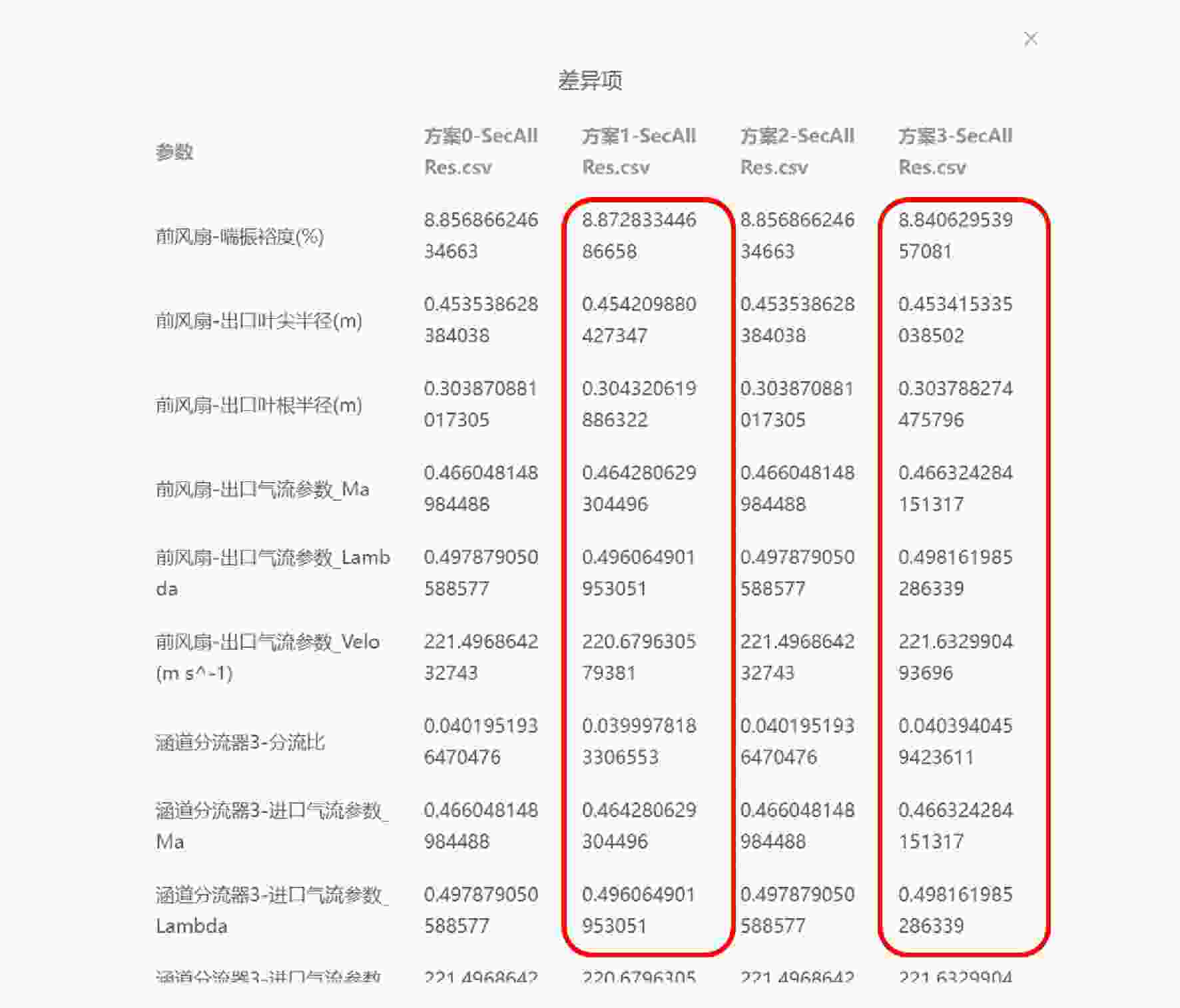

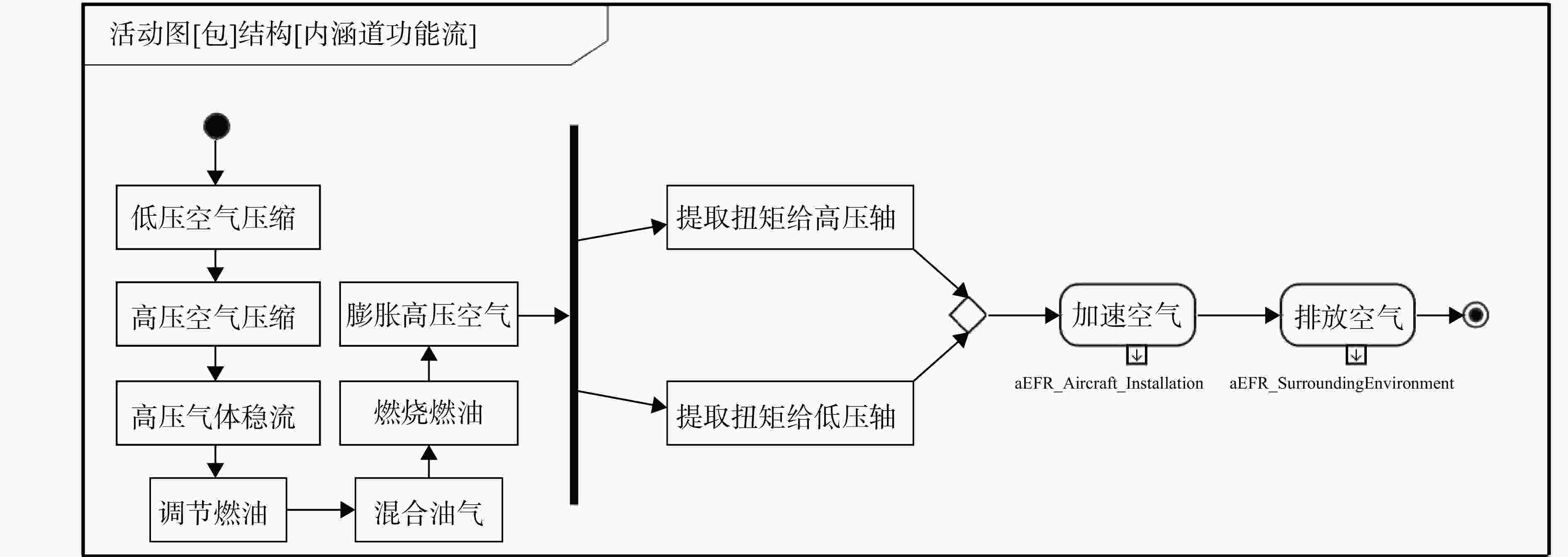

图 23 发动机正推力运行时内涵道活动图
Figure 23. Inner duct activity diagram during forward thrust operation of engine
表 1 需求数据库表单设计
Table 1. Requirements database table design
名称 类型 描述 req_id bigint 需求id item bigint 需求标号 version bigint 需求版本 title varchar 需求标题 description varchar 需求描述 dept_id varchar 依托部门 del_flag char 逻辑删除标志 baseline char 需求基线版本 parent_id bigint 父需求id
下载: 导出CSV
表 2 需求版本数据库表单设计
Table 2. Requirements version database table design
名称 类型 描述 id bigint 需求版本ID is_current bit 是否当前版本 is_base bit 是否为基版本 baseline varchar 版本基线 version_name varchar 版本名称 req_ids longtext 需求条目ID remark varchar 备注 creator varchar 创建者 create_time datetime 创建时间 updater varchar 更新者 update_time datetime 更新时间 deleted bit 是否删除
下载: 导出CSV

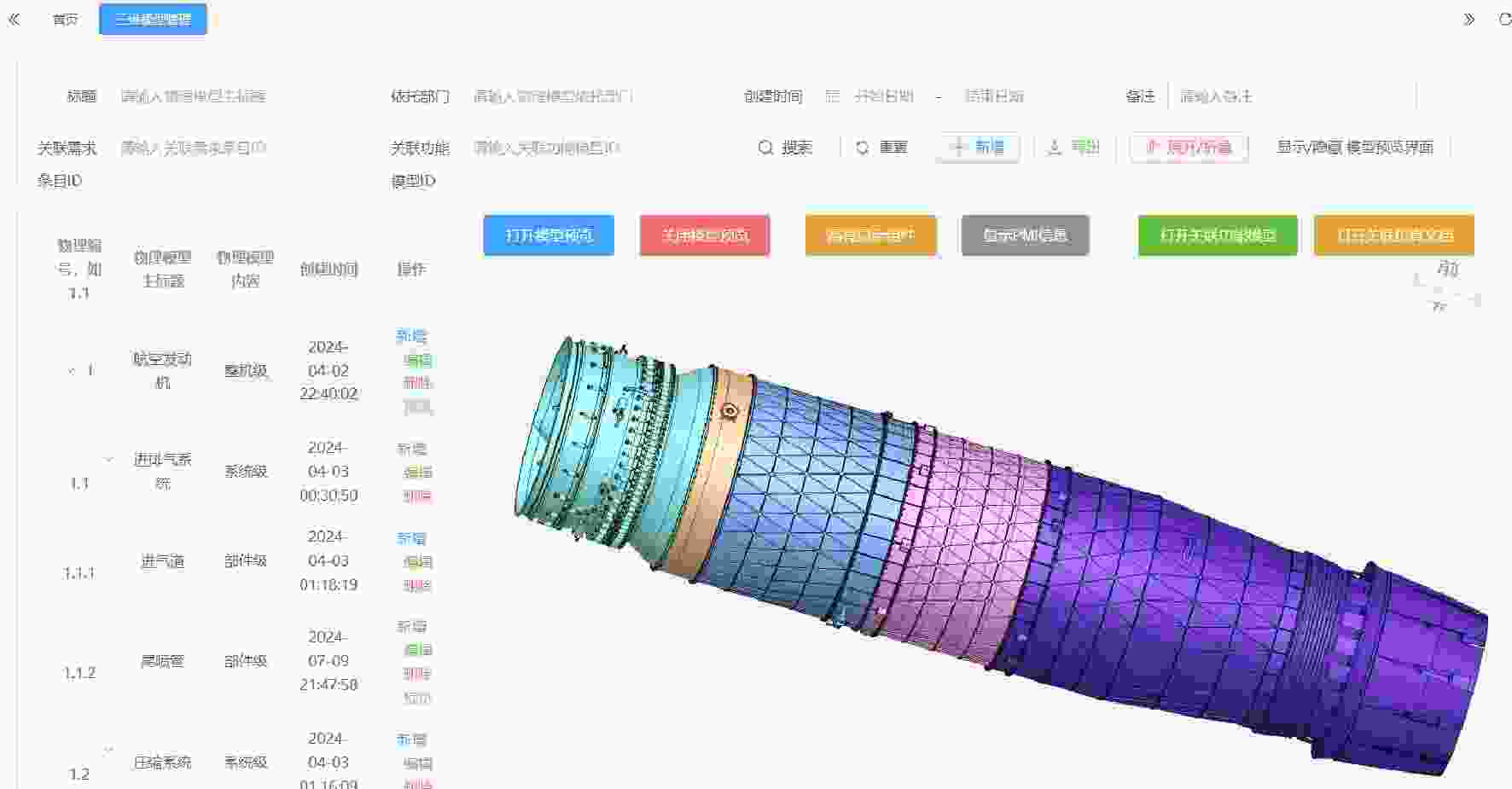

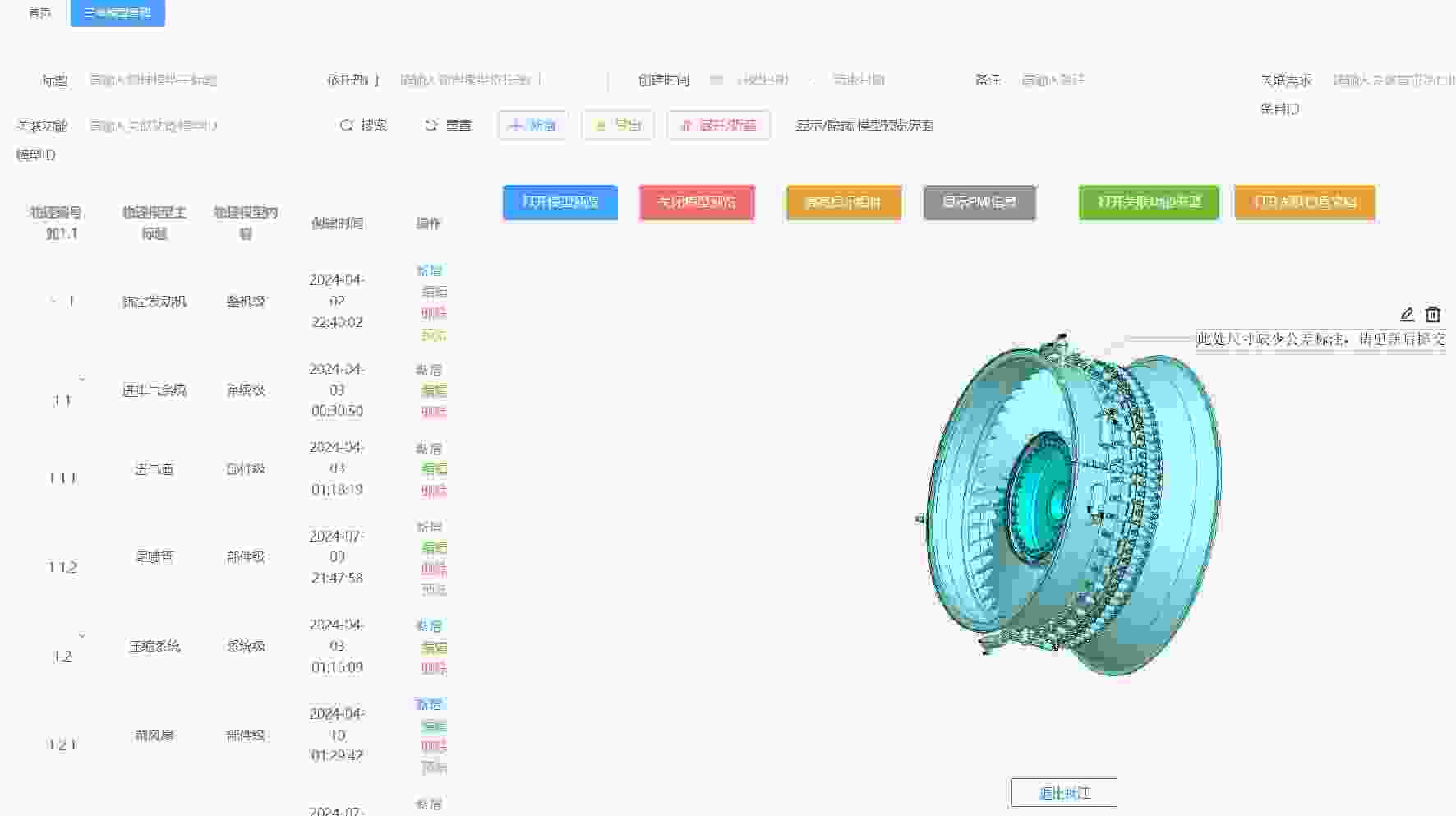

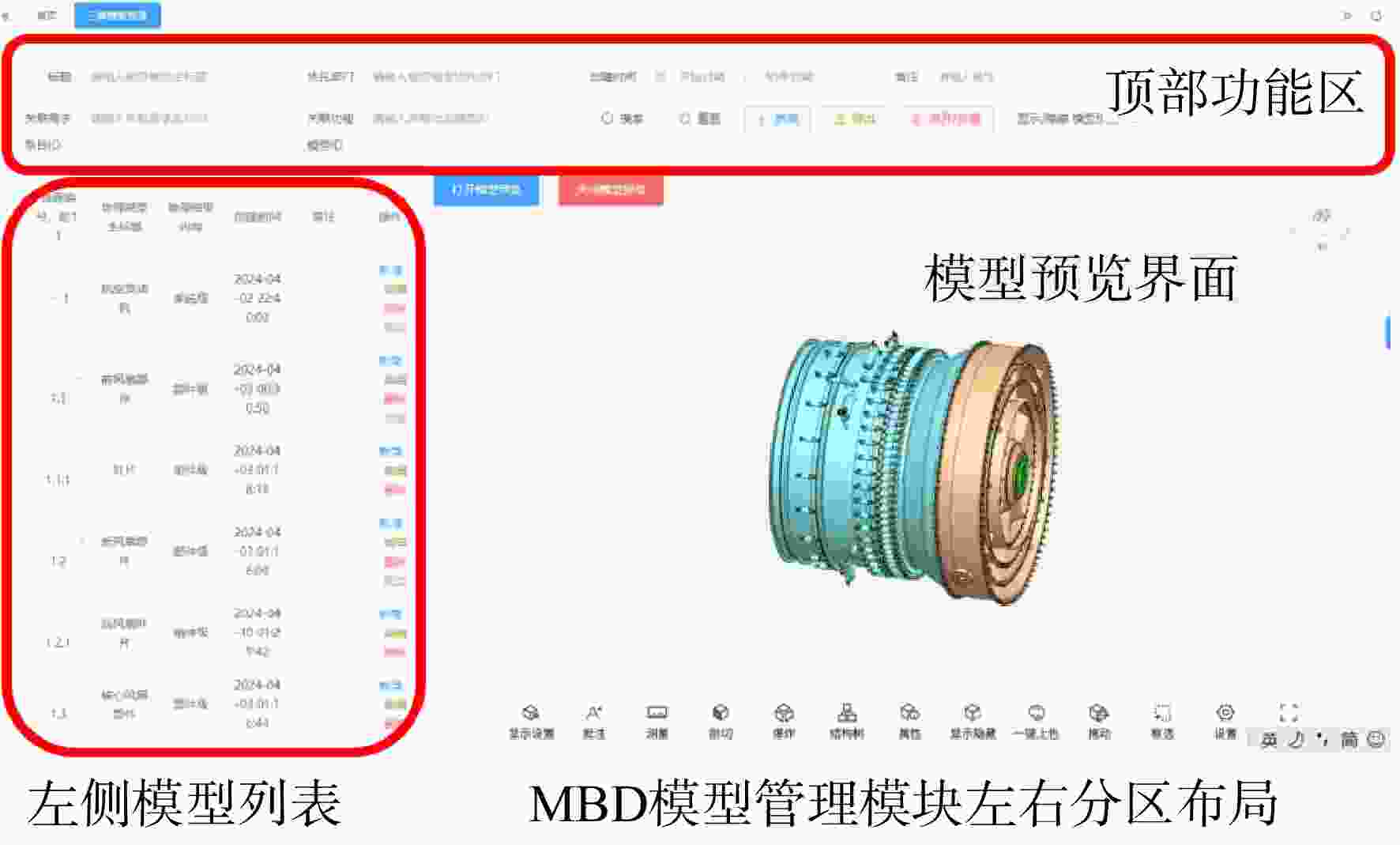

表 3 三维结构模型数据库表单设计
Table 3. 3D structural model database table design
名称 类型 描述 id bigint 物理模型ID item varchar 物理编号 objectid varchar 模型结构树ID title varchar 模型主标题 description varchar 模型内容 parent_id bigint 父一级物理模型 dept_id bigint 依托部门 creator varchar 创建者 create_time datetime 创建时间 updater varchar 更新者 update_time datetime 更新时间 deleted bit 是否删除 remark varchar 备注 model_path varchar 物理模型地址 req_id bigint 关联需求ID
下载: 导出CSV
-
