水蒸气环境阵列微管燃烧器氢氧燃烧实验研究

甘志超; 韩啸; 高安雯; 昌运鑫; 林宇震; 冯文斌; 蔡骁; 刘晓佩

doi:10.13224/j.cnki.jasp.20240609

水蒸气环境阵列微管燃烧器氢氧燃烧实验研究

doi: 10.13224/j.cnki.jasp.20240609

甘志超^{1, 2, 3,},
韩啸^{1, 2, 3,*, ,},
高安雯⁴,
昌运鑫^{1, 2, 3},
林宇震^{1, 2, 3},
冯文斌⁵,
蔡骁⁶,
刘晓佩⁷

1.
北京航空航天大学航空发动机气动热力国家级重点实验室，北京 100191
2.
北京航空航天大学航空发动机研究院，北京 100191
3.
先进航空发动机协同创新中心，北京 100191
4.
中国航发燃气轮机有限公司，沈阳 110170
5.
河北工业大学能源与环境工程学院，天津 300401
6.
西安交通大学动力工程多相流国家重点实验室，西安 710049
7.
上海电气燃气轮机有限公司，上海 200240

基金项目: 航空发动机及燃气轮机基础科学中心项目（P2022-A-Ⅱ-006-001）；重点实验室基金（2023-JCJQ-LB-063-0306）；中央高校基本科研业务费专项资金（501XTCX2023146001）

详细信息

作者简介:
甘志超（2001-），男，硕士生，主要研究方向为水蒸气环境氢燃料燃烧组织。E-mail：ganzhichao@buaa.edu.cn

通讯作者:
韩啸（1993-），男，副研究员，博士，主要研究方向为氢燃料低排放燃烧组织、燃烧振荡机理与控制研究。E-mail：han_xiao@buaa.edu.cn

中图分类号: V231.2
计量
- 文章访问数: 448
- HTML浏览量: 209
- PDF量: 30
- 被引次数: 0
出版历程
- 收稿日期: 2024-09-03
- 网络出版日期: 2025-06-10

Experimental study on hydrogen and oxygen combustion of arrayed microtube combustor in steam environment

GAN Zhichao^{1, 2, 3
,},
HAN Xiao^{1, 2, 3,*
, ,},
GAO Anwen⁴,
CHANG Yunxin^{1, 2, 3},
LIN Yuzhen^{1, 2, 3},
FENG Wenbin⁵,
CAI Xiao⁶,
LIU Xiaopei⁷

1.
National Key Laboratory of Science and Technology on Aero-Engine Thermodynamics，Beihang University，Beijing 100191，China
2.
Research Institute of Aero-Engine，Beihang University，Beijing 100191，China
3.
Collaborative Innovation Center for Advanced Aero-Engine，Beijing 100191，China
4.
Gas Turbine Company Limited，Aero Engine Corporation of China，Shenyang 110170，China
5.
School of Energy and Environmental Engineering，Hebei University of Technology，Tianjin 300401，China
6.
State Key Laboratory of Multiphase Flow in Power Engineering，Xi’an Jiaotong University，Xi’an 710049，China
7.
Shanghai Electric Gas Turbine Company Limited，Shanghai 200240，China

摘要

摘要:
采用了一种阵列安装的微管喷嘴模型燃烧器，通过交叉射流实现燃料与氧化剂的高效混合，在水蒸气环境下开展了氢氧燃烧特性研究。通过数值模拟验证了微管在水蒸气环境下的稳火性能。在常压条件开展了水蒸气环境下氢氧燃烧试验，获取了燃烧器的火焰图像、点熄火边界、燃烧效率以及压力脉动特性。结果发现，提高水蒸气温度可以明显拓宽燃烧器的点熄火边界，各工况下氢气的燃烧效率都高于99.9%，各工况下燃烧器的压力脉动都处于较低水平。初步验证了该模型燃烧器在水蒸气环境下能保证氢氧高效燃烧，且不易发生燃烧振荡。
- 微混燃烧 /
- 纯氢燃烧 /
- 水蒸气 /
- 阵列微管 /
- 燃烧特性
Abstract:
An arrayed microtube nozzle burner was employed in achieving efficient fuel and oxidizer mixing through cross-jet flows. Research on the combustion characteristics of hydrogen and oxygen in a steam environment was conducted. Through numerical simulation, the flame stability of the micro tube in steam environment was verified. The combustion efficiency of arrayed model burner with different microtube spacings was also contrasted. Experiments on the combustion of pure hydrogen and oxygen in a steam environment were carried out under atmospheric conditions. Flame images, ignition and extinction boundaries, combustion efficiency, and combustion oscillation characteristics of the burner were obtained. The results indicated that increasing steam temperature can significantly widen the flame ignition and extinction boundaries of the burner. The combustion efficiency of hydrogen was kept above 99.9% under various conditions, and the pressure fluctuations of the burner were at relatively low levels. This initially validated that the proposed burner can ensure efficient combustion of hydrogen and oxygen in a steam environment, with minimal combustion oscillations.
- micro-mixed combustion /
- pure hydrogen combustion /
- steam /
- arrayed microtube /
- combustion characteristic

HTML

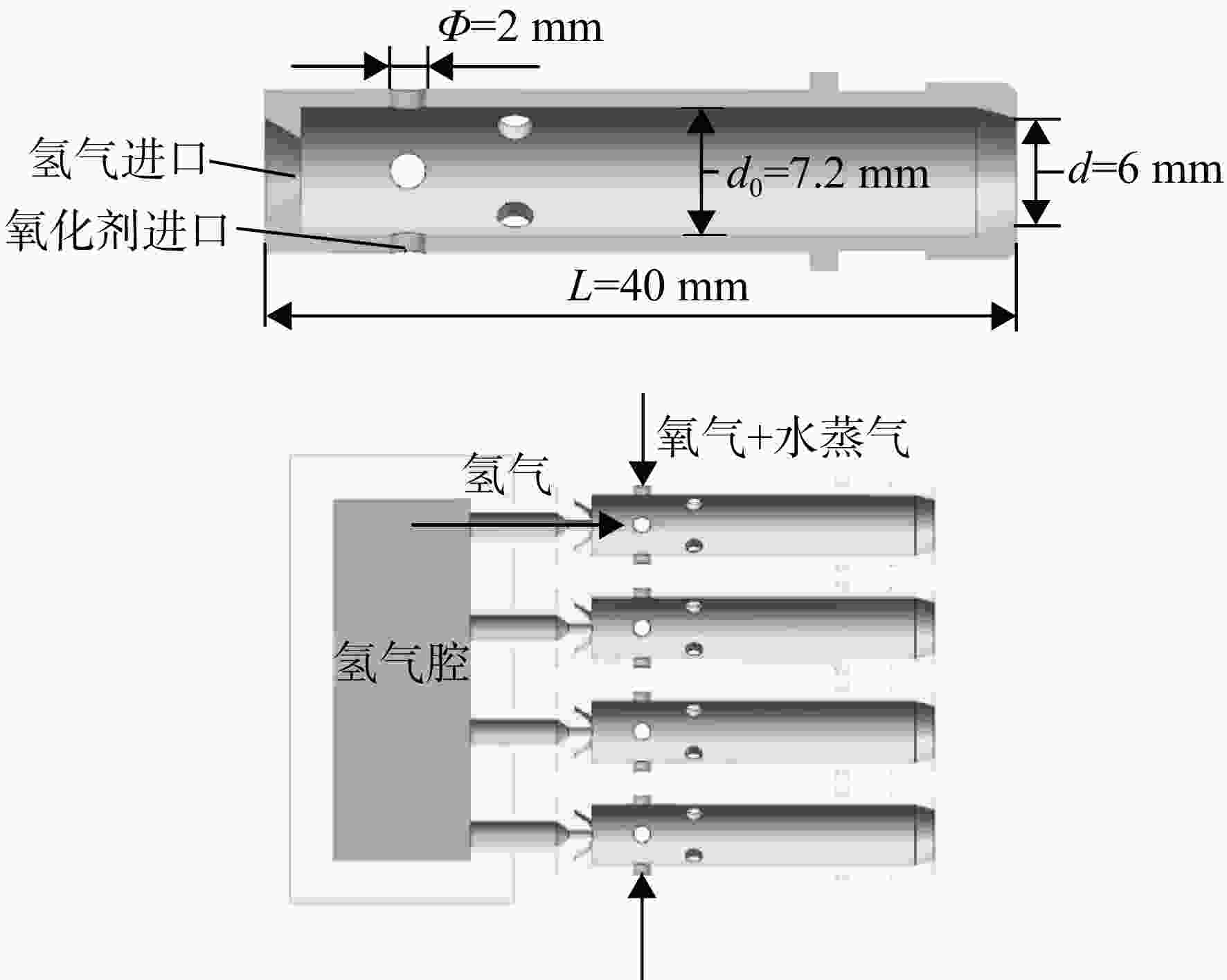

图 1 微混喷嘴结构图

Figure 1. Diagram of the premixed microtube nozzle

下载: 全尺寸图片幻灯片

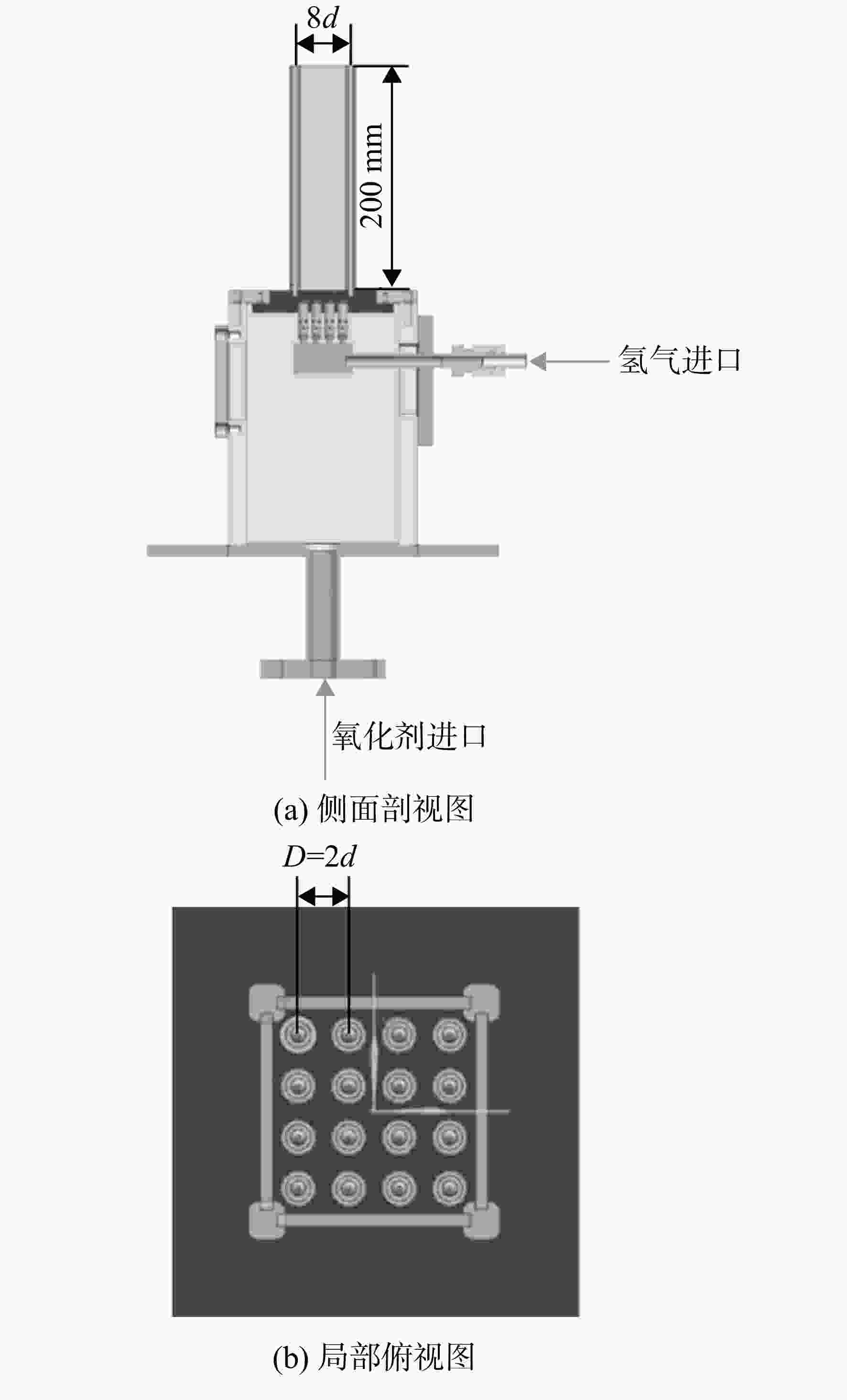

图 2 阵列微管模型燃烧器结构图

Figure 2. Diagram of the micro-hybrid model combustion burner

下载: 全尺寸图片幻灯片

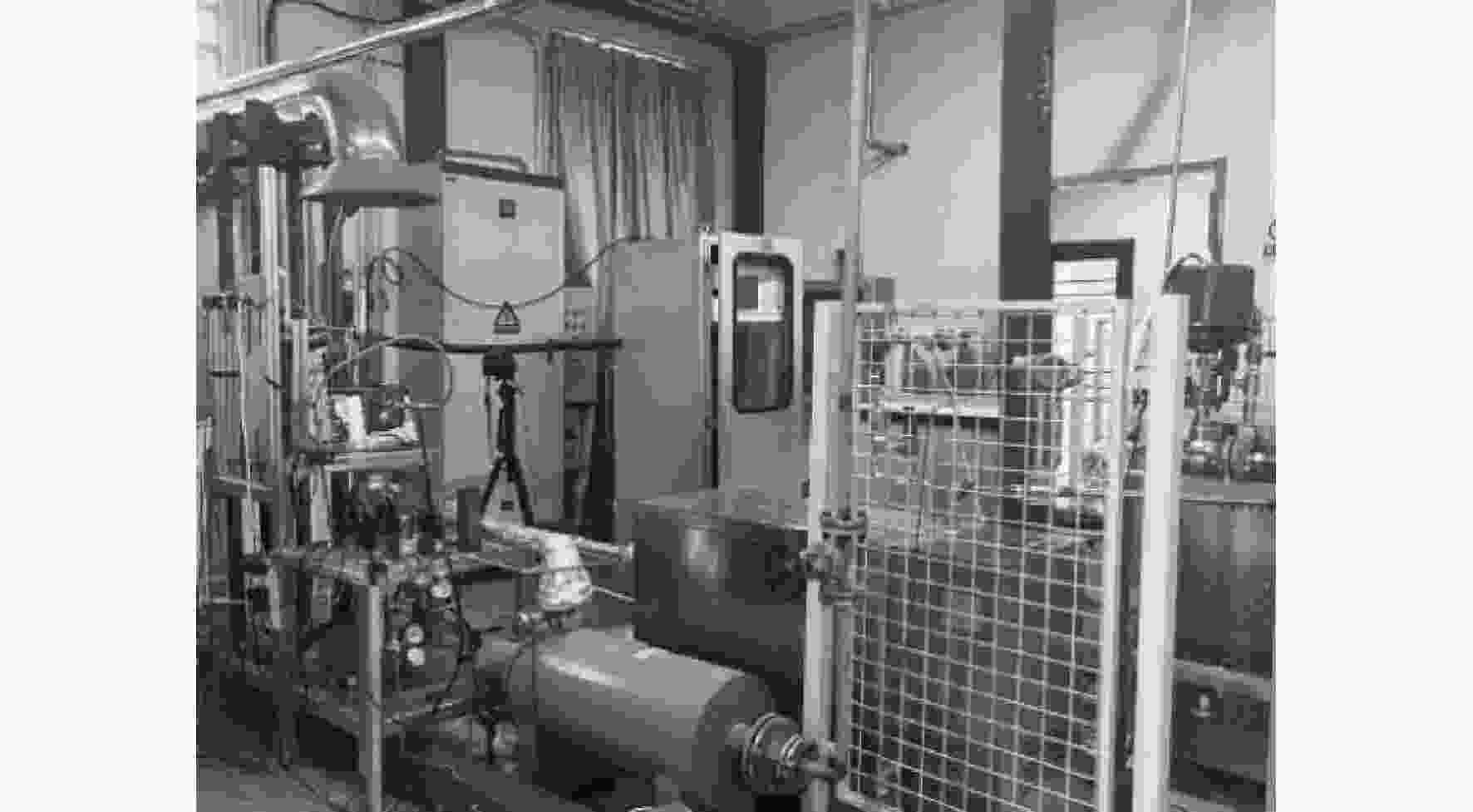

图 3 水蒸气纯氢燃烧系统图

Figure 3. Diagram of steam environment pure hydrogen combustion test system

下载: 全尺寸图片幻灯片

图 4 单支微管流体域

Figure 4. Computational domain of a single microtube

下载: 全尺寸图片幻灯片

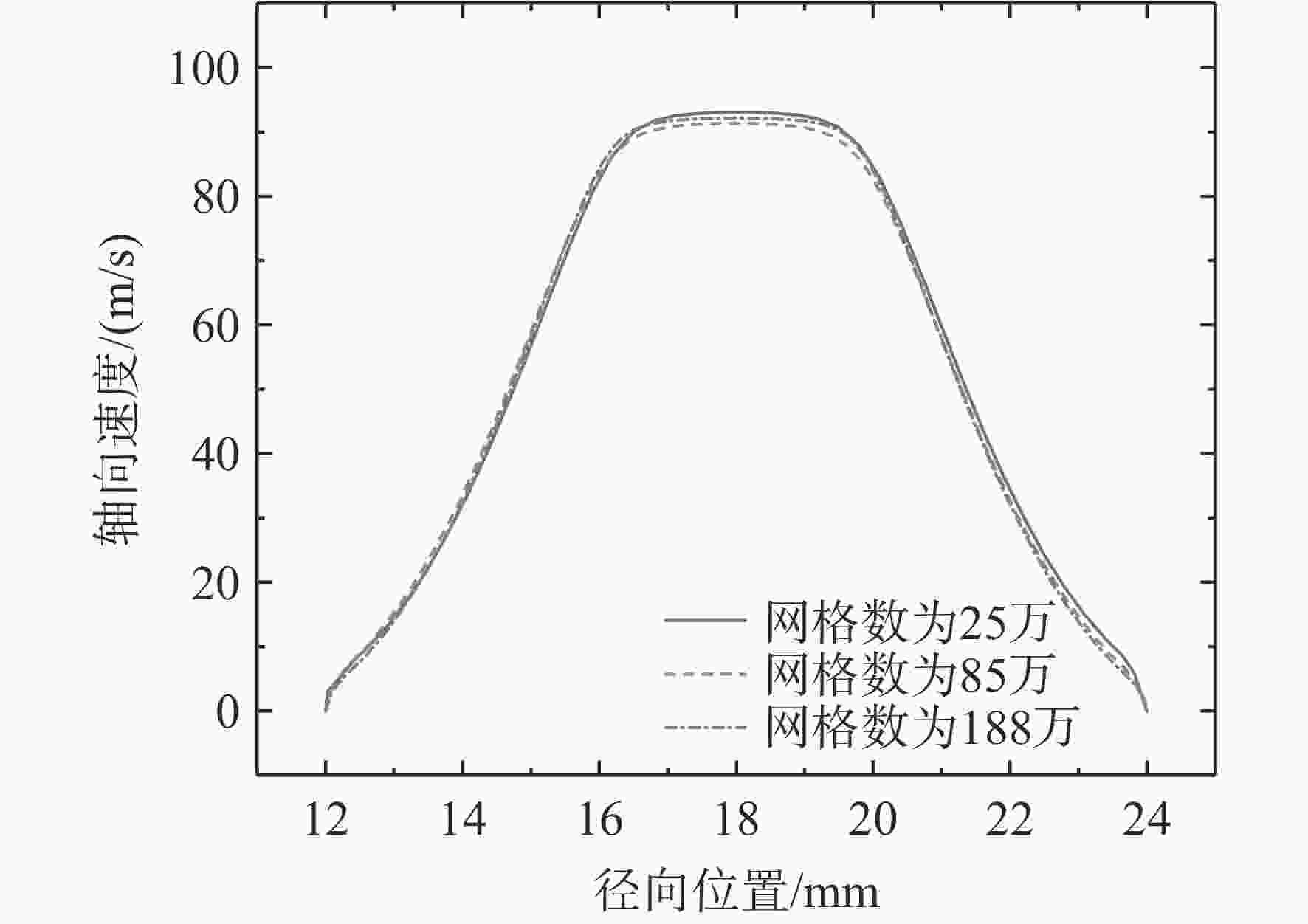

图 5 网格无关性验证

Figure 5. Grid independence verification

下载: 全尺寸图片幻灯片

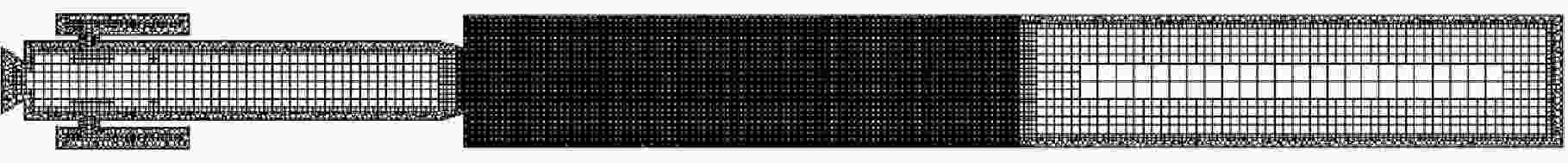

图 6 网格分布

Figure 6. Grid distribution

下载: 全尺寸图片幻灯片

图 7 中截面温度分布云图

Figure 7. Mid-section temperature distribution cloud image

下载: 全尺寸图片幻灯片

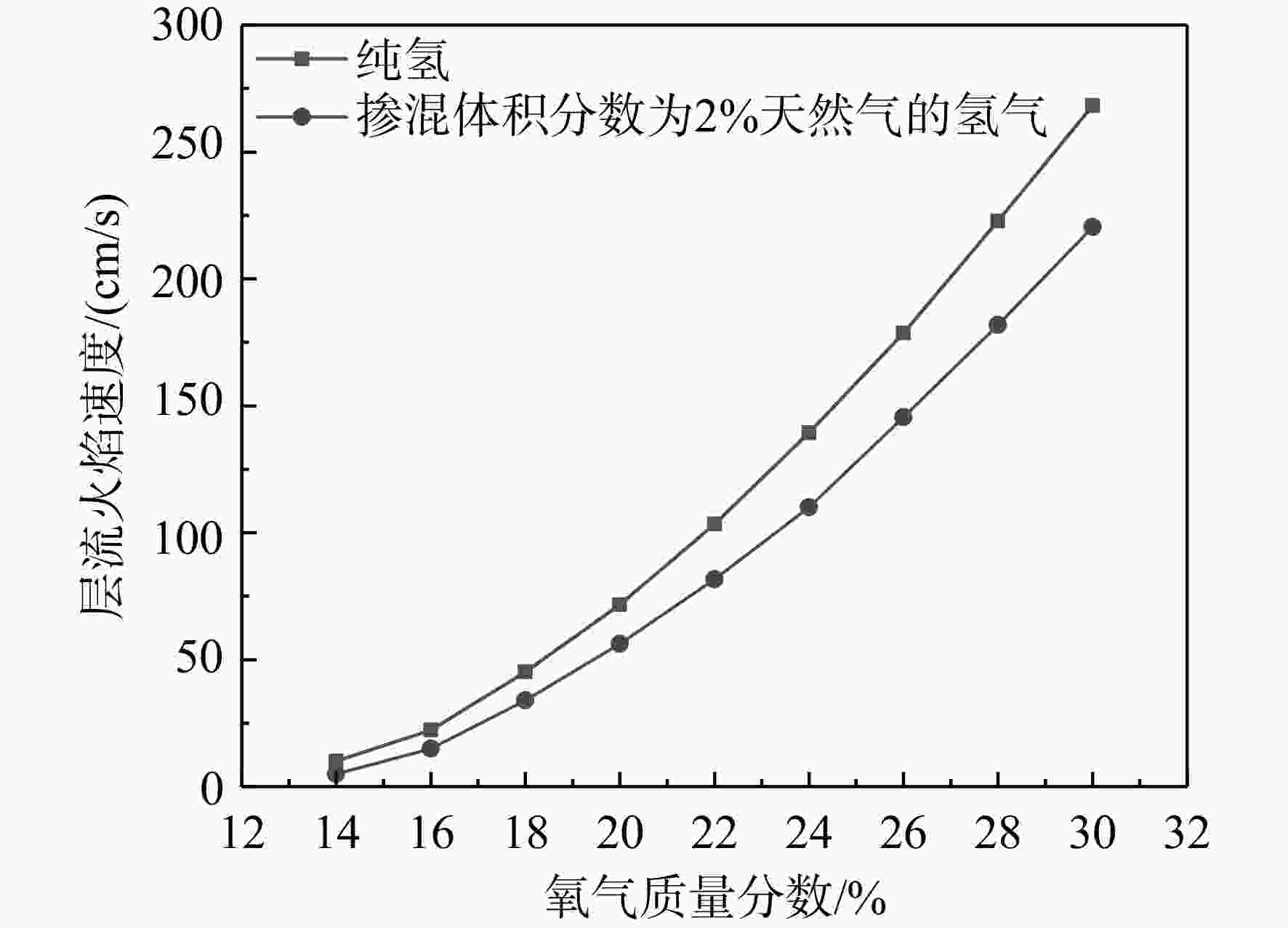

图 8 不同燃料的层流火焰速度

Figure 8. Estimated flame speed of different fuels

下载: 全尺寸图片幻灯片

图 9 不同水蒸气温度下的氢气火焰图像

Figure 9. Flame images of hydrogen combustion under different steam temperatures

下载: 全尺寸图片幻灯片

图 10 不同压降下的氢气火焰图像

Figure 10. Flame images of hydrogen combustion under different pressure drops

下载: 全尺寸图片幻灯片

图 11 不同氧气质量分数下的氢气火焰图像

Figure 11. Flame images of hydrogen combustion under different oxygen mass fractions

下载: 全尺寸图片幻灯片

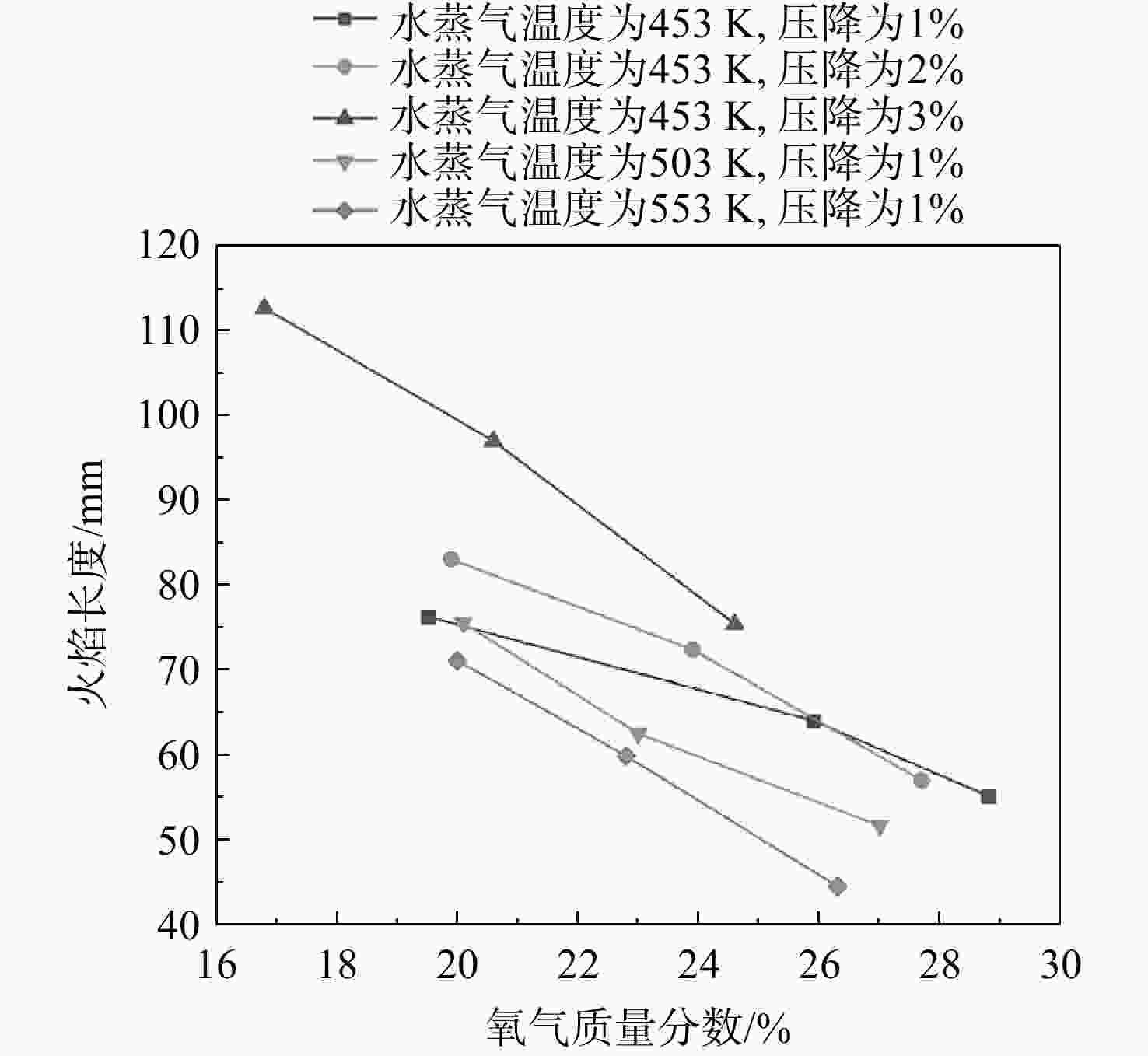

图 12 不同工况氢气火焰长度

Figure 12. Flame length variation chart under different operating conditions

下载: 全尺寸图片幻灯片

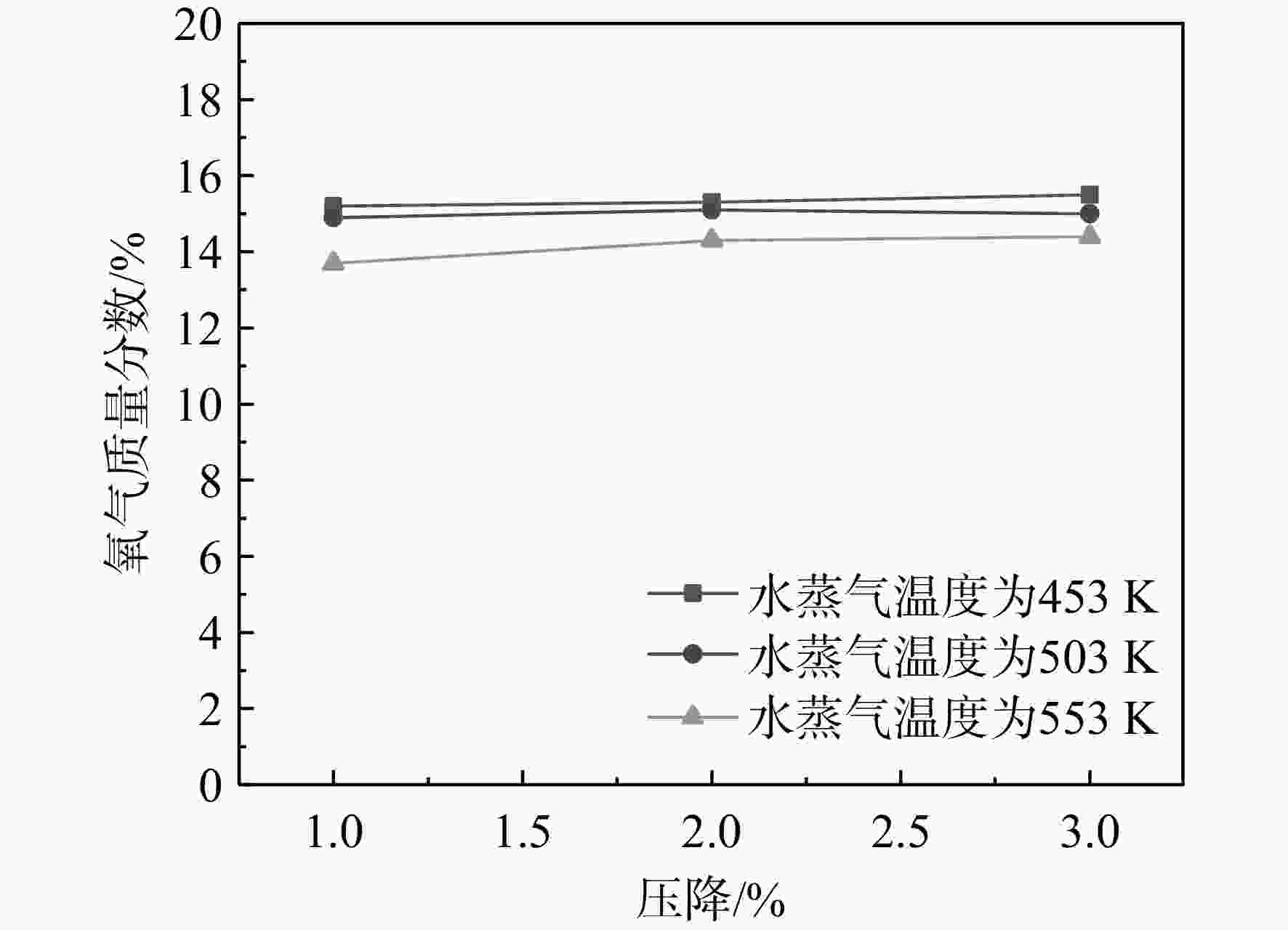

图 13 模型燃烧器点火边界

Figure 13. Ignition boundary of model combustor

下载: 全尺寸图片幻灯片

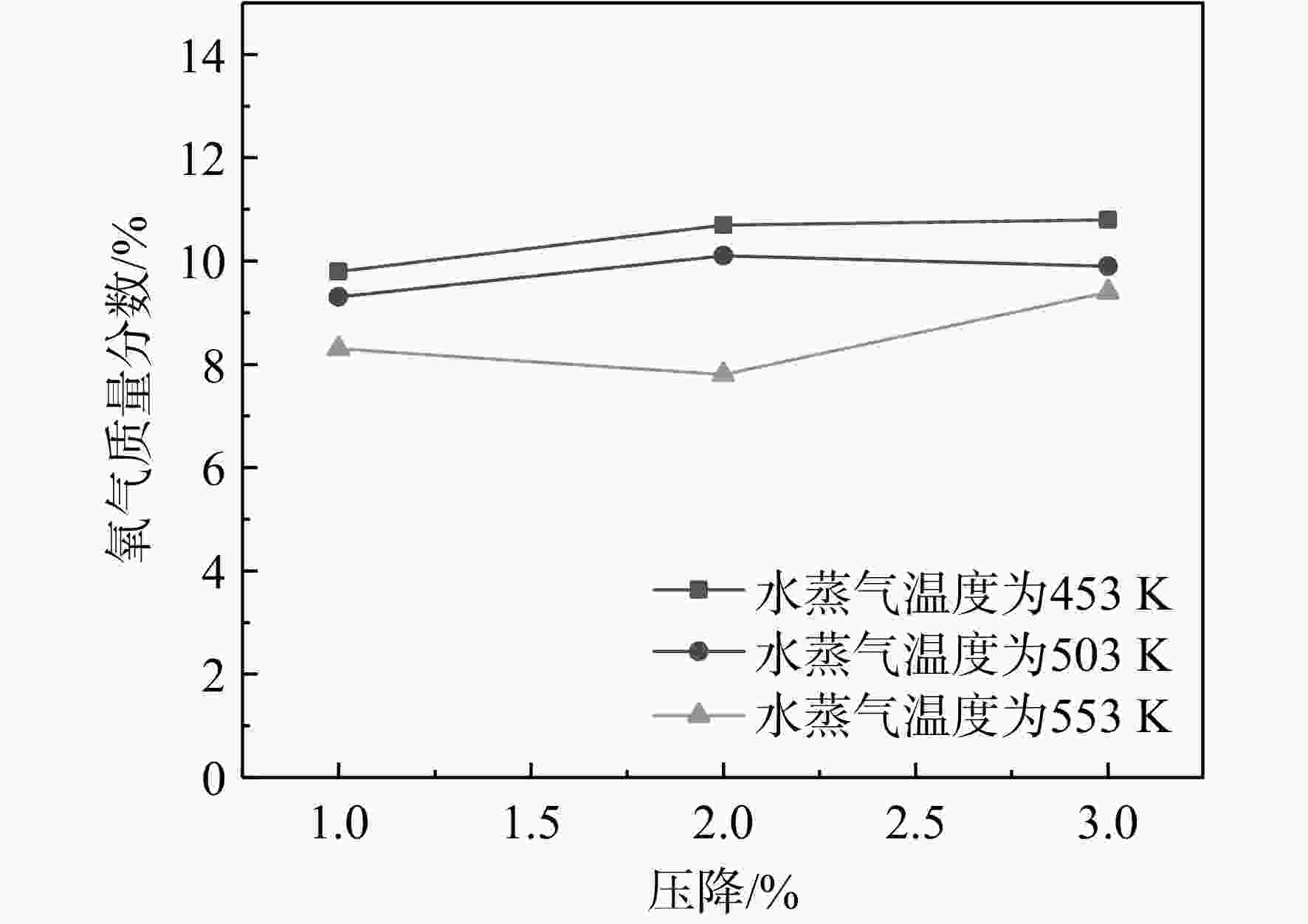

图 14 模型燃烧器熄火边界

Figure 14. Extinction boundary of model combustor

下载: 全尺寸图片幻灯片

图 15 点熄火边界处的预估绝热火焰温度

Figure 15. Estimated adiabatic flame temperature at the ignition boundary and extinction boundary

下载: 全尺寸图片幻灯片

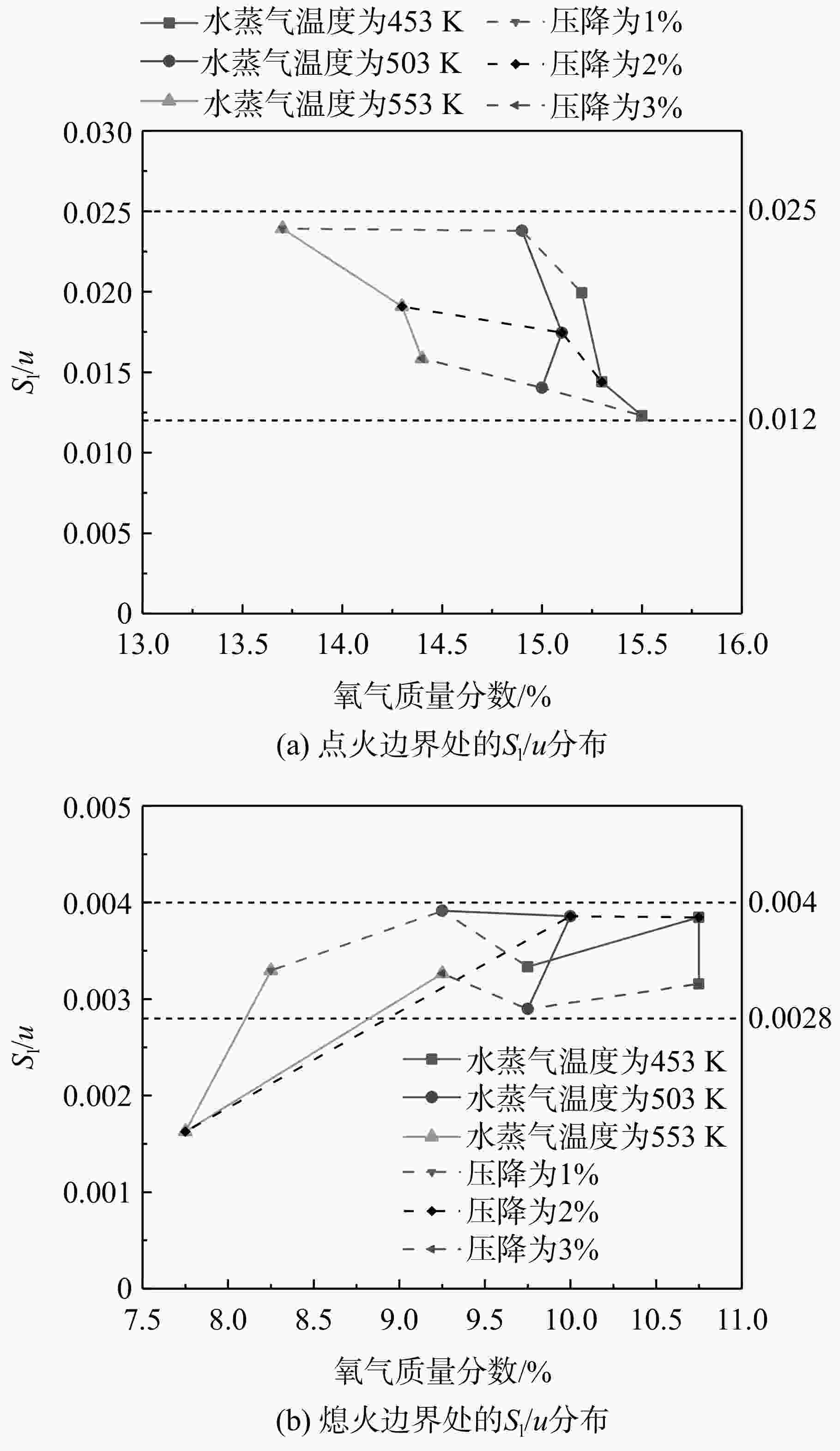

图 16 点熄火边界处的S_l/u分布

Figure 16. Estimated ratio of S_l/u at the ignition boundary and extinction boundary

下载: 全尺寸图片幻灯片

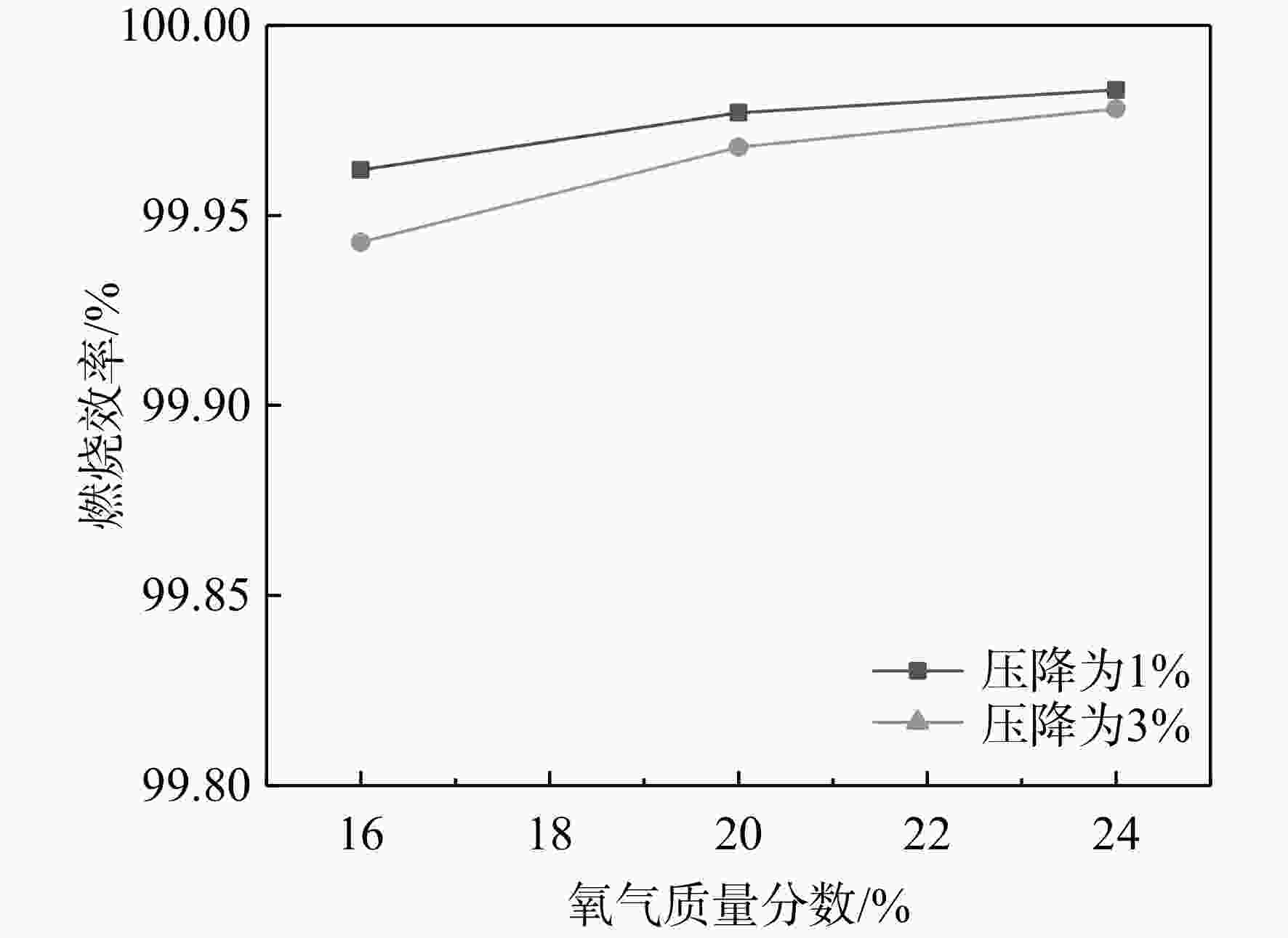

图 17 燃烧效率随氧气质量分数与压降的变化（水蒸气温度为503 K）

Figure 17. Effect of oxygen mass fraction and pressure drop on combustion efficiency （temperature of steam is 503 K）

下载: 全尺寸图片幻灯片

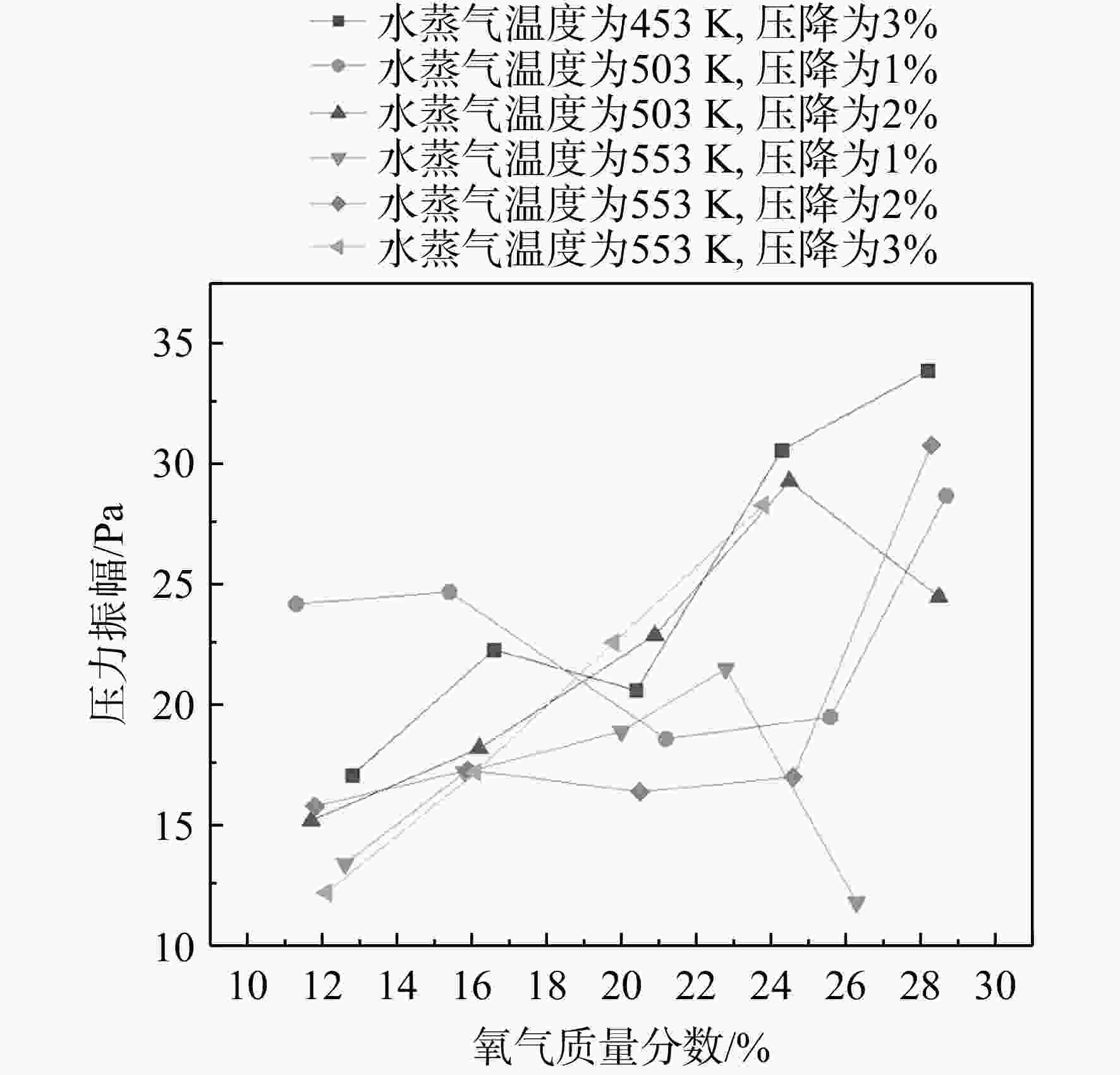

图 18 不同工况下燃烧室压力脉动振幅

Figure 18. Spectrum of the pressure fluctuation of the combustor under different conditions

下载: 全尺寸图片幻灯片

图 19 燃烧室压力脉动频谱图

Figure 19. Spectrum of the pressure fluctuation of the combustor

下载: 全尺寸图片幻灯片

表 1 实验工况

Table 1. Test condition

工况编号	水蒸气温度/K	压降/%	水蒸气流量/（kg/h）	水蒸气流速/（m/s）	氧气流量/（kg/h）	热功率/kW
1	453	1	24.3	49.2	6.1	25.3
2	453	2	34.5	69.2	8.6	35.6
3	453	3	42.5	84.4	10.6	44.2
4	503	1	23.1	51.8	5.8	24.0
5	503	2	32.8	73.0	8.2	34.1
6	503	3	40.3	88.9	10.1	42.0
7	553	1	22.0	54.4	5.5	22.9
8	553	2	31.3	76.5	7.8	32.5
9	553	3	38.5	93.2	9.6	40.0

下载: 导出CSV

表 2 网格尺寸

Table 2. Mesh size

燃烧区网格尺寸/mm	面网格尺寸/mm	体网格单元长度/mm	网格数/ 万
0.4	0.3～0.8	0.3～2.4	25
0.2	0.2～0.5	0.2～3.2	85
0.15	0.15～0.5	0.15～2.4	188

下载: 导出CSV

表 3 燃烧器出口剩余氢气体积分数

Table 3. Residual hydrogen volume fraction of combustor outlet

氧气质量分数/%	氢气体积分数/10⁻⁶
氧气质量分数/%	压降为1%	压降为3%
16	41.5	62.2
20	31.6	42.3
24	26.9	35.3

下载: 导出CSV

参考文献(26)

[1]	莫妲, 尚守堂, 林宇震, 等. 一种氢燃料微尺度非预混燃烧室数值模拟[J]. 航空动力学报, 2023, 38(11): 2701-2710. MO Da, SHANG Shoutang, LIN Yuzhen, et al. Numerical simulation investigation on a hydrogen micromix combustor[J]. Journal of Aerospace Power, 2023, 38(11): 2701-2710. (in Chinese MO Da, SHANG Shoutang, LIN Yuzhen, et al. Numerical simulation investigation on a hydrogen micromix combustor[J]. Journal of Aerospace Power, 2023, 38(11): 2701-2710. (in Chinese)
[2]	李迎春, 郑光华. 航空燃气涡轮发动机氢燃料研究历史和低污染燃烧技术发展[J]. 航空动力学报, 2012, 27(3): 572-577. LI Yingchun, ZHENG Guanghua. Review of study history and low emission combustion technology development on aero gas turbines fuelling hydrogen[J]. Journal of Aerospace Power, 2012, 27(3): 572-577. (in Chinese LI Yingchun, ZHENG Guanghua. Review of study history and low emission combustion technology development on aero gas turbines fuelling hydrogen[J]. Journal of Aerospace Power, 2012, 27(3): 572-577. (in Chinese)
[3]	陈星赫, 苏晟, 王娟. 航空模型燃料与氢气掺混微尺度燃烧数值模拟[J]. 航空动力学报, 2024, 39(10): 20220769. CHEN Xinghe, SU Sheng, WANG Juan. Numerical simulation of micro-scale combustion of jet fuel surrogate blended with hydrogen[J]. Journal of Aerospace Power, 2024, 39(10): 20220769. (in Chinese CHEN Xinghe, SU Sheng, WANG Juan. Numerical simulation of micro-scale combustion of jet fuel surrogate blended with hydrogen[J]. Journal of Aerospace Power, 2024, 39(10): 20220769. (in Chinese)
[4]	黄刚, 李朗, 田野, 等. 氢燃料超燃冲压发动机燃烧流场结构和性能研究[J]. 航空动力学报, 2023, 38(9): 2177-2185. HUANG Gang, LI Lang, TIAN Ye, et al. Study on combustion flow field structure and performance of hydrogen fueled scramjet[J]. Journal of Aerospace Power, 2023, 38(9): 2177-2185. (in Chinese HUANG Gang, LI Lang, TIAN Ye, et al. Study on combustion flow field structure and performance of hydrogen fueled scramjet[J]. Journal of Aerospace Power, 2023, 38(9): 2177-2185. (in Chinese)
[5]	邓洋波, 孙海涛, 王玉龙, 等. 氢燃料先进旋涡燃烧室流动和燃烧特性[J]. 航空动力学报, 2013, 28(1): 120-128. DENG Yangbo, SUN Haitao, WANG Yulong, et al. Flow and combustion characteristics of advanced vortex combustor with hydrogen fuel[J]. Journal of Aerospace Power, 2013, 28(1): 120-128. (in Chinese DENG Yangbo, SUN Haitao, WANG Yulong, et al. Flow and combustion characteristics of advanced vortex combustor with hydrogen fuel[J]. Journal of Aerospace Power, 2013, 28(1): 120-128. (in Chinese)
[6]	方钢, 蔡睿贤. 氢氧联合循环: 设计点及变工况初步分析[J]. 工程热物理学报, 1991, 12(3): 238-241. FANG Gang, CAI Ruixian. Preliminary analysis of design and off-design performances of H₂/O₂ combined cycle[J]. Journal of Engineering Thermophysics, 1991, 12(3): 238-241. (in Chinese FANG Gang, CAI Ruixian. Preliminary analysis of design and off-design performances of H₂/O₂ combined cycle[J]. Journal of Engineering Thermophysics, 1991, 12(3): 238-241. (in Chinese)
[7]	罗守博, 张弛, 昌运鑫, 等. 掺氢比对阵列微管火焰燃烧噪声的影响研究[J]. 航空动力学报, 2025, 40(5): 20230606. LUO Shoubo, ZHANG Chi, CHANG Yunxin, et al. Study on the influence of hydrogen doping ratio on the combustion noise of array microtubule flame[J]. Journal of Aerospace Power, 2025, 40(5): 20230606. (in Chinese LUO Shoubo, ZHANG Chi, CHANG Yunxin, et al. Study on the influence of hydrogen doping ratio on the combustion noise of array microtubule flame[J]. Journal of Aerospace Power, 2025, 40(5): 20230606. (in Chinese)
[8]	李笑靥, 李嘉怡, 昌运鑫, 等. 微扩散氢燃料喷嘴设计对燃烧振荡特性的影响[J]. 航空动力学报, 2025, 40(4): 20240566. LI Xiaoye, LI Jiayi, CHANG Yunxin, et al. Influence of micro-diffusion hydrogen fuel nozzle design on combustion oscillation characteristics[J]. Journal of Aerospace Power, 2025, 40(4): 20240566. (in Chinese LI Xiaoye, LI Jiayi, CHANG Yunxin, et al. Influence of micro-diffusion hydrogen fuel nozzle design on combustion oscillation characteristics[J]. Journal of Aerospace Power, 2025, 40(4): 20240566. (in Chinese)
[9]	刘昊, 宋文艳, 王靛. 氢燃料双模态燃烧室模态转换[J]. 航空动力学报, 2011, 26(3): 576-581. LIU Hao, SONG Wenyan, WANG Dian. Investigation of mode transition in a dual mode supersonic combustor with hydrogen fuel[J]. Journal of Aerospace Power, 2011, 26(3): 576-581. (in Chinese LIU Hao, SONG Wenyan, WANG Dian. Investigation of mode transition in a dual mode supersonic combustor with hydrogen fuel[J]. Journal of Aerospace Power, 2011, 26(3): 576-581. (in Chinese)
[10]	李茂, 杜正刚, 金平, 等. 富氢/富氧燃气同轴气-气喷嘴燃烧性能仿真与分析[J]. 航空动力学报, 2010, 25(4): 835-840. LI Mao, DU Zhenggang, JIN Ping, et al. Simulation and analysis on combustion performance of hydrogen-rich/oxygen-rich gas-gas coaxial injectors[J]. Journal of Aerospace Power, 2010, 25(4): 835-840. (in Chinese LI Mao, DU Zhenggang, JIN Ping, et al. Simulation and analysis on combustion performance of hydrogen-rich/oxygen-rich gas-gas coaxial injectors[J]. Journal of Aerospace Power, 2010, 25(4): 835-840. (in Chinese)
[11]	姜金朋, 李茂, 金平, 等. 气氢/气氧同轴剪切单喷嘴燃烧室壁面热流计算与分析[J]. 航空动力学报, 2012, 27(8): 1881-1886. JIANG Jinpeng, LI Mao, JIN Ping, et al. Simulation and analysis of wall heat fluxes for shear coaxial GH₂/GO₂ single element combustor[J]. Journal of Aerospace Power, 2012, 27(8): 1881-1886. (in Chinese JIANG Jinpeng, LI Mao, JIN Ping, et al. Simulation and analysis of wall heat fluxes for shear coaxial GH₂/GO₂ single element combustor[J]. Journal of Aerospace Power, 2012, 27(8): 1881-1886. (in Chinese)
[12]	REALE F, SANNINO R. Water and steam injection in micro gas turbine supplied by hydrogen enriched fuels: numerical investigation and performance analysis[J]. International Journal of Hydrogen Energy, 2021, 46(47): 24366-24381. doi: 10.1016/j.ijhydene.2021.04.169
[13]	KRULJEVIC B, CABELLO LÓPEZ A, LANGELLA I, et al. LES/thickened flame model of reheat hydrogen combustion with water/steam injection[C]//Proceedings of the ASME Turbo Expo 2023: Turbomachinery Technical Conference and Exposition. Boston, US: ASME, 2023: 1-14.
[14]	DYBE S, YASIR M, GÜTHE F, et, al. On the demonstration of a humid combustion system performing flexible fuel-switch from pure hydrogen to natural gas with ultra-low NOx emissions[C]// Proceedings of the ASME Turbo Expo 2023: Turbomachinery Technical Conference and Exposition. Boston, US: ASME, 2023: 1-12.
[15]	TANNEBERGER T. Investigation of zero-emission hydrogen oxyfuel flames[D]. Berlin, Germany: Technische Universität Berlin, 2020.
[16]	SEBASTIAN G. Ultra wet combustion: an experimental and numerical study[D]. Berlin, Germany: Technische Universität Berlin, 2012.
[17]	SCHIMEK S, STATHOPOULOS P, TANNEBERGER T, et al. Blue combustion: stoichiometric hydrogen-oxygen combustion under humidified conditions[C]//Proceedings of the ASME Turbo Expo 2015: Turbine Technical Conference and Exposition. Montreal, Canada: ASME, 2015: 1-7.
[18]	TANNEBERGER T, SCHIMEK S. Development of a swirl-stabilized H₂/O₂ combustion system under humidified conditions[C]// Proceedings of the 8th European Combustion Meeting. Dubrovnik, Croatia: 2017: 1618-1623.
[19]	FAN Yong, TSUJIMURA T, IKI N, et al. Investigation of non-premixed hydrogen-oxygen impinged jet flame under steam dilution[C]//Proceedings of the ASME Turbo Expo 2021: Turbomachinery Technical Conference and Exposition. Virtual, Online: ASME, 2021: 1-6.
[20]	段冬霞, 黄辉, 胡宏斌, 等. 旋流强度对氢气预混火焰CIVB回火的影响[J]. 推进技术, 2018, 39(4): 819-826. DUAN Dongxia, HUANG Hui, HU Hongbin, et al. Effects of swirl strength on CIVB flashback in hydrogen premixed flames[J]. Journal of Propulsion Technology, 2018, 39(4): 819-826. (in Chinese DUAN Dongxia, HUANG Hui, HU Hongbin, et al. Effects of swirl strength on CIVB flashback in hydrogen premixed flames[J]. Journal of Propulsion Technology, 2018, 39(4): 819-826. (in Chinese)
[21]	田晓晶, 崔玉峰, 邢双喜, 等. 基于试验设计方法对氢燃料CIVB回火的多参数数值分析[J]. 推进技术, 2016, 37(6): 1098-1107. TIAN Xiaojing, CUI Yufeng, XING Shuangxi, et al. Numerical investigation of effects of multi-factors on CIVB flashback for hydrogen fuel based on design of experiments method[J]. Journal of Propulsion Technology, 2016, 37(6): 1098-1107. (in Chinese TIAN Xiaojing, CUI Yufeng, XING Shuangxi, et al. Numerical investigation of effects of multi-factors on CIVB flashback for hydrogen fuel based on design of experiments method[J]. Journal of Propulsion Technology, 2016, 37(6): 1098-1107. (in Chinese)
[22]	田晓晶, 崔玉峰, 邢双喜, 等. 预混段结构对旋流预混氢火焰回火形式影响的数值研究[J]. 推进技术, 2015, 36(3): 345-351. TIAN Xiaojing, CUI Yufeng, XING Shuangxi, et al. Numerical investigation on effects of mixing zone structure on flashback type for swirl-premixed hydrogen flame[J]. Journal of Propulsion Technology, 2015, 36(3): 345-351. (in Chinese TIAN Xiaojing, CUI Yufeng, XING Shuangxi, et al. Numerical investigation on effects of mixing zone structure on flashback type for swirl-premixed hydrogen flame[J]. Journal of Propulsion Technology, 2015, 36(3): 345-351. (in Chinese)
[23]	吕光普, 刘潇, 张志浩, 等. 氢燃气轮机燃烧技术研究进展[J]. 燃气轮机技术, 2022, 35(1): 1-15. LV Guangpu, LIU Xiao, ZHANG Zhihao, et al. Research progress of combustion technology in hydrogen gas turbine[J]. Gas Turbine Technology, 2022, 35(1): 1-15. (in Chinese doi: 10.3969/j.issn.1009-2889.2022.1.rqljjs202201001 LV Guangpu, LIU Xiao, ZHANG Zhihao, et al. Research progress of combustion technology in hydrogen gas turbine[J]. Gas Turbine Technology, 2022, 35(1): 1-15. (in Chinese) doi: 10.3969/j.issn.1009-2889.2022.1.rqljjs202201001
[24]	刘勋伟. 含氢燃料多微混射流火焰的燃烧特性与稳焰机制研究[D]. 北京: 中国科学院大学, 2021. LIU Xunwei. Study on combustion characteristics and flame stabilization mechanism of multi-micro mixed jet flame containing hydrogen fuel[D]. Beijing: University of Chinese Academy of Sciences, 2021. (in Chinese LIU Xunwei. Study on combustion characteristics and flame stabilization mechanism of multi-micro mixed jet flame containing hydrogen fuel[D]. Beijing: University of Chinese Academy of Sciences, 2021. (in Chinese)
[25]	田亮, 冯文斌, 韩啸, 等. 水蒸气环境中阵列微管氢氧燃烧模型耦合研究[J]. 航空动力学报, 2025, 40(10): 20240048. TIAN Liang, FENG Wenbin, HAN Xiao, et al. Study on Array Microtube Hydrogen-Oxygen Combustion in Water Vapor Environment[J]. Journal of Aerospace Power, 2025, 40(10): 20240048. (in Chinese TIAN Liang, FENG Wenbin, HAN Xiao, et al. Study on Array Microtube Hydrogen-Oxygen Combustion in Water Vapor Environment[J]. Journal of Aerospace Power, 2025, 40（10）: 20240048. (in Chinese)
[26]	DONG Shijun, ZHANG Kuiwen, NINNEMANN E M, et al. A comprehensive experimental and kinetic modeling study of 1- and 2-pentene[J]. Combustion and Flame, 2021, 223: 166-180. doi: 10.1016/j.combustflame.2020.09.012
