高热负荷加力燃烧室隔热屏壁温分析改进算法

凌文辉

doi:10.13224/j.cnki.jasp.20240661

高热负荷加力燃烧室隔热屏壁温分析改进算法

doi: 10.13224/j.cnki.jasp.20240661

凌文辉

北京动力机械研究所，北京 100074

详细信息

作者简介:
凌文辉（1968-），男，研究员，博士，研究方向为发动机设计。E-mail：lingwenhui2008@sina.com

中图分类号: V233.1
计量
- 文章访问数: 352
- HTML浏览量: 142
- PDF量: 43
- 被引次数: 0
出版历程
- 收稿日期: 2024-09-26
- 网络出版日期: 2025-02-09

Improvement algorithm of wall temperature analysis for high heat load afterburner liner

LING Wenhui

Beijing Power Machinery Institute，Beijing 100074，China

摘要

摘要:
随着加力燃烧室热负荷水平逐步提高，在有限冷气量的强约束下隔热屏冷却需开展精细化设计，现有的隔热屏壁温分析算法精度无法满足高热负荷加力燃烧室设计需求。本文针对影响加力燃烧室隔热屏壁温计算精确性的关键参数，开展了算法改进，基于改进算法，计算加力燃烧室隔热屏壁温，并与试验结果进行对比分析。改进算法的计算结果与试验结果误差不大于7%，较改进前减小8%，有效提升了高热负荷加力燃烧室隔热屏壁温的计算精度。
- 加力燃烧室 /
- 隔热屏 /
- 壁温 /
- 气动特性 /
- 传热
Abstract:
As the heat load of afterburner increased, the cooling of liner required for refined design under the strong constraint of effective cold air volume. The accuracy of the liner wall temperature analysis algorithm cannot meet the development requirements of high heat load afterburner. Engineering algorithm optimization for critical parameters was carried out, which affected the accuracy of the high heat load afterburner liner wall temperature. Based on the optimized method, calculations were carried out for the wall temperature of the afterburner liner, and compared with the test values. The error between engineering design method and test results was less than 7%, and the error between evaluation results of the revised engineering algorithm and the test results decreased by 8% compared with those before the correction. The optimization method can effectively improve computation accuracy of. wall temperature for high heat load afterburner liner.
- afterburner /
- liner /
- wall temperature /
- aerodynamic characteristic /
- heat transfer

HTML

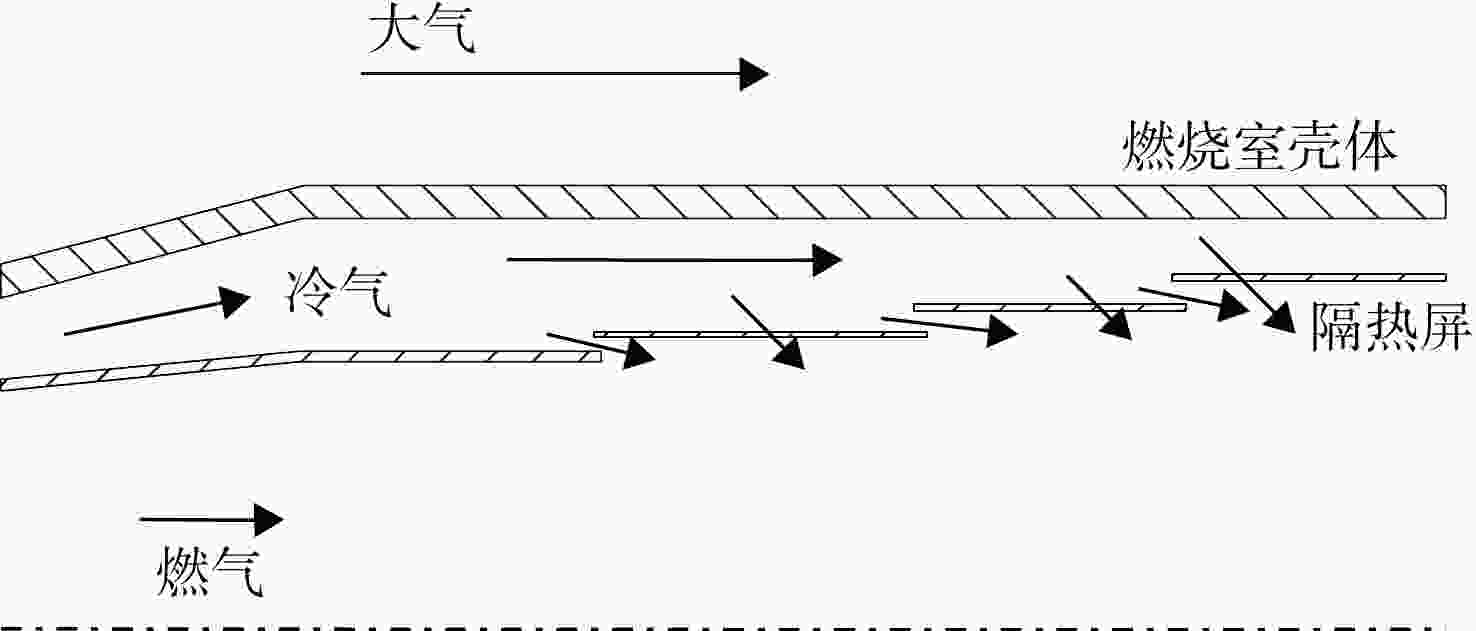

图 1 加力燃烧室隔热屏简图

Figure 1. Diagram of afterburner liner

下载: 全尺寸图片幻灯片

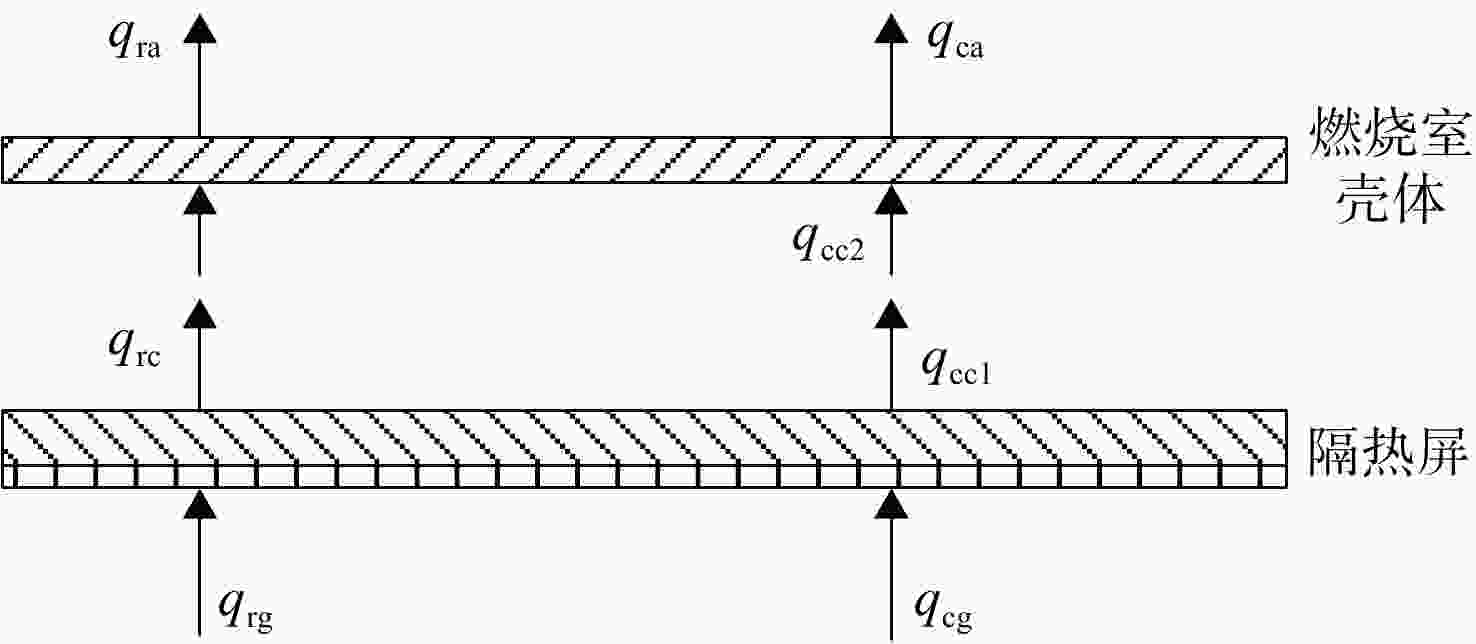

图 2 加力燃烧室隔热屏传热示意图

Figure 2. Sketch map of heat transfer for afterburner liner

下载: 全尺寸图片幻灯片

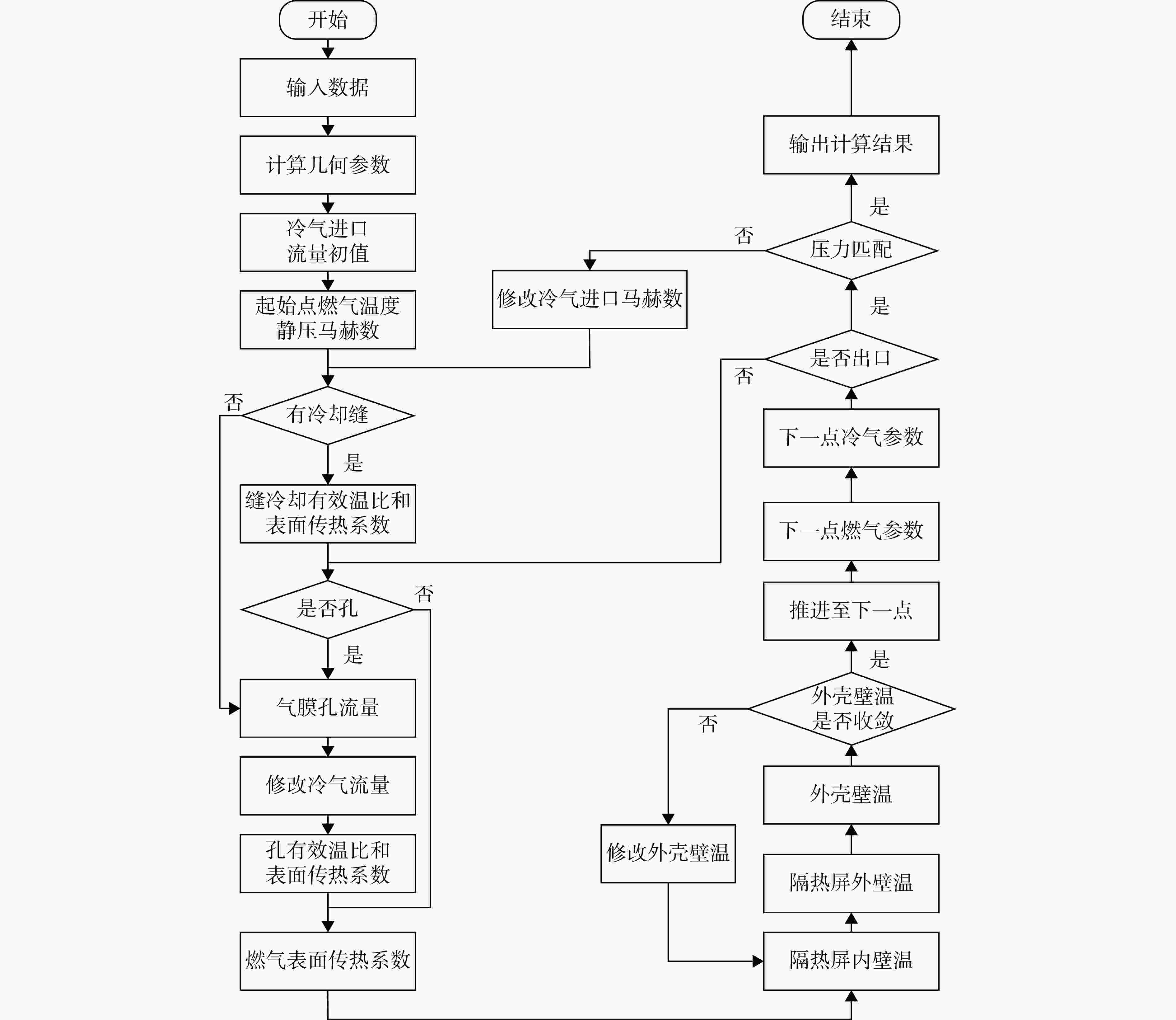

图 3 程序流程图

Figure 3. Program flow chart

下载: 全尺寸图片幻灯片

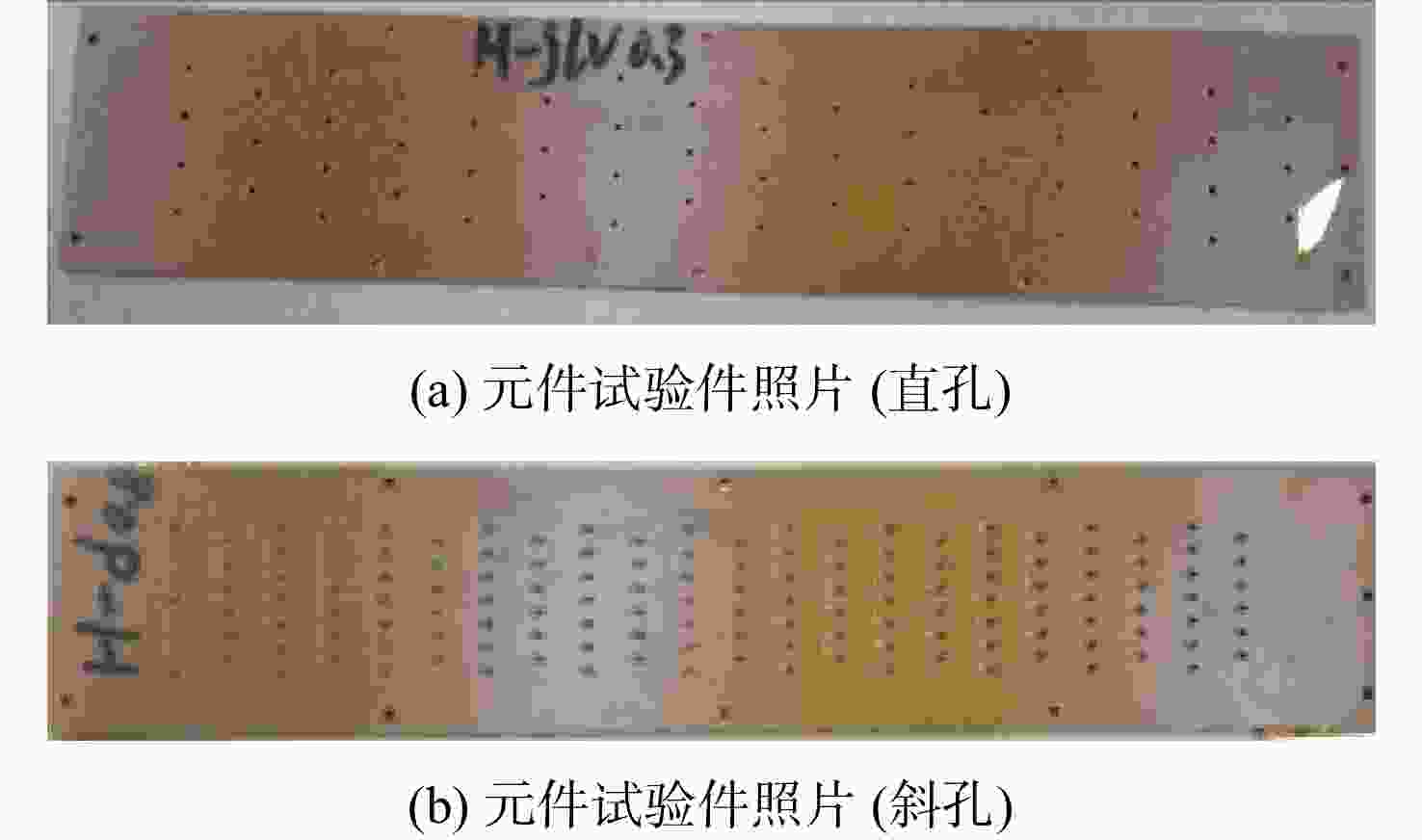

图 4 冷却结构试验件

Figure 4. Photo of cooling structure test piceces

下载: 全尺寸图片幻灯片

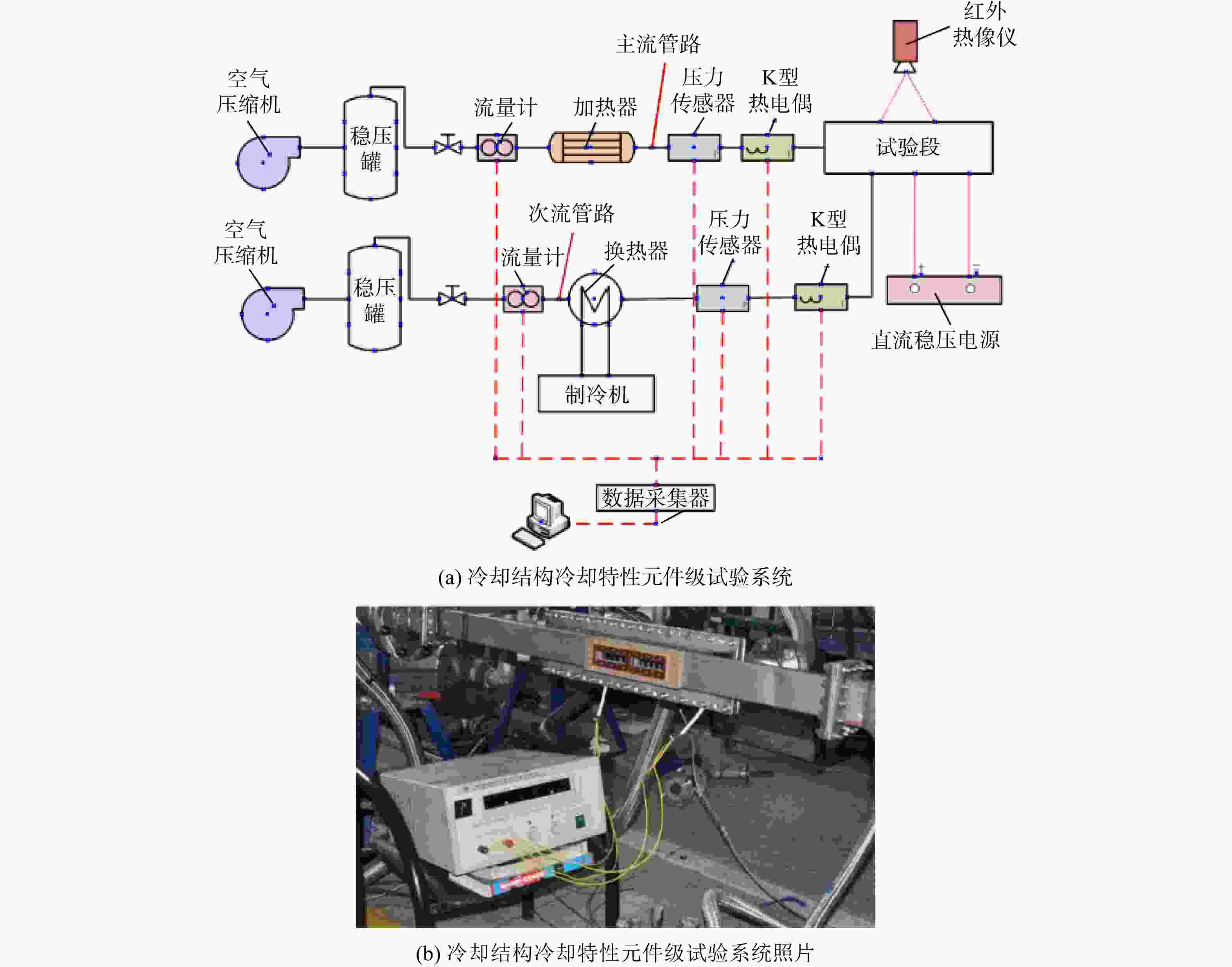

图 5 冷却结构冷却特性试验

Figure 5. Experimental study on cooling characteristic of cooling structures

下载: 全尺寸图片幻灯片

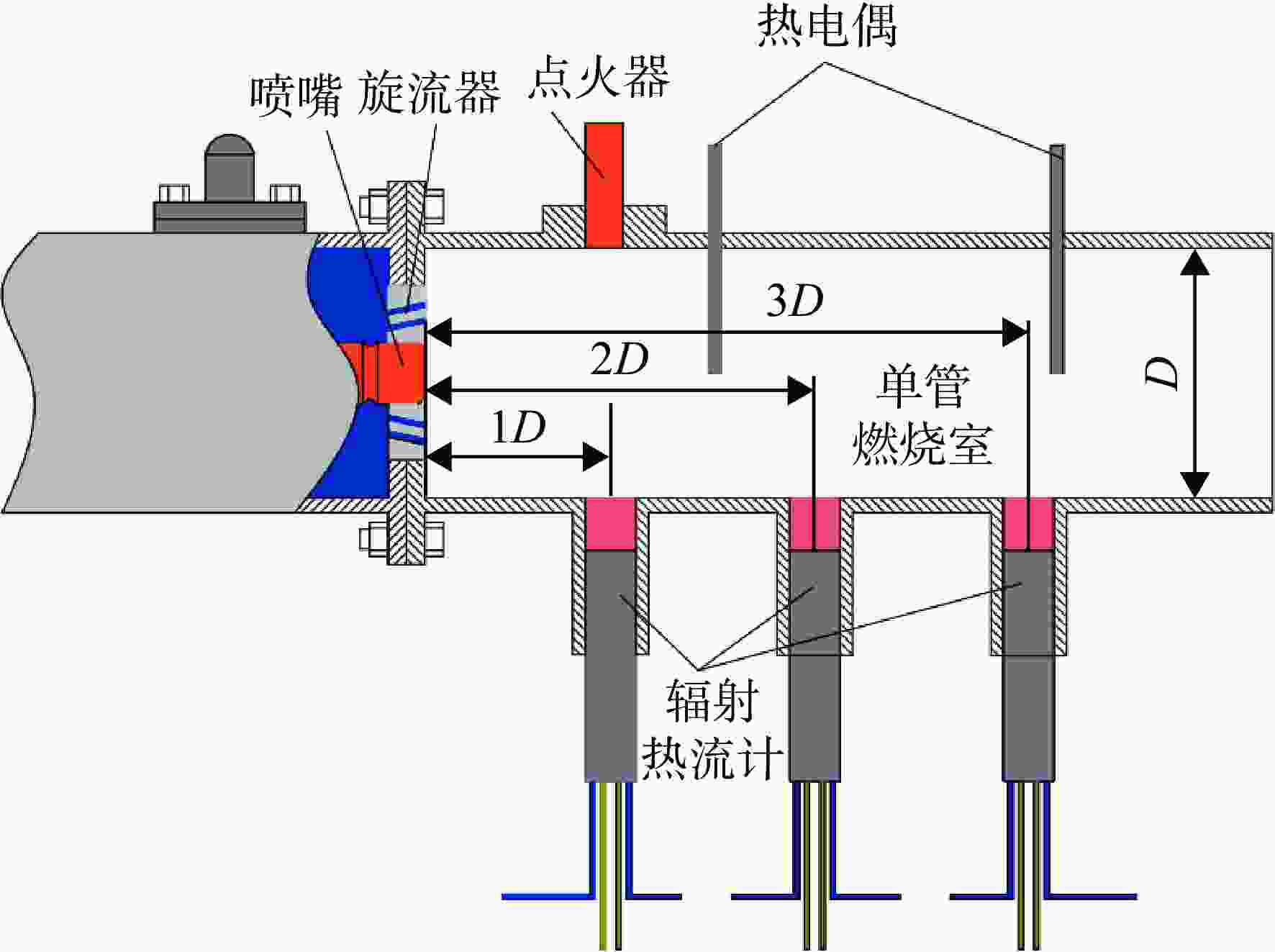

图 6 单管燃烧室

Figure 6. Single tube combustion chamber

下载: 全尺寸图片幻灯片

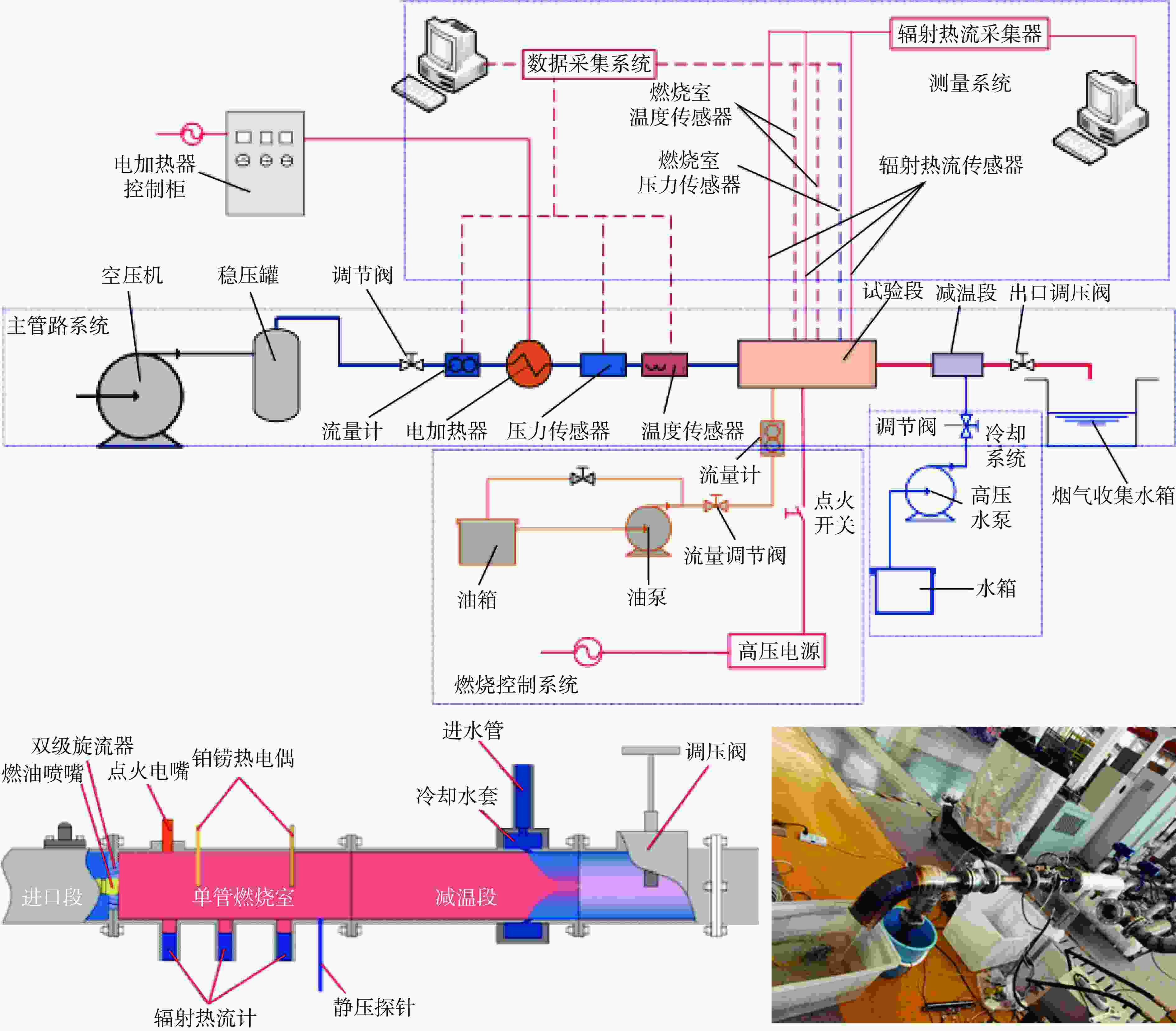

图 7 燃烧室辐射传热标校元件级试验系统

Figure 7. Schematic diagram and real picture of test system for combustor radiation characters

下载: 全尺寸图片幻灯片

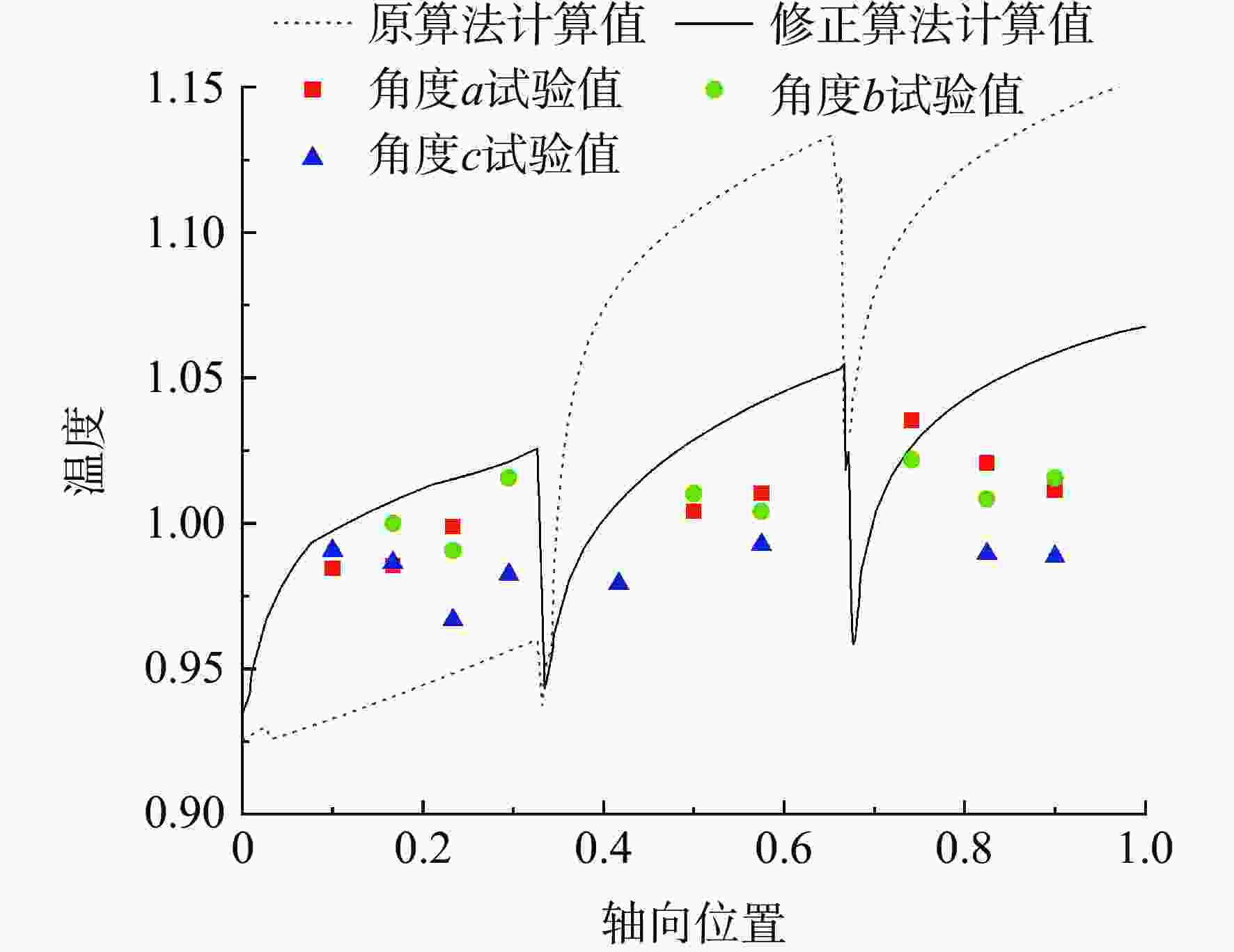

图 8 工程计算值与试验结果对比
