Fatigue life prediction of hole edge structure of installation seat based on improved TCD-SWT model
-
摘要:
为了对具有2D应力梯度的安装座孔边结构实现精确的疲劳寿命预测，提出了一种改进的TCD-SWT（theory of critical distance-Smith-Watson-Topper）寿命预测模型。针对厚度较大的安装座孔边结构，考虑其孔边2D应力梯度特征，对传统临界距离法进行改进；采用梯度下降法编制计算程序，提取出孔边应力集中处实际应力梯度线，并结合梯度线上的SWT参量确定临界距离，建立寿命预测模型。基于损伤等效原则发展了一种安装座孔边结构特征模拟件设计方法，实现模拟件与实际结构危险截面应力梯度及梯度线上的损伤参量分布均较为接近。通过开展模拟件高温疲劳试验，验证了改进TCD-SWT模型的预测精度。结果表明：改进模型相较于传统模型预测精度有较大提高，预测结果均在±1.4倍分散带以内。

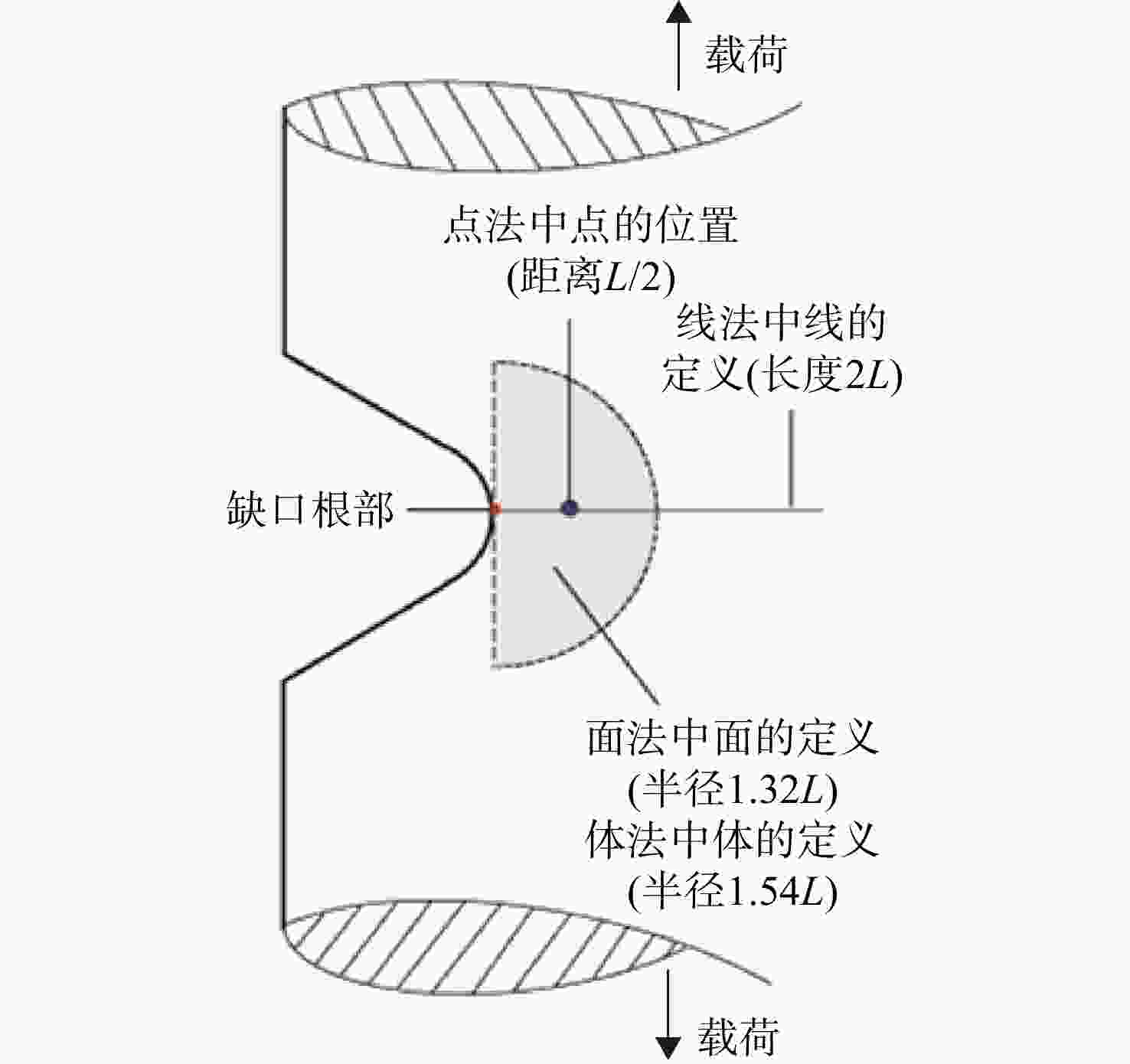

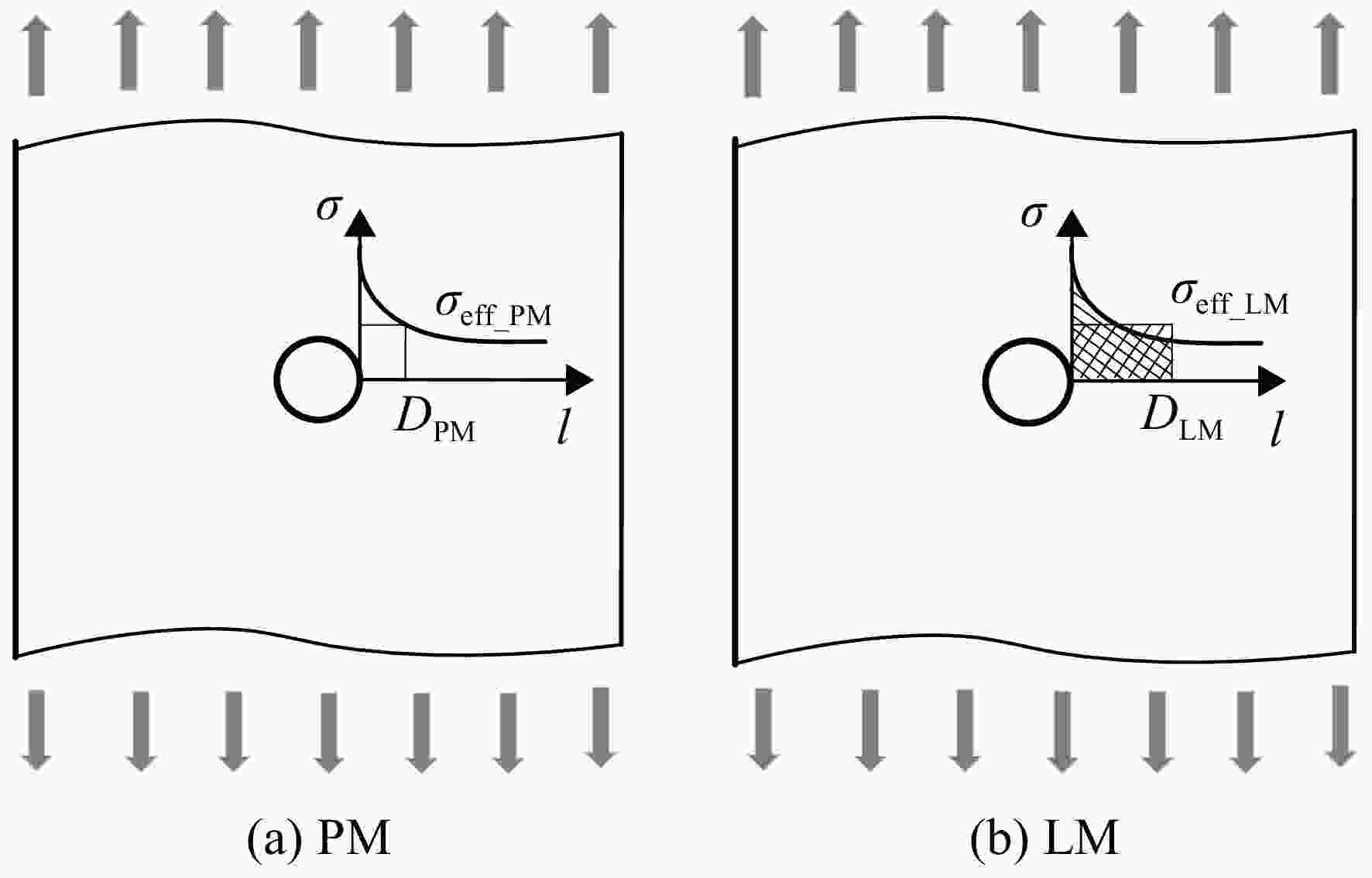

Abstract:In order to accurately predict the fatigue life of the hole edge structure of the installation seat with a 2D stress gradient, an improved TCD-SWT (theory of critical distance-Smith-Watson-Topper) fatigue life prediction model was proposed. For the hole edge structure of the installation seat with relatively large thickness, the 2D stress gradient characteristics of the hole edge were considered, and the TCD method was improved. The gradient descent method was used to develop a computational program that extracted the actual stress gradient line at the stress concentration region of the hole edge. By combining the SWT parameters along the gradient line, the critical distance was determined, and a fatigue life prediction model was established. Based on the principle of damage equivalence, a feature simulation design method for the hole edge structure of the installation seat was developed, ensuring that the stress gradient and the distribution of damage parameters along the gradient line at the dangerous section of the simulated specimen closely resembled those of the actual structure. High-temperature fatigue tests on the simulated specimens were carried out to verify the prediction accuracy of the improved TCD-SWT model. The results showed that the improved model significantly enhanced the prediction accuracy compared with the traditional model, with prediction results consistently falling within a ±1.4 dispersion band.
-

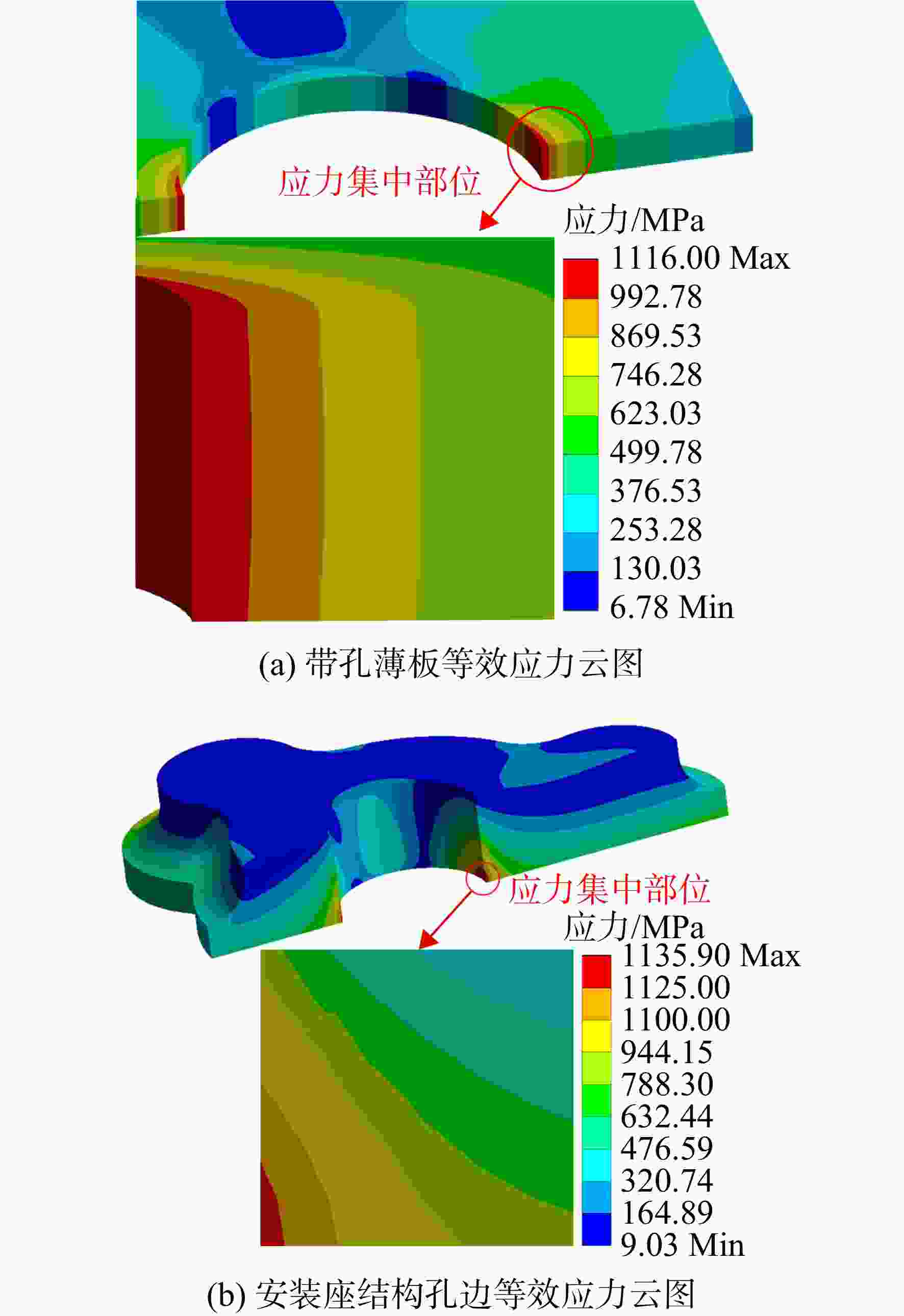

图 3 安装座及带孔薄板应力梯度云图
Figure 3. Stress gradient cloud map of installation seat and thin plate with hole

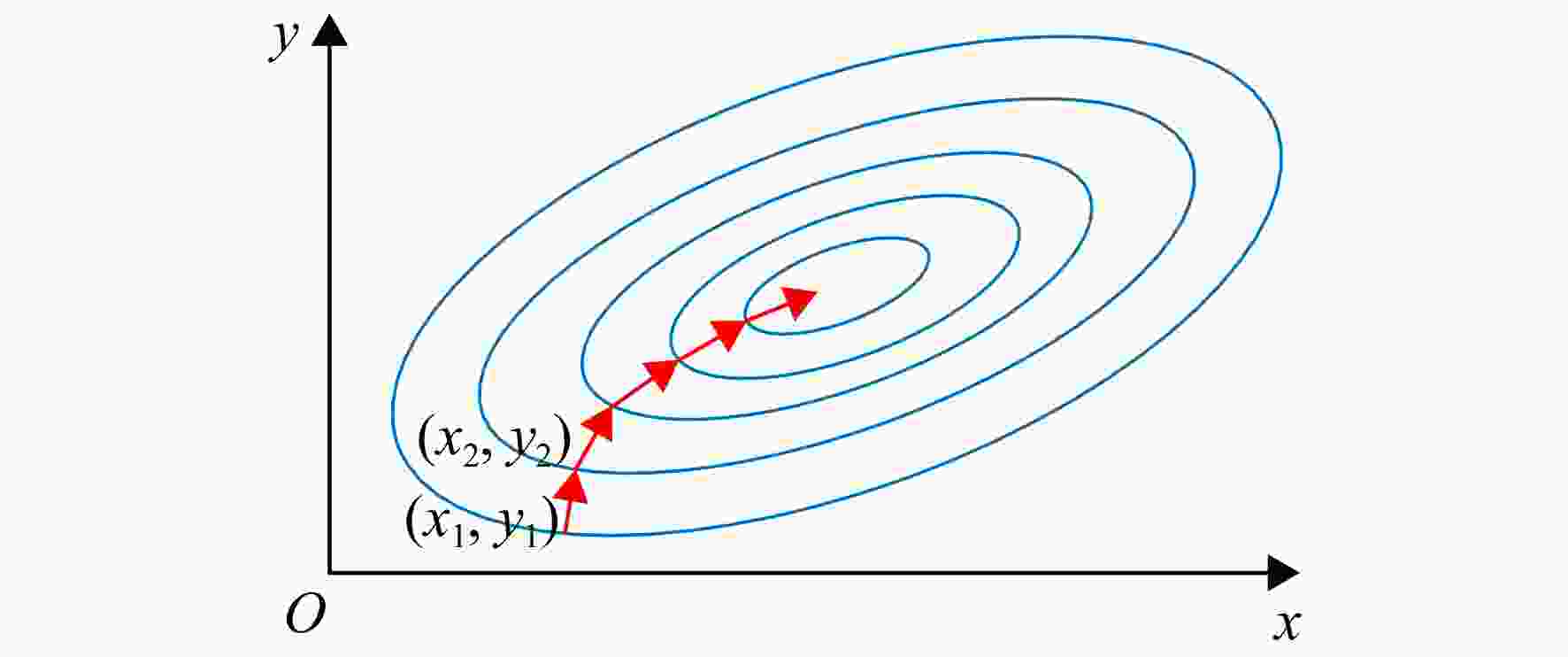

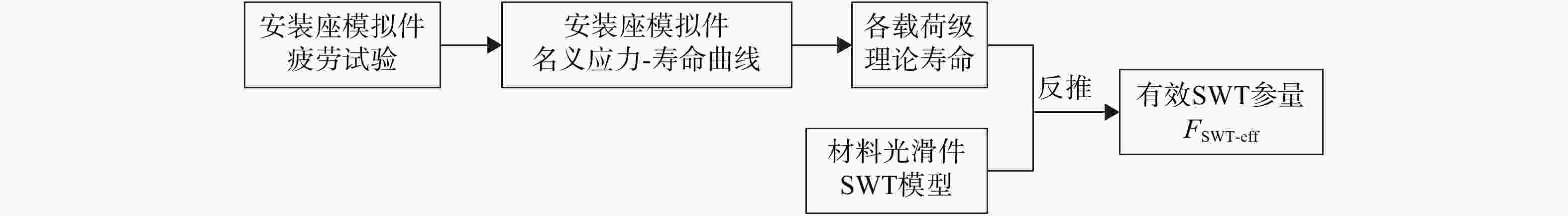

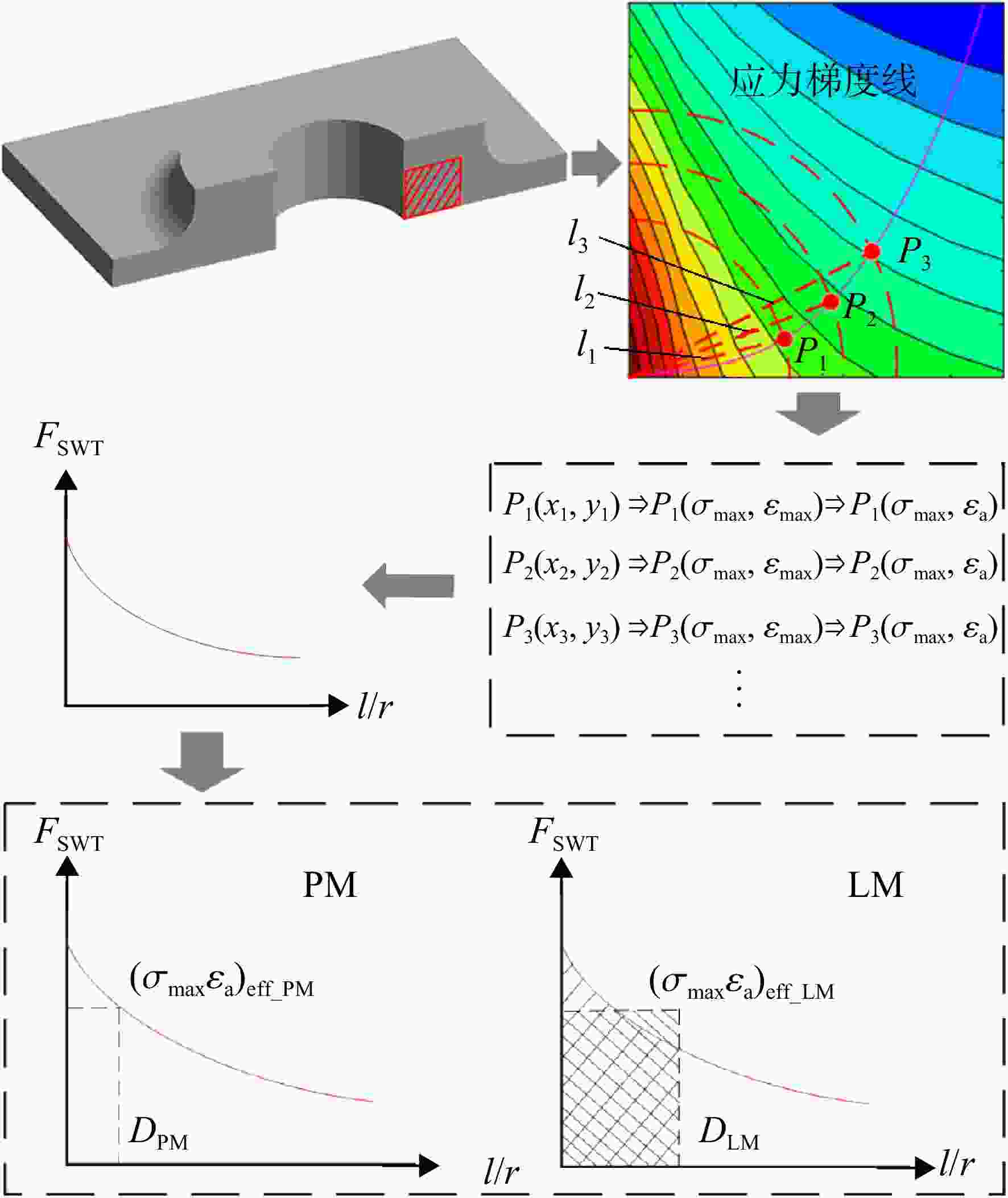

图 6 有效SWT参量$ {F_{{\text{SWT-eff}}}} $确定方法
Figure 6. Determination method of effective SWT parameter $ {F_{{\text{SWT-eff}}}} $

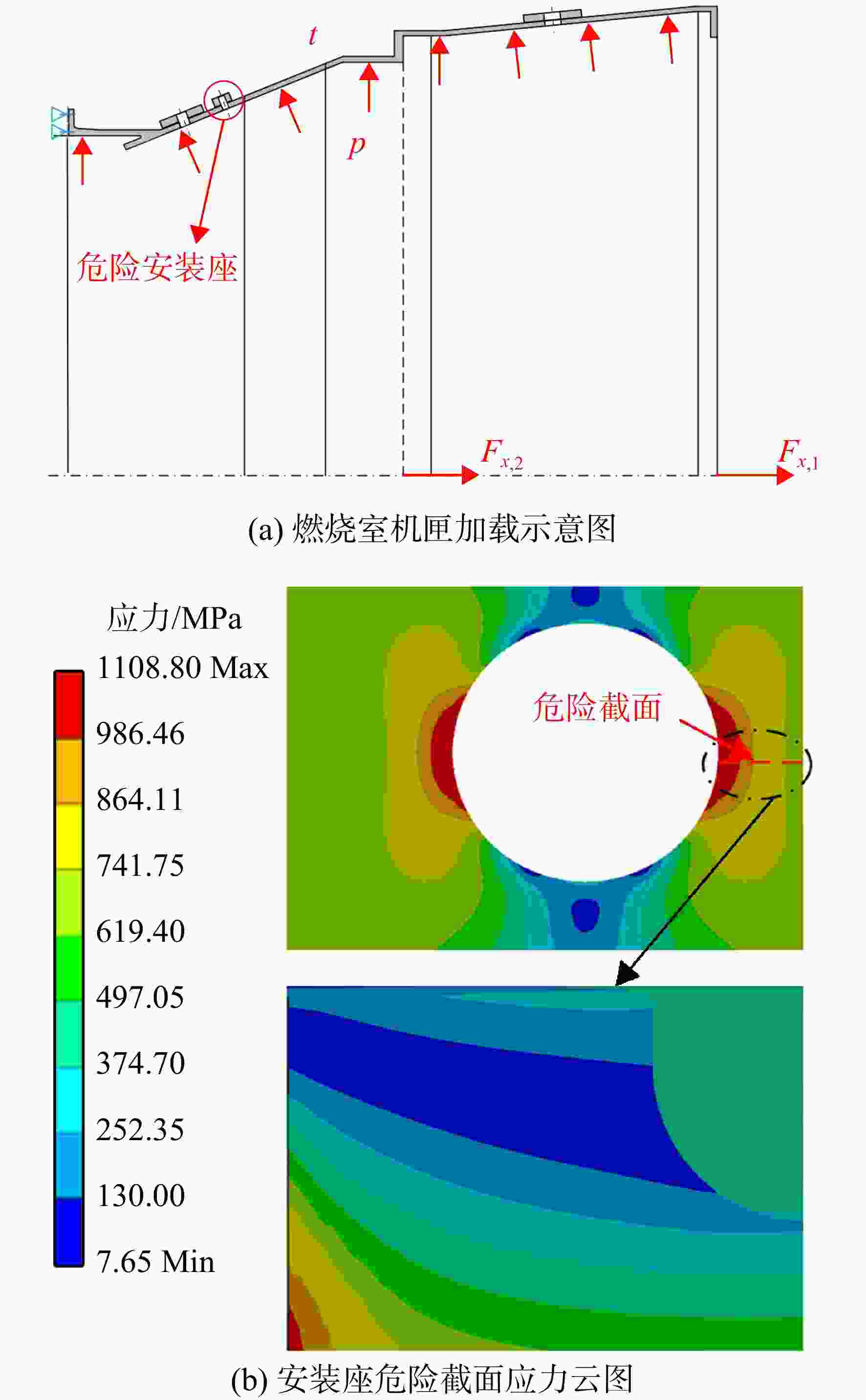

图 7 燃烧室机匣安装座仿真计算
Figure 7. Combustion chamber casing installation seat simulation calculation

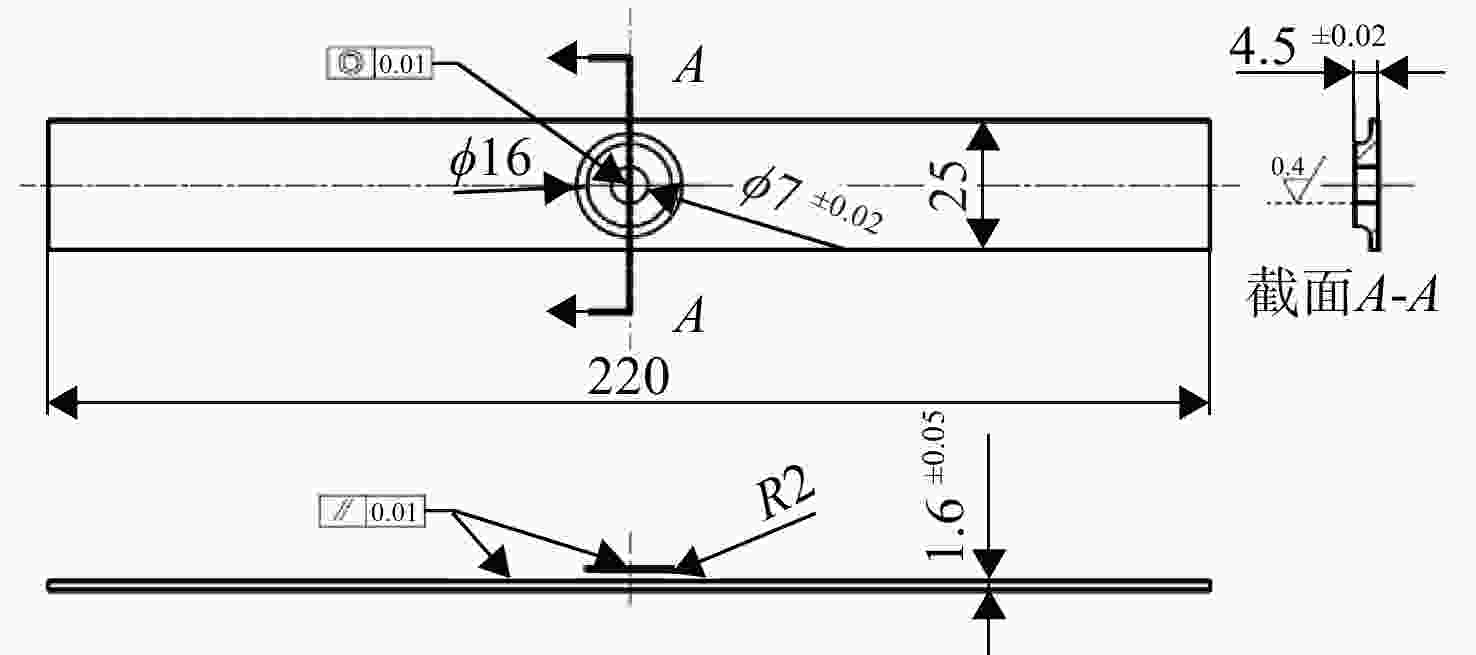

图 8 安装座孔边模拟件设计图（单位：mm）
Figure 8. Design drawing of simulated component for hole edge of installation seat （unit：mm）

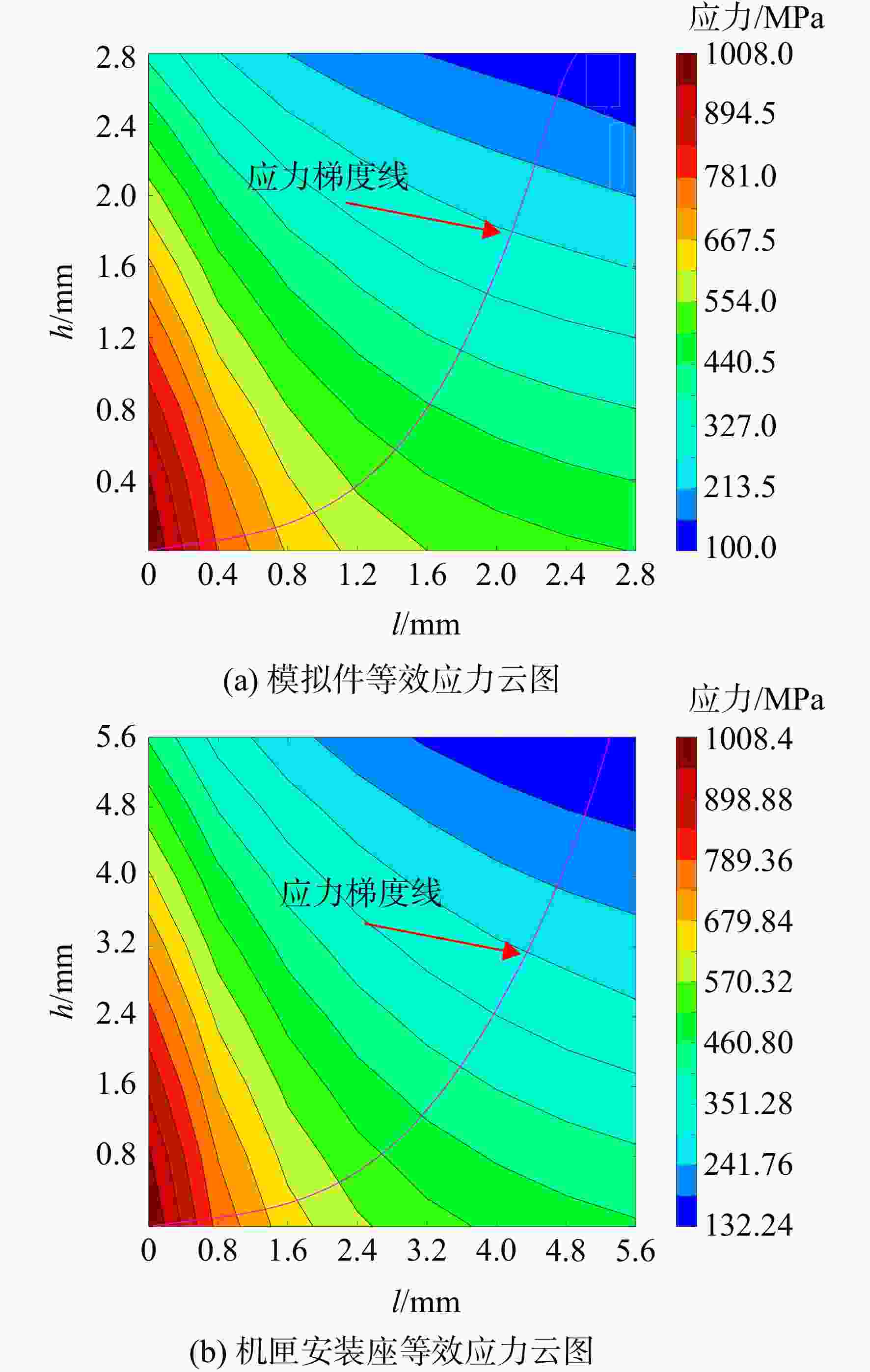

图 9 模拟件与机匣安装座危险截面应力梯度对比
Figure 9. Simulated parts and casing installation seat danger section stress gradient comparison

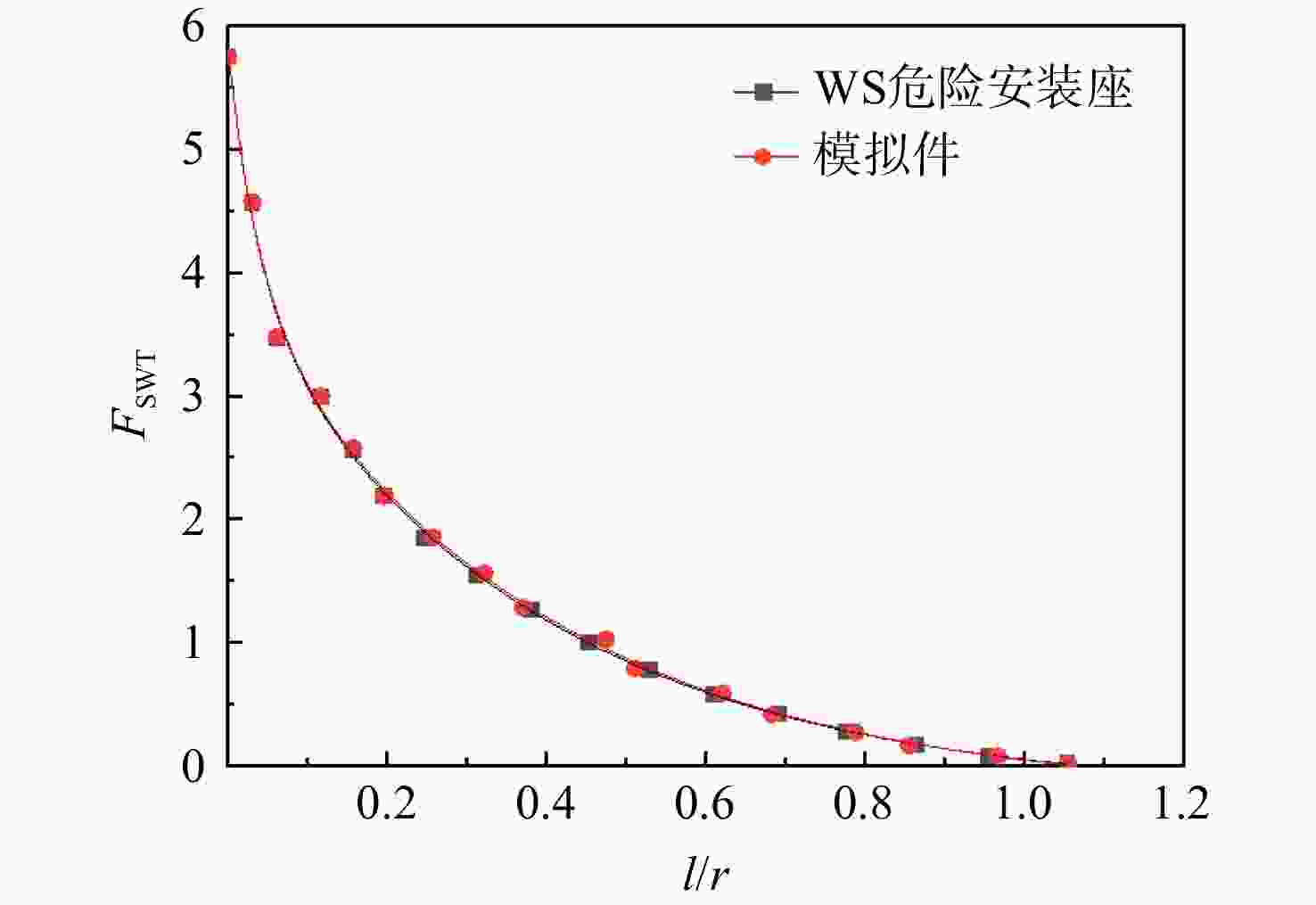

图 10 模拟件与机匣安装座危险截面损伤参量分布
Figure 10. Damage parameters distribution in the dangerous cross section of simulated parts and casing installation seat

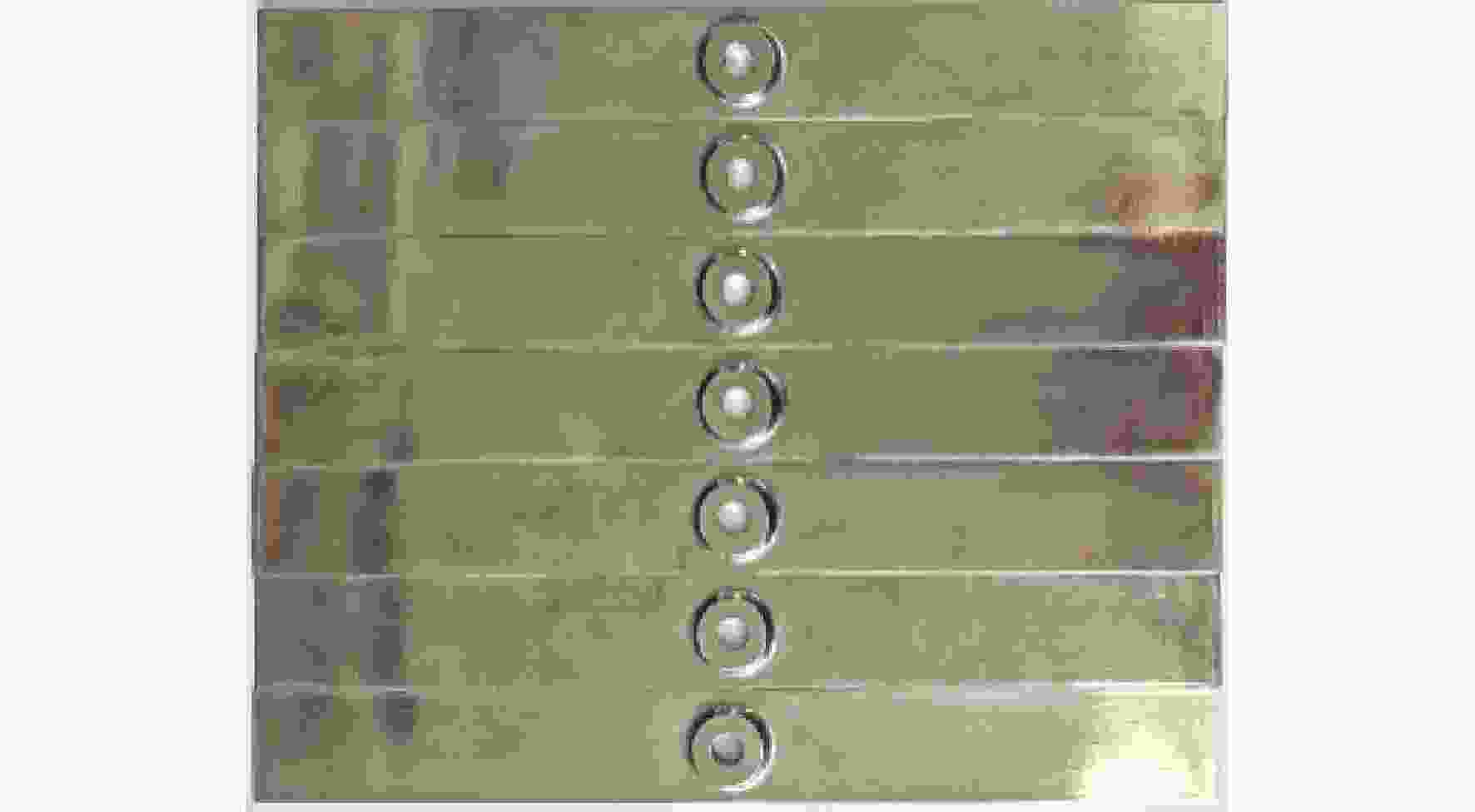

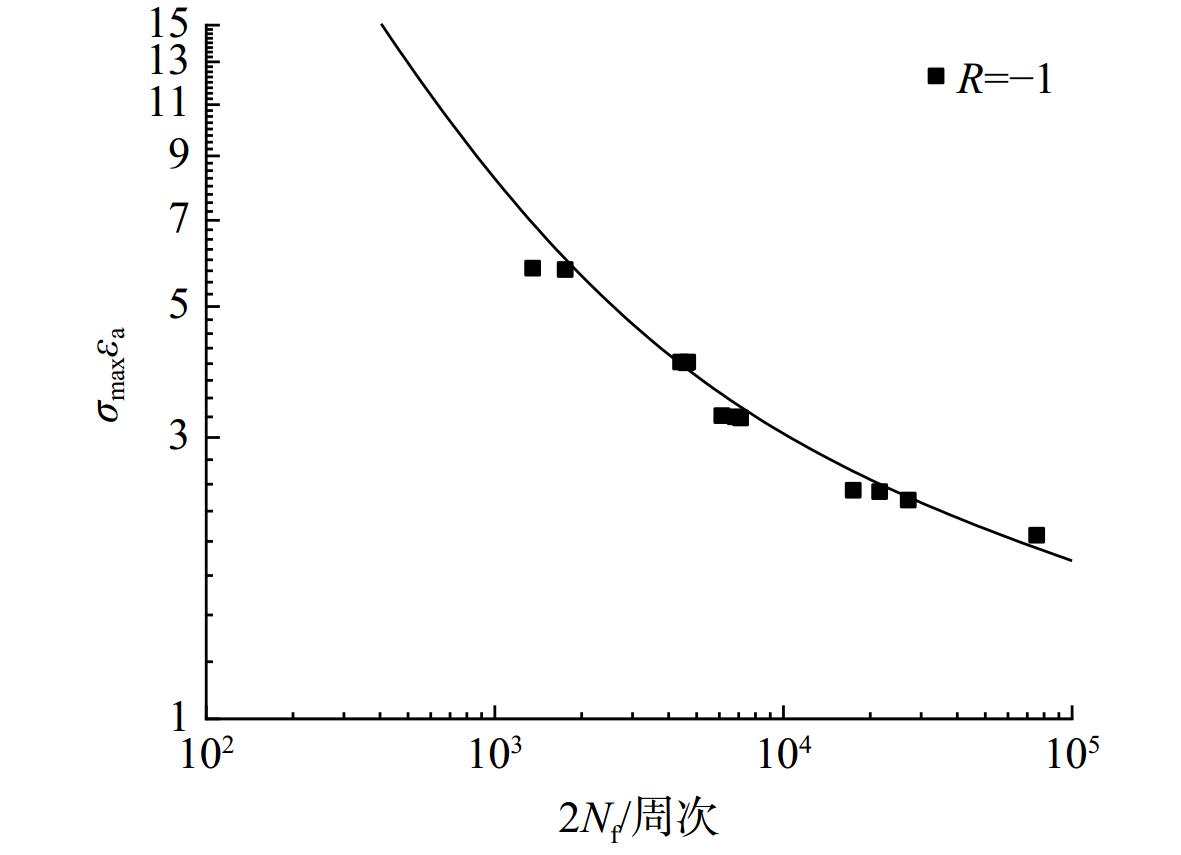

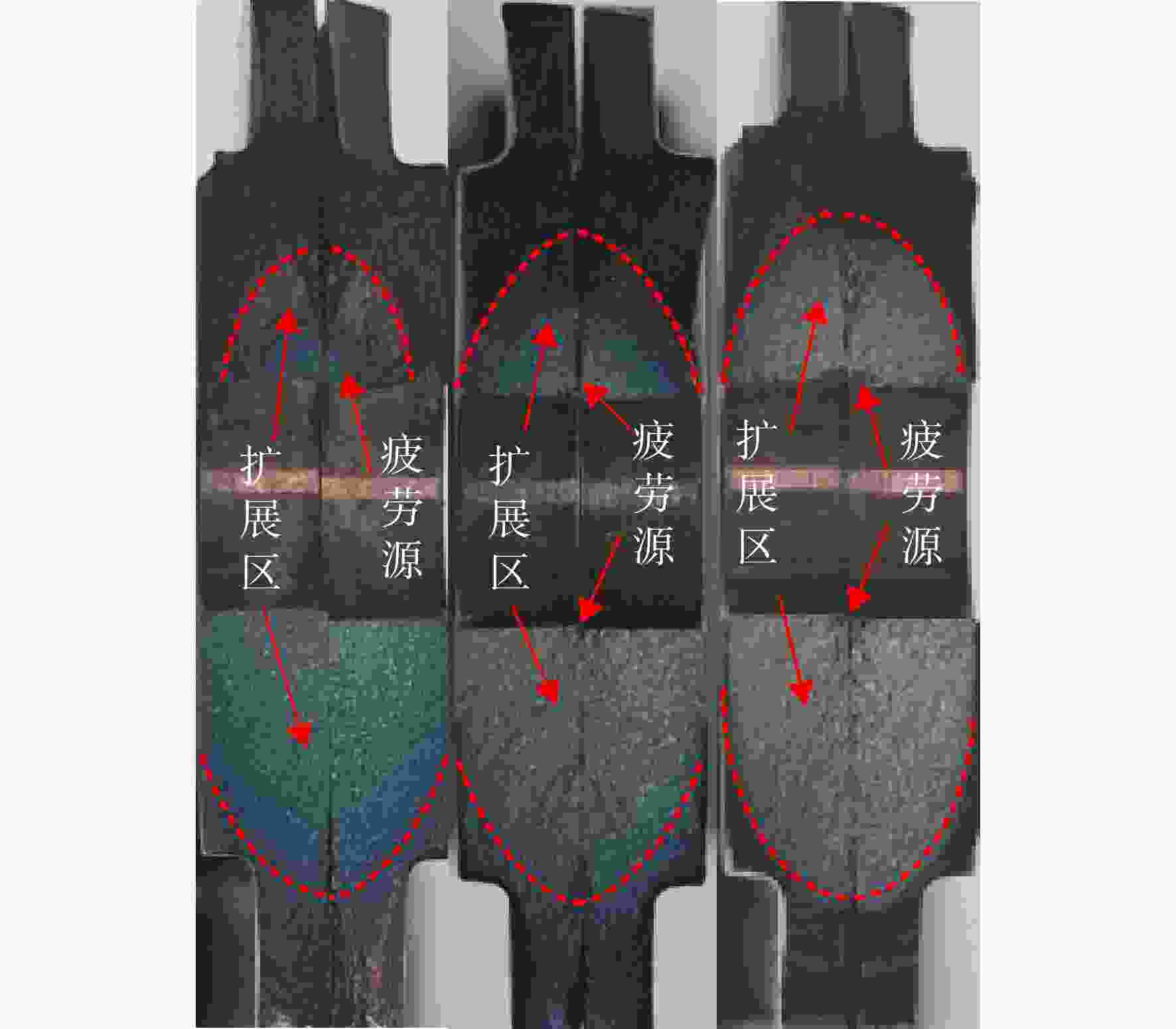

图 14 安装座孔边模拟件典型疲劳断口
Figure 14. Typical fatigue breaks for hole edge of installation seat simulation
图 15 安装座孔边模拟件孔边裂纹萌生与扩展
Figure 15. Crack initiation and propagation of hole edge of installation seat simulation

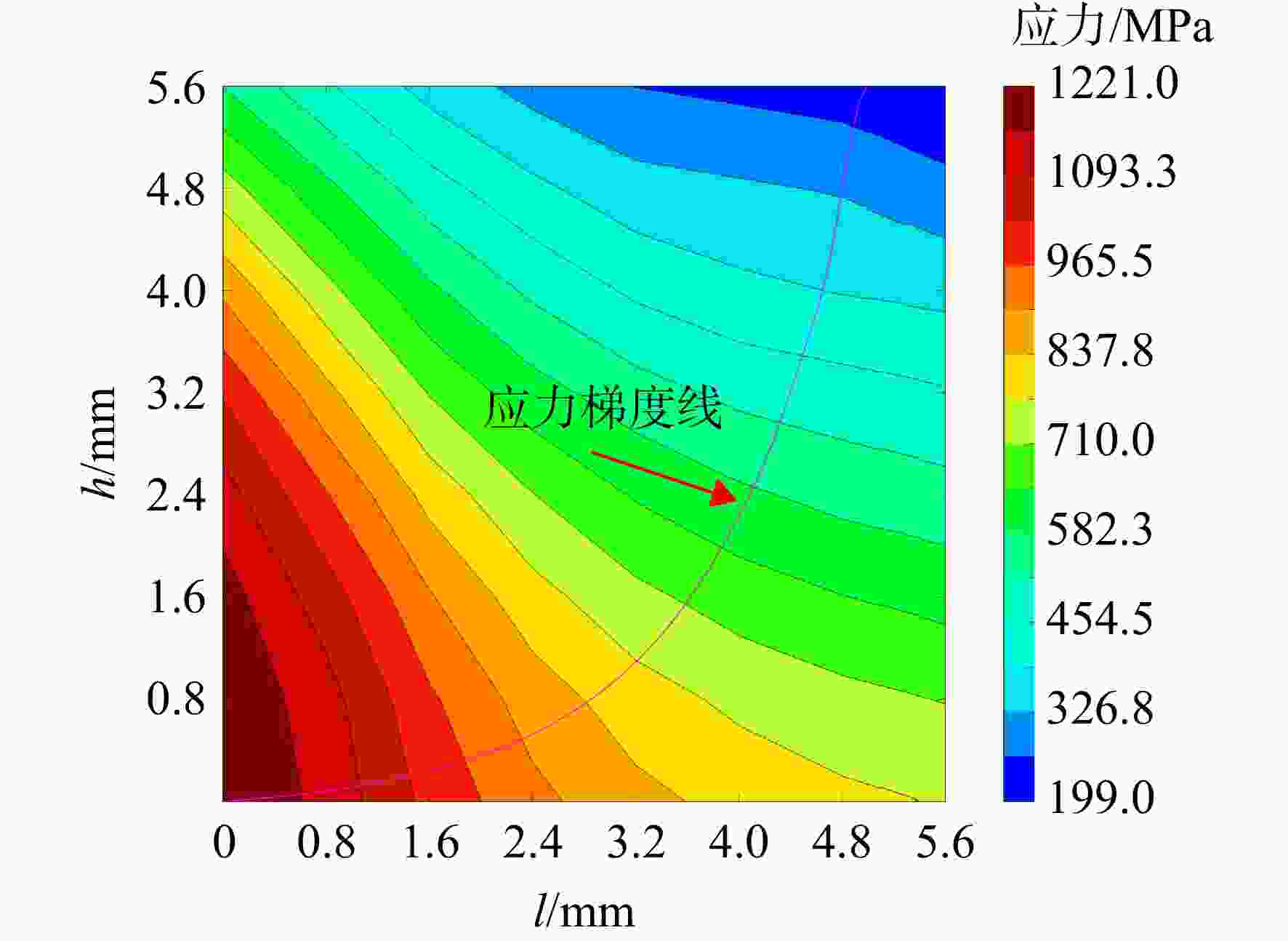

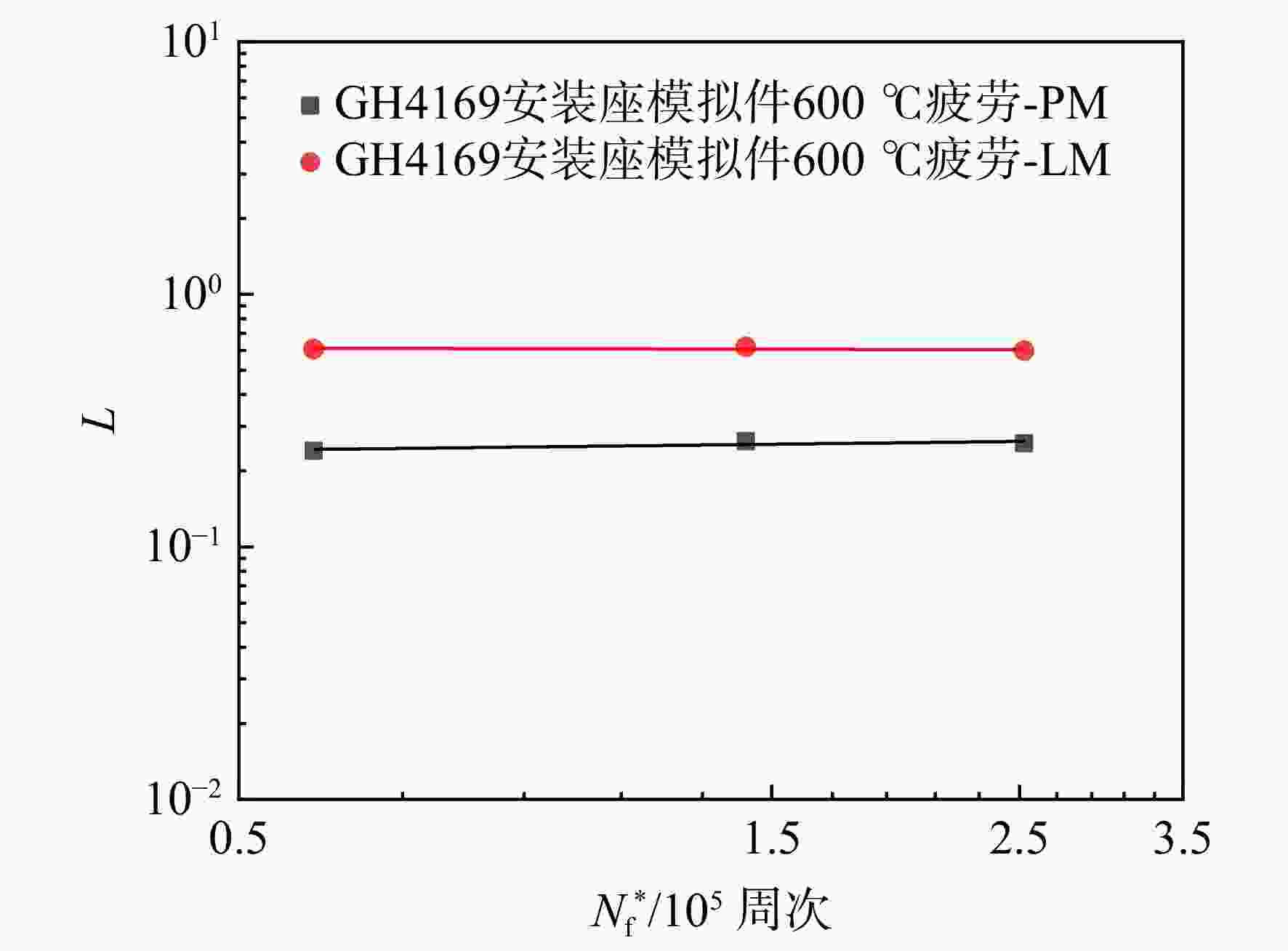

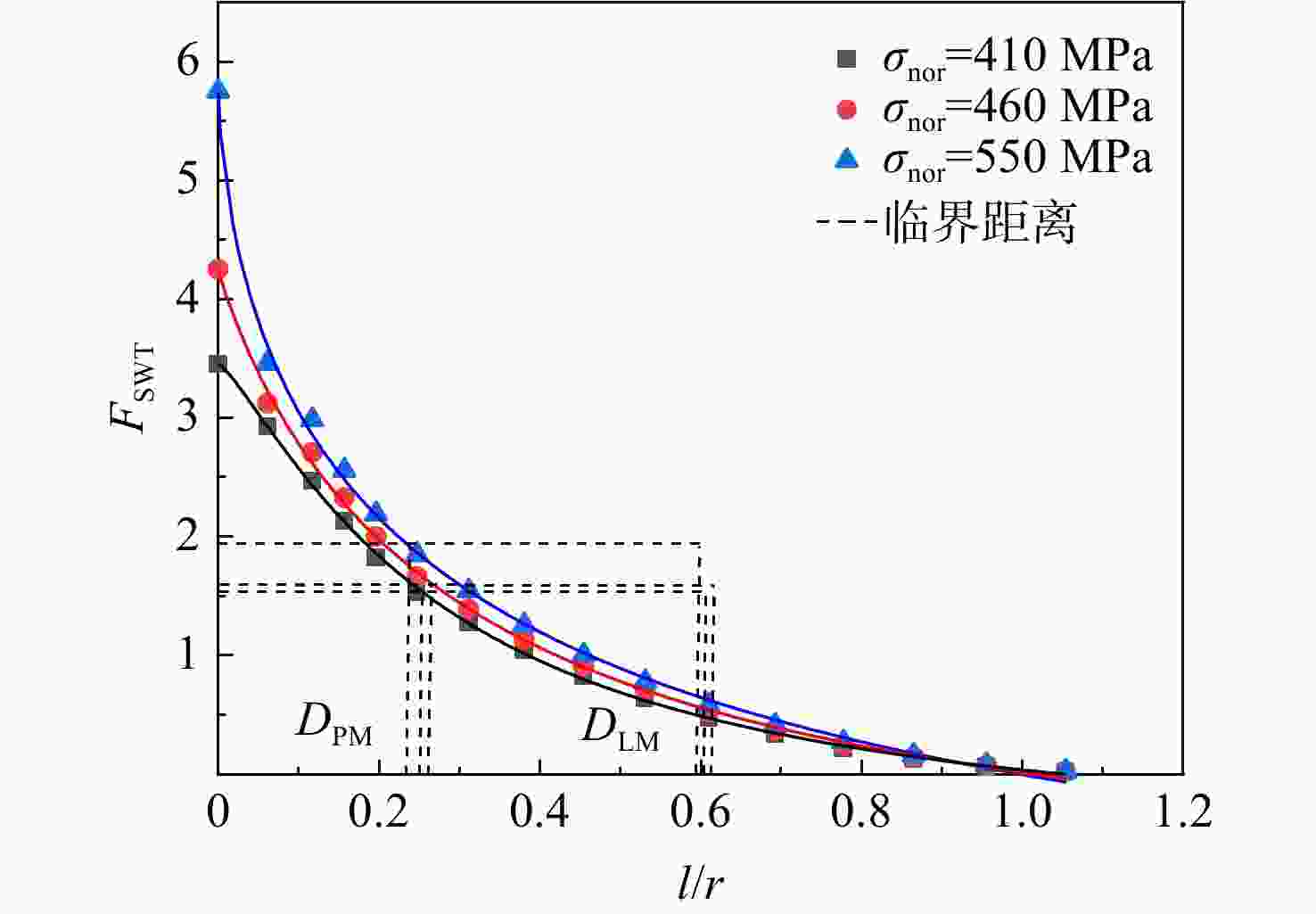

图 18 模拟件$ L {\text{-}} N_{\text{f}}^* $曲线
Figure 18. $ L {\text{-}} N_{\text{f}}^* $curves of simulated parts

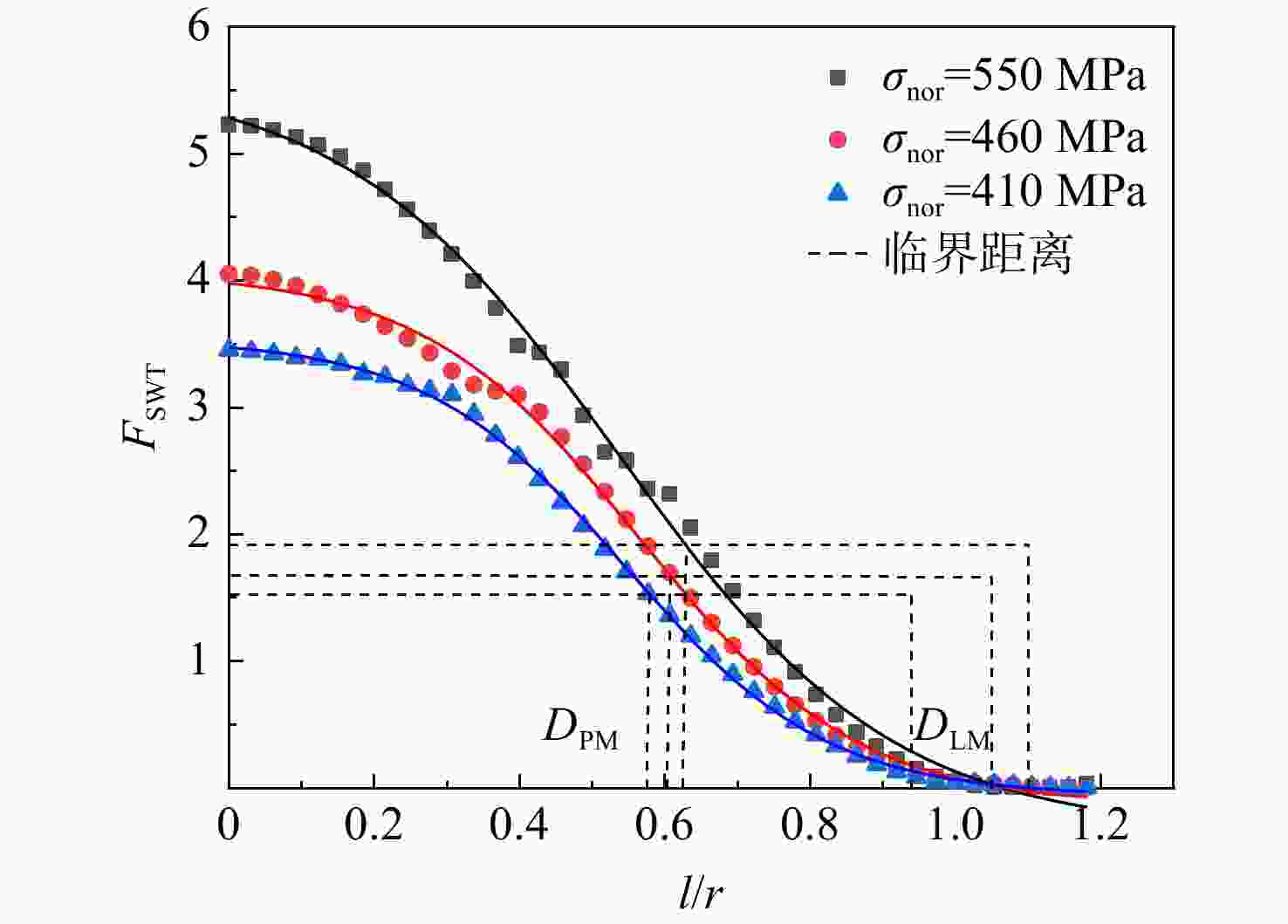

图 19 孔底边延长线损伤参量分布
Figure 19. Damage parameters distribution of the extension line at the bottom of seat hole

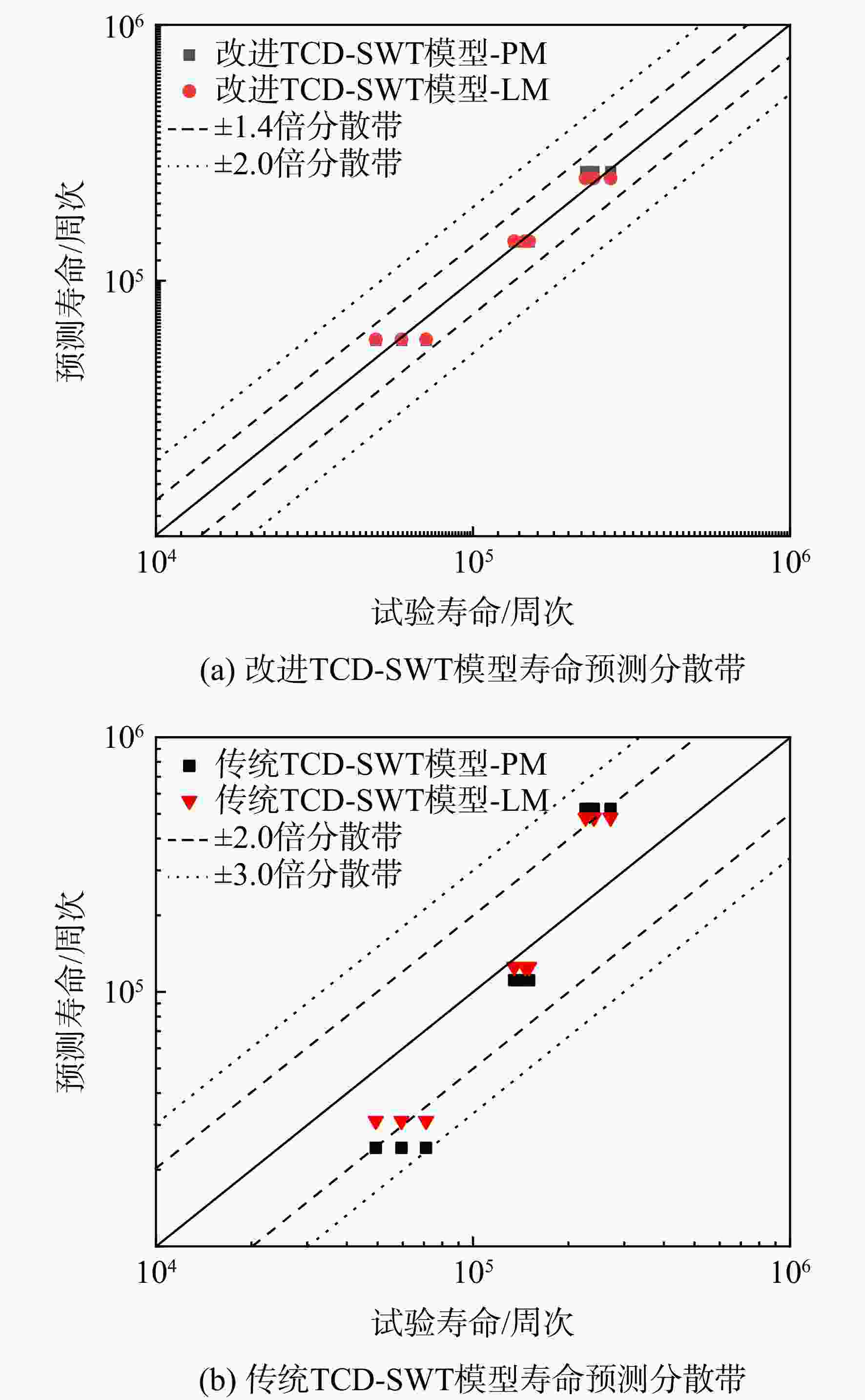

图 20 传统和改进TCD-SWT模型预测精度对比
Figure 20. Comparison of prediction accuracy between traditional and improved TCD-SWT models
表 1 SWT模型材料性能参数
Table 1. Material parameters of the SWT model
材料 温度/℃ $ {\dfrac{{ （{\sigma '_{\text{f}}}） }}{E}^2} $ $ {\varepsilon '_{\text{f}}}\sigma ' $ b c GH4169 600 11.185 8174.1 − 0.0759 − 1.0733
下载: 导出CSV
表 2 模拟件疲劳试验方案
Table 2. Fatigue test protocol for simulated parts
试验件 温度/℃ $ {\sigma _{{\text{nor}}}} $/MPa 数量/件 总计/件 安装座孔
边模拟件600 550 3 9 460 3 410 3
下载: 导出CSV

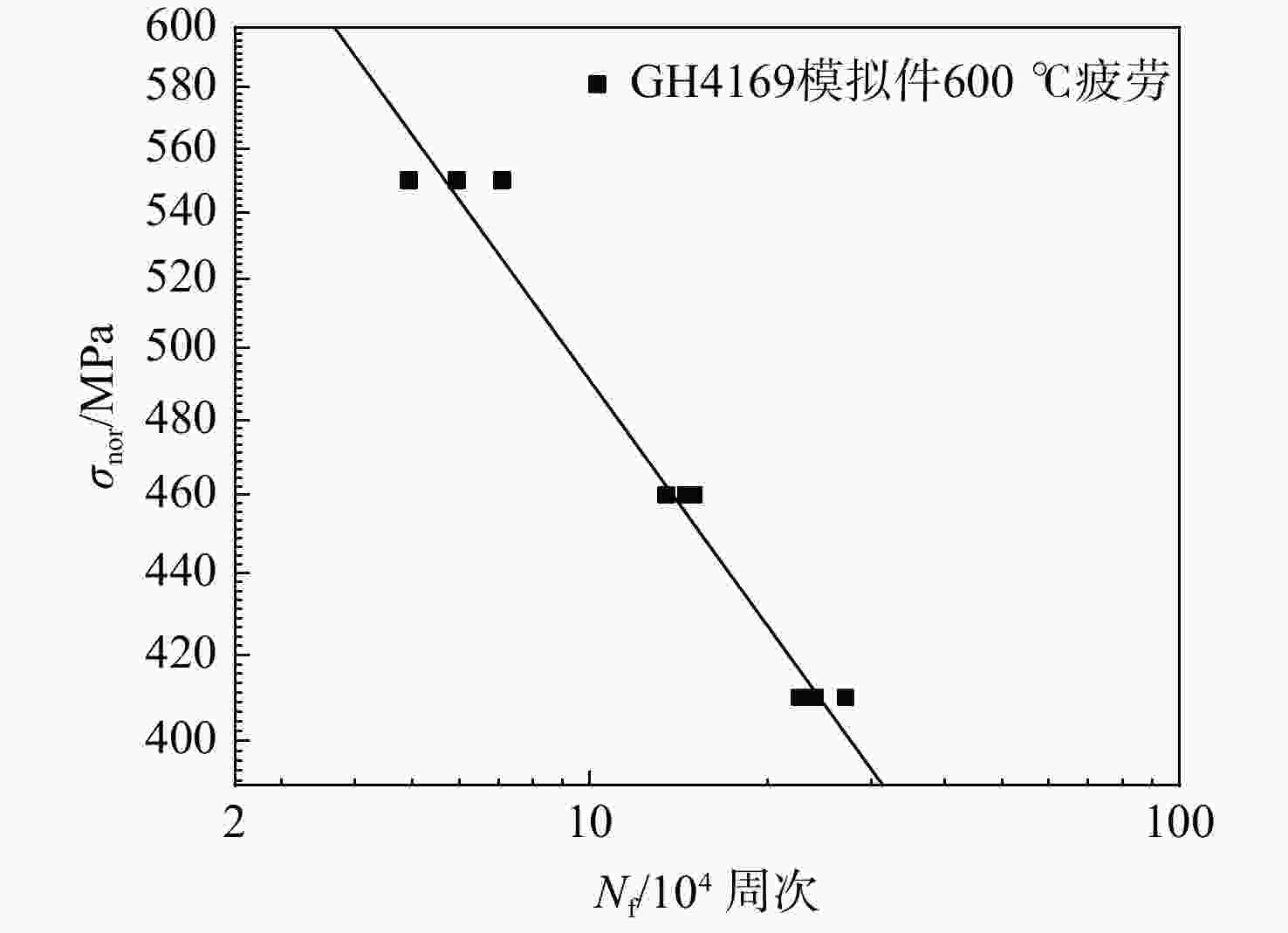

表 3 模拟件600 ℃疲劳试验结果
Table 3. Fatigue test results of simulated parts at 600 ℃
$ {\sigma _{{\text{nor}}}} $/
MPa试验件
编号寿命$ {N_{\text{f}}} $/
周次平均寿命$ {\bar N_{\text{f}}} $/
周次550 GH-01 49369 59999 GH-02 59499 GH-03 71129 460 GH-04 134920 143693 GH-05 150247 GH-06 145912 410 GH-07 226672 246334 GH-08 271669 GH-09 240660
下载: 导出CSV
表 4 不同载荷级临界距离
Table 4. Critical distances for different load levels
$ {\sigma _{{\text{nor}}}} $/MPa $ N_{\text{f}}^* $/周次 $ （\sigma _{\max }{\varepsilon _{\text{a}}}） _{{\text{eff}}}^{} $/MPa $ {D_{{\text{PM}}}} $ $ {D_{{\text{LM}}}} $ 550 58314 1.916 0.240 0.607 460 142177 1.667 0.262 0.618 410 252392 1.526 0.257 0.596
下载: 导出CSV
表 5 模拟件平均临界距离
Table 5. Mean critical distance of simulated parts
方法 临界距离 PM 0.253r0 LM 0.607r0
下载: 导出CSV
-
[1] ZHAO Bingfeng, XIE Liyang, SONG Jiaxin, et al. Fatigue life prediction of aero-engine compressor disk based on a new stress field intensity approach[J]. International Journal of Mechanical Sciences, 2020, 165: 105190. doi: 10.1016/j.ijmecsci.2019.105190 [2] LIU Xintian, LIU Jiazhi, WANG Haijie, et al. Prediction and evaluation of fatigue life considering material parameters distribution characteristic[J]. International Journal of Structural Integrity, 2022, 13(2): 309-326. doi: 10.1108/IJSI-11-2021-0118 [3] 曾志伟. 航空发动机涡轮轴疲劳可靠性分析与优化[D]. 成都: 电子科技大学, 2023. ZENG Zhiwei. Fatigue reliability analysis and optimization of aero-engine turboshaft[D]. Chengdu: University of Electronic Science and Technology of China, 2023. (in ChineseZENG Zhiwei. Fatigue reliability analysis and optimization of aero-engine turboshaft[D]. Chengdu: University of Electronic Science and Technology of China, 2023. (in Chinese) [4] 许立敬. 民航发动机高压涡轮叶片寿命预测研究[D]. 天津: 中国民航大学, 2023. XU Lijing. Study on life prediction of high pressure turbine blades of civil aviation engine[D]. Tianjin: Civil Aviation University of China, 2023. (in ChineseXU Lijing. Study on life prediction of high pressure turbine blades of civil aviation engine[D]. Tianjin: Civil Aviation University of China, 2023. (in Chinese) [5] BRANCO R, COSTA J D, BORREGO L P, et al. Comparison of different one-parameter damage laws and local stress-strain approaches in multiaxial fatigue life assessment of notched components[J]. International Journal of Fatigue, 2021, 151: 106405. doi: 10.1016/j.ijfatigue.2021.106405 [6] 那岚. 名义应力法在航空发动机部件寿命估算中的实现与应用[J]. 内燃机与配件, 2019(16): 21-23. [7] 姚卫星. 结构疲劳寿命分析[M]. 北京: 科学出版社, 2019. YAO Weixing. Fatigue life estimation of structures[M]. Beijing: Science Press, 2019. (in ChineseYAO Weixing. Fatigue life estimation of structures[M]. Beijing: Science Press, 2019. (in Chinese) [8] 姚卫星. 金属材料疲劳行为的应力场强法描述[J]. 固体力学学报, 1997, 18(1): 38-48. YAO Weixing. The description for fatigue behaviours of metals by stress field intensity approach[J]. Acta Mechanica Solida Sinica, 1997, 18(1): 38-48. (in ChineseYAO Weixing. The description for fatigue behaviours of metals by stress field intensity approach[J]. Acta Mechanica Solida Sinica, 1997, 18(1): 38-48. (in Chinese) [9] YAO Weixing. Stress field intensity approach for predicting fatigue life[J]. International Journal of Fatigue, 1993, 15(3): 243-246. doi: 10.1016/0142-1123(93)90182-P [10] WEIBULL W. A statistical distribution function of wide applicability[J]. Journal of Applied Mechanics, 1951, 18(3): 293-297. doi: 10.1115/1.4010337 [11] TAYLOR D. Applications of the theory of critical distances in failure analysis[J]. Engineering Failure Analysis, 2011, 18(2): 543-549. doi: 10.1016/j.engfailanal.2010.07.002 [12] TAYLOR D. The theory of critical distances[J]. Engineering Fracture Mechanics, 2008, 75(7): 1696-1705. doi: 10.1016/j.engfracmech.2007.04.007 [13] 龚帅, 王文轩, 王英玉, 等. 临界距离法在铝锂合金多轴缺口疲劳寿命预测中的应用[J]. 固体力学学报, 2023, 44(4): 470-482. GONG Shuai, WANG Wenxuan, WANG Yingyu, et al. Application of theory of critical distance in multiaxial Notch fatigue life prediction for Al-Li alloy[J]. Chinese Journal of Solid Mechanics, 2023, 44(4): 470-482. (in ChineseGONG Shuai, WANG Wenxuan, WANG Yingyu, et al. Application of theory of critical distance in multiaxial Notch fatigue life prediction for Al-Li alloy[J]. Chinese Journal of Solid Mechanics, 2023, 44(4): 470-482. (in Chinese) [14] 王昊元, 吴昊. 基于改进临界距离法的多轴缺口疲劳寿命预测[J]. 工程机械, 2020, 51(9): 31-40, 7-8. WANG Haoyuan, WU Hao. Multiaxial notched fatigue life prediction based on improved critical distance method[J]. Construction Machinery and Equipment, 2020, 51(9): 31-40, 7-8. (in ChineseWANG Haoyuan, WU Hao. Multiaxial notched fatigue life prediction based on improved critical distance method[J]. Construction Machinery and Equipment, 2020, 51(9): 31-40, 7-8. (in Chinese) [15] LIU Jianhui, PAN Xuemei, LI Youtang, et al. A two-point method for multiaxial fatigue life prediction[J]. Acta Mechanica Solida Sinica, 2022, 35(2): 316-327. doi: 10.1007/s10338-021-00287-z [16] LIAO Ding, ZHU Shunpeng, QIAN Guian. Multiaxial fatigue analysis of notched components using combined critical plane and critical distance approach[J]. International Journal of Mechanical Sciences, 2019, 160: 38-50. doi: 10.1016/j.ijmecsci.2019.06.027 [17] 刘俭辉, 华飞龙, 段红燕, 等. 考虑应力梯度及附加强化的多轴疲劳寿命预测[J]. 华中科技大学学报(自然科学版), 2021, 49(9): 59-63, 71. LIU Jianhui, HUA Feilong, DUAN Hongyan, et al. Multiaxial fatigue life prediction method considering stress gradient and strengthening effect[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2021, 49(9): 59-63, 71. (in ChineseLIU Jianhui, HUA Feilong, DUAN Hongyan, et al. Multiaxial fatigue life prediction method considering stress gradient and strengthening effect[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2021, 49(9): 59-63, 71. (in Chinese) [18] 刘俭辉, 潘雪梅, 华飞龙, 等. 考虑应力梯度的多轴缺口件疲劳寿命预测方法[J]. 华中科技大学学报(自然科学版), 2021, 49(3): 80-85. LIU Jianhui, PAN Xuemei, HUA Feilong, et al. Multiaxial fatigue life prediction for notched specimens considering stress gradient effect[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2021, 49(3): 80-85. (in ChineseLIU Jianhui, PAN Xuemei, HUA Feilong, et al. Multiaxial fatigue life prediction for notched specimens considering stress gradient effect[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2021, 49(3): 80-85. (in Chinese) [19] YANG Xiaoguang, WANG Jingke, LIU Jinlong. High temperature LCF life prediction of notched DS Ni-based superalloy using critical distance concept[J]. International Journal of Fatigue, 2011, 33(11): 1470-1476. doi: 10.1016/j.ijfatigue.2011.05.018 [20] YAMASHITA Y, UEDA Y, KUROKI H, et al. Fatigue life prediction of small notched Ti-6Al-4V specimens using critical distance[J]. Engineering Fracture Mechanics, 2010, 77(9): 1439-1453. doi: 10.1016/j.engfracmech.2010.04.001 [21] LANNING D B, NICHOLAS T, HARITOS G K. On the use of critical distance theories for the prediction of the high cycle fatigue limit stress in notched Ti-6Al-4V[J]. International Journal of Fatigue, 2005, 27(1): 45-57. doi: 10.1016/j.ijfatigue.2004.06.002 [22] SUSMEL L, TAYLOR D. A novel formulation of the theory of critical distances to estimate lifetime of notched components in the medium-cycle fatigue regime[J]. Fatigue & Fracture of Engineering Materials & Structures, 2007, 30(7): 567-581. [23] 廖鼎, 朱顺鹏, 高杰维, 等. 耦合临界平面-临界距离理论的缺口结构疲劳寿命预测[J]. 机械强度, 2023, 45(2): 454-461. LIAO Ding, ZHU Shunpeng, GAO Jiewei, et al. Fatigue life prediction of notched structure using combined critical plane-critical distance approach[J]. Journal of Mechanical Strength, 2023, 45(2): 454-461. (in ChineseLIAO Ding, ZHU Shunpeng, GAO Jiewei, et al. Fatigue life prediction of notched structure using combined critical plane-critical distance approach[J]. Journal of Mechanical Strength, 2023, 45(2): 454-461. (in Chinese) [24] 何金超, 朱顺鹏, 牛晓鹏, 等. 缺口-尺寸效应下疲劳寿命预测: 考虑应力梯度的临界距离理论[J]. 机械工程学报, 2023, 59(16): 90-106. HE Jinchao, ZHU Shunpeng, NIU Xiaopeng, et al. Notch fatigue life prediction under size effect: stress gradient-based theory of critical distance[J]. Journal of Mechanical Engineering, 2023, 59(16): 90-106. (in Chinese doi: 10.3901/JME.2023.16.090HE Jinchao, ZHU Shunpeng, NIU Xiaopeng, et al. Notch fatigue life prediction under size effect: stress gradient-based theory of critical distance[J]. Journal of Mechanical Engineering, 2023, 59(16): 90-106. (in Chinese) doi: 10.3901/JME.2023.16.090 [25] HE Jinchao, ZHU Shunpeng, LIAO Ding, et al. Probabilistic fatigue assessment of notched components under size effect using critical distance theory[J]. Engineering Fracture Mechanics, 2020, 235: 107150. doi: 10.1016/j.engfracmech.2020.107150 -
