Structural design and mechanical property experiments of metal rubber support for rotor system
-
摘要:

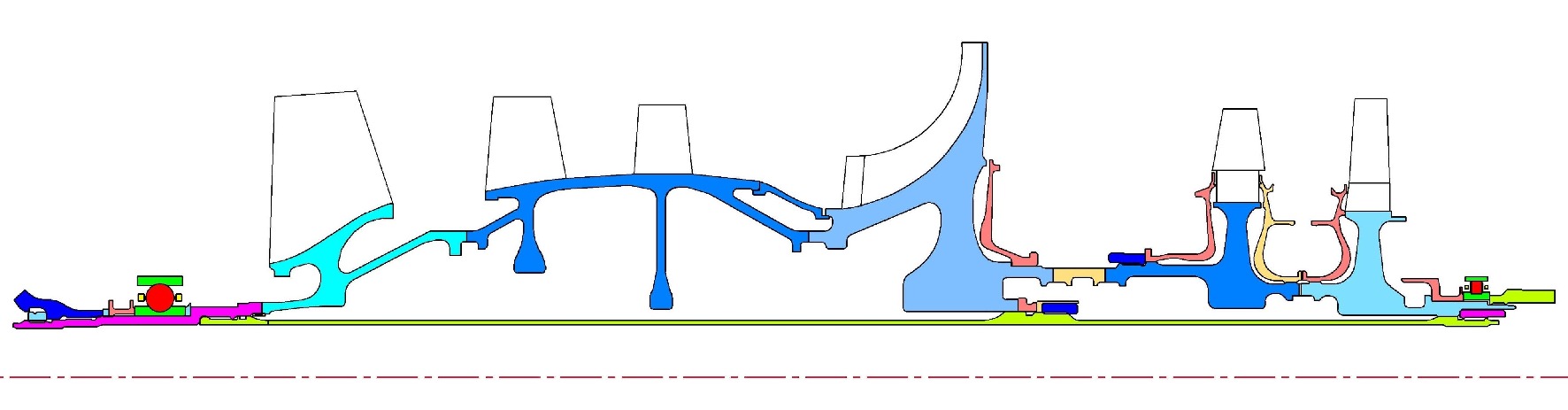

针对燃气发生器转子系统支承结构设计问题，开展支承结构力学特性对转子动力学特性的影响分析，在此基础上，提出一种金属橡胶支承结构，并以保障转子系统临界转速裕度和降低转子系统动力响应为目标，开展金属橡胶支承结构力学性能的优化设计，开展金属橡胶支承结构的力学性能试验，测试其准静态力学性能和动态力学性能。结果表明：优化金属橡胶支承结构的刚度和阻尼系数后，转子系统在两阶临界转速下的支点动载荷幅值下降约40%，在扫频试验中，优化后的金属橡胶支承结构在峰值处频响函数降幅可达70%，验证了金属橡胶支承结构的有效性，对转子系统支承结构设计具有重要的工程参考价值。
Abstract:Considering the design of the support structure for the rotor system of the gas generator, the influence of the mechanical characteristics of the support structure on the dynamic characteristics of the rotor was analyzed. On this basis, a metal rubber support structure was proposed, and the mechanical properties of the metal rubber support structure were optimized to ensure the critical speed margin and reduce the dynamic response of the rotor system. The quasi-static mechanical properties and dynamic mechanical properties of the metal rubber support structure were tested. The results showed that: after optimization of the stiffness and damping coefficient of the metal rubber support structure, the amplitude of the fulcrum dynamic load of the rotor system at two critical speeds was reduced by about 40%. In the sweep frequency test, the frequency response function of the optimized metal rubber support structure at the peak was reduced by up to 70%, which verified the effectiveness of the metal rubber support structure. This research has important engineering reference value for the support structure design of rotor systems.
-

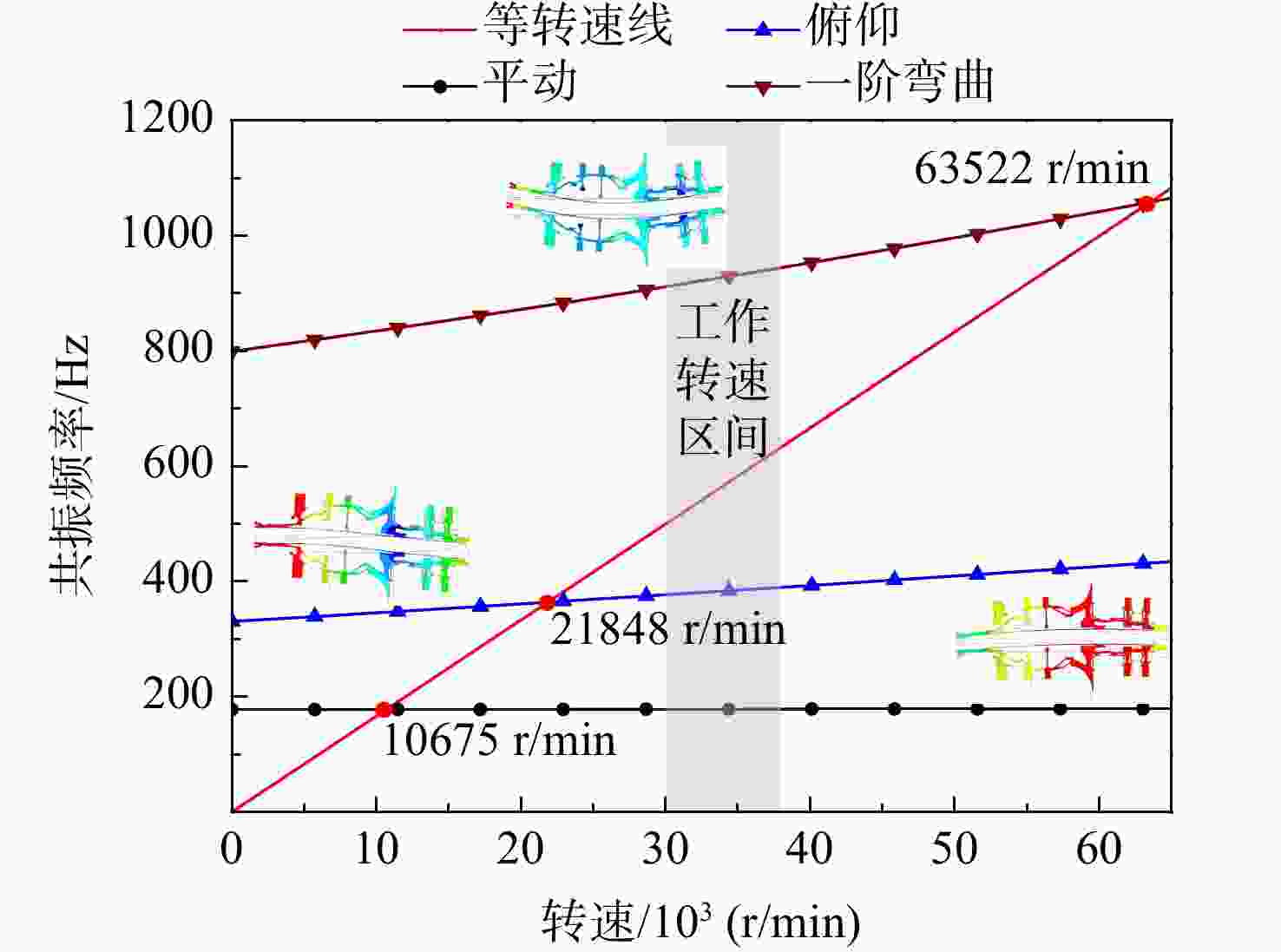

图 7 支点当量刚度对平动振型模态频率的影响规律
Figure 7. Influence of equivalent fulcrum stiffness on the modal frequency of translational mode

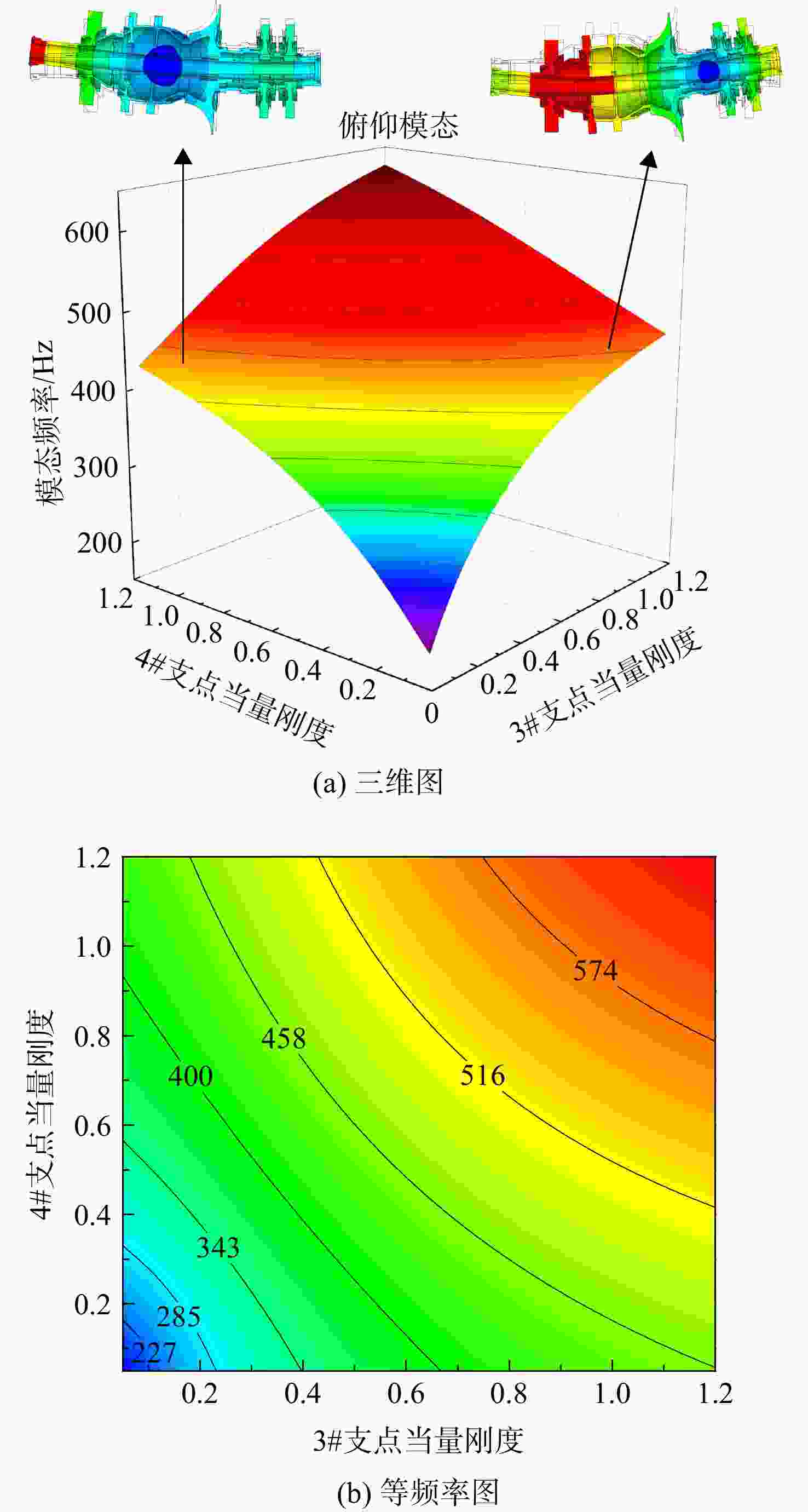

图 8 支点当量刚度对俯仰振型模态频率的影响规律
Figure 8. Influence of equivalent fulcrum stiffness on the modal frequency of pitch mode
图 9 支点当量刚度对一阶弯曲振型模态频率的影响规律
Figure 9. Influence of equivalent fulcrum stiffness on the modal frequency of first order bending mode

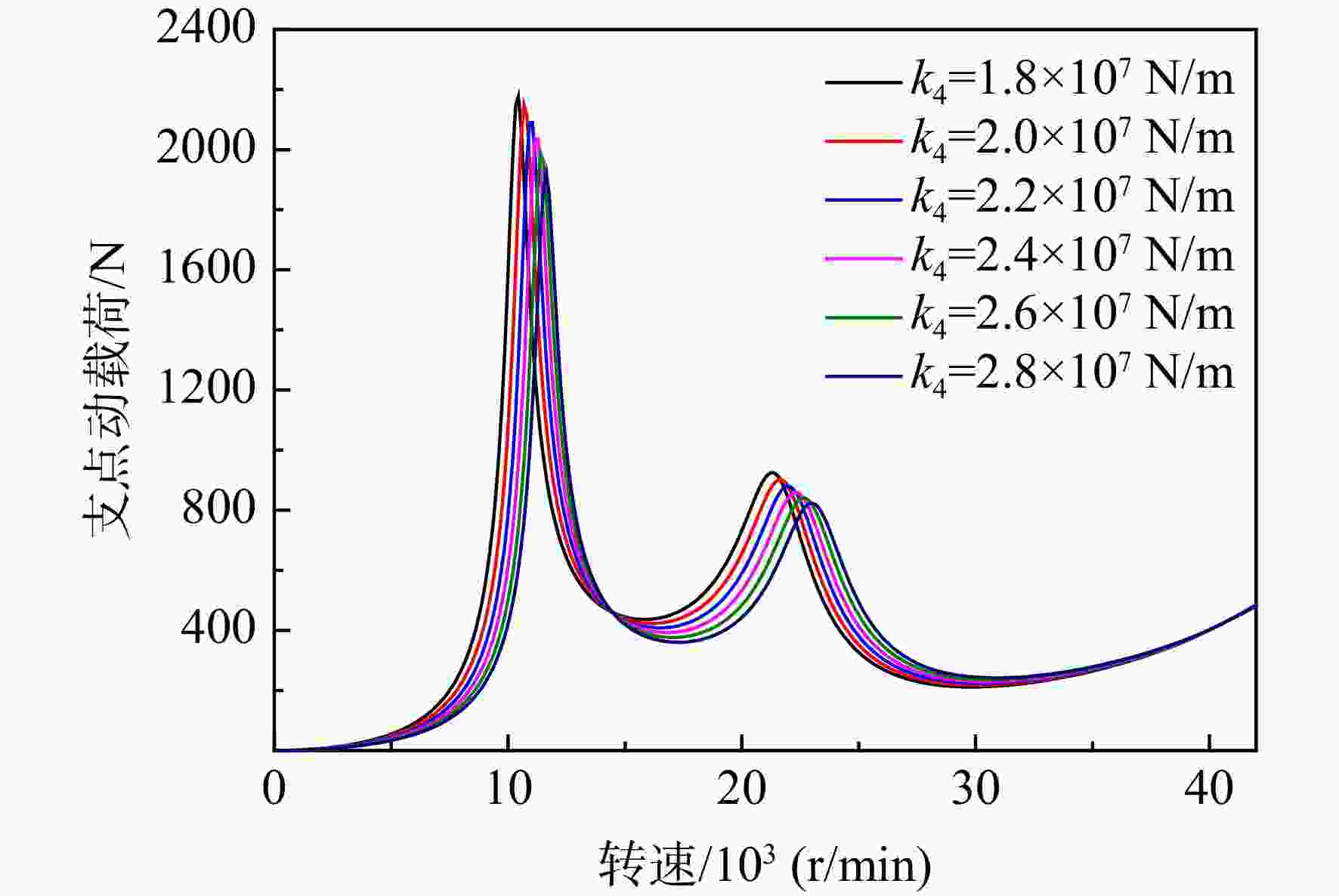

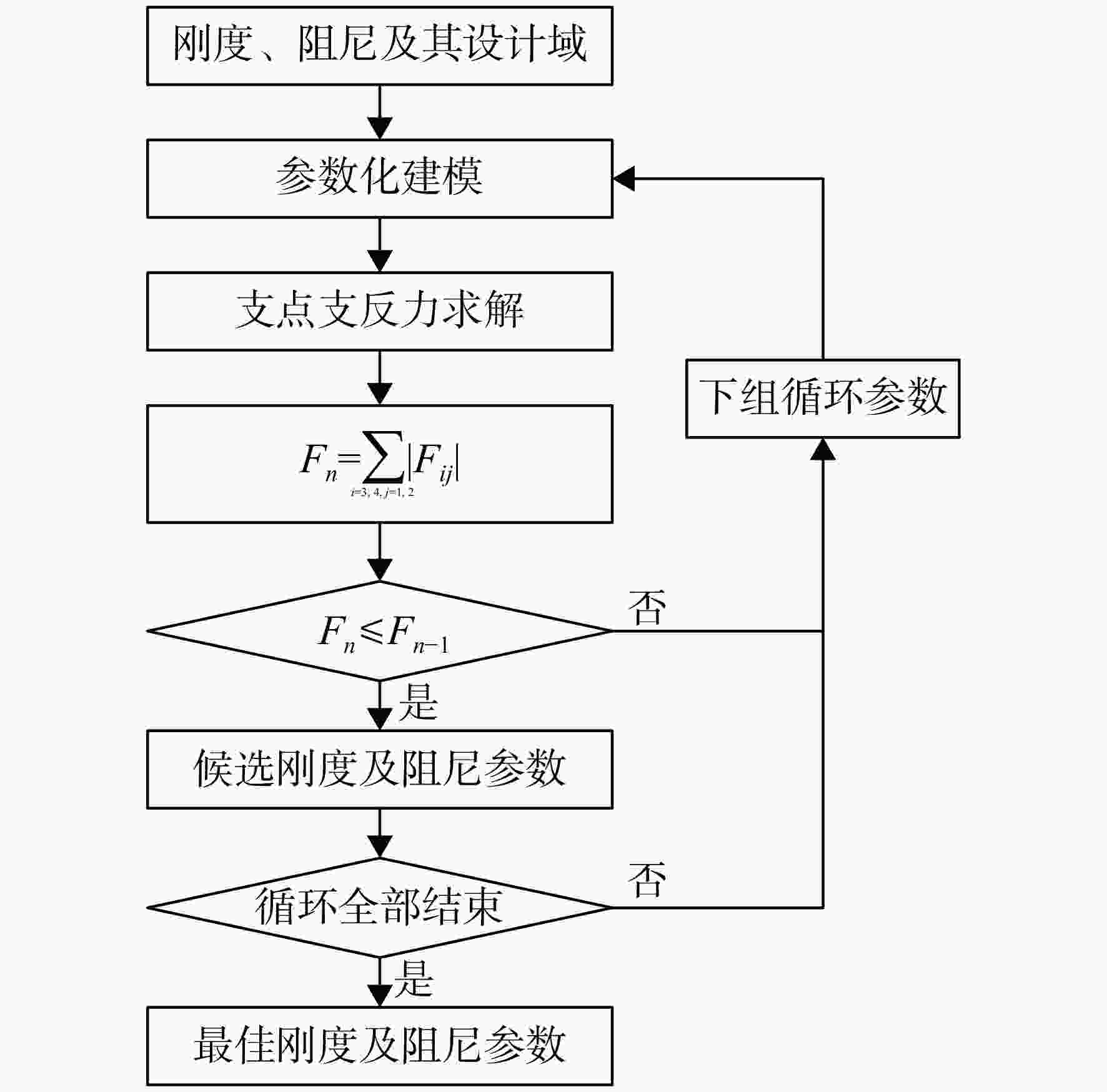

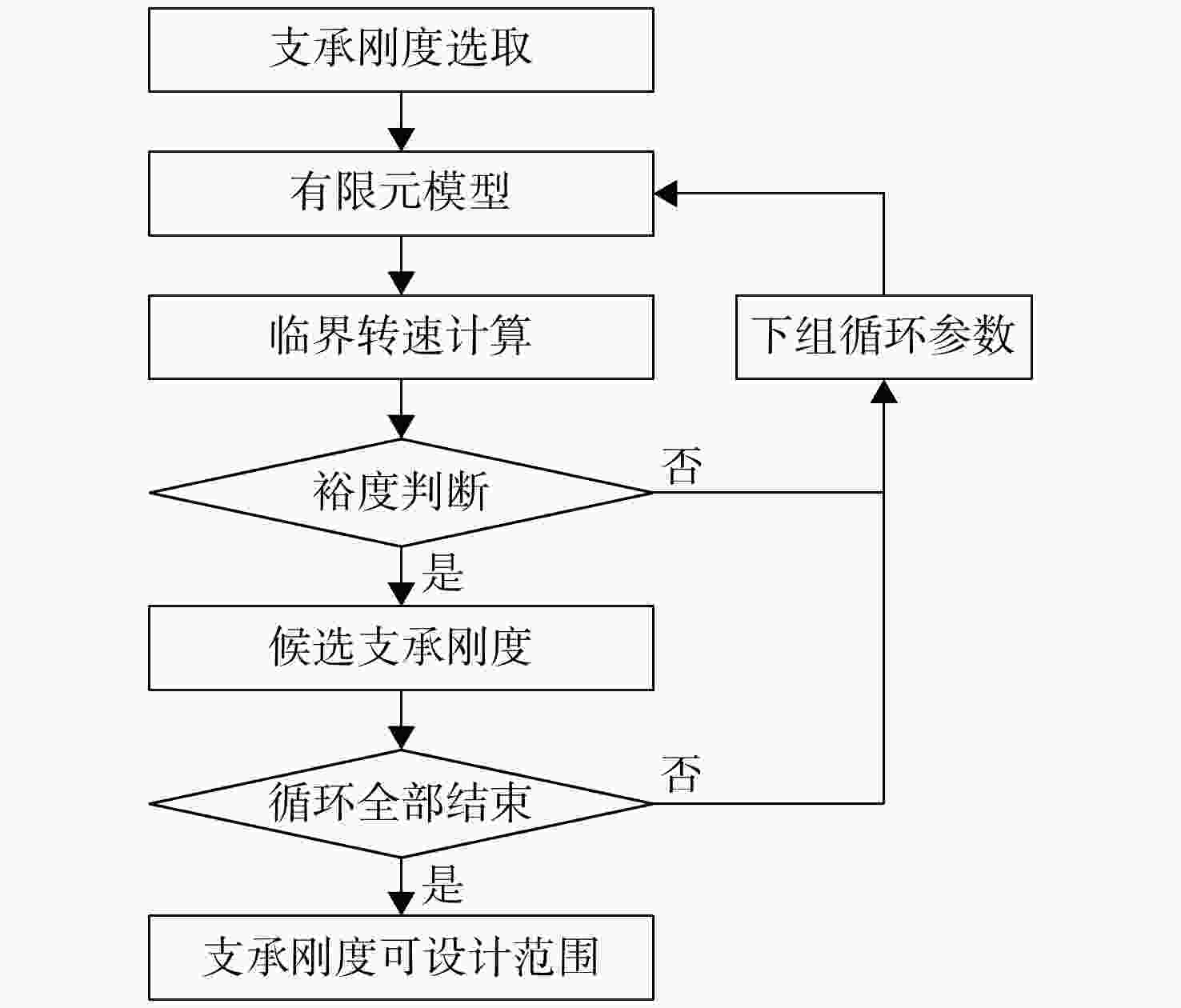

图 19 支承结构刚度和阻尼系数设计流程
Figure 19. Design flow of stiffness and damping coefficient of the support structure

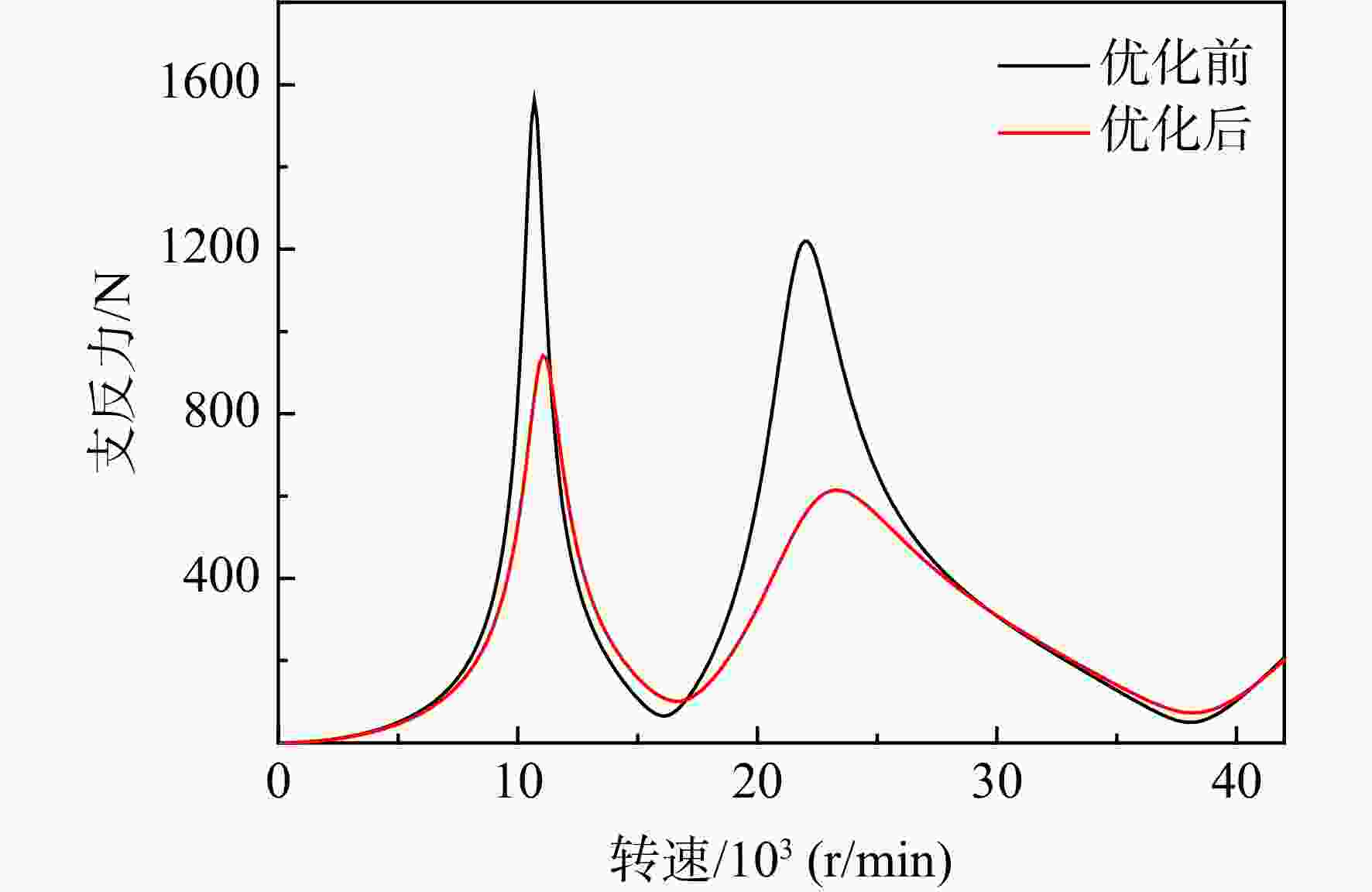

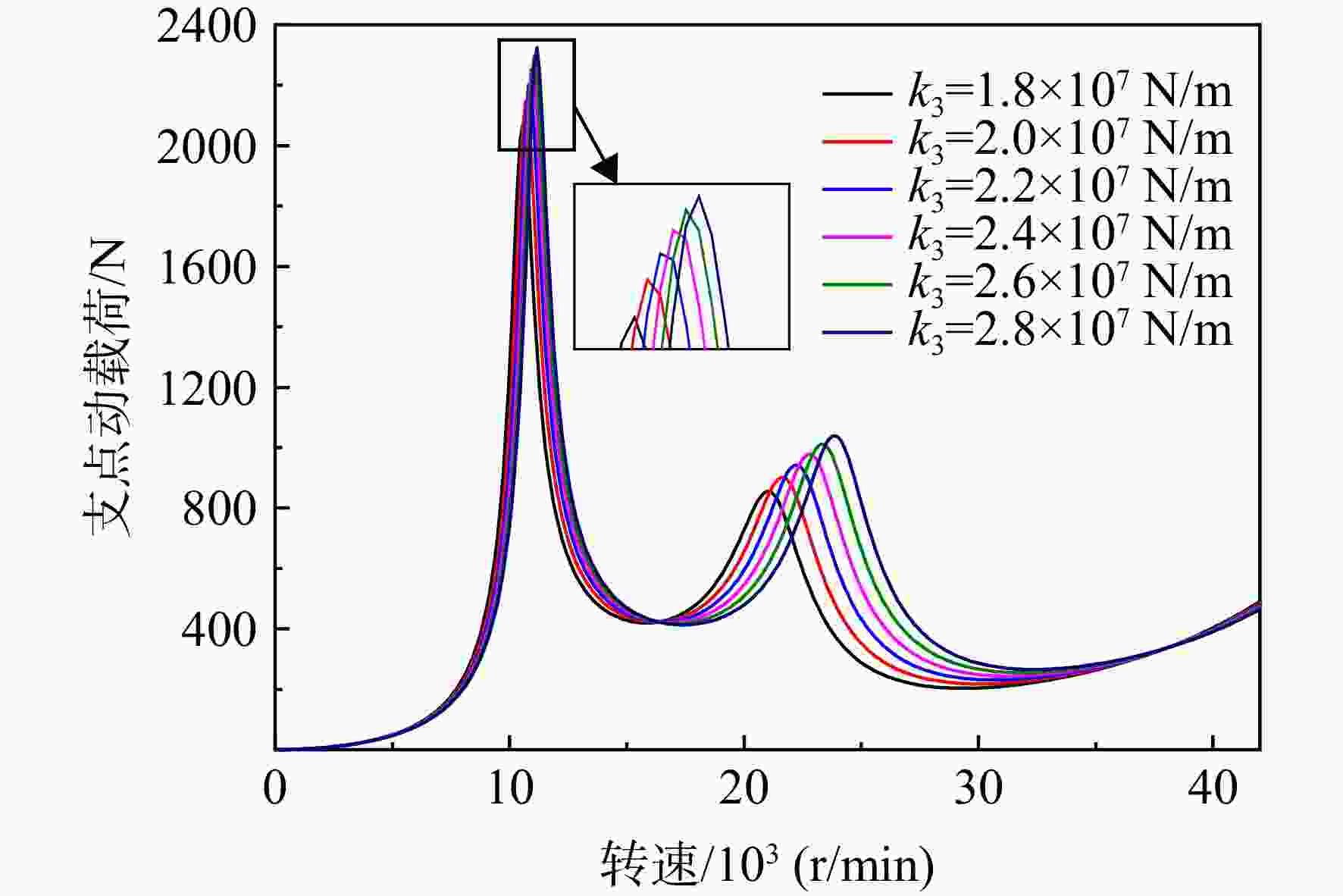

图 20 优化前后3#支点动载荷对比示意图
Figure 20. Comparison diagram of 3# fulcrum dynamic load before and after optimization

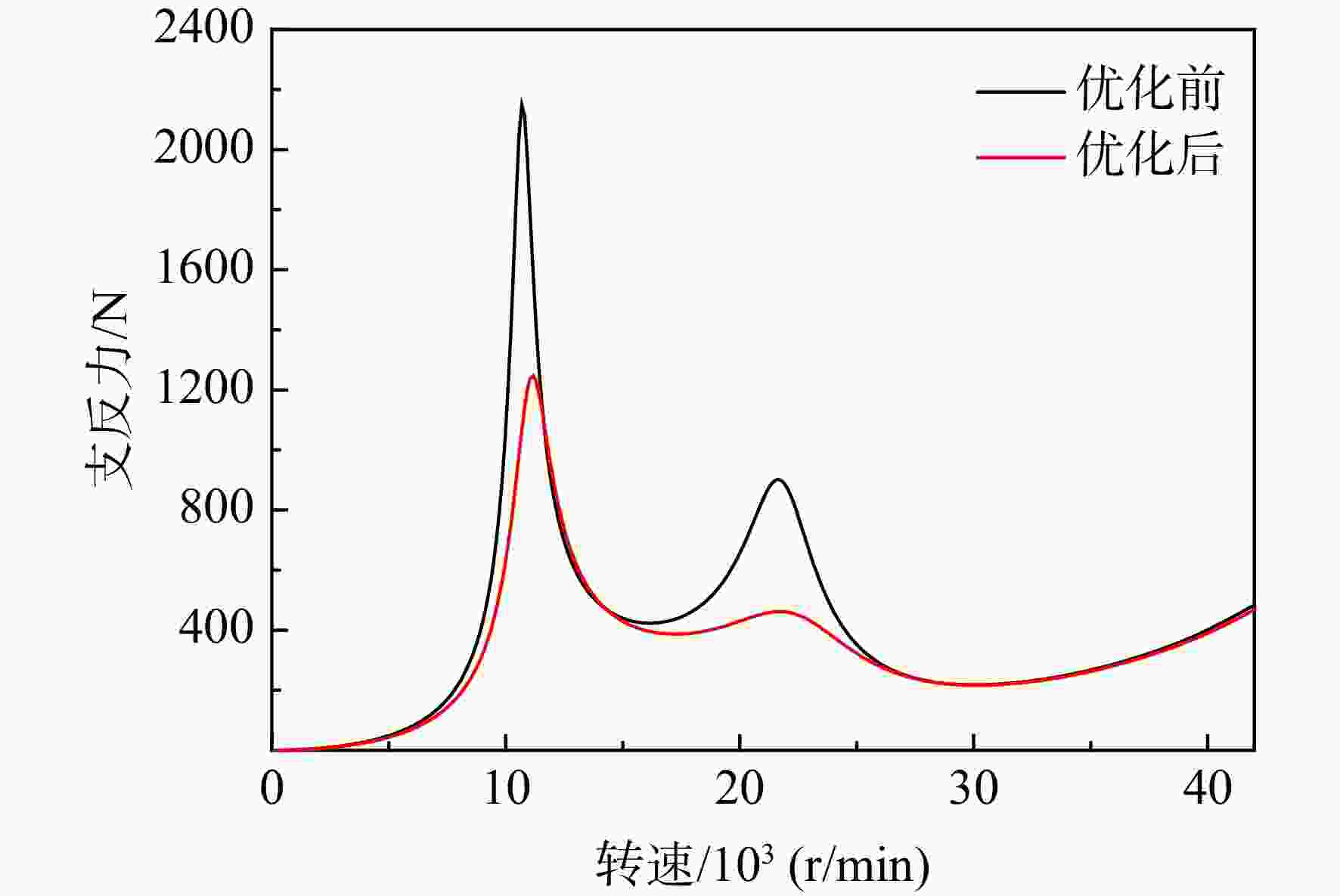

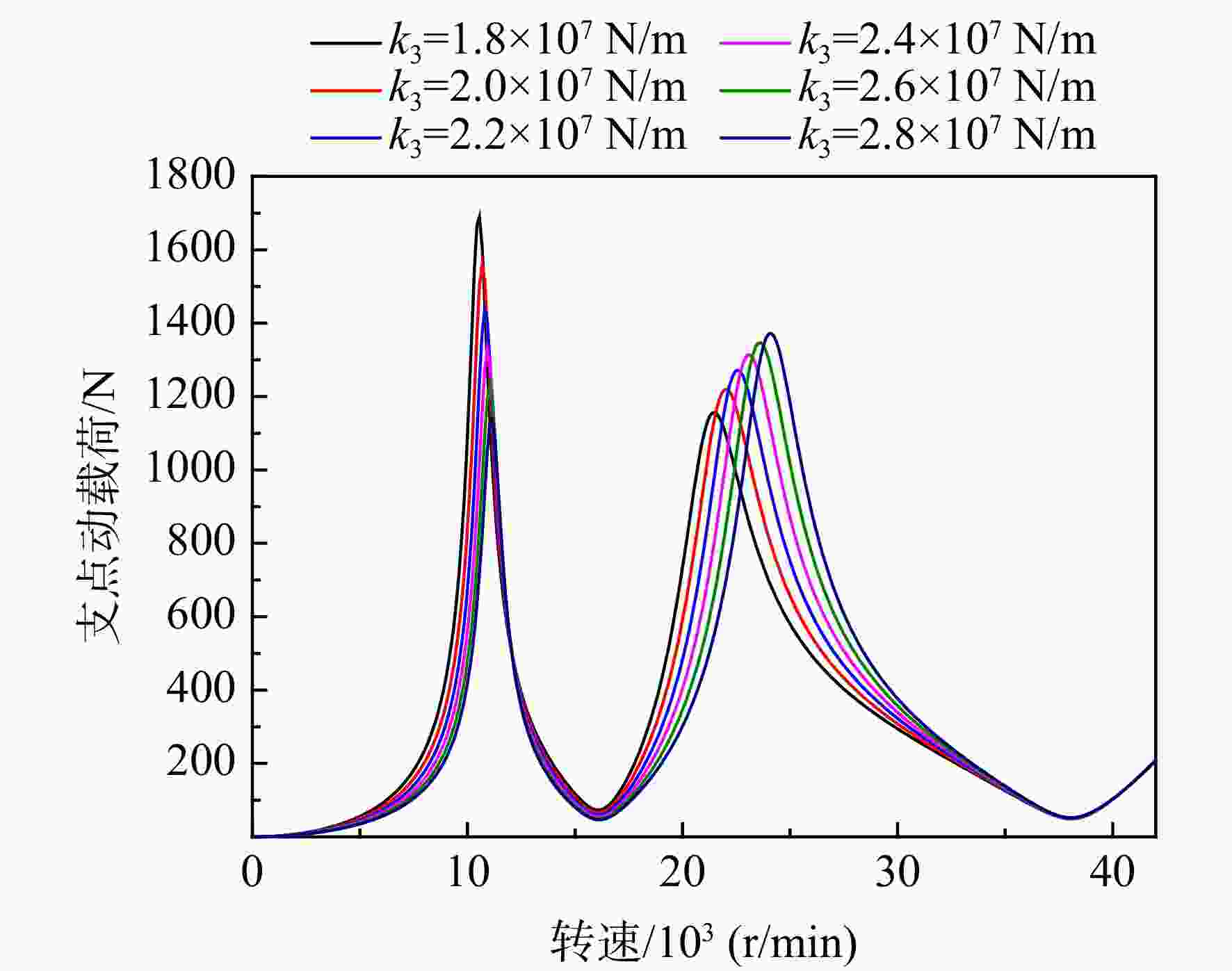

图 21 优化前后4#支点动载荷对比示意图
Figure 21. Comparison diagram of 4# fulcrum dynamic load before and after optimization

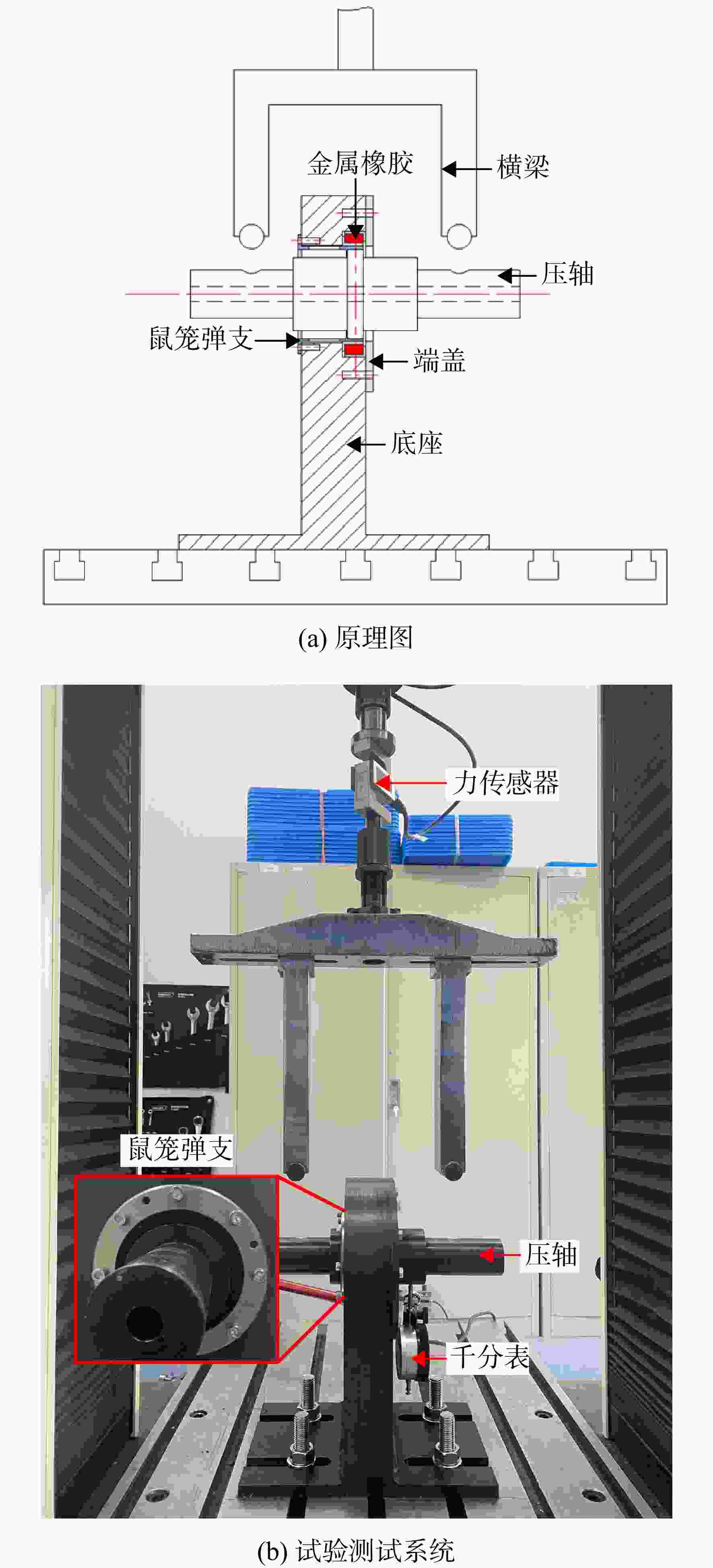

图 25 金属橡胶支承结构准静态力学性能测试装置
Figure 25. Testing equipment for quasi-static mechanical properties of metal rubber support structure

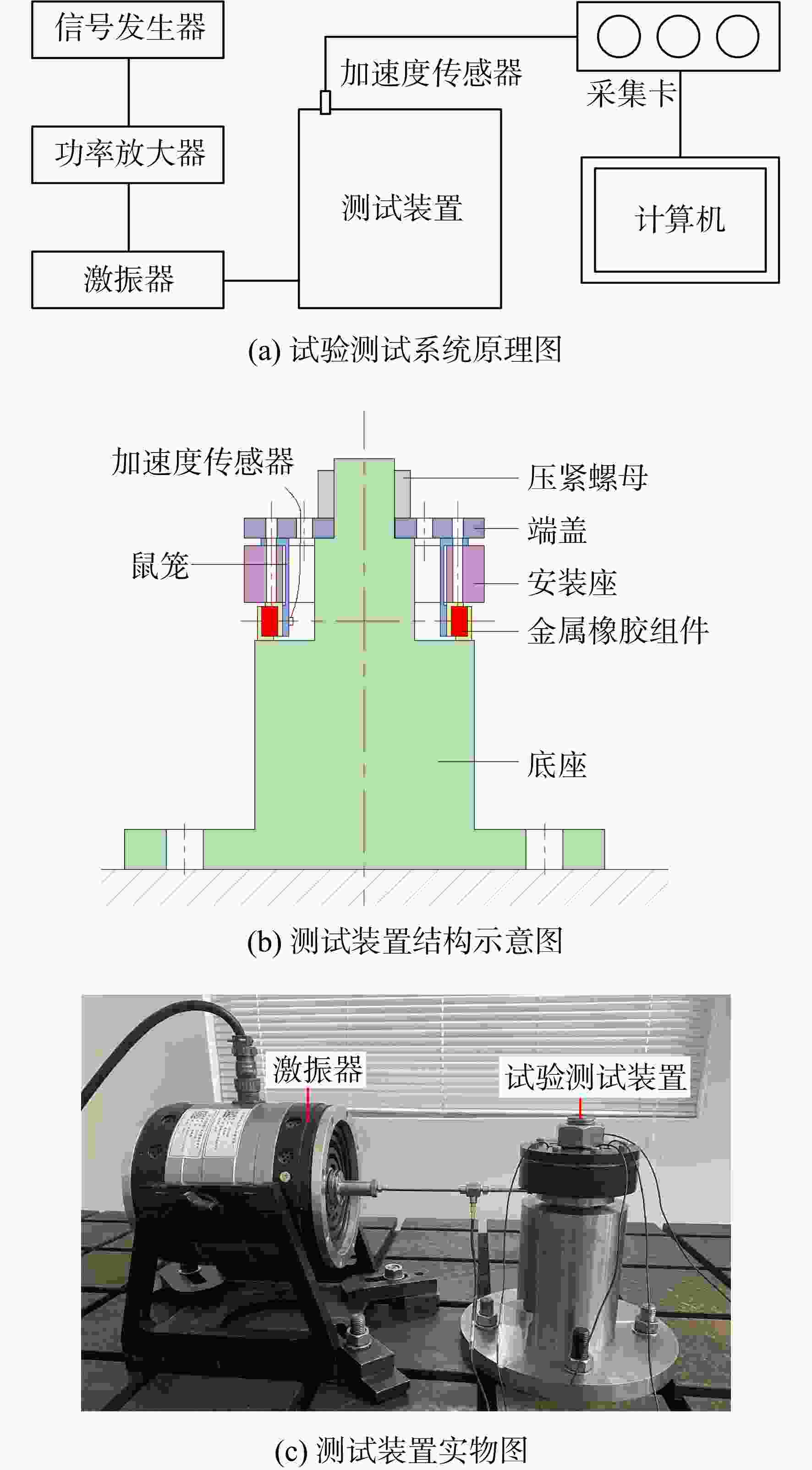

图 27 金属橡胶支承结构动态力学性能测试装置
Figure 27. Testing equipment for dynamic mechanical properties of metal rubber support structure

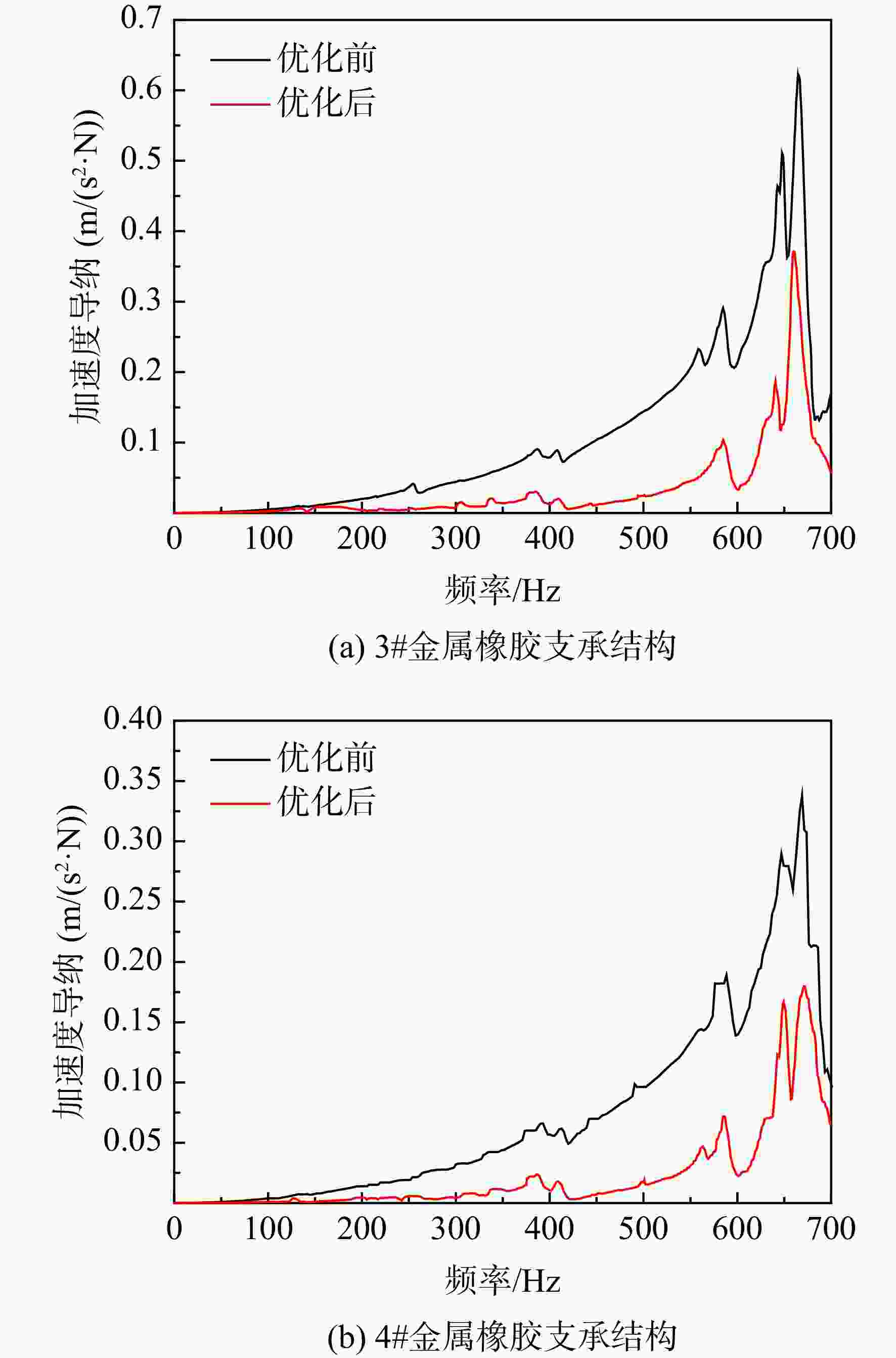

图 28 金属橡胶支承结构加速度导纳曲线
Figure 28. Acceleration admittance curves of metal rubber support structure
表 1 优化后金属橡胶支承结构刚度和阻尼系数
Table 1. Stiffness and damping coefficient of metal rubber support structure after optimization
支承结构 刚度/107 （N/m） 阻尼系数/ （（N·s）/m） 3# 2.1 2763 4# 2.2 2357
下载: 导出CSV

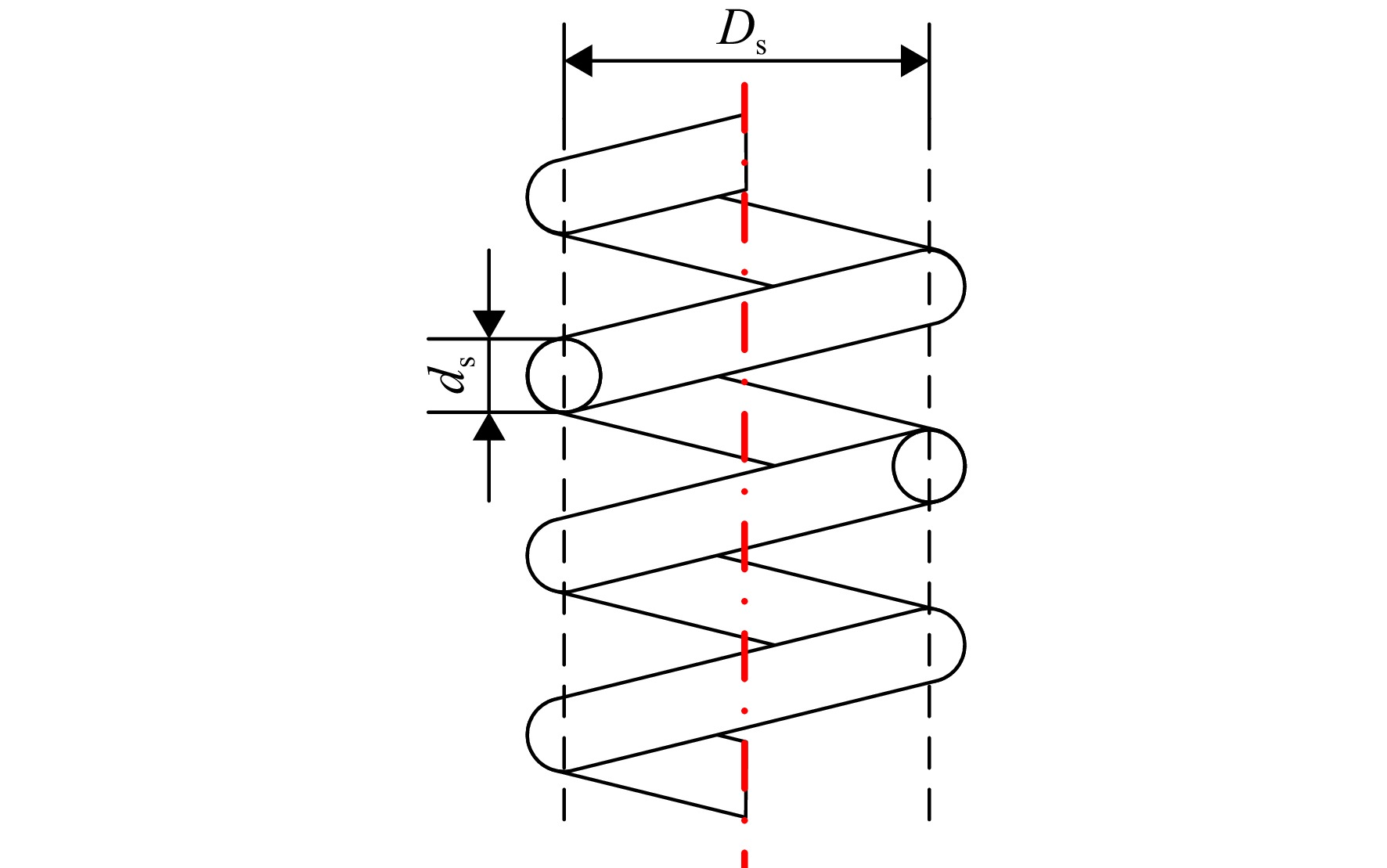

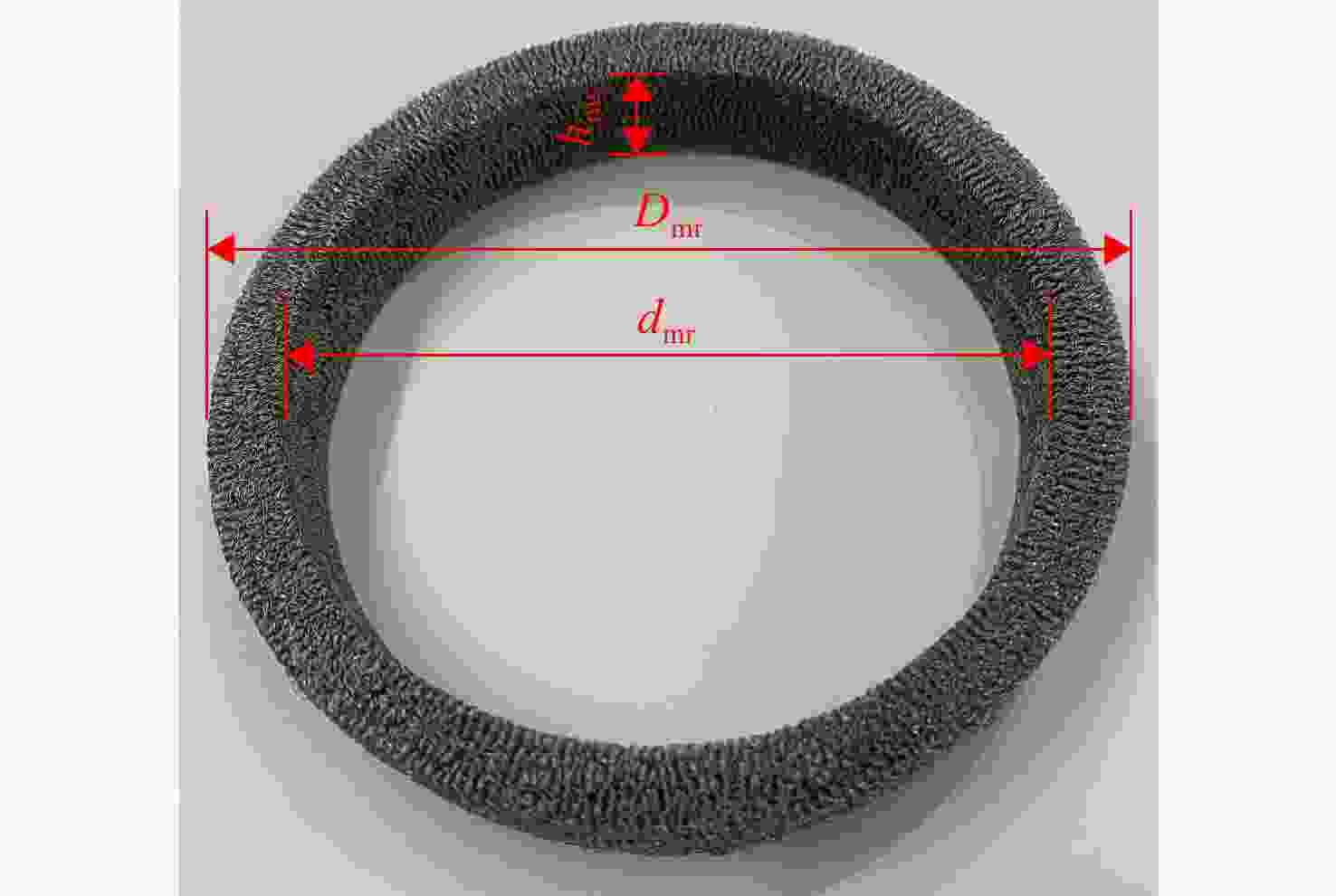

表 2 金属橡胶参数汇总
Table 2. Parameters of metal rubber
编号 丝径/mm 螺旋径/mm 相对密度 外径/mm 3# 0.12 1.2 0.16 100 4# 0.12 1.2 0.18 102
下载: 导出CSV

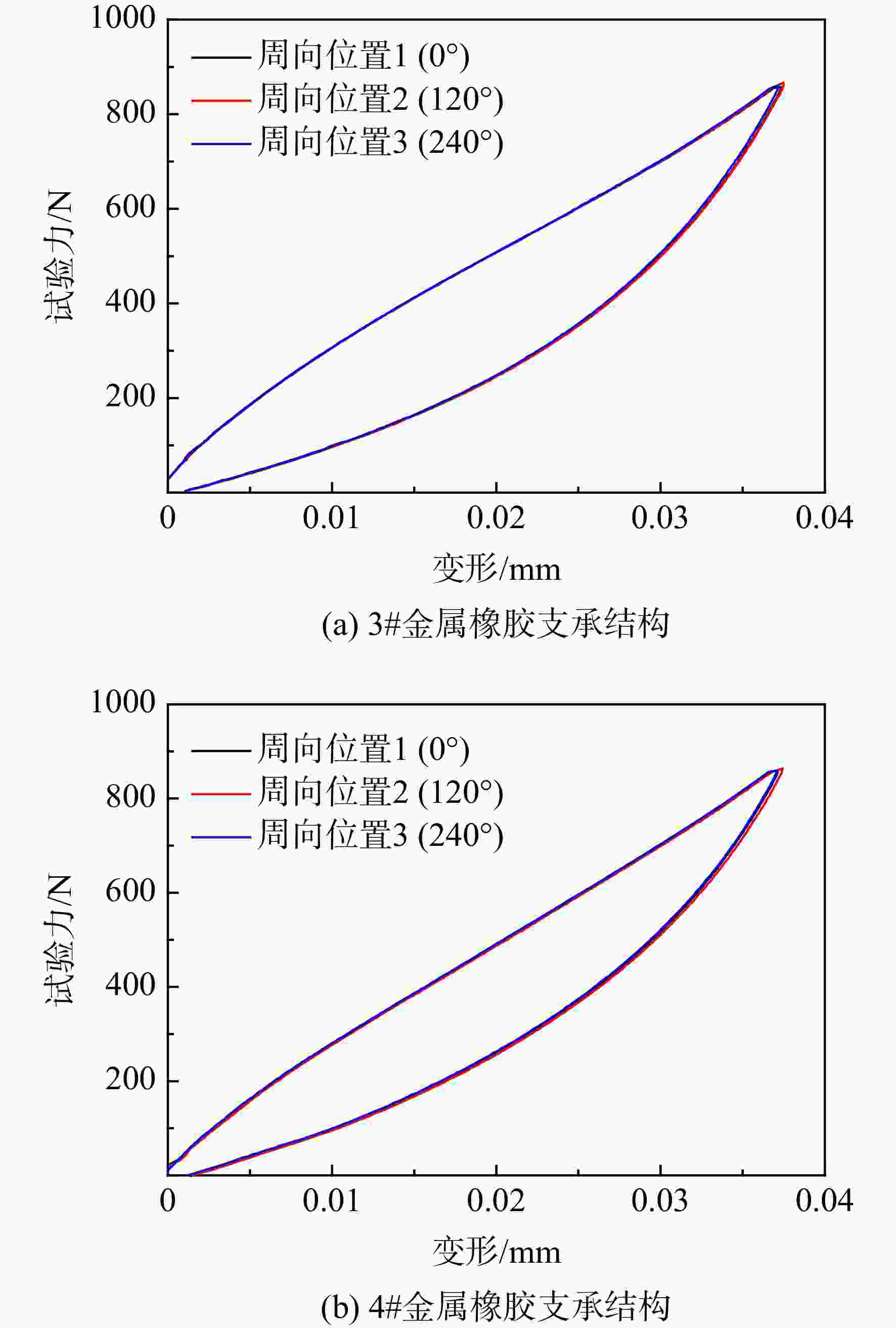

表 3 3#金属橡胶支承结构刚度及损耗因子汇总
Table 3. Stiffness and loss factor of 3# metal rubber support structure
参数 位置1 位置2 位置3 平均值 刚度/107 （N/m） 2.165 2.171 2.166 2.167 损耗因子 0.1173 0.1183 0.1184 0.1180
下载: 导出CSV
表 4 4#金属橡胶支承结构刚度及损耗因子汇总
Table 4. Stiffness and loss factor of 4# metal rubber support structure
参数 位置1 位置2 位置3 平均值 刚度/107 （N/m） 2.228 2.223 2.220 2.224 损耗因子 0.1023 0.1039 0.1012 0.1025
下载: 导出CSV
-
