基于二自由度<i>H</i><sub>∞</sub>的变循环发动机全包线控制设计

董韫慧; 郭迎清; 徐柯杰

doi:10.13224/j.cnki.jasp.20240693

基于二自由度H_∞的变循环发动机全包线控制设计

doi: 10.13224/j.cnki.jasp.20240693

西北工业大学动力与能源学院，西安 710072

基金项目: 国家科技重大专项（J2019V-0003）

详细信息

作者简介:
董韫慧（2000-），女，硕士，主要从事航空发动机多变量控制研究。E-mail：15309274057@163.com

中图分类号: V233.7
计量
- 文章访问数: 440
- HTML浏览量: 271
- PDF量: 26
- 被引次数: 0
出版历程
- 收稿日期: 2024-10-11
- 网络出版日期: 2025-07-06

Design of full envelop controller for variable cycle engine based on two-degree-of-freedom H_∞ control

School of Power and Energy，Northwestern Polytechnical University，Xi’an 710072，China

摘要

摘要:
将H_∞鲁棒稳定性理论与经典回路成形理论结合起来，设计二自由度H_∞控制器，同时兼顾了系统的控制性能和鲁棒性要求；为简化控制系统，将内环控制器降为7阶，外环控制器降为4阶；针对全包线大范围跟踪控制问题，在飞行包线内选择18个设计点，并针对不同工作模态和功率水平分别设计控制器，构建增益调度表；选取不同飞行条件进行仿真，由仿真结果可知稳态误差均为0，调节时间均小于2.5 s，验证了全包线H_∞控制器的良好控制性能；最后搭建硬件在环仿真平台对二自由度H_∞控制算法进行验证，结果表明控制算法能够在2 ms内完成计算，且发动机的输出能够快速准确地跟踪参考指令，验证了该算法在硬件环境下的实时性和有效性。
- 变循环发动机 /
- H_∞鲁棒控制 /
- 跟踪控制 /
- 全包线 /
- 硬件在环仿真
Abstract:
The H_∞ robust stability theory was combined with the classical loop shaping theory to design a two-degree-of-freedom H_∞ controller while taking into account both the control performance and robustness requirements of the system; to simplify the control system, the inner-loop controller was reduced to the seventh order, and the outer-loop controller was reduced to the fourth order; for the full envelope wide-range tracking control problem, 18 design points were selected within the flight envelope, the controllers were designed for different operating modes and power levels, and the gain scheduling table was constructed; different flight conditions were selected for simulation, and the simulation results showed that the steady state error was 0 and the settling time was less than 2.5 s, which verified the good control performance of the full envelope H_∞ controller; finally, the hardware-in-the-loop simulation platform was built to verify the two-degree-of-freedom H_∞ control algorithm. The results showed that the control algorithm can complete the calculation within 2 ms, and the engine output can track the reference instruction quickly and accurately, verifying the real-time and effectiveness of the algorithm in the hardware environment.
- variable cycle engine /
- H_∞ robust control /
- tracking control /
- full envelope /
- hardware-in-the-loop simulation

HTML

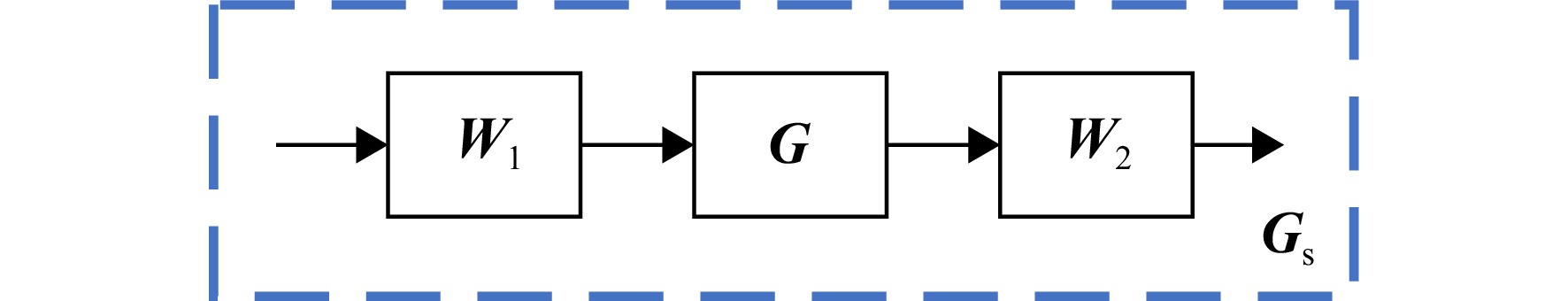

图 1 开环回路成形

Figure 1. Open-loop shaping

下载: 全尺寸图片幻灯片

图 2 鲁棒镇定过程

Figure 2. Robust stabilization process

下载: 全尺寸图片幻灯片

图 3 单自由度控制器

Figure 3. Single-degree-of-freedom controller

下载: 全尺寸图片幻灯片

图 4 二自由度回路成形控制系统

Figure 4. Two-degree-of-freedom loop shaping control system

下载: 全尺寸图片幻灯片

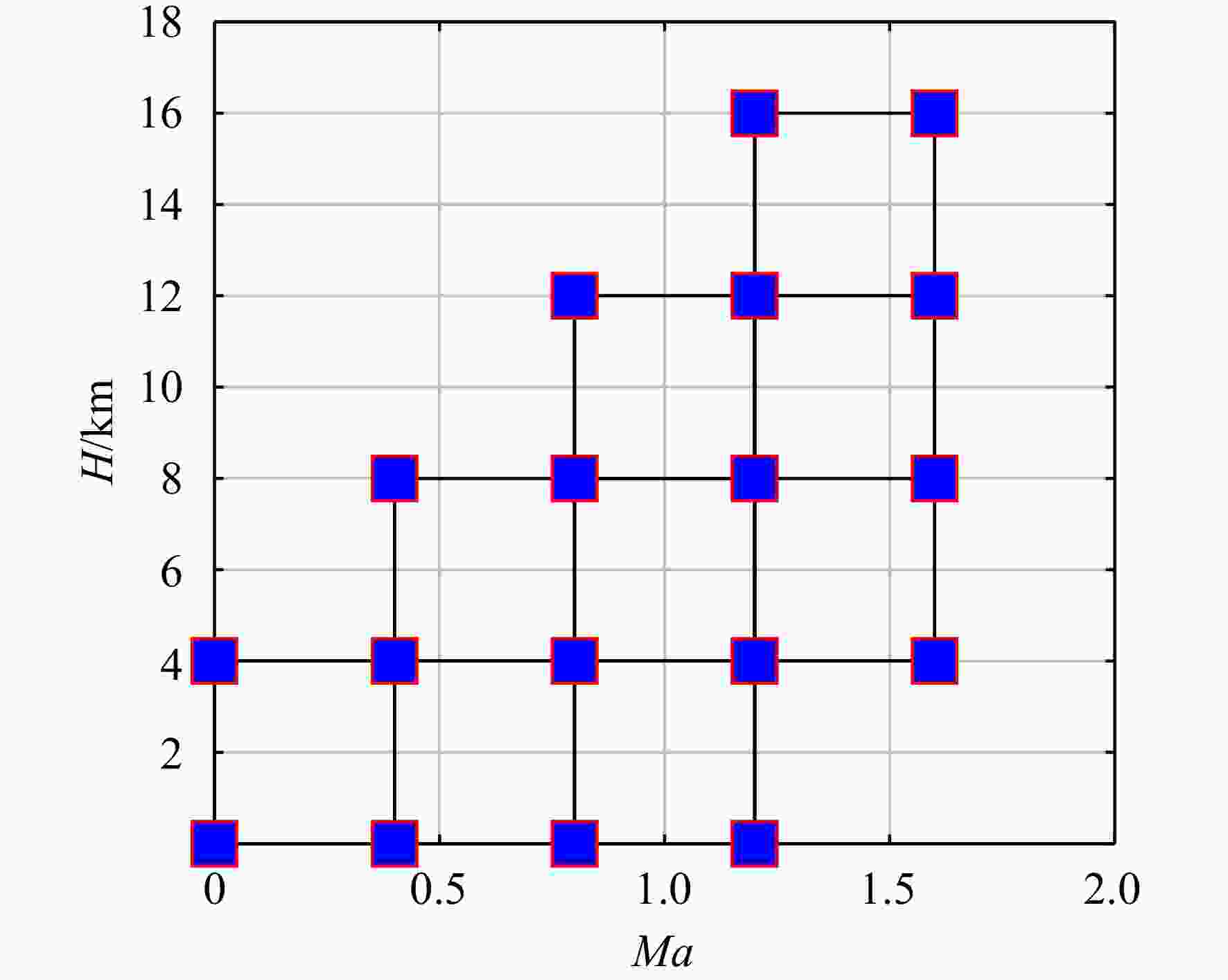

图 5 飞行包线设计点位置分布图

Figure 5. Flight envelope design point location diagram

下载: 全尺寸图片幻灯片

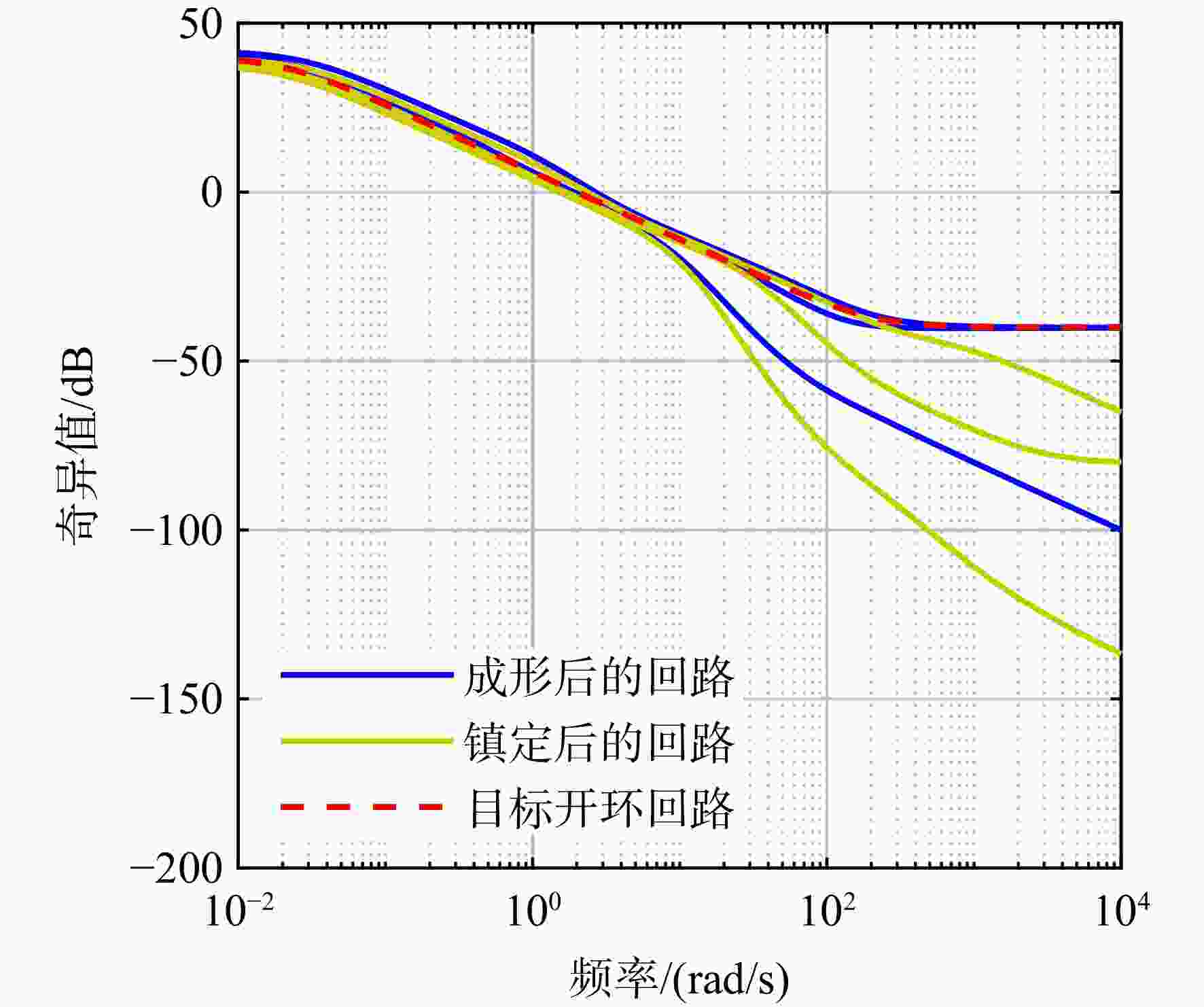

图 6 开环回路奇异值曲线

Figure 6. Open loop singular value curves

下载: 全尺寸图片幻灯片

图 7 控制器$ {{\boldsymbol{K}}_{1{\mathrm{D}}}} （s） $阶数的影响

Figure 7. Influence of controller $ {{\boldsymbol{K}}_{1{\mathrm{D}}}} （s） $ orders

下载: 全尺寸图片幻灯片

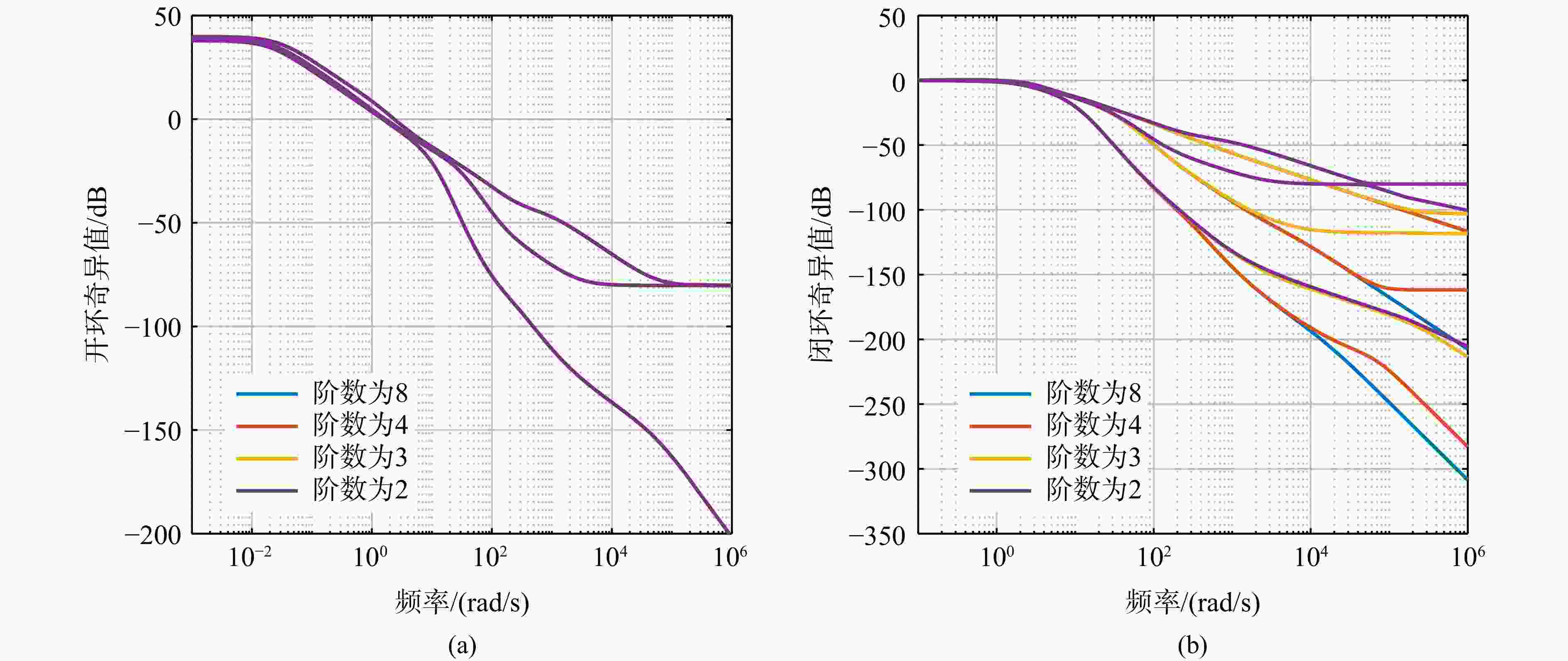

图 8 控制器$ {{\boldsymbol{K}}_{2{\mathrm{D}}}} （s） $阶数的影响

Figure 8. Influence of controller $ {{\boldsymbol{K}}_{2{\mathrm{D}}}} （s） $ orders

下载: 全尺寸图片幻灯片

图 9 扰动抑制仿真结果

Figure 9. Simulation results of disturbance suppression

下载: 全尺寸图片幻灯片

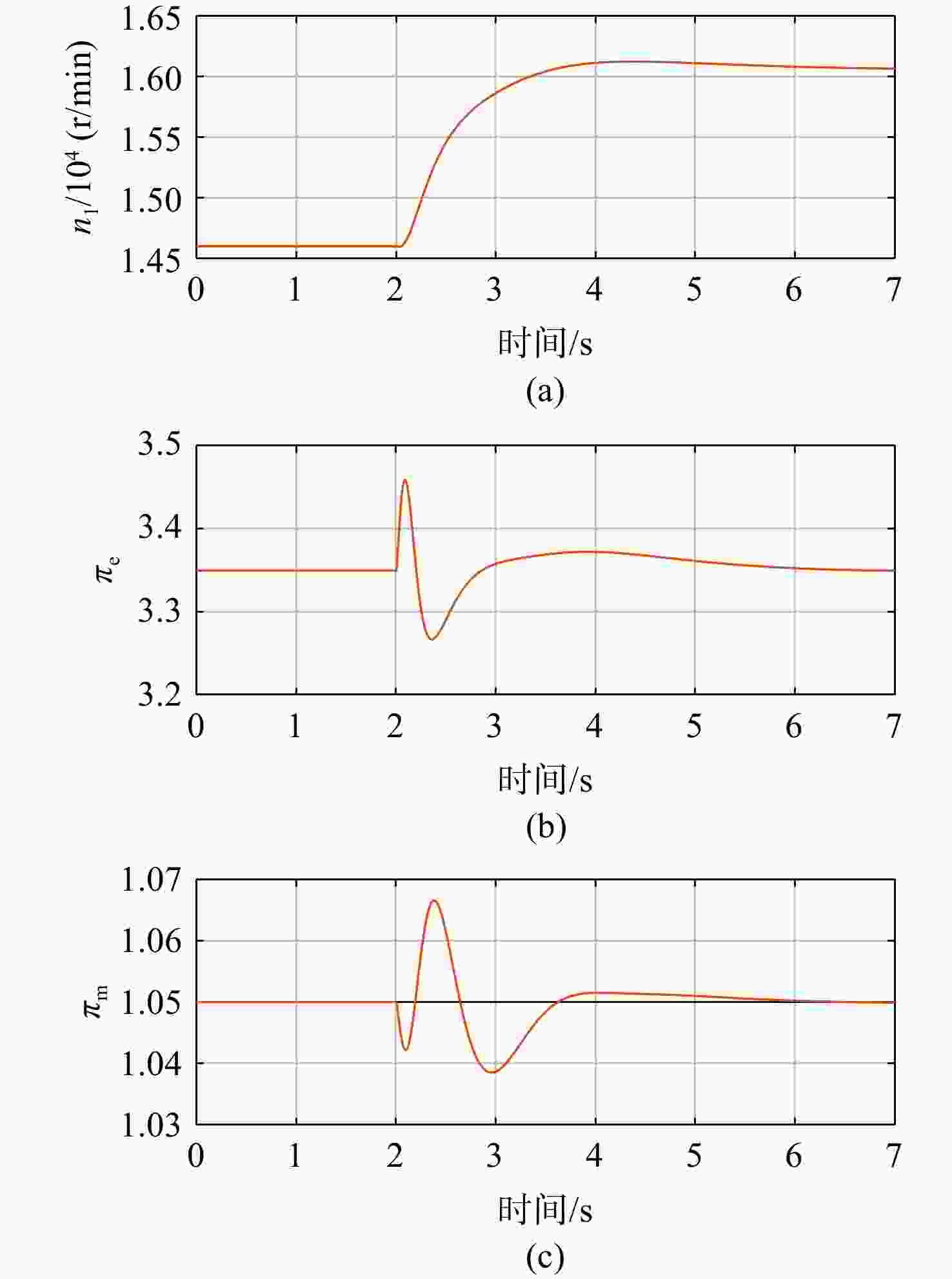

图 10 指令跟踪仿真结果

Figure 10. Command tracking simulation results

下载: 全尺寸图片幻灯片

图 11 鲁棒性分析

Figure 11. Robustness analysis

下载: 全尺寸图片幻灯片

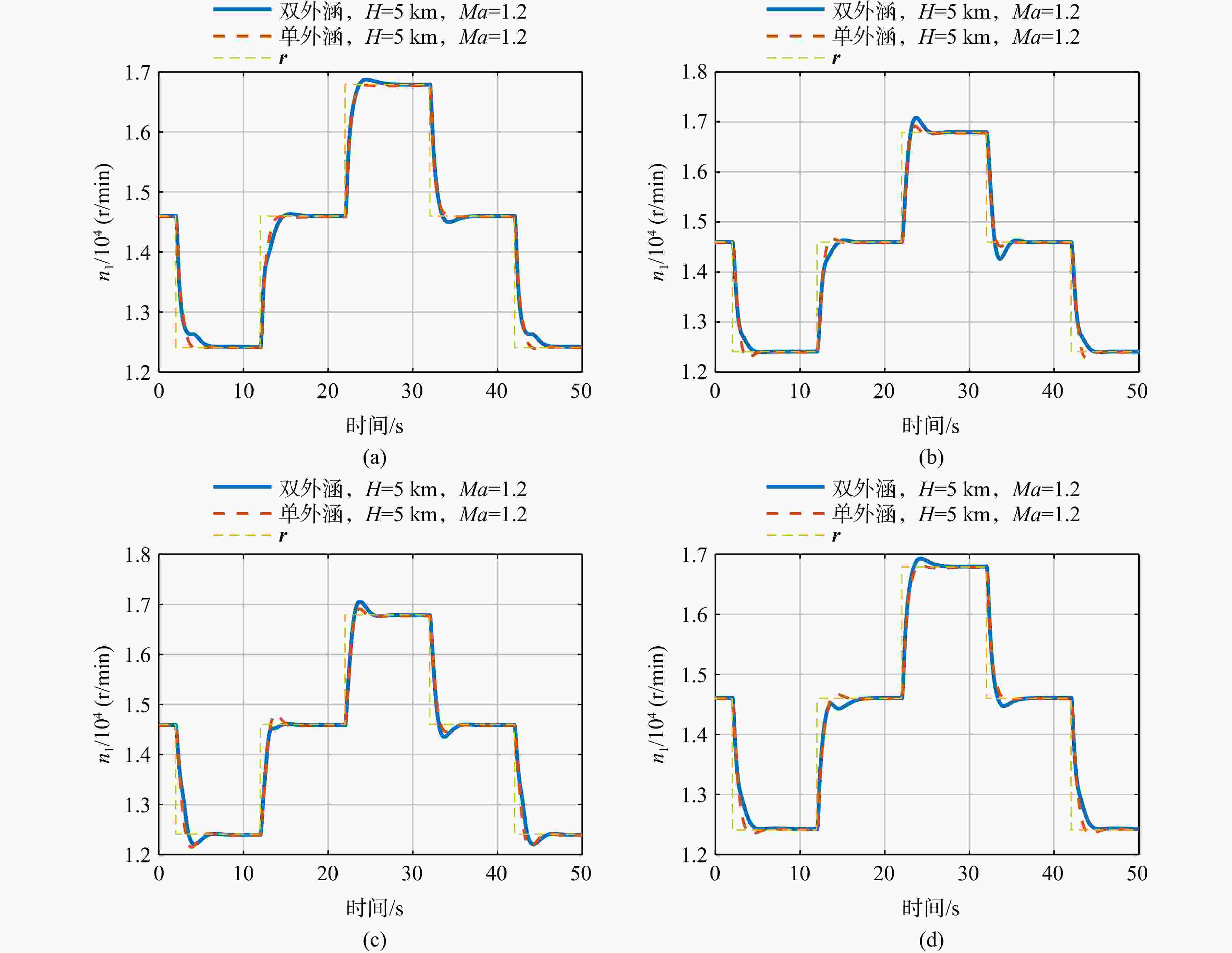

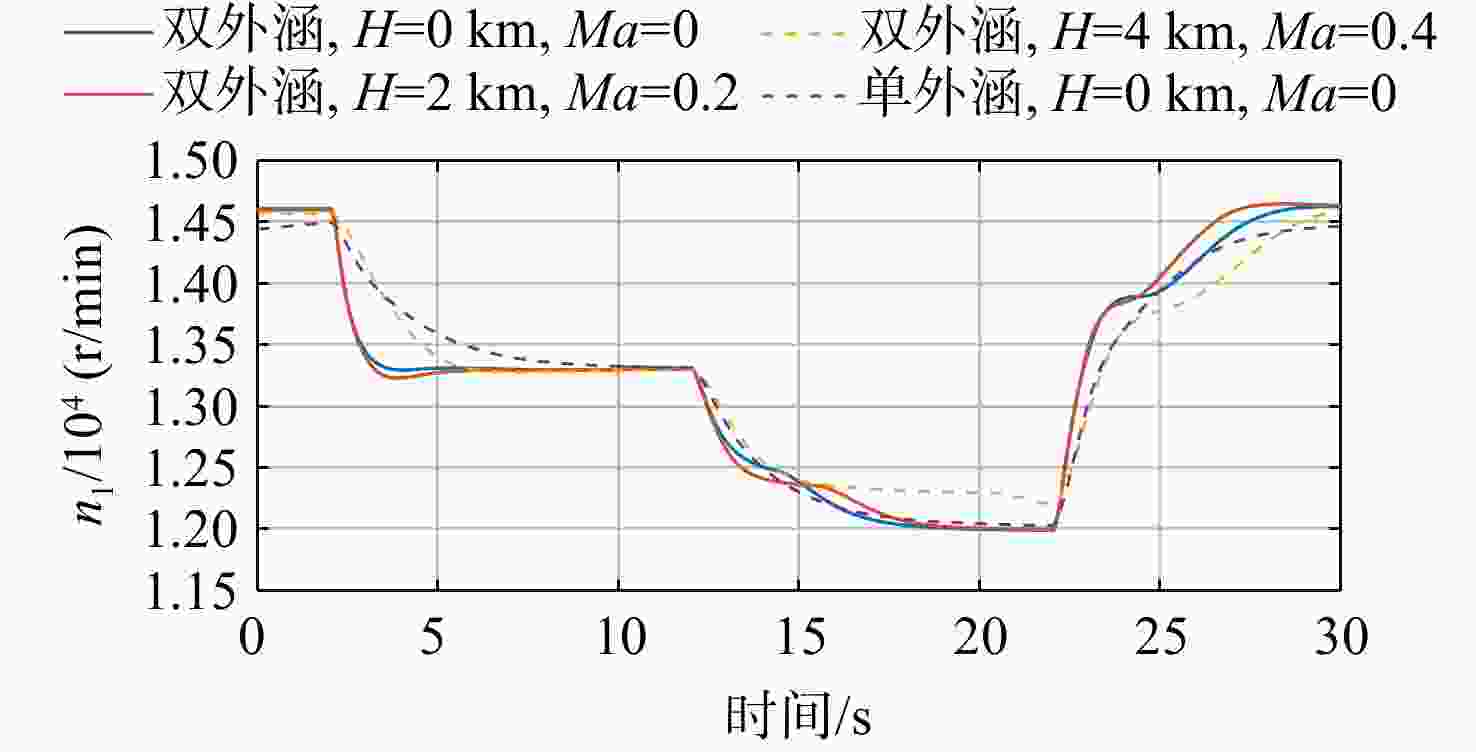

图 12 发动机在不同工作条件下大范围阶跃跟踪控制仿真结果

Figure 12. Simulation results of large-scale step tracking control of the engine under different operating conditions

下载: 全尺寸图片幻灯片

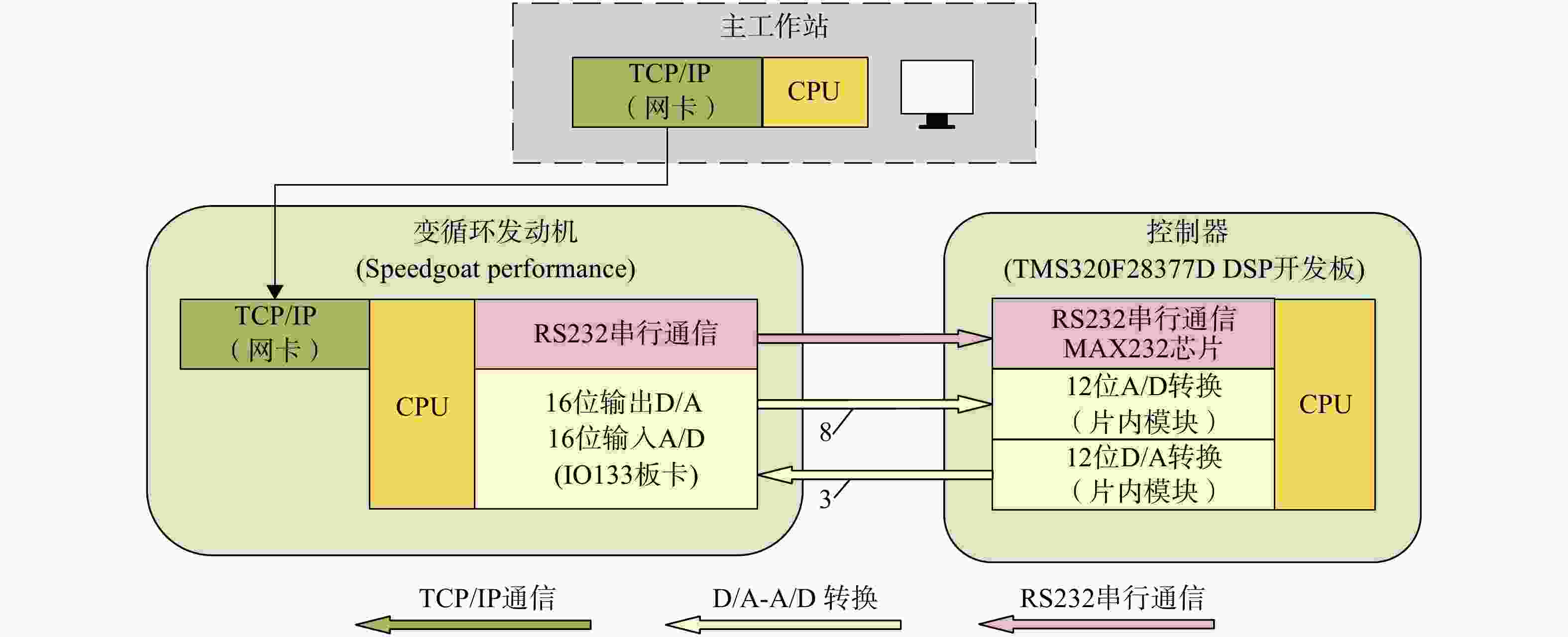

图 13 硬件在回路仿真平台结构

Figure 13. Hardware-in-the-loop simulation platform architecture

下载: 全尺寸图片幻灯片

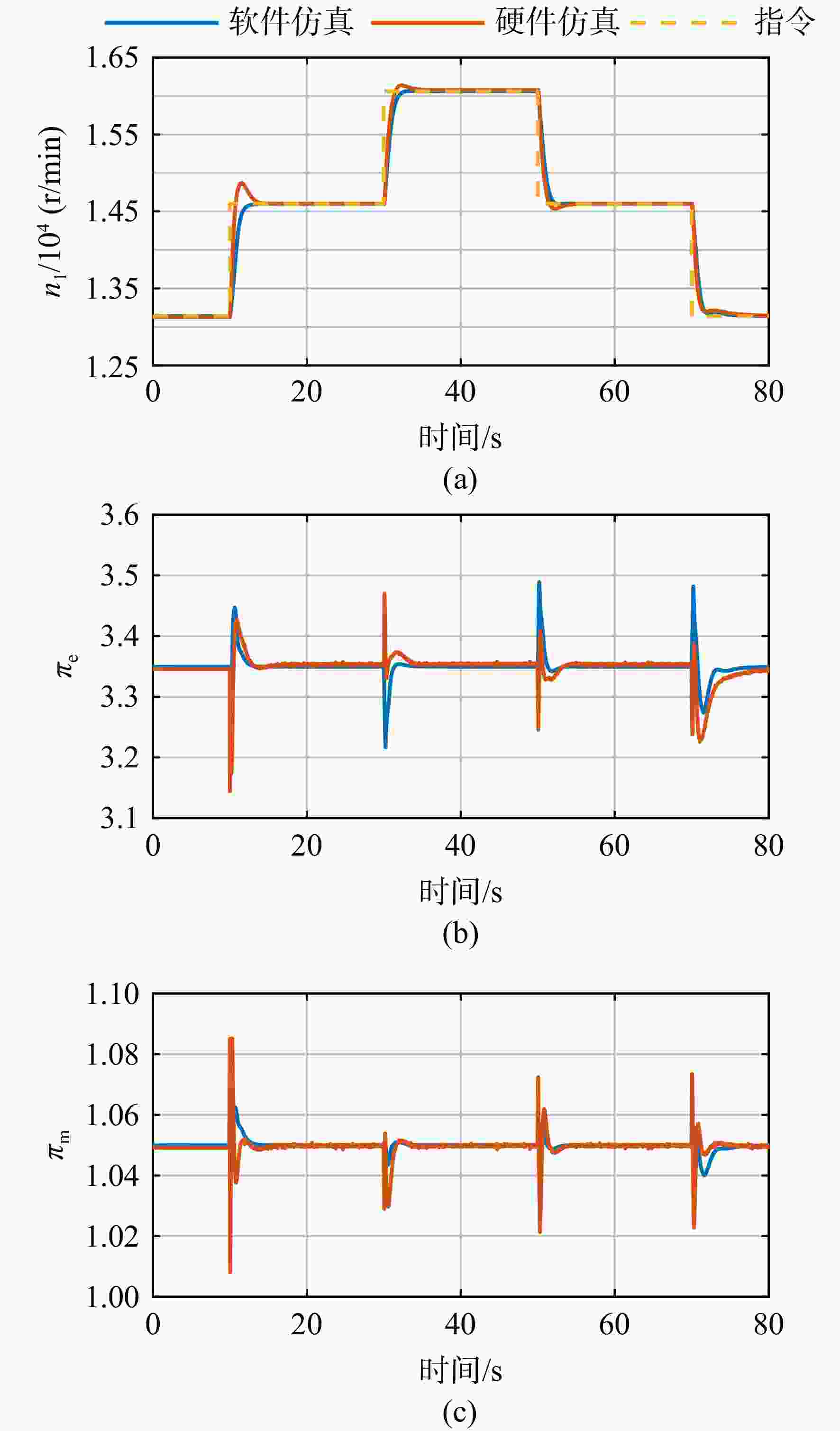

图 14 硬件在环仿真结果

Figure 14. Hardware-in-the-loop simulation results

下载: 全尺寸图片幻灯片

参考文献(18)

[1]	刘露杨, 郭迎清, 杨闻浩, 等. 基于H_∞回路成形的变循环发动机多变量控制[J]. 航空发动机, 2023, 49(1): 139-144. LIU Luyang, GUO Yingqing, YANG Wenhao, et al. Multivariable control of variable cycle engine based on H_∞-infinity loop shaping[J]. Aeroengine, 2023, 49(1): 139-144. (in Chinese LIU Luyang, GUO Yingqing, YANG Wenhao, et al. Multivariable control of variable cycle engine based on H_∞-infinity loop shaping[J]. Aeroengine, 2023, 49(1): 139-144. (in Chinese)
[2]	王海泉, 郭迎清, 李睿, 等. 航空发动机全飞行包线鲁棒控制器设计研究[J]. 测控技术, 2009, 28(5): 48-51, 55. WANG Haiquan, GUO Yingqing, LI Rui, et al. Design of full flight envelop controller for aero-engine[J]. Measurement & Control Technology, 2009, 28(5): 48-51, 55. (in Chinese WANG Haiquan, GUO Yingqing, LI Rui, et al. Design of full flight envelop controller for aero-engine[J]. Measurement & Control Technology, 2009, 28(5): 48-51, 55. (in Chinese)
[3]	HÄREFORS M. Application of H_∞ robust control to the RM12 jet engine[J]. Control Engineering Practice, 1997, 5(9): 1189-1201. doi: 10.1016/S0967-0661(97)84358-4
[4]	SAMAR R, POSTLETHWAITE I. Design and implementation of a digital multimode H_∞ controller for the spey turbofan engine[J]. Journal of Dynamic Systems, Measurement, and Control, 2010, 132(1): 011010.
[5]	杨刚, 孙健国, 姚华, 等. 航空发动机H_∞/LTR控制试验验证[J]. 航空学报, 2006, 27(5): 773-777. YANG Gang, SUN Jianguo, YAO Hua, et al. Experimental verification of H_∞/LTR method for aeroengine control systems[J]. Acta Aeronautica et Astronautica Sinica, 2006, 27(5): 773-777. (in Chinese YANG Gang, SUN Jianguo, YAO Hua, et al. Experimental verification of H_∞/LTR method for aeroengine control systems[J]. Acta Aeronautica et Astronautica Sinica, 2006, 27(5): 773-777. (in Chinese)
[6]	张凯文. 基于H_∞/Leitmann方法的航空发动机鲁棒控制方法研究[D]. 南京: 南京航空航天大学, 2017. ZHANG Kaiwen. Research on robust control method of aircraft engine based on H_∞/Leitmann method [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2017. (in Chinese ZHANG Kaiwen. Research on robust control method of aircraft engine based on H_∞/Leitmann method [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2017. (in Chinese)
[7]	LIN S T, LEE C M. Multivariable control of the J-85 turbojet engine for full flight envelope operation[J]. Journal of Guidance, Control, and Dynamics, 2012, 19(4): 913-920.
[8]	姚华, 鲍亮亮, 孙健国. 基于神经网络的航空发动机全包线PID控制[J]. 南京航空航天大学学报, 2007, 39(2): 236-239. YAO Hua, BAO Liangliang, SUN Jianguo. Aeroengine PID control over whole envelope based on neural network[J]. Journal of Nanjing University of Aeronautics and Astronautics, 2007, 39(2): 236-239. (in Chinese YAO Hua, BAO Liangliang, SUN Jianguo. Aeroengine PID control over whole envelope based on neural network[J]. Journal of Nanjing University of Aeronautics and Astronautics, 2007, 39(2): 236-239. (in Chinese)
[9]	隋岩峰, 于达仁, 隋鹏. 涡扇发动机自增益调度H_∞控制器设计[J]. 航空动力学报, 2005, 20(5): 857-861. SUI Yanfeng, YU Daren, SUI Peng. Design of self-scheduled H_∞ control for turbofan engine[J]. Journal of Aerospace Power, 2005, 20(5): 857-861. (in Chinese doi: 10.3969/j.issn.1000-8055.2005.05.028 SUI Yanfeng, YU Daren, SUI Peng. Design of self-scheduled H_∞ control for turbofan engine[J]. Journal of Aerospace Power, 2005, 20(5): 857-861. (in Chinese) doi: 10.3969/j.issn.1000-8055.2005.05.028
[10]	潘慕绚, 曹良进, 黄金泉. 基于增益调度的航空发动机分散鲁棒控制[J]. 北京航空航天大学学报, 2018, 44(9): 1964-1973. PAN Muxuan, CAO Liangjin, HUANG Jinquan. Gain scheduling based decentralized robust control for aircraft engines[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(9): 1964-1973. (in Chinese PAN Muxuan, CAO Liangjin, HUANG Jinquan. Gain scheduling based decentralized robust control for aircraft engines[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(9): 1964-1973. (in Chinese)
[11]	谢振伟. 变循环发动机建模与分布式控制研究[D]. 西安: 西北工业大学, 2016. XIE Zhenwei. Research on modeling and distributed control of variable cycle engine[D]. Xi’an: Northwestern Polytechnical University, 2016. (in Chinese XIE Zhenwei. Research on modeling and distributed control of variable cycle engine[D]. Xi’an: Northwestern Polytechnical University, 2016. (in Chinese)
[12]	GLOVER K, MCFARLANE D. A loop shaping design procedure using H_∞ synthesis[J]. IEEE Transactions on Automatic Control, 1992, 37(6): 759-769 doi: 10.1109/9.256330
[13]	LE V X, SAFONOV M G. Rational matrix GCDs and the design of squaring-down compensators-a state-space theory[J]. IEEE Transactions on Automatic Control, 1992, 37(3): 384-392. doi: 10.1109/9.119644
[14]	ZHANG Mengtian, HUANG Xianghua, WANG Shengchao, et al. In-the-loop simulation experiment of aero-engine fault-tolerant control technology[J]. Applied Sciences, 2022, 12(3): 1716. doi: 10.3390/app12031716
[15]	LI Gengwei, HAO Binbin, DONG Jiuxiang. Fault simulation and function verification of the aero-engine control system based on hardware in loop[C]//2021 33rd Chinese Control and Decision Conference. Piscataway, US: IEEE, 2021: 5393-5396.
[16]	HE Jiale, GUO Yingqing, LIU Luyang, et al. Design of multivariable control system for variable cycle engine and hardware-in-the-loop simulation[C]//Advances in Guidance, Navigation and Control. Singapore: Springer, 2023: 4339-4349.
[17]	WANG Cansen, GUO Yingqing, ZHAO Wanli, et al. Hardware-in-the-loop simulation platform for fault diagnosis of distributed engine control system[C]//2022 13th International Conference on Mechanical and Aerospace Engineering. Piscataway, US: IEEE, 2022: 102-107.
[18]	CHEN Jiajie, HU Zhongzhi, WANG Jiqiang. Aero-engine real-time models and their applications[J]. Mathematical Problems in Engineering, 2021, 2021(1): 9917523.
