Mechanism on thermal-strength comprehensive performance enhancement of novel film hole with rib and ball-shaped dimple
-
摘要:

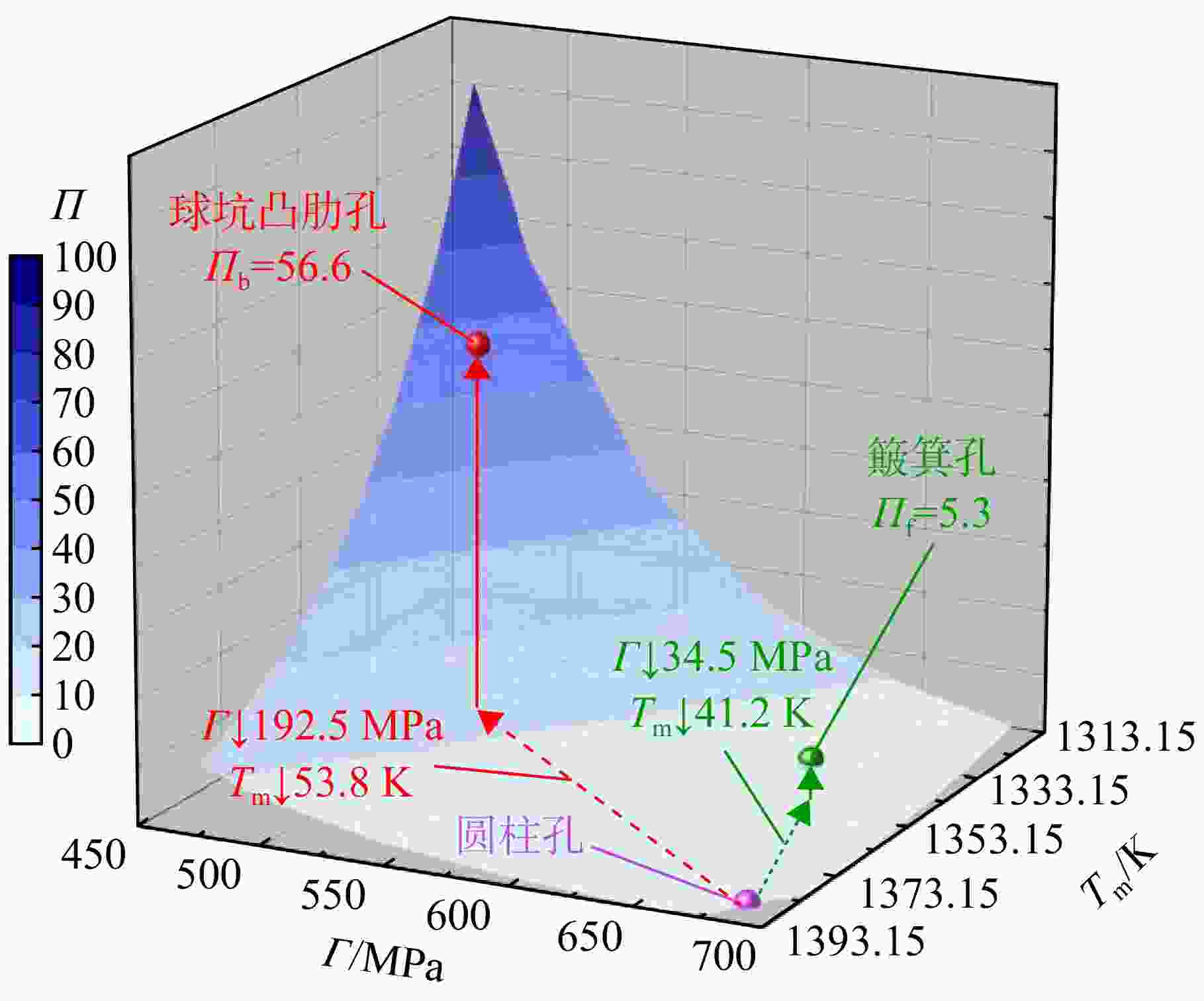

针对涡轮叶片气膜孔设计中普遍存在冷却与强度相矛盾的问题，全新提出了一种在孔进、出口处分别设有凸肋与球坑的结构方案。为探求新孔型的热强综合性能强化机理，以典型圆柱孔和簸箕孔为对比，建立了相同基准结构参数的仿真模型。在某发动机典型工况下，对各模型分别开展了仅流体域的和流热耦合的数值仿真。除了发现凸肋可削弱孔内旋涡，并将流量系数从圆柱孔的0.75增加至0.79以外，特别在传热上，证明球坑能够利用主流的入侵压迫二次流使其更贴体，从而使局部冷却效果由圆柱孔的0.41提高至0.47。沿用模型又开展了静强度仿真，揭示了凸肋和球坑结构通过钝化孔口尖劈，可使最大应力下降约一半。综合冷却和强度的仿真结果，基于DD6合金持久热强参数曲线进行概算，新方案的持久寿命分别增至了另两种孔的56.6倍和10.7倍，优势显著。
Abstract:Considering the prevalent contradiction between cooling and strength design of turbine blade film hole, a novel scheme utilizing rib and ball-shaped dimple at the hole inlet and outlet was proposed. To reveal the mechanism on thermal-strength comprehensive performance enhancement, two typical cylindrical and fan-shaped film holes were chosen as benchmarks. Simulation models of all three types with uniform basic structural parameters were also established. Fluid domain only and fluid-thermal coupling numerical simulations were conducted under a typical aero-engine working condition separately. The results indicated that the rib weakened the vortex inside the hole, thus the discharge coefficient increased from 0.75 of the cylindrical ones to 0.79. Especially in heat transfer, it was uncovered that the ball-shaped dimple induced the main flow’s intrusion and so enhanced the surface-attachment of the secondary flow. Thereby the local cooling effectiveness of 0.47 achieved, observably better than 0.41 of the cylindrical ones. The static strength simulations were further conducted following the identical models. The maximus stress was approximately reduced by half, since both the rib and dimple markedly blunted the sharp corners at the orifice edges. Integrating the simulation results of cooling and strength, the lives of the three schemes were estimated based on the creep-rupture curve of DD6 alloy. And the relative value of the novel film hole reached up to 56.6 and 10.7 times of the other ones, respectively, which showed a prominent advantage.
-

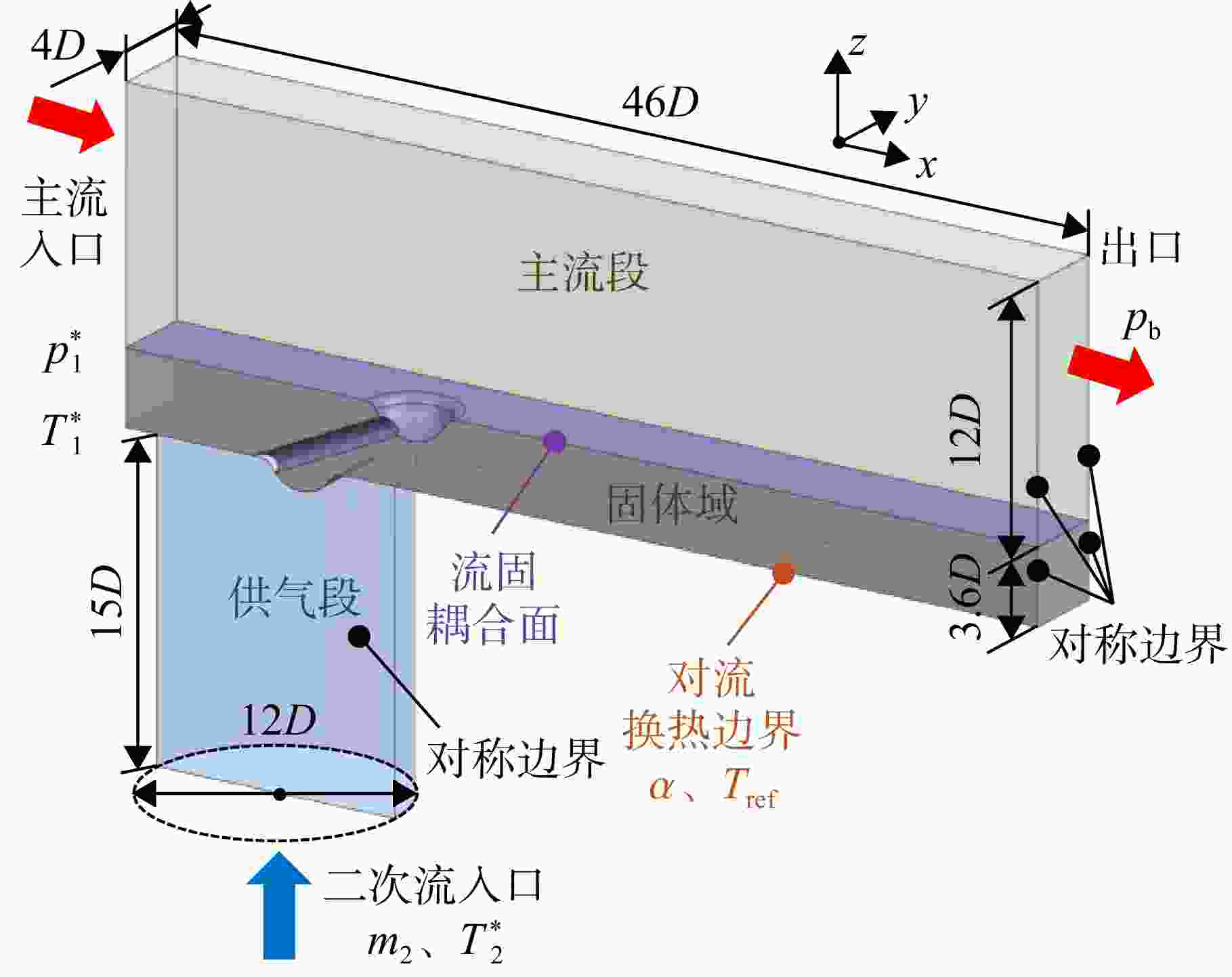

图 3 流动和传热仿真计算域和边界条件
Figure 3. Flow and heat transfer simulation domains and boundary conditions

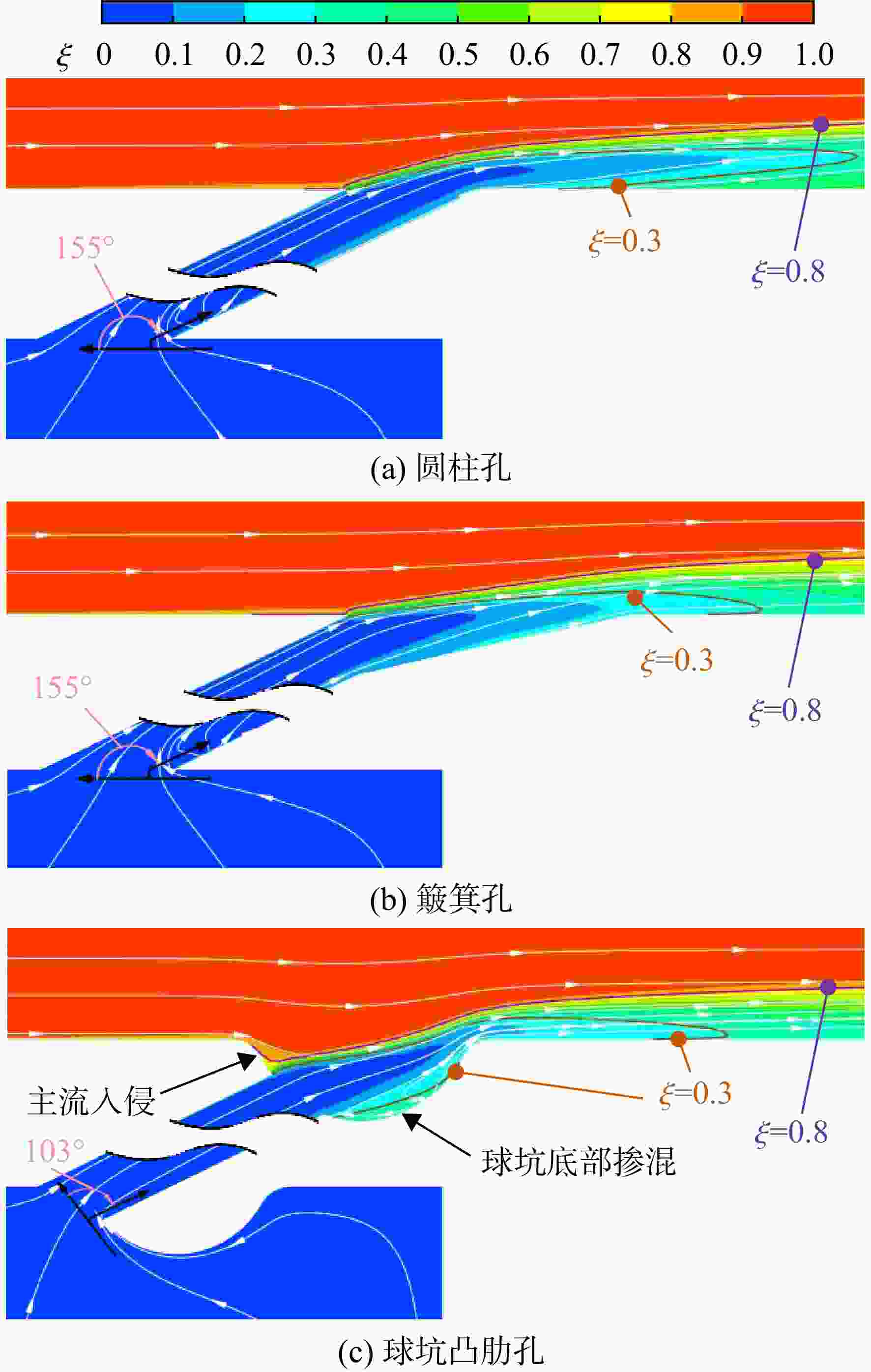

图 5 非绝热模型中截面流线及ξ分布云图
Figure 5. Streamlines and contours of ξ in middle sections of non-adiabatic models

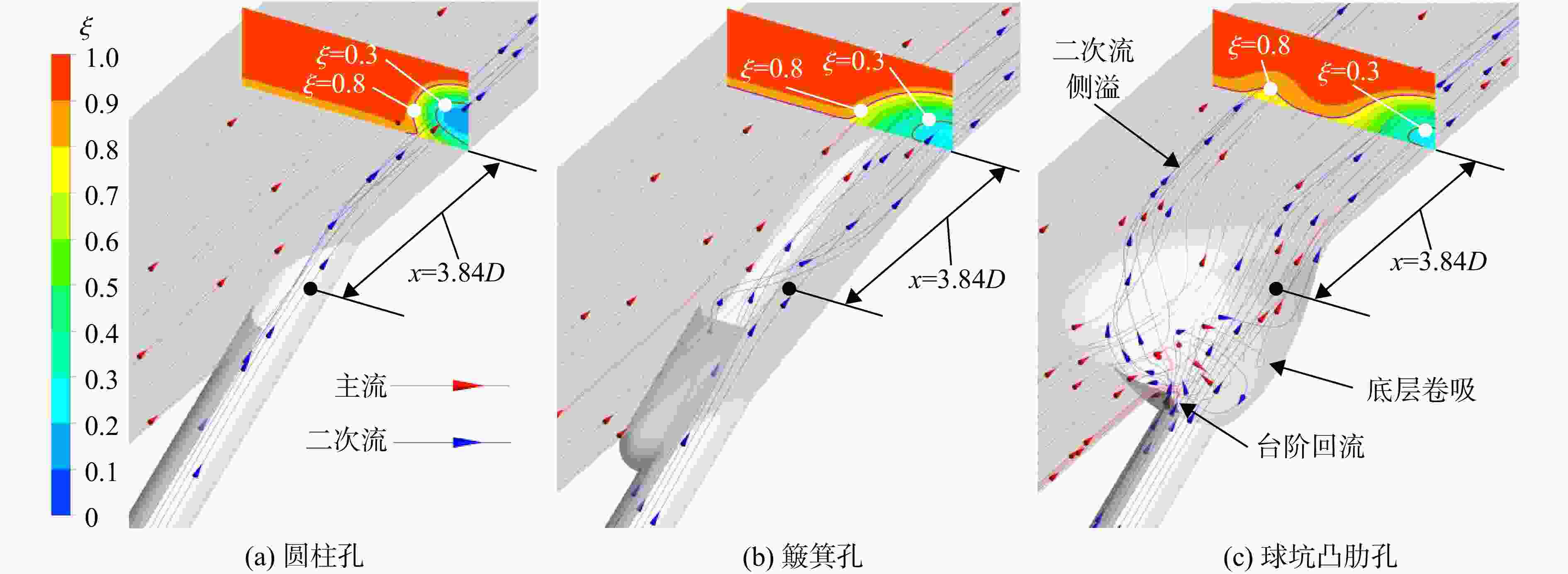

图 6 非绝热模型三维流线及横截面上ξ分布云图
Figure 6. 3D streamlines and contours of ξ in cross sections of non-adiabatic models

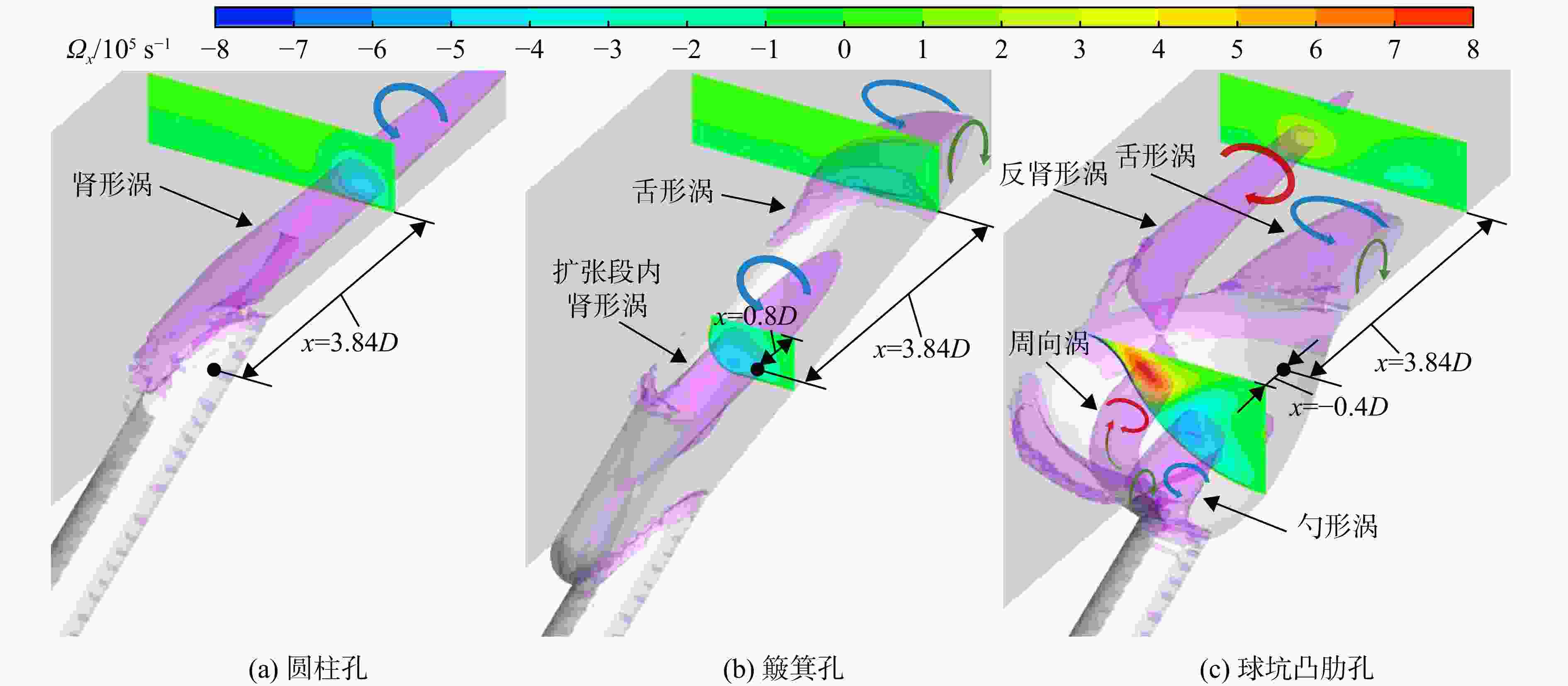

图 7 非绝热模型涡核结构及横截面Ωx云图
Figure 7. Vortex cores and contours of Ωx in cross sections of non-adiabatic models

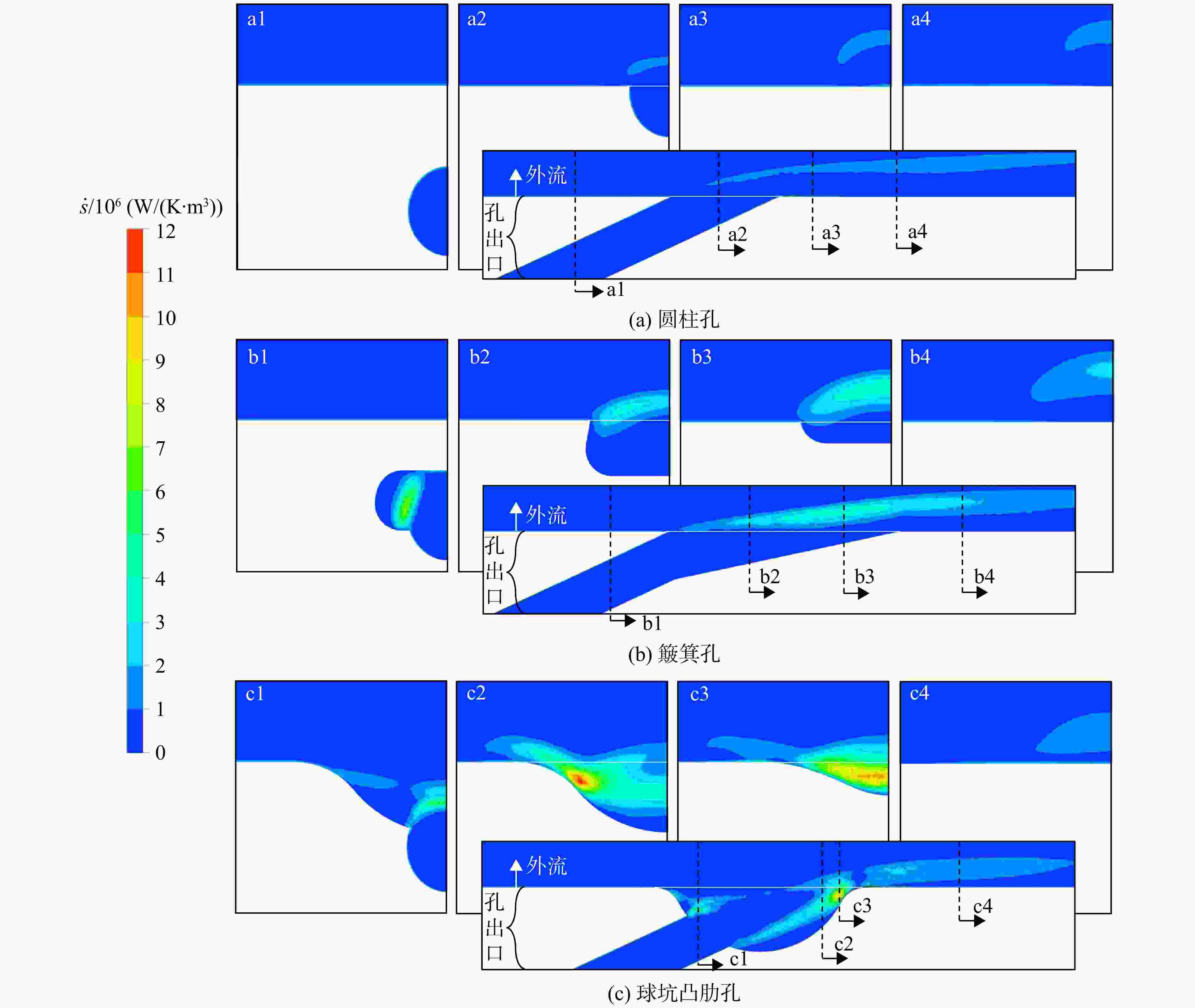

图 8 绝热模型横截面和中截面上$ \dot s $分布云图
Figure 8. Contours of $ \dot s $ in cross and middle sections of adiabatic models

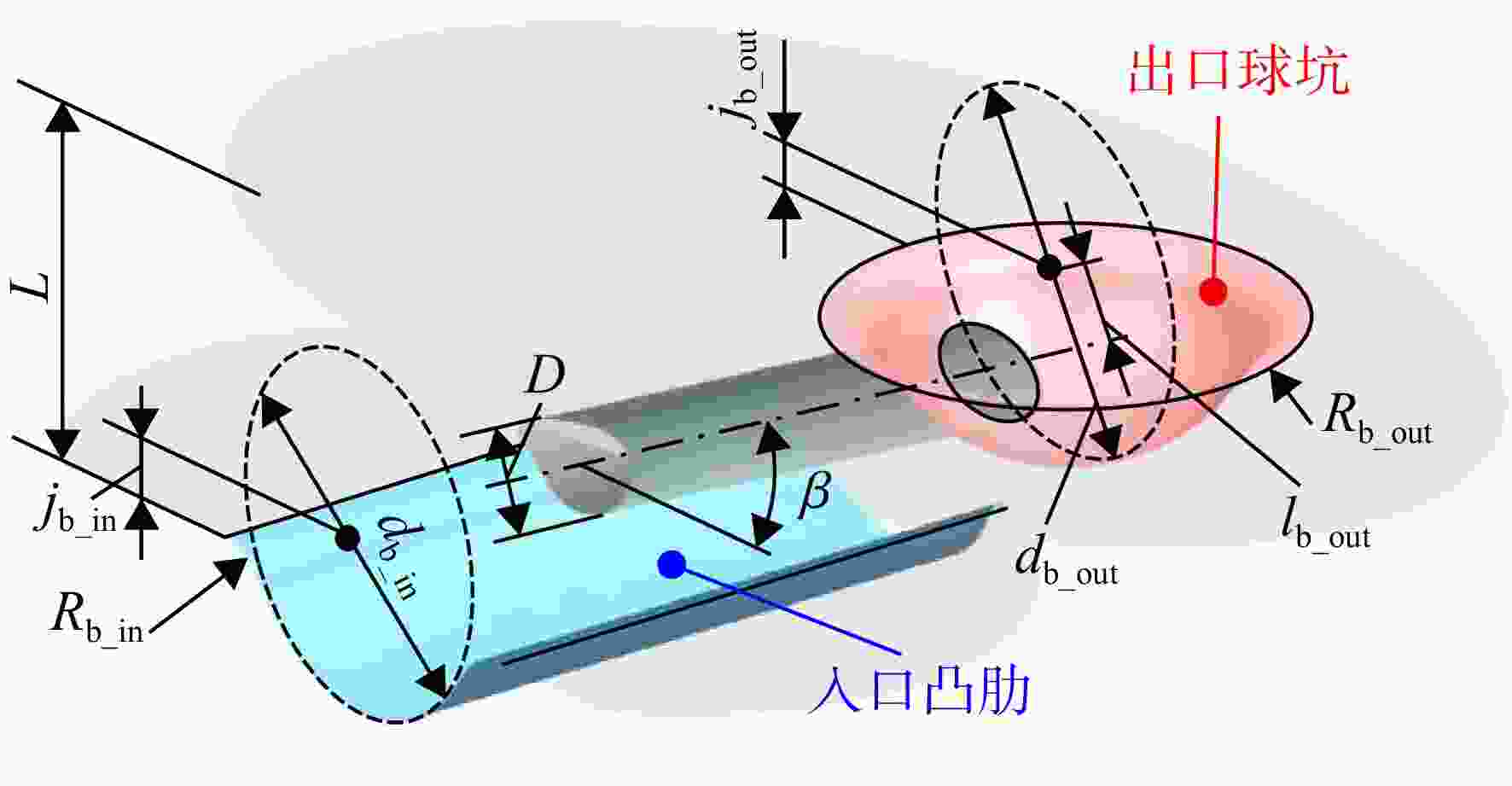

表 1 球坑凸肋孔结构参数
Table 1. Structural parameters of film hole with rib and ball-shaped dimple
参数 数值 气膜孔孔径D/mm 0.5 壁厚L 3.6D 孔轴线与壁面夹角β/（°） 25.0 出口球坑 球面直径db_out 4.0D 球心与外壁面间距离jb_out 0.6D 球心与气膜孔轴线间距离lb_out 0.93D 边缘圆角半径Rb_out 0.6D 入口凸肋 截面圆直径db_in 3.5D 截面圆圆心与内壁面间距离jb_in 0.6D 边缘圆角半径Rb_in 0.6D
下载: 导出CSV

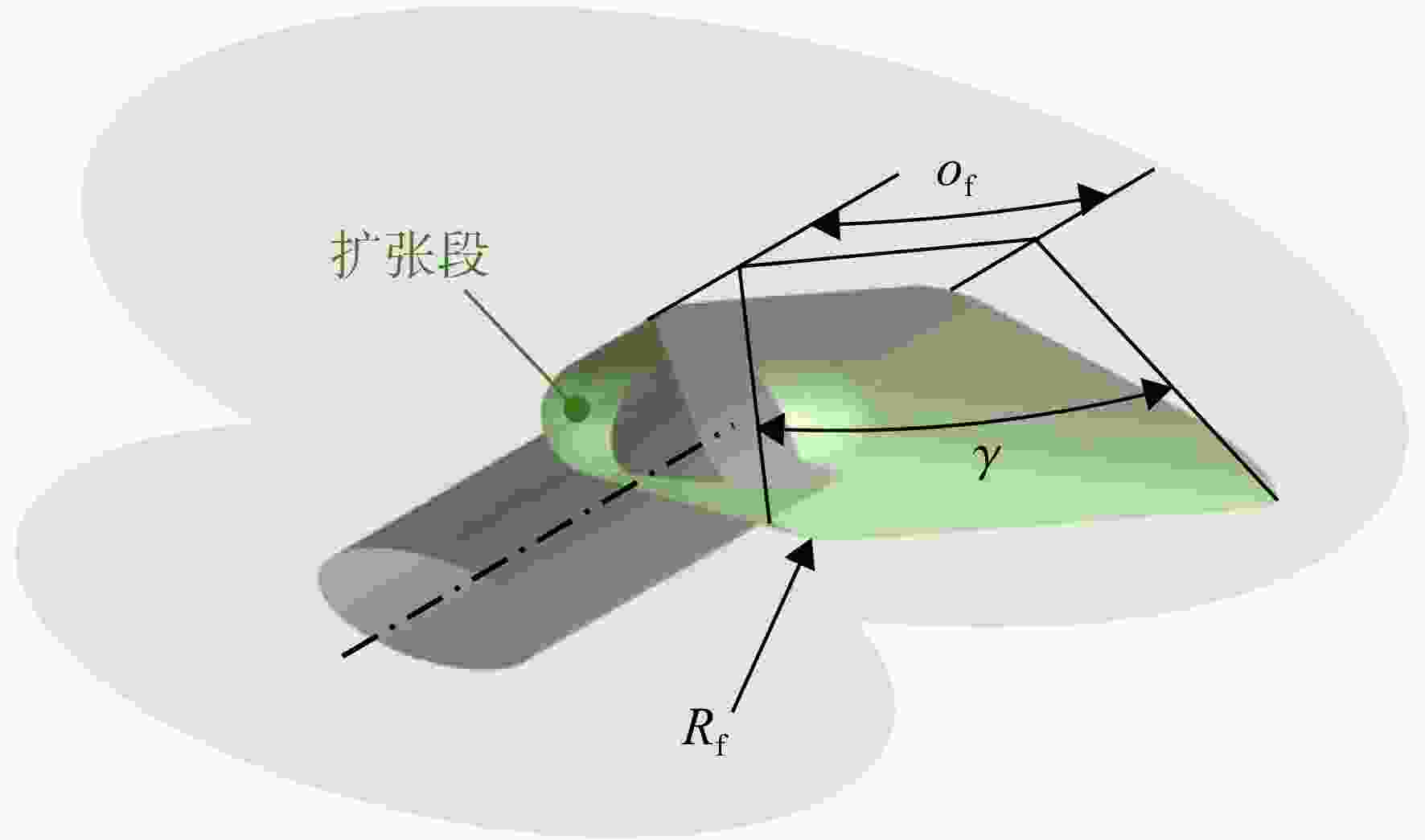

表 2 簸箕孔结构参数
Table 2. Structural parameters of fan-shaped film hole
参数 数值 轴向投影面扩张角γ/（°） 22.62 扩张段宽度of 1.66D 边缘圆角半径Rf 0.32D
下载: 导出CSV
表 3 流动传热边界条件
Table 3. Boundary conditions of flow and heat transfer
位置 参数 数值 主流 入口 总压$p_1^* $/MPa 2.03 总温$T_1^* $/K 1 800 湍流度I1/% 5 出口 静压pb/MPa 1.82 二次流 入口 质量流量$\dot m_2 $/（g/s） 0.115 总温$T_2^* $/K 800 湍流度I2/% 1 吹风比M 1.01 固体域 内壁面 表面传热系数α/（W/（m2·K）） 2 200 参考温度Tref/K 800 物性
参数导热系数λs/（W/（m·K）） 22.3～33.2 比定压热容cp_s/（J/（kg·K）） 434 流体域 物性
参数导热系数λ/10−2 （W/（m·K）） 5.78～11.10 动力黏度μ/10−5 （N·s/m2） 3.63～6.07
下载: 导出CSV

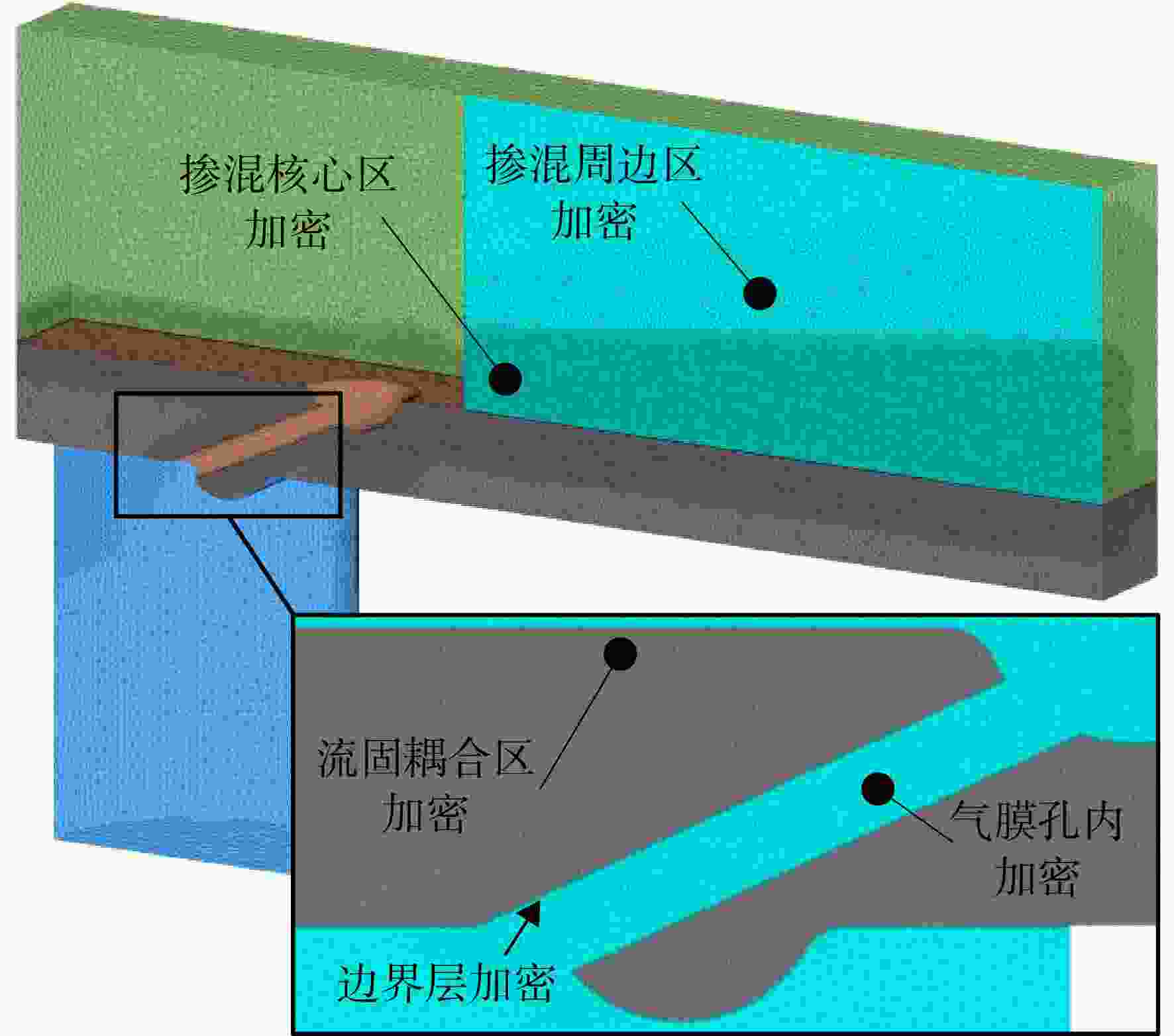

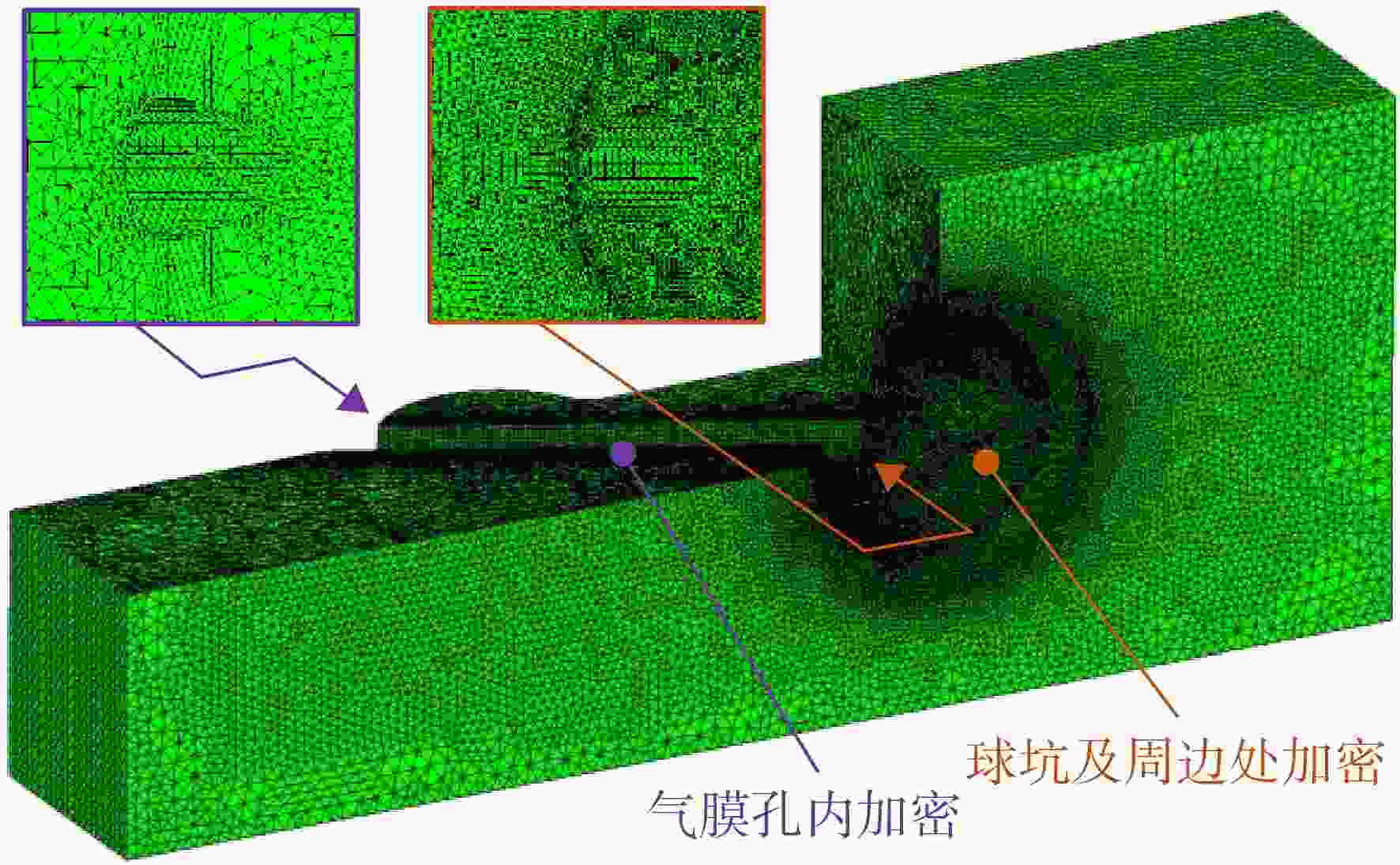

表 4 各网格数量下关注点的Tw
Table 4. Tw of monitor points with various mesh quantities
参数 网格单元数/104 430 607 1 307 关注点壁温Tw/K 1 313.7 1 336.1 1 332.6 壁温相对变化ΔTw/K 22.4 −3.5 壁温相对变化率ψ/% 2.36 0.37
下载: 导出CSV
表 5 绝热模型中各型气膜孔的Cd
Table 5. Cd of various film holes in adiabatic models
气膜孔 圆柱孔（C） 簸箕孔（F） 球坑凸肋孔（B） Cd 0.75 0.90 0.79
下载: 导出CSV
表 6 绝热模型中的$ {\dot{{{\boldsymbol{s}}}}}_{\bf{v}} $
Table 6. $ {\dot{{{\boldsymbol{s}}}}}_{\bf{v}} $ in adiabatic models
参数 圆柱孔（C） 簸箕孔（F） 球坑凸肋孔（B） 外流$ {\dot{{s}}}_{\text{v}{\_}\text{out}} $ 2.50 3.38（1.35） 2.96（1.18） 孔出口$ {\dot{{s}}}_{\text{v}{\_}\text{hole}} $ 0.25 0.61（2.42） 1.00（4.00） 合计$ {\dot{{s}}}_{\text{v}{\_}\text{tol}} $ 2.75 3.99（1.45） 3.96（1.44） 注：括号内为以圆柱孔为基准的相对比值。
下载: 导出CSV

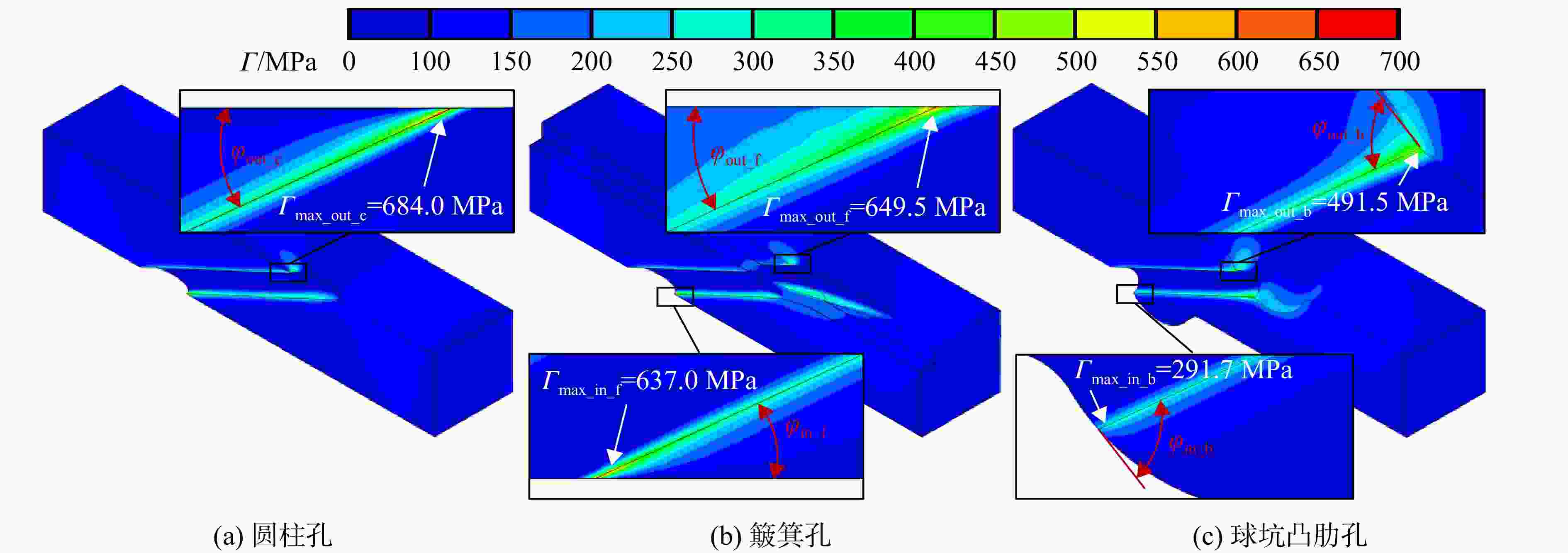

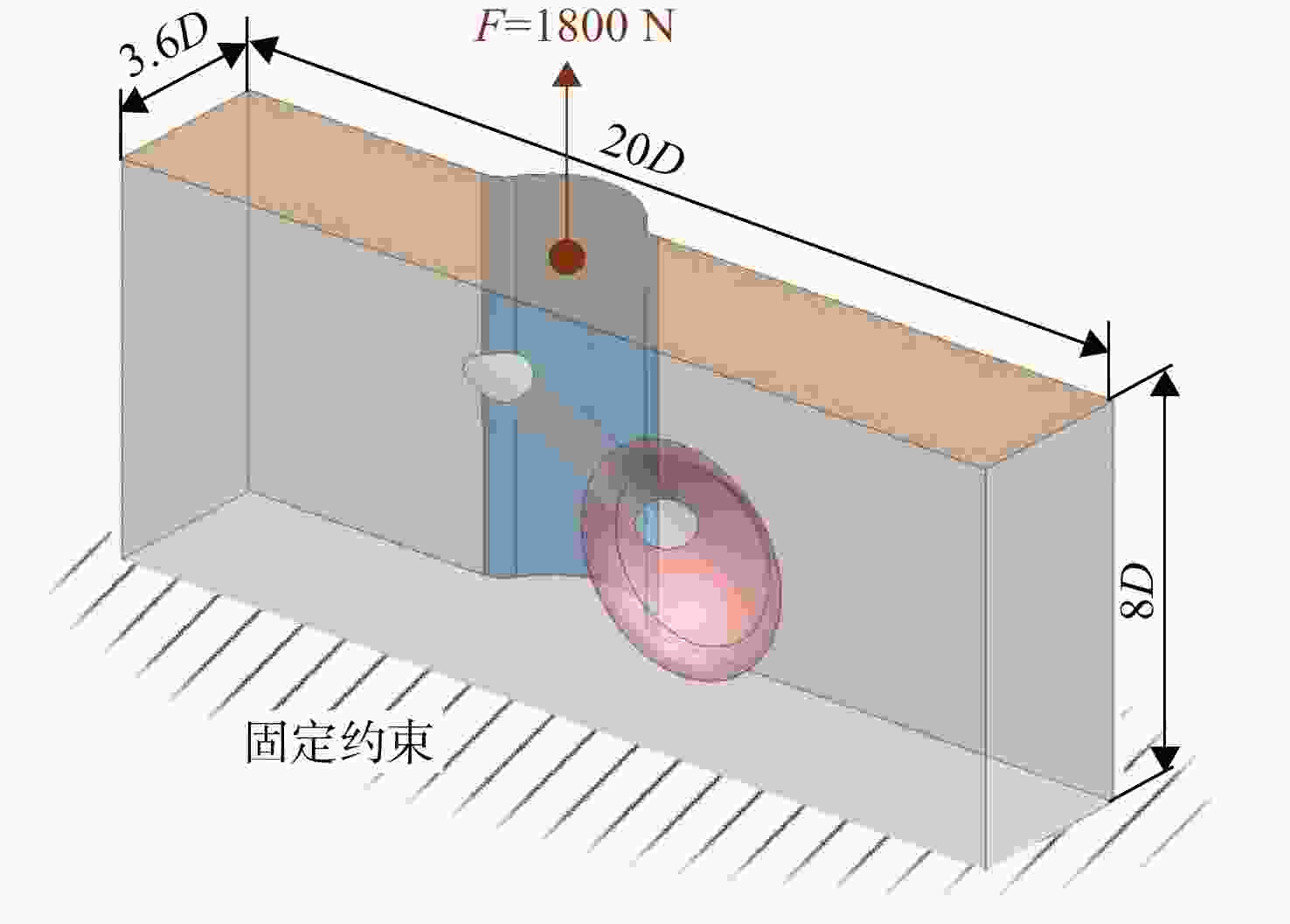

表 7 强度仿真结果
Table 7. Strength simulation results
位置 参数 圆柱孔（C） 簸箕孔（F） 球坑凸肋孔（B） 无孔区 $ \bar \varGamma $/MPa 100.0 100.0 100.0 入口 Γmax_in/MPa 684.0 637.0 291.7 Ξin 6.8 6.4 2.9 φin/（°） 25.0 25.0 77.4 出口 Γmax_out/MPa 684.0 649.5 491.5 Ξout 6.8 6.5 4.9 φout/（°） 25.0 25.0 77.6
下载: 导出CSV
-
[1] BUNKER R S. Gas turbine heat transfer: ten remaining hot gas path challenges[J]. Journal of Turbomachinery, 2007, 129(2): 193-201. [2] YERANEE K, RAO Yu. A review of recent studies on rotating internal cooling for gas turbine blades[J]. Chinese Journal of Aeronautics, 2021, 34(7): 85-113. [3] 曹玉璋, 陶智, 徐国强, 等. 航空发动机传热学[M]. 北京: 北京航空航天大学出版社, 2005. [4] UNNIKRISHNAN U, YANG V. A review of cooling technologies for high temperature rotating components in gas turbine[J]. Propulsion and Power Research, 2022, 11(3): 293-310. [5] 刘英实. 复合倾角对涡轮叶片气膜孔综合性能影响研究[D]. 大连: 大连理工大学, 2023. LIU Yingshi. Study on the influence of 3D inclination angle on the multidisciplinary performance of turbine blade film cooling holes[D]. Dalian: Dalian University of Technology, 2023. (in ChineseLIU Yingshi. Study on the influence of 3D inclination angle on the multidisciplinary performance of turbine blade film cooling holes[D]. Dalian: Dalian University of Technology, 2023. (in Chinese) [6] 温志勋, 张冬旭, 张志金, 等. 镍基单晶涡轮冷却叶片气膜孔结构强度[M]. 北京: 科学出版社, 2017. WEN Zhixun, ZHANG Dongxu, ZHANG Zhijin, et al. Structural strength of gas film holes in cooling blades of nickel-based single crystal turbine[M]. Beijing: Science Press, 2017. (in ChineseWEN Zhixun, ZHANG Dongxu, ZHANG Zhijin, et al. Structural strength of gas film holes in cooling blades of nickel-based single crystal turbine[M]. Beijing: Science Press, 2017. (in Chinese) [7] BUNKER R S. A review of shaped hole turbine film-cooling technology[J]. Journal of Heat Transfer, 2005, 127(4): 441-453. [8] 江艳, 李海旺, 谢刚, 等. 高压涡轮导叶压力面异型气膜孔特性[J]. 航空动力学报, 2024, 39(11): 20220963. JIANG Yan, LI Haiwang, XIE Gang, et al. Characteristics of shaped holes on the pressure surface of turbine vane[J]. Journal of Aerospace Power, 2024, 39(11): 20220963. (in ChineseJIANG Yan, LI Haiwang, XIE Gang, et al. Characteristics of shaped holes on the pressure surface of turbine vane[J]. Journal of Aerospace Power, 2024, 39(11): 20220963. (in Chinese) [9] LU Yiping, DHUNGEL A, EKKAD S V, et al. Effect of trench width and depth on film cooling from cylindrical holes embedded in trenches[J]. Journal of Turbomachinery, 2009, 131(1): 011003. [10] 张博伦, 张丽, 朱惠人, 等. 利用双波纹凹槽改善气膜冷却效率的数值研究[J]. 工程热物理学报, 2019, 40(8): 1894-1903. ZHANG Bolun, ZHANG Li, ZHU Huiren, et al. Numerical study on improving film cooling effectiveness with double-wave trench[J]. Journal of Engineering Thermophysics, 2019, 40(8): 1894-1903. (in ChineseZHANG Bolun, ZHANG Li, ZHU Huiren, et al. Numerical study on improving film cooling effectiveness with double-wave trench[J]. Journal of Engineering Thermophysics, 2019, 40(8): 1894-1903. (in Chinese) [11] 贺业光, 张明, 张德恒, 等. U形凹坑孔气膜冷却特性实验研究[J]. 航空动力学报, 2025, 40(3): 20230266. HE Yeguang, ZHANG Ming, ZHANG Deheng, et al. Experimental study on film cooling characteristics of U-shaped crater holes[J]. Journal of Aerospace Power, 2025, 40(3): 20230266. (in ChineseHE Yeguang, ZHANG Ming, ZHANG Deheng, et al. Experimental study on film cooling characteristics of U-shaped crater holes[J]. Journal of Aerospace Power, 2025, 40(3): 20230266. (in Chinese) [12] 肖阳, 金涛, 何立明, 等. 心形孔气膜冷却特性的数值模拟[J]. 航空动力学报, 2016, 31(6): 1335-1342. XIAO Yang, JIN Tao, HE Liming, et al. Numerical simulation on film cooling characteristics of heart shaped hole[J]. Journal of Aerospace Power, 2016, 31(6): 1335-1342. (in ChineseXIAO Yang, JIN Tao, HE Liming, et al. Numerical simulation on film cooling characteristics of heart shaped hole[J]. Journal of Aerospace Power, 2016, 31(6): 1335-1342. (in Chinese) [13] KUSTERER K, TEKIN N, WÜLLNER T, et al. Nekomimi film cooling holes configuration under conjugate heat transfer conditions[R]. ASME Paper GT2014-25845, 2014. [14] WECK A, WILKINSON D S. Experimental investigation of void coalescence in metallic sheets containing laser drilled holes[J]. Acta Materialia, 2008, 56(8): 1774-1784. [15] 王心美, 王大斐, 李磊. 气膜孔孔形对CMSX-10平板试样蠕变性能的影响[J]. 航空动力学报, 2025, 40(5): 20230592. WANG Xinmei, WANG Dafei, LI Lei. Effect of film cooling hole shape on creep properties of CMSX-10 plate specimens[J]. Journal of Aerospace Power, 2025, 40(5): 20230592. (in ChineseWANG Xinmei, WANG Dafei, LI Lei. Effect of film cooling hole shape on creep properties of CMSX-10 plate specimens[J]. Journal of Aerospace Power, 2025, 40(5): 20230592. (in Chinese) [16] 赵世成, 江荣, 龚浩翔, 等. 异形气膜孔对镍基单晶合金蠕变性能的影响[J]. 航空学报, 2024, 45(19): 429737. ZHAO Shicheng, JIANG Rong, GONG Haoxiang, et al. Effect of film cooling holes on creep properties of nickel-based single crystal superalloy[J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(19): 429737. (in ChineseZHAO Shicheng, JIANG Rong, GONG Haoxiang, et al. Effect of film cooling holes on creep properties of nickel-based single crystal superalloy[J]. Acta Aeronautica et Astronautica Sinica, 2024, 45(19): 429737. (in Chinese) [17] EVANS R W, WILSHIRE B. Creep of metals and alloys[M]. Calabasas, US: CRC Press, 1985. [18] WEN Zhixun, LIANG Jianwei, LIU Chenyu, et al. Prediction method for creep life of thin-wall specimen with film cooling holes in Ni-based single-crystal superalloy[J]. International Journal of Mechanical Sciences, 2018, 141: 276-289. [19] 吕东, 刘英实, 韦文涛, 等. 在气膜孔边采用半球形凹坑和圆滑凸肋结构的涡轮叶片: CN117823233A[P]. 2024-04-05. LYU Dong, LIU Yingshi, WEI Wentao, et al. Turbine blade adopting semispherical pit and smooth convex rib structure on air film hole edge: CN117823233A[P]. 2024-04-05. (in ChineseLYU Dong, LIU Yingshi, WEI Wentao, et al. Turbine blade adopting semispherical pit and smooth convex rib structure on air film hole edge: CN117823233A[P]. 2024-04-05. (in Chinese) [20] 王德新, 盛文娟, 徐斌, 等. 叶片气膜孔簸箕槽电火花加工工艺[C]// 第15届全国特种加工学术会议论文集(上). 南京: 中国机械工程学会特种加工分会, 2013: 157-161. WANG Dexin, SHENG Wenjuan, XU Bin, et, al. Study on technology of the EDM to the dustpan slots of the gas holes on blade. [C]// Proceedings of 15th National Conference on Nontraditional Machining (Volume 1). Nanjing: Nontraditional Machining Technology Committee of Chinese Mechanical Engineering Society, 2013: 157-161. (in ChineseWANG Dexin, SHENG Wenjuan, XU Bin, et, al. Study on technology of the EDM to the dustpan slots of the gas holes on blade. [C]// Proceedings of 15th National Conference on Nontraditional Machining (Volume 1). Nanjing: Nontraditional Machining Technology Committee of Chinese Mechanical Engineering Society, 2013: 157-161. (in Chinese) [21] 王武辉, 徐正扬, 耿天宇. 涡轮叶片簸箕形气膜孔电解加工试验研究[J]. 电加工与模具, 2023(4): 36-39. WANG Wuhui, XU Zhengyang, GENG Tianyu. Experimental study on ECM of dust pan-shaped film cooling holes of turbine blades[J]. Electromachining & Mould, 2023(4): 36-39. (in ChineseWANG Wuhui, XU Zhengyang, GENG Tianyu. Experimental study on ECM of dust pan-shaped film cooling holes of turbine blades[J]. Electromachining & Mould, 2023(4): 36-39. (in Chinese) [22] 中国金属学会高温材料分会编. 中国高温合金手册[M]. 北京: 中国标准出版社, 2012. [23] WANG Jin, TIAN Ke, LUO Jing, et al. Effect of hole configurations on film cooling performance[J]. Numerical Heat Transfer, Part A: Applications, 2019, 75(11): 725-738. [24] GRÄF L, KLEISER L. Film cooling using antikidney vortex pairs: effect of blowing conditions and yaw angle on cooling and losses[J]. Journal of Turbomachinery, 2014, 136(1): 011008. doi: 10.1115/1.4024648 [25] 邵绪强, 刘艺林, 杨艳, 等. 流体的旋涡特征提取方法综述[J]. 图学学报, 2020, 41(5): 687-701. SHAO Xuqiang, LIU Yilin, YANG Yan, et al. A review of vortex feature extraction methods for fluid[J]. Journal of Graphics, 2020, 41(5): 687-701. (in ChineseSHAO Xuqiang, LIU Yilin, YANG Yan, et al. A review of vortex feature extraction methods for fluid[J]. Journal of Graphics, 2020, 41(5): 687-701. (in Chinese) [26] PULLAN G, DENTON J, CURTIS E. Improving the performance of a turbine with low aspect ratio stators by aft-loading[J]. Journal of Turbomachinery, 2006, 128(3): 492-499. [27] YAO Xin, PEI Yang, GE Y, et al. Numerical study on damage characteristics of composite propeller under blast impact load[M]//2023 Asia-Pacific International Symposium on Aerospace Technology (APISAT 2023) Proceedings. Singapore: Springer Nature Singapore, 2024: 1781-1792. [28] 航空工业部科学技术委员会. 应力集中系数手册[M]. 北京: 高等教育出版社, 1990. [29] 李昊燃, 陈健. 航空发动机涡轮部件蠕变失效风险分析[J]. 机械设计与制造, 2022(9): 111-115, 120. LI Haoran, CHEN Jian. Creep failure risk analysis of aircraft engine turbine components[J]. Machinery Design & Manufacture, 2022(9): 111-115, 120. (in Chinese doi: 10.3969/j.issn.1001-3997.2022.09.023LI Haoran, CHEN Jian. Creep failure risk analysis of aircraft engine turbine components[J]. Machinery Design & Manufacture, 2022(9): 111-115, 120. (in Chinese) doi: 10.3969/j.issn.1001-3997.2022.09.023 -
