Flow characteristics of leading edge erosion subsonic airfoil under low Reynolds number condition
-
摘要:
以某涡扇发动机风扇叶片亚声叶型为研究对象，参考美国标准大气推广委员会（COESA）的大气模型，对原始叶型和两种前缘侵蚀叶型在5个大气高度下进行数值模拟计算，探究在高空低雷诺数环境下前缘侵蚀对亚声叶栅流动特性的影响。结果表明：0°攻角下低雷诺数条件削弱了气流在前缘处对前缘形貌的敏感程度，使得3种叶型前缘处压力分布、吸力面边界层的流动分离与转捩、尾缘分离程度均趋于一致，最终表现为由前缘侵蚀引起的总压损失增大量随着雷诺数降低而减小，3种叶型的总压损失系数和压比趋于一致。而在4°攻角下，前缘侵蚀在低雷诺数下可以促进转捩的发生，减小尾缘分离程度，进而使得总压损失小于0°攻角的情况，在进口马赫数为0.6时降低了23.6%，在进口马赫数为0.8时则降低了41.2%。
Abstract:Taking the subsonic airfoil of a turbofan engine fan blade as the research object, numerical simulation of the original airfoil and two leading edge erosion airfoils at five atmospheric heights was carried out with reference to the Committee on Extension to the Standard Atmosphere (COESA) standard atmospheric model, so as to explore the influence of leading edge erosion on the flow characteristics of subsonic cascade in high altitude and low Reynolds number environment. The results showed that at 0° angle of attack, the low Reynolds number condition weakened the sensitivity of the airflow to the leading edge morphology, so that the pressure distribution at the leading edge, the flow separation and transition of the boundary layer on the suction surface, and the separation degree of the trailing edge of the three airfoils tended to be consistent. Finally, the increase of total pressure loss caused by the leading edge erosion became smaller with the decrease of Reynolds number, and the total pressure loss coefficient and pressure ratio of the three airfoils tended to be consistent. At the angle of attack of 4°, the leading edge erosion can promote the occurrence of transition at low Reynolds number and reduce the degree of trailing edge separation, so that the total pressure loss was less than 0° angle of attack; when the inlet Mach number was 0.6, it reduced by 23.6%, and when 0.8, it reduced by 41.2%.
-
Key words:
- low Reynolds number /
- subsonic cascade /
- leading edge erosion /
- boundary layer /
- flow separation /
- transition
-
图 1 原始叶型和两种侵蚀叶型示意图
Figure 1. Schematic diagram of the original airfoil and two eroded airfoils

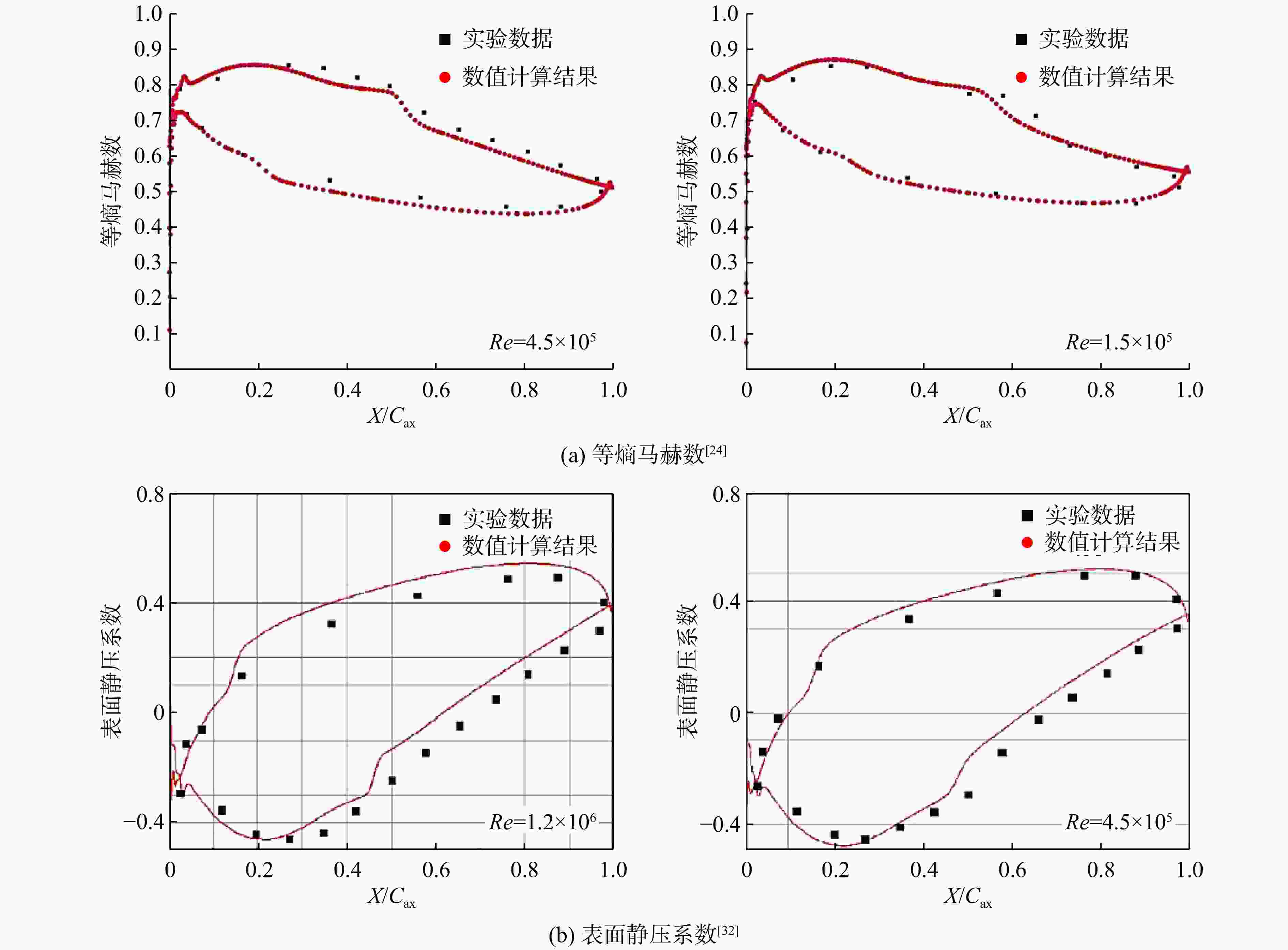

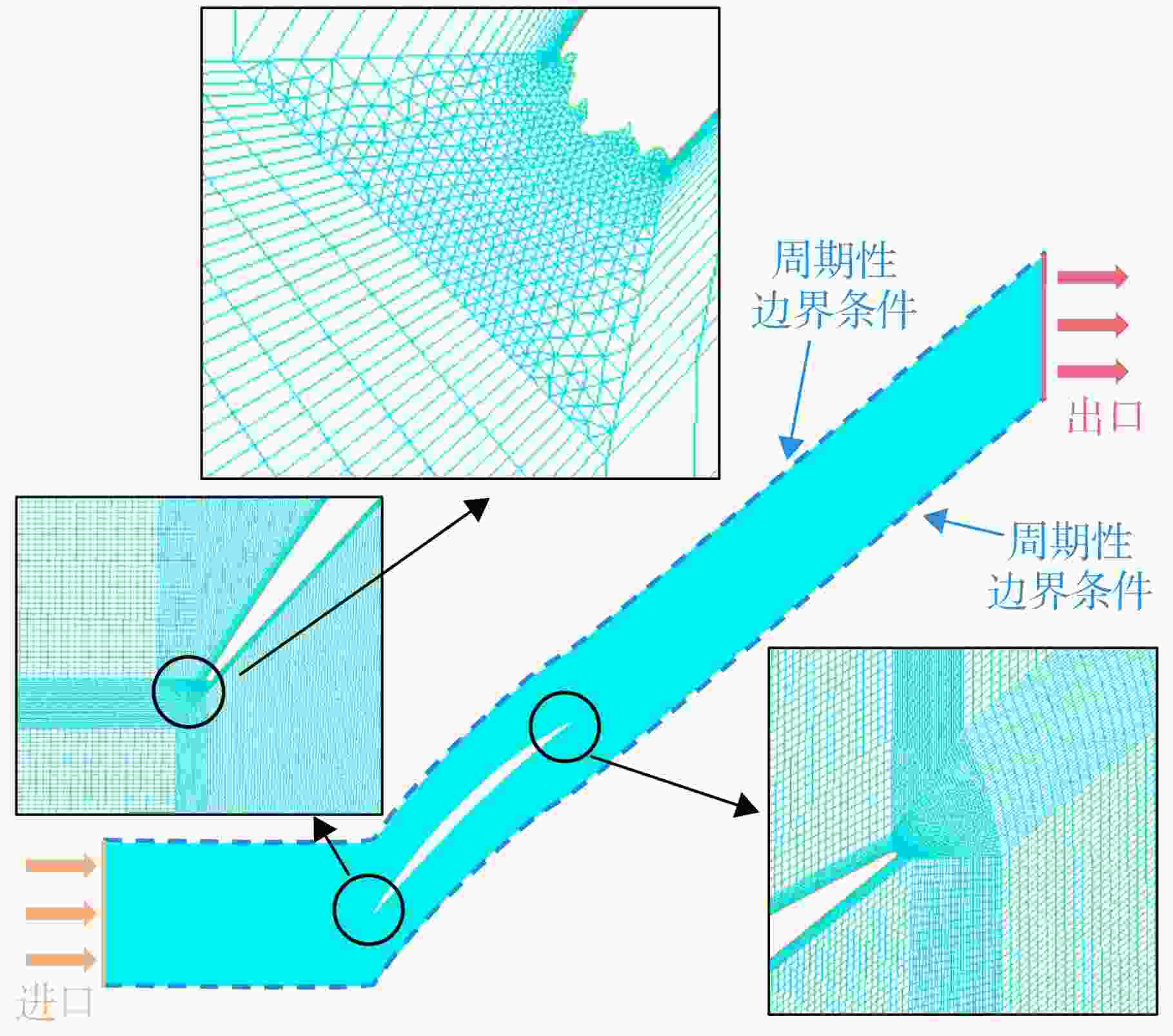

图 3 数值模拟结果和实验数据对比
Figure 3. Comparison of numerical simulation results with experimental data

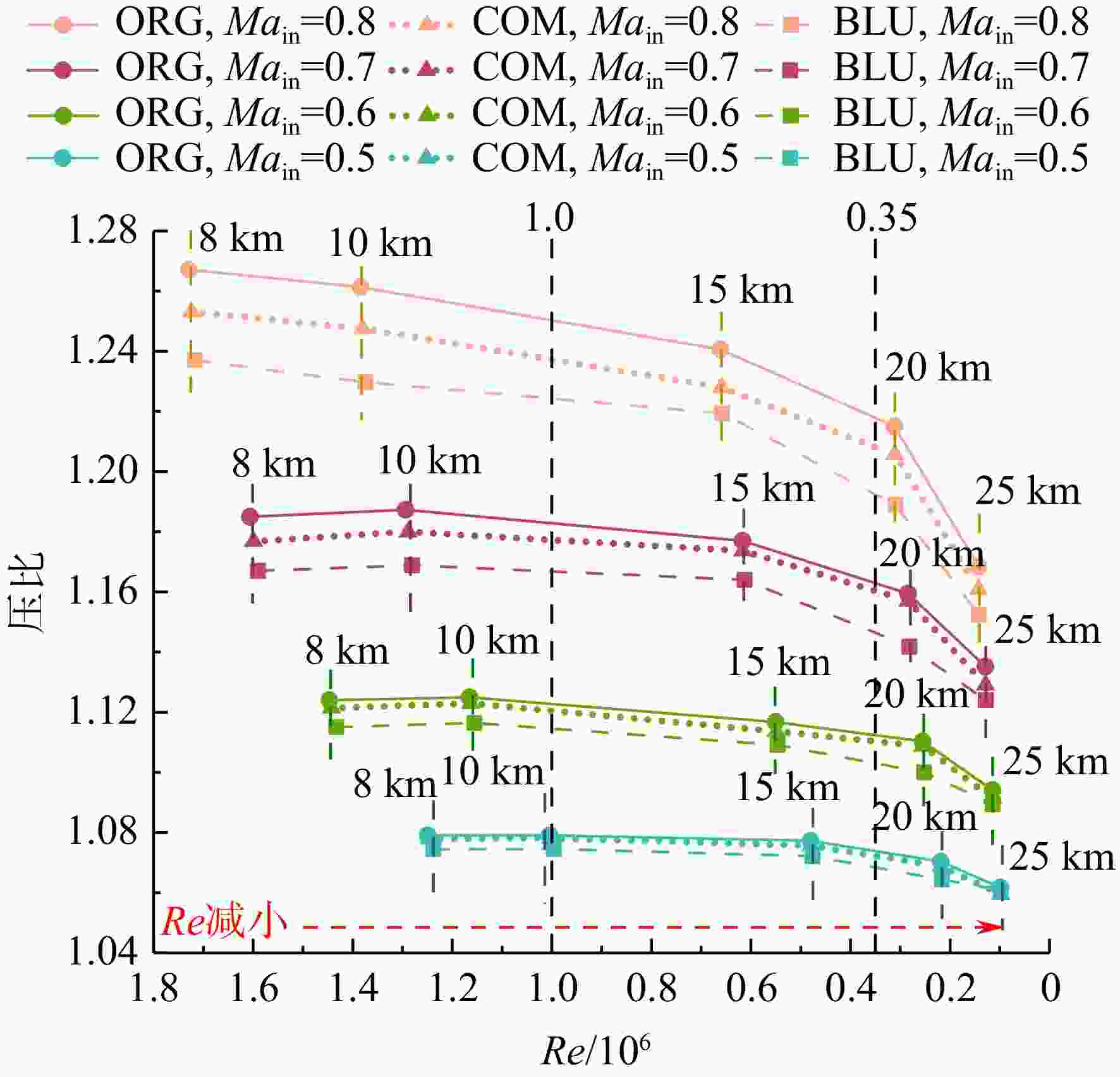

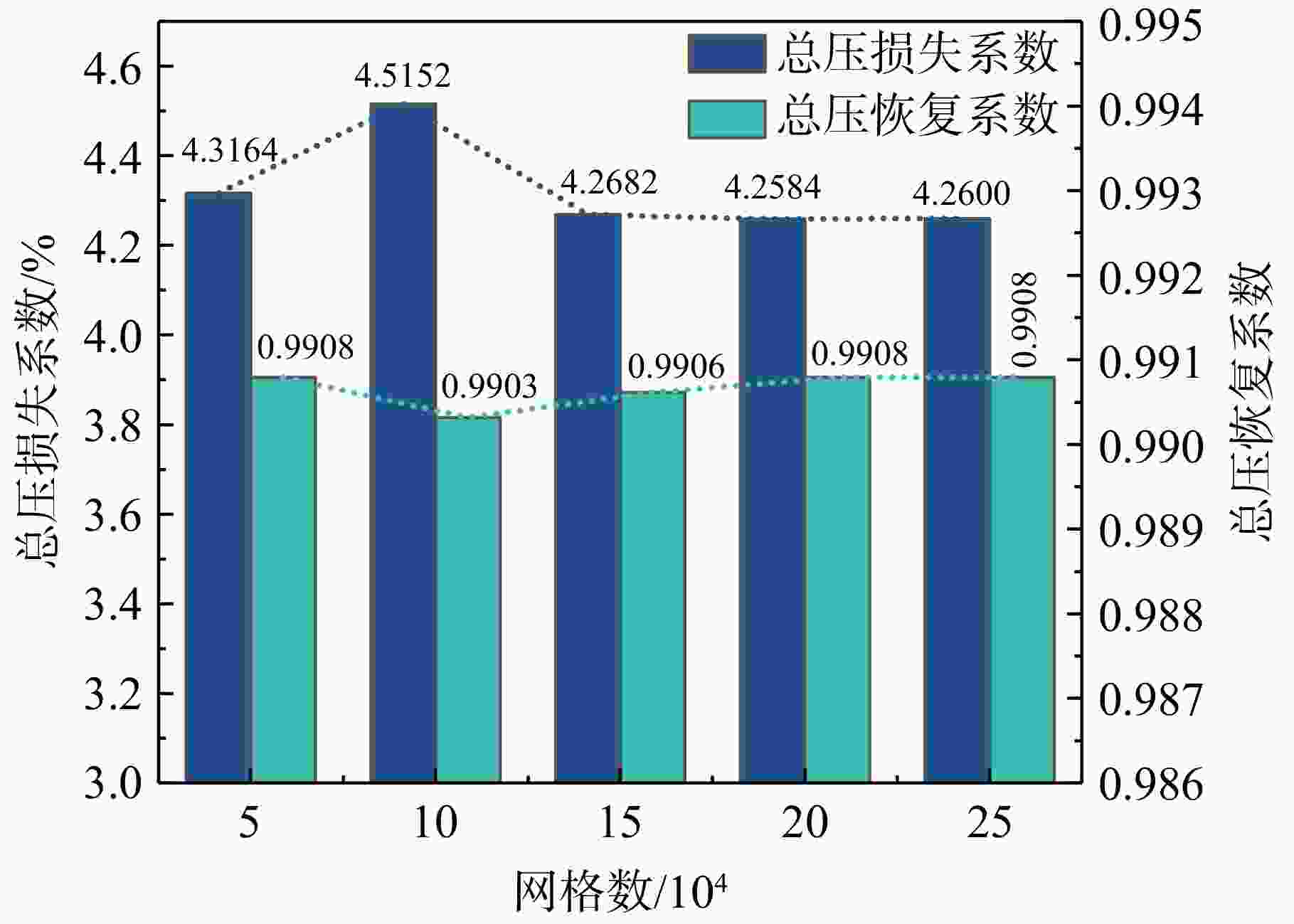

图 5 3种叶型在不同雷诺数下的压比
Figure 5. Pressure ratios of three airfoils at different Reynolds numbers

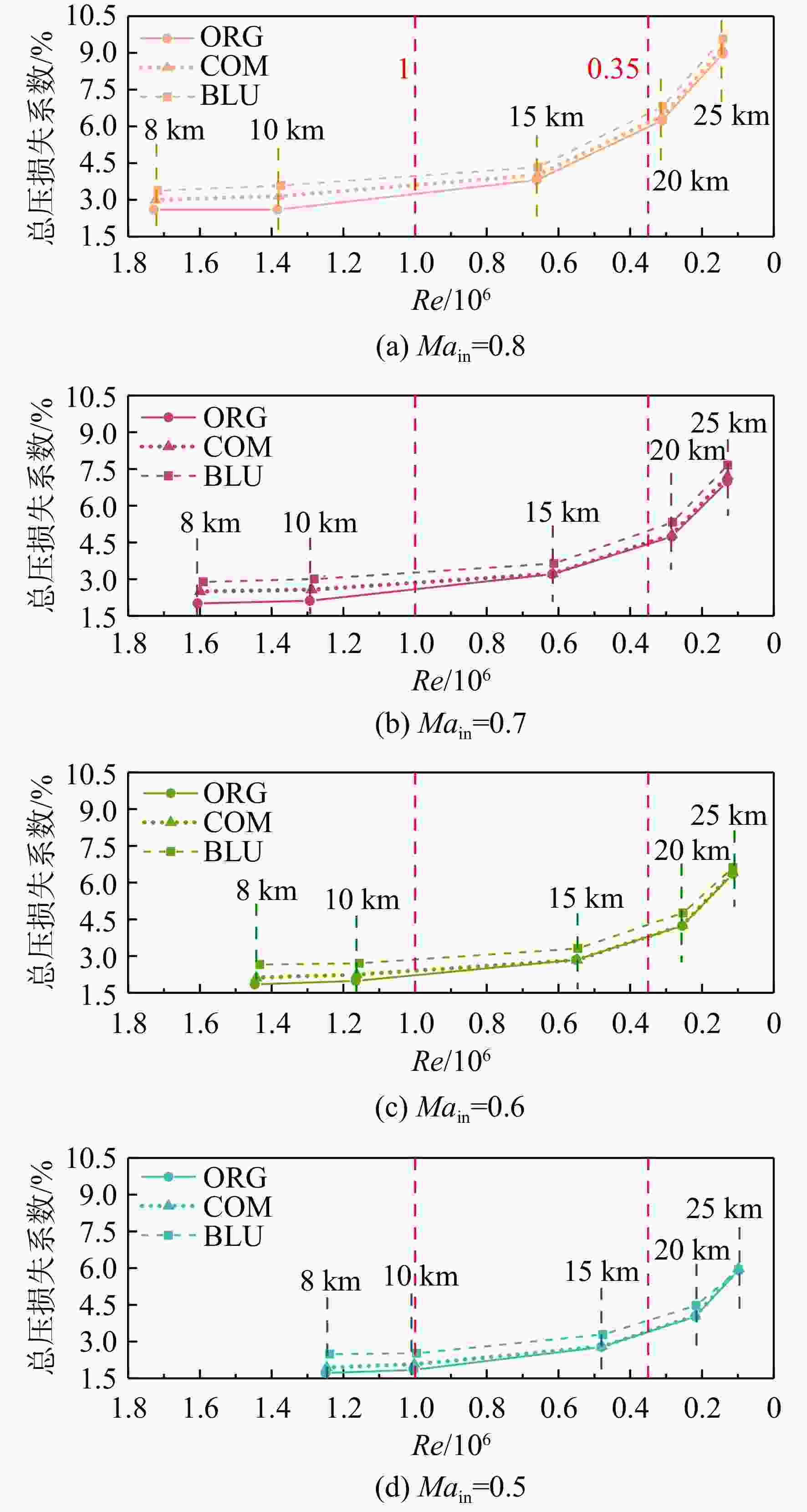

图 6 3种叶型在不同雷诺数下的总压损失系数
Figure 6. Total pressure loss coefficients of three airfoils at different Reynolds numbers

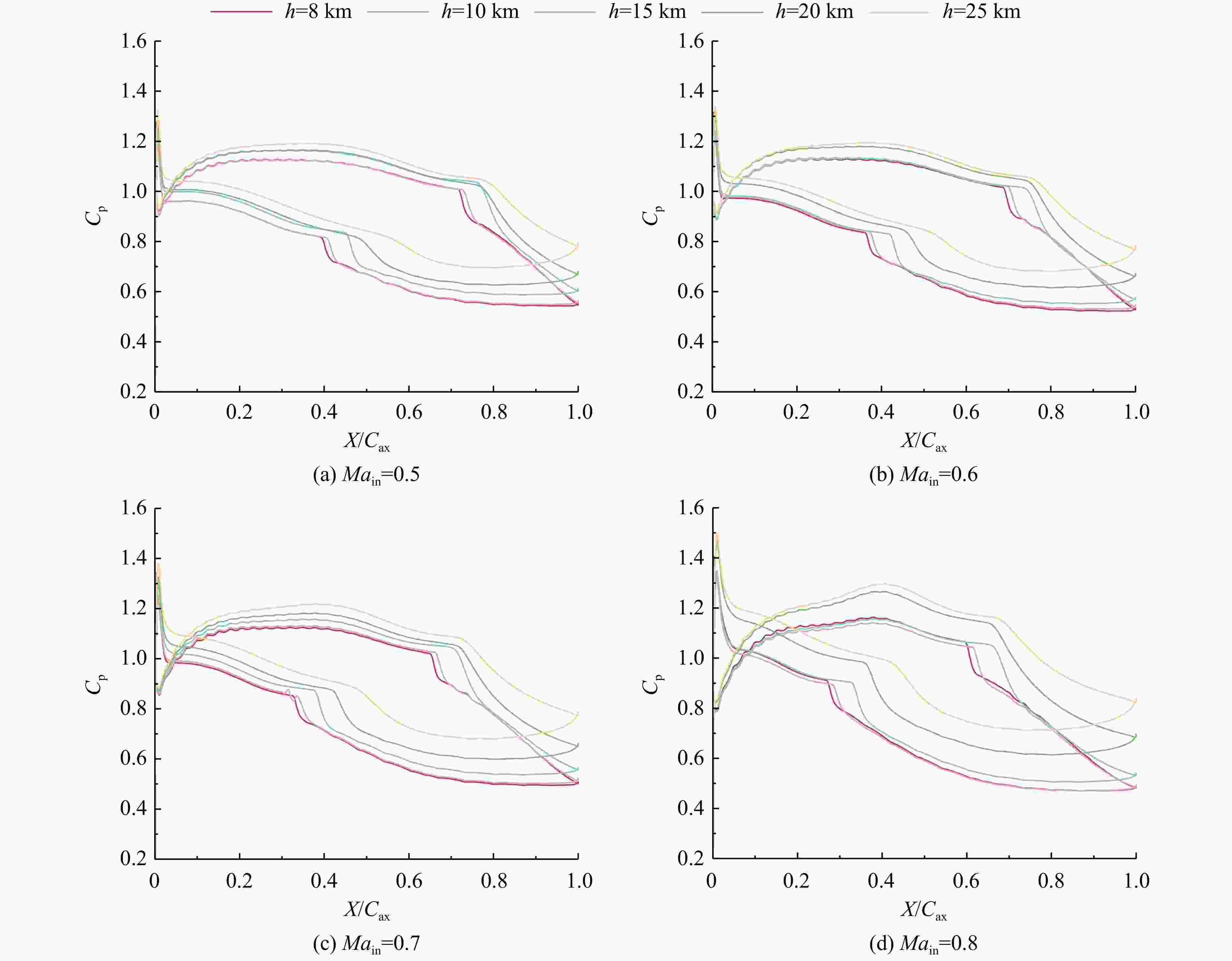

图 7 ORG叶型在不同高度的表面静压系数曲线
Figure 7. Static pressure coefficients of ORG airfoils at different altitudes

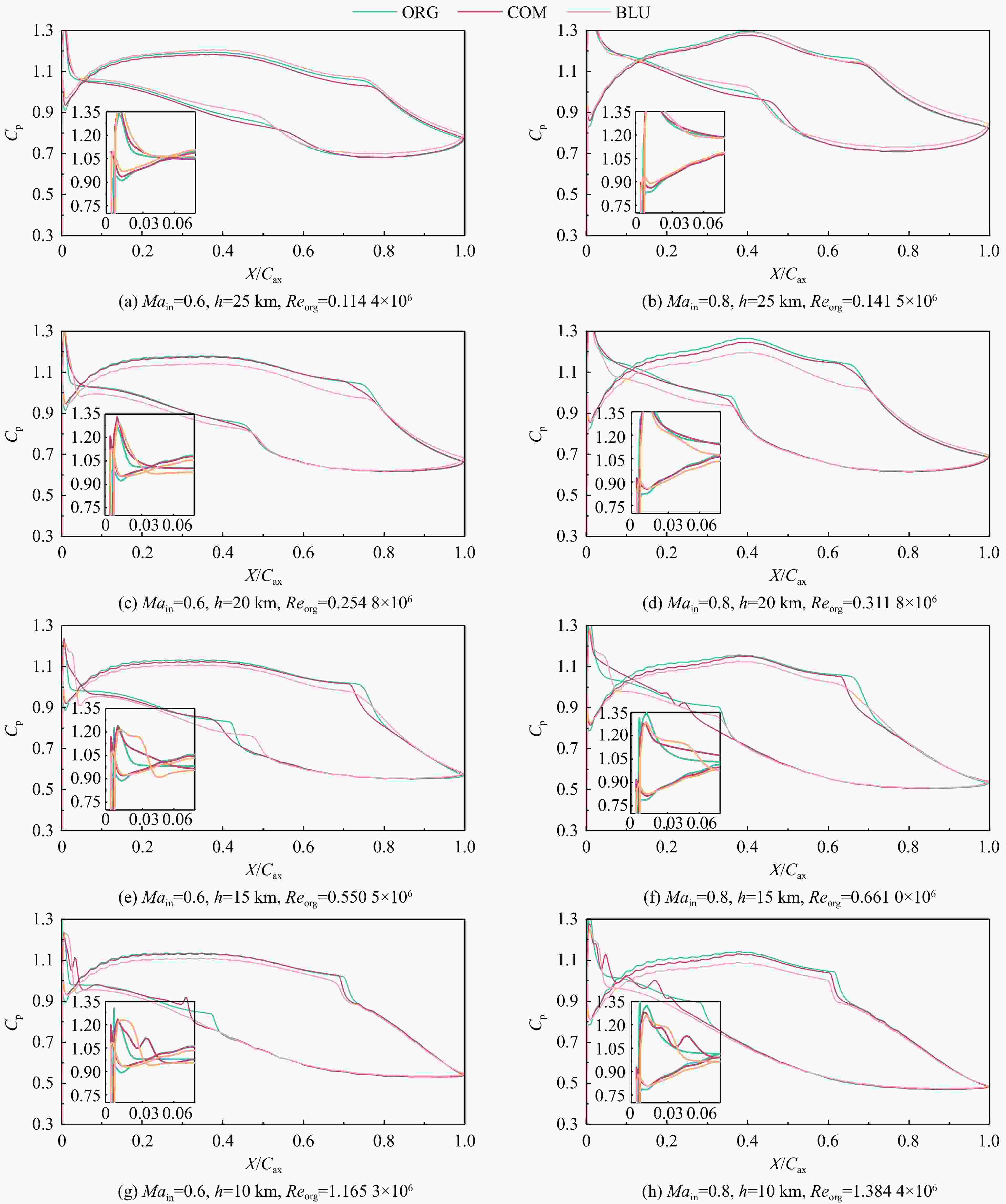

图 8 3种叶型在不同雷诺数下的表面静压系数
Figure 8. Static pressure coefficients of three airfoils at different Reynolds numbers

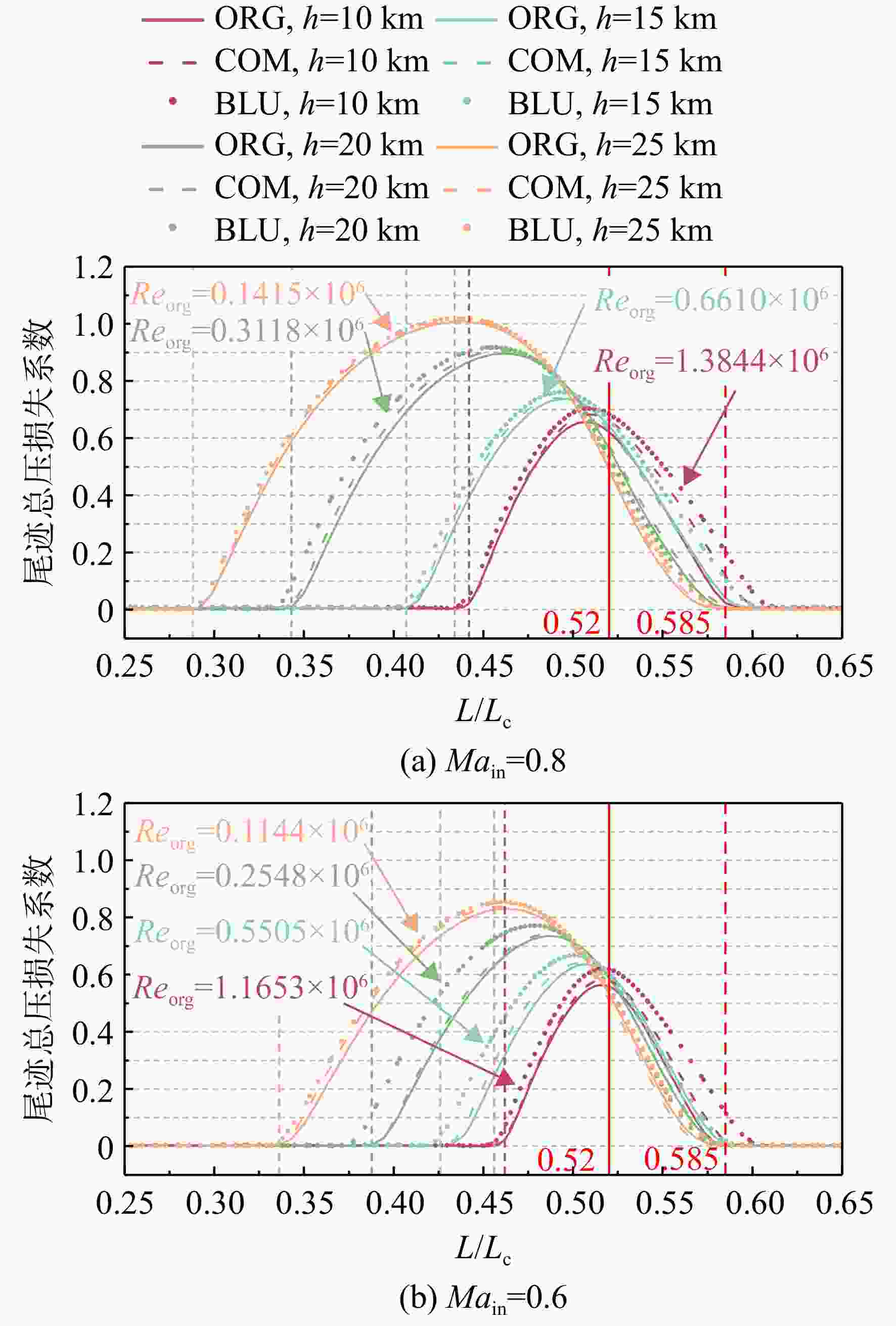

图 9 3种叶型在不同雷诺数下的尾迹局部总压损失系数
Figure 9. Local total pressure loss coefficient of the wake of three airfoils at different Reynolds numbers

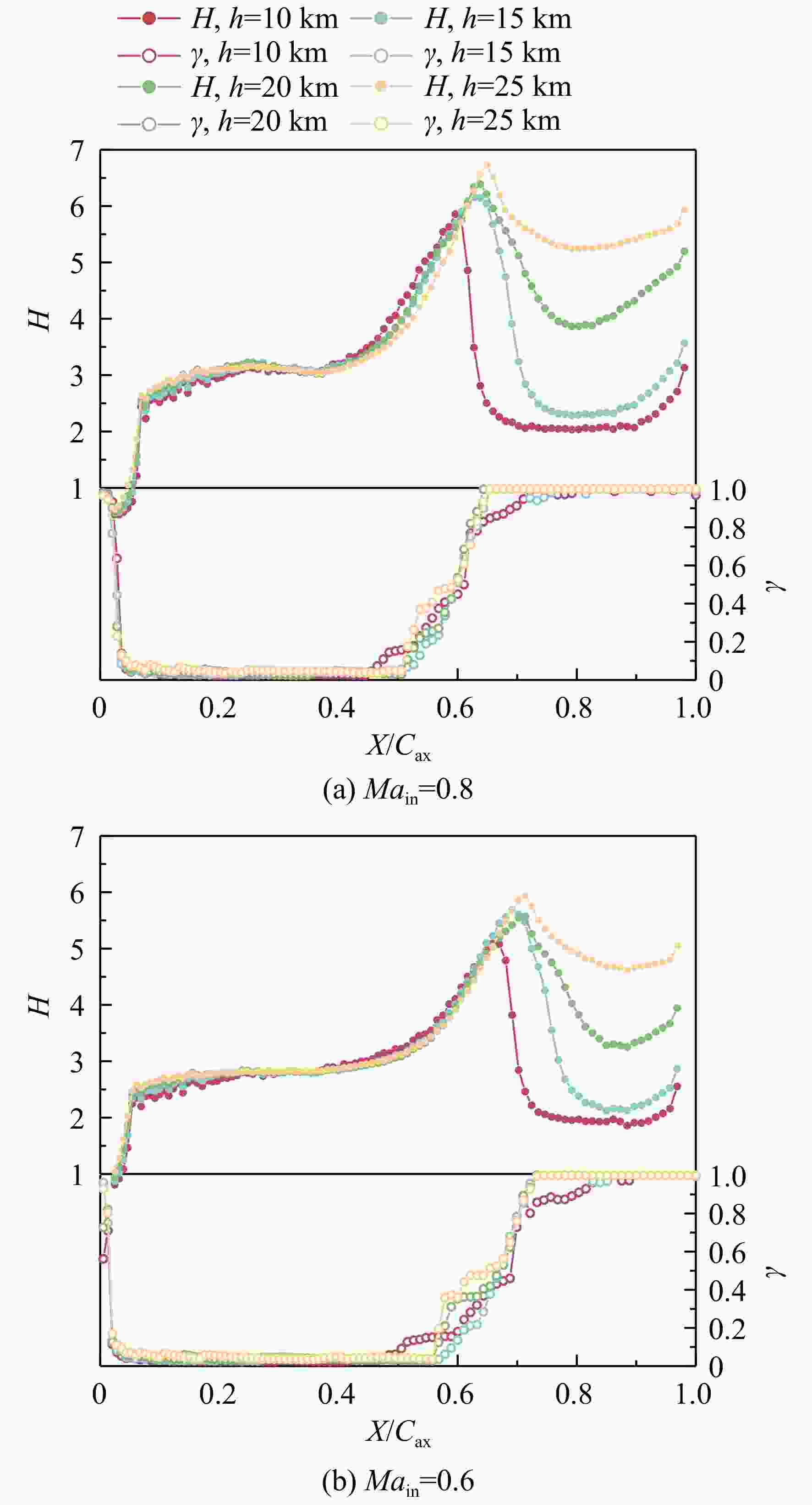

图 10 ORG叶型在不同高度的形状因子及间歇因子曲线
Figure 10. Shape factor and intermittency factor curves of the ORG profile at different altitudes

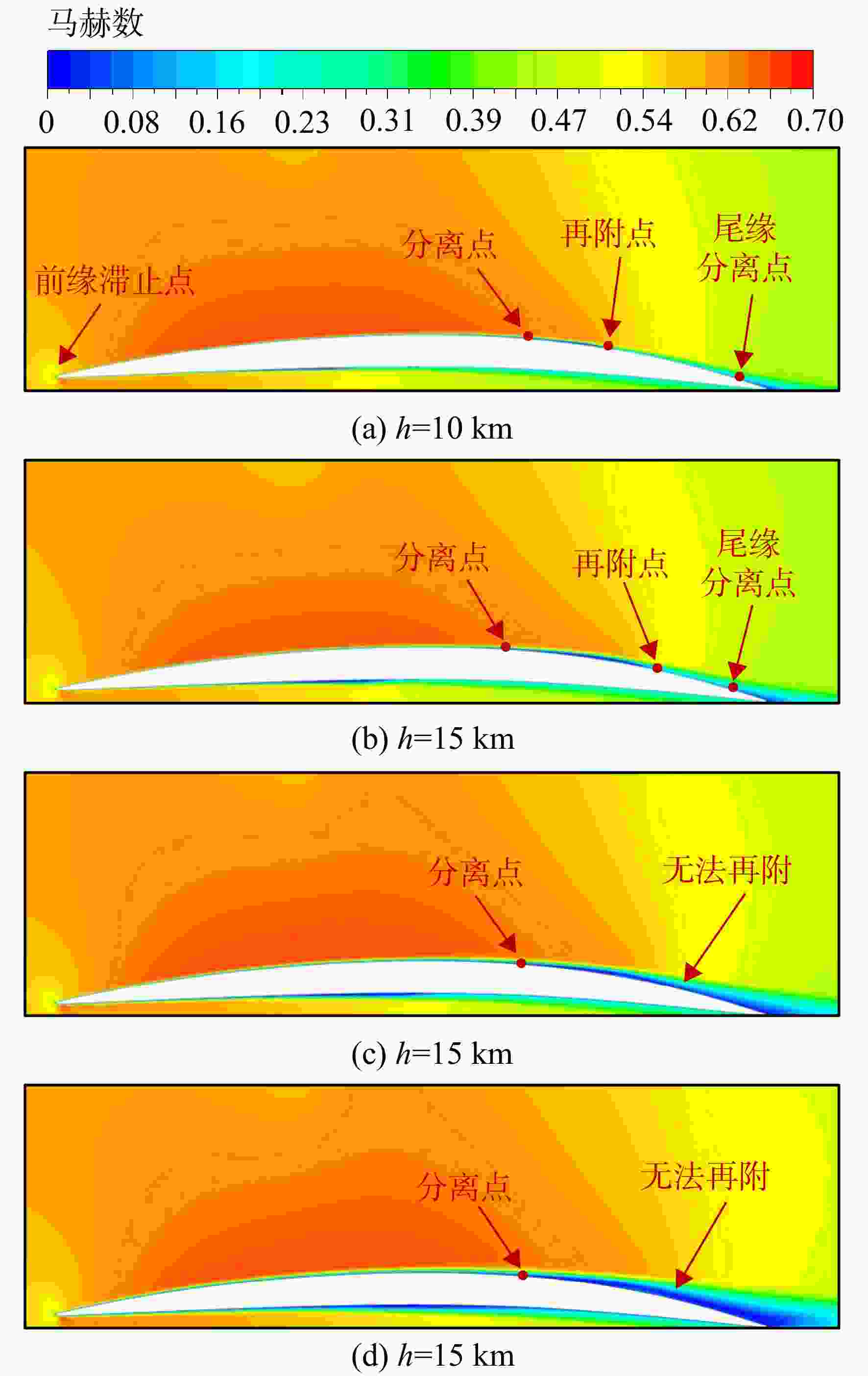

图 11 Main =0.6时ORG叶型吸力面马赫数云图
Figure 11. Mach number contours of suction side of ORG airfoil at Main =0.6

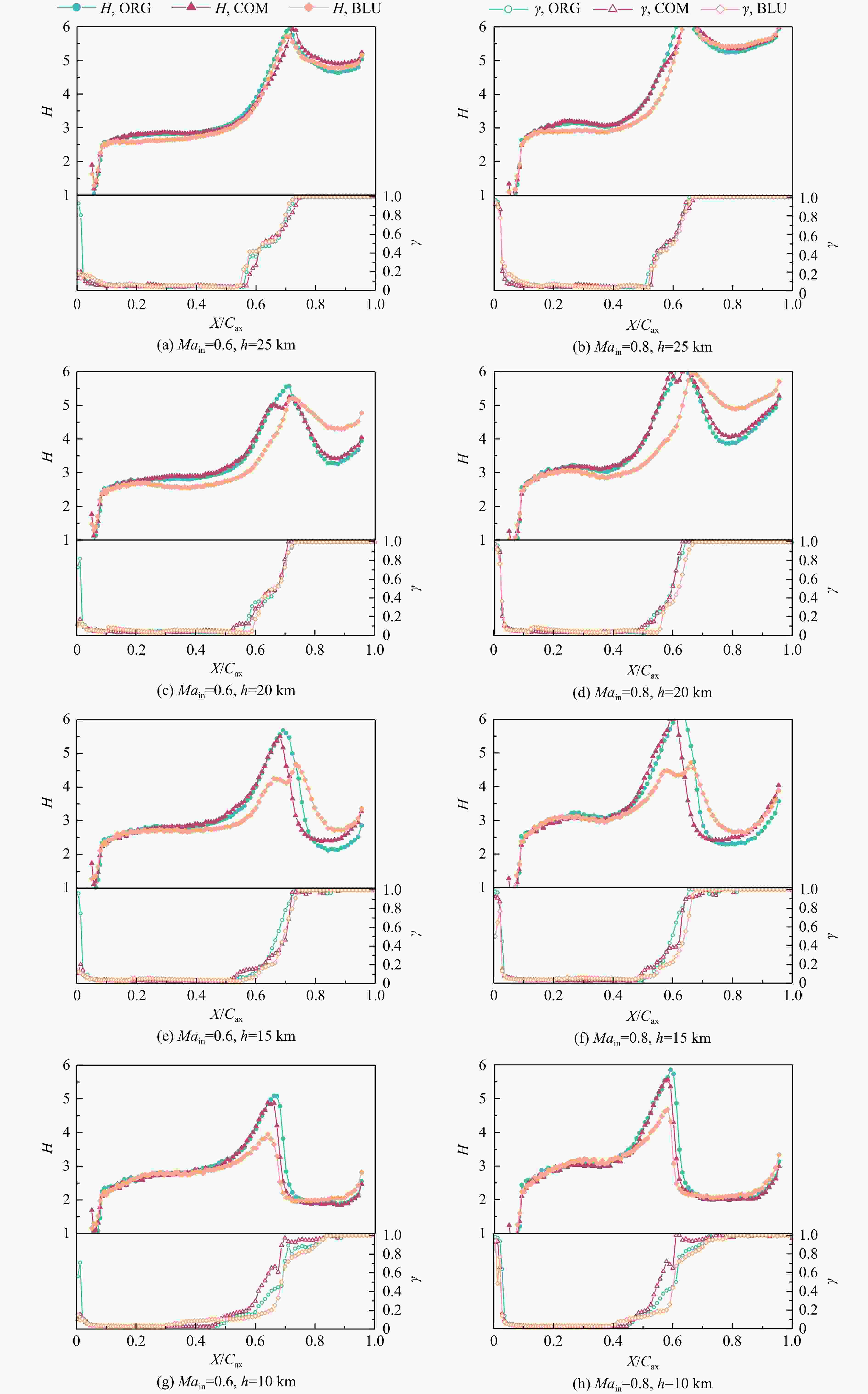

图 12 3种叶型在不同高度的形状因子及法向平均间歇因子
Figure 12. Shape factor and normal mean intermittency factor of the three airfoils at different altitudes

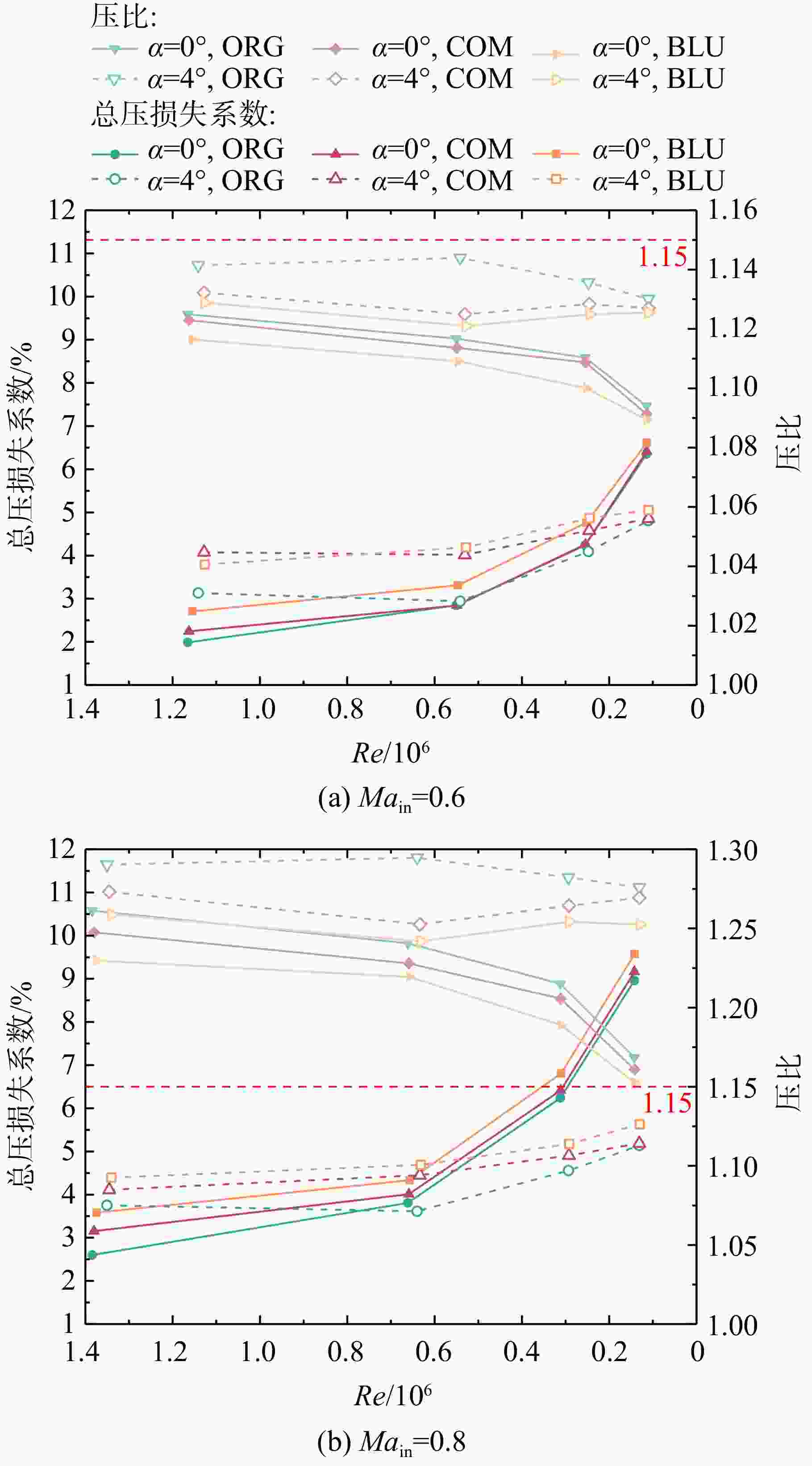

图 13 α=0°，4°攻角下3种叶型在不同雷诺数下的总压损失系数和压比对比
Figure 13. Comparison of total pressure loss coefficients and static pressure ratio of three airfoils at different Reynolds numbers at α=0°，4°

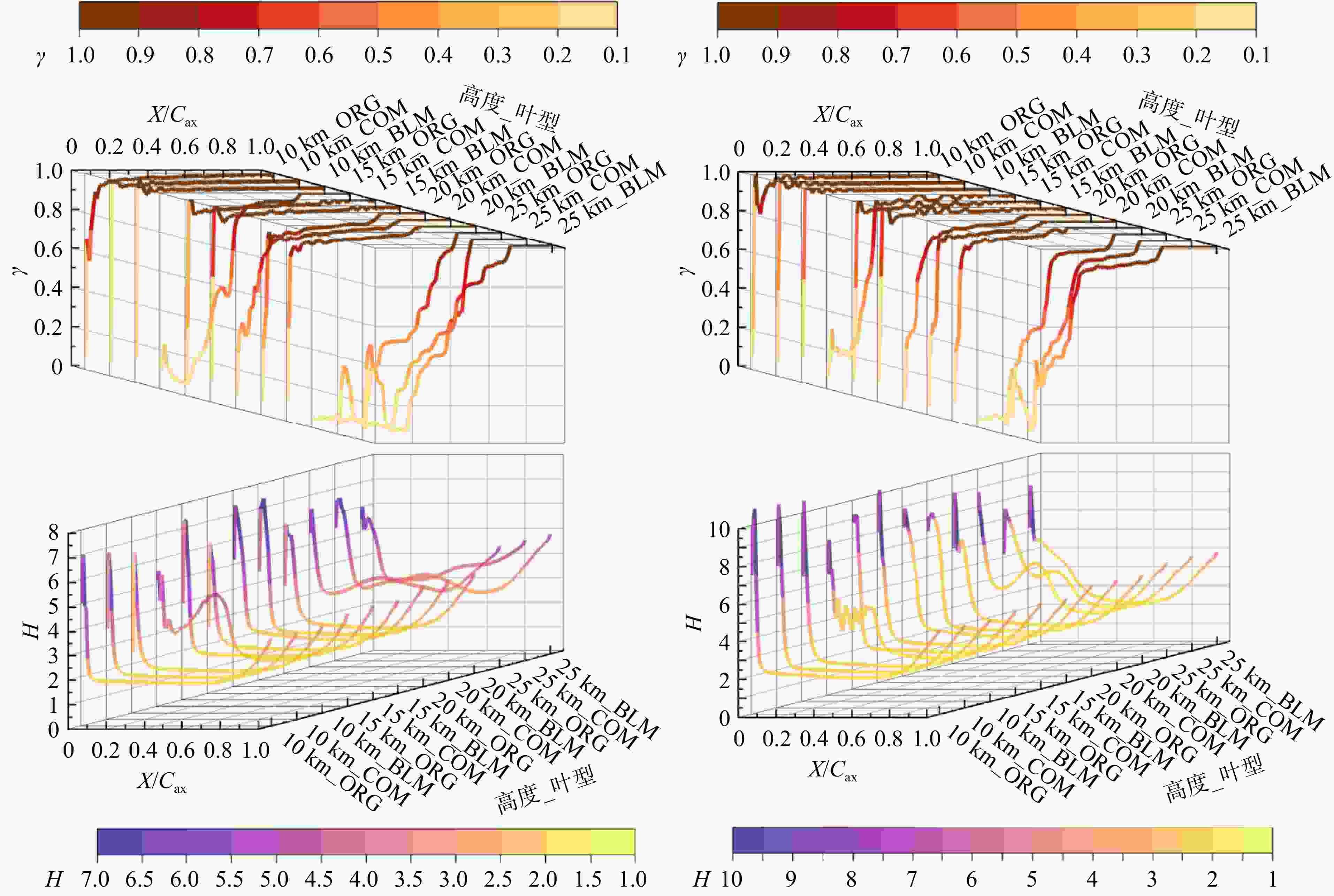

图 14 α=4°下3种叶型在不同高度的形状因子和法向平均间歇因子对比
Figure 14. Comparison of shape factor and intermittency factor of three airfoils at different altitudes at α=4°

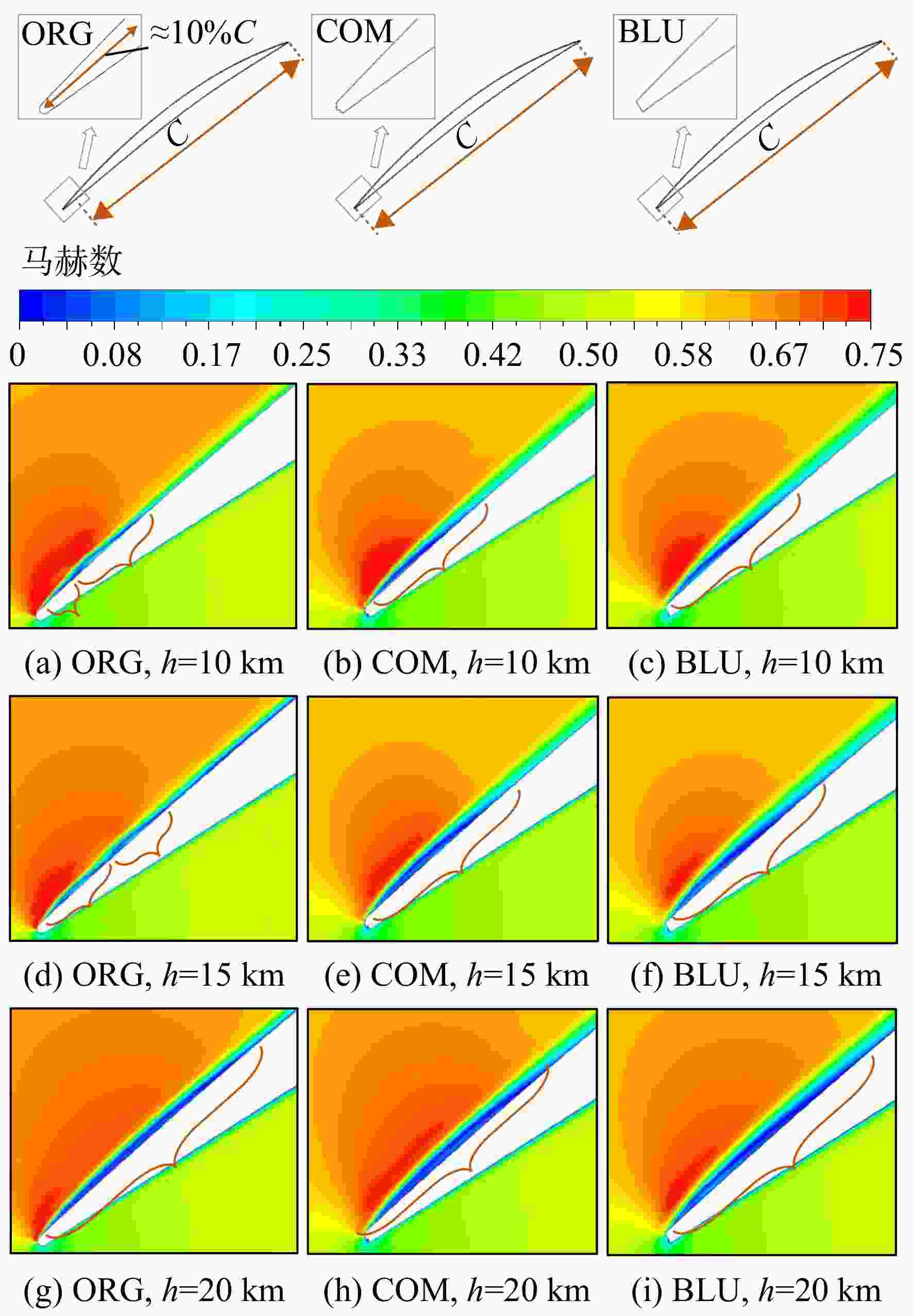

图 15 Main=0.6，α=4°时3种叶型在不同高度下的前缘分离泡云图
Figure 15. Contours of leading edge separation bubble of three airfoils at different altitudes atMain=0.6，α=4°

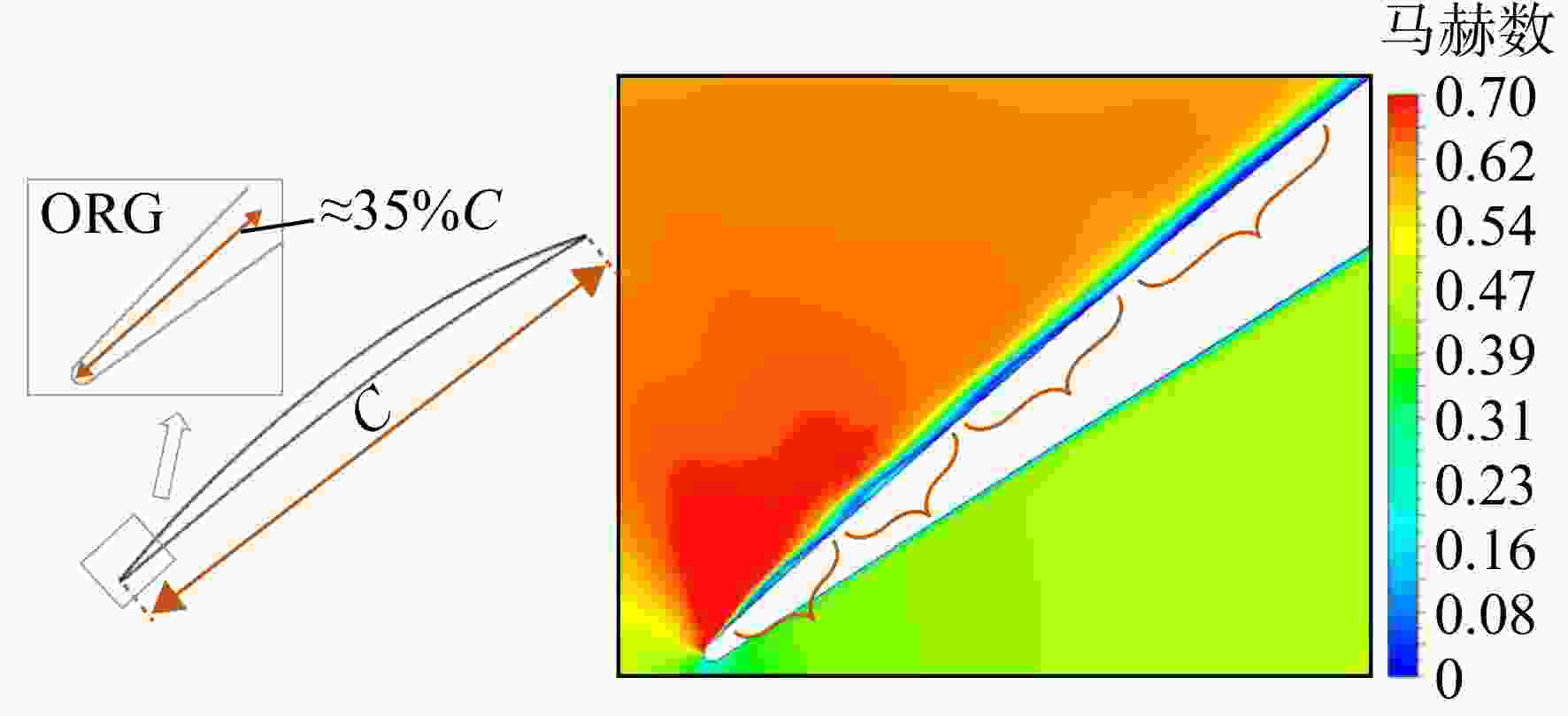

图 16 h=15 km，Main =0.8，α=4°时ORG叶型前缘分离泡云图
Figure 16. Contour of leading edge separation bubbles of the ORG airfoil at h=15 km，Main =0.8，α=4°
表 1 原始叶型相关参数
Table 1. Parameters related to the original airfoil
参数 数值 进口马赫数 <0.9 弦长/mm 257.67 安装角/（°） 45.97 进口几何角/（°） 37.4 出口几何角/（°） 31.89 栅距/mm 132.66
下载: 导出CSV
表 2 5个高度层的大气数据
Table 2. Atmospheric data of 5 altitude layers
高度/
km大气模型参数 参考压力/Pa 温度/K 密度/（kg/m3） 声速/（m/s） 8 35600 236.15 0.5252 308.06 10 26436 223.15 0.4172 299.46 15 12045 216.65 0.1937 295.07 20 5475 216.65 0.088 295.07 25 2511 221.65 0.0395 298.46
下载: 导出CSV
-
