Study on influence of combustor length on lean premixed swirl flame combustion instability
-
摘要:

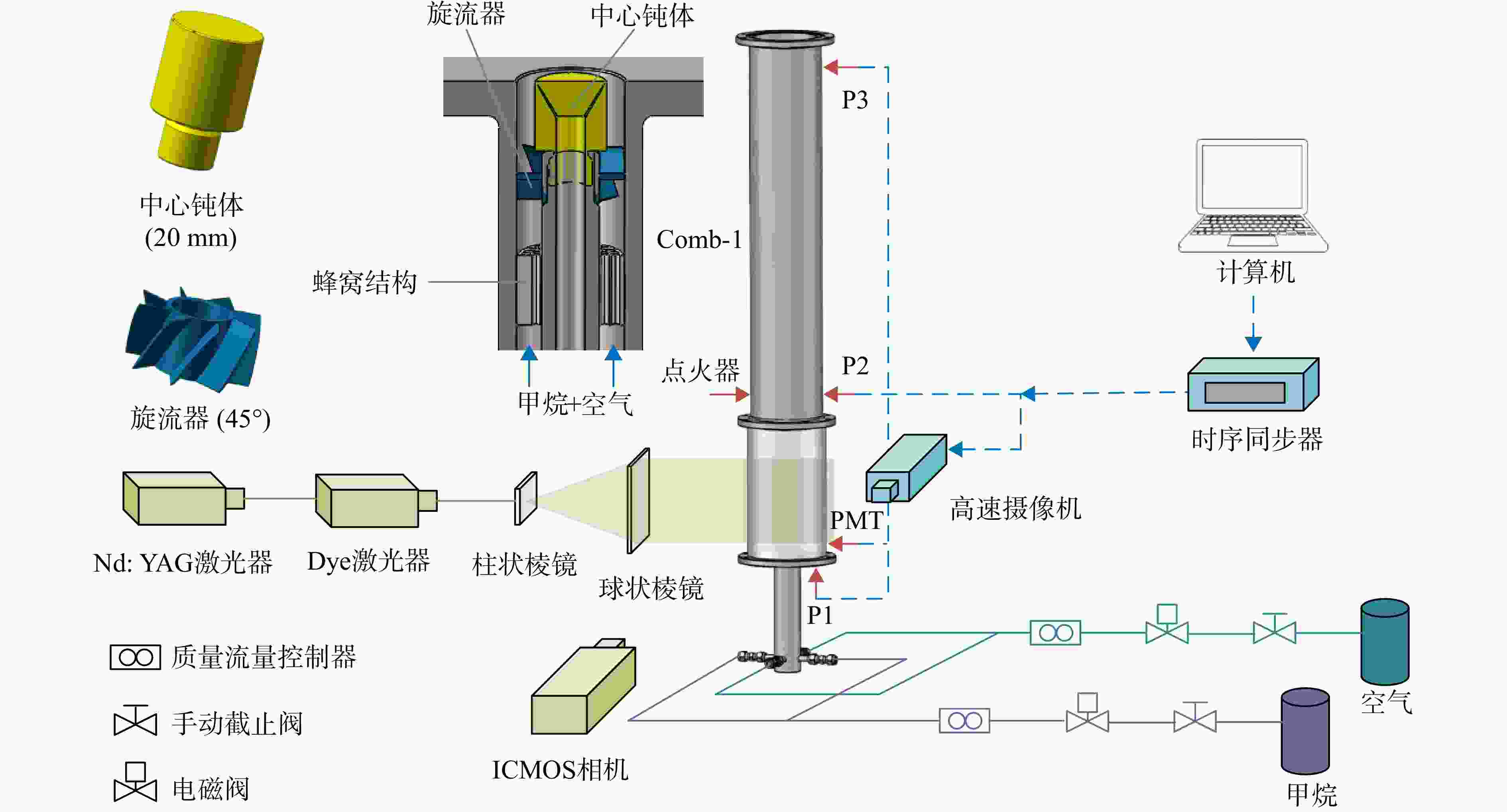

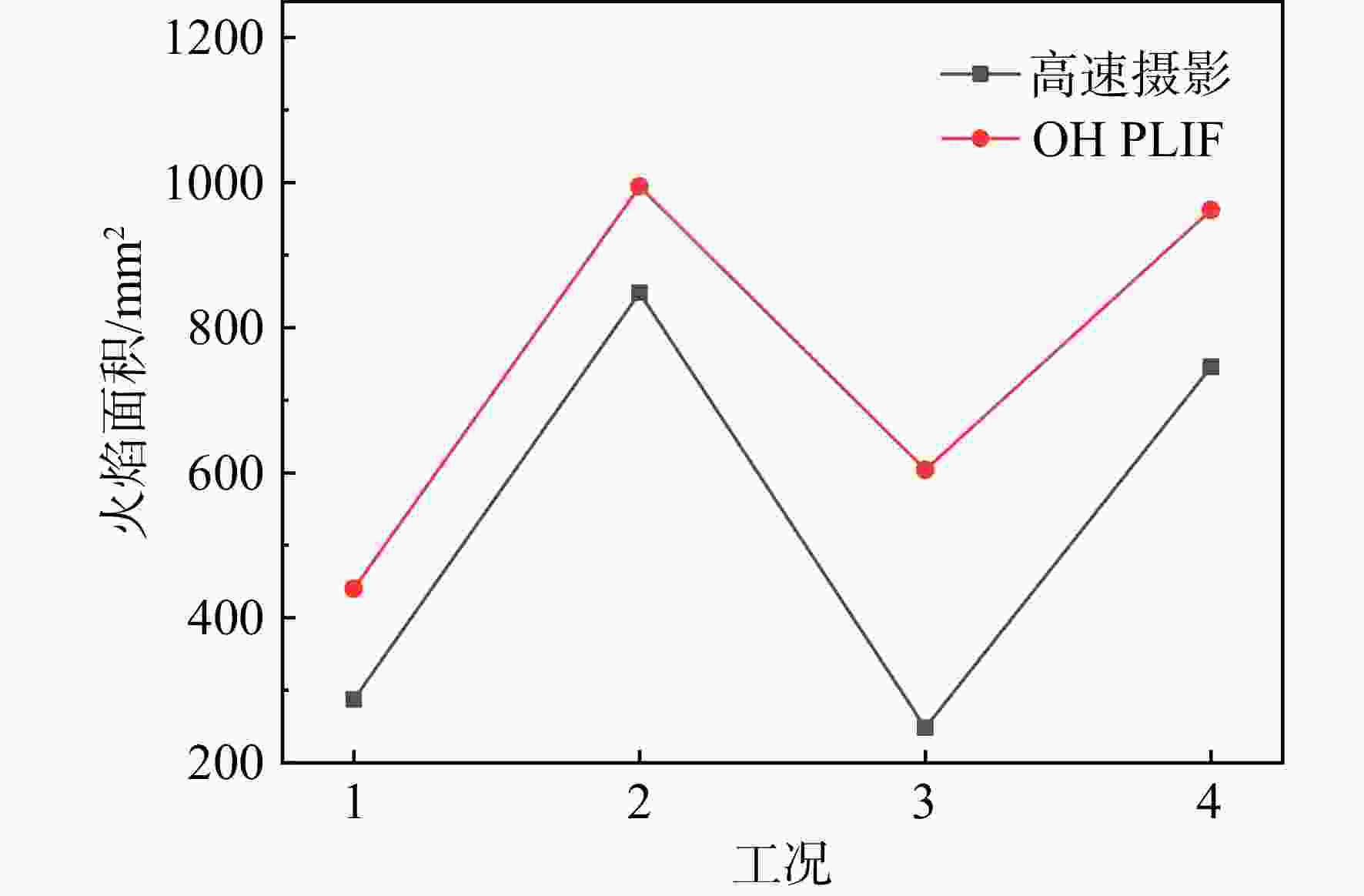

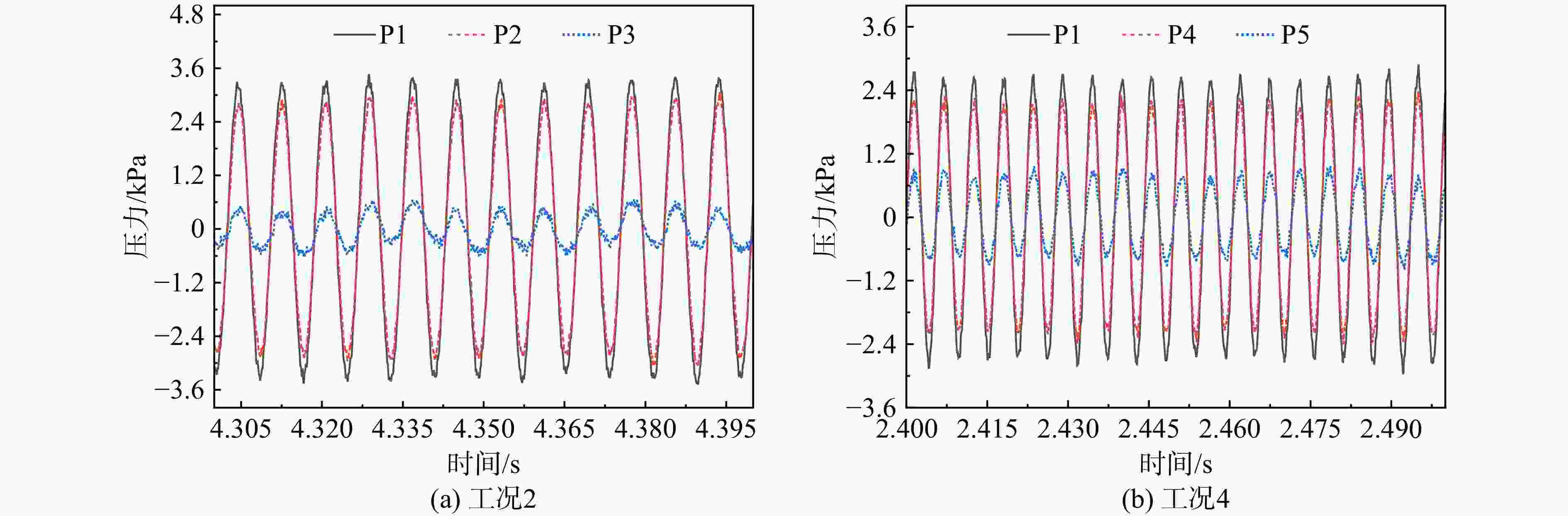

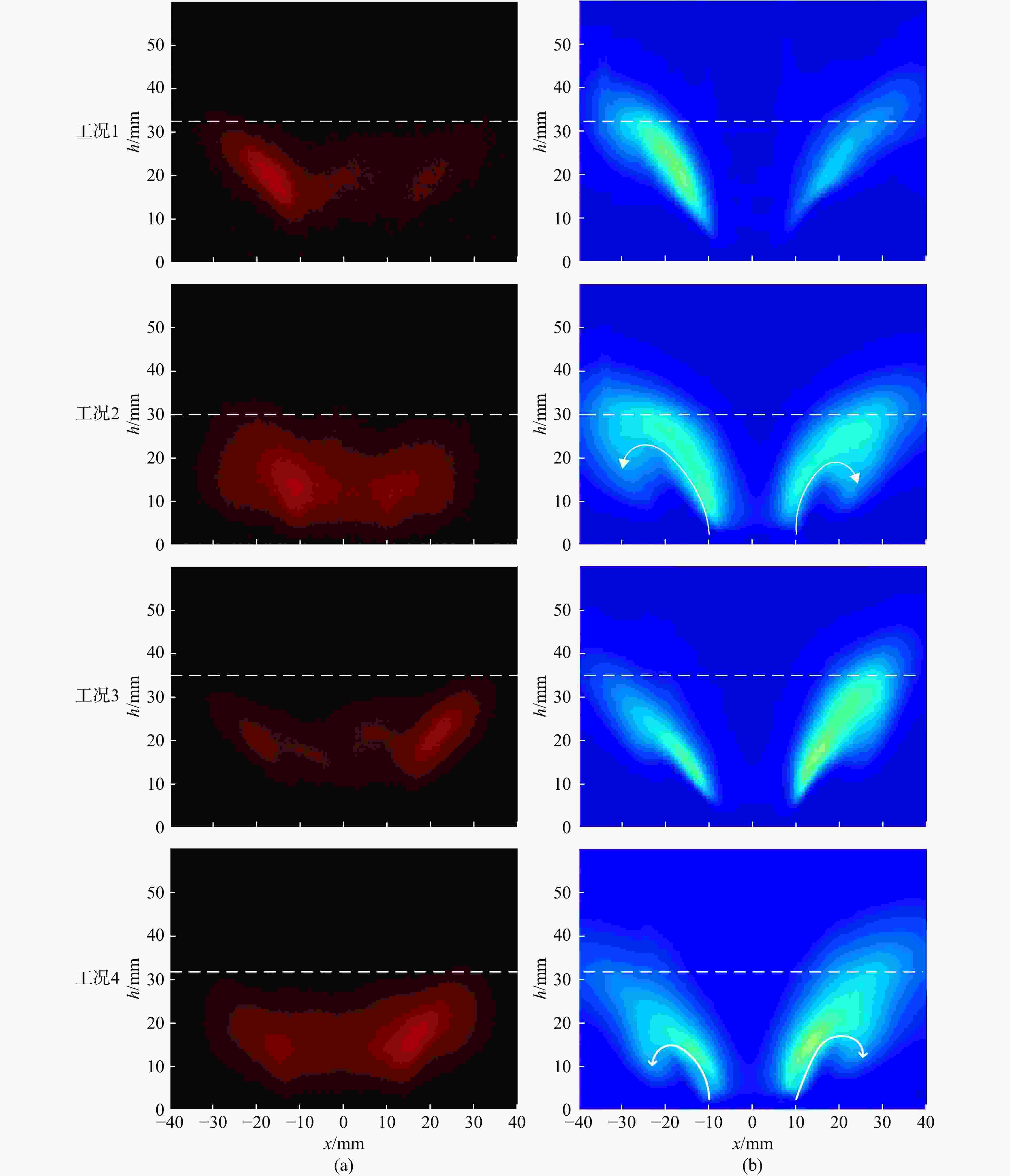

为研究燃烧室长度对旋流燃烧不稳定性的影响，基于燃气轮机模型燃烧室，在不同当量比下进行实验。采用高频压力传感器和光电倍增管同步测量燃烧室内压力振荡和CH*表征的释热振荡，采用高速摄影和激光诱导荧光技术捕捉了火焰结构。结果表明：燃烧室长度对火焰时均形态影响较小，稳定的火焰呈“V”型，不稳定的火焰趋向于“M”型，且“M”型火焰面积更大。不稳定燃烧的共振主频和压力振幅受燃烧室长度的影响，长度较短的燃烧室共振主频率更高，压力振幅更小，压力振荡和释热振荡相互耦合。不稳定的火焰两侧发生回火，外剪切层旋流会对火焰产生“拉扯”作用，进而导致其表面出现褶皱现象，最终呈“孤岛”分布。火焰整体释热强度与其形态存在关联，周期性的热声振荡导致火焰形态在“V”型和“M”型之间切换。
Abstract:To study the influence of combustor length on swirl combustion instability, experiments were conducted in a model combustor based on a gas turbine design under different equivalence ratios. High-frequency pressure sensors and photomultiplier tubes were used to simultaneously measure the pressure oscillations within the combustor and heat release oscillations characterized by CH*. High-speed photography and laser-induced fluorescence were employed to capture the flame structures. Results showed that the combustor length had a minor effect on the time-averaged shape of the flames; stable flames tended to form a “V” shape, while unstable flames tended towards an “M” shape, with the “M” shaped flames covering a larger area. The combustor length affected the main resonant frequency and pressure amplitude of unstable combustion. Shorter combustors had higher main resonant frequencies and lower pressure amplitudes, while pressure oscillations were coupled with and heat release oscillations. Unstable flames experience flashback on both sides, with swirls in the outer shear layers exerting a “pulling” effect on the flame, leading to surface wrinkling and ultimately forming “island” distributions. The overall heat release intensity was associated with the flame shape, and periodic thermo-acoustic oscillations caused the flame shape to switch between “V” and “M” forms.
-

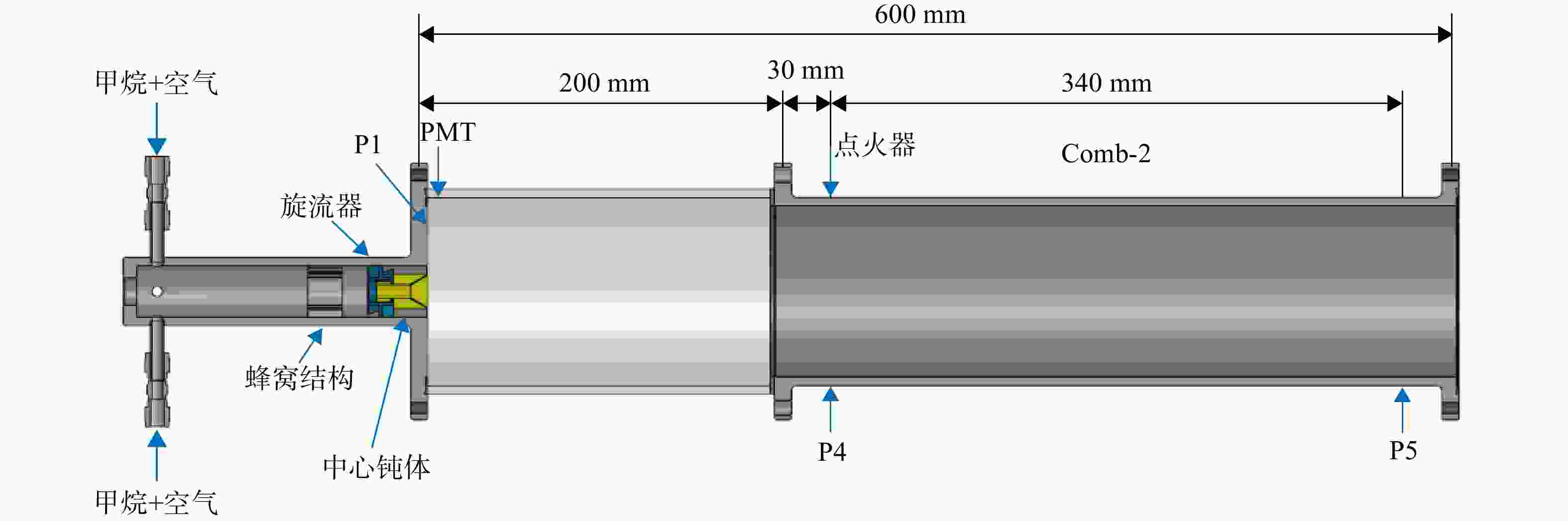

图 2 燃烧室截面图（Comb-2）
Figure 2. Cross-sectional diagram of the combustion chamber （Comb-2）
图 3 Comb-1在不同当量比下的实验结果
Figure 3. Experimental results of Comb-1 at different equivalence ratios

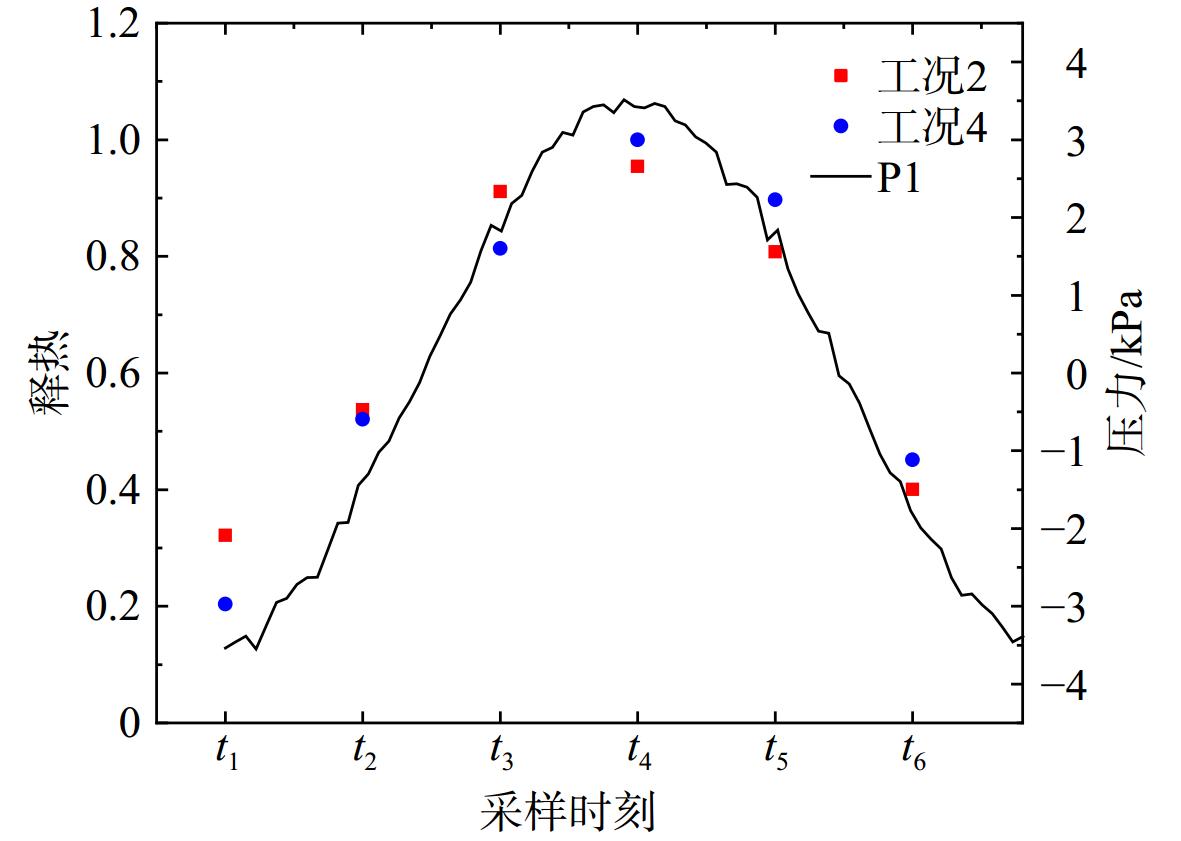

图 5 压力脉动与释热脉动关系图
Figure 5. Relationship between pressure fluctuations and heat release fluctuations

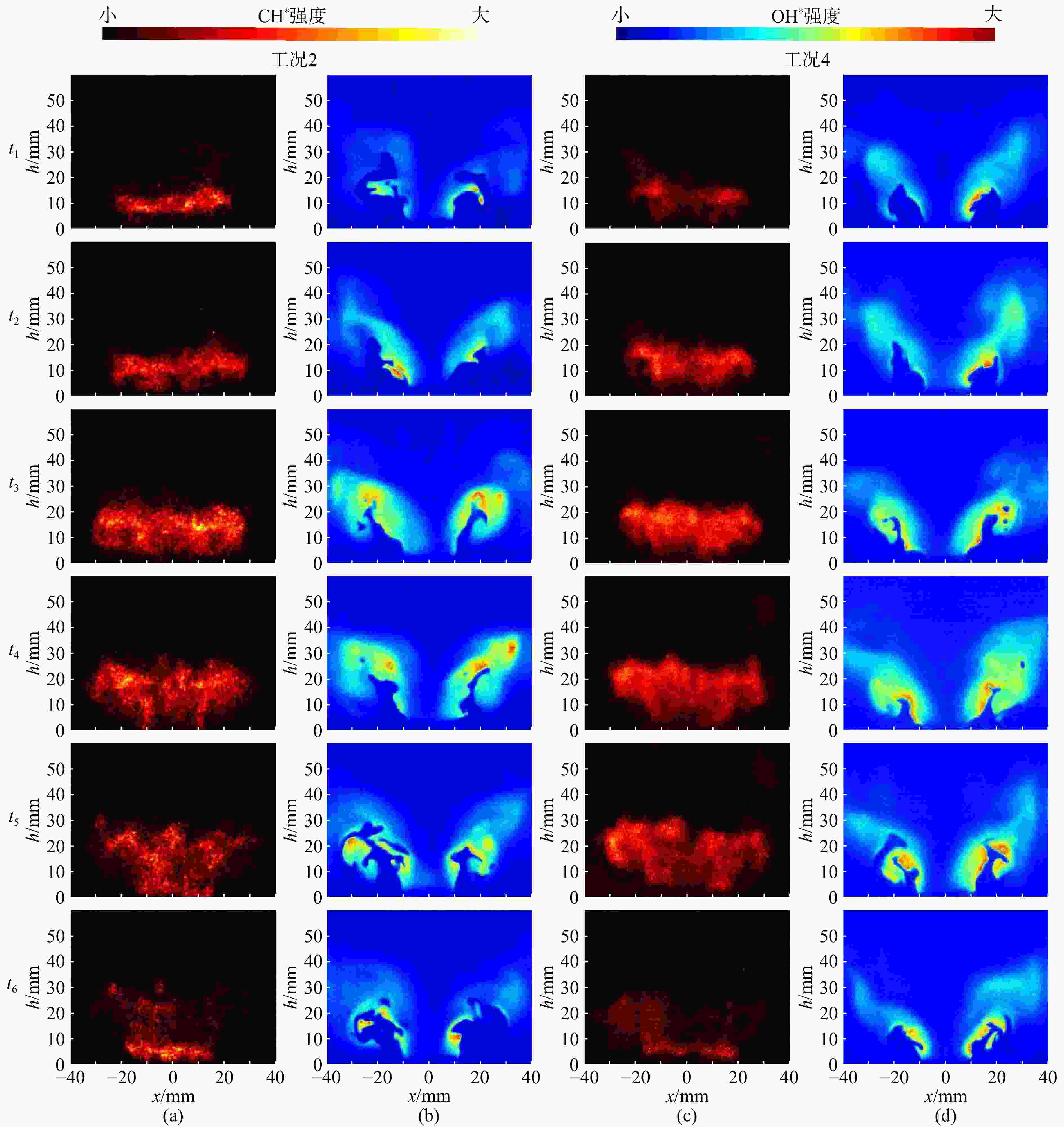

图 10 工况 2和工况 4火焰周期结构演变图
Figure 10. Evolution of flame cyclic structure for case 2 and case 4
表 1 旋流预混火焰实验工况
Table 1. Experimental conditions for swirling premixed flame
试验工况 燃烧室构型 甲烷流量/（L/min） 空气流量/（L/min） 当量比$\varphi $ 工况 1 Comb-1 4.03 60 0.639 工况2 Comb-1 5 60 0.794 工况3 Comb-2 4.03 60 0.639 工况4 Comb-2 5 60 0.794
下载: 导出CSV
-
[1] DAY M, TACHIBANA S, BELL J, et al. A combined computational and experimental characterization of lean premixed turbulent low swirl laboratory flames[J]. Combustion and Flame, 2012, 159(1): 275-290. doi: 10.1016/j.combustflame.2011.06.016 [2] 杨甫江, 郭志辉, 曾宇晖. 贫燃预混旋流火焰热声特性研究[J]. 航空动力学报, 2014, 29(12): 2854-2861. YANG Fujiang, GUO Zhihui, ZENG Yuhui. Study on thermoacoustic characteristic of lean premixed swirling flames[J]. Journal of Aerospace Power, 2014, 29(12): 2854-2861. (in ChineseYANG Fujiang, GUO Zhihui, ZENG Yuhui. Study on thermoacoustic characteristic of lean premixed swirling flames[J]. Journal of Aerospace Power, 2014, 29(12): 2854-2861. (in Chinese) [3] 于丹, 郭志辉, 杨甫江. 贫燃预混燃烧室中的分布式火焰传递函数分析[J]. 推进技术, 2016, 37(12): 2210-2218. YU Dan, GUO Zhihui, YANG Fujiang. Experimentally study on distribution of flame transfer function in a lean premixed combustor[J]. Journal of Propulsion Technology, 2016, 37(12): 2210-2218. (in ChineseYU Dan, GUO Zhihui, YANG Fujiang. Experimentally study on distribution of flame transfer function in a lean premixed combustor[J]. Journal of Propulsion Technology, 2016, 37(12): 2210-2218. (in Chinese) [4] 杨帆, 林博颖, 隋春杰, 等. 湍流强旋流预混火焰大涡模拟研究[J]. 工程热物理学报, 2015, 36(4): 895-900. YANG Fan, LIN Boying, SUI Chunjie, et al. Large eddy simulation of turbulent strongly swirling premixed flame[J]. Journal of Engineering Thermophysics, 2015, 36(4): 895-900. (in ChineseYANG Fan, LIN Boying, SUI Chunjie, et al. Large eddy simulation of turbulent strongly swirling premixed flame[J]. Journal of Engineering Thermophysics, 2015, 36(4): 895-900. (in Chinese) [5] 葛宏达. 贫燃预混旋流燃烧的火焰特性与吹熄不稳定性[D]. 辽宁 大连: 大连理工大学, 2019. GE Hongda. Flame characteristics and blow-out instability of lean premixed swirl combustion[D]. Dalian Liaoning: Dalian University of Technology, 2019. (in ChineseGE Hongda. Flame characteristics and blow-out instability of lean premixed swirl combustion[D]. Dalian Liaoning: Dalian University of Technology, 2019. (in Chinese) [6] 任永杰, 丰松江, 聂万胜, 等. 单喷嘴火箭发动机高频燃烧不稳定的RANS和SBES数值模拟[J]. 推进技术, 2024, 45(7): 2305059. REN Yongjie, FENG Songjiang, NIE Wansheng, et al. Numerical simulation of RANS and SBES for high-frequency combustion instability of a single-element rocket engine[J]. Journal of Propulsion Technology, 2024, 45(7): 2305059. (in ChineseREN Yongjie, FENG Songjiang, NIE Wansheng, et al. Numerical simulation of RANS and SBES for high-frequency combustion instability of a single-element rocket engine[J]. Journal of Propulsion Technology, 2024, 45(7): 2305059. (in Chinese) [7] 王林森, 涂晓波, 车庆丰, 等. 基于OH-PLIF技术贫燃预混旋流火焰的结构特征研究[J]. 燃烧科学与技术, 2023, 29(2): 193-199. WANG Linsen, TU Xiaobo, CHE Qingfeng, et al. Structure characteristics of lean-burn premixed swirl flame based on OH-PLIF technology[J]. Journal of Combustion Science and Technology, 2023, 29(2): 193-199. (in ChineseWANG Linsen, TU Xiaobo, CHE Qingfeng, et al. Structure characteristics of lean-burn premixed swirl flame based on OH-PLIF technology[J]. Journal of Combustion Science and Technology, 2023, 29(2): 193-199. (in Chinese) [8] TAAMALLAH S, LABRY Z A, SHANBHOGUE S J, et al. Thermo-acoustic instabilities in lean premixed swirl-stabilized combustion and their link to acoustically coupled and decoupled flame macrostructures[J]. Proceedings of the Combustion Institute, 2015, 35(3): 3273-3282. doi: 10.1016/j.proci.2014.07.002 [9] EMADI M, KAUFMAN K, BURKHALTER M W, et al. Examination of thermo-acoustic instability in a low swirl burner[J]. International Journal of Hydrogen Energy, 2015, 40(39): 13594-13603. doi: 10.1016/j.ijhydene.2015.08.016 [10] ZHANG Jianan, RATNER A. Experimental study of the effects of hydrogen addition on the thermoacoustic instability in a variable-length combustor[J]. International Journal of Hydrogen Energy, 2021, 46(29): 16086-16100. doi: 10.1016/j.ijhydene.2021.02.063 [11] HUANG Ying, YANG V. Effect of swirl on combustion dynamics in a lean-premixed swirl-stabilized combustor[J]. Proceedings of the Combustion Institute, 2005, 30(2): 1775-1782. doi: 10.1016/j.proci.2004.08.237 [12] HAN X, LAERA D, MORGANS A S, et al. Flame macrostructures and thermoacoustic instabilities in stratified swirling flames[J]. Proceedings of the Combustion Institute, 2019, 37(4): 5377-5384. doi: 10.1016/j.proci.2018.06.147 [13] RENAUD A, YOKOMORI T, TACHIBANA S. Study of a thermo-acoustic instability triggering in a low-swirl burner using simultaneous time-resolved acetone and OH-PLIF[J]. Proceedings of the Combustion Institute, 2019, 37(2): 2627-2633. doi: 10.1016/j.proci.2018.08.036 [14] REN Yongjie, GUO Kangkang, FENG Songjiang, et al. Experimental and numerical study of nonlinear growth process of self-excited combustion instability in a model rocket combustor[J]. Proceedings of the Combustion Institute, 2024, 40(1/2/3/4): 105221. [15] REN Yongjie, GUO Kangkang, FENG Songjiang, et al. Experimental and numerical investigation of transverse combustion instability in a rectangle multi-injector rocket combustor[J]. Acta Astronautica, 2023, 213: 215-230. doi: 10.1016/j.actaastro.2023.09.008 [16] 张俊, 涂晓波, 陈爽, 等. 贫燃预混旋流火焰PIV和OH-PLIF瞬态同步测量[J]. 航空动力学报, 2020, 35(10): 2046-2055. ZHANG Jun, TU Xiaobo, CHEN Shuang, et al. Instantaneous and simultaneous PIV and OH-PLIF measurement for lean premixed swirl flame[J]. Journal of Aerospace Power, 2020, 35(10): 2046-2055. (in ChineseZHANG Jun, TU Xiaobo, CHEN Shuang, et al. Instantaneous and simultaneous PIV and OH-PLIF measurement for lean premixed swirl flame[J]. Journal of Aerospace Power, 2020, 35(10): 2046-2055. (in Chinese) [17] 王宽亮, 李飞, 刘德峰, 等. 基于CH自由基发光的旋流火焰放热率时空特性研究[J]. 航空动力学报, 2019, 34(4): 920-928. WANG Kuanliang, LI Fei, LIU Defeng, et al. Study of the temporal and spatial characteristics for swirling flame heat release rate based on CH chemiluminescence[J]. Journal of Aerospace Power, 2019, 34(4): 920-928. (in ChineseWANG Kuanliang, LI Fei, LIU Defeng, et al. Study of the temporal and spatial characteristics for swirling flame heat release rate based on CH chemiluminescence[J]. Journal of Aerospace Power, 2019, 34(4): 920-928. (in Chinese) [18] KIM M K, YOON J, PARK S, et al. Effects of unstable flame structure and recirculation zones in a swirl-stabilized dump combustor[J]. Applied Thermal Engineering, 2013, 58(1/2): 125-135. [19] DAWSON J R, GORDON R L, KARIUKI J, et al. Visualization of blow-off events in bluff-body stabilized turbulent premixed flames[J]. Proceedings of the Combustion Institute, 2011, 33(1): 1559-1566. doi: 10.1016/j.proci.2010.05.044 [20] WORTH N A, DAWSON J R. Effect of equivalence ratio on the modal dynamics of azimuthal combustion instabilities[J]. Proceedings of the Combustion Institute, 2017, 36(3): 3743-3751. doi: 10.1016/j.proci.2016.06.115 [21] 李祥晟, 丰镇平. 燃料空气供给条件对热声不稳定燃烧影响的研究[J]. 工程热物理学报, 2007, 28(4): 708-710. LI Xiangsheng, FENG Zhenping. Study of the influence of air/fuel supply conditions on thermo-acoustic combustion instability[J]. Journal of Engineering Thermophysics, 2007, 28(4): 708-710. (in Chinese doi: 10.3321/j.issn:0253-231X.2007.04.053LI Xiangsheng, FENG Zhenping. Study of the influence of air/fuel supply conditions on thermo-acoustic combustion instability[J]. Journal of Engineering Thermophysics, 2007, 28(4): 708-710. (in Chinese) doi: 10.3321/j.issn:0253-231X.2007.04.053 [22] RENAUD A, DUCRUIX S, SCOUFLAIRE P, et al. Flame shape transition in a swirl stabilised liquid fueled burner[J]. Proceedings of the Combustion Institute, 2015, 35(3): 3365-3372. doi: 10.1016/j.proci.2014.07.012 [23] POINSOT T. Prediction and control of combustion instabilities in real engines[J]. Proceedings of the Combustion Institute, 2017, 36(1): 1-28. doi: 10.1016/j.proci.2016.05.007 [24] 曹炜, 杨凯淇, 任永杰, 等. 基于二次燃料喷射的预混燃烧室热声振荡主动控制方法 [J]. 推进技术, 2024, 45(12): 2310005. CAO Wei, YANG Kaiqi, REN Yongjie, et al. Active control of thermoacoustic oscillations in premixed combustor based on secondary fuel injection[J]. Journal of Propulsion Technology, 2024, 45(12): 2310005. (in ChineseCAO Wei, YANG Kaiqi, REN Yongjie, et al. Active control of thermoacoustic oscillations in premixed combustor based on secondary fuel injection[J]. Journal of Propulsion Technology, 2024, 45（12）: 2310005. (in Chinese) [25] CHEN Z X, LANGELLA I, SWAMINATHAN N, et al. Large eddy simulation of a dual swirl gas turbine combustor: flame/flow structures and stabilisation under thermoacoustically stable and unstable conditions[J]. Combustion and Flame, 2019, 203: 279-300. doi: 10.1016/j.combustflame.2019.02.013 -
