Unsteady flow characteristics in hyper-burner with trapped vortex cavity during mode transition
-
摘要:
为获得凹腔驻涡超级燃烧室燃烧模式转换过程流动特性，设计了矩形模型试验件，采用三维动网格仿真方法进行基准方案、先慢后快方案和先快后慢方案（记为Case A、Case B、Case C）这3个不同后涵道引射门调节方案下流动特性研究。燃烧室入口总质量流量为1.5 kg/s，涡轮和冲压通道进气温度分别为550 K和300 K，后涵道引射门运动时间为2 s。计算获得了模态转换过程超级燃烧室的流场结构、质量流量分配特性以及掺混特性，结果表明：3个方案流场结构及变化规律基本一致；0～0.16 s，模态转换影响凹腔内涡形态和涡心位置，但凹腔和径向稳定器仍能建立完整稳定的涡系；平板引射门掺混促进作用较弱，热混合效率小于0.3；0.25 s，3个方案中Case B冷却通道质量流量占比最大，总压损失最小；总压损失主要发生在0.36>
x /D >0.63（x 为沿程位置，D 为燃烧室总长）区域。Abstract:To capture the flow characteristics during transitions in a trapped vortex cavity hyper-burner, a rectangular model was designed. A three-dimensional dynamic mesh simulation method was employed to investigate the flow characteristics of the hyper-burner under three different regulation schemes of rear variable area bypass injector (RVABI): baseline scheme (Case A), slow-then-fast scheme (Case B), and fast-then-slow scheme (Case C). The operating conditions included a mass flow rate of 1.5 kg/s, turbine inlet temperature of 550 K, ramjet inlet temperature of 300 K, and a RVABI movement duration of 2 s. The flow characteristics, mass flow distribution characteristics, and the mixing characteristics were obtained. The results indicated that: the flow characteristics of the three schemes were basically consistent. 0—0.16 s, although the adjustment of the RVABI affected the shape and core position of vortex within cavity, a complete and stable vortex structure can still be established. The flat RVABI had a relatively weak mixing, which was less than 0.3. Among the three schemes for 0.25 s, Case B had the largest mass flow ratio of cooling channel and the smallest total pressure loss. The total pressure loss mainly occurred within region 0.36>
x /D >0.63 (wherex was the position along flow direction,D was the length of hyper-burner).-
Key words:
- hyper-burner /
- trapped vortex cavity /
- mode transition /
- flow characteristics /
- dynamic mesh
-

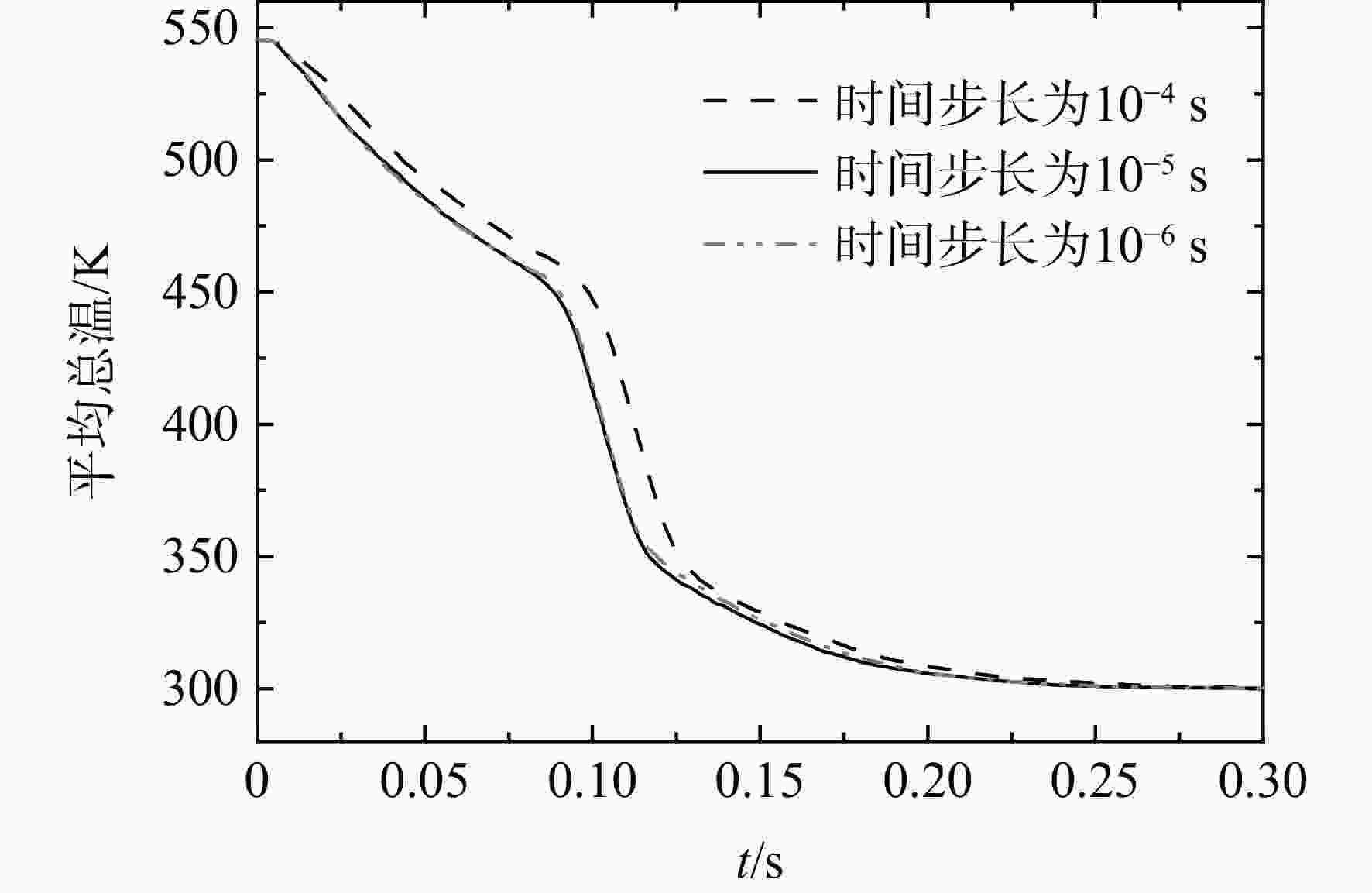

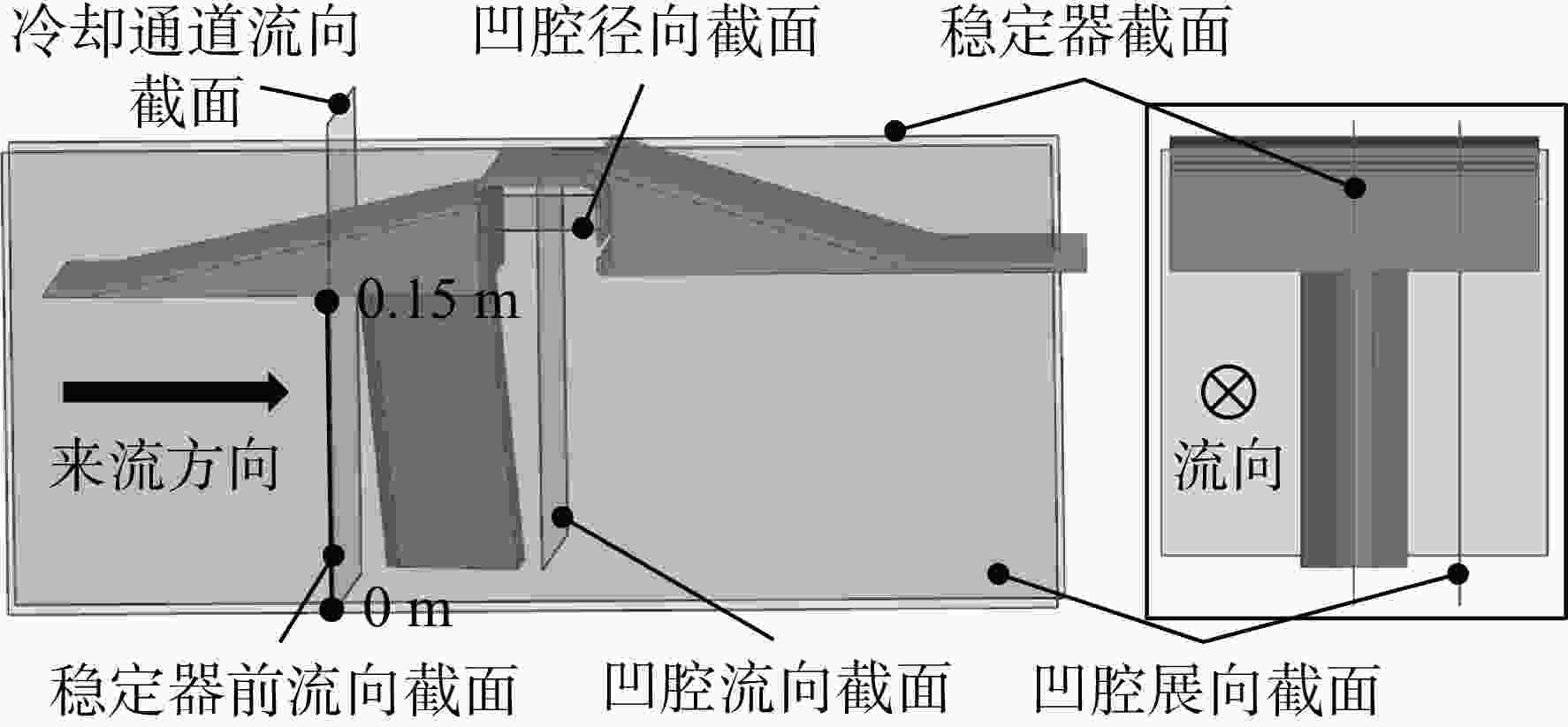

图 7 冷却通道流向截面平均总温
Figure 7. Average total temperature of flow-direction cross-section in cooling channel

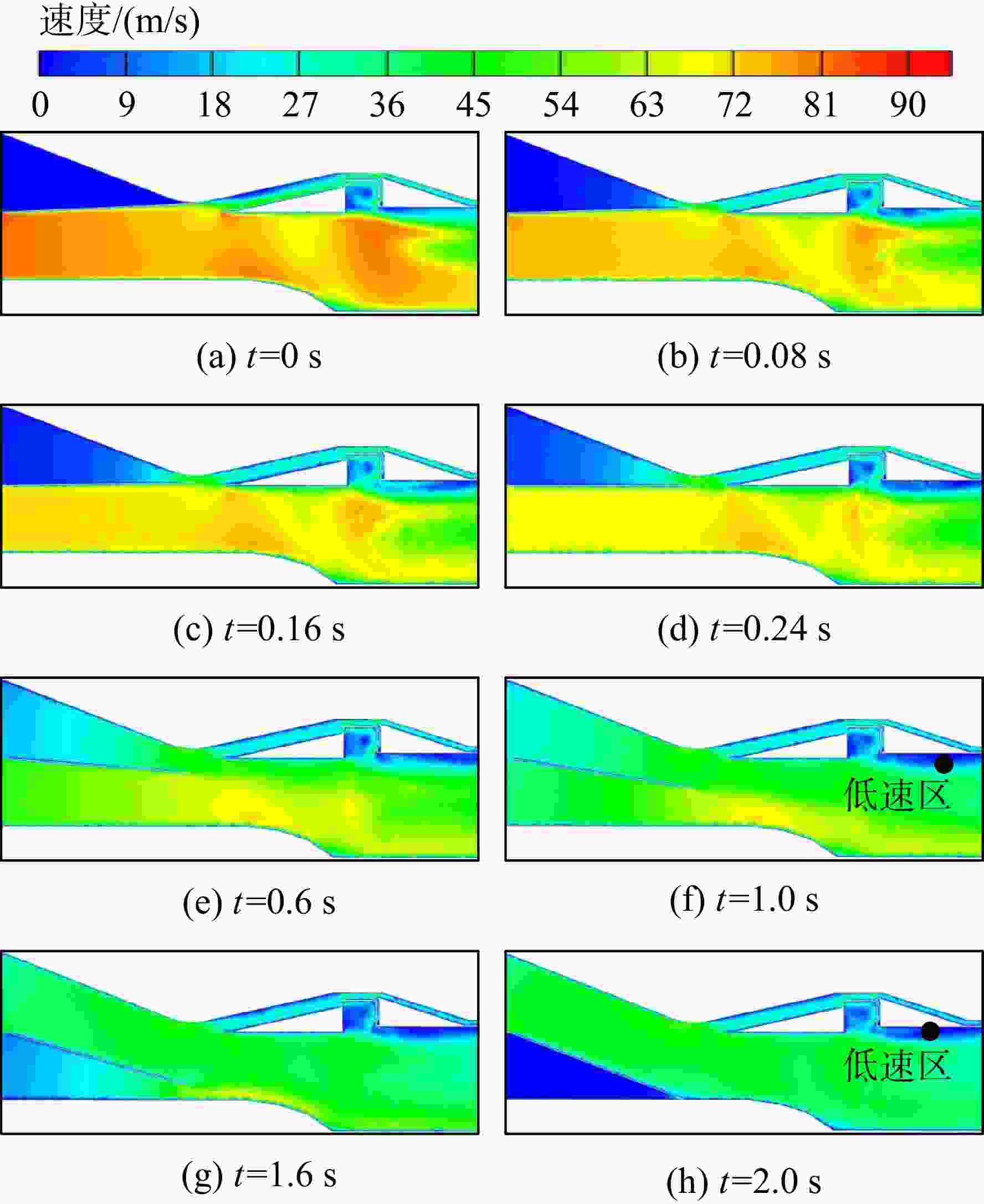

图 13 Case A凹腔径向截面速度云图
Figure 13. Velocity contour of Case A radial cross-section of cavity
图 14 Case A稳定器截面速度云图及流线图
Figure 14. Velocity contour and streamline of Case A stabilizer cross-section

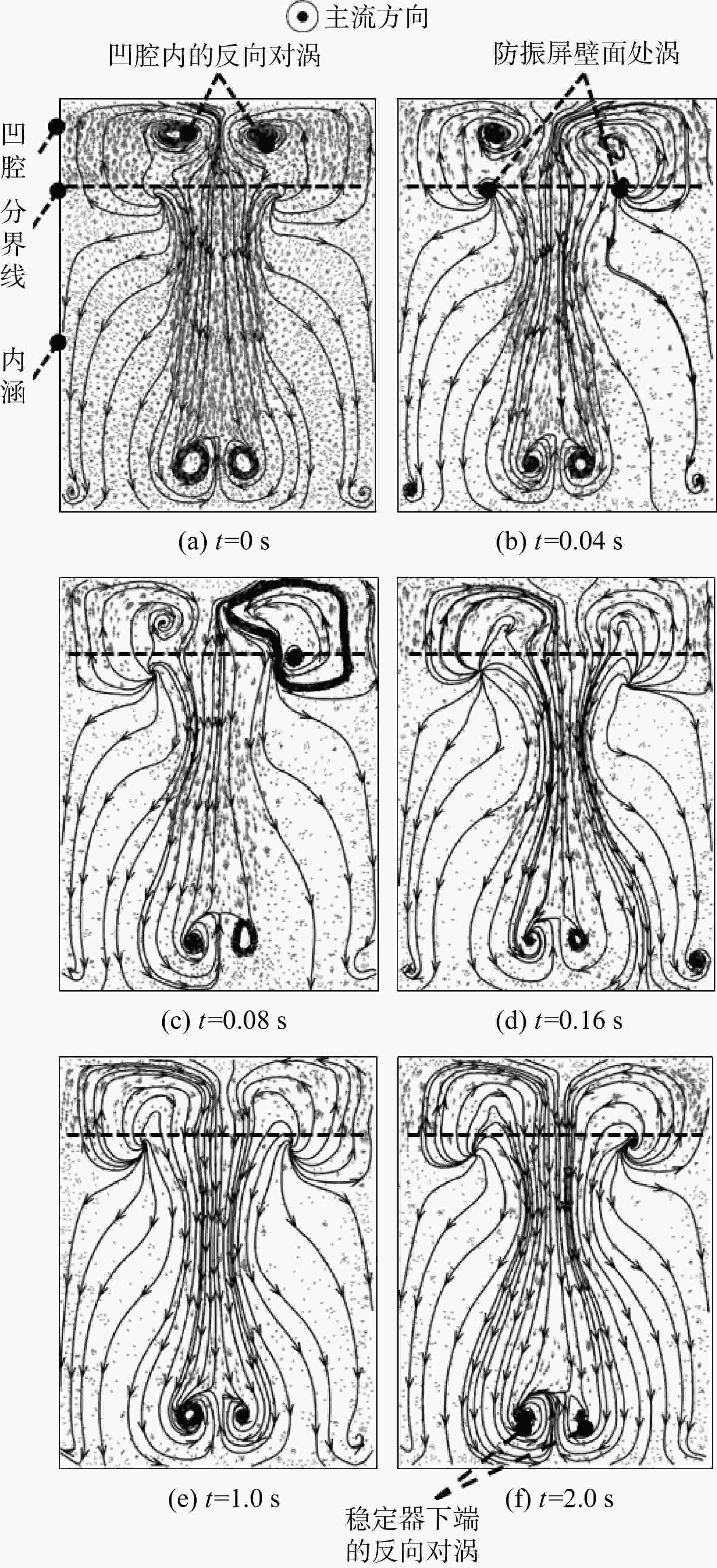

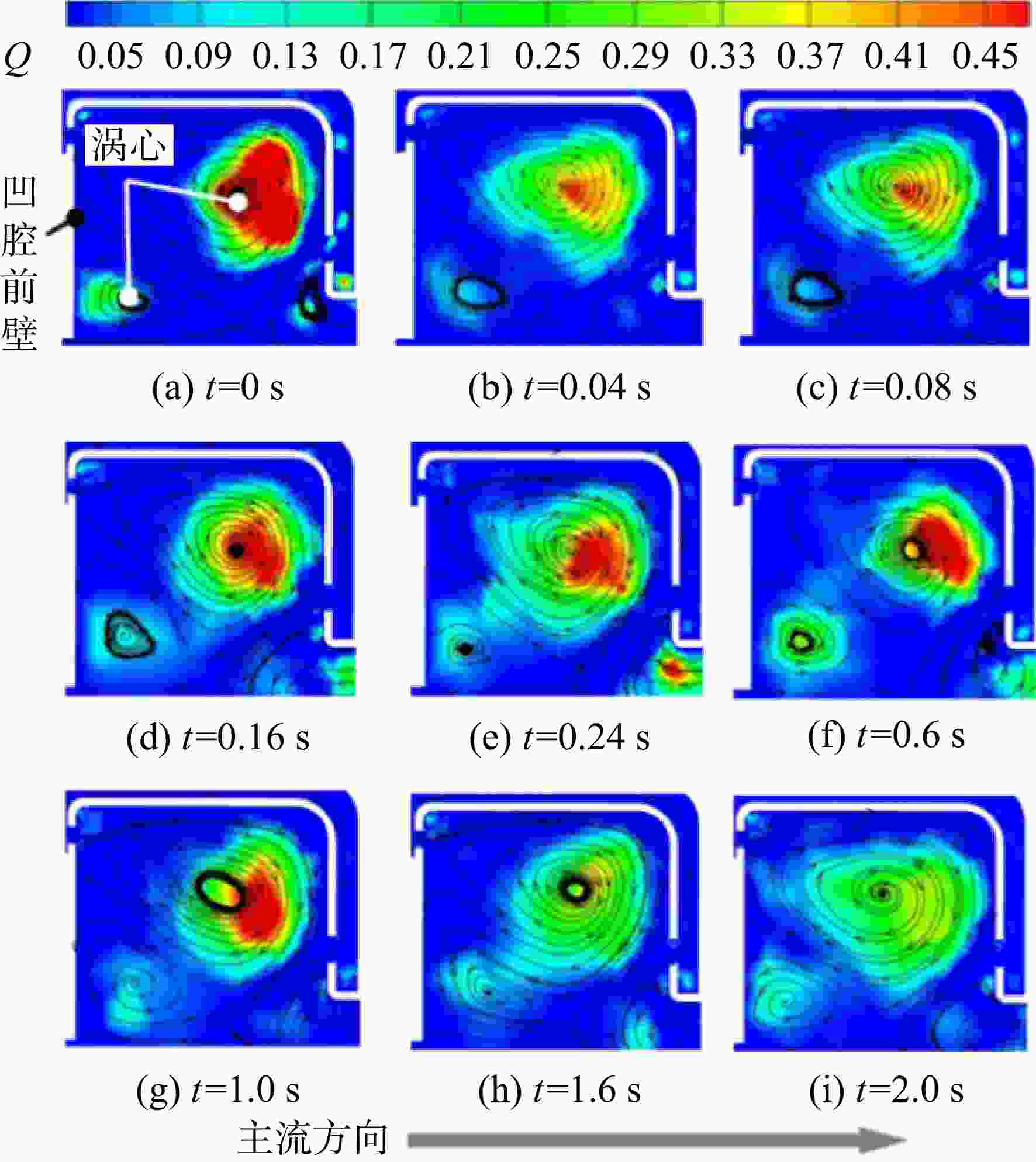

图 16 Case A凹腔径向截面速度矢量和流线图
Figure 16. Vector and streamline of Case A cavity radial section
图 17 Case A凹腔轴向截面速度矢量和流线
Figure 17. Vector and streamline of Case A cavity flow section

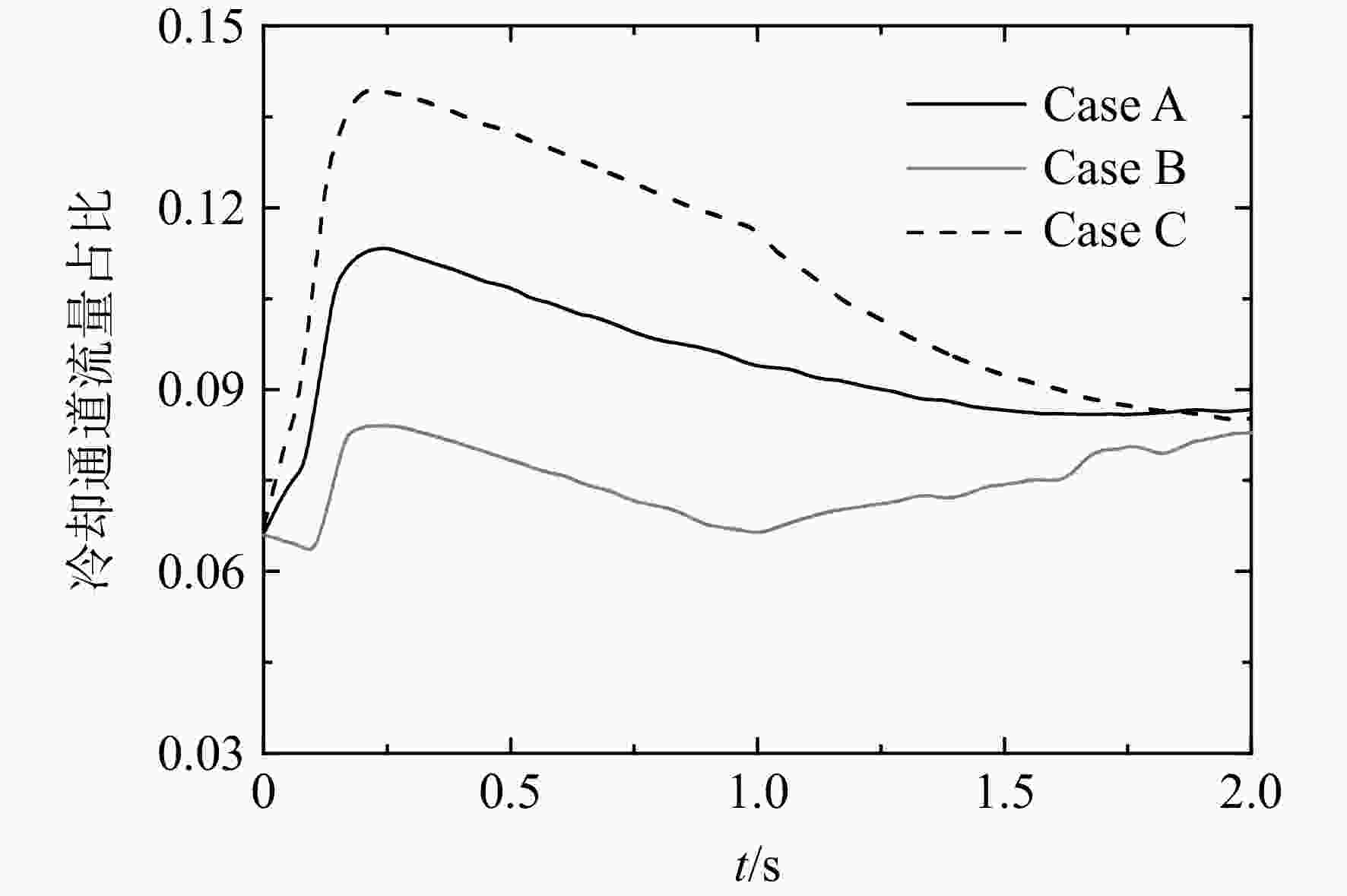

图 18 冷却通道流量占总入口流量之比
Figure 18. Mass flow ratio of cooling channel with total inlet flow
图 20 t=0.25 s时的热混合效率沿程分布
Figure 20. Distribution of thermal mixing efficiency along flow direction for t=0.25 s
图 22 引射门出口截面涡轮与冲压来流速度差
Figure 22. Turbine and ramjet incoming velocity difference at ejector outlet
图 24 t=0.25 s时沿程总压恢复系数
Figure 24. Total pressure recovery coefficient along flow direction for t=0.25 s

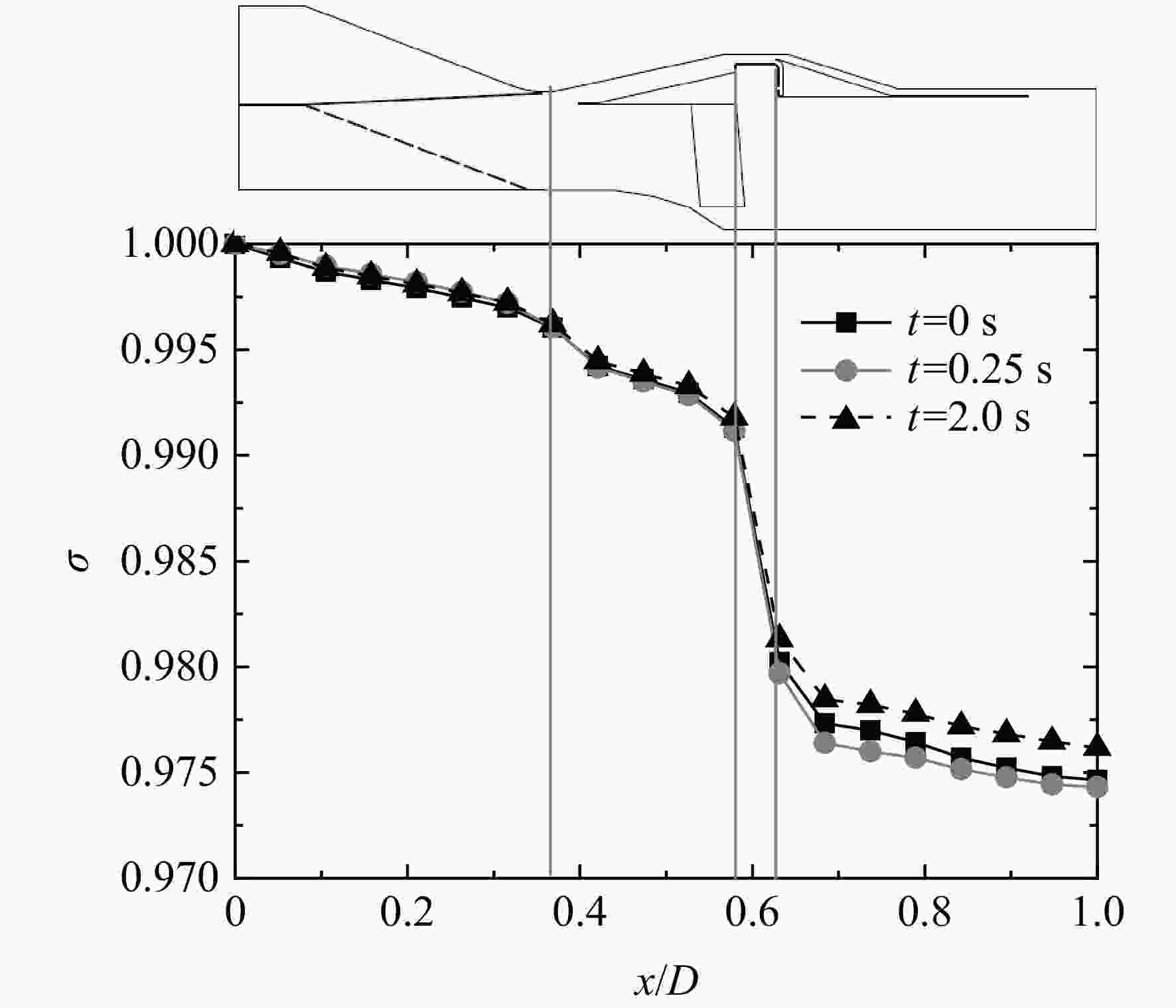

图 25 Case A在0、0.25、2.0 s时刻沿程总压恢复系数
Figure 25. Total pressure recovery coefficient along flow direction for Case A at 0, 0.25, 2.0 s
表 1 涡轮和冲压模态稳态入口气流参数
Table 1. Inlet parameters in steady state of turbine and ramjet mode
参数 数值或说明 涡轮入口 冲压入口 总压 常压 常压 总温/K 550 300 流量/（kg/s） 1.5 1.5 马赫数 0.41 0.25
下载: 导出CSV

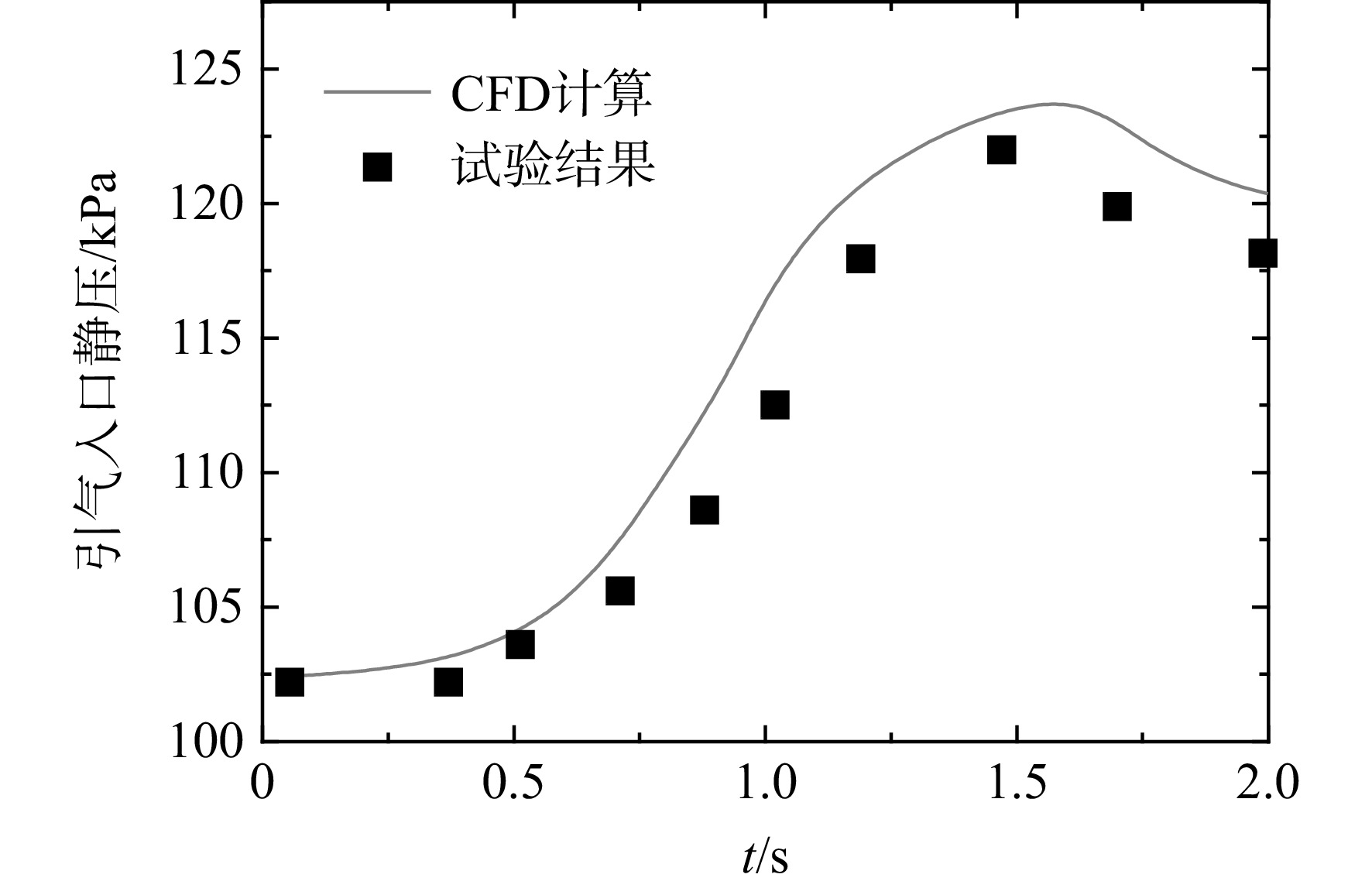

表 2 内涵和引气入口稳态气流参数
Table 2. Inlet parameters in steady state of internal bypass and entraining
参数 数值或说明 内涵入口 引气入口 总压 常压 常压 总温/K 310 310 流量/（kg/s） 0.333 0.14 马赫数 0.21 0.37
下载: 导出CSV
-
