基于多元特征智能提取的涡扇发动机区间二型模糊模型建模方法研究

张陈晨; 潘慕绚

doi:10.13224/j.cnki.jasp.20240753

基于多元特征智能提取的涡扇发动机区间二型模糊模型建模方法研究

doi: 10.13224/j.cnki.jasp.20240753

张陈晨,
潘慕绚^*, ,

南京航空航天大学能源与动力学院，南京 210016

基金项目: 国家基础研究计划重大项目（2019-Ⅴ-0003-0094）

详细信息

作者简介:
张陈晨（1999-），男，硕士，主要从事航空发动机控制研究。E-mail：zccmail@nuaa.edu.cn

通讯作者:
潘慕绚（1977-），女，教授，博士，主要从事航空发动机建模控制与智能传感器研究。E-mail：muxuan.pan@nuaa.edu.cn

中图分类号: V233.7
计量
- 文章访问数: 310
- HTML浏览量: 301
- PDF量: 44
- 被引次数: 0
出版历程
- 收稿日期: 2024-11-05
- 网络出版日期: 2026-03-16

Modeling approach for turbofan engines based on intelligent multi-feature extraction and interval type-2 fuzzy sets

Zhang Chenchen,
Pan Muxuan^{*
, ,}

College of Energy and Power Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China

摘要

摘要:
考虑涡扇发动机在包线内大范围工况变化下的强非线性、强不确定性特点，提出一种基于多元特征智能提取的涡扇发动机全包线区间二型（IT2）模糊模型建模方法。设计并提取涡扇发动机全包线多元特征参数，利用改进的判别邻域嵌入算法（IDNE）对多元特征参数降维处理，并结合模糊C均值算法（FCM）求取典型特征，避免传统聚类算法在高维空间失效。在典型特征点处辨识模糊规则后件变量模型。优化获得IT2型隶属度函数，提高存在不确定性时模糊模型精度，最终建立了小涵道比涡扇发动机IT2模糊模型。开展了全包线内模型性能验证，结果表明IT2模糊模型与部件级模型输出相比，平均方均根误差（ARMSE）小于0.20%，具有较高精度；在退化等不确定性作用下，IT2模糊模型精度变化小于0.05%，显著优于一型模糊模型，具有更强的不确定性表征能力；IT2模糊模型单次计算平均耗时为3.9 ms，具有良好的实时性。
- 涡扇发动机 /
- 区间二型模糊模型 /
- 特征参数提取 /
- 改进判别邻域嵌入算法 /
- 模糊C均值算法
Abstract:
Considering turbofan engine’s strong nonlinearity and significant uncertainty within wide operational ranges, a new modeling approach for turbofan engines in the full flight envelope was proposed based on multi-feature extraction and interval type-2 (IT2) fuzzy sets. The engine multi-feature parameters were designed and extracted. To avoid the failure of traditional clustering algorithms in high-dimensional spaces, an improved discriminant neighborhood embedding algorithm (IDNE) was developed for dimensionality reduction of multi-feature parameters and collaborated with the fuzzy C-means algorithm (FCM) to extract the typical features. The consequent models were identified at typical feature points. The IT2 membership functions were optimized to improve the accuracy of the fuzzy model under uncertainty. Finally, an IT2 fuzzy model for a low bypass ratio turbofan engine was established. Model performance within the flight envelope was validated. The results showed that the model had high accuracy as the average root mean square error (ARMSE) was less than 0.20%. Under degradation uncertainties, the IT2 fuzzy model’s accuracy variation was less than 0.05%, significantly better than the type-1 fuzzy model, which showed a better uncertainty representation capability. The resulting model demonstrated an excellent real-time performance with around 3.9 ms for its average computation time per instance.
- turbofan engine /
- interval type-2 fuzzy model /
- feature parameters extraction /
- discriminant neighborhood embedding /
- fuzzy C-means

HTML

图 1 区间二型模糊集示例

Figure 1. Example of an IT2 fuzzy set

下载: 全尺寸图片幻灯片

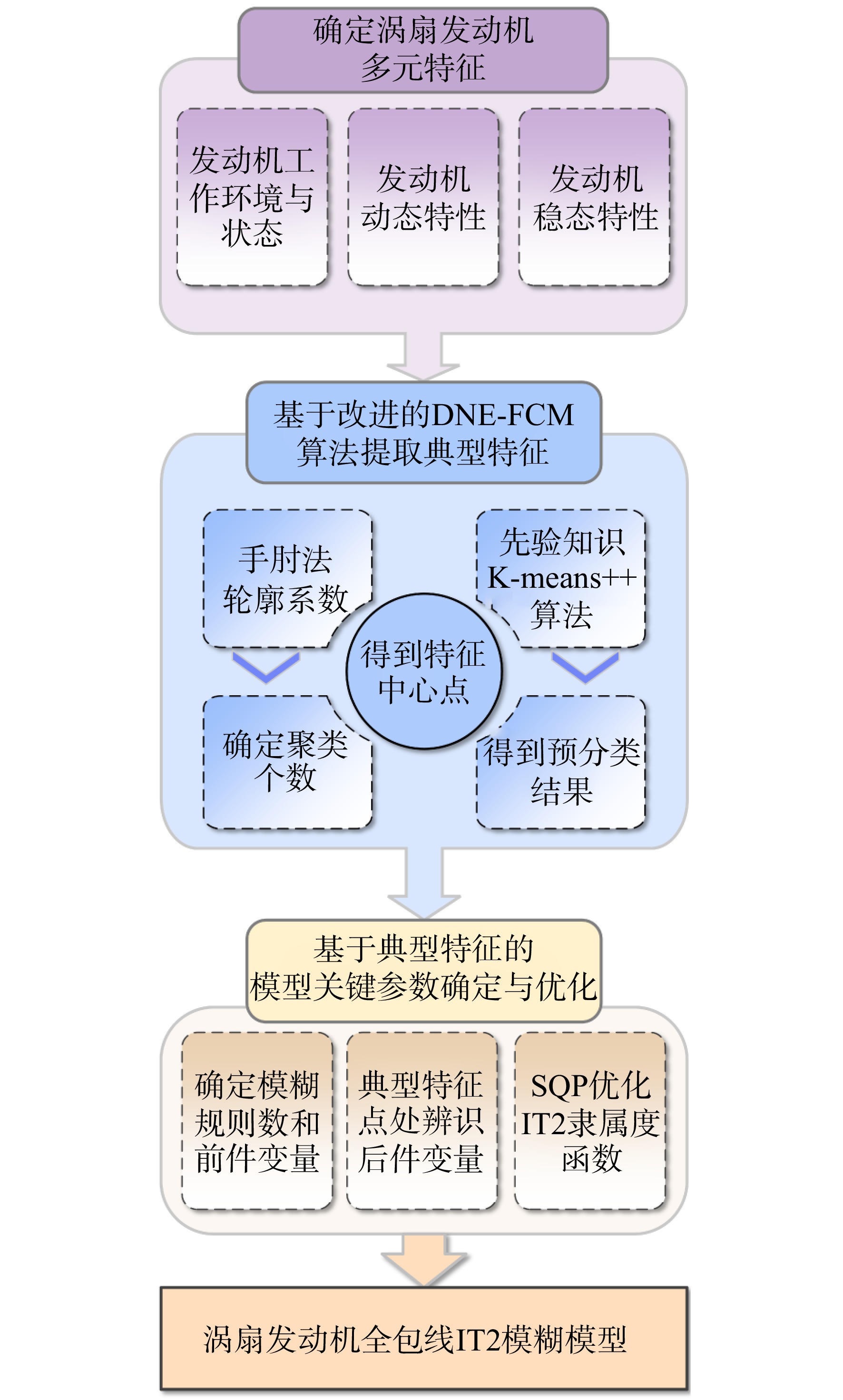

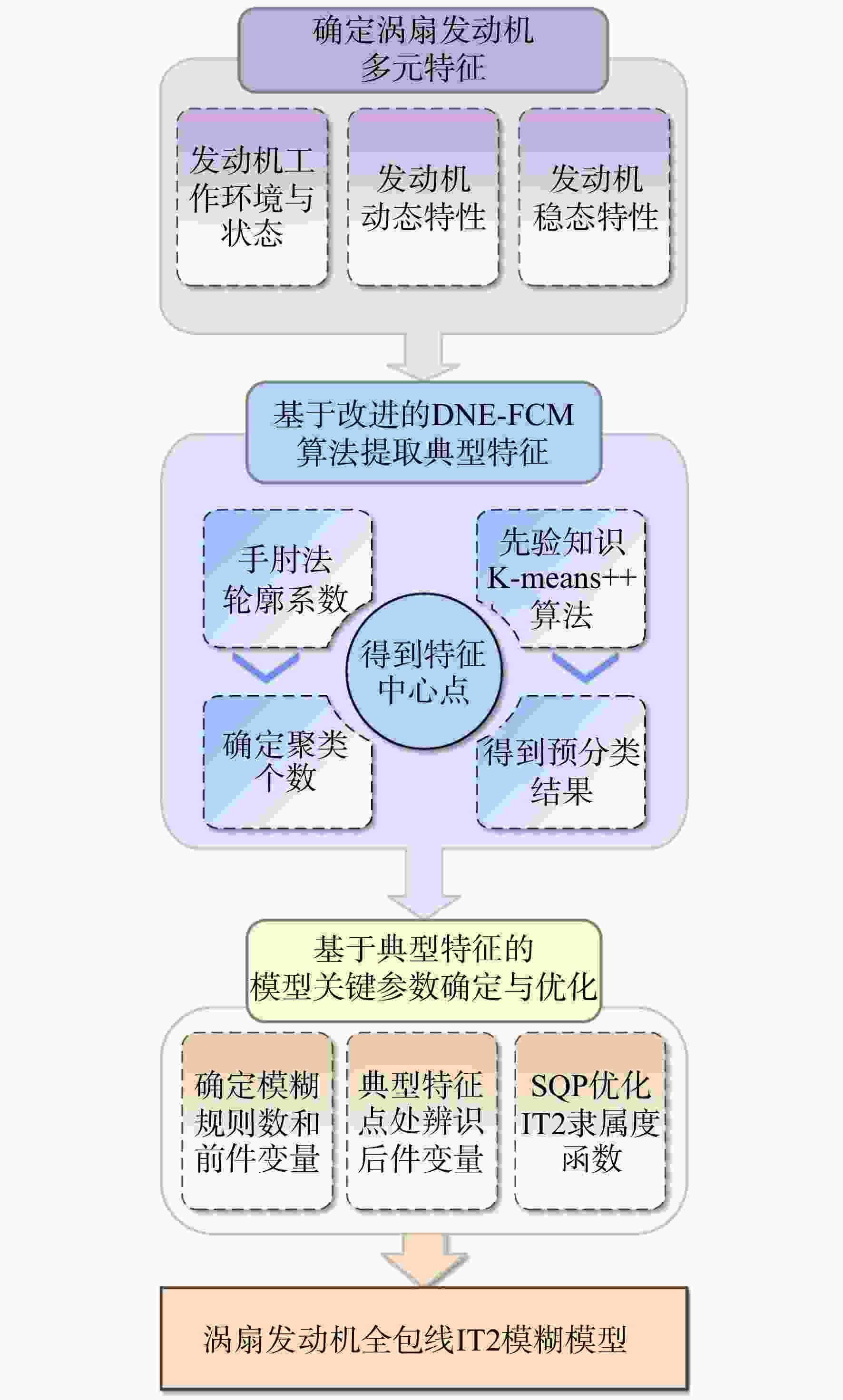

图 2 涡扇发动机IT2模糊模型建模思想

Figure 2. IT2 fuzzy model modeling ideas of turbofan engine

下载: 全尺寸图片幻灯片

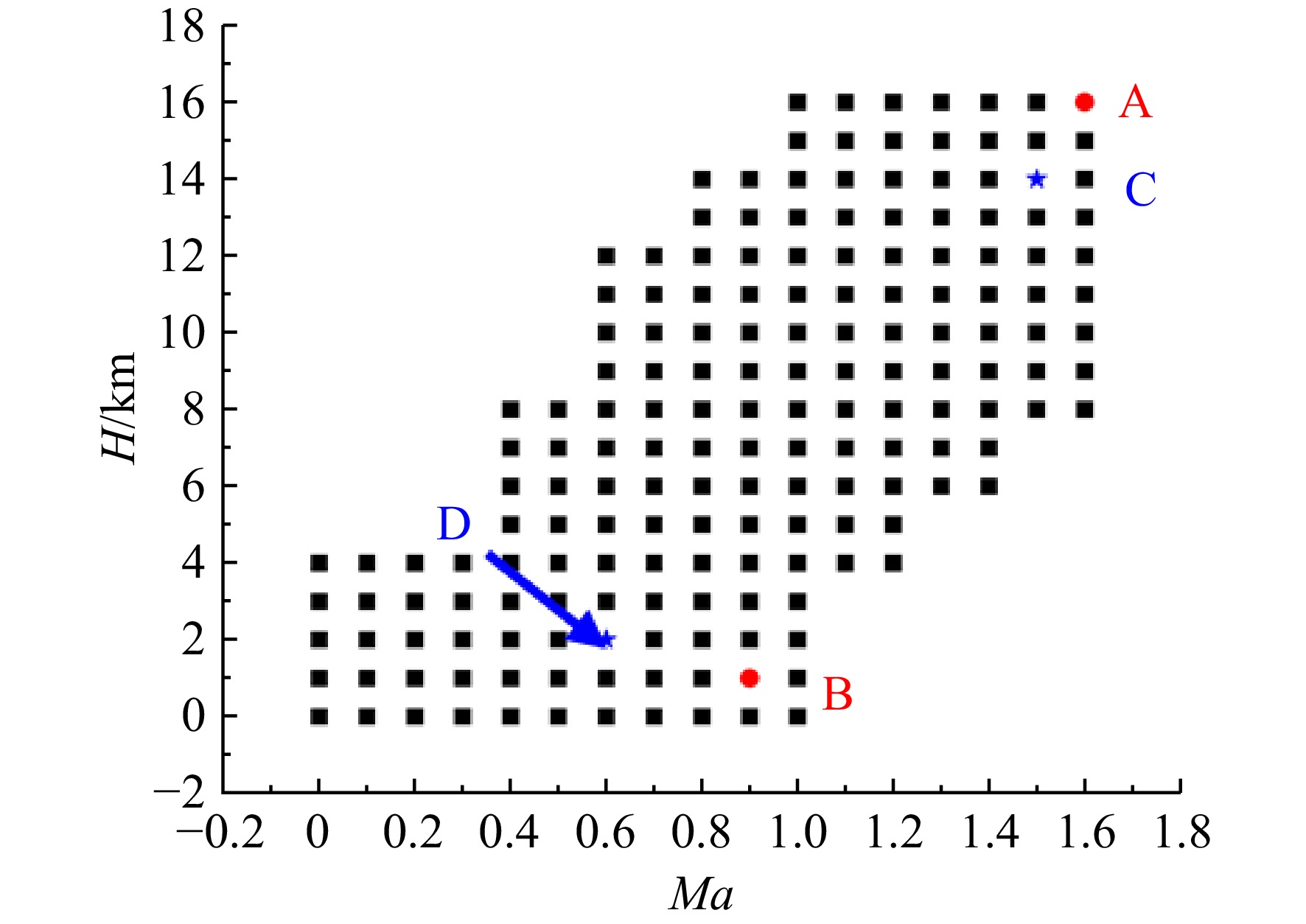

图 3 飞行包线示意图

Figure 3. Flight envelope schematic

下载: 全尺寸图片幻灯片

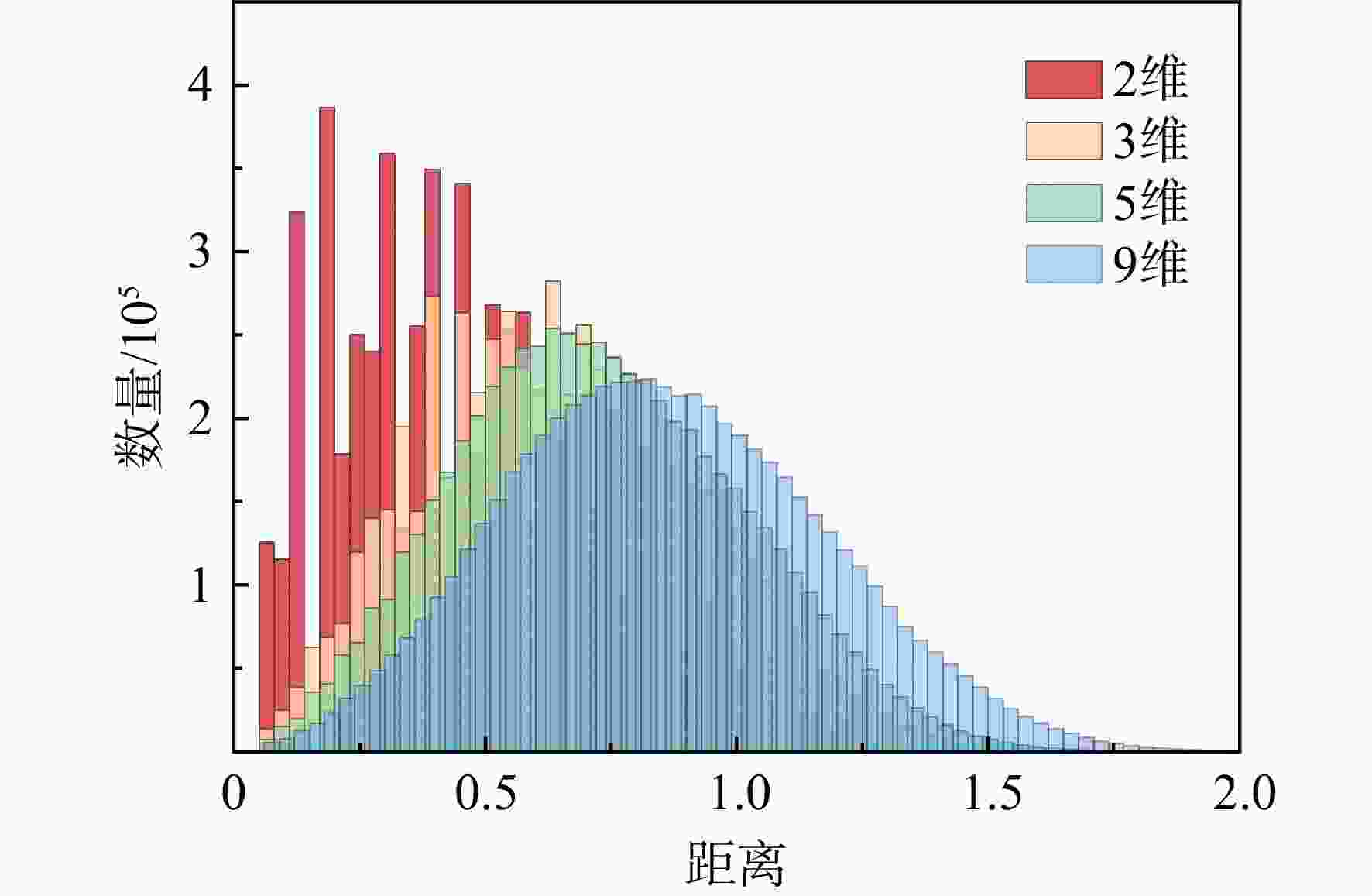

图 4 不同维度多元特征点间的距离分布

Figure 4. Distribution of distances between multi-feature parameters with different dimensions

下载: 全尺寸图片幻灯片

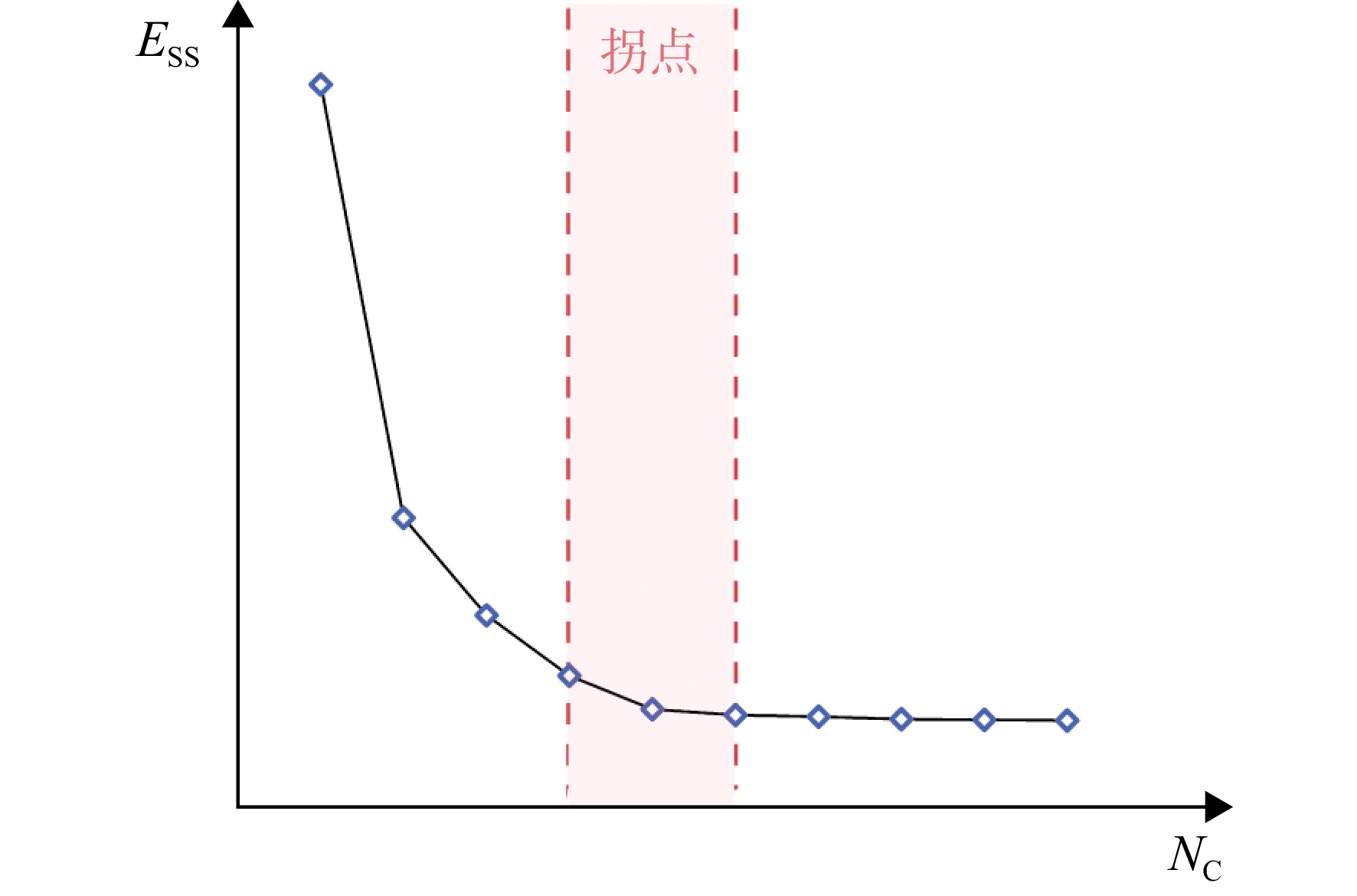

图 5 手肘法拐点示意

Figure 5. Schematic of the inflection point of the elbow method

下载: 全尺寸图片幻灯片

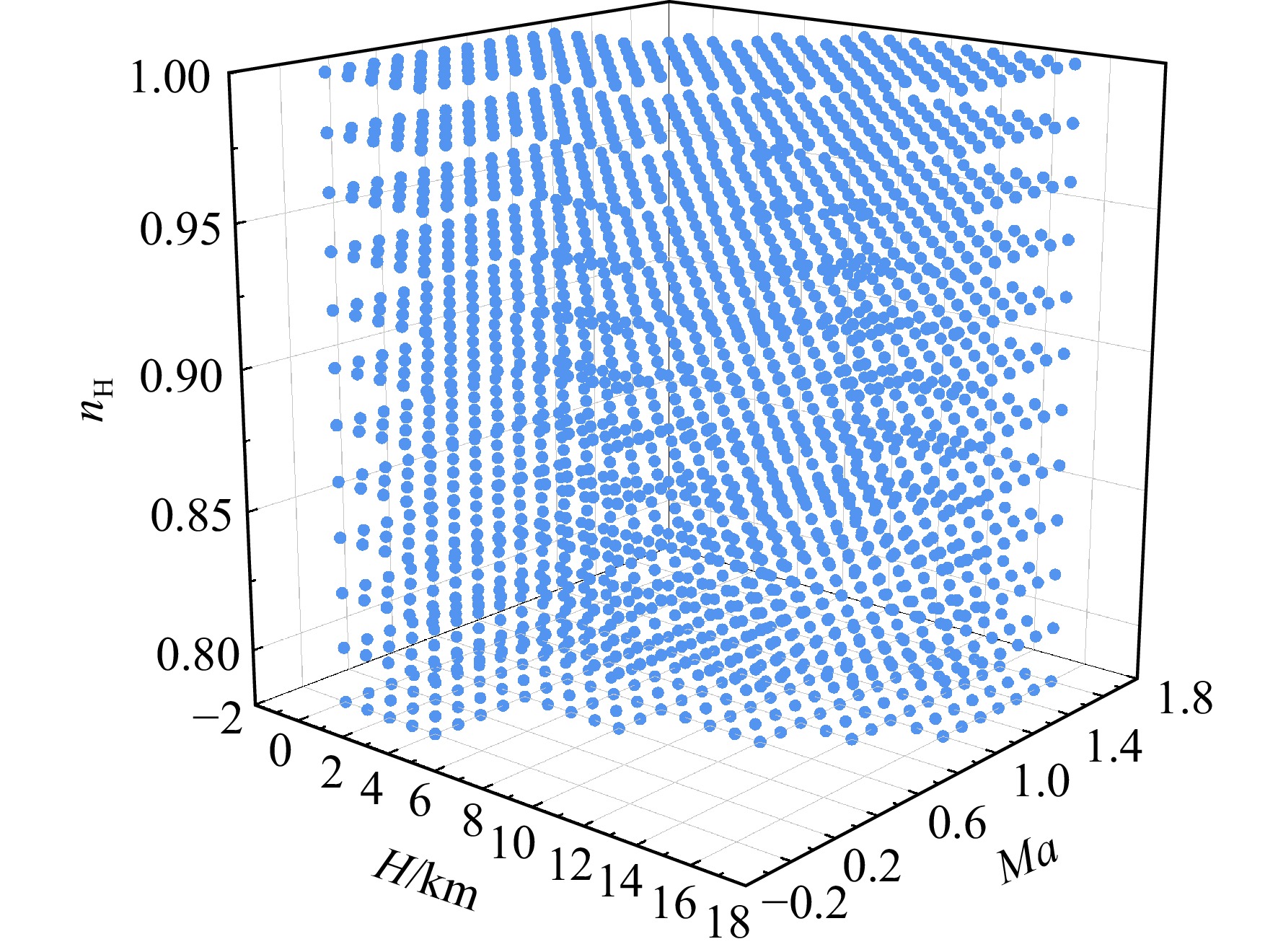

图 6 飞行包线内稳态工作点

Figure 6. Steady state operating point in the flight envelope

下载: 全尺寸图片幻灯片

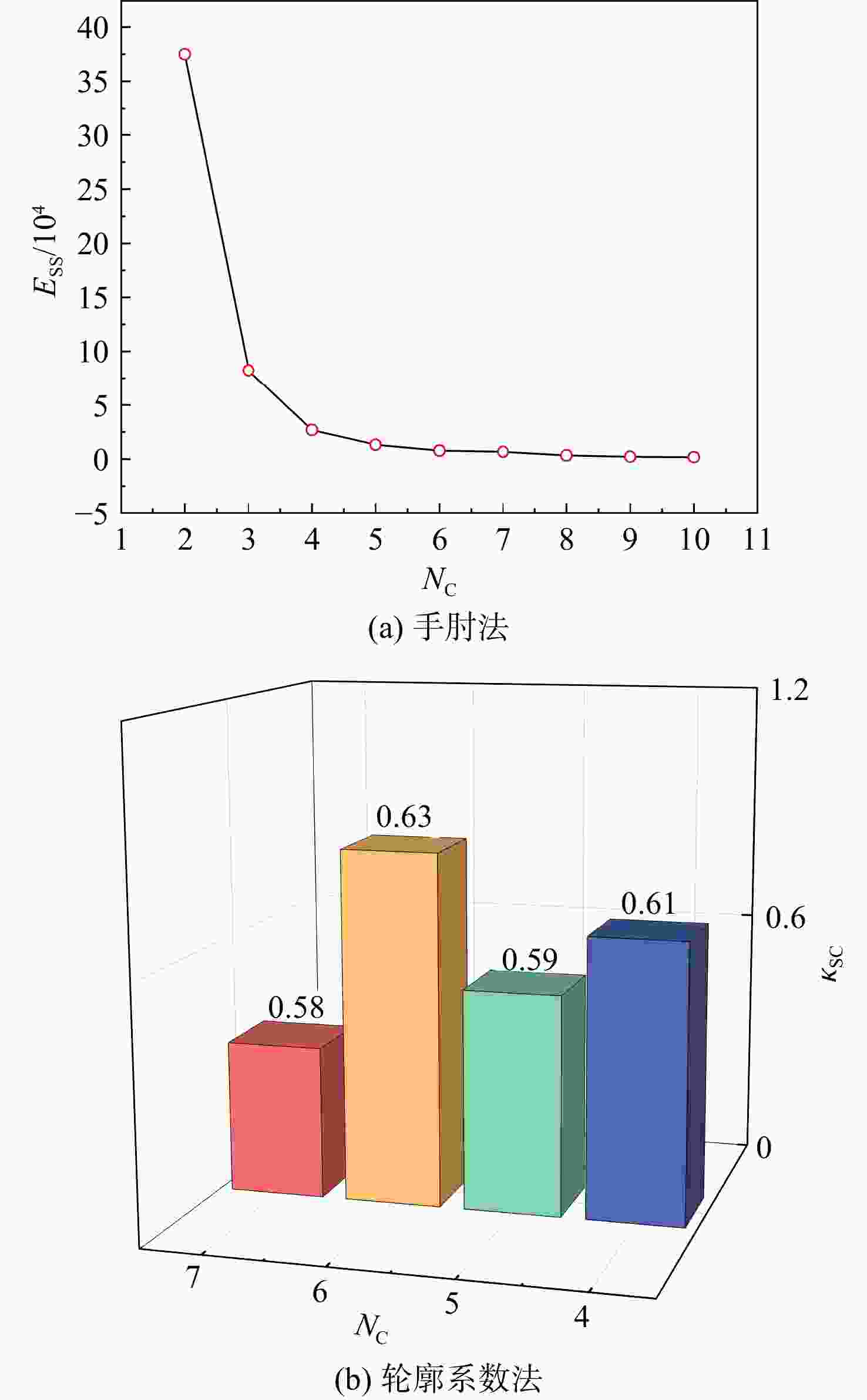

图 7 聚类个数选择

Figure 7. Clustering number selection

下载: 全尺寸图片幻灯片

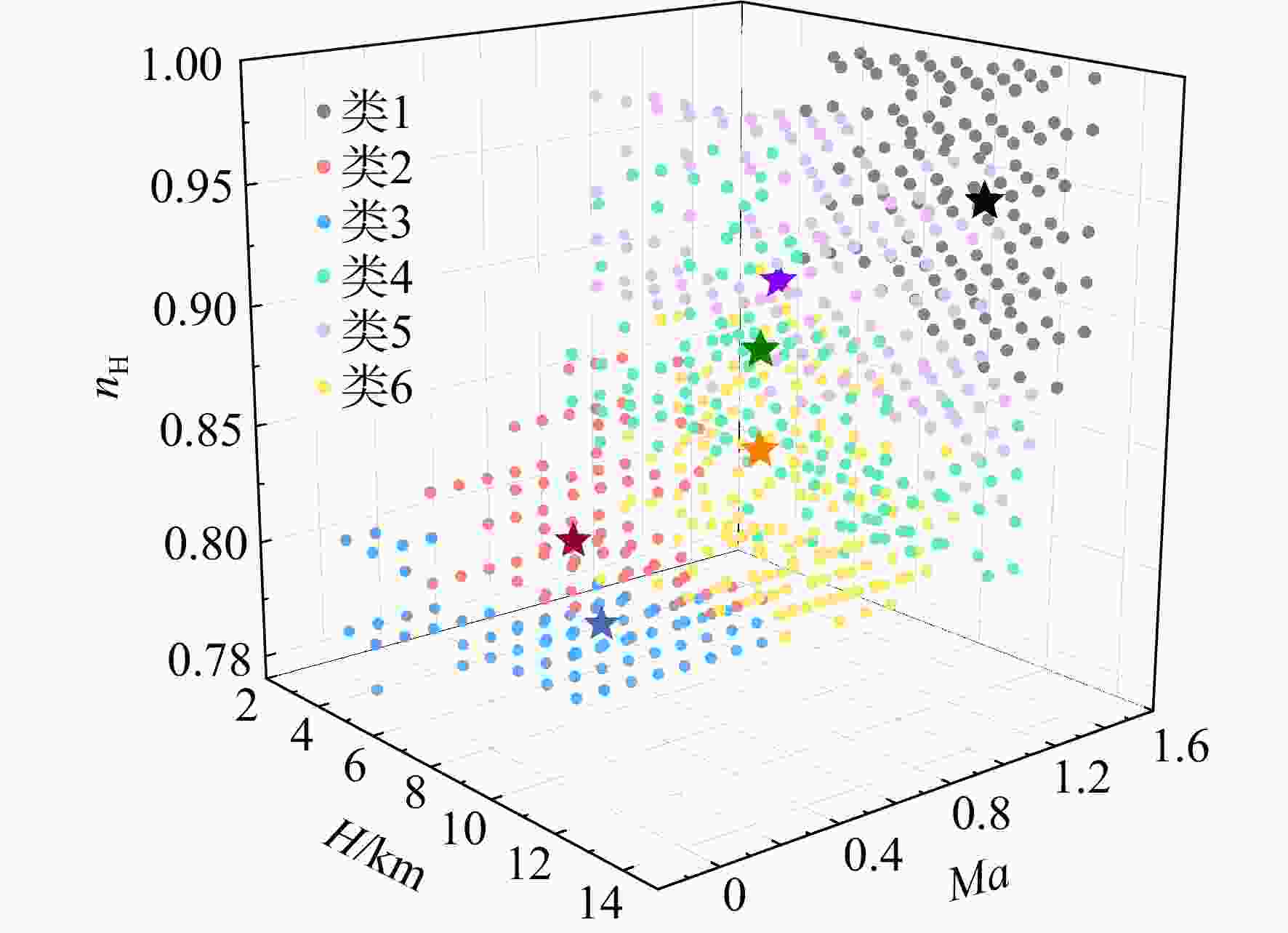

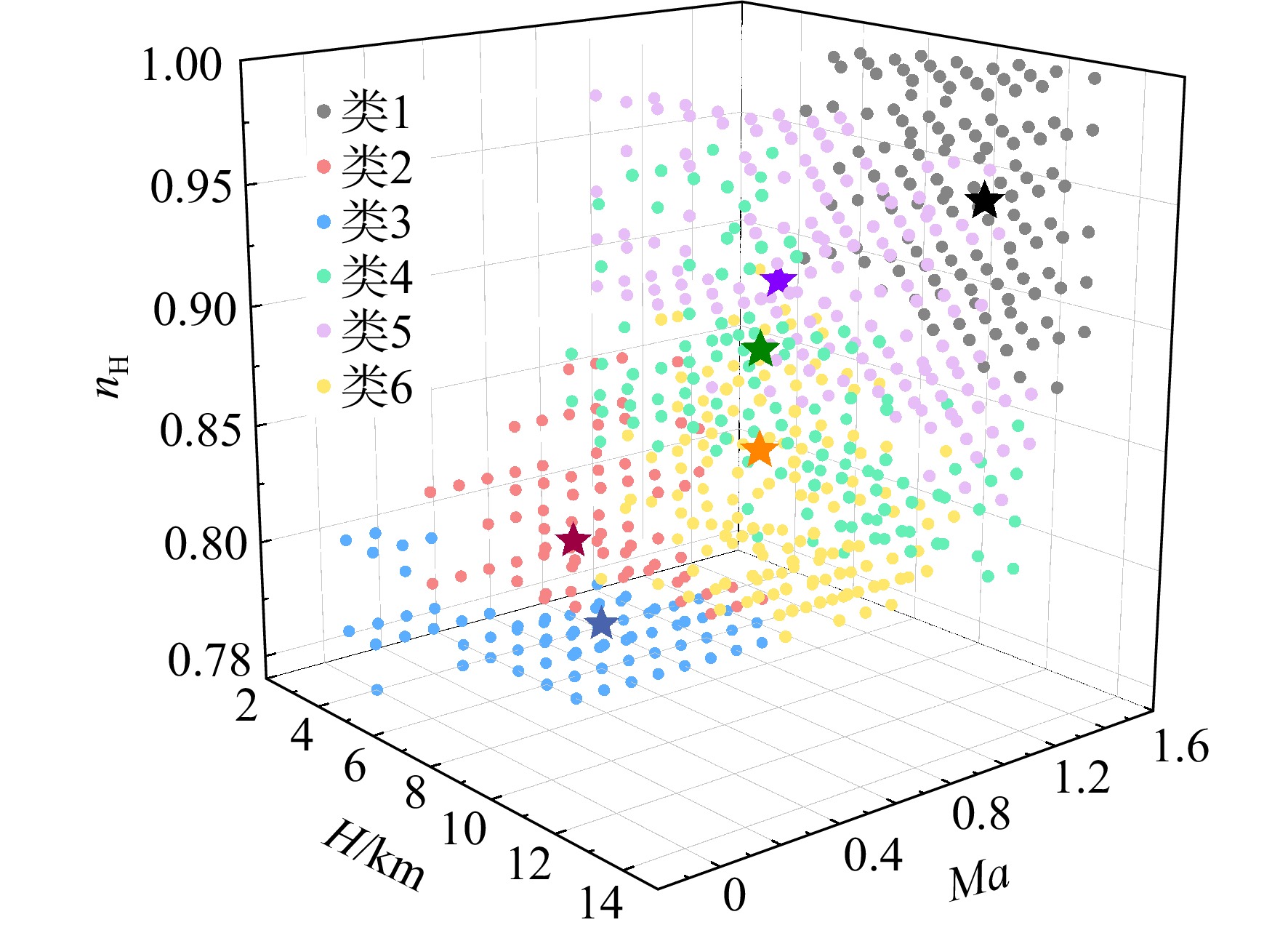

图 8 改进的DNE-FCM算法聚类结果

Figure 8. Clustering results of improved DNE-FCM algorithm

下载: 全尺寸图片幻灯片

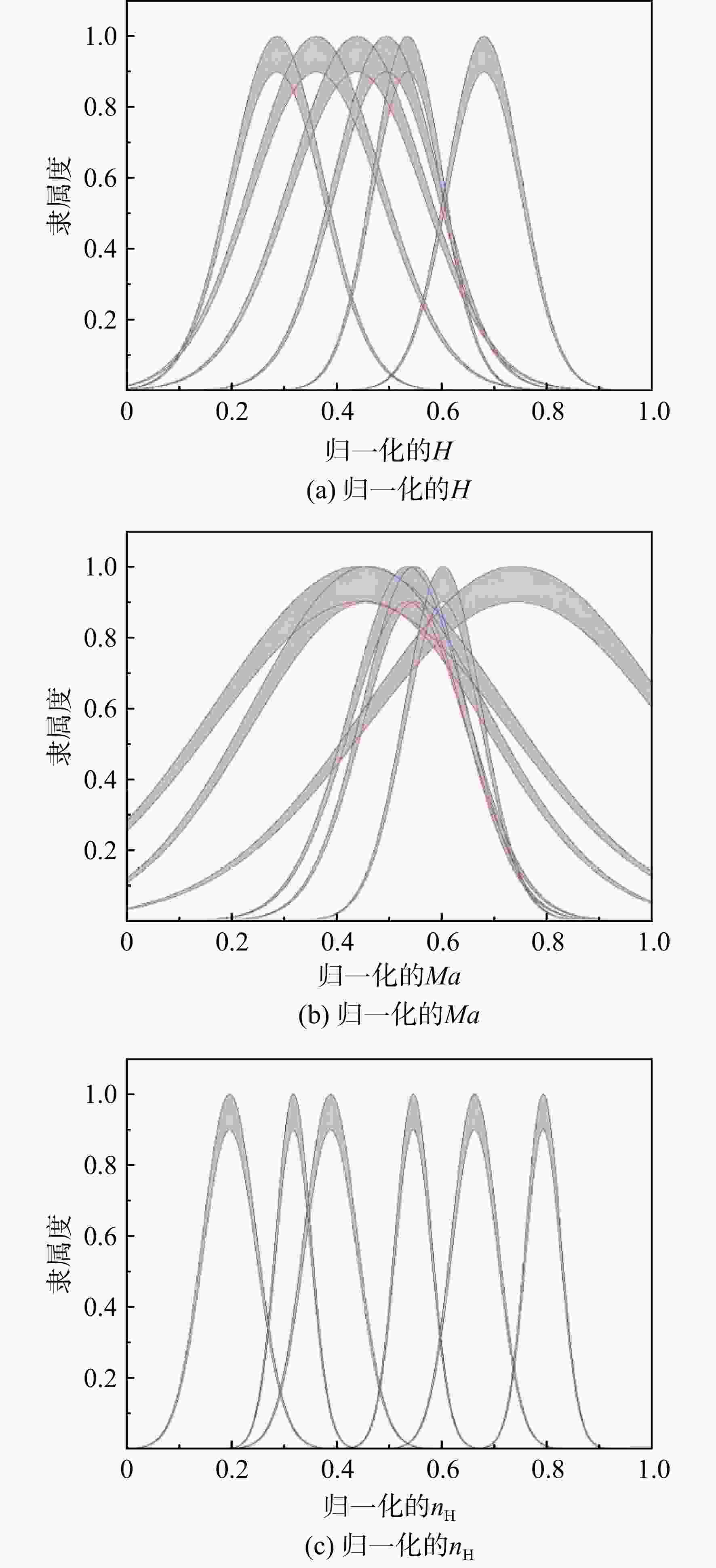

图 9 隶属度函数与不确定域

Figure 9. Membership function and FOU

下载: 全尺寸图片幻灯片

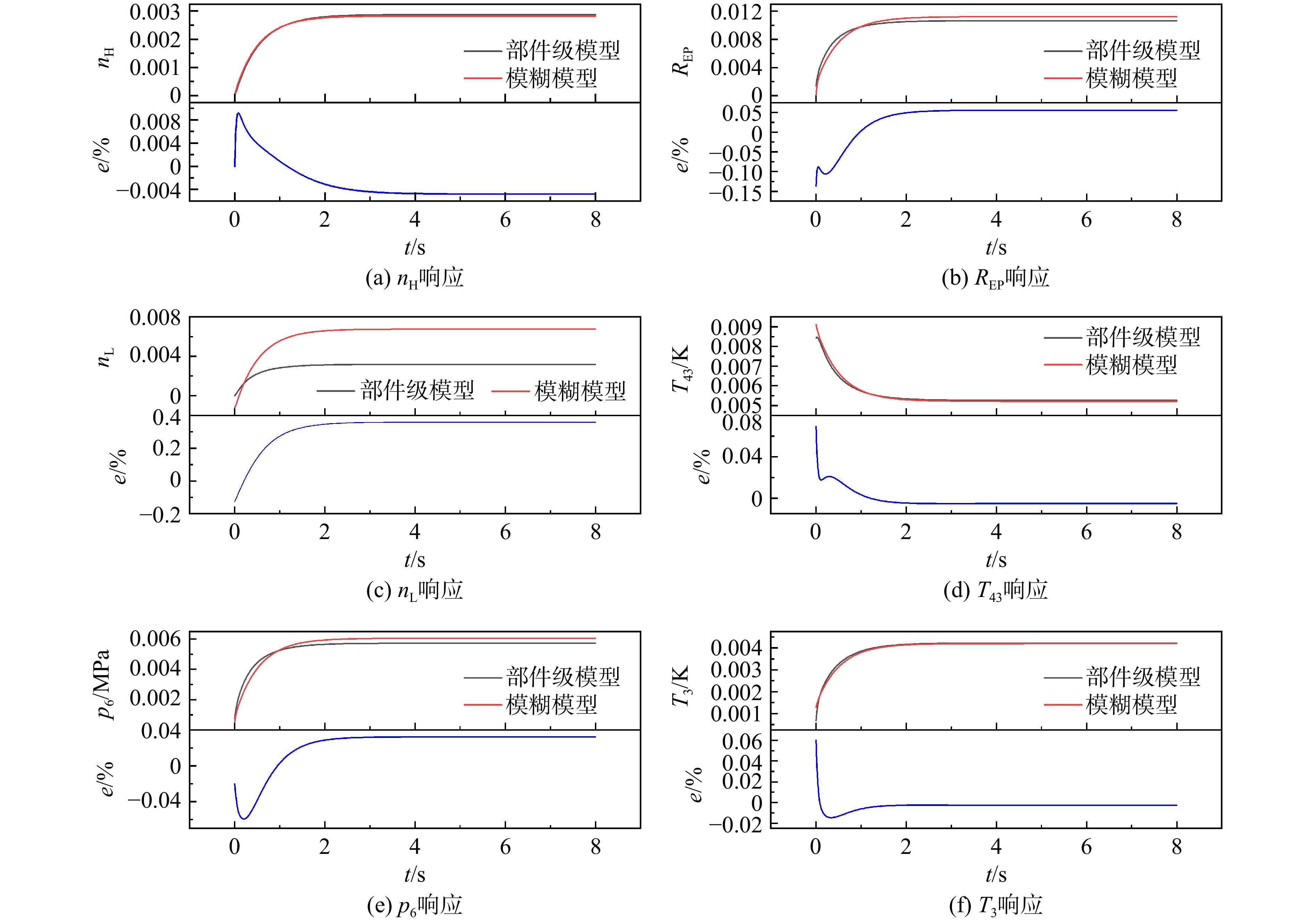

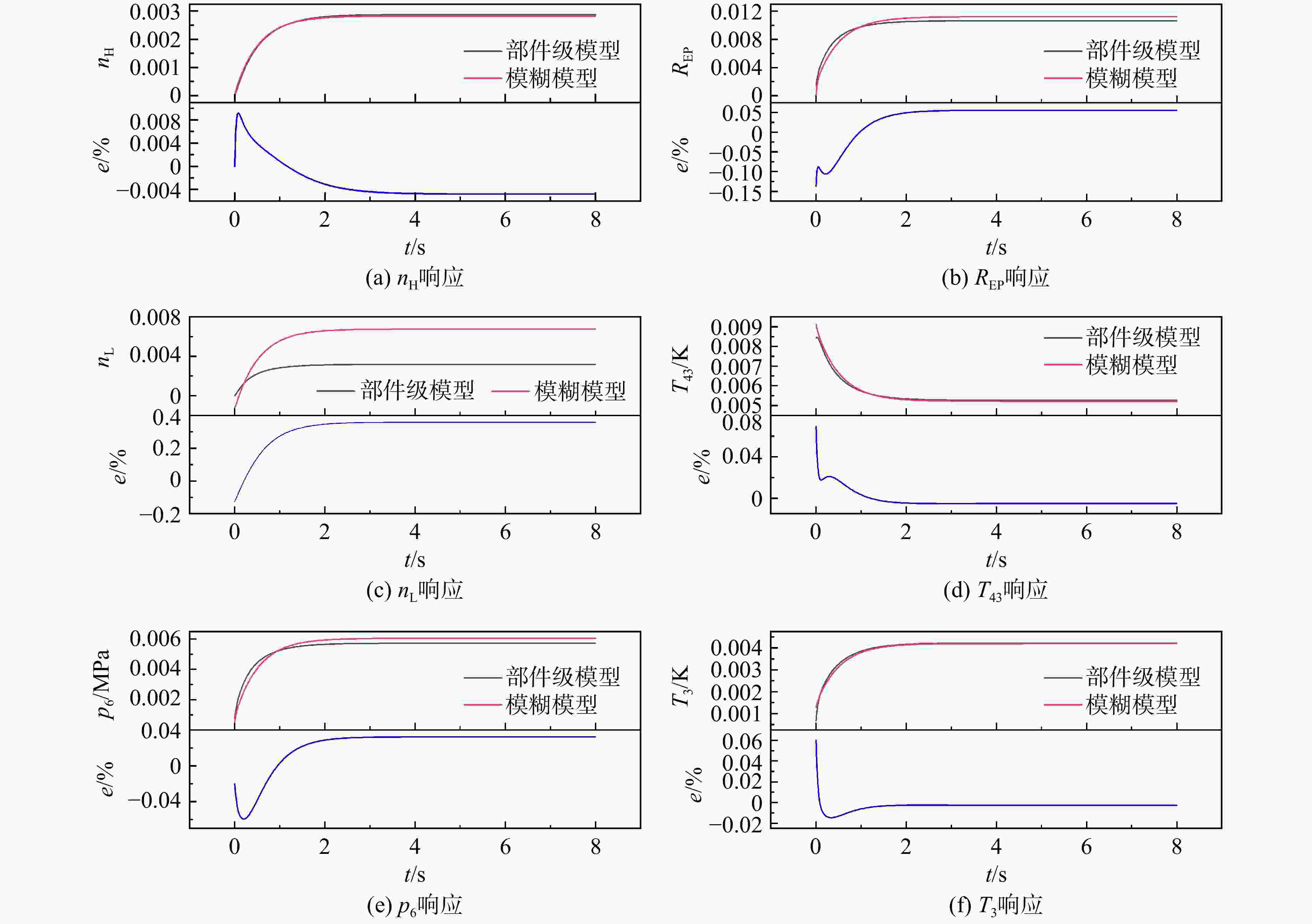

图 10 $ H $=11 km，$ Ma $=1.2，$ {n}_{\mathrm{H}} $=94%，$ {W}_{\mathrm{fb}} $做2%阶跃响应

Figure 10. Responses on $ H $=11 km，$ Ma $=1.2，$ {n}_{\mathrm{H}} $=94% with 2% $ {W}_{\mathrm{fb}} $ step

下载: 全尺寸图片幻灯片

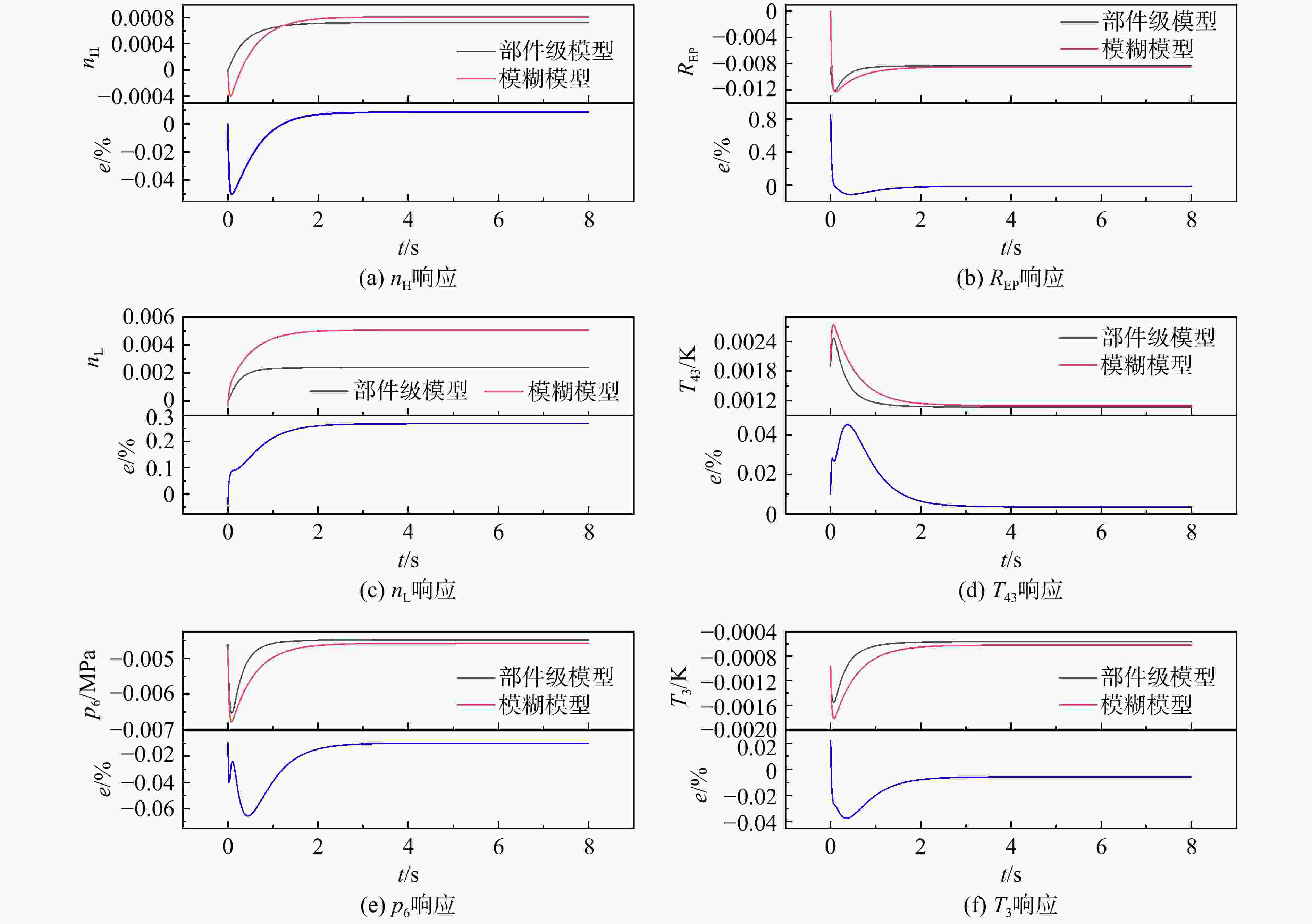

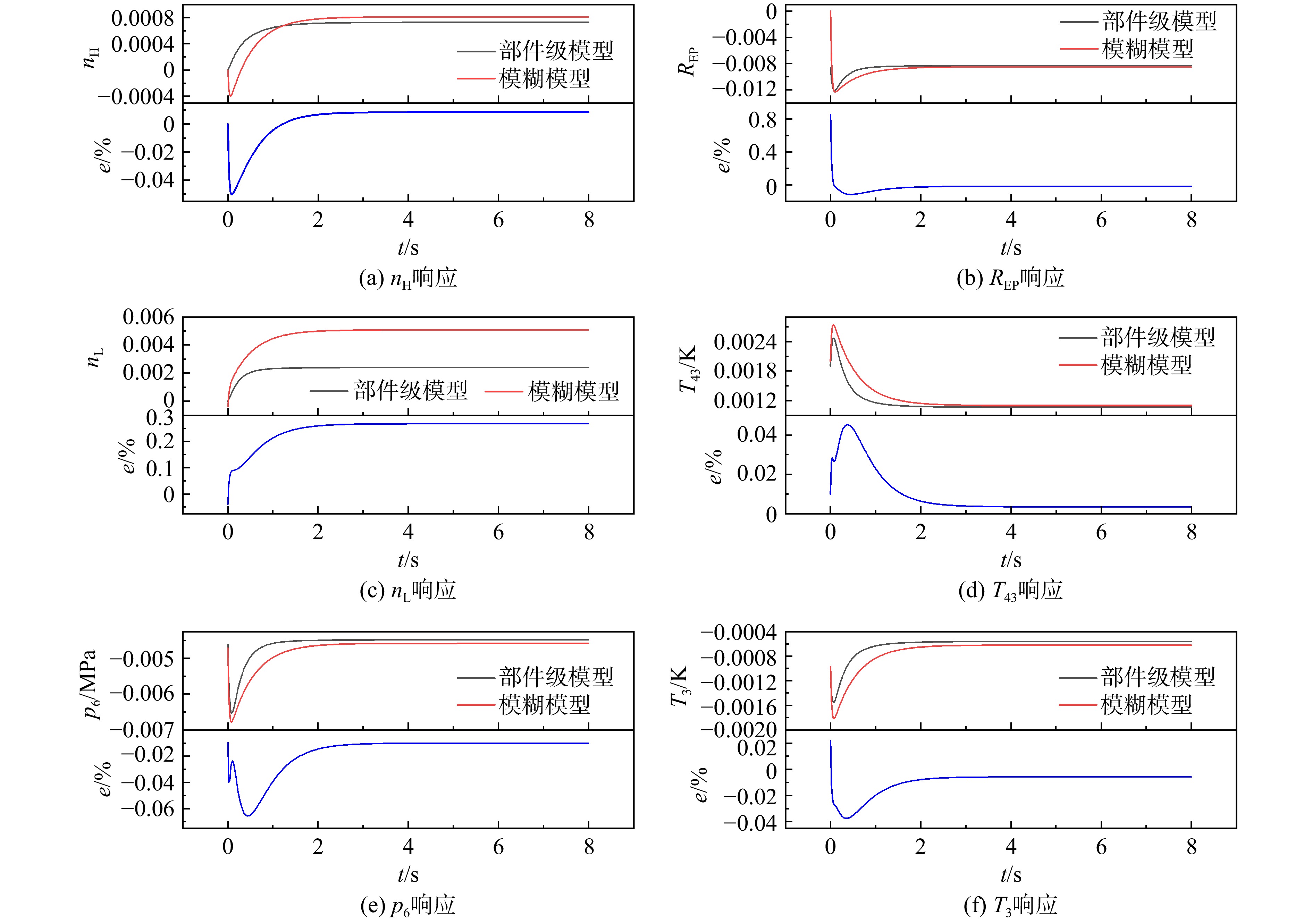

图 11 $ H $=11 km，$ Ma $=1.2，$ {n}_{\mathrm{H}} $=94%，$ {A}_{8} $做2%阶跃响应

Figure 11. Responses on $ H $=11 km，$ Ma $=1.2，$ {n}_{\mathrm{H}} $=94% with 2% $ {A}_{8} $ step

下载: 全尺寸图片幻灯片

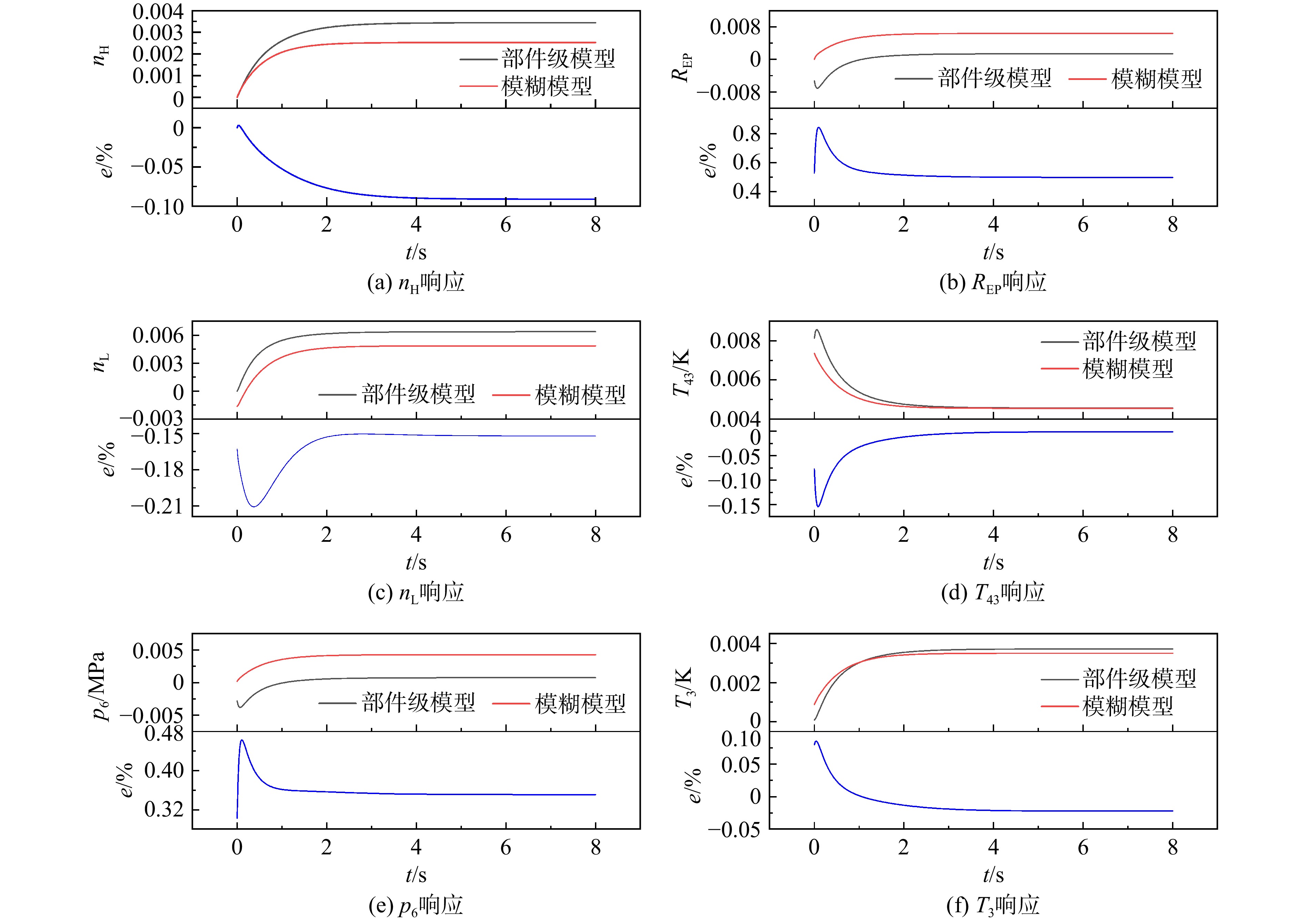

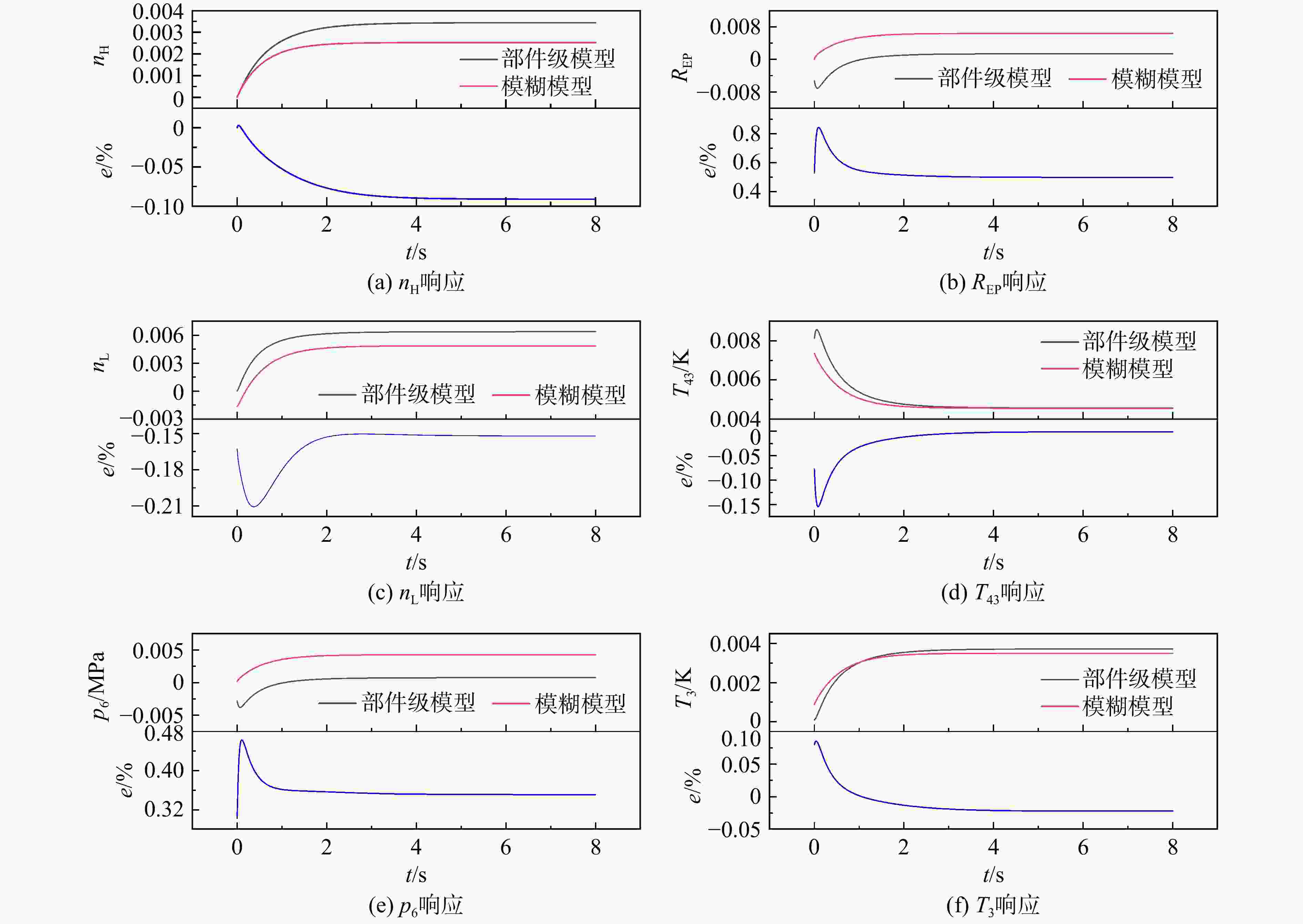

图 12 $ H $=8 km，$ Ma $=0.8，$ {n}_{\mathrm{H}} $=84%，$ {W}_{\mathrm{fb}} $和$ {A}_{8} $做2%阶跃响应

Figure 12. Responses on $ H $=8 km, $ Ma $=0.8, $ {n}_{\mathrm{H}} $=84% with 2% $ {W}_{\mathrm{fb}} $ and $ {A}_{8} $ step

下载: 全尺寸图片幻灯片

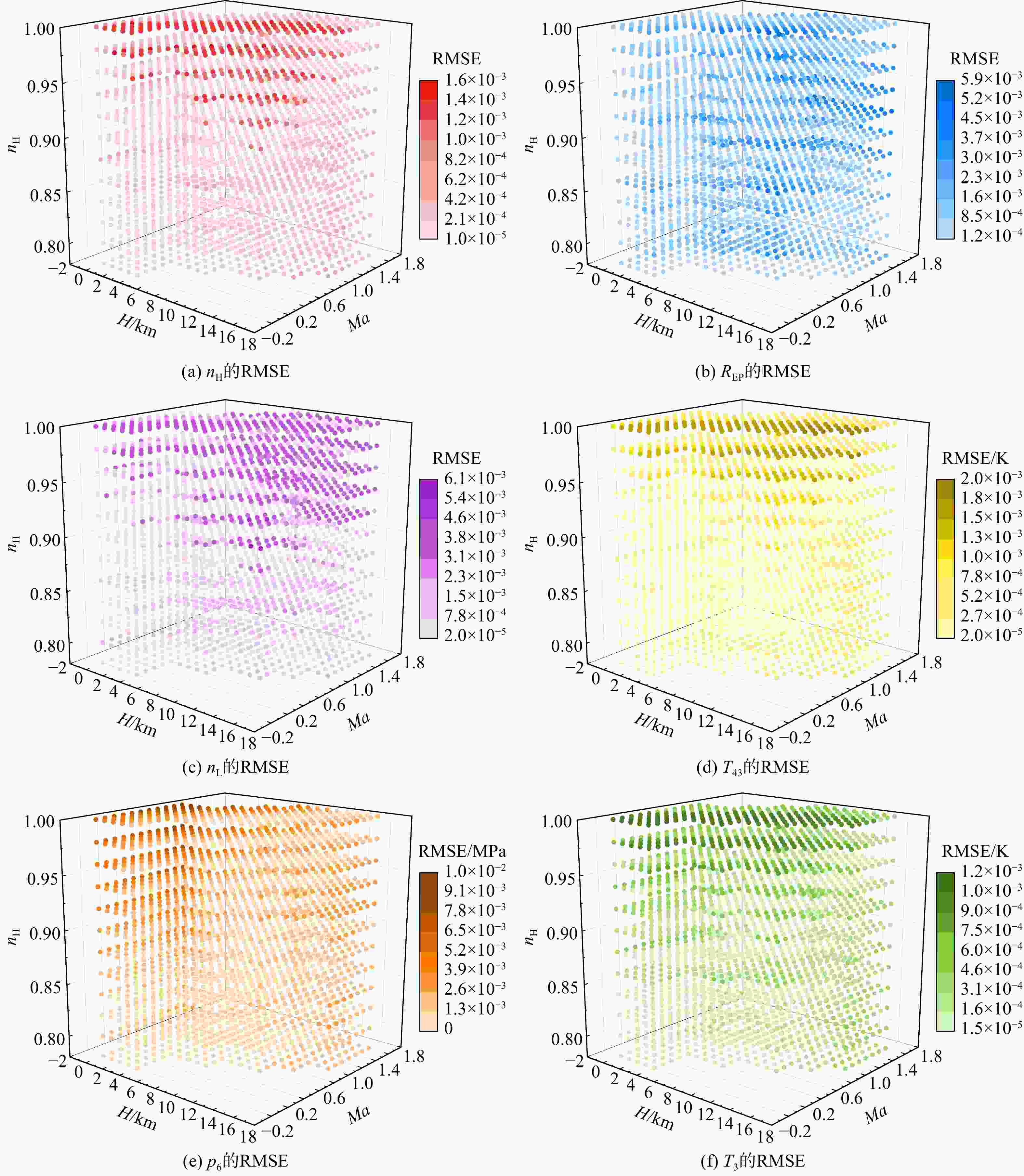

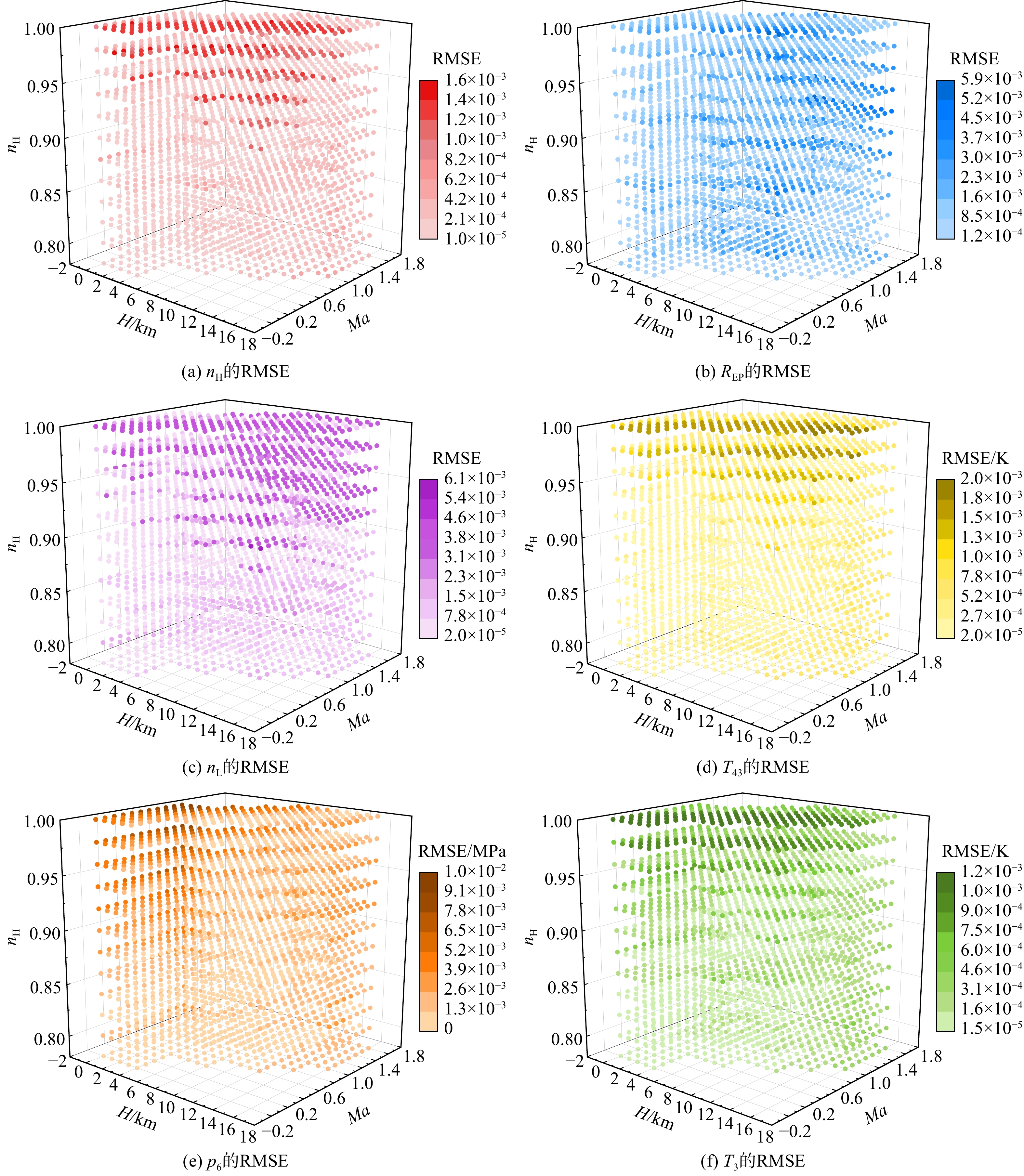

图 13 $ {W}_{\mathrm{fb}} $做2%阶跃响应各输出全包线的RMSE

Figure 13. Full envelope RMSE of responses with 2% $ {W}_{\mathrm{fb}} $ step

下载: 全尺寸图片幻灯片

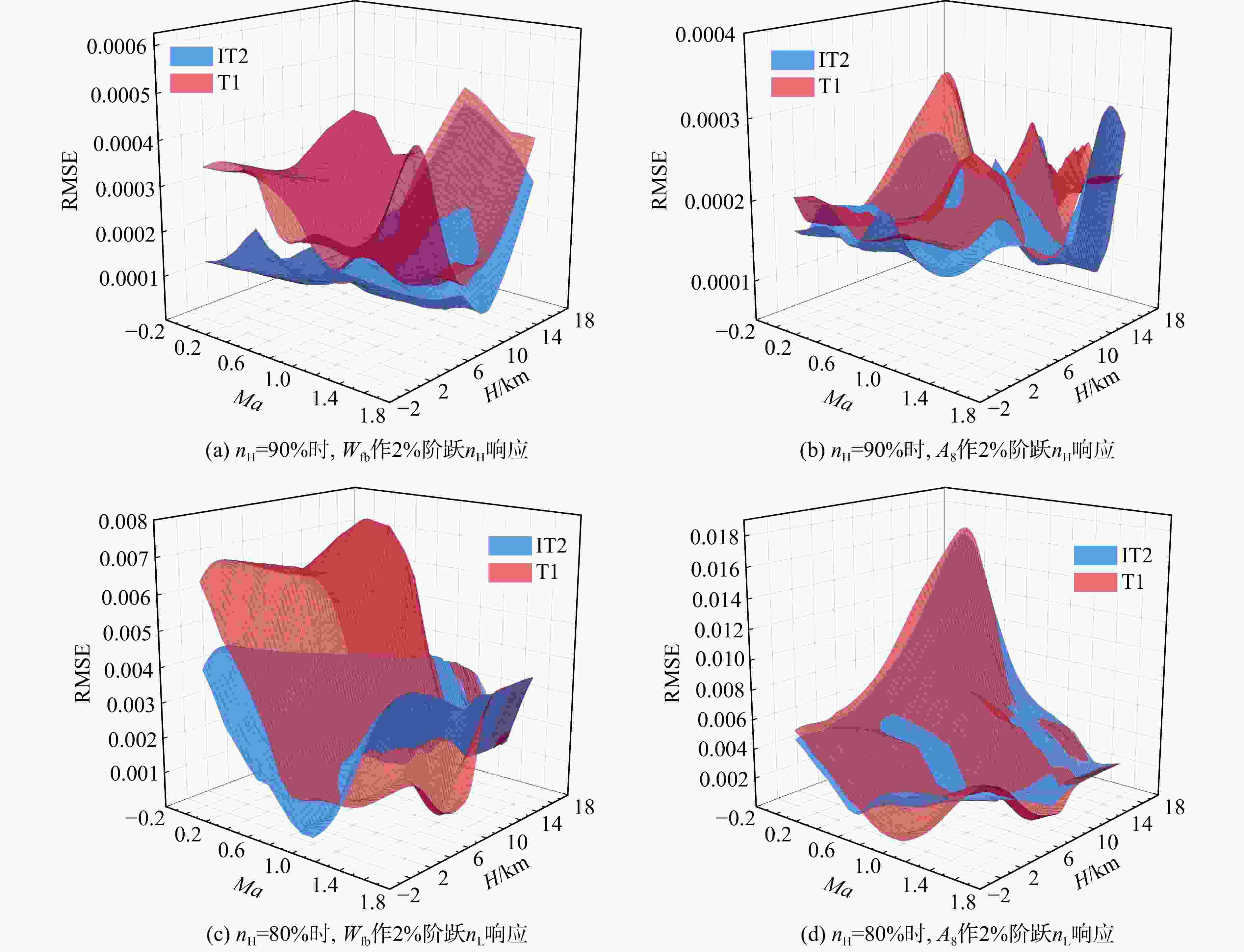

图 14 $ {A}_{8} $和$ {W}_{\mathrm{fb}} $做2%阶跃响应模糊模型输出RMSE对比

Figure 14. Fuzzy model output RMSE comparison with 2% $ {A}_{8} $ and $ {W}_{\mathrm{fb}} $ step

下载: 全尺寸图片幻灯片

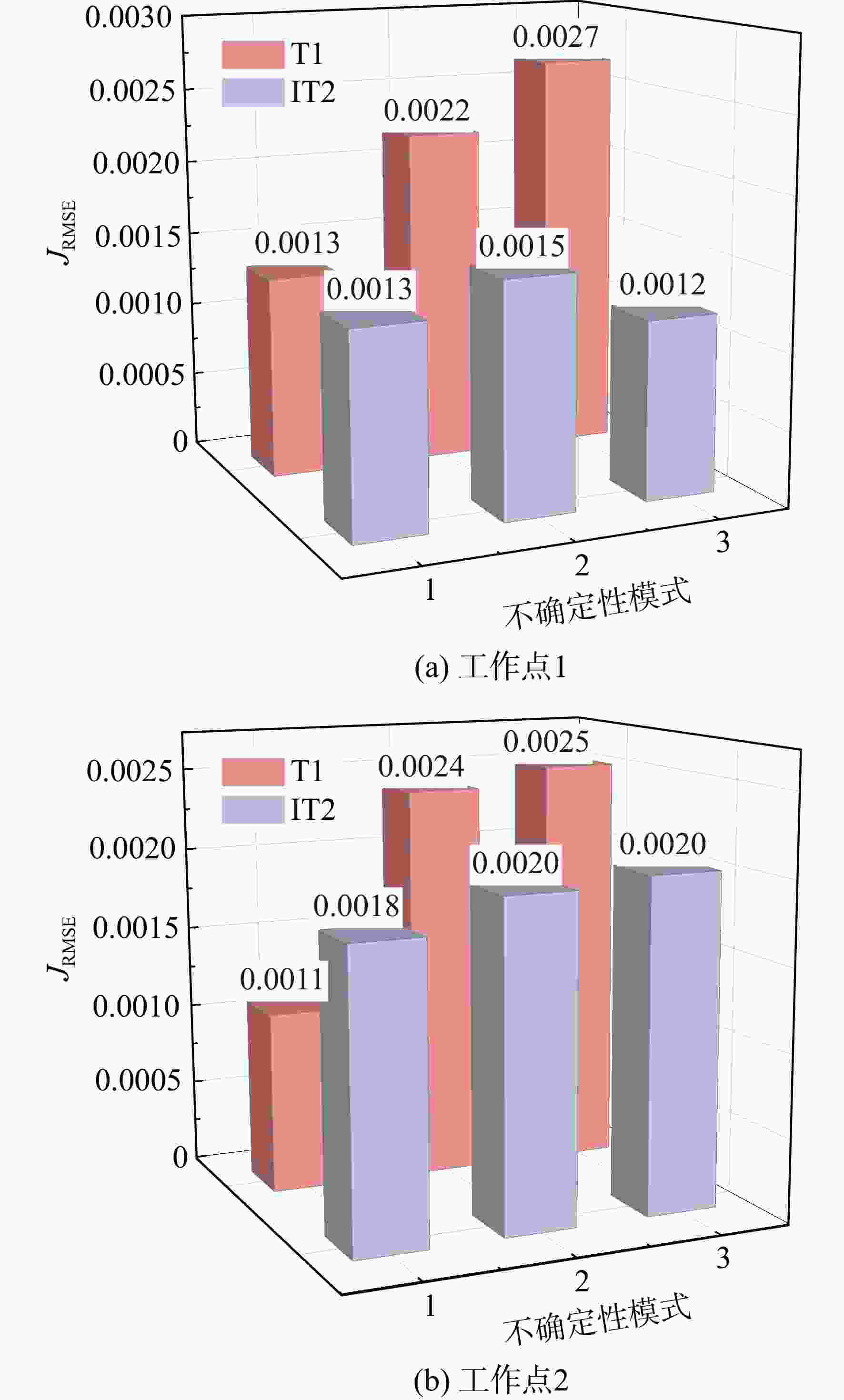

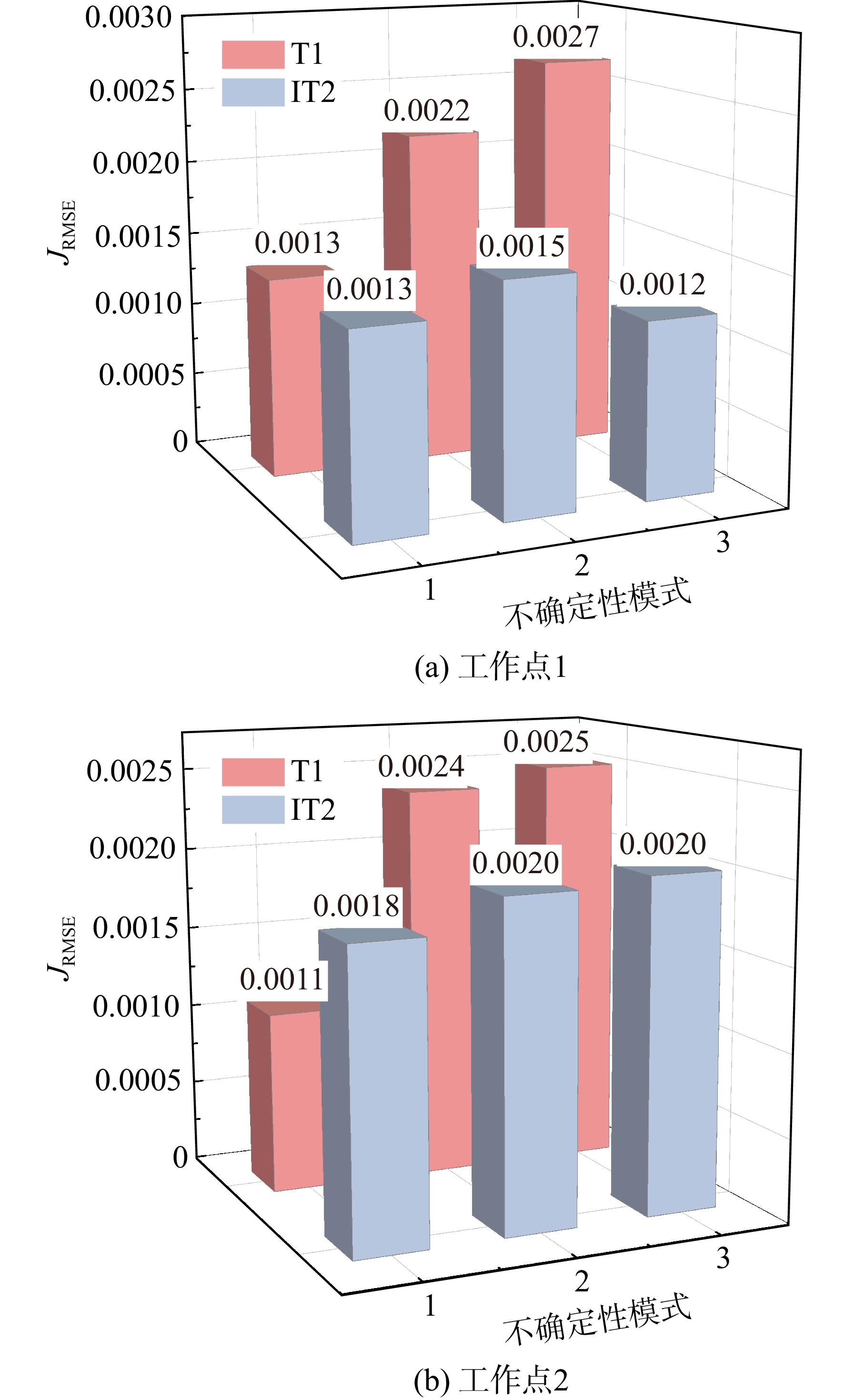

图 15 不同不确定性模式下模糊模型的$ {J}_{\text{RMSE}} $

Figure 15. Fuzzy model $ {J}_{\text{RMSE}} $ of different uncertainty modes

下载: 全尺寸图片幻灯片

$ \boldsymbol {\psi } $	前件变量	$ \tau $	作用力设计参数
$ {\boldsymbol {M}}_{i} $	第i条规则对应的前件区间二型模糊集合	$ \rho $	多元参数间的距离
$ \boldsymbol {x} $	系统状态变量	$ {\lambda }_{i} $	P矩阵第i个列向量对应的拉格朗日乘子
$ \boldsymbol {u} $	系统控制变量	$ \boldsymbol {F} $	作用力矩阵
$ \boldsymbol {y} $	系统输出变量	$ \boldsymbol {S} $	求和后对角作用力矩阵
$ {f}_{\text{UMF}} $	上隶属度函数	$ {\boldsymbol {P}}^{*} $	最优转换矩阵
$ {f}_{\text{LMF}} $	下隶属度函数	$ s $	转换前特征参数维度
$ {f}_{\text{EFS}} $	嵌入T1模糊集	$ d $	转换后特征参数维度
$ {h}_{i} $	第$ i $条规则的激活强度	$ {N}_{\text{C}} $	聚类个数
$ {\underline{\mu }}_{j,i} $	第$ i $条规则的第$ j $个前件变量的下隶属度函数	$ \boldsymbol {U} $	隶属度矩阵
$ {\overline{\mu }}_{j,i} $	第$ i $条规则的第$ j $个前件变量的上隶属度函数	$ \boldsymbol {V} $	聚类中心点的集合
$ {\delta }_{j,i} $	第$ i $条规则的第$ j $个前件变量的隶属度设计参数	$ m $	模糊权重系数
$ H $	高度	$ {E}_{\text{SS}} $	误差平方和（SSE）
$ Ma $	马赫数	$ {{\boldsymbol{\varTheta }}}_{\text{C}i} $	第i类的聚类中心点
$ {n}_{\mathrm{H}} $	高压转速	$ {\kappa }_{\text{SC}} $	轮廓系数
$ {\lambda }_{\mathrm{R}} $	主导极点的实部	$ \overline{{E}_{\text{RMS}}} $	平均方均根误差（ARMSE）
$ {\lambda }_{\mathrm{I}} $	主导极点的虚部	$ {R}_{\text{EP}} $	发动机落压比（EPR）
$ \boldsymbol {K} $	系统稳态增益矩阵	$ {W}_{\mathrm{fb}} $	主燃油流量
$ {\boldsymbol{\varTheta }} $	多元特征参数	$ {A}_{8} $	尾喷口喉道面积
$ \boldsymbol {P} $	DNE算法转换矩阵	$ {n}_{\mathrm{L}} $	低压转子转速
$ \Delta （\boldsymbol {P}） $	类内紧度	$ {T}_{43} $	涡轮间总温
$ \delta （\boldsymbol {P}） $	类间散度	$ {p}_{6} $	低压涡轮出口总压
$ {f}_{ij} $	第i个和第j个特征参数之间的作用力	$ {T}_{3} $	压气机出口总温

下载: 导出CSV

表 1 工作点A和工作点B动态特性对比

Table 1. Comparison of dynamic characteristic between operating points A and B

工作点	$ {\lambda }_{\mathrm{R}} $	$ {\lambda }_{\mathrm{I}} $
A	1.79	0
B	1.78	0

下载: 导出CSV

表 2 工作点C和工作点D稳态特性对比

Table 2. Comparison of steady-state characteristics between operating points C and D

工作点	$ {k}_{11} $	$ {k}_{12} $	$ {k}_{21} $	$ {k}_{22} $
C	7.74	5.66	−4.05	−2.79
D	7.74	5.66	−4.18	−2.78

下载: 导出CSV

表 3 改进的DNE-FCM算法聚类结果

Table 3. Clustering results of improved DNE-FCM algorithm

典型特征点	$ H/\mathrm{km} $	$ Ma $	$ {n}_{\mathrm{H}}/\text{%} $
1	7.90	0.86	88
2	5.77	0.74	79
3	4.58	0.71	82
4	8.56	0.96	91
5	7.02	0.88	84
6	11.89	1.19	95

下载: 导出CSV

表 4 模糊模型后件变量

Table 4. Fuzzy model consequence variables

典型特征点	后件变量
1	$ {\boldsymbol {A}}_{1}=\left[\begin{matrix}5.3\text{3} & -2.9\text{1}\\123.\text{50} & -51.4\text{7}\end{matrix}\right]\quad\quad {\boldsymbol {B}}_{1}=\left[\begin{matrix}0.\text{50} & -1.1\text{2}\\4.79 & -20.71\end{matrix}\right] $ $ {\boldsymbol {C}}_{1}={\left[\begin{matrix}1 & 0 & 2.170\;7 & -1.414\;3 & 1.393\;1 & 1.075\;3\\0 & 1 & -0.370\;7 & 0.093\;0 & 0.035\;6 & -0.024\;5\end{matrix}\right]}^{\mathrm{T}} $ $ {\boldsymbol {D}}_{1}={\left[\begin{matrix}0 & 0 & 0.014\;2 & 0.397\;3 & 0.037\;0 & 0.053\;6\\0 & 0 & -0.033\;1 & 0.079\;5 & -0.219\;6 & -0.048\;2\end{matrix}\right]}^{\mathrm{T}} $
$ \vdots $	$ \vdots $
6	$ {\boldsymbol {A}}_{6}=\left[\begin{matrix}5.\text{30} & -2.0\text{8}\\159.4\text{9} & -47.8\text{7}\end{matrix}\right] \quad\quad {\boldsymbol {B}}_{6}=\left[\begin{matrix}0.4\text{2} & -1.10\\4.3\text{2} & -26.8\text{6}\end{matrix}\right] $ $ {\boldsymbol {C}}_{6}={\left[\begin{matrix}1 & 0 & 3.910\;3 & -1.306\;7 & 1.460\;0 & 0.870\;2\\0 & 1 & -0.270\;7 & -0.019\;3 & 0.124\;1 & 0.042\;2\end{matrix}\right]}^{\mathrm{T}} $ $ {\boldsymbol {D}}_{6}={\left[\begin{matrix}0 & 0 & -0.062\;3 & 0.456\;0 & 0.026\;6 & 0.063\;3\\0 & 0 & -0.020\;1 & 0.099\;8 & -0.235\;4 & -0.048\;4\end{matrix}\right]}^{\mathrm{T}} $

下载: 导出CSV

表 5 各输出变量$ {{\boldsymbol{E}}}_{\bf{RMSmax}} $和$ \overline{{{\boldsymbol{E}}}_{\bf{RMS}}} $

Table 5. $ {{\boldsymbol{E}}}_{\bf{RMSmax}} $ and $ \overline{{{\boldsymbol{E}}}_{\bf{RMS}}} $ of output variables

输出变量	$ {W}_{\mathrm{fb}} $2%阶跃		$ {A}_{8} $2%阶跃
输出变量	$ {E}_{\text{RMS}}{}_{\max } $/%	$ \overline{{E}_{\text{RMS}}} $/%	$ {E}_{\text{RMS}}{}_{\max } $/%	$ \overline{{E}_{\text{RMS}}} $/%
$ {n}_{\mathrm{H}} $	0.16	0.03	0.41	0.03
$ {R}_{\text{EP}} $	0.59	0.14	1.6	0.17
$ {n}_{\mathrm{L}} $	0.61	0.15	1.8	0.20
$ {T}_{43} $/K	0.20	0.04	0.54	0.07
$ {p}_{6} $/MPa	1.04	0.18	0.83	0.17
$ {T}_{3} $/K	0.12	0.03	0.23	0.03

下载: 导出CSV

表 6 IT2与T1模糊模型各输出变量$ \overline{{{\boldsymbol{E}}}_{\bf{RMS}}} $

Table 6. $ \overline{{{\boldsymbol{E}}}_{\bf{RMS}}} $ of the IT2 and T1 fuzzy model output variables

输出变量	$ {W}_{\mathrm{fb}} $2%阶跃$ \overline{{E}_{\text{RMS}}} $/%		$ {A}_{8} $2%阶跃$ \overline{{E}_{\text{RMS}}} $/%
输出变量	IT2	T1	IT2	T1
$ {n}_{\mathrm{H}} $	0.03	0.04	0.05	0.06
$ {R}_{\text{EP}} $	0.14	0.31	0.17	0.29
$ {n}_{\mathrm{L}} $	0.15	0.22	0.20	0.23
$ {T}_{43} $/K	0.04	0.07	0.07	0.11
$ {p}_{6} $/MPa	0.18	0.27	0.17	0.22
$ {T}_{3} $/K	0.03	0.06	0.03	0.05

下载: 导出CSV

表 7 旋转部件性能变化程度

Table 7. Degree of performance variation of rotating parts

部件	健康参数
部件	效率系数	变化程度/%	流量系数	变化程度/%
Fan	$ {C}_{\text{SE1}} $	−3	$ {C}_{\text{SW1}} $	−4
HPC	$ {C}_{\text{SE2}} $	−6	$ {C}_{\text{SW2}} $	−8
HPT	$ {C}_{\text{SE3}} $	−3	$ {C}_{\text{SW3}} $	2
LPT	$ {C}_{\text{SE4}} $	−2	$ {C}_{\text{SW4}} $	1

下载: 导出CSV

表 8 不同不确定性模式中的部件性能变化

Table 8. Variation in component performance under different uncertainty modes

不确定性模式	性能变化部件
1	标称状态（无部件性能变化）
2	HPC和HPT性能变化
3	全部部件性能变化

下载: 导出CSV

表 9 模糊模型计算时间

Table 9. Fuzzy model calculation time

模糊模型	模型计算耗时/ms
模糊模型	工作点1	工作点2	$ \cdots $	工作点2478	平均耗时
T1	5.5	4.1	$ \cdots $	3.8	3.9
IT2	5.5	4.0	$ \cdots $	3.9	3.9

下载: 导出CSV
