涡轮变几何技术的研究及应用进展

伊卫林; 郑霆锴

doi:10.13224/j.cnki.jasp.20240831

涡轮变几何技术的研究及应用进展

doi: 10.13224/j.cnki.jasp.20240831

伊卫林^{1, 2,},
郑霆锴¹

1.
北京理工大学机械与车辆学院，北京 100081
2.
北京理工大学多栖平台驱动系统全国重点实验室，北京 100081

基金项目: 国家自然科学基金（52176035）；多栖平台驱动系统全国重点实验室开放基金（QDXT-WY-202407-01）

详细信息

作者简介:
伊卫林（1978-），男，副教授，博士，主要从事燃气轮机/航空发动机总体、叶轮机械气动热力学方面的研究。E-mail：yiweilin@bit.edu.cn

中图分类号: V212.5
计量
- 文章访问数: 1054
- HTML浏览量: 611
- PDF量: 85
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-09
- 网络出版日期: 2025-09-10

Research and application progress of variable geometry turbine technology

YI Weilin^{1, 2
,},
ZHENG Tingkai¹

1.
School of Mechanical Engineering，Beijing Institute of Technology，Beijing 100081，China
2.
National Key Laboratory of Multi-perch Vehicle Driving Systems，Beijing Institute of Technology，Beijing 100081，China

摘要

摘要:
系统梳理了燃气轮机涡轮变几何技术提出与发展全过程，论述了车用、船用、发电及航空动力各领域的应用现状。基于理论分析、实验研究及数值模拟研究成果，总结了涡轮变几何在拓宽工作范围、优化循环参数、改善部分负荷性能等方面的作用，明晰了攻角、端部间隙、级间匹配等导致流动损失机理的研究现状，对新概念、新技术及其潜在应用进行了展望。结果表明：涡轮几何可变是高性能燃气轮机的重要设计技术，变循环发动机等是其可应用的新领域，变几何调节方式、间隙泄漏流控制方法、适应宽攻角的叶型优化、整机性能通流匹配策略等仍将是下一步研究的主攻方向，而几何变化动态过程对涡轮气动、整机性能影响研究应是重要关注点。
- 燃气轮机 /
- 涡轮性能 /
- 涡轮变几何技术 /
- 变循环发动机 /
- 变工况
Abstract:
The proposal and development of the variable geometry turbine utilized in gas turbines were systematically reviewed, and its applications in automotive, marine, power generation, and aviation propulsion were examined. Based on theoretical analysis, experimental investigations, and numerical simulations, the roles of turbine variable geometry in broadening the operating range, optimizing cycle parameters, and enhancing part-load performance were summarized. The current understanding of flow loss mechanisms associated with incidence angle, tip clearance, and stage matching was also clarified, and prospects for new concepts, new technologies, and potential applications were outlined. The findings indicated that the variable geometry turbine is a key design technology for high-performance gas turbines, while variable cycle engines represent a promising new application area. Future research is expected to focus on adjustment methods for variable geometry, leakage-flow control in clearances, blade profile optimization for wide-incidence adaptation, and matching strategy for flow-path components in the whole engine. In addition, the aerodynamic and overall performance impacts of the dynamic process of geometric variation should be regarded as an important subject of investigation.
- gas turbine /
- turbine performance /
- variable geometry turbine technology /
- variable cycle engine /
- off-design condition

HTML

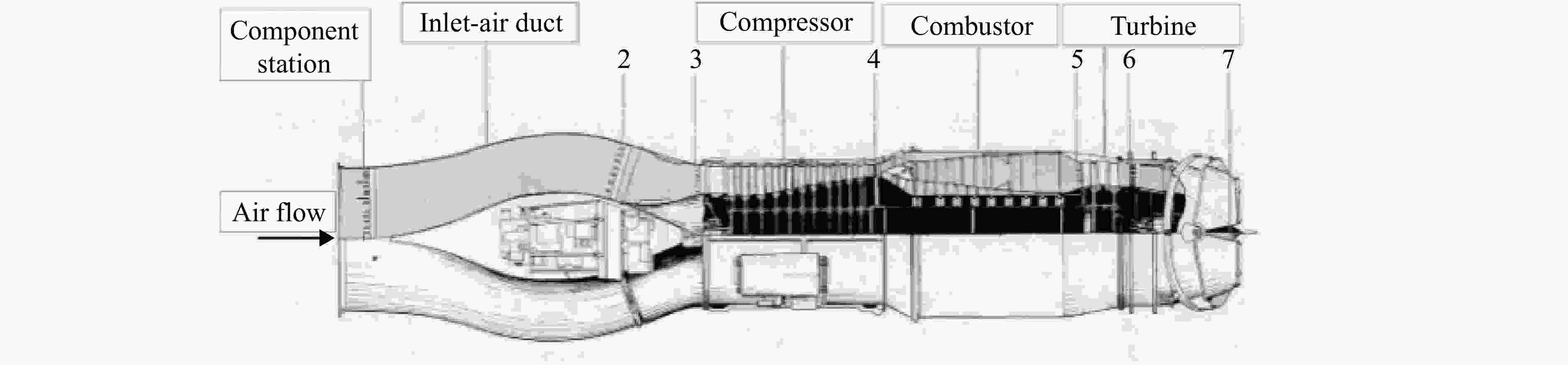

图 1 J40-WE-6涡喷发动机^[10]

Figure 1. J40-WE-6 turbojet engine^[10]

下载: 全尺寸图片幻灯片

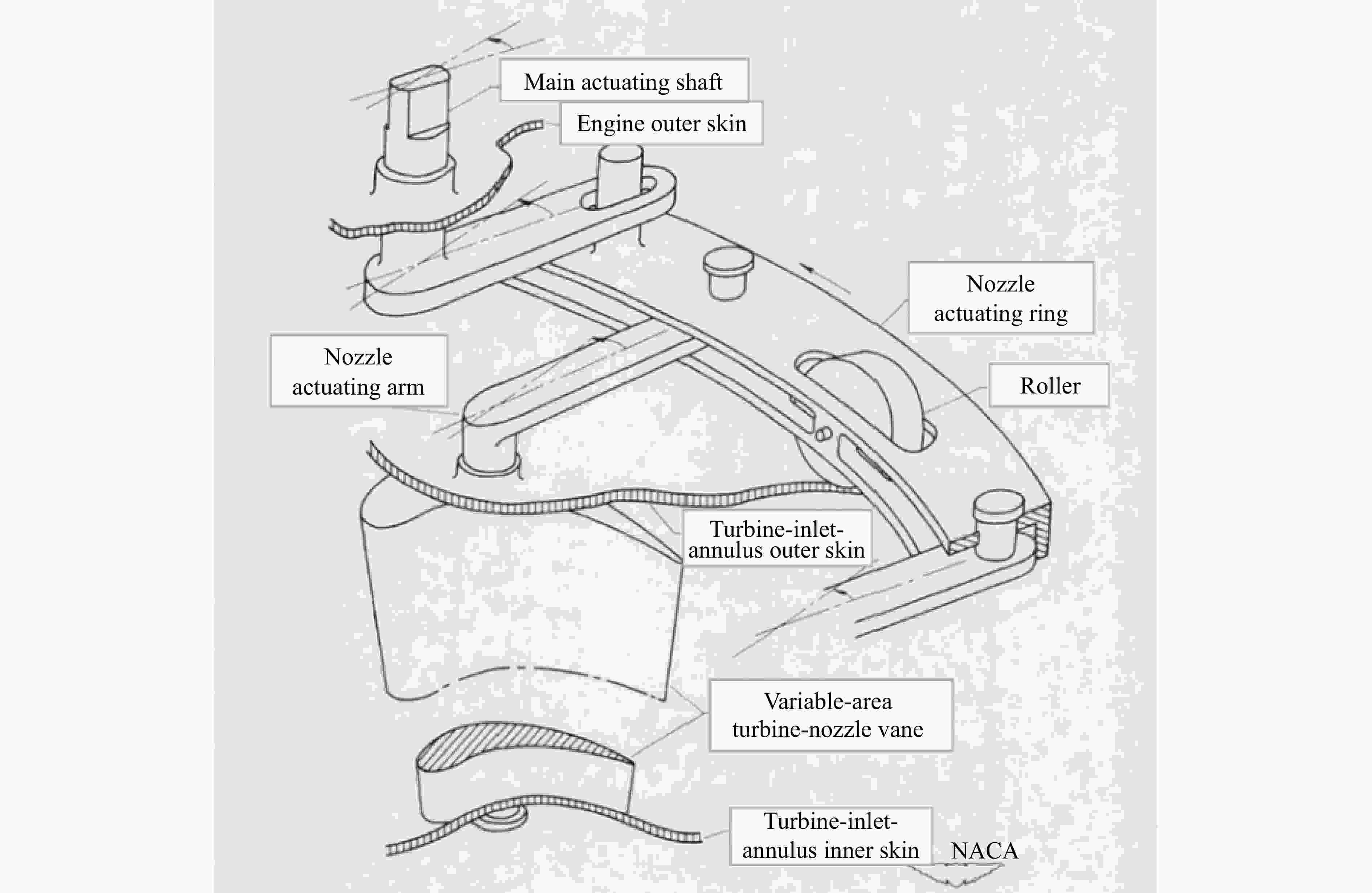

图 2 可变面积涡轮喷嘴驱动机构的示意图^[10]

Figure 2. Schematic of variable-area turbine-nozzle actuating mechanism^[10]

下载: 全尺寸图片幻灯片

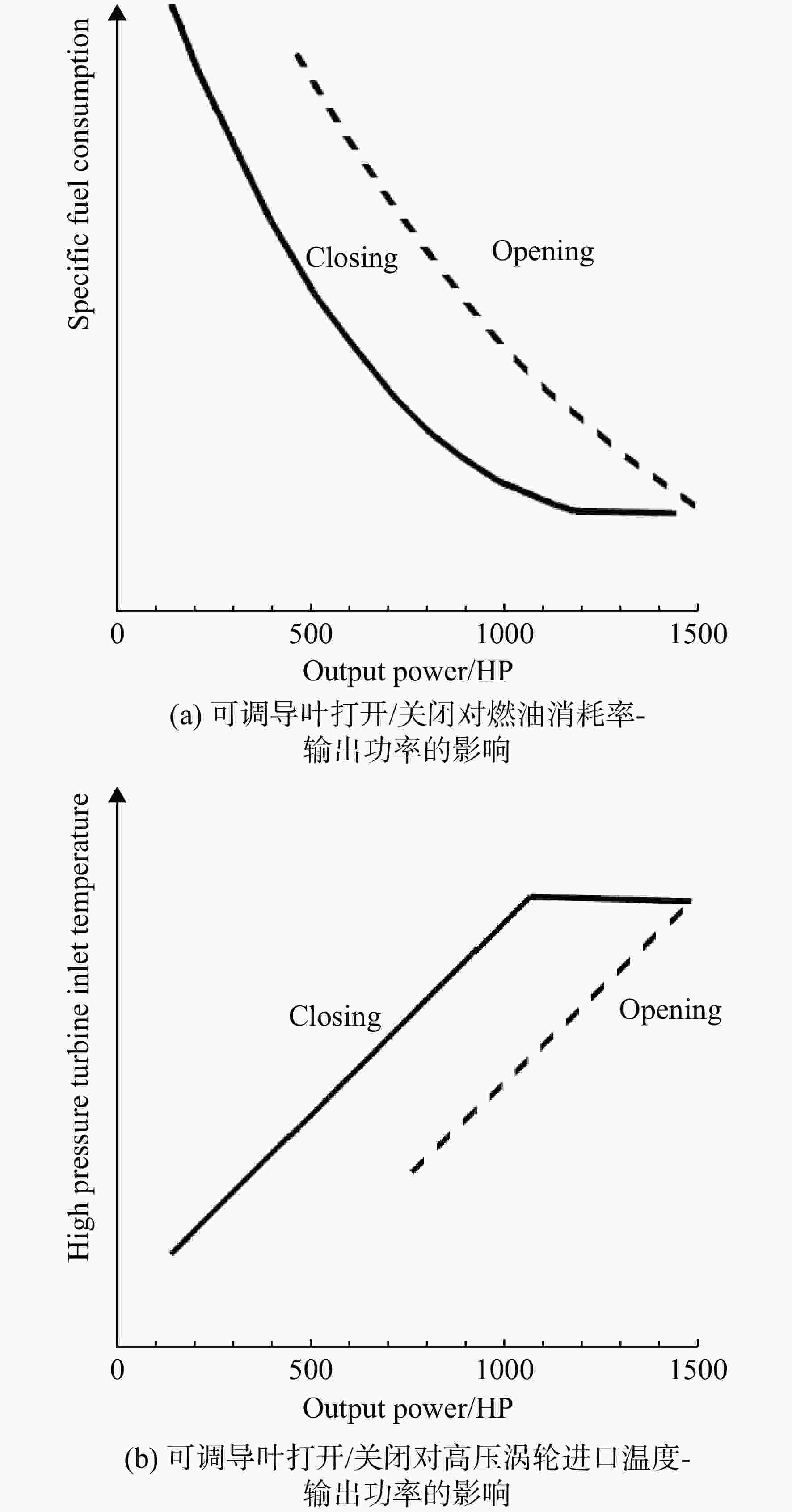

图 3 动力涡轮进口可调导叶对发动机性能的影响^[23]

Figure 3. Impact of adjustable power turbine inlet guide vane on engine performance^[23]

下载: 全尺寸图片幻灯片

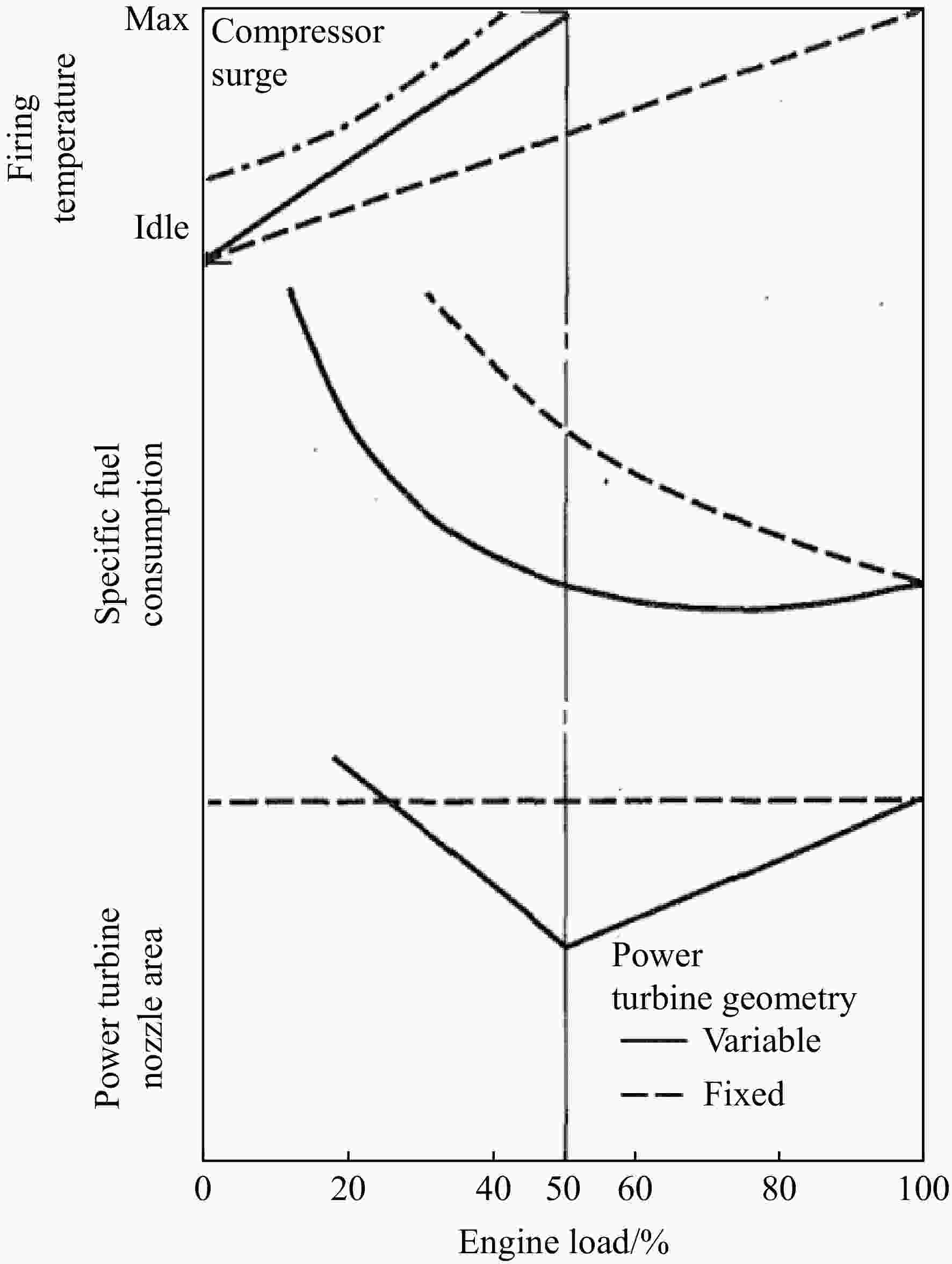

图 4 回热双轴燃气轮机固定几何和变几何性能对比^[36]

Figure 4. Performance comparison of regenerative twin-shaft gas turbines with fixed and variable geometries^[36]

下载: 全尺寸图片幻灯片

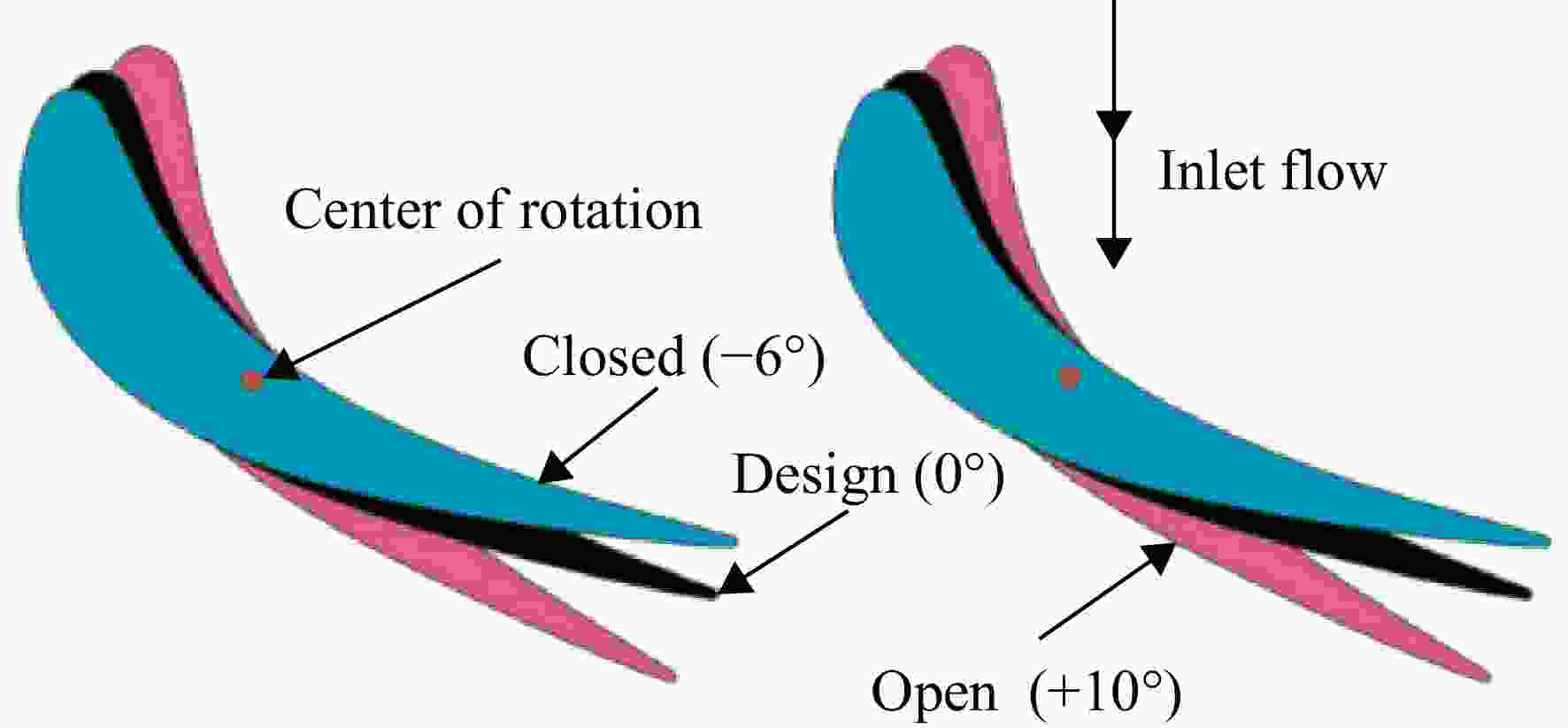

图 5 导叶不同转角^[42]

Figure 5. Variable guide vane positions^[42]

下载: 全尺寸图片幻灯片

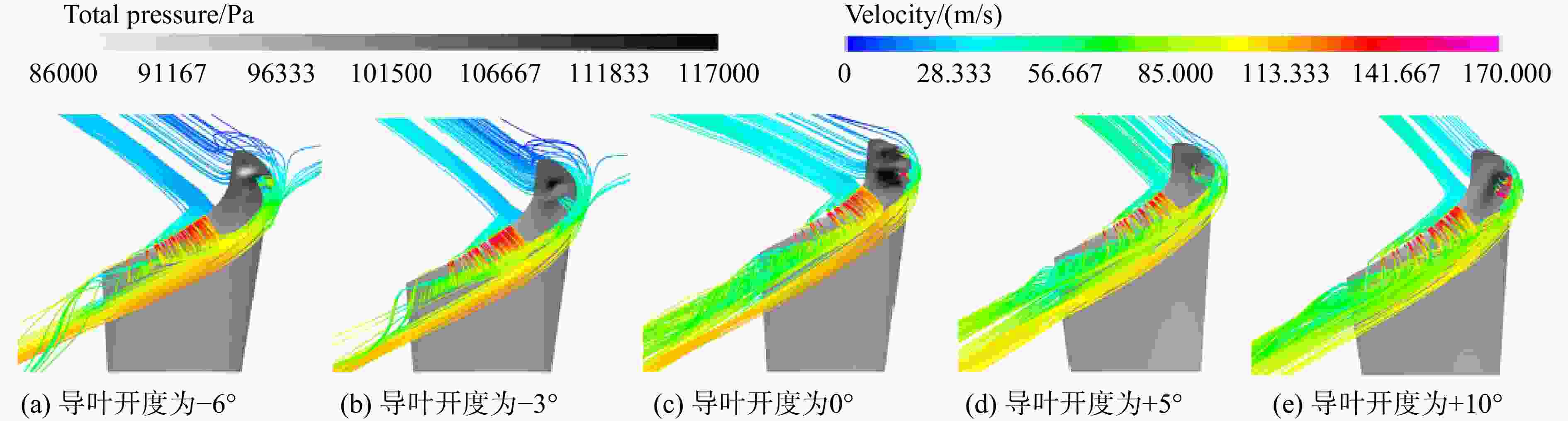

图 6 不同导叶开度下叶顶流场结构以及压力分布（出口马赫数为0.3）^[42]

Figure 6. Flow structure and pressure distribution of the tip clearance with different turning angles （0.3 exit Mach number）^[42]

下载: 全尺寸图片幻灯片

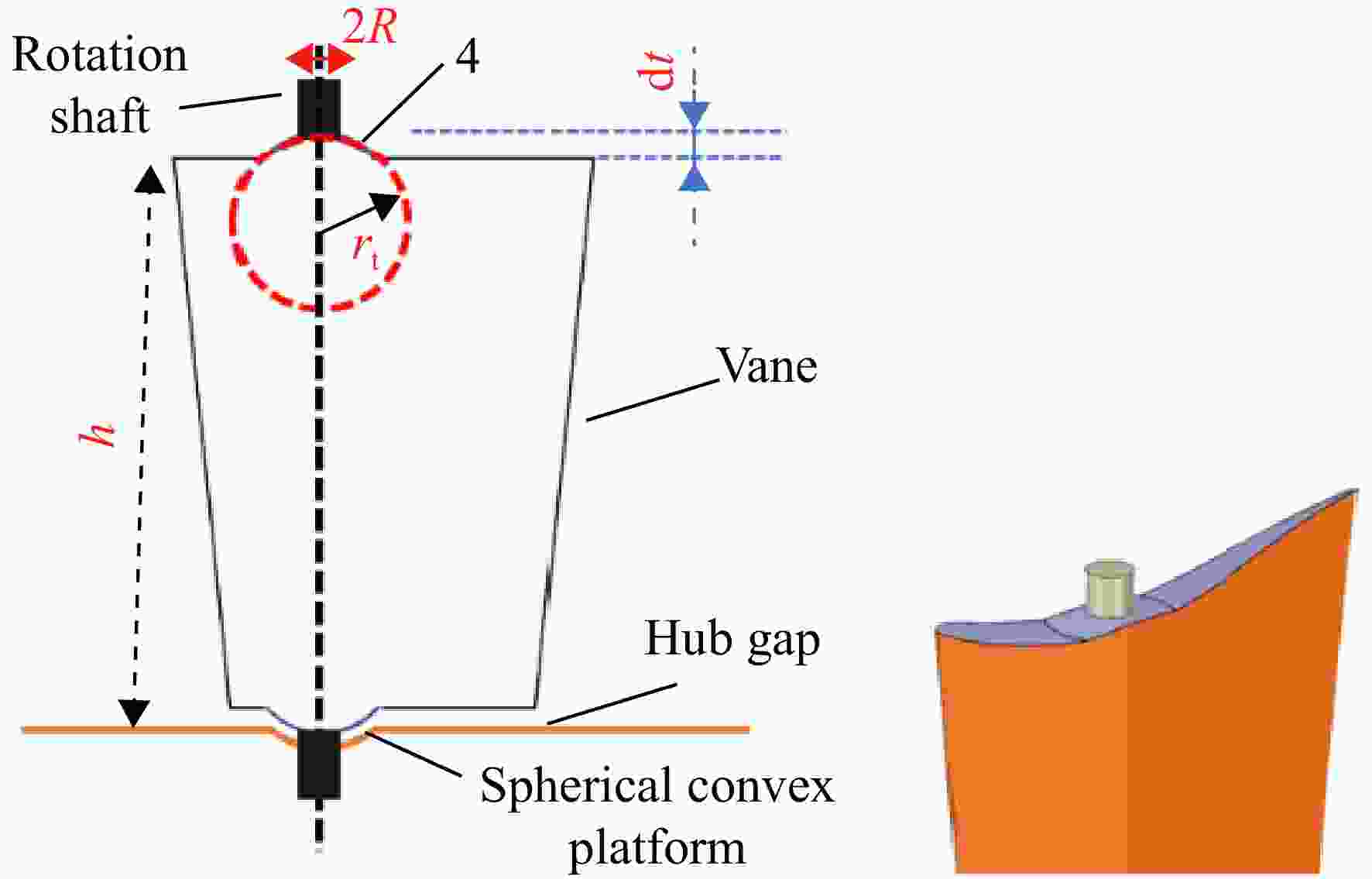

图 7 带有枢轴的新型球形凸台^[44]

Figure 7. A novel spherical convex plat with rotating pivot shaft^[44]

下载: 全尺寸图片幻灯片

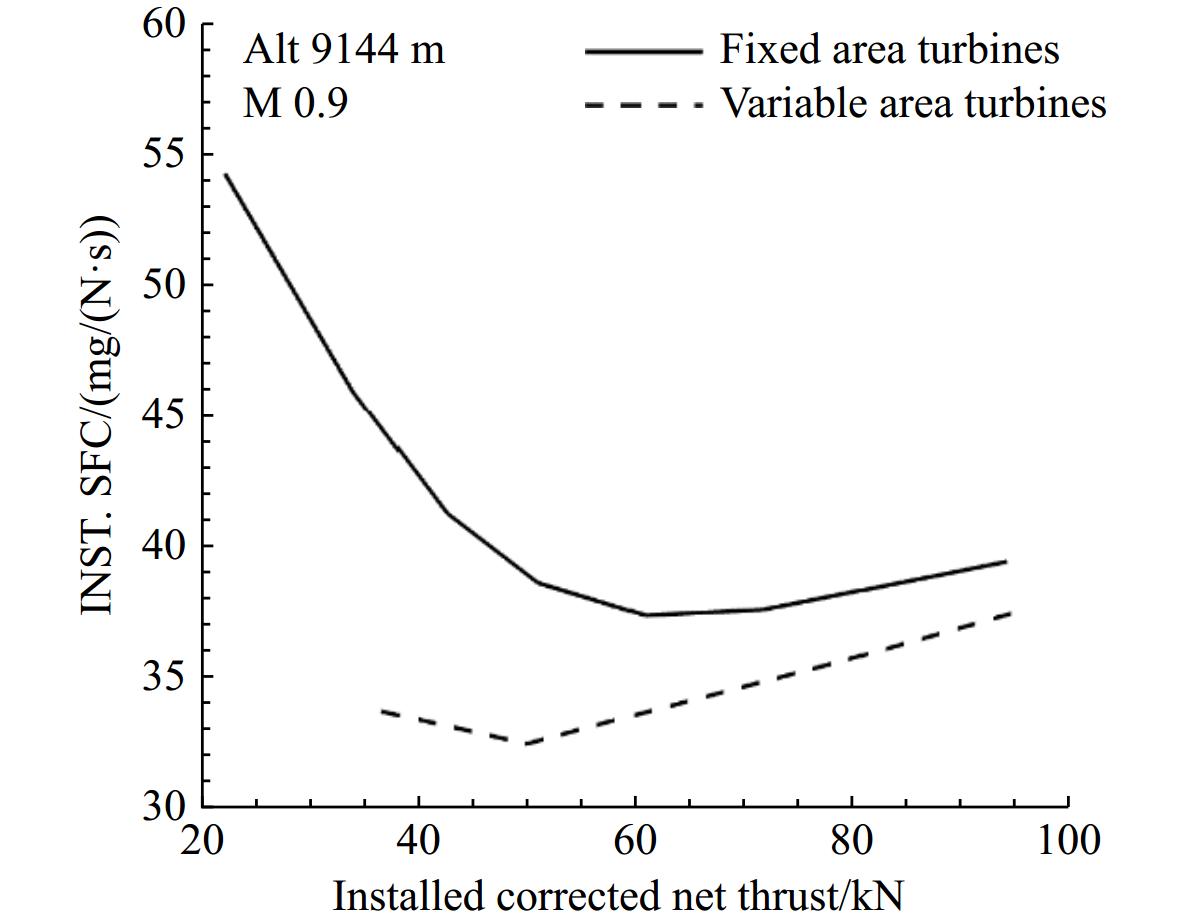

图 8 发动机运行性能对比^[52]

Figure 8. Engine performance comparison^[52]

下载: 全尺寸图片幻灯片

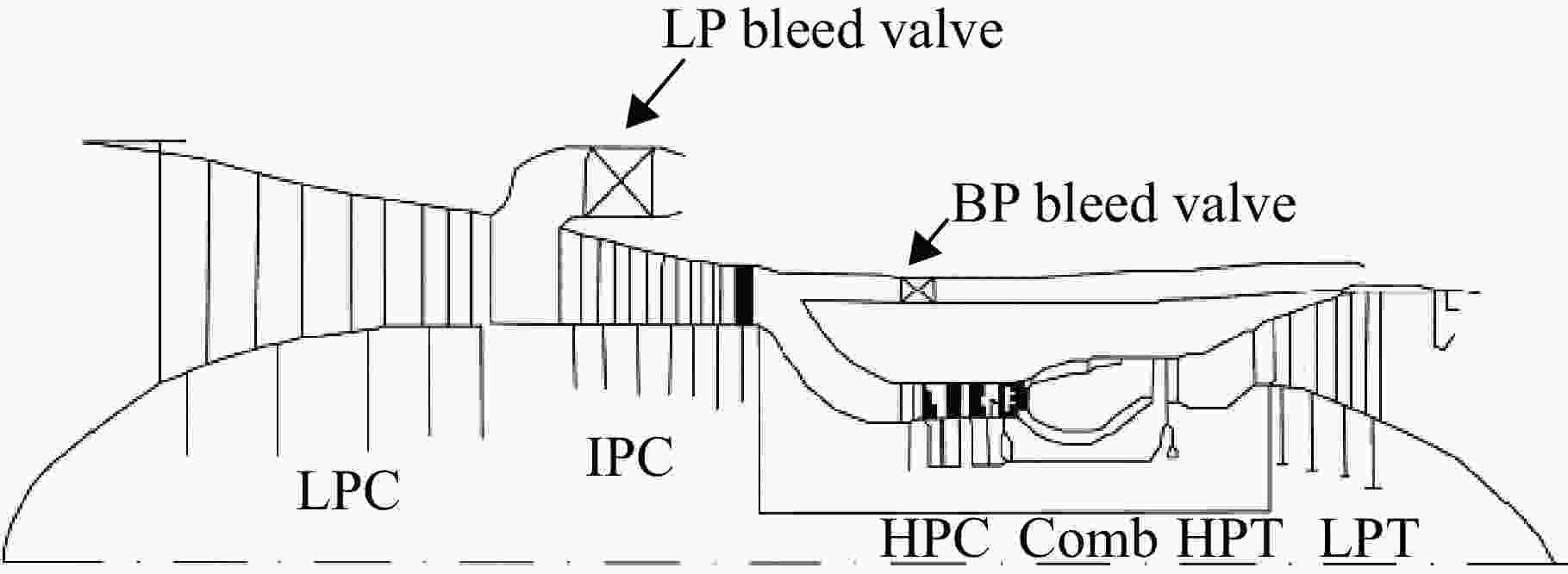

图 9 选择性放气可变循环发动机^[54]

Figure 9. Selective bleed variable cycle engine^[54]

下载: 全尺寸图片幻灯片

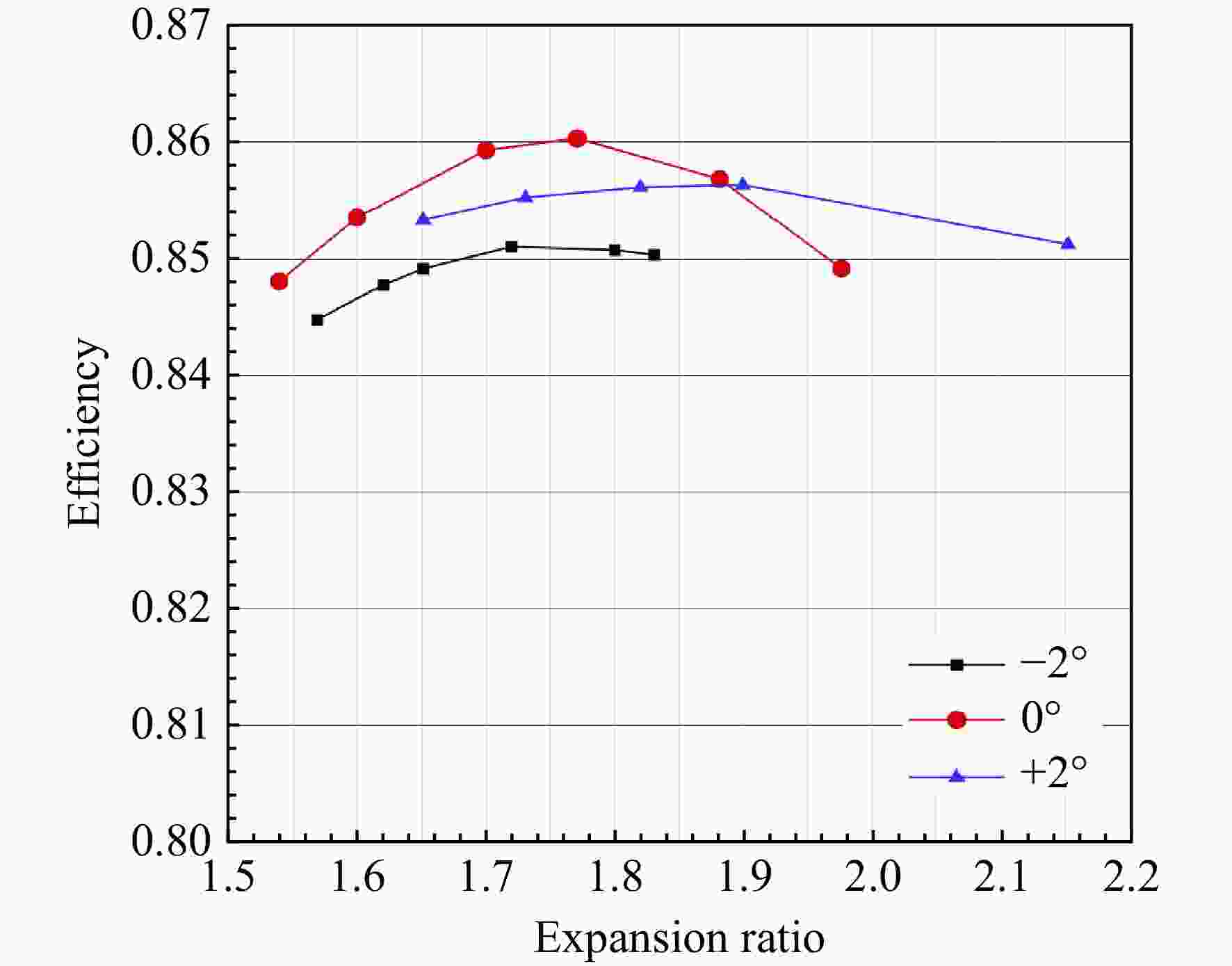

图 10 不同转角下的效率变化^[58]

Figure 10. Efficiency variation at different nozzle rotating angles^[58]

下载: 全尺寸图片幻灯片

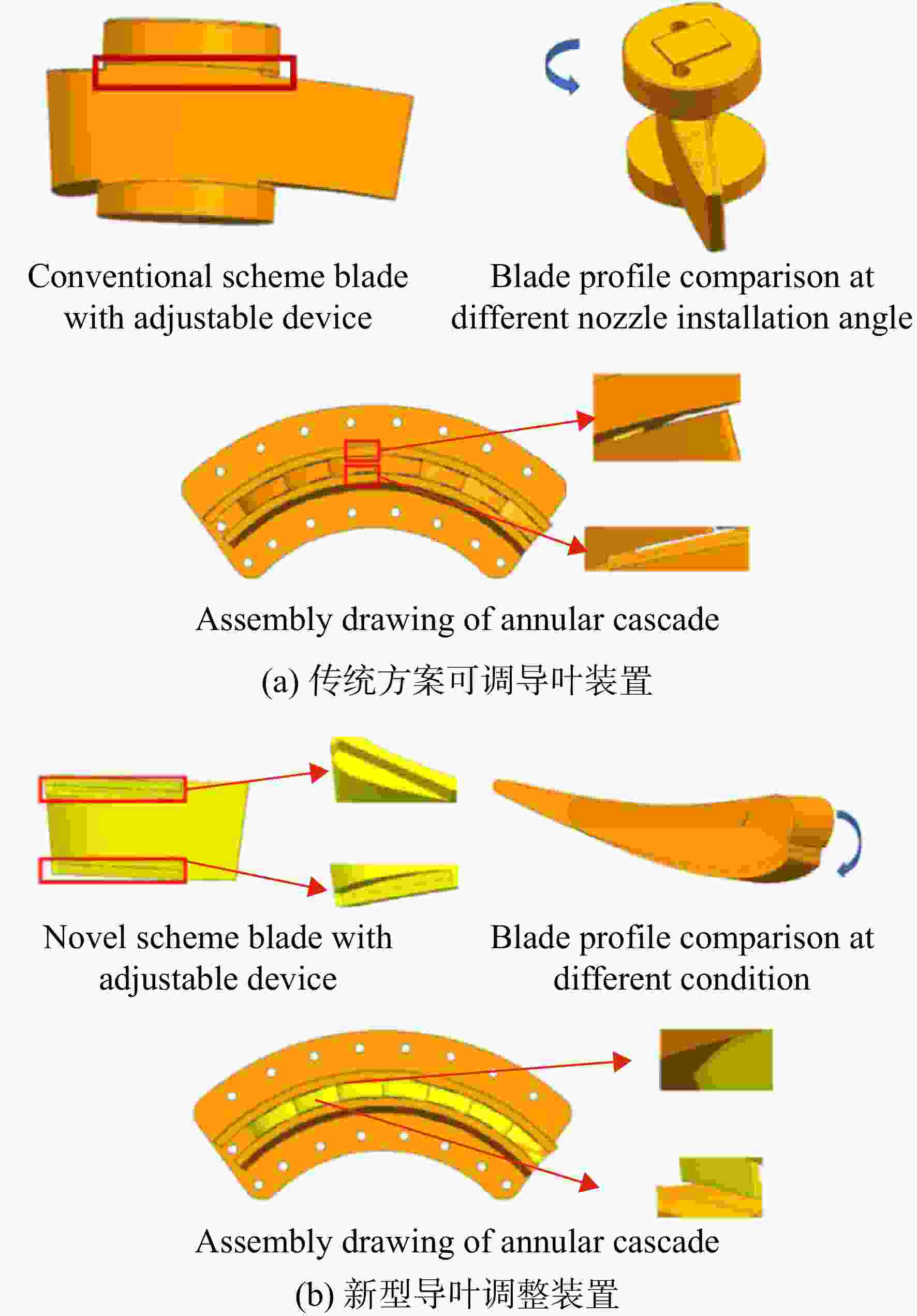

图 11 传统方案可调导叶装置及新型导叶调整装置对比示意图^[61]

Figure 11. Schematic diagram of the conventional scheme adjustable guide vane device and the novel scheme adjustable guide vane device^[61]

下载: 全尺寸图片幻灯片

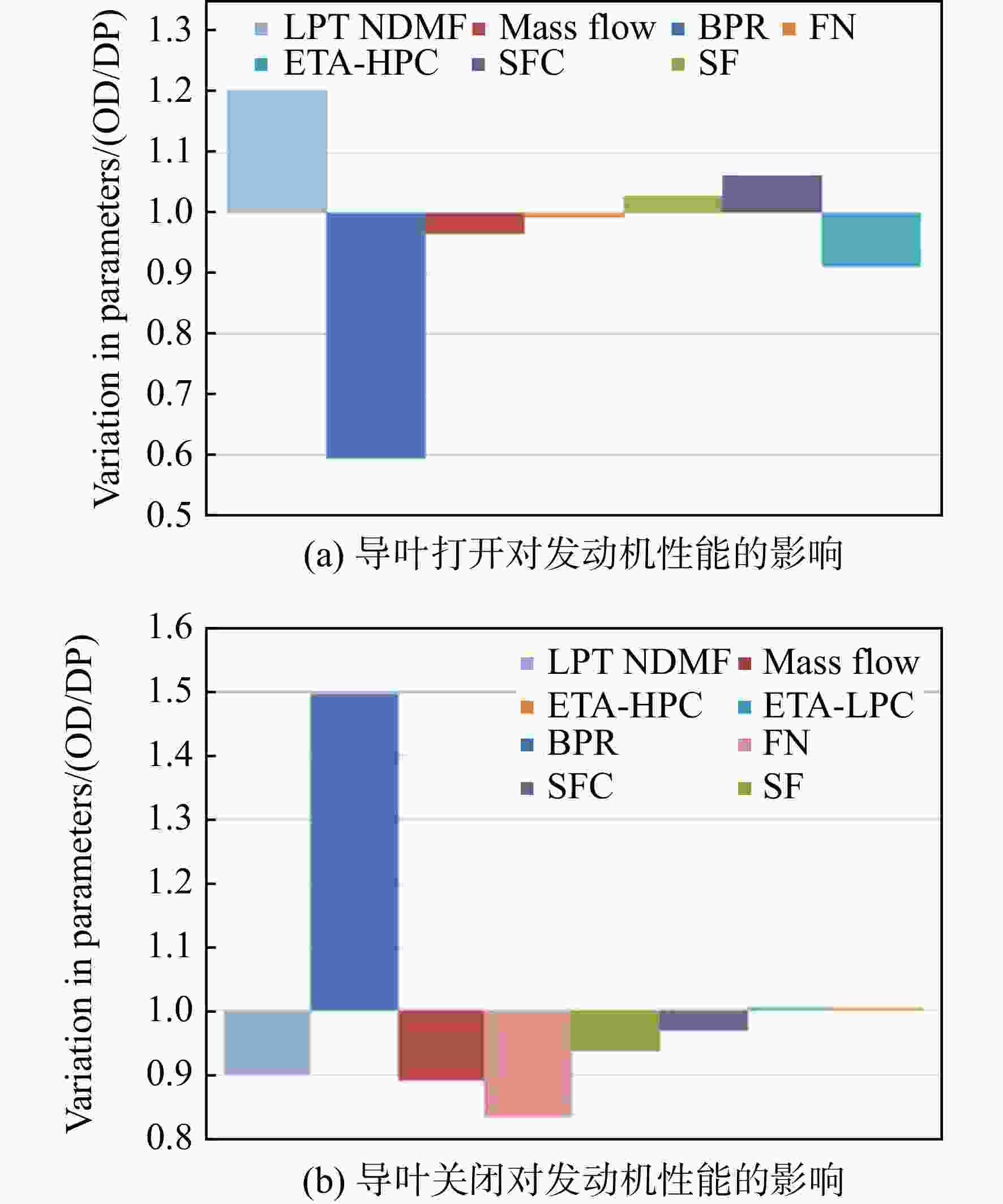

图 12 低压涡轮导叶打开和关闭对发动机性能的影响^[69]

Figure 12. Effect of low pressure turbine guide vane opening and closing on engine performance^[69]

下载: 全尺寸图片幻灯片

图 13 Guan等在实验中拍摄的照片^[72]

Figure 13. Snapshot acquired during the experiment by Guan et al^[72]

下载: 全尺寸图片幻灯片

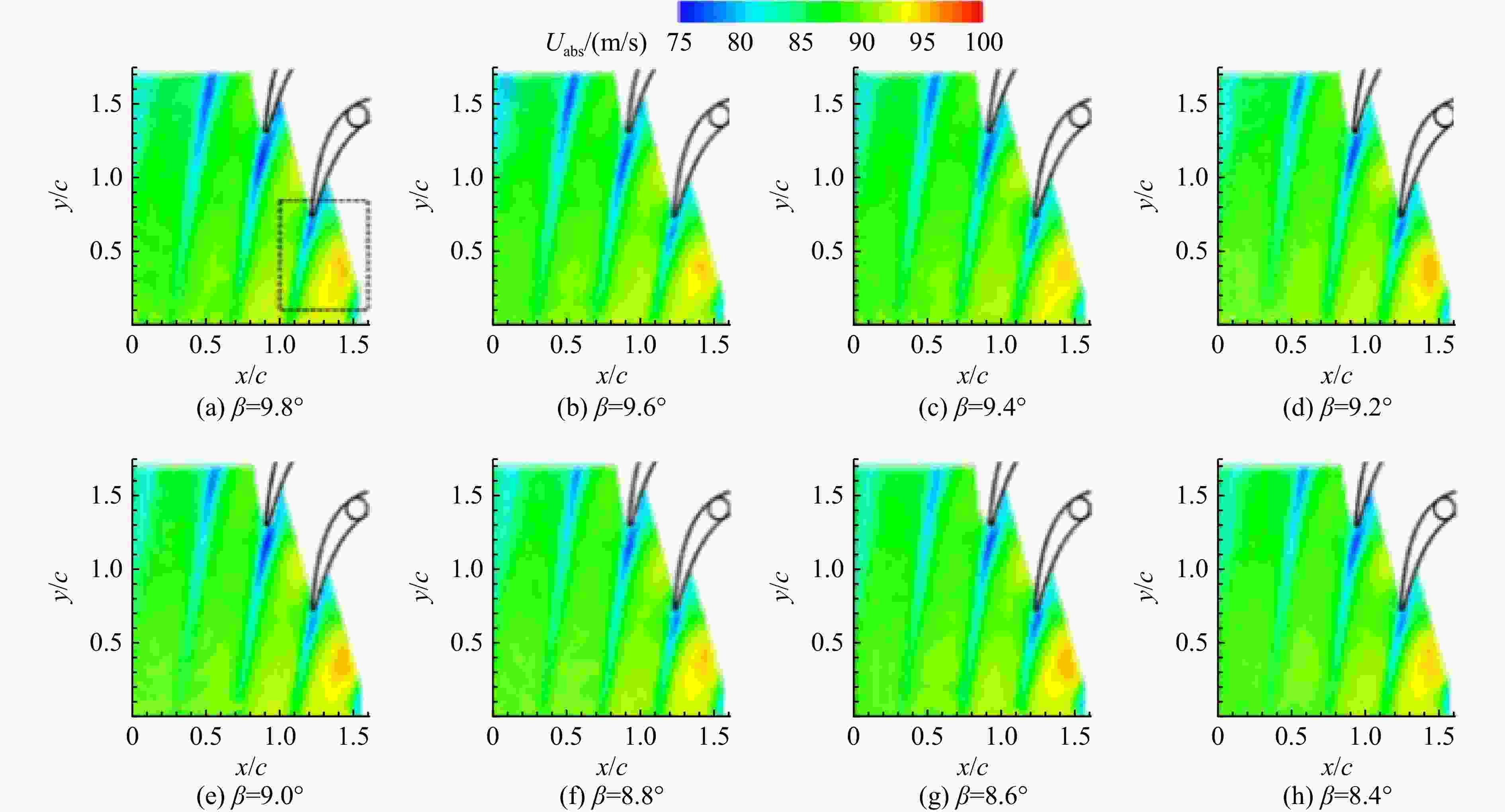

图 14 Guan等在实验中对绝对速度的测量 ^[72]

Figure 14. Absolute velocity contour of experiments by Guan et al^[72]

下载: 全尺寸图片幻灯片

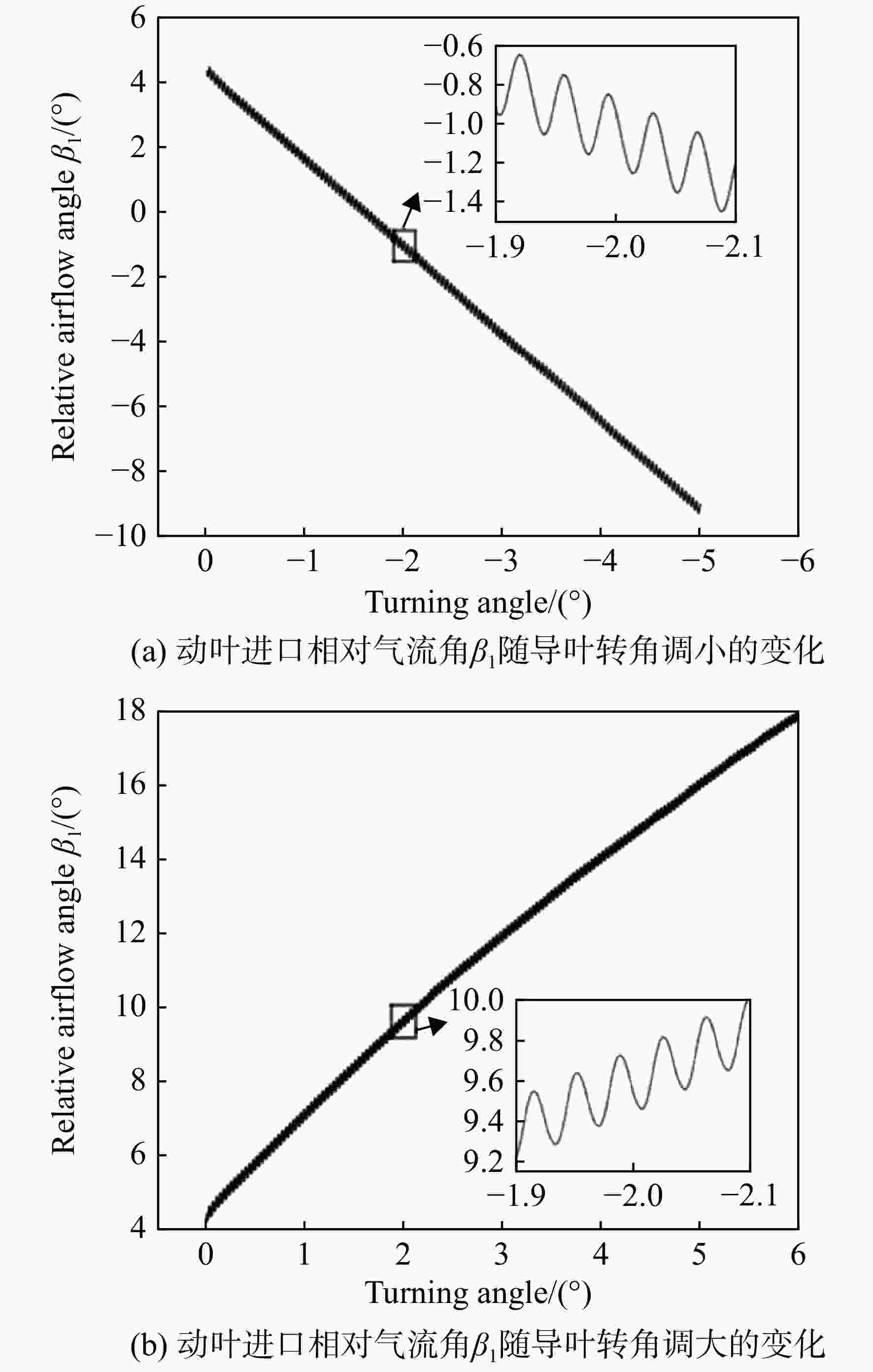

图 15 动叶进口相对气流角β₁随导叶转角调小及调大变化规律^[73]

Figure 15. Variation pattern of the relative airflow angle β₁ at the inlet of the rotor blade with the turning angle of guide vane^[73]

下载: 全尺寸图片幻灯片

参考文献(73)

[1]	KOLLMANN K, DOUGLAS C E, GÜLEN S C. Turbo/supercharger compressors and turbines for aircraft propulsion in WWII: theory, history and practice: guidance from the past--for modern engineers and students[M]. New York. ASME Press, 2021.
[2]	HAWTHORNE W R. R. Tom Sawyer award lecture: reflections on United Kingdom aircraft gas turbine history[J]. Journal of Engineering for Gas Turbines and Power, 1994, 116(3): 495-510. doi: 10.1115/1.2906848
[3]	SINNETTE J T, Jr., VOSS W J. Extension of useful operating range of axial-flow compressors by use of adjustable stator blades [EB/OL]. [2024-08-30]. https://ntrs.nasa.gov/citations/19930091980.
[4]	SCHOBEIRI M T. Active aerodynamic control of multi-stage axial compressor instability and surge by dynamically adjusting the stator blades[R]. ASME Paper 2001-GT-0479, 2001.
[5]	REITENBACH S, SCHNÖS M, BECKER R G, et al. Optimization of compressor variable geometry settings using multi-fidelity simulation[R]. ASME Paper GT2015-42832, 2015.
[6]	TOOKE R W, BRICKNELL D. Propulsion systems and the MT30 marine gas turbine: the quest for power[R]. ASME Paper GT2003-38951, 2003.
[7]	WALLNER L E. Investigation of performance of turbojet engine with constant-and variable-area exhaust nozzles[R]. NACA-RM-E8J25d, 1948.
[8]	LUNDIN B T. Investigation of several clamshell variable-area exhaust nozzles for turbojet engines[R]. NACA-RM-E9B02, 1949.
[9]	SILVERN D H, SLIVKA W R. Analytical investigation of turbines with adjustable stator blades and effect of these turbines on jet-engine performance[R]. NACA-RM- E50E05, 1950.
[10]	CAMPBELL C E, WELNA H J. Preliminary evaluation of turbine performance with variable-area turbine nozzles in a turbojet engine[R]. NACA-RM-E52J20, 1953.
[11]	MEYER C L, SMITH I D, BLOOMER H E. Performance of a turbojet engine with adjustable first-stage turbine stator and variable-area exhaust nozzle[R]. NACA-RM-E52L04, 1953.
[12]	COX D. Performance investigation of variable turbine geometry in gas turbine engines[R]. AIAA 1967-417, 1967.
[13]	CARTER A F. A 2000-HP military vehicle gas turbine: a study of significant thermodynamic and mechanical parameters[R]. ASME Paper 68-GT-52, 1968.
[14]	WAGNER C E, PAMPREEN R C. Conceptual design study of an improved automotive gas turbine powertrain final report[R]. NASA-CR-159672, 1979.
[15]	MYERS S L. Turbomachinery for total tank power requirements[R]. SAE Technical Paper 860237, 1986.
[16]	WOODHOUSE G D. ITI GT601: a new approach to vehicular gas turbine power unit design[R]. ASME Paper 81-GT-152, 1981.
[17]	WOODHOUSE G D. Gas turbine power systems for military tracked vehicles[R]. ASME Paper 83-GT-182, 1983.
[18]	COLLET P J. A 3-shaft gas turbine to meet automotive requirements[R]. ASME Paper 67-GT-54, 1967.
[19]	PELLEGRINO E. Textron lycoming AGT1500 engine operational and support cost reduction[R]. ASME Paper 92-GT-411, 1992.
[20]	HORAN R. Textron lycoming AGT1500 engine: transitioning for future applications[R]. ASME Paper 92-GT-436, 1992.
[21]	侯建飞, 顾春伟, 刘红. 某MW级燃机变几何动力涡轮动/静叶栅与排气道的流动分析[J]. 热能动力工程, 2012, 27(6): 643-648, 733. HOU Jianfei, GU Chunwei, LIU Hong. Analysis of the flow inside the variable geometrical power turbine stator/rotor cascade and exhaust gas duct of a MW class gas turbine[J]. Journal of Engineering for Thermal Energy and Power, 2012, 27(6): 643-648, 733. (in Chinese HOU Jianfei, GU Chunwei, LIU Hong. Analysis of the flow inside the variable geometrical power turbine stator/rotor cascade and exhaust gas duct of a MW class gas turbine[J]. Journal of Engineering for Thermal Energy and Power, 2012, 27(6): 643-648, 733. (in Chinese)
[22]	潘波, 白创军, 赵洪雷, 等. 变几何涡轮对涡轮气动性能的影响研究[J]. 燃气轮机技术, 2012, 25(3): 40-44. PAN Bo, BAI Chuangjun, ZHAO Honglei, et al. The effects of variable geometry turbine on the turbine aerodynamic performance[J]. Gas Turbine Technology, 2012, 25(3): 40-44. (in Chinese PAN Bo, BAI Chuangjun, ZHAO Honglei, et al. The effects of variable geometry turbine on the turbine aerodynamic performance[J]. Gas Turbine Technology, 2012, 25(3): 40-44. (in Chinese)
[23]	张均享. 高机动性运载车辆动力系统[M]. 1版. 北京: 中国科学技术出版社, 2000. ZHANG Junxiang. Power system of high-mobility transport vehicles[M]. 1st ed. Beijing. China Science and Technology Press, 2000. (in Chinese ZHANG Junxiang. Power system of high-mobility transport vehicles[M]. 1st ed. Beijing. China Science and Technology Press, 2000. (in Chinese)
[24]	EGLI HANS. Turbosupercharger: US2860827A [P]. 1958-11-18.
[25]	JINNAI Y, ARIMIZU H, TASHIRO N, et al. A variable geometry (VG) turbocharger for passenger cars to meet european union emission regulations[J]. Mitsubishi Heavy Industries Technical Review, 2012, 49(2): 17-26.
[26]	SRIVASTAVA A, KUMAR K, BANDA G. Investigation of a variable geometry turbine nozzle for diesel engine turbochargers[C]//Proceedings of the ASME 2019 Gas Turbine India Conference. Volume 1: Compressors, Fans, and Pumps; Turbines; Heat Transfer; Structures and Dynamics. Chennai, Tamil Nadu, India: ASME, 2019: V001T02A016.
[27]	杨登峰, 杨策, 胡良军, 等. 可调向心涡轮后加载型导叶设计和数值研究[J]. 工程热物理学报, 2017, 38(10): 2130-2138. YANG Dengfeng, YANG Ce, HU Liangjun, et al. Design and numerical investigation of the aft-loaded guide vane of a variable nozzle turbine[J]. Journal of Engineering Thermophysics, 2017, 38(10): 2130-2138. (in Chinese YANG Dengfeng, YANG Ce, HU Liangjun, et al. Design and numerical investigation of the aft-loaded guide vane of a variable nozzle turbine[J]. Journal of Engineering Thermophysics, 2017, 38(10): 2130-2138. (in Chinese)
[28]	赵奔, 马朝臣, 胡良军, 等. 导流叶片两端间隙不同分配对可调向心涡轮性能影响[J]. 北京理工大学学报, 2014, 34(9): 929-933. ZHAO Ben, MA Chaochen, HU Liangjun, et al. Effect of different matching states of both nozzle vane’s clearances on the performance in a variable geometry turbine[J]. Transactions of Beijing Institute of Technology, 2014, 34(9): 929-933. (in Chinese ZHAO Ben, MA Chaochen, HU Liangjun, et al. Effect of different matching states of both nozzle vane’s clearances on the performance in a variable geometry turbine[J]. Transactions of Beijing Institute of Technology, 2014, 34(9): 929-933. (in Chinese)
[29]	施新, 马朝臣, 鲍捷. JK90S可变喷嘴涡轮增压器试验研究[J]. 车用发动机, 2005(6): 56-58. SHI Xin, MA Chaochen, BAO Jie. Experimental study on JK90S variable nozzle turbocharger[J]. Vehicle Engine, 2005(6): 56-58. (in Chinese SHI Xin, MA Chaochen, BAO Jie. Experimental study on JK90S variable nozzle turbocharger[J]. Vehicle Engine, 2005(6): 56-58. (in Chinese)
[30]	施新, 马朝臣, 王航. 可变喷嘴涡轮增压器试验研究[J]. 工程热物理学报, 2003, 24(4): 589-591. SHI Xin, MA Chaochen, WANG Hang. Experimental study on variable nozzle turbocharger[J]. Journal of Engineering Thermophysics, 2003, 24(4): 589-591. (in Chinese doi: 10.3321/j.issn:0253-231X.2003.04.014 SHI Xin, MA Chaochen, WANG Hang. Experimental study on variable nozzle turbocharger[J]. Journal of Engineering Thermophysics, 2003, 24(4): 589-591. (in Chinese) doi: 10.3321/j.issn:0253-231X.2003.04.014
[31]	张志强, 马朝臣. 基于PWM方式的变几何涡轮增压器可调喷嘴气动执行机构[J]. 节能技术, 2006, 24(1): 12-14, 18. ZHANG Zhiqiang, MA Chaochen. Pneumatic actuating mechanism for variable nozzle of VGT based on PWM[J]. Energy Conservation Technology, 2006, 24(1): 12-14, 18. (in Chinese doi: 10.3969/j.issn.1002-6339.2006.01.004 ZHANG Zhiqiang, MA Chaochen. Pneumatic actuating mechanism for variable nozzle of VGT based on PWM[J]. Energy Conservation Technology, 2006, 24(1): 12-14, 18. (in Chinese) doi: 10.3969/j.issn.1002-6339.2006.01.004
[32]	HUANG Lei, ZHUGE Weilin, ZHANG Yangjun, et al. An investigation of the flow structures and flow control in a variable geometry turbine[C]//Proceedings of the ASME 2011 Turbo Expo: Turbine Technical Conference and Exposition. Volume 3: Controls, Diagnostics and Instrumentation; Education; Electric Power; Microturbines and Small Turbomachinery; Solar Brayton and Rankine Cycle. Vancouver, British Columbia, Canada: ASME, 2011: 899-907.
[33]	陈榴, 戴韧, 陈康民, 等. 带有可调导叶的径流涡轮气动特性的研究[J]. 燃气轮机技术, 2011, 24(1): 35-39. CHEN Liu, DAI Ren, CHEN Kangmin, et al. Aerodynamic characteristics analysis for radial inflow turbine with pivoting-stator[J]. Gas Turbine Technology, 2011, 24(1): 35-39. (in Chinese CHEN Liu, DAI Ren, CHEN Kangmin, et al. Aerodynamic characteristics analysis for radial inflow turbine with pivoting-stator[J]. Gas Turbine Technology, 2011, 24(1): 35-39. (in Chinese)
[34]	SIMPSON A, KIM SI, PARK J, et al. HCF optimization of a high speed variable geometry turbine[R].ASME Paper GT2021-59626, 2021.
[35]	JI Guiming, TAN Zengxiang, ZHANG Mingchang. Aerodynamic design of a power turbine for an aircraft derivative marine gas turbine[J]. Journal of Turbomachinery, 1988, 110(1): 104-109. doi: 10.1115/1.3262154
[36]	KARSTENSEN K W, WIGGINS J O. A variable-geometry power turbine for marine gas turbines[J]. Journalof Turbomachinery, 1990, 112(2): 165-174.
[37]	李孝堂. 航机改型燃气轮机设计及试验技术[M]. 北京: 航空工业出版社, 2017. LI Xiaotang. Aeroderivative gas turbine design and test technology[M]. Beijing: Aviation Industry Press, 2017. (in Chinese LI Xiaotang. Aeroderivative gas turbine design and test technology[M]. Beijing: Aviation Industry Press, 2017. (in Chinese)
[38]	冯永明, 刘顺隆. 舰船燃气轮机变几何动力涡轮三维黏性流场的数值分析[J]. 哈尔滨工程大学学报, 2005, 26(5): 580-585. FENG Yongming, LIU Shunlong. Numerical investigation on three-dimensional viscous flow of a variable-geometry power turbine for marine gas turbine[J]. Journal of Harbin Engineering University, 2005, 26(5): 580-585. (in Chinese FENG Yongming, LIU Shunlong. Numerical investigation on three-dimensional viscous flow of a variable-geometry power turbine for marine gas turbine[J]. Journal of Harbin Engineering University, 2005, 26(5): 580-585. (in Chinese)
[39]	刘顺隆, 冯永明, 刘敏, 等. 船用燃气轮机动力涡轮可调导叶级的流场结构[J]. 热能动力工程, 2005, 20(2): 120-124, 212-213. LIU Shunlong, FENG Yongming, LIU Min, et al. The flow field structure of the power-turbine variable-area nozzle stage of a marine gas turbine[J]. Journal of Engineering for Thermal Energy and Power, 2005, 20(2): 120-124, 212-213. (in Chinese LIU Shunlong, FENG Yongming, LIU Min, et al. The flow field structure of the power-turbine variable-area nozzle stage of a marine gas turbine[J]. Journal of Engineering for Thermal Energy and Power, 2005, 20(2): 120-124, 212-213. (in Chinese)
[40]	邱超, 宋华芬. 变几何涡轮的损失研究[J]. 燃气轮机技术, 2007, 20(1): 39-42. QIU Chao, SONG Huafen. Loss research of variable geometry turbine[J]. Gas Turbine Technology, 2007, 20(1): 39-42. (in Chinese QIU Chao, SONG Huafen. Loss research of variable geometry turbine[J]. Gas Turbine Technology, 2007, 20(1): 39-42. (in Chinese)
[41]	HAGLIND F. Variable geometry gas turbines for improving the part-load performance of marine combined cycles:gas turbine performance[J]. Energy, 2010, 35(2): 562-570. doi: 10.1016/j.energy.2009.10.026
[42]	GAO Jie, HUO Dongchen. Numerical investigation on aerodynamic characteristics of variable geometry turbine vane cascade for marine gas turbines[R]. ASME Paper GT2020-14853, 2020.
[43]	贾小权, 闫睿, 宋义康, 等. 变几何低压涡轮级多工况气动性能研究[J]. 热能动力工程, 2021, 36(11): 64-71. JIA Xiaoquan, YAN Rui, SONG Yikang, et al. Study on aerodynamic performance of variable geometry low pressure turbine stages under multiple working conditions[J]. Journal of Engineering for Thermal Energy and Power, 2021, 36(11): 64-71. (in Chinese JIA Xiaoquan, YAN Rui, SONG Yikang, et al. Study on aerodynamic performance of variable geometry low pressure turbine stages under multiple working conditions[J]. Journal of Engineering for Thermal Energy and Power, 2021, 36(11): 64-71. (in Chinese)
[44]	ZHOU Kai, ZHENG Xinqian. A novel design towards reducing leakage loss for variable geometry turbines[J]. Processes, 2023, 11(1): 21.
[45]	KIM J H, KIM T S, SOHN J L, et al. Comparative analysis of off-design performance characteristics of single and two-shaft industrial gas turbines[J]. Journal of Engineering for Gas Turbines and Power, 2003, 125(4): 954-960. doi: 10.1115/1.1615252
[46]	BRINGHENTI C, BARBOSA J R. Part-load versus downrated industrial gas turbine performance[R]. ASME Paper GT2004-54147, 2004.
[47]	BARBOSA J R, DOS SANTOS SILVA F J, TOMITA J T, et al. Influence of variable geometry transients on the gas turbine performance[R]. ASME Paper GT2011-46565, 2011.
[48]	BRINGHENTI C, BARBOSA J R, TOMITA J T. Gas turbine transients with controlled variable geometry[R]. ASME Paper GT2012-69836, 2012.
[49]	FLAGG E E. Analytical procedure and computer program for determining the off-design performance of axial flow turbines[R]. NASA-CR710, 1967.
[50]	FLAGG E E. Analysis of overall and internal performance of variable-geometry one-stage and two-stage axial-flow turbines[R]. NASA-CR-54449, 1966.
[51]	ROGO C, BENSTEIN E H. Variable cyclic turboshaft technology for rotorcraft of the '90s[J]. Journal of Propulsion and Power, 1986, 2(1): 73-80. doi: 10.2514/3.22847
[52]	ROY-AIKINS J E A. Some aspects of variable geometry gas turbine operation[R]. ASME Paper 92-GT-407, 1992.
[53]	胡松岩. 变几何涡轮及其设计特点[J]. 航空发动机, 1996, 22(3): 21-26. HU Songyan. Variable geometry turbine and its design characteristics[J]. Aeroengine, 1996, 22(3): 21-26. (in Chinese HU Songyan. Variable geometry turbine and its design characteristics[J]. Aeroengine, 1996, 22(3): 21-26. (in Chinese)
[54]	DODDS M, PILIDIS P. The influence of a variable capacity turbine in the performance of a variable cycle engine[C]//Proceedings of the ASME 1999 International Gas Turbine and Aeroengine Congress and Exhibition. Volume 2: Coal, Biomass and Alternative Fuels; Combustion and Fuels; Oil and Gas Applications; Cycle Innovations. Indianapolis, Indiana, USA: ASME, 1999: V002T04A014.
[55]	刘红霞. GE公司变循环发动机的发展[J]. 航空发动机, 2015, 41(2): 93-98. LIU Hongxia. Development of variable cycle engine in GE[J]. Aeroengine, 2015, 41(2): 93-98. (in Chinese LIU Hongxia. Development of variable cycle engine in GE[J]. Aeroengine, 2015, 41(2): 93-98. (in Chinese)
[56]	KEITH B D, BASU D K, STEVENS C. Aerodynamic test results of controlled pressure ratio engine (COPE) dual spool air turbine rotating rig[C]// Proceedings of the ASME Turbo Expo 2000: Power for Land, Sea, and Air. Volume 1: Aircraft Engine; Marine; Turbomachinery; Microturbines and Small Turbomachinery. Munich, Germany: ASME, 2000: V001T03A105.
[57]	李凤超, 周琨, 邵飞. 变几何涡轮技术的发展[J]. 航空动力, 2020(4): 22-26. LI Fengchao, ZHOU Kun, SHAO Fei. The development of variable geometry turbine technologies[J]. Aerospace Power, 2020(4): 22-26. (in Chinese LI Fengchao, ZHOU Kun, SHAO Fei. The development of variable geometry turbine technologies[J]. Aerospace Power, 2020(4): 22-26. (in Chinese)
[58]	WU Zhongye, FANG Xiangjun, LIU Siyong. Experimental research on aerodynamic performance of variable geometry low pressure turbine[R]. AIAA 2017-4815, 2017.
[59]	BHAVSAR H, MISTRY C S. Numerical study of part clearance and free stream turbulence on high end-wall LP turbine nozzle annular cascade[C]//Proceedings of the ASME 2019 Gas Turbine India Conference. Volume 1: Compressors, Fans, and Pumps; Turbines; Heat Transfer; Structures and Dynamics. Chennai, Tamil Nadu, India: ASME, 2019: V001T02A023.
[60]	刘日晨, 蒋首民, 王鹏, 等. 变几何涡轮端部间隙对涡轮性能影响研究[C]//第六届中国航空科学技术大会论文集. 浙江嘉兴: 中国航空学会, 2023: 1288-1294. LIU Richeng, JIANG Shoumin, WANG Peng, et al. Study on the impact of end gap in variable geometry turbines on turbine performance[C]//Proceedings of the 6th China Aeronautical Science and Technology Conference. Jiaxing, Zhejiang: Chinese Society of Aeronautics and Astronautics, 2023: 1288-1294 (in Chinese LIU Richeng, JIANG Shoumin, WANG Peng, et al. Study on the impact of end gap in variable geometry turbines on turbine performance[C]//Proceedings of the 6th China Aeronautical Science and Technology Conference. Jiaxing, Zhejiang: Chinese Society of Aeronautics and Astronautics, 2023: 1288-1294 (in Chinese)
[61]	YAO Yunjia, TAO Zhi, ZHOU Kun, et al. Aerodynamic performance measurement of a novel variable geometry turbine adjustable guide vane scheme by experimental study[J]. Aerospace Science and Technology, 2023, 140: 108413. doi: 10.1016/j.ast.2023.108413
[62]	YUE Guoqiang, YIN Shengqi, ZHENG Qun. Numerical simulation of flow fields of variable geometry turbine with spherical endwalls or nonuniform clearance[C]// Proceedings of the ASME Turbo Expo 2009: Power for Land, Sea, and Air. Volume 7: Turbomachinery, Parts A and B. Orlando, Florida, USA: ASME, 2009: pp. 1005-1012.
[63]	潘波, 陶海亮, 赵洪雷, 等. 可调导叶端壁间隙泄漏损失控制方法研究[J]. 工程热物理学报, 2013, 34(4): 618-623. PAN Bo, TAO Hailiang, ZHAO Honglei, et al. Investigation on the control strategy of variable guide vane endwall gap leakage loss[J]. Journal of Engineering Thermophysics, 2013, 34(4): 618-623. (in Chinese PAN Bo, TAO Hailiang, ZHAO Honglei, et al. Investigation on the control strategy of variable guide vane endwall gap leakage loss[J]. Journal of Engineering Thermophysics, 2013, 34(4): 618-623. (in Chinese)
[64]	GAO Jie, ZHENG Qun, YUE Guoqiang, et al. Variable geometry design of a high endwall angle power turbine for marine gas turbines[C]// Proceedings of the ASME Turbo Expo 2015: Turbine Technical Conference and Exposition. Volume 2A: Turbomachinery. Montreal, Quebec, Canada: ASME, 2015: V02AT38A028.
[65]	高杰, 郑群, 刘鹏飞, 等. 变几何涡轮叶栅叶端小翼的气动性能[J]. 航空学报, 2016, 37(12): 3615-3624. GAO Jie, ZHENG Qun, LIU Pengfei, et al. Aerodynamic performance of a variable geometry turbine cascade using a vane-end winglet[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(12): 3615-3624. (in Chinese GAO Jie, ZHENG Qun, LIU Pengfei, et al. Aerodynamic performance of a variable geometry turbine cascade using a vane-end winglet[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(12): 3615-3624. (in Chinese)
[66]	GAO Jie, WANG Fukai, FU Weiliang, et al. Experimental investigation of effects of tip cavity on tip clearance flow in a variable-geometry turbine cascade[J]. Journal of Aerospace Engineering, 2017, 30(1): 04016069. doi: 10.1061/(ASCE)AS.1943-5525.0000656
[67]	YOU Lyu, DONG Xuezhi, LIU Xiyang, et al. Aerodynamic performance of partially variable geometry high-pressure turbine[R]. ASME Paper GT2024-125712, 2024.
[68]	GAO Jie, LIU Yu, ZHENG Qun, et al. Advances in aerodynamic, structural design and test technology of variable geometry turbines[J]. Proceedings of the Institution of Mechanical Engineers, Part A: Journal of Power and Energy, 2022, 236(2): 364-390. doi: 10.1177/09576509211035612
[69]	KARUPPIAH S, PILIDIS P, SAMPATH S, et al. A study on variable geometries and component matching of variable cycle engine for aircraft with supercruise capability[R]. AIAA 2023-0308, 2023.
[70]	牟园伟, 王奉明, 朱大明. 单外涵变循环发动机变几何特性仿真[J]. 航空发动机, 2024, 50(2): 52-57. MU Yuanwei, WANG Fengming, ZHU Daming. Simulation of variable geometry characteristics of single bypass variable cycle engine[J]. Aeroengine, 2024, 50(2): 52-57. (in Chinese MU Yuanwei, WANG Fengming, ZHU Daming. Simulation of variable geometry characteristics of single bypass variable cycle engine[J]. Aeroengine, 2024, 50(2): 52-57. (in Chinese)
[71]	伊卫林, 崔志伟, 郑霆锴. 旋翼/涡轴发动机动力涡轮联合变转速对性能影响研究[J]. 航空动力学报, 2024, 39(9): 20220077. YI Weilin, CUI Zhiwei, ZHENG Tingkai. Study on the impact of combined variable speed of power turbine in rotor/shaft engines on performance[J]. Journal of Aerospace Power, 2024, 39(9): 20220077. (in Chinese YI Weilin, CUI Zhiwei, ZHENG Tingkai. Study on the impact of combined variable speed of power turbine in rotor/shaft engines on performance[J]. Journal of Aerospace Power, 2024, 39(9): 20220077. (in Chinese)
[72]	GUAN Ruiqing, TIAN Jie, LIU Changqing, et al. Dynamic regulation process of the variable-geometry power turbine[J]. Journal of Propulsion and Power, 2023, 39(6): 945-959. doi: 10.2514/1.B39160
[73]	廖宇楠, 杜玉锋, 屈彬, 等. 变几何涡轮可调导叶瞬时转动气动特性研究[J]. 热能动力工程, 2024, 39(1): 79-88. LIAO Yunan, DU Yufeng, QU Bin, et al. Study on aerodynamic characteristics of variable geometry turbine adjustable guide vane under instantaneous rotation[J]. Journal of Engineering for Thermal Energy and Power, 2024, 39(1): 79-88. (in Chinese LIAO Yunan, DU Yufeng, QU Bin, et al. Study on aerodynamic characteristics of variable geometry turbine adjustable guide vane under instantaneous rotation[J]. Journal of Engineering for Thermal Energy and Power, 2024, 39(1): 79-88. (in Chinese)
