低温下高速齿轮传动飞溅润滑特性分析及挡板结构优化

李洛楠; 许建民; 韩勇; 王鹏川; 姚栓

doi:10.13224/j.cnki.jasp.20240864

低温下高速齿轮传动飞溅润滑特性分析及挡板结构优化

doi: 10.13224/j.cnki.jasp.20240864

李洛楠^1,,
许建民^1,*, ,,
韩勇¹,
王鹏川²,
姚栓²

1.
厦门理工学院机械与汽车工程学院，福建厦门 361024
2.
陕西法士特齿轮有限责任公司陕西省齿轮传动重点实验室，西安 625302

基金项目: 国家重点研发计划项目（2023YFB3406500）

详细信息

作者简介:
李洛楠（1998-），男，硕士生，主要从事高速精密齿轮传动方面的研究。E-mail：qqrwsr@163.com

通讯作者:
许建民（1981-），男，副教授，博士，主要从事高速精密齿轮传动方面的研究。E-mail：xujianmin1020@163.com

中图分类号: V233.1
计量
- 文章访问数: 769
- HTML浏览量: 528
- PDF量: 55
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-31
- 网络出版日期: 2025-04-18

Analysis and optimization of splash lubrication characteristics of high speed gear under low temperature conditions

1.
School of Mechanical and Automotive Engineering，Xiamen University of Technology，Fujian Xiamen 361024，China
2.
Shaanxi Key Laboratory of Gear Transmission，Shaanxi Fast Gear Company，Limited，Xi’an 625302，China

摘要

摘要:
针对低温工况下高速齿轮传动润滑特性不明确及传统挡板对润滑效果提升有限的问题，开展了高速齿轮传动飞溅润滑特性研究。首先基于计算流体力学理论，建立高速齿轮传动飞溅润滑两相流分析模型，分析了两相流分布特性；然后在此基础上，研究了转动圈数、齿轮转速以及浸油深度对飞溅润滑特性与力矩损失的影响规律；最后提出一种仿生蜂巢挡板结构并采用多岛遗传算法对其结构进行优化。结果表明：在低温工况下的高速齿轮传动飞溅润滑过程中，齿面润滑油的体积分数随着齿轮转速的增加而下降，而随着浸油深度的增加则有所上升；力矩损失随着齿轮转速和浸油深度的增加而增大，其中齿轮转速对力矩损失的影响远大于浸油深度的影响；优化后的仿生蜂巢挡板结构在相同工况下，相较于无挡板，齿面润滑油的平均体积分数提高了68.46%，与原始挡板相比提升了7.88%。研究结果为低温工况下高速齿轮传动两相流分布特性研究及高速齿轮传动飞溅润滑优化设计提供了依据。
- 高速齿轮传动 /
- 飞溅润滑 /
- 力矩损失 /
- 仿生蜂巢挡板 /
- 多岛遗传算法
Abstract:
In view of the unclear lubrication characteristics of high-speed gear transmission under low temperature conditions and the limited improvement of lubrication effect by traditional baffles, a study on the splash lubrication characteristics of high-speed gear transmission was carried out. Firstly, based on the theory of computational fluid dynamics, a two-phase flow analysis model of splash lubrication of high-speed gear transmission was established, and the two-phase flow distribution characteristics were analyzed; then, on this basis, the influences of number of rotations, gear speed, and oil immersion depth on splash lubrication characteristics and torque loss were studied; finally, a bionic honeycomb baffle structure was proposed and its structure was optimized using a multi-island genetic algorithm. The results showed that: in the splash lubrication process of high-speed gear transmission under low temperature conditions, the volume fraction of lubricating oil on the tooth surface decreased with the increase of gear speed, but increased with the increase of oil immersion depth; the torque loss increased with the increase of gear speed and oil immersion depth, and the influence of speed on torque loss was much greater than that of oil immersion depth; under the same working conditions, the average volume fraction of lubricating oil on the tooth surface of the optimized bionic honeycomb baffle structure increased by 68.46% compared with the one without baffle, and increased by 7.88% compared with the original baffle. Research results provide a basis for the study of two-phase flow distribution characteristics of high-speed gear transmission under low-temperature conditions and the optimization design of splash lubrication for high-speed gear transmission.
- high-speed gear transmission /
- splash lubrication /
- torque loss /
- bionic honeycomb baffle /
- multi-island genetic algorithm

HTML

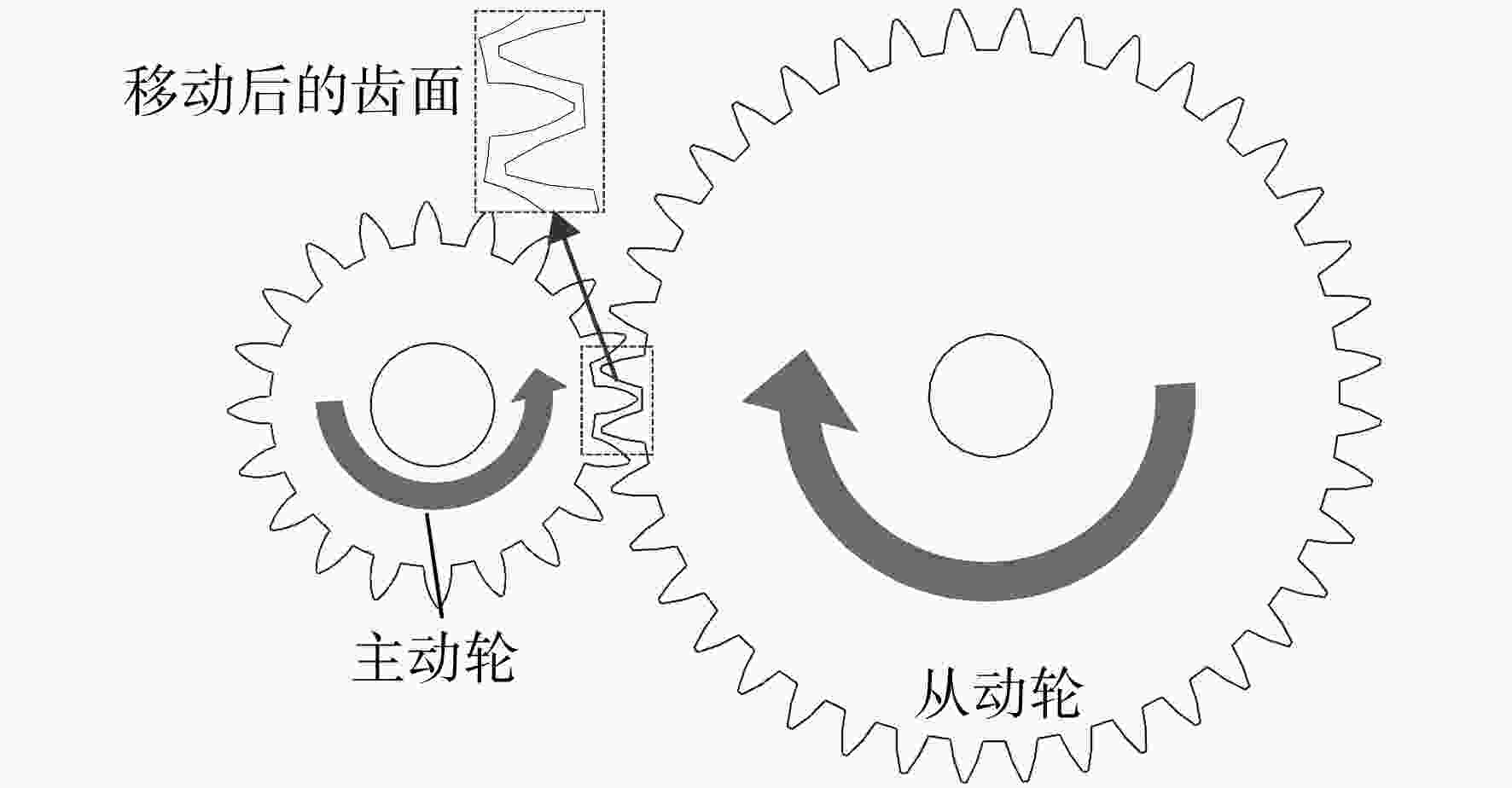

图 1 飞溅润滑模型二维示意图

Figure 1. 2D schematic of splash lubrication model

下载: 全尺寸图片幻灯片

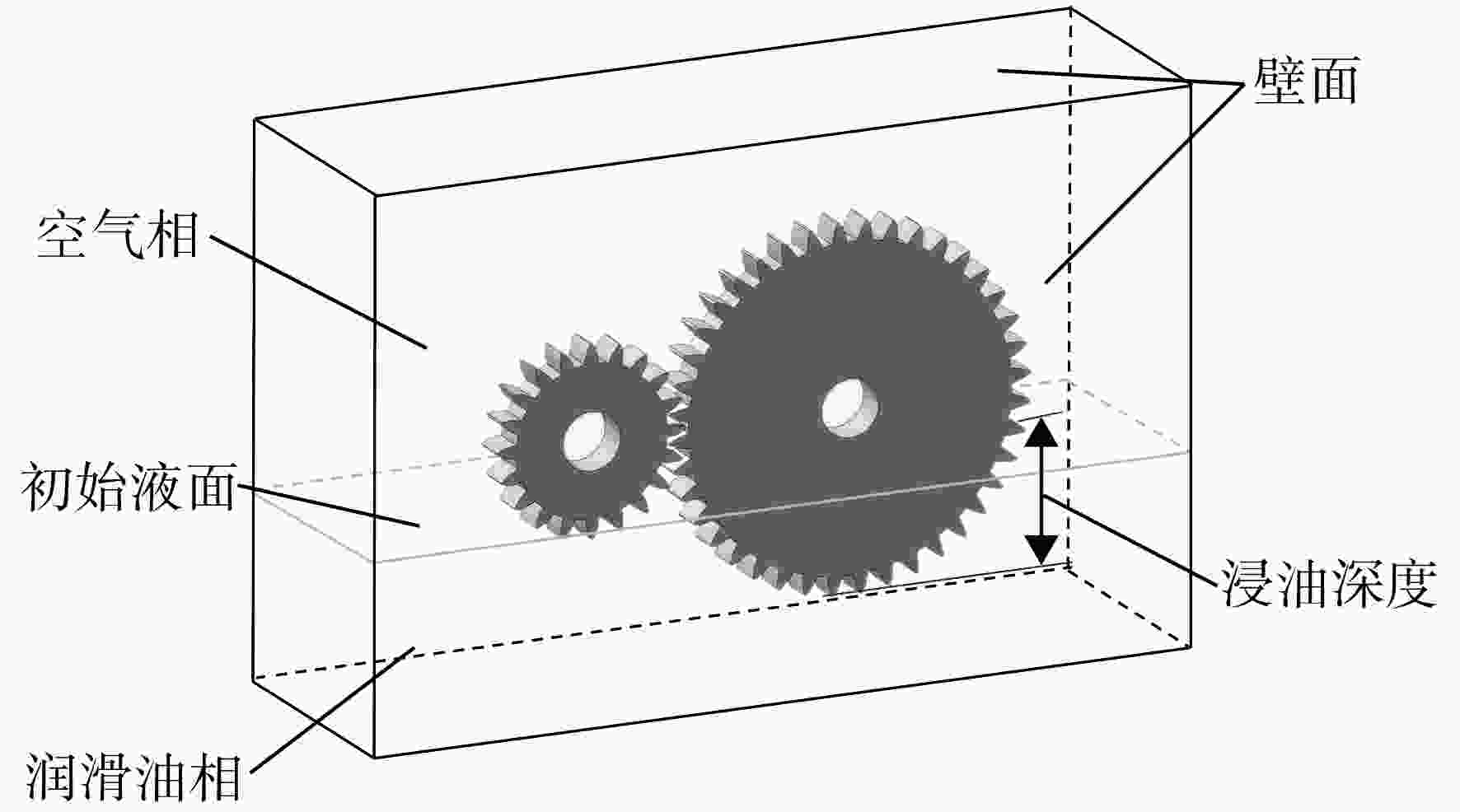

图 2 飞溅润滑三维模型

Figure 2. Three-dimensional model of splash lubrication

下载: 全尺寸图片幻灯片

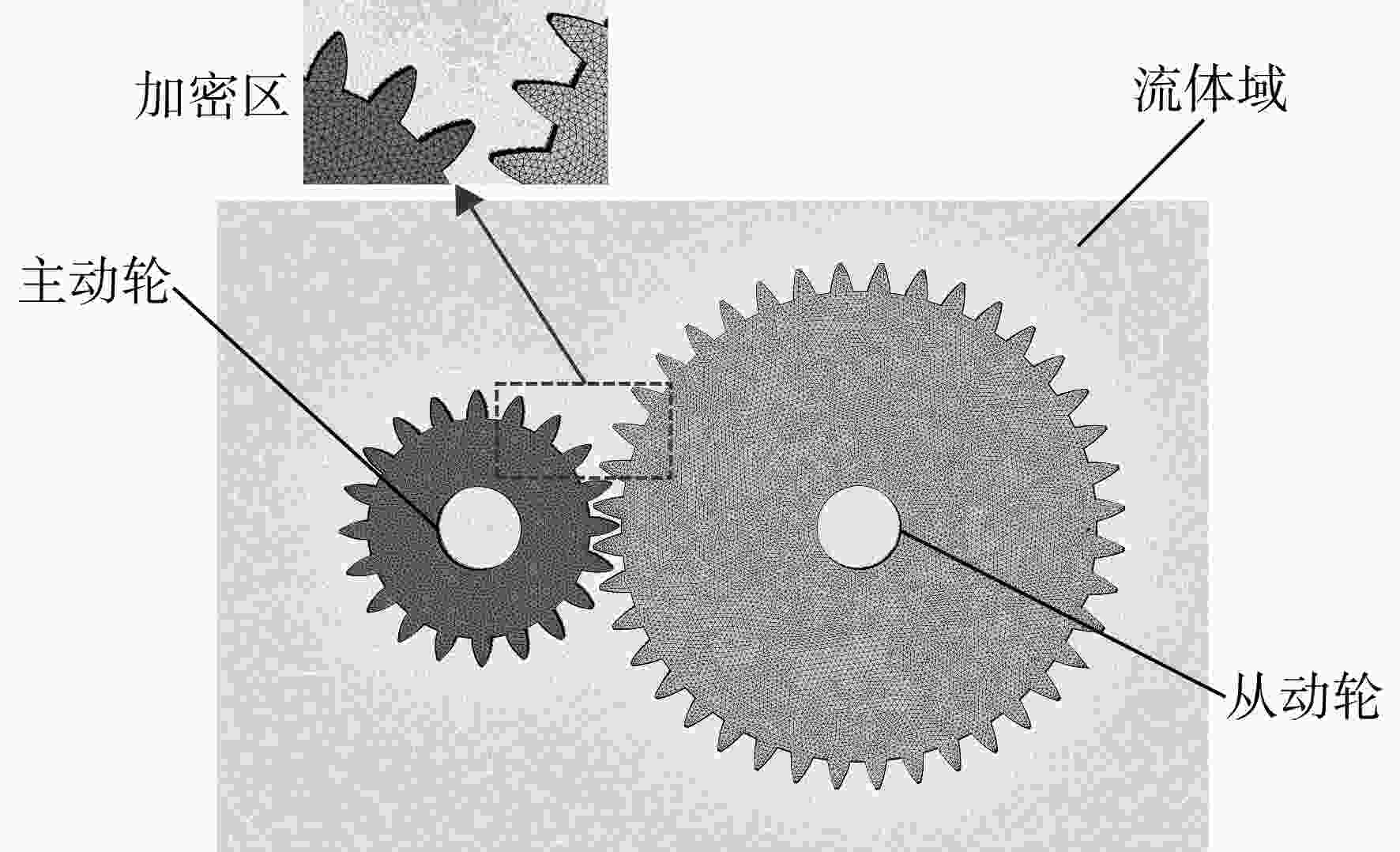

图 3 计算域及网格示意图

Figure 3. Schematic diagram of computing domain and grid

下载: 全尺寸图片幻灯片

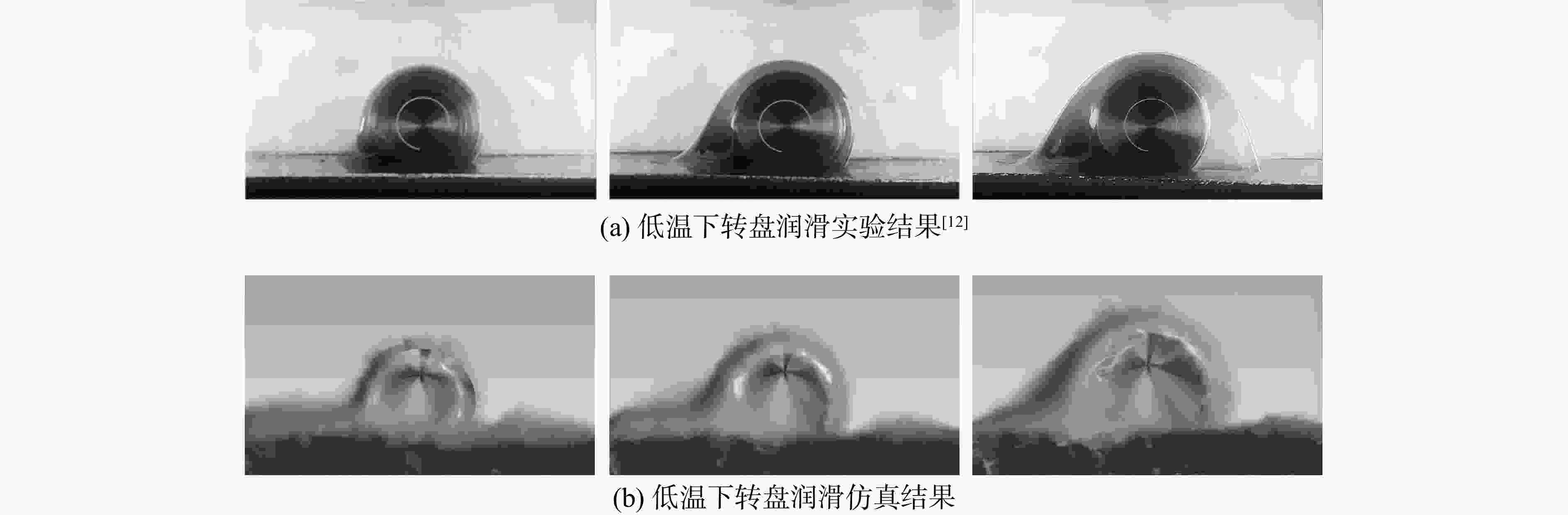

图 4 仿真与实验对比图

Figure 4. Comparison between simulation and experiment

下载: 全尺寸图片幻灯片

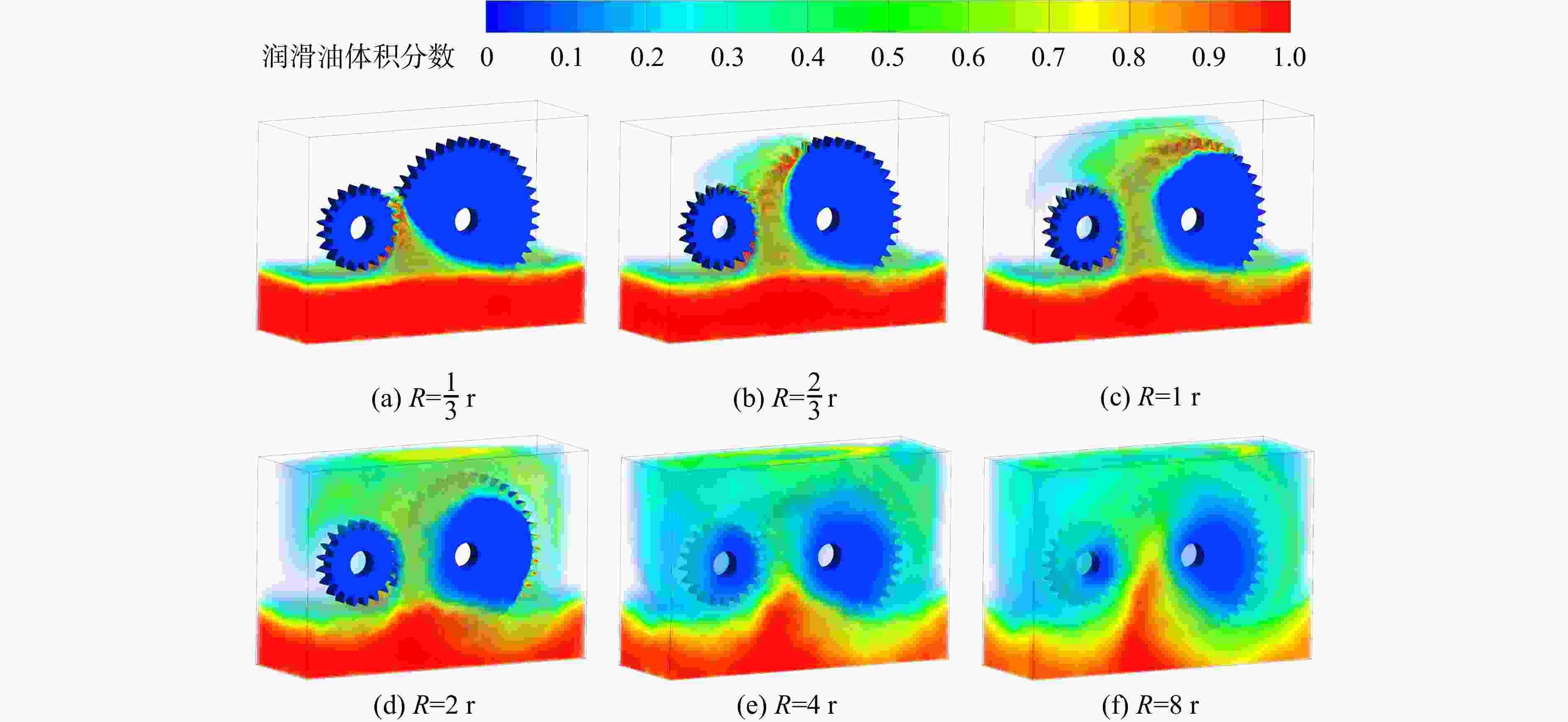

图 5 高速齿轮飞溅润滑过程油气分布

Figure 5. Oil and gas distribution during splash lubrication of high speed gears

下载: 全尺寸图片幻灯片

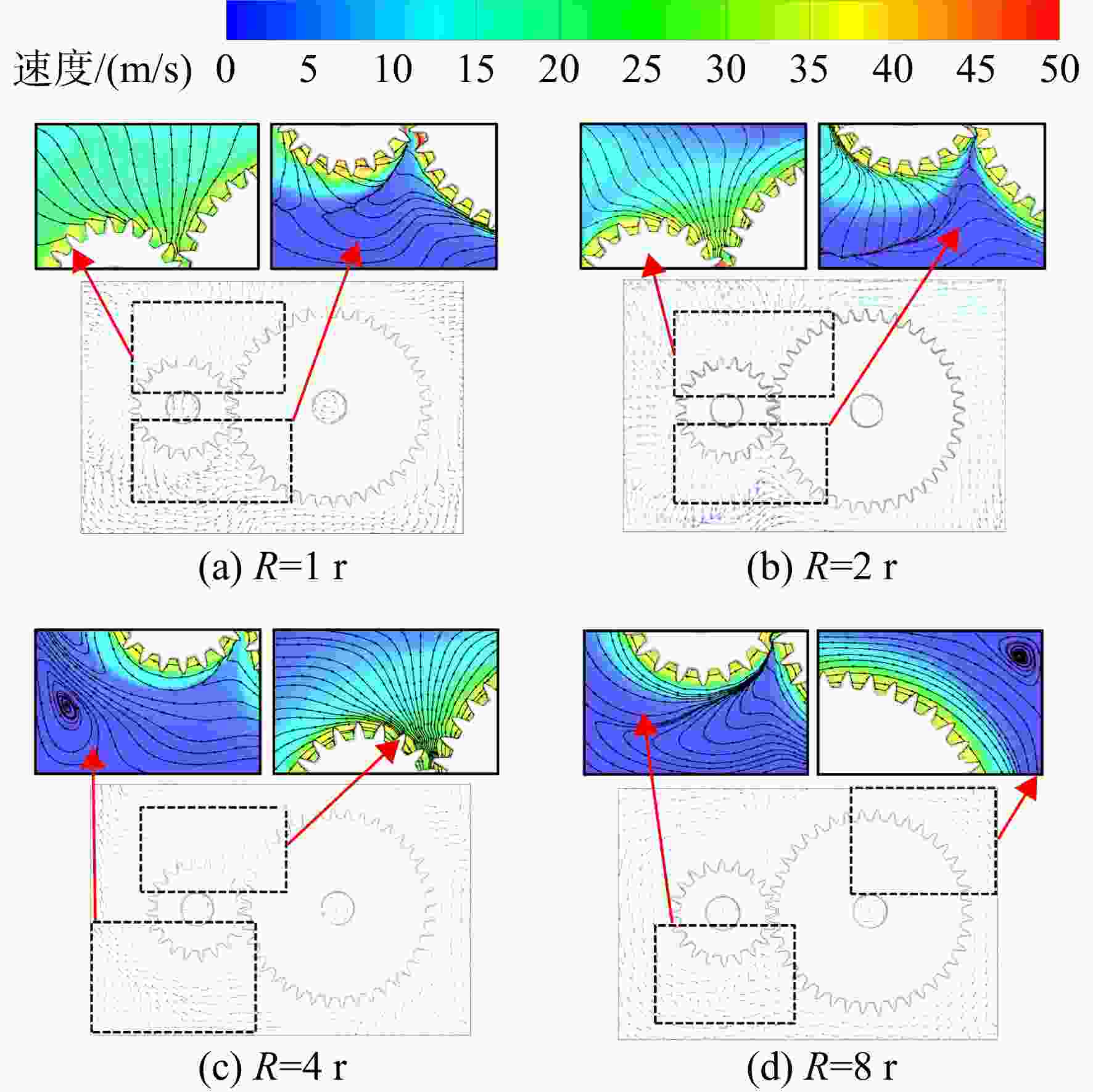

图 6 齿轮飞溅润滑过程速度场分布

Figure 6. Velocity field distribution of gear splash lubrication process

下载: 全尺寸图片幻灯片

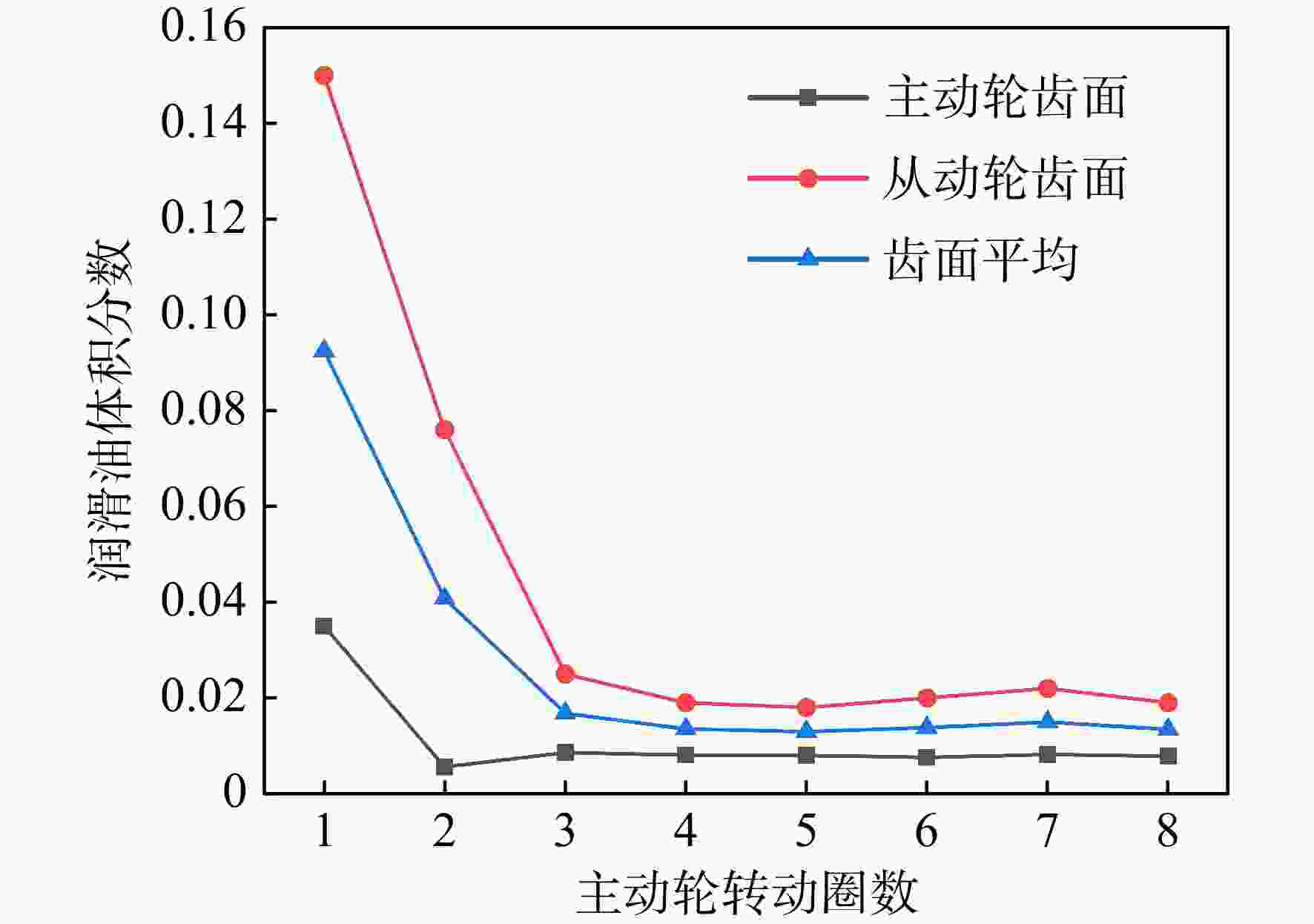

图 7 飞溅润滑过程润滑油体积分数

Figure 7. Volume fraction of lubricating oil in splash lubrication process

下载: 全尺寸图片幻灯片

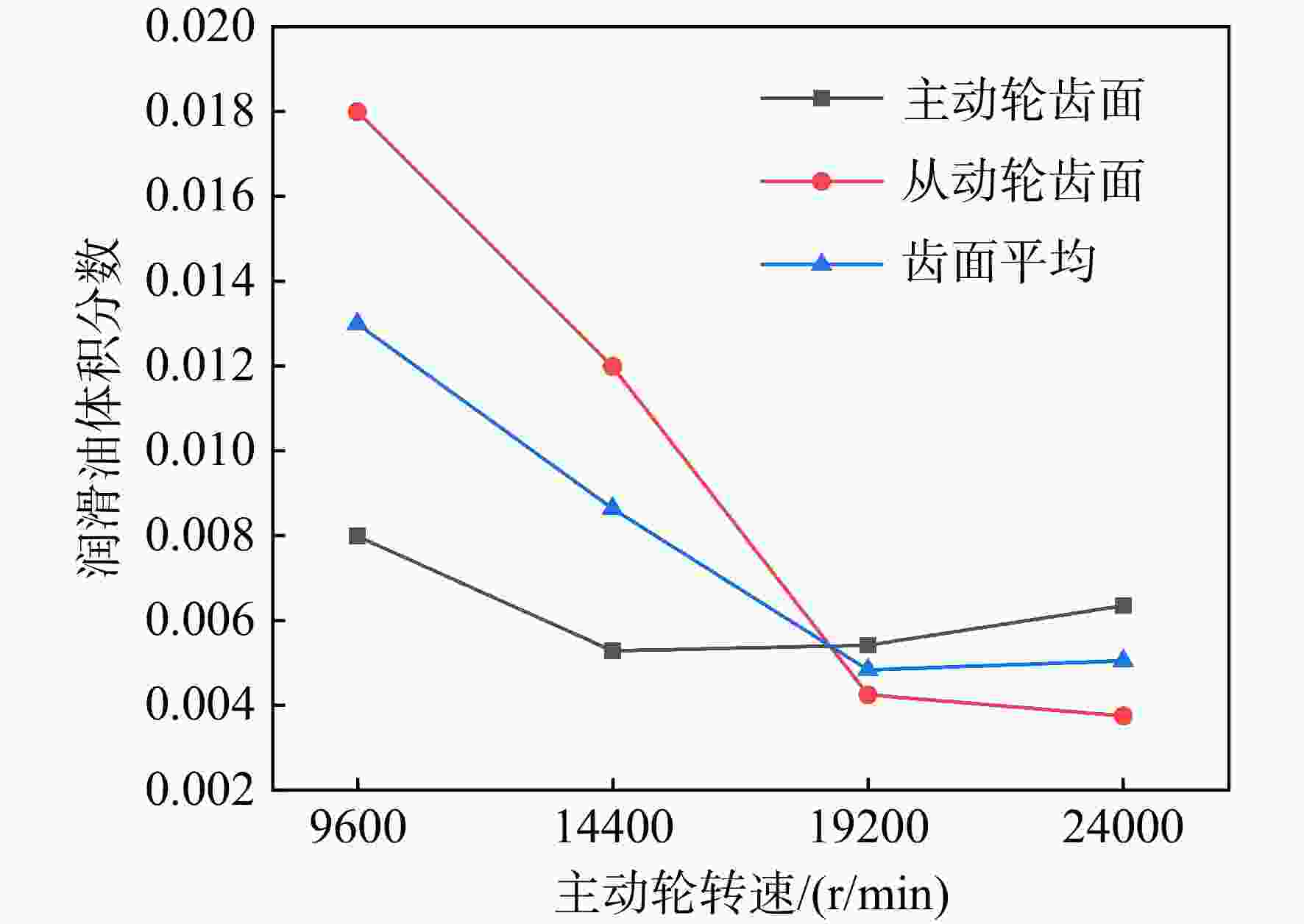

图 8 润滑油体积分数随齿轮转速变化规律

Figure 8. Variation of lubricating oil volume fraction with gear speed

下载: 全尺寸图片幻灯片

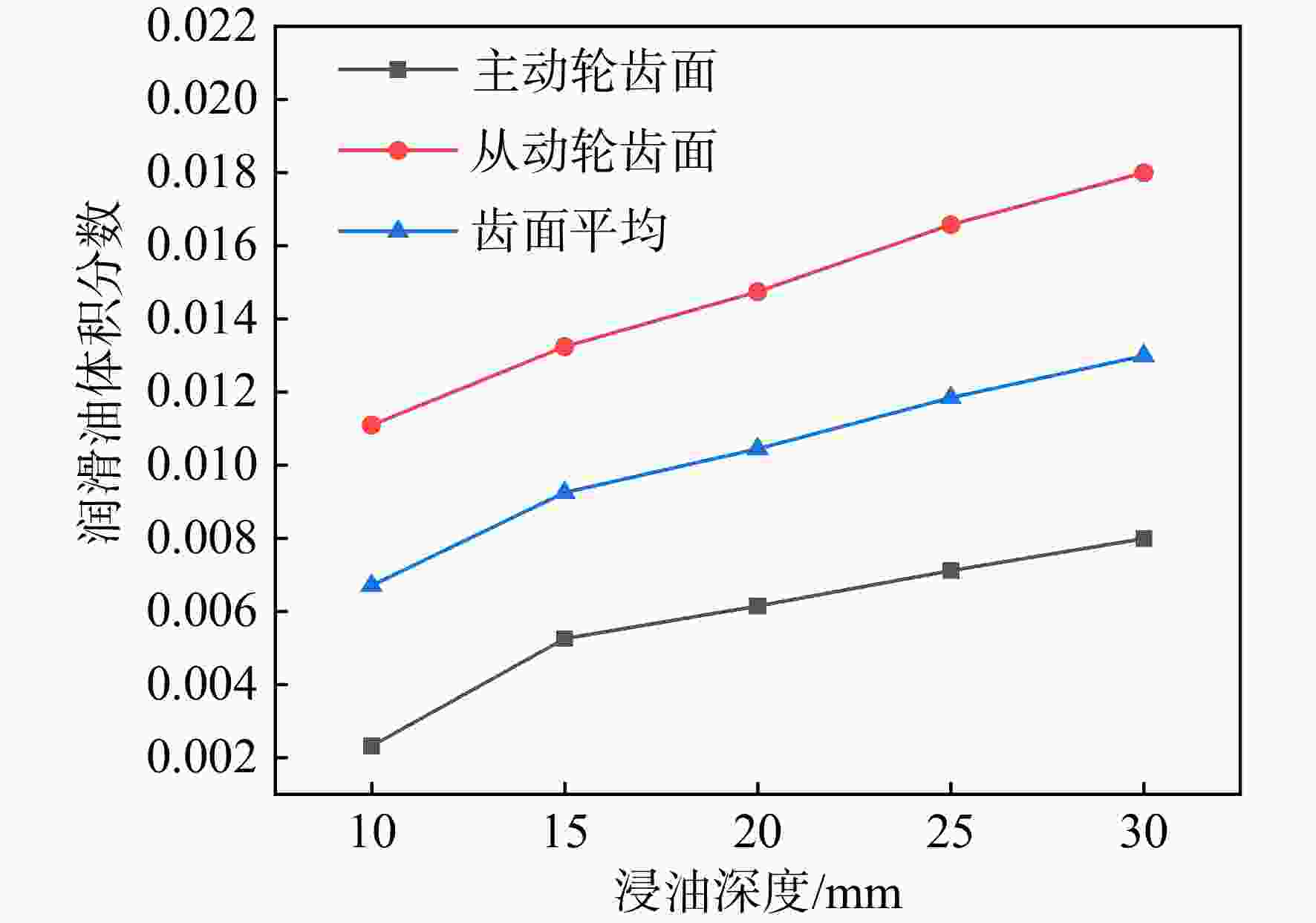

图 9 润滑油体积分数随浸油深度变化规律

Figure 9. Variation of lubricating oil volume fraction with immersion depth

下载: 全尺寸图片幻灯片

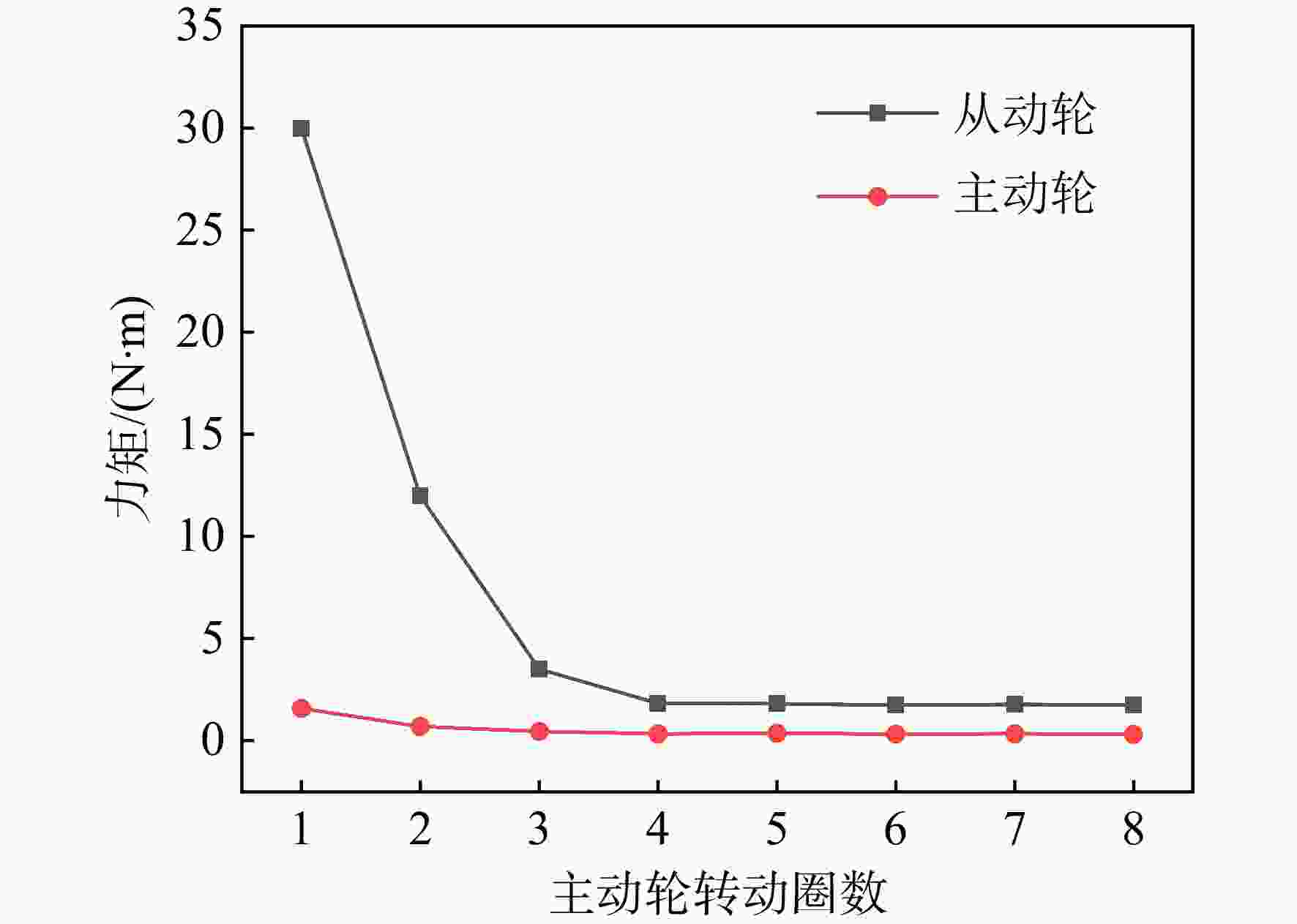

图 10 飞溅润滑过程力矩损失

Figure 10. Torque loss during splash lubrication

下载: 全尺寸图片幻灯片

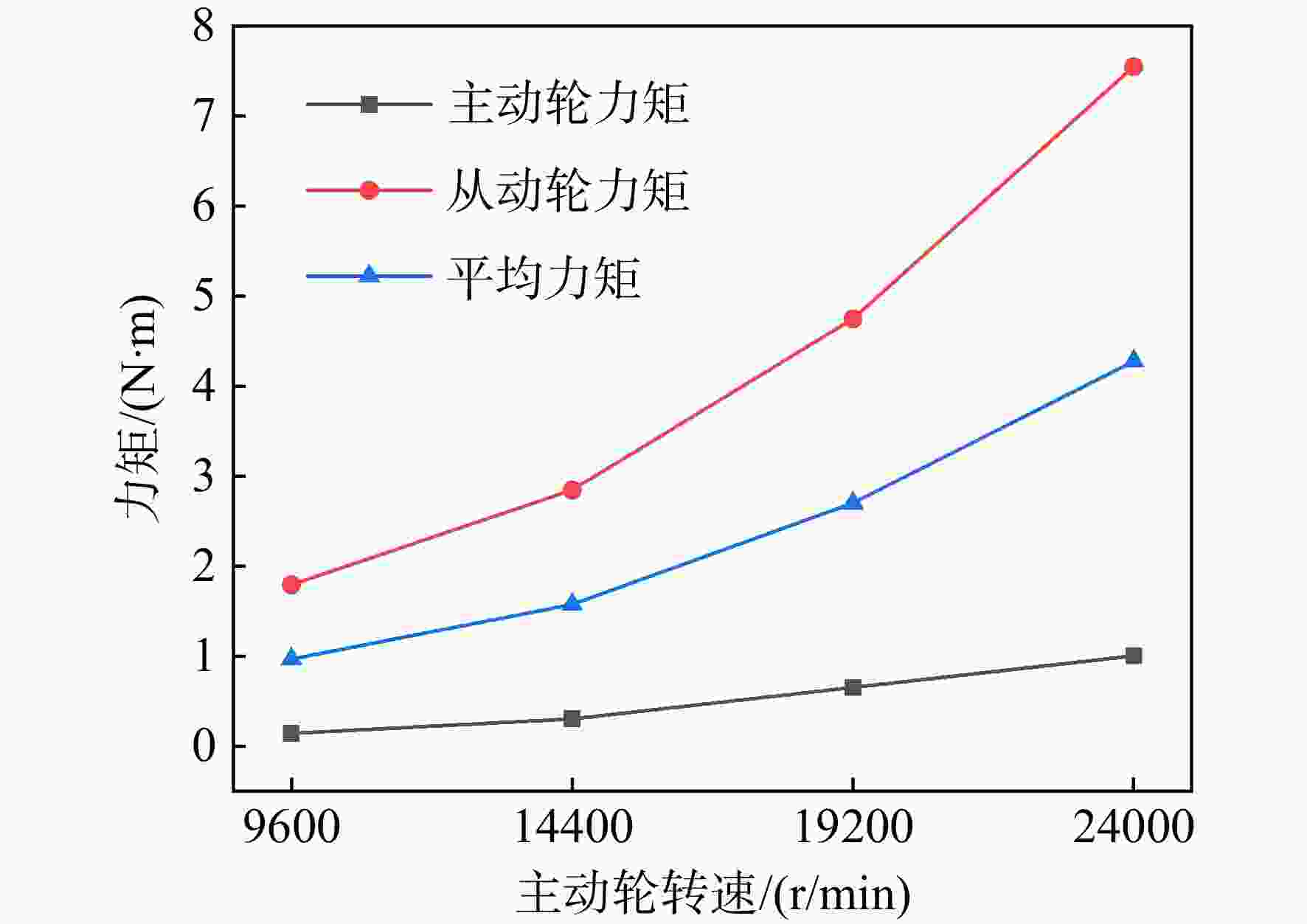

图 11 力矩损失随齿轮转速变化规律

Figure 11. Variation of torque loss with gear speed

下载: 全尺寸图片幻灯片

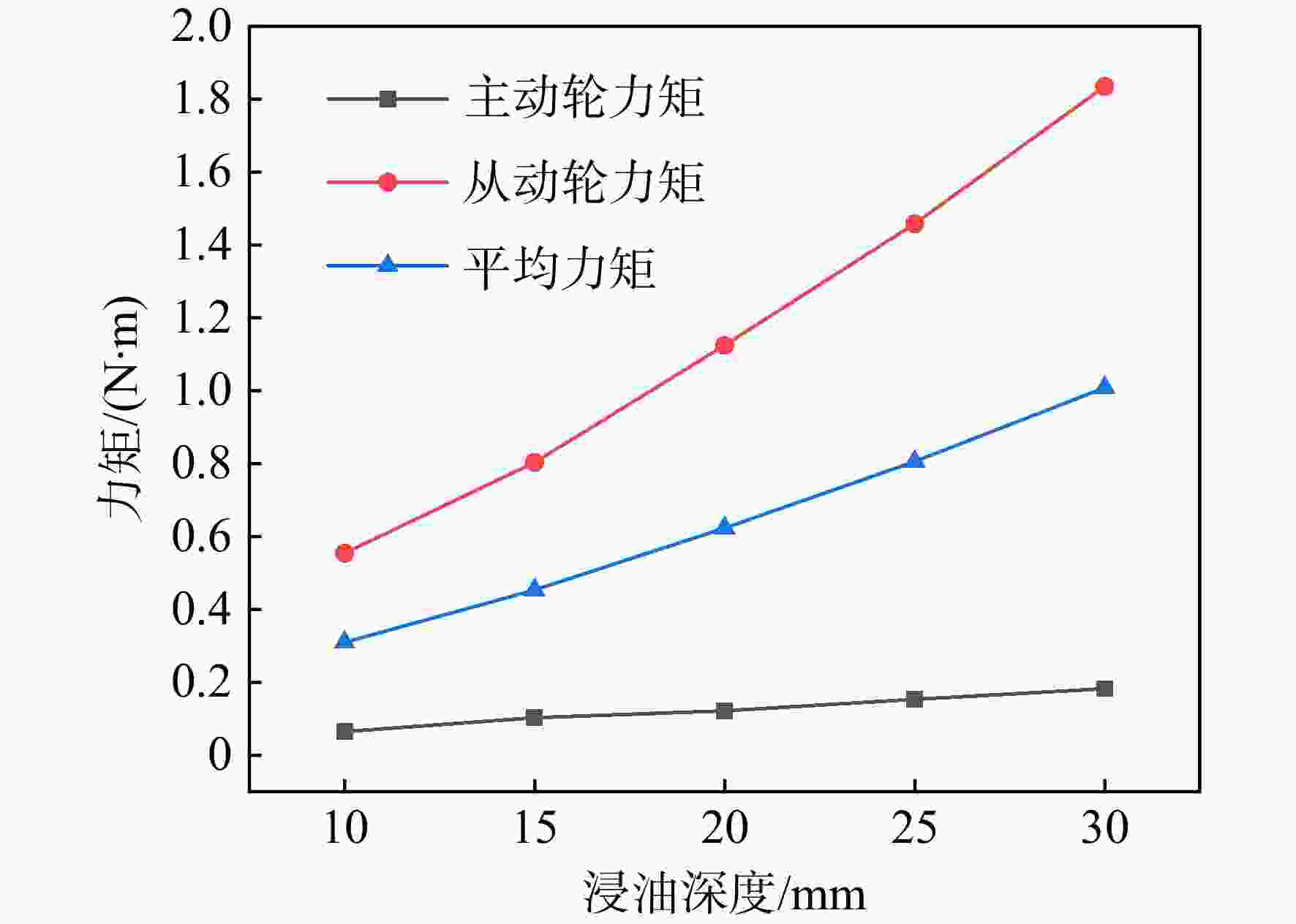

图 12 力矩损失随浸油深度变化规律

Figure 12. Variation of torque loss with immersion depth

下载: 全尺寸图片幻灯片

图 13 自然界中的蜂巢

Figure 13. Honeycomb in nature

下载: 全尺寸图片幻灯片

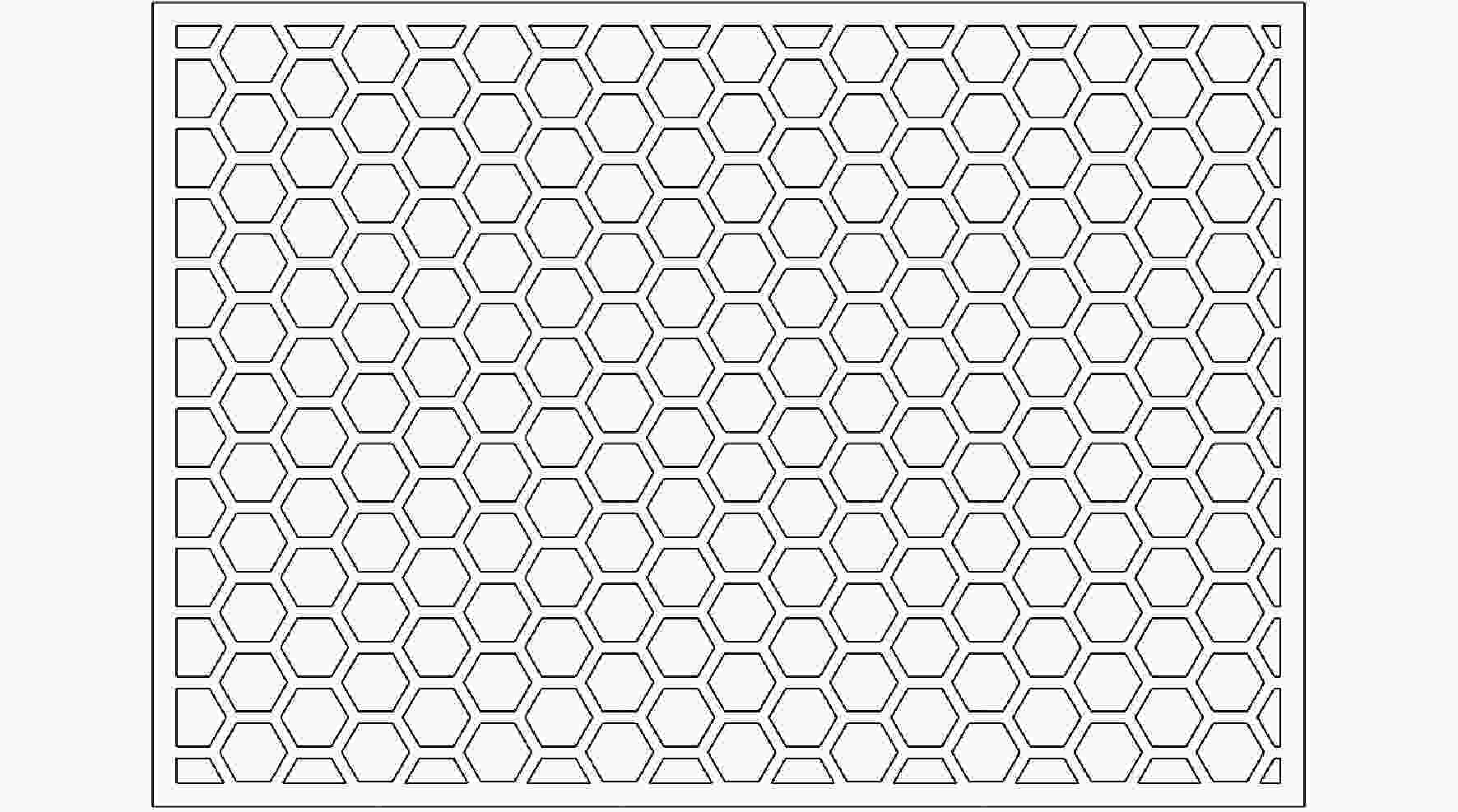

图 14 仿生蜂巢挡板结构示意图

Figure 14. Schematic diagram of bionic honeycomb baffle structure

下载: 全尺寸图片幻灯片

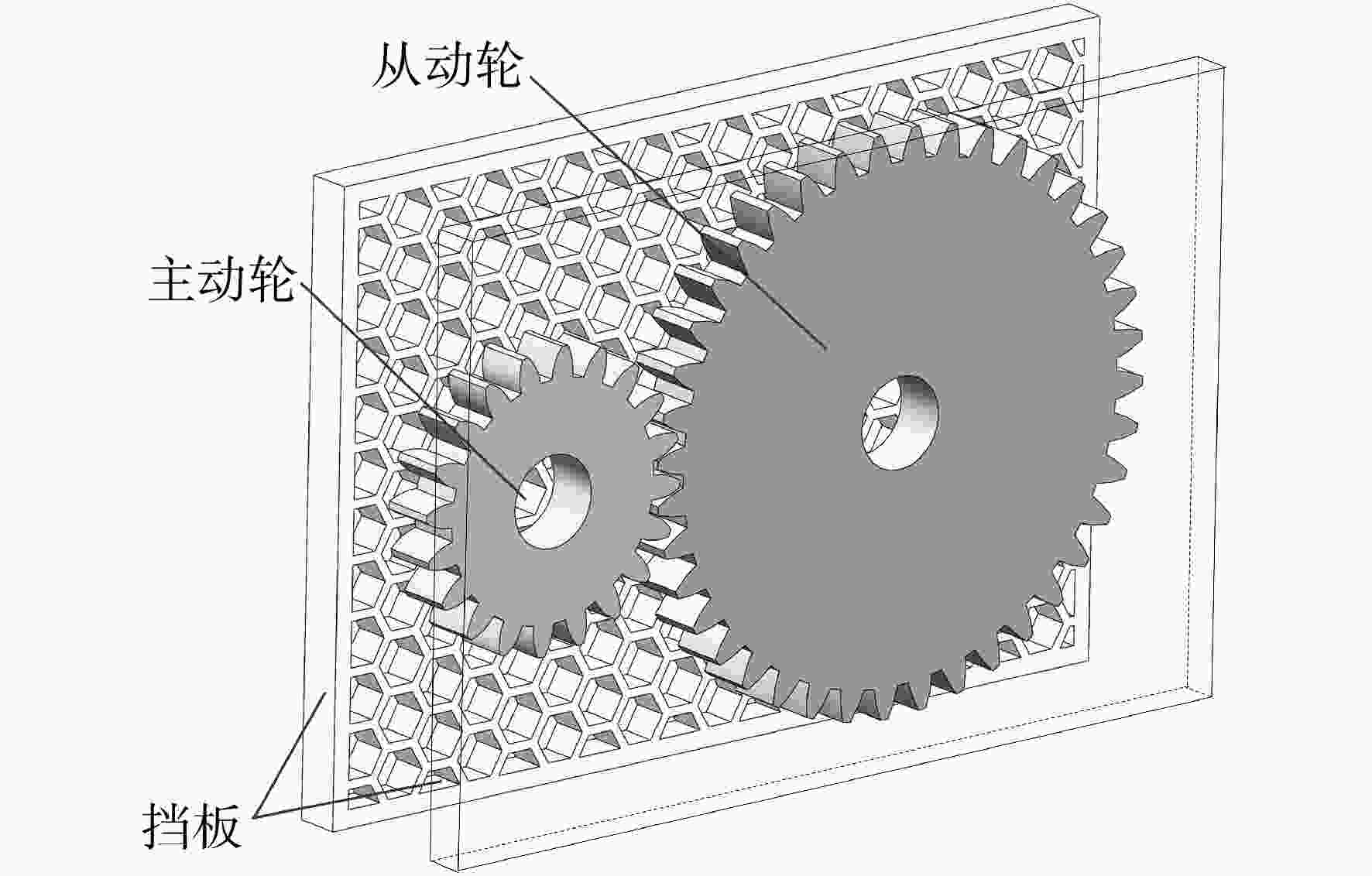

图 15 仿生蜂巢挡板位置示意图

Figure 15. Schematic diagram of the location of the bionic honeycomb baffle

下载: 全尺寸图片幻灯片

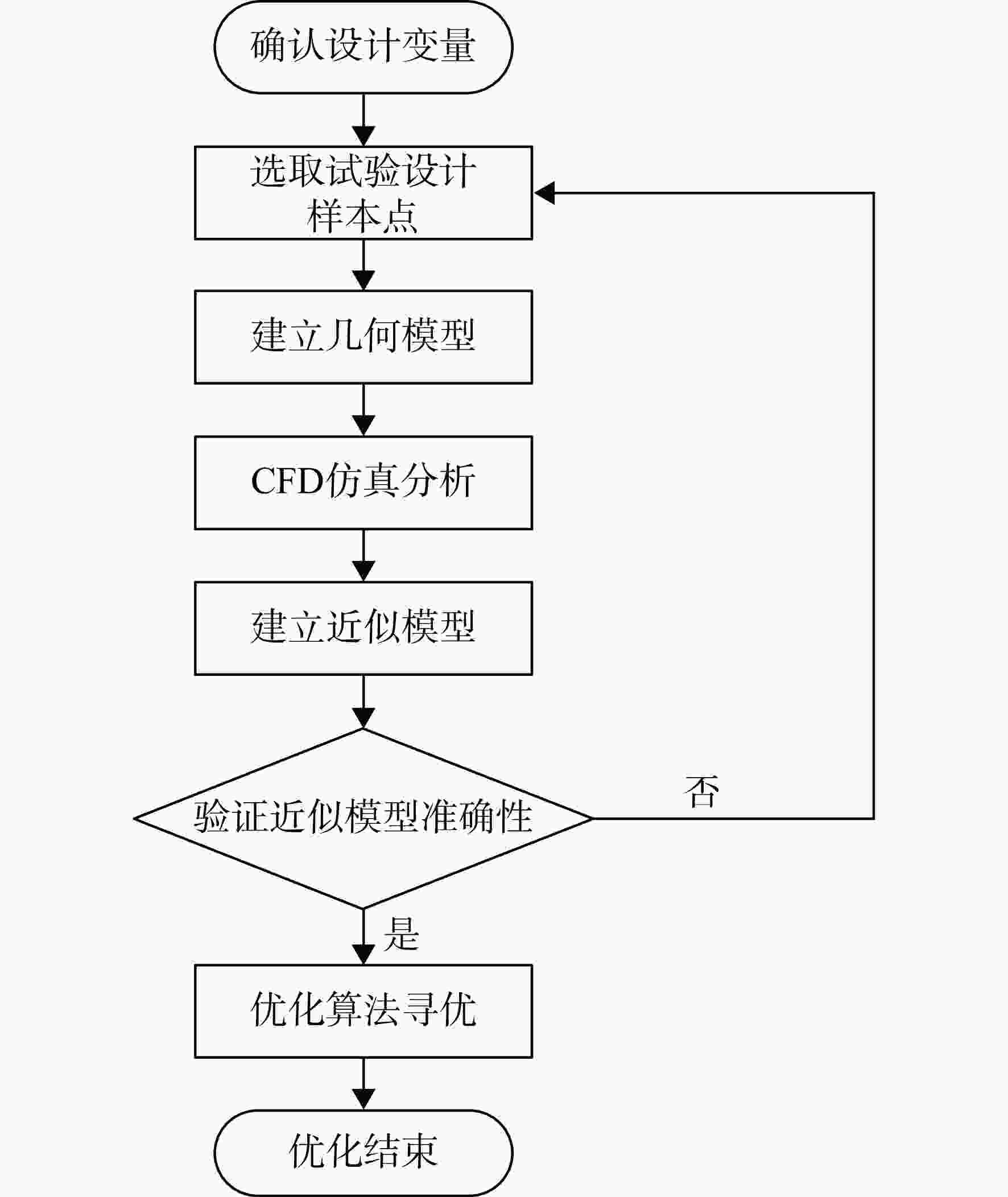

图 16 算法优化流程

Figure 16. Algorithm optimization process

下载: 全尺寸图片幻灯片

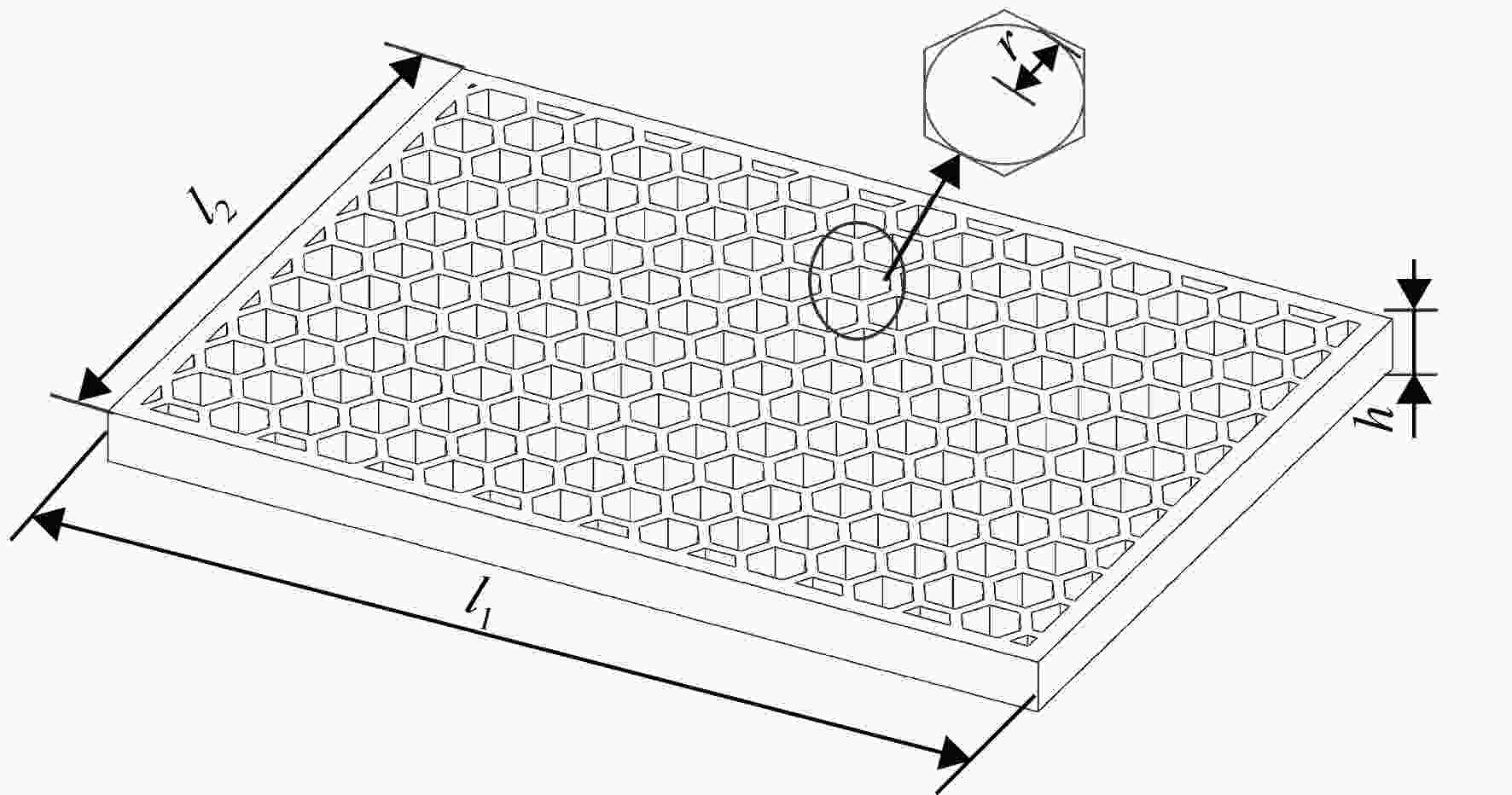

图 17 仿生蜂巢挡板设计变量尺寸图

Figure 17. Bionic honeycomb baffle design variable size diagram

下载: 全尺寸图片幻灯片

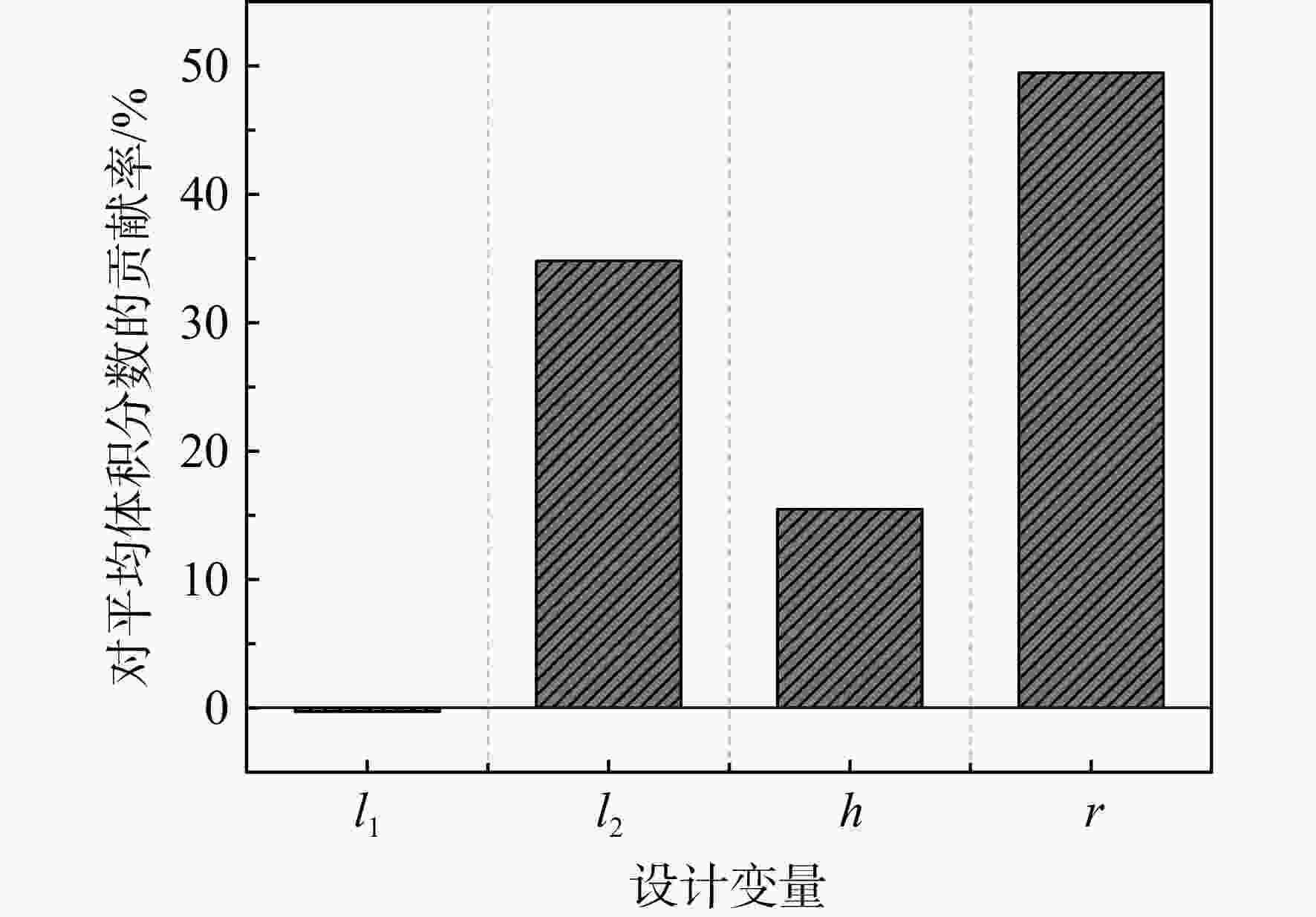

图 18 润滑油平均体积分数的Pareto图

Figure 18. Pareto plot of average volume fraction of lubricating oil

下载: 全尺寸图片幻灯片

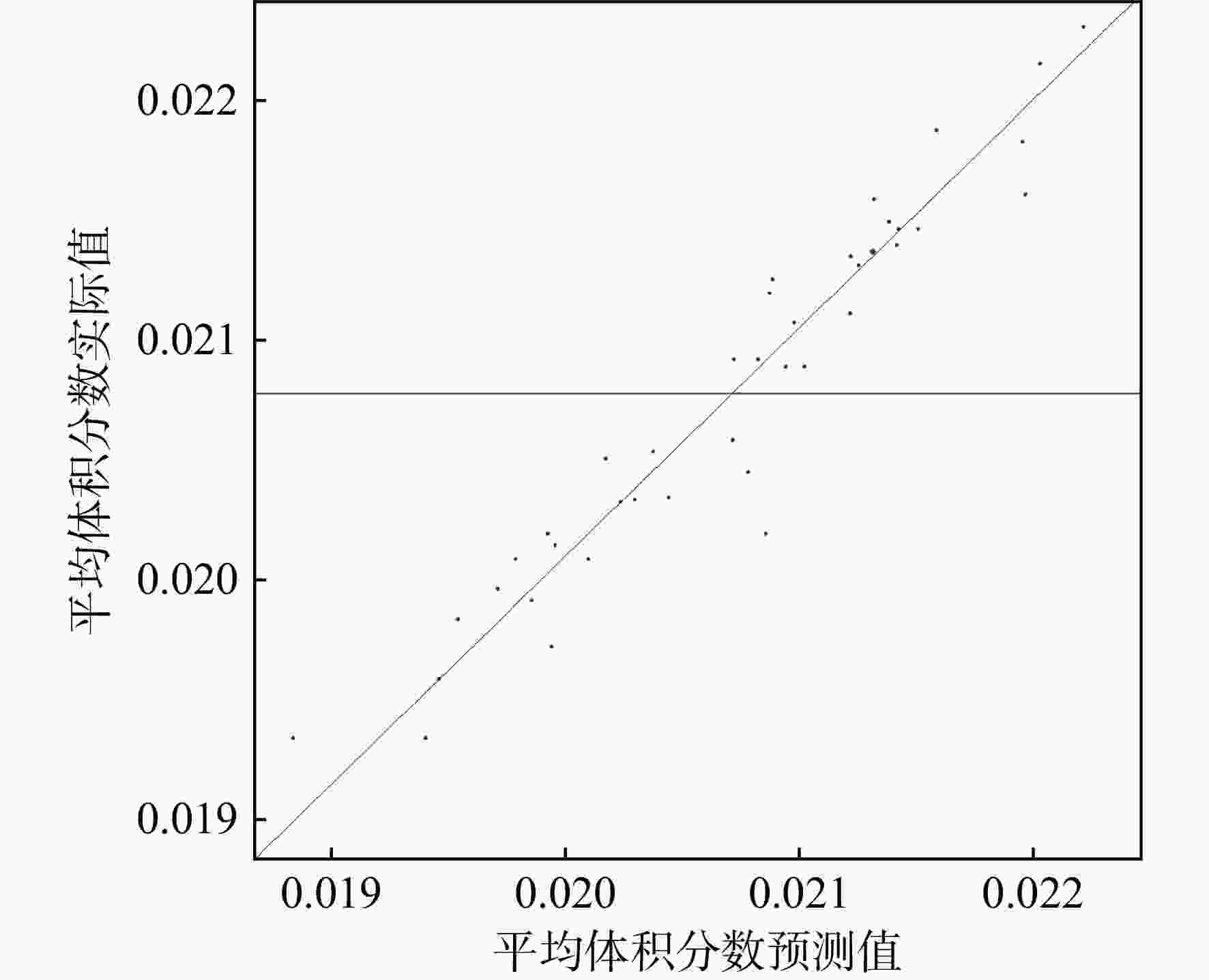

图 19 平均体积分数实际值与预测值关系图

Figure 19. Relationship between actual and predicted values of average volume fraction

下载: 全尺寸图片幻灯片

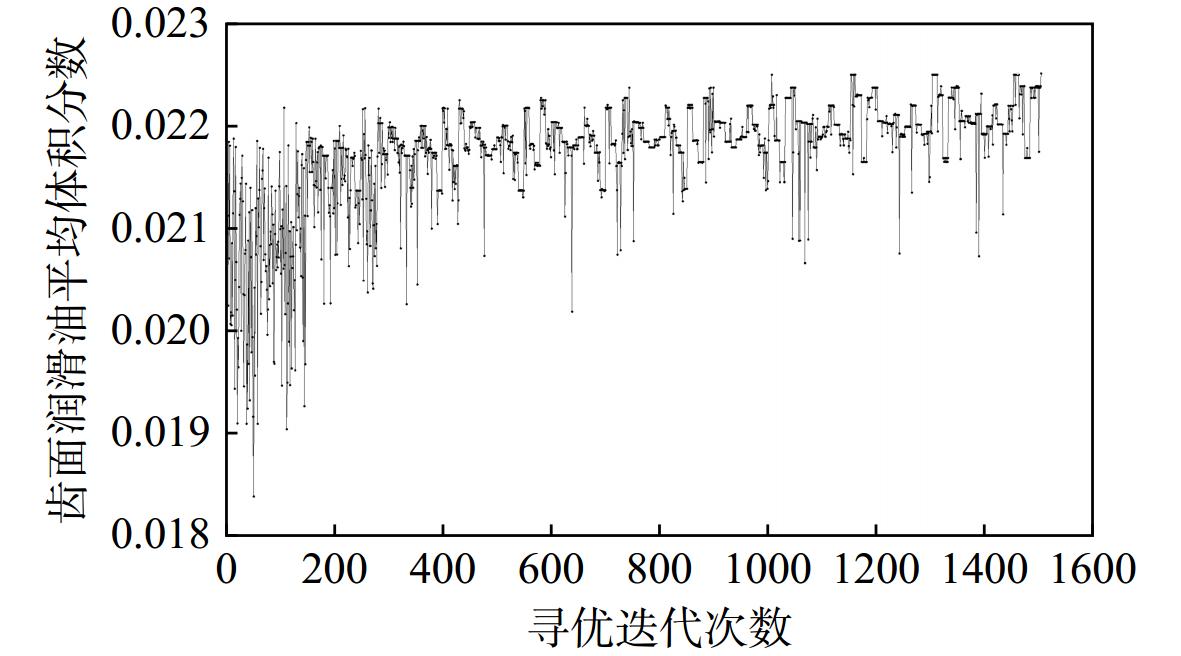

图 20 优化过程中迭代曲线

Figure 20. Iterative curve during optimization process

下载: 全尺寸图片幻灯片

图 21 高速齿轮飞溅润滑两相流分布

Figure 21. Two-phase flow distribution of splash lubrication for high-speed gears

下载: 全尺寸图片幻灯片

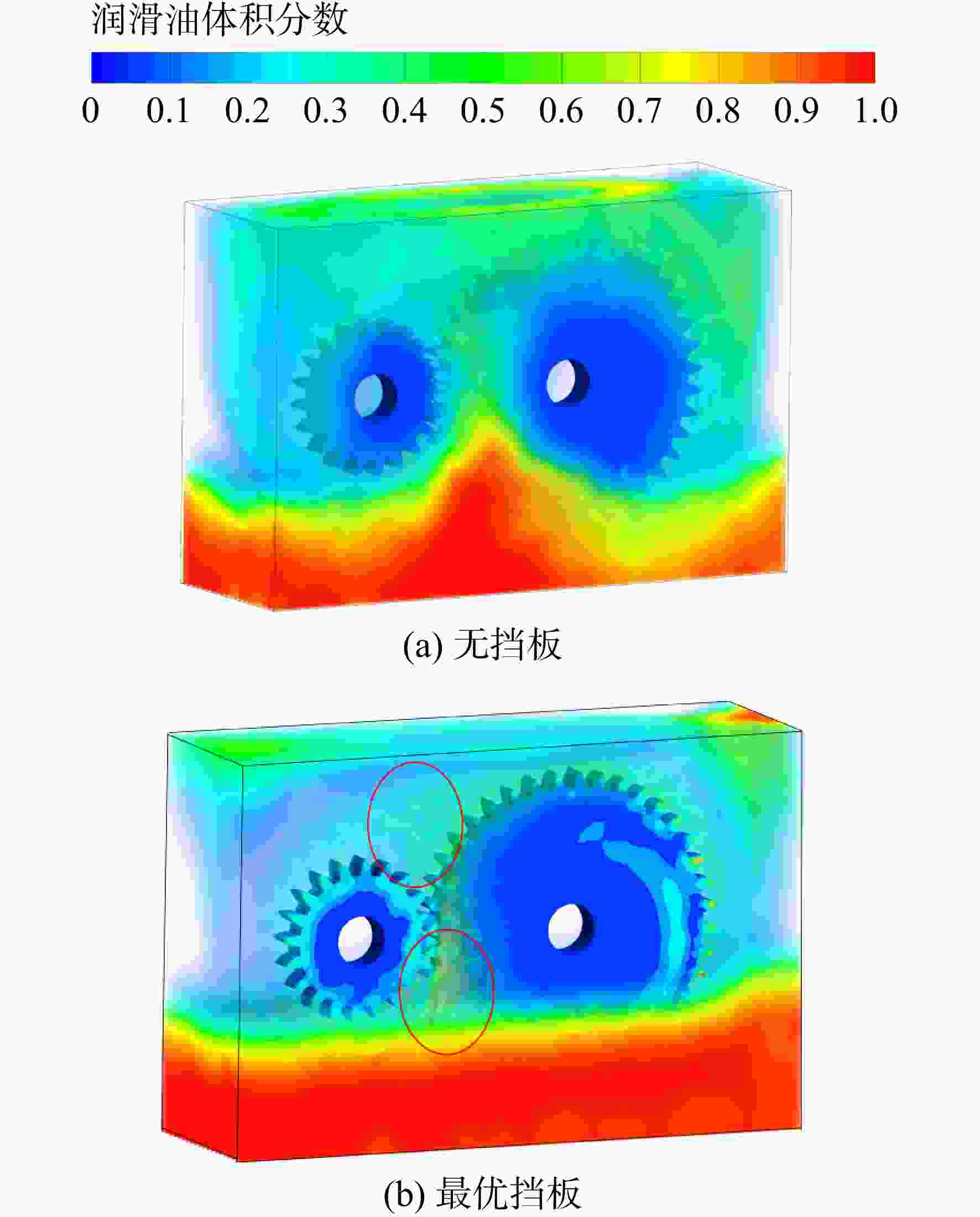

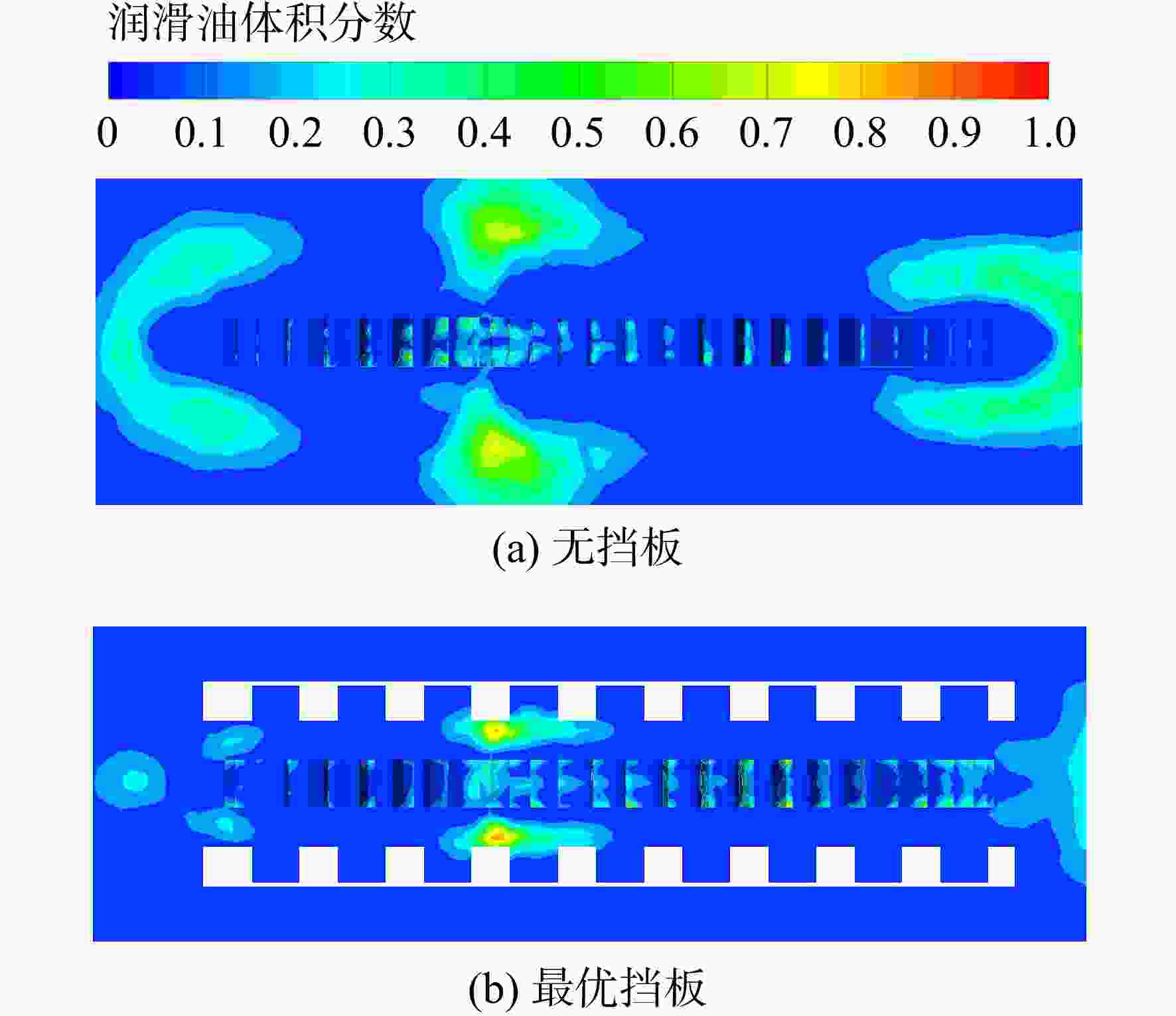

图 22 齿轮及轴向截面润滑油体积分数云图

Figure 22. Cloud diagram of lubricating oil volume fraction of gear and axial section before and after optimization

下载: 全尺寸图片幻灯片

表 1 齿轮及箱体参数

Table 1. Gear and box parameters

参数	数值
主动轮齿数	20
从动轮齿数	40
模数/mm	3
压力角/（°）	20
齿宽/mm	12
箱体长度/mm	240
箱体宽度/mm	80
箱体高度/mm	160

下载: 导出CSV

表 2 设计变量取值范围

Table 2. Value range of design variables mm

设计变量	原始值	设计变量取值范围
$ {l}_{1} $	190	（180, 200）
$ {l}_{2} $	135	（130, 140）
$ h $	9	（8, 10）
$ r $	4	（3, 5）

下载: 导出CSV

表 3 部分设计实验样本点及结果

Table 3. Sample points and results of partial design experiment

序号	$ {l}_{1}/ $mm	$ {l}_{2}/ $mm	$ h/ $mm	$ r/ $mm	体积分数
1	198.46	135.64	8.46	4.17	0.0208
2	190.77	139.23	9.48	4.74	0.02180
3	18.59	134.36	9.84	3.82	0.0213
4	19.85	137.69	8.05	3.46	0.0212
5	187.18	139.49	9.53	3.71	0.0212
6	195.38	138.97	8.56	4.84	0.0214
7	181.03	1.08	8.71	3.61	0.0197
8	187.69	130.51	8.35	3.30	0.0192
9	185.13	131.03	9.43	3.25	0.0194
10	197.44	137.18	8.92	3.10	0.0196
$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $
36	18.56	134.1	8.25	4.53	0.0211
37	200	1.31	9.12	4.69	0.0200
38	194.87	139.74	8.87	3.92	0.0208
39	195.38	131.54	9.23	3	0.0192
40	184.1	137.44	8.82	5	0.0213

下载: 导出CSV

表 4 多岛遗传算法参数设置

Table 4. Parameter settings for multi island genetic algorithm

参数	数值
子群规模	15
岛数	10
遗传代数	10
交叉率	1
变异率	0.01
迁移率	0.01

下载: 导出CSV

表 5 挡板参数优化结果

Table 5. Optimization results of baffle parameters

参数	数值
l₁/mm	188.89
l₂/mm	137.22
h/mm	9.99
r/mm	4.56
预测值	0.0225
仿真值	0.0219

下载: 导出CSV

表 6 模型平均体积分数对比

Table 6. Comparison of model average volume fraction

模型	平均体积分数	润滑效果改进率/%
无挡板	0.013
原始挡板	0.0203	56.15
最优挡板	0.0219	68.46

下载: 导出CSV
