摘要:

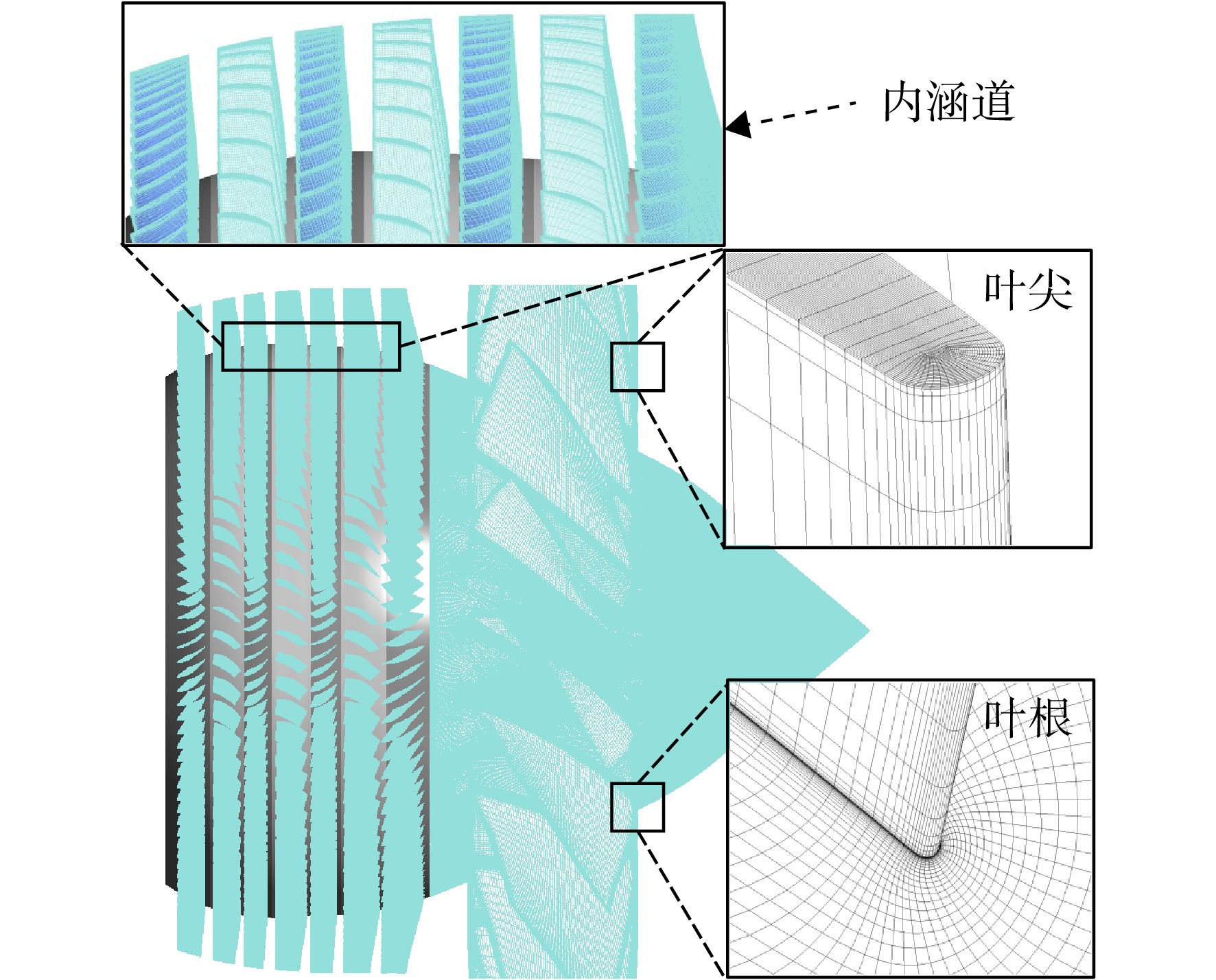

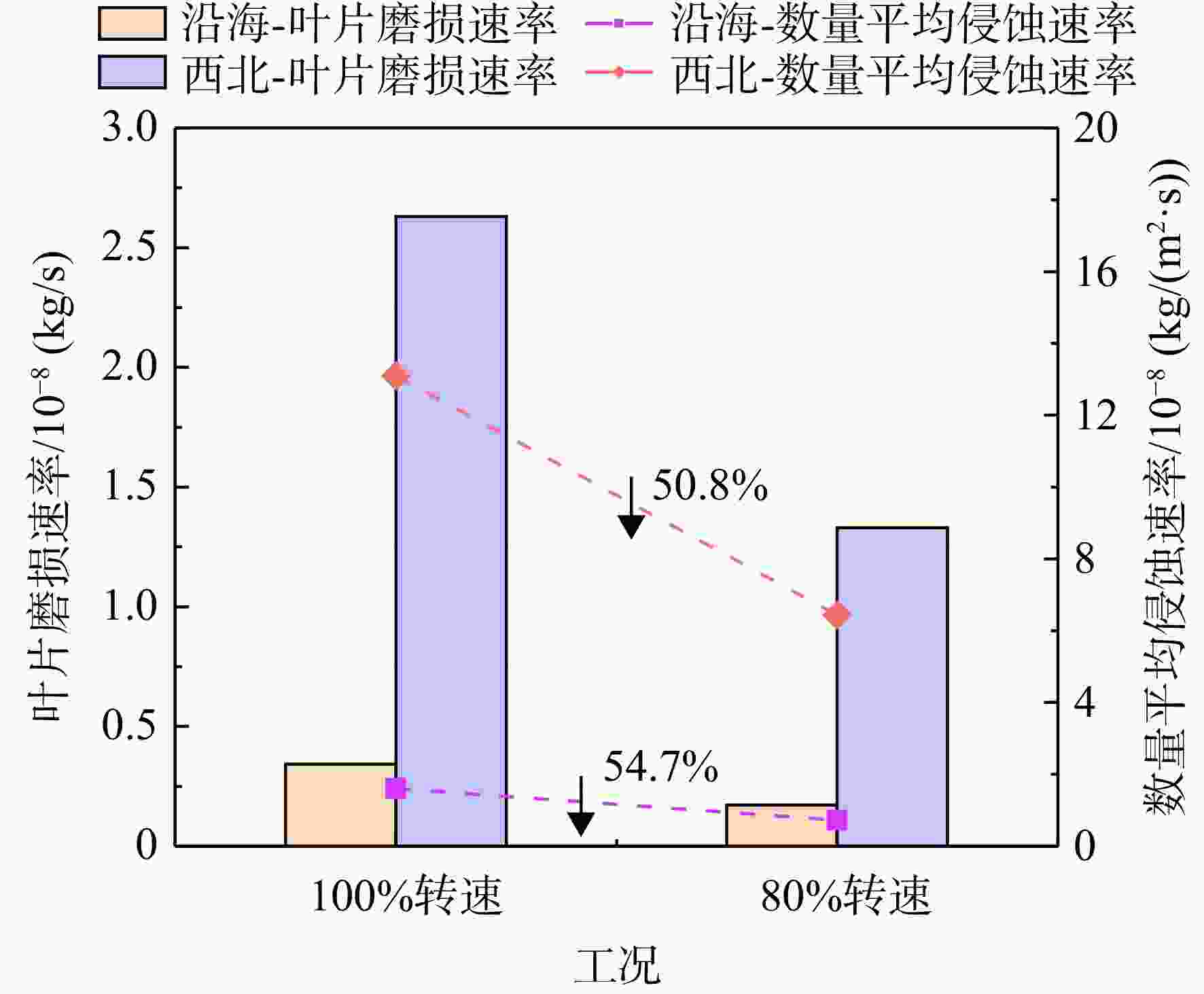

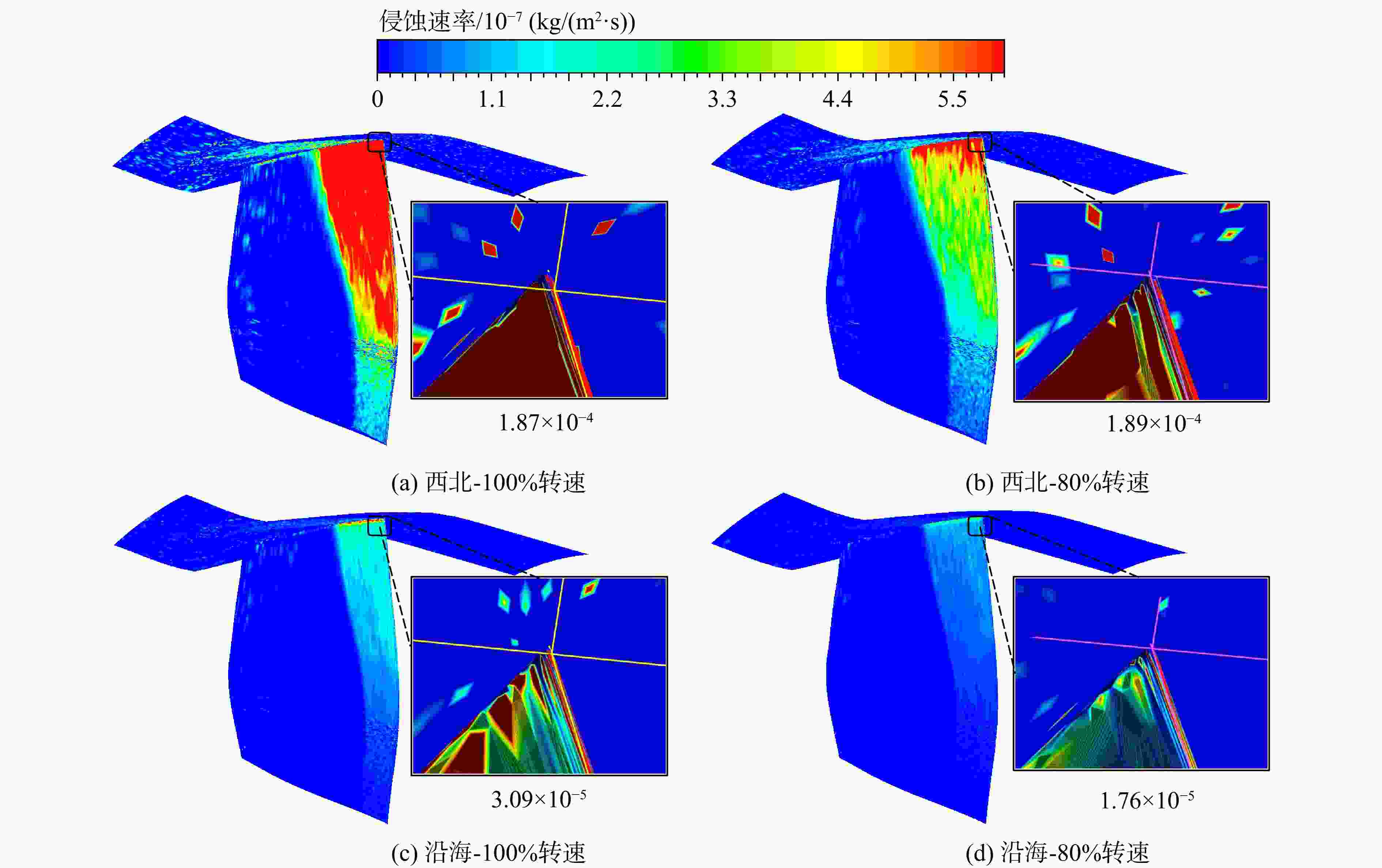

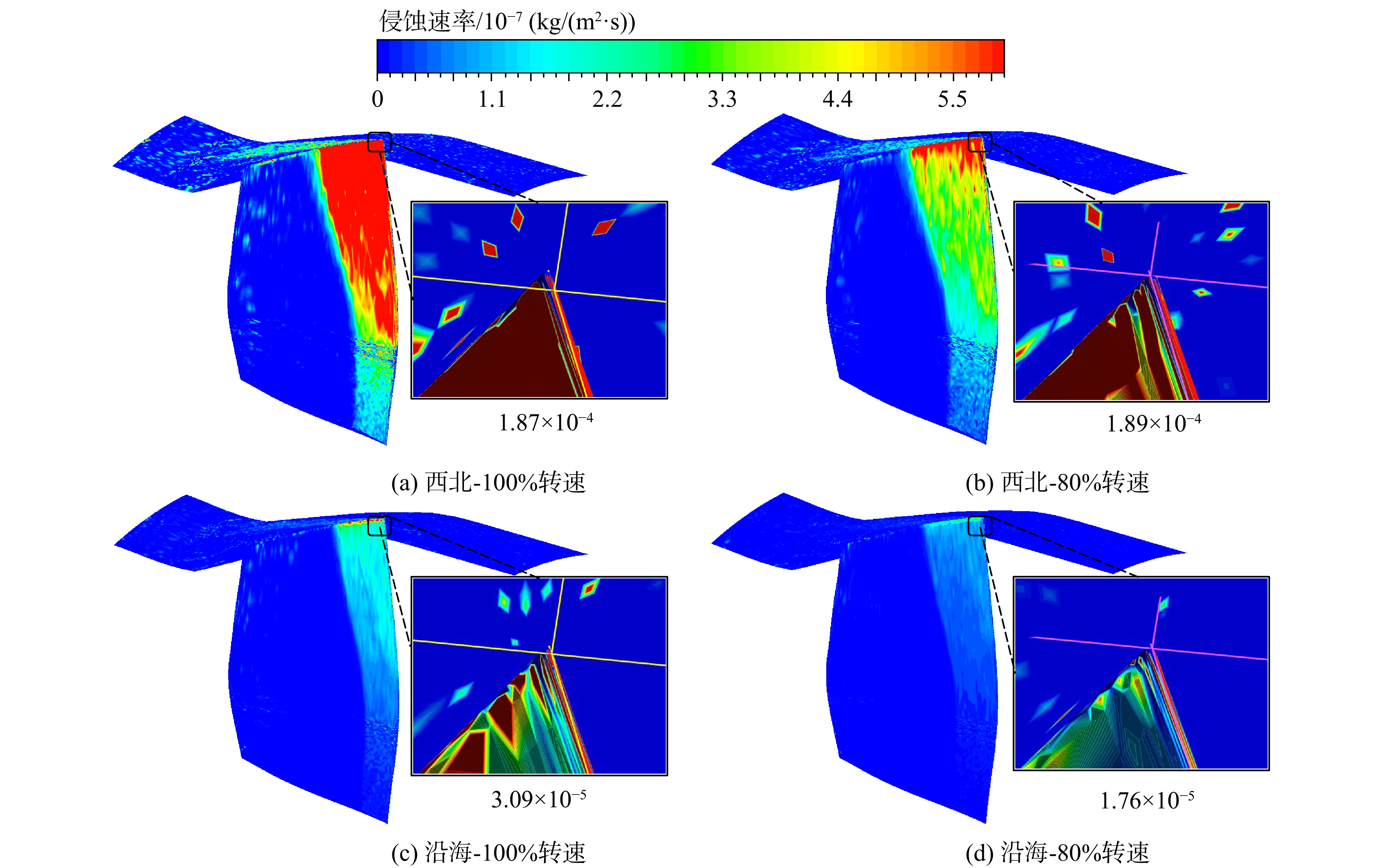

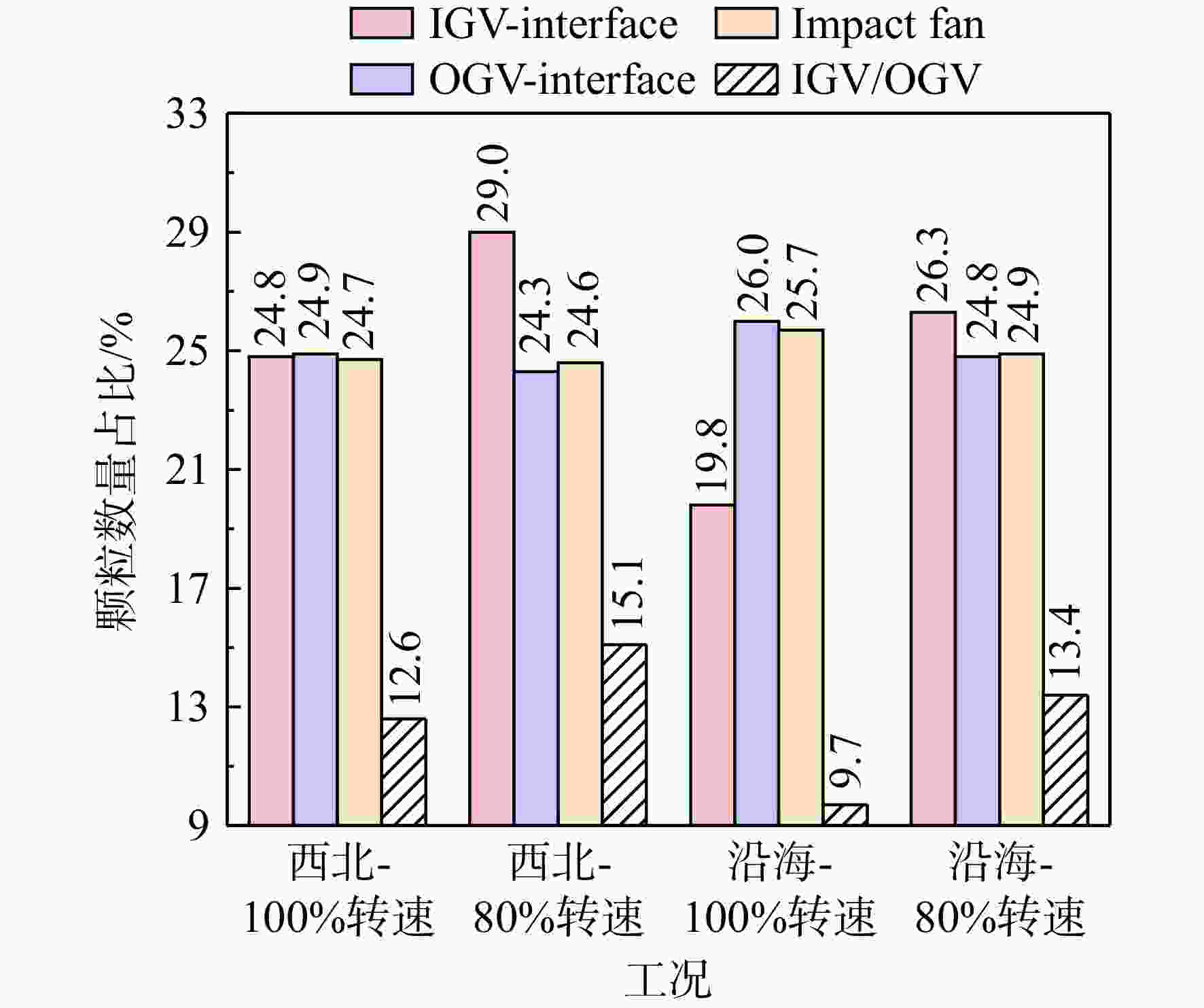

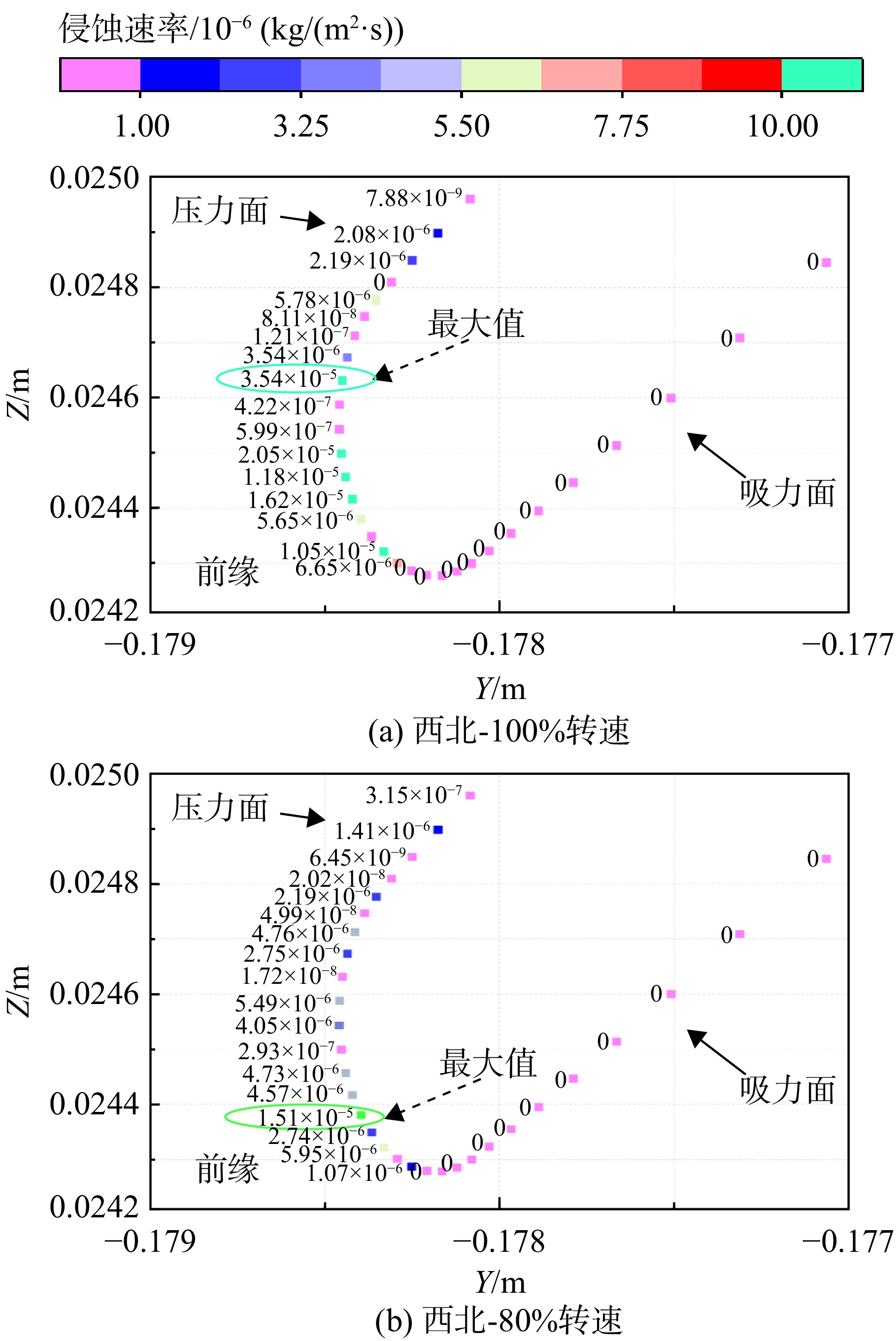

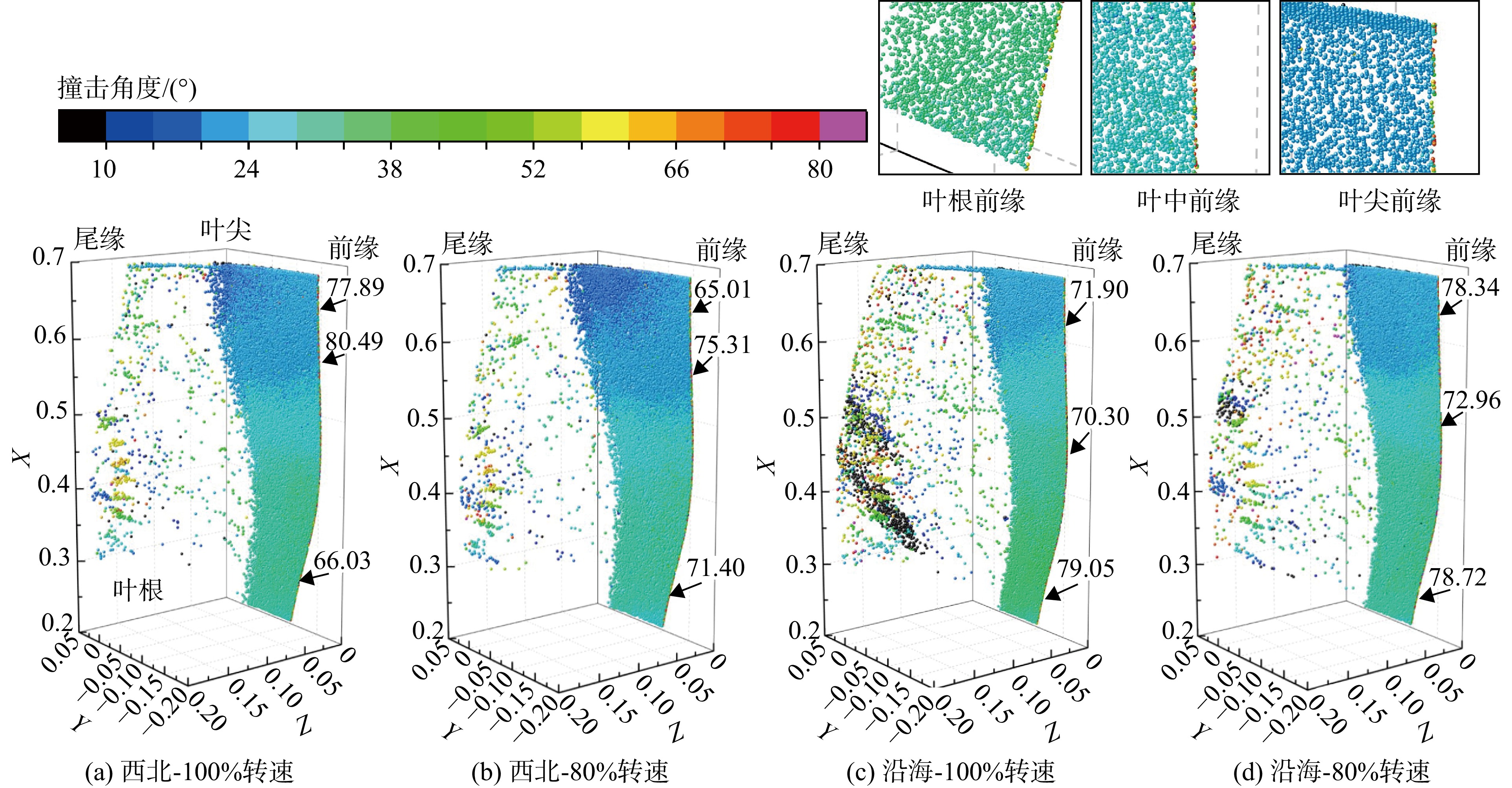

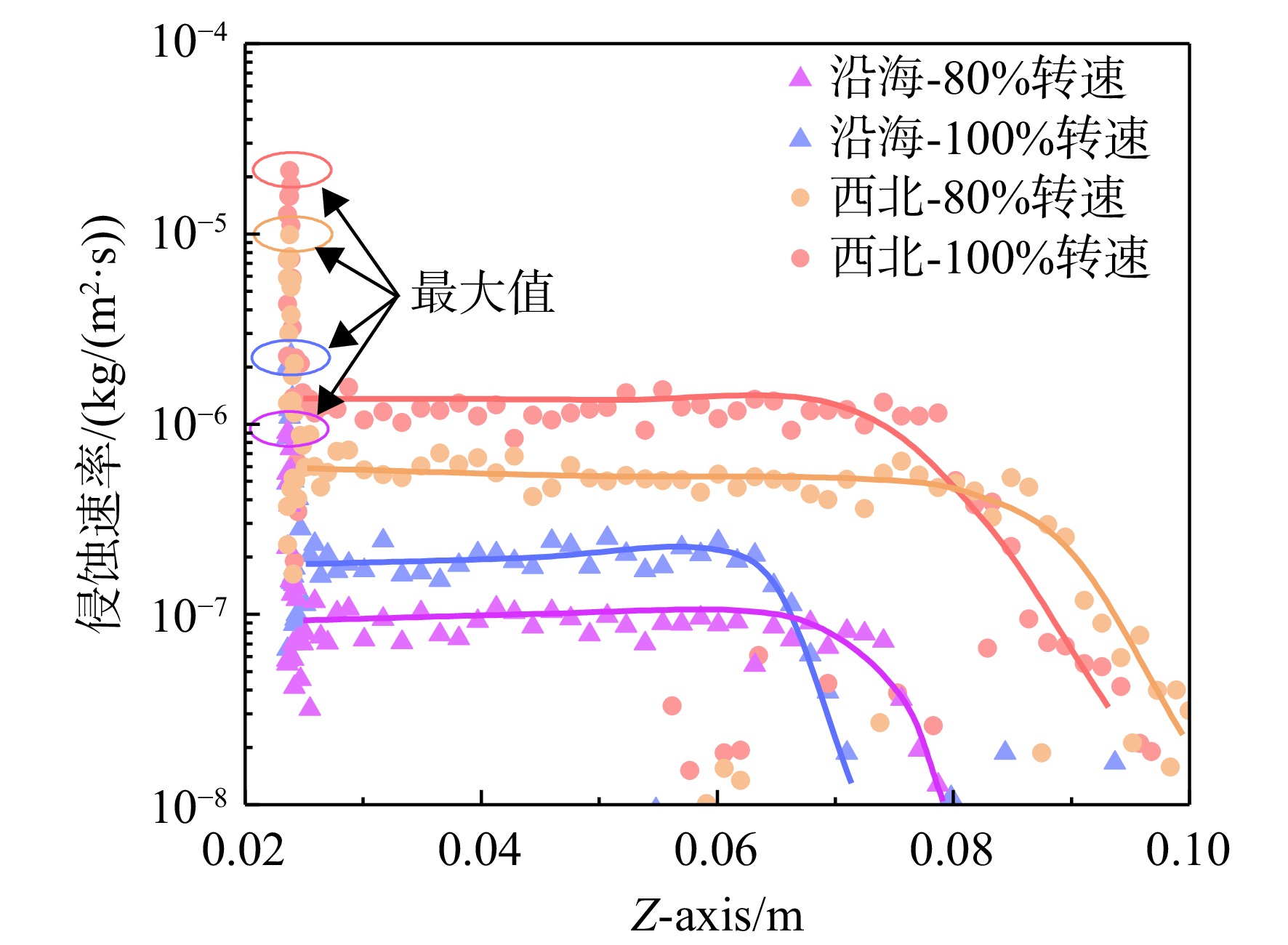

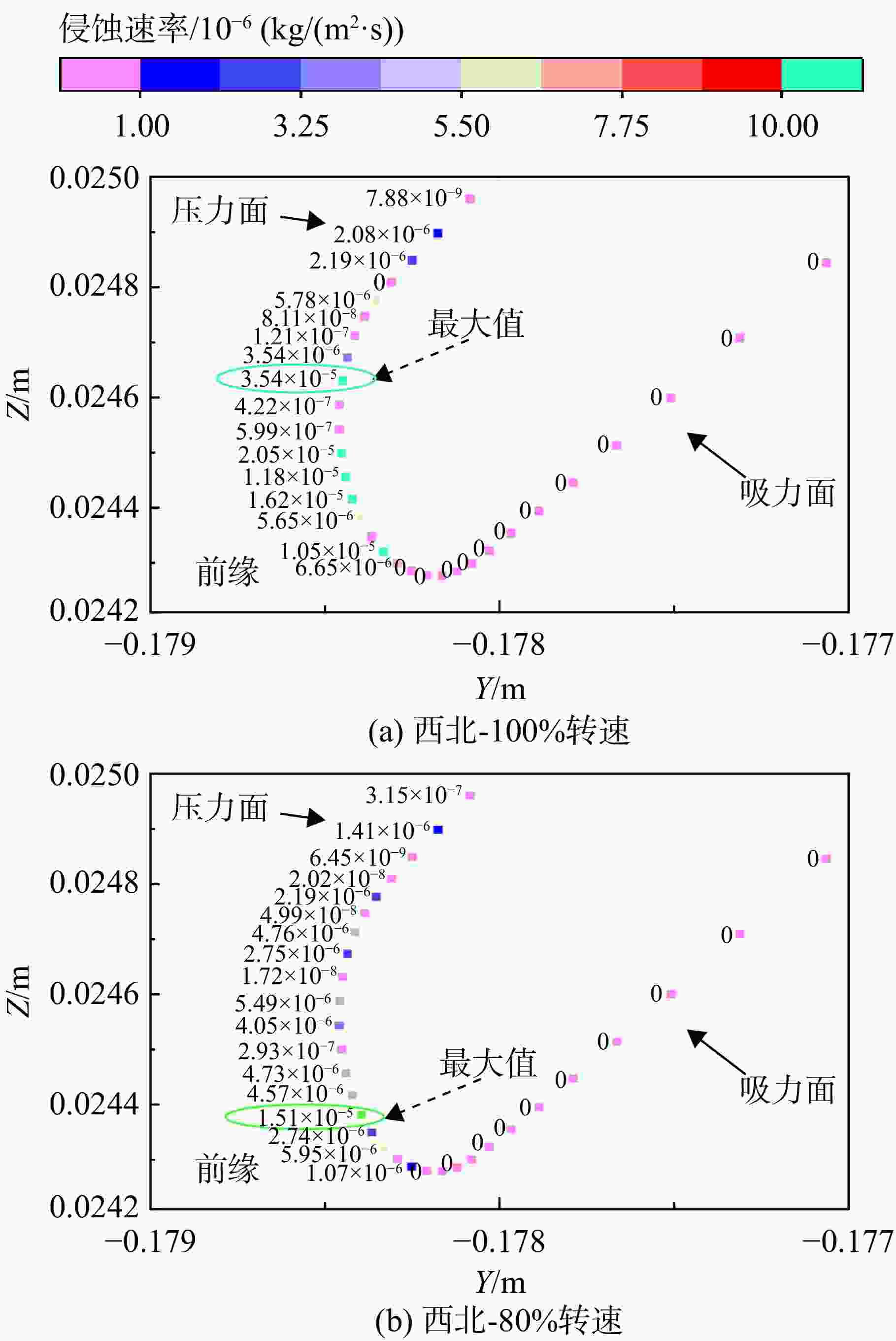

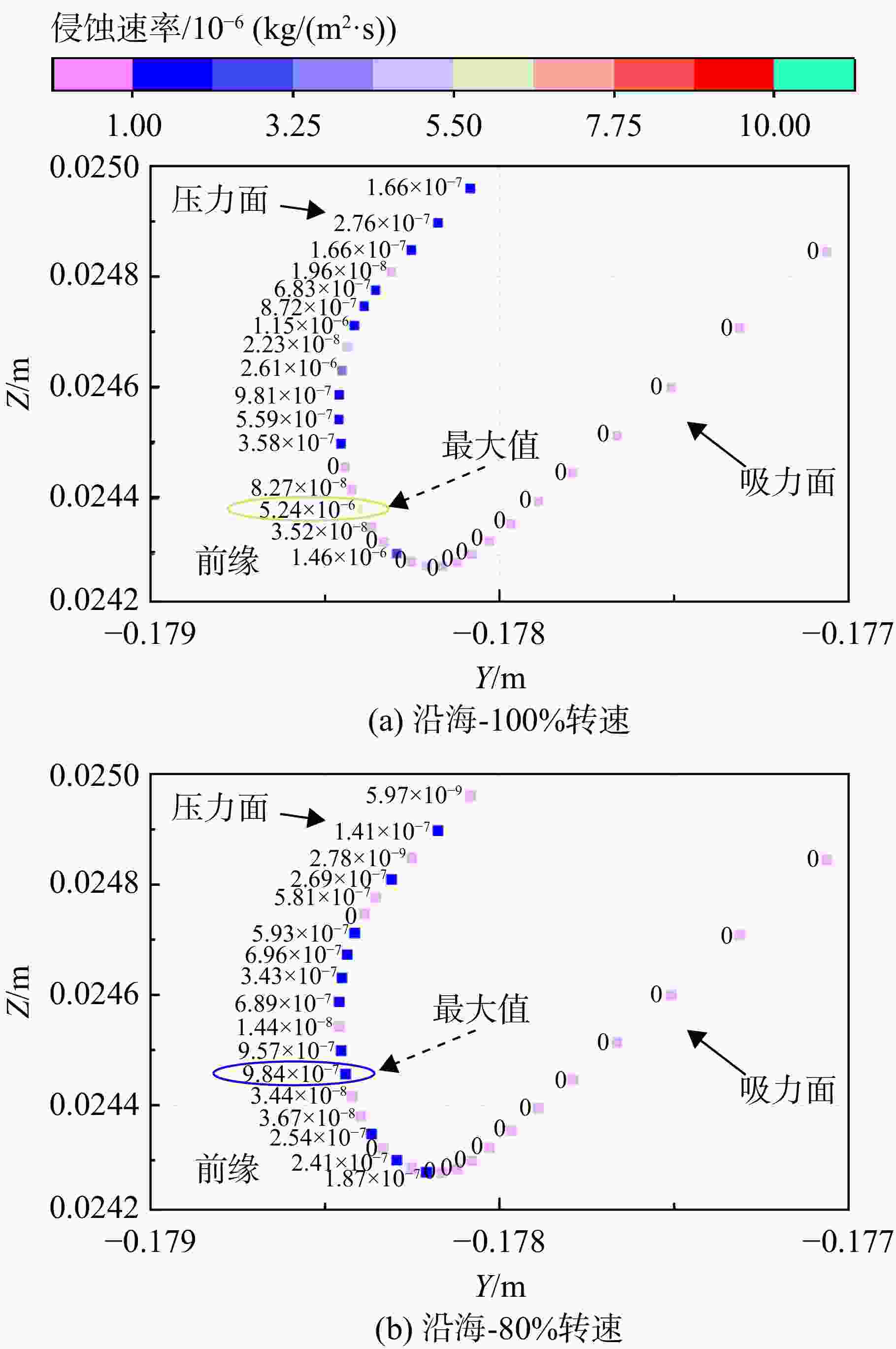

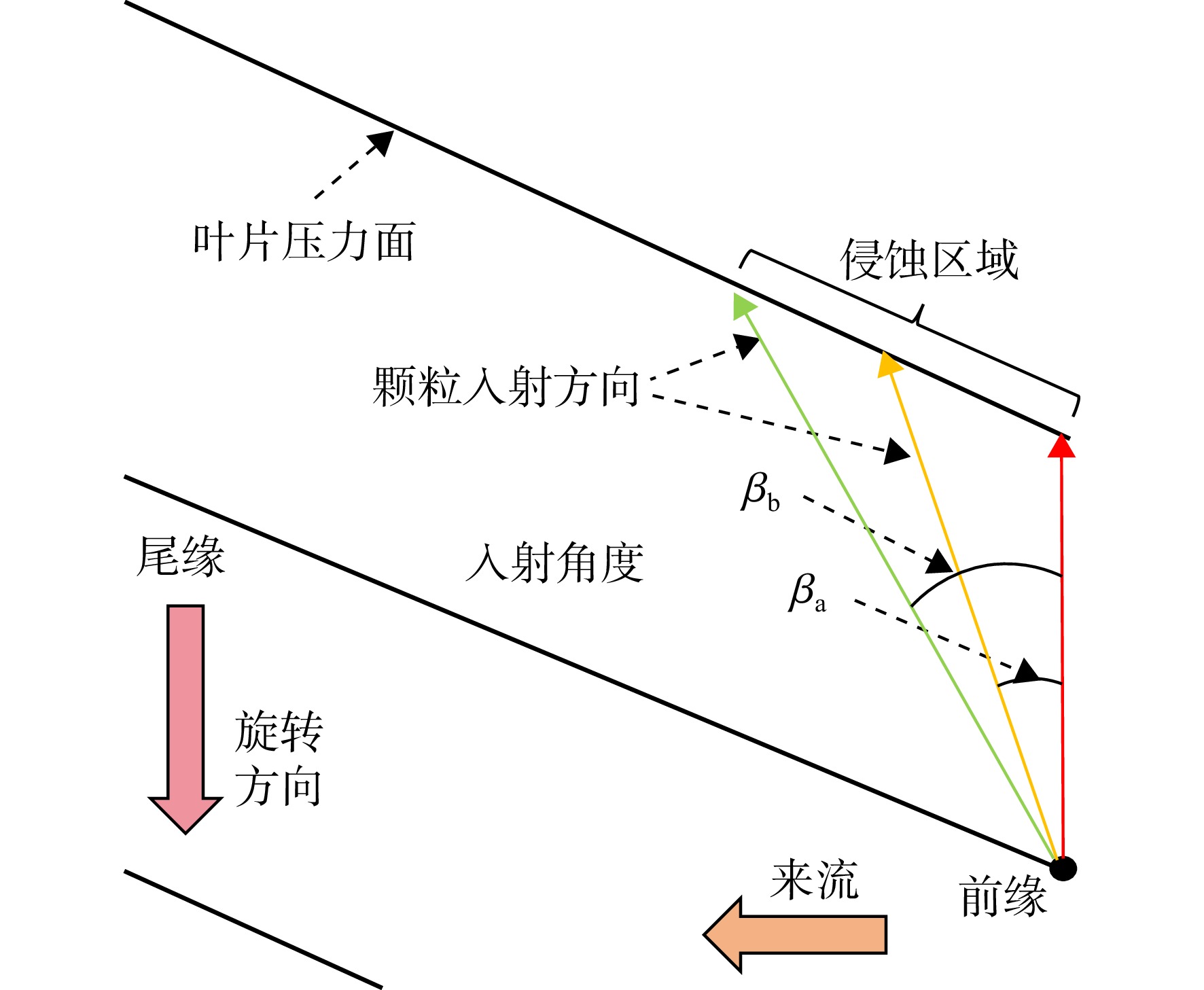

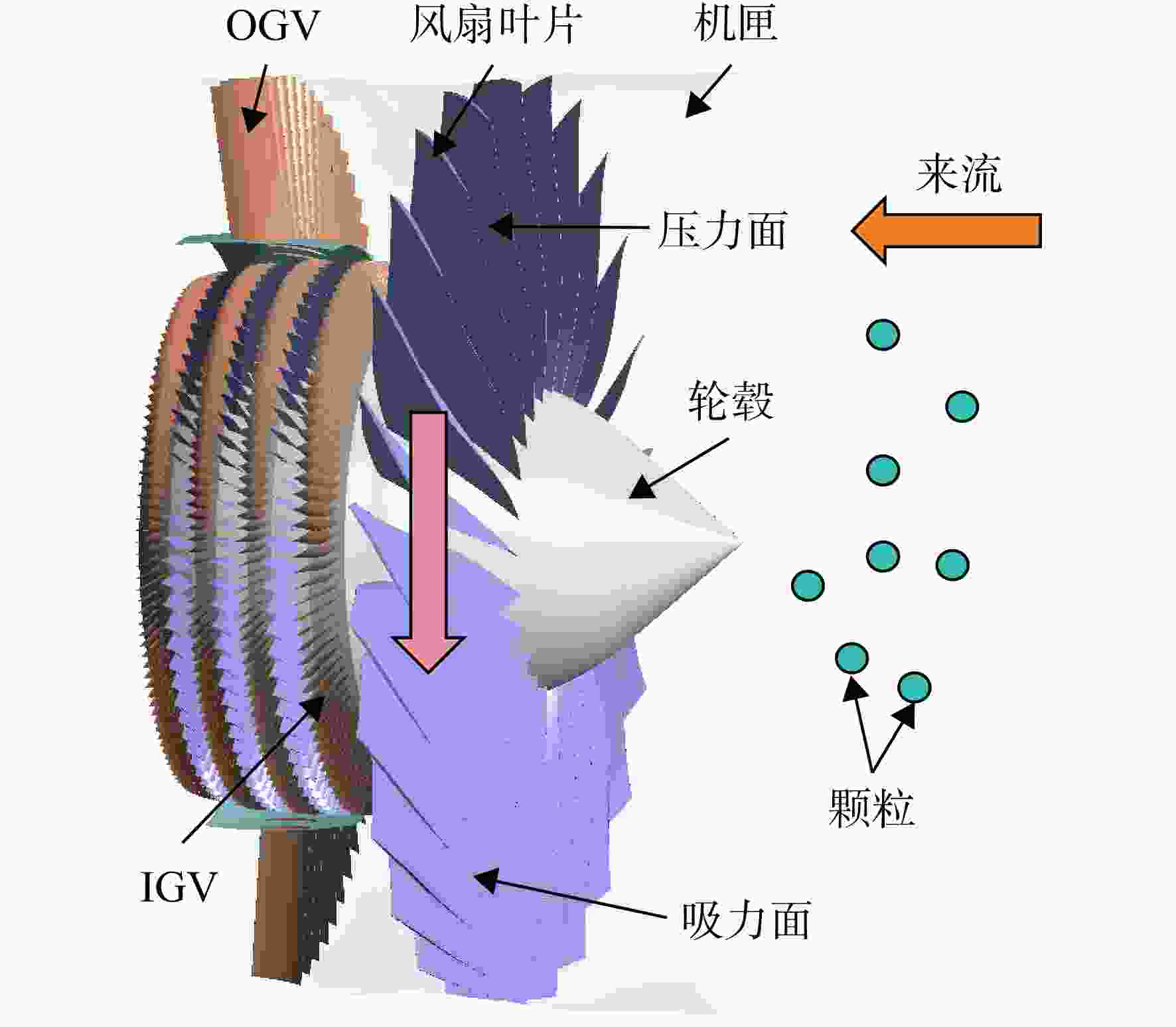

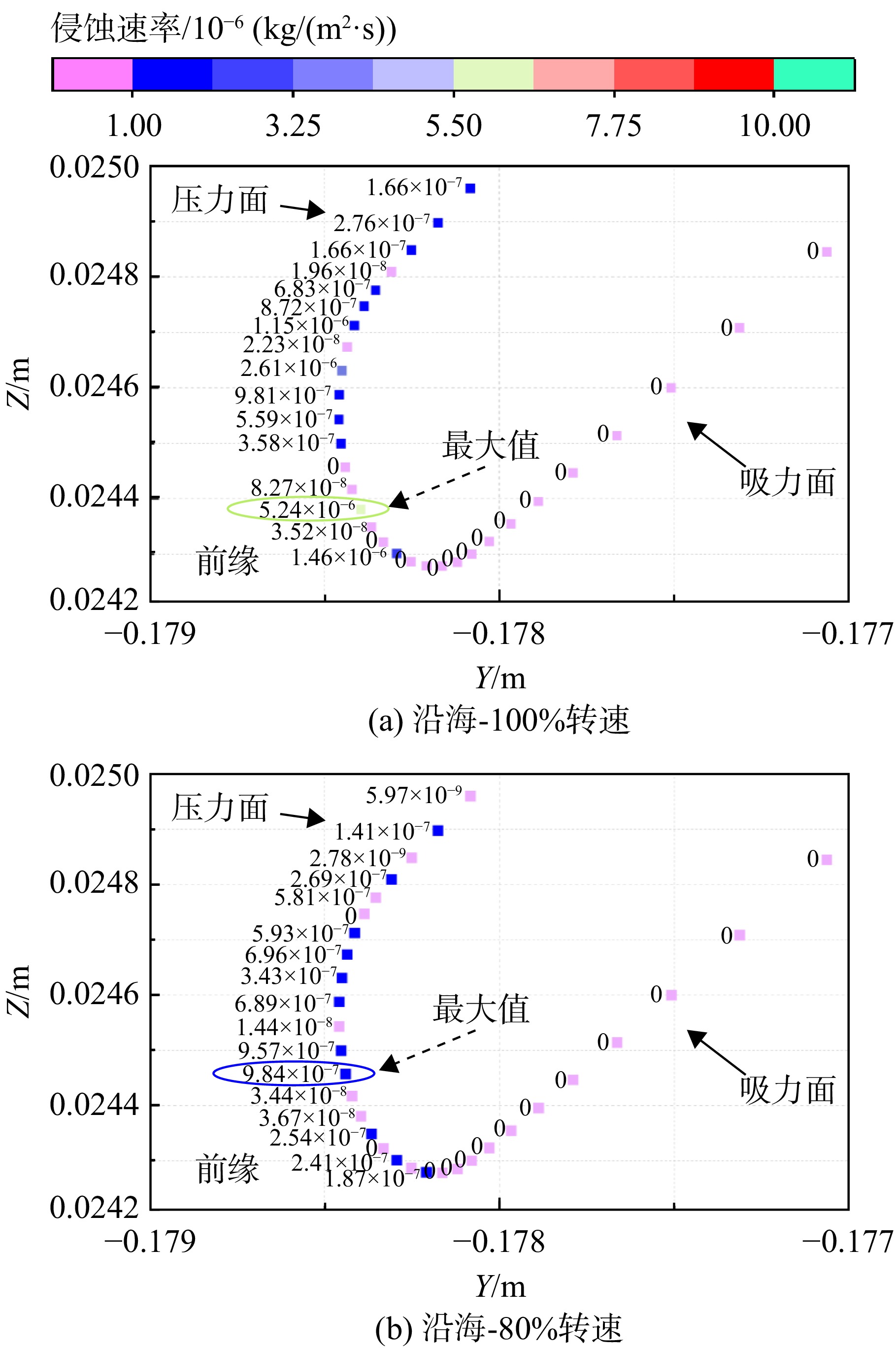

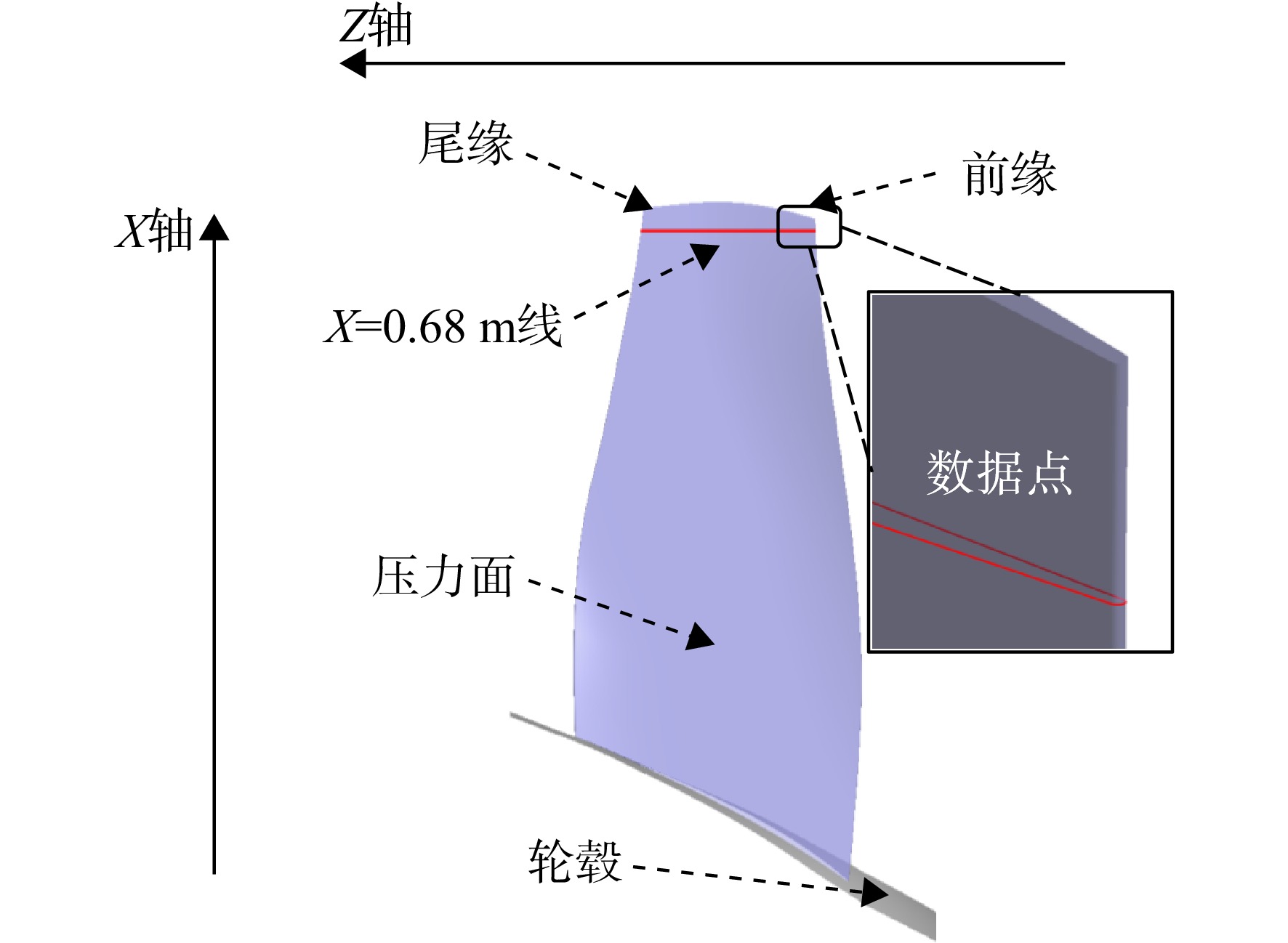

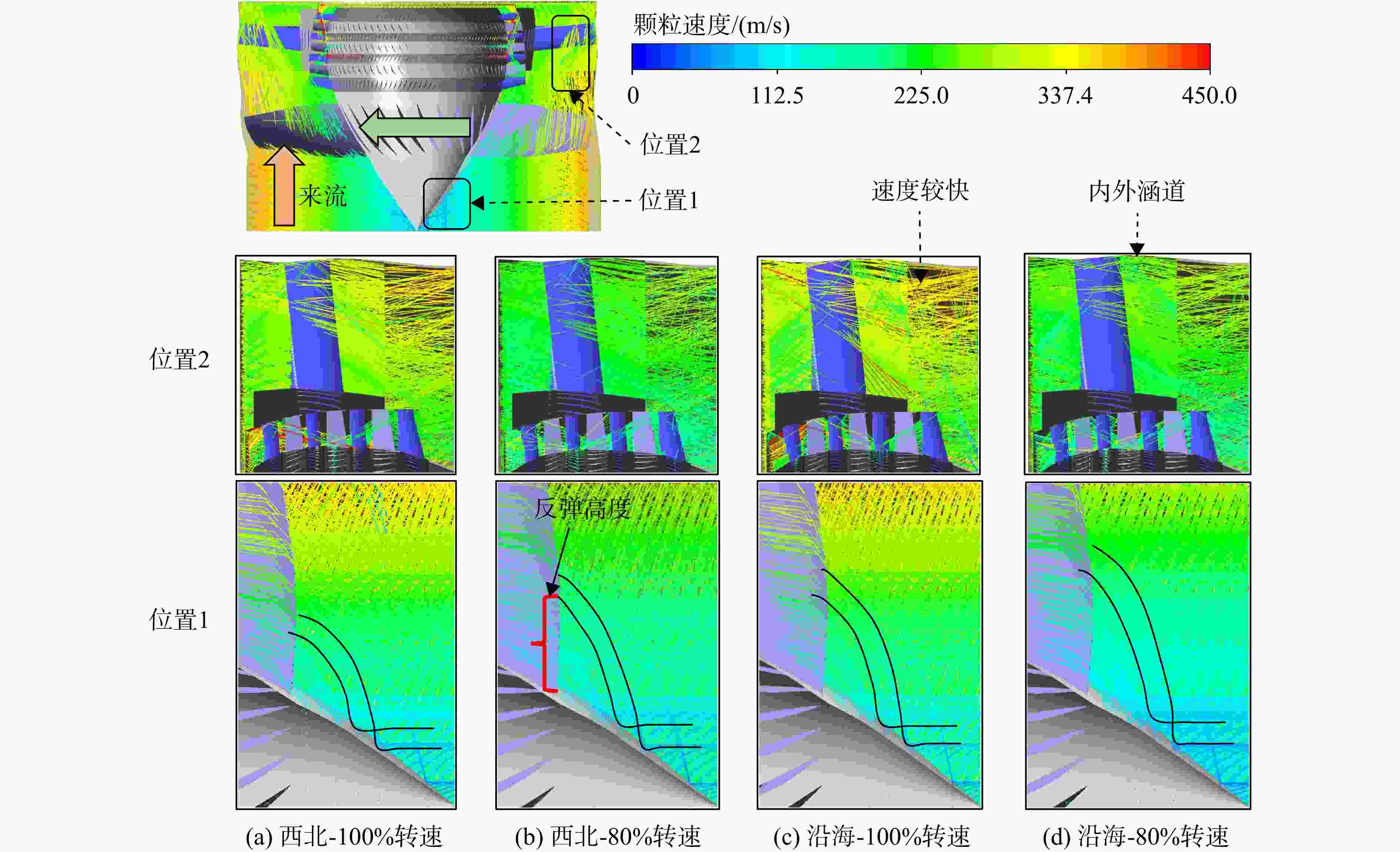

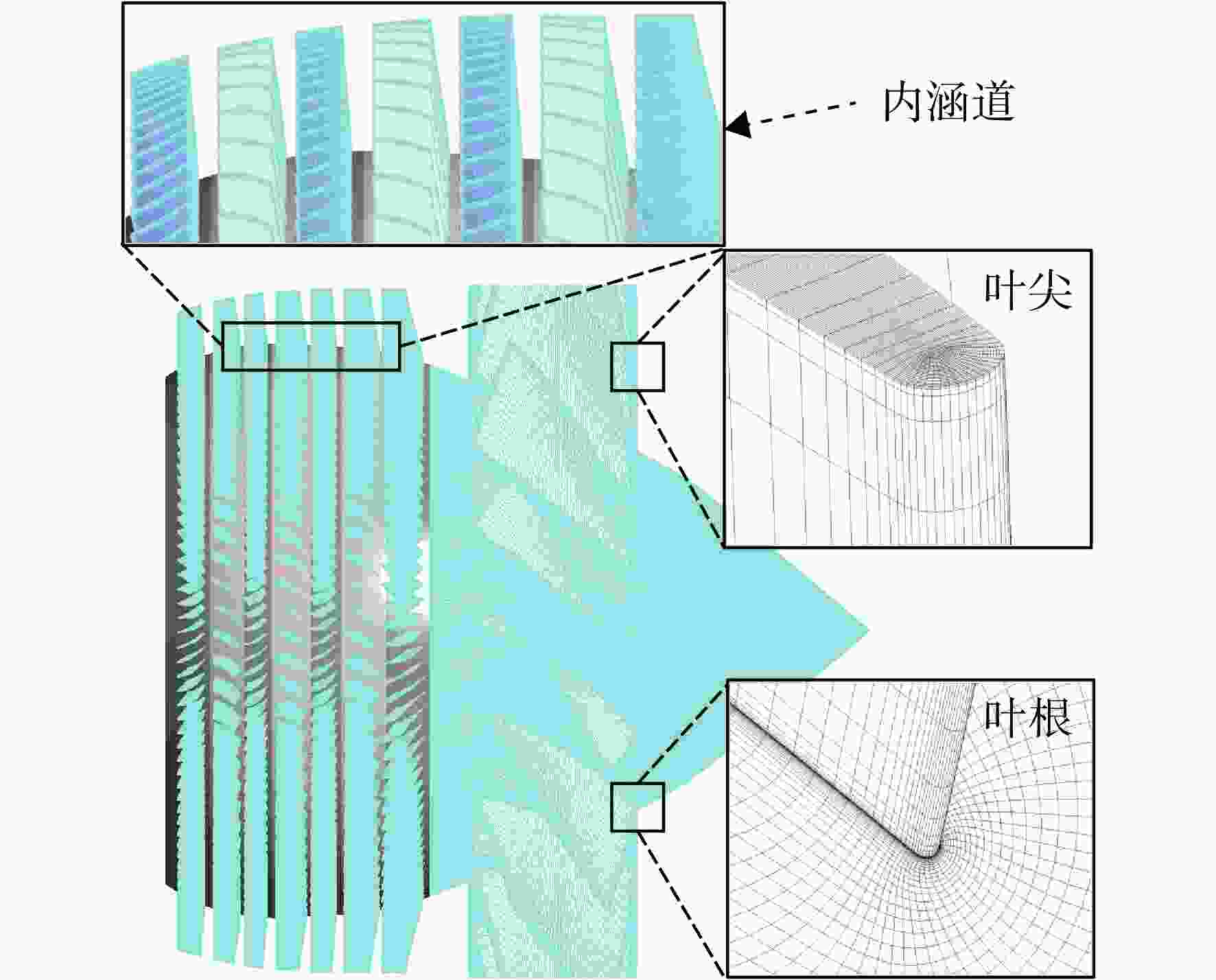

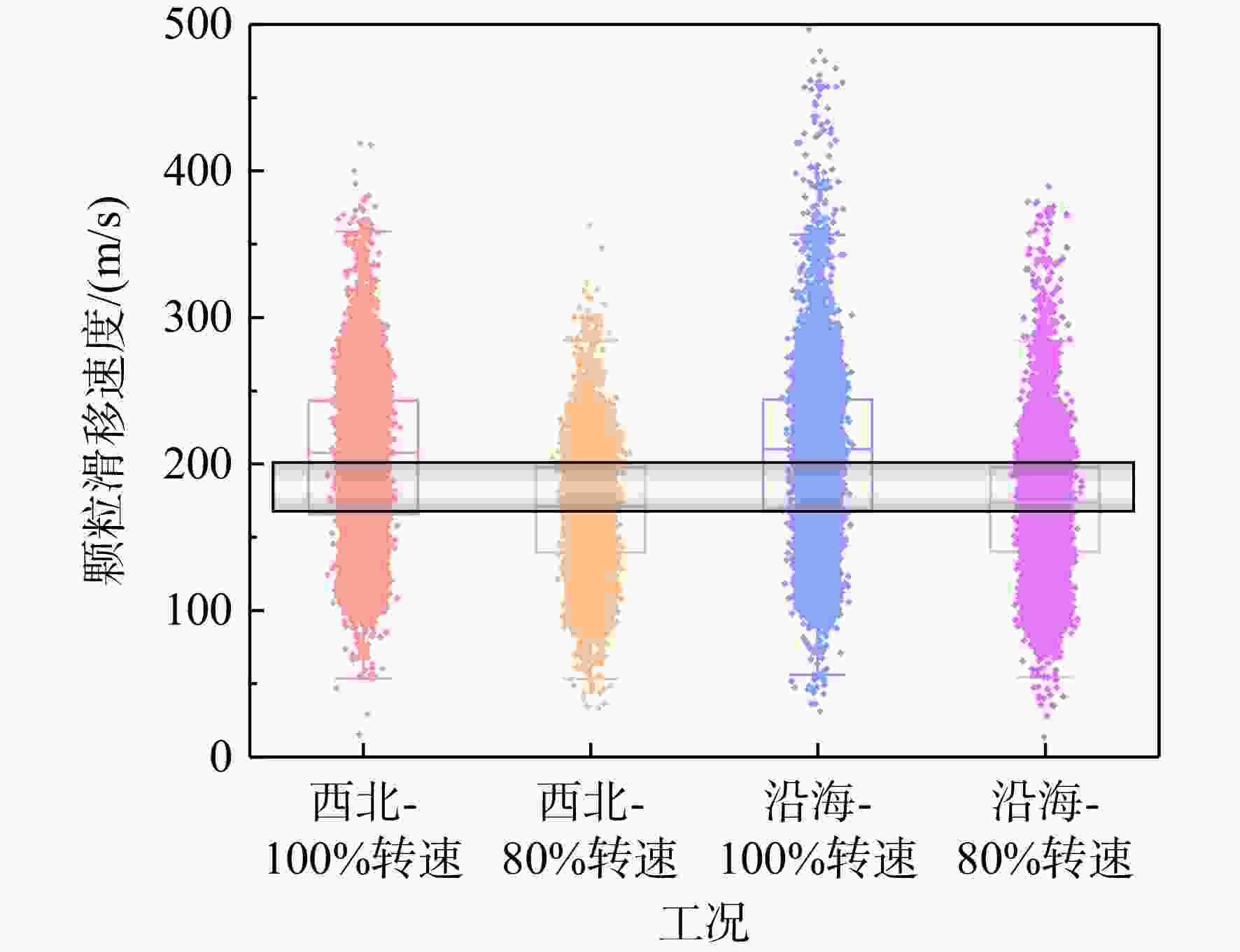

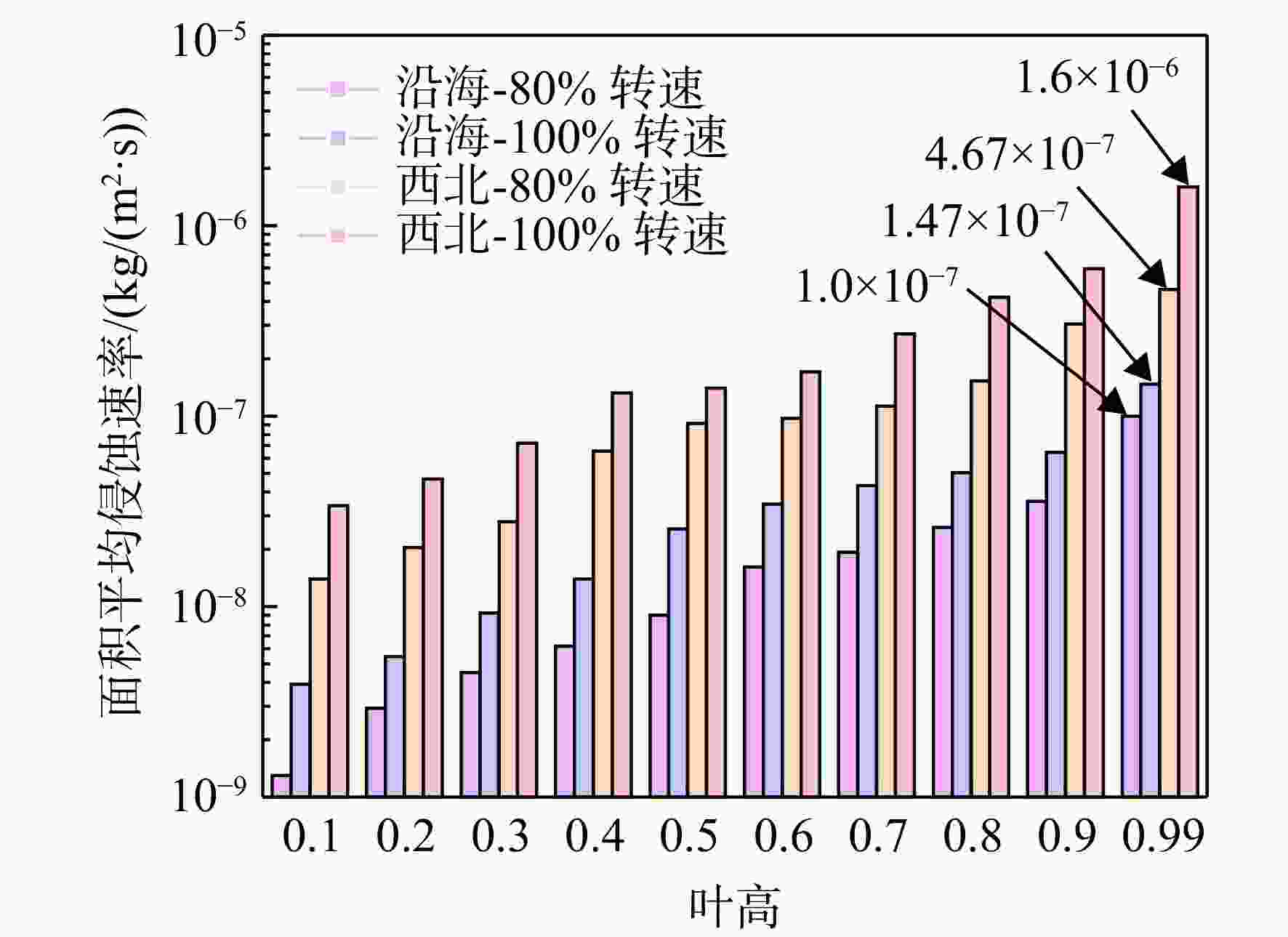

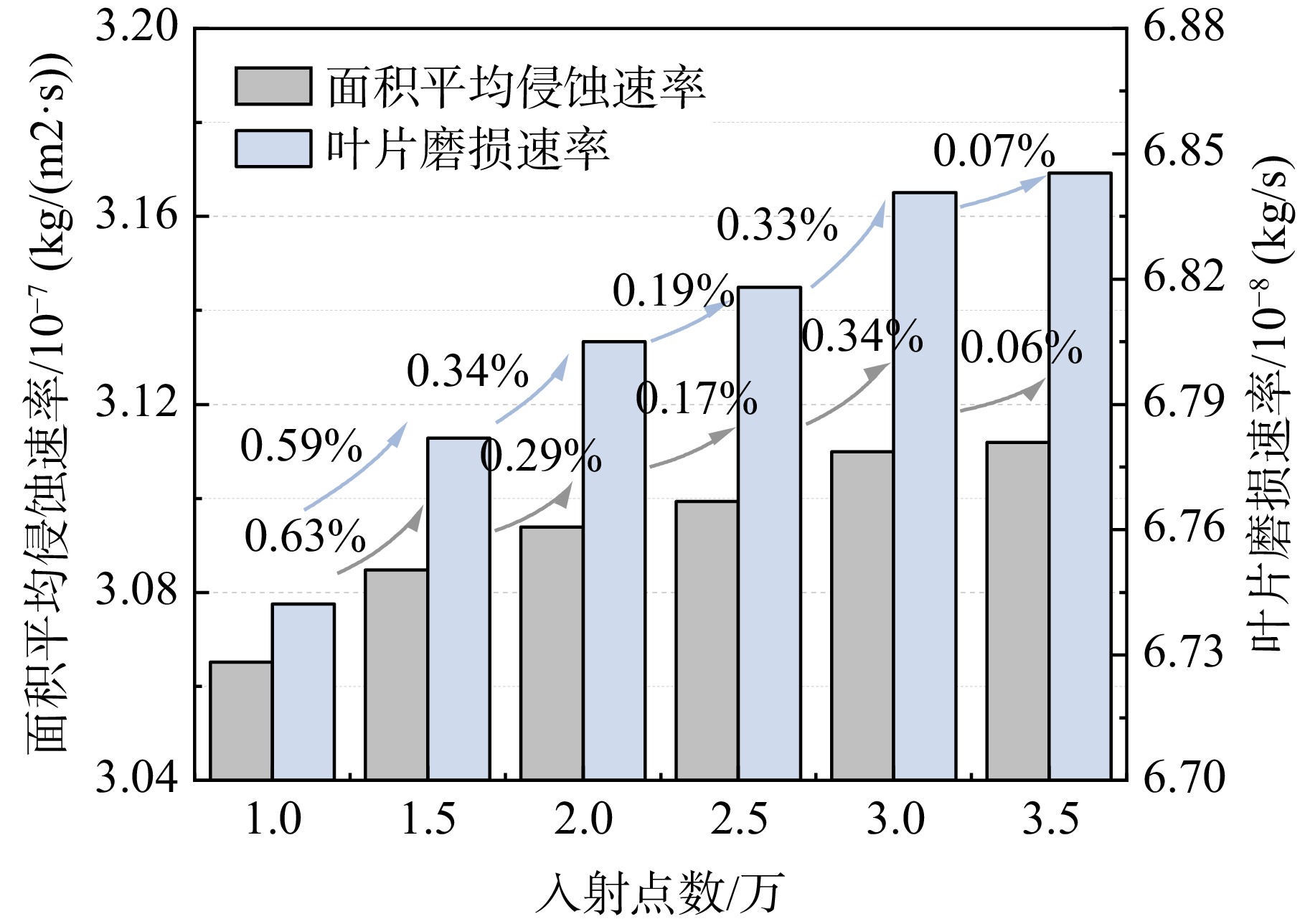

以高涵道比涡扇发动机风扇增压级部件为研究对象，针对中国西北和东南沿海地区飞机在起降时产生的颗粒侵蚀现象进行模拟研究，采用拉格朗日粒子追踪理论精确抓捕颗粒撞击壁面的位置参数及运动参数。结果发现：西北地区叶片压力面侵蚀速率远高于沿海地区；随转速降低，侵蚀区域扩大并向尾缘延伸，进入内涵道颗粒数量增加，进入外涵道颗粒数量减少，撞击风扇叶片颗粒数量降低，粒径较大的颗粒数量增加或减少幅度更为明显。当全速工况降低至80%转速工况时，西北地区叶片磨损速率降低约49.4%，95%叶高截面最大侵蚀速率降低约54.1%，压力面上颗粒撞击速度下降约7.5%～24.6%；沿海地区叶片磨损速率降低约45.8%，95%叶高截面最大侵蚀速率降低约60.6%，压力面上颗粒撞击速度下降约12.5%～22.9%。
Abstract:The fan boost stage components of high bypass ratio turbofan engines were taken as the research object to conduct a simulation study on the particle erosion phenomenon that occurs during aircraft takeoff and landing in the northwest and southeast coastal regions of China. The Lagrangian particle tracking theory was employed to precisely capture the positional parameters and kinematic characteristics of particle-wall collision dynamics. The results showed that the erosion rate on the pressure side of the blade in the northwest region was much higher than that in the coastal region. As the rotational speed decreased, the erosion area expanded and extended towards the trailing edge, the number of particles entering the core passage increased, the number of particles entering the bypass passage and the number of particles impacting the fan blade decreased. The increase or decrease in the number of larger particles was more significant. When the full speed condition was reduced to 80% speed condition, the blade wear rate in the northwest region decreased by approximately 49.4%, the maximum erosion rate at the 95% blade height section decreased by approximately 54.1%, and the particle impact velocity on the pressure side decreased by approximately 7.5% to 24.6%. In the coastal region, the blade wear rate decreased by approximately 45.8%, the maximum erosion rate at the 95% blade height section decreased by approximately 60.6%, and the particle impact velocity on the pressure side decreased by approximately 12.5% to 22.9%.
-

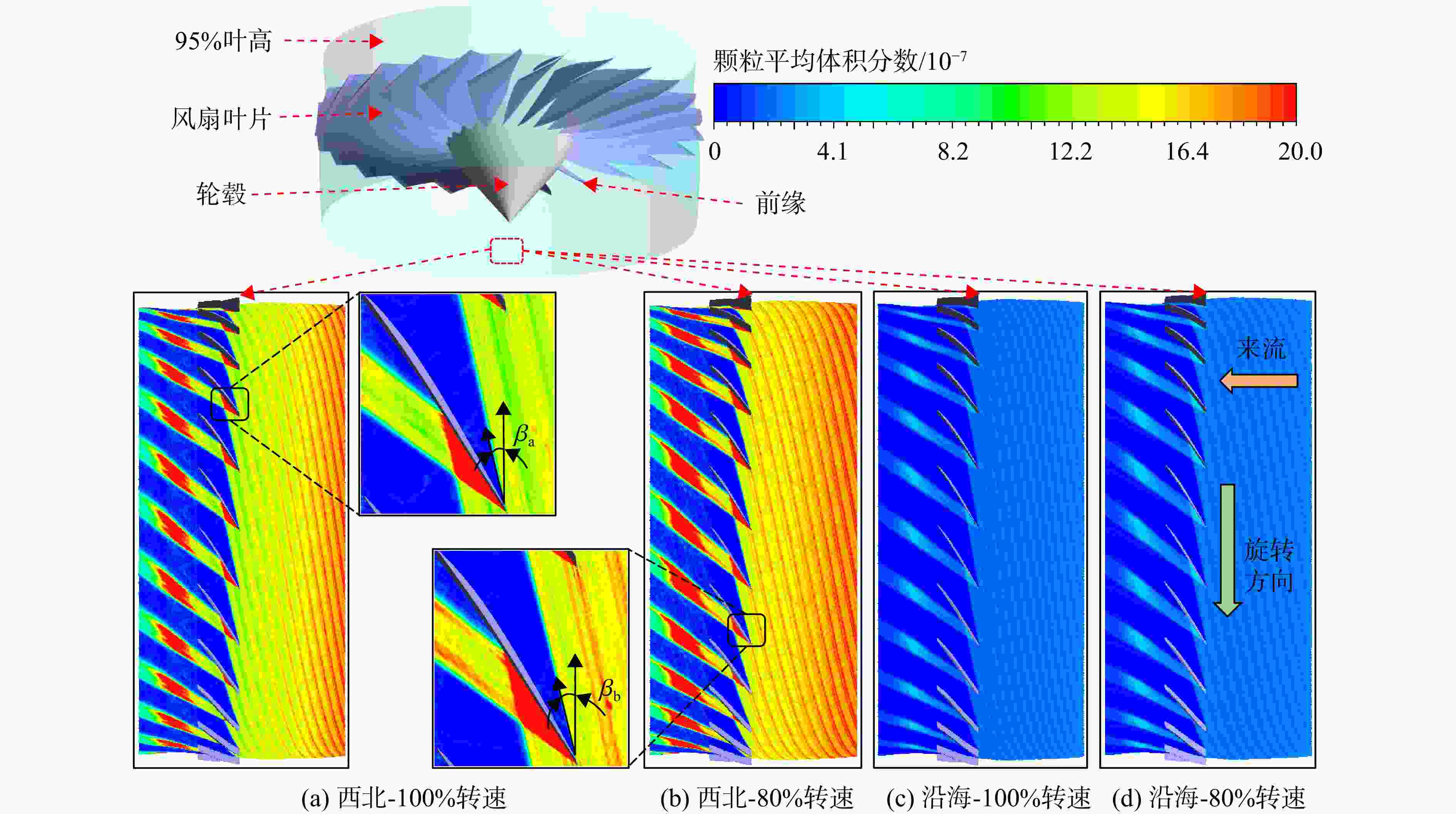

图 10 95%叶高截面颗粒平均体积分数
Figure 10. Average volume fraction of particles at 95% span cross section

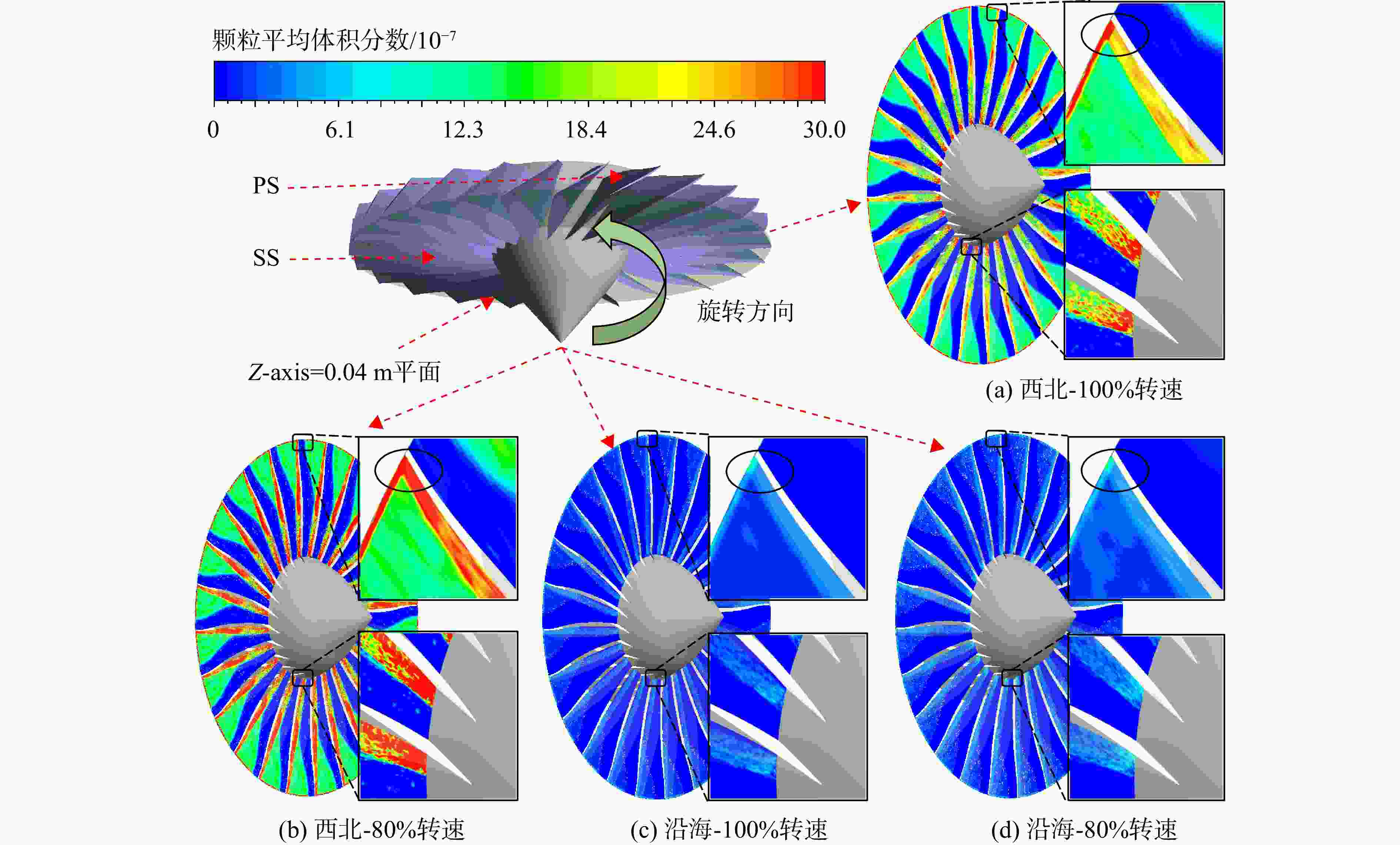

图 11 压力面附近颗粒平均体积分数
Figure 11. Average volume fraction of particles near the pressure surface

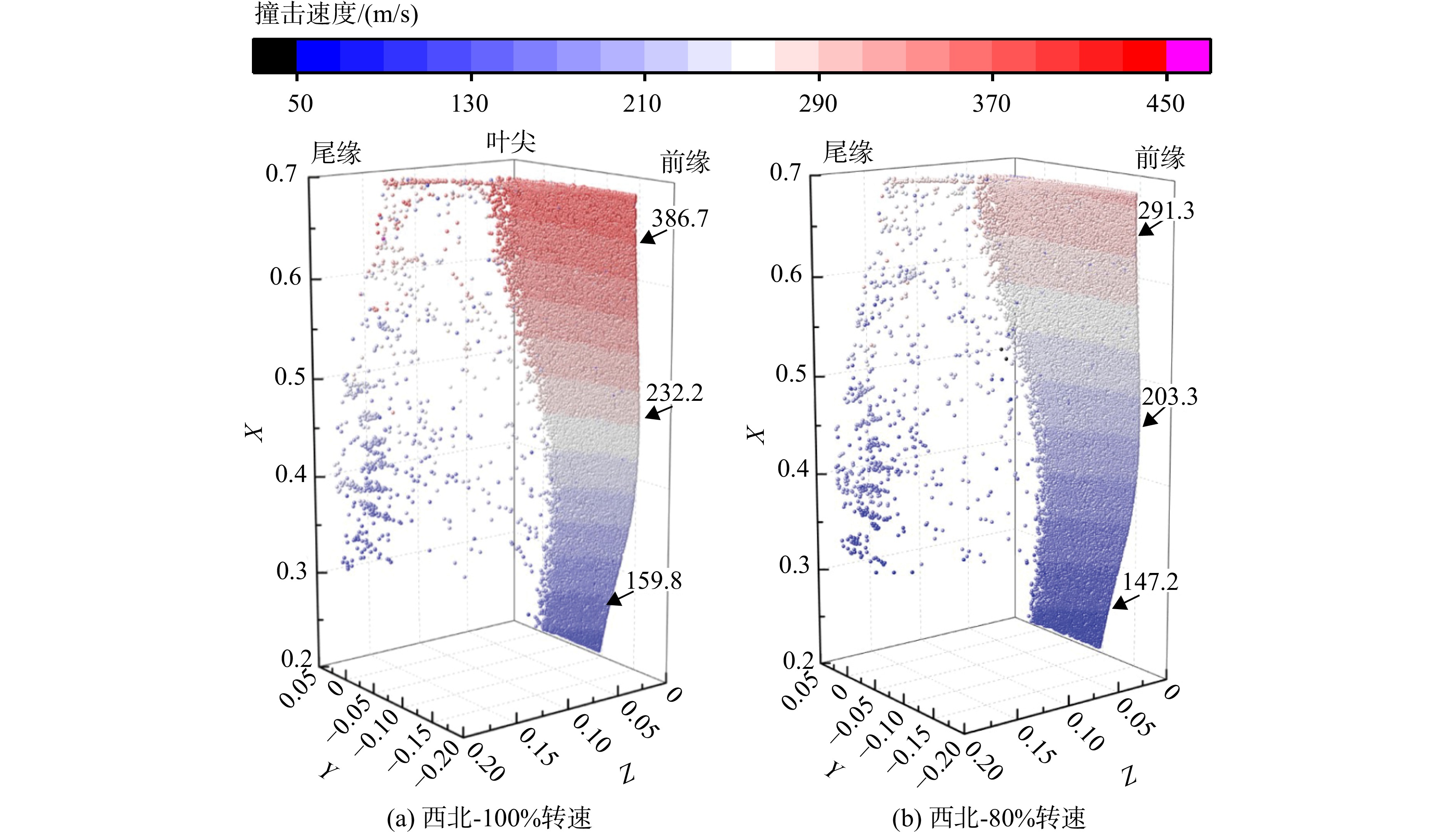

图 21 西北地区叶片壁面撞击速度分布
Figure 21. Impact velocity distribution on blade wall of northwestern region

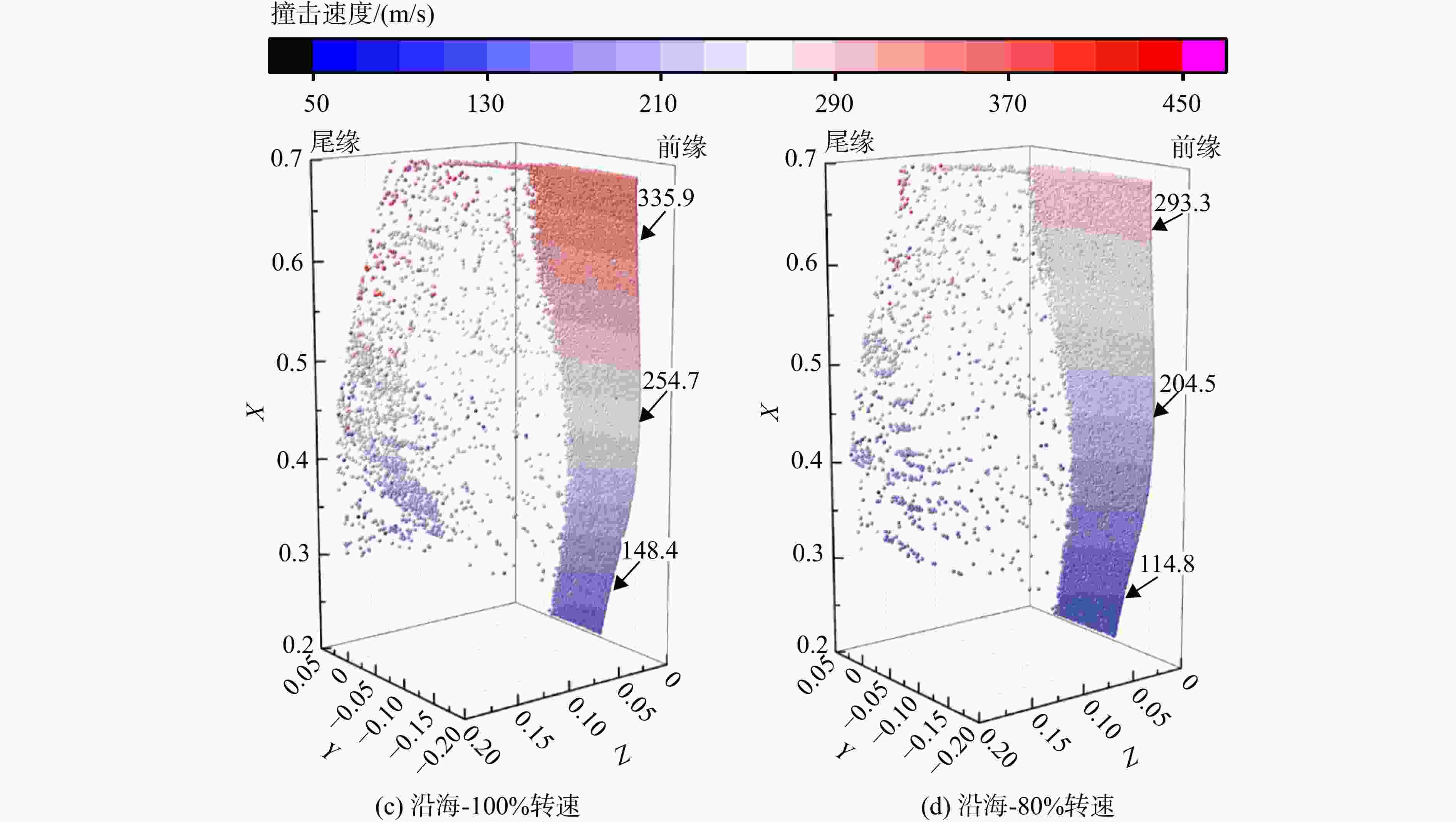

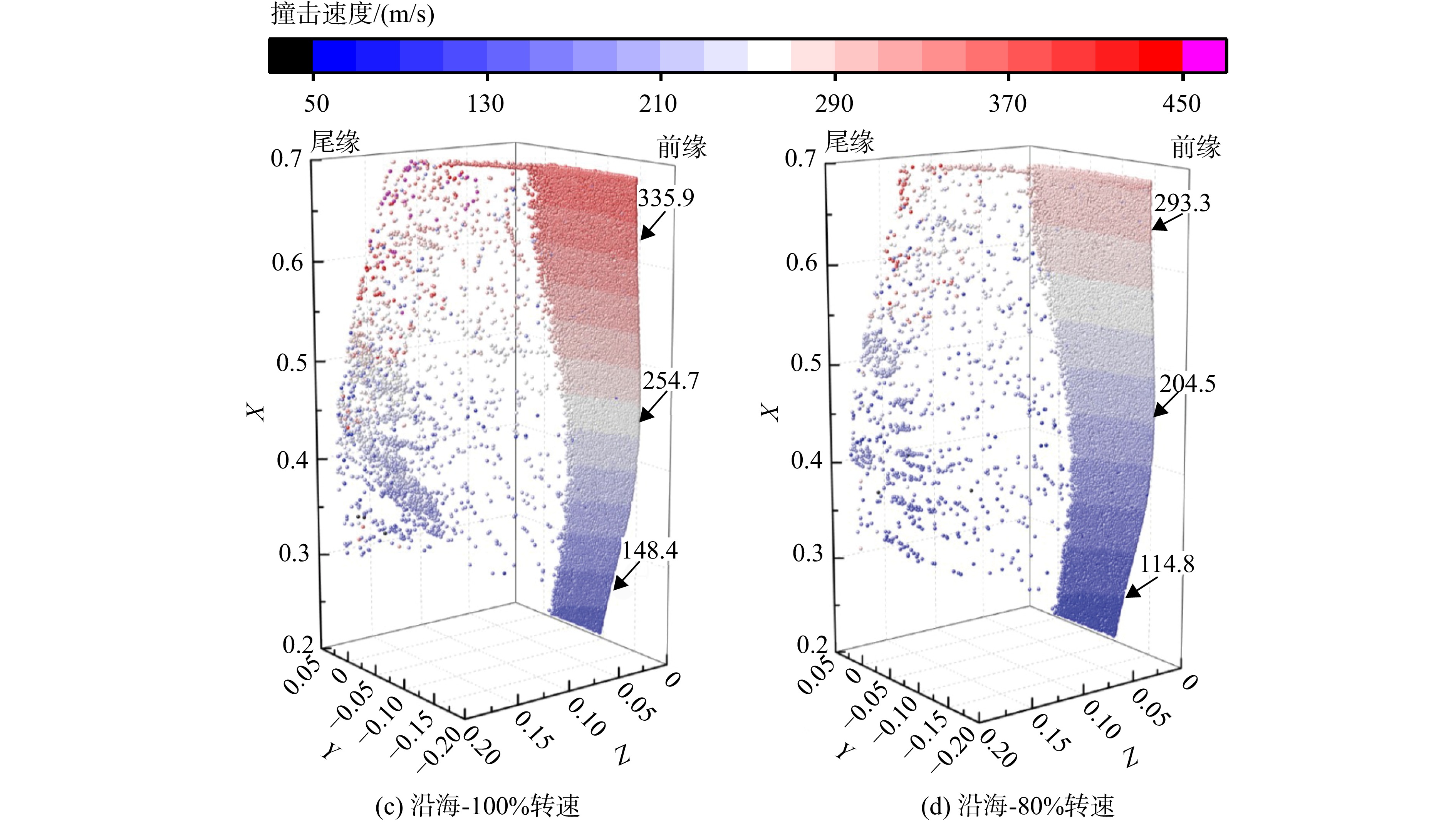

图 22 沿海地区叶片壁面撞击速度分布
Figure 22. Impact velocity distribution on blade wall of coastal region
表 1 侵蚀模型数据
Table 1. Erosion model data
参数 数值 k12 0.05 V1/（m/s） 1 348.93 V2/（m/s） 644.99 V3/（m/s） 625.00 $ {\theta }_{0} $/（°） 30.00
下载: 导出CSV
表 2 模型设计参数
Table 2. Model design parameter
参数 数值 设计转速/（r/min） 5 175 进口质量流量/（kg/s） 260.24 等熵效率 0.89 总温比 1.17 总压比 1.65 叶尖间隙/mm 0.50
下载: 导出CSV
表 3 模型叶片数量
Table 3. Number of model blades
叶片 数量 风扇叶片 24 外涵道导流叶片 76 内涵道导流叶片 108 第一级动/静叶 74/136 第二级动/静叶 78/136 第三级动/静叶 74/136
下载: 导出CSV
表 4 沙粒粒径分布
Table 4. Sand particle size distribution
沙粒种类 粒径范围/μm 美国标准砂 350～700 塔克拉玛干沙粒 150～300 厦门沙粒 300～800 海南沙粒 200～900 腾格里沙漠沙粒 200～500
下载: 导出CSV
表 5 侵蚀工况
Table 5. Erosion condition
转速/% 地区 粒径/μm 质量浓度/（mg/m3） 100 西北地区 150～300 17.4 沿海地区 300～800 2 80 西北地区 150～300 17.4 沿海地区 300～800 2
下载: 导出CSV
表 6 QAR数据中N1参数
Table 6. N1 parameter in QAR data
阶段 时间/s 转速/% 滑出 774 25±5 起飞 30 95±5 起飞航段 8 95±5 爬升 686 92/95/98 巡航 3360 83±3 下降 2797 70±10 进近 253 40±10 最终进近 180 50±3 着陆 35 60±10 滑入 420 20±3
下载: 导出CSV
-
[1] Chirayath E, Xu Haosen, Yang Xiang, et al. Full stage axial compressor performance modeling incorporating the effects of blade damage due to particle ingestion[J]. Journal of Turbomachinery, 2023, 145(9): 091001. doi: 10.1115/1.4062397 [2] 史磊, 杨光, 林文俊. 前缘侵蚀对风扇转子叶片气动特性的影响机理[J]. 航空学报, 2019, 40(10): 100-110. Shi Lei, Yang Guang, Lin Wenjun. Influence mechanism of leading-edge erosion on aerodynamic performance of fan rotor blade[J]. Acta Aeronautica et Astronautica Sinica, 2019, 40(10): 100-110. (in ChineseShi Lei, Yang Guang, Lin Wenjun. Influence mechanism of leading-edge erosion on aerodynamic performance of fan rotor blade[J]. Acta Aeronautica et Astronautica Sinica, 2019, 40(10): 100-110. (in Chinese) [3] Shi Lei, Guo Shuhan, Yu Peng, et al. A review on leading-edge erosion morphology and performance degradation of aero-engine fan and compressor blades[J]. Energies, 2023, 16(7): 3068. doi: 10.3390/en16073068 [4] 史磊, 林文俊, 于满, 等. 风扇转子叶型侵蚀前缘再造型优化设计[J]. 航空发动机, 2023, 49(4): 95-103. Shi Lei, Lin Wenjun, Yu Man, et al. Design optimization of remodeling fan rotor blade airfoil with leading-edge erosion[J]. Aeroengine, 2023, 49(4): 95-103. (in Chinese doi: 10.13477/j.cnki.aeroengine.2023.04.012Shi Lei, Lin Wenjun, Yu Man, et al. Design optimization of remodeling fan rotor blade airfoil with leading-edge erosion[J]. Aeroengine, 2023, 49(4): 95-103. (in Chinese) doi: 10.13477/j.cnki.aeroengine.2023.04.012 [5] Finnie I. Erosion of surfaces by solid particles[J]. Wear, 1960, 3(2): 87-103. doi: 10.1016/0043-1648(60)90055-7 [6] Finnie I. Some reflections on the past and future of erosion[J]. Wear, 1995, 186/187: 0043164895071881. [7] Grant G, Tabakoff W. Erosion prediction in turbomachinery resulting from environmental solid particles[J]. Journal of Aircraft, 1975, 12(5): 471-478. doi: 10.2514/3.59826 [8] Tabakoff W, Kotwal R, Hamed A. Erosion study of different materials affected by coal ash particles[J]. Wear, 1979, 52(1): 161-173. doi: 10.1016/0043-1648(79)90206-0 [9] Tabakoff W, Lakshminarasimha A N, Pasin M. Simulation of compressor performance deterioration due to erosion[J]. Journal of Turbomachinery, 1990, 112(1): 78-83. doi: 10.1115/1.2927424 [10] Saxena S, Jothiprasad G, Bourassa C, et al. Numerical simulation of particulates in multistage axial compressors[J]. Journal of Turbomachinery, 2017, 139(3): 031013. doi: 10.1115/1.4034982 [11] Suzuki M, Inaba K, Yamamoto M. Numerical simulation of sand erosion phenomena in rotor/stator interaction of compressor[J]. Journal of Thermal Science, 2008, 17(2): 125-133. doi: 10.1007/s11630-008-0125-7 [12] Alqallaf J, Teixeira J A. Numerical study of effects of solid particle erosion on compressor and engine performance[J]. Results in Engineering, 2022, 15: 100462. doi: 10.1016/j.rineng.2022.100462 [13] Corsini A, Marchegiani A, Rispoli F, et al. Predicting blade leading edge erosion in an axial induced draft fan[R]. ASME GT2011-45719, 2011. [14] Ghenaiet A. Predicting dust erosion in a counter-rotating fan[R]. London, UK: ASME Turbo Expo 2024: Turbomachinery Technical Conference and Exposition, 2024. [15] Ghenaiet A. Modeling and simulation of sand particle trajectories and erosion in a transonic fan stage[J]. Journal of Turbomachinery, 2025, 147(7): 071012. doi: 10.1115/1.4066986 [16] Ghenaiet A. Simulation of particle-laden flows and erosion in an axial fan stage considering the relative position of the blades[J]. The Aeronautical Journal, 2024, 128(1325): 1379-1416. doi: 10.1017/aer.2024.45 [17] 孙海鸥, 王萌, 王忠义, 等. 轴流压气机气固两相流及磨损特性数值模拟[J]. 哈尔滨工程大学学报, 2018, 39(2): 310-316. Sun Haiou, Wang Meng, Wang Zhongyi, et al. Numerical research on two-phase flow and erosion characteristic of axial compressor[J]. Journal of Harbin Engineering University, 2018, 39(2): 310-316. (in ChineseSun Haiou, Wang Meng, Wang Zhongyi, et al. Numerical research on two-phase flow and erosion characteristic of axial compressor[J]. Journal of Harbin Engineering University, 2018, 39(2): 310-316. (in Chinese) [18] Yang Hong, Boulanger J. The whole annulus computations of particulate flow and erosion in an axial fan[J]. Journal of Turbomachinery, 2013, 135: 011040. doi: 10.1115/1.4006564 [19] Cai L X, He Y, Hou Y F, et al. Research on particle motion and erosion characteristics in the blade passage of multistage axial compressors[R]. Rotterdam, Netherlands: ASME Turbo Expo 2022: Turbomachinery Technical Conference and Exposition, 2022. [20] 徐倩楠, 胡峰, 肖友洪, 等. 航空发动机进气及叶栅通道内砂粒动力学特性分析[J]. 航空动力学报, 2021, 36(8): 1776-1782. Xu Qiannan, Hu Feng, Xiao Youhong, et al. Analysis of dynamic characteristics of sand particles in air intake and compressor cascade of aero-engine[J]. Journal of Aerospace Power, 2021, 36(8): 1776-1782. (in Chinese doi: 10.13224/j.cnki.jasp.20210803Xu Qiannan, Hu Feng, Xiao Youhong, et al. Analysis of dynamic characteristics of sand particles in air intake and compressor cascade of aero-engine[J]. Journal of Aerospace Power, 2021, 36(8): 1776-1782. (in Chinese) doi: 10.13224/j.cnki.jasp.20210803 [21] 杨天南, 张轲, 郑培英, 等. 砂尘对压气机叶片的侵蚀及性能影响[J]. 航空发动机, 2023, 49(5): 57-63. Yang Tiannan, Zhang Ke, Zheng Peiying, et al. Analysis of effect on sand ingestion on blade erosion and performance of compressor[J]. Aeroengine, 2023, 49(5): 57-63. (in ChineseYang Tiannan, Zhang Ke, Zheng Peiying, et al. Analysis of effect on sand ingestion on blade erosion and performance of compressor[J]. Aeroengine, 2023, 49(5): 57-63. (in Chinese) [22] 李超, 宾光富, 李坚, 等. 砂粒粒径对航空涡轴发动机压气机叶片冲蚀磨损的影响研究[J]. 机械工程学报, 2022, 58(19): 180-190. Li Chao, Bin Guangfu, Li Jian, et al. Influence of sand particle size on the erosive wear of compressor blade in an aero-turboshaft engine[J]. Journal of Mechanical Engineering, 2022, 58(19): 180-190. (in Chinese doi: 10.3901/JME.2022.19.180Li Chao, Bin Guangfu, Li Jian, et al. Influence of sand particle size on the erosive wear of compressor blade in an aero-turboshaft engine[J]. Journal of Mechanical Engineering, 2022, 58(19): 180-190. (in Chinese) doi: 10.3901/JME.2022.19.180 [23] Li Chao, Bin Guangfu, Li Jian, et al. Erosion wear characteristics of the aero-compressor blades in full speed range[J]. Powder Technology, 2023, 418: 118227. doi: 10.1016/j.powtec.2023.118227 [24] Yang Pingping, Yue Wenhui, Chen Anhua, et al. Influence of SiO2 and Al2O3 particles on erosion wear of aero-compressor blades[J]. Wear, 2023, 530/531: 204992. [25] Yang Pingping, Li Chao, Yue Wenhui, et al. Study on erosion wear characteristics of aero-compressor blades considering distortion degree[J]. Tribology International, 2023, 189: 108895. doi: 10.1016/j.triboint.2023.108895 [26] Yang Pingping, Li Chao, Bin Guangfu, et al. Effect of particle impact on spatial and temporal erosion characteristics of turboshaft engine compressor[J]. Wear, 2024, 558/559: 205578. [27] 史磊, 郭姝含, 马鹏宇, 等. 风扇超声叶型侵蚀前缘多目标优化修型[J]. 航空动力学报, 2025, 40(6): 20230801. Shi Lei, Guo Shuhan, Ma Pengyu, et al. Multi-objective optimization remodeling of eroded leading edge of supersonic fan blade[J]. Journal of Aerospace Power, 2025, 40(6): 20230801. (in Chinese doi: 10.13224/j.cnki.jasp.20220936Shi Lei, Guo Shuhan, Ma Pengyu, et al. Multi-objective optimization remodeling of eroded leading edge of supersonic fan blade[J]. Journal of Aerospace Power, 2025, 40(6): 20230801. (in Chinese) doi: 10.13224/j.cnki.jasp.20220936 [28] 彭鸿博, 薛渤韦, 史磊, 等. 跨音速风扇转子叶片前缘再造型优化设计[J]. 科学技术与工程, 2022, 22(23): 10301-10309. Peng Hongbo, Xue Bowei, Shi Lei, et al. Re-modeling optimization design of leading edge of titanium alloy fan blade[J]. Science Technology and Engineering, 2022, 22(23): 10301-10309. (in Chinese doi: 10.3969/j.issn.1671-1815.2022.23.051Peng Hongbo, Xue Bowei, Shi Lei, et al. Re-modeling optimization design of leading edge of titanium alloy fan blade[J]. Science Technology and Engineering, 2022, 22(23): 10301-10309. (in Chinese) doi: 10.3969/j.issn.1671-1815.2022.23.051 [29] 卢志强, 史磊, 彭鸿博, 等. 不同前缘形貌对风扇转子叶片颗粒物的冲蚀磨损[J]. 科学技术与工程, 2024, 24(22): 9654-9663. Lu Zhiqiang, Shi Lei, Peng Hongbo, et al. Particulate erosion wear of fan rotor blades with different leading edge morphology[J]. Science Technology and Engineering, 2024, 24(22): 9654-9663. (in ChineseLu Zhiqiang, Shi Lei, Peng Hongbo, et al. Particulate erosion wear of fan rotor blades with different leading edge morphology[J]. Science Technology and Engineering, 2024, 24(22): 9654-9663. (in Chinese) [30] 李青, 涂国华, 李婷婷, 等. 高焓流动中的可压缩颗粒求解器(第1部分): 考虑多物理效应的点力颗粒两相流理论方程[J]. 空气动力学学报, 2023, 41(8): 71-86. Li Qing, Tu Guohua, Li Tingting, et al. Particle solver in compressible high enthalpy flow(Part 1): the theoretical equations of point particle laden flow[J]. Acta Aerodynamica Sinica, 2023, 41(8): 71-86. (in ChineseLi Qing, Tu Guohua, Li Tingting, et al. Particle solver in compressible high enthalpy flow(Part 1): the theoretical equations of point particle laden flow[J]. Acta Aerodynamica Sinica, 2023, 41(8): 71-86. (in Chinese) [31] 赵传鹏, 刘松, 谭晓茗, 等. 气膜冷却射流对叶片微细颗粒沉积影响[J]. 航空动力学报, 2022, 37(3): 545-554. Zhao Chuanpeng, Liu Song, Tan Xiaoming, et al. Effect of film cooling jet on deposition of micro particles on blades[J]. Journal of Aerospace Power, 2022, 37(3): 545-554. (in Chinese doi: 10.13224/j.cnki.jasp.20210156Zhao Chuanpeng, Liu Song, Tan Xiaoming, et al. Effect of film cooling jet on deposition of micro particles on blades[J]. Journal of Aerospace Power, 2022, 37(3): 545-554. (in Chinese) doi: 10.13224/j.cnki.jasp.20210156 [32] 马立坤, 徐路淅, 杨鹏年, 等. 高速气固两相横向射流数值模拟进展[J]. 航空动力学报, 2025, 40(4): 20240512. Ma Likun, Xu Luxi, Yang Pengnian, et al. Progress in numerical simulation of gas-solid two-phase jet in high-speed crossflow[J]. Journal of Aerospace Power, 2025, 40(4): 20240512. (in Chinese doi: 10.13224/j.cnki.jasp.20240512Ma Likun, Xu Luxi, Yang Pengnian, et al. Progress in numerical simulation of gas-solid two-phase jet in high-speed crossflow[J]. Journal of Aerospace Power, 2025, 40(4): 20240512. (in Chinese) doi: 10.13224/j.cnki.jasp.20240512 [33] 史磊, 卢志强, 张雪洋, 等. 钝化前缘修型对风扇叶片侵蚀磨损特性影响研究[J/OL]. 机械科学与技术, 2025-03-11. https://doi.org/10.13433/j.cnki.1003-8728.20240172. Shi Lei, Lu Zhiqiang, Zhang Xueyang, et al. Study on the effect of leading edge blunting and shaping on erosion wear characteristics of fan blades[J/OL]. Mechanical Science and Technology for Aerospace Engineering, 2025-03-11. https://doi.org/10.13433/j.cnki.1003-8728.20240172. (in ChineseShi Lei, Lu Zhiqiang, Zhang Xueyang, et al. Study on the effect of leading edge blunting and shaping on erosion wear characteristics of fan blades[J/OL]. Mechanical Science and Technology for Aerospace Engineering, 2025-03-11. https://doi.org/10.13433/j.cnki.1003-8728.20240172. (in Chinese) [34] Menter F R. Review of the shear-stress transport turbulence model experience from an industrial perspective[J]. International Journal of Computational Fluid Dynamics, 2009, 23(4): 305-316. doi: 10.1080/10618560902773387 [35] 于宏军. 《航空涡喷涡扇涡轴涡桨发动机通用规范指南》分析[J]. 航空标准化与质量, 2006(4): 20-24. Yu Hongjun. Analysis of “guide to general specification of aero-turbojet turbofan turboprop engine”[J]. Aeronautic Standardization & Quality, 2006(4): 20-24. (in Chinese doi: 10.3969/j.issn.1003-6660.2006.04.008Yu Hongjun. Analysis of “guide to general specification of aero-turbojet turbofan turboprop engine”[J]. Aeronautic Standardization & Quality, 2006(4): 20-24. (in Chinese) doi: 10.3969/j.issn.1003-6660.2006.04.008 [36] 吕继淮. 军用直升机与砂尘环境: 介绍国军标《军用直升机防砂尘要求》[R]. 深圳: 第七届全国直升机年会, 2024. [37] 曾林, 程礼, 李宁, 等. 航空发动机吞砂试验标准砂与典型沙粒形貌对比分析[J]. 航空发动机, 2019, 45(1): 97-102. Zeng Lin, Cheng Li, Li Ning, et al. Comparison and analysis of morphology of standard sand and typical sand particle in aeroengine sand swallowing test[J]. Aeroengine, 2019, 45(1): 97-102. (in ChineseZeng Lin, Cheng Li, Li Ning, et al. Comparison and analysis of morphology of standard sand and typical sand particle in aeroengine sand swallowing test[J]. Aeroengine, 2019, 45(1): 97-102. (in Chinese) [38] 孙见忠, 刘信超, 刘若晨, 等. 基于IDMS的航空发动机砂尘吸入物定量监测[J]. 航空学报, 2017, 38(8): 177-187. Sun Jianzhong, Liu Xinchao, Liu Ruochen, et al. IDMS based method for quantitative monitoring of aero-engine ingested airborne sands[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(8): 177-187. (in Chinese doi: 10.7527/S1000-6893.2016.320977Sun Jianzhong, Liu Xinchao, Liu Ruochen, et al. IDMS based method for quantitative monitoring of aero-engine ingested airborne sands[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(8): 177-187. (in Chinese) doi: 10.7527/S1000-6893.2016.320977 [39] 中国国家标准化管理委员会. 环境条件分类 自然环境条件 尘、沙、盐雾: GB/T 4797.2013-95[S]. 北京: 中国标准出版社, 2013: 3-4. [40] 孙见忠, 姜衡, 陈颖达. 航空发动机砂尘吸入物静电监测仿真实验[J]. 航空动力学报, 2018, 33(12): 2913-2923. Sun Jianzhong, Jiang Heng, Chen Yingda. Aero engine sand dust ingestion electrostatic monitoring simulation experiment[J]. Journal of Aerospace Power, 2018, 33(12): 2913-2923. (in ChineseSun Jianzhong, Jiang Heng, Chen Yingda. Aero engine sand dust ingestion electrostatic monitoring simulation experiment[J]. Journal of Aerospace Power, 2018, 33(12): 2913-2923. (in Chinese) [41] Guo Chuanliang, Chen Shaowen, Chen Shuaitong, et al. Investigation of particle deposition and erosion characteristics of axial compressor blades[R]. London, UK: ASME Turbo Expo 2024: Turbomachinery Technical Conference and Exposition, 2024. -
