Study on flow and ignition characteristics of evaporative flameholder under low temperature and pressure conditions
-
摘要:
为了拓宽亚燃冲压发动机的工作下限，实现在低温、低压来流下成功组织燃烧，提出了一种带有积液腔的蒸发式火焰稳定器。通过数值模拟和点熄火试验测量方法，研究了该稳定器在不同点火位置下的点火性能和不同来流工况下的点火与稳焰性能。研究表明：该稳定器能在来流温度低至307 K、静压低至18 kPa时成功点火。在值班点火区域，远离高湍动能区且靠近大回流区中心的位置点火性能最佳；在低工况下，更高的来流温度和速度，对应于更好的贫油点、熄火极限；低工况下的贫油点火，点火过程较长，且有着爆燃猝熄和二次火核形成发展的过程。
Abstract:In order to broaden the working range of the ramjet combustor and realize the successful combustion under low-temperature and low-pressure inflows, an evaporative flameholder with a ring cavity for accumulating liquid fuel was proposed. The ignition and flame stabilization performances of the flameholder at different ignition positions under varied conditions were studied by numerical simulation and experimental measurement. The results showed that the flameholder can successfully hold the flame at inflow temperature and static pressure as low as 307 K and 18 kPa. At the pilot ignition region, the best ignition performance was presented away from the area with high turbulence kinetic energy and close to the center of the large recirculation zone. Under low inflow conditions, the increase of inflow temperature and velocity was conducive to expanding the lean ignition and blowout limits downward. Higher ignition energy had a significant improvement effect on ignition performance under low operating conditions, especially at lower temperature.
-

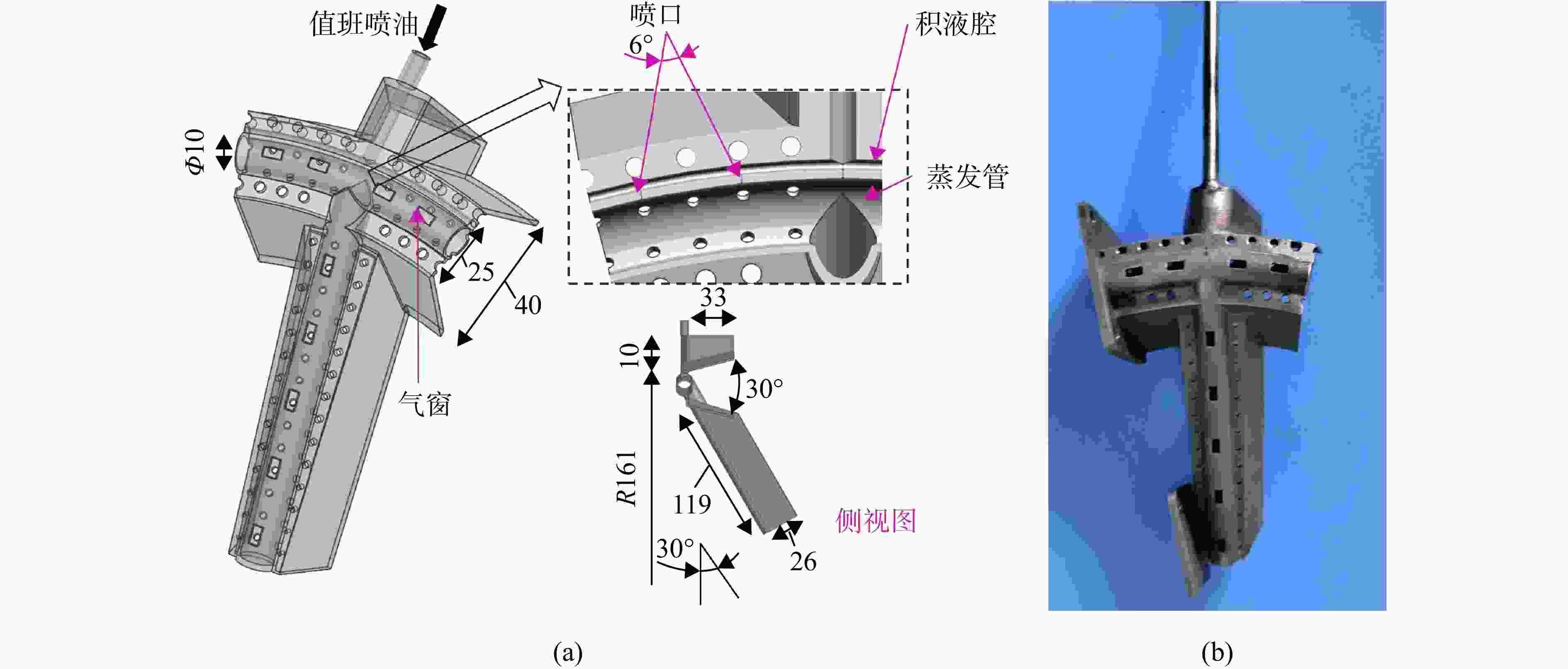

图 1 带积液腔的蒸发式火焰稳定器（单位：mm）
Figure 1. Evaporation flameholder with liquid accumulation chamber （unit：mm）

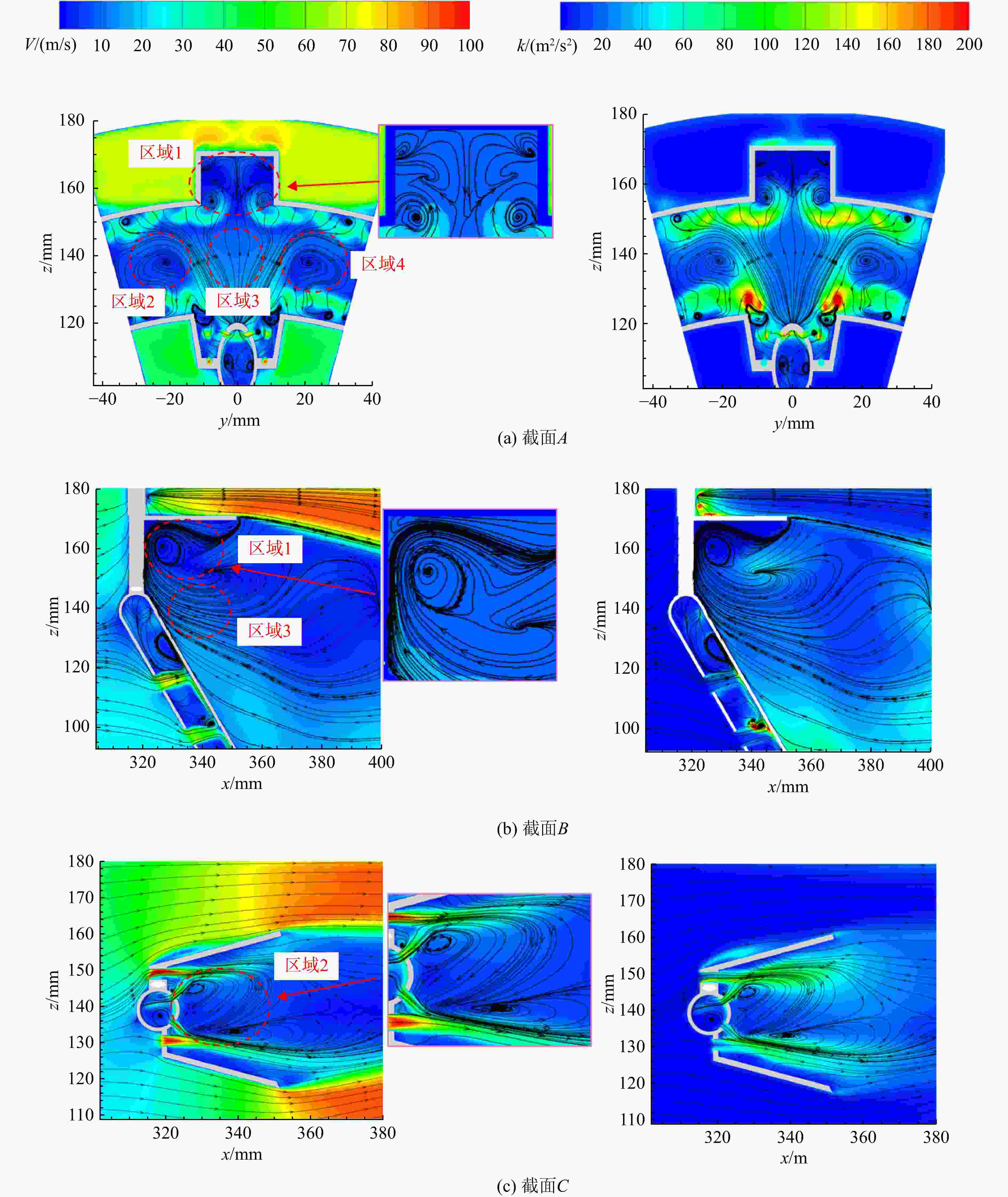

图 6 带流线的速度云图与湍动能云图
Figure 6. Velocity and turbulent kinetic energy contours with streamlines

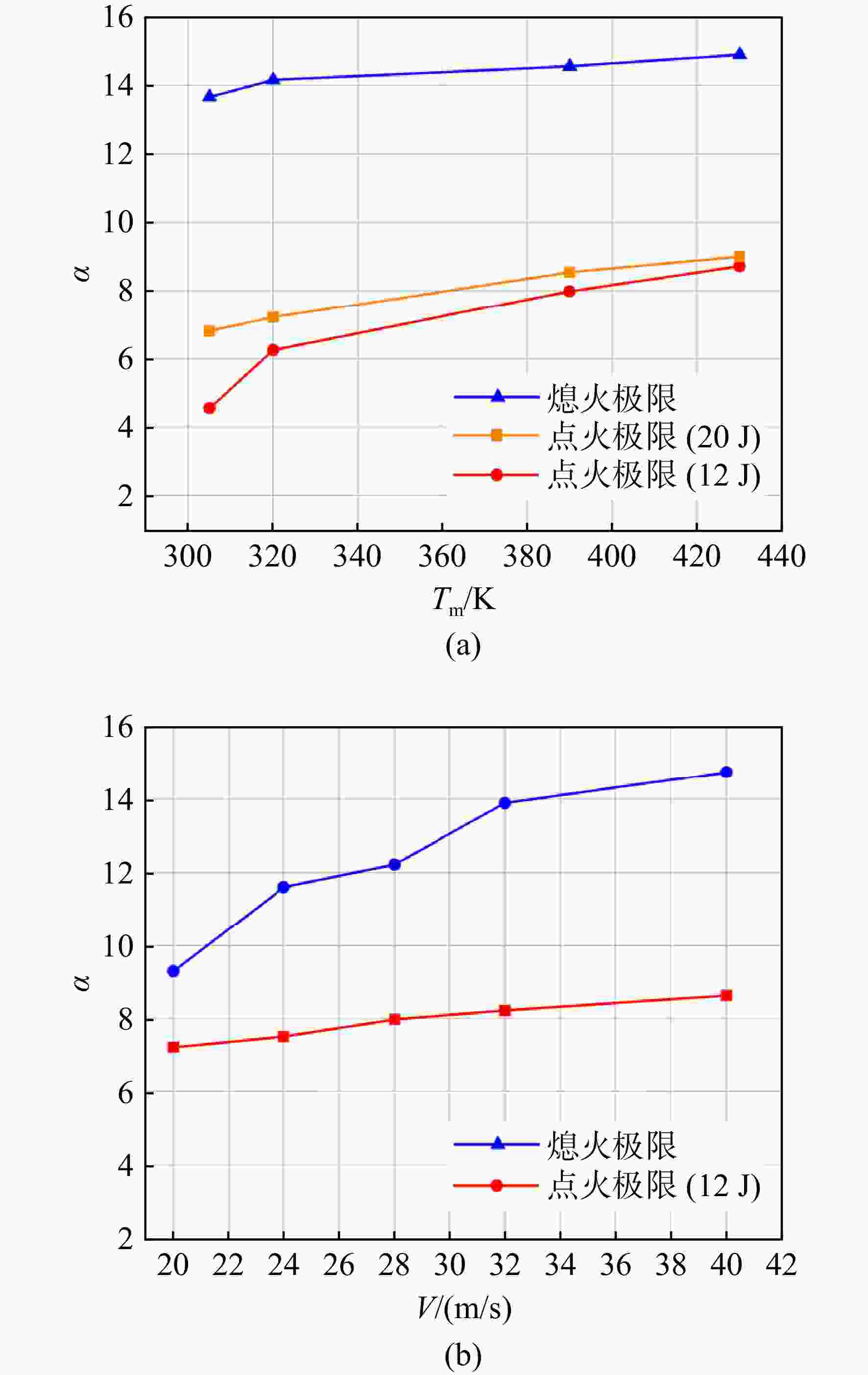

图 9 不同工况点下的贫油点熄火极限
Figure 9. Lean ignition and blowout limits of point a under different experimental conditions
表 1 来流工况参数表
Table 1. Atmospheric environmental parameters
参数 数值 来流表压$ {p}_{{\mathrm{s}}} $/kPa $ 10～18 $ 来流温度$ {T}_{{\mathrm{m}}}/\mathrm{K} $ $ 307～430 $ 来流速度$ V/ （\mathrm{m}/\mathrm{s}） $ $ 20～40 $
下载: 导出CSV
表 2 边界条件
Table 2. Boundary conditions
边界类型 位置 参数与数值 流量入口 燃烧室入口 $ {q}_{\mathrm{m}}=0.25\;{\mathrm{kg/s}} $
$ T=390\;{\mathrm{K}} $压力出口 燃烧室出口 $ {p}_{{\mathrm{s}}} $=18 kPa 无滑移壁面 固体壁面 环境压力 $ {p}_{0} $=101 kPa
下载: 导出CSV
-
[1] 刘大响, 金捷. 21世纪世界航空动力技术发展趋势与展望[J]. 中国工程科学, 2004, 6(9): 1-8. LIU Daxiang, JIN Jie. The development trends and prospect of world aeropropulsion technology in the 21st century[J]. Engineering Science, 2004, 6(9): 1-8. (in ChineseLIU Daxiang, JIN Jie. The development trends and prospect of world aeropropulsion technology in the 21st century[J]. Engineering Science, 2004, 6(9): 1-8. (in Chinese) [2] 袁永青, 徐腾宏, 叶巍. 三维内并联TBCC进气道模态转换过程气动特性研究[J]. 燃气涡轮试验与研究, 2023, 36(5): 1-10. YUAN Yongqing, XU Tenghong, YE Wei. Aerodynamic characteristics of an over/under turbine based combined cycle inlet mode transition process[J]. Gas Turbine Experiment and Research, 2023, 36(5): 1-10. (in ChineseYUAN Yongqing, XU Tenghong, YE Wei. Aerodynamic characteristics of an over/under turbine based combined cycle inlet mode transition process[J]. Gas Turbine Experiment and Research, 2023, 36(5): 1-10. (in Chinese) [3] 吕靖昊, 黄河峡, 蔡佳, 等. Ma=3.5外并联双通道TBCC进气道动态节流过程非定常耦合特性[J]. 海军航空大学学报, 2025, 40(3): 405-414. LYU Jinghao, HUANG Hexia, CAI Jia, et al. Transient flow coupling characteristics of Ma=3.5 externally parallel dual-channel TBCC inlet during dynamic throttling process[J]. Journal of Naval Aviation University, 2025, 40(3): 405-414. (in ChineseLYU Jinghao, HUANG Hexia, CAI Jia, et al. Transient flow coupling characteristics of Ma=3.5 externally parallel dual-channel TBCC inlet during dynamic throttling process[J]. Journal of Naval Aviation University, 2025, 40(3): 405-414. (in Chinese) [4] 张兵, 魏和平, 谢旅荣. 一种双设计点轴对称进气道唇口设计方法及气动特性研究[J]. 海军航空大学学报, 2025, 40(3): 455-462, 506. ZHANG Bing, WEI Heping, XIE Lyurong. Design method and aerodynamic characteristics of an axisymmetric inlet with double-design-point lip[J]. Journal of Naval Aviation University, 2025, 40(3): 455-462, 506. (in ChineseZHANG Bing, WEI Heping, XIE Lyurong. Design method and aerodynamic characteristics of an axisymmetric inlet with double-design-point lip[J]. Journal of Naval Aviation University, 2025, 40(3): 455-462, 506. (in Chinese) [5] 马梦颖, 金捷, 季鹤鸣. 航空发动机加力燃烧室技术及新颖结构方案[J]. 燃气涡轮试验与研究, 2008, 21(4): 55-59. MA Mengying, JIN Jie, JI Heming. Technology and new configuration of aero-engine afterburner[J]. Gas Turbine Experiment and Research, 2008, 21(4): 55-59. (in ChineseMA Mengying, JIN Jie, JI Heming. Technology and new configuration of aero-engine afterburner[J]. Gas Turbine Experiment and Research, 2008, 21(4): 55-59. (in Chinese) [6] 陈博, 桂丰, 李茜, 等. 国外并联式涡轮基组合循环发动机技术发展途径浅析[J]. 燃气涡轮试验与研究, 2019, 32(1): 57-62. CHEN Bo, GUI Feng, LI Qian, et al. Study on the development approach of foreign over/under TBCC engine technology[J]. Gas Turbine Experiment and Research, 2019, 32(1): 57-62. (in ChineseCHEN Bo, GUI Feng, LI Qian, et al. Study on the development approach of foreign over/under TBCC engine technology[J]. Gas Turbine Experiment and Research, 2019, 32(1): 57-62. (in Chinese) [7] 钟世林, 邓远灏, 马存祥, 等. 航空发动机燃烧技术发展与展望[J]. 燃气涡轮试验与研究, 2025, 38(2): 33-44. ZHONG Shilin, DENG Yuanhao, MA Cunxiang, et al. Development and prospects of advanced combustion technologies for aero-engines[J]. Gas Turbine Experiment and Research, 2025, 38(2): 33-44. (in Chinese doi: 10.3724/j.GTER.20250027ZHONG Shilin, DENG Yuanhao, MA Cunxiang, et al. Development and prospects of advanced combustion technologies for aero-engines[J]. Gas Turbine Experiment and Research, 2025, 38(2): 33-44. (in Chinese) doi: 10.3724/j.GTER.20250027 [8] 金莉, 谭永华. 火焰稳定器综述[J]. 火箭推进, 2006, 32(1): 30-34. JIN Li, TAN Yonghua. Study on flameholders[J]. Journal of Rocket Propulsion, 2006, 32(1): 30-34. (in ChineseJIN Li, TAN Yonghua. Study on flameholders[J]. Journal of Rocket Propulsion, 2006, 32(1): 30-34. (in Chinese) [9] 航空发动机设计手册编委. 航空发动机设计手册: 第十一分册[M]. 北京: 航空工业出版社, 2000. [10] 郑殿峰, 张会强, 林文漪, 等. 蒸发式稳定器气态燃料掺混特性和蒸发管的流量系数[J]. 燃烧科学与技术, 2004, 10(1): 28-31. ZHENG Dianfeng, ZHANG Huiqiang, LIN Wenyi, et al. Mixing characteristics of gaseous fuel in vapor flame holder and discharge coefficient of evaporating pipe[J]. Journal of Combustion Science and Technology, 2004, 10(1): 28-31. (in ChineseZHENG Dianfeng, ZHANG Huiqiang, LIN Wenyi, et al. Mixing characteristics of gaseous fuel in vapor flame holder and discharge coefficient of evaporating pipe[J]. Journal of Combustion Science and Technology, 2004, 10(1): 28-31. (in Chinese) [11] CHENG Xiaojun, FAN Yuxin. Experimental study of lean ignition and lean blowout performance improvement using an evaporation flameholder[J]. International Journal of Heat and Mass Transfer, 2016, 103: 319-326. doi: 10.1016/j.ijheatmasstransfer.2016.07.003 [12] 冯玉桦, 刘玉英, 邓远灏, 等. 含湿量对蒸发式火焰稳定器贫油熄火性能的影响[J]. 航空动力学报, 2020, 35(9): 1866-1874. FENG Yuhua, LIU Yuying, DENG Yuanhao, et al. Effects of humidity ratio on lean blowout performance of piloted vaporization flameholder[J]. Journal of Aerospace Power, 2020, 35(9): 1866-1874. (in ChineseFENG Yuhua, LIU Yuying, DENG Yuanhao, et al. Effects of humidity ratio on lean blowout performance of piloted vaporization flameholder[J]. Journal of Aerospace Power, 2020, 35(9): 1866-1874. (in Chinese) [13] 苗建磊, 胡斌, 石强, 等. 小槽宽蒸发式供油/稳焰一体化火焰稳定器结构参数对贫油点熄火性能的影响研究[J/OL]. 航空动力学报, (2024-03-29). https://link.cnki.net/doi/10.13224/j.cnki.jasp.20230788. MIAO Jianlei, HU Bin, SHI Qiang, et al. Study on the influence of structural parameters of evaporative fuel supply/flame stabilization integrated flame stabilizer with small slot width on the flameout performance of lean point[J/OL]. Journal of Aerospace Power, (2024-03-29). https://link.cnki.net/doi/10.13224/j.cnki.jasp.20230788. (in ChineseMIAO Jianlei, HU Bin, SHI Qiang, et al. Study on the influence of structural parameters of evaporative fuel supply/flame stabilization integrated flame stabilizer with small slot width on the flameout performance of lean point[J/OL]. Journal of Aerospace Power, (2024-03-29). https://link.cnki.net/doi/10.13224/j.cnki.jasp.20230788. (in Chinese) [14] 于文博, 范育新, 岳晨, 等. 一种蒸发式凹腔驻涡值班稳定器的流动与点火性能研究[J]. 推进技术, 2023, 44(5): 2206053. YU Wenbo, FAN Yuxin, YUE Chen, et al. Flow characteristics and ignition performance analysis of an evaporating cavity trapped vortex pilot flame-holder[J]. Journal of Propulsion Technology, 2023, 44(5): 2206053. (in ChineseYU Wenbo, FAN Yuxin, YUE Chen, et al. Flow characteristics and ignition performance analysis of an evaporating cavity trapped vortex pilot flame-holder[J]. Journal of Propulsion Technology, 2023, 44(5): 2206053. (in Chinese) [15] 陈亮任, 凌文辉. 低压下蒸发式稳定器结构对燃烧效率的影响[J]. 战术导弹技术, 2013(6): 66-73. CHEN Liangren, LING Wenhui. Influence of vaporizing flame holder structure on combustion efficiency at low pressure[J]. Tactical Missile Technology, 2013(6): 66-73. (in ChineseCHEN Liangren, LING Wenhui. Influence of vaporizing flame holder structure on combustion efficiency at low pressure[J]. Tactical Missile Technology, 2013(6): 66-73. (in Chinese) [16] 缪俊杰, 范育新, 吴伟秋, 等. 蒸发式Z形值班火焰稳定器的点火性能[J]. 航空动力学报, 2020, 35(7): 1457-1465. MIAO Junjie, FAN Yuxin, WU Weiqiu, et al. Ignition characteristics in evaporating Z-shaped pilot flame-holder[J]. Journal of Aerospace Power, 2020, 35(7): 1457-1465. (in ChineseMIAO Junjie, FAN Yuxin, WU Weiqiu, et al. Ignition characteristics in evaporating Z-shaped pilot flame-holder[J]. Journal of Aerospace Power, 2020, 35(7): 1457-1465. (in Chinese) [17] OATES G C. Aerothermodynamics of gas turbine and rocket propulsion[M]. Reston, US: AIAA, 1997. [18] AGGARWAL S K. A review of spray ignition phenomena: present status and future research[J]. Progress in Energy and Combustion Science, 1998, 24(6): 565-600. doi: 10.1016/S0360-1285(98)00016-1 [19] BALLAL D R, LEFEBVRE A H. Ignition of liquid fuel sprays at subatmospheric pressures[J]. Combustion and Flame, 1978, 31: 115-126. doi: 10.1016/0010-2180(78)90122-0 [20] NAEGELI D W, DODGE L G. Ignition study in a gas turbine combustor[J]. Combustion Science and Technology, 1991, 80(4/5/6): 165-184. [21] HUANG Yakun, HE Xiaomin, ZHANG Huangwei, et al. Spark ignition and stability limits of spray kerosene flames under subatmospheric pressure conditions[J]. Aerospace Science and Technology, 2021, 114: 106734. doi: 10.1016/j.ast.2021.106734 [22] HUANG Yakun, HE Xiaomin, ZHU Zhixin, et al. Inlet pressure effects on subatmospheric flame stabilization with an optimum size of a cavity-based combustor[J]. International Journal of Aerospace Engineering, 2020, 2020(1): 4126753. [23] 黄兵, 邱伟, 房人麟, 等. 中心分级燃烧室变频变能点火性能试验[J]. 航空动力学报, 2019, 34(3): 529-538. HUANG Bing, QIU Wei, FANG Renlin, et al. Experimental study on variable frequency and variable energy ignition performance of central staged combustion chamber[J]. Journal of Aerospace Power, 2019, 34(3): 529-538. (in ChineseHUANG Bing, QIU Wei, FANG Renlin, et al. Experimental study on variable frequency and variable energy ignition performance of central staged combustion chamber[J]. Journal of Aerospace Power, 2019, 34(3): 529-538. (in Chinese) [24] RICHARDSON E S, MASTORAKOS E. Numerical investigation of forced ignition in laminar counterflow non-premixed methane-air flames[J]. Combustion Science and Technology, 2007, 179(1/2): 21-37. [25] SUBRAMANIAN V, DOMINGO P, VERVISCH L. Large eddy simulation of forced ignition of an annular bluff-body burner[J]. Combustion and Flame, 2010, 157(3): 579-601. doi: 10.1016/j.combustflame.2009.09.014 [26] 赵世龙. 一体化设计的火焰稳定和高效燃烧技术研究[D]. 南京: 南京航空航天大学, 2020. ZHAO Shilong. Research on flame stability and efficient combustion technology with integrated design[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020. (in ChineseZHAO Shilong. Research on flame stability and efficient combustion technology with integrated design[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020. (in Chinese) [27] ZHAO Shilong, FAN Yuxin, DENG Tiantai, et al. Influence of injection scheme on flame characteristics in partially premixed combustion[J]. Energy, 2020, 205: 118058. doi: 10.1016/j.energy.2020.118058 [28] 邱皓, 邓远灏, 王金涛, 等. 凹腔驻涡加力燃烧室联焰特性研究[J]. 燃气涡轮试验与研究, 2023, 36(6): 21-28. QIU Hao, DENG Yuanhao, WANG Jintao, et al. Cross-flame characteristic of the trapped vortex afterburner[J]. Gas Turbine Experiment and Research, 2023, 36(6): 21-28. (in ChineseQIU Hao, DENG Yuanhao, WANG Jintao, et al. Cross-flame characteristic of the trapped vortex afterburner[J]. Gas Turbine Experiment and Research, 2023, 36(6): 21-28. (in Chinese) [29] 许鹏宇, 王成军, 陶海一, 等. 基于ED模型的点火能量对中心分级燃烧室火焰发展影响的数值研究[J]. 燃气涡轮试验与研究, 2025, 38(1): 115-122. XU Pengyu, WANG Chengjun, TAO Haiyi, et al. Numerical study on the effect of ignition energy on flame development in centrally staged combustor based on ED model[J]. Gas Turbine Experiment and Research, 2025, 38(1): 115-122. (in Chinese doi: 10.3724/j.GTER.20250003XU Pengyu, WANG Chengjun, TAO Haiyi, et al. Numerical study on the effect of ignition energy on flame development in centrally staged combustor based on ED model[J]. Gas Turbine Experiment and Research, 2025, 38(1): 115-122. (in Chinese) doi: 10.3724/j.GTER.20250003 -
点击查看大图
图(10) / 表(2)
