Experimental study and structural improvement of leakage characteristics of variable stator vane pivot
-
摘要:

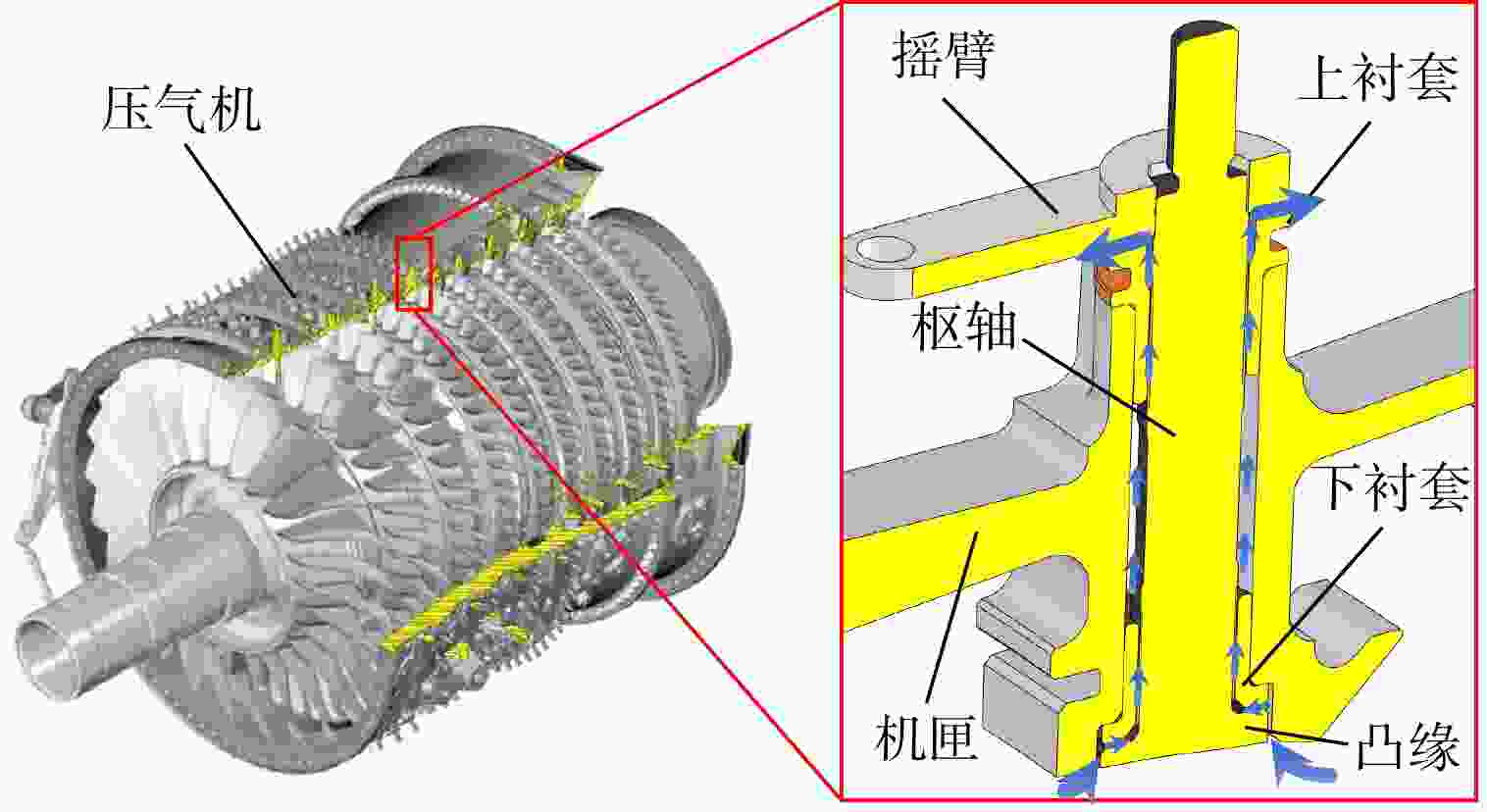

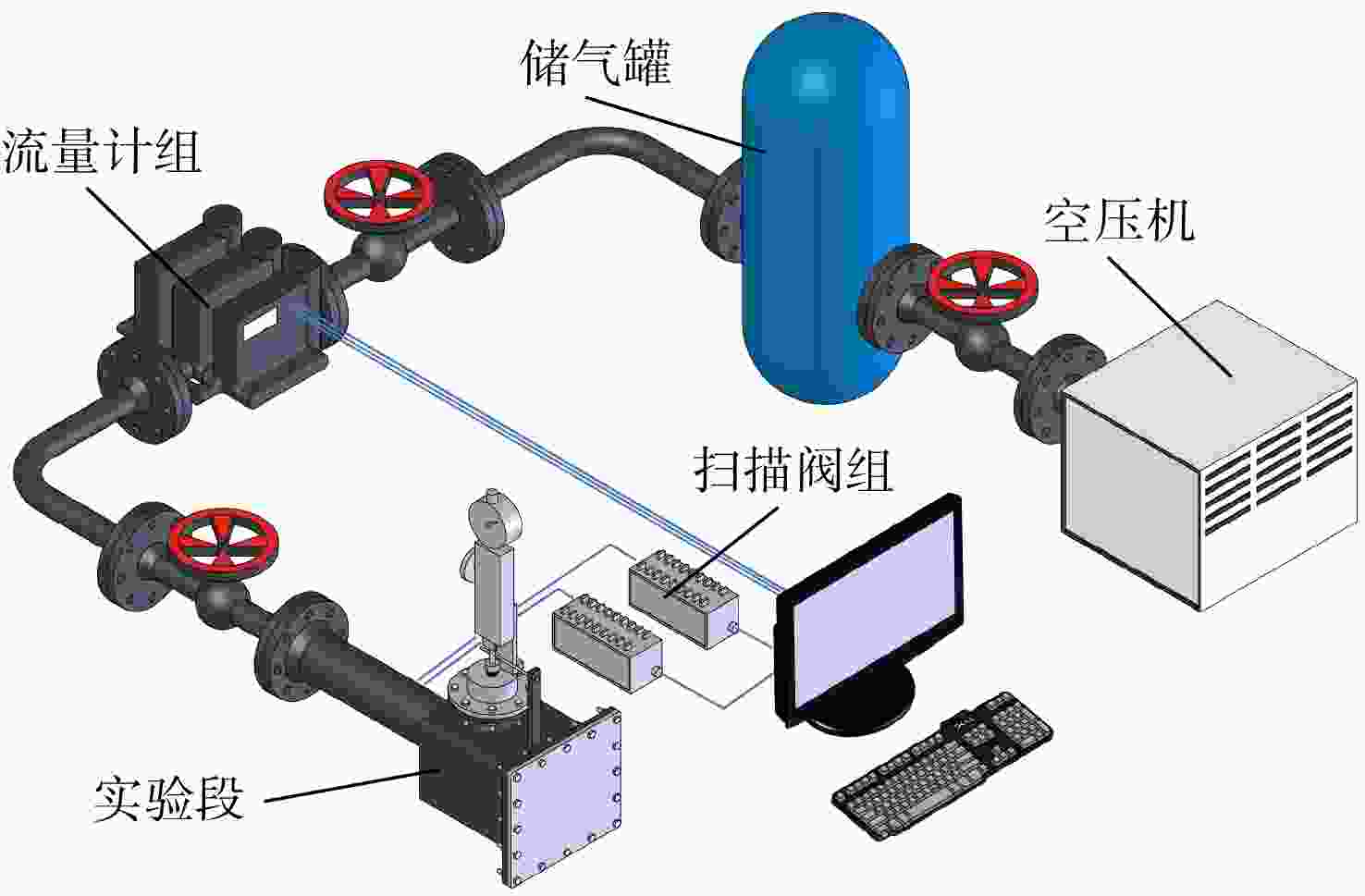

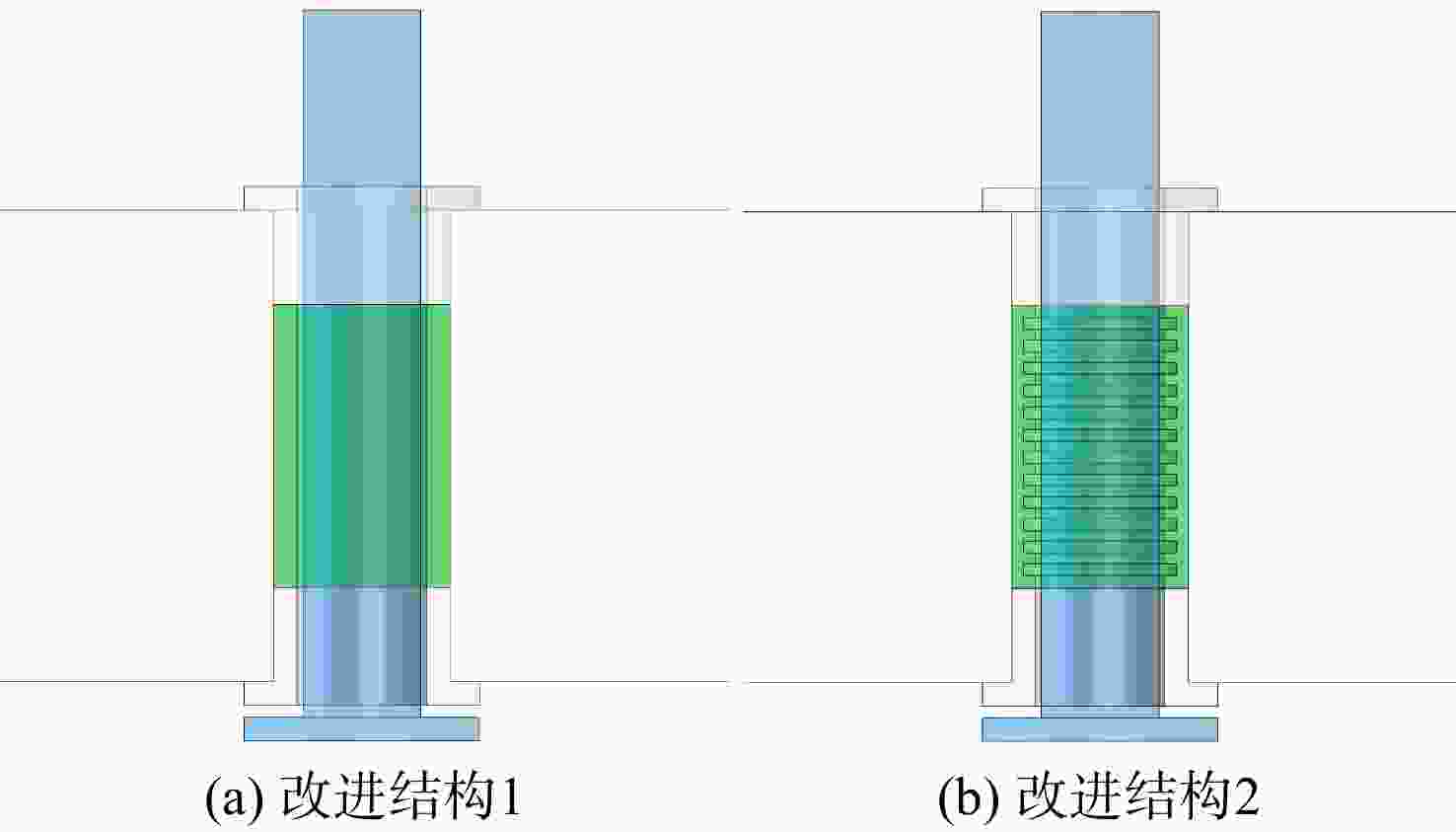

压气机可调静叶枢轴与机匣之间存在间隙泄漏，对压气机效率有直接影响。为获得枢轴间隙的泄漏特性，搭建了高压比的枢轴泄漏实验平台。通过质量流量控制法和压力损失法，测量不同间隙和进出口压比下的空气泄漏率，分析了枢轴与机匣的配合状态、轴向间隙和径向间隙等对泄漏率的影响。实验结果表明：压比、轴向和径向间隙的增大，会导致泄漏率和质量流量系数的增长；在压比为3.3的工况下，径向接触状态的泄漏率相对于0.01 mm间隙状态降低了86.54%；枢轴的偏心会导致泄漏率增加，而倾斜会导致泄漏率降低。为减少泄漏，对泄漏的流动特性进行仿真分析，并提出了空腔填充简单衬套或篦齿衬套的封严结构。仿真计算结果表明：在压比为3.3的工况下，增加简单衬套后泄漏率下降约为40.04%，增加篦齿衬套后泄漏率下降约为31.8%。
Abstract:There is a gap leakage between the variable stator vane pivot of the compressor and the casing, which has a direct impact on the efficiency of the compressor. To obtain the leakage characteristics of the pivot gap, a high-pressure ratio pivot leakage experimental platform was established. Using flow control and pressure loss methods, the air leakage rates under various gaps and inlet-outlet pressure ratios were measured, and the effects of the mating condition between the pivot and casing, as well as axial and radial gaps, on the leakage rate were analyzed. Experimental results indicated that increases in pressure ratio, axial, and radial gaps led to an increase in both the leakage rate and the flow coefficient; under operating conditions with a pressure ratio of 3.3, the leakage rate in a radial contact state was reduced by 86.54% compared with a 0.01 mm gap state. Eccentricity of the pivot can lead to an increase in leakage rate, whereas tilt can decrease it. To reduce leakage, simulation analysis on the flow characteristics of the leakage was conducted, and a sealing structure using simple bushings or splined bushings for cavity filling was proposed. The simulation results indicated that under operating conditions with a pressure ratio of 3.3, the leakage rate decreased by approximately 40.04% with the addition of simple bushings, and by approximately 31.8% with the addition of splined bushings.
-

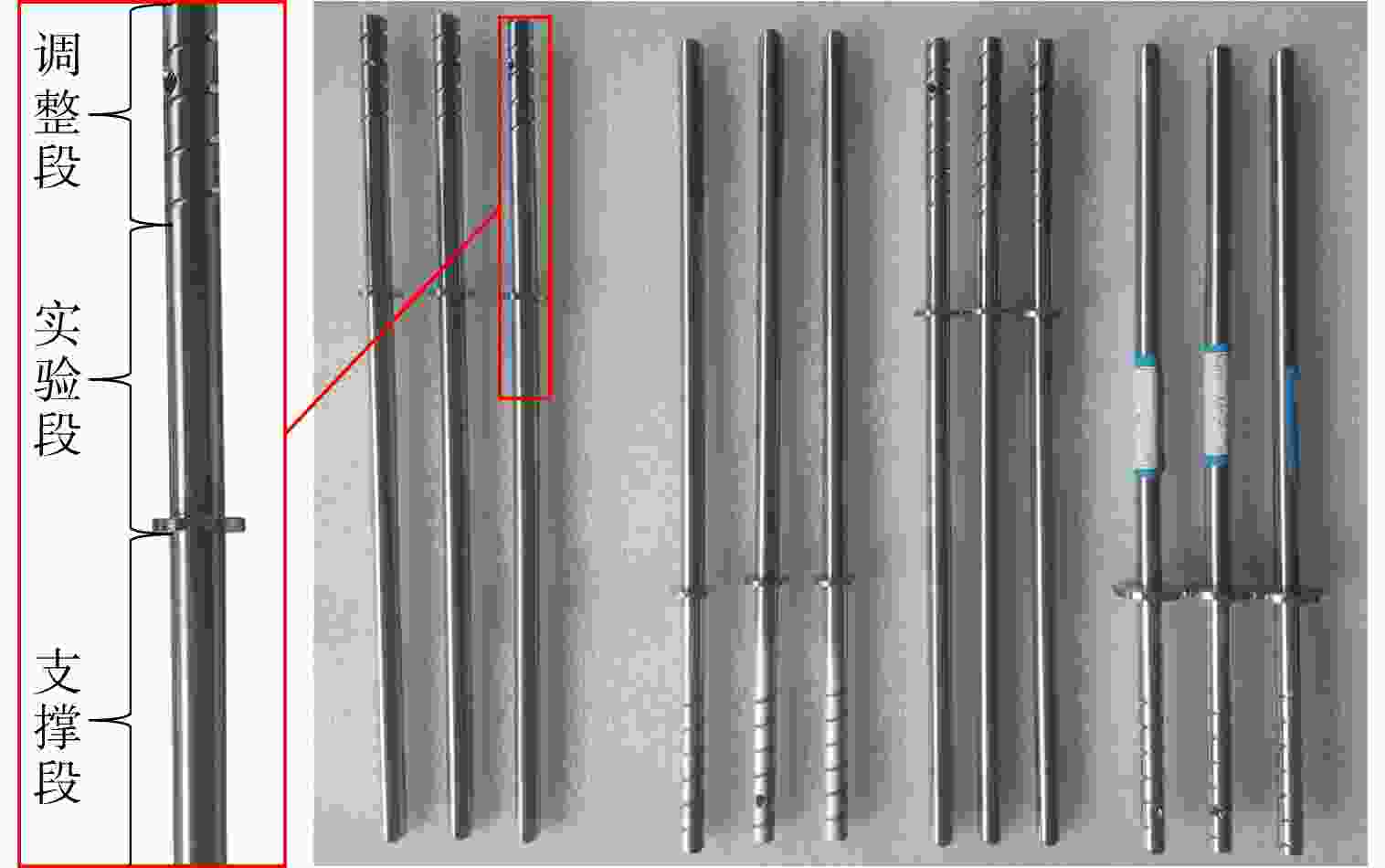

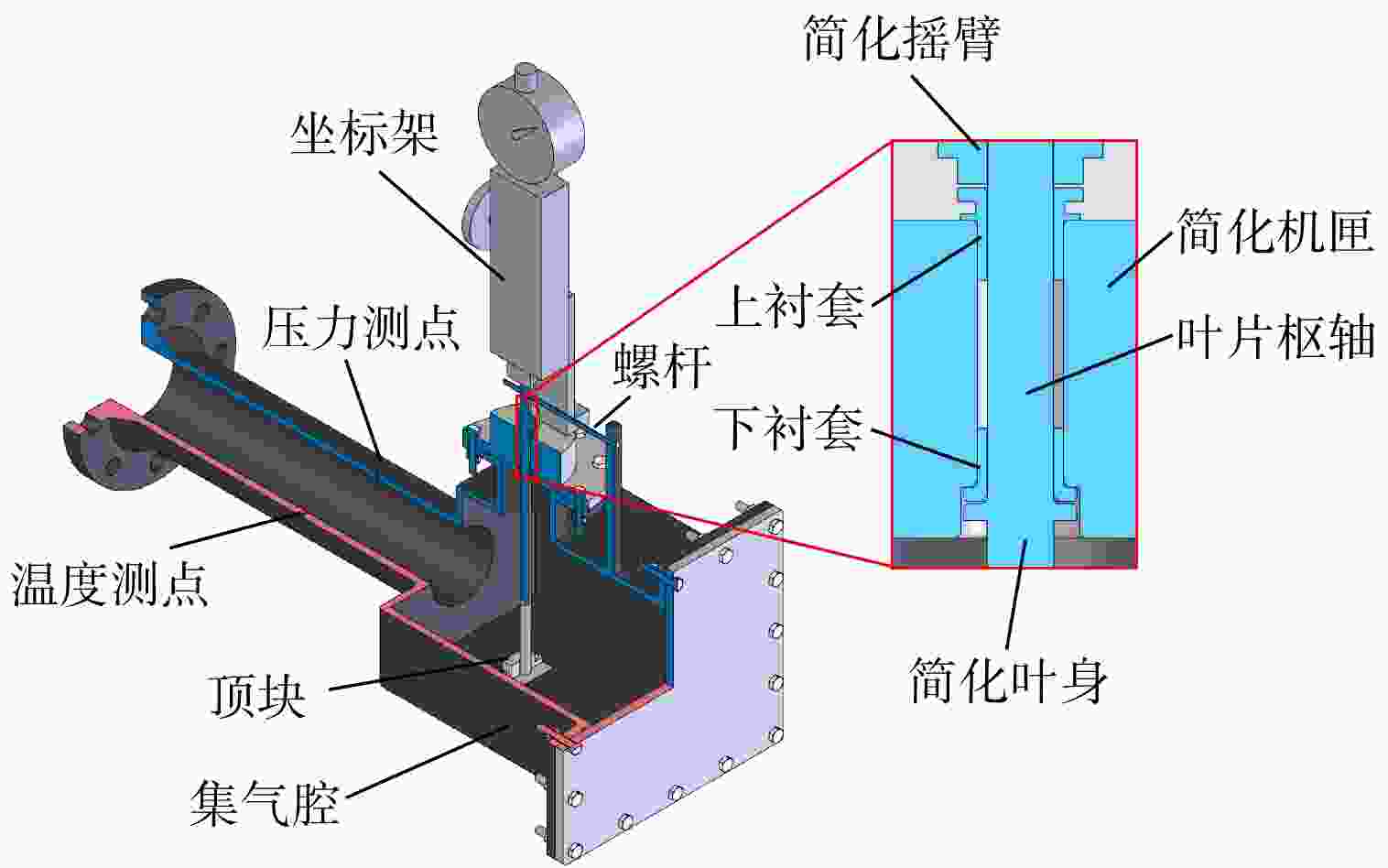

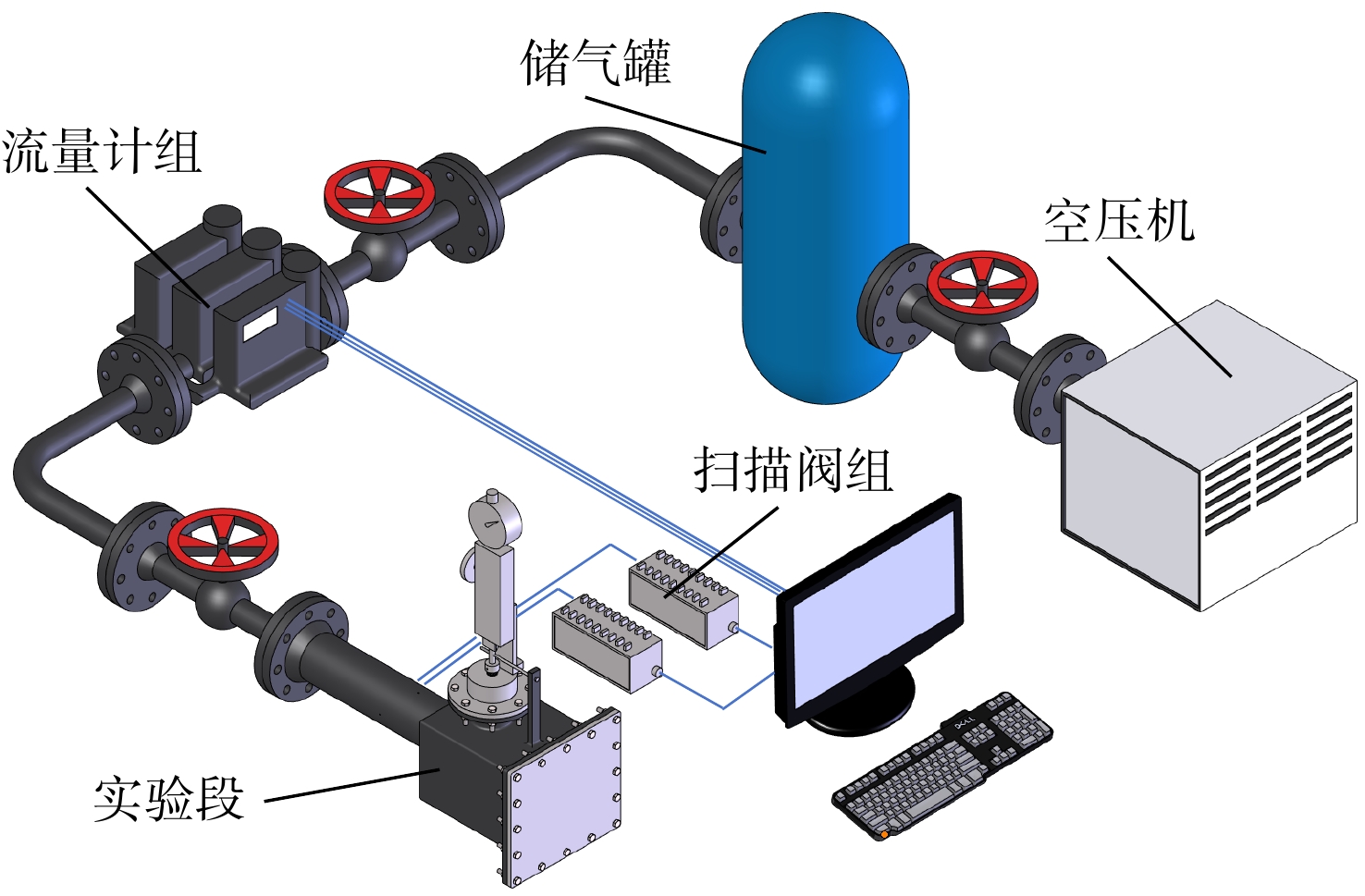

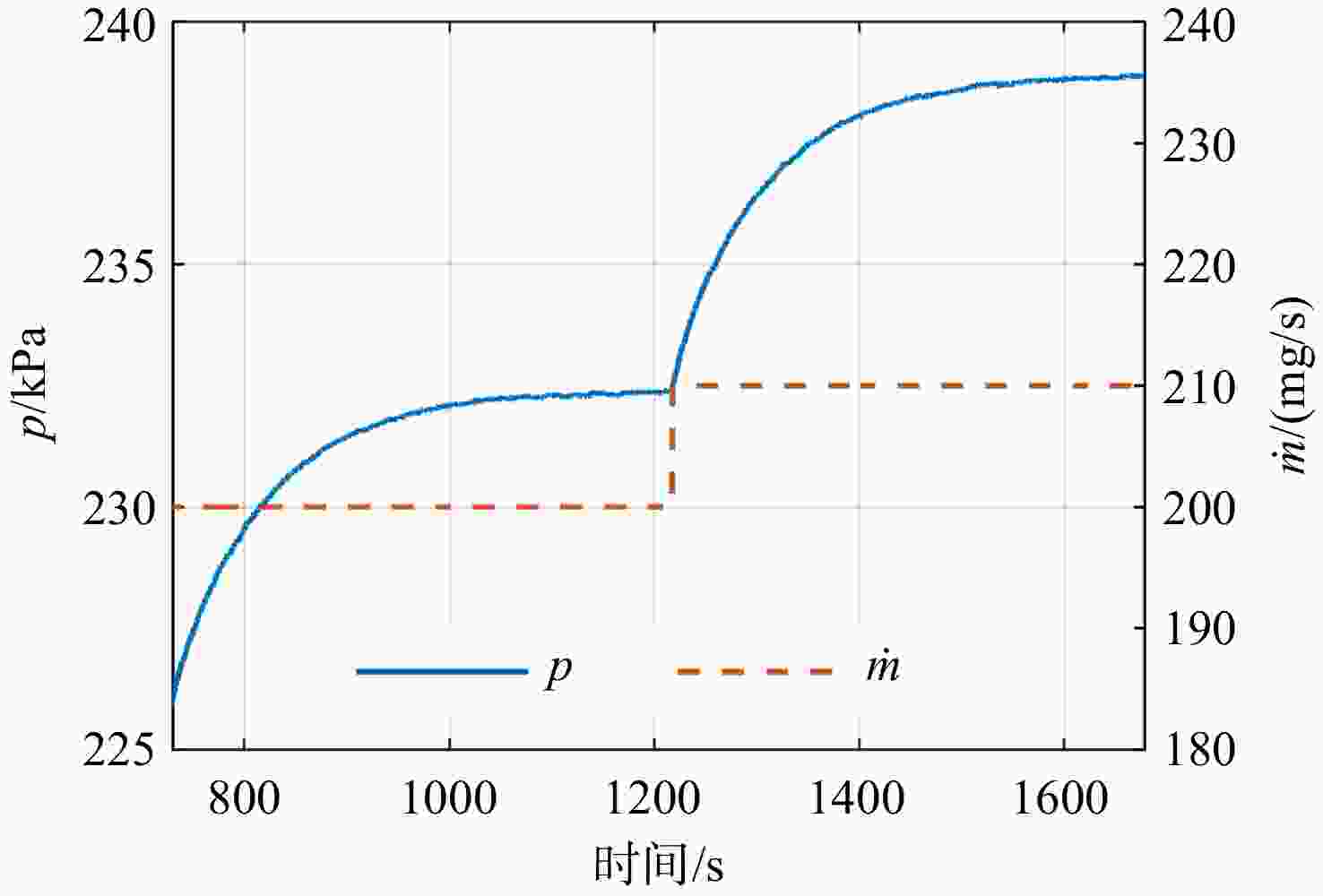

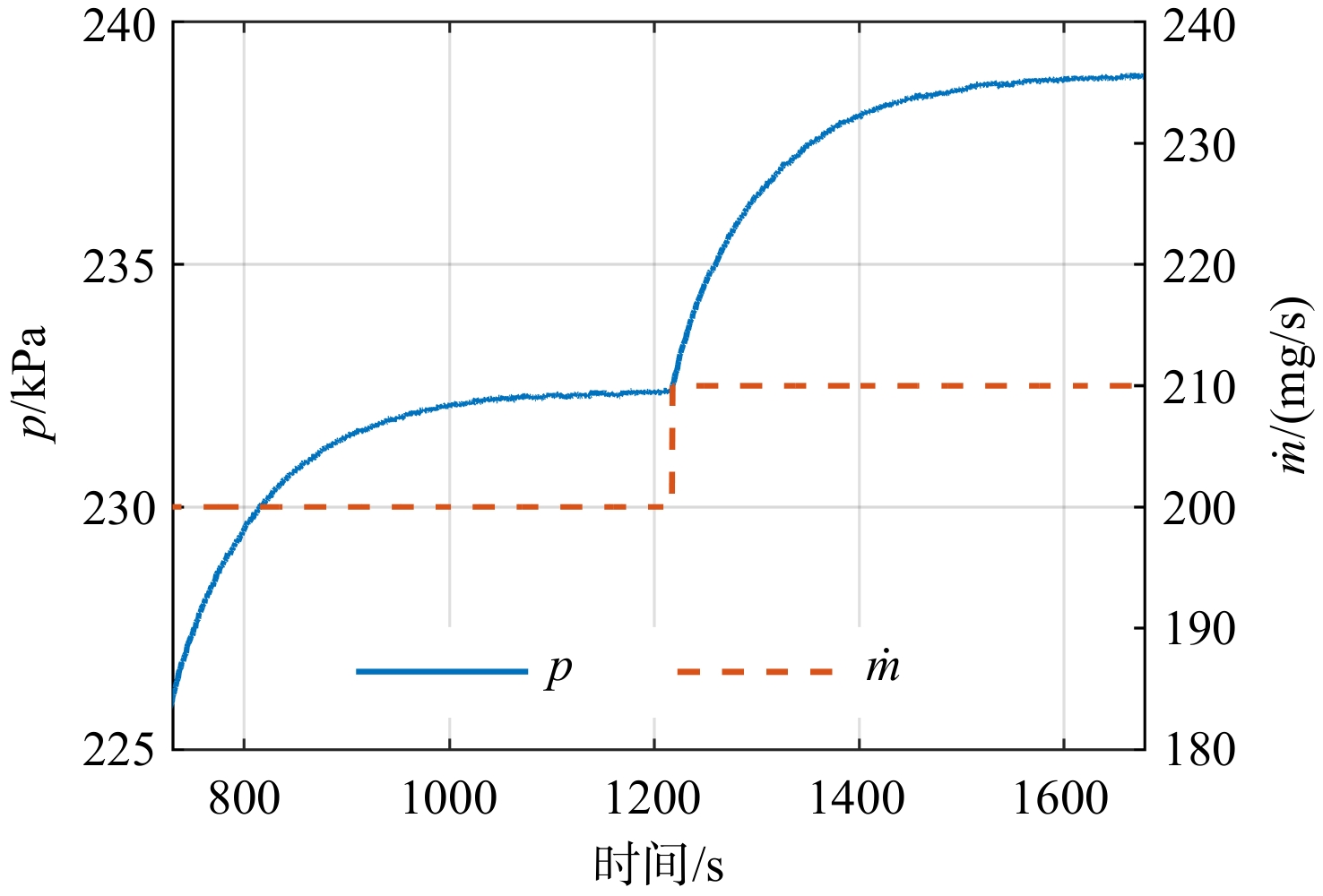

图 7 基于流量控制法的泄漏率测量过程
Figure 7. Leakage rate measurement process based on the flowmeter method

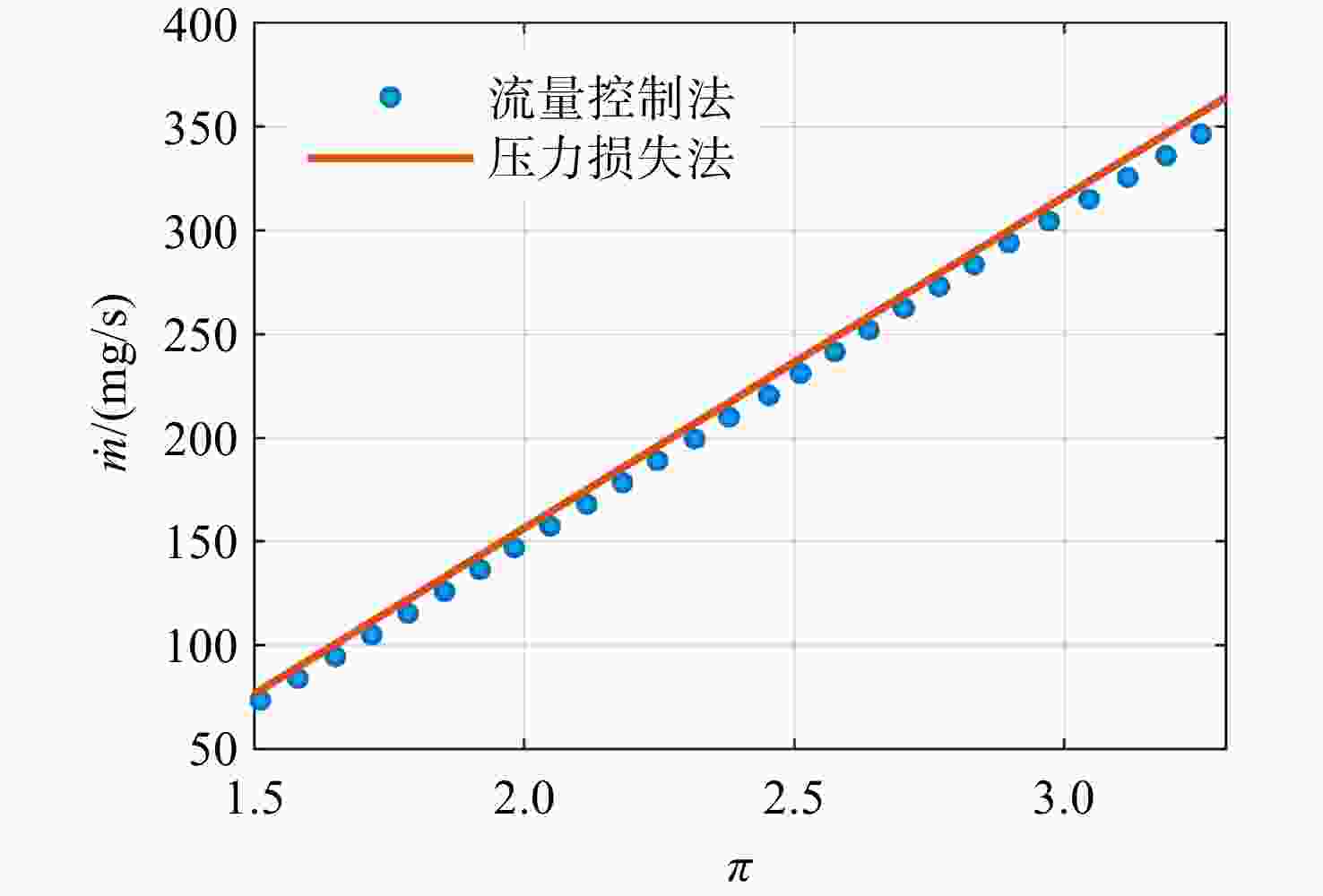

图 9 两种微小流量测量方法的实验对比
Figure 9. Experimental comparison of two microflow measurement methods

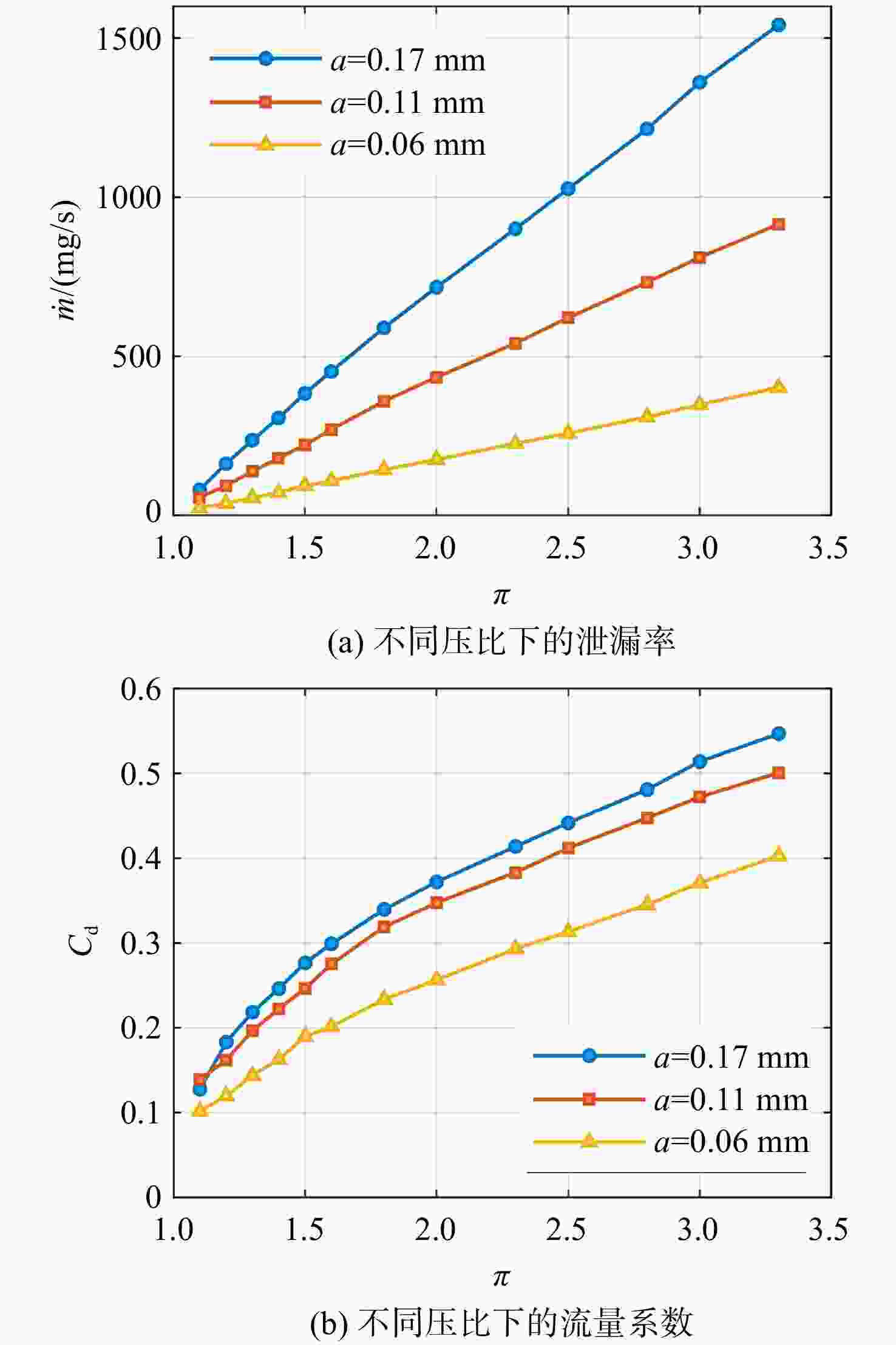

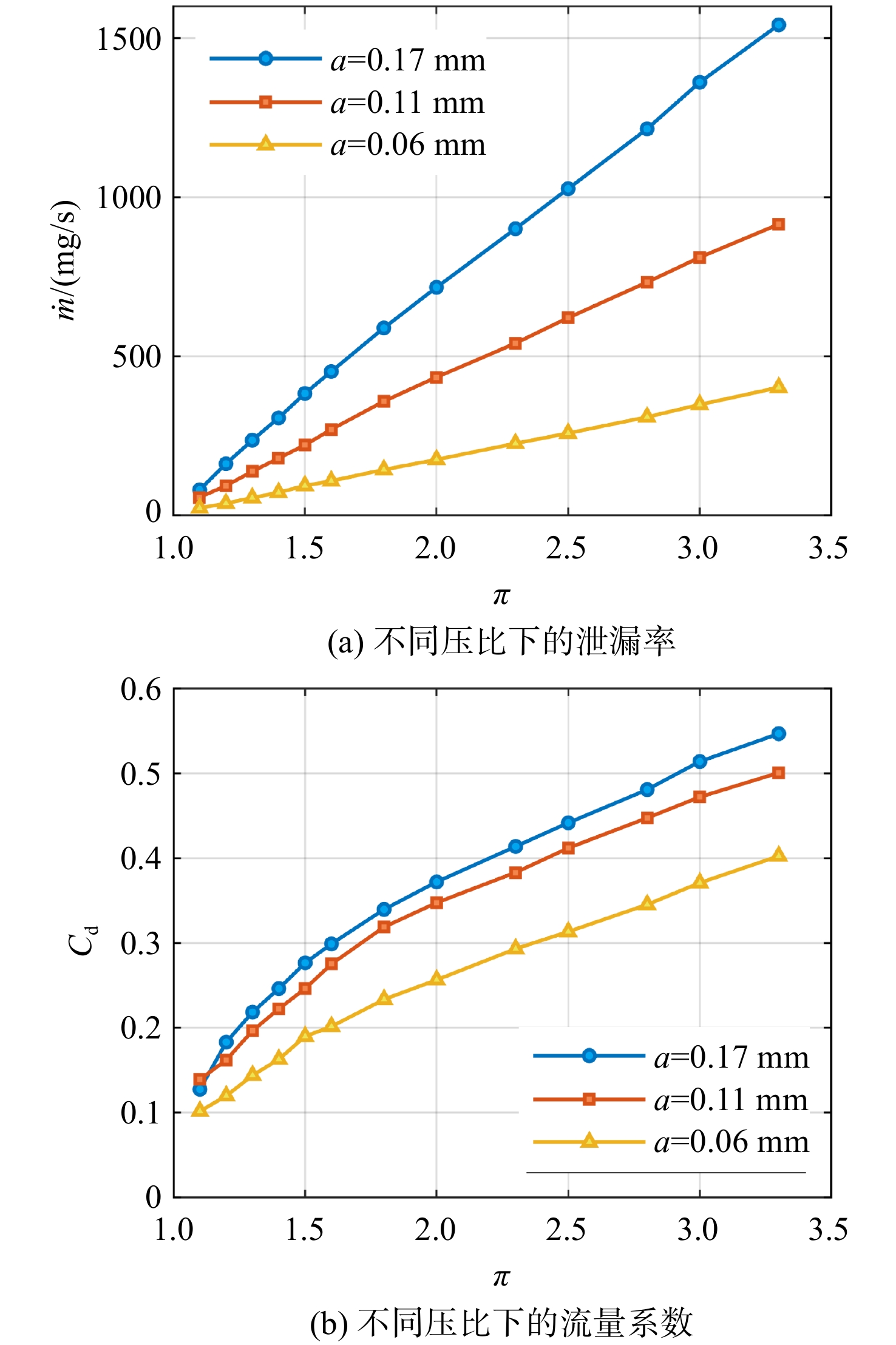

图 10 0#枢轴不同状态下的泄漏率与流量系数
Figure 10. 0# pivot leakage rate and flow coefficient in different states

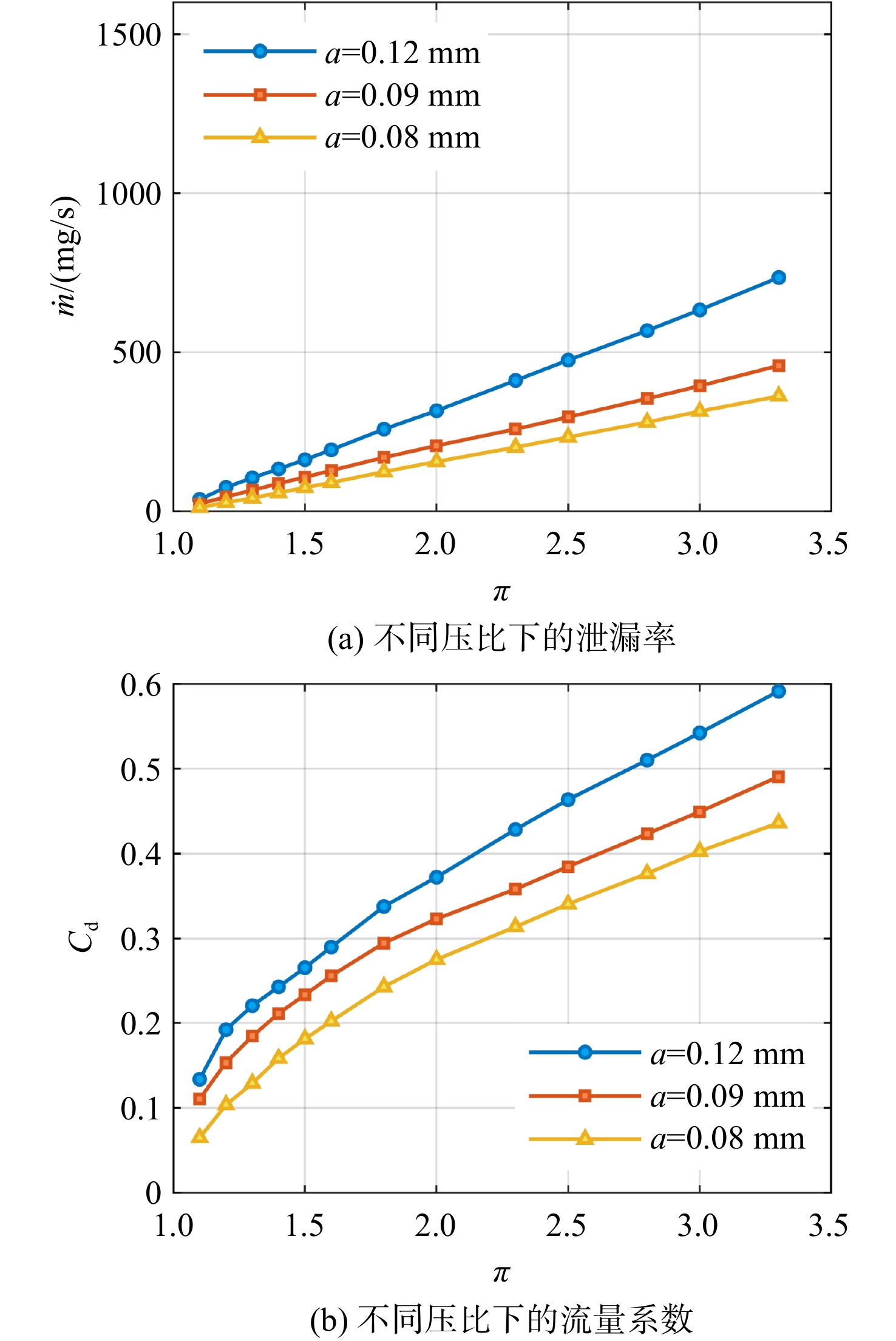

图 11 4#枢轴不同状态下的泄漏率与流量系数
Figure 11. 4# pivot leakage rate and flow coefficient in different states

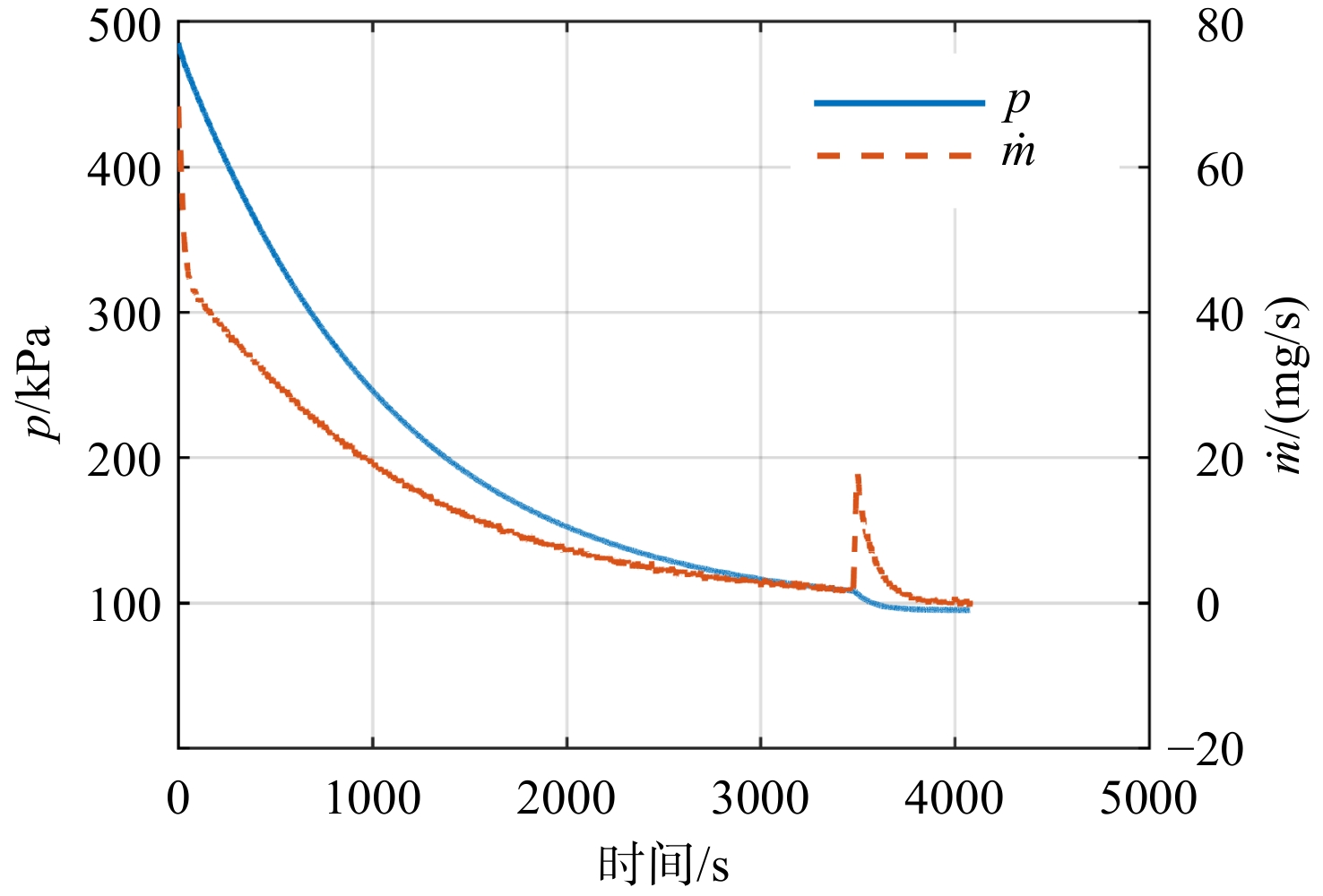

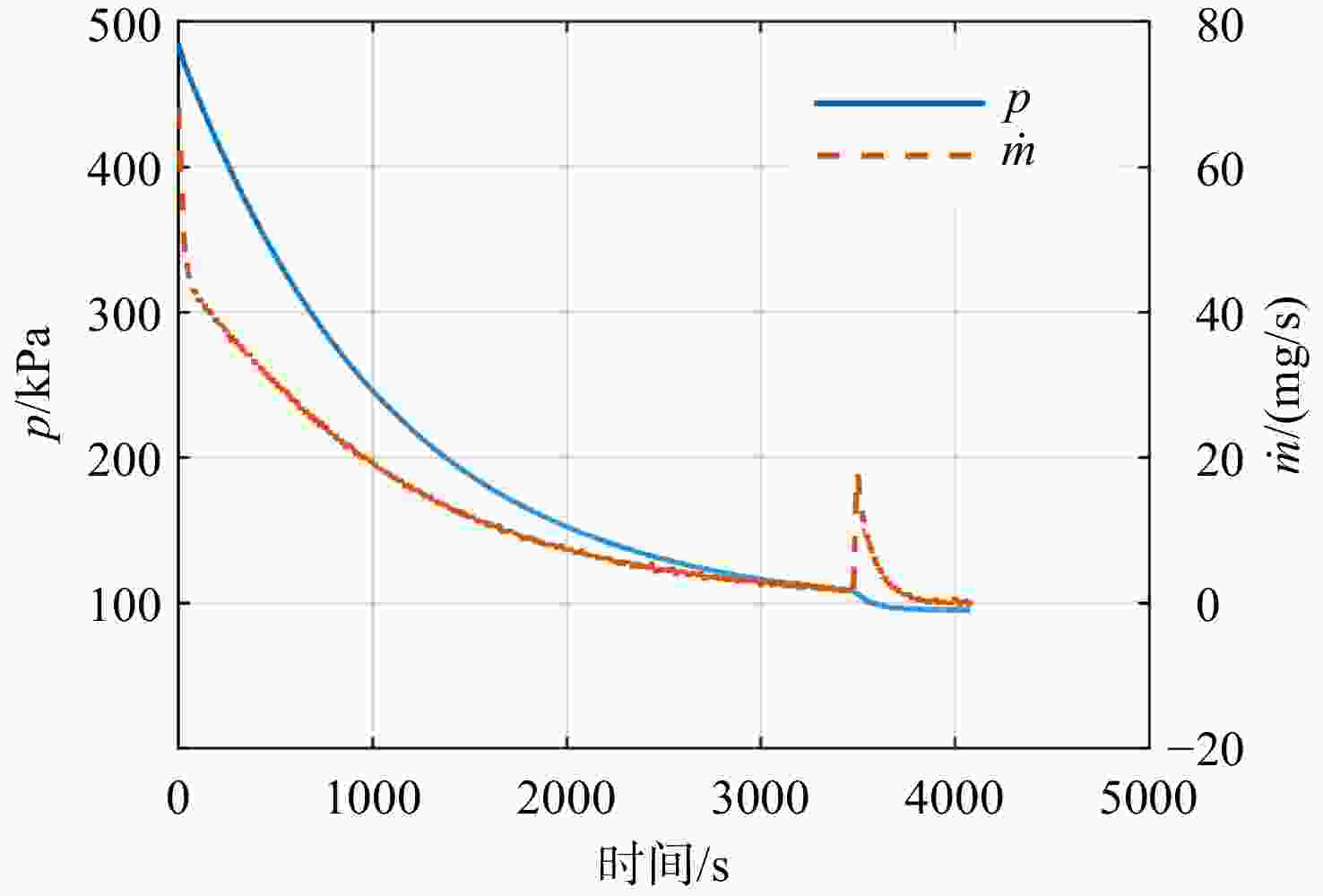

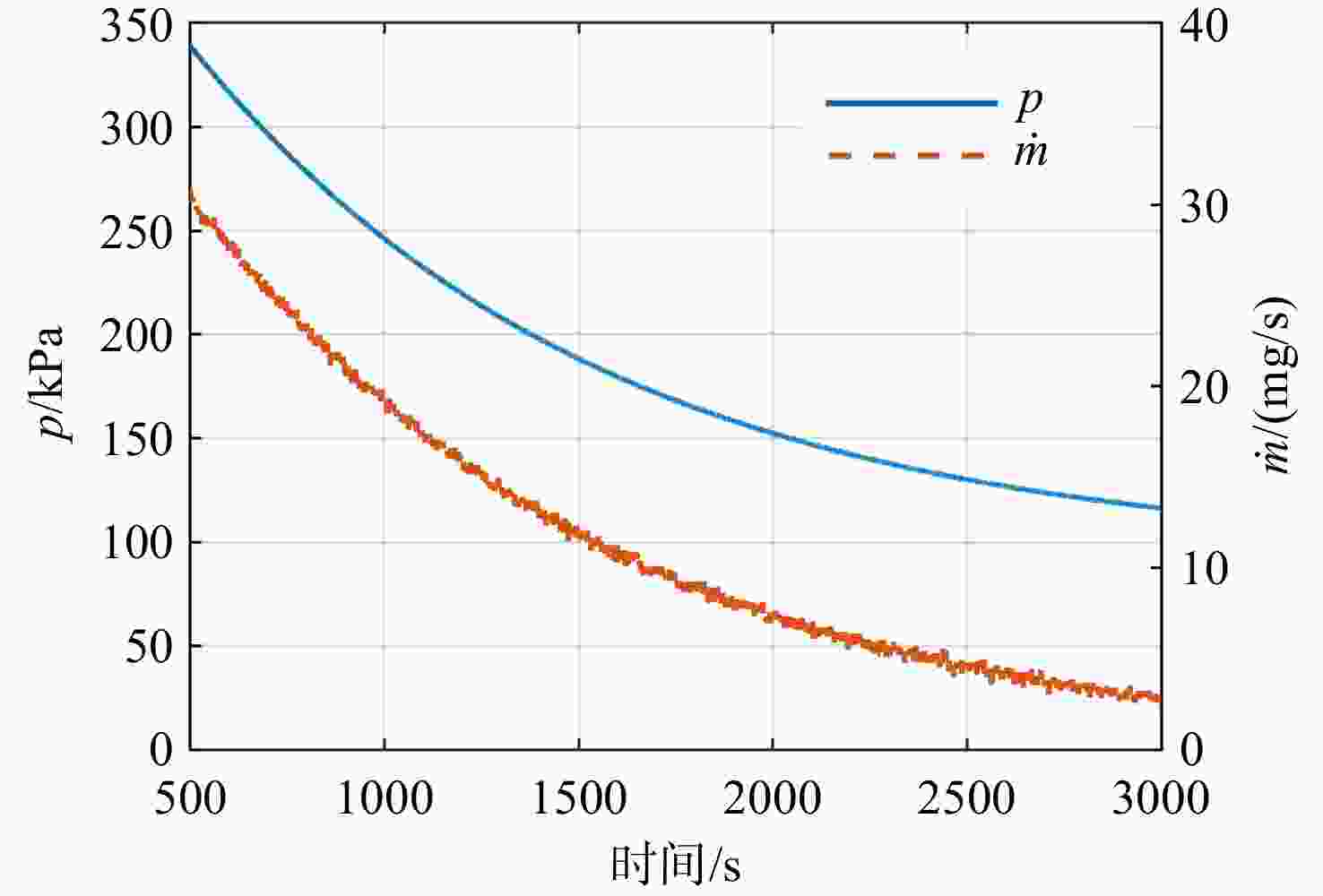

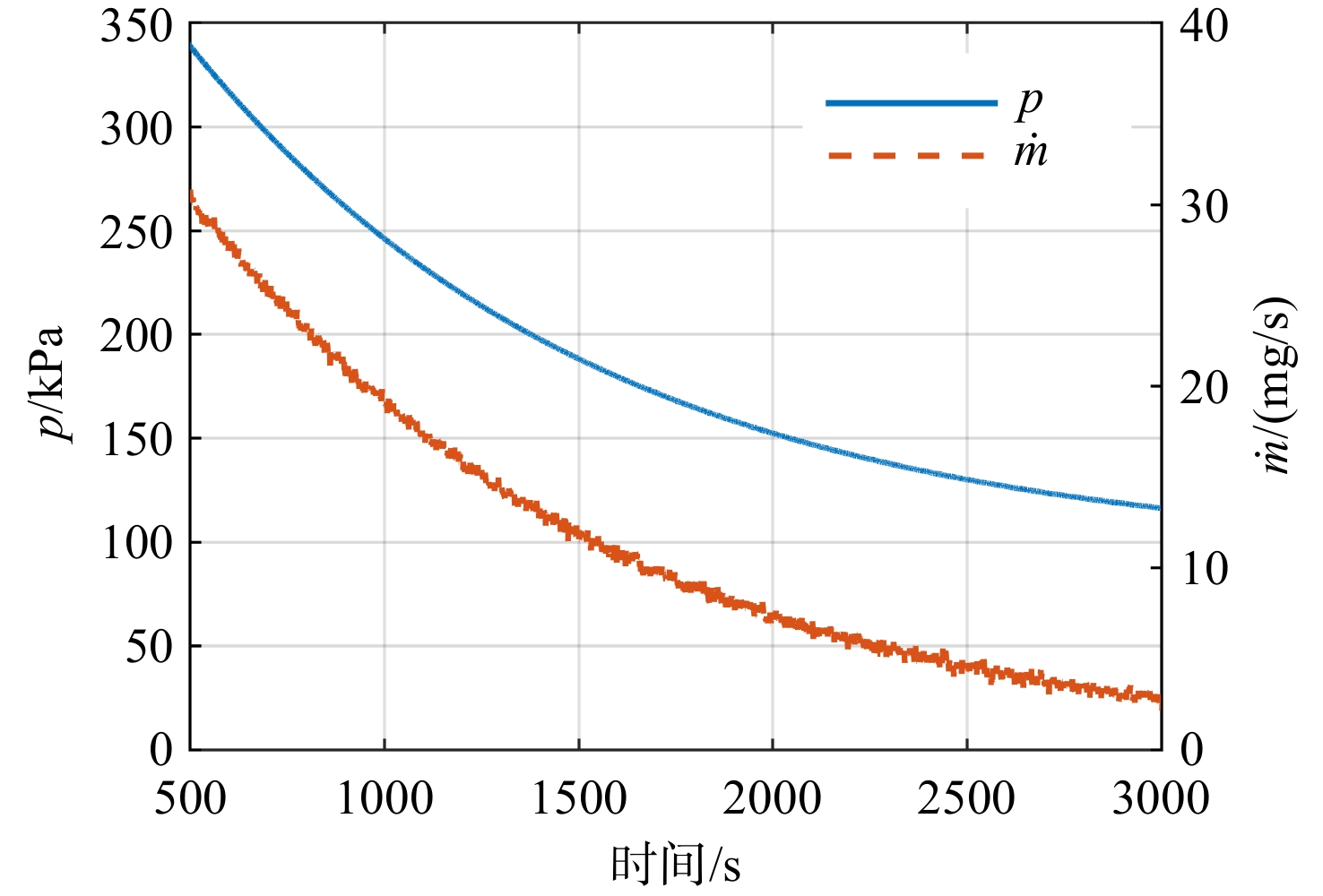

图 12 使用压力损失法测量枢轴接触泄漏率
Figure 12. Pivot contact leakage rate measured by the transient pressure method

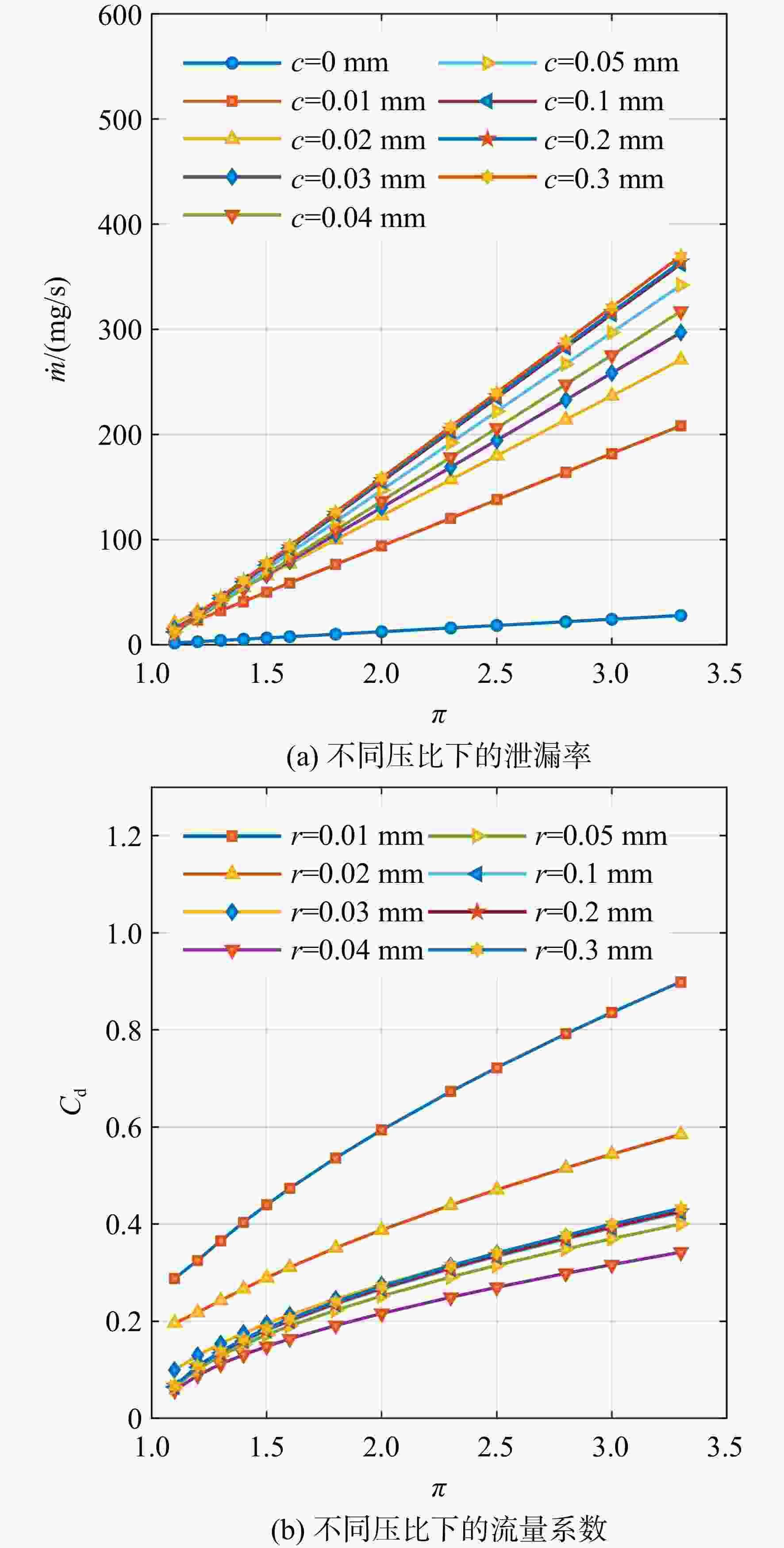

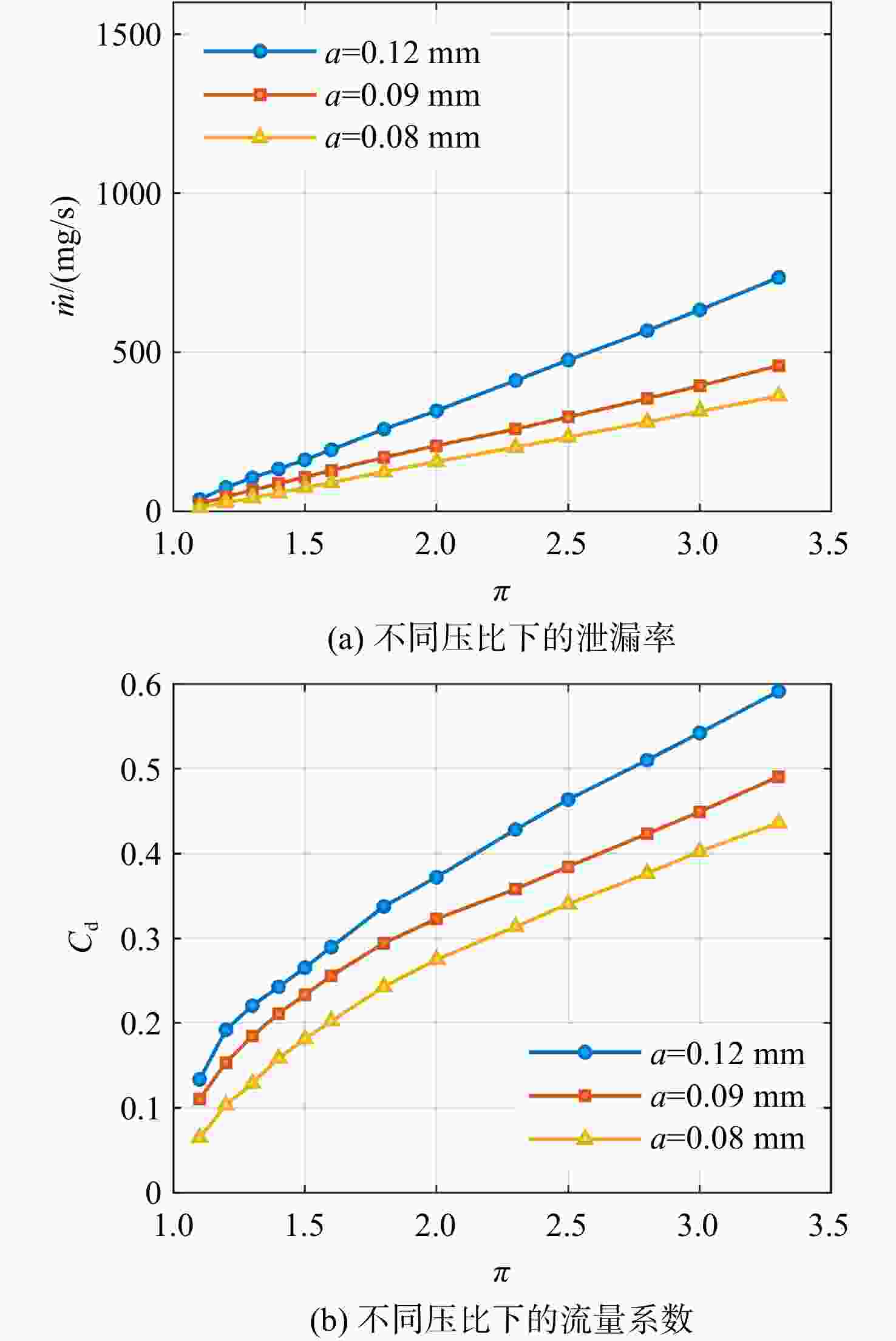

图 13 4#枢轴不同径向间隙下的泄漏率与流量系数
Figure 13. 4# pivot leakage rate and flow coefficient under different radial clearances

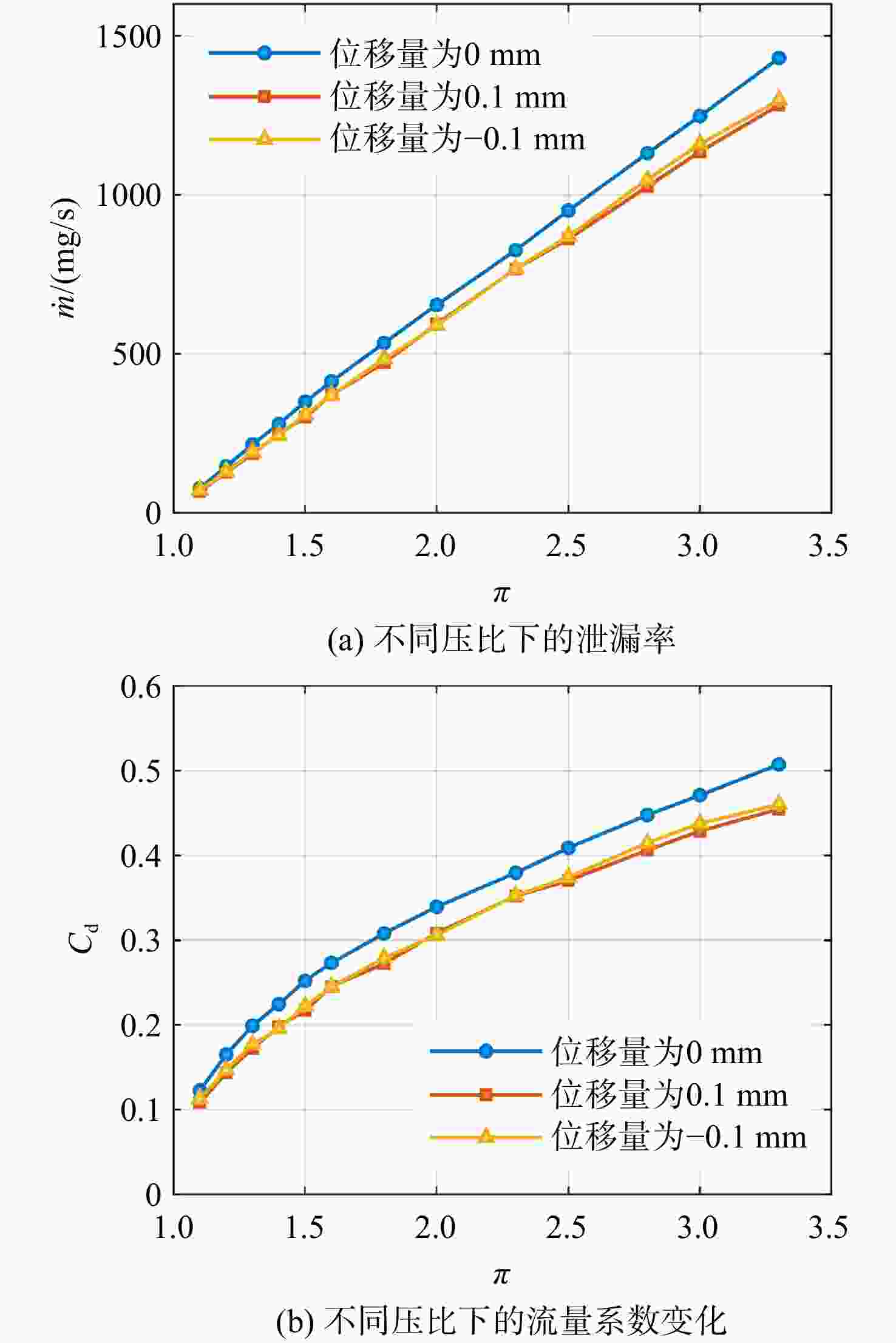

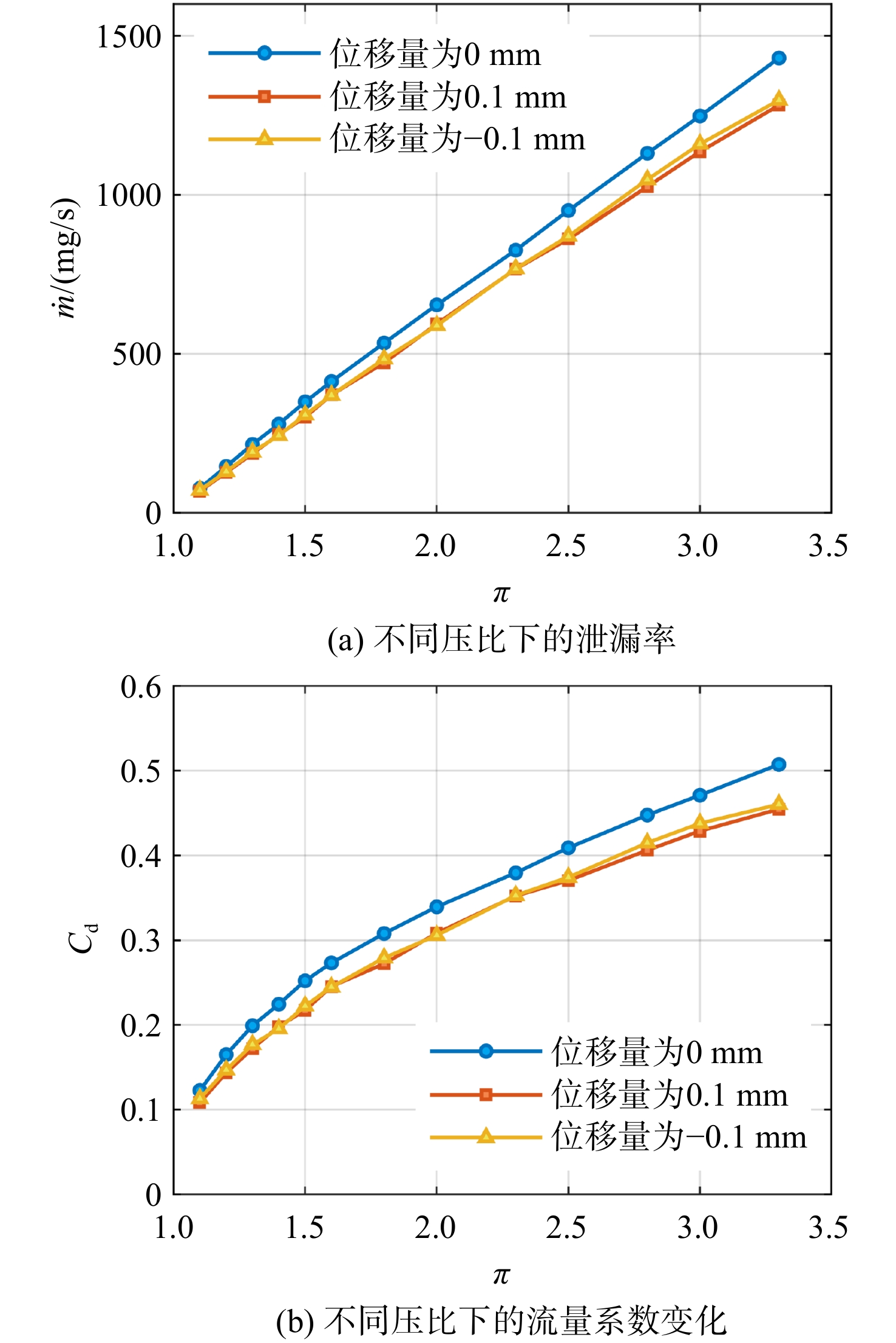

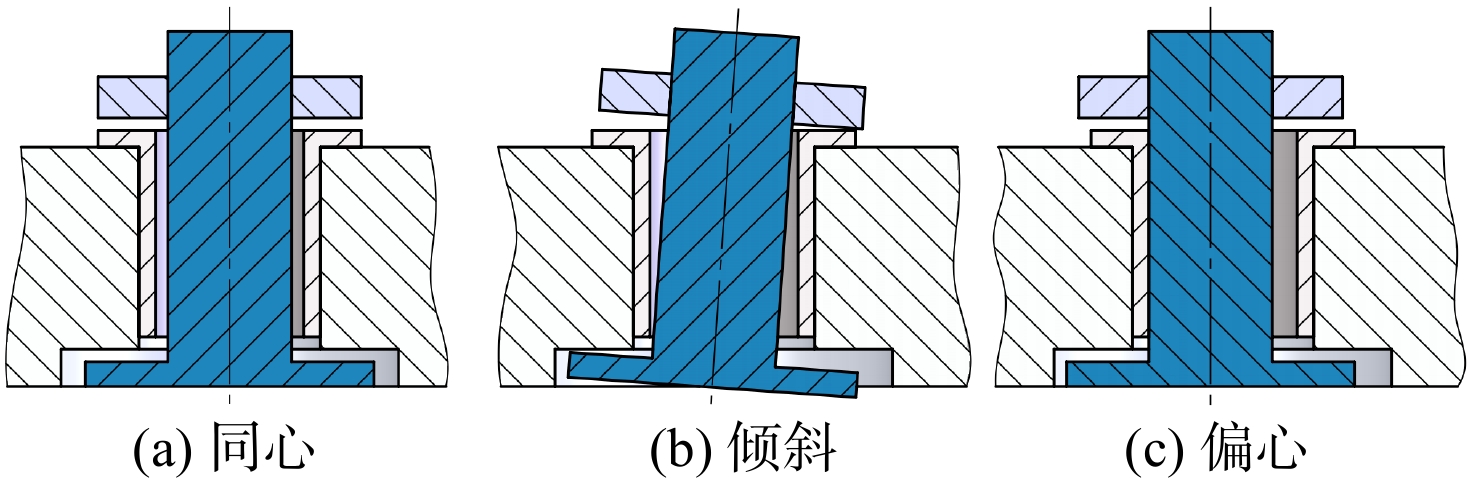

图 14 0#枢轴不同姿态下的泄漏率与流量系数
Figure 14. 0# pivot leakage rate and flow coefficient under different attitudes

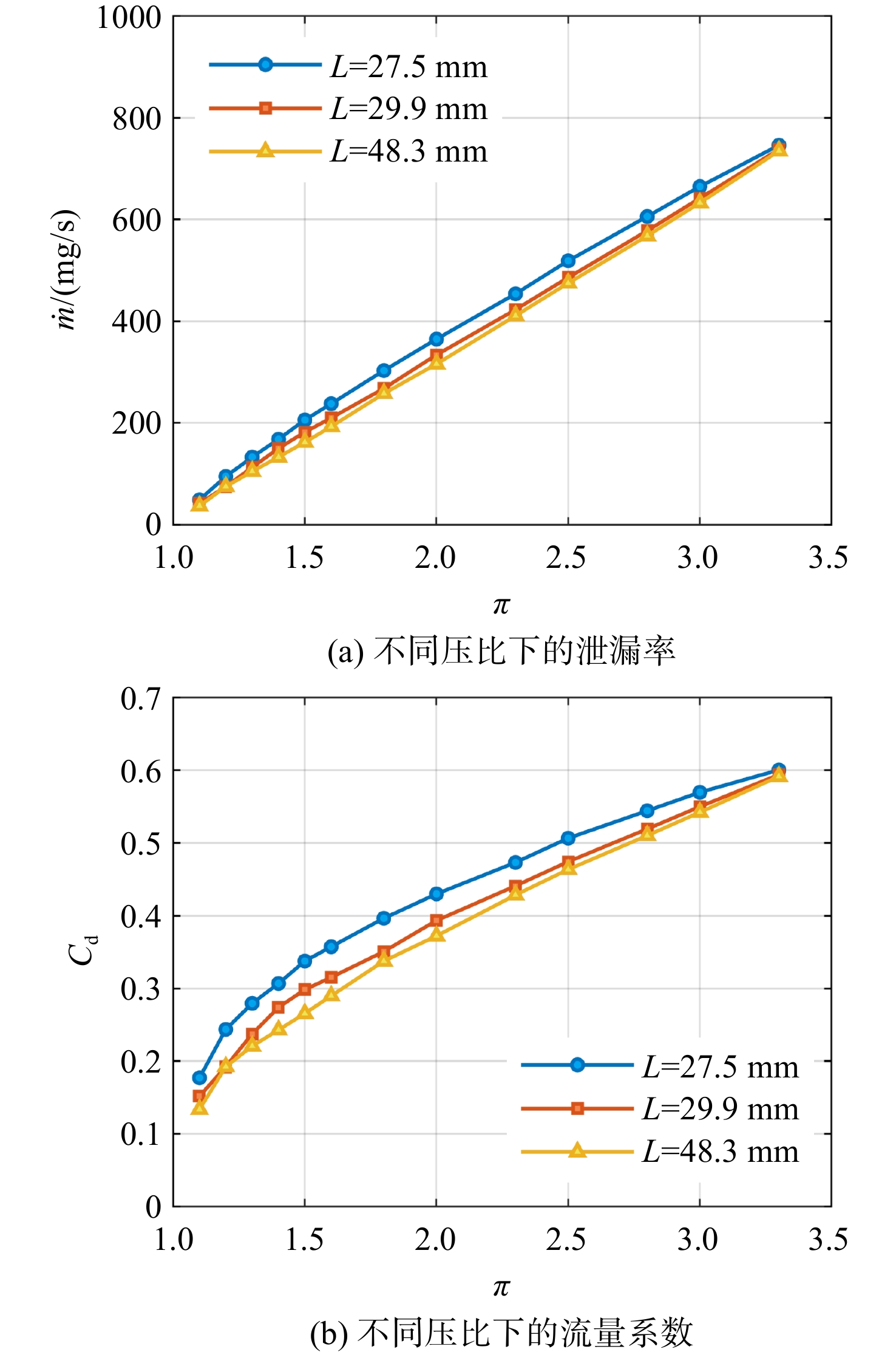

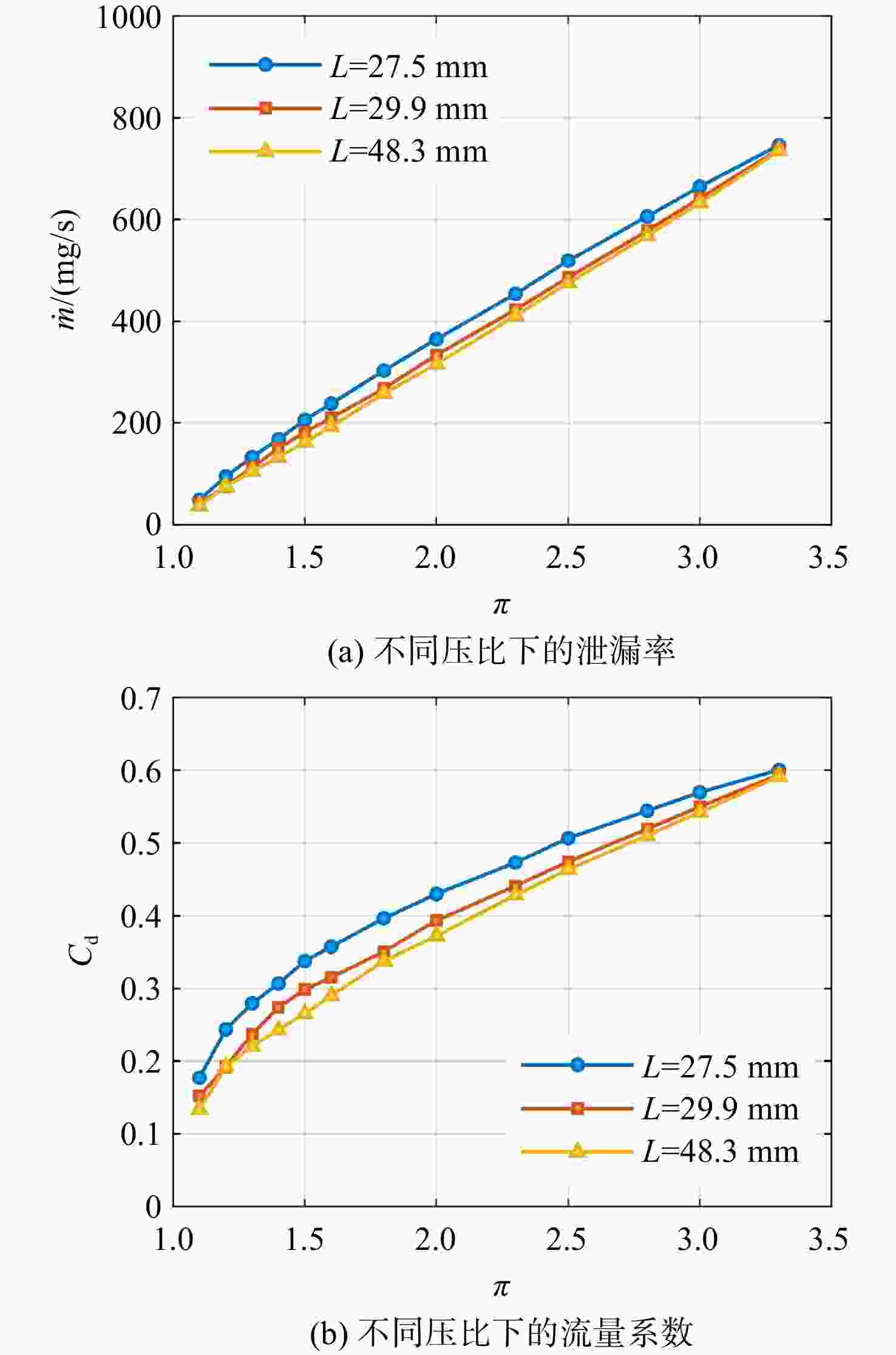

图 15 不同枢轴长度下的泄漏率与流量系数
Figure 15. Leakage rate and flow coefficient at different pivot lengths

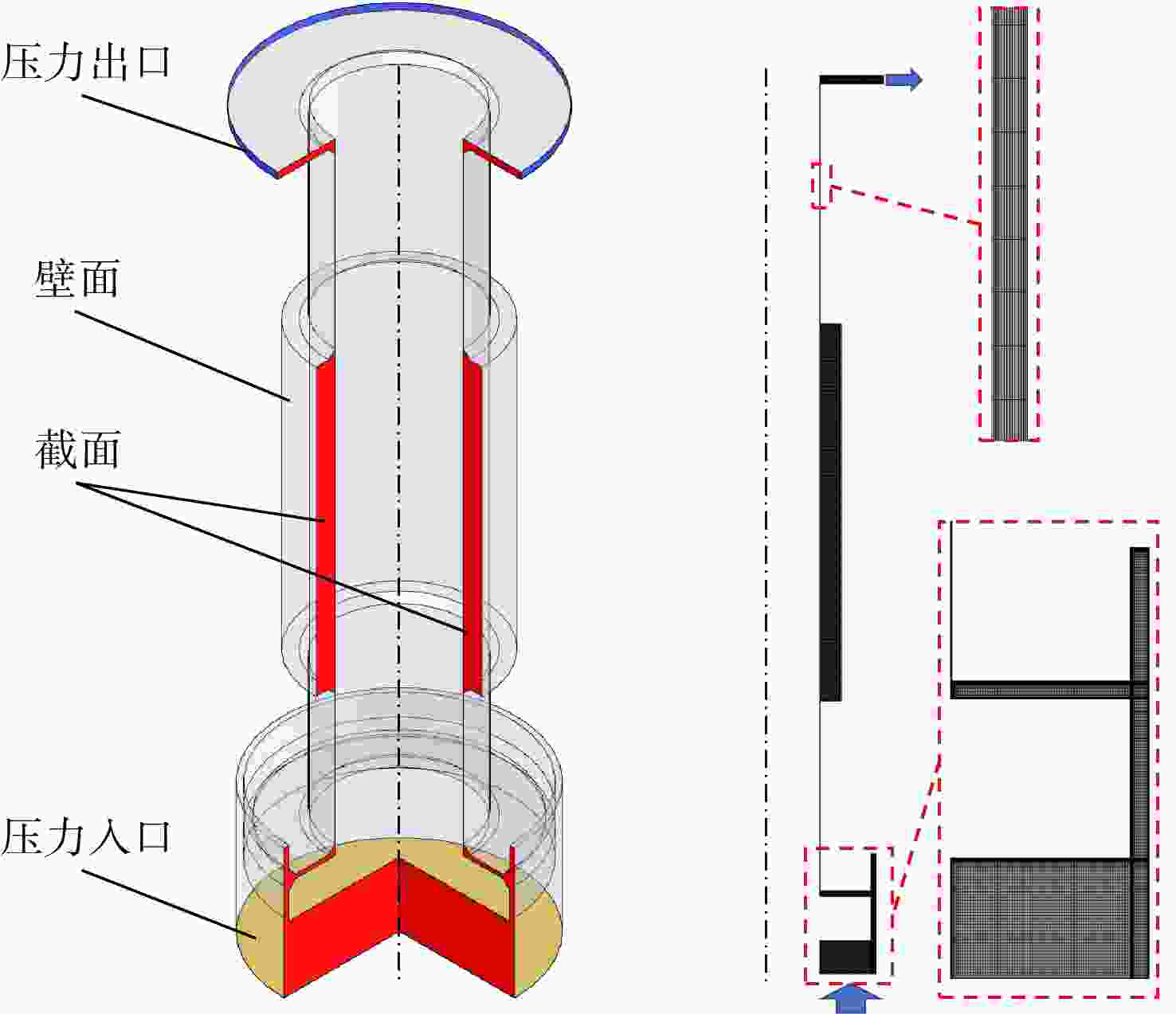

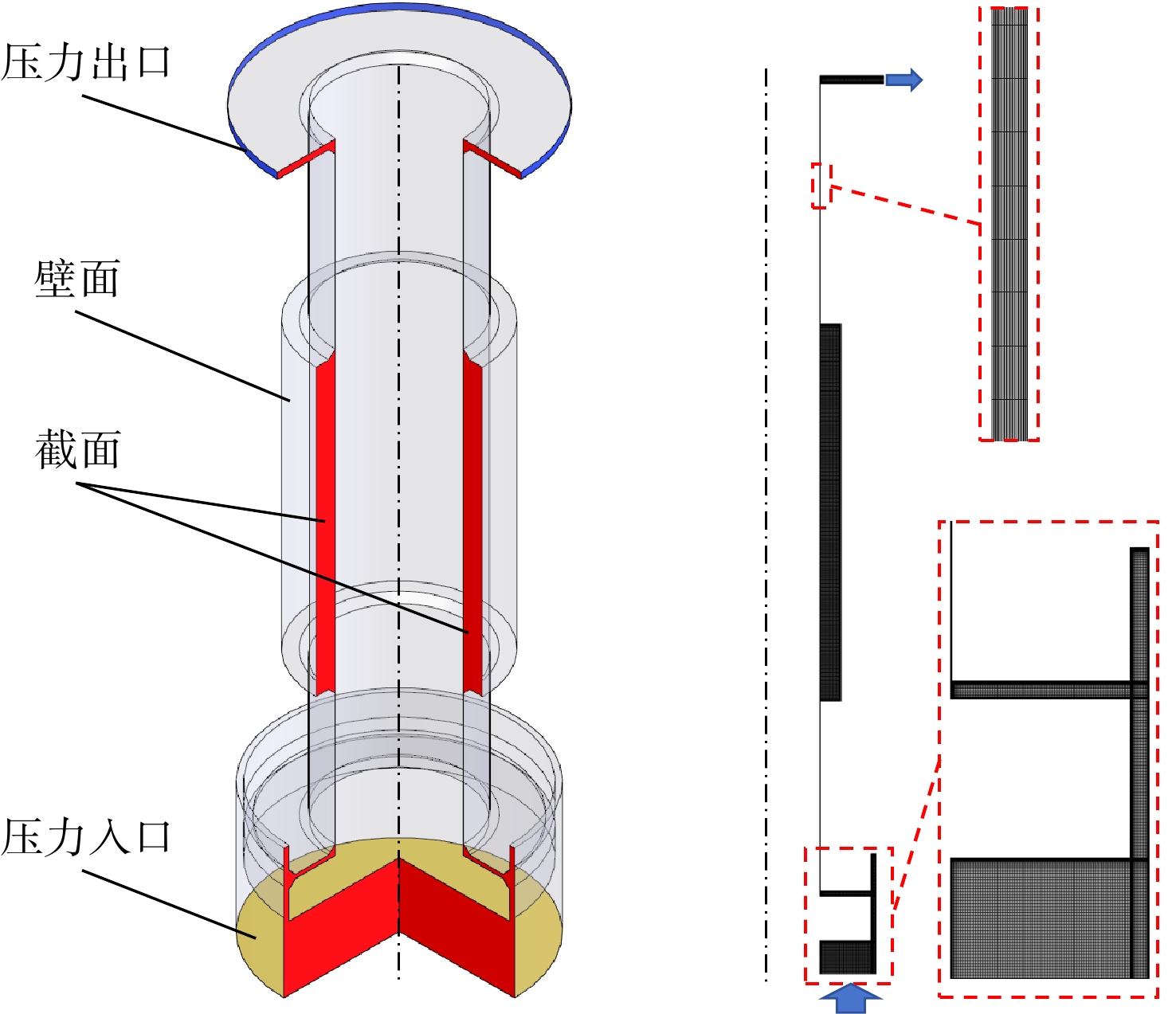

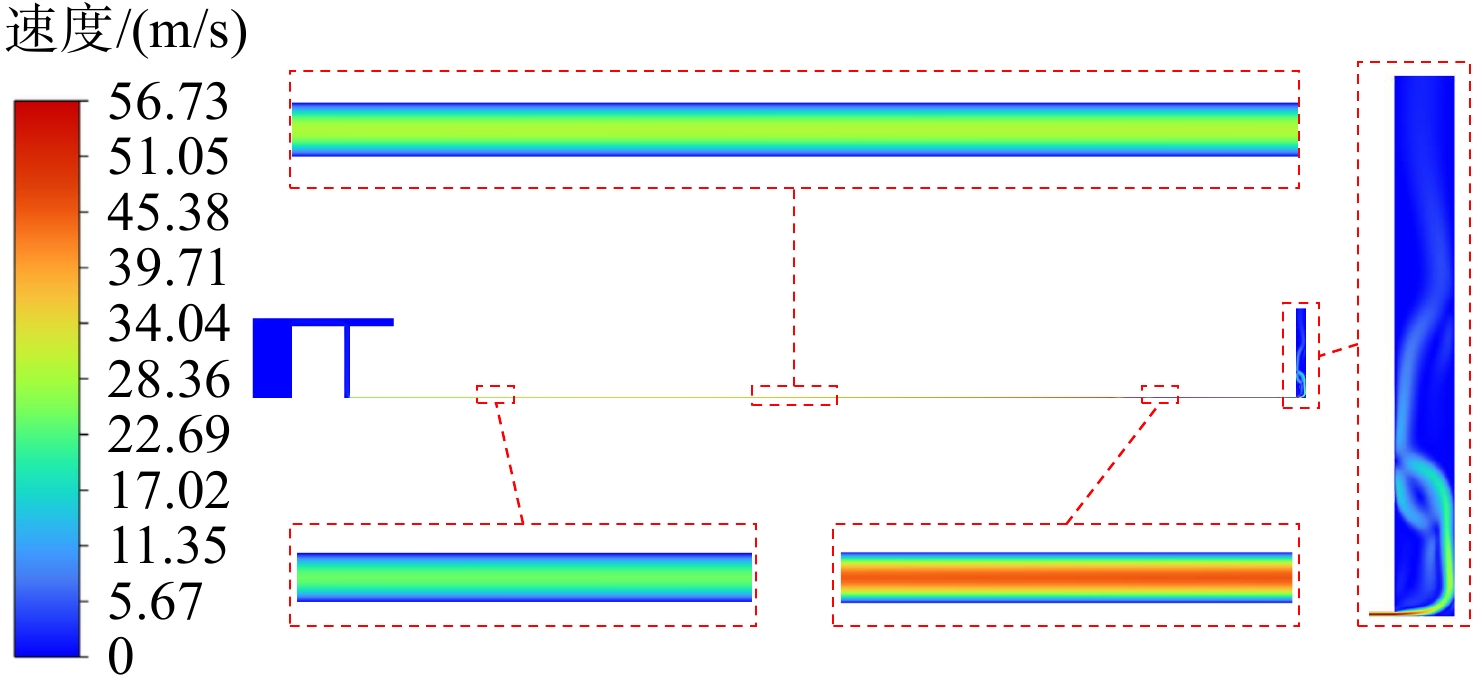

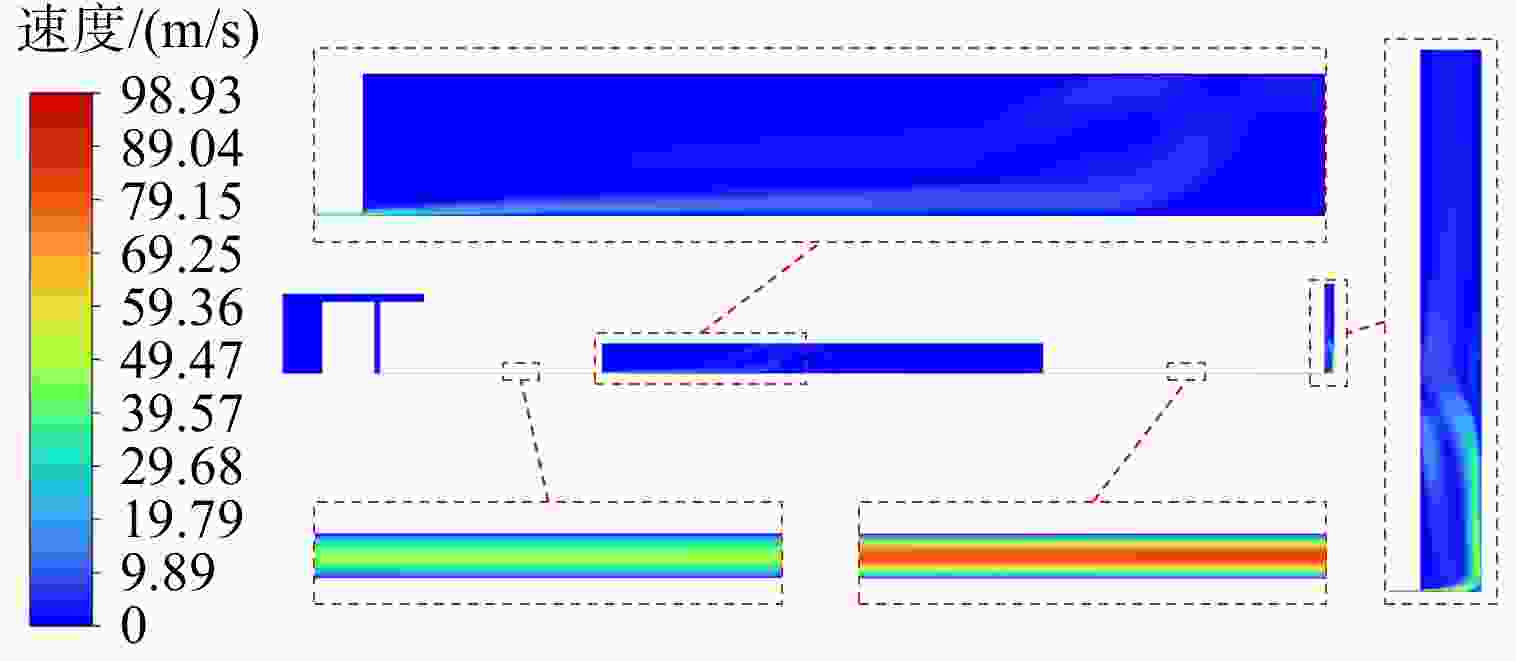

图 17 压比为2.5工况下的原始结构速度云图
Figure 17. Velocity contour diagram of the original structure at pressure ratio of 2.5

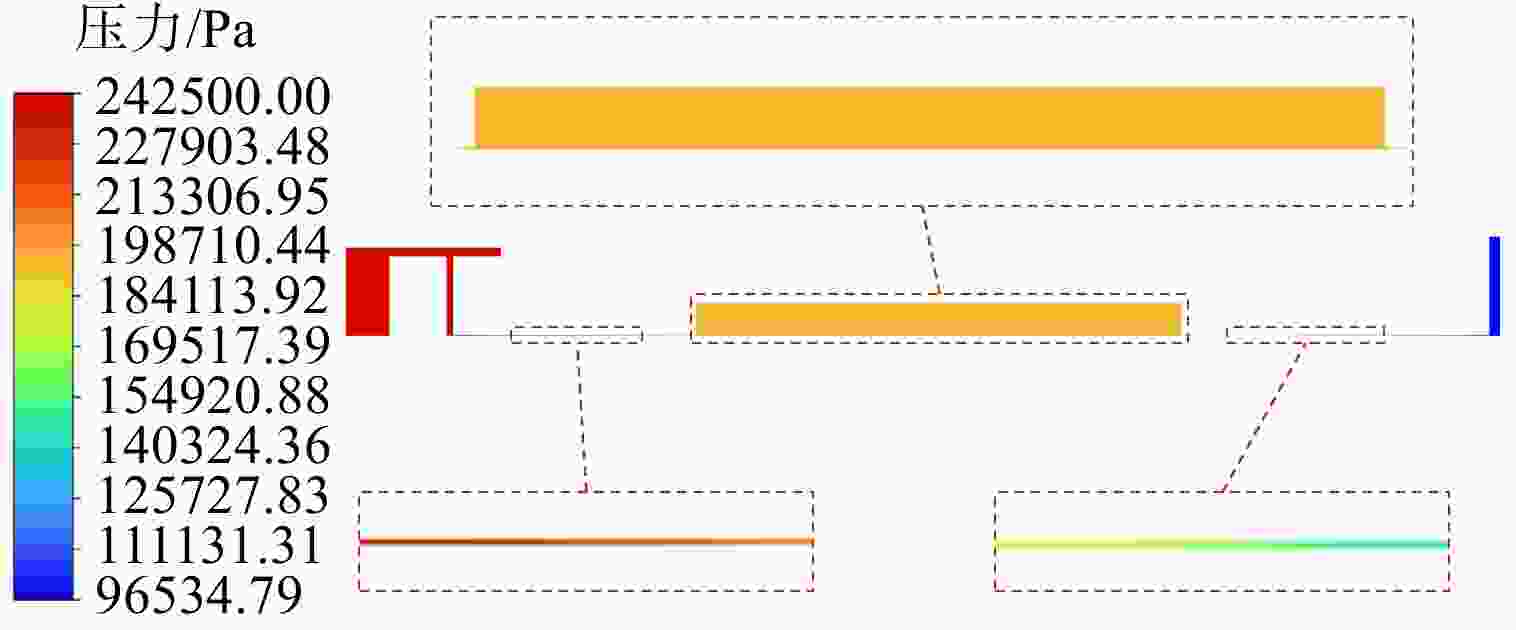

图 18 压比为2.5工况下的原始结构压力云图
Figure 18. Pressure contour diagram of the original structure at pressure ratio of 2.5

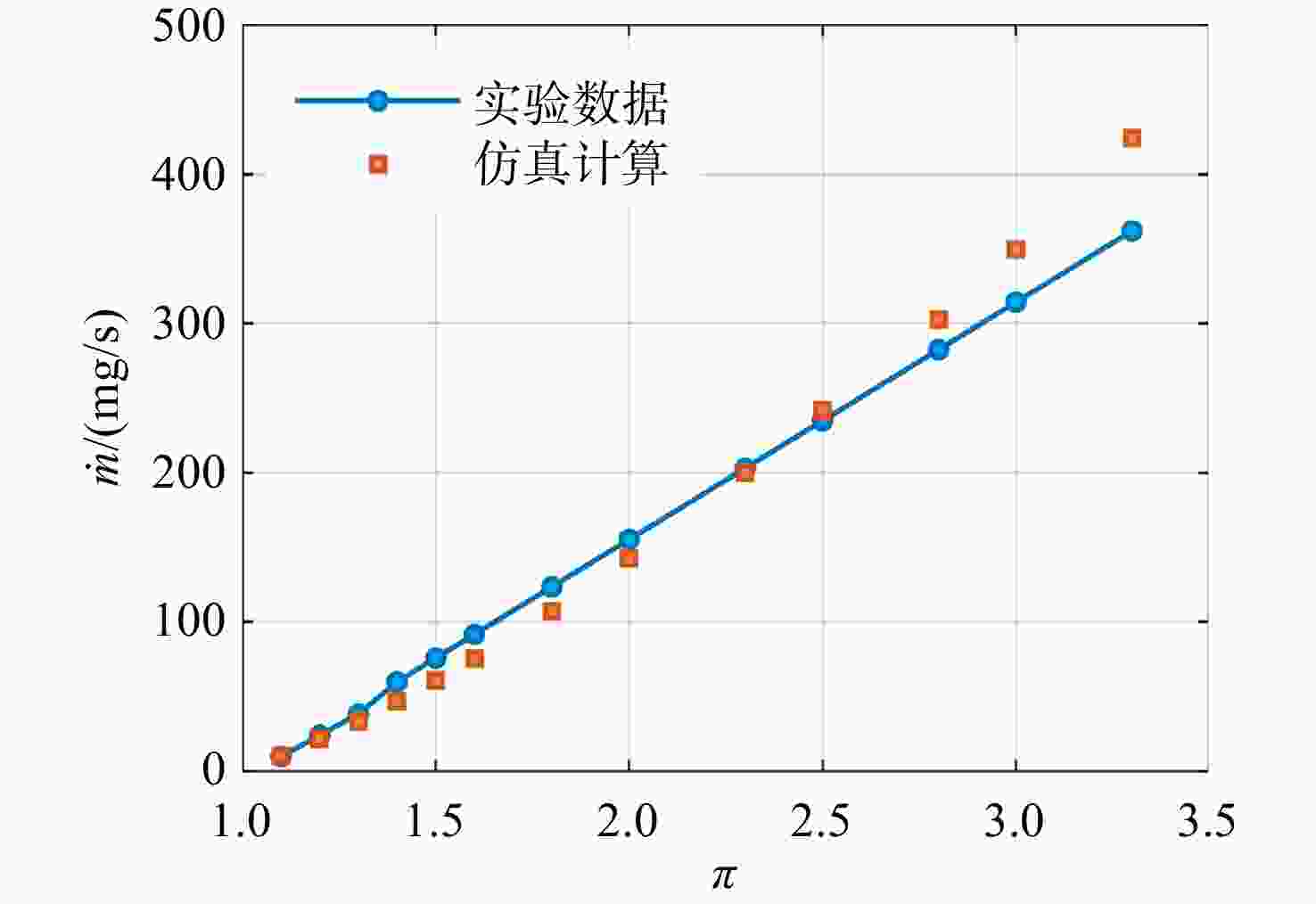

图 19 完全偏心状态实验数据与仿真计算对比图
Figure 19. Comparison of experimental data and simulation calculations in complete eccentric state

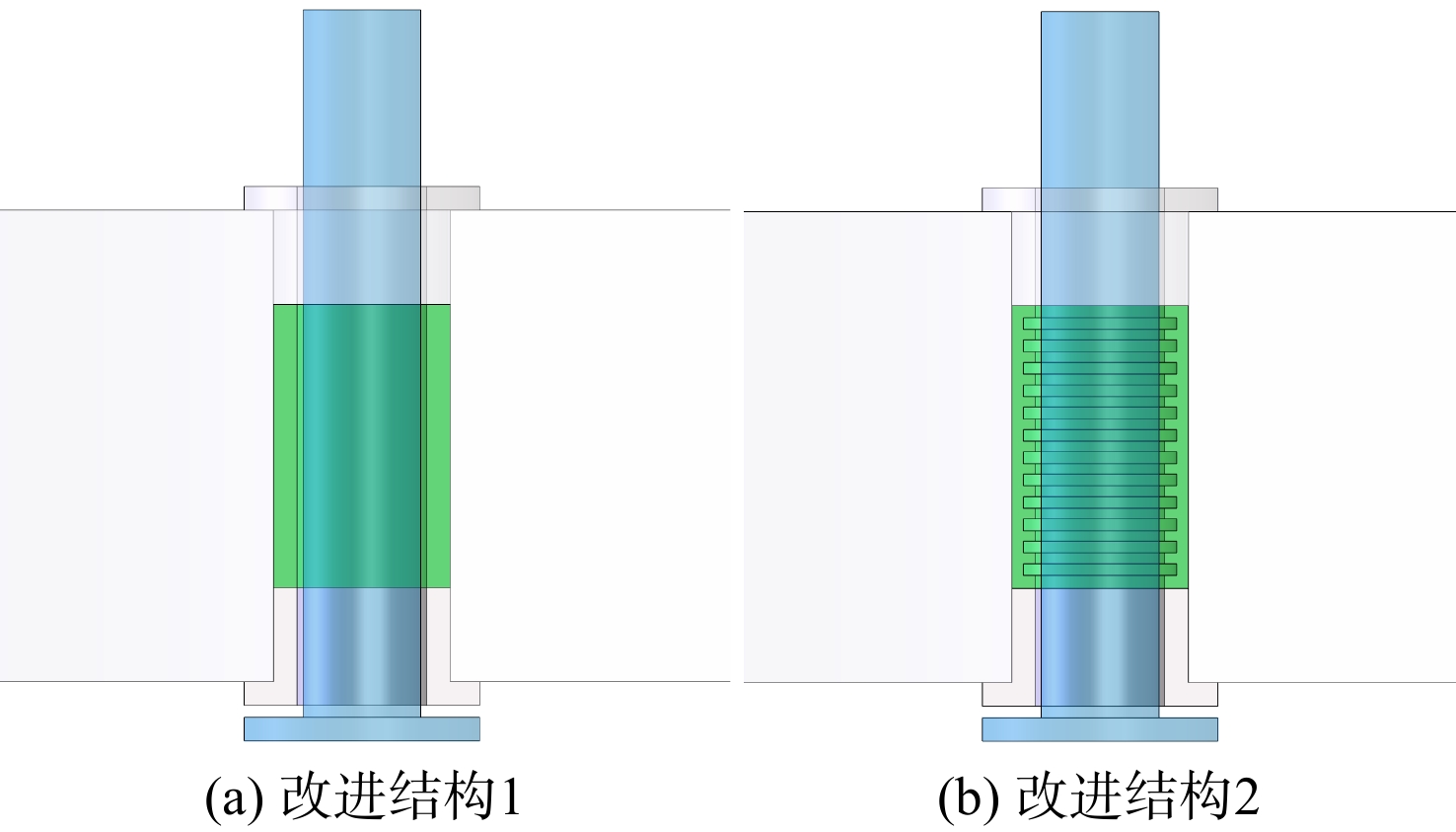

图 21 压比为2.5工况下的改进结构1速度云图
Figure 21. Velocity contour diagram of the improved structure 1 at pressure ratio of 2.5

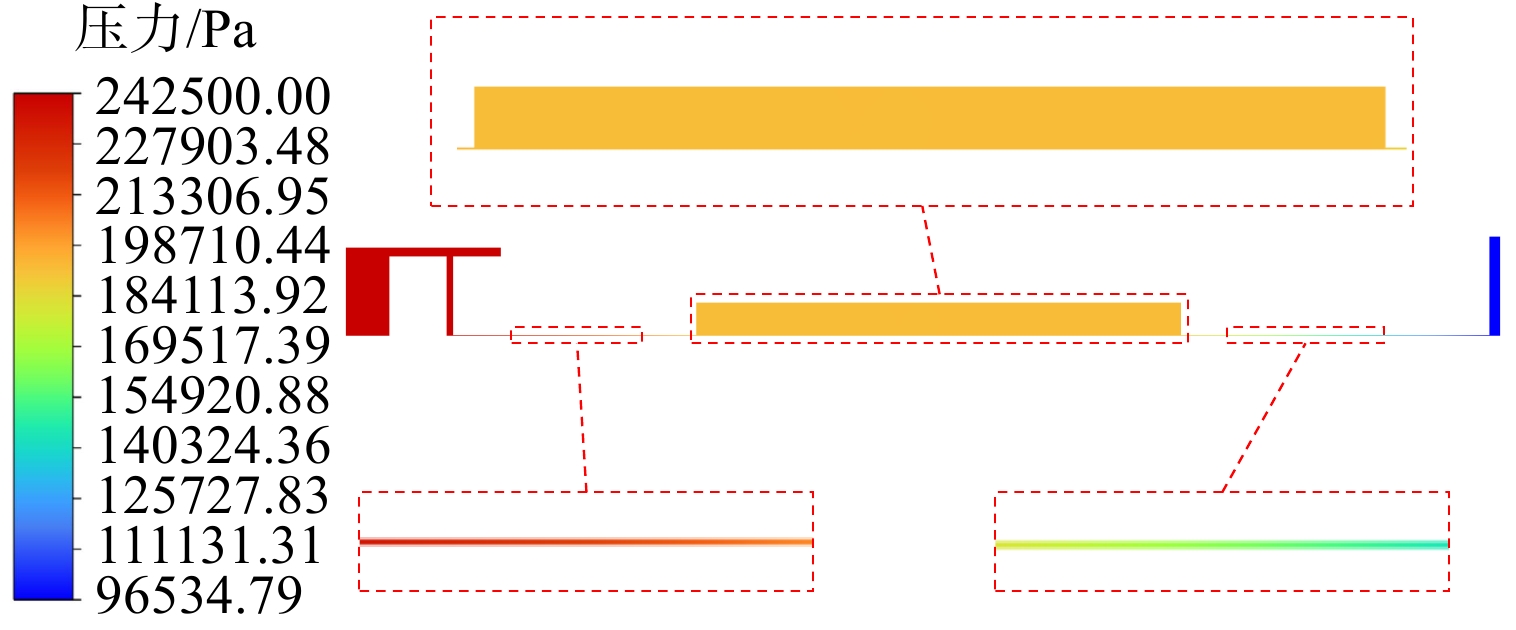

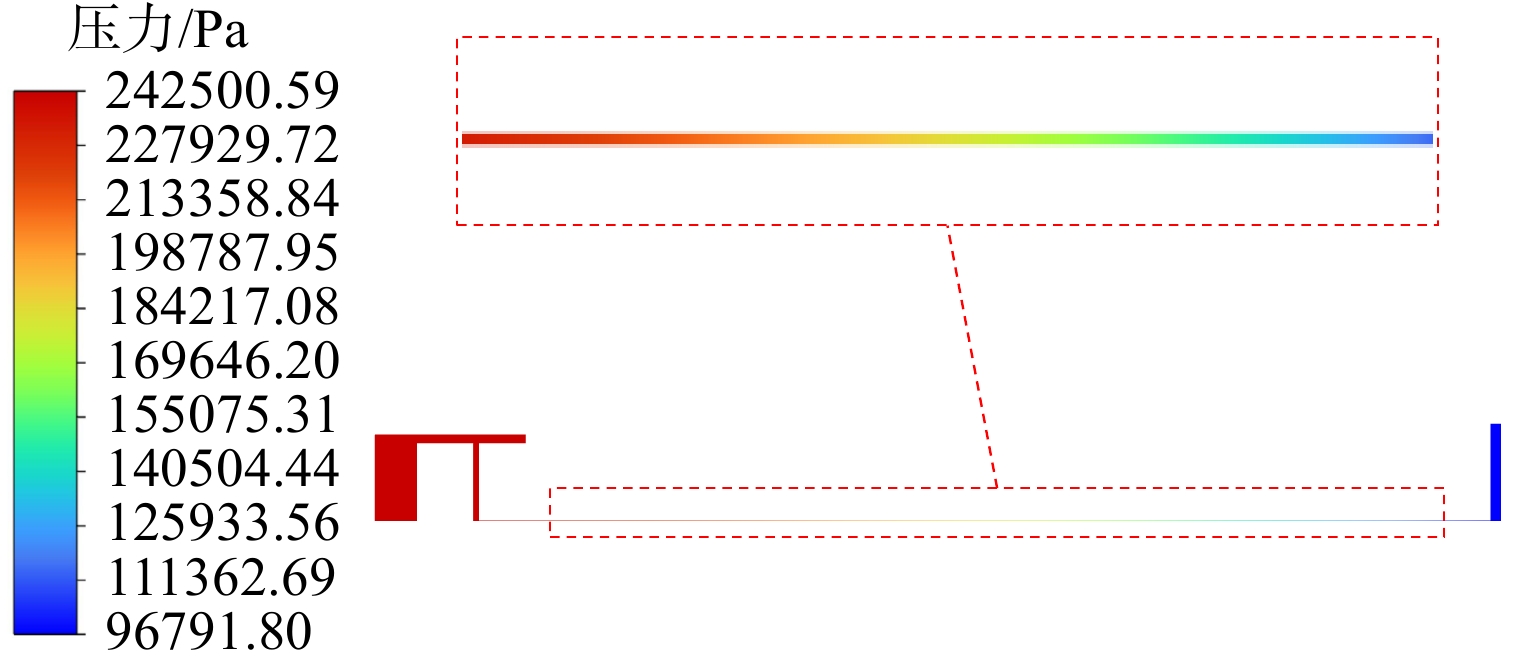

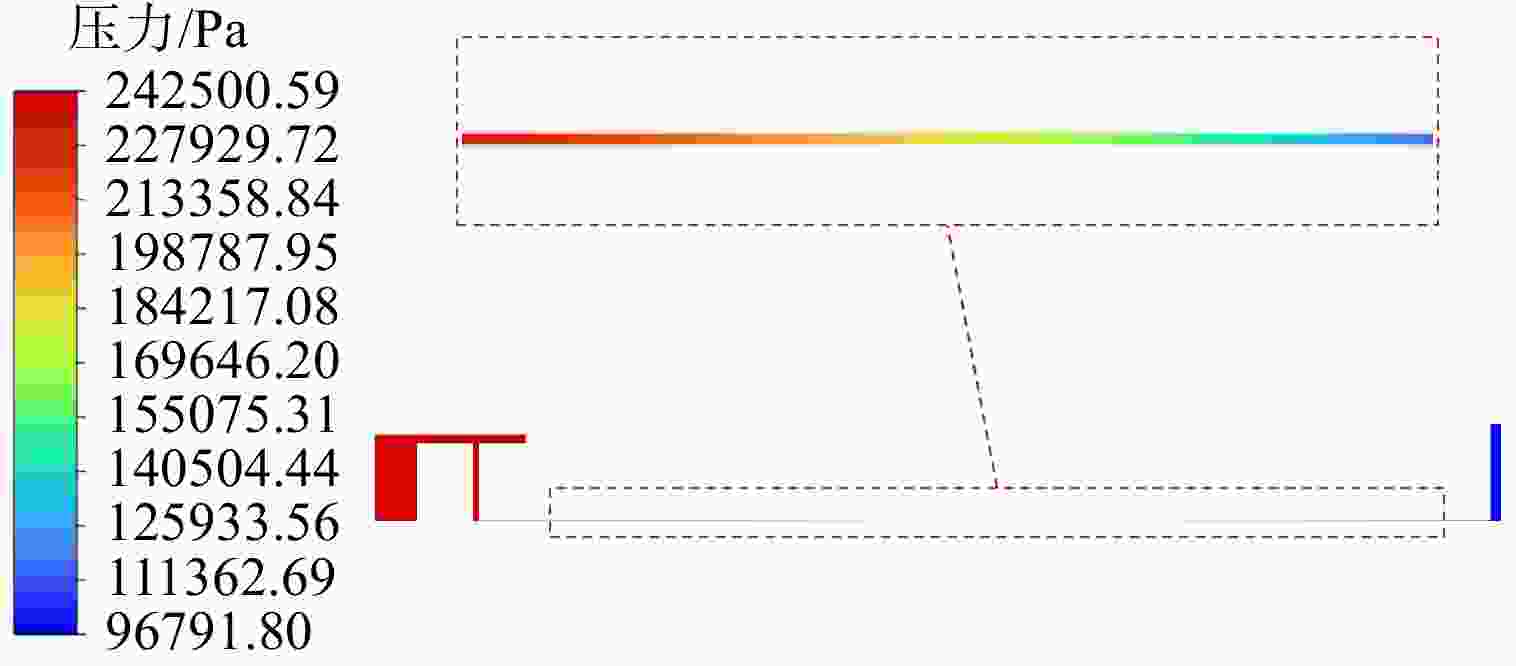

图 22 压比为2.5工况下的改进结构1压力云图
Figure 22. Pressure contour diagram of the improved structure 1 at pressure ratio of 2.5

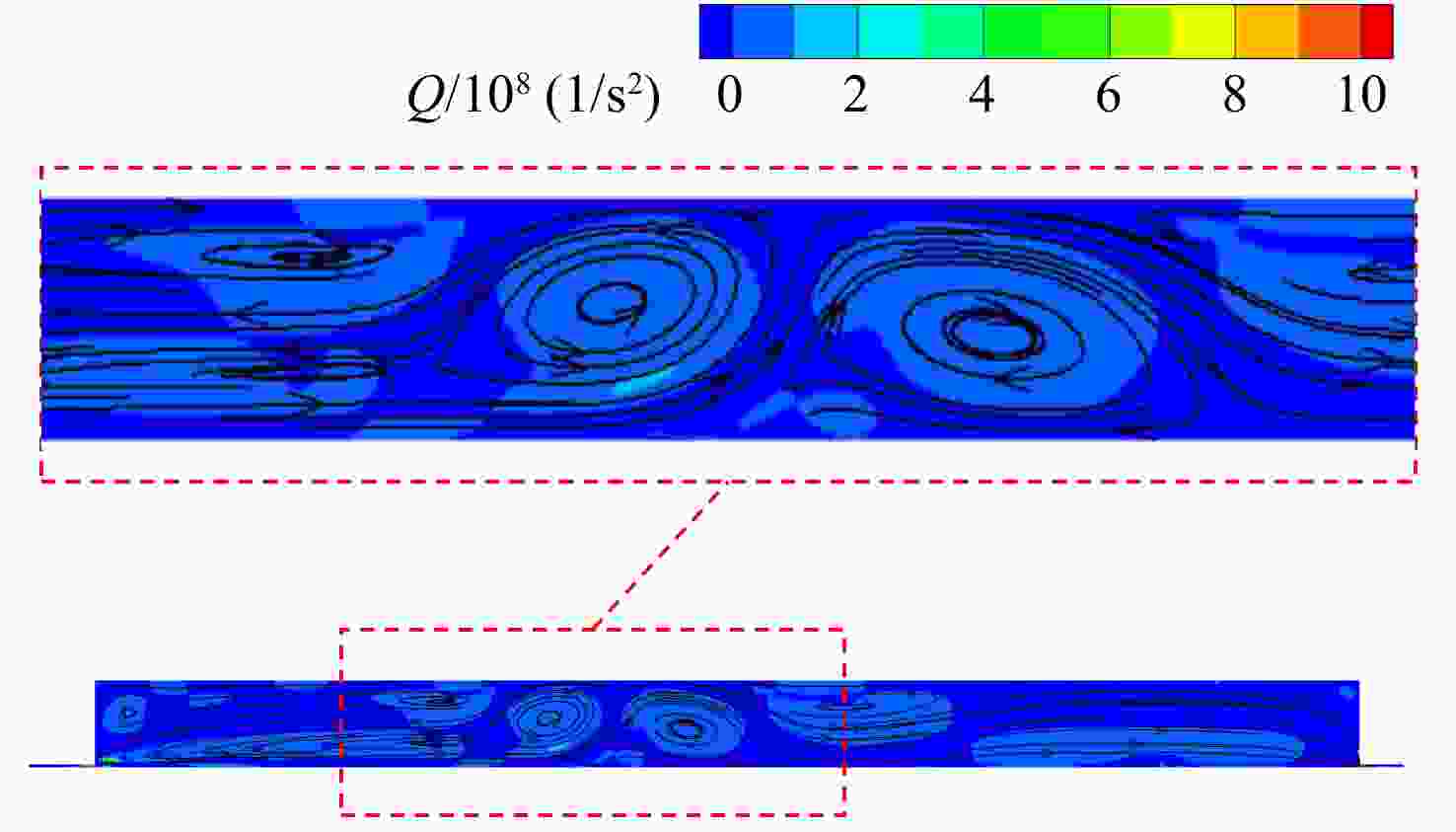

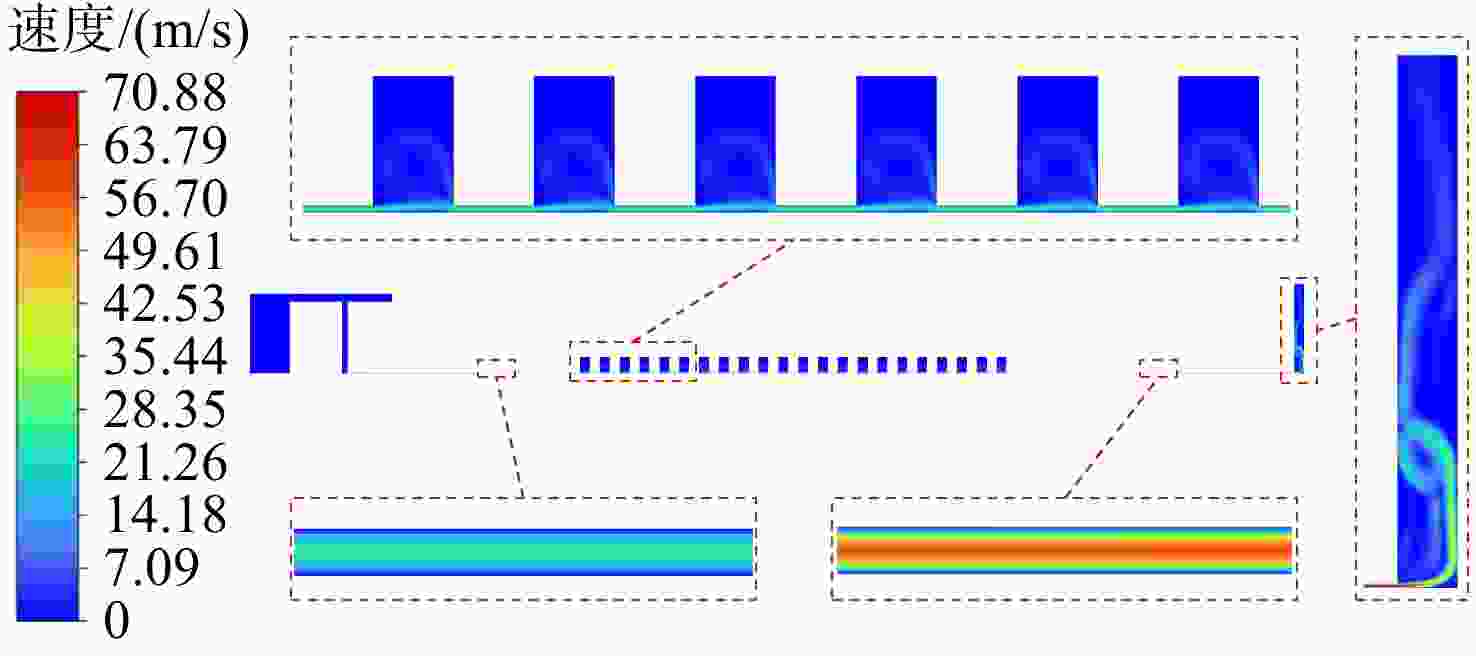

图 23 压比为2.5工况下的改进结构2速度云图
Figure 23. Velocity contour diagram of the improved structure 2 at pressure ratio of 2.5

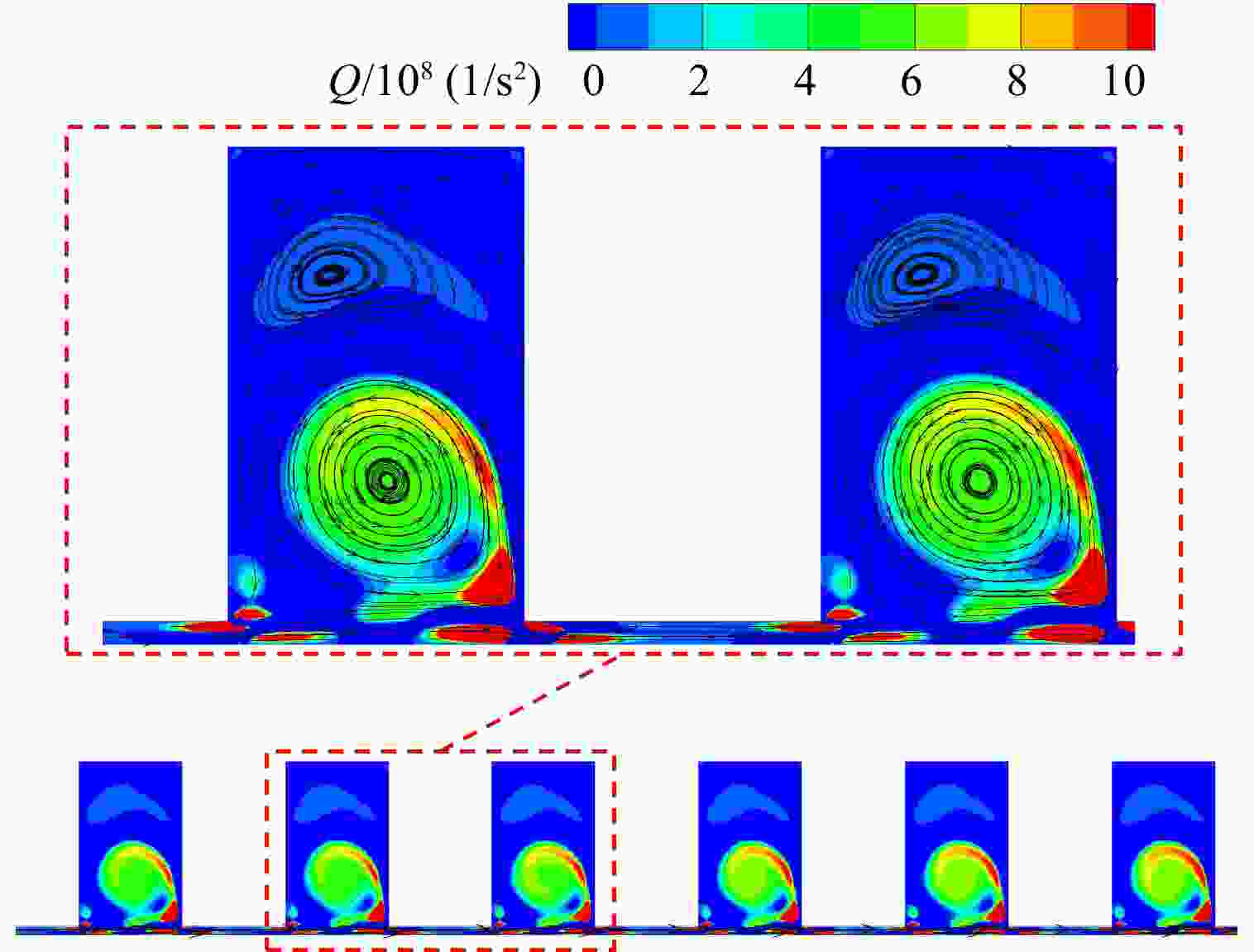

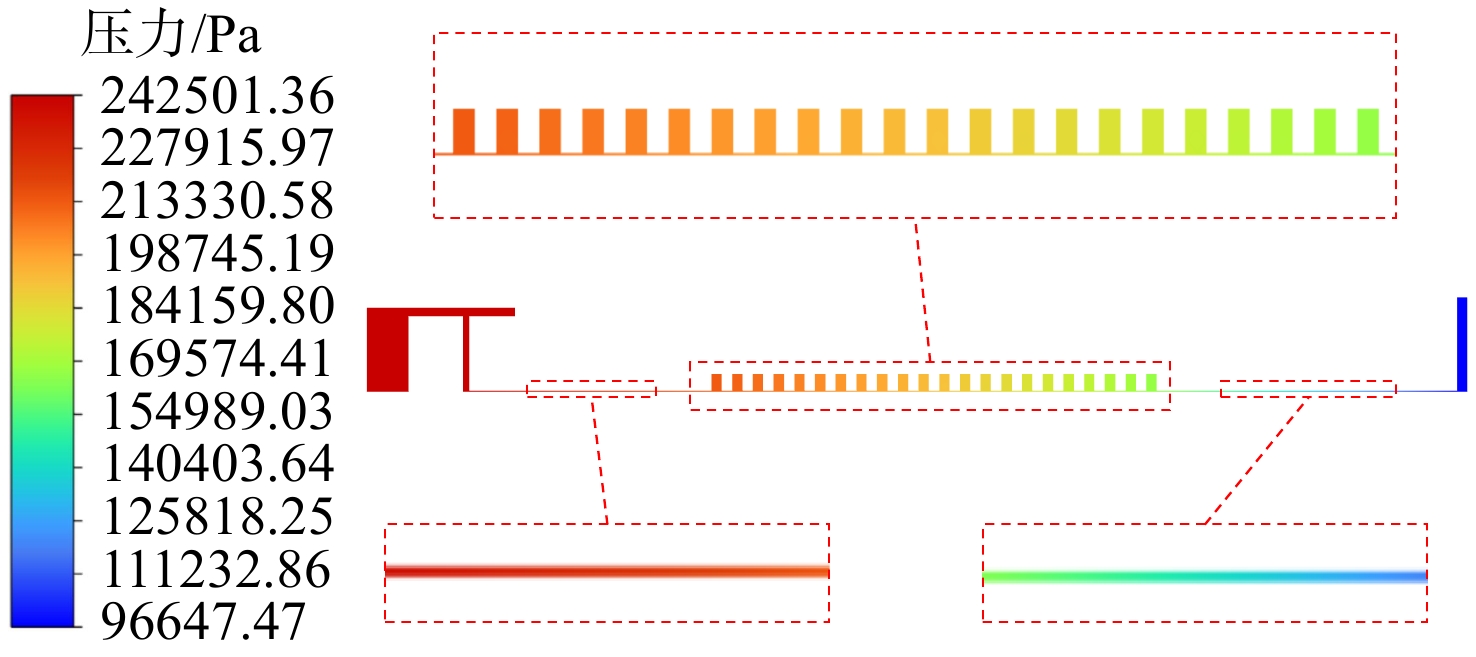

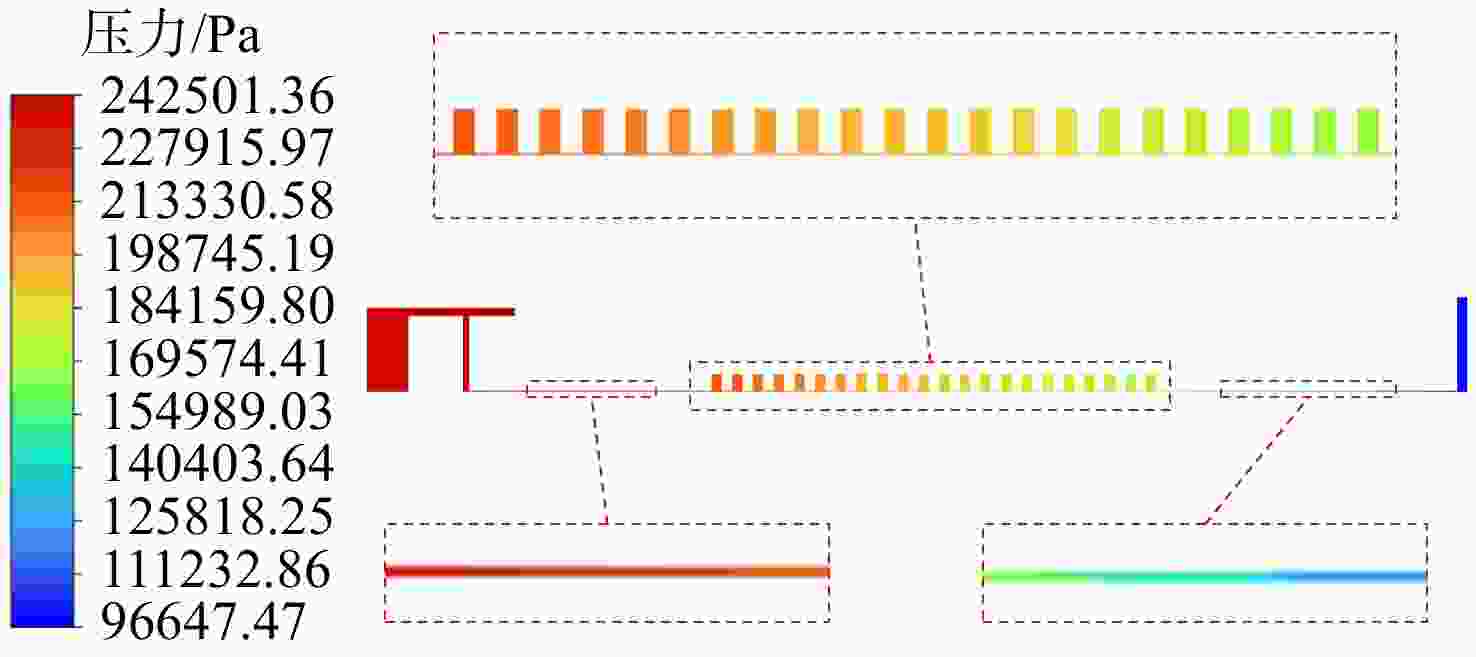

图 24 压比为2.5工况下的改进结构2压力云图
Figure 24. Pressure contour diagram of the improved structure 2 at pressure ratio of 2.5

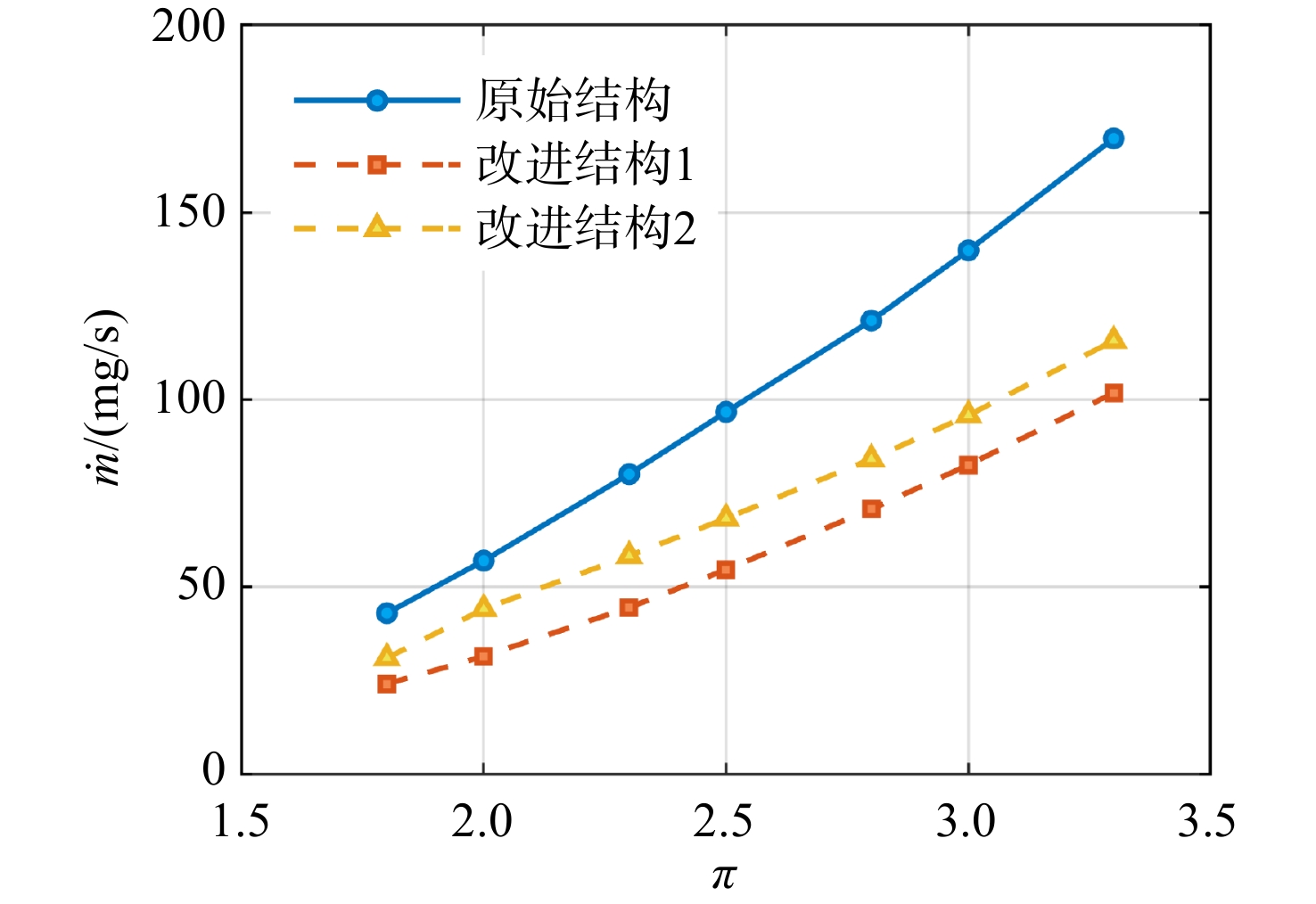

图 25 原始结构与改进结构泄漏率对比
Figure 25. Comparison of leakage rates between the original structure and the improved structures

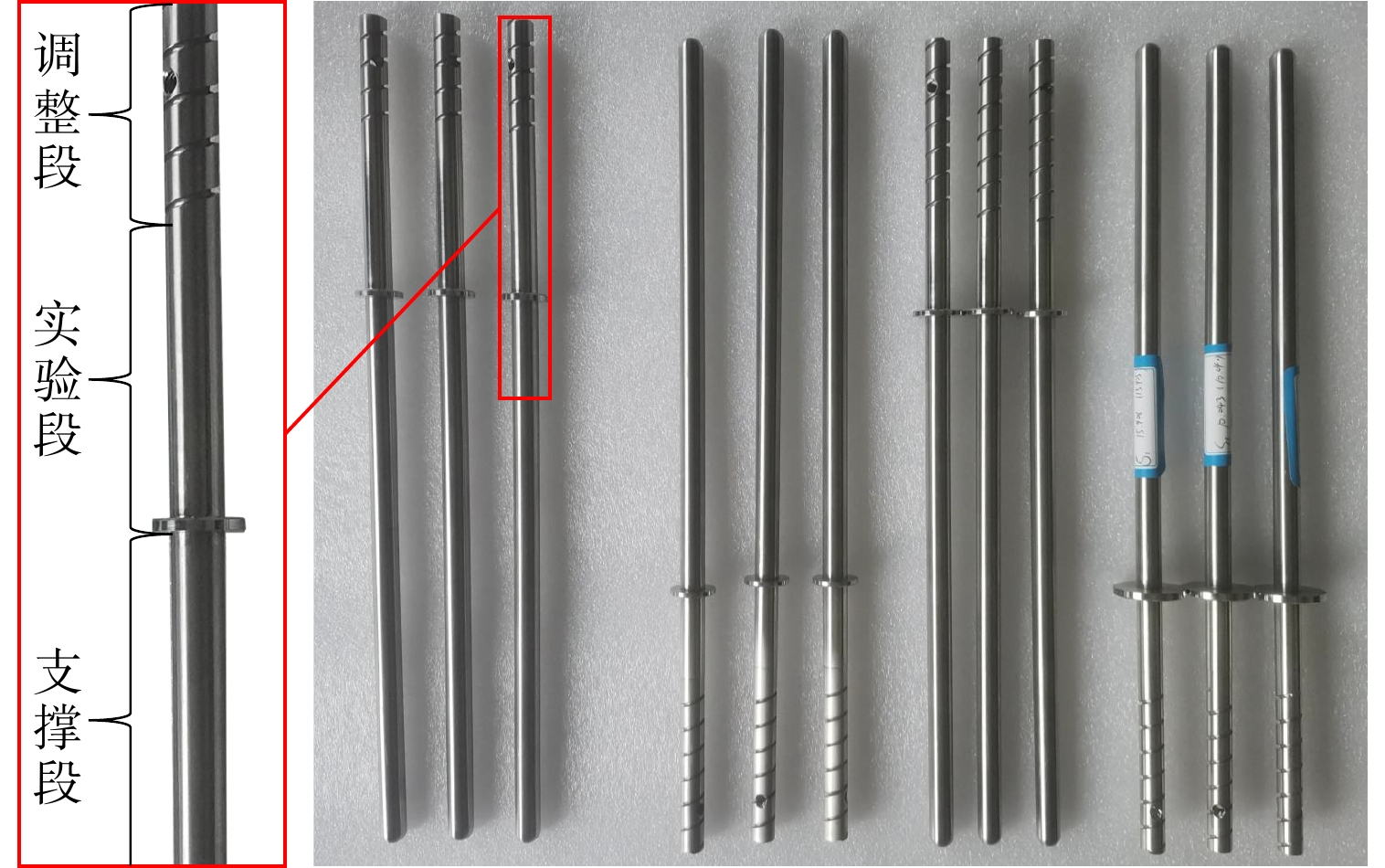

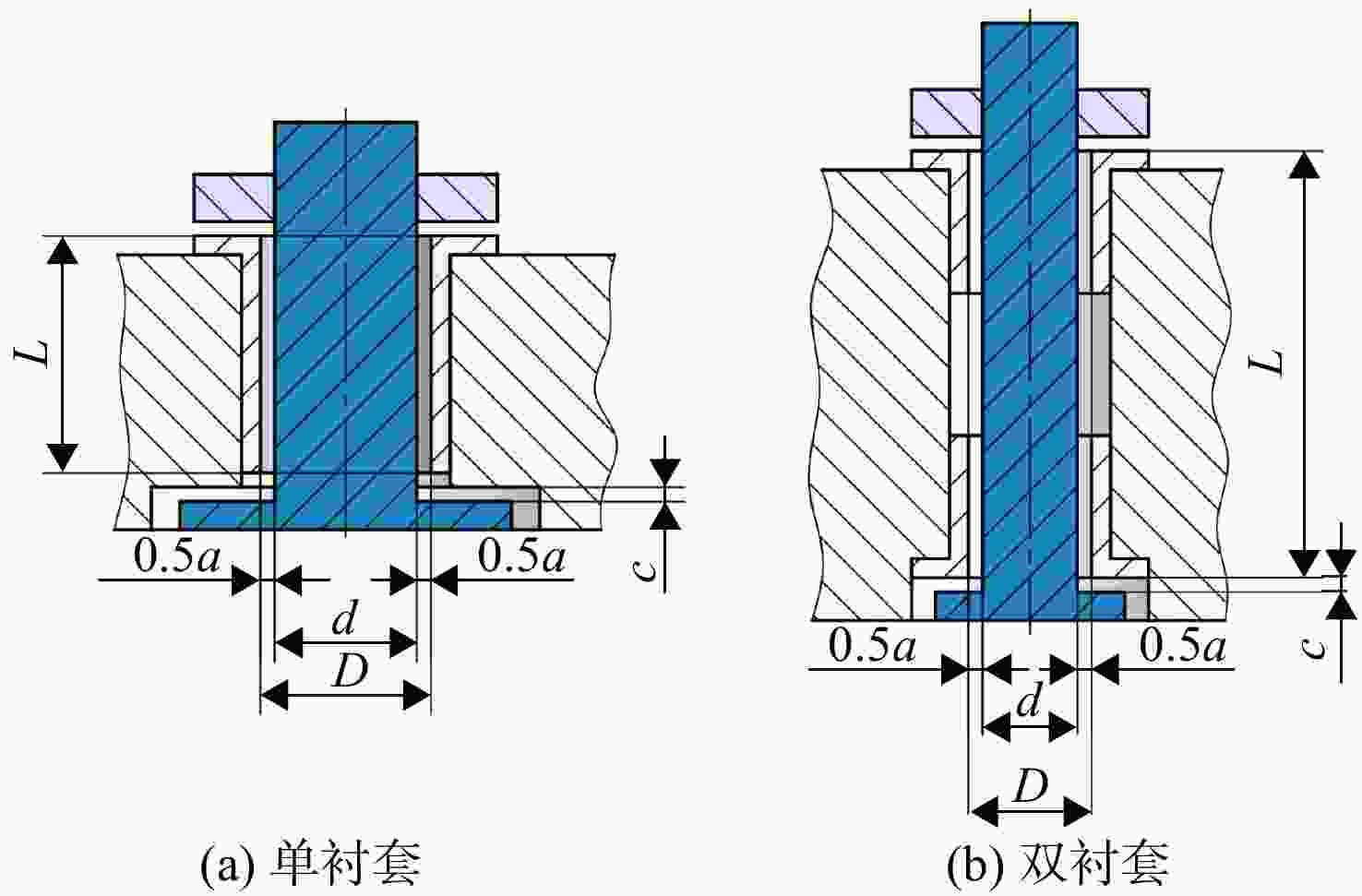

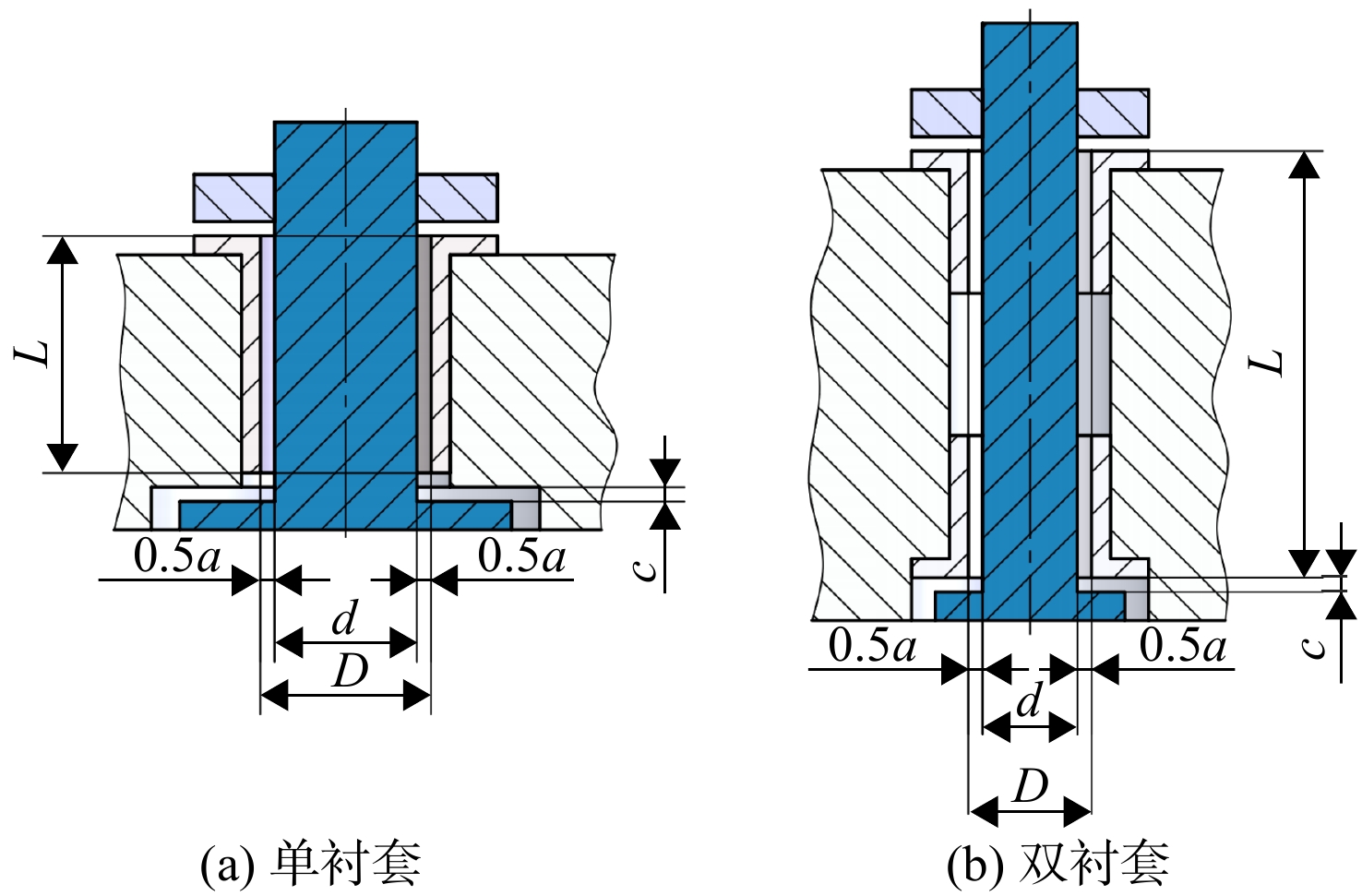

表 1 实验件间隙组别设置
Table 1. Setup of the gap categories for the experimental components
编号 枢轴结构 枢轴长度
$ L $/mm轴向间隙
$ a $/mm径向间隙
$ c $/mm0# 单衬套 19.5 0.06 0.2 0.11 0.17 1# 双衬套 29.9 0.07 0.2 0.12 0.18 2# 双衬套 27.5 0.09 0.2 0.12 0.18 3# 双衬套 32.7 0.07 0.2 0.12 0.18 4# 双衬套 48.3 0.08 0～0.3 0.09 0.12
下载: 导出CSV
表 2 主要参数的不确定度
Table 2. Uncertainty of the main parameters
参数 不确定度/% $ \Delta A/A $ 1.5 $ \Delta \dot{m}/\dot{m} $ 1 $ \Delta {\dot{m}}_{\text{id}}/{\dot{m}}_{\text{id}} $ 1.53 $ \Delta {C}_{\text{d}}/{C}_{\text{d}} $ 1.83
下载: 导出CSV
-
[1] 唐佑远, 郭为忠. 静叶调节机构尺度全局优化设计方法研究[J]. 机械工程学报, 2020, 56(11): 26-36. Tang Youyuan, Guo Weizhong. Global dimensional optimization for the design of adjusting mechanism of variable stator vanes[J]. Journal of Mechanical Engineering, 2020, 56(11): 26-36. (in Chinese doi: 10.3901/JME.2020.11.026Tang Youyuan, Guo Weizhong. Global dimensional optimization for the design of adjusting mechanism of variable stator vanes[J]. Journal of Mechanical Engineering, 2020, 56(11): 26-36. (in Chinese) doi: 10.3901/JME.2020.11.026 [2] Jia Xingyun, Zhou Dengji, Huang Dawen, et al. Parametric analysis of variable stator vane system in gas turbines based on cosimulation of its refined model and system dynamic performance model[J]. Advanced Theory and Simulations, 2021, 4(12): 2100286. doi: 10.1002/adts.202100286 [3] Moreno J, Dodds J, Sheaf C, et al. Aerodynamic loading considerations of three-shaft engine compression system during surge[J]. Journal of Turbomachinery, 2021, 143(12): 121002. doi: 10.1115/1.4051207 [4] Li Jichao, Lin Feng, Nie Chaoqun, et al. Automatic efficiency optimization of an axial compressor with adjustable inlet guide vanes[J]. Journal of Thermal Science, 2012, 21(2): 120-126. doi: 10.1007/s11630-012-0526-5 [5] Zhang Meijie, Qi Mingxu. Effects of endwall clearances of variable diffuser vane on centrifugal compressor performance[J]. Aerospace Science and Technology, 2024, 153: 109459. doi: 10.1016/j.ast.2024.109459 [6] Ajith Pisharam A, Raja V, Raji A P, et al. Improving the stage efficiency of axial compressors by vane rotation[R]. Bengaluru, India: 8th Biennial ASME Gas Turbine India Conference (GTINDIA), 2023. [7] 熊劲松, 侯安平, 袁巍, 等. 可调叶片的发展趋势及其气动问题的探讨[J]. 航空动力学报, 2008, 23(1): 112-116. Xiong Jinsong, Hou Anping, Yuan Wei, et al. Some discuss on technology trend and aerodynamics problem of adjustable blade[J]. Journal of Aerospace Power, 2008, 23(1): 112-116. (in ChineseXiong Jinsong, Hou Anping, Yuan Wei, et al. Some discuss on technology trend and aerodynamics problem of adjustable blade[J]. Journal of Aerospace Power, 2008, 23(1): 112-116. (in Chinese) [8] 李春曦, 范福伟, 刘宏凯, 等. 弦向掠叶片对动叶可调轴流风机性能影响模拟[J]. 机械工程学报, 2019, 55(14): 151-159. Li Chunxi, Fan Fuwei, Liu Hongkai, et al. Simulation on aerodynamic performance of a variable-pitch axial flow fan with chordwise swept blades[J]. Journal of Mechanical Engineering, 2019, 55(14): 151-159. (in ChineseLi Chunxi, Fan Fuwei, Liu Hongkai, et al. Simulation on aerodynamic performance of a variable-pitch axial flow fan with chordwise swept blades[J]. Journal of Mechanical Engineering, 2019, 55(14): 151-159. (in Chinese) [9] Chang Jing, Luo Zhong, Zhang Hongwei, et al. A novel concept of components system stiffness and stiffness model application for VSV adjustment mechanism[J]. International Journal of Non-Linear Mechanics, 2024, 161: 104666. doi: 10.1016/j.ijnonlinmec.2024.104666 [10] Chang Jing, Luo Zhong, Wei Kai, et al. Investigation of spatial plane joint characteristic for dynamic analysis of VSV mechanism based on similarity scaling technique[J]. International Journal of Non-Linear Mechanics, 2023, 148: 104300. doi: 10.1016/j.ijnonlinmec.2022.104300 [11] Peng C. Numerical predictions of rotating stall in an axial multi-stage-compressor[R]. ASME GT2011-45503, 2011. [12] 吴森林, 赵正, 王文琪, 等. 封严腔泄漏流对压气机性能影响的试验研究[J]. 航空动力学报, 2025, 40(6): 20230036. Wu Senlin, Zhao Zheng, Wang Wenqi, et al. Experimental investigation of the influence of seal cavity leakage on a compressor performance[J]. Journal of Aerospace Power, 2025, 40(6): 20230036. (in Chinese). doi: 10.13224/j.cnki.jasp.20230036Wu Senlin, Zhao Zheng, Wang Wenqi, et al. Experimental investigation of the influence of seal cavity leakage on a compressor performance[J]. Journal of Aerospace Power, 2025, 40(6): 20230036. (in Chinese). doi: 10.13224/j.cnki.jasp.20230036 [13] 宋权斌, 张方圆, 王方才子, 等. 级间封严篦齿对压气机气动性能的影响机制研究[J]. 润滑与密封, 2025, 50(5): 70-77. Song Quanbin, Zhang Fangyuan, Wang Fangcaizi, et al. Research on the influence mechanism of inter-stage labyrinth seal on compressor aerodynamic performance[J]. Lubrication Engineering, 2025, 50(5): 70-77. (in ChineseSong Quanbin, Zhang Fangyuan, Wang Fangcaizi, et al. Research on the influence mechanism of inter-stage labyrinth seal on compressor aerodynamic performance[J]. Lubrication Engineering, 2025, 50(5): 70-77. (in Chinese) [14] 邵润珠, 滕金芳, 樊琳, 等. 低速大尺寸压气机静叶蜂窝与篦齿间隙泄漏流[J]. 上海交通大学学报, 2026, 60(3): 486-498. Shao Runzhu, Teng Jinfang, Fan Lin, et al. Leakage flow between honeycomb and labyrinth in stator of low-speed research compressor[J]. Journal of Shanghai Jiaotong University, 2026, 60(3): 486-498. (in Chinese).Shao Runzhu, Teng Jinfang, Fan Lin, et al. Leakage flow between honeycomb and labyrinth in stator of low-speed research compressor[J]. Journal of Shanghai Jiaotong University, 2026, 60(3): 486-498. (in Chinese). [15] Ribi B, Meyer M P. Influence of gap between casing and variable stator blade on axial compressor performance[R]. ASME GT2008-50301, 2008. [16] 潘波, 陶海亮, 赵洪雷, 等. 可调导叶端壁间隙泄漏损失控制方法研究[J]. 工程热物理学报, 2013, 34(4): 618-623. Pan Bo, Tao Hailiang, Zhao Honglei, et al. Investigation on the control strategy of variable guide vane endwall gap leakage loss[J]. Journal of Engineering Thermophysics, 2013, 34(4): 618-623. (in ChinesePan Bo, Tao Hailiang, Zhao Honglei, et al. Investigation on the control strategy of variable guide vane endwall gap leakage loss[J]. Journal of Engineering Thermophysics, 2013, 34(4): 618-623. (in Chinese) [17] Payling S R. Variable stator vane assembly: US5807072[P]. 1998-09-15. [18] Hawkins R, Mckibbin A. Development of compressor end seals stator interstage seals and stator pivot seals in advanced air breathing propulsion systems[R]. Cleveland, US: NASA Lewis Research Center, 1966. [19] 李超, 宾光富, 李坚, 等. 砂粒粒径对航空涡轴发动机压气机叶片冲蚀磨损的影响研究[J]. 机械工程学报, 2022, 58(19): 180-190. Li Chao, Bin Guangfu, Li Jian, et al. Influence of sand particle size on the erosive wear of compressor blade in an aero-turboshaft engine[J]. Journal of Mechanical Engineering, 2022, 58(19): 180-190. (in ChineseLi Chao, Bin Guangfu, Li Jian, et al. Influence of sand particle size on the erosive wear of compressor blade in an aero-turboshaft engine[J]. Journal of Mechanical Engineering, 2022, 58(19): 180-190. (in Chinese) [20] Harnafi M, Guidault P A, Boucard P A, et al. A simplified model for the wear prediction of plain bearings in the variable stator vane system[J]. Tribology International, 2024, 196: 109667. doi: 10.1016/j.triboint.2024.109667 [21] He Ke, Ma Yufei, Zhang Zhinan. Tribo-informatics approach to investigate the friction and wear of bushings in the variable stator vane system[J]. Journal of Tribology, 2023, 145(12): 121704. doi: 10.1115/1.4063186 [22] Xu Hanzhong, Wu Dianliang, Zou Kai, et al. An intelligent detection method for assembly based on multi-model cascade[C]//Proceedings of the 2024 16th International Conference on Machine Learning and Computing. New York, US: Association for Computing Machinery, 2024: 280-286. [23] Teng Xiaoxin, Luo Zhong, Yu Xi, et al. A wear simulation approach based on the energy consumption model and its application to the VSV bushing wear analysis[J]. Tribology International, 2024, 195: 109609. doi: 10.1016/j.triboint.2024.109609 [24] Janssen J, Pohl D, Jeschke P, et al. Effect of an axially tilted variable stator vane platform on penny cavity and main flow[J]. Journal of Turbomachinery, 2022, 144(2): 021010. doi: 10.1115/1.4052314 [25] Luo Zhong, Ji Haiyang, Zhang Hongwei, et al. Dynamic characteristics investigation of variable stator vanes mechanism considering mixed clearances[J]. Mechanics Based Design of Structures and Machines, 2025, 53(5): 3663-3683. doi: 10.1080/15397734.2024.2434556 [26] 杨延杰, 黄奕勇, 韩伟, 等. 空间小管路泄漏率的保压测量方法[J]. 航天器环境工程, 2024, 41(4): 509-515. Yang Yanjie, Huang Yiyong, Han Wei, et al. A method of pressure maintaining leakage rate detection of small pipelines for space use[J]. Spacecraft Environment Engineering, 2024, 41(4): 509-515. (in Chinese doi: 10.12126/see.2023131Yang Yanjie, Huang Yiyong, Han Wei, et al. A method of pressure maintaining leakage rate detection of small pipelines for space use[J]. Spacecraft Environment Engineering, 2024, 41(4): 509-515. (in Chinese) doi: 10.12126/see.2023131 [27] 向新, 晏鑫, 李志刚, 等. 迷宫蜂窝密封泄漏特性的实验测量和数值研究[J]. 西安交通大学学报, 2022, 56(11): 72-82. Xiang Xin, Yan Xin, Li Zhigang, et al. Experimental measurement and numerical investigation on the leakage flow characteristics of labyrinth honeycomb seal[J]. Journal of Xi’an Jiaotong University, 2022, 56(11): 72-82. (in Chinese doi: 10.7652/xjtuxb202211008Xiang Xin, Yan Xin, Li Zhigang, et al. Experimental measurement and numerical investigation on the leakage flow characteristics of labyrinth honeycomb seal[J]. Journal of Xi’an Jiaotong University, 2022, 56(11): 72-82. (in Chinese) doi: 10.7652/xjtuxb202211008 [28] 廖平平, 蔡茂林, 张利剑. 气体泄漏流量非介入式超声测量方法[J]. 机床与液压, 2016, 44(7): 21-25. Liao Pingping, Cai Maolin, Zhang Lijian. Invasive ultrasonic method for leakage flow rate measurement[J]. Machine Tool & Hydraulics, 2016, 44(7): 21-25. (in ChineseLiao Pingping, Cai Maolin, Zhang Lijian. Invasive ultrasonic method for leakage flow rate measurement[J]. Machine Tool & Hydraulics, 2016, 44(7): 21-25. (in Chinese) [29] 温诗铸. 摩擦学原理[M]. 北京: 清华大学出版社, 1990. [30] 蔡仁良, 顾伯勤, 宋鹏云. 过程装备密封技术[M]. 2版. 北京: 化学工业出版社, 2006. [31] Zuk J. Fundamentals of fluid sealing[R]. Cleveland, US: NASA Lewis Research Center, 1976. -
