Calculation method of loading of complex aerodynamic profile nozzle based on NLI factor
-
摘要:
为了快速获取复杂气动型面喷管在飞行包线内大批量载荷数据以满足其疲劳寿命评估的需求，通过引入复杂气动型面喷管载荷影响（nozzle load influence，NLI）因子，发展了复杂气动型面喷管载荷计算理论，同时提出了基于复杂气动型面NLI因子的喷管载荷计算方法。首先基于计算流体动力学（computational fluid dynamics，CFD）数值模拟方法获取复杂气动型面喷管载荷分布基本特征，得到复杂气动型面NLI因子；然后利用一维等熵内流流动理论推导的喷管载荷理论公式计算由于飞行高度、飞行马赫数、发动机状态变化引起的喷管载荷变化量。研究表明复杂气动型面喷管流向截面面积变化及局部型面特征两种因素叠加作用导致其壁面载荷分布复杂，但对于喷管给定位置处的载荷大小与喷管落压比存在线性或近似线性关系；基于NLI因子的喷管载荷计算方法可以获得不同高度、不同马赫数、不同发动机状态下喷管载荷数据，计算精度基本可以继承CFD计算方法的载荷计算精度，计算效率随着需要计算的载荷状态数量增加而大大提升。
Abstract:In order to quickly obtain a large number of load data of complex aerodynamic profile nozzle in flight envelope to meet the needs of fatigue life assessment, the load calculation theory of complex aerodynamic profile nozzle was developed by introducing the factor of complex aerodynamic profile nozzle load influence (NLI), and the calculation method of nozzle load based on the influence factor of complex aerodynamic profile nozzle load was proposed. Based on the computational fluid dynamics (CFD) and numerical calculation method, the basic characteristics of the load distribution of the nozzle with complex aerodynamic profile were obtained, and the load influence factors of the complex aerodynamic profile nozzle were also acquired. The nozzle load theoretical formula derived from the one-dimensional isentropic internal flow theory was used to calculate the variation of the nozzle load caused by the flight height, flight Mach number and engine state. The results showed that the wall load distribution was complicated due to the variation of the flow area and the superposition of the local profile characteristics, but there was a linear or approximately linear relationship between the load at the given position of the nozzle and the nozzle pressure ratio. The calculation method of nozzle load based on the nozzle load influence factor can obtain the nozzle load data under different height, Mach number and engine conditions. The calculation accuracy can inherit the load calculation precision of CFD, and the calculation efficiency was greatly improved with the increase of the load state to be calculated.
-

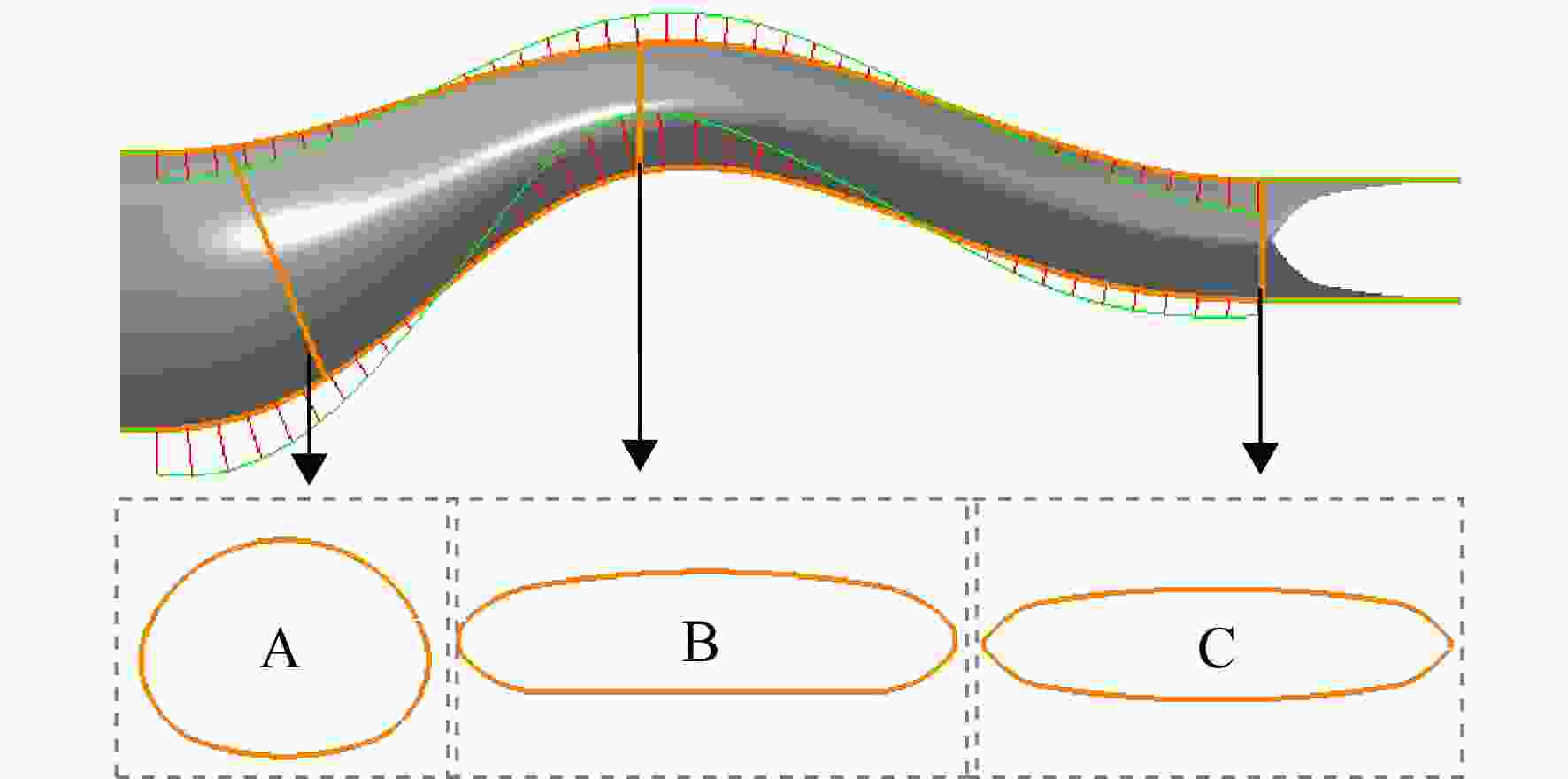

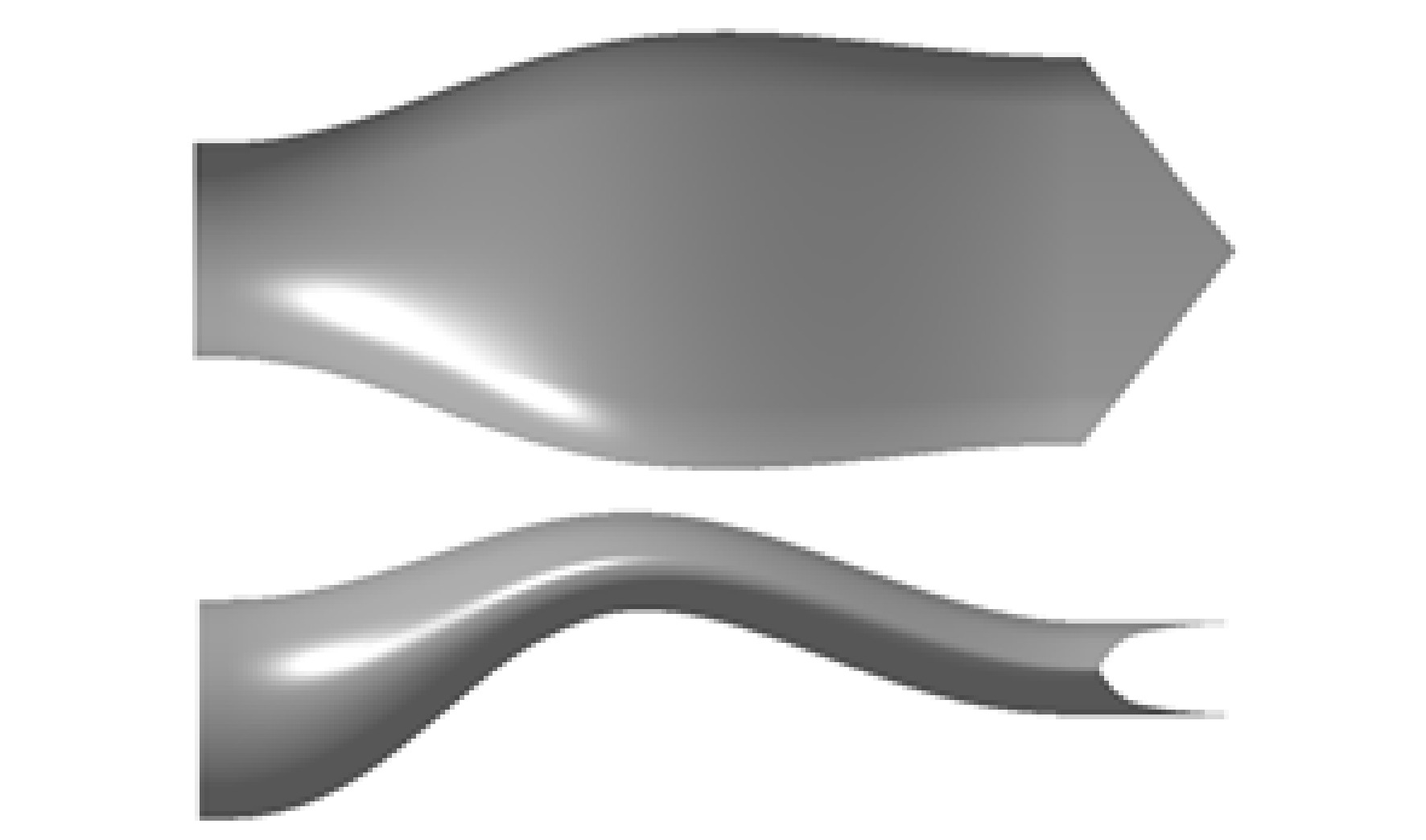

图 1 复杂气动型面喷管几何特征
Figure 1. Geometric characteristics of complex aerodynamic profile nozzle

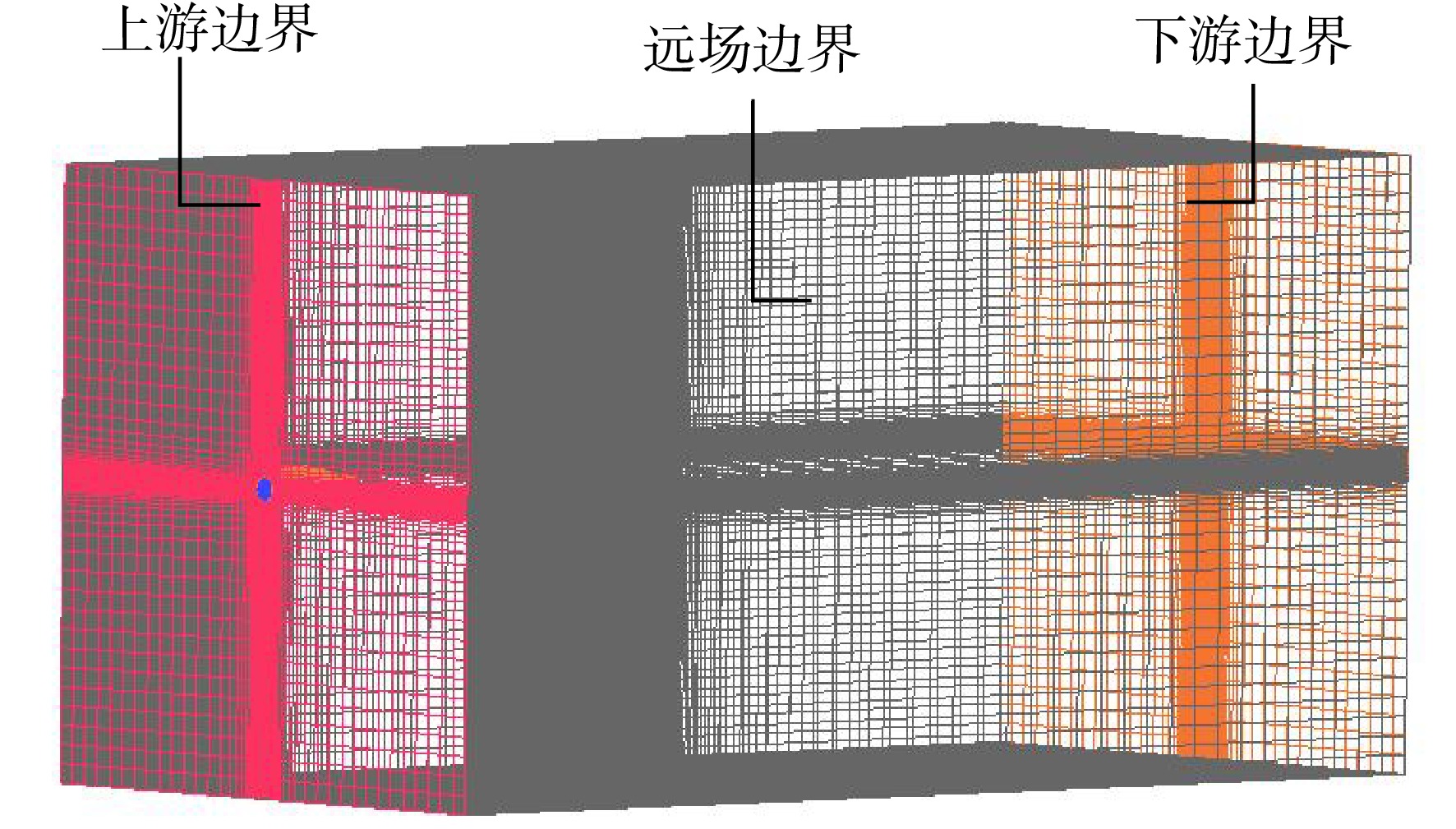

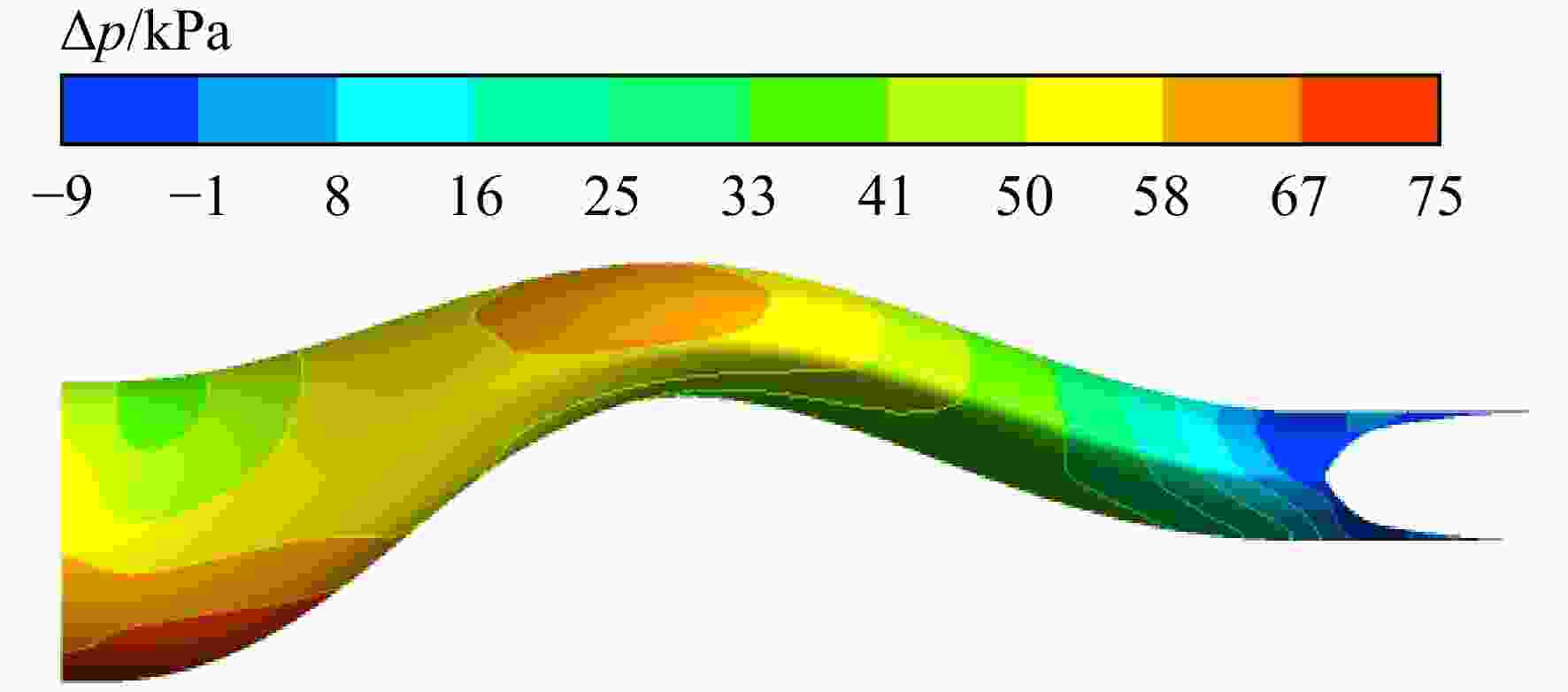

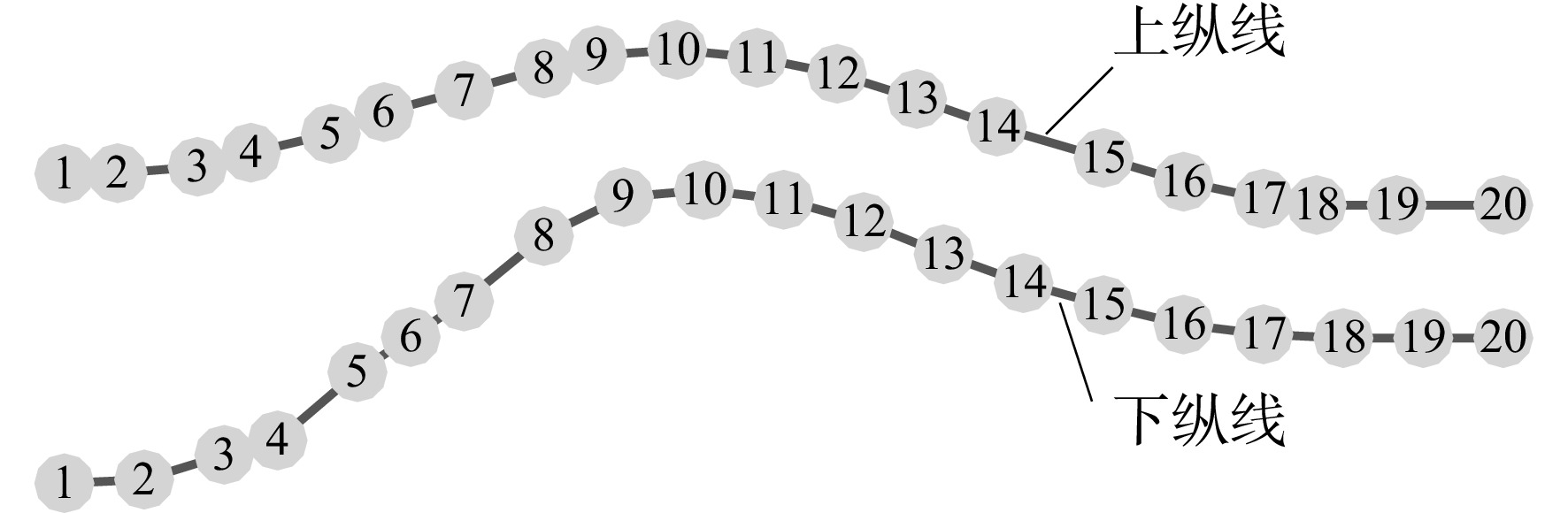

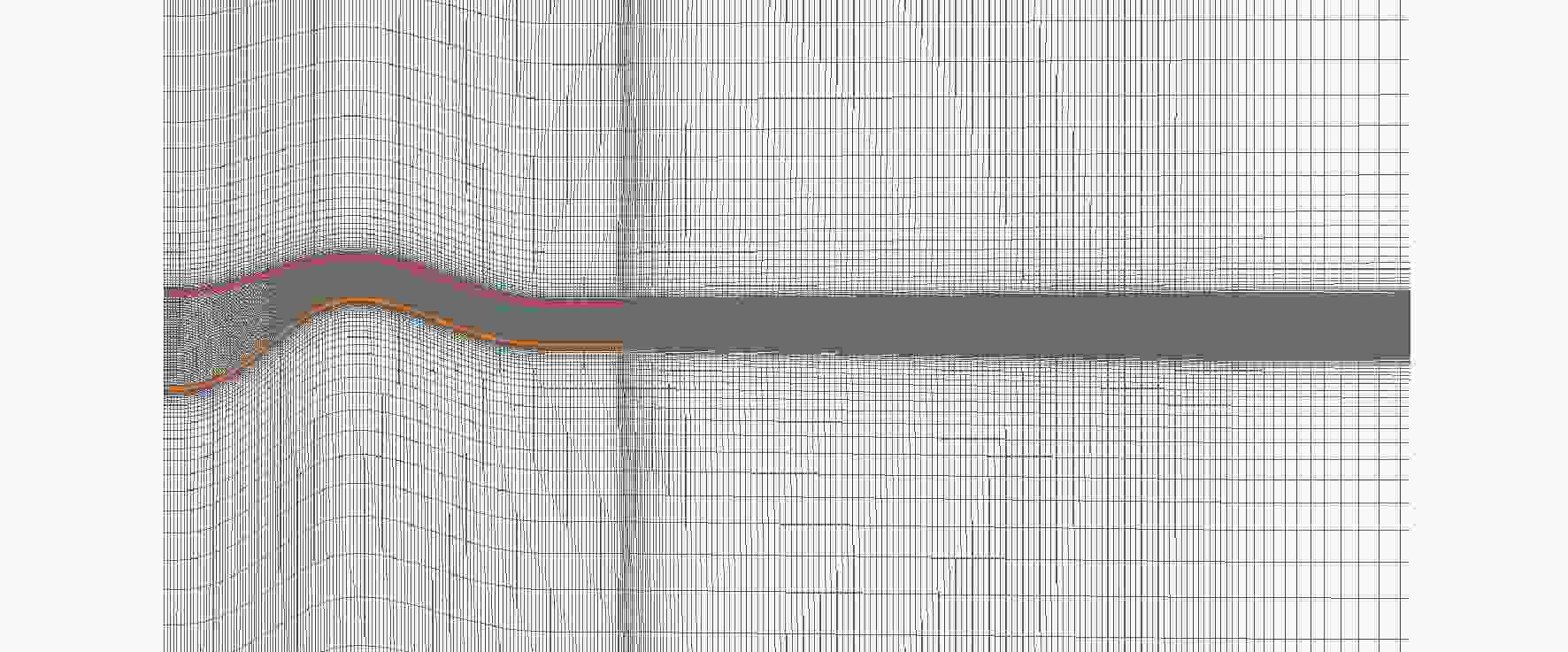

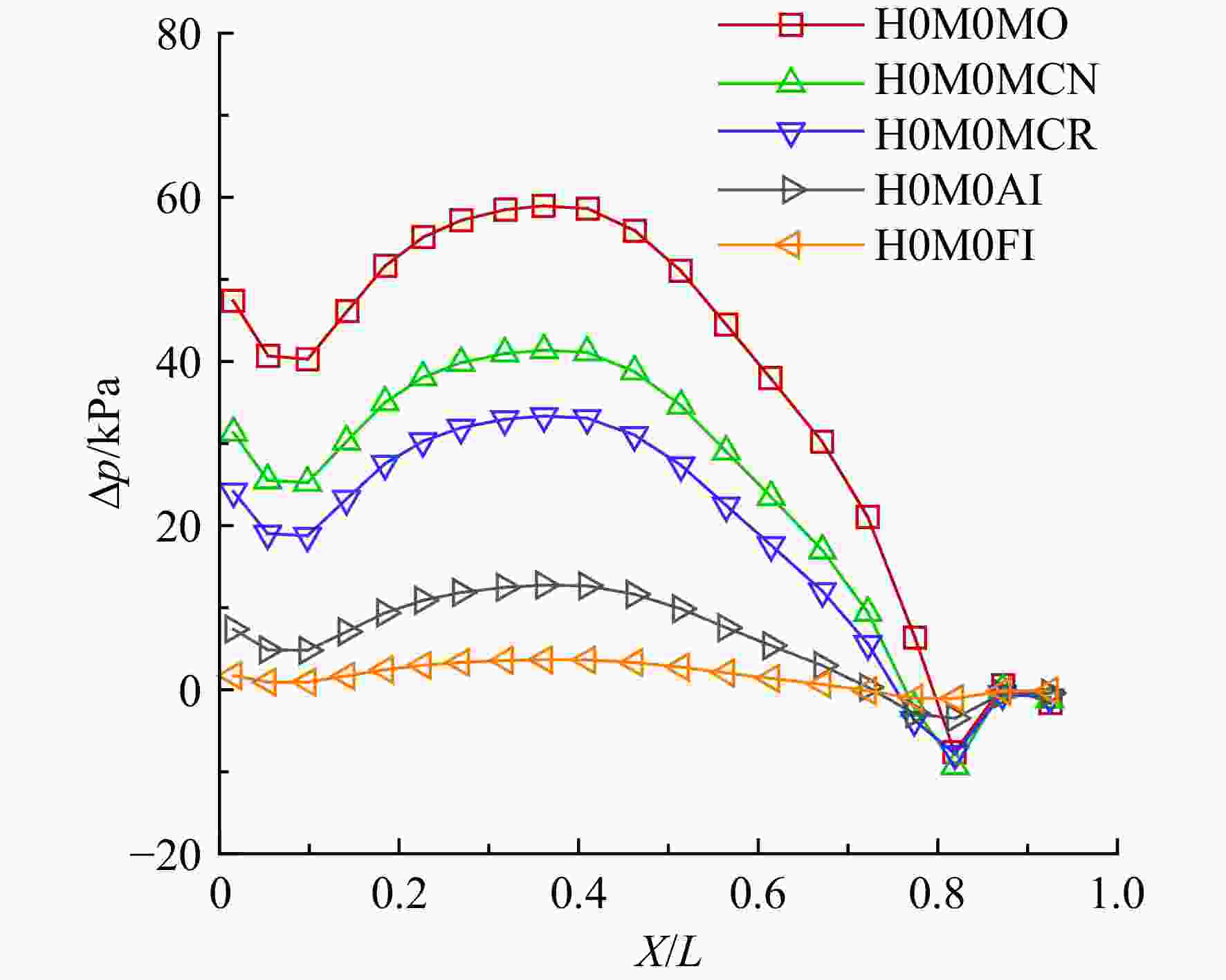

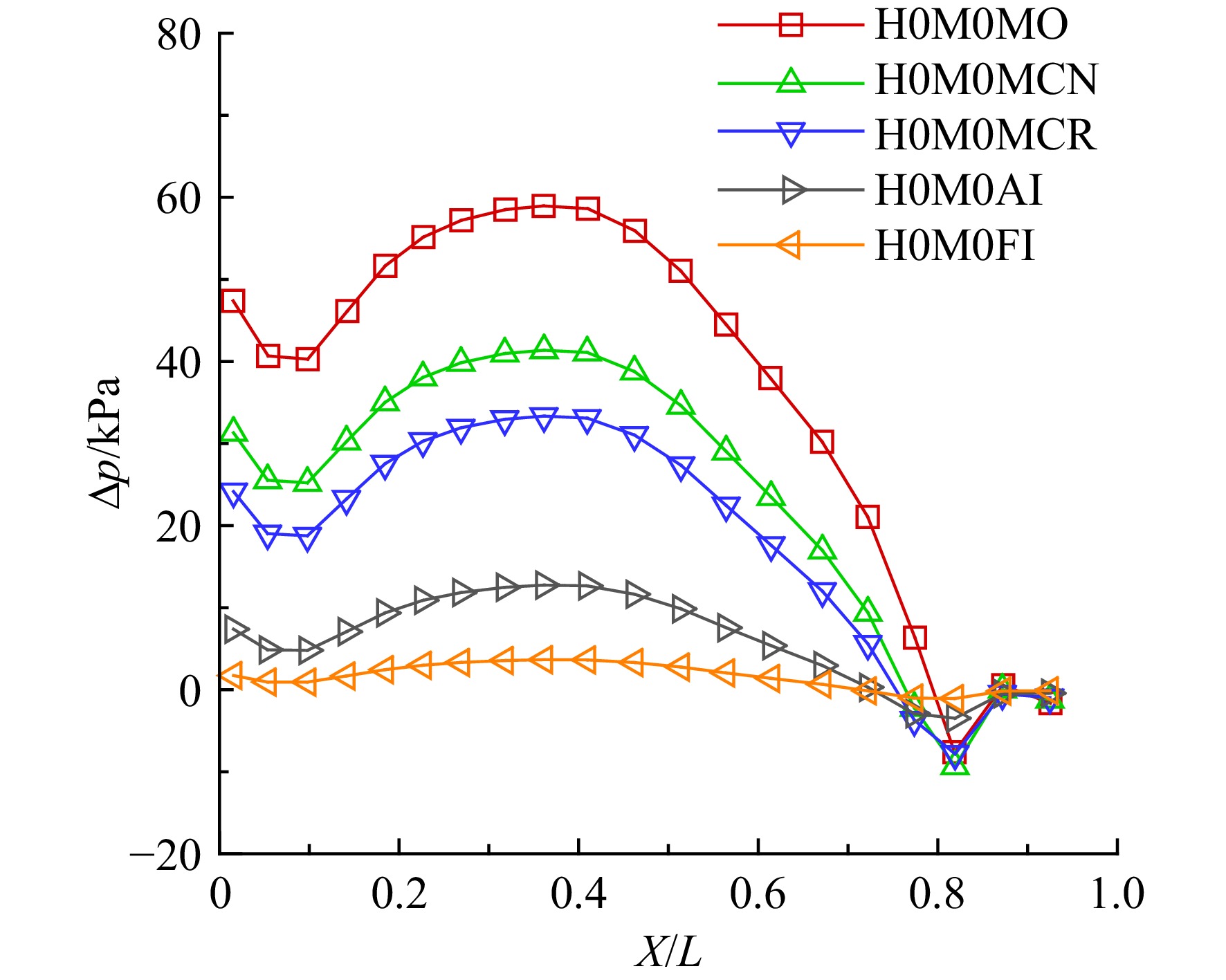

图 7 发动机不同状态喷管上纵线载荷分布（飞行高度为0 km、飞行马赫数为0）
Figure 7. Load distribution of upper center curve of nozzle in different states of engine （flight altitude of 0 km, flight Mach number of 0）

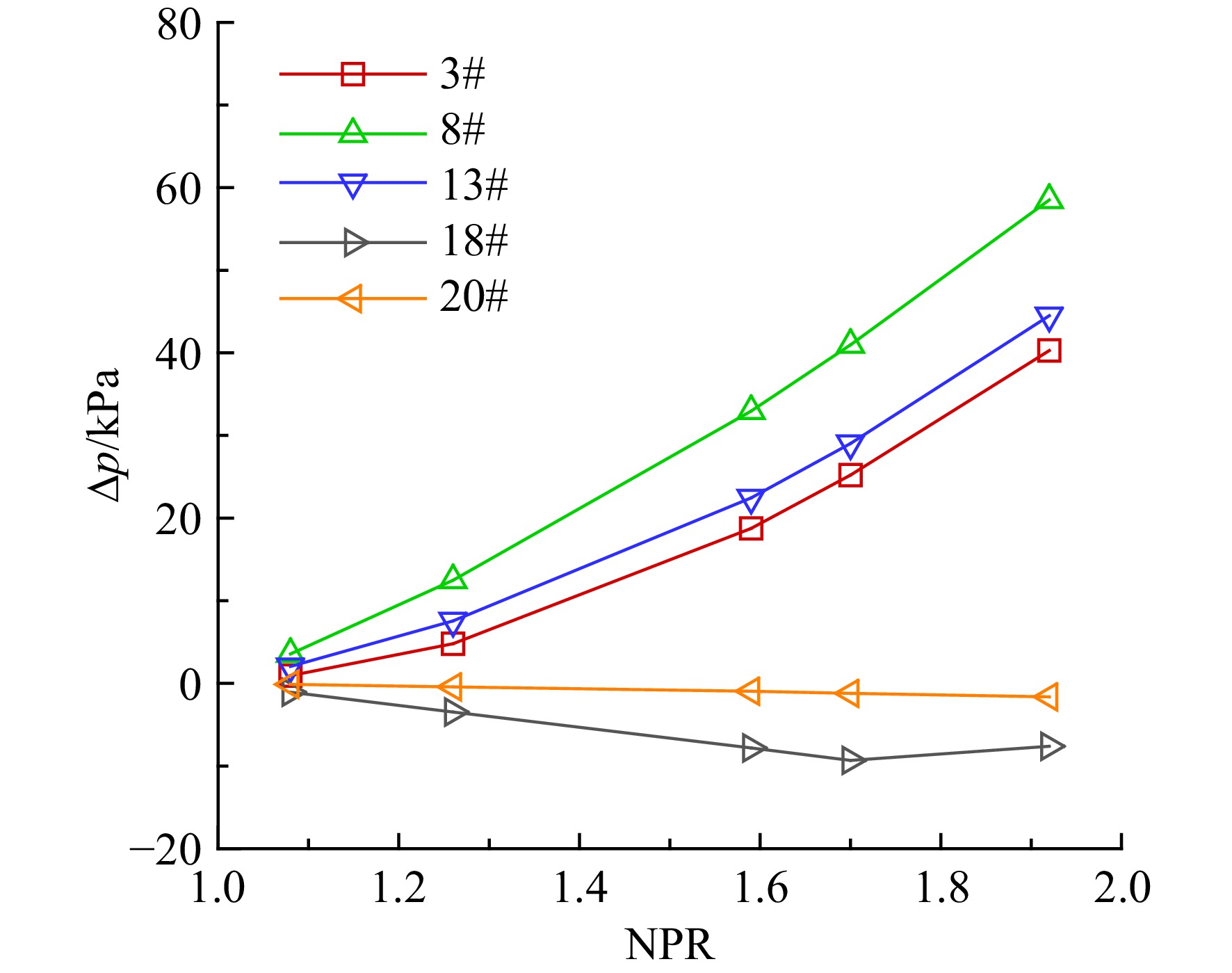

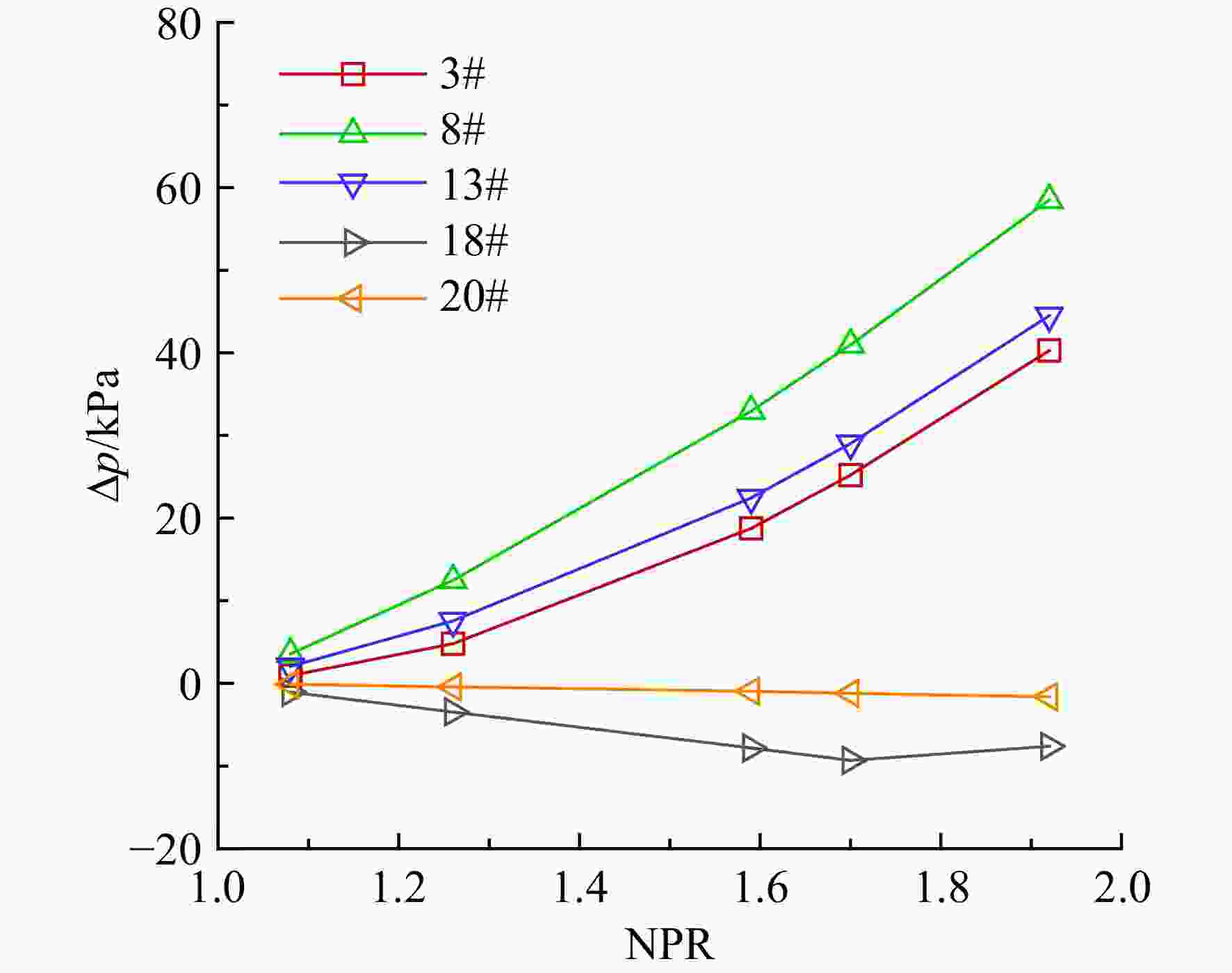

图 8 喷管上纵线典型点载荷随喷管落压比变化（飞行高度为0 km、飞行马赫数为0）
Figure 8. Load variation of typical point on the upper center curve of nozzle with nozzle pressure ratio （flight altitude of 0 km, flight Mach number of 0）

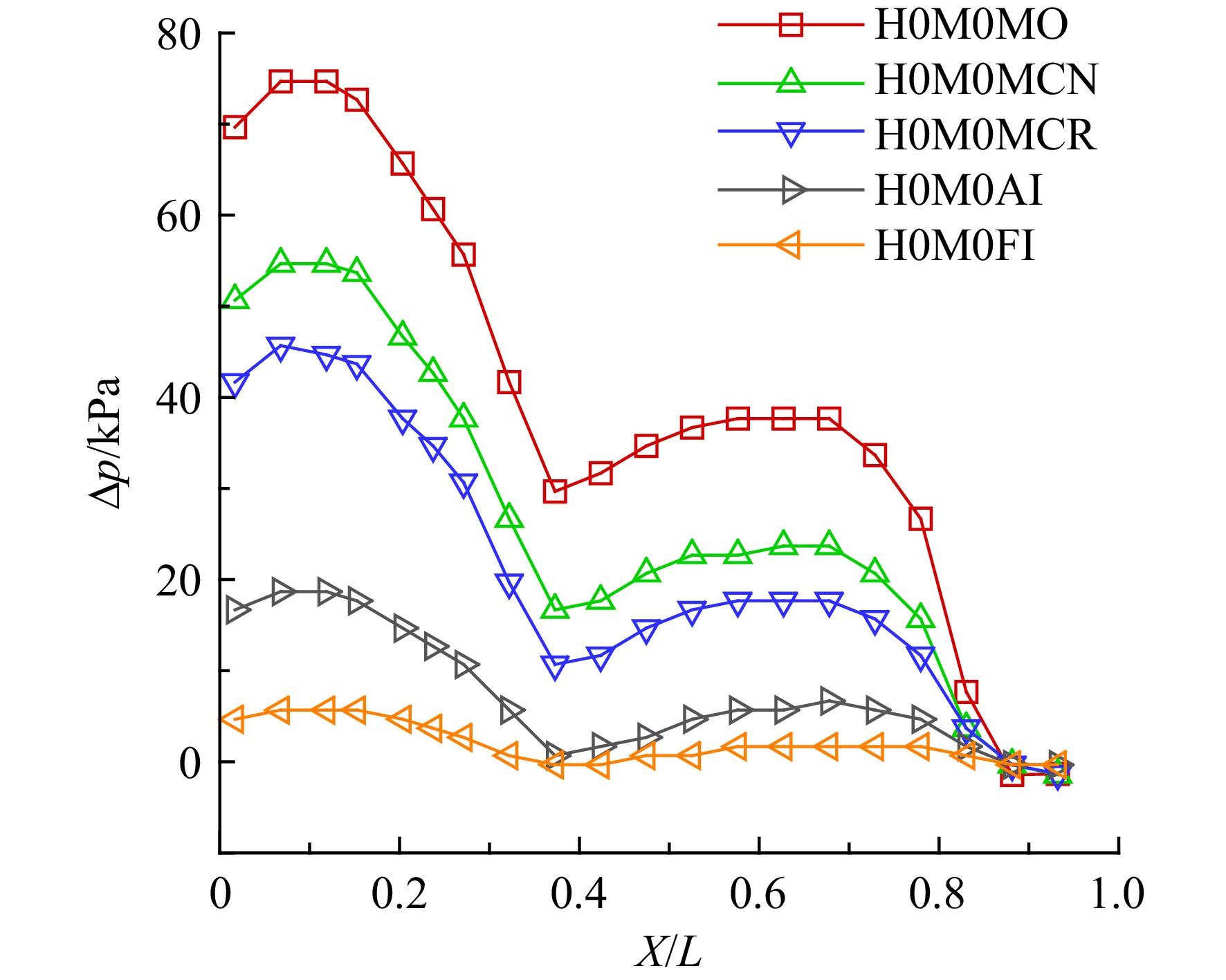

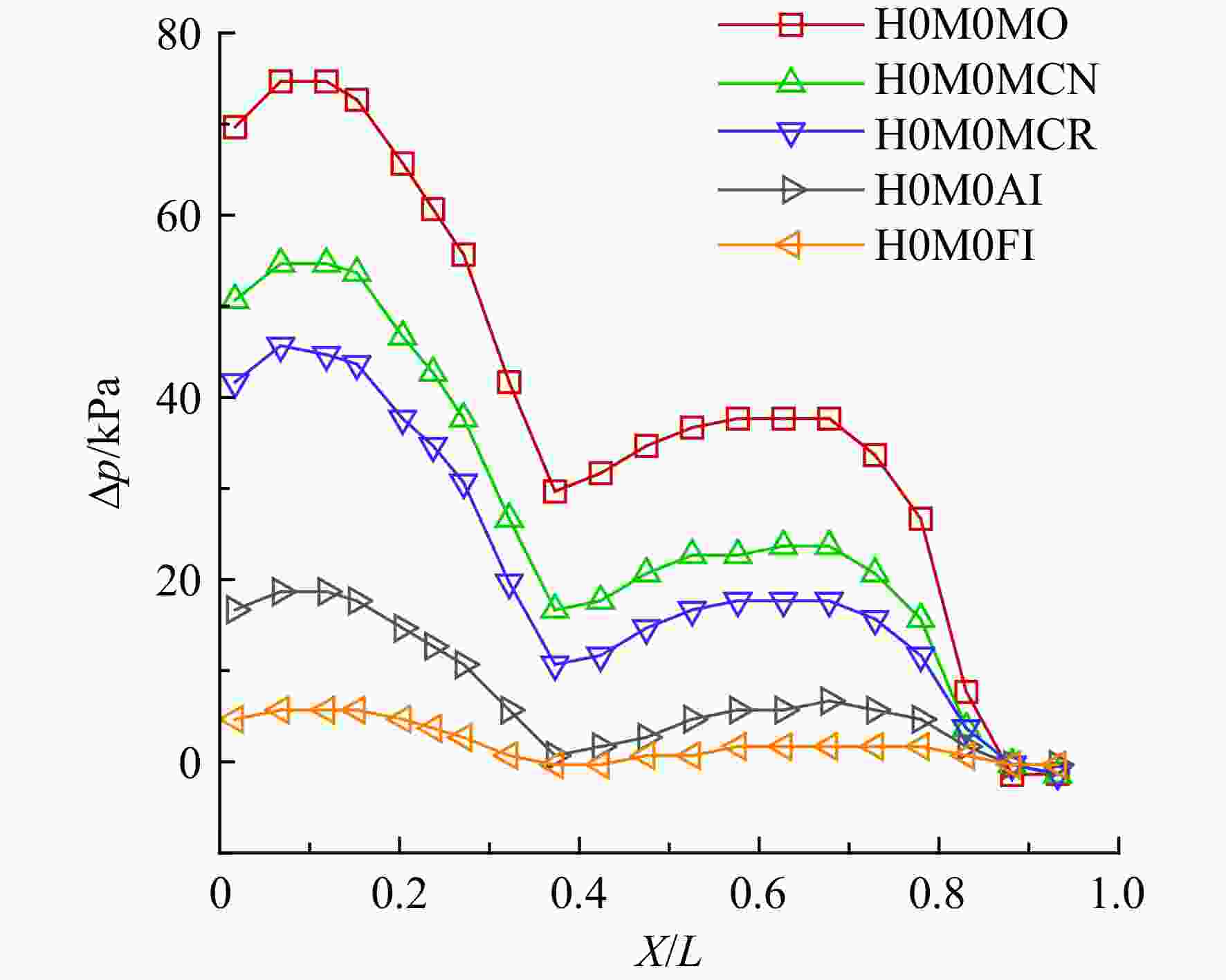

图 9 发动机不同状态喷管下纵线载荷分布（飞行高度为0 km、飞行马赫数为0）
Figure 9. Load distribution of lower center curve of nozzle in different states of engine （flight altitude of 0 km, flight Mach number of 0）

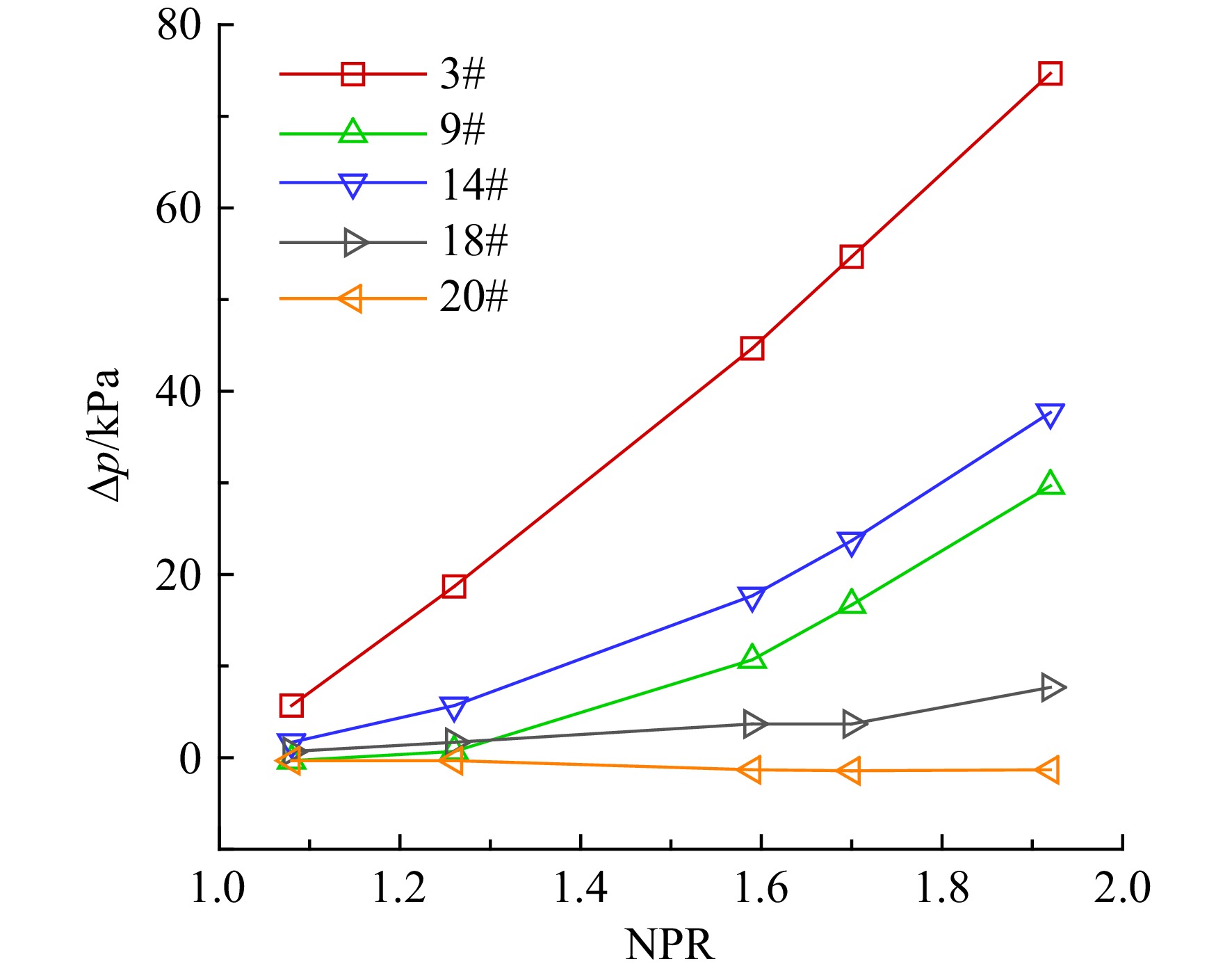

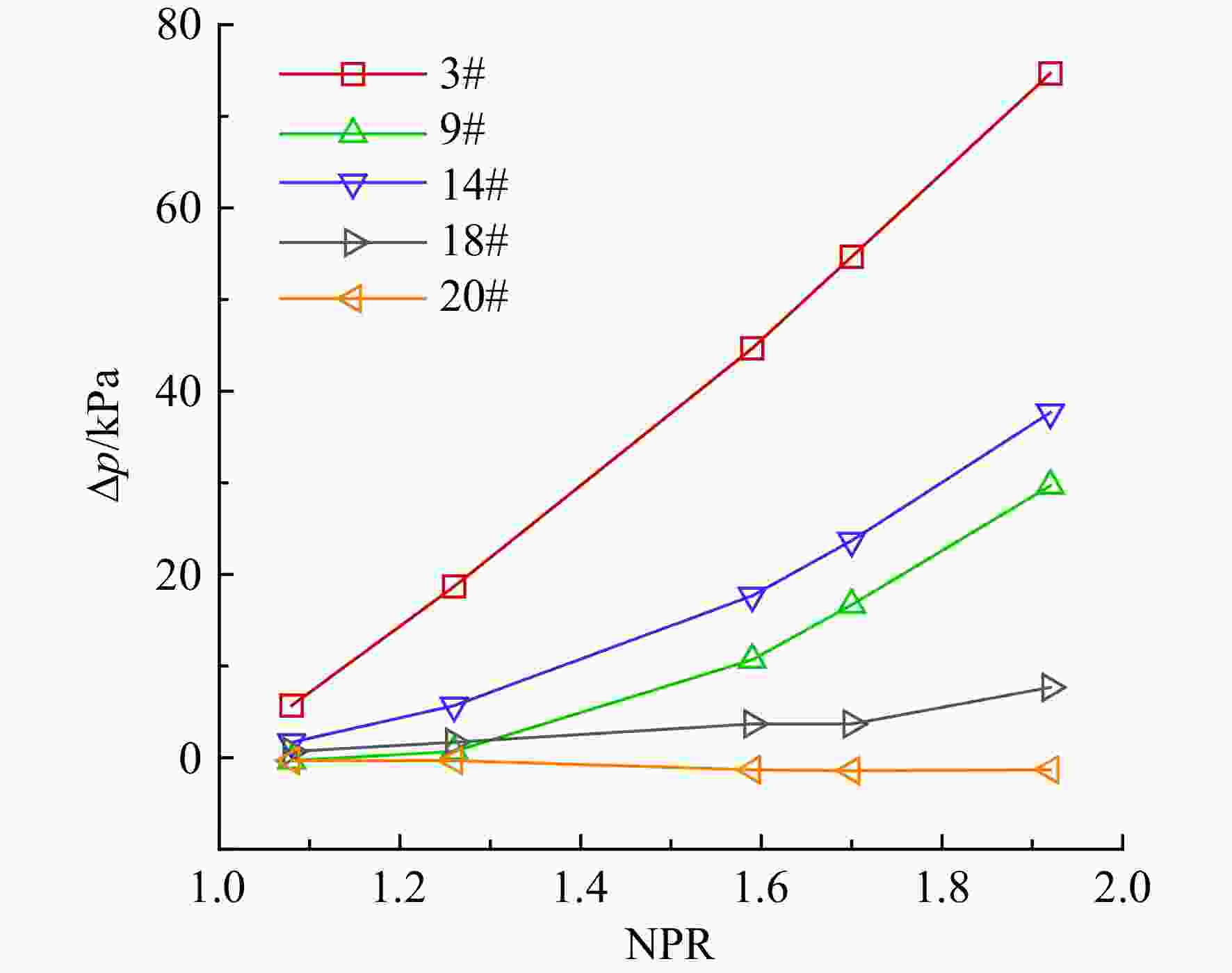

图 10 喷管下纵线典型点载荷随喷管落压比变化（飞行高度为0 km、飞行马赫数为0）
Figure 10. Load variation of typical point on the lower center curve of nozzle with nozzle pressure ratio （flight altitude of 0 km, flight Mach number of 0）

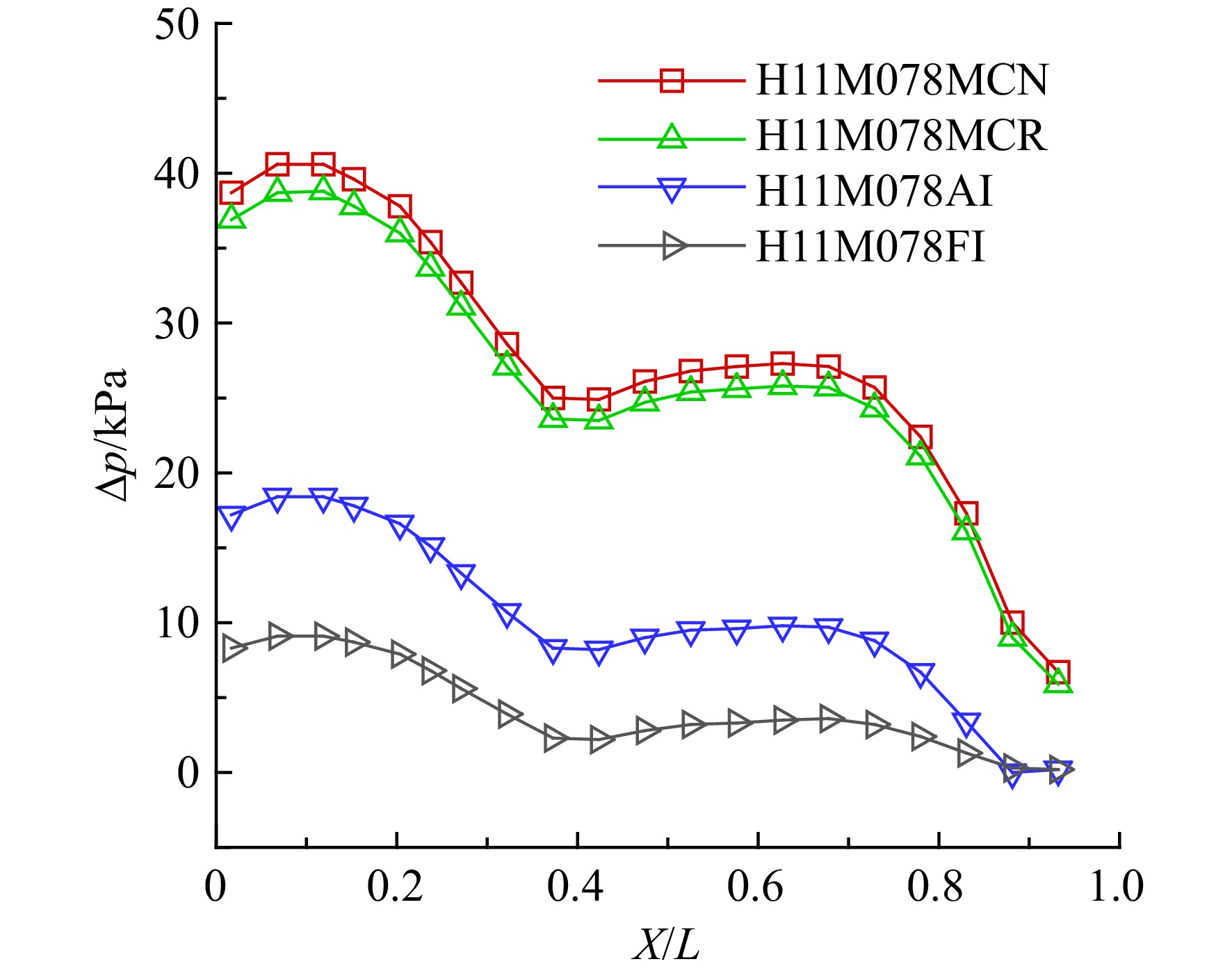

图 11 发动机不同状态喷管下纵线载荷曲线（飞行高度为11 km、飞行马赫数为0.78）
Figure 11. Load distribution of lower center curve of nozzle in different states of engine （flight altitude of 11 km, flight Mach number of 0.78）

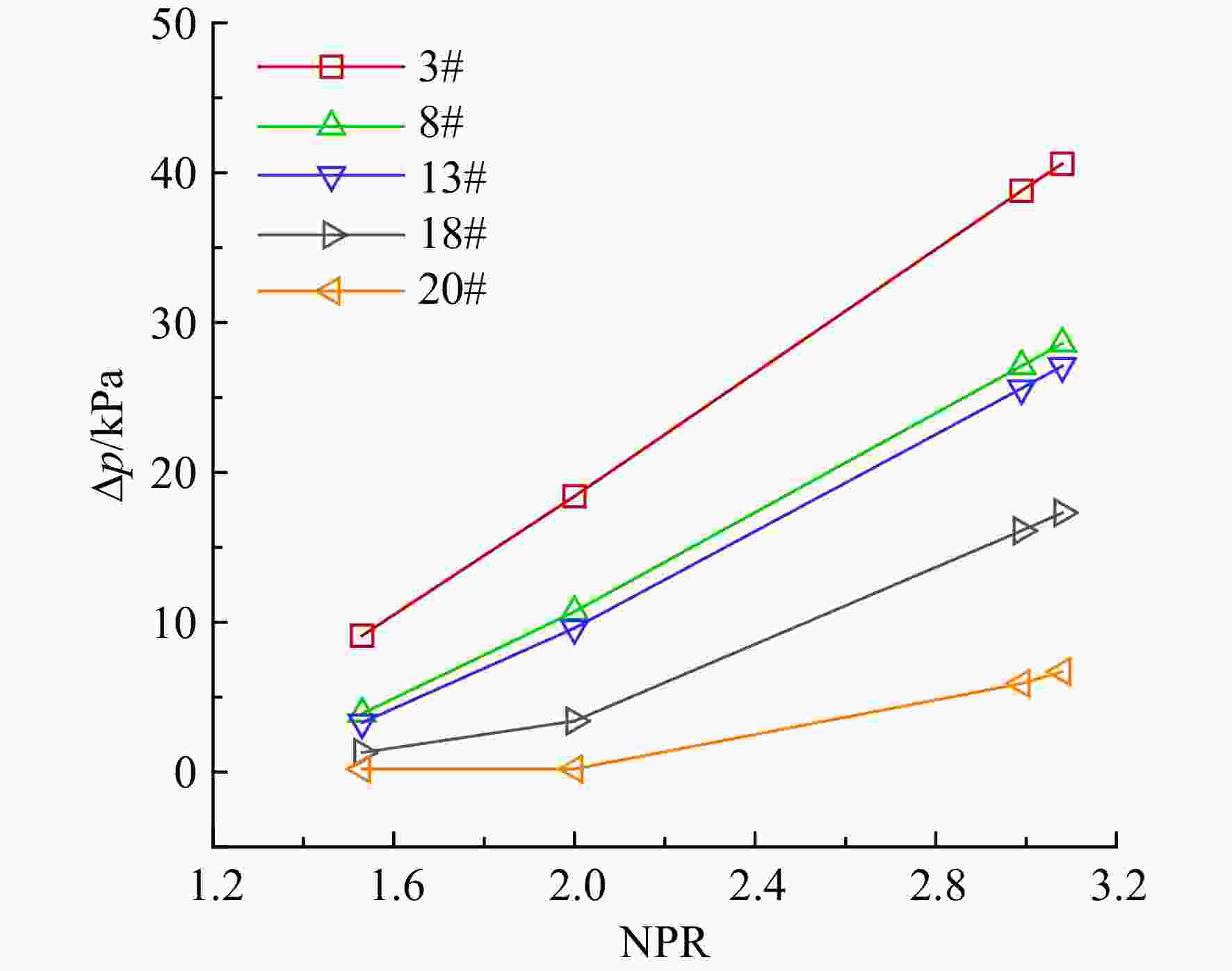

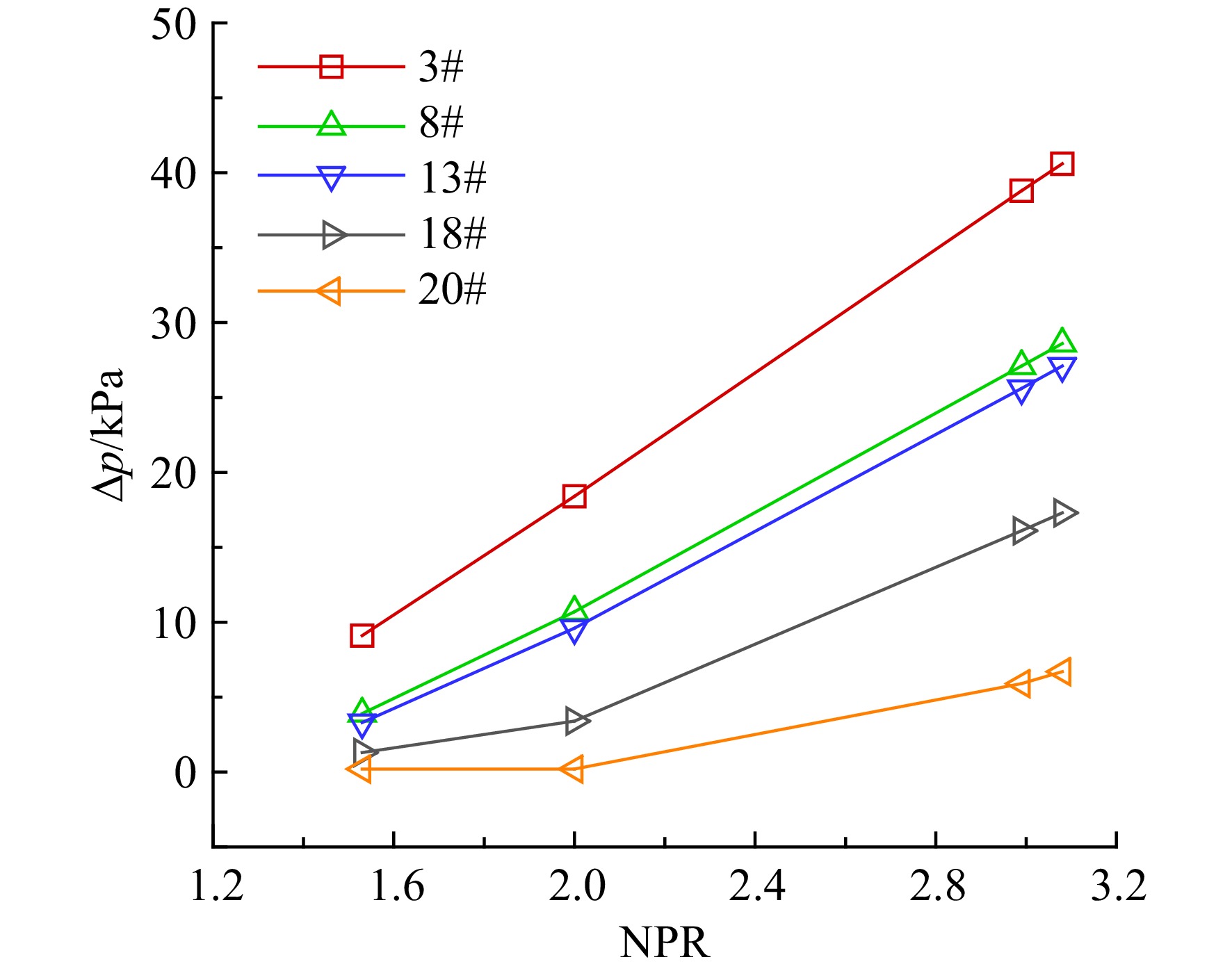

图 12 喷管下纵线典型点载荷随喷管落压比变化（飞行高度为11 km、飞行马赫数为0.78）
Figure 12. Load variation of typical point on the lower center curve of nozzle with nozzle pressure ratio （flight altitude of 11 km, flight Mach number of 0.78）

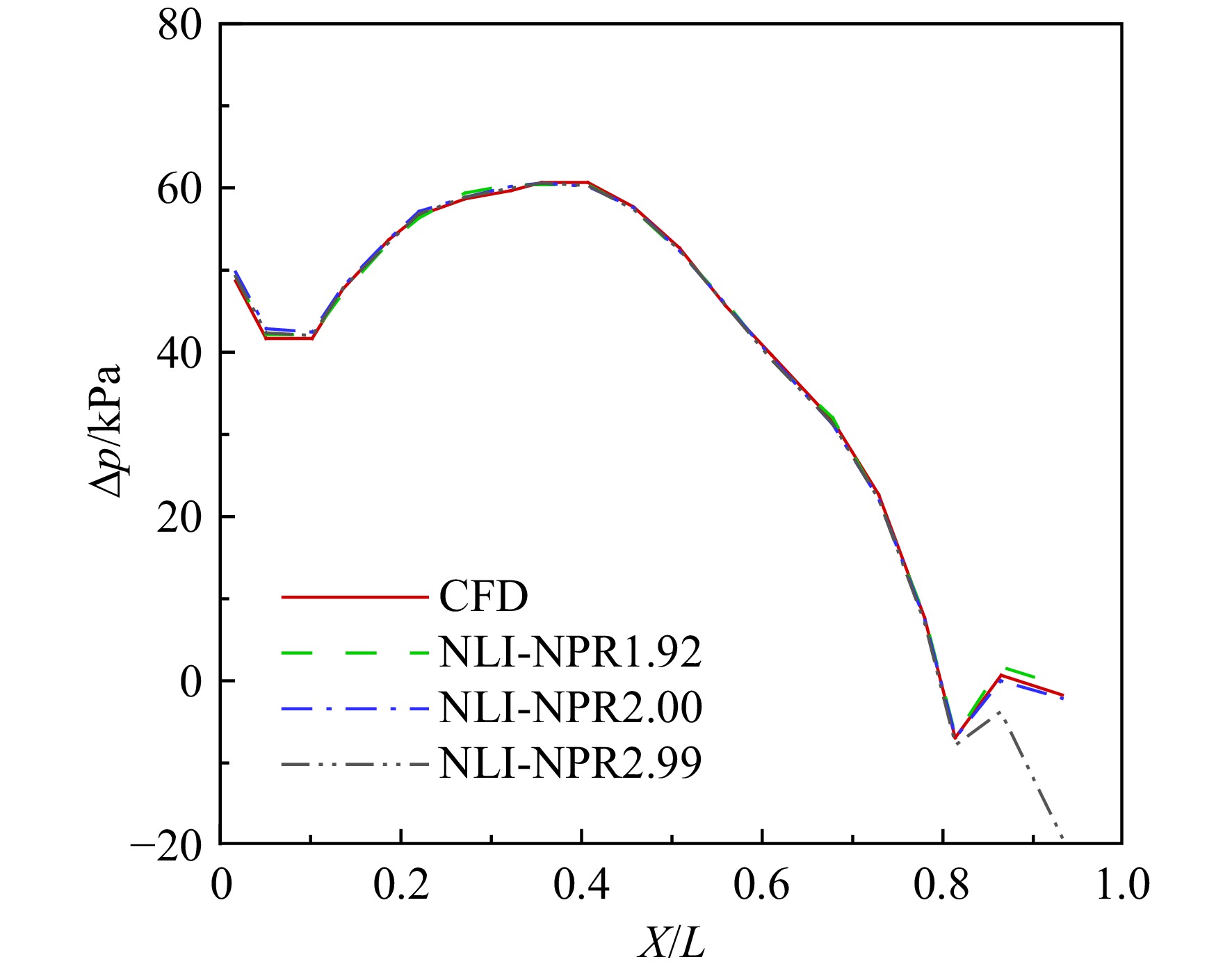

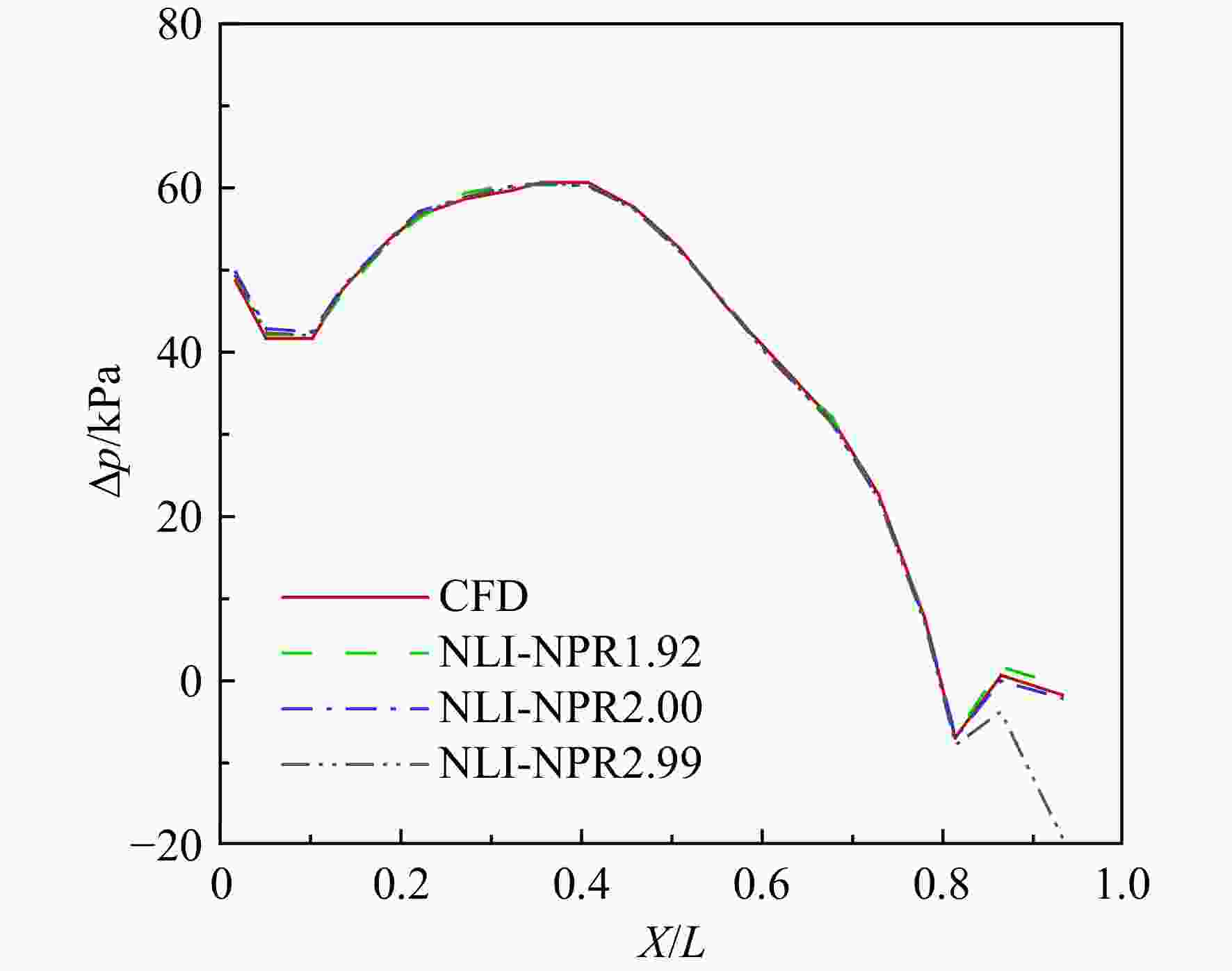

图 13 基于不同NLI因子计算载荷与CFD结果对比（上纵线，H0M020MO）
Figure 13. Comparison of loads based on different NLIs and CFD results （upper center curve, H0M020MO）

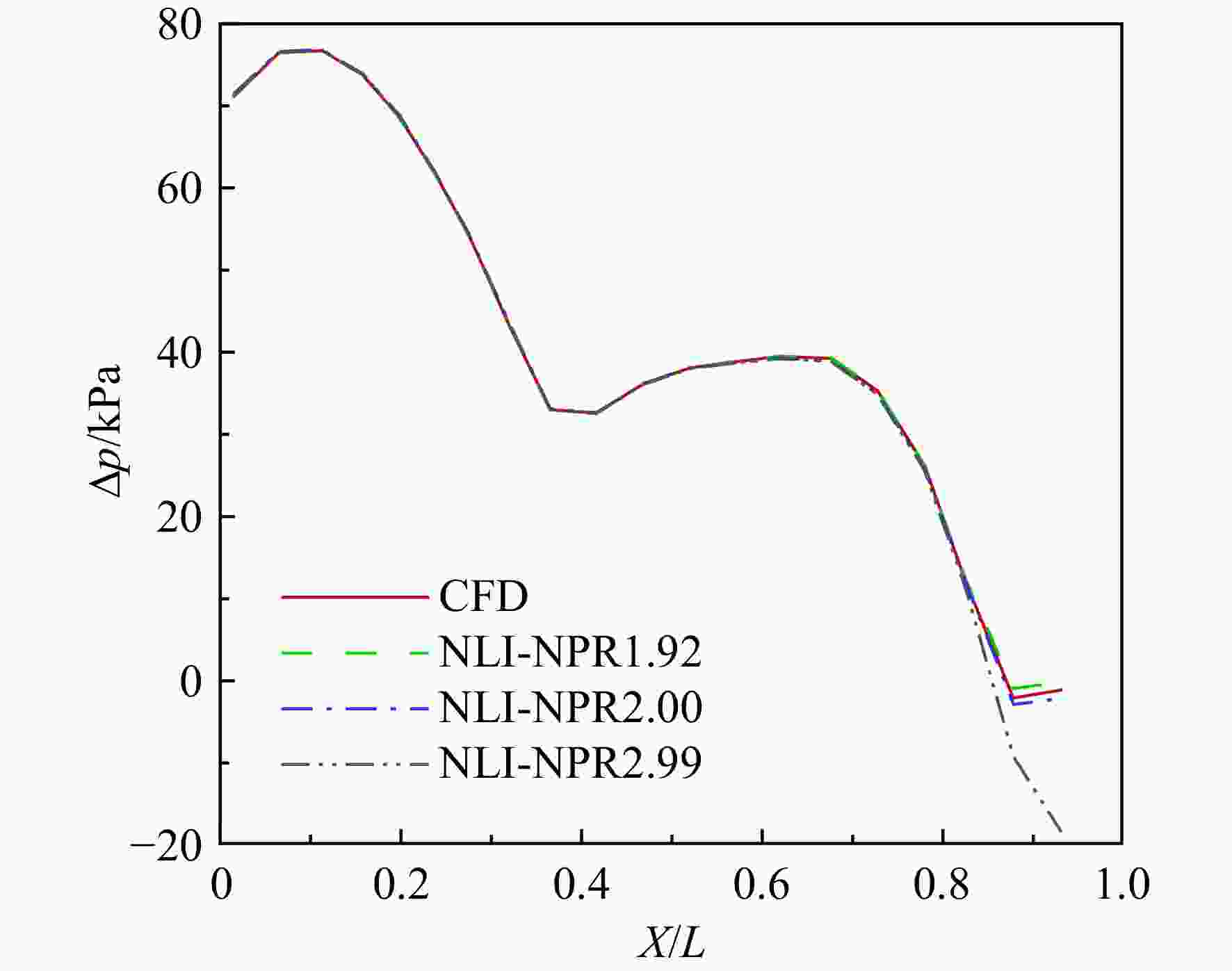

图 14 基于不同NLI因子计算载荷与CFD结果对比（下纵线，H0M020MO）
Figure 14. Comparison of loads based on different NLIs and CFD results （lower center curve, H0M020MO）

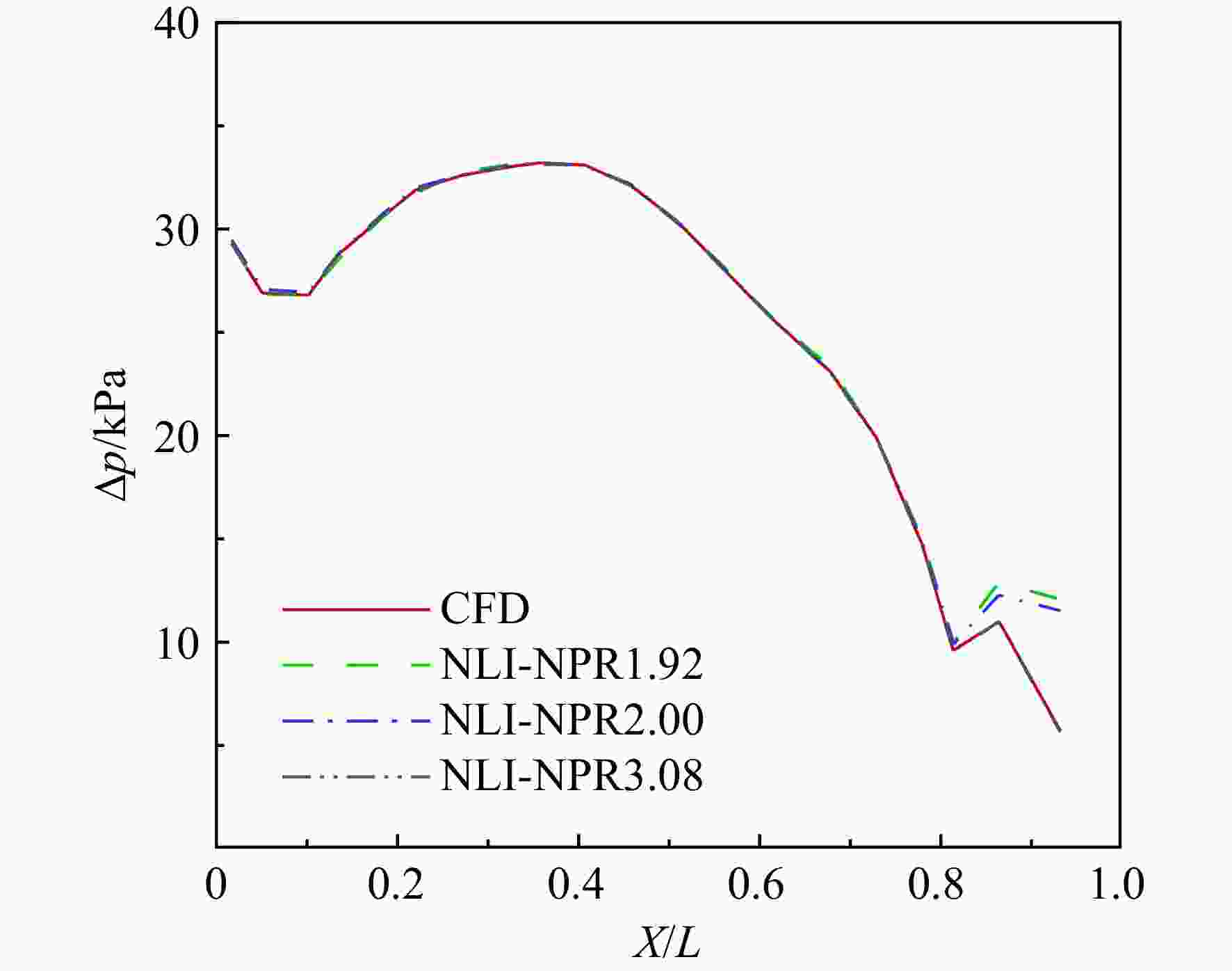

图 15 基于不同NLI因子计算载荷与CFD结果对比（上纵线，H11M078MCR）
Figure 15. Comparison of loads based on different NLIs and CFD results （upper center curve, H11M078MCR）

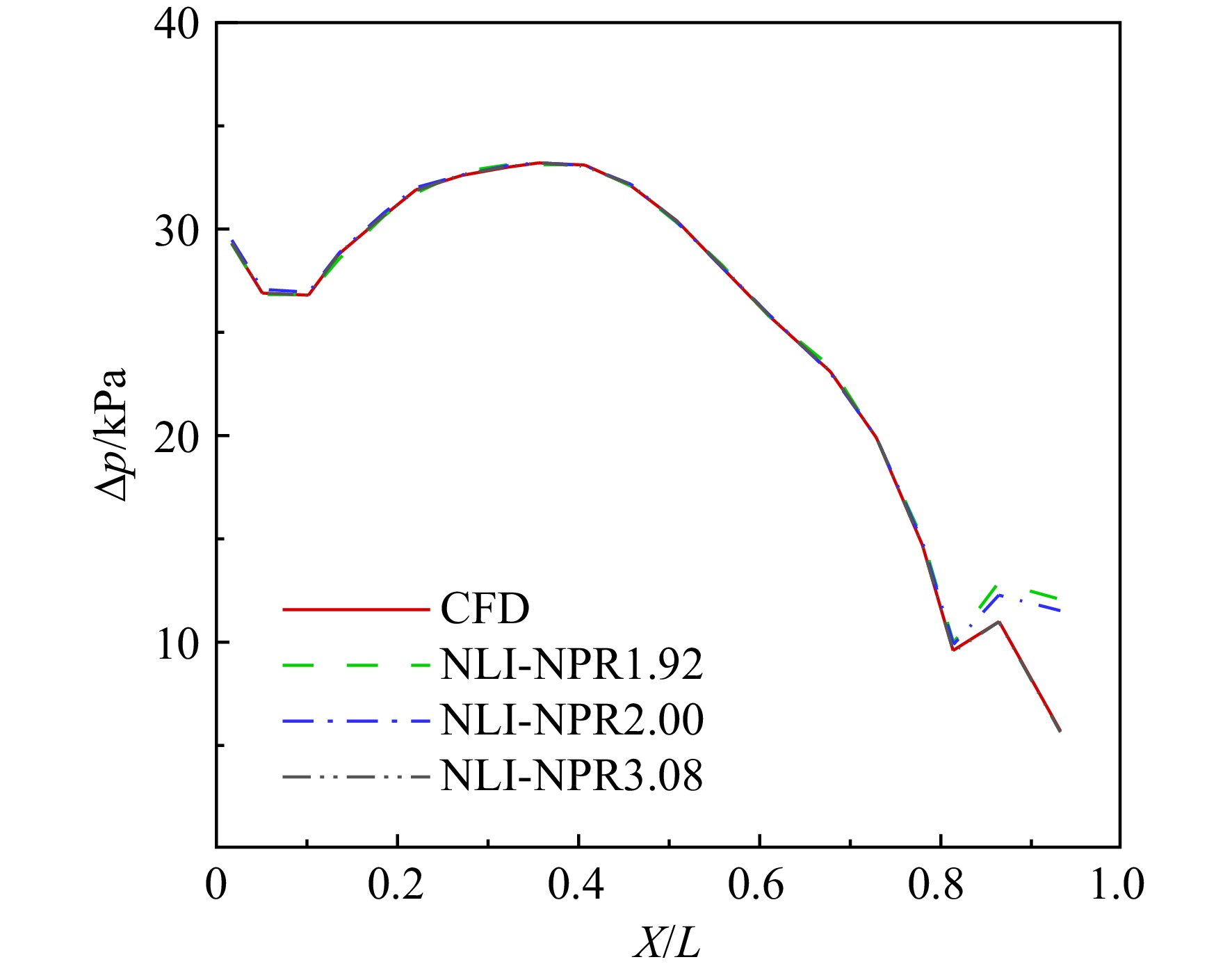

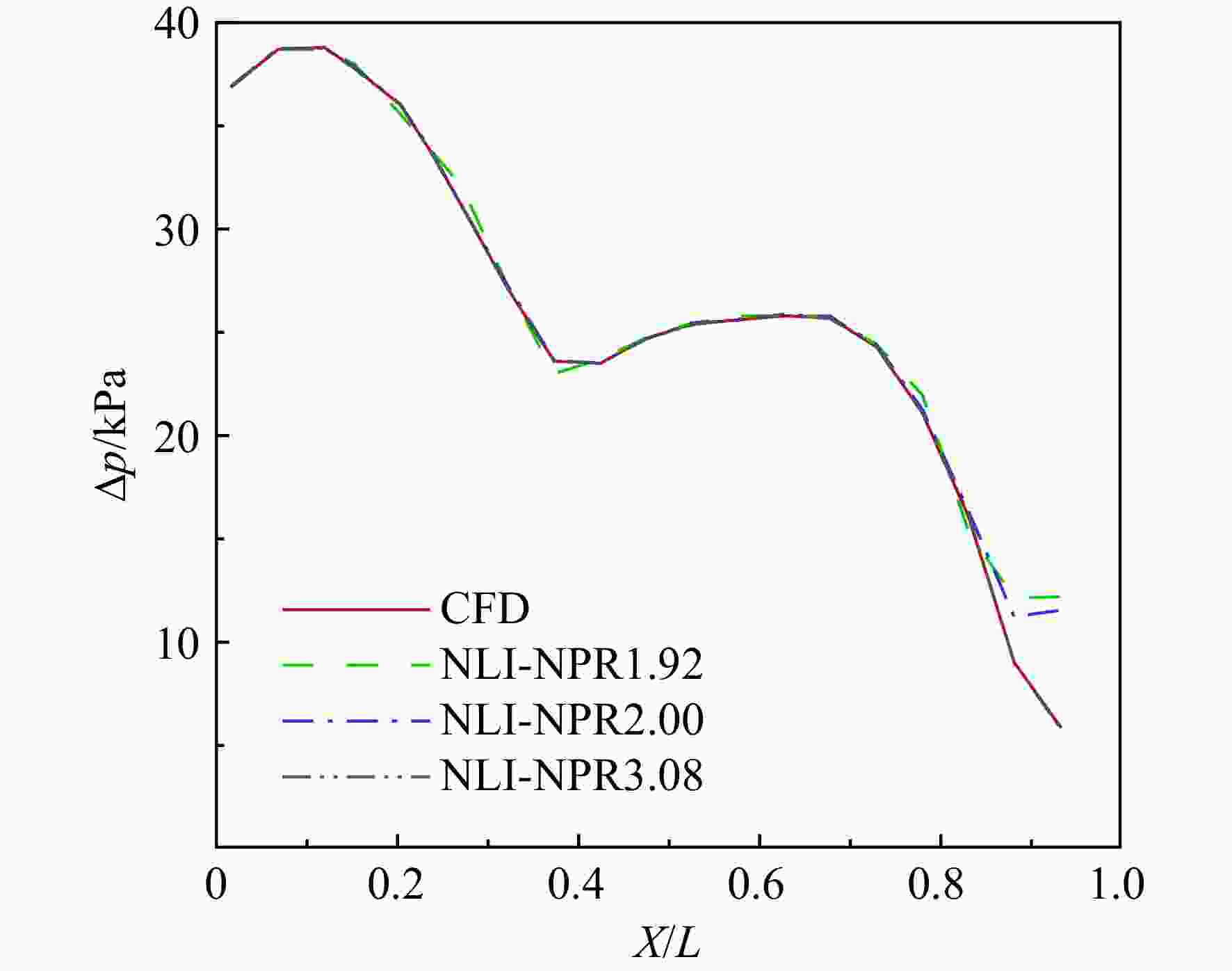

图 16 基于不同NLI因子计算载荷与CFD结果对比（下纵线，H11M078MCR）
Figure 16. Comparison of loads based on different NLIs and CFD results （lower center curve, H11M078MCR）

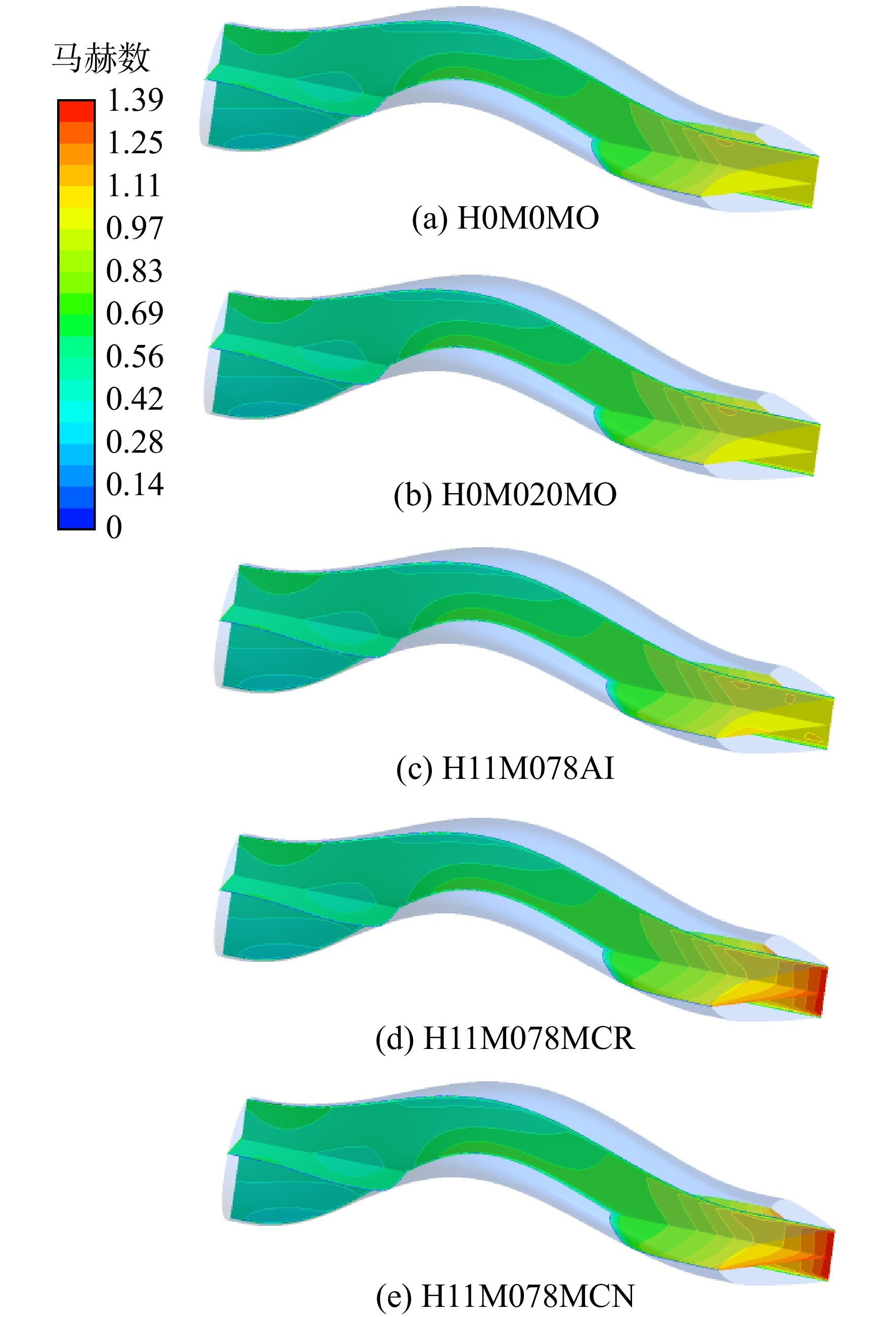

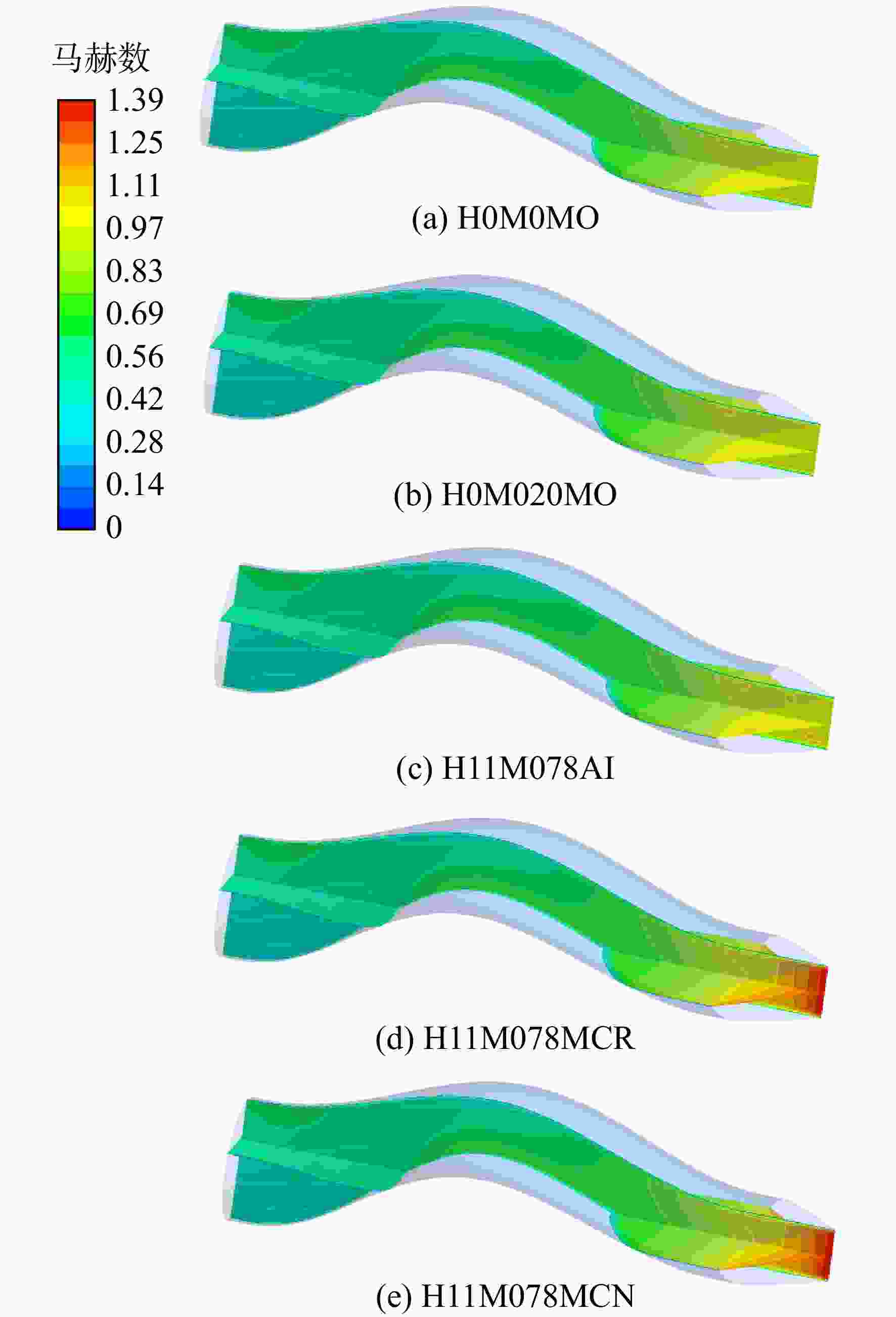

图 17 不同超临界计算状态下马赫数分布云图对比
Figure 17. Comparison of Mach number contours for different supercritical computation states

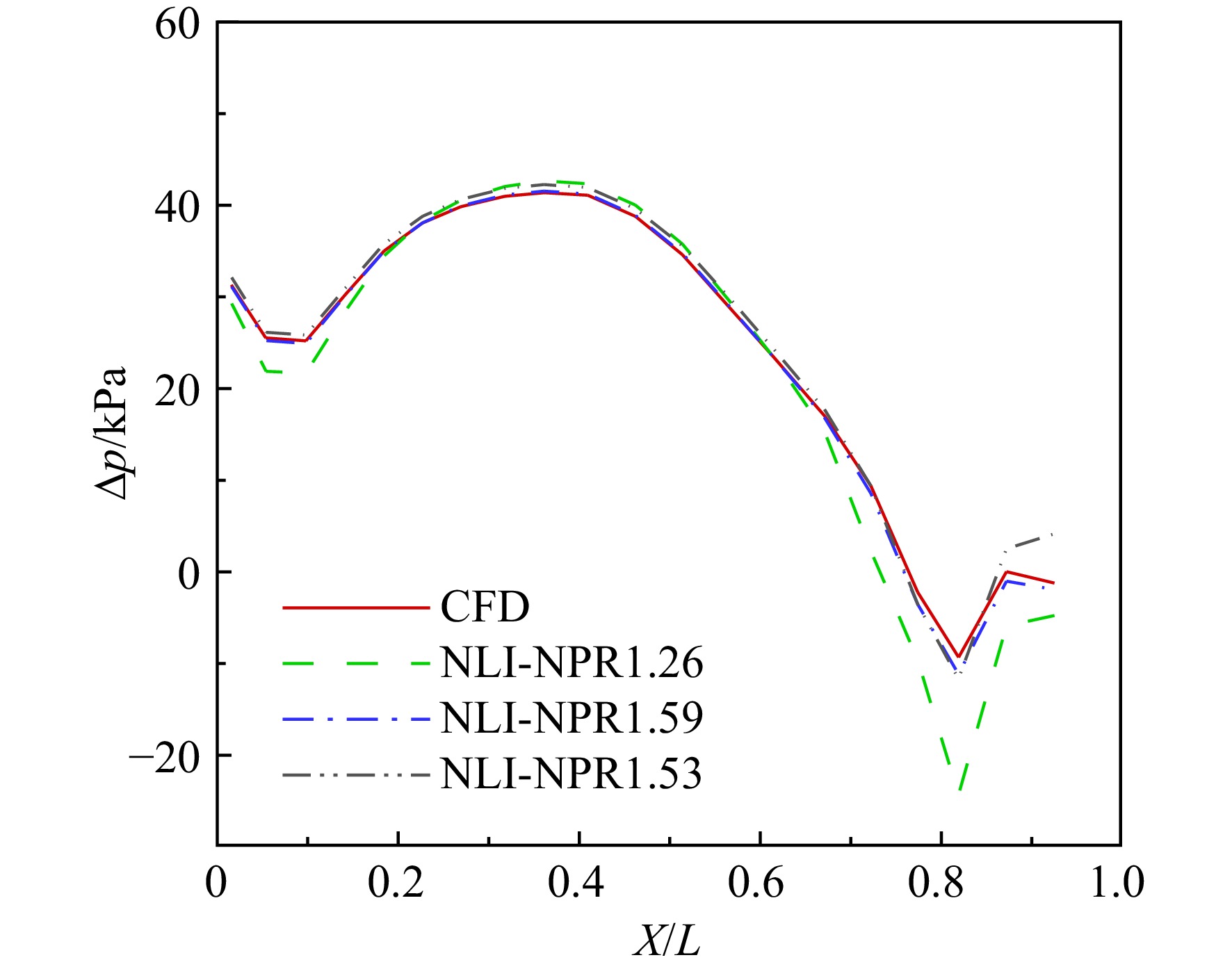

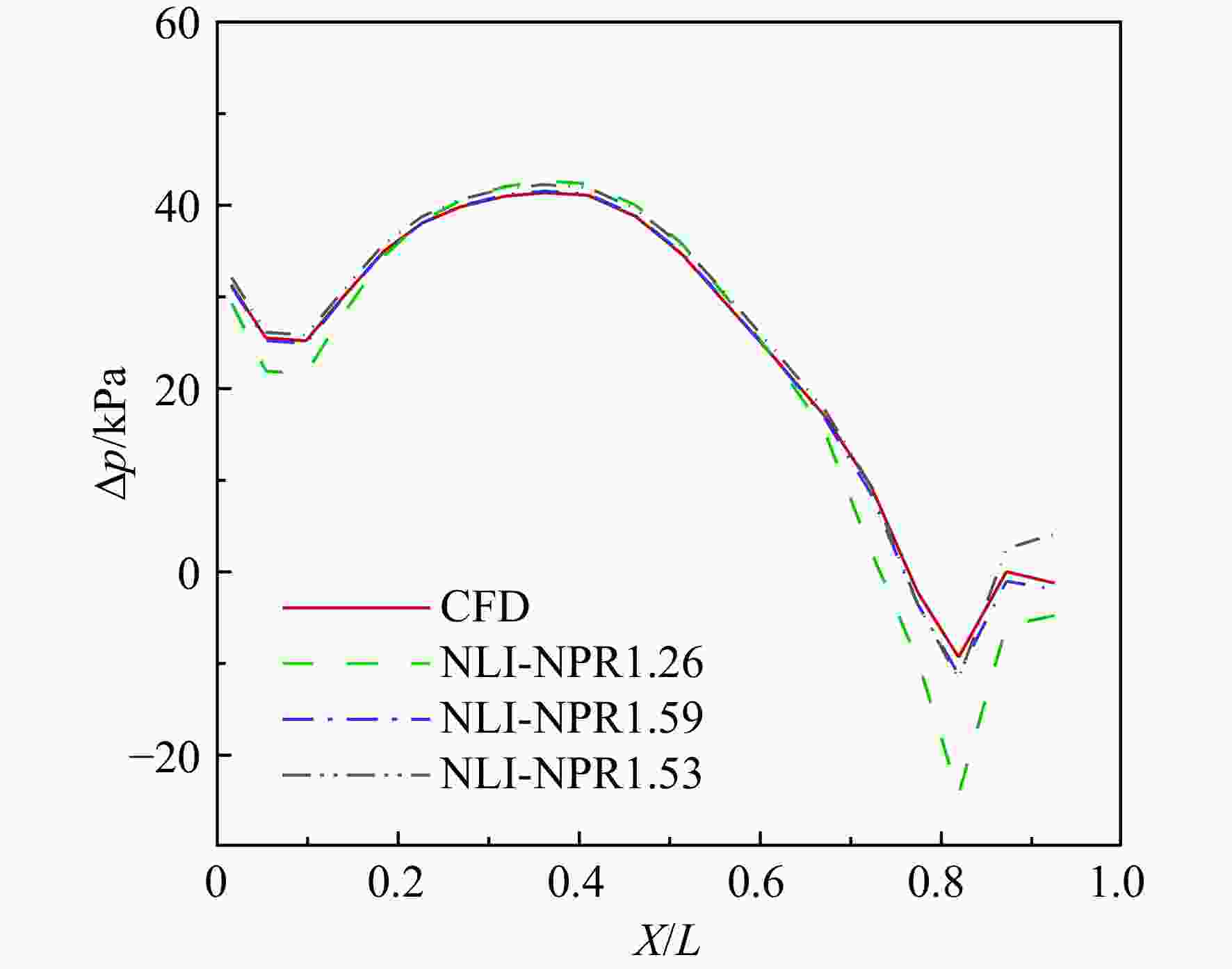

图 18 基于不同NLI因子计算载荷与CFD结果对比（上纵线，H0M0MCN）
Figure 18. Comparison of loads based on different NLIs and CFD results （upper center curve, H0M0MCN）

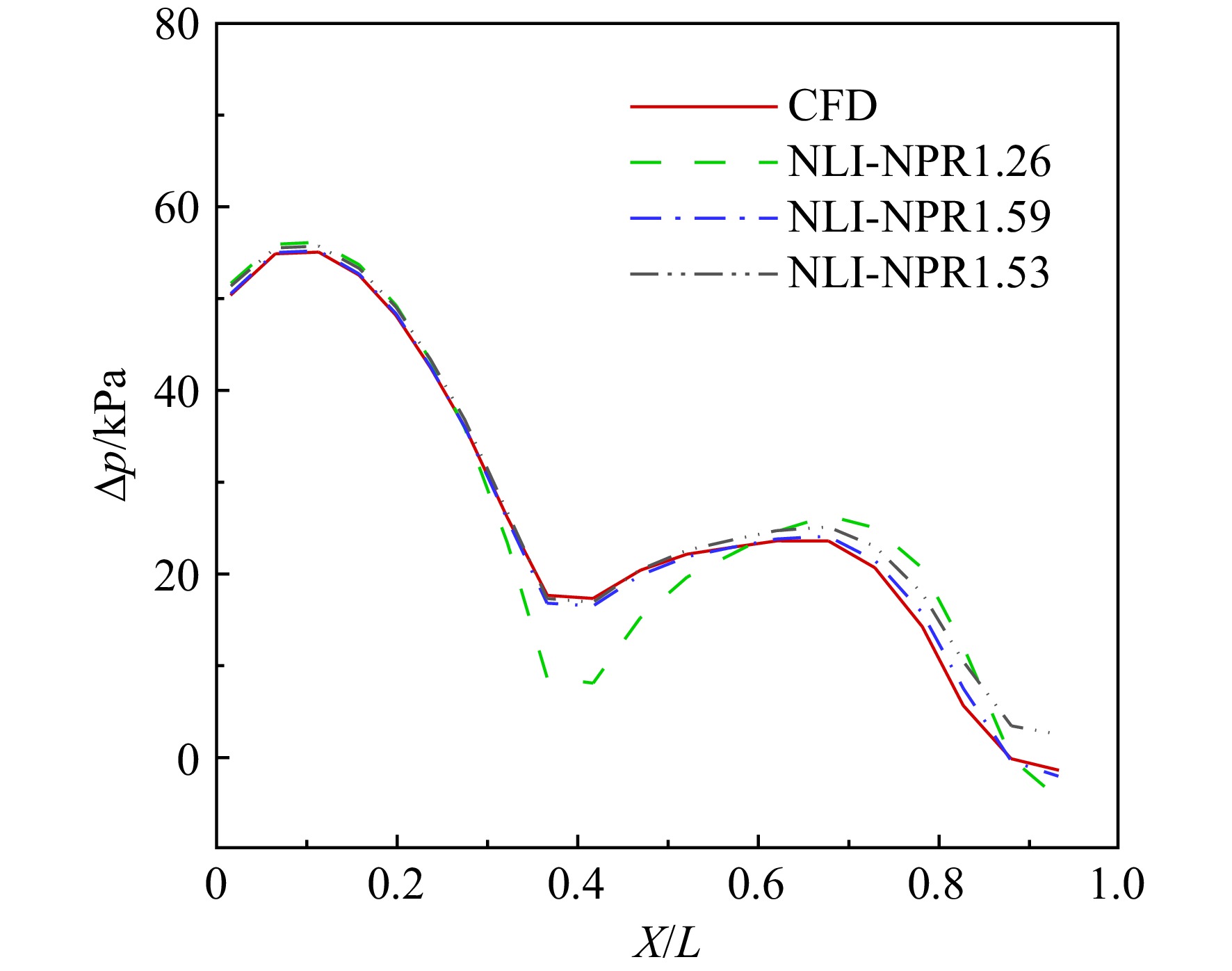

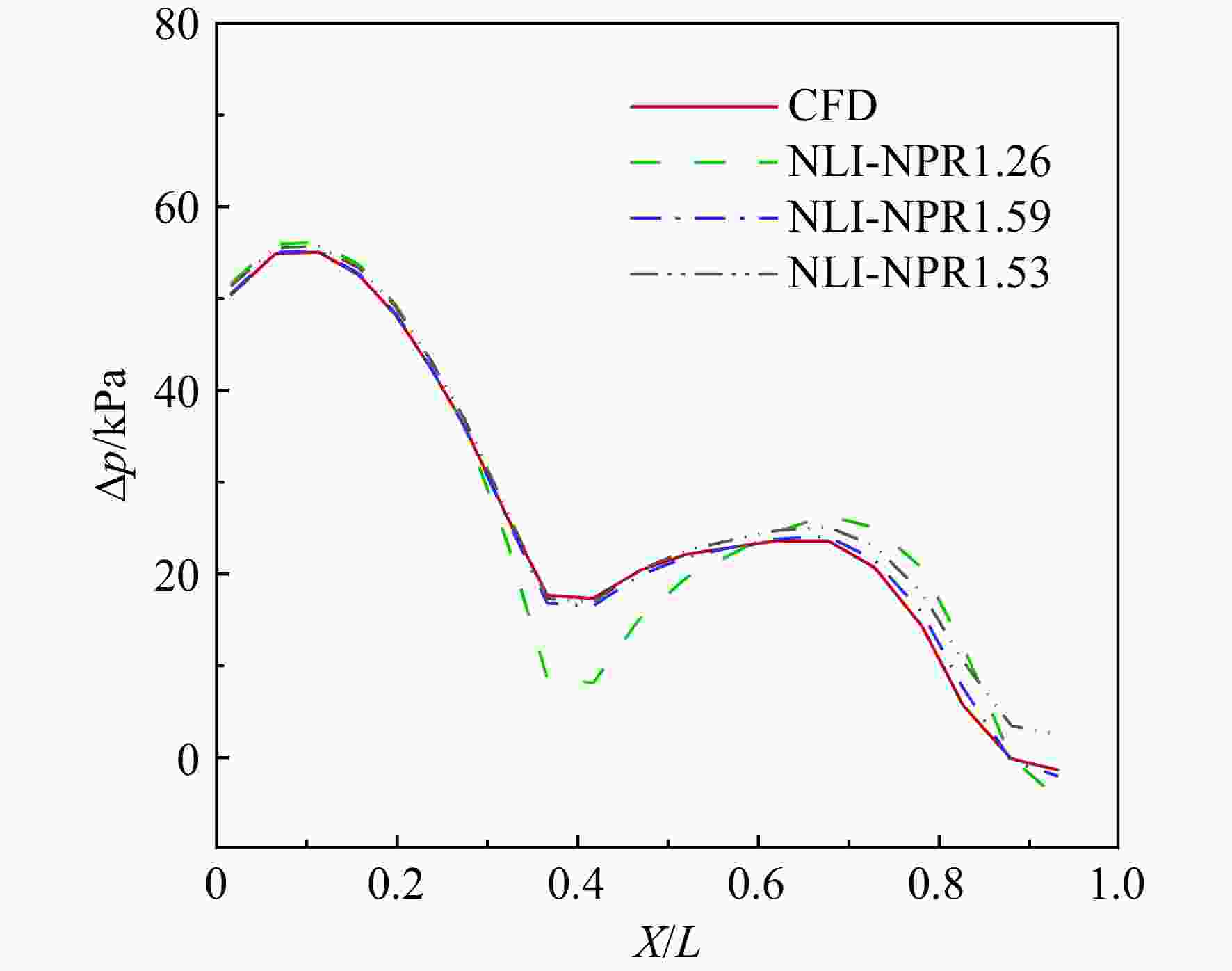

图 19 基于不同NLI因子计算载荷与CFD结果对比（下纵线，H0M0MCN）
Figure 19. Comparison of loads based on different NLIs and CFD results （lower center curve, H0M0MCN）

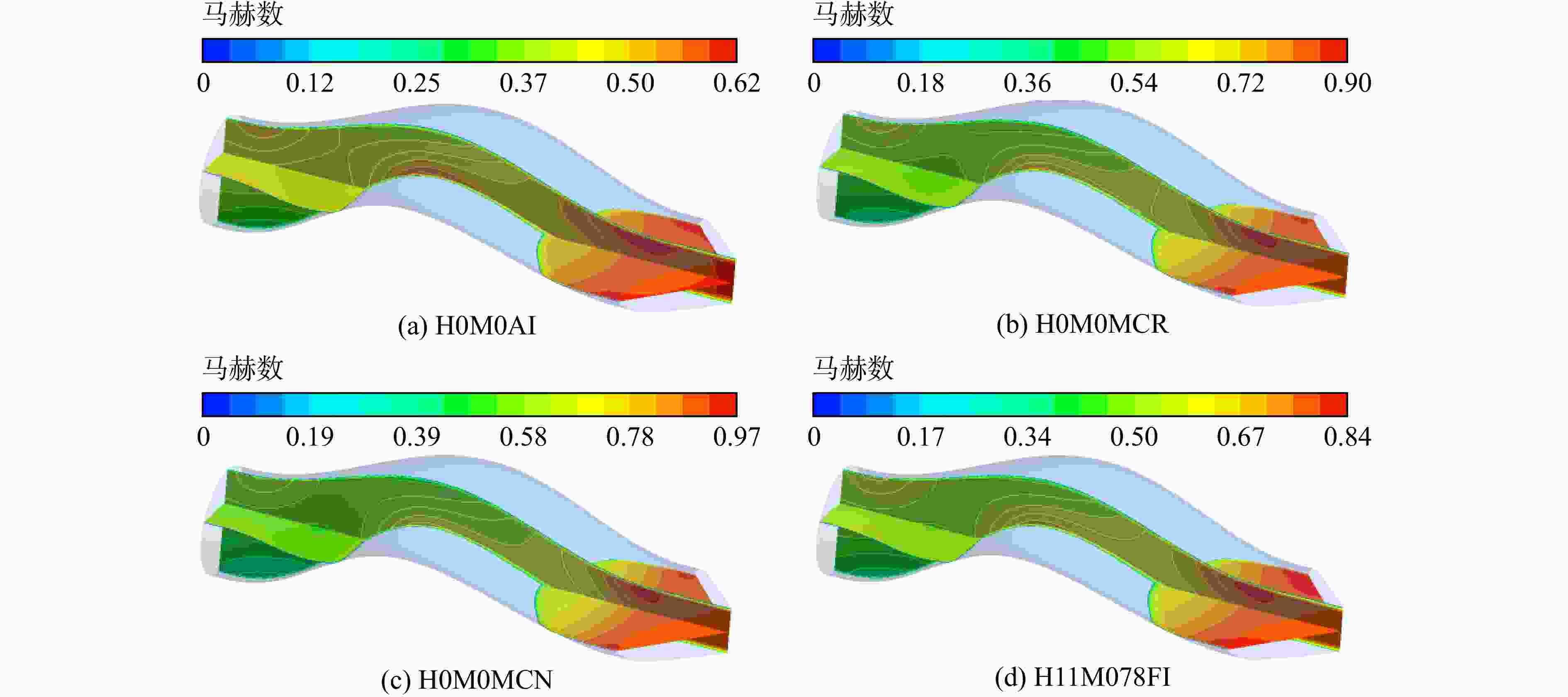

图 20 不同亚临界计算状态下马赫数分布云图对比
Figure 20. Comparison of Mach number contours for different subcritical computation states

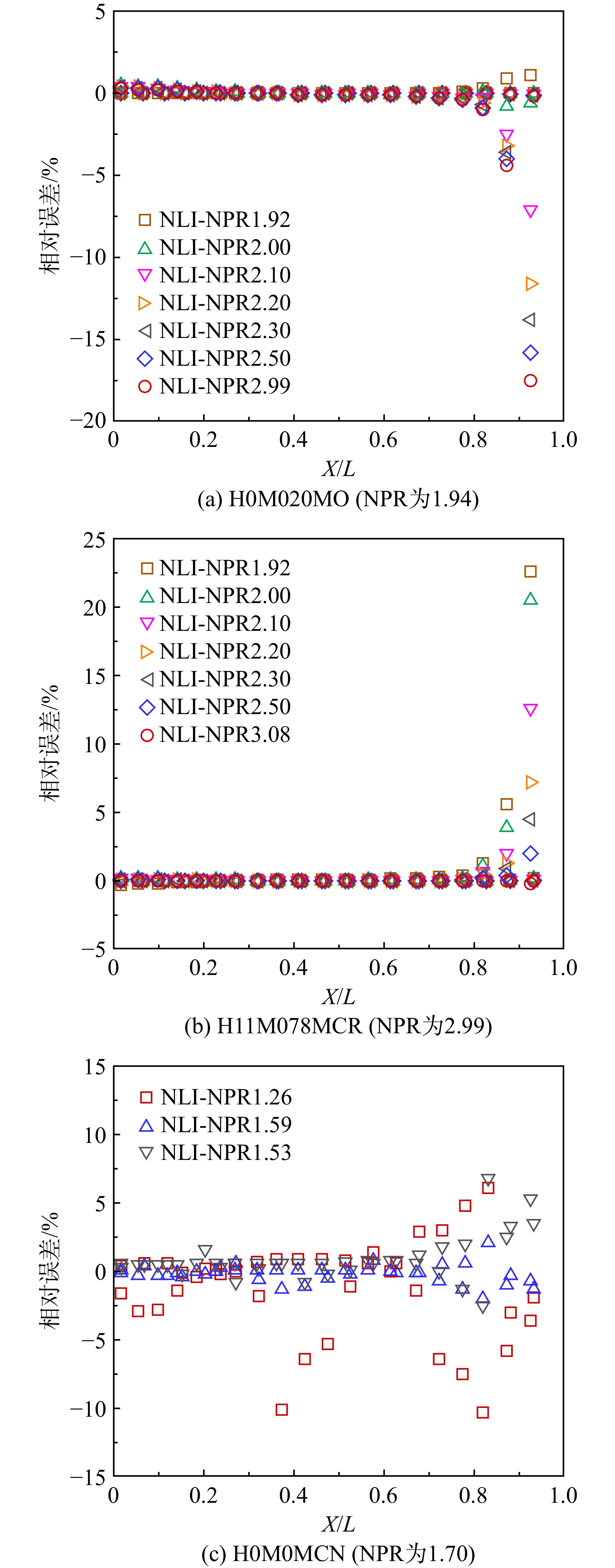

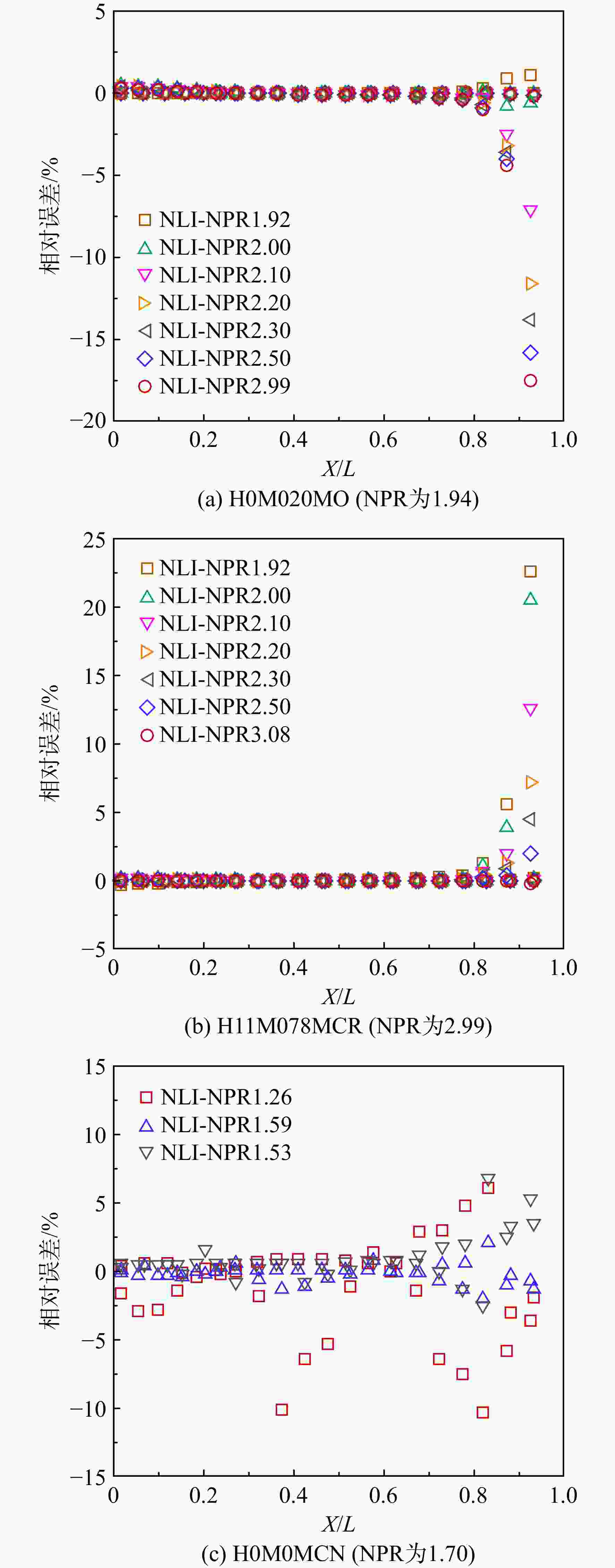

图 21 基于不同NLI因子载荷计算结果相对误差
Figure 21. Relative error of load results based on different NLI

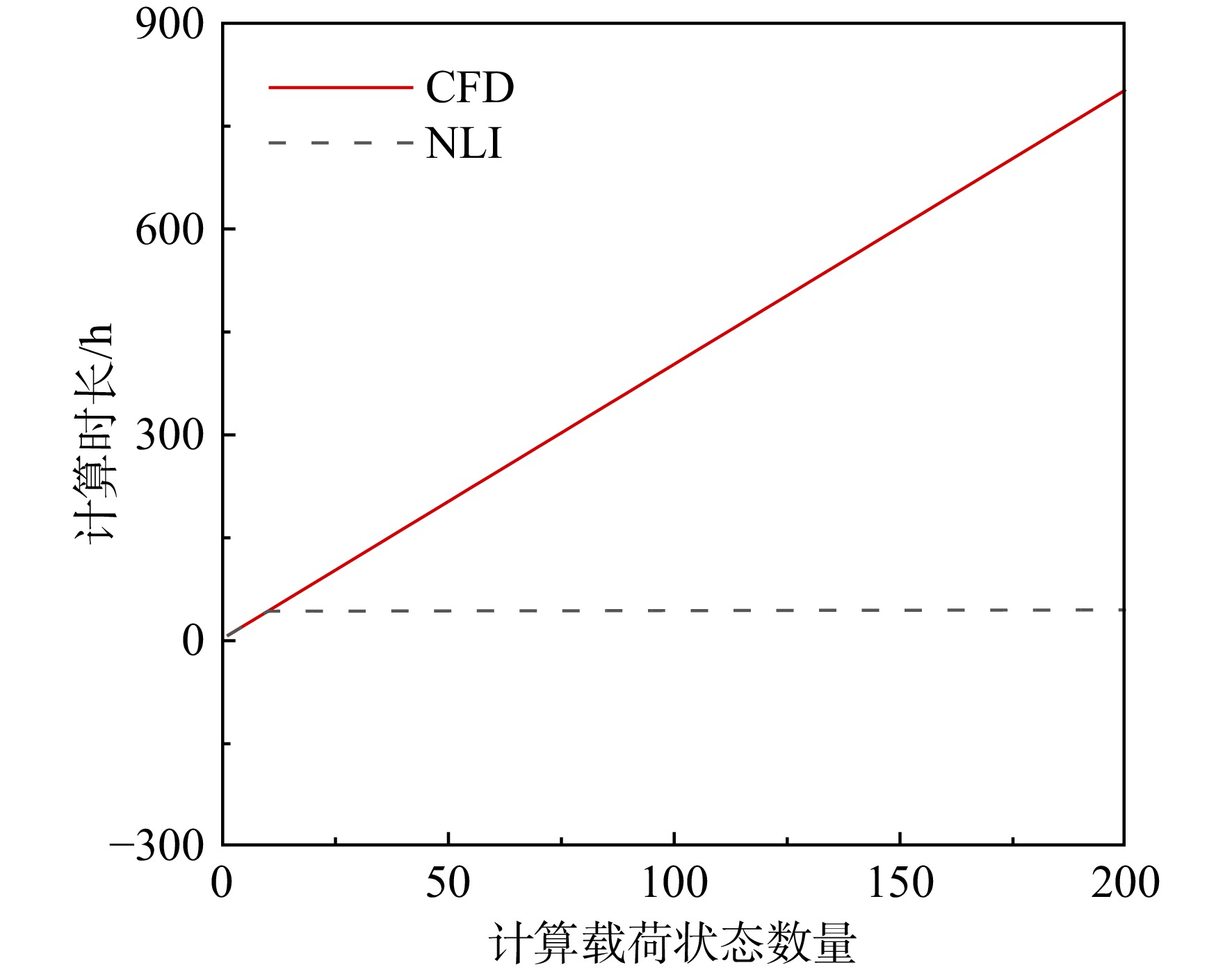

图 22 NLI方法与CFD计算时长对比
Figure 22. Comparison of the calculation time between NLI and CFD method
表 1 计算状态
Table 1. Computational state
编号 飞行高度/km 飞行马赫数 ES NPR H0M0FI 0 0 FI 1.08 H0M0AI 0 0 AI 1.26 H0M0MCR 0 0 MCR 1.59 H0M0MCN 0 0 MCN 1.70 H0M0MO 0 0 MO 1.92 H0M020MO 0 0.20 MO 1.94 H11M078FI 11 0.78 FI 1.53 H11M078AI 11 0.78 AI 2.00 H11M078MCR 11 0.78 MCR 2.99 H11M078MCN 11 0.78 MCN 3.08
下载: 导出CSV
-
[1] Luo Pei, Zheng Min. Thermal-fluid-solid coupling analysis of aero-engine nozzle[J]. Journal of Aerospace Science and Technology, 2016, 4(4): 85-95. [2] Crowe D S. Hot streak characterization in serpentine exhaust nozzles[D]. Ann Arbor, US: Air Force Institute of Technology, 2015. [3] 傅学金, 邓恒, 寇军强, 等. 复合喷管结构温度场流固耦合仿真分析[J]. 固体火箭技术, 2014, 37(6): 781-786. Fu Xuejin, Deng Heng, Kou Junqiang, et al. Coupled numerical simulation on flow field and thermo-structure of composite nozzle[J]. Journal of Solid Rocket Technology, 2014, 37(6): 781-786. (in ChineseFu Xuejin, Deng Heng, Kou Junqiang, et al. Coupled numerical simulation on flow field and thermo-structure of composite nozzle[J]. Journal of Solid Rocket Technology, 2014, 37(6): 781-786. (in Chinese) [4] Crickmore P F. Lockheed F-117 nighthawk stealth fighter[M]. Oxford, UK: Osprey Publishing, 2014. [5] 艾俊强, 周莉, 杨青真. S弯隐身喷管[M]. 北京: 国防工业出版社, 2017. [6] Sepulveda E, Smith H. Technology challenges of stealth unmanned combat aerial vehicles[J]. The Aeronautical Journal, 2017, 121(1243): 1261-1295. [7] 孙啸林. 低可探测S弯喷管设计及性能评估方法研究[D]. 西安: 西北工业大学, 2018. Sun Xiaolin. Investigation on design method and performance estimation of low observable S-shaped nozzle[D]. Xi’an: Northwestern Polytechnical University, 2018. (in ChineseSun Xiaolin. Investigation on design method and performance estimation of low observable S-shaped nozzle[D]. Xi’an: Northwestern Polytechnical University, 2018. (in Chinese) [8] 周铸, 黄江涛, 黄勇, 等. CFD技术在航空工程领域的应用、挑战与发展[J]. 航空学报, 2017, 38(3): 020891. Zhou Zhu, Huang Jiangtao, Huang Yong, et al. CFD technology in aeronautic engineering field: Applications, challenges and development[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(3): 020891. (in ChineseZhou Zhu, Huang Jiangtao, Huang Yong, et al. CFD technology in aeronautic engineering field: Applications, challenges and development[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(3): 020891. (in Chinese) [9] 孙鹏, 周莉, 王占学, 等. 双S弯喷管的流固耦合特性研究[J]. 推进技术, 2022, 43(10): 210349. Sun Peng, Zhou Li, Wang Zhanxue, et al. Fluid-structure interaction characteristic of double serpentine nozzle[J]. Journal of Propulsion Technology, 2022, 43(10): 210349. (in ChineseSun Peng, Zhou Li, Wang Zhanxue, et al. Fluid-structure interaction characteristic of double serpentine nozzle[J]. Journal of Propulsion Technology, 2022, 43(10): 210349. (in Chinese) [10] 孙鹏, 周莉, 王占学. 出口宽高比对双涵道S弯喷管流动特性的影响[J]. 推进技术, 2022, 43(6): 201033. Sun Peng, Zhou Li, Wang Zhanxue. Effects of aspect ratio on flow characteristic of serpentine nozzle for turbofan[J]. Journal of Propulsion Technology, 2022, 43(6): 201033. (in ChineseSun Peng, Zhou Li, Wang Zhanxue. Effects of aspect ratio on flow characteristic of serpentine nozzle for turbofan[J]. Journal of Propulsion Technology, 2022, 43(6): 201033. (in Chinese) [11] 王赟, 杨青真. 大涵道发动机分排喷管参数化设计[J]. 中国科技信息, 2017(9): 37-38. Wang Yun, Yang Qingzhen. Parametric design of exhaust nozzle for large ducted engine[J]. China Science and Technology Information, 2017(9): 37-38. (in ChineseWang Yun, Yang Qingzhen. Parametric design of exhaust nozzle for large ducted engine[J]. China Science and Technology Information, 2017(9): 37-38. (in Chinese) [12] 征建生, 张靖周, 单勇, 等. 球面收敛二元喷管出口三角形锯齿对气动和红外特性的影响[J]. 航空动力学报, 2017, 32(6): 1328-1334. Zheng Jiansheng, Zhang Jingzhou, Shan Yong, et al. Influence of outlet delta-chevrons on aerodynamic and infrared characteristics of spherical convergent two-dimensional nozzle[J]. Journal of Aerospace Power, 2017, 32(6): 1328-1334. (in ChineseZheng Jiansheng, Zhang Jingzhou, Shan Yong, et al. Influence of outlet delta-chevrons on aerodynamic and infrared characteristics of spherical convergent two-dimensional nozzle[J]. Journal of Aerospace Power, 2017, 32(6): 1328-1334. (in Chinese) [13] 向鑫, 李苑, 朱敬德, 等. 复杂载荷下二元喷管静强度分析[J]. 失效分析与预防, 2022, 17(3): 141-145, 161. Xiang Xin, Li Yuan, Zhu Jingde, et al. Static strength analysis of a two-dimensional nozzle under complex loads[J]. Failure Analysis and Prevention, 2022, 17(3): 141-145, 161. (in ChineseXiang Xin, Li Yuan, Zhu Jingde, et al. Static strength analysis of a two-dimensional nozzle under complex loads[J]. Failure Analysis and Prevention, 2022, 17(3): 141-145, 161. (in Chinese) [14] 胡海峰, 鲍福廷, 王艺杰, 等. 喷管分离流流动-热-结构顺序耦合数值模拟及试验研究[J]. 宇航学报, 2011, 32(7): 1534-1541. Hu Haifeng, Bao Futing, Wang Yijie, et al. Nozzle flow separation fluid-thermal-structure load transfer coupled analysis and test research[J]. Journal of Astronautics, 2011, 32(7): 1534-1541. (in ChineseHu Haifeng, Bao Futing, Wang Yijie, et al. Nozzle flow separation fluid-thermal-structure load transfer coupled analysis and test research[J]. Journal of Astronautics, 2011, 32(7): 1534-1541. (in Chinese) [15] 李虹杨, 王霄, 孙超, 等. 喷流作用下的单边膨胀后体气动载荷[J]. 航空学报, 2021, 42(8): 525797. Li Hongyang, Wang Xiao, Sun Chao, et al. Aerodynamic load of unilateral expanded after-body under jet effect[J]. Acta Aeronautica et Astronautica Sinica, 2021, 42(8): 525797. (in ChineseLi Hongyang, Wang Xiao, Sun Chao, et al. Aerodynamic load of unilateral expanded after-body under jet effect[J]. Acta Aeronautica et Astronautica Sinica, 2021, 42(8): 525797. (in Chinese) [16] 卫永斌, 艾俊强. 并列双发三维非对称多S弯喷管参数化设计方法[J]. 航空动力学报, 2015, 30(2): 271-280. Wei Yongbin, Ai Junqiang. Parameter design method of double juxtaposition 3-D asymmetric several-S-shaped nozzles[J]. Journal of Aerospace Power, 2015, 30(2): 271-280. (in ChineseWei Yongbin, Ai Junqiang. Parameter design method of double juxtaposition 3-D asymmetric several-S-shaped nozzles[J]. Journal of Aerospace Power, 2015, 30(2): 271-280. (in Chinese) [17] 张勃, 吉洪湖. 大宽高比矩形喷管的射流与外流掺混特性的数值研究[J]. 航空动力学报, 2005, 20(1): 104-110. Zhang Bo, Ji Honghu. Numerical study of internal and external flow mixing for rectangular nozzles with large aspect ratio[J]. Journal of Aerospace Power, 2005, 20(1): 104-110. (in ChineseZhang Bo, Ji Honghu. Numerical study of internal and external flow mixing for rectangular nozzles with large aspect ratio[J]. Journal of Aerospace Power, 2005, 20(1): 104-110. (in Chinese) [18] Zhang Yuqi, Xu Jinglei, Pan Ruifeng, et al. Numerical investigation of short takeoff and landing exhaust system using bypass dual throat nozzle[J]. Aerospace Science and Technology, 2023, 138: 108316. [19] Crowe D S, Martin C L. Effect of geometry on exit temperature from serpentine exhaust nozzles[R]. AIAA-2015-1670, 2015. [20] Urbanczyk P S, Alonso J J, Nigam N, et al. Coupled multiphysics analysis for design of advanced exhaust systems[R]. AIAA-2017-0799, 2017. [21] Nigam N, Ayyalasomayajula S K, Tang Yuye, et al. Design optimization of advanced exhaust systems[R]. AIAA-2017-3331, 2017. [22] Nigam N, Ayyalasomayajula S K, Tang Yuye, et al. Aero-structural design tool for advanced exhaust systems[R]. AIAA-2020-0162, 2020. [23] 廉筱纯, 吴虎. 航空发动机原理[M]. 西安: 西北工业大学出版社, 2005. [24] Anderson J D Jr. Fundamentals of aerodynamics[M]. New York, US: McGraw-Hill, 1991. [25] Menter F R. Influence of freestream values on k-omega turbulence model predictions[J]. AIAA Journal, 1992, 30(6): 1657-1659. [26] Zhang Hui, Lei Wutao. Numerical investigation on an under-expanded jet from a rectangular nozzle with aft deck[C]//2023 Asia-Pacific International Symposium on Aerospace Technology (APISAT 2023) Proceedings. Singapore: Springer Nature Singapore, 2024: 1372-1383. [27] 张辉, 雷武涛. 发动机喷管超临界状态喷流数值计算方法研究[C]//第六届中国航空科学技术大会论文集. 嘉兴: 中国航空学会, 2023: 488-494. Zhang Hui, Lei Wutao. Investigation on the jet-flow characteristics of engine nozzle under supercritical state using CFD method[C]//Proceedings of 6th China Aeronautical Science and Technology Congress. Jiaxing: Chinese Society of Aeronautics and Astronautics, 2023: 488-494. (in ChineseZhang Hui, Lei Wutao. Investigation on the jet-flow characteristics of engine nozzle under supercritical state using CFD method[C]//Proceedings of 6th China Aeronautical Science and Technology Congress. Jiaxing: Chinese Society of Aeronautics and Astronautics, 2023: 488-494. (in Chinese) -
