轴线偏差下止口螺栓连接结构高精度装配技术

张伟; 吴怀远; 刘博文; 胡博; 王鲁

doi:10.13224/j.cnki.jasp.20250183

轴线偏差下止口螺栓连接结构高精度装配技术

doi: 10.13224/j.cnki.jasp.20250183

大连理工大学机械工程学院，大连 116023

详细信息

作者简介:
张伟（1985-），男，副教授、博士生导师，博士，主要从事航空航天智能装配技术研究。E-mail：weizhang@dlut.edu.cn

中图分类号: V232.7；TH131.3
计量
- 文章访问数: 46
- HTML浏览量: 41
- PDF量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-16
- 网络出版日期: 2026-09-12

High-precision assembly technology of bolt connection with spigot structure under axial deviation

School of Mechanical Engineering，Dalian University of Technology，Dalian 116024，China

摘要

摘要:
针对航空发动机止口螺栓连接结构安装边装配精度差的问题，提出了轴线偏差下止口螺栓连接结构的装配机理和误差分析，基于此进一步构建了可记录圆心偏移量的安装边装配模型，并通过同心度比较了拧紧顺序、拧紧步数和工艺螺栓数量的装配精度。最后以缩尺模拟件进行试验验证，以组件同心度和上下两级盘外伸端端面变形变化量为表征获取了最优装配工艺。结果表明：（1）止口螺栓连接结构的过盈止口对轴线偏差有补偿作用，仿真中效果更明显，可以使200 μm轴线偏差几乎减小到0 μm，试验中也可使122 μm轴线偏差大幅降低；（2）最优装配工艺为拧紧顺序应使用对角交叉拧紧、拧紧步数应使用三步拧紧、工艺螺栓数量应使用4颗。（3）倾斜装配试验中同心度增大了4.69倍，装配过程中一定要避免倾斜装配。
- 止口螺栓连接 /
- 轴线偏差 /
- 装配精度 /
- 同心度 /
- 装配工艺
Abstract:
Aiming at the problem of poor assembly accuracy of the mounting side of the aero-engine stop bolt connection structure, the assembly mechanism and error analysis of the stop bolt connection structure under the axial deviation are proposed, based on which the mounting side assembly model that can record the circular center offset is further constructed, and the assembly accuracy of the tightening sequence, the number of tightening steps, and the number of process bolts are compared by concentricity. Finally, the optimal assembly process was obtained by test validation with reduced-scale simulated parts, characterized by the concentricity of the assembly and the amount of deformation change of the upper and lower two-stage discs' outreach end surfaces. The results show that: (1) the surplus stop of the stop bolt connection structure has a compensating effect on the axial deviation, and the effect is more obvious in the simulation, which can make the 200 μm axial deviation almost reduced to 0 μm, and the 122 μm axial deviation can be greatly reduced in the test; (2) the optimal assembly process is that the tightening sequence should use diagonal cross-tightening, the number of steps of tightening should use three-step tightening, and the number of process bolts should use four. (3) The concentricity increased by 4.69 times in the tilted assembly test, and tilted assembly must be avoided in the assembly process.
- bolt connection with spigot /
- axial misalignment /
- assembly accuracy /
- concentricity /
- assembly process

HTML

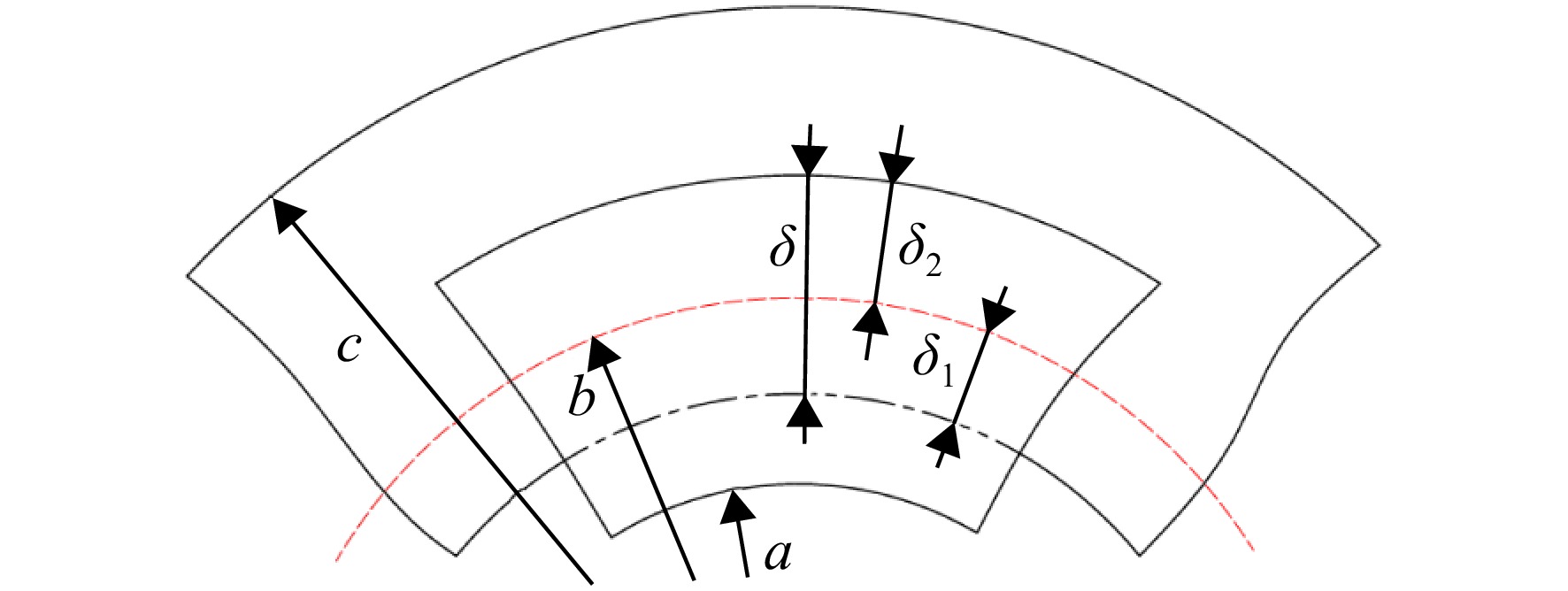

图 1 止口接触模型

Figure 1. Spigot contact modeling

下载: 全尺寸图片幻灯片

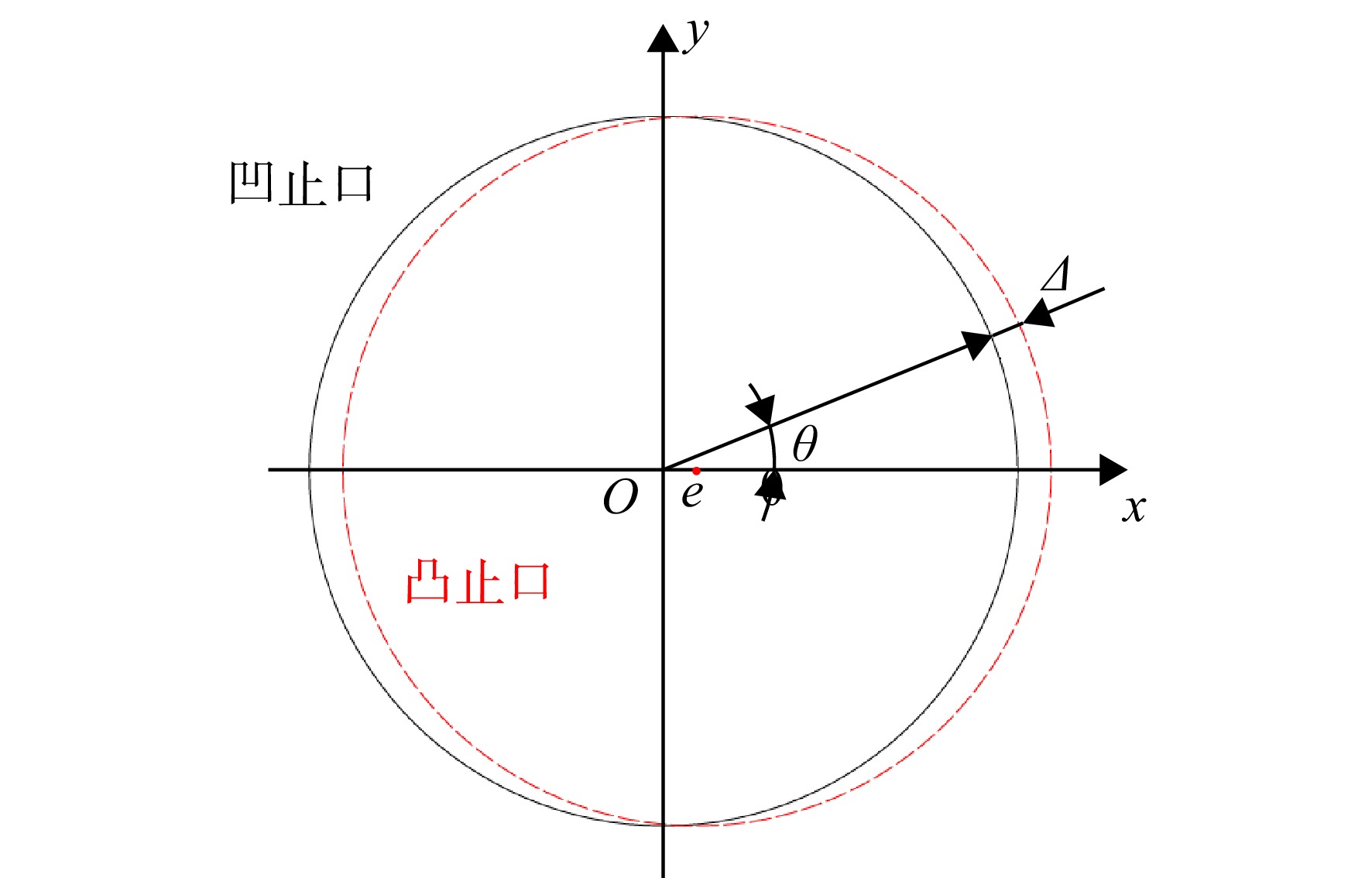

图 2 径向偏移

Figure 2. Caliber offset

下载: 全尺寸图片幻灯片

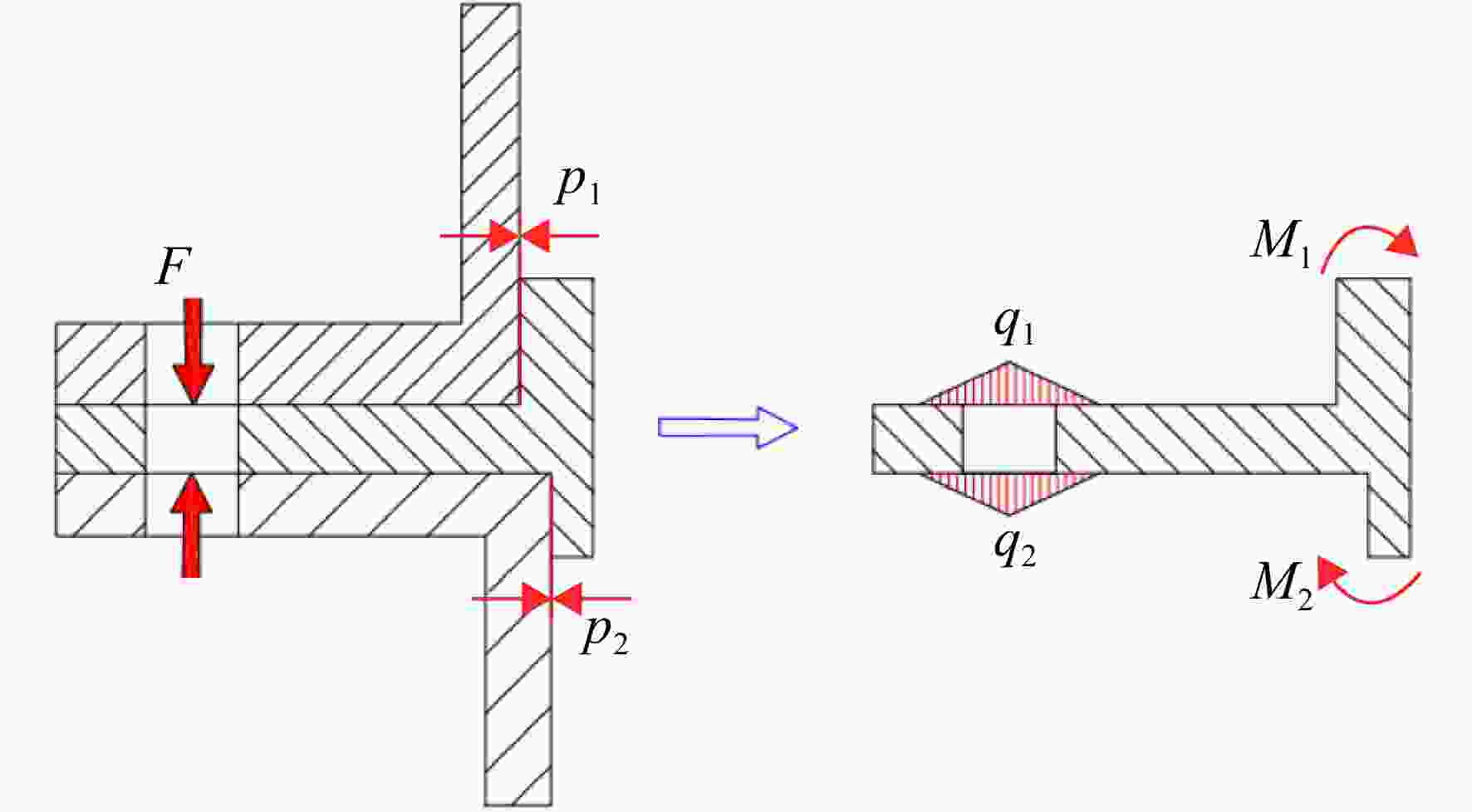

图 3 四级盘安装边受力情况

Figure 3. Force on the mounting side of a four-stage disk

下载: 全尺寸图片幻灯片

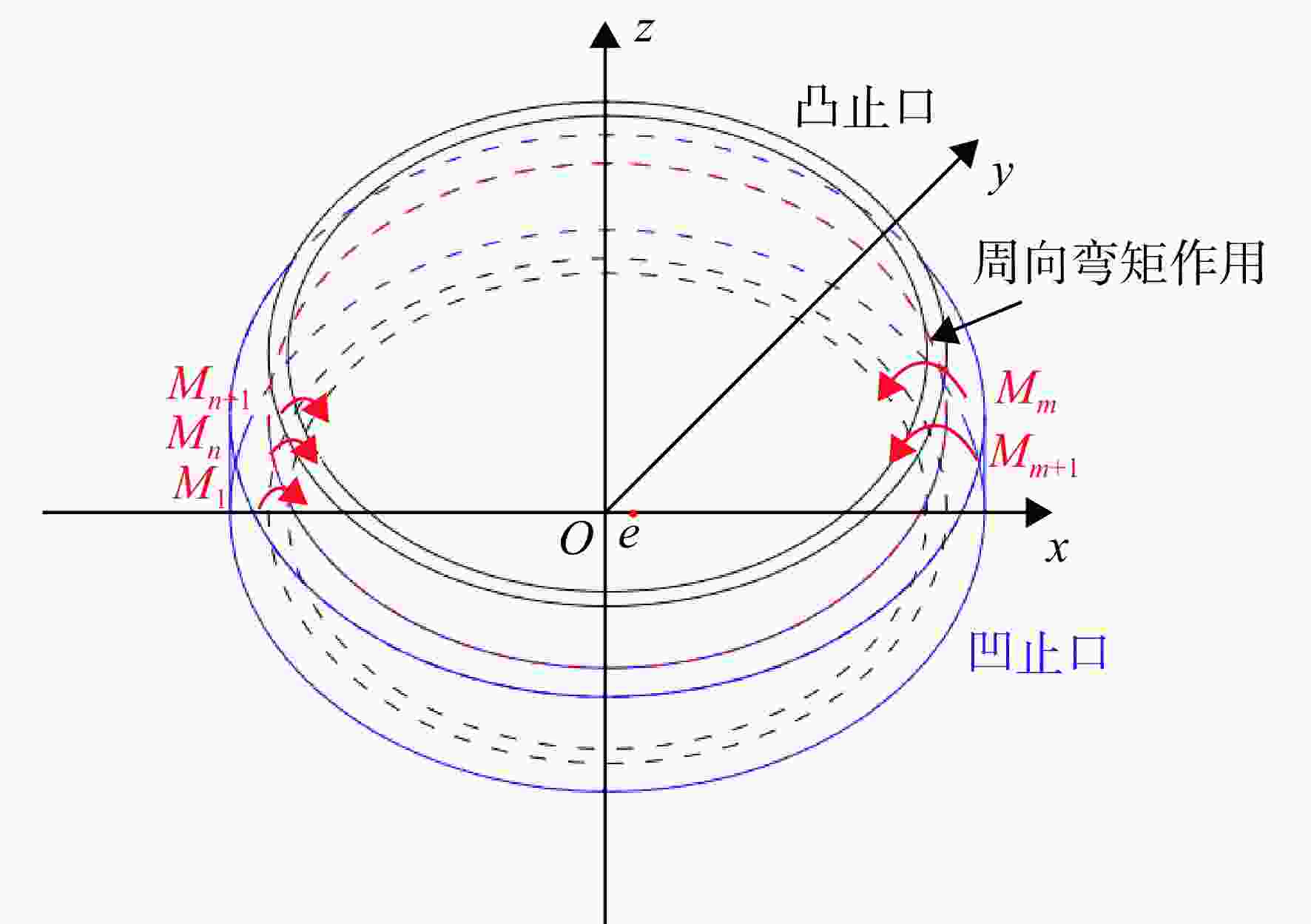

图 4 周向弯矩作用示意图

Figure 4. Schematic diagram of circumferential bending moment action

下载: 全尺寸图片幻灯片

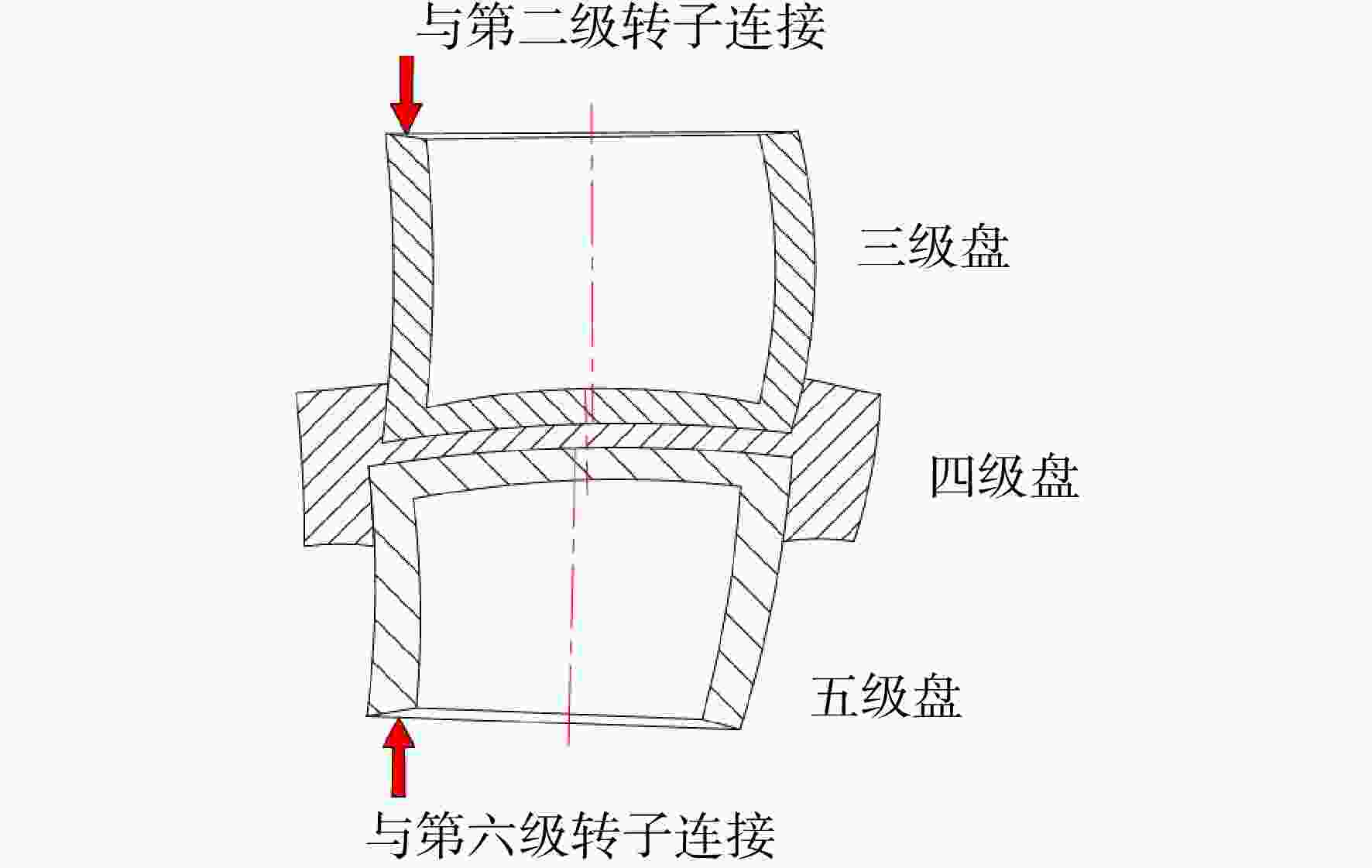

图 5 三、四、五级转子变形示意图

Figure 5. Schematic diagram of rotor deformation in three, four and five stages

下载: 全尺寸图片幻灯片

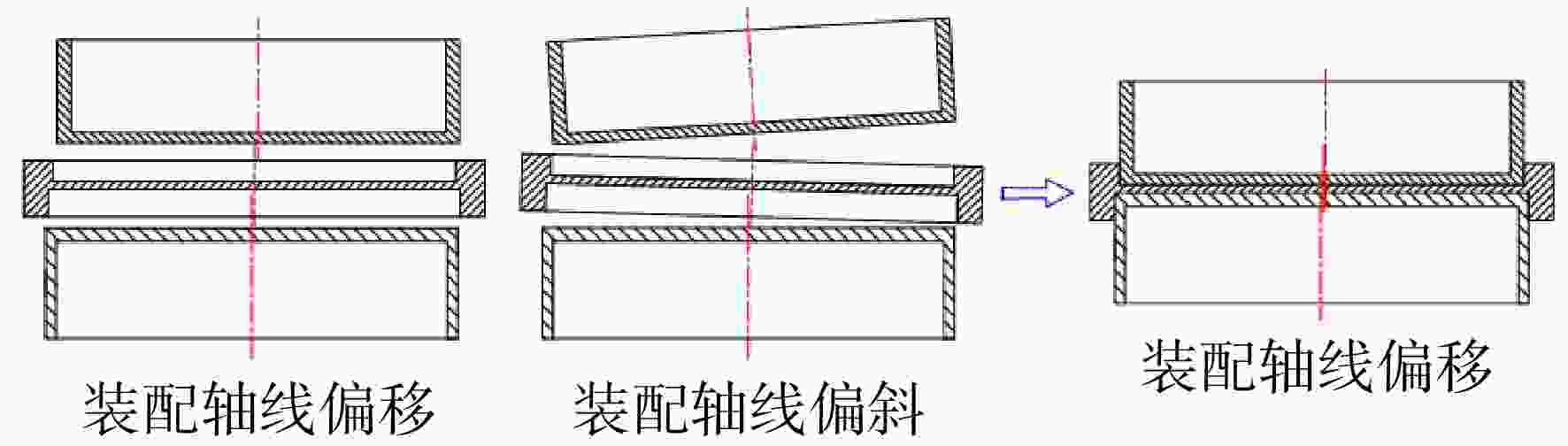

图 6 装配轴线偏差

Figure 6. Assembly axis deviation

下载: 全尺寸图片幻灯片

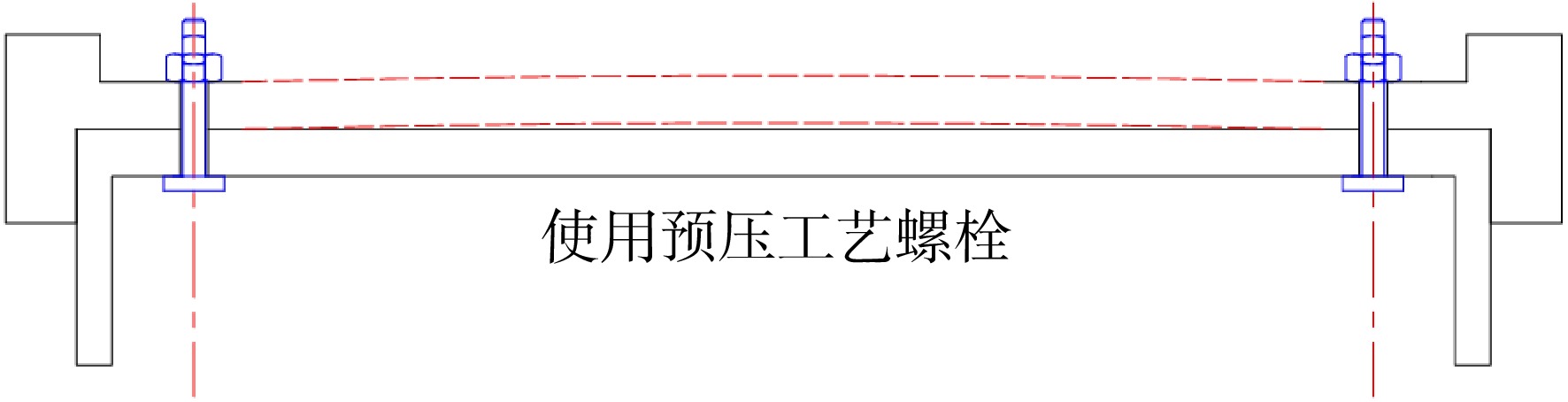

图 7 使用工艺螺栓变形示意图

Figure 7. Schematic diagram of deformation of process bolts in use

下载: 全尺寸图片幻灯片

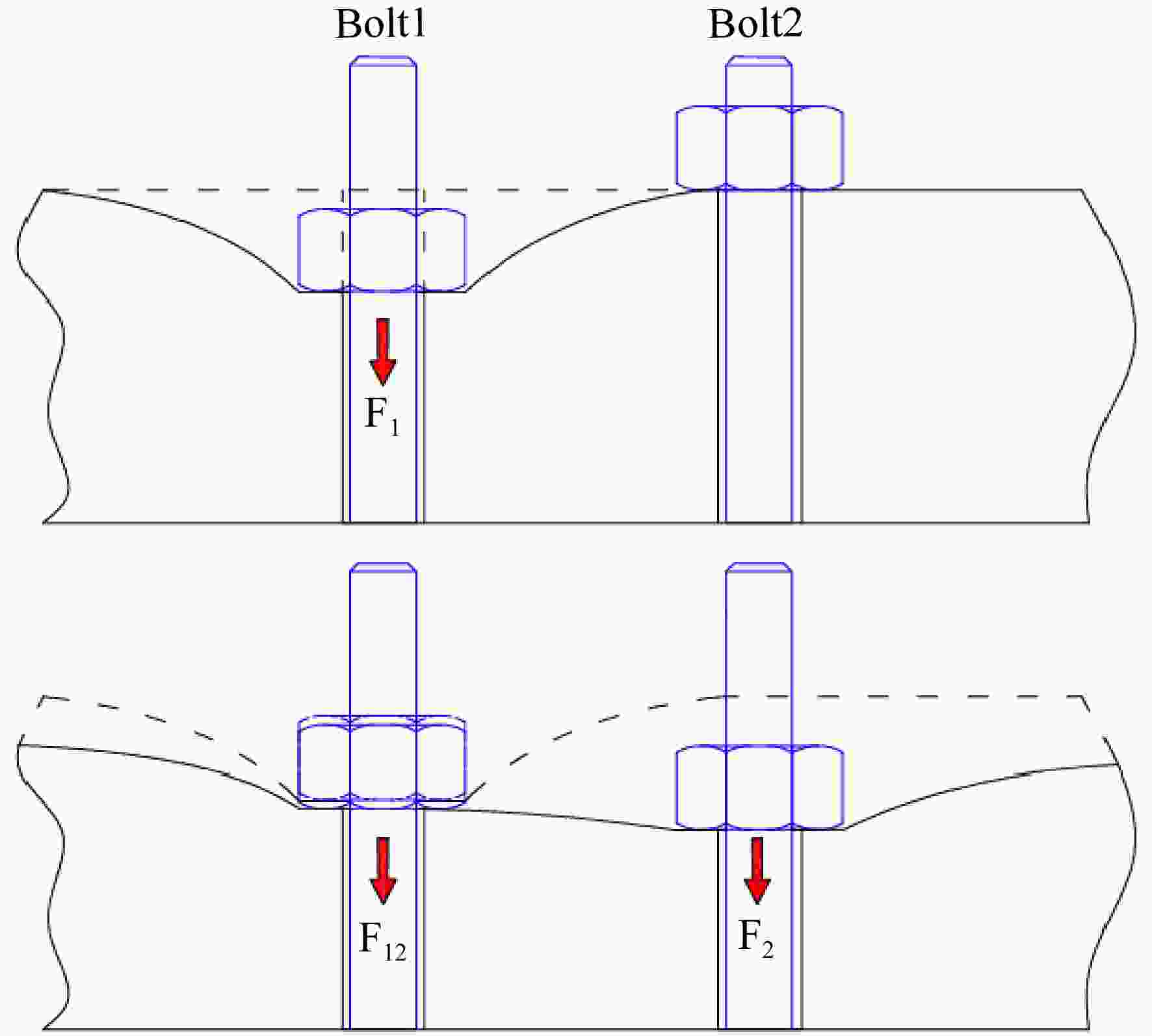

图 8 弹性相互作用示意图

Figure 8. Schematic diagram of elastic interactions

下载: 全尺寸图片幻灯片

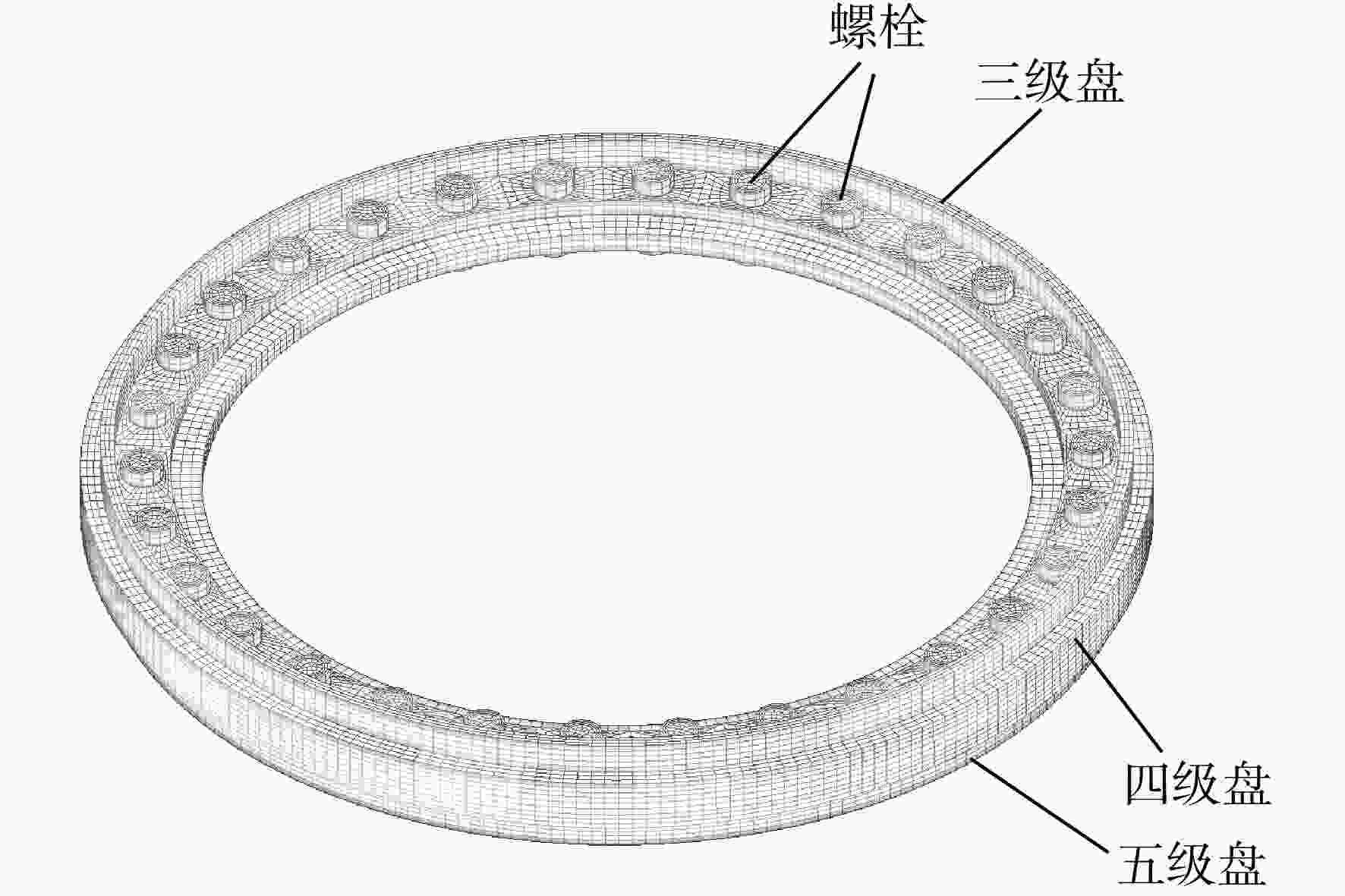

图 9 安装边装配模型

Figure 9. Mounting side assembly model

下载: 全尺寸图片幻灯片

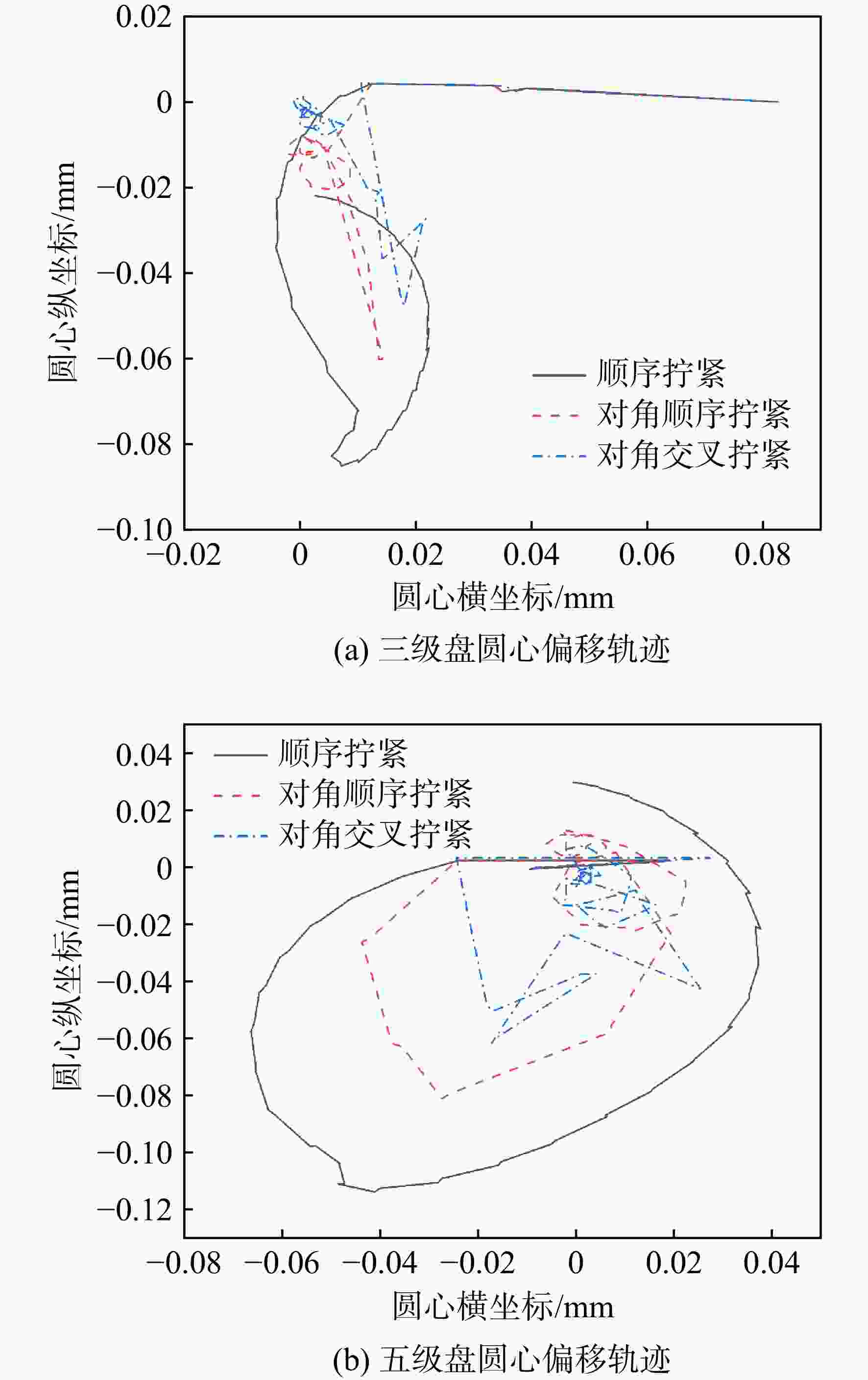

图 10 不同拧紧顺序圆心偏移轨迹

Figure 10. Circular center offset trajectories for different tightening sequences

下载: 全尺寸图片幻灯片

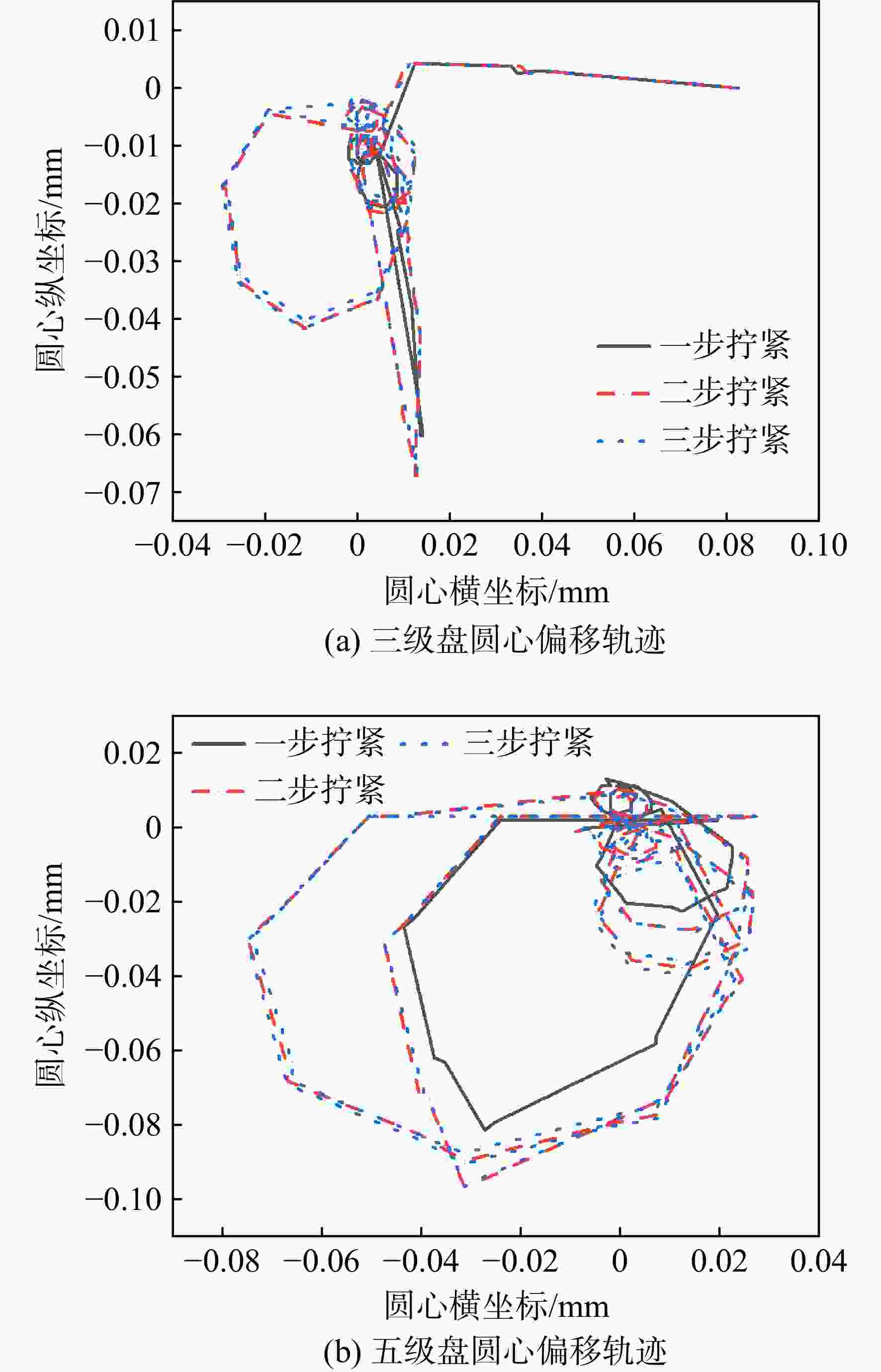

图 11 不同拧紧步数圆心偏移轨迹

Figure 11. Circular center offset trajectories with different tightening steps

下载: 全尺寸图片幻灯片

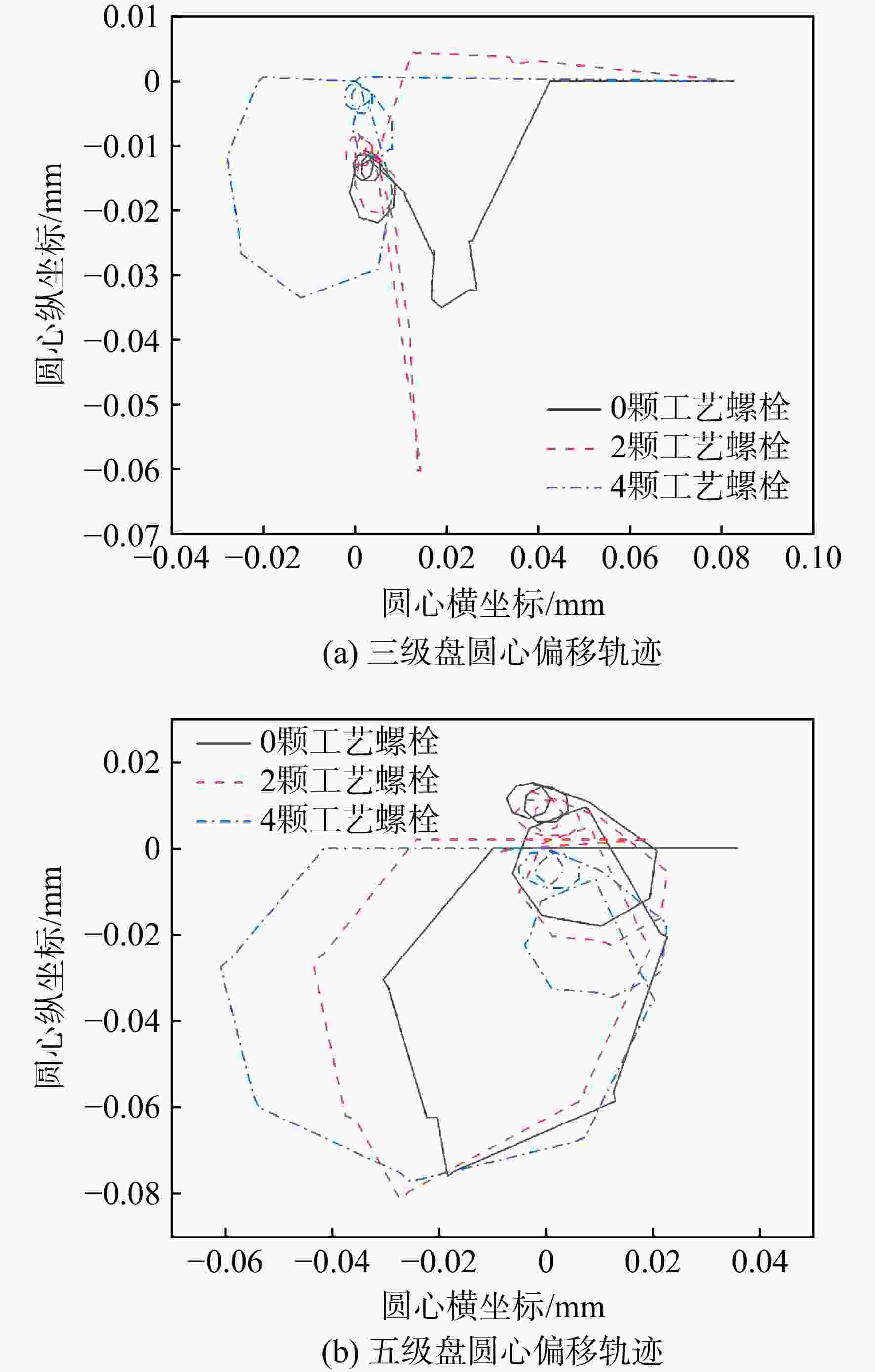

图 12 不同工艺螺栓数量圆心偏移轨迹

Figure 12. Circular center offset trajectories for different numbers of process bolts

下载: 全尺寸图片幻灯片

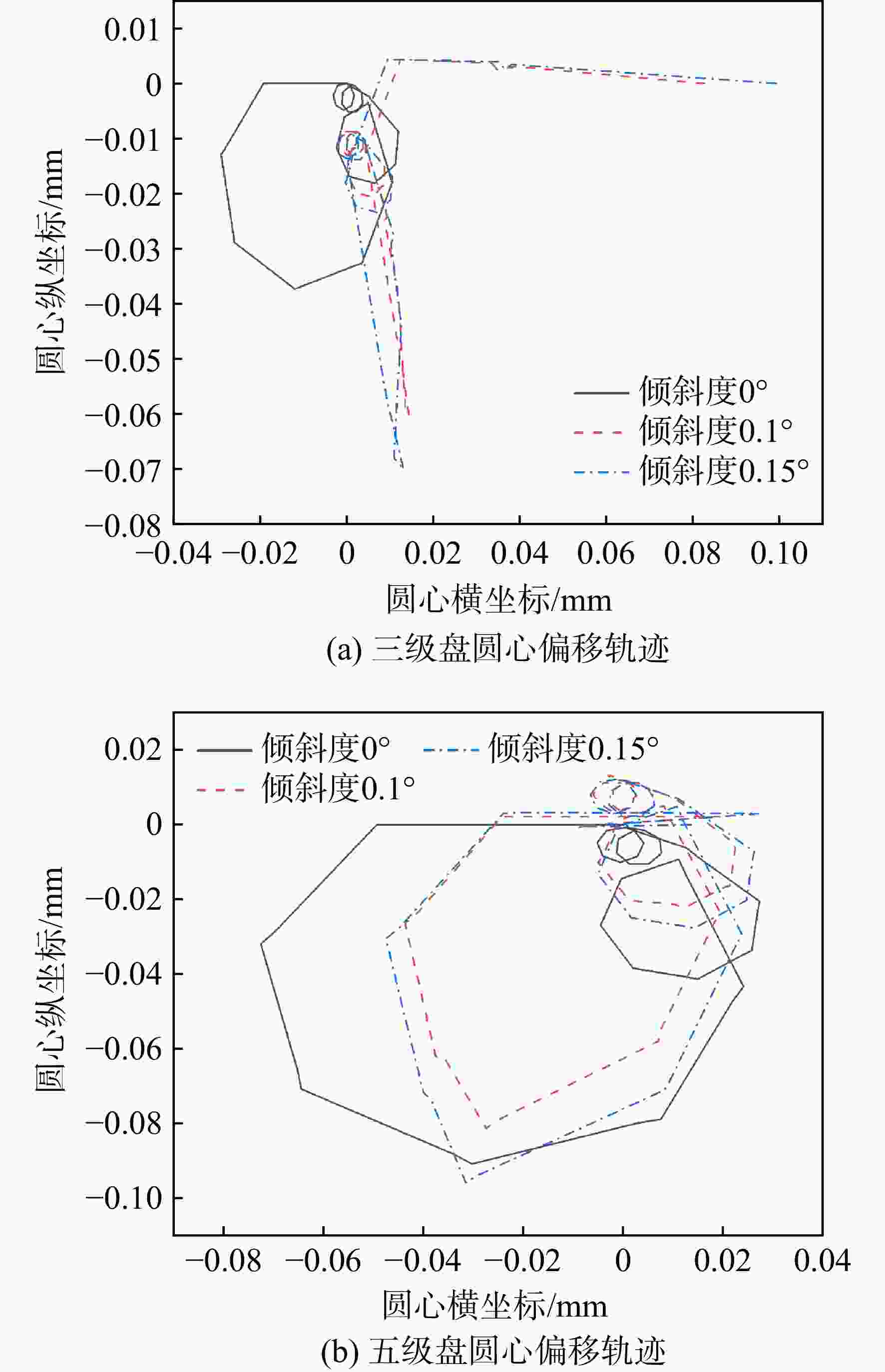

图 13 不同倾斜角度下的圆心偏移轨迹

Figure 13. Circular center offset trajectories with different inclinations

下载: 全尺寸图片幻灯片

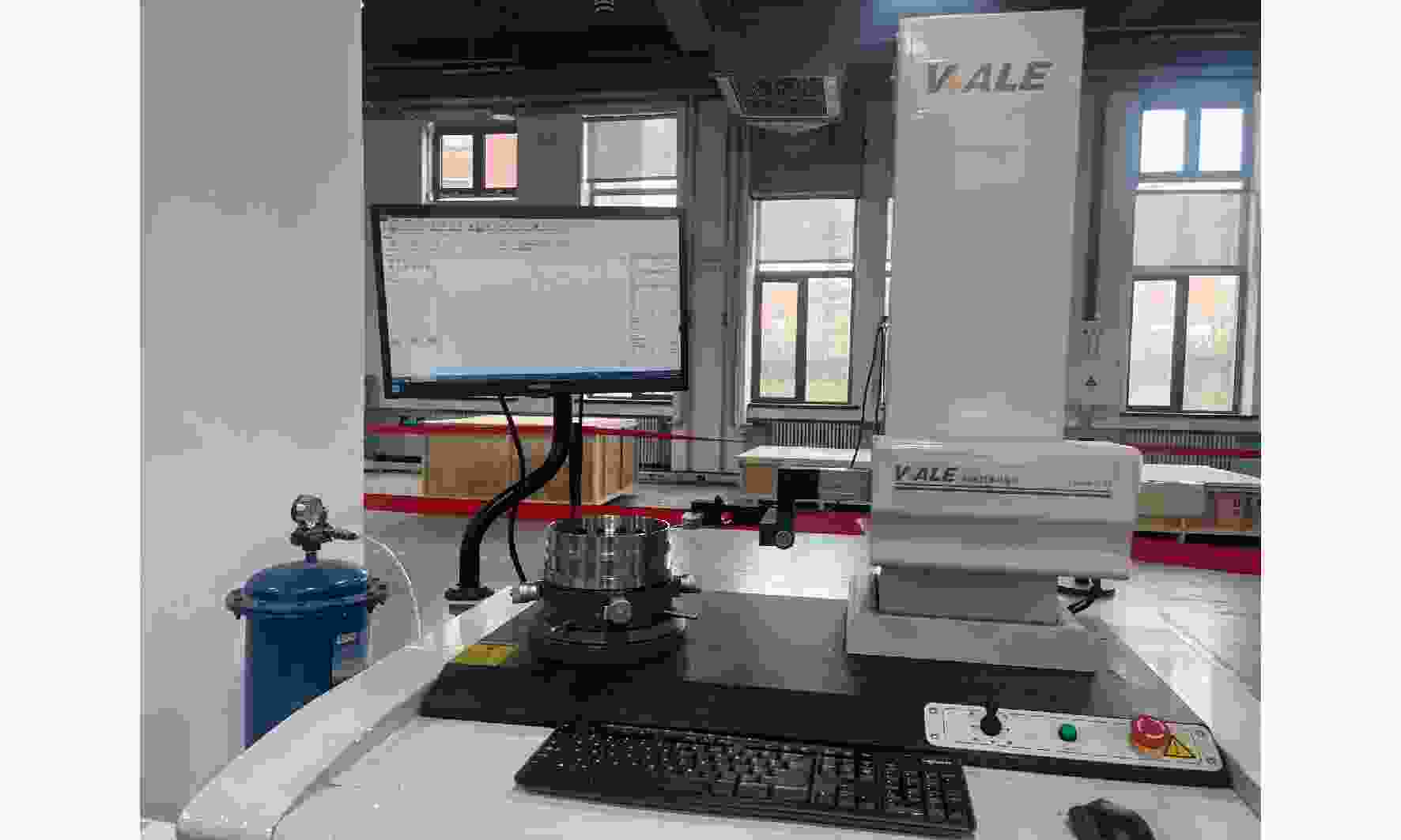

图 14 圆柱度仪

Figure 14. Cylindricity gauge

下载: 全尺寸图片幻灯片

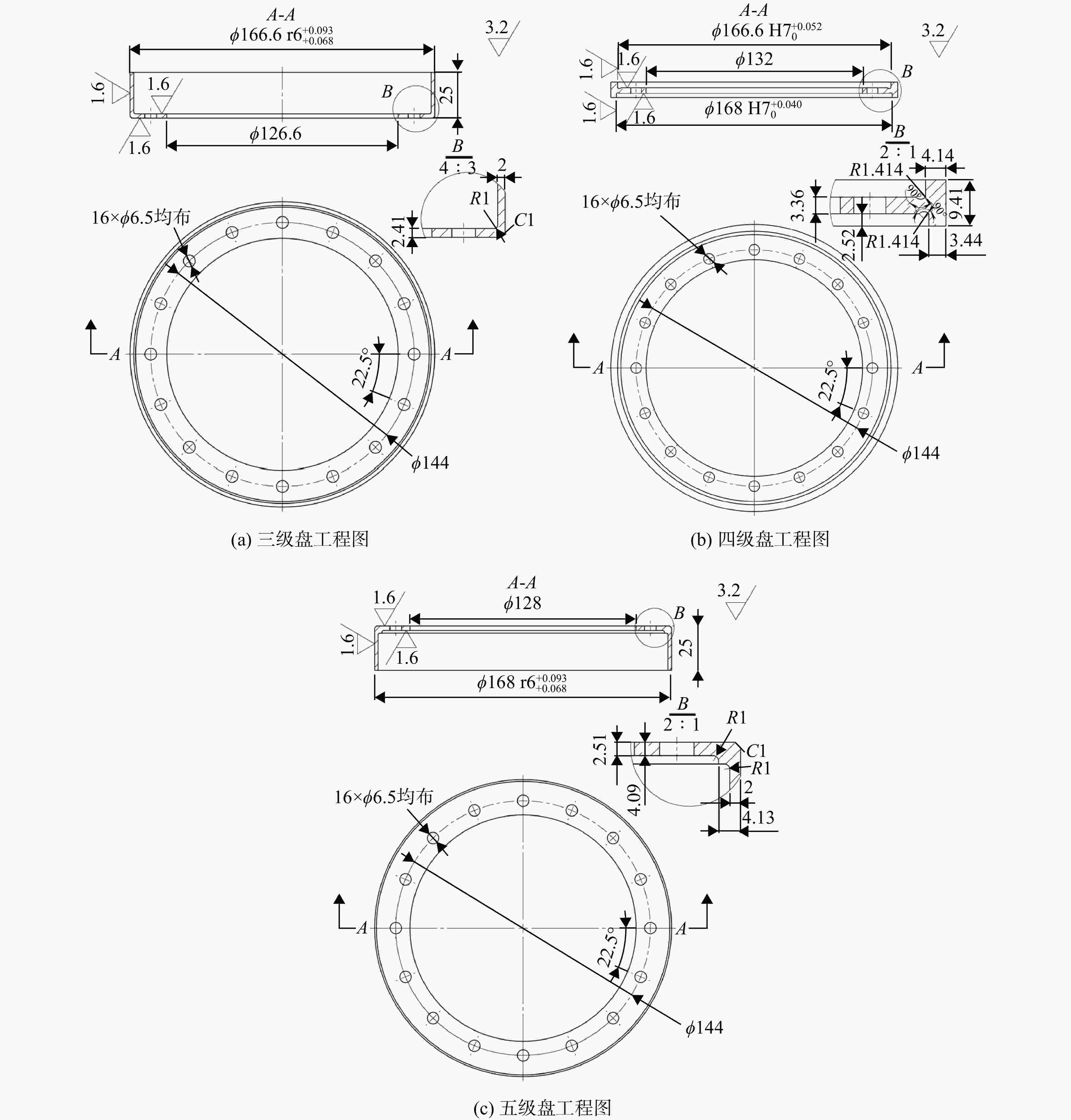

图 15 试验件工程图（单位：mm）

Figure 15. Engineering drawing of test piece（unit:mm）

下载: 全尺寸图片幻灯片

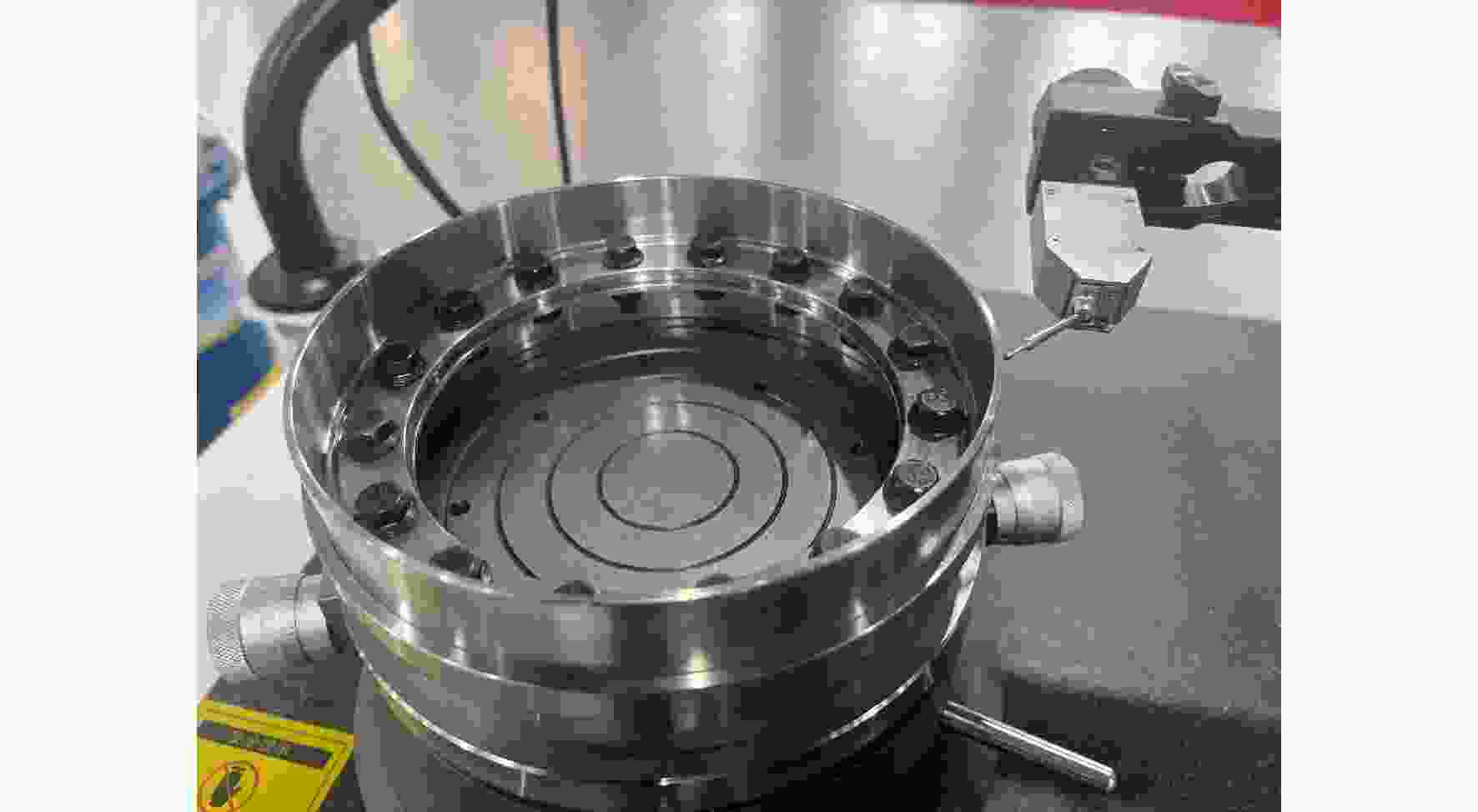

图 16 模拟试验件

Figure 16. Simulated test pieces

下载: 全尺寸图片幻灯片

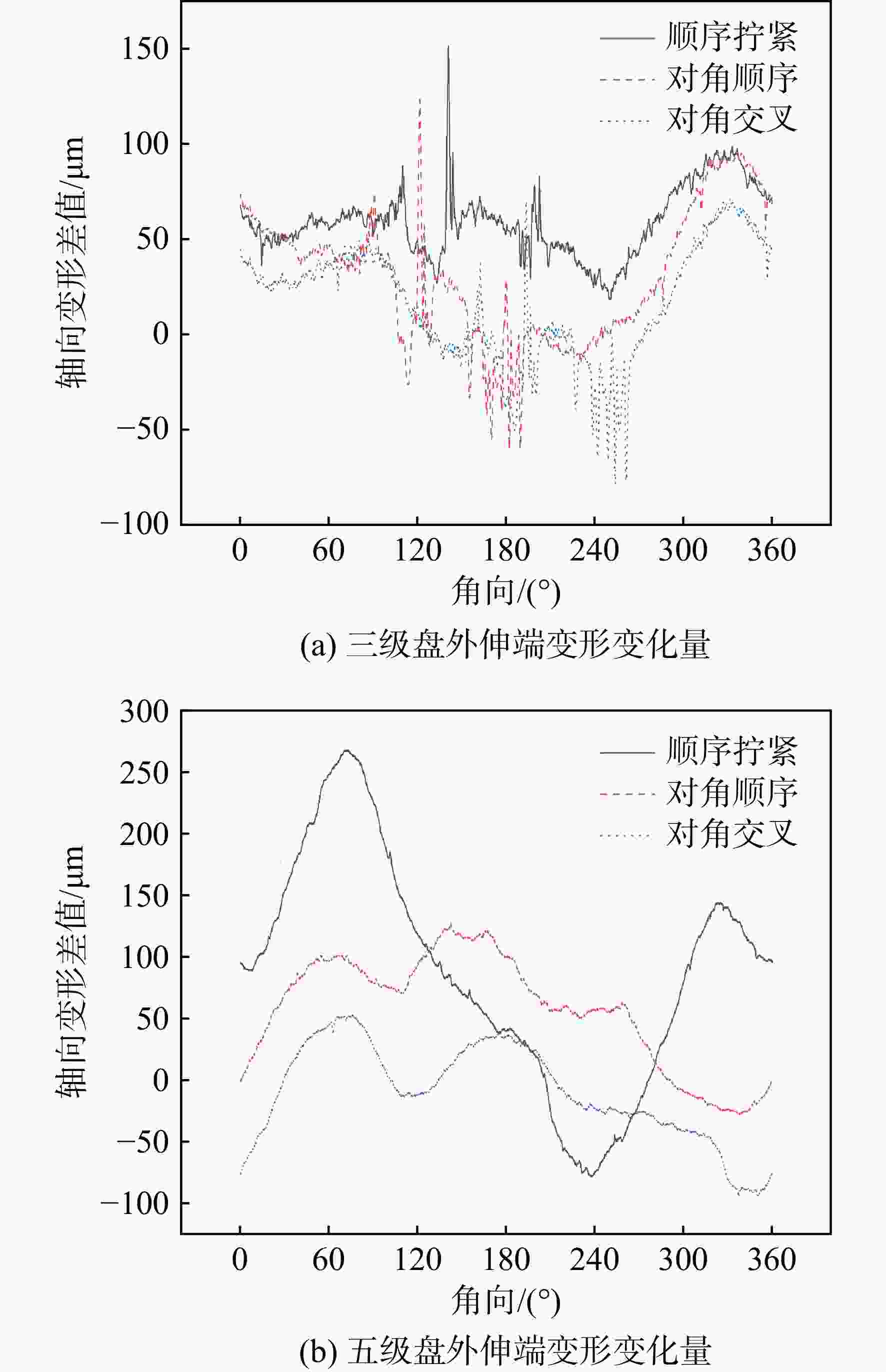

图 17 不同拧紧顺序外伸端变形变化量对比

Figure 17. Comparison of changes in deformation of elongated ends with different tightening sequences

下载: 全尺寸图片幻灯片

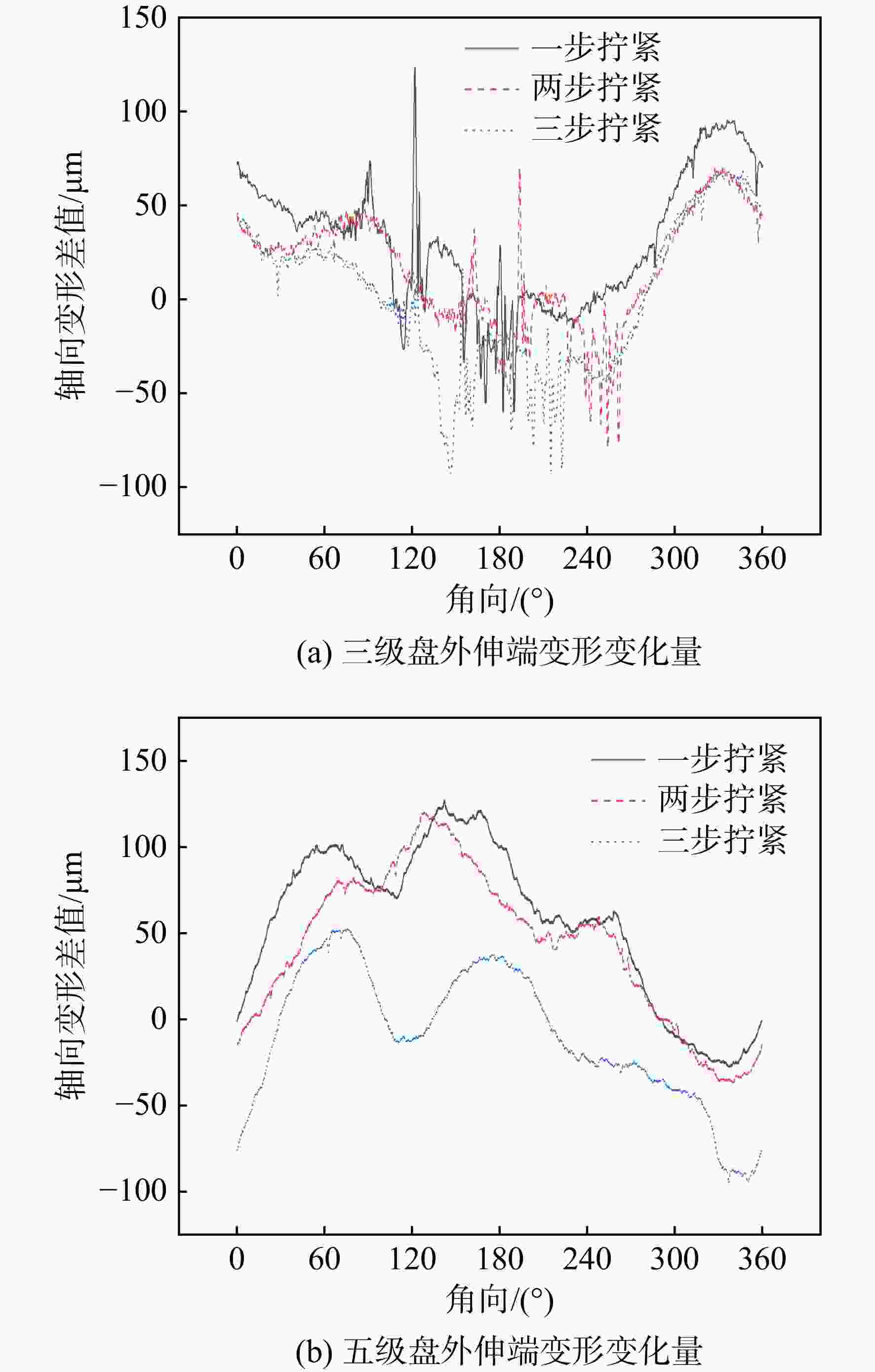

图 18 不同拧紧步数外伸端变形变化量对比

Figure 18. Comparison of changes in deformation of elongated ends with different tightening steps

下载: 全尺寸图片幻灯片

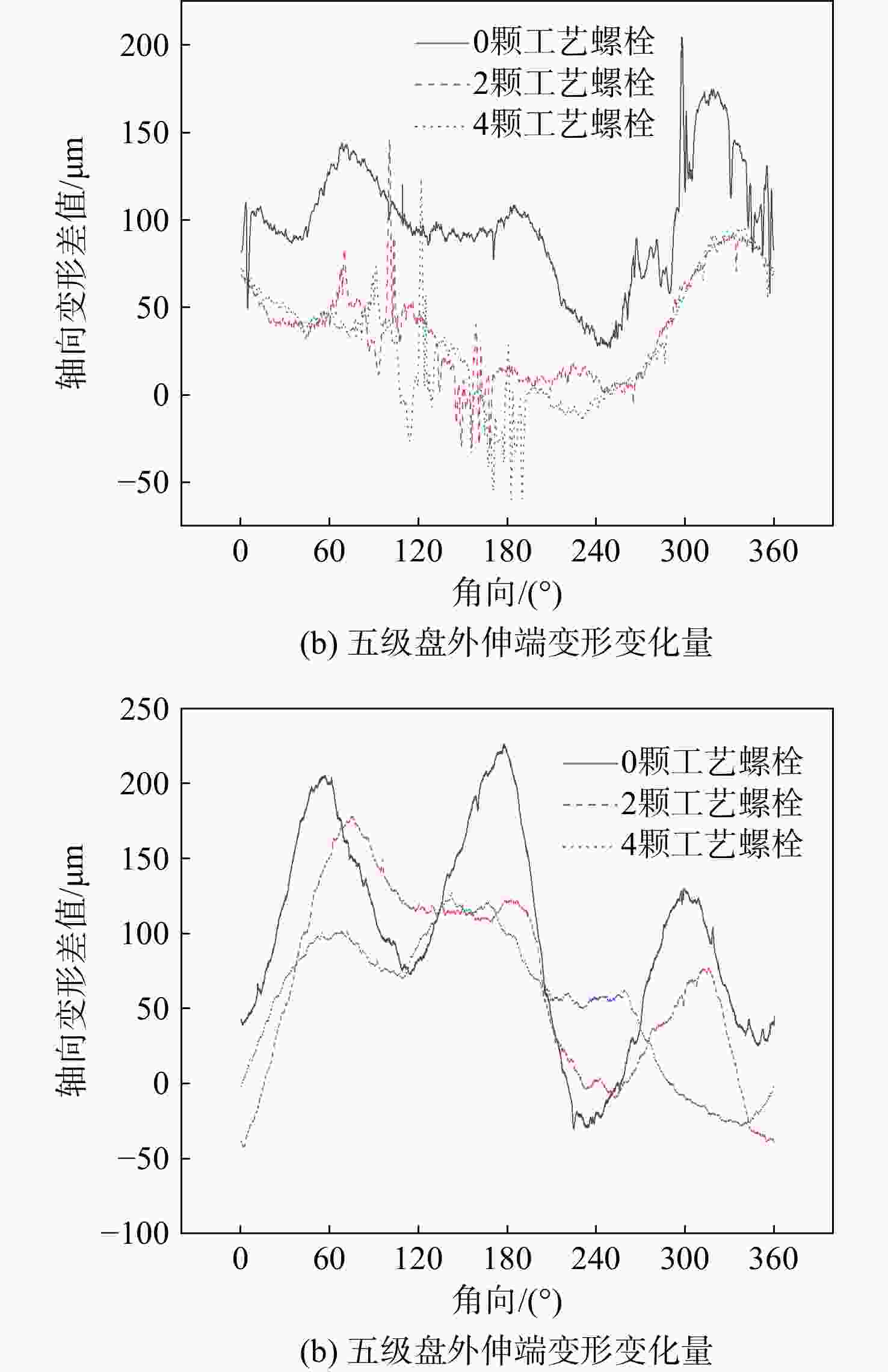

图 19 不同工艺螺栓数量变形变化量对比

Figure 19. Comparison of the amount of deformation change in the number of bolts of different processes

下载: 全尺寸图片幻灯片

表 1 不同拧紧顺序最终圆心偏移量

Table 1. Final center offset for different tightening sequences μm

部件编号	顺序拧紧	拧紧顺序对角顺序	对角交叉
三级盘	22.2	8.1	0.6
五级盘	29.8	11.2	0

下载: 导出CSV

表 2 不同拧紧步数最终圆心偏移量

Table 2. Final center offset for different tightening steps μm

部件编号	拧紧步数
部件编号	1	2	3
三级盘	8.1	2.6	1.4
五级盘	11.2	2	0

下载: 导出CSV

表 3 不同工艺螺栓数量最终圆心偏移量

Table 3. Final center offset for different number of process bolts μm

部件编号	工艺螺母数量
部件编号	0	2	4
三级盘	11.2	8.1	0
五级盘	15.2	11.2	0

下载: 导出CSV

表 4 不同倾斜度最终圆心偏移量

Table 4. Final center offset for different tilts μm

部件编号	倾斜角度/（°）
部件编号	0	0.1	0.15
三级盘	0.2	8.1	8.7
五级盘	0.8	11.2	11.9

下载: 导出CSV

表 5 不同拧紧顺序同心度数据

Table 5. Concentricity data for different tightening sequences

序号	三级盘拟合圆心/μm	五级盘拟合圆心/μm	同心度/μm
1	（−72.62, 114.66）	（−57.99, 69.63）	47.34
2	（−44.87, −73.66）	（−19.88, 28.79）	105.45
3	（133.85, 32.08）	（−146.94, 5.57）	29.57

下载: 导出CSV

表 6 不同拧紧步数同心度数据

Table 6. Concentricity data for different tightening steps μm

序号	三级盘拟合圆心	五级盘拟合圆心	同心度
1	（−72.62, 114.66）	（−57.99, 69.63）	47.34
4	（58.74, 48.02）	（49.58, 20.72）	28.91
5	（39.53, 59.83）	（26.72, 39.77）	20.54

下载: 导出CSV

表 7 不同工艺螺栓数量同心度数据

Table 7. Concentricity data for different number of process bolts μm

序号	三级盘拟合圆心	五级盘拟合圆心	同心度
1	（−72.62, 114.66）	（−57.99, 69.63）	47.34
6	（−39.39, 164.58）	（−35.39, 42.02）	122.60
7	（36.48, −31.33）	（86.12, −78.37）	68.38

下载: 导出CSV

表 8 倾斜装配同心度数据

Table 8. Tilt assembly concentricity data μm

序号	三级盘拟合圆心	五级盘拟合圆心	同心度
1	（−72.62, 114.66）	（−57.99, 69.63）	47.34
8	（−147.76, 25.26）	（35.83, −222.23）	269.27

下载: 导出CSV
