Research on heat transfer deterioration prediction of supercritical RP-3 based on optimized neural network
-
摘要:
目前针对超临界航空煤油RP-3流动传热过程中传热恶化的研究较少，现有研究手段多为经验关联式和数值模拟，对复杂流体传热时的非线性特征捕捉不够精确。为了精准预测超临界航煤RP-3在典型工况下的传热恶化特性，利用计算流体力学方法，在经实验数据对比验证后建立了涵盖管径为1～10 mm、压力为3.0～6.0 MPa工况的高保真数据库，设计并优化了多层神经网络结构，得到了泛化性能和预测准确性较高的调优神经网络预测模型。结果表明：随管径增加或压力降低，局部浮升力与热加速效应显著增强，导致传热恶化程度加剧，温度峰值位置沿流动方向后移。优化后的模型能精准捕捉这些非线性规律，预测误差在1.5%以内，为航空发动机热管理系统的高效设计提供了一种可靠的预测工具。
Abstract:Currently, research on heat transfer deterioration in the flow and heat transfer process of supercritical aviation kerosene RP-3 remains limited. Existing approaches mainly rely on empirical correlations and numerical simulations, which struggle to accurately capture the nonlinear characteristics associated with complex fluid heat transfer. To precisely predict the heat transfer deterioration behavior of supercritical RP-3 under typical operating conditions, computational fluid dynamics methods were employed; after experimental validation, a high-fidelity database covering pipe diameters from 1 to 10 mm and pressures ranging from 3.0 to 6.0 MPa was established. A multilayer neural network structure was then designed and optimized, resulting in a well-tuned model with strong generalization ability and high prediction accuracy. The results indicated that as pipe diameter increased or pressure decreased, local buoyancy and thermal acceleration effects were significantly intensified, exacerbating the degree of heat transfer deterioration and shifting the temperature peak downstream. The optimized model accurately captured these nonlinear trends, with prediction errors achieved within 1.5%, thus providing a reliable data-driven tool for efficient design of the thermal management systems in aero-engines.
-

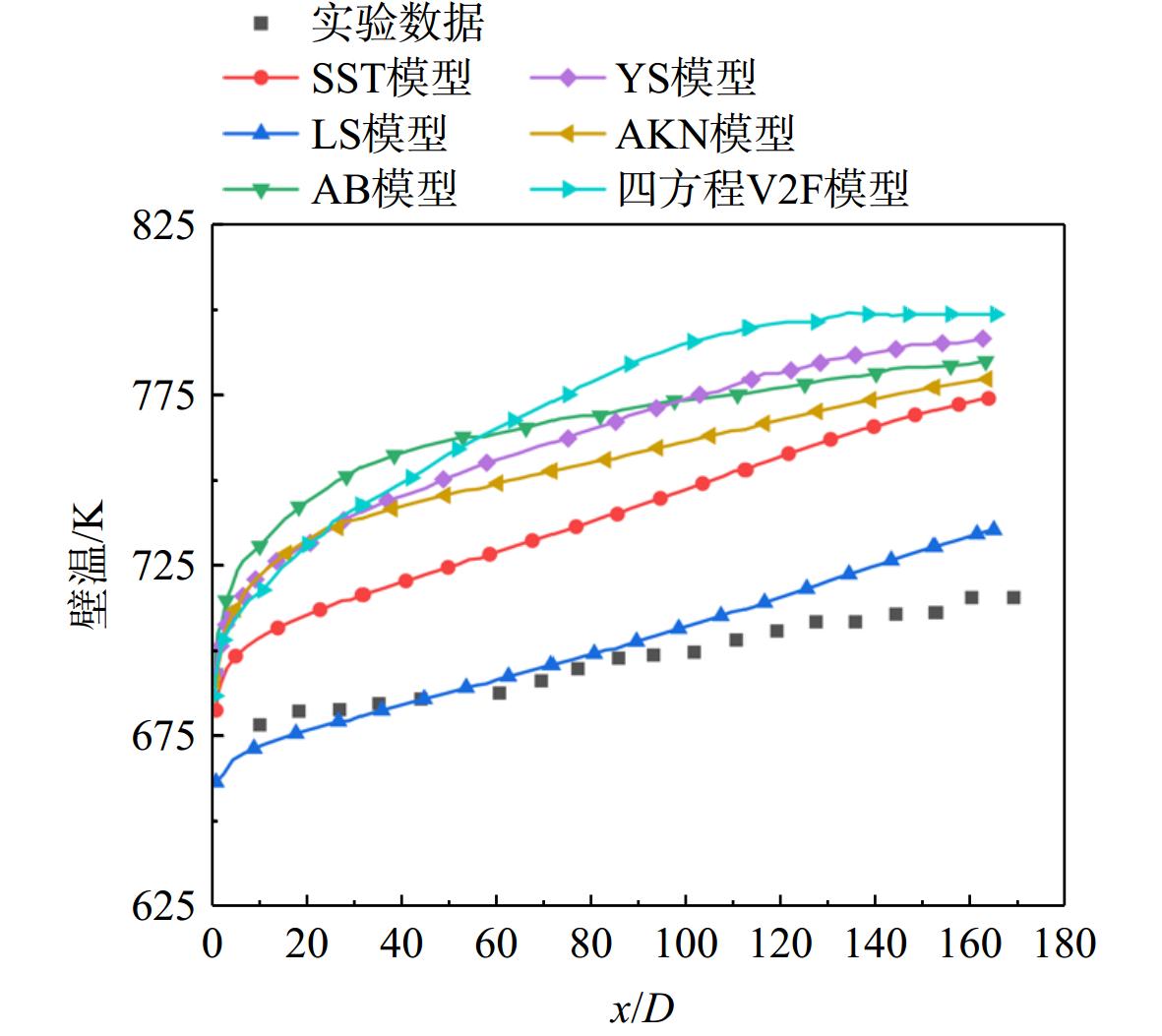

图 2 不同湍流模型预测壁温的结果对比
Figure 2. Comparison of wall temperature predictions using different turbulence models

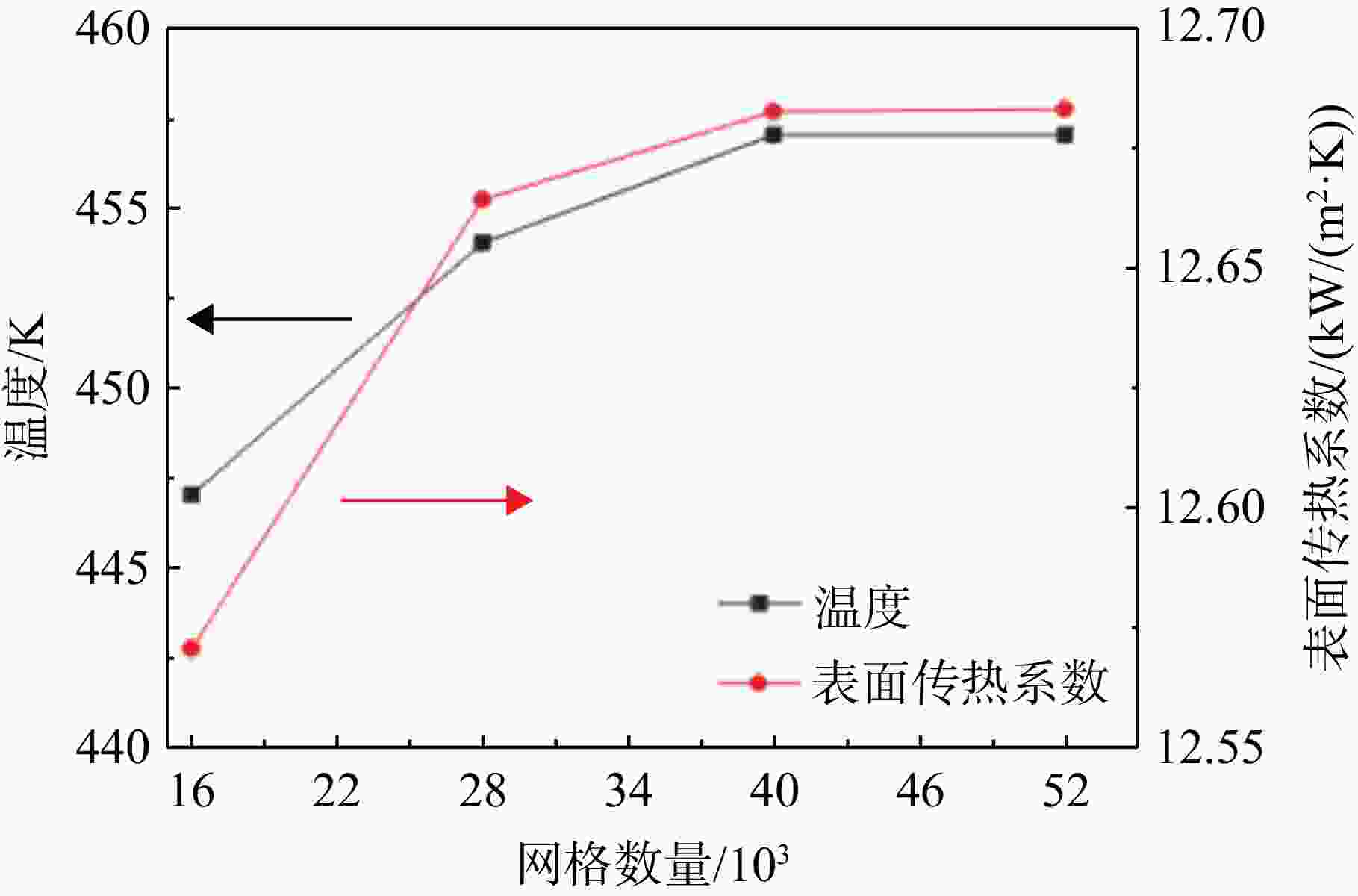

图 3 温度与表面传热系数随网格数量的变化
Figure 3. Variation of the temperature and surface heat transfer coefficient with grid number
图 4 不同热流密度下计算与实验壁面温度的对比分析
Figure 4. Comparison between the computed wall temperature and the experimental results under different heat flux densities

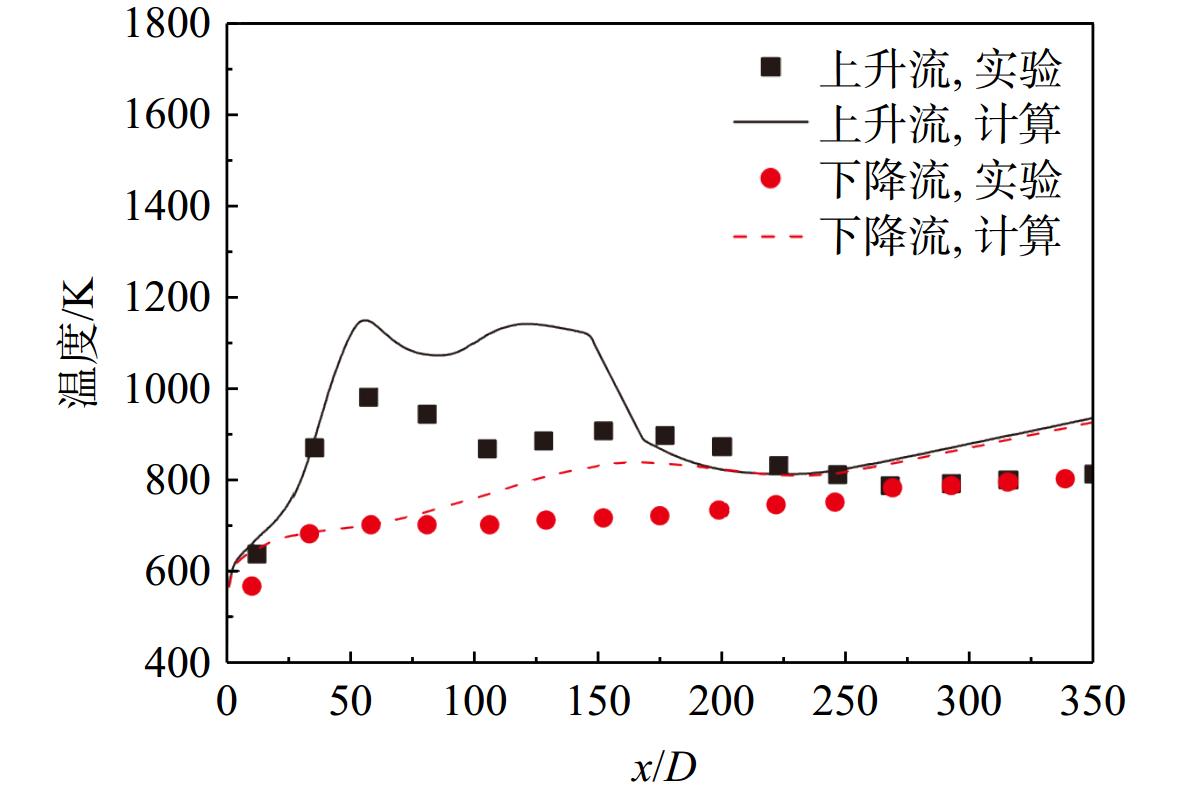

图 5 传热恶化条件下计算与实验壁面温度的对比分析
Figure 5. Comparison between the computed wall temperature and experimental results for heat transfer deterioration cases

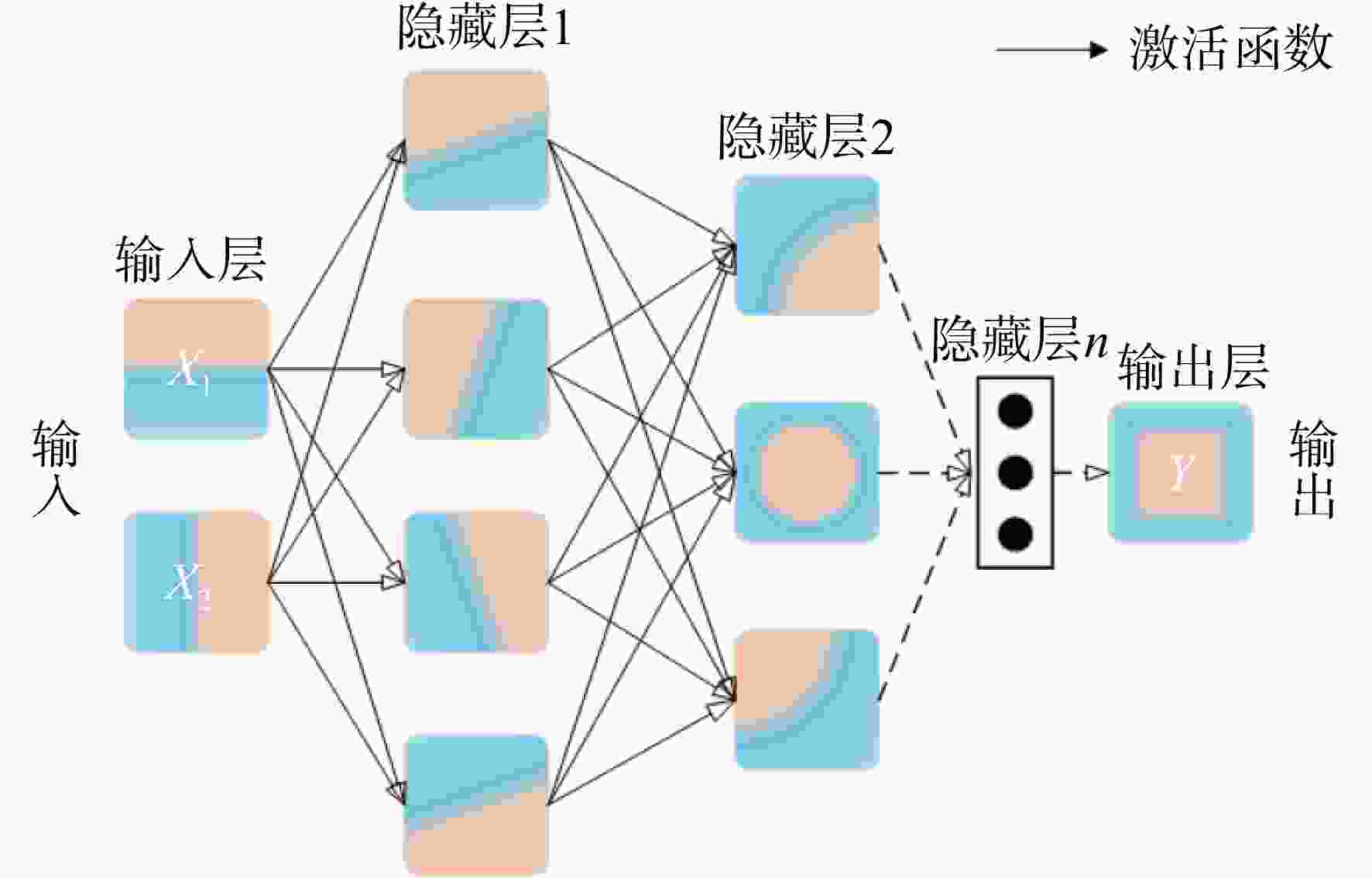

图 6 多层前馈神经网络结构示意图
Figure 6. Schematic diagram of a multilayer feedforward neural network

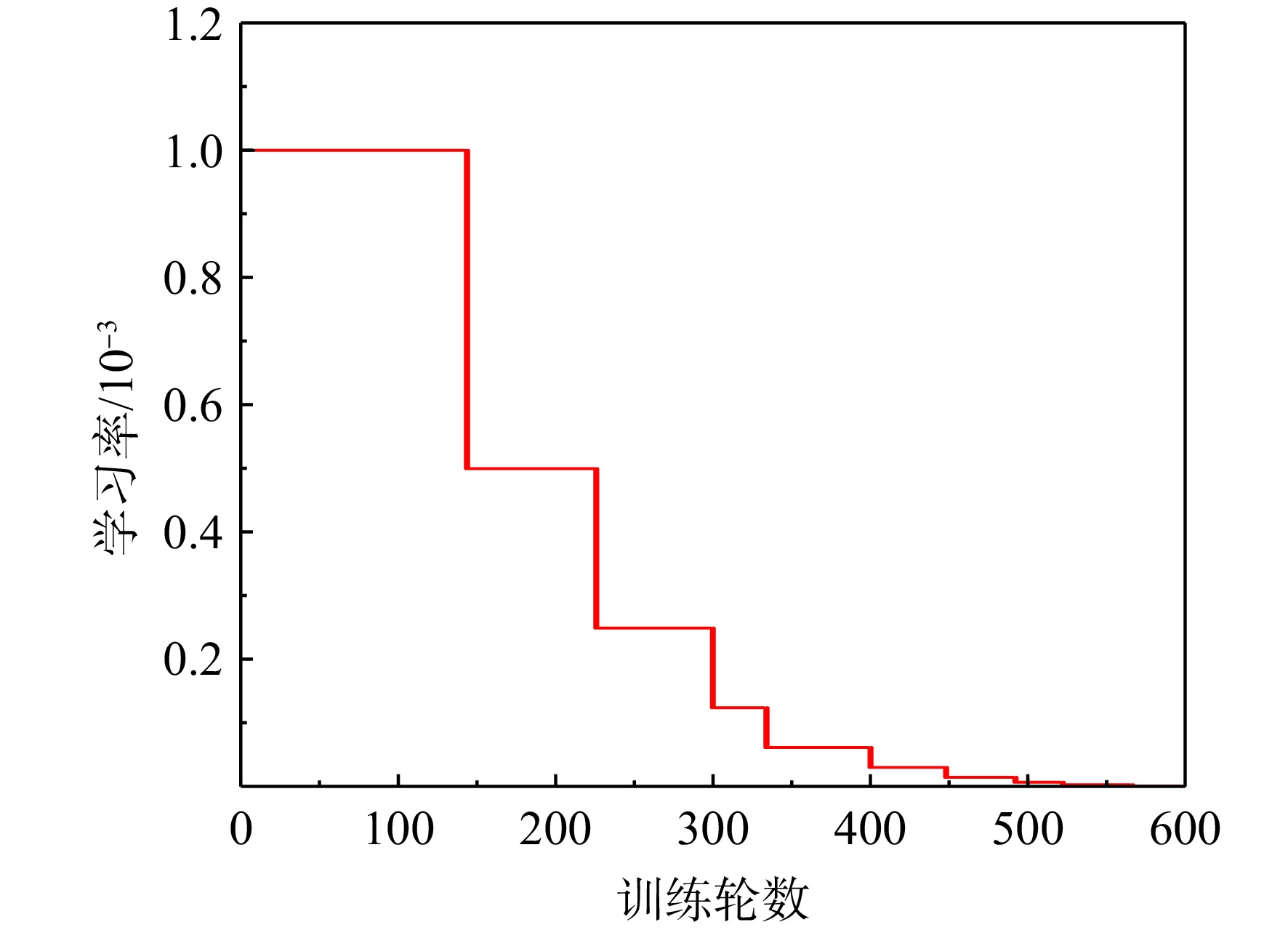

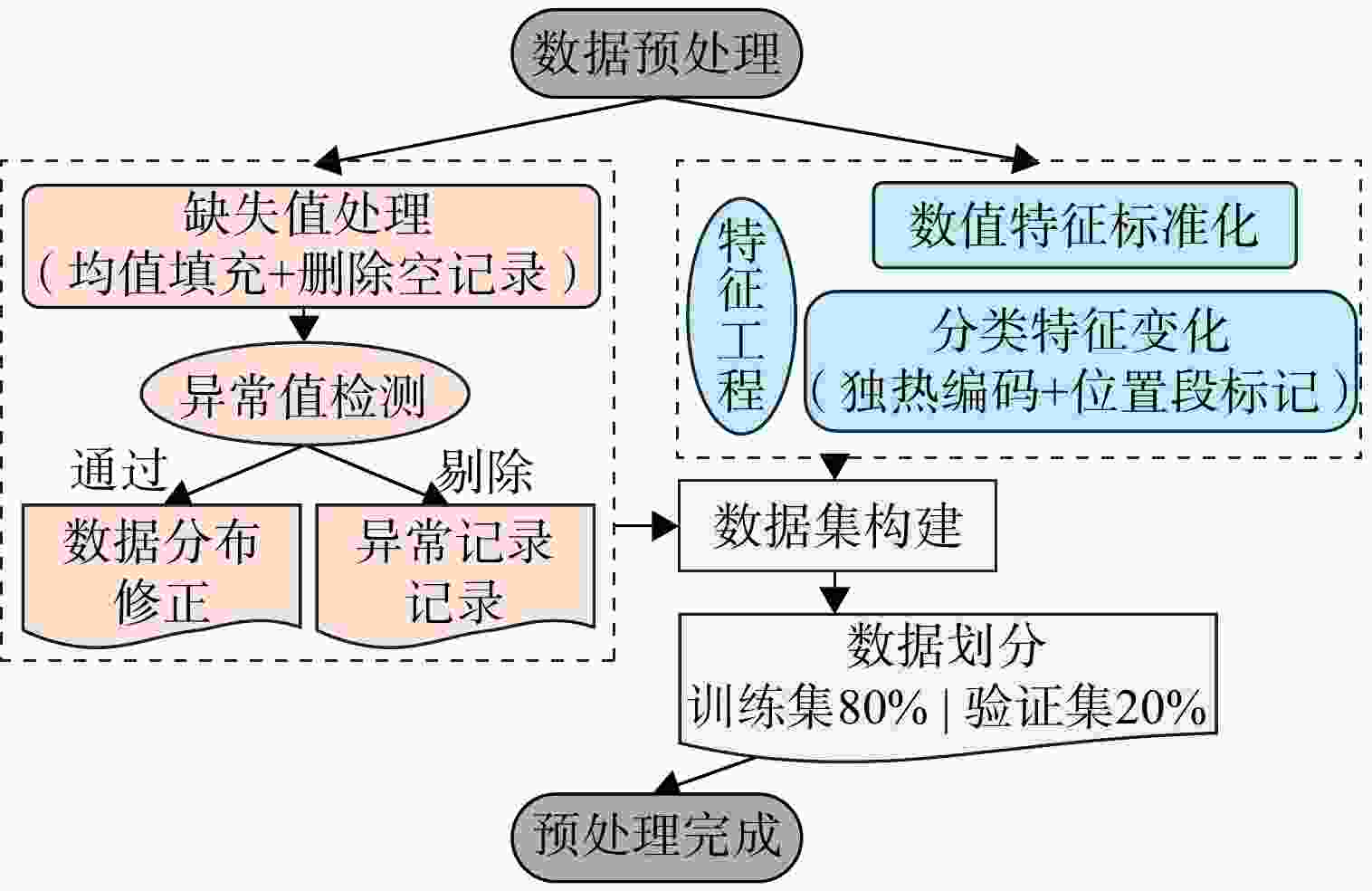

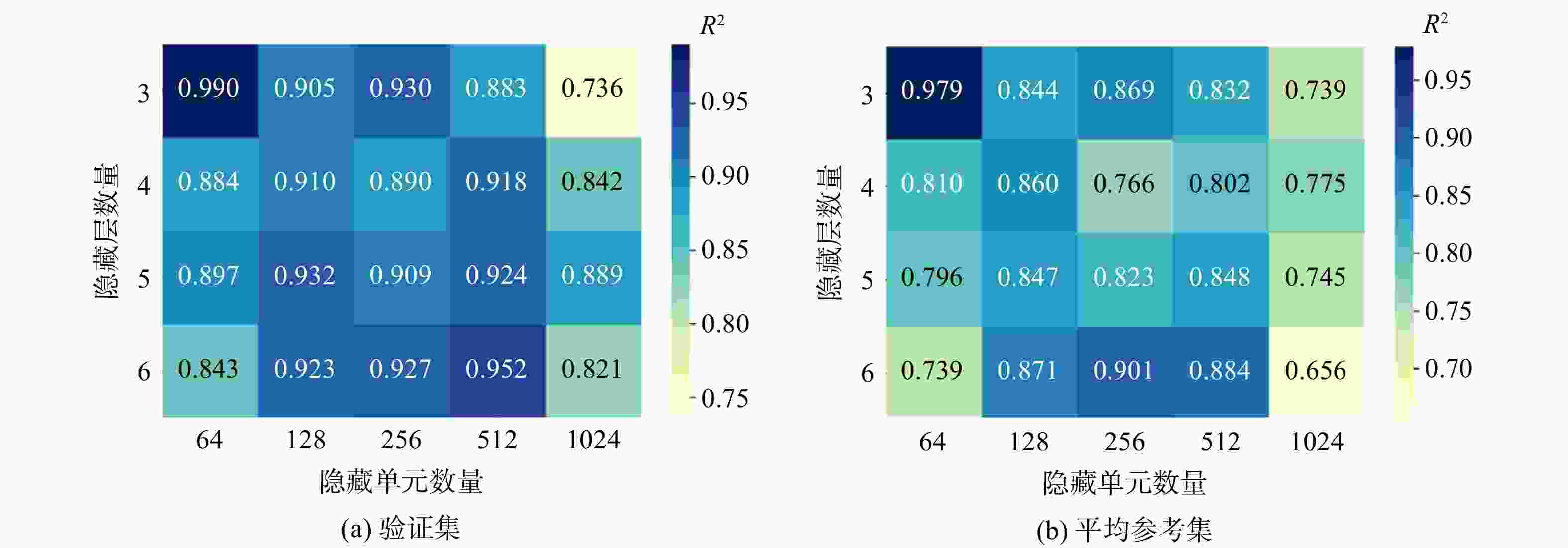

图 9 验证集与平均参考集 R2 得分热力图
Figure 9. Heatmap of R2 scores on validation set and mean reference set

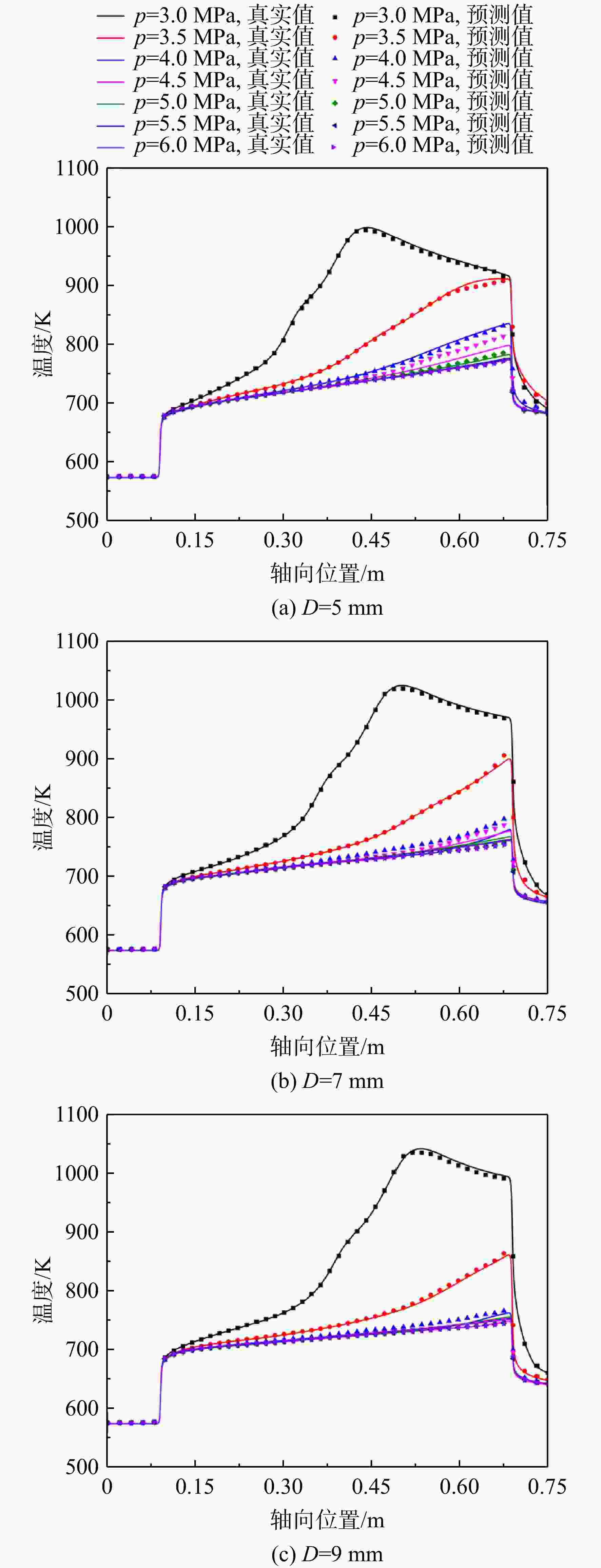

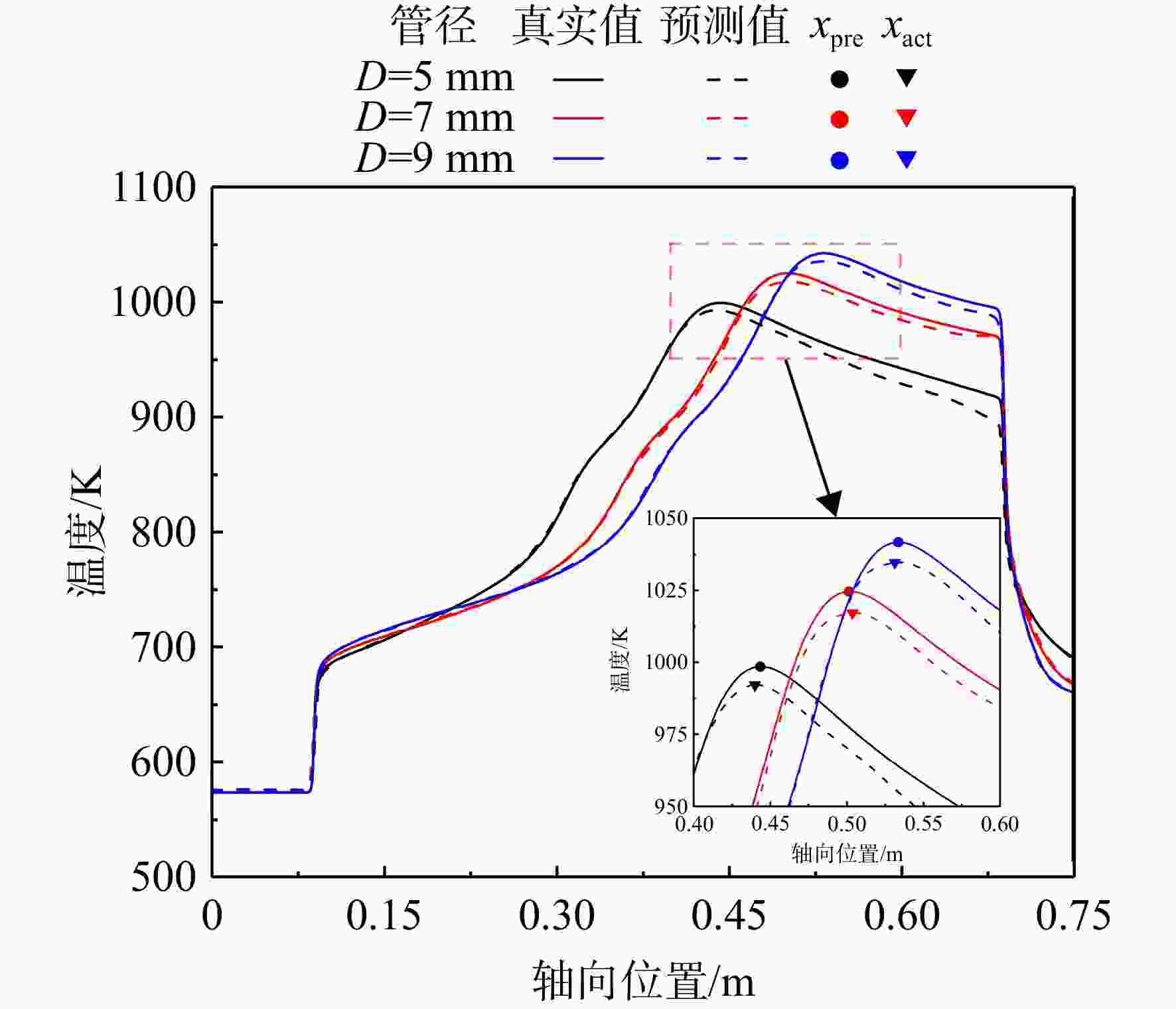

图 11 原数据集传热恶化峰值点标注图
Figure 11. Marked heat transfer deterioration peak point for original datasets
图 12 原始与缩减数据集预测温度分布对比图
Figure 12. Comparison of predicted temperature profiles under original and reduced datasets
图 13 缩减数据集传热恶化峰值点标注图
Figure 13. Marked heat transfer deterioration peak point for reduced datasets

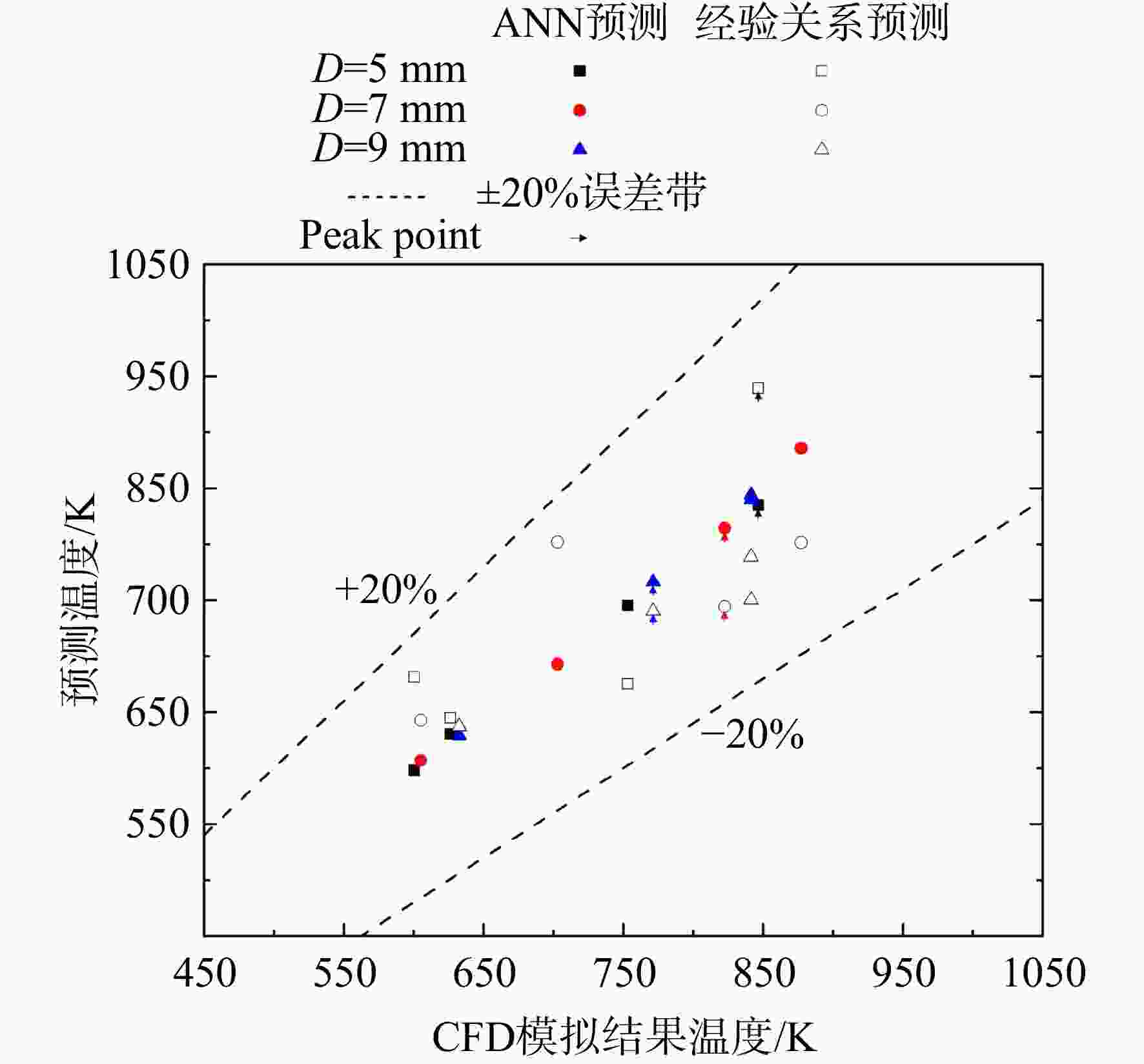

图 14 ANN预测与经验关系预测对比图
Figure 14. Comparison between ANN prediction and empirical correlation prediction

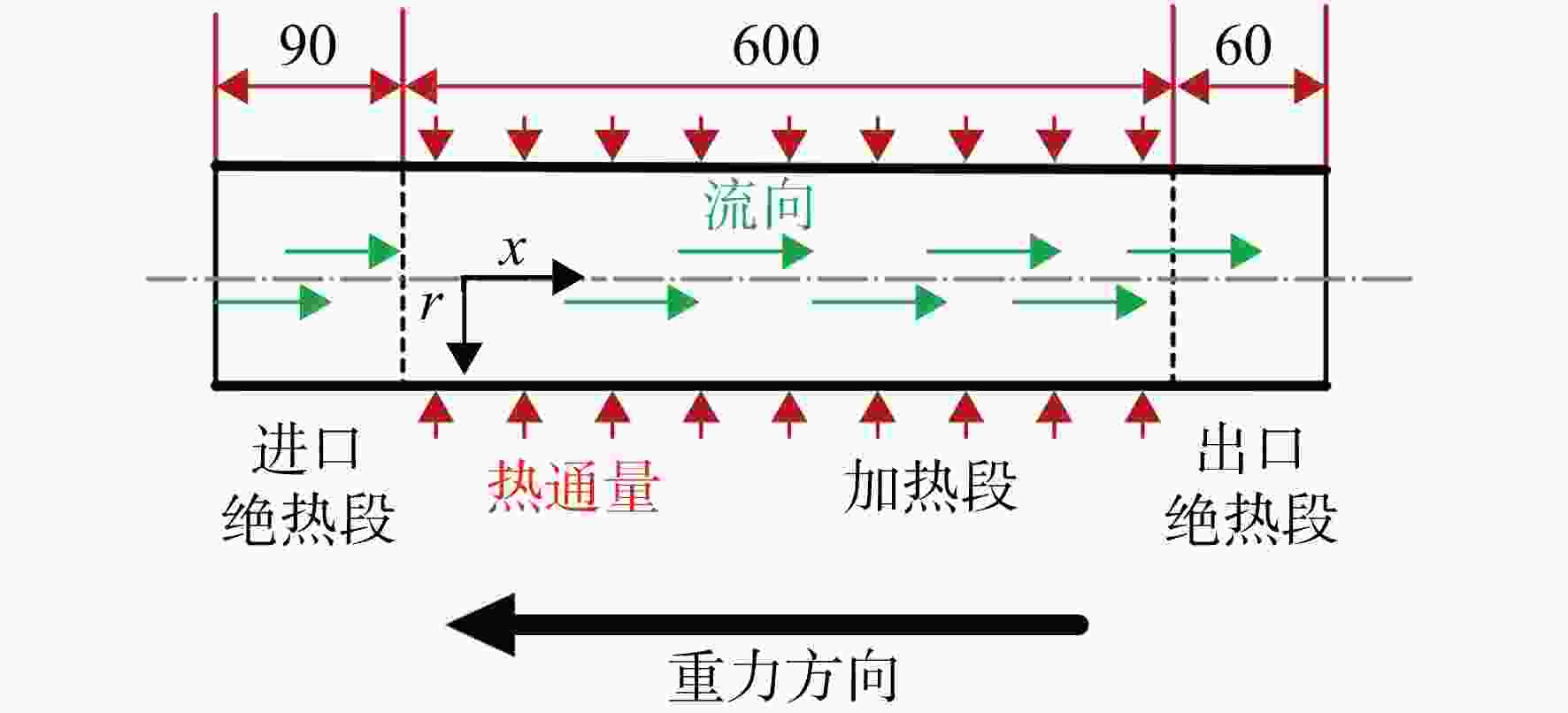

表 1 物理模型工况参数表
Table 1. Operating conditions of the physical model
参数 数值 管径D/mm 1～10 系统压力p/MPa 3～6 进口温度Tin/K 423～573 壁面热流密度$q'' $/（kW/m2） 218～500 质量流量$\dot m $/（g/s） 0.55～55
下载: 导出CSV
表 2 LS模型中常数和修正函数条件汇总
Table 2. Summary of constants and correction functions in LS model
类别 参数 表达式/数值 常数 Cμ 0.09 Cε1 1.44 Cε2 1.92 σk 1.0 σε 1.3 修正函数 f1 1.0 f2 1−0.3exp（−$Re^2_{\mathrm{t}} $） fμ exp{−3.4/[（1+Ret/50）2]}
下载: 导出CSV
表 3 异常值判断与清洗标准
Table 3. Abnormal value judgment and cleaning standards
层级 判定标准 判定阈值 统计层 Robust-Z分数法 Zrobust ≥ 3 物理层 温度、物性参数和能量守恒 T ≤ 1200 K，物性（密度、比热容、黏度等） > 0，能量守恒误差 |ΔQ/Q| ≤
1%（ Q为热流量；ΔQ为系统输入与输出热量的差值）空间层 努塞尔数空间二阶差分异常检查 相邻三截面Nu二阶差分值≥5倍平均值且符号相反
下载: 导出CSV
表 4 各网络结构R2得分对比表
Table 4. R2 scores for different neural network structures
网格层数 神经元数量 训练集 验证集 D5 D7 D9 平均值 训练时长/min 二层 1024 -5120.867 0.862 0.881 0.786 0.407 0.691 10.4 三层 256-128-64 0.946 0.945 0.897 0.876 0.885 0.886 3.2 三层 128-128-128 0.934 0.933 0.883 0.882 0.855 0.873 2.8 三层 512-256-128 0.943 0.943 0.916 0.899 0.857 0.891 6.5 四层 256-256-128-64 0.949 0.950 0.881 0.893 0.882 0.885 4.8 四层 512-256-256-128 0.944 0.944 0.892 0.864 0.846 0.867 8.5 四层 1024 -512-256-1280.997 0.996 0.993 0.991 0.993 0.992 13.4
下载: 导出CSV
表 5 输入参数对传热恶化峰值位置的影响程度
Table 5. Degree of influence of input parameters on the heat transfer deterioration peak position
排名 输入参数 归一化SHAP值 1 管径D 0.90 2 压力p 0.83 3 热流密度q′′ 0.62 4 质量流量$\dot m $ 0.38 5 入口温度Tin 0.07
下载: 导出CSV
表 6 原数据集预测误差
Table 6. Prediction errors for original dataest
D/mm xact/m xpre/m e/% 5 0.443 0.438 −1.084 7 0.502 0.498 −0.717 9 0.533 0.527 −1.126
下载: 导出CSV
表 7 缩减数据集预测误差
Table 7. Prediction errors for reduced datasets
D/mm xact/m xpre/m e/% 5 0.443 0.439 −0.813 7 0.502 0.506 0.717 9 0.533 0.536 0.450
下载: 导出CSV
表 8 经验判别预测结果
Table 8. Empirical prediction results
D/mm xpc/m δd/m xpre/m xact/m e/% 5 0.148 0.25 0.398 0.443 −10.16 7 0.207 0.26 0.467 0.502 −6.97 9 0.267 0.27 0.537 0.533 0.75
下载: 导出CSV
-
