Design of test rig and wear characterization of planetary sliding bearing under high-frequency start-stop conditions
-
摘要:

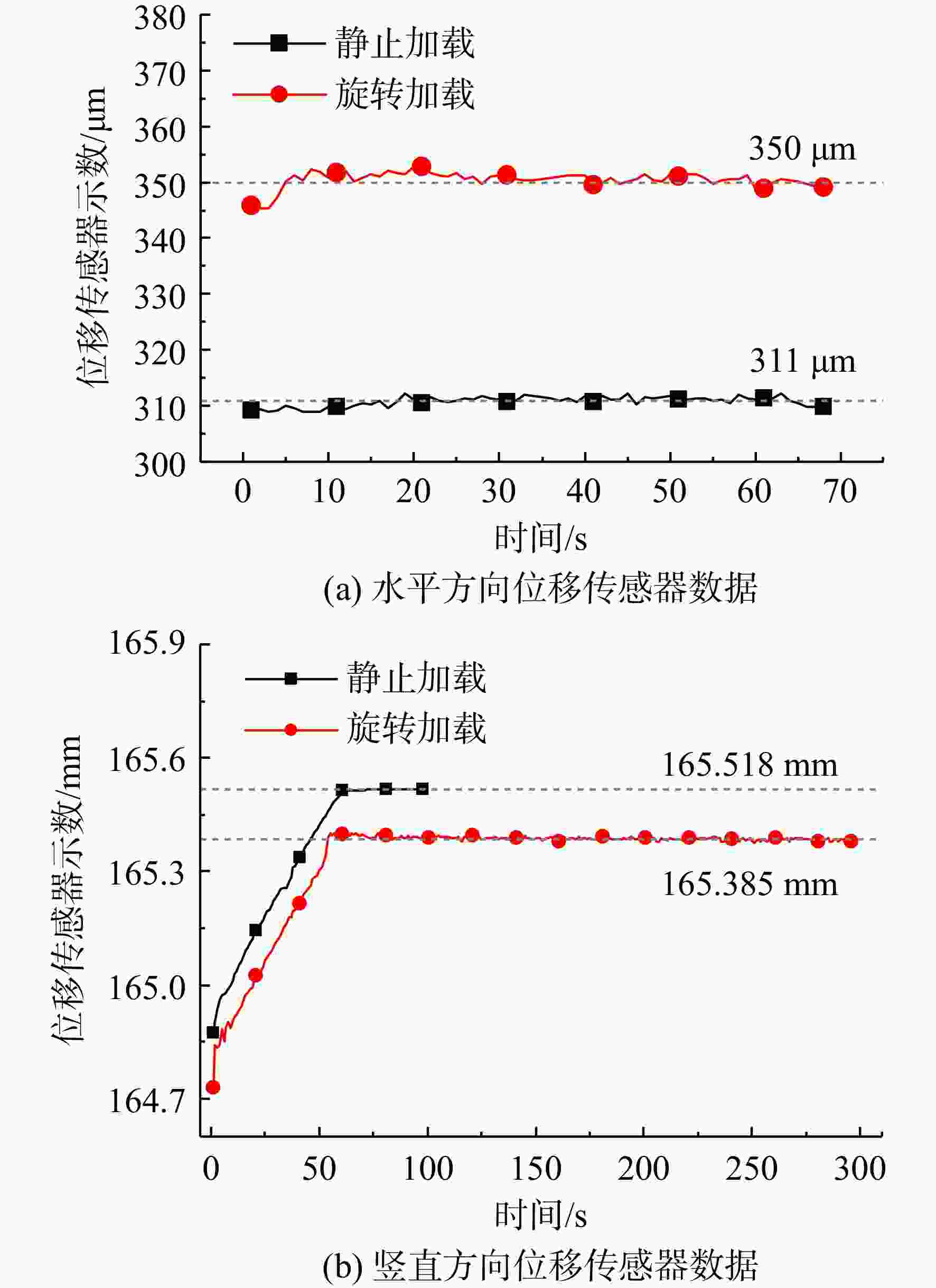

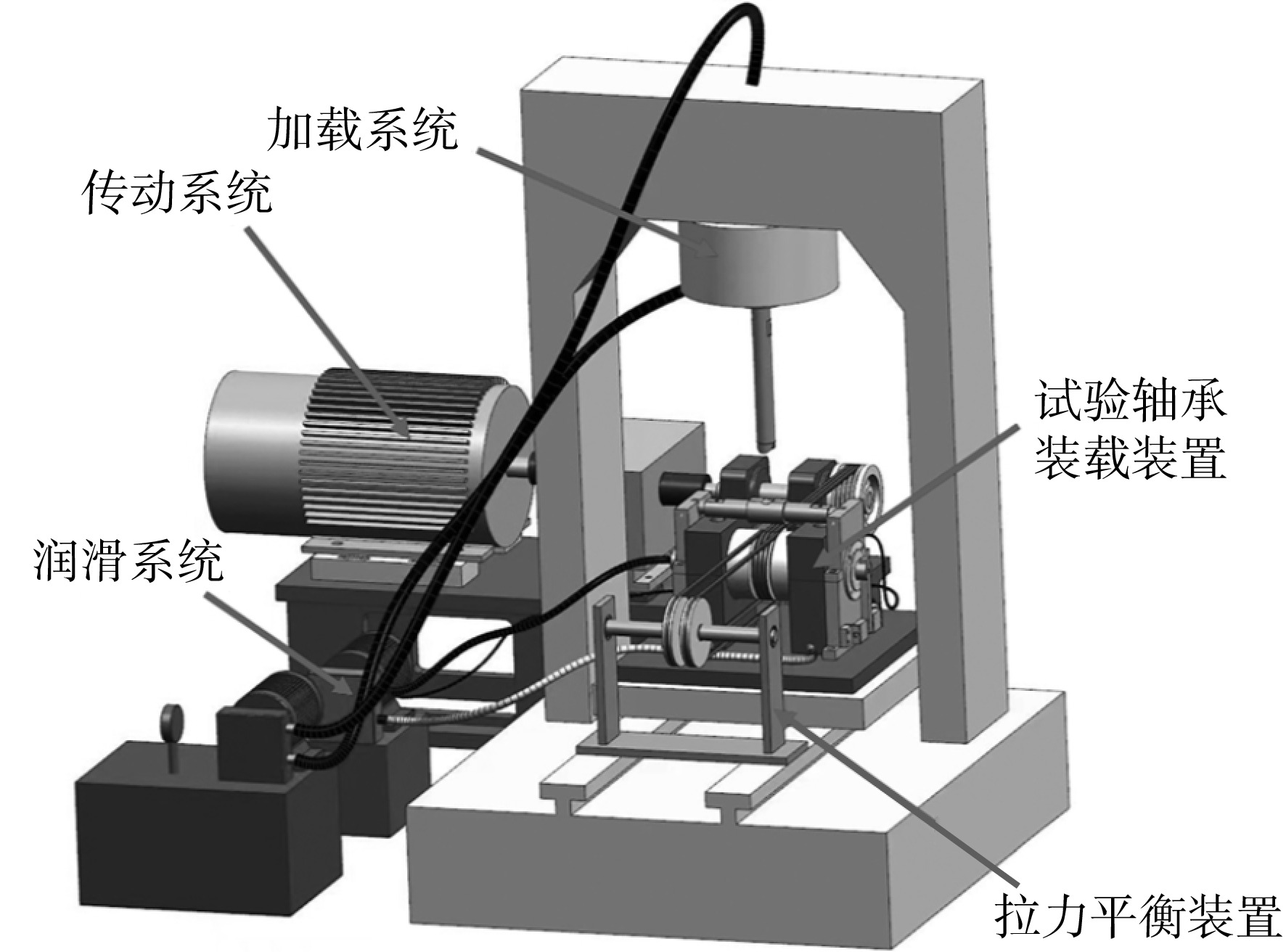

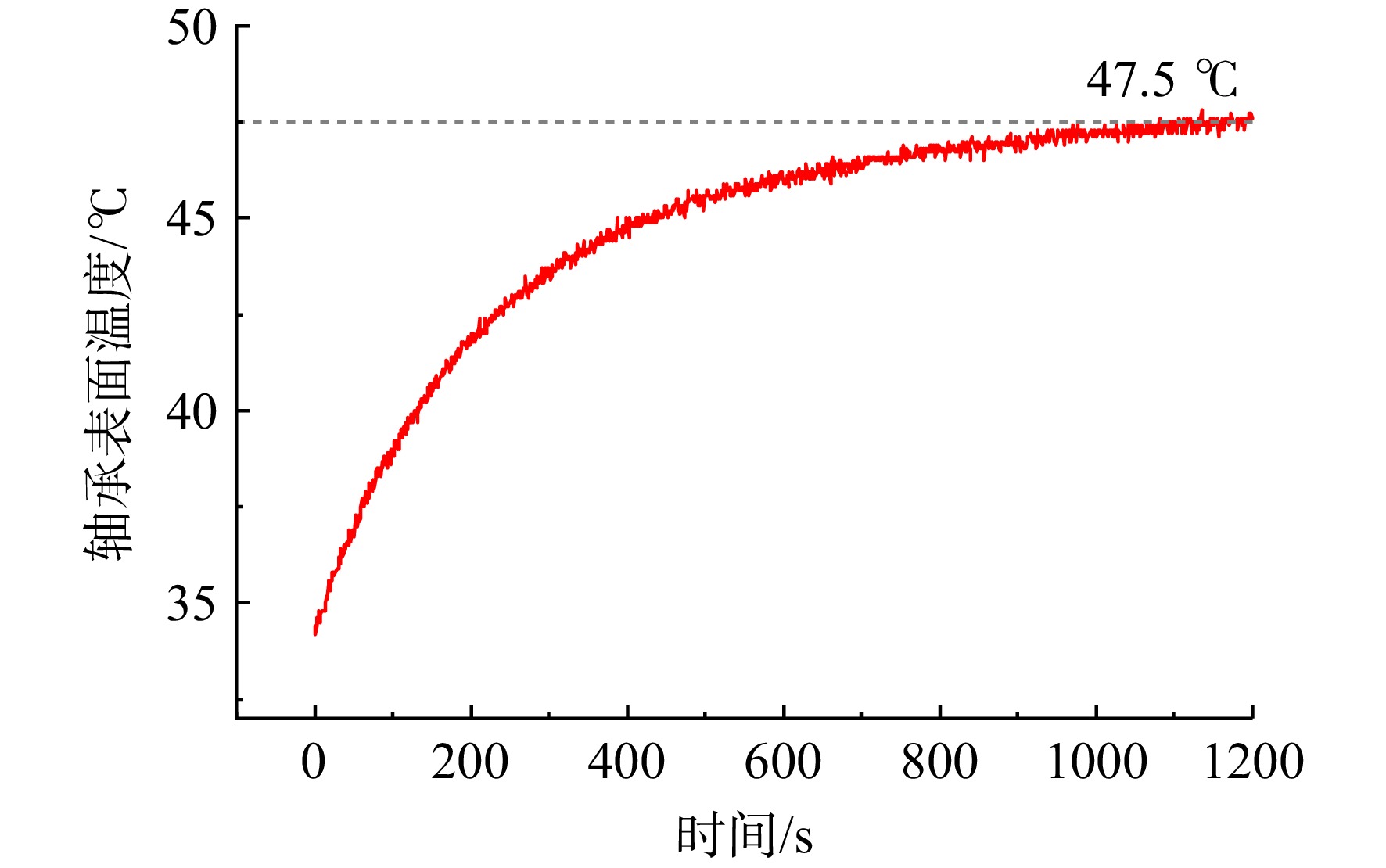

为研究航空发动机行星齿轮减速箱滑动轴承在高频次启停工况下的磨损情况，搭建了一台模拟滑动轴承启停的试验机，该试验机可实现转速、载荷的独立控制及复合加载，同时监测轴承静特性参数。通过数值模拟与试验验证相结合的方法，对比了轴承静特性参数的理论解与试验结果，验证了试验机模拟工况的可靠性；按实际飞行启停工况进行了

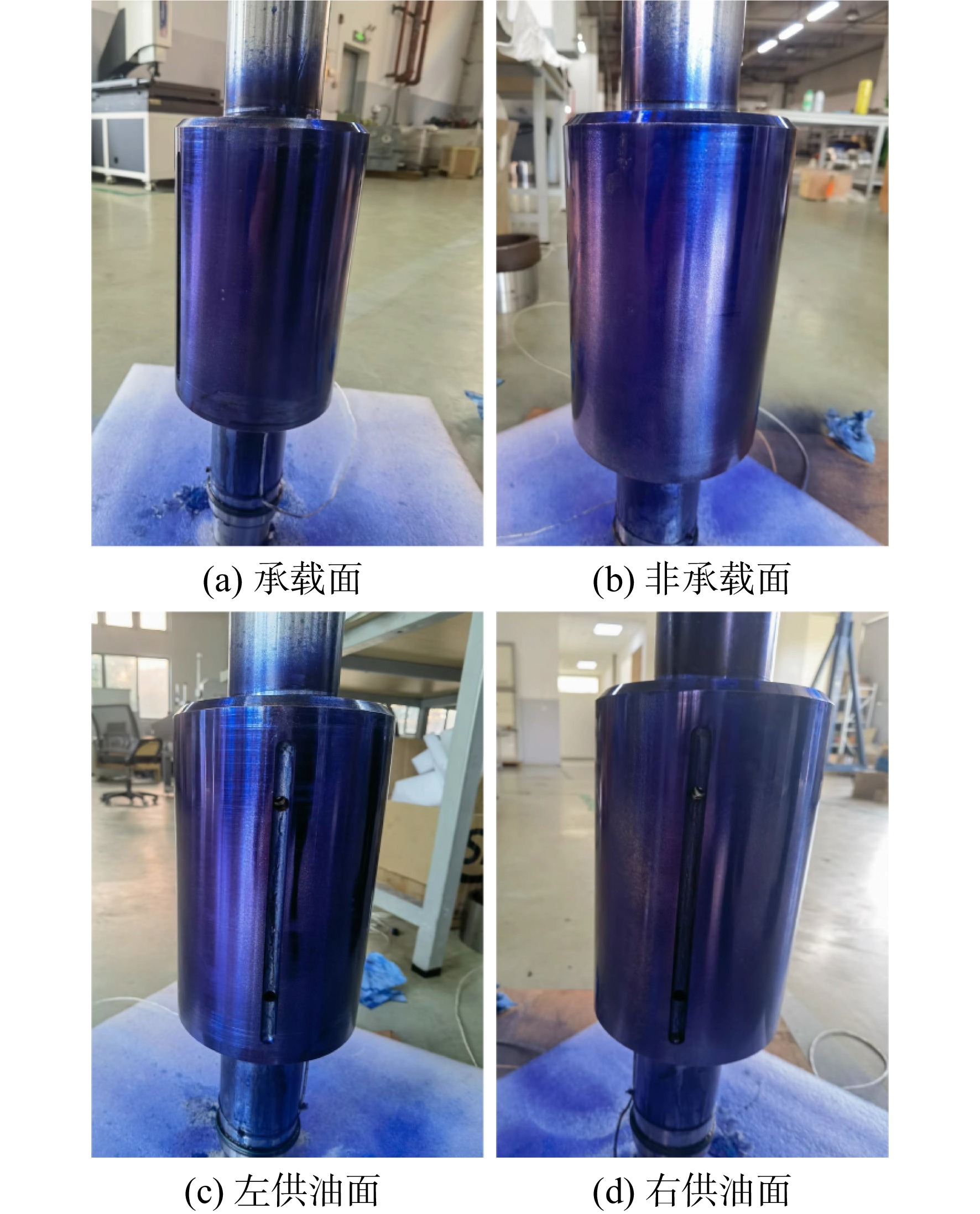

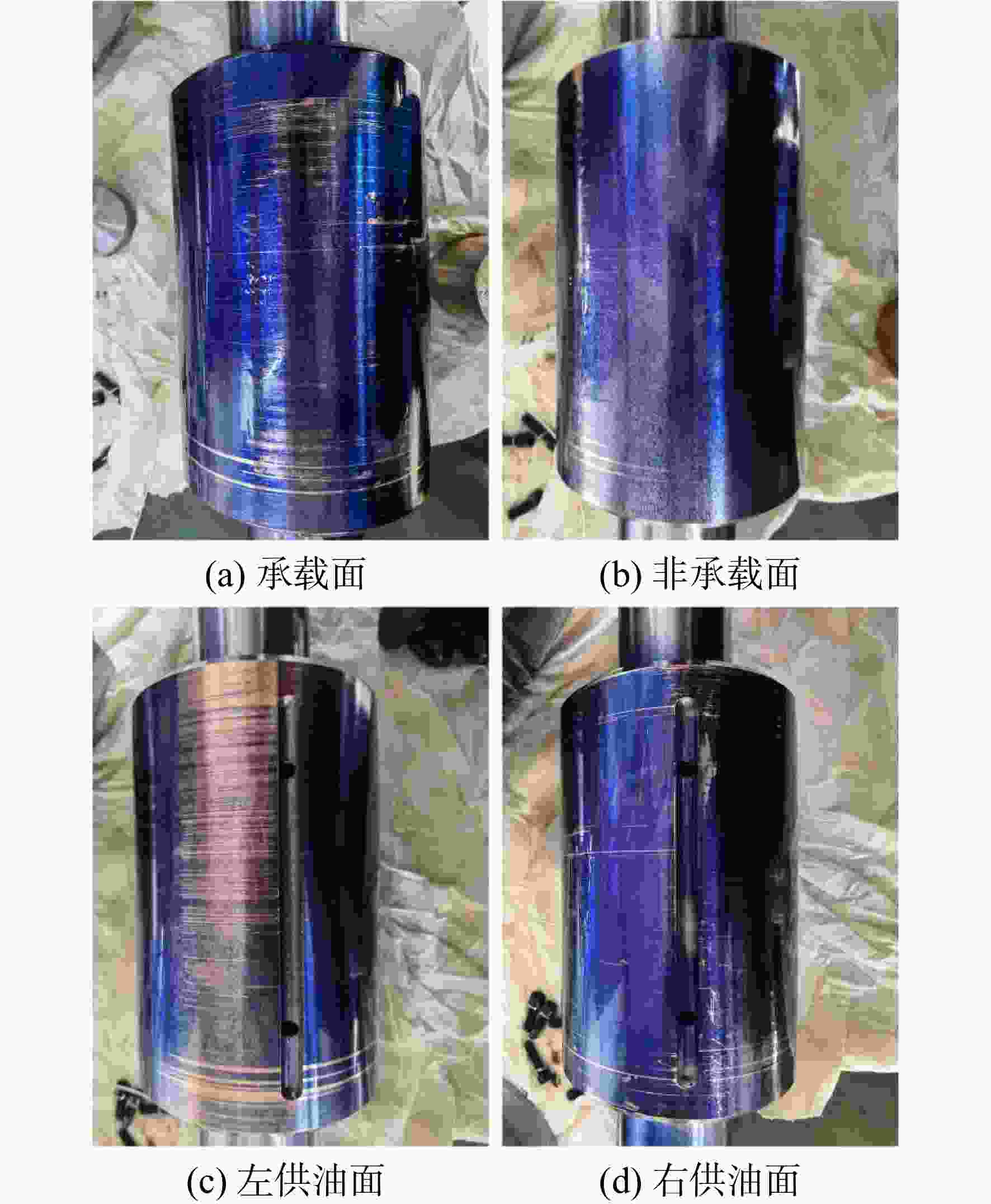

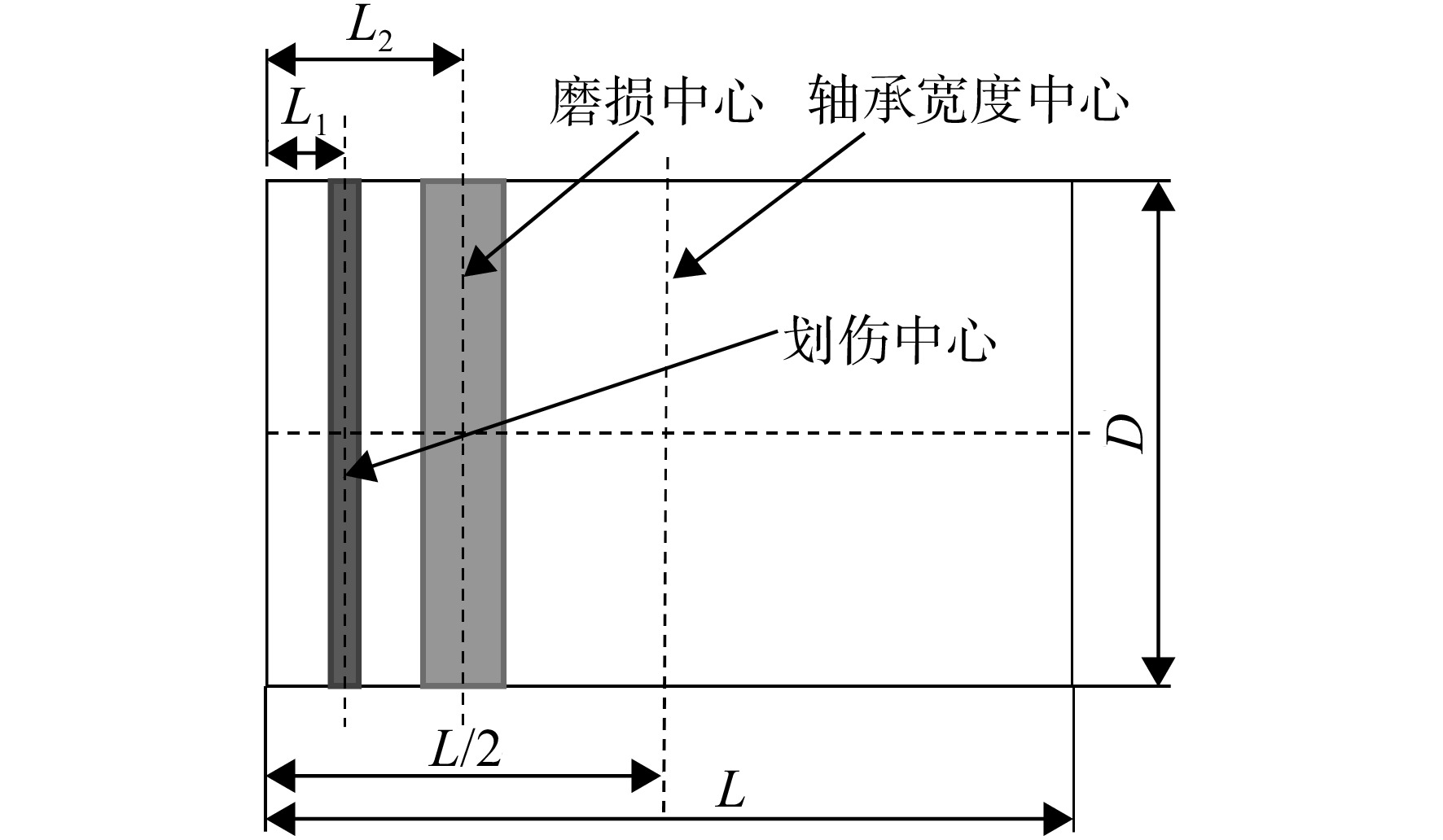

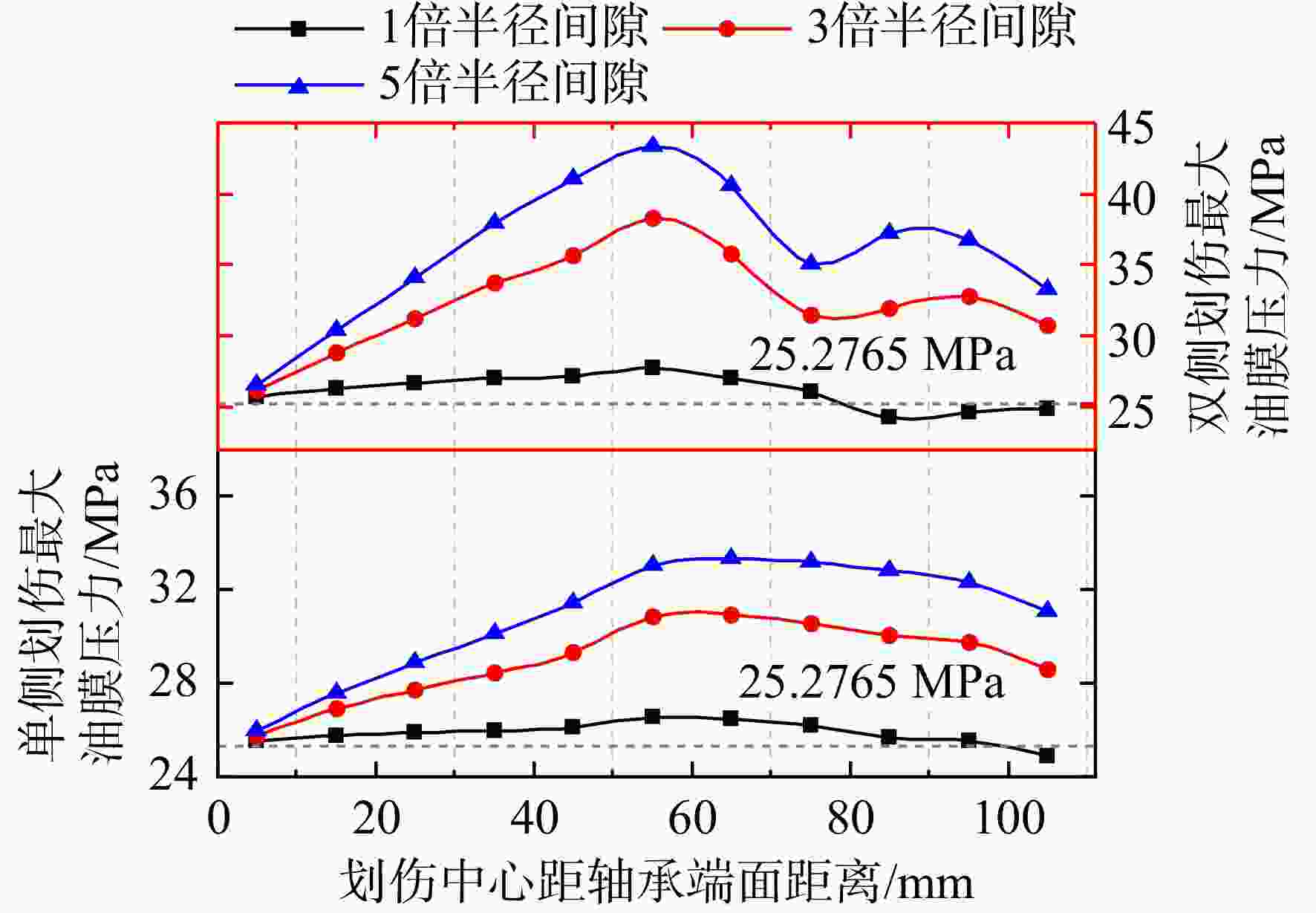

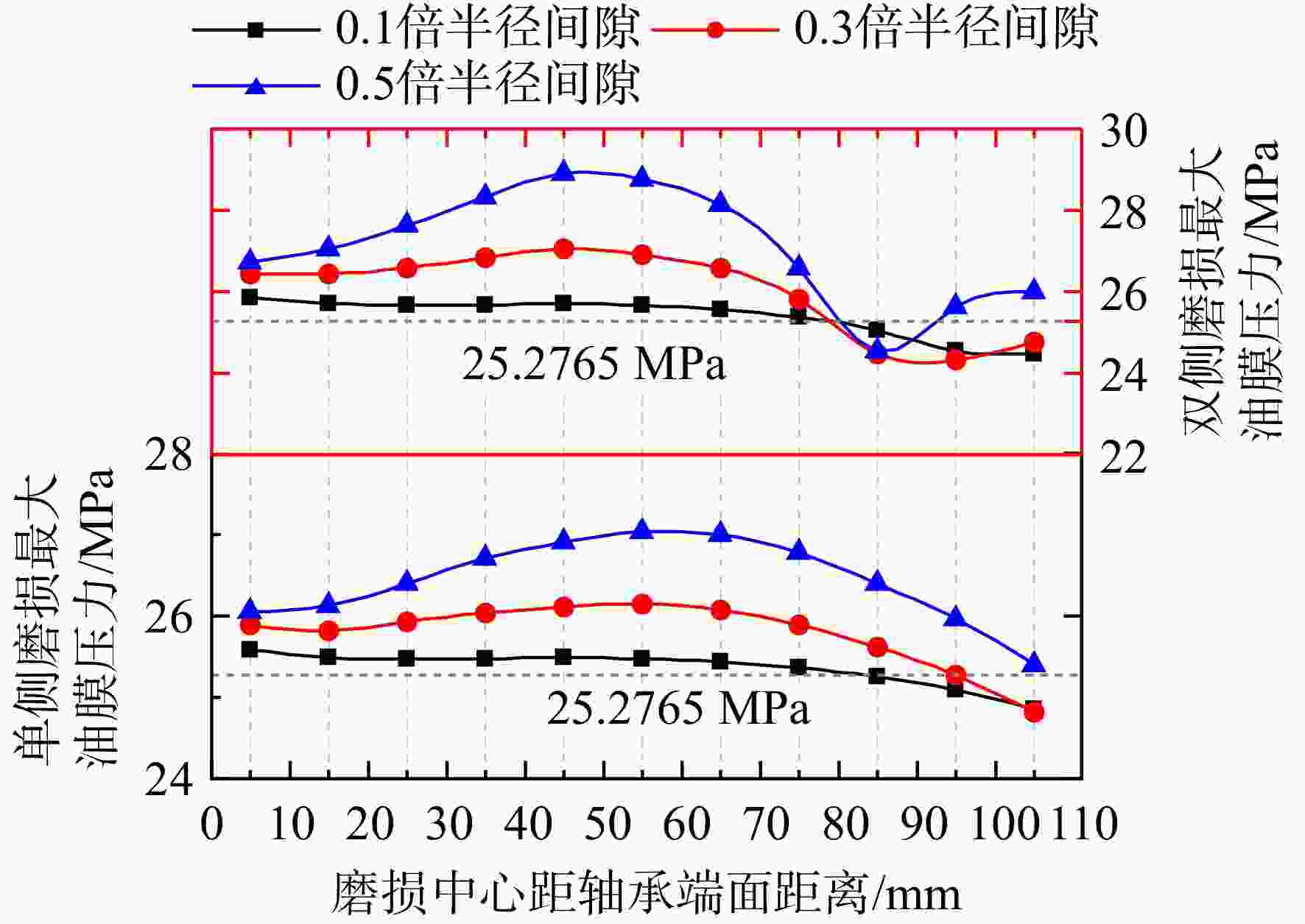

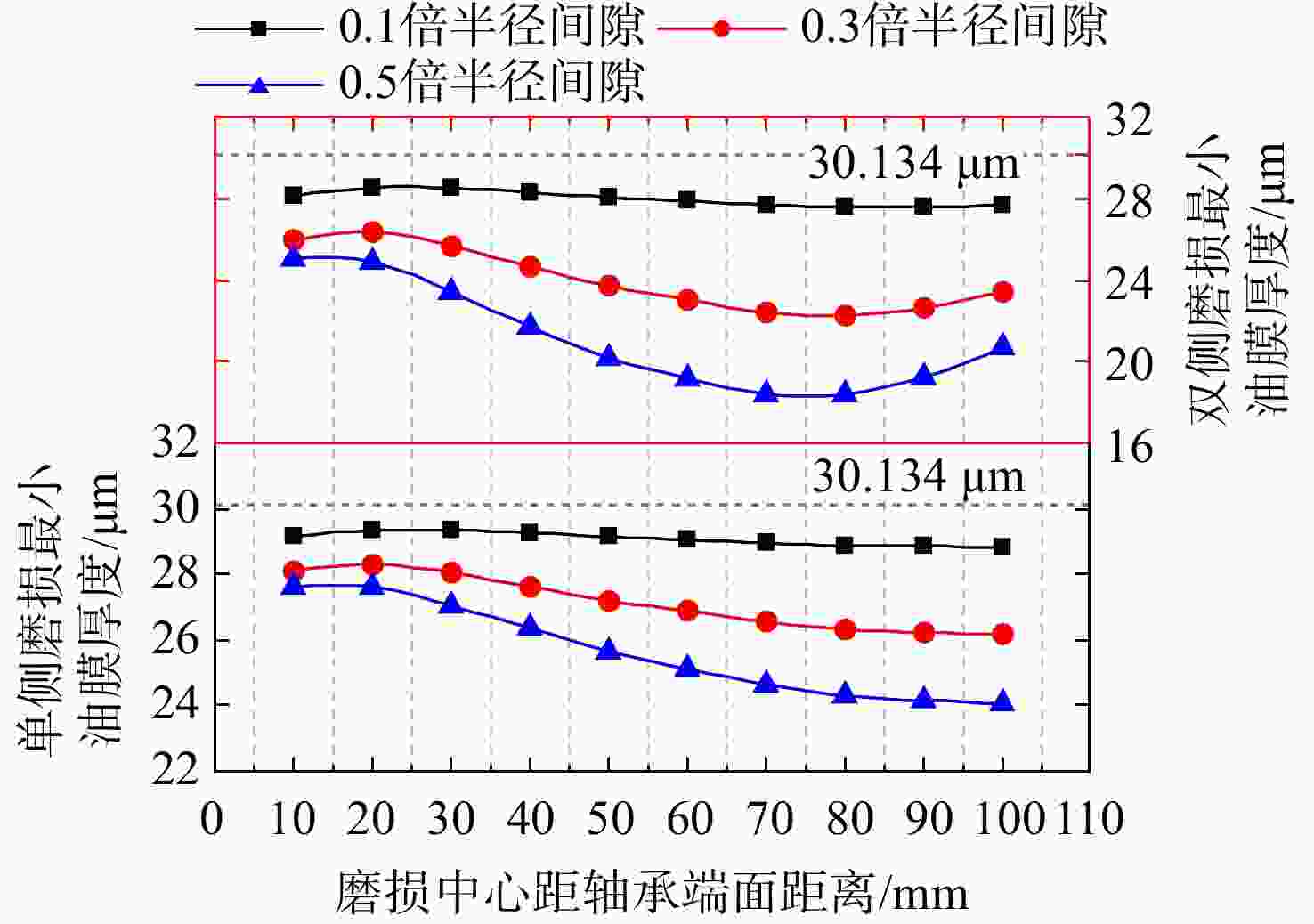

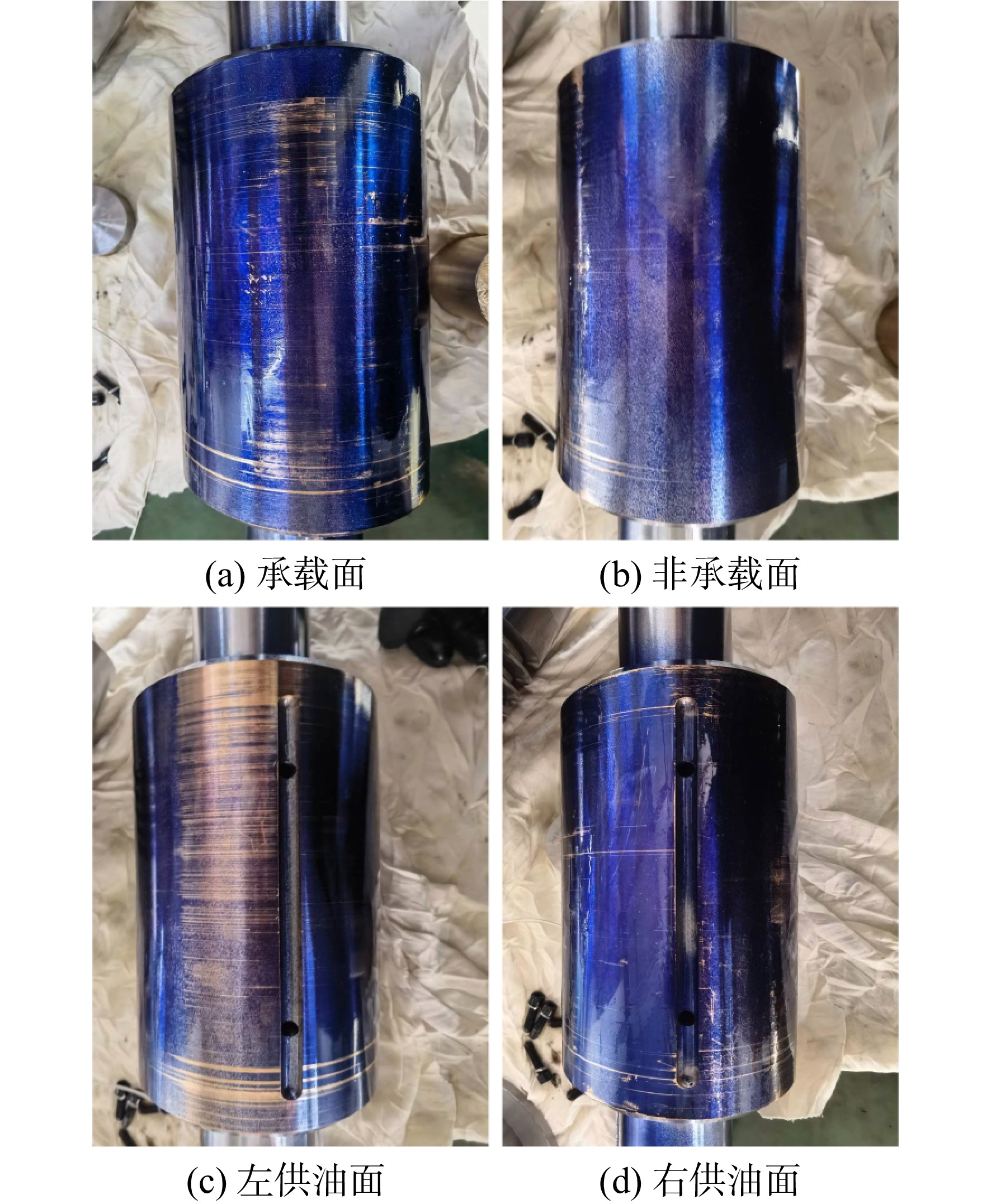

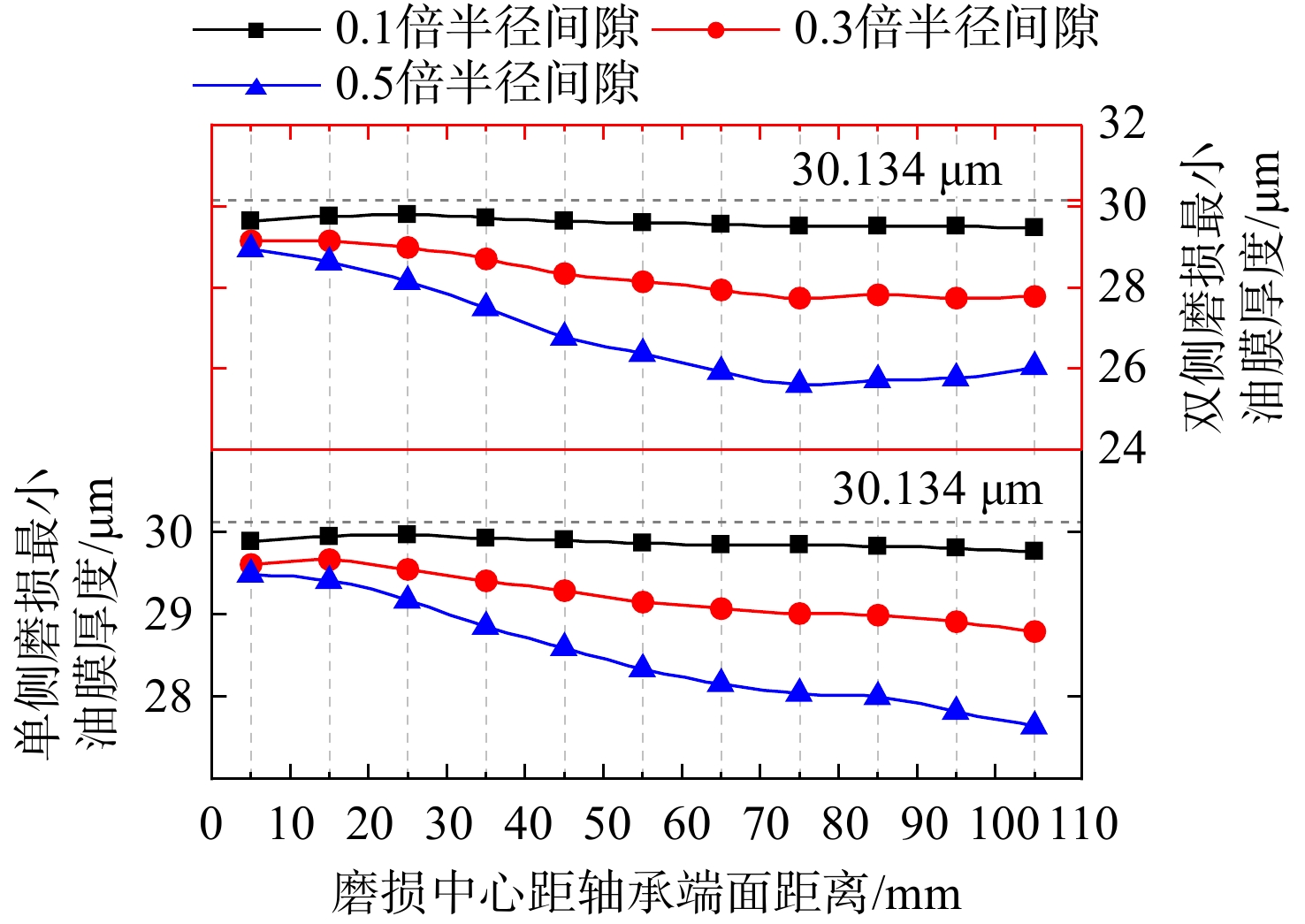

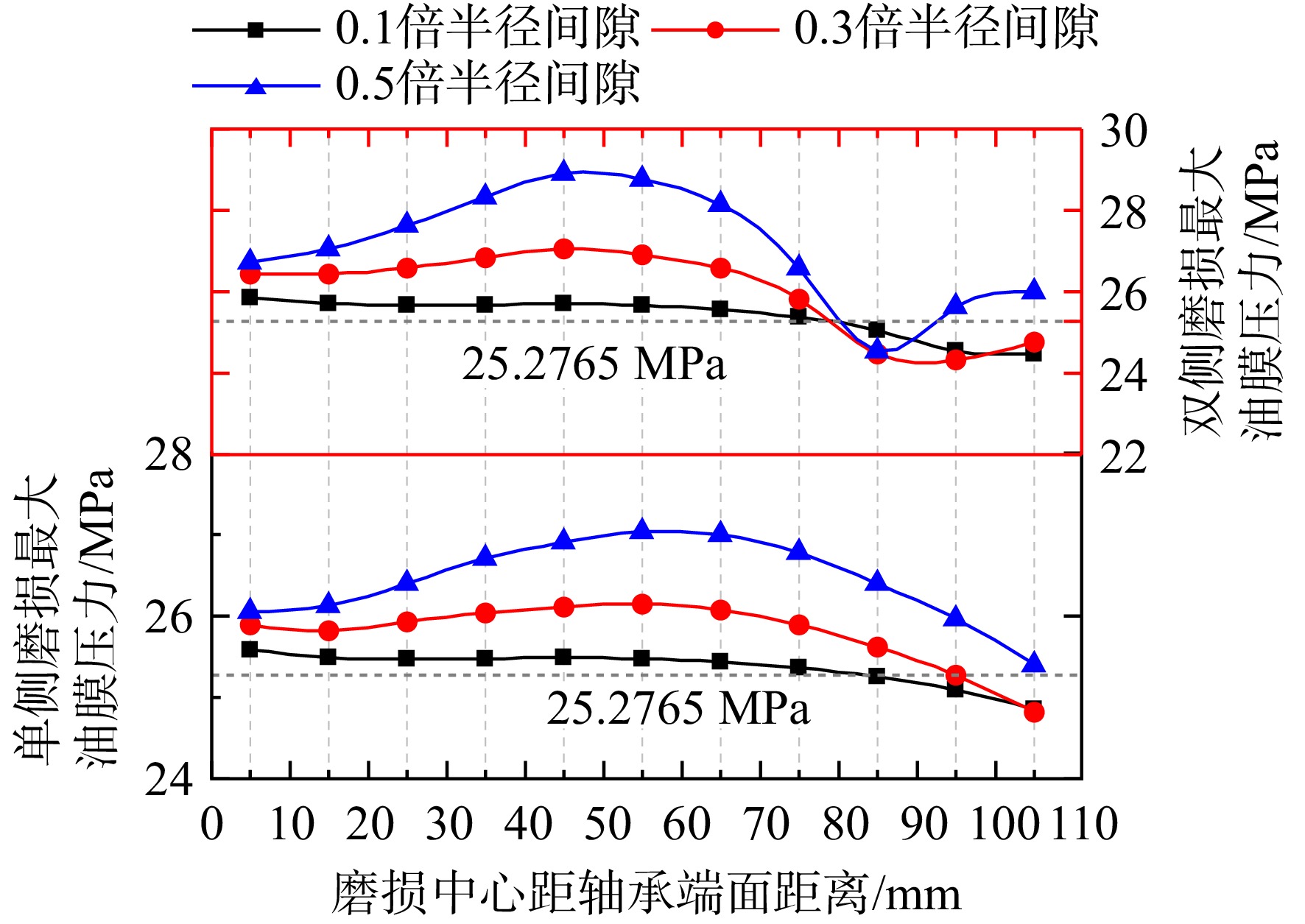

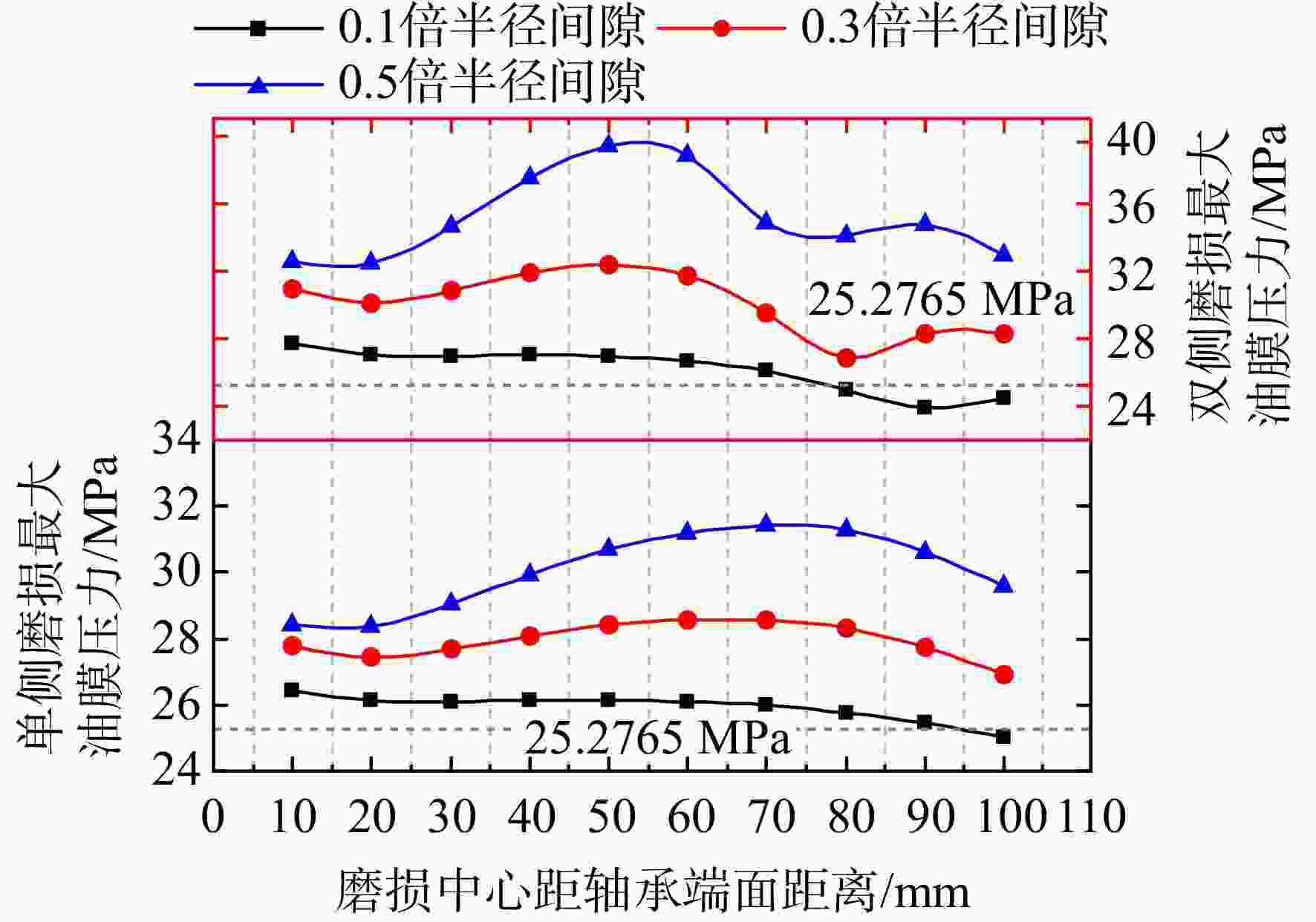

12000 次启停试验，获取了轴承表面形貌的变化及表面尺寸变化；分析了表面磨损变化对轴承性能的影响。试验表明轴承在12000 次启停试验后，承载面半径间隙增大了15.4%，油膜承载力降低了7.4%；轴承表面双侧损伤时，损伤中心距离端面1/4总宽时轴承的性能削减最大；轴承表面单侧损伤时，损伤边缘距离端面1/4总宽时轴承的性能削减最大。Abstract:To investigate the wear behavior of the sliding bearing in aero-engine planetary gearboxes under high-frequency start-stop operating conditions, a dedicated test rig was constructed. This test rig enabled independent control of rotational speed and load, as well as combined loading, while simultaneously monitoring the static parameters of the bearing. By integrating numerical simulation with experimental validation, the theoretically derived static parameters were compared with measured data, confirming the reliability of the simulated conditions provided by the test rig. A total of 12 000 start-stop cycles were conducted according to actual flight conditions, capturing the evolution of surface topography and dimensional changes. The influence of surface wear on bearing performance was subsequently analyzed. Results indicated that after

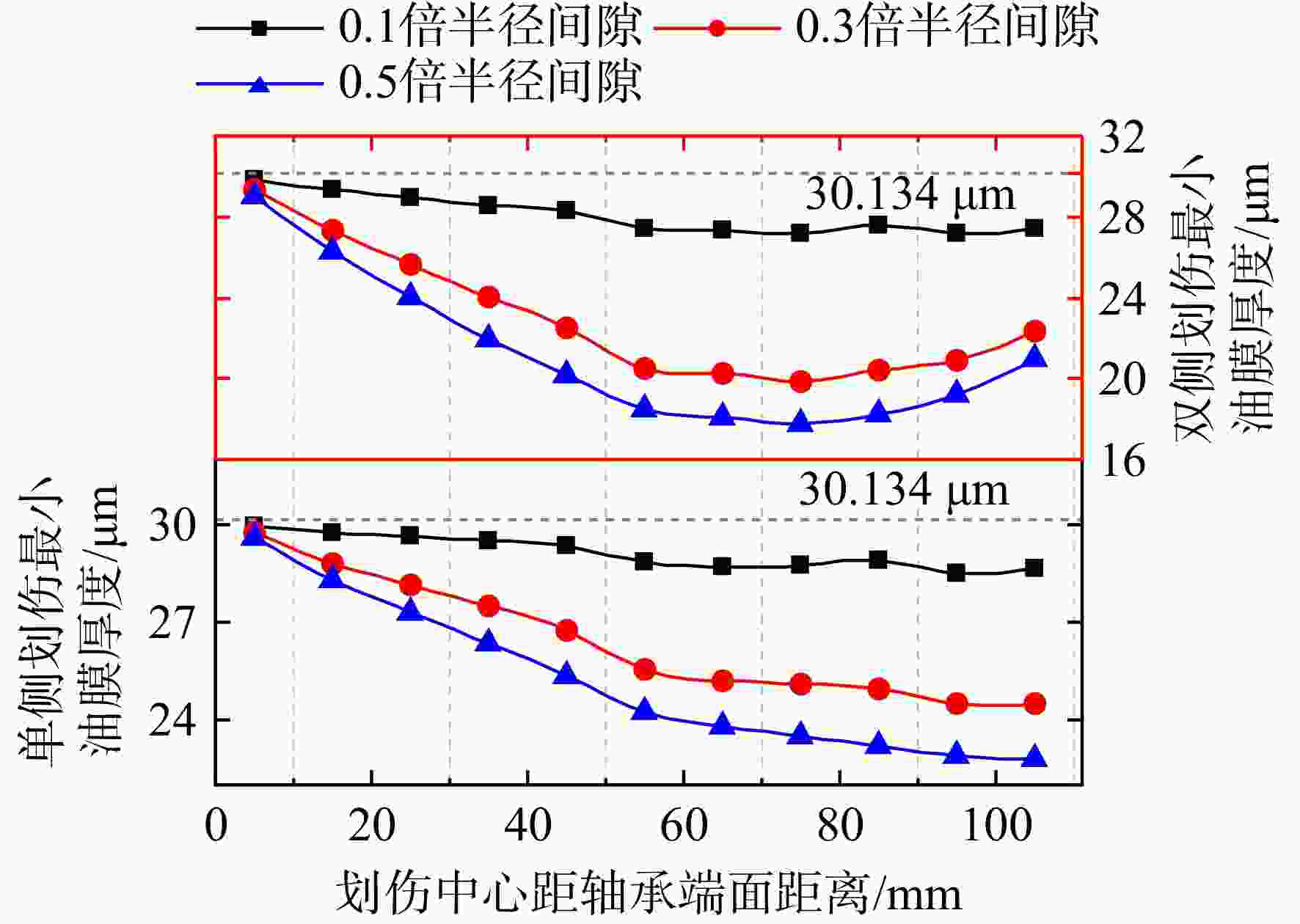

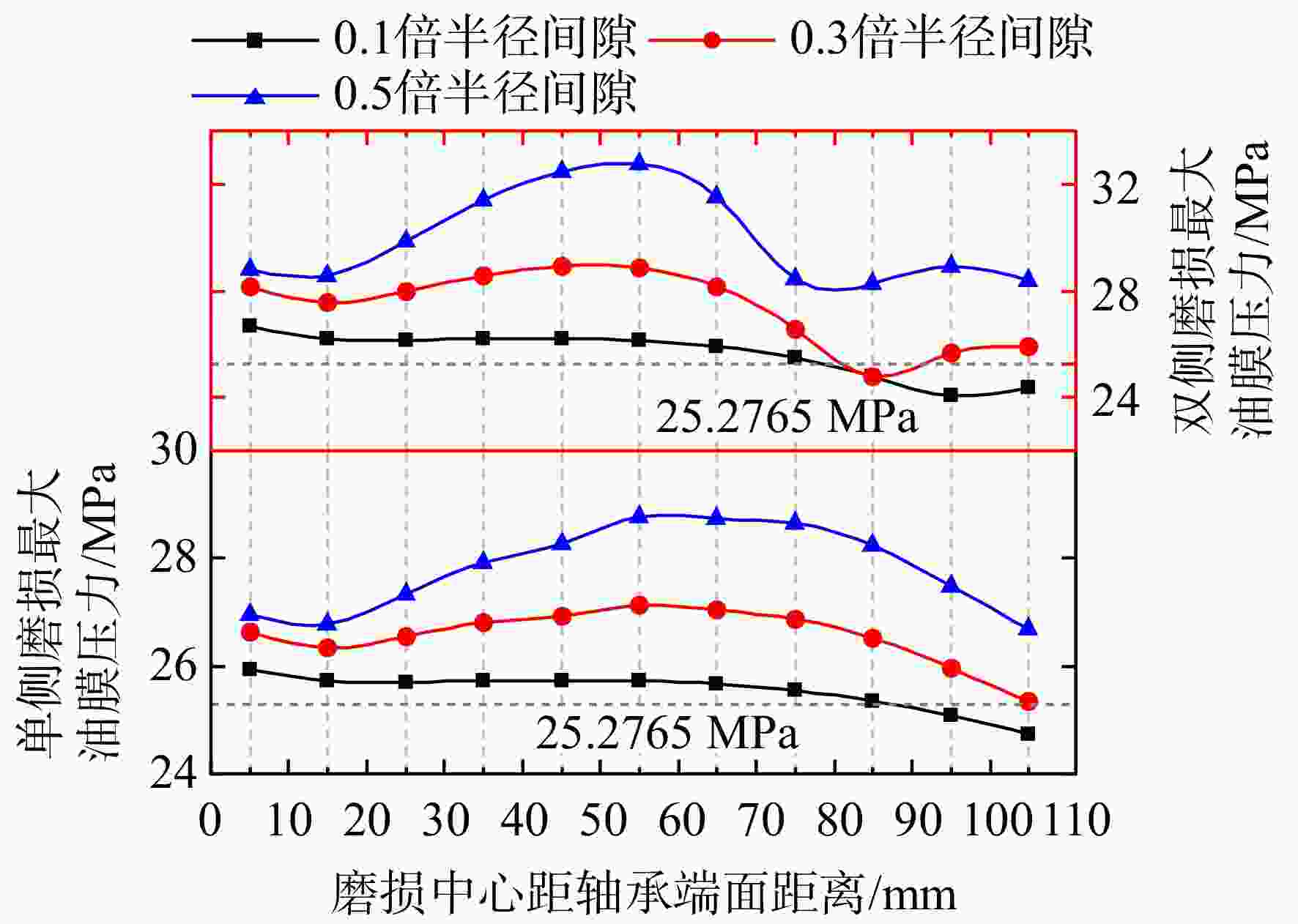

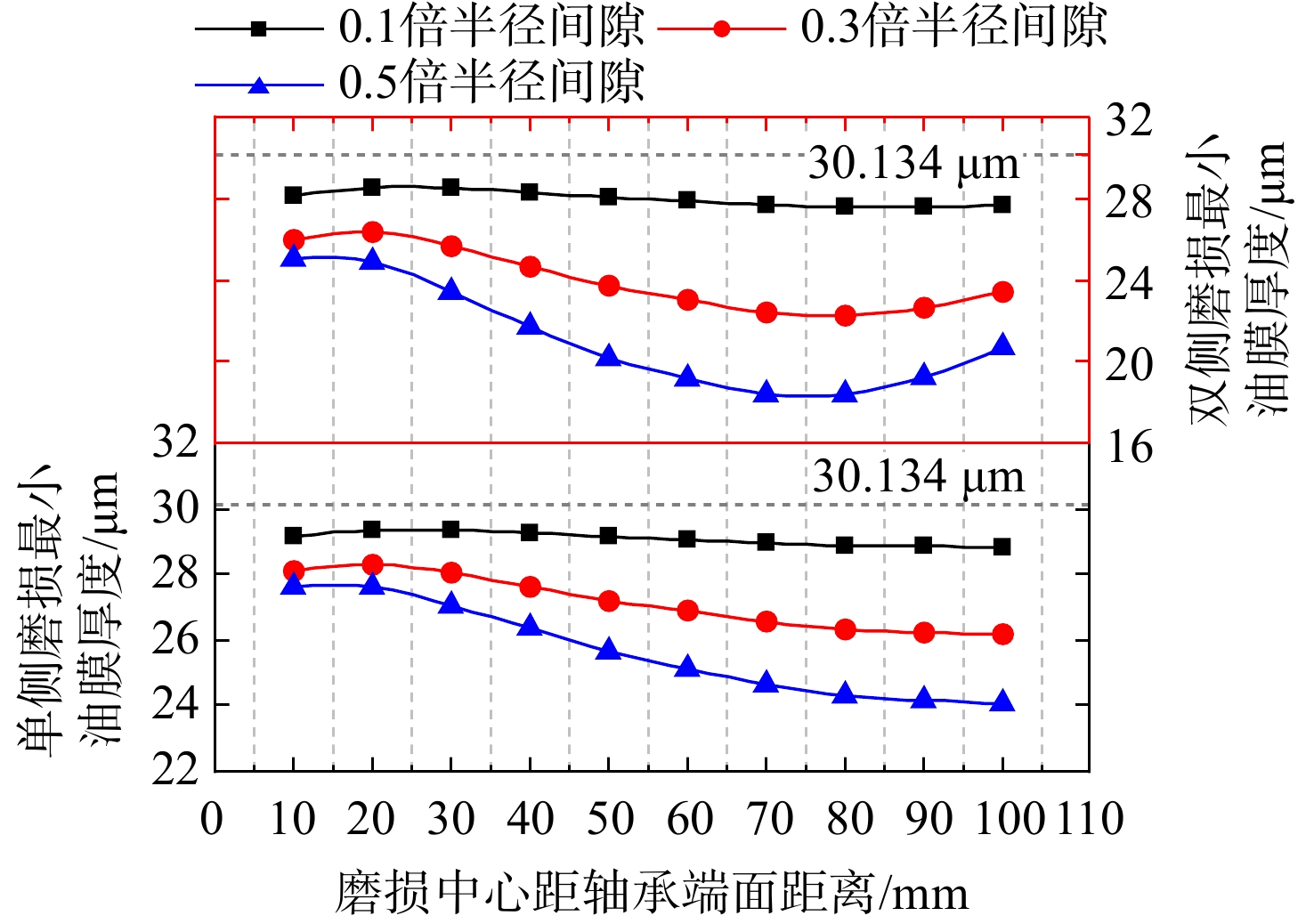

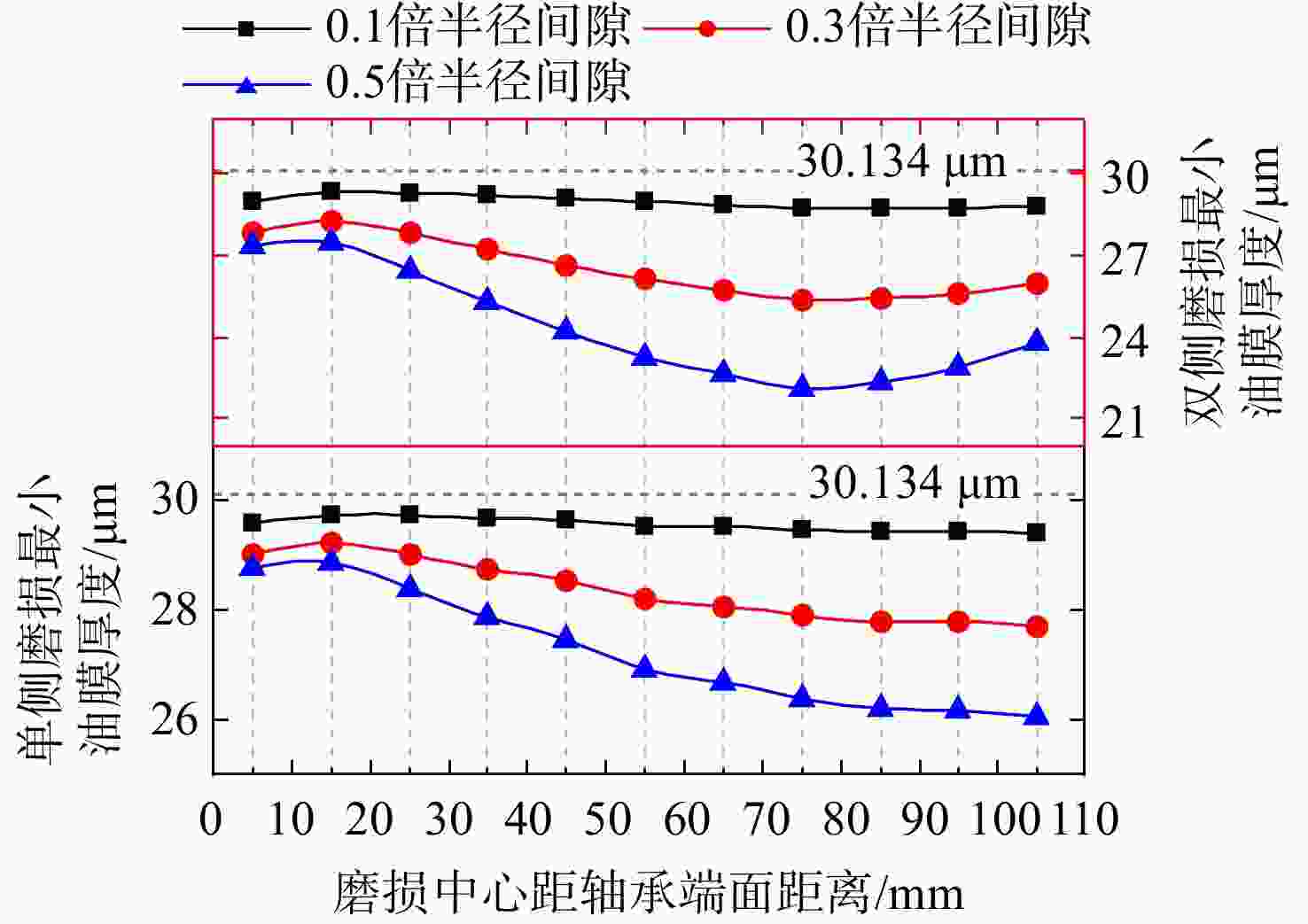

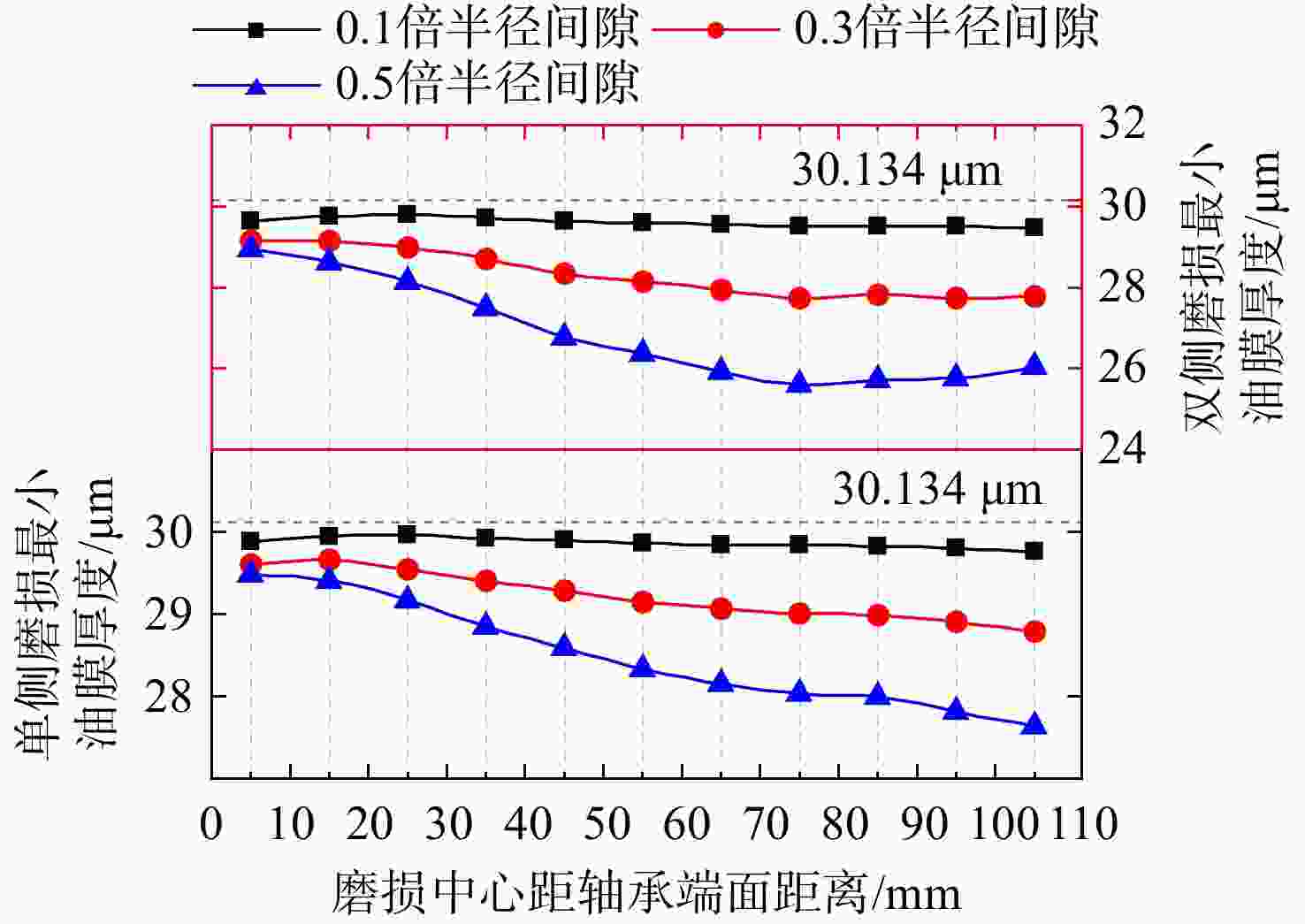

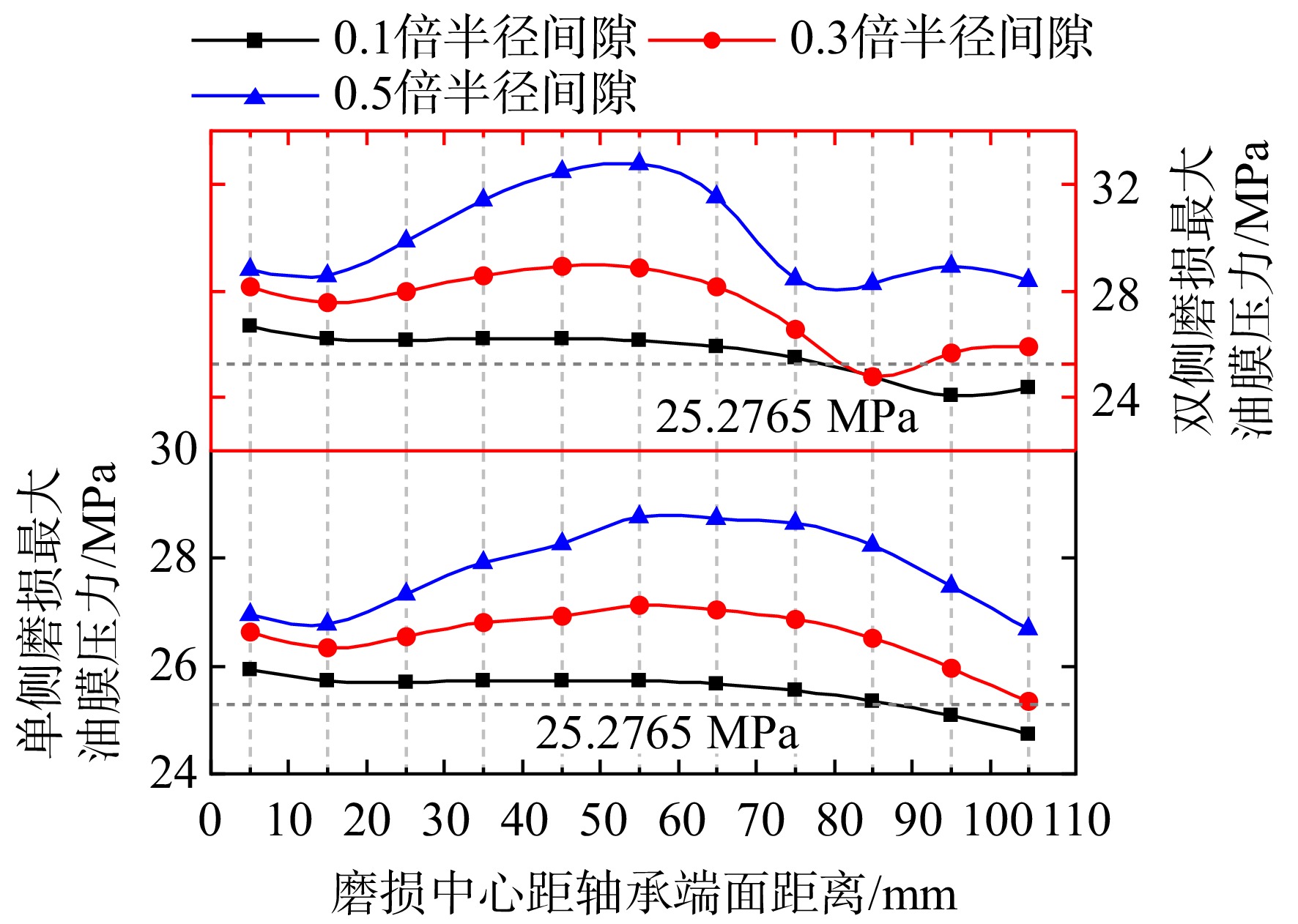

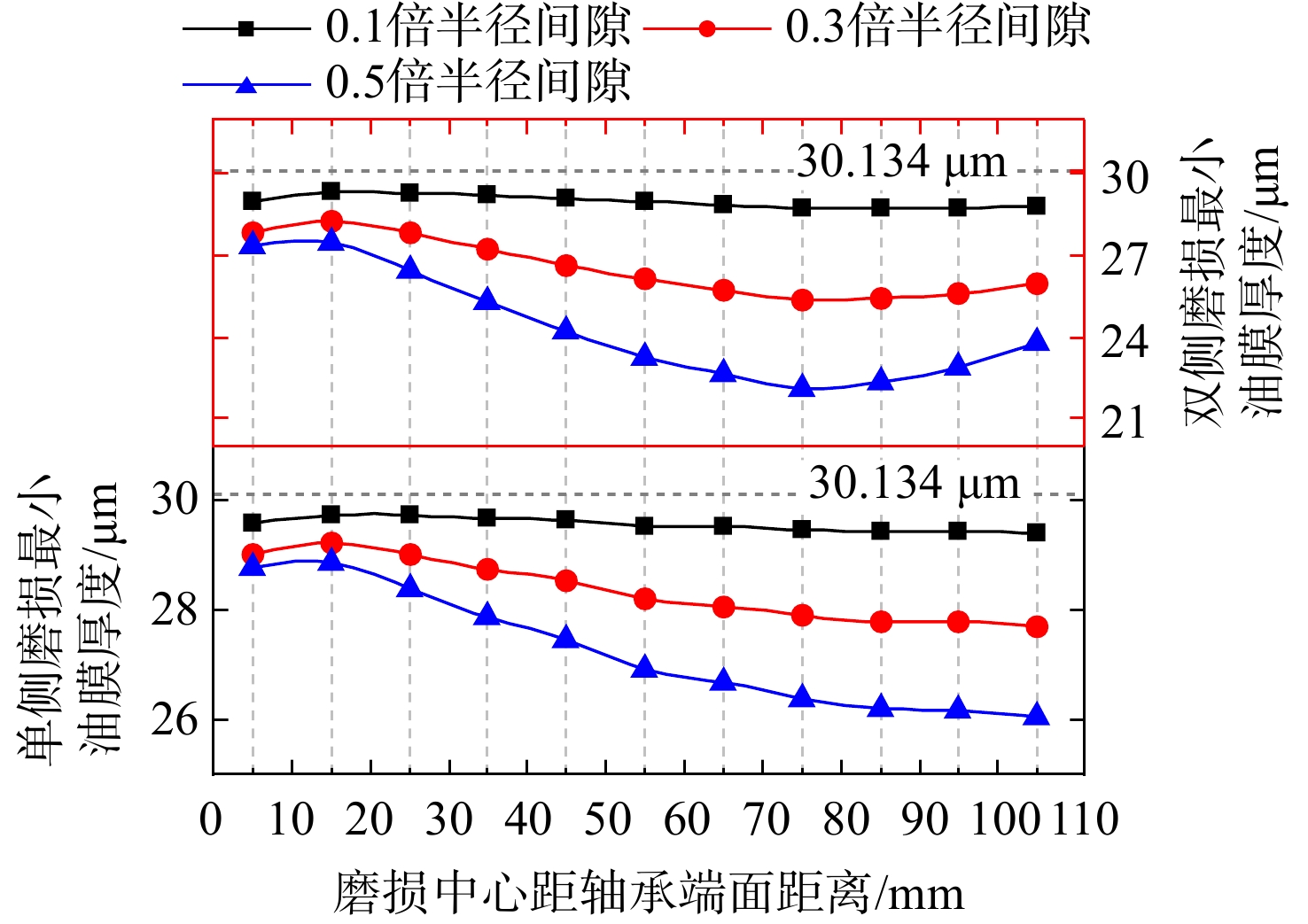

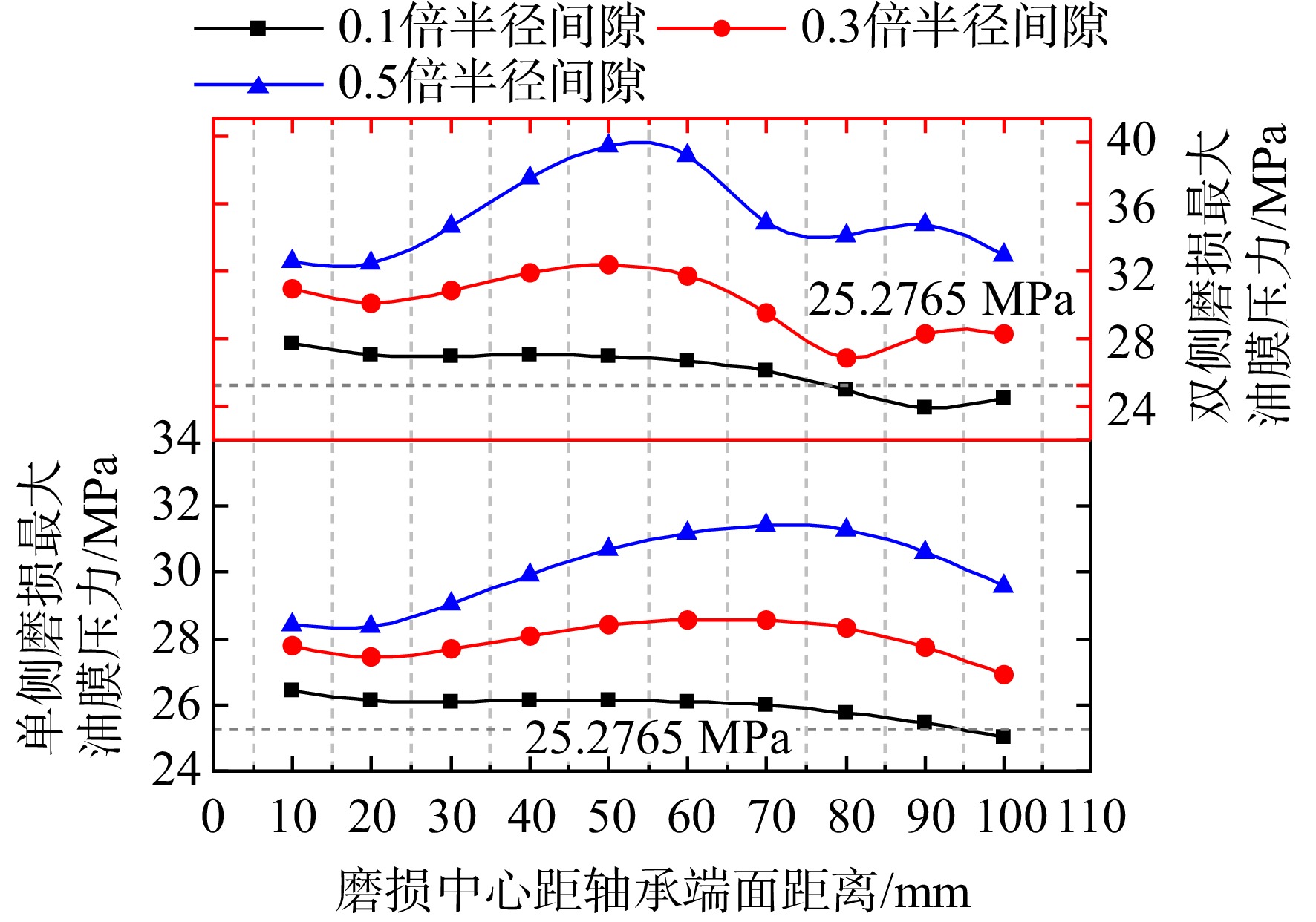

12000 start-stop cycles, the loaded-surface radial clearance increased by 15.4% and the oil-film load capacity decreased by 7.4%. For bilateral surface damage, the greatest performance degradation occurred when the damage centers were located at 1/4 of the total width from the end face. For unilateral surface damage, the maximum performance loss occurred when the damaged edge was situated at 1/4 of the total width from the corresponding end face.-
Key words:
- high-frequency start-stop /
- wear /
- elliptical bearing /
- testing rig /
- thermo-hydrodynamic lubrication
-

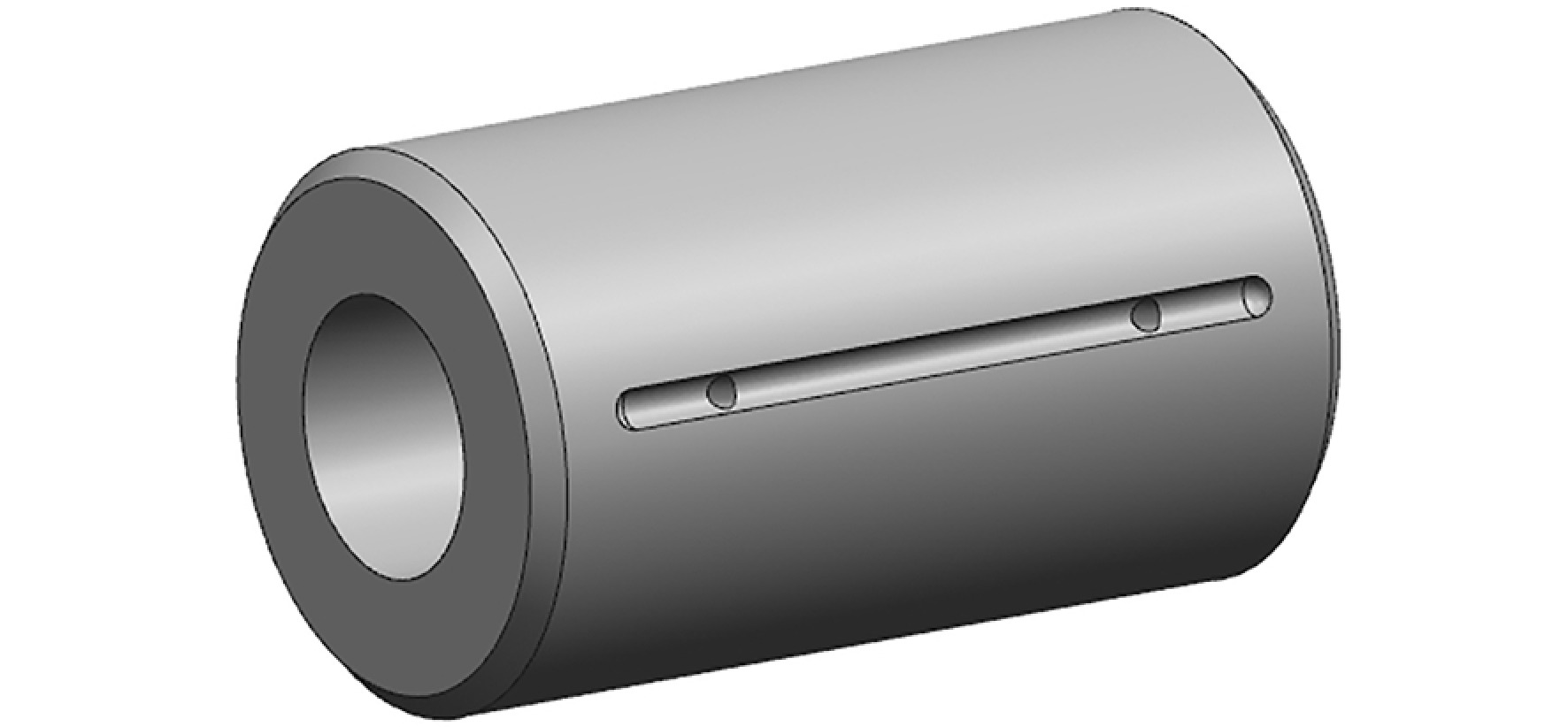

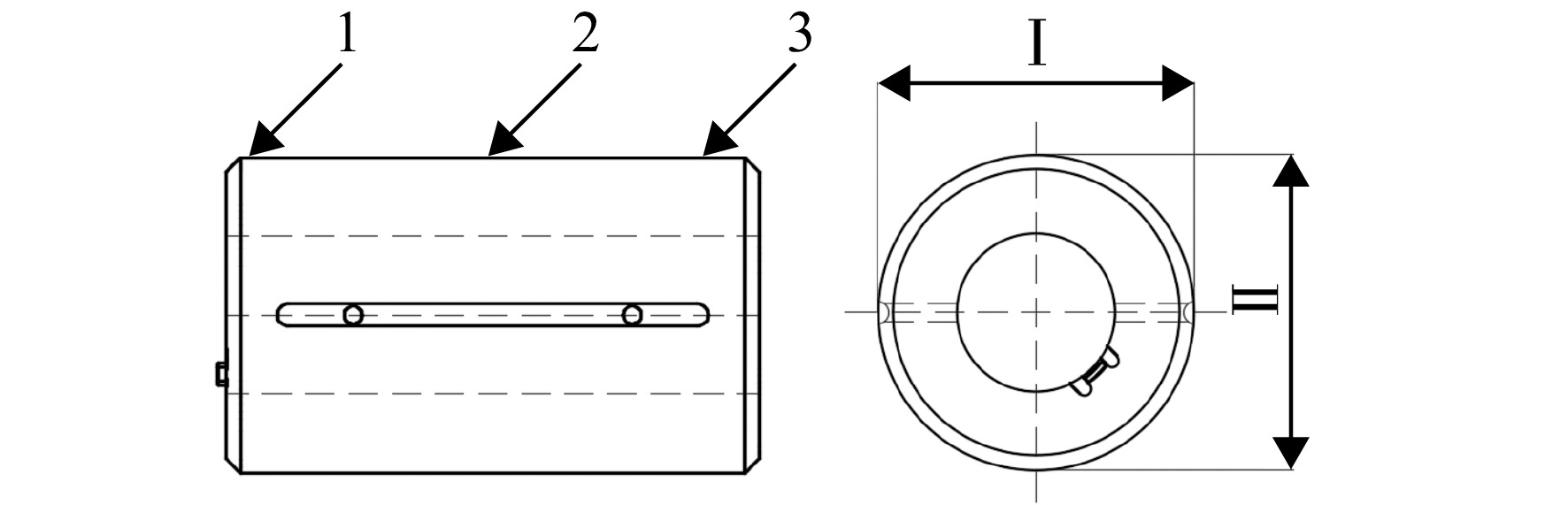

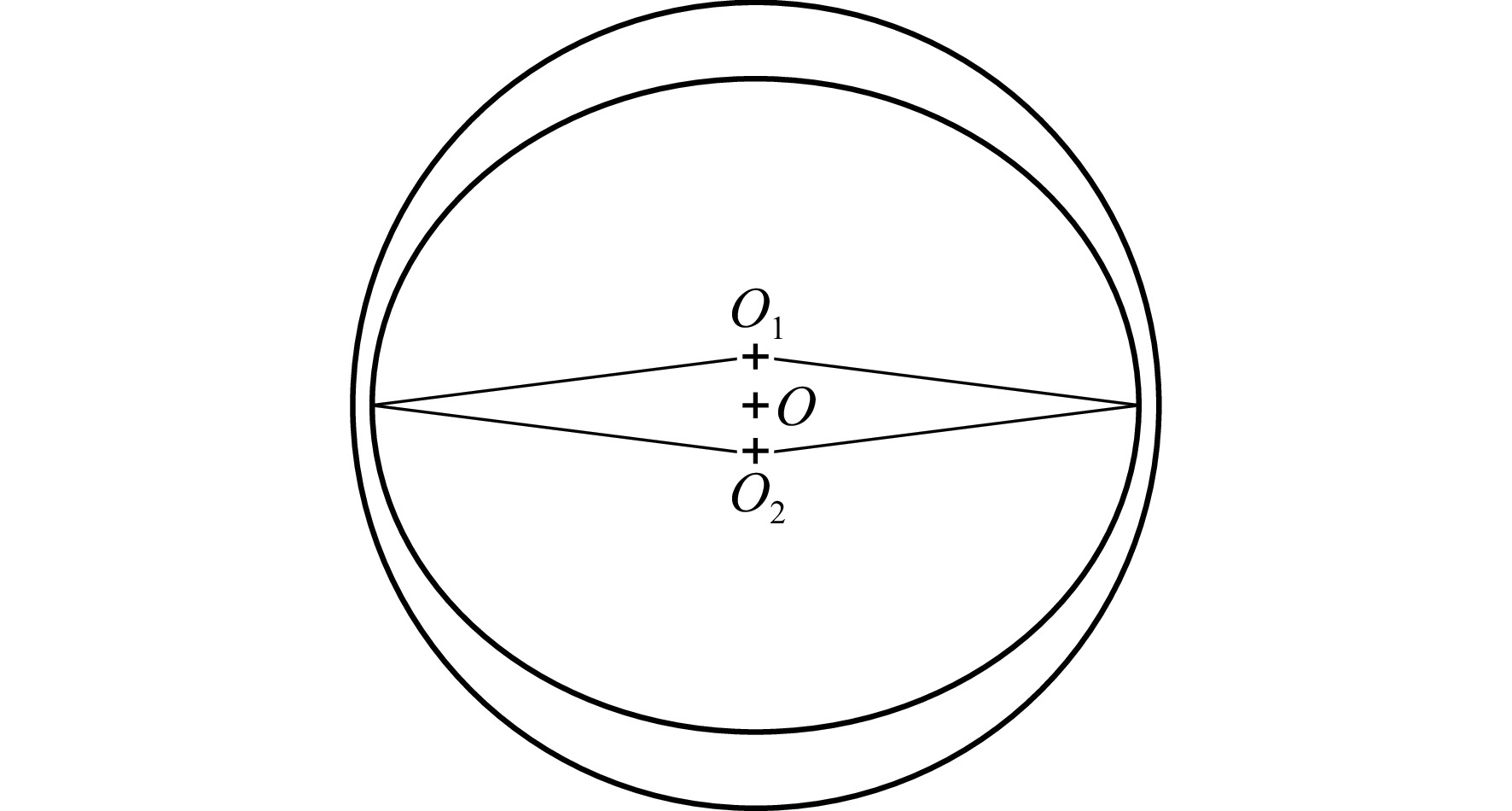

图 1 倒置式椭圆轴承结构示意图
Figure 1. Schematic diagram of the inverted elliptical bearing structure

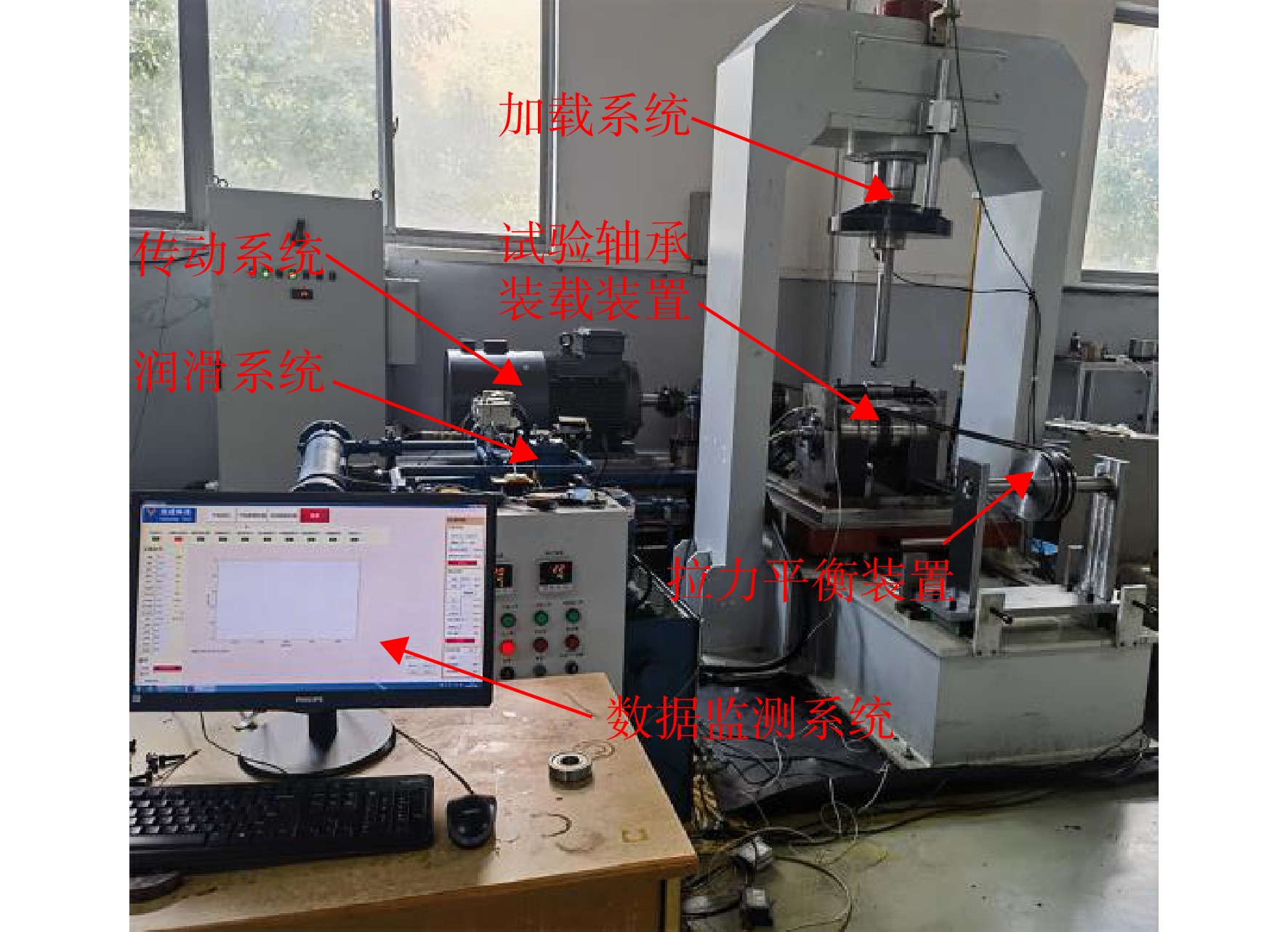

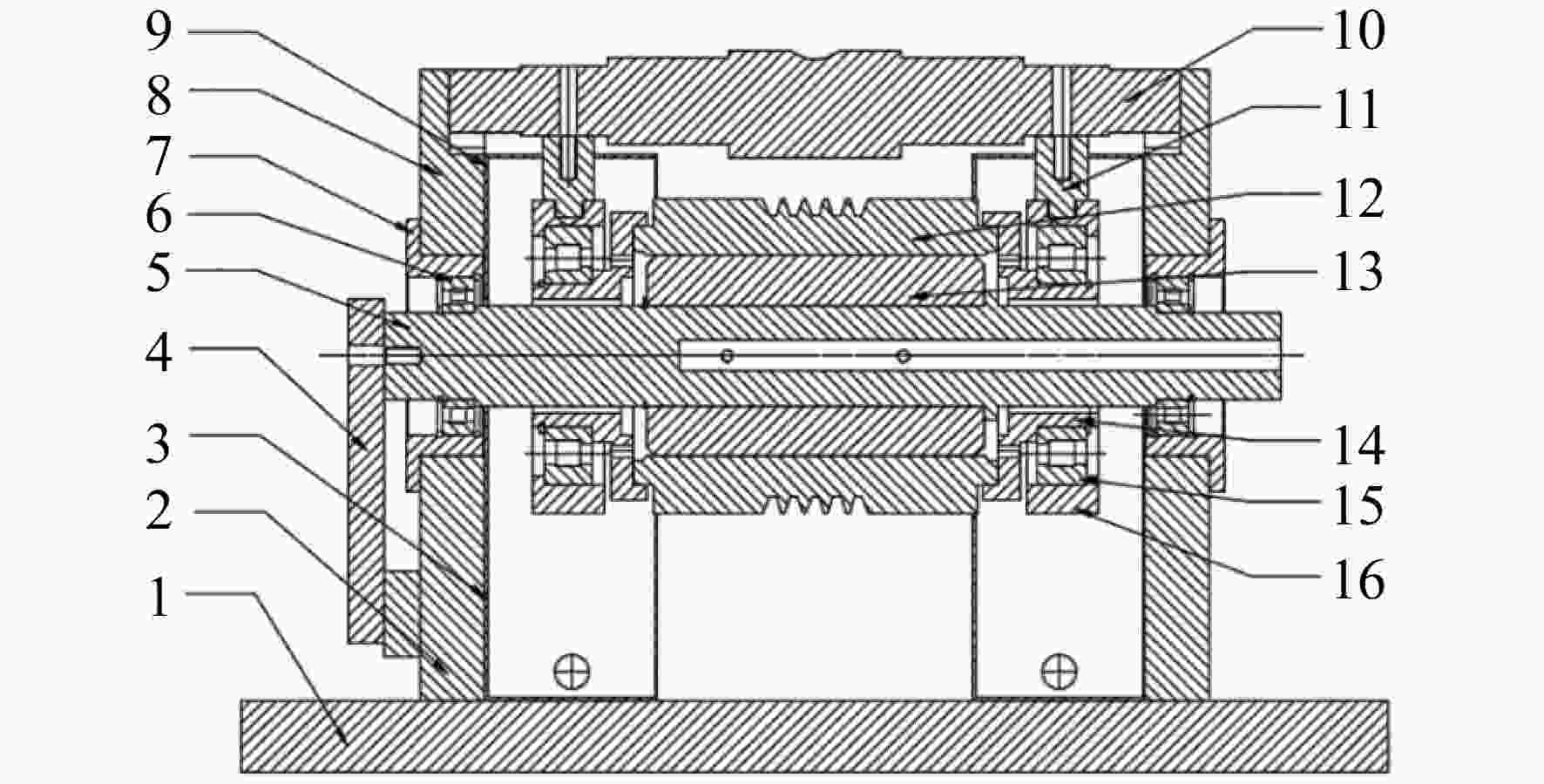

图 4 轴承装载装置结构图
1 底座；2 下基座；3 下泄油箱；4 限位测矩杆；5 供油轴；6 承载滚动轴承；7 连接法兰；8 上基座；9 上泄油箱；10 加载横轴；11 加载螺杆；12 加载带轮；13 试验轴承；14 加载法兰；15 加载滚动轴承；16 加载环。
Figure 4. Structure diagram of bearing loading device

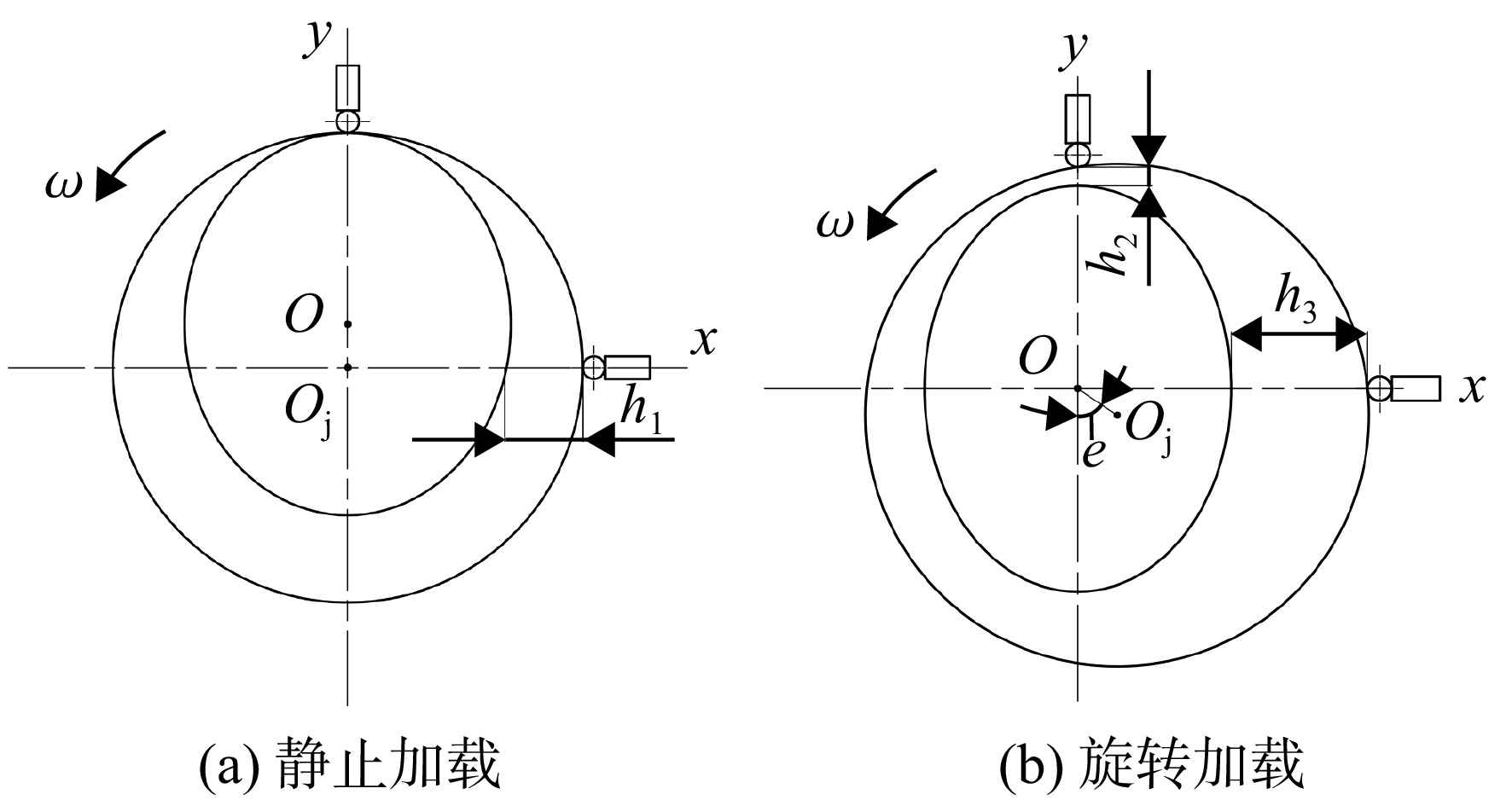

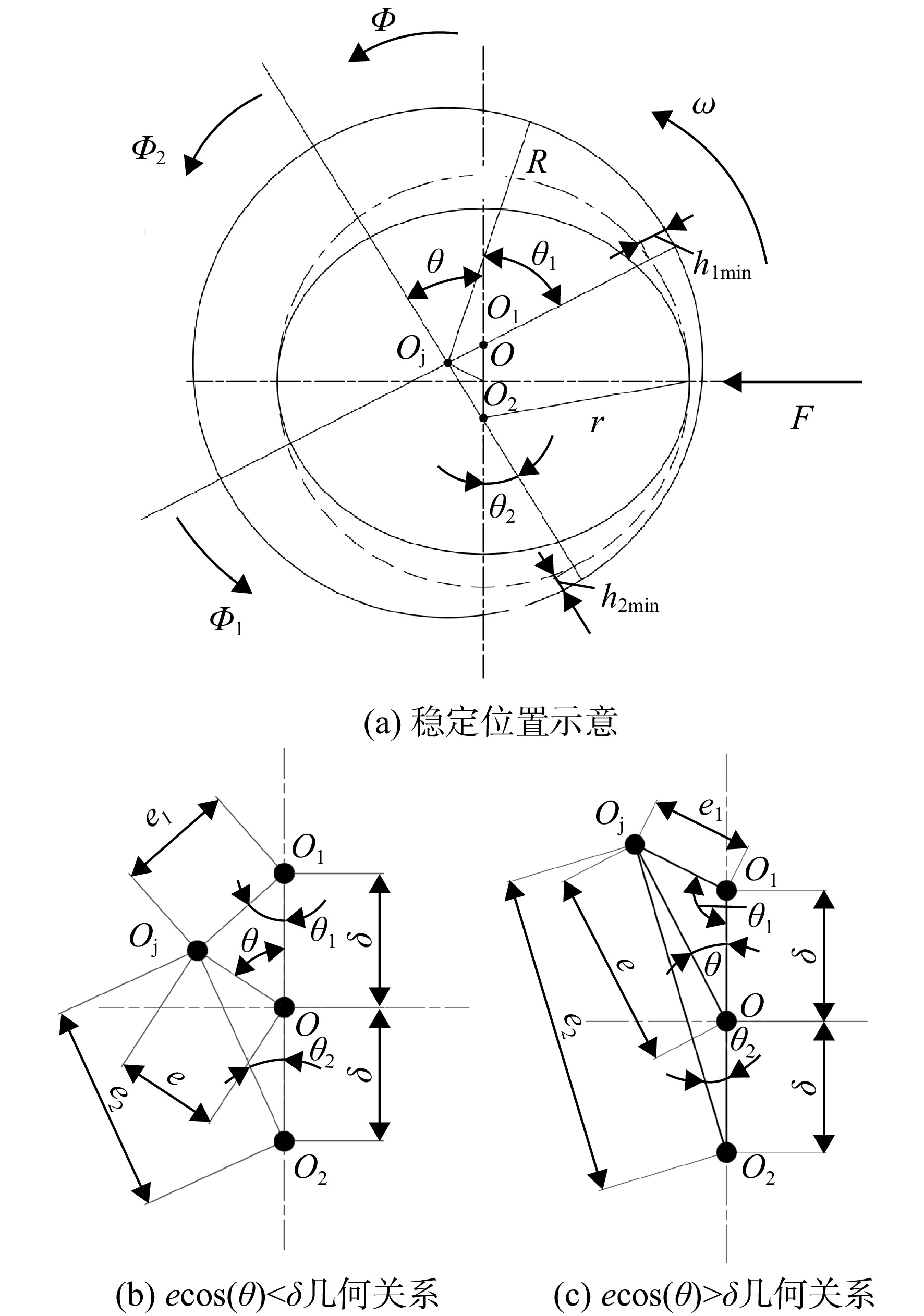

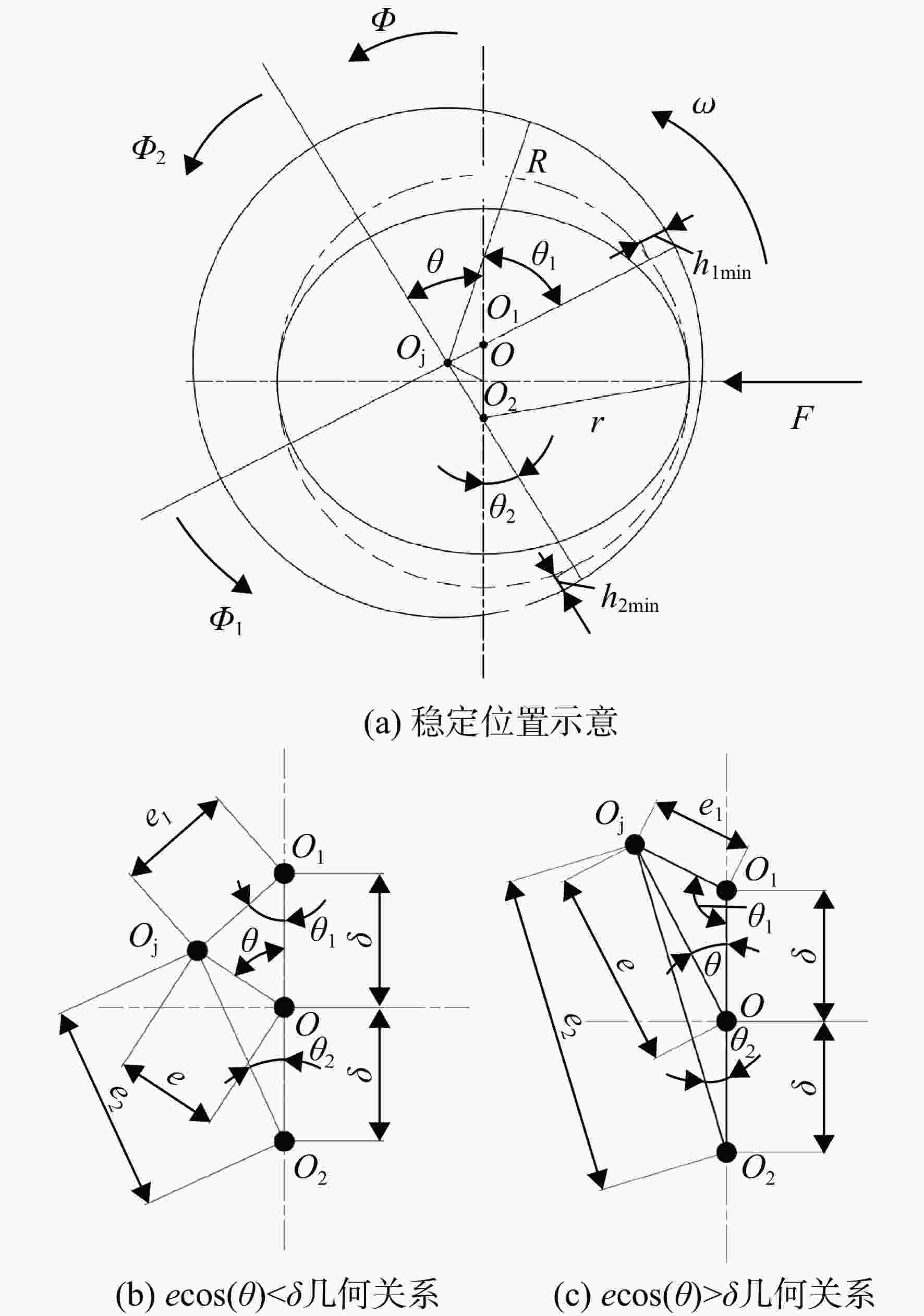

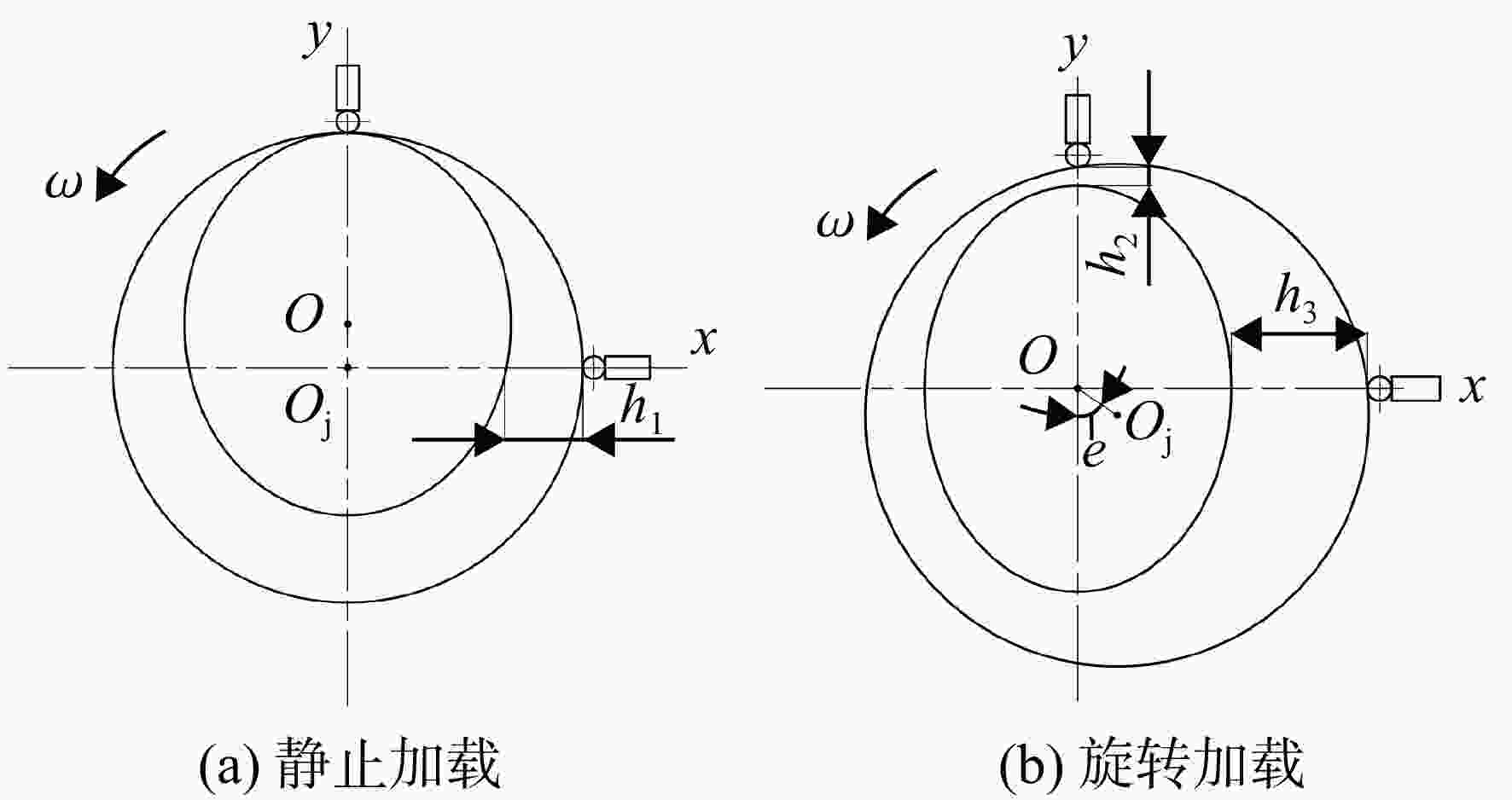

图 5 倒置式椭圆轴承油膜厚度关系示意图
Figure 5. Schematic diagram of inverted elliptic bearing film thickness

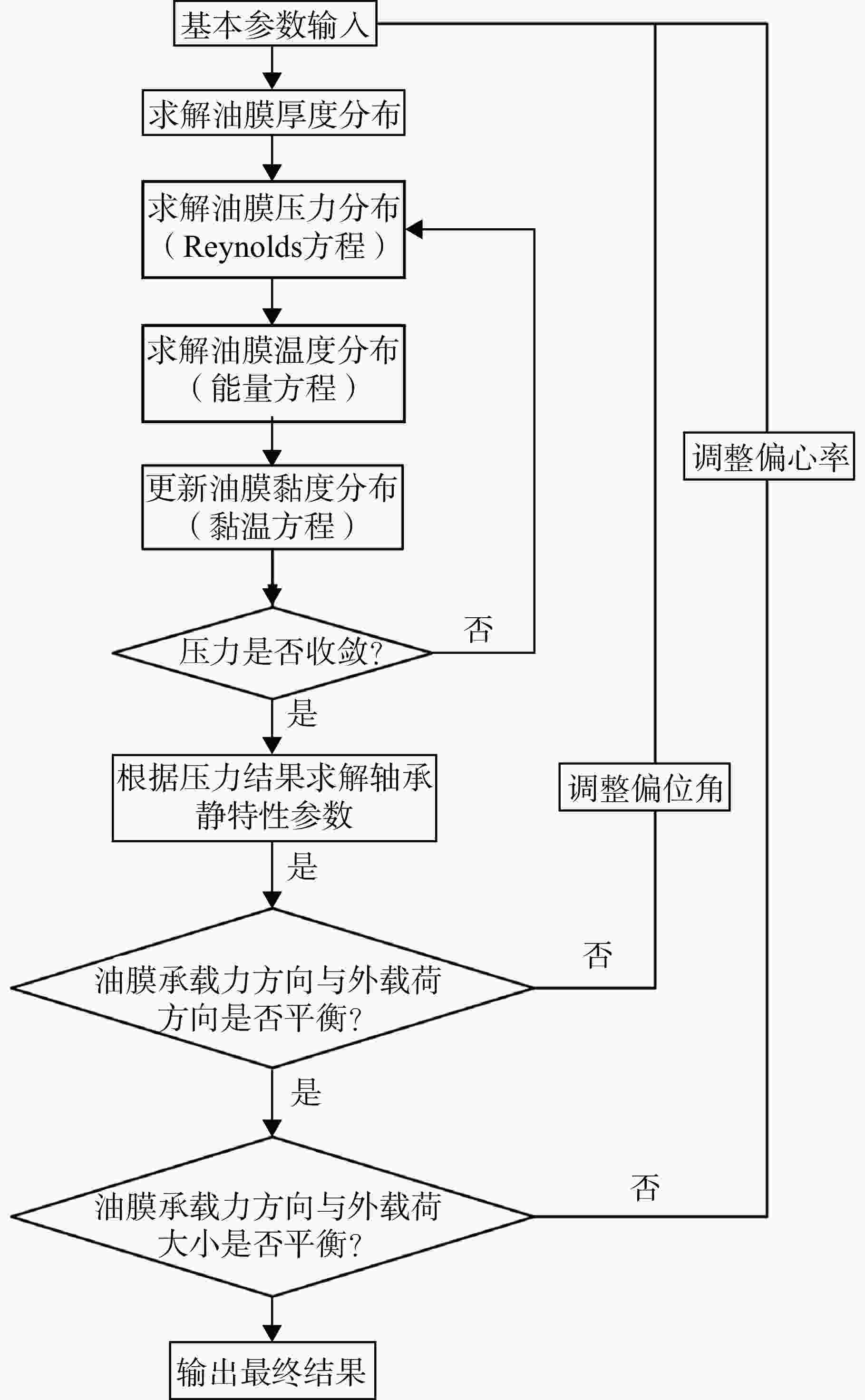

图 6 倒置式椭圆轴承热流体计算流程图
Figure 6. Flow chart of inverted elliptical bearing thermal fluid calculation

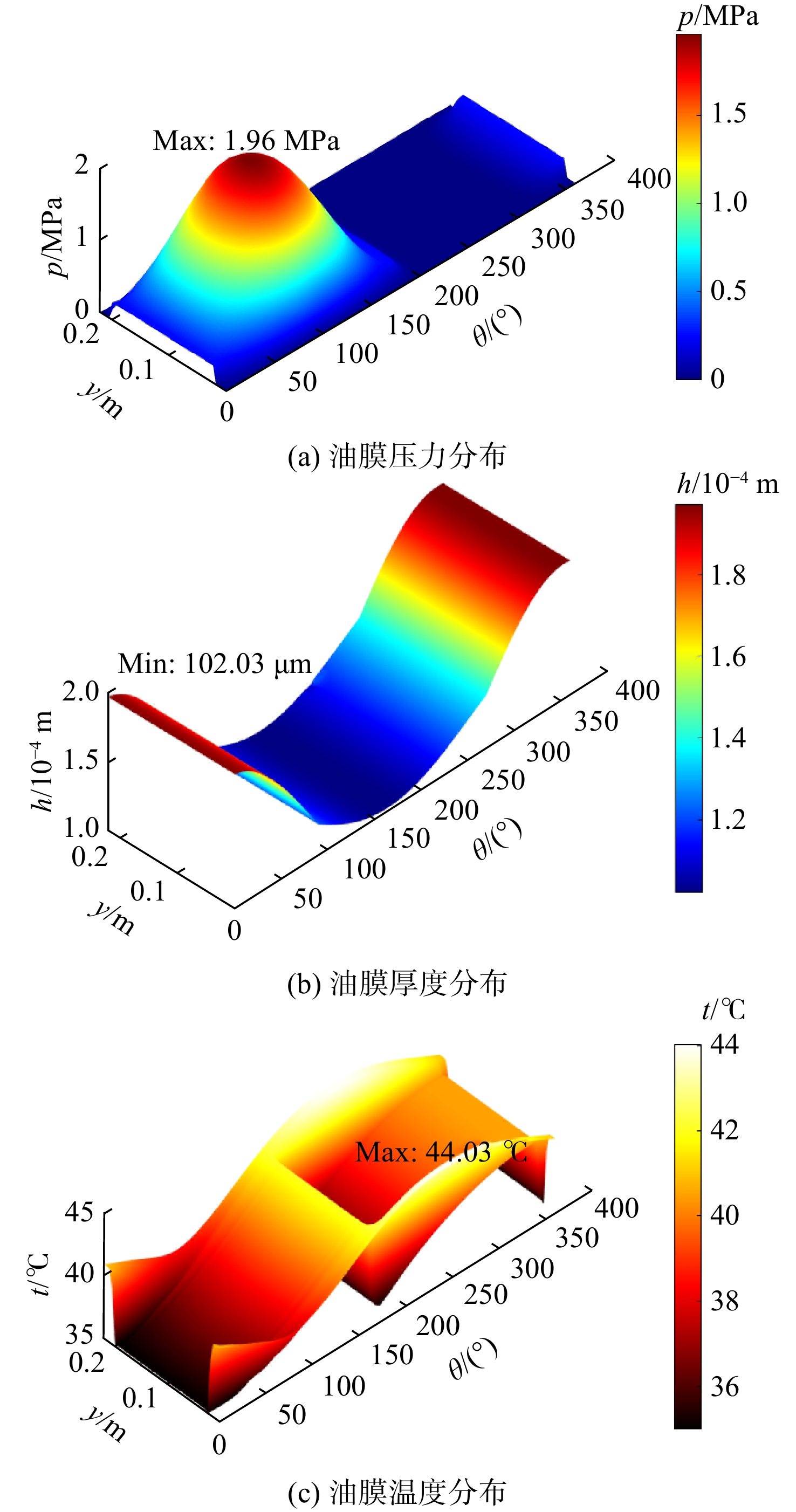

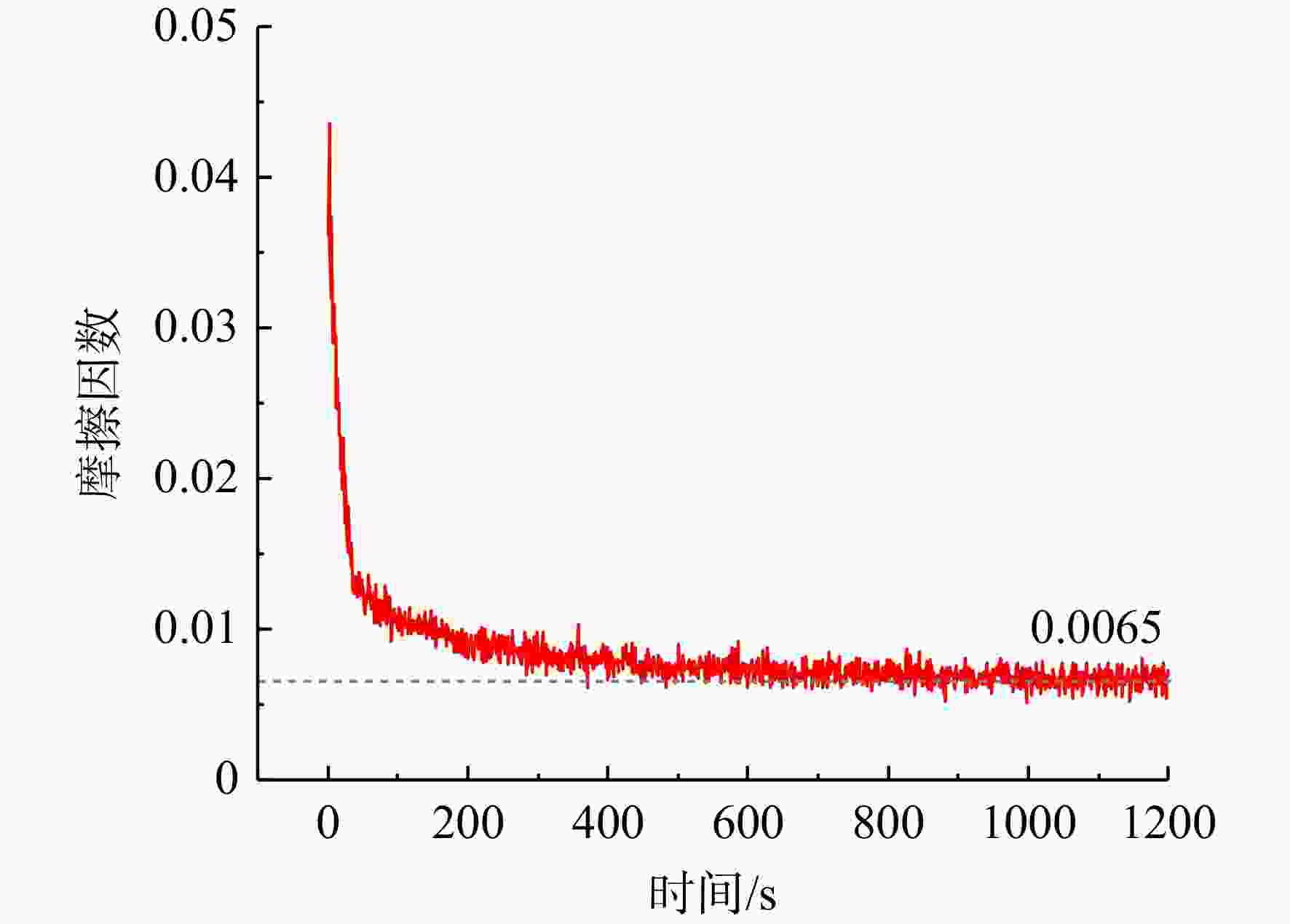

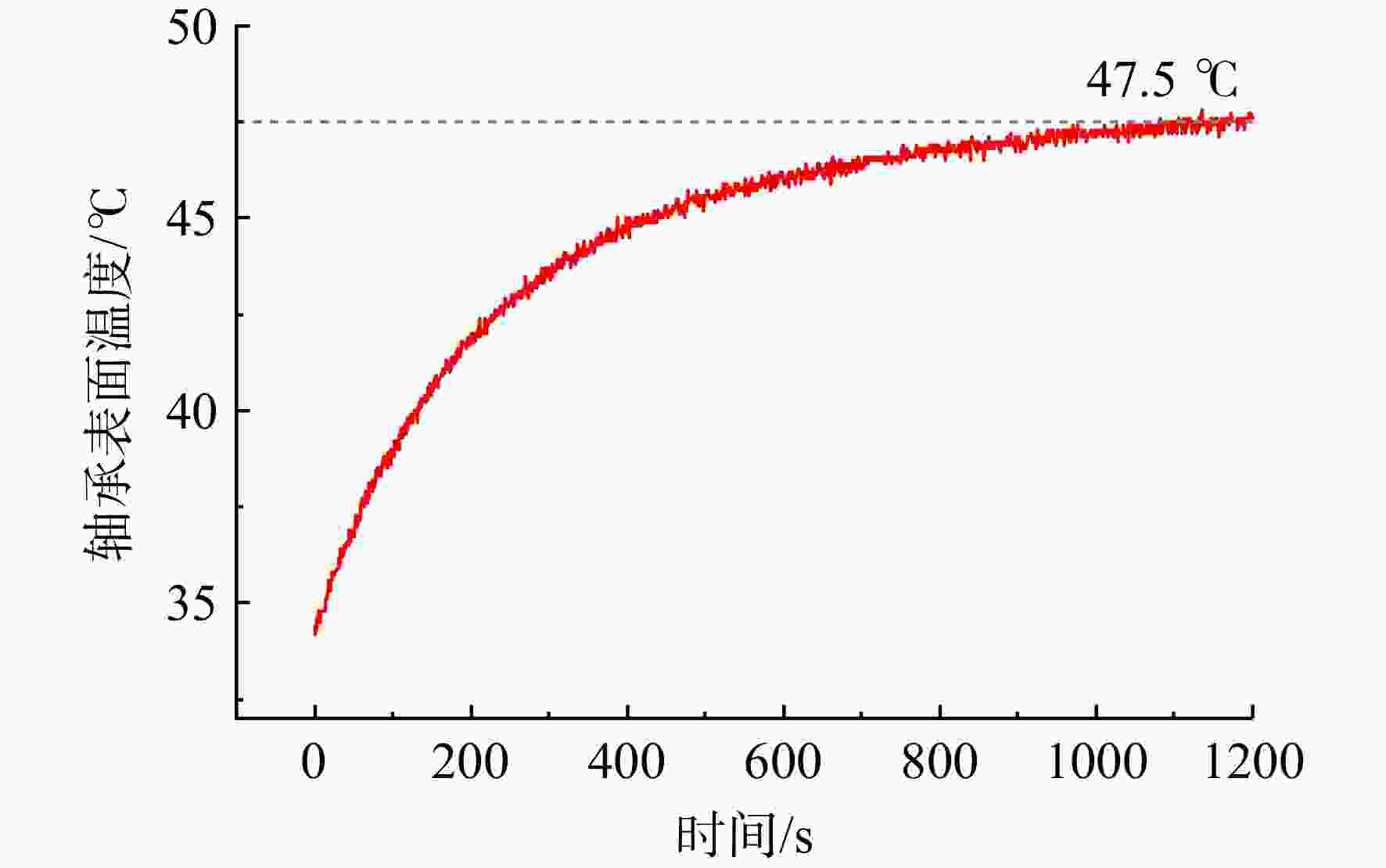

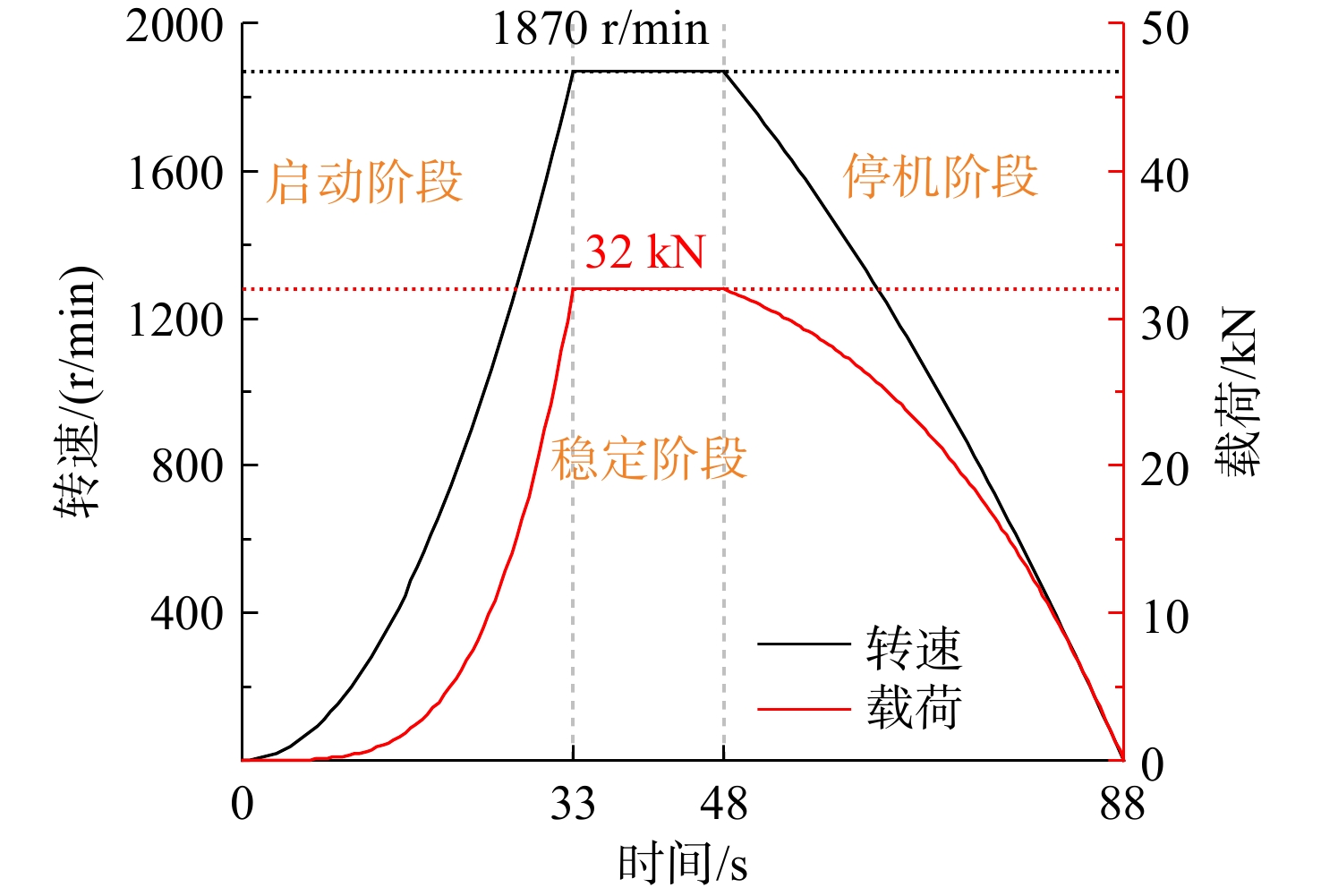

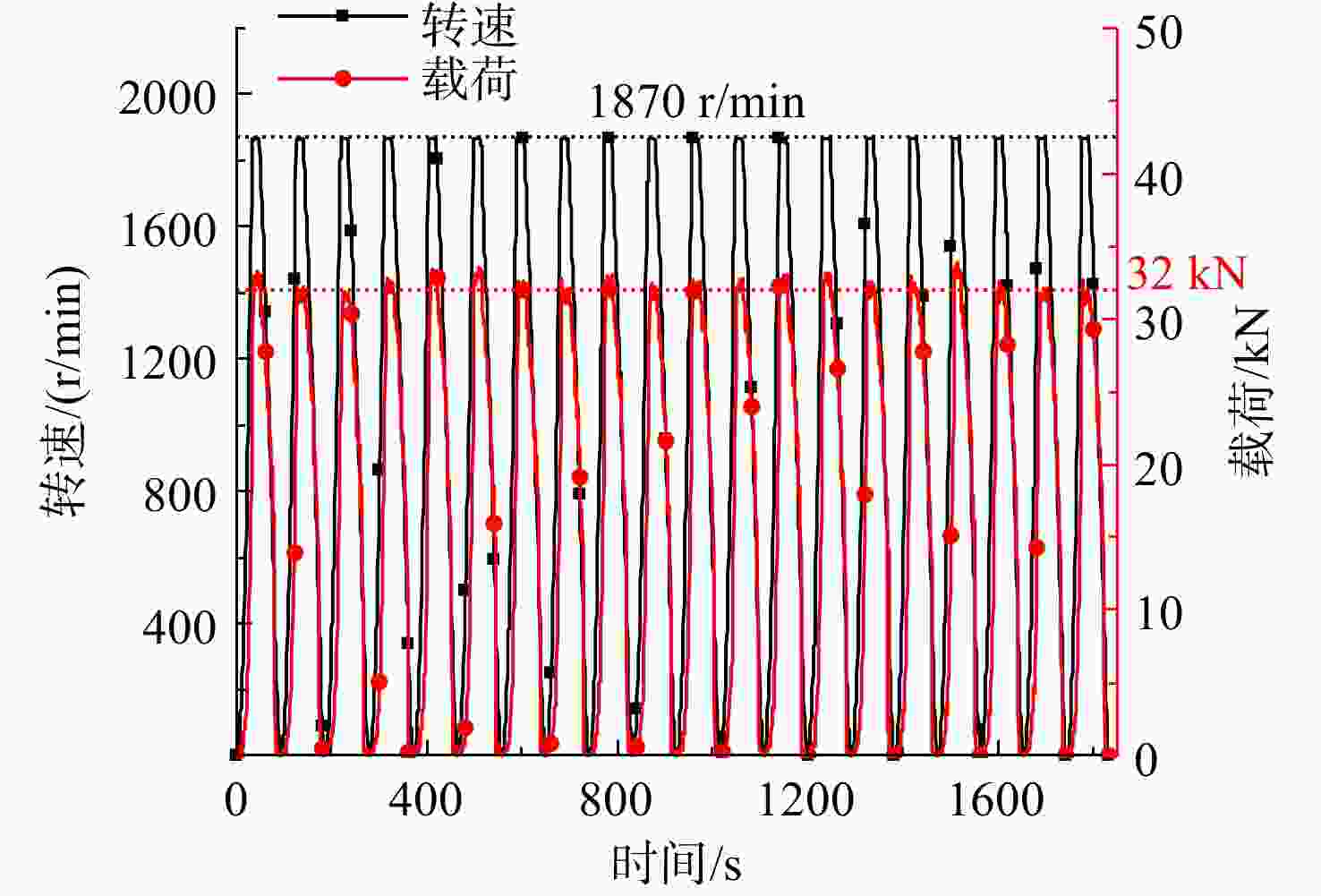

图 13 启停试验理论转速、载荷曲线
Figure 13. Theoretical speed and load curves of the start-stop test

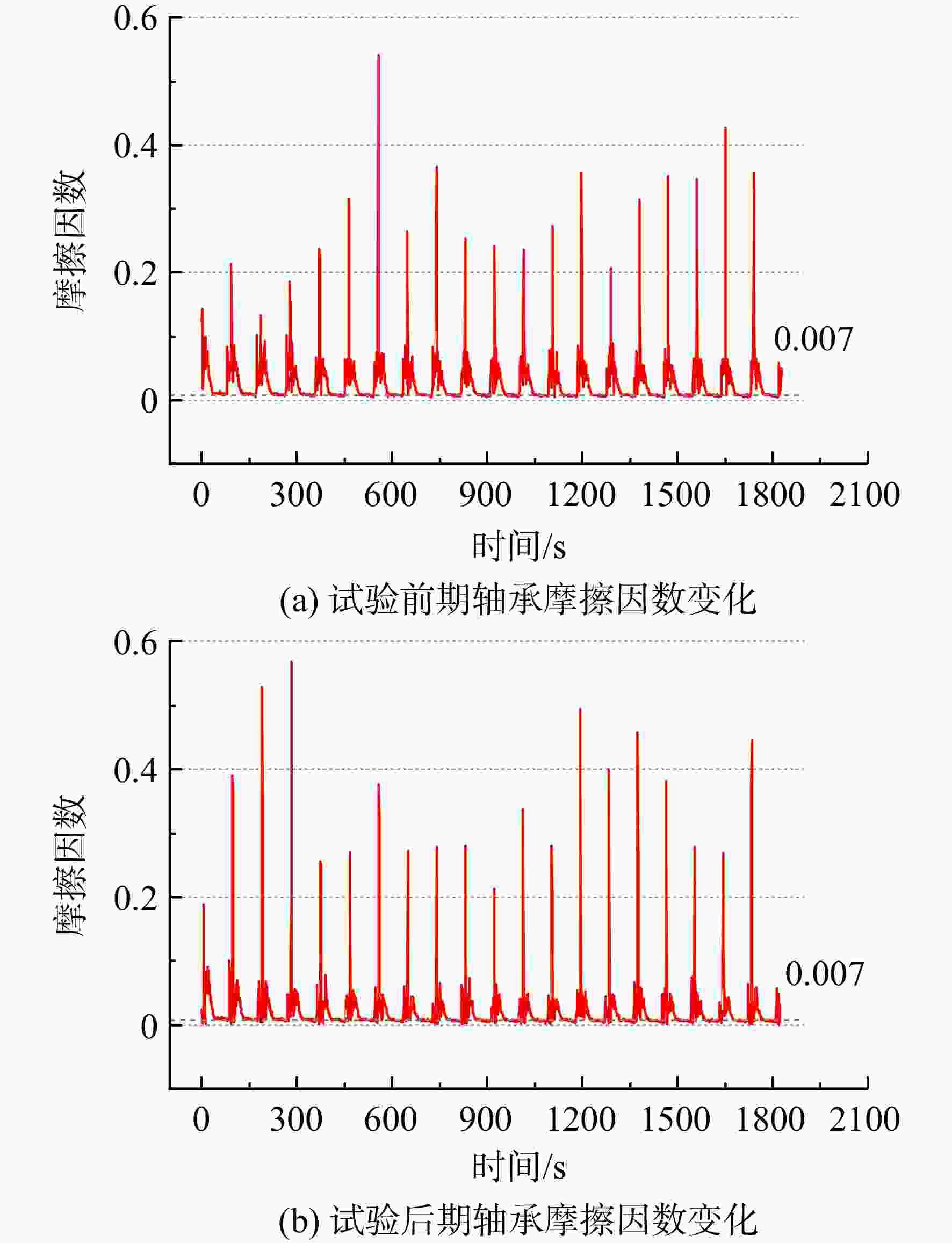

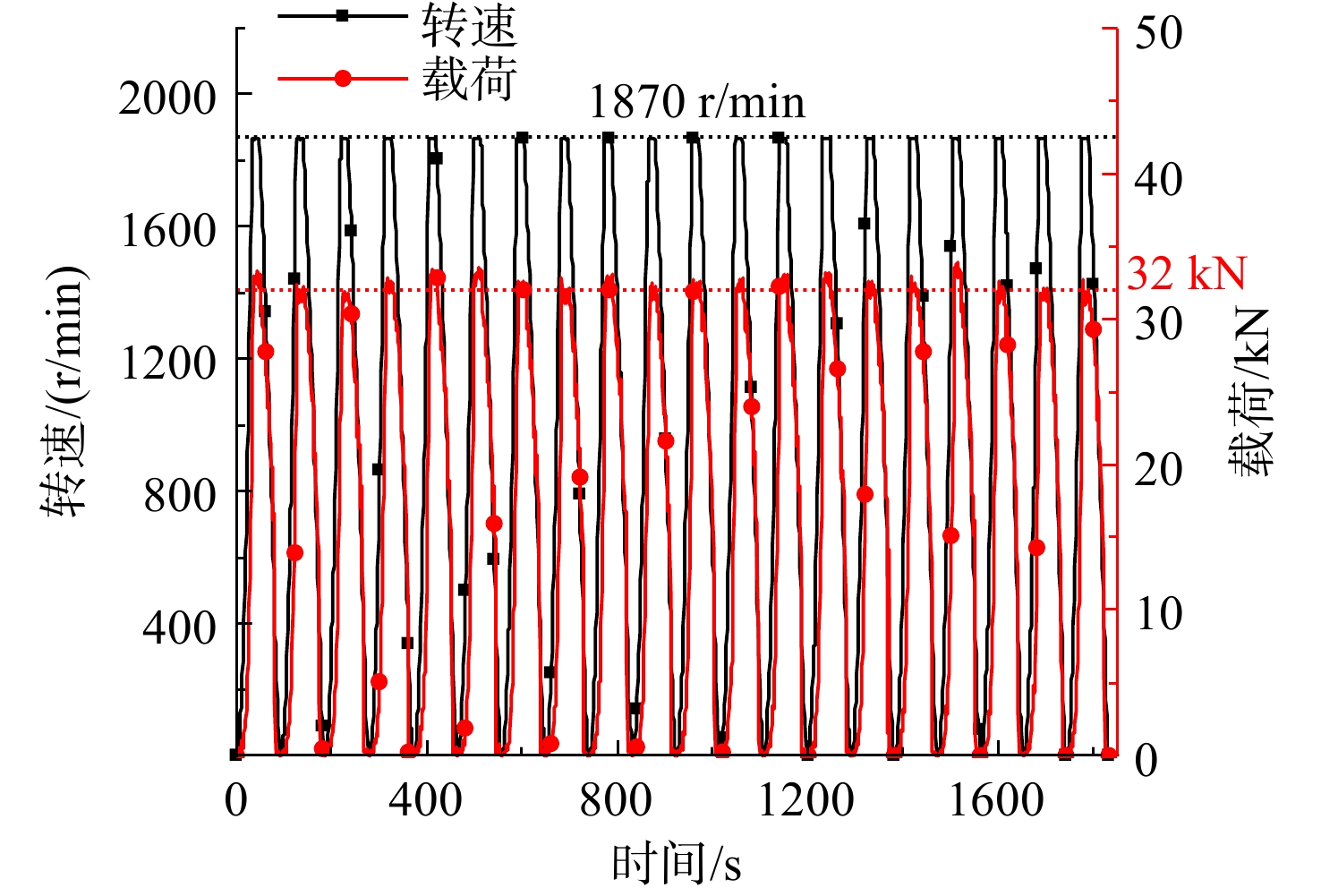

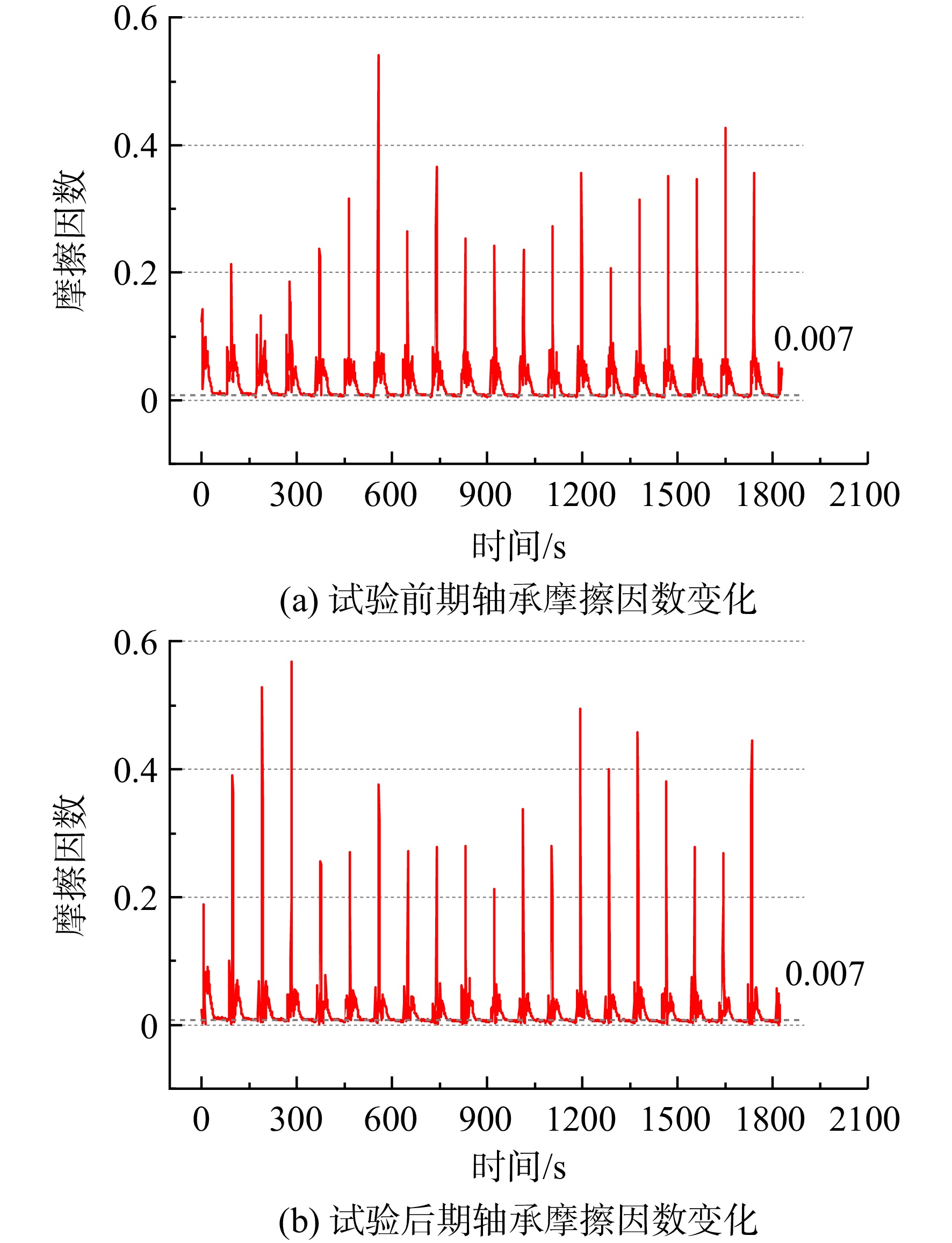

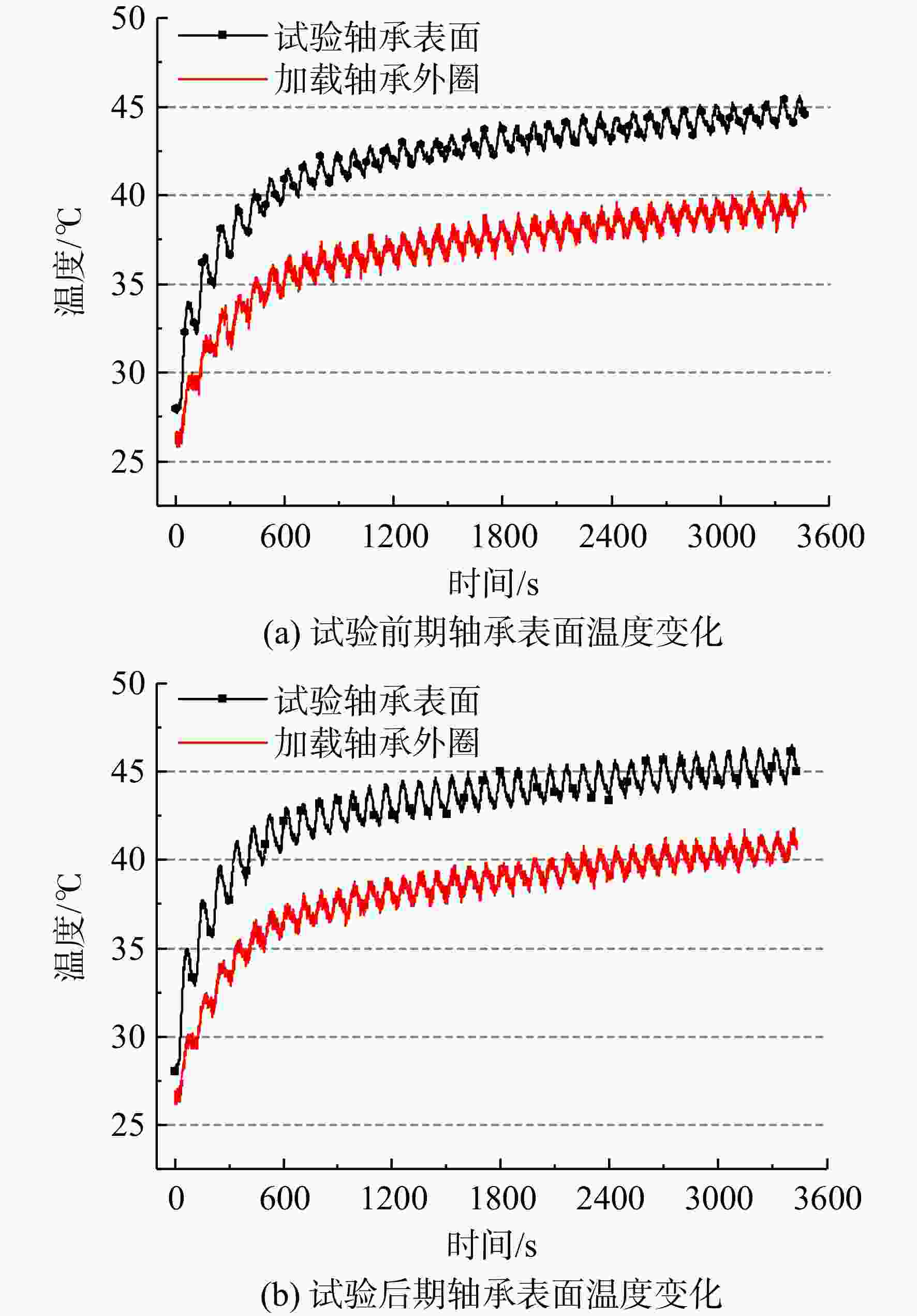

表 1 轴承基本参数
Table 1. Basic parameters of the bearing
参数 数值 长轴直径/mm 139.84 短轴直径/mm 139.80 预偏心距/mm 0.02 轴承宽度/mm 235 轴承接触宽度/mm 222 半径间隙/mm 0.13 瓦张角（有供油通道）/（°） 170
下载: 导出CSV
表 2 试验工况
Table 2. Test conditions
参数 数值 转速/（r/min） 1870 载荷/kN 32 压力角/（°） 0 油品 32# 供油压力/MPa 0.3 供油温度/℃ 35
下载: 导出CSV
表 3 32#油在35 ℃时的物性参数
Table 3. Physical properties of 32# oil at 35 ℃
参数 数值 动力黏度/（mPa·s） 34.863 密度/（kg/m³） 875 比定容热容/（kJ/（kg·℃）） 1 915 导热系数/（W/（m·℃）） 0.129
下载: 导出CSV
表 4 试验前后轴承尺寸变化
Table 4. Bearing size change before and after test
mm 参数 数值 试验前 试验后 长轴平均值 139.84 139.82 短轴平均值 139.80 139.79
下载: 导出CSV
-
[1] Riegler C, Bichlmaier C. The geared turbofan technology-Opportunities, challenges and readiness status[R]. Berlin: 1st CEAS European air and Space Conference, 2007. [2] 柳晓鹏, 徐涛. 大型行星齿轮减速器疲劳损坏原因分析及解决方案[J]. 内燃机与配件, 2022(2): 167-169. Liu Xiaopeng, Xu Tao. Analysis and solution of fatigue damage of large planetary gear reducer[J]. Internal Combustion Engine & Parts, 2022(2): 167-169. (in ChineseLiu Xiaopeng, Xu Tao. Analysis and solution of fatigue damage of large planetary gear reducer[J]. Internal Combustion Engine & Parts, 2022(2): 167-169. (in Chinese) [3] 马艳红, 曹冲, 郝勇, 等. 齿轮传动风扇发动机转子系统结构与动力学分析[J]. 航空动力学报, 2015, 30(11): 2753-2761. Ma Yanhong, Cao Chong, Hao Yong, et al. Structure and dynamics analysis of rotor system in geared turbofan engine[J]. Journal of Aerospace Power, 2015, 30(11): 2753-2761. (in ChineseMa Yanhong, Cao Chong, Hao Yong, et al. Structure and dynamics analysis of rotor system in geared turbofan engine[J]. Journal of Aerospace Power, 2015, 30(11): 2753-2761. (in Chinese) [4] Santos N D S A, Roso V R, Faria M T C. Review of engine journal bearing tribology in start-stop applications[J]. Engineering Failure Analysis, 2020, 108: 104344. [5] Leimann D. Plain bearing lubrication in wind turbine gearboxes[J]. Tribologie und Schmierungstechnik, 2017, 64(4): 21-28. [6] 梁晶晶, 孫楊慧, 譚智勇. GTF发动机关键设计分析[J]. 航空动力, 2022(2): 46-49. Liang Jingjing, Sun Yanghui, Tan Zhiyong. Key design analysis of GTF engine[J]. Aerospace Power, 2022(2): 46-49. (in ChineseLiang Jingjing, Sun Yanghui, Tan Zhiyong. Key design analysis of GTF engine[J]. Aerospace Power, 2022(2): 46-49. (in Chinese) [7] 栾志洁, 张明, 石启伟, 等. 大型推力轴承启动过程中的润滑性能研究[J]. 化学工程与装备, 2008(2): 29-32. Luan Zhijie, Zhang Ming, Shi Qiwei, et al. Study on lubrication performance of large thrust bearings during startup process[J]. Chemical Engineering & Equipment, 2008(2): 29-32. (in ChineseLuan Zhijie, Zhang Ming, Shi Qiwei, et al. Study on lubrication performance of large thrust bearings during startup process[J]. Chemical Engineering & Equipment, 2008(2): 29-32. (in Chinese) [8] Sander D E, Allmaier H, Priebsch H H, et al. Simulation of journal bearing friction in severe mixed lubrication: validation and effect of surface smoothing due to running-in[J]. Tribology International, 2016, 96: 173-183. [9] Harnoy A. Model-based investigation of friction during start-up of hydrodynamic journal bearings[J]. Journal of Tribology, 1995, 117(4): 667-673. [10] Chen Shouan, Xiang Guo, Fillon M, et al. On the tribo-dynamic behaviors during start-up of water lubricated bearing considering imperfect journal[J]. Tribology International, 2022, 174: 107685. [11] Cui Shuhui, Gu Le, Wang Liqin, et al. Numerical analysis on the dynamic contact behavior of hydrodynamic journal bearings during start-up[J]. Tribology International, 2018, 121: 260-268. [12] Monmousseau P, Fillon M. Transient thermoelastohydrodynamic analysis for safe operating conditions of a tilting-pad journal bearing during start-up[J]. Tribology International, 2000, 33(3/4): 225-231. [13] Xiang Guo, Han Yanfeng, He Tao, et al. Transient tribo-dynamic model for journal bearings during start-up considering 3D thermal characteristic[J]. Tribology International, 2020, 144: 106123. [14] Chun S M, Khonsari M M. Wear simulation for the journal bearings operating under aligned shaft and steady load during start-up and coast-down conditions[J]. Tribology International, 2016, 97: 440-466. [15] Liu Ruichao, Meng Xianghui, Cui Yi. Influence of numerous start-ups and stops on tribological performance evolution of engine main bearings[J]. International Journal of Engine Research, 2020, 21(8): 1362-1380. [16] Li Hulin, Yin Zhongwei, Wang Yanzhen. A study on the wear behavior of tin-based journal bearing under different working conditions[J]. Industrial Lubrication and Tribology, 2019, 72(3): 359-368. [17] 顾春兴, 戴黎. 考虑不同加速工况的滑动轴承的启停性能分析[J]. 润滑与密封, 2022, 47(12): 25-36. Gu Chunxing, Dai Li. Analysis of start-stop performance of journal bearing considering different acceleration conditions[J]. Lubrication Engineering, 2022, 47(12): 25-36. (in ChineseGu Chunxing, Dai Li. Analysis of start-stop performance of journal bearing considering different acceleration conditions[J]. Lubrication Engineering, 2022, 47(12): 25-36. (in Chinese) [18] 谢奕浓, 王优强, 宋晓萍, 等. 海水润滑UHMWPE轴承不同加减速形式润滑分析[J]. 润滑与密封, 2019, 44(9): 77-82. Xie Yinong, Wang Youqiang, Song Xiaoping, et al. Lubrication analysis of seawater lubricated UHMWPE bearings with different acceleration and deceleration modes[J]. Lubrication Engineering, 2019, 44(9): 77-82. (in ChineseXie Yinong, Wang Youqiang, Song Xiaoping, et al. Lubrication analysis of seawater lubricated UHMWPE bearings with different acceleration and deceleration modes[J]. Lubrication Engineering, 2019, 44(9): 77-82. (in Chinese) [19] 王洲, 吴淼杰, 陶友瑞. 风电齿轮箱滑动轴承润滑性能及可靠性分析[J]. 润滑与密封, 2024, 49(9): 171-177. Wang Zhou, Wu Miaojie, Tao Yourui. Analysis on lubrication performance and reliability of sliding bearing of wind power gearbox[J]. Lubrication Engineering, 2024, 49(9): 171-177. (in ChineseWang Zhou, Wu Miaojie, Tao Yourui. Analysis on lubrication performance and reliability of sliding bearing of wind power gearbox[J]. Lubrication Engineering, 2024, 49(9): 171-177. (in Chinese) [20] 赵帅可, 苏华. 低速重载风电齿轮箱径向滑动轴承多运行状态润滑性能分析[J]. 西北工业大学学报, 2023, 41(5): 978-986. Zhao Shuaike, Su Hua. Lubrication analysis of low-speed and heavy-load journal bearing in wind turbine gearbox under different operating conditions[J]. Journal of Northwestern Polytechnical University, 2023, 41(5): 978-986. (in ChineseZhao Shuaike, Su Hua. Lubrication analysis of low-speed and heavy-load journal bearing in wind turbine gearbox under different operating conditions[J]. Journal of Northwestern Polytechnical University, 2023, 41(5): 978-986. (in Chinese) [21] 崔淑慧, 闫文民, 刘奇, 等. 加速方式对径向滑动轴承启停过程的影响[J]. 轴承, 2024(2): 9-17. Cui Shuhui, Yan Wenmin, Liu Qi, et al. Influence of acceleration modes on start-stop process of plain journal bearings[J]. Bearing, 2024(2): 9-17. (in ChineseCui Shuhui, Yan Wenmin, Liu Qi, et al. Influence of acceleration modes on start-stop process of plain journal bearings[J]. Bearing, 2024(2): 9-17. (in Chinese) [22] Durak E, Adatepe H, Biyiklioğlu A. Experimental study of the effect of additive on the tribological properties journal bearing under running-in and start-up or shut-down stages[J]. Industrial Lubrication and Tribology, 2008, 60(3): 138-146. [23] Bouyer J, Fillon M. Experimental measurement of the friction torque on hydrodynamic plain journal bearings during start-up[J]. Tribology International, 2011, 44(7/8): 772-781. [24] Cristea A F, Bouyer J, Fillon M, et al. Transient pressure and temperature field measurements in a lightly loaded circumferential groove journal bearing from startup to steady-state thermal stabilization[J]. Tribology Transactions, 2017, 60(6): 988-1010. [25] 王琳, 滕金磊, 李一, 等. 模拟风电摩滑擦动磨轴损承的启试停验和设多计润滑状态[J/OL]. 实验室研究与探索, 2024-01-17. http://kns.cnki.net/kcms/detail/31.1707.T.20240116.1045.010.html. Wang Lin, Teng Jinlei, Li Yi, et al. Experiment design of frequent start-stop and multi-lubrication states of simulation sliding bearing used in wind turbine[J/OL]. Research and Exploration in Laboratory, 2024-01-17. http://kns.cnki.net/kcms/detail/31.1707.T.20240116.1045.010.html.Wang Lin, Teng Jinlei, Li Yi, et al. Experiment design of frequent start-stop and multi-lubrication states of simulation sliding bearing used in wind turbine[J/OL]. Research and Exploration in Laboratory, 2024-01-17. http://kns.cnki.net/kcms/detail/31.1707.T.20240116.1045.010.html. [26] 王永亮, 刘占生, 钱大帅, 等. 有限长椭圆瓦轴承油膜力近似解析模型[J]. 航空动力学报, 2012, 27(2): 265-274. Wang Yongliang, Liu Zhansheng, Qian Dashuai, et al. Approximate analytical model of oil-film force for finite length elliptical journal bearing[J]. Journal of Aerospace Power, 2012, 27(2): 265-274. (in ChineseWang Yongliang, Liu Zhansheng, Qian Dashuai, et al. Approximate analytical model of oil-film force for finite length elliptical journal bearing[J]. Journal of Aerospace Power, 2012, 27(2): 265-274. (in Chinese) [27] 张直明, 张言羊, 谢友柏, 等. 滑动轴承的流体动力润滑理论[M]. 北京: 高等教育出版社, 1986. [28] 杨沛然. 流体润滑数值分析[M]. 北京: 国防工业出版社, 1998. [29] Xiang Guo, Han Yanfeng, Wang Jiaxu, et al. Coupling transient mixed lubrication and wear for journal bearing modeling[J]. Tribology International, 2019, 138: 1-15. -
